1 Introduction

☞ This document applies to the following products:

o LEON-G100 (as IVS) o SARA-G340 / SARA-G350 (as IVS) o SARA-U201 (as IVS and PSAP) o SARA-U270 / LISA-U2xx-xxS (as IVS and PSAP)

☞ TOBY-L4 series specific eCall application note is available on request. ☞ The u-blox eCall feature is upgraded occasionally with alignments to the latest releases of

eCall-related standards, resulting in progressive u-blox eCall feature releases:

 eCall Release 5 (2018)

o TOBY-L4106

 eCall Release 4 (2015)

o LISA-U200-03S, LISA-U201-03S,LISA-U200-83S, LISA-U201-83S o SARA-G340-02S, SARA-G350-02S, SARA-G350-02A o SARA-U201-03B, SARA-U201-03A, SARA-U270-03S, SARA-U270-53S

 eCall Release 3 (Q1 2014), supported by:

o LEON-G100-07S-01 o LEON-G100-08S-01 o SARA-U270-00S / SARA-U270-00X

 eCall Release 2 (Q1 2013), supported by

o any other previous eCall-featured products

Functionalities highlighted with eCall Release 4 tag are available in eCall Release 4 only.

Functionalities highlighted with eCall Release 3 tag are available in eCall Release 3 only.

Functionalities highlighted with eCall Release 2 tag are available in both releases but not recommended for use in eCall Release 3 products.

This application note explains the eCall / ERA GLONASS solution available in the u-blox cellular modules. The presented eCall / ERA GLONASS solution is suitable for the implementation of In-Vehicle Systems (IVS) conforming to the European eCall Standard.

Additionally, this document describes the testing and simulation environment for the eCall / ERA GLONASS In-band Modem (eIM) service, which is available in u-blox cellular modules. The simulation environment enables u-blox customers to easily test and develop their eCall / ERA GLONASS products. The environment is based on a u-blox developed Public Safety Answering Point (PSAP) simulator integrated in m-center.

The following symbols are used to highlight important information within the document:

☞ An index finger points out key information pertaining to integration and performance.

⚠ A warning symbol indicates actions that could negatively impact or damage the module.

UBX-13001924 - R10 Introduction Page 6 of 62

eCall / ERA GLONASS - Application note

1.1 About eCall / ERA GLONASS

The European eCall (emergency Call) and Russian ERA GLONASS solutions combine mobile communications and satellite positioning to provide rapid assistance to motorists in the event of a collision.

In particular, eCall standardizes the transfer of a set of 140 bytes of data, called Minimum Set of Data (MSD) during an emergency voice call to a Public Safety Answering Point (PSAP). According to 3GPP specifications, the MSD is transmitted by the eCall In-band Modem (eIM) of the In-Vehicle System (IVS) immediately after the call set-up and is received by the eIM of the PSAP.

After the IVS eIM activation, the eIM receiver starts monitoring messages from the PSAP eIM. Once the link with PSAP eIM is established, the IVS eIM enters data mode: the IVS microphone and loudspeaker are muted and the eIM starts the MSD transfer. After the data transfer completion, either successfully or with an error, the IVS changes from data mode to voice mode: the microphone and loudspeaker are un-muted and the voice call between IVS and PSAP can continue normally. The IVS eIM enters idle mode and monitors new incoming messages from the PSAP eIM.

1.2 eCall definitions

 IVS – In-Vehicle System, activates the emergency call  PSAP – Public Safety Answering Point, answers the emergency call  eIM – eCall In-band Modem, the technology for exchanging data over the voice channel  eUICC / eSIM – embedded SIM  MSD – Minimum Set of Data, standard data set (140 bytes) that IVS must transmit to PSAP. The

location information (GPS data) is the most relevant part of MSD

 MSD transfer – The act of transmitting a single MSD through eIM  MSD update – The act of providing new MSD (e.g. with updated GPS position) to the IVS In-band

Modem

 PULL mode – The IVS MSD transfer mode when the PSAP requests the transfer  PUSH mode – The IVS MSD transfer mode when IVS requests PSAP to perform a PULL of the MSD

(in any case, the MSD transfer is ALWAYS controlled by PSAP)

 Voice Mode – The emergency call phase in which the vehicle occupant and PSAP operator have a

voice connection, i.e. they can talk and hear each other like during a telephone call

 Data Mode – The emergency call phase in which MSD transfer occurs. Vehicle occupant and PSAP

operator CANNOT hear each other

 LL-ACK – In-band Low-Level Acknowledge from PSAP to IVS about MSD reception  HL-ACK – In-band High-Level Acknowledge from PSAP to IVS about MSD reception, with

additional information on call handling (e.g. PSAP instructs IVS to drop the call)

 NAD – Network Access Device, part of IVS system that handles the GSM/UMTS/LTE network

connection

 eCall flag – Information about the call type initiated by IVS. It is transmitted by NAD to PSAP

during GSM signaling phase:

o Normal E112 call (eIM not available/enabled on IVS) o Manually triggered eCall (eIM enabled, call triggered by vehicle occupant) o Automatically triggered eCall (eIM enabled, call triggered by e.g. airbag sensor)

 eCall-only configuration – IVS configuration for which the NAD performs the network registration

only when commencing an emergency call. This configuration is

o read from USIM or o optionally provided to the NAD through AT interface (AT+UECALLSTAT)

UBX-13001924 - R10 Introduction Page 7 of 62

eCall / ERA GLONASS - Application note

IVS

u-blox cellular

module (NAD)

u-blox GNSS

device

Application

Processor (AP)

/ m-center

In-Band

Modem

interface

AUDIO

interface

UBX/NMEA

interface

SENSORS interface

(Optional AT interface)

2 IVS system and eCall conformity

The entire In-Vehicle System (IVS) is subject to eSafety-eCall recommendations. Figure 1 shows the three main blocks of IVS.

1. the IVS Application Processor (AP, main controller)

2. the cellular module

3. the GNSS device

The IVS CPU controls the cellular module (i.e. the Network Access Device and the eCall In-band Modem) through AT commands. Optionally, the u-blox GNSS device can also be controlled through the AT interface. The u-blox cellular modules provide the network access (NAD functionalities), eCall In-band Modem (eIM), and optionally u-blox GNSS control functionalities.

Figure 1: The IVS system

The u-blox eCall solution complies with the following recommendations:

1. NAD (Network Access Device) services and USIM eCall extensions according to ETSI/3GPP

Release 10: 3GPP TS 51.010-1 [13], 3GPP TS 24.008 [14], 3GPP TS 31.102 [15] and ETSI TS

127.007 [16]

2. In-band Modem solution according to 3GPP Release 10: 3GPP TS 26.267 [2], 3GPP TS 26.268 [3]

and 3GPP TS 26.269 [4]

3. eCall application protocol according to EN 16062:2011 [8] or to EN 16062:2015 [9] (eCall Release 4)

☞ The MSD formatting is determined by the Application Processor. The MSD formatting shall follow

for the applicable parts

BS EN 15722:2011 [5] or BS EN 15722:2013 [6] specification.

UBX-13001924 - R10 IVS system and eCall conformity Page 8 of 62

eCall / ERA GLONASS - Application note

2.1 eCall AT interface summary

The IVS AP controls the eCall feature, implemented on the cellular modules, through the following set of dedicated AT commands:

 AT+UECALLSTAT: used to check the eCall USIM configuration / force a configuration  AT+UECALLTYPE: used to configure the eCall flag, test call, or reconfiguration call (eCall

Release 2)

 AT+CECALL: used to trigger a manually initiated eCall, an automatically initiated eCall, a test or

reconfiguration call (eCall Release 3)

 AT+UECALLDATA: used to

o activate the eIM, passing the MSD data o update the MSD during the emergency call o enable the eIM feature, reserving In-band Modem audio resources for eCall o enable unsolicited indications

 AT+UECALLVOICE: used to

o configure the internal microphone / speaker switching handling o control and monitor microphone and speaker switching o configure HLAP timers (eCall Release 4)

 +UUECALLDATA: eIM status indications  +UUECALLVOICE: microphone/loudspeaker status indications  AT+UDCONF=90: used for custom eCall configuration (eCall Release 3)

☞ The recently standardized (optional) +CECALL [ETSI TS 127 007 [16]] AT command is

implemented starting from eCall Release 3. The required functionalities in previous releases are covered by AT+UECALLTYPE.

☞ See u-blox AT commands manual [1] for the AT command syntax.

UBX-13001924 - R10 IVS system and eCall conformity Page 9 of 62

eCall / ERA GLONASS - Application note

Timing Description

Requirement

Value

Handled by

T1 Manually initiated eCall (MIeC) false triggering cancellation period

Vehicle occupants may cancel a false triggering of a manually initiated eCall before call-setup.

Specified by manufacturer

IVS AP T2 IVS Call Clear-down Fallback Timer (CCFT)

If the IVS NAD does not receive a call clear-down indication from the mobile network, or an application layer call clear-down message from the PSAP and the call clear-down timer has reached 60 min, the call shall be cleared down.

60 min

IVS AP T3 IVS INITIATION signal duration

The IVS INITIATION signal shall not persist for longer than 2 s from when the UE receives notification that the call is first answered.

2 s

NAD (eIM)

T4 PSAP wait for INITIATION signal period

If a valid INITIATION message is not received by the PSAP modem within 2 s from when the NAD knows that the call has been answered then the call shall be routed to a PSAP operator.

2 s

PSAP

T5 IVS wait for SEND MSD period

If the IVS eCall modem, whilst sending the INITIATION message, does not receive or recognize a valid "SEND MSD" message from the PSAP eCall modem within 2 s, from the time that the IVS receives an indication that the PSAP has answered the call, it shall reconnect the IVS loudspeaker and microphone in the vehicle.

2 s

NAD (eIM) T6 IVS wait for AL-ACK period

If an AL-ACK is not received within 5 s from the receipt of the link layer ACK, the loudspeaker and microphone in the vehicle shall be reconnected to the line in order to enable the call to revert to an E112 voice call.

5 s

IVS AP T7 IVS MSD maximum transmission time

If the IVS does not receive a link layer ACK (LL_ACK) within 20 s from the start of MSD transmission, it shall cease transmission and the IVS audio system shall be re-connected.

20 s

IVS AP

T8 PSAP MSD maximum reception time

If the PSAP eCall modem does not send a link layer ACK (LL-ACK) within 20s after having sent the "SEND MSD" message to the IVSeCall modem, it shall route the voice call to the PSAP operator.

20 s

PSAP

T9 IVS NAD (eCall-only configuration) minimum network registration period

Following call clear-down by the PSAP the IVS NAD shall remain registered on the serving network and available to receive calls from the PSAP and rescue workers for a minimum period of one hour as defined in EN 16072.

1 hour

IVS AP

T10 IVS NAD (eCall-only configuration) network Deregistration Fallback Timer (DFT)

An IVS NAD configured to make eCalls and test calls only shall, following call clear-down and maximum expiration period of the De-registration Fallback Timer (DFT) 12 h period, de-register from the serving network.

12 hours

NAD

2.2 Table of timings (eCall Release 2 and 3)

Table 1 illustrates the timing requirements to be handled according to BS EN 16062:2011 [8],

emphasizing the split of responsibilities between the IVS application processor (AP) and the u-blox cellular module.

Table 1: eCall table of timings according to EN 16062:2011 [8]

UBX-13001924 - R10 IVS system and eCall conformity Page 10 of 62

eCall / ERA GLONASS - Application note

3 eCall control through AT interface

The eCall service is made up of two parts that are functionally independent:

 eCall configuration and call control, represented by:

o AT+UECALLSTAT o AT+UECALLTYPE (eCall Release 2) o AT+CECALL (eCall Release 3) o AT+UDCONF=90 (eCall Release 3)

 eIM (In-band Modem) configuration and control, represented by:

o AT+UECALLDATA o AT+UECALLVOICE (extended in eCall Release 4)

The eCall configuration is partially read from the eCall-enabled USIM (e.g. eCall-only mode) and partially done through the AT commands (e.g. eCall flag). Any configuration applied through AT commands is volatile, i.e. lost at next power cycle.

The eCall configuration is read from the USIM at boot time only and stored in local cache (eCall configuration cache). Following boot, the NAD is configured and functional according to the information in cache.

The USIM/cache content includes:

 eCall mode configuration (eCall-only, eCall without registration restrictions modes)  Test and reconfiguration numbers

The cache content can be changed (“forced”) during run-time via the AT+UECALLSTAT or AT+UDCONF=90 commands, with some limitations and following specific procedures described later in this document.

The +UECALLSTAT and +UDCONF=90 commands, by writing to the cache, allow eCalls with invalid eCall USIMs. In general, the usage of these commands with invalid eCall USIMs shall be limited to testing purposes. The configuration achieved through those commands is deliberately volatile to prevent the creation of fake eCall USIMs.

Due to the caching mechanism, if the USIM card is removed or becomes non-functional, e.g. because of the crash impact, the eCall service is carried out according to the cached configuration.

The eIM configuration is fully volatile: the feature must be enabled and eIM configured at each power cycle.

UBX-13001924 - R10 eCall control through AT interface Page 11 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UECALLSTAT?

+CME ERROR: SIM not inserted

USIM was not present at boot time. The eCall is not functional.

3.1 AT+UECALLSTAT

Reports the eCall configuration read from USIM, forces the eCall mode, or restores the USIM values.

3.1.1 Read configuration: AT+UECALLSTAT?

After the boot and the USIM reading, the USIM configuration is cached and one of the following states can be returned:

 0: no valid eCall USIM is present. It can be either a normal USIM or an eCall USIM that has been

disabled e.g. by the operator

 1: a valid eCall USIM is present, configured as eCall-only with registration restrictions  2: a valid eCall USIM is present, configured to provision eCalls without registration restrictions

If the value is “0”:

 Issuing AT+COPS=0, the NAD performs normal registration procedures  In eCall Release 2: during emergency call set-up the eCall flag, although configured through

+UECALLTYPE, will not be signalled to the network

 In eCall Release 3: any attempt to initiate an eCall through AT+CECALL or to setup the eCall flag

though AT+UECALLTYPE returns with error

 Only speech only emergency calls are possible (ATD112;)

If the value is “1”:

 Issuing AT+COPS=0, the NAD performs the restricted registration (performs PLMN selection)  The MS class is set to CS only (i.e. the GPRS service is not available)  At eCall initiation, the CS registration procedure is performed, then the eCall is started (including

T3242 or T3243 timers), the eCall flag signalled to the network, and the emergency call set up

If the value is “2”:

 Issuing AT+COPS=0, the NAD performs normal registration procedures  At the eCall initiation, the eCall flag signalled to the network and the emergency call set up

The values are always read from the cache.

In the rest of this document, the eCall configuration will be referred as eCall mode “0”, “1” or “2”.

3.1.1.1 USIM not inserted/ not functional

If the USIM was not inserted or not functional at boot time, the command returns an error result code:

This also means that eCalls will not be possible (speech only emergency calls will be still possible).

If the USIM card stops functioning sometime after the boot (e.g. at the car crash time), the read command will return the cached value until the USIM status has been refreshed and notified to the system (USIM status is refreshed after several seconds). Nevertheless, the eCall will still function according to the cached configuration (e.g. “1” or “2”) and the eCall flag will be transmitted to the network.

UBX-13001924 - R10 eCall control through AT interface Page 12 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

eCall USIM in eCall-only mode USIM removed/not functional

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

USIM status not refreshed yet time elapses (~10 s)

AT+UECALLSTAT?

+CME ERROR: SIM not inserted

USIM not present

AT+CECALL=2

eCall is still functional using cached values

Command

Response

Description

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

eCall USIM in eCall-only mode USIM removed/not functional

AT+CRSM=242

+CRSM: 111,0 OK

Check the USIM status (which triggers a refresh)

AT+UECALLSTAT?

+CME ERROR: SIM not inserted

USIM not present

☞ The USIM status refresh can be forced through any command accessing the SIM card, e.g.

+CRSM:

3.1.2 Force the configuration in cache: AT+UECALLSTAT=0/1/2

The set command can be used to force the module with an invalid eCall USIM (eCall mode “0”) to eCall only (eCall mode “1”) or eCall without registration (eCall mode “2”) configuration, for example for

testing purposes. The eCall mode is set in cache and lost at next boot.

For reconfigurations to “1” (eCall only mode), the NAD must be unregistered. If the NAD is registered,

then the deregistration must be done first (see the example in section 4.3.3).

☞ The command should not be used with eCall-enabled USIMs (both commercial or test USIMs). The

behavior is unpredictable.

If the USIM is removed, the set command is still functional. See section 4.3 for NAD reconfiguration examples.

3.1.3 Restore configuration in cache: AT+UECALLSTAT=3

This command restores the original USIM configuration to the cache. The command returns with an error result code in the reconfiguration cases described in section 3.1.2 when the NAD is in registered state (AT+COPS=0).

UBX-13001924 - R10 eCall control through AT interface Page 13 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UECALLSTAT?

+CME ERROR: SIM not inserted

USIM was not present at boot time.

AT+UECALLTYPE=1

+CME ERROR: operation not allowed

USIM was not present at boot time. eCall is not functional

Command

Response

Description

AT+UECALLSTAT?

+UECALLSTAT: 0 OK

Not valid eCall USIM present

AT+UECALLTYPE=1

+CME ERROR: operation not allowed

eCall is not enabled

Command

Response

Description

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

eCall USIM in eCall-only mode USIM removed/not functional

AT+UECALLSTAT?

+CME ERROR: SIM not inserted

USIM not present, but eCall is functional from cached values

AT+UECALLTYPE=1

eCall flag can be set

3.2 AT+UECALLTYPE

This command is used in the products with eCall Release 2 to select the eCall type (e.g. configure the

“eCall flag” to set the emergency call service category) for next ATD112 or to redirect the ATD112 call

to test or reconfiguration numbers.

The set options for the eCall type are:

 0: speech only TS12 (factory-programmed value)  1: MIeC: Emergency Service Category Value (octet 3) Bit 6=1  2 :AIeC: Emergency Service Category Value (octet 3) Bit 7=1  3: Test eCall: use eCall Test number  4: Reconfiguration eCall: use eCall Reconfiguration number

In eCall Release 2, after the ATD112 call-setup and successive call completion, the value is not cleared.

In eCall Release 3, after the ATD112 call completion, the value is cleared to “0”. In that way AT+UECALLTYPE followed by ATD112 is functionally equivalent to AT+CECALL.

If “0” (speech only value) is set, at call set-up the eCall flag will not be transmitted to the network and thus the call will possibly not be routed to an eCall-capable PSAP.

Values “1” and “2” are used in normal eCall operation mode to provide to the network the information

whether the emergency call has been initiated manually (MIeC) by the vehicle occupant or automatically (AIeC), triggered by a crash sensor (e.g. Airbag sensor).

With “3” and “4” eCall type options, when issuing ATD112, test or reconfiguration numbers will be

dialed instead of an emergency number. The numbers, read at boot time from the USIM, are taken from the eCall configuration cache.

3.2.1 USIM not inserted / not valid eCall USIM

If the USIM was not present at boot time, or the USIM is not a valid eCall USIM, the command answers with an error result code:

If an eCall-enabled USIM card becomes non-functional at a certain time after the boot (e.g. at the car crash time), setting the eCall flag is still possible:

UBX-13001924 - R10 eCall control through AT interface Page 14 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UDCONF=90,1

+UDCONF: 90,1,129,"02338456" OK

Test number is the national coded number 02338456

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

eCall USIM in eCall-only mode

AT+UECALLTYPE=3

Test call configured

ATD112;

Test eCall initiated to 02338456 national number

Command

Response

Description

AT+UDCONF=90,1

+UDCONF: 90,1,129,"" OK

Test number not configured (e.g. not eCall USIM present)

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

eCall USIM in eCall-only mode (previously forced)

AT+UECALLTYPE=3

+CME ERROR: ECALL invalid dial number

Test number is invalid. Error code 1806 if +CMEE=1

3.2.2 Test and reconfiguration eCall types

Test and reconfiguration eCall types are non-emergency calls to test and terminal reconfiguration services.

Tests and reconfiguration numbers are read from a valid, eCall-enabled USIM at the boot time and cached. When configuring the eCall type to be a test or reconfiguration call, the call is redirected to that number and the eCall flag is not sent to the network. Since eCall Release 3, the test number can be read for information through AT+UDCONF=90,1 command (see u-blox AT command manual [1]):

If the test or reconfiguration numbers read from the USIM are wrongly encoded, or not properly configured when an invalid eCall USIM is used, the set command returns with an error result code:

☞ The AT+UECALLTYPE command is supported in products with eCall Release 3 for backward

compatibility, but its use is not recommended: use AT+CECALL instead.

UBX-13001924 - R10 eCall control through AT interface Page 15 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

eCall USIM in eCall-only mode

After car crash, USIM not functional

AT+UECALLSTAT?

+CME ERROR: SIM not inserted

USIM not present report...

(manual eCall is triggered)

AT+CECALL=2

...but eCall is functional

Command

Response

Description

AT+UDCONF=90,1

+UDCONF: 90,1,129,"" OK

Test number not configured (e.g. not eCall USIM present)

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

eCall USIM in eCall-only mode (previously forced)

AT+CECALL=0

+CME ERROR: ECALL invalid dial number

Test number is invalid. Error code 1806 if +CMEE=1

3.3 AT+CECALL

According to ETSI TS 127 007 [16], the set command triggers an eCall to the network of a specific type.

The set options for the eCall type are:

 0 (Test eCall): use eCall test number  1 (Reconfiguration eCall): use eCall reconfiguration number  2 (MIeC): Emergency Service Category Value (octet 3) Bit 6=1  3: (AIeC): Emergency Service Category Value (octet 3) Bit 7=1

The command is supported only when an eCall-enabled USIM is present, otherwise it returns with an error result code. The eCall configuration caching mechanism allows performing eCalls if a USIM becomes non-functional, for example because of a crash:

Without a functional USIM, the NAD will not be able to register to the network and thus will be unreachable by the PSAP for call back.

Test and reconfiguration eCall types are non-emergency calls to test and terminal reconfiguration services.

Test and reconfiguration numbers must be properly encoded in the eCall USIM, or configured through +UDCONF=90 for not eCall-enabled USIMs (see section 3.2.2 for +UDCONF=90 examples), otherwise the command returns with an error result code:

UBX-13001924 - R10 eCall control through AT interface Page 16 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UDCONF=90,1,129,"0233845 6"

Set the national test number 02338456

AT+CECALL=0

Test eCall to 0233456 initiated, T3243 timer started

3.4 AT+UDCONF=90

The AT+UDCONF=90 command is dedicated to the configuration or reconfiguration of some eCall parameters. It is available in eCall Release 3 and implements the following services.

3.4.1 eCall test number: AT+UDCONF=90,1[,<ToN>,<number>]

With this command it is possible to set or get the eCall test number, i.e. the number of the eCall test service. Set and get operations are performed in cache. If an eCall-enabled USIM is present, the cache is filled with values retrieved at boot time. Otherwise, the cache is empty. Afterwards, it is always possible to modify the parameters in cache with the set method:

See also examples in section 3.2 and 3.3 for the get method.

3.4.2 eCall reconfiguration number:

AT+UDCONF=90,2[,<ToN>,<number>]

Similar to the previous command, it allows setting or getting the eCall reconfiguration number i.e. the number of the reconfiguration service.

3.4.3 eCall T3242 duration: AT+UDCONF=90,11,<timer_duration>

This command overwrites/gets the factory-programmed T3242 timer duration. T3242 is adopted by NAD in eCall-only mode to control the switch back to eCall inactivity state after the emergency call of AIeC or MIeC type, according to ETSI TS 124 008 [14].

⚠ This command affects the timing of the NAD mobility management procedures when performing

eCalls (not test or reconfiguration eCalls).

3.4.4 eCall T3243 duration: AT+UDCONF=90,12,<timer_duration>

This command overwrites/gets the factory-programmed T3243 timer duration. Adopted by NAD in eCall-only mode to control the switch back to eCall inactivity state after a test or terminal reconfiguration call has been performed, according to ETSI TS 124 008 [14].

The reconfigured parameter values are retained till next power cycle.

UBX-13001924 - R10 eCall control through AT interface Page 17 of 62

eCall / ERA GLONASS - Application note

3.5 AT+UECALLDATA

Configures and activates the eIM for a single emergency call.

AT+UECALLDATA=<op>,[…..], where <op> can assume these values:

 0: abort; it terminates the In-band Modem  1: arm/activate the In-band Modem  2: update the MSD  3: enable/disable the URCs  4: enable/disable the eCall feature

3.5.1 Activation: AT+UECALLDATA=1,<push/pull mode>,<MSD data>

This command initiates the eIM before each eCall session. The eIM can be armed before the emergency number is called. The provided MSD is immediately prepared, while the In-band signaling and the data transmission will initiate as soon as the emergency call is set up.

It is up to the application processor (IVS AP) to format the MSD (i.e. “c5e165….”) according to specifications BS EN 15722 [5], [6], [7]. The MSD is provided in ASCII hexadecimal format (a consistent MSD, e.g. “c5e165….” is a string of 140x2 characters).

The eIM does not perform any consistency check of the provided MSD. Thus, any hexadecimal string of length up to 140x2 characters is allowed. Zero-padding is performed on need e.g. AT+UECALLDATA=1,1,"ABBA" transmits 140 bytes: 0xAB 0xBA 0x00 0x00 ….. 0x00).

3.5.2 In-band Modem status events: +UUECALLDATA: <urc_id>

The eIM pair activity is reported through dedicated URCs. Two level of details can be configured through AT+UECALLDATA=3,<urc_state>.

At first level, a single URC provides the transmission report.

If the call is still on, the +UUECALDATA URC may report:

 0: MSD is received by the PSAP and the high-level acknowledge is received from the PSAP. The

HL-ACK bits are returned. According to BS EN 16062 [8] the bits are used to instruct the IVS to drop the call or not

 1: the link with the PSAP is lost during the MSD transmission. The eIM transmitter enter idle state

and the receiver in the listening state, waiting for PSAP synchronization signals

 5, 6, 8: eIM internal errors. The eIM cannot work properly

After any of those indications, the eIM is terminated or it releases the control of the voice channel so that the call may continue in voice mode.

If the call is dropped, the eIM is terminated, which is acknowledged by +UUECALDATA: 7.

At second level, the full eIM pair activity is reported. The events are aligned to the 3GPP TS 26.268 reference software [3].

The most relevant events are:

 11: eIM is sending the 2 s INITIATION signal. This signal is immediately generated after the call set-

up if the MSD has been transmitted in PUSH mode

 12: PULL request from PSAP. The IVS eIM decoded the “SEND MSD” signal and immediately starts

the MSD transmission

 16: Link layer ACK received. The MSD is received successfully by the PSAP, thus IVS eIM stops the

MSD transmission

 17: Higher-layer ACK received (HL-ACK). This event is concurrent with event “0”

UBX-13001924 - R10 eCall control through AT interface Page 18 of 62

eCall / ERA GLONASS - Application note

Description

Command

Remarks

Feature enable

AT+UECALLDATA=4,1

The In-band Modem engine is reserved to eCall (e.g. DTMF cannot be enabled).

eIM activation

AT+UECALLDATA=1,<push/pull mode>,<data>

Send MSD in PUSH mode

AT+UECALLDATA=1,1,"c5e165…"

The IVS prepares the “c5e165…” MSD and sends a 2 s signal to PSAP, to request a PULL from it.

Send MSD in PULL mode

AT+UECALLDATA=1,0,"c5e165…"

The IVS prepares the “c5e165…” MSD and waits for

the PSAP to PULL the MSD.

MSD update

AT+UECALLDATA=2,<update mode>,<data>

Request the MSD update

AT+UECALLDATA=2,0,"BEBA"

The IVS updates the MSD buffer with “BEBA” as soon

as the eIM transmitter is in idle. The PSAP gets the new MSD at next PULL request.

Force the immediate MSD update

AT+UECALLDATA=2,1,"BEBA"

The IVS resets the eIM transmitter and immediately

updates the MSD buffer with “BEBA”. If the eIM transmitter was not in idle (PSAP “pulling” an MSD),

the link with PSAP is lost and possibly restored (not conformant behavior).

This command, combined with a proper voice resource control allows implementation of a synchronous MSD update (at PULL request).

3.5.3 MSD update: AT+UECALLDATA=2,<update mode>,<MSD data>

This command serves to update the MSD during the emergency call.

In the normal update mode (<update_mode>=1), the MSD update is immediately done only if the eIM transmitter is idling. If the transmission of the previously provided MSD is still in progress, the update is deferred to allow the completion of the transmission.

In the forced update mode, the IVS eIM transmitter is updated with the new MSD regardless of its state, which may cause a link break with the PSAP eIM if an MSD transmission is in progress. Note in fact that (according to 3GPP TS 26.267 [2]) the MSD transmission is initiated by the link layer upon the reception of a PULL request from the PSAP (see for instance Figure 3 in the section 4.1.2). That means the application processor, implementing the higher level protocol, cannot in principle synchronously update the MSD upon reception of PULL event “12”.

The forced update, combined with a proper control of the voice path resources, can be used to perform synchronized MSD updates with PULL requests without causing a link break. The procedure is described in section 4.2.2.

The update procedure result is returned through the URCs:

 +UUECALDATA: 20 – The MSD update request is received. The MSD update deferred since the IVS

is currently transmitting (normal update mode only)

 +UUECALDATA: 21 – The MSD update is done. The IVS transmitter is ready to send the new MSD

at next PULL request

 +UUECALDATA: 22 – MSD update request cannot be processed: MSD update pending. This error

occurs when an update request is issued and the notification of the previous update (20 or 21) has not yet been received

3.5.4 Examples

UBX-13001924 - R10 eCall control through AT interface Page 19 of 62

eCall / ERA GLONASS - Application note

Description

Command

Remarks

Configure Voice control

AT+UECALLVOICE=1,<res_id>,<on_off_ctrl>

<res_id>=0: microphone; <res_id>=1: loudspeaker

Enable the internal control on microphone muting

AT+UECALLVOICE=1,0,1

The eIM handles the switch between microphone (voice mode) and eIM transmitter (data mode) connection to the transmission path. The microphone is muted to either send the PUSH request or the MSD data through the eIM transmitter (data mode). It is un-muted when the transmitter task is accomplished or if the link with PSAP is lost.

Enable the internal control on loudspeaker muting

AT+UECALLVOICE=1,1,1

The loudspeaker is muted as soon as the eIM receiver (PSAP transmitting) detects the In-band Modem signals, and un-muted as soon as the link with the PSAP is lost.

Disable the internal control on microphone muting

AT+UECALLVOICE=1,0,0

The host must handle the switch between microphone (voice mode) and eIM transmitter (data mode) connections to the transmission path with AT+UECALLVOICE=2,0,<on_off> command. Since the microphone switches affect the eIM end-to-end communication, the implementation of full microphone control on host is NOT recommended, due to unpredictable delays in command execution.

Disable the internal control on loudspeaker muting

AT+UECALLVOICE=1,1,0

AT+UECALLVOICE=2,1,<on_off> implements the loudspeaker muting on the host.

Perform Voice Control

AT+UECALLVOICE=2,<res_id>,<res_state>

<res_id>=0: microphone; <res_id>=1: loudspeaker

Mute the microphone

AT+UECALLVOICE=2,0,0

The microphone is muted, and the eIM transmitter is connected to the TX path.

Un-mute the loudspeaker

AT+UECALLVOICE=2,1,1

The loudspeaker is un-muted, the downlink speech (from PSAP) is sent to the loudspeaker (according to the configured audio path).

The voice control is effective also when the internal control is enabled. However, the internal control can overwrite the host settings according at any eIM event, according to the switching table.

Voice status events

+UUECALLVOICE: <res_id>,[<res_state>]

Microphone un-muted

+UUECALLVOICE: 0,1

The module sends a URC. The microphone has been un-muted, and the eIM transmitter is disconnected from the TX path.

Loudspeaker muted

+UUECALLVOICE: 1,0

The module sends a URC. The loudspeaker has been muted, the downlink speech (from PSAP) is NOT sent to the loudspeaker.

Voice events reports the result of both internal and external (host) control.

3.6 AT+UECALLVOICE

Configures and controls the TX and RX voice path connections to voice resources (microphone and loudspeaker) and to the In-band Modem transmitter.

Examples

UBX-13001924 - R10 eCall control through AT interface Page 20 of 62

eCall / ERA GLONASS - Application note

Event / IVS event

Microphone mute

Microphone unmute

Loudspeaker mute

Loudspeaker un-mute

Call setup notification

Immediate

Start T5 timer (2 s), un-mute at expiration.

IVSEVENT_SENDINGSTART

Immediate

IVSEVENT_SENDINGMSD

Immediate

IVSEVENT_LLACKRECEIVED

Immediate

IVSEVENT_HLACKRECEIVED

Immediate

Start internal timer (TH), un-mute at expiration. Timer value is 1.2 s in fast modulation mode, 2.4 s in robust modulation mode.

IVSEVENT_IDLEPOSTRESET

Immediate

IVSEVENT_IDLEPOSTSTART

Immediate

eIM transmitter interrupts the INITIATION signal since sync has been detected (internal event)

Immediate

3.6.1 Internal voice control

If the internal voice control is enabled, the microphone/loudspeaker switching is operated by the eIM, provided that eIM has been armed (before or during the call, command AT+UECALLDATA=1).

The internal voice control implements the logic to handle mute/un-mute switches of the microphone and loudspeaker according to eCall HLAP protocols both during the first MSD transmission at callsetup and during the re-transmission of MSD at the PUSH request from PSAP.

3.6.1.1 eCall Releases 2 and 3

The switches are synchronized with IVS events. Note that:

1. The internal switches cannot be individually disabled

2. SP0 handles the T5 timer with timings according to EN 16062 [8] (not configurable)

3. Timers T6 and T7 are not handled

Table 2: internal voice control eCall Release 2 and 3

The switching logic is based on the criteria that

 the microphone is kept muted only for the time needed by eIM to send PUSH signal or transmit

MSD

 the microphone/loudspeaker are restored immediately when an abnormal case is detected (e.g.

sync with PSAP lost)

3.6.1.2 eCall Release 4

This release gives flexibility in configuration of switching logic.

Switches are triggered by events and controlled by control points:

 MPn: n-th microphone control point  SPn: n-th speaker control point  NCF: non configurable control point

UBX-13001924 - R10 eCall control through AT interface Page 21 of 62

eCall / ERA GLONASS - Application note

Event / IVS event

Microphone mute

Microphone unmute

Loudspeaker mute

Loudspeaker un-mute

Call setup notification

NCF NCF,SP0

SP0: Start T5 timer (5 s), un-mute at expiration.

IVSEVENT_SENDINGSTART

MP0

IVSEVENT_SENDINGMSD

MP1 SP1 IVSEVENT_LLACKRECEIVED

MP2

IVSEVENT_HLACKRECEIVED

MP3

SP2: Start TH timer, un-mute at expiration. Timer value is 1.2 s in fast modulation mode, 2.4 s in robust modulation mode.

IVSEVENT_IDLEPOSTRESET

MP4 SP3

IVSEVENT_IDLEPOSTSTART

MP5

eIM transmitter interrupts the INITIATION signal since sync has been detected (internal event)

MP6

Description

Command

Remarks

Configure internal control points

AT+UECALLVOICE=4,<res_id>,<resource_bitmask>

<res_id>=0: microphone; <res_id>=1: loudspeaker

Enable MP1,MP2 and MP3 microphone control points (default configuration eCall Release 4)

AT+UECALLVOICE=4,0,14

Rule of thumb is: MPn-th control point is n-th Bith of

<resource_bitmask>, thus: b0001110 is decimal 14

Enable all microphone control points (legacy configuration)

AT+UECALLVOICE=4,1,127

Legacy configuration (eCall release 2 and 3 - like). Microphone is un-muted as soon as no longer used by eIM transmitter.

Enable SP1 and SP2 loudspeaker control points (default configuration eCall Release 4)

AT+UECALLVOICE=4,1,6

Rule of thumb is: SPn-th control point is n-th Bith of <resource_bitmask>, thus: b0110 is decimal 6

Enable all loudspeaker control points (legacy configuration)

AT+UECALLVOICE=4,1,15

Legacy configuration (eCall release 2 and 3 - like). Handle T5 timer, unmute after sync loss

Mute/un-mute action is taken immediately except for control points SP0 and SP2, which defer the action with a timer. Note that:

1. Each control point except for NCF can be individually enabled/disabled by means of

AT+UECALLVOICE=4.

2. Default control point configuration is conforming to Pan European eCall HLAP specifications

provided internal T5, T6 and T7 timers are enabled (see 3.6.2) or externally implemented.

3. SP0 by default is disabled.

Table 3: Internal voice control points eCall Release 4

The control points can be enabled / disabled through dedicated AT command, see examples below.

☞ Disabling of NCF control point – muting at call-setup – can be achieved by arming the eIM after the

call-set-up itself.

UBX-13001924 - R10 eCall control through AT interface Page 22 of 62

eCall / ERA GLONASS - Application note

Event / IVS event

Microphone mute

Microphone un-mute

Loudspeaker mute

Loudspeaker un-mute

Call setup notification

immediate

IVSEVENT_SENDINGSTART

IVSEVENT_SENDINGMSD

immediate

IVSEVENT_LLACKRECEIVED

immediate

IVSEVENT_HLACKRECEIVED

immediate

Start TH timer, un-mute at expiration. Timer value is 1.2 s in fast modulation mode, 2.4 s in robust modulation mode.

IVSEVENT_IDLEPOSTRESET

IVSEVENT_IDLEPOSTSTART

eIM transmitter interrupts the INITIATION signal since sync has been detected (internal event)

Command

Response / Indication

Description

AT+UCALLSTAT=1

Enable call status notifications

RING

Incoming call

ATA

IVS answers to the MT call

+UCALLSTAT: 1,0

Call set-up complete

AT+UECALLDATA=1,0,"MSD data"

Arm eIM in PULL mode

Default configuration

Default control point configuration

 microphone: +UECALLVOICE=4,0,14  loudspeaker: +UECALLVOICE=4,1,6

is presented in the table below:

Restoring of voice communication in abnormal cases is guaranteed by HLAP timers T5, T6, and T7. The muting at call set-up notification (NCF point) has effect only if the eIM is armed before initiating the MO call (ATD112 or AT+CECALL) or answering to MT call (ATA).

Voice handling at PSAP callbacks

The call session originated by PSAP callbacks shall start in voice mode, and the IVS eIM must be ready to transmit the MSD on PULL request.

Therefore, to avoid the initial muting for T5 seconds at PSAP call-backs, the eIM can be armed in PULL mode after the call answer:

UBX-13001924 - R10 eCall control through AT interface Page 23 of 62

eCall / ERA GLONASS - Application note

Name Origin

Description Requirements

Value

IVS

IVS wait for SEND MSD period

START: T5 starts as soon as the IVS-NAD received notification that the call is first answered STOP: T5 stops when the IVS-NAD detects a SEND MSD signal sent by the PSAP EXPIRY: Upon expiry of T5 the IVS-NAD shall reconnect the IVS audio system and terminate eCall specific behavior (i.e. it shall not proceed with the sending of MSD data) until requested to do otherwise

5 s

IVS

IVS wait for AL-ACK period

START: T6 starts as soon as the IVS-NAD has received LL-ACK STOP: T6 stops when the IVS-NAD receives an AL-ACK message EXPIRY: Upon expiry of T6 the IVS-NAD shall mark the transfer of the MSD as unsuccessful and

reconnect IVS audio system and terminate eCall specific behavior until requested to do otherwise

5 s

IVS

IVS MSD maximum transmission time

START: T7starts as soon as the IVS-NAD starts sending MSD data STOP: T7 stops when the IVS-NAD receives an LL-ACK message or AL-ACK message EXPIRY: Upon expiry of T7 the IVS-NAD shall mark the transfer of the MSD as unsuccessful and

reconnect IVS audio system and terminate eCall specific behavior until requested to do otherwise

20 s

Scenario

Response / URC

Description

UNSUCESSFULL TRANSFER: eIM link is broken immediately after the MSD transfer but before reception of HLACKs

+UUECALLDATA: 2

T6 elapsed, MSD received by PSAP, IVS did not receive HLACK. Voice communication reestablished. IVS cannot possibly operate a call clear down

UNSUCESSFULL TRANSFER: eIM link is broken during sending of MSD, before any LLACK is received

+UUECALLDATA: 2

T7 elapsed, MSD not received by PSAP. Voice communication reestablished.

SUCCESSFUL TRANSFER: PSAP does not send LLACKs but sends HLACKs,

+UUECALLDATA: 0

T6 timer did not start but MSD received by PSAP. T7 timer stopped at HLACK reception. Voice communication reestablished after 5 HLACKs by TH internal timer.

Command

Response / URC

Description

AT+UECALLVOICE=5,0,0

Disable timer T5

AT+UECALLVOICE=5,1,1

Enable timer T6

AT+UECALLVOICE=6,2,20000

Configure timer T7 expiry to 20 s

3.6.2 Configurable internal HLAP timers (eCall Release 4)

HLAP timers are defined in EN 16062, Table A.1. Values and description are different in standard versions 2011 [8] and 2015 [9]. eCall Release 4 implements timers according to version 2015, with a small variation on STOP for T7 (in bold):

Note that at expiry of timers T6 and T7 the MSD transfer is marked as unsuccessful, thus their scope is handling reestablishing of voice communication in abnormal cases. Note also that with respect to standard, the behavior of timer T7 has been extended to not consider a failure the case when no LL-ACKS but only AL-ACKS are sent by PSAP.

Unsuccessful MSD transfer is reported through URC, see examples below (eCall Release 4 with default control point configuration):

By default, timers are enabled and configured with values from standard version 2015. They can be disabled or their value reprogrammed through the AT interface, examples:

Table 4 HLAP timer configuration examples

UBX-13001924 - R10 eCall control through AT interface Page 24 of 62

eCall / ERA GLONASS - Application note

4 eCall examples

This section provides some examples illustrating both end-to-end interactions and eCall AT interface usage.

4.1 eCall session dynamic view: end-to-end In-band signaling

Figure 2 and Figure 3 present the In-band dynamic behavior of the eIM pair. The microphone and

loudspeaker status / switch indications are disabled. All the IVS events are caught and reported to AT.

4.1.1 MSD transfer in push mode

Figure 2: MSD transfer in push mode, eCall Release 2 version

Products based on later releases differ only for AT+CECALL usage instead of ATD112.

UBX-13001924 - R10 eCall examples Page 25 of 62

eCall / ERA GLONASS - Application note

4.1.2 MSD update in TX idling mode

Figure 3: MSD update in TX idling mode

UBX-13001924 - R10 eCall examples Page 26 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

(system power-cycle)

AT+COPS?

+COPS: 0 OK

Check the operator selection status.

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

An eCall-enabled USIM is present: the USIM is configured in eCall-only mode.

AT+UECALLDATA=4,1

Enable the eIM feature.

AT+UECALLDATA=3,2

Enable the full URC set.

AT+UECALLVOICE=3,0,1

Enable the microphone switch event URCs.

AT+UECALLVOICE=3,1,1

Enable the loudspeaker switch event URCs.

AT+UCALLSTAT=1

Enable call status indications.

(automatic eCall activation by e.g. sensor)

AT+UECALLDATA=1,1,"c5e165…"

Arm the eIM before the dial-up and prepare MSD for transmission in push mode.

AT+CECALL=3

Initiate eCall, by setting the eCall flag to AIeC. The module performs the mobility management procedure and call setup.

+UCALLSTAT: 1,2

Dialing (Mobile Originated call).

(time elapsing)

+UCALLSTAT: 1,3

Alerting (Mobile Originated call; ringing for the remote party).

(time elapsing)

+UCALLSTAT: 1,0

Active: call set-up is complete.

+UUECALLVOICE: 1,0

Loudspeaker muted. Concurrent with +UCALLSTAT: 1,0

+UUECALLDATA: 11

SENDINGSTART: IVS eIM starts sending the INITIATION signal.

+UUECALLVOICE: 0,0

Microphone muted. Concurrent with +UUECALLDATA: 11 T5 timer starts.

(time elapsing) IVS eIM is sending the INITIATION message.

+UUECALLDATA: 14

CONTROLSYNC: IVS receives first sync message.

+UUECALLVOICE: 0,1

Microphone unmuted. IVS eIM detected first sync signal and stopped the INITIATION message transmission.

+UUECALLDATA: 14 +UUECALLDATA: 14

(time elapsing, 1200 ms) IVS eIM continues synching.

+UUECALLDATA: 15

CONTROLLOCK: IVS sync with PSAP locked.

+UUECALLDATA: 12

SENDINGMSD: IVS received “SEND MSD” signal, stops T5

timer and starts sending MSD.

+UUECALLVOICE: 0,0

Microphone muted. Concurrent with +UUECALLDATA: 12

(time elapsing) IVS eIM is sending MSD.

+UUECALLDATA: 16

LLACKRECEIVED – 2nd LL-ACK received, MSD sending completed. Start T6 loudspeaker un-mute timer.

+UUECALLVOICE: 0,1

Microphone un-muted. Concurrent with +UUECALLDATA: 16

(time elapsing, 2 s)

4.2 eCall control examples

4.2.1 Simple MSD transfer in push mode

This example describes a configuration in a simplified eCall scenario. For more details, see the u-blox AT command manual [1].

UBX-13001924 - R10 eCall examples Page 27 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

IVS eIM receives more LLACKs and waits for HLACK, that shall arrive in 2 s with fast modulation mode.

(time elapsing, 2 s)

+UUECALLDATA: 17

HLACKRECEIVED - 2nd HL-ACK received. TH timer starts.

+UUECALLDATA: 0,"00"

MSD correctly sent, HL-ACK check bits returned. Concurrent with +UUECALLDATA: 17

(time elapsing, 1.2s) IVS eIM receives 3 more HL-ACKs from PSAP. If PSAP is no longer transmitting, IVS eIM synch check fails.

+UUECALLVOICE: 1,1

TH expires and un-mutes the loudspeaker. T6 timer stopped.

(time elapsing, 1.2 s) If PSAP is no longer transmitting, next 3 IVS eIM synch checks fail.

+UUECALLDATA:18

After 3 bad sync checks, IVS eIM performs the full reset.

(PSAP drops the call)

+UUECALLDATA:7

In-band Modem terminated due to call end.

+UCALLSTAT: 1,6

The call is ended.

NO CARRIER

The call is ended by remote party.

Command

Response / URC

Description

AT+UECALLDATA=1,1,"c5e165…"

Arm the eIM before the dial-up and prepare the MSD for transmission in push mode.

AT+CECALL=2

Initiate an eCall with the eCall flag set to MIeC.

(time elapsing)

AP waits for the first MSD to be sent.

+UUECALLDATA: 17

When the first MSD is sent, the microphone is reconnected.

AT+UECALLVOICE=1,0,0

Disable the internal microphone control.

(time elapsing)

Wait for new MSD request.

+UUECALLDATA: 12

MSD PULL command received. The IVS starts transmission, but the microphone is still connected. PSAP waiting for synch signal from IVS eIM.

AT+UECALLVOICE=1,0,1

Re-enable internal microphone control. At the next +UECALLDATA command the eIM will take control over the TX voice channel.

4.2.2 .MSD update on PULL request, with transmitter reset and

microphone control

This example shows how the MSD update can be synchronized with the PSAP PULL request using the forced update mode. When the IVS transmitter is idling after the first MSD transmission, the internal microphone control is disabled to prevent the immediate synchronization with PSAP on its PULL request. When the PULL request is received, IVS first re-enables the internal microphone control, then forces an MSD update with transmitter reset (the IVS eIM is transmitting, but its TX path is disconnected).

Pseudo-code

Below there is an example of the MSD update procedure to be implemented on the application processor (AP).

UBX-13001924 - R10 eCall examples Page 28 of 62

eCall / ERA GLONASS - Application note

Command

Response / URC

Description

AT+UECALLDATA=2,1,"a236e4…"

Update the MSD, forcing the IVS eIM transmitter reset. The microphone is disabled, the eIM transmits on TX voice channel and syncs with PSAP.

(time elapsing)

+UUECALLDATA: 17

The MSD is updated, the microphone is reconnected.

Command

Response / Indication

Description

AT+UCALLSTAT=1

Enable call status notifications

RING

Incoming call from PSAP

ATA

IVS answers to the MT call

+UCALLSTAT: 1,0

Call set-up complete

AT+UECALLDATA=1,0,"c5e165…"

Arm eIM in PULL mode after the call set-up completion

4.2.3 Answer to PSAP callback

This example shows the procedure to follow when answering to the PSAP callback. In this use case, the call starts with normal voice communication, and the MSD is transferred only on PSAP pull request.

Note that since the call-setup event occurred before the eIM activation, the internal voice control does not take any mute action on microphone and loudspeaker (see NCF control point, Table 3).

4.3 eCall configuration examples

This section provides some configuration examples of the NAD part only, that include the eCall flag and the network registration restrictions configuration. The configuration must take place before the emergency call is commenced. For conformity to the operating system requirements BS EN 16072 [11] and high-level application protocol requirements BS EN 16062 [8], the application processor must take care of the correct registration procedure. In particular:

 In eCall Release 2 products not supporting AT+CECALL, configure the eCall flag before any IVS-

initiated eCall.

 Configure the IVS modem with the automatic operator selection (AT+COPS=0) also when

operating in eCall-only mode, to remain registered after the call completion (according to timings requirements in BS EN 16062 [8][9], see also timing requirements T9 and T10 in the section 2.2)

☞ The eCall flag is sent to the network only if the emergency call is performed. ☞ The eCall flag is not sent to the network if the status returned by AT+UECALLSTAT? is “0”. ☞ The emergency calls ATD112 and ATD911 are always possible and are equivalent.

In the following examples, the In-band Modem configuration and activation (i.e. any +UECALLDATA and +UECALLVOICE command) are omitted.

UBX-13001924 - R10 eCall examples Page 29 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UECALLTYPE?

+UECALLTYPE: 0 OK

Factory-programmed value. The eCall flag is not defined/not sent to the network.

AT+UECALLTYPE=1

Configure eCall flag: MIeC.

ATD112;

Dial the emergency call. The eCall flag is sent to the network.

NO CARRIER

The PSAP dropped the call.

AT+UECALLTYPE?

+UECALLTYPE: 1 OK

The eCall flag is not reset after the call.

Command

Response

Description

AT+UECALLTYPE=1

Configure the eCall flag: MIeC.

ATD112;

Dial the emergency call. The eCall flag is sent to the network.

AT+UECALLTYPE?

+UECALLTYPE: 1 OK

Emergency call of MIeC type in progress.

NO CARRIER

The PSAP dropped the call.

AT+UECALLTYPE?

+UECALLTYPE: 0 OK

The flag is reset, the eCall is completed.

Command

Response

Description

AT+CECALL=2

Dial the emergency call. Configure the eCall flag: MIeC. eCall flag is sent to the network.

AT+CECALL?

+CECALL: 2 OK

eCall of MIeC type is in progress.

NO CARRIER

The PSAP dropped the call.

AT+CECALL?

+CME ERROR: operation not allowed

The eCall is completed.

AT+UECALLTYPE?

+UECALLTYPE: 0 OK

The flag is reset, the eCall is completed.

4.3.1 eCall initiation (eCall Release 2 vs 3)

The following simple examples show how an eCall is initiated in eCall Release 2 and eCall Release 3 products.

The read command inside the procedure has been inserted for the sake of clarity and is optional.

4.3.1.1 Using AT+UECALLTYPE in eCall Release 2

The eCall flag is not reset after the eCall.

4.3.1.2 Using AT+UECALLTYPE in eCall Release 3 (deprecated)

The eCall flag is reset after the eCall.

4.3.1.3 Using AT+CECALL

The eCall flag is reset after the call, indicating that the emergency call has been completed.

☞ When initiating an eCall with AT+CECALL, the +UECALLTYPE read command

(AT+UECALLTYPE?) still provides the eCall type / eCall status.

UBX-13001924 - R10 eCall examples Page 30 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+CMEE?

+CMEE: 2 OK

Optionally check the format of the error result code.

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

Check the eCall USIM status: a eCall-enabled USIM with registration restrictions is present.

AT+COPS=0

+CME ERROR: ECALL restriction

Register the module. The error result code is returned to indicate that the NAD will not immediately register but only when the emergency call is initiated.

AT+COPS?

+COPS: 0 OK

+COPS: 0 will assure that, after the call, the module will stay registered till maximum T10 timing requirements.

(manual eCall is triggered)

AT+CECALL=2

Set up a manually initiated eCall

Command

Response

Description

AT+CMEE?

+CMEE: 0 OK

Optionally check the format of the error result code.

AT+UECALLSTAT?

+UECALLSTAT: 0 OK

Check the eCall USIM status: a not eCall-enabled USIM is present.

AT+COPS=2

Deregister the module from the network (if registered).

AT+UECALLSTAT=1

Force the eCall-only mode.

AT+COPS=0

ERROR

Register the module. An error result code is returned to indicate that the NAD will not register immediately but only when the emergency call is initiated.

AT+CECALL=2

Set up a manually initiated eCall.

4.3.2 eCall-only mode with an eCall-enabled USIM

This example shows the eCall configuration and the setup procedure when the module is operating with the registration restrictions. The automatic operator selection may be configured after the module’s power cycle. The AT+COPS command returns with an error result code, indicating that the registration will be started at the emergency call set-up when exiting the eCall registration restricted state.

Any read operation in the procedure, inserted for the sake of clarity, is optional.

After the call termination, the module will deregister automatically after 12 hours (T10 timing requirements are implemented by T3242 timer, according to ETSI TS 124 008 [14]).

☞ Instead of +CME ERROR: ECALL restriction, SARA-G340, SARA-G350 and LEON-G100 modules

return +CME ERROR: unknown.

☞ To monitor the registration status, use the network registration +CREG URC.

4.3.3 Force the eCall-only mode with a not eCall-enabled USIM

The eCall-only mode can be forced if a not eCall-enabled USIM is present (only for test purposes). To enter the eCall-only mode, the module must be unregistered. Test and reconfiguration numbers can be provided via +UDCONF=90 command.

UBX-13001924 - R10 eCall examples Page 31 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+UECALLSTAT?

+UECALLSTAT: 0 OK

Check the eCall USIM status: a not eCall-enabled USIM is present.

AT+COPS=2

Deregister the module from the network (if registered).

AT+UECALLSTAT=2

Force the eCall without registration restrictions.

AT+COPS=0

AT+CECALL=2

Set up a manually initiated eCall.

4.3.4 Force the eCall without registration restrictions with a not eCall-

enabled USIM

To enter the eCall mode without registration restrictions, the module must be unregistered. The test and reconfiguration numbers can be provided via +UDCONF=90 command.

UBX-13001924 - R10 eCall examples Page 32 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+CMGF=0

Set PDU mode

AT+CSCS="HEX"

Set hexadecimal representation mode

AT+CSCA="0815654321"

Set the Service Center SMSC, configure in MS

AT+CMGS=80<CR> >0011000481214300F5A7460100000B0039000000014C32000000800A0A282F0 001015C0805D6CA82080408529600000604441CEEE52B07FFFFFFF7FFFFFFFFF

80200FFFFF0503010401045054308005FDD<Ctrl-Z>

+CMGS: n OK

Specify the PDU length excluding the SMSC part (first 00 byte) and send the PDU after the ‘>’ sign

5 ERA-GLONASS additional features and use

cases

5.1 MSD transfer by SMS

ERA-GLONASS specifies the usage of SMS channel as fallback for MSD data transmission. The customer application (APP) must encapsulate the MSD into the SMS message text according to the transport protocol defined in [19][20] and format and transmit it in PDU mode by means of AT commands.

5.1.1 MSD SMS transmission in PDU mode

In this example, the SMS text message example to transmit is:

0100000b0039000000014c32000000800a0a282f0001015c0805d6ca82080408529600000604441ceee52b0 7fffffff7fffffffff80200fffff0503010401045054308005fdd

5.1.1.1 PDU generation

PDU is generated from the SMS text message, destination number and PDI generation coding rules. In this example:

1. The destination number is 1234

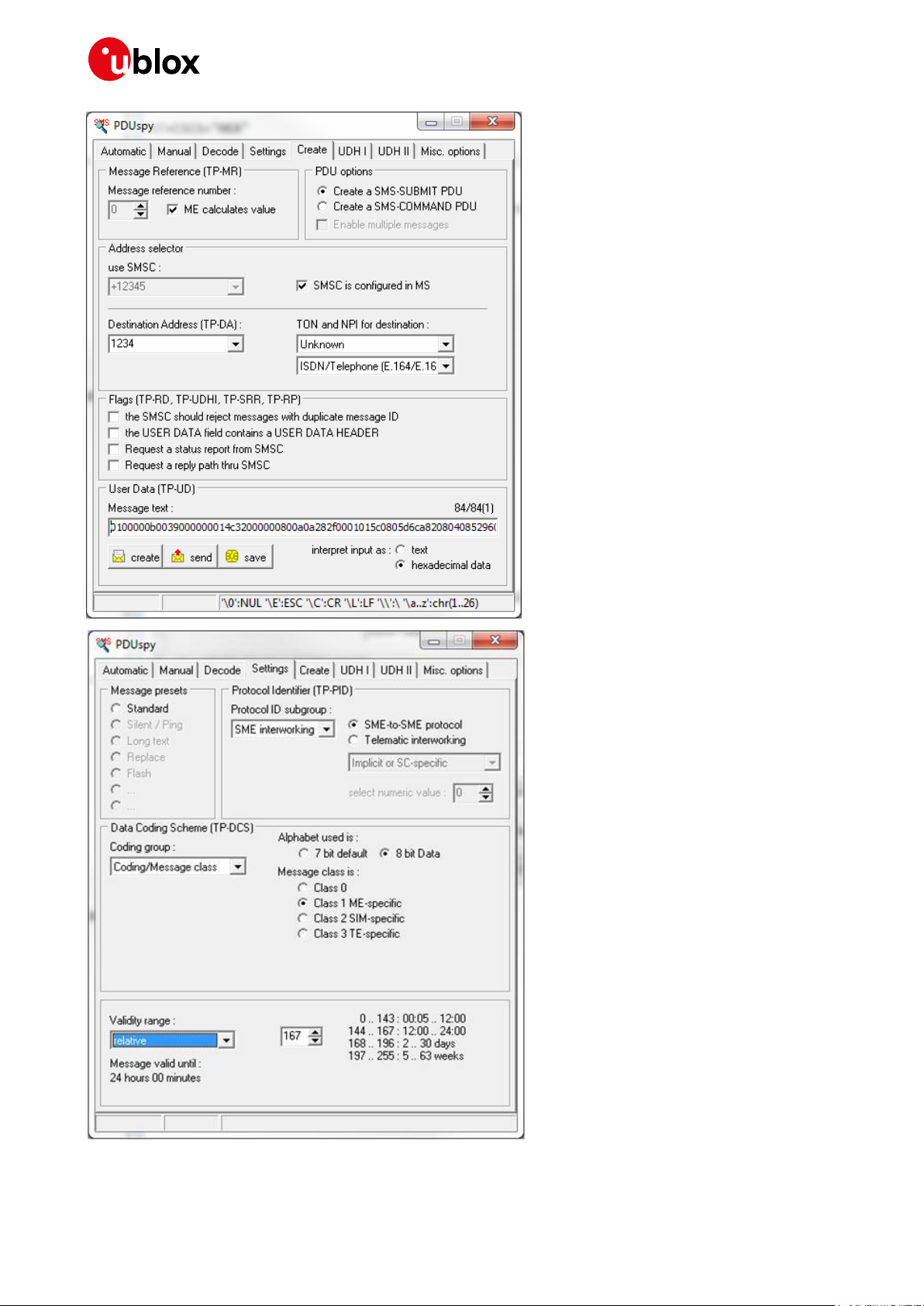

2. Coding rules as provided by PDUspy tool snapshots below. o Remember to launch the PDUSpy.exe with the ‘-enablefulllength’ option.

The resulting PDU-encoded message is

0011000481214300F5A7460100000B0039000000014C32000000800A0A282F0001015C0805D6CA820804085 29600000604441CEEE52B07FFFFFFF7FFFFFFFFF80200FFFFF0503010401045054308005FDD

where the highlighted data in yellow is the PDU header and the highlighted data in green is the SMSC coding part (the latter not to count as PDU length).

5.1.1.2 PDU transmission

UBX-13001924 - R10 ERA-GLONASS additional features and use cases Page 33 of 62

eCall / ERA GLONASS - Application note

UBX-13001924 - R10 ERA-GLONASS additional features and use cases Page 34 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

AT+USIMSTAT=5

Enable URC +UUSIMSTAT reporting. Reports the (U)SIM initialization status (<state>'s from 0 to 6 may be reported) and reports the USIM toolkit REFRESH proactive command execution result (<state>'s from 9 to 10 may be reported).

AT+CPWROFF

Power down the NAD to store +USIMSTAT setting in NVM.

Command

Response

Description

(NAD power-cycle occurred)

+UUSIMSTAT: 6

(U)SIM operational in commercial profile (registration may be initiated).

AT+UECALLSTAT?

+UECALLSTAT: 0 OK

(Optional check) not eCall-enabled SIM present (confirms the commercial profile).

Command

Response

Description

(manual eCall is triggered)

AT+CSIM=20,"80C2000005EE03E F0120"

+CSIM: 4,"910B" OK

Switch to ERA-GLONASS emergency profile (ACTIVATE PROFILE in USAT Mode on Oberthur's eUICC card). Response is successful, proactive command pending (length 0x0B).

+UUSIMSTAT: 0

SIM card not present. In this scenario due to the REFRESH of type UICC reset being executed.

+UUSIMSTAT: 9

(U)SIM toolkit REFRESH proactive command successfully concluded.

(NAD silent reset occurred: all configurations not saved in NVM restored to default settings)

5.2 SIM/eUICC profile switch

ERA-GLONASS standard requires the support of multi-profile eUICC cards [21] in which a profile is dedicated to ERA-GLONASS emergency calls. The salient profile switch scenarios are:

1. IVS switches the profile in the eUICC from the active commercial profile to the ERA-GLONASS

emergency profile

2. IVS switches the profile back in the eUICC to the previously active commercial profile

Switches shall be controlled by AP as specified by ERA-GLONASS protocol, e.g.

 At Road Traffic Accident (RTA) event the eUICC is in the commercial profile.  AP instructs eUICC to operate the profile switch through AT+CSIM command.  AP activates the emergency call transaction.  When the emergency situation is over, the AP requests the multi-profile eUICC to swap back to

commercial subscription.

An example is given in next section.

5.2.1 Example eCall transaction with temporary eUICC swap to

emergency profile

Precondition of this example is that +UUSIMSTAT indications are enabled in NVM:

At NAD boot, the URC on the SIM status is received and the actual profile can be checked

AT RTA event, operate the eCall transaction. Note that a profile switch automatically resets silently the NAD device

UBX-13001924 - R10 ERA-GLONASS additional features and use cases Page 35 of 62

eCall / ERA GLONASS - Application note

Command

Response

Description

+UUSIMSTAT: 5

Emergency profile now is active. (U)SIM in restricted use (FDN or BDN active). In this scenario due to an eCall only SIM (FDN service enabled).

AT+UECALLSTAT?

+UECALLSTAT: 1 OK

(Optional check) eCall only with registration restriction. Confirms the emergency profile is active

Configure eCall feature:

AT+UECALLDATA=4,1

Enable the eIM feature. Not saved in NVM

AT+UECALLDATA=3,2

Enable the full URC set. Not saved in NVM

AT+UECALLVOICE=3,0,1

Enable the microphone switch event URCs. Not saved in NVM

AT+UECALLVOICE=3,1,1

Enable the loudspeaker switch event URCs. Not saved in NVM

AT+UCALLSTAT=1

Enable call status indications. Not saved in NVM

Start eCall transaction:

AT+UECALLDATA=1,1,”c5e165…”

Arm the eIM before the dial-up and prepare MSD for transmission in push mode.

AT+CECALL=2

Initiate eCall, by setting the eCall flag to MIeC. The NAD performs the mobility management procedure and call setup.

...

(emergency situation is over)

AT+CSIM=20,"80C2000005EE03E F0124"

+CSIM: 4,"910B" OK

Switch back to initial commercial profile (DEACTIVATE PROFILE in USAT Mode on Oberthur's eUICC card). Response is successful, proactive command pending (length 0x0B)

+UUSIMSTAT: 0

SIM card not present. In this scenario due to the REFRESH of type UICC reset being executed

+UUSIMSTAT: 9

(U)SIM toolkit REFRESH proactive command successfully concluded

(NAD silent reset occurred: all configurations not saved in NVM restored to default settings, e.g. eIM feature disabled)

+UUSIMSTAT: 6

(U)SIM operational in commercial profile (registration may be initiated)

AT+UECALLSTAT?

+UECALLSTAT: 0 OK

(Optional check) not eCall-enabled SIM present (confirms the commercial profile )

☞ The SIM commands transmitted to eUICC through AT+CSIM (e.g. "80C2000005EE03EF0120")

are card vendor-specific.

UBX-13001924 - R10 ERA-GLONASS additional features and use cases Page 36 of 62

eCall / ERA GLONASS - Application note

6 eCall / ERA GLONASS In-band Modem

simulation system

The eCall simulation system allows testing the In-band Modem functionality implemented in the cellular modules.

Performing such a test requires:

 A u-blox PSAP simulator for reception of a simulated eCall  An eCall IVS simulation system with the device under test (eCall-featured u-blox module)

Figure 4: Connection scheme

⚠ eCall In-band modem does not operate with WB speech. Before running the simulation, configure

the PSAP simulator to exclude WB codecs from allowed codecs set through the +UDCONF=30 AT command.

6.1 PSAP simulator

The PSAP simulator consists of:

 A PC running m-center evaluation software  A PSAP GSM modem (e.g. LISA-U200-02S)  An evaluation kit (EVK) on which the PSAP GSM modem is mounted

Connect the EVK to the PC, using a standard USB cable.

Connect a headset to the PSAP GSM modem (optional).

The PSAP eIM runs in m-center evaluation software (eIM is based on 3GPP PSAP reference code) and exchanges PCM audio data with the PSAP GSM modem via the USB connection.

6.1.1 Software & hardware requirements

6.1.1.1 PC

Minimum requirements recommended: 2.00 GHz Core with 1 GB DDR2-800 SDRAM

 OS: Windows XP or above

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 37 of 62

eCall / ERA GLONASS - Application note

The following software components must be installed on the PC:

 m-center evaluation software  u-blox_High_Speed_Modem USB driver

6.1.1.2 PSAP GSM modem module

The module to be used as the PSAP GSM modem.

6.1.1.3 PSAP GSM modem evaluation kit

The kit includes a GSM antenna, power supply and headset.

6.1.1.4 USB cable

A standard USB Type A to 5 Pin mini-B cable is used to connect the PSAP GSM modem to the PC.

6.2 IVS system

The IVS system consists of:

 A PC running the m-center evaluation software  The device under test (DUT) (see section 1) implementing parts of IVS as described in this

application note

 An evaluation kit (EVK) on which the DUT is mounted

Connect the EVK to the PC, using a standard USB cable.

Connect a headset to the DUT (optional).

m-center evaluation software can be used to

 directly control the DUT through AT commands  run the IVS simulator, that controls the DUT and GNSS through AT commands.

6.2.1 Software & hardware requirements

6.2.1.1 PC

Minimum recommended requirements: 2.00 GHz Core with 1 GB DDR2-800 SDRAM.

 OS: Windows XP or above

The following software components must be installed on the PC:

 m-center evaluation software v1.0.0 or above  u-blox USB driver

6.2.1.2 Device under test

The u-blox module under test (the DUT that acts as IVS eIM). See section 1.

6.2.1.3 Module evaluation kit

The kit includes the evaluation platform, a GSM antenna, power supply and headset.

6.2.1.4 USB cable

A standard USB Type A to 5 Pin mini-B cable connects the DUT to the PC.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 38 of 62

eCall / ERA GLONASS - Application note

6.3 m-center software

m-center evaluation software is available free-of-charge and can be downloaded from the u-blox website (http://www.u-blox.com/en/evaluation-tools-a-software/u-center/m-center.html).

The software includes an executable m-center.exe file and a mc-atlist.dat data file.

The downloaded m-center installer automatically installs m-center and the necessary USB drivers on the PC.

Two instances of m-center can be started on the same PC: one controlling the DUT, the other running the PSAP simulator.

To visualize the IVS and PSAP panels, the mc-ubx.dat file has to be created in the installation folder with the following text line:

ecall_mode | full

6.3.1 IVS simulator

The IVS simulator is an application on m-center implementing those parts of IVS generally running on the application processor. The IVS simulator controls the u-blox EVK with modem and GNSS through the AT command interface. In particular, the GNSS is controlled through the wireless position AT interface. Main responsibilities of the IVS application are:

1. It controls and gathers data of the GNSS module (on EVK board).

2. It prepares the MSD for first MSD sending and for MSD updates on PSAP pulls.

3. It answers to PSAP call backs.

4. (Optionally) it controls the voice switching with HLAP timers (external audio control).

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 39 of 62

eCall / ERA GLONASS - Application note

6.3.1.1 IVS on / IVS off button

This button initializes and enables the eCall feature in the modem. Initialization includes the execution of AT commands specified in the eCall control: Init file list (see section 6.3.1.4).

6.3.1.2 eCall control panel

The panel is active when IVS is on.

6.3.1.3 eCall control: Call Start

Button that triggers the emergency call and MSD sending towards the PSAP number, in either PUSH or PULL mode.

6.3.1.4 eCall control: Init file list / Initialize button

The drop-down menu shows the option of initialization scripts, while the Initialize button executes the currently selected script. Custom scripts can be stored in “mcenter\par\ivs”, with extension .ivsi.

6.3.1.5 eCall control: eCall type

Selection of MieC (manually triggered), AieC (automatically triggered) or test emergency call. This information is provided both to the network (eCall flag) and to PSAP (encapsulated in the MSD).

6.3.1.6 eCall control: Autoanswer

With this option is possible to enable and configure (PUSH/PULL) the auto answer at PSAP call backs.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 40 of 62

eCall / ERA GLONASS - Application note

6.3.1.7 eCall control: Redial on busy, drop…

Redial feature according to PAN EU eCall.

6.3.1.8 eCall control: Audio control

Selection for internal or external voice switching. Recommended usage of internal switching with default values.

6.3.1.9 eCall control: HLAP timers

Configuration of HLAP timers when external voice switching is enabled.

☞ It does not configure the DUT T5/T6 and T6 timers.

6.3.1.10 eCall control: MSD update on PULL

If “MSD update on PULL” is selected, IVS simulator implements the MSD update according to 4.2.2.

Note that upon reception of PULL request, the transmission is delayed for the time needed to IVS simulator to provide the new MSD.

6.3.1.11 eCall control: MSD update on GNSS

With this option, the MSD update is continuous at GNSS fix rate. Updates are requested continuously regardless of the eIM transmitter status. Upon reception of new update request, the transmission of the previous MSD is not interrupted and the update of the eIM transmit buffer occurs once the current transmission is completed. Thus the new MSD is possibly sent at next PULL request.

6.3.1.12 eCall control: Manual MSD update

Manual trigger of an MSD update is possible by pressing the “MSD upd.” button. If “Force MSD update” is selected and the update is requested while eIM is transmitting and MSD, the transmission

is interrupted, eIM transmitter reset and re-started with the new MSD.

6.3.1.13 eCall control: MSD optional data

With this option, the optional data will be included in the MSD.

6.3.1.14 MSD Version listbox

In this listbox, an MSD version option can be selected: MDS version 2 or MSD version 1 – ERA GLONASS. The MSD version 2 choice formats the MSD according to the eCall BS EN 15722:2011 [5] specification, the MSD version 1 – ERA GLONASS choice formats the MSD according to the GOST R 54620–2011 [21] specification.

6.3.1.15 MSD->SMS button

Pressing this button, the MSD is sent through an SMS. If the Version 1 – ERA GLONASS option is selected, the MSD is encapsulated into the SMS message text according to the transport protocol defined in [19][20].

6.3.1.16 GNSS panel

The GNSS panel controls the GNSS sub-system and presents the acquired GNSS data. m-center configures the GNSS on EVK through AT commands, and receives data from GNSS (NMEA, ubx messages) through the dedicated USB/UART port.

6.3.1.17 GNSS panel: Port

To receive data from GNSS, GNSS tunneling on dedicated serial port has to be configured. See 6.4.4 for more details.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 41 of 62

eCall / ERA GLONASS - Application note

6.3.1.18 GNSS panel: GNSS checkbox

GNSS is activated by enabling the “GNSS” checkbox.

6.3.1.19 Show MSD button: eCall MSD window

Pressing the “Show MSD” button, the eCall MSD window appears:

This window shows the decoded content of the MSD sent to the remote PSAP. The window is updated when MSD transfer starts.

The window is divided in three parts: Top Blue (TP) panel, Middle Green (MG) panel and Bottom Blue (BB) panel.

TP panel: MSD cnt

This MSD field (message identifier) counts the MSDs sent during each eCall transaction. The field is automatically updated by IVS simulator according to [7].

TP panel: Activation

This field shows the MieC/AieC field sent in the MSD according to the configuration in eCall control: eCall type (see 6.3.1.5).

TP panel: eCall

This field shows the emergency/test field sent in the MSD according to the configuration in eCall control: eCall type (see 6.3.1.5)

TP panel: VIN, Nr of passengers, Veh. Type, Propulsion

These MSD fields must be manually configured through this window.

The VIN field can be filled with fake data (string). The VIN code syntax is checked at transfer time. VIN code is cropped if not supported chars are entered.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 42 of 62

eCall / ERA GLONASS - Application note

6.3.1.20 MG panel

This panel shows the GNSS location data. If the GNSS is switched on, the fields are automatically updated when MSD transfer starts. If the GNSS is switched off, the fields can be edited with fake location data except for the Timestamp. The timestamp in this case is captured from host when MSD transfer starts.

BB panel: Optional data

The Optional data text box can be activated with the MSD optional data checkbox in the eCall control panel.

With this edit box it is possible to manually add optional data in the MSD.

In the case that the MSD Version 1 – ERA GLONASS option is used, the optional data is formatted according to the GOST R 54620–2011 [21] specification and represents the RTA severity estimation. Three hex numbers separated by commas can be written in the optional data textbox (eg. 1, 18c, 1a). These numbers specify three bitmasks relative to Severe crash estimation (1 flag), Test Results Def (21 bits) and Crash Def (6 bits).

BB panel: MSD files list

This drop-down menu explores the \par\ivs directory for the selection of pre-formatted binary MSDs or textually-described MSDs (.msd).

BB panel: MSD file name and Save MSD

The content of the eCall MSD window can be saved on a file of .msd file. Do not provide .msd file extension in the MSD file name dialog box.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 43 of 62

eCall / ERA GLONASS - Application note

6.3.2 PSAP simulator

The PSAP simulator window appears as follow:

6.3.2.1 Voice mode/ Data mode button (MSD pull)

This button automatically changes the label depending on the PSAP state.

1. Data mode: PSAP is in voice mode. Pressing this button, PSAP pulls an MSD.

2. Voice mode: PSAP is in data mode, e.g. receiving the MSD. Pressing this button, the voice mode

is forced (useful for manual testing of behavior of IVS HLAP timers)

6.3.2.2 Call end

PSAP ends the call.

6.3.2.3 Callback

Call is off. PSAP calls back the IVS.

6.3.2.4 Block start signal

 If the “Block start signal” checkbox is selected, then during activation of PSAP eIM the “SEND

MSD” signal (pull) is not sent.

6.3.2.5 Inhibit inter-RAT handover

 If the “Inhibit Inter-rat handover” checkbox is selected, then during activation of PSAP the module

will be set to use the fixed RAT.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 44 of 62

eCall / ERA GLONASS - Application note

6.3.2.6 Application Layer Acknowledge (AL-ACK flags)

 If the “AL-ACK Echo mode” checkbox is unselected, it is possible to define four flags, to be used in

high-level acknowledge. The AL-ACK is sent to IVS after the MSD reception.

 If the “AL-ACK Echo mode” checkbox is selected, the lower four bits of the first MSD byte will be

used for the AL-ACK.

6.3.2.7 Voice Echo Mode

 If the “Voice Echo mode” checkbox is selected, then during voice mode the audio signal coming

from IVS will be echoed back by PSAP.

6.4 eCall / ERA GLONASS system setup

6.4.1 PSAP simulator connecting with the PSAP GSM modem

 Before connecting the PSAP GSM modem (on the PSAP block) to the PC USB port, click the “Set

port” button in the Home window, and check the visible ports in the Com Port Settings dialog.

 After connecting the PSAP GSM modem (on the PSAP block) to the USB port, a set of six new ports

appears in the Com Port Settings dialog. Select a port of AT type (e.g. “u-blox Modem USB2 AT and Data”)

 Click the “Connect” and the “Initialization” buttons. If the PSAP GSM modem is correctly switched

on, the module information such as Manufacturer id and Device model should appear.

6.4.2 Starting the PSAP simulator

 Move to the eCall PSAP window: if the module was correctly connected with m-center, then the

message “Modem device connected” appears in the PSAP Log window.

 Click the “Set port” button to select the PCM audio port.  In the Com Port Settings dialog, select the “cocdcam3” device; it corresponds to the “u-blox

Modem USB4 GPS” COM port.

☞ Before PSAP activation, check if the module is registered on the network (e.g. using the AT+COPS?

command in the AT Terminal window).

AT+COPS? +COPS: 0,0,"vodafone IT",0 OK

 Activate the PSAP Simulator by pressing the PSAP ON button. In the PSAP Status window the

messages "PSAP activated" and "PCM port opened" should appear. If, otherwise, the message

"Modem PSAP function not available" appears, and the modem used by PSAP simulator does not

embed the In-band Modem feature and cannot be used for eCall. If the "PSAP activated" message is followed by the "PCM port open error" message, a wrong PCM port has been selected.

 Now, the PSAP simulator is activated and ready for a simulated eCall / ERA GLONASS call.

6.4.3 IVS simulator connecting with the IVS GSM modem

 Before connecting the IVS GSM modem (on the IVS block) to the PC port, click the “Set port”

button in the Home window, and check the visible ports in the Com Port Settings dialog.

 SARA-G modems: select VCP0 port (“USB Serial Port” in the Device Manager)  3G modems: after connecting the IVS GSM modem (on the IVS block) to the USB port, a set of six

new ports appears in the Com Port Settings dialog. Select a port of AT type (e.g. “u-blox Modem USB2 AT and Data”)

 Click the “Connect” and the “Initialization” buttons. If the IVS GSM modem is correctly switched

on, the module information such as Manufacturer id and Device model should appear.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 45 of 62

eCall / ERA GLONASS - Application note

6.4.4 Starting the IVS simulator

Move to the eCall IVS window.

6.4.4.1 Start IVS

 Click “IVS on” button. If the module was correctly connected with m-center, then the following

messages appear in the IVS Log window:

[12:45:30.304] Starting IVS [12:45:30.386] IVS initialization [12:45:31.178] IVS ready

6.4.4.2 Starting GNSS on 3G modules

 In the GNSS panel, click the “Set port” button to select the GNSS port.  In the Com Port Settings dialog, select the “cocdcam3” device; it corresponds to the “u-blox

Modem USB4 GPS” COM port.

6.4.4.3 Starting GNSS on 2G modules

To enable the GNSS tunneling on serial port VCP1, the EVK must be configured properly (just once):

 From AT terminal, change the serial port configuration to support the GNSS tunneling and save

the setting in NVM

AT+USIO=3 AT+CPWROFF Power on the module again and reconnect the m-center and IVS

Port configuration:

 In the GNSS panel, click the “Set port” button to select the GNSS port.  In the Com Port Settings dialog, select the “VCP1 USB serial Port” device (COM9 in the snapshot

below).

Start GNSS:

 Select the GNSS checkbox. In the AT command window, you can see a series of AT+UGUBX issued

by the simulator to configure GNSS. GNSS starts acquiring data and the GNSS panel is updated with location data every second:

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 46 of 62

eCall / ERA GLONASS - Application note

6.4.5 IVS In-band Modem setup without IVS simulator

On the same or on another PC, connect the IVS In-band Modem device under test (DUT) and start another m-center instance (see section 1 for the list of available DUTs).

Modem setup:

 Connect the DUT to the PC USB or serial port.  In the Home window of m-center, select the appropriate AT COM port and establish the

connection.

☞ Check if the module is registered on the network (e.g. using the AT+COPS? command in the AT

Terminal window).

AT+COPS? +COPS: 0,0,"vodafone IT",0 OK

 In the AT Terminal window select the “eCall IVS“ section.  Enable the IVS In-band Modem feature by clicking on the command AT+UECALLDATA=4,1.

AT+UECALLDATA=4,1 OK

 The DUT is now ready to perform a simulated eCall.

6.5 Running the eCall simulation

6.5.1 eCall simulation example (without IVS simulator)

In this example, IVS is controlled directly through AT commands

On IVS side:

 Enable the URCs (reduced set):

AT+UECALLDATA=3,1 OK

 Activate the eIM in PUSH mode and provide the MSD using the command:

AT+UECALLDATA=1,1,"…", e.g.:

AT+UECALLDATA=1,1,"c5e165df6a789b4aaaa46ee4a651820daaf625803735d9dfd5c7067927d821a43d4b 64b74cd2116dc582aabc6f4e45cdf9cbe2f74eb1aaf69cb4ef86cde48f86e02147d6c49ea22587144bbfdaa 8ef92c04afeb0c4e93ba93453561e65acd5065bbe12abde11819d86434039cf4e619124d5f308240ab0ea11 635aef2edfc8bc39e77768d784b67f6f7cb603"

 If using ATD, set the eCall flag (optional with u-blox PSAP simulator) and make a call to PSAP using

dial command: ATDpsapnumber;

AT+UECALLTYPE=2 OK ATD1234;

 or if using AT+CECALL, configure test number and perform a test call (see 3.4.1 for more info on

test number configuration)

AT+UDCONF=90,1,129,"1234" OK AT+CECALL=0; OK

 Now the IVS calls the PSAP.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 47 of 62

eCall / ERA GLONASS - Application note

On PSAP side:

 When the m-center-PSAP detects the incoming call, the call is soon answered.  In the PSAP Log window, the messages are displayed as follows:

Incoming call Incoming call nr: +xx1234 InBM prepared in data mode Call active

 In normal network conditions the IVS synchronizes with PSAP, and after some seconds the MSD

is received.

 The messages and the MSD in binary format are displayed as follows:

MSD received: c5 e1 65 df 6a 78 9b 4a aa a4 6e e4 a6 51 82 0d aa f6 25 80 37 35 d9 df d5 c7 06 79 27 d8 21 a4 3d 4b 64 b7 4c d2 11 6d c5 82 aa bc 6f 4e 45 cd f9 cb e2 f7 4e b1 aa f6 9c b4 ef 86 cd e4 8f 86 e0 21 47 d6 c4 9e a2 25 87 14 4b bf da a8 ef 92 c0 4a fe b0 c4 e9 3b a9 34 53 56 1e 65 ac d5 06 5b be 12 ab de 11 81 9d 86 43 40 39 cf 4e 61 91 24 d5 f3 08 24 0a b0 ea 11 63 5a ef 2e df c8 bc 39 e7 77 68 d7 84 b6 7f 6f 7c b6 03 eCall in voice mode

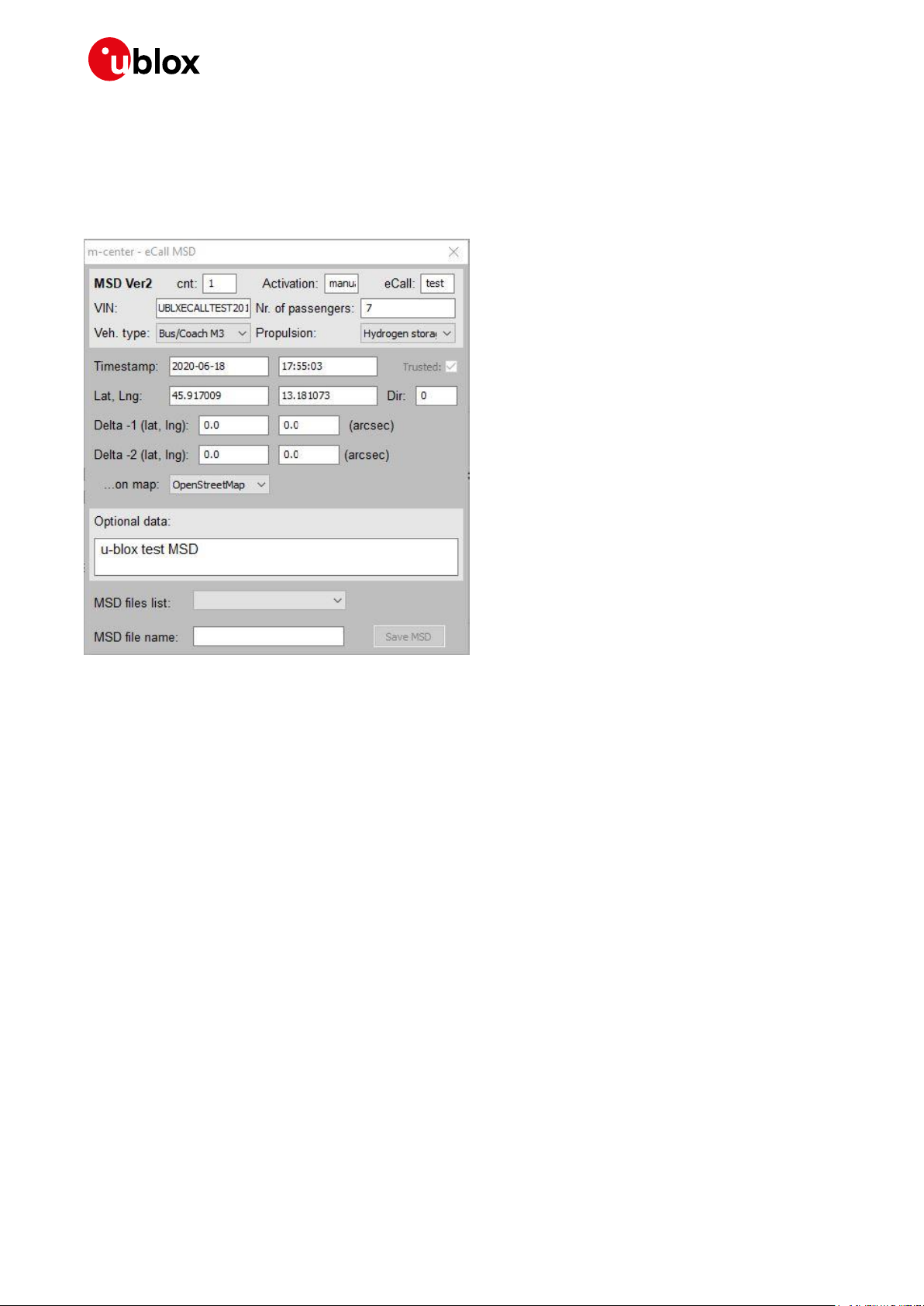

 The “eCall MSD” window appears. This window shows the decoded MSD:

 At reception of a new MSD, the panels in the window are automatically updated.  The PSAP and the IVS are now in voice mode, the eCall is still active and, if the headphones are

connected to both PSAP and IVS modem, it is possible to have a normal voice call.

 If the “Voice Echo Mode” checkbox is selected, the audio signal coming from IVS will be echoed

back.

 PSAP has captured the IVS number, which is displayed in the dedicated text box.  From the PSAP, press the “Data mode” button to again pull the MSD from the PSAP. If the

connection is still active, the PSAP switches again to data mode, the microphone and loudspeaker are muted, and the MSD will again be transferred from IVS to PSAP. When the transfer is completed, the PSAP returns to voice mode.

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 48 of 62

eCall / ERA GLONASS - Application note

 Press the “Call End” button to terminate the call. In this case, the following message will be

displayed in PSAP Status window:

User closing call Call closed

☞ Closing PSAP is not allowed during the call.

On IVS side:

 When the MSD is received, the PSAP acknowledges the IVS. In the AT Terminal the following

information text response is displayed:

+UUECALLDATA: 0,"00"

 The ACK-AL flags are displayed in the second parameter of the +UUECALLDATA URC.  When the call is dropped by the PSAP, this information text response is displayed:

+UUECALLDATA: 7

NO CARRIER

6.5.2 Callback example

When an eCall is terminated, it is possible for PSAP to call back the IVS. This can be done simply by clicking the “Callback“ button. Immediately after the call set-up, the normal voice communication should be available, as long as the PSAP does not pull an MSD.

On PSAP side:

 Click the “Callback” button. A call starts to the number displayed in the IVS number textbox.

On IVS side:

 When an incoming call is detected, answer with ATA command and wait the +UCALLSTAT URC

i.e. that call is active:

RING

ata

OK +UCALLSTAT: 1,0

 Then, start eIM in pull mode providing latest MSD:

AT+UECALLDATA=1,0,"c5e165df6a789b4aaaa46ee4a651820daaf625803735d9dfd5c7067927d821a43d4b 64b74cd2116dc582aabc6f4e45cdf9cbe2f74eb1aaf69cb4ef86cde48f86e02147d6c49ea22587144bbfdaa 8ef92c04afeb0c4e93ba93453561e65acd5065bbe12abde11819d86434039cf4e619124d5f308240ab0ea11 635aef2edfc8bc39e77768d784b67f6f7cb603"

Both

 IVS synchronizes with PSAP, and after some seconds, the MSD is received.  The eCall continues as in previous examples.

☞ The eIM is started in pull mode, i.e. without transmitting the START signal, after the +UCALLSTAT

URC is received. In that way, the internal voice muting at call setup and trigger of T5 timer is skipped (in case that internal voice handling is enabled).

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 49 of 62

eCall / ERA GLONASS - Application note

Abbreviation

Definition

3GPP

3rd Generation Partnership Project

AT Command Interpreter Software Subsystem, or attention

DUT

Device Under Test

eCall

Emergency Call

eIM

eCall In-band Modem

IVS

In-Vehicle System (eCall related)

MSD

Minimum Set Of Data (eCall related)

PSAP

Public Safety Answering Point

Appendix

A Glossary

Table 5: Explanation of the abbreviations and terms used

UBX-13001924 - R10 Appendix Page 50 of 62

eCall / ERA GLONASS - Application note

3GPP TS 51.010 Ch. 26.9.6a Structured Calls /eCall

26.9.6a.1

eCall with USIM

26.9.6a.1.1

Void

26.9.6a.1.2

Test call using eCall capable MS with “eCall-only” subscription on USIM

26.9.6a.1.3

Manually initiated eCall using eCall capable MS with “eCall-only” subscription on USIM

26.9.6a.1.4

Manually initiated eCall using eCall capable MS with eCall capable USIM

26.9.6a.1.5

eCall Inactivity State after T3242 expires

26.9.6a.1.6

Automatically initiated eCall

26.9.6a.1.7

Reconfiguration call using eCall capable MS with “eCall-only” subscription on USIM

3GPP TS 34.123 Ch. 13.3 eCall Emergency Call Procedures

13.3.1

eCall /with USIM

13.3.1.1

Void

13.3.1.2

Test call using eCall capable UE with eCall-only subscription

13.3.1.3

Manually initiated eCall using eCall capable UE with “eCall-only” subscription on USIM

13.3.1.4

Reconfiguration call using eCall capable UE with an “eCall-only” subscription

13.3.1.5

Manually initiated eCall using eCall capable UE with eCall and non eCall subscription on USIM

13.3.1.6

eCall Inactivity State after T3242 expires

13.3.1.7

Automatically initiated eCall

13.3.1.8

Manually initiated eCall Location Updating using eCall-only capable UE/Reject Cause codes: IMSI Unknown in HLR or Illegal MS or Illegal ME

13.3.1.9

Void

13.3.1.10

eCall Inactivity State after T3243 expires

3GPP TS 26.269 eCall Data Transfer; In-band Modem solution; Conformance testing

5.1

Bit exactness

5.2

Minimum performance requirements

5.2.1

MSD Transmission time

5.2.1.1

Full campaign (all AMR-FR codec modes plus GSM-FR)

5.2.1.2

Error-free case for AMR 12.2 and FR

5.2.1.3

GSM-HR codec

5.2.1.4

Noisy Conditions

5.2.1.5

Scaling of PCM signals

5.2.2

CRC check quality

5.2.3

Transmission failures

5.2.4

False detection due to signaling tones

5.2.5

Push messages

5.2.6

HLACK messages

B PAN European eCall IVS test list

The following test list is for information only and may not be up-to-date.

B.1 NAD Protocol

B.2 In-band modem conformance

UBX-13001924 - R10 Appendix Page 51 of 62

eCall / ERA GLONASS - Application note

CEN/TC 278 / EN 16454:2015

CTP

Name

1.1.0.1

Test for conformance to ETS TS 102936-1 and 102936-2

1.1.0.2

Test for conformance to valid SIM/USIM

1.1.0.3

Test conformance that automatic eCall triggering does not occur when ignition is OFF

1.1.1.1

Test for power on and self-test

1.1.1.2

Verify that IVS does not perform PLMN registration after power-up (eCall-only IVS)

1.1.1.3

IVS periodically scans and maintains a list of available PLMNs (eCall-only IVS)

1.1.2.1

Test for automatic activation of eCall

1.1.2.2

Verify that an automatic eCall in progress was not disconnected upon a new eCall trigger

1.1.2.3

Post-side-crash performance of the automatic trigger

1.1.2.4

Post-frontal-crash performance of the automatic trigger

1.1.2.5

Performance of automatic trigger - different crash types

1.1.3.1

Test of manual activation of eCall

1.1.3.2

Verify that a manually eCall in progress was not disconnected upon a new eCall trigger

1.1.4.1

Verify activation of test eCall

1.1.5.1

Test for network registration

1.1.5.2

Verify that manual termination of eCall by vehicle occupants was not allowed (auto eCall)

1.1.5.3

Verify that manual termination of eCall by vehicle occupants was not allowed (manual eCall)

1.1.5.4

Verify that ongoing automatically triggered eCall was not disconnected when ignition is witched OFF

1.1.5.5

Verify that ongoing manually triggered eCall was not disconnected when ignition is witched OFF

1.1.5.6

Priority over conflicting communication

1.1.5.7

Network registration is re-tried when network registration attempt was not successful

1.1.6.1

Test for mute IVS audio including entertainment audio

1.1.7.1

Test for set-up TS12 call with eCall identifier (flag) set to “automatic”

1.1.8.1

Test for set-up TS12 call with eCall identifier (flag) set to “manual”

1.1.9.1

Test for set-up TS11 call to test number

1.1.10.1

Verify that an eCall is attempted when IVS is in mobile network coverage but no networks are available for registration

1.1.10.2

Re-dial attempt completed within 2 minutes after eCall is dropped

1.1.10.3

Test for duration of eCall initiation signal

1.1.10.4

Verify that PLMN registration procedure is executed upon initiating an eCall (eCall-only IVS)

1.1.11.1

Test for “Send MSD” with indicator set to “Automatically initiated eCall” (AIeC)

1.1.12.1

Test for “Send MSD” with indicator set to “Manually initiated eCall” (MIeC)

1.1.13.1

Test for “Send MSD” with indicator set to “Test”

B.3 High-level application protocol

UBX-13001924 - R10 Appendix Page 52 of 62

eCall / ERA GLONASS - Application note

CEN/TC 278 / EN 16454:2015

1.1.14.1

Verify MSD transfer

1.1.14.2

Test for un-mute IVS audio when AL-ACK received

1.1.15.1

Test for establish voice link to PSAP operator

1.1.15.2

Verify MSD transfer while eCall conversation in progress

1.1.15.3

Verify that the IVS audio is un-muted if SEND MSD request was not received and timer T5 has expired

1.1.15.4

Verify MSD transfer upon T6 expiration

1.1.15.5

Verify that MSD is transferred continuously until T7 expires and IVS reconnects loudspeaker and microphone on its expiry

1.1.16.1

Test for Clear-down call automatically

1.1.16.2

Verify that IVS clears down the eCall upon T2 expiry

1.1.16.3

Verify that IVS registers recent eCalls, stores the fact of the AL-ACK receipt and its timestamp

1.1.17.1

Verify that the call-back is allowed by IVS

1.1.17.2

Verify that the call-back is answered automatically by IVS

1.1.17.3

Verify that MSD transfer occurs upon PSAP request during call-back

1.1.17.4

Test for IVS remains registered for a minimum of 1 hour

1.1.17.5

Test for IVS remains registered for a minimum of 1 hour and a maximum of 12 hours (eCall-only IVS)

UBX-13001924 - R10 Appendix Page 53 of 62

eCall / ERA GLONASS - Application note

Test methods

GOST R 55530-2013

6.1

Checking MSD transfer in automatic mode

6.1.1

Checking MSD transfer using in-band modem

6.1.2

Checking MSD transfer by SMS

6.2

Checking MSD transfer in manual mode

6.2.1

Checking MSD transfer using in-band modem

6.2.2

Checking MSD transfer by SMS

6.3

Checking that transferred MSD contains last known vehicle location as for detection time of RTA event

6.4

Checking that transferred MSD contains expected last known vehicle location as for detection time of RTA event

6.5

Checking that transferred MSD contains valid vehicle location data

6.6

Checking that transferred MSD contains valid vehicle movement direction data

6.7

Checking that loud voice communication is possible during emergency calls

6.8

Checking IVS status indicators (for IVS in auxiliary equipment configuration)

6.9

Checking IVS operation in Test mode

6.10

Checking IVS operation in “Service Station” mode (for IVS in auxiliary equipment configuration)

6.11

Checking IVS operation in “Software Downloading” mode (for IVS in auxiliary equipment configuration)

6.12

Checking UIM (for IVS in auxiliary equipment configuration)

6.13

Checking internal memory of IVS

6.14

Checking operation of IVS backup battery and power supply

6.15

Checking IVS registration in network

6.16

Checking electric power supply and power consumption requirements (for IVS in auxiliary equipment configuration)

Test methods

GOST R 55530-2013

6.17

Checking transfer of SMS command for setting SMS transmission number when SMS is used as a redundant data channel

6.18

Checking transfer of SMS command for setting emergency call number used in tests

6.19

Checking transfer of MSD in manual activation mode using in-band modem

6.20

Checking transfer of MSD in manual activation mode using SMS

6.21

Checking transfer of SMS command for initiation of test emergency call

6.22

Checking transfer of MSD with test call attributes using in-band modem

6.23

Checking transfer of MSD with test call attributes using SMS

6.24

Checking transfer of SMS command for repeated MSD transfer in regard to RTA event recorded earlier

6.25

Checking packet transmission of firmware data specific to a given IVS type (for IVS in auxiliary equipment configuration)

6.26

Checking that emergency call button is protected from accidental pressing

6.27

Checking that backlighting of emergency call button is available

C ERA-GLONASS IVS test list

Test methods for IVS are specified in the GOST standards [17],[23],[24],[25],[26],[27] and amendments.

C.1 IVS functional and data transfer protocols test methods

C.1.1 IVS tests in regard to functional requirements

C.1.2 IVS tests in regard to requirements of data exchange protocols

UBX-13001924 - R10 Appendix Page 54 of 62

eCall / ERA GLONASS - Application note

Test methods

GOST R 55518-2013

5.2.1

OD completeness check

5.2.2

IVS completeness check

5.2.3

IVS workability check under rated power-supply voltage

5.2.4

IVS workability check under changes of power-supply voltage

5.2.5

IVS workability check under power-supply voltage of reverse polarity

5.2.6

Check of protection of the IVS external electric circuits from their short circuit to the poles of the source of power-supply

5.2.7

Check of the IVS workability under conductive noise in power circuits

5.2.8

Check of the degree of the IVS noise emission into the onboard network

5.2.9

Check of the IVS workability under the noise generated in control (alarm) circuits

5.2.10

Check of the IVS workability under the noise generated by electrostatic discharges

5.2.11

Check of compliance with requirements for radio-noise voltage generated on the connectors of the IVS power-supply sockets

5.2.12

Check of compliance with requirements for intensity of the electromagnetic field generated by the IVS

5.2.13

Check of the IVS workability under electromagnetic radiation in the frequency range from 20 to 2000 MHz

Test methods

GOST R 55518-2013

6.2.1

IVS marking check

6.2.2

Test for resistance to low ambient temperature

6.2.3

Test for resistance to high ambient temperature

6.2.4

Test for resistance to ambient temperature change

6.2.5

Test under high humidity and high temperature using a constant test mode

6.2.6

Test for resistance to dust providing evaluation of the IVS protection degree in compliance with GOST 14254

6.2.7

Water-resistance test providing evaluation of the IVS protection degree in compliance with GOST 14254

Test methods

GOST R 55518-2013

7.2.1

IVS marking check

7.2.2

Check of IVS workability under sinusoidal vibration

7.2.3

Check of IVS resistance to sinusoidal vibration

7.2.4

Check of IVS workability under multiple mechanical shocks

7.2.5

Check of IVS resistance to multiple mechanical shocks

7.2.6

Check of IVS workability under single mechanical shocks (acceleration is 75g) (for auxiliary equipment configuration only)

7.2.7

Check of IVS resistance to mechanical shocks during transportation

7.2.8

Check of IVS resistance to overloads in front collision of vehicle

C.2 IVS tests for compliance with established requirements

The IVS tests are for compliance with established requirements for electromagnetic compatibility and resistance to climatic and mechanical loads.

C.2.1 IVS tests for compliance with established electromagnetic compatibility

requirements

C.2.2 IVS tests for compliance with established resistance to climatic loads

requirements

C.2.3 IVS tests for compliance with established mechanical load resistance

requirements

UBX-13001924 - R10 Appendix Page 55 of 62

eCall / ERA GLONASS - Application note

Test methods

GOST R 55531-2013

7.1

Signal processing delay in IVS

7.2

Loudness rating

7.3

Frequency sensitivity response

7.4

IVS self-noise level

7.5

Suppression of out-of-band signals

7.6

Signal distortion in IVS

7.7

IVS performance in single-talk mode

7.8

Performance of voice direction switching

7.9

IVS performance in double-talk mode

7.10

Speech quality in receive and transmit channels

7.11

IVS performance in acoustic noise conditions

7.12

Background noise quality in transmit channel

7.13

Properties of electro-acoustic components

7.14

Subjective quality assessment of IVS loudspeaker communication

Test methods

GOST R 55532-2013

6.1

Checking delivery set completeness if in-vehicle emergency call system

6.2

Examining technical documentation for in-vehicle emergency call system

6.3

Verifying detection of true emergency events

6.4

Checking resistance of in-vehicle emergency call system to false actuations

6.5

Checking conformity of RTA severity calculation algorithm to established requirements

6.6

Checking automatic RTA event detection capabilities of in-vehicle emergency call system in field tests

Test methods

GOST R 55533-2013

IVS-GSM electric parameters

6.6.2

Level of spurious emissions

6.6.2.1

Level of spurious emissions at IVS-GSM antenna connector, in active mode

6.6.2.2

Level of spurious emissions at IVS-GSM antenna connector, in standby mode

6.6.2.3

Level of spurious emissions from IVS-GSM body without antenna connector, in activemode

6.6.2.4

Level of spurious emissions from IVS-GSM body without antenna connector, in standby mode

6.6.3

Parameters pertaining to frequency and phase in static RF channel, maximum output power, power control levels of transmitting device, synchronization of transmitted packets, and sensitivity of receiving device

6.6.4

Levels of IVS-GSM out-of-band emissions due to modulation

6.6.5

Levels of IVS-GSM out-of-band emissions due to transients during transmitter power switches

IVS-GSM functional parameters

6.7.1

Availability of IMEI number

C.3 IVS tests for conformity to quality requirements for

in-vehicle loudspeaker communication

C.4 IVS tests for conformity to accident detection requirements

C.5 IVS tests for wireless communication modules

C.5.1 IVS tests in regard to implementation of GSM modem functions

UBX-13001924 - R10 Appendix Page 56 of 62

eCall / ERA GLONASS - Application note

Test methods

GOST R 55533-2013

6.7.2

Performance of procedures for call receiving; establishing, maintaining and closing GSM-900 connections; ensuring stability of established GSM-900 connection in cases of channel switchover and transition to GSM-1800 sub-band

6.7.3

Performance of procedures for calling and call receiving; establishing, maintaining and closing GSM-1800 connections; ensuring stability of established GSM-1800 connection in cases of channel switchover and of transition to GSM-900 sub-band

Test methods

GOST R 55533-2013

IVS-UMTS electric parameters

7.5.6

Maximum permitted power for different IVS-UMTS classes

7.5.7

Maximum permitted carrier frequency deviation of subscriber device transmitter from value set by base station or from rated carrier frequency value of frequency channel

7.5.8

Maximum permitted deviation of actual transmitter power from values determined by level of pilot-signal received from base station and by data received from it

7.5.9

Maximum permitted value power control parameters in case of inner loop power control

7.5.10

Minimum permitted value of output power set in IVS-UMTS using and inner loop control

7.5.11

Maximum permitted transmitter on/off delay upon reception of power control signals of quality below/above established threshold

7.5.12

Maximum permitted IVS-UMTS power radiated with transmitter turned off

7.5.13

Permitted temporal variations of radiated power during IVS-UMTS transmitter on/off switches

7.5.14

Permitted limits of radiated power attenuation in adjacent frequency channels

7.5.15

Permitted limits of spurious emission of IVS-UMTS

7.5.16

Maximum permitted value of error vector magnitude

7.5.17

Maximum permitted value of peak error in code region

7.5.18

Maximum permitted bit error rate (BER) at signal level of -117 dBm at receiver antenna input (reference level of receiver sensitivity)

7.5.19

Maximum transmitter power of auxiliary device built-in into IVS-UMTS

IVS-UMTS functional parameters

7.6.2

Availability of road accident emergency services using IVS-UMTS with subscriber identity module/card (USIM/UICC)

7.6.3

Ensuring IVS-UMTS access to transport services of UMTS network

Test methods

GOST R 55533-2013

8.6.2

Measuring MSD transmission time for AMR-FR and GSM-FR codecs

8.6.3

Measuring MSD transmission time for AMR-12.2 and FR codecs

8.6.4

Measuring MSD transmission time for GSM-HR codec

8.6.5

Measuring MSD transmission time for voice codecs in presence of white noise channel

8.6.6

Measuring MSD transmission time for various values of PCM signal gain

8.6.7

Checking absence of false emergency call detection due to signaling tones at receiver input of IVS-modem

8.6.8

Testing transmission/reception of PUSH messages from/to IVS-modem

8.6.9

Testing reception of HLACK messages

C.5.2 IVS tests in regard to implementation of UMTS modem functions

C.5.3 IVS tests in regard to implementation of in-band modem functions

UBX-13001924 - R10 Appendix Page 57 of 62

eCall / ERA GLONASS - Application note

Test methods (clause number)

GOST R 55534-2013

5.1

Checking that navigation signals of standard precision in L1 band of GLONASS GNSS may be received and processed in order to determine vehicle coordinates and its velocity components

5.2

Checking that navigation signals of standard precision in L1 band of GPS GNSS may be received and processed in order to determine vehicle coordinates and its velocity components

5.3

Checking that navigation signals of standard precision in L1 band of GLONASS and GPS GNSS may be received and processed in order to determine vehicle coordinates and its velocity components

5.4

Checking that navigation parameters data may be output to external devices in NMEA-0813 format

5.5

Checking receiver autonomous integrity monitoring (RAIM) algorithm

5.6

Checking that navigation parameters

5.7

Estimating error in evaluation of plane view coordinates and altitude in autonomous mode

5.8

Estimating error in evaluation of plane view coordinates, altitude and velocity in dynamic mode

5.9

Checking minimum time interval of observation data updates

5.10

Checking time to restore tracking signals of working NSC constellation after tracking fault caused by blockage

5.11

Evaluating time of navigation fix in cold start

5.12

Evaluating sensitivity of GNSS navigation module in GNSS signal search (locking) mode and in GNSS signal hold (tracking) mode

5.13

Checking that data output rate may be changed in required range using GNSS_DATA_RATE setup parameter

5.14

Checking minimum elevation (cut-off angle) for navigation spacecrafts

5.15

Checking power-off time of navigation module (GNSS navigation receiver) after ignition is turned off

5.16

(no longer mandatory) Checking conformity to requirements of intended use under exposure to harmonic interference

5.17

(no longer mandatory) Checking that GNSS signals may be tracked under exposure to pulse interference

C.6 IVS tests for navigation modules

UBX-13001924 - R10 Appendix Page 58 of 62

eCall / ERA GLONASS - Application note

D eCall flag

The eCall Flag, or eCall discriminator, is defined by Table 10.5.135d/3GPP TS 24.008: Service Category information element, Emergency Service Category Value (octet 3).

The meaning of the Emergency Category Value is derived from the following settings (see 3GPP TS

22.101 [28] clause 10):

 Bit 1 Police  Bit 2 Ambulance  Bit 3 Fire Brigade  Bit 4 Marine Guard  Bit 5 Mountain Rescue  Bit 6 manually initiated eCall  Bit 7 automatically initiated eCall  Bit 8 is spare and set to "0"

The mobile station may set one or more bits to "1".

If more than one bit is set to "1", routing to a combined Emergency center (e.g. ambulance and fire brigade in Japan) is required. If the MSC cannot match the received service category to any of the emergency centers, it shall route the call to an operator-defined default emergency center. If no bit is set to "1", the MSC shall route the emergency call to an operator-defined default emergency center. A

mobile station initiating an eCall shall set either bit 6 or bit 7 to “1”. The network may use the

information indicated in bit 6 and bit 7 to route the manually or automatically initiated eCall to an operator-defined emergency call center.

UBX-13001924 - R10 Appendix Page 59 of 62

eCall / ERA GLONASS - Application note

Revision history

UBX-13001924 - R10 Revision history Page 61 of 62

eCall / ERA GLONASS - Application note

u-blox Offices

North, Central and South America

u-blox America, Inc.

Phone: +1 703 483 3180 E-mail: info_us@u-blox.com

Regional Office West Coast:

Phone: +1 408 573 3640 E-mail: info_us@u-blox.com

Technical Support:

Phone: +1 703 483 3185 E-mail: support@u-blox.com

Headquarters Europe, Middle East, Africa

u-blox AG

Phone: +41 44 722 74 44 E-mail: info@u-blox.com Support: support@u-blox.com

Asia, Australia, Pacific

u-blox Singapore Pte. Ltd.

Phone: +65 6734 3811 E-mail: info_ap@u-blox.com Support: support_ap@u-blox.com

Regional Office Australia:

Phone: +61 2 8448 2016 E-mail: info_anz@u-blox.com Support: support_ap@u-blox.com

Regional Office China (Beijing):

Phone: +86 10 68 133 545 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Chongqing):

Phone: +86 23 6815 1588 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shanghai):

Phone: +86 21 6090 4832 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shenzhen):

Phone: +86 755 8627 1083 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office India:

Phone: +91 80 405 092 00 E-mail: info_in@u-blox.com Support: support_in@u-blox.com

Regional Office Japan (Osaka):

Phone: +81 6 6941 3660 E-mail: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Japan (Tokyo):

Phone: +81 3 5775 3850 E-mail: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Korea:

Phone: +82 2 542 0861 E-mail: info_kr@u-blox.com Support: support_kr@u-blox.com

Regional Office Taiwan:

Phone: +886 2 2657 1090 E-mail: info_tw@u-blox.com Support: support_tw@u-blox.com

Contact

For complete contact information, visit us at www.u-blox.com.

UBX-13001924 - R10 Contact Page 62 of 62

u-blox eCall, ERA GLONASS Application note

Specifications and Main Features

Frequently Asked Questions

User Manual

Document information

Contents

1 Introduction

1.1 About eCall / ERA GLONASS

1.2 eCall definitions

2 IVS system and eCall conformity

2.1 eCall AT interface summary

2.2 Table of timings (eCall Release 2 and 3)

3 eCall control through AT interface

3.1 AT+UECALLSTAT

3.1.1 Read configuration: AT+UECALLSTAT?

3.1.1.1 USIM not inserted/ not functional

3.1.2 Force the configuration in cache: AT+UECALLSTAT=0/1/2

3.1.3 Restore configuration in cache: AT+UECALLSTAT=3

3.2 AT+UECALLTYPE

3.2.1 USIM not inserted / not valid eCall USIM

3.2.2 Test and reconfiguration eCall types

3.3 AT+CECALL

3.4 AT+UDCONF=90

3.4.1 eCall test number: AT+UDCONF=90,1[,<ToN>,<number>]

3.4.3 eCall T3242 duration: AT+UDCONF=90,11,<timer_duration>

3.4.4 eCall T3243 duration: AT+UDCONF=90,12,<timer_duration>

3.5 AT+UECALLDATA

3.5.1 Activation: AT+UECALLDATA=1,<push/pull mode>,<MSD data>

3.5.2 In-band Modem status events: +UUECALLDATA: <urc_id>

3.5.3 MSD update: AT+UECALLDATA=2,<update mode>,<MSD data>

3.5.4 Examples

3.6 AT+UECALLVOICE

3.6.1 Internal voice control

3.6.1.1 eCall Releases 2 and 3

3.6.1.2 eCall Release 4

3.6.2 Configurable internal HLAP timers (eCall Release 4)

4 eCall examples

4.1 eCall session dynamic view: end-to-end In-band signaling

4.1.1 MSD transfer in push mode

4.1.2 MSD update in TX idling mode

4.2 eCall control examples

4.2.1 Simple MSD transfer in push mode

4.2.3 Answer to PSAP callback

4.3 eCall configuration examples

4.3.1 eCall initiation (eCall Release 2 vs 3)

4.3.1.1 Using AT+UECALLTYPE in eCall Release 2

4.3.1.2 Using AT+UECALLTYPE in eCall Release 3 (deprecated)

4.3.1.3 Using AT+CECALL

4.3.2 eCall-only mode with an eCall-enabled USIM

4.3.3 Force the eCall-only mode with a not eCall-enabled USIM

5.1 MSD transfer by SMS

5.1.1 MSD SMS transmission in PDU mode

5.1.1.1 PDU generation

5.1.1.2 PDU transmission

UBX-13001924 - R10 ERA-GLONASS additional features and use cases Page 33 of 62

5.2 SIM/eUICC profile switch

6.1 PSAP simulator

6.1.1 Software & hardware requirements

6.1.1.1 PC

UBX-13001924 - R10 eCall / ERA GLONASS In-band Modem simulation system Page 37 of 62

6.1.1.2 PSAP GSM modem module

6.1.1.3 PSAP GSM modem evaluation kit

6.1.1.4 USB cable

6.2 IVS system

6.2.1 Software & hardware requirements

6.2.1.1 PC

6.2.1.2 Device under test

6.2.1.3 Module evaluation kit

6.2.1.4 USB cable

6.3 m-center software

6.3.1 IVS simulator

6.3.1.1 IVS on / IVS off button

6.3.1.2 eCall control panel

6.3.1.3 eCall control: Call Start

6.3.1.4 eCall control: Init file list / Initialize button

6.3.1.5 eCall control: eCall type

6.3.1.6 eCall control: Autoanswer

6.3.1.7 eCall control: Redial on busy, drop…

6.3.1.8 eCall control: Audio control

6.3.1.9 eCall control: HLAP timers
