u blox 1EHQ37NN Users Manual

Abstract

This document describes the features and the system integration of TOBY-L4 series multi-mode cellular modules.

The modules are a complete and cost efficient LTE-FDD, LTE-TDD, DCHSPA+, (E)GPRS multi-mode and multi-band solution with uCPU embedded Linux programming capability. The modules offer up to

301.5 Mb/s download and up to 51.0 Mb/s upload data rates with Category 6 LTE-Advanced carrier aggregation technology in the compact TOBY form factor.

www.u-blox.com

UBX-16024839 - R04

TOBY-L4 series

LTE Advanced (Cat 6) modules with 3G and 2G fallback

System Integration Manual

TOBY-L4 series - System Integration Manual

Document Information

Title

TOBY-L4 series

Subtitle

LTE Advanced (Cat 6) modules with 3G and 2G fallback

Document type

System Integration Manual

Document number

UBX-16024839

Revision, date

R04

27-Feb-2018

Disclosure restriction

Product Status

Corresponding content status

Functional Sample

Draft

For functional testing. Revised and supplementary data will be published later.

In Development / Prototype

Objective Specification

Target values. Revised and supplementary data will be published later.

Engineering Sample

Advance Information

Data based on early testing. Revised and supplementary data will be published later.

Initial Production

Early Prod. Information

Data from product verification. Revised and supplementary data may be published later.

Mass Production / End of Life

Production Information

Final product specification.

Name

Type number

Modem version

Application version

PCN reference

Product status

TOBY-L4006

TOBY-L4006-00A-00

TBD

Functional Sample

TOBY-L4006-50A-00

40.24

A00.02

UBX-18007908

Engineering Sample

TOBY-L4106

TOBY-L4106-00A-00

TBD

Functional Sample

TOBY-L4106-50A-00

40.24

A00.02

UBX-18007908

Engineering Sample

TOBY-L4206

TOBY-L4206-00A-00

TBD

Functional Sample

TOBY-L4206-50A-00

TBD

Functional Sample

TOBY-L4906

TOBY-L4906-00A-00

TBD

Functional Sample

TOBY-L4906-50A-00

40.19

A00.02

UBX-17058711

Engineering Sample

This document applies to the following products:

u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this document or any part thereof without the express permission of u-blox is strictly prohibited.

The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by u-blox at any time. For most recent documents, please visit www.u-blox.com.

u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other registered trademarks or trademarks mentioned in this document are property of their respective owners.

UBX-16024839 - R04

Page 2 of 143

TOBY-L4 series - System Integration Manual

Preface

u-blox Technical Documentation

As part of our commitment to customer support, u-blox maintains an extensive volume of technical documentation for our products. In addition to our product-specific technical data sheets, the following manuals are available to assist u-blox customers in product design and development.

 AT Commands Manual: This document provides the description of the AT commands supported by the

u-blox cellular modules.

 System Integration Manual: This document provides the description of u-blox cellular modules’ system from

the hardware and the software point of view, it provides hardware design guidelines for the optimal integration of the cellular modules in the application device and it provides information on how to set up production and final product tests on application devices integrating the cellular modules.

 Application Note: These documents provide guidelines and information on specific hardware and/or

software topics on u-blox cellular modules. See Related documents for a list of Application Notes related to your Cellular Module.

How to use this Manual

The TOBY-L4 series System Integration Manual provides the necessary information to successfully design and configure the u-blox cellular modules.

This manual has a modular structure. It is not necessary to read it from the beginning to the end. The following symbols are used to highlight important information within the manual:

An index finger points out key information pertaining to module integration and performance.

A warning symbol indicates actions that could negatively impact or damage the module.

Questions

If you have any questions about u-blox Cellular Integration:

 Read this manual carefully.  Contact our information service on the homepage http://www.u-blox.com/

Technical Support

Worldwide Web

Our website (http://www.u-blox.com/) is a rich pool of information. Product information, technical documents can be accessed 24h a day.

By E-mail

Contact the closest Technical Support office by email. Use our service pool email addresses rather than any personal email address of our staff. This makes sure that your request is processed as soon as possible. You will find the contact details at the end of the document.

Helpful Information when Contacting Technical Support

When contacting Technical Support, have the following information ready:

 Module type (TOBY-L4106) and firmware version  Module configuration  Clear description of your question or the problem  A short description of the application  Your complete contact details

UBX-16024839 - R04 Preface

Page 3 of 143

TOBY-L4 series - System Integration Manual

Preface ................................................................................................................................ 3

Contents .............................................................................................................................. 4

1 System description ....................................................................................................... 7

1.1 Overview .............................................................................................................................................. 7

1.2 Architecture ........................................................................................................................................ 10

1.3 Pin-out ............................................................................................................................................... 12

1.4 Operating modes ................................................................................................................................ 20

1.5 Supply interfaces ................................................................................................................................ 22

1.5.1 Module supply input (VCC) ......................................................................................................... 22

1.5.2 RTC back-up supply (V_BCKP) ..................................................................................................... 30

1.5.3 Generic digital interfaces supply output (V_INT) ........................................................................... 30

1.6 System function interfaces .................................................................................................................. 31

1.6.1 Module power-on ....................................................................................................................... 31

1.6.2 Module power-off ....................................................................................................................... 33

1.6.3 Module reset ............................................................................................................................... 35

1.6.4 Module / host configuration selection ......................................................................................... 35

1.7 Antenna interfaces ............................................................................................................................. 36

1.7.1 Antenna RF interfaces (ANT1 / ANT2) .......................................................................................... 36

1.7.2 Antenna detection interface (ANT_DET) ...................................................................................... 38

1.8 SIM interfaces ..................................................................................................................................... 38

1.8.1 SIM interfaces.............................................................................................................................. 38

1.8.2 SIM detection interface ............................................................................................................... 38

1.9 Data communication interfaces .......................................................................................................... 39

1.9.1 USB interface............................................................................................................................... 40

1.9.2 UART interfaces ........................................................................................................................... 41

1.9.3 SPI interfaces ............................................................................................................................... 44

1.9.4 DDC (I2C) interfaces ..................................................................................................................... 45

1.9.5 SDIO interface ............................................................................................................................. 45

1.9.6 RGMII interface ........................................................................................................................... 46

1.10 eMMC interface .............................................................................................................................. 47

1.11 Audio interfaces .............................................................................................................................. 48

1.11.1 Analog audio interfaces ............................................................................................................... 48

1.11.2 Digital audio interface ................................................................................................................. 49

1.12 ADC interfaces ................................................................................................................................ 50

1.13 General Purpose Input/Output ........................................................................................................ 50

1.14 Reserved pins (RSVD) ...................................................................................................................... 51

2 Design-in ..................................................................................................................... 52

2.1 Overview ............................................................................................................................................ 52

2.2 Supply interfaces ................................................................................................................................ 53

UBX-16024839 - R04 Contents

Page 4 of 143

TOBY-L4 series - System Integration Manual

2.2.1 Module supply (VCC) .................................................................................................................. 53

2.2.2 RTC back-up supply (V_BCKP) ..................................................................................................... 66

2.2.3 Generic digital interfaces supply output (V_INT) ........................................................................... 67

2.3 System functions interfaces ................................................................................................................ 68

2.3.1 Module power-on (PWR_ON) ...................................................................................................... 68

2.3.2 Module reset (RESET_N) .............................................................................................................. 69

2.3.3 Module / host configuration selection ......................................................................................... 70

2.4 Antenna interface ............................................................................................................................... 71

2.4.1 Antenna RF interfaces (ANT1 / ANT2) .......................................................................................... 71

2.4.2 Antenna detection interface (ANT_DET) ...................................................................................... 77

2.5 SIM interfaces ..................................................................................................................................... 79

2.5.1 Guidelines for SIM circuit design.................................................................................................. 79

2.5.2 Guidelines for SIM layout design ................................................................................................. 85

2.6 Data communication interfaces .......................................................................................................... 86

2.6.1 USB interface............................................................................................................................... 86

2.6.2 UART interfaces ........................................................................................................................... 89

2.6.3 SPI interfaces ............................................................................................................................... 93

2.6.4 DDC (I2C) interfaces ..................................................................................................................... 94

2.6.5 SDIO interface ............................................................................................................................. 98

2.6.6 RGMII interface ......................................................................................................................... 100

2.7 eMMC interface ............................................................................................................................... 101

2.8 Audio interface ................................................................................................................................. 102

2.8.1 Analog audio interface .............................................................................................................. 102

2.8.2 Digital audio interface ............................................................................................................... 111

2.9 ADC interfaces ................................................................................................................................. 113

2.10 General Purpose Input/Output ...................................................................................................... 114

2.11 Reserved pins (RSVD) .................................................................................................................... 114

2.12 Module placement ........................................................................................................................ 115

2.13 Module footprint and paste mask ................................................................................................. 116

2.14 Thermal guidelines ........................................................................................................................ 117

2.15 Design-in checklist ........................................................................................................................ 118

2.15.1 Schematic checklist ................................................................................................................... 118

2.15.2 Layout checklist ......................................................................................................................... 119

2.15.3 Antenna checklist ...................................................................................................................... 119

3 Handling and soldering ........................................................................................... 120

3.1 Packaging, shipping, storage and moisture preconditioning ............................................................. 120

3.2 Handling ........................................................................................................................................... 120

3.3 Soldering .......................................................................................................................................... 121

3.3.1 Soldering paste.......................................................................................................................... 121

3.3.2 Reflow soldering ....................................................................................................................... 121

3.3.3 Optical inspection ...................................................................................................................... 122

3.3.4 Cleaning .................................................................................................................................... 122

3.3.5 Repeated reflow soldering ......................................................................................................... 123

UBX-16024839 - R04 Contents

Page 5 of 143

TOBY-L4 series - System Integration Manual

3.3.6 Wave soldering.......................................................................................................................... 123

3.3.7 Hand soldering .......................................................................................................................... 123

3.3.8 Rework ...................................................................................................................................... 123

3.3.9 Conformal coating .................................................................................................................... 123

3.3.10 Casting ...................................................................................................................................... 123

3.3.11 Grounding metal covers ............................................................................................................ 123

3.3.12 Use of ultrasonic processes ........................................................................................................ 123

4 Approvals .................................................................................................................. 124

4.1 Product certification approval overview ............................................................................................. 124

4.2 US Federal Communications Commission notice ............................................................................... 125

4.2.1 Safety warnings review the structure ......................................................................................... 125

4.2.2 Declaration of conformity .......................................................................................................... 125

4.2.3 Modifications ............................................................................................................................ 126

4.3 Innovation, Science and Economic Development Canada notice ....................................................... 127

4.3.1 Declaration of Conformity ......................................................................................................... 127

4.3.2 Modifications ............................................................................................................................ 128

4.4 European Conformance CE mark ...................................................................................................... 130

4.5 Chinese CCC and SRRC certifications ............................................................................................... 131

5 Product testing ......................................................................................................... 132

5.1 u-blox in-series production test ......................................................................................................... 132

5.2 Test parameters for OEM manufacturers........................................................................................... 133

5.2.1 “Go/No go” tests for integrated devices .................................................................................... 133

5.2.2 RF functional tests ..................................................................................................................... 133

Appendix ........................................................................................................................ 135

A Migration between TOBY-L2 and TOBY-L4 ............................................................ 135

A.1 Overview .......................................................................................................................................... 135

A.2 Pin-out comparison between TOBY-L2 and TOBY-L4 ........................................................................ 137

B Glossary .................................................................................................................... 139

Related documents......................................................................................................... 141

Revision history .............................................................................................................. 142

Contact ............................................................................................................................ 143

UBX-16024839 - R04 Contents

Page 6 of 143

TOBY-L4 series - System Integration Manual

1 System description

1.1 Overview

The TOBY-L4 series modules support multi-band LTE-FDD, LTE-TDD, DC-HSPA+, and (E)GPRS radio access technologies (see Table 1) in the very small TOBY 248-pin LGA form-factor (35.6 x 24.8 mm), which is easy to integrate in compact designs.

TOBY-L4 series modules are form-factor compatible with the other u-blox cellular module families (including SARA, LISA, LARA, and TOBY form-factors): this allows customers to take maximum advantage of their hardware and software investments, and provides very short time-to-market.

With LTE-Advanced carrier aggregation category 6 data rates up to 301.5 Mbit/s (downlink) / 51.0 Mbit/s (uplink), the modules are ideal for applications requiring the highest data-rates and high-speed internet access. Reduced cost variants supporting LTE Cat 4 or LTE Cat 1 will be available for lower speed or “pure” telematics devices.

TOBY-L4 series include the following LTE Cat 6 modules with 3G and 2G fallback:

 TOBY-L4006 modules, mainly designed for operation in North America  TOBY-L4106 modules, mainly designed for operation in Europe  TOBY-L4206 modules, mainly designed for operation in Asia-Pacific and South America  TOBY-L4906 modules, mainly designed for operation in China

TOBY-L4 series modules include the following product versions:

 The “00” product versions, integrating the u-blox uCPU on-chip processor to allow customers to run their

dedicated applications on an embedded Linux distribution based on Yocto, with RIL-Core connectivity APIs

 The “50” product versions, which can be controlled by an external application processor through standard

and u-blox proprietary AT commands described in the u-blox AT Commands Manual [2]

TOBY-L4 series modules are the ideal product for the development of all kinds of automotive devices, such as smart antennas and in-dash telematics / infotainment devices, supporting a comprehensive set of HW interfaces (including RGMII/RMII for Ethernet and analog audio) over a very extended temperature range that allow the establishment of an emergency call up to +95 °C, complemented by a set of state-of-the art security features.

TOBY-L4 series modules are also the perfect choice for consumer fixed-wireless terminals, mobile routers and gateways, applications requiring video streaming and many other industrial (M2M) applications.

TOBY-L4 series modules are manufactured in ISO/TS 16949 certified sites, with the highest production standards and the highest quality and reliability. Each module is fully tested and inspected during production. The modules are qualified according to the automotive requirements as for systems installed in vehicles.

UBX-16024839 - R04 System description

Page 7 of 143

TOBY-L4 series - System Integration Manual

Model

Region

Bands

Interfaces

Features

Grade

LTE FDD bands LTE TDD bands UMTS FDD bands GSM bands UART USB 2.0 device/host* USB 3.0 device** SPI

RGMII / RMII eMMC SDIO DDC (I

SIM

GPIO ADC Antenna supervisor CA / MIMO / Rx Diversity Analog audio Digital Audio uCPU for customer applications GNSS via modem Wi-Fi via modem Network indication Jamming detection Embedded TCP/UDP stack Embedded HTTP,

FTP, SSL

FOTA Dual stack IPv4/IPv6 Standard Professional Automotive

TOBY-L4006-00

North

America

2,4,5

7,12

13,29

4,5

850

1900

4 1 1 2 1 1 1 2 2

●

● ● ● ● ●

●

TOBY-L4006-50

North

America

2,4,5

7,12

13,29

4,5

850

1900

1 1 2 9

●

● ●

●

TOBY-L4106-00

EMEA

1,3 7,8

1,8

900

1800

4 1 1 2 1 1 1 2 2

● ● ● ● ●

●

TOBY-L4106-50

EMEA

1,3 7,8

1,8

900

1800

1 1 2 9

●

● ●

●

TOBY-L4206-00

APAC,

South

America

1,3,5 7,8,9

19,28

5,8

Quad

4 1 1 2 1 1 1 2 2

●

● ● ●

●

● ● ● ● ●

●

● ●

TOBY-L4206-50

APAC,

South

America

1,3,5 7,8,9

19,28

5,8

Quad

1 1 2 9

●

● ●

●

TOBY-L4906-00

China

1,3

40,41

1,8

900

1800

4 1 1 2 1 1 1 2 2

●

● ● ●

●

● ● ● ● ●

●

● ●

TOBY-L4906-50

China

1,3

40,41

1,8

900

1800

1 1 2 9

●

● ●

●

* USB 2.0 host role not supported by the "50" product versions

** USB 3.0 interface supported by future firmware versions

Table 1 summarizes the main features and interfaces of the TOBY-L4 series modules.

Table 1: TOBY-L4 series main features summary

TOBY-L4 series modules provide multi-band 4G / 3G / 2G multi-mode radio access technologies, based on the 3GPP Release 10 protocol stack, with the main characteristics summarized in Table 2 and Table 3.

UBX-16024839 - R04 System description

Page 8 of 143

LTE

LTE-Advanced Carrier Aggregation Frequency Division Duplex (LTE FDD) Time Division Duplex (LTE TDD) Down-Link CA / MIMO / Rx diversity

Dual-Cell High Speed Packet Access Frequency Division Duplex (UMTS FDD) Down-Link Rx diversity

Enhanced Data rate GSM Evolution (EDGE) Time Division Multiple Access (TDMA) DL Advanced Rx Performance Phase 1

LTE FDD Power Class  Class 3 (23 dBm) LTE TDD Power Class  Class 3 (23 dBm)

UMTS FDD Power Class  Class 3 (24 dBm)

GMSK Power Class

 Class 4 (33 dBm) for GSM/E-GSM bands  Class 1 (30 dBm) for DCS/PCS bands

8-PSK Power Class

 Class E2 (27 dBm) for GSM/E-GSM bands  Class E2 (26 dBm) for DCS/PCS bands

Data rate

 LTE category 6:

 up to 301.5 Mbit/s DL  up to 51.0 Mbit/s UL

Data rate

 FDD UE categories:

 DL cat.24, up to 42.2 Mbit/s  UL cat.6, up to 5.76 Mbit/s

Data rate

 GPRS multi-slot class 33, CS1-CS4:

 up to 107.0 kbit/s DL  up to 85.6 kbit/s UL

 EDGE multi-slot class 33, MCS1-MCS9

 up to 296.0 kbit/s DL  up to 236.8 kbit/s UL

Module

Region

LTE FDD bands

LTE TDD bands

LTE CA

UMTS FDD bands

GSM bands

TOBY-L4006

North America

12 (700 MHz) 17 (700 MHz) 29 (700 MHz) 13 (750 MHz) 5 (850 MHz) 4 (1700 MHz) 2 (1900 MHz) 7 (2600 MHz)

4 + 17 2 + 13 2 + 17 2 + 29 4 + 5 4 + 4 4 + 13 4 + 29

5 (850 MHz) 4 (1700 MHz) 2 (1900 MHz)

GSM 850 PCS 1900

TOBY-L4106

EMEA, APAC

20 (800 MHz) 8 (900 MHz) 3 (1800 MHz) 1 (2100 MHz) 7 (2600 MHz)

38 (2600 MHz)

3 + 20 7 + 20 3 + 3 3 + 7

8 (900 MHz) 1 (2100 MHz)

E-GSM 900 DCS 1800

TOBY-L4206

APAC, South America

28 (750 MHz) 19 (850 MHz) 5 (850 MHz) 8 (900 MHz) 9 (1800 MHz) 3 (1800 MHz) 1 (2100 MHz) 7 (2600 MHz)

3 + 28 3 + 7 7 + 28 3 + 3 1 + 8 3 + 19 1 + 19

5 (850 MHz) 8 (900 MHz) 1 (2100 MHz)

GSM 850 E-GSM 900 DCS 1800 PCS 1900

TOBY-L4906

China

3 (1800 MHz) 1 (2100 MHz)

39 (1900 MHz) 40 (2300 MHz) 41 (2500 MHz)

3 + 3 40 + 40 41 + 41 39 + 41

8 (900 MHz)1 1 (2100 MHz)

E-GSM 900 DCS 1800

Table 2: TOBY-L4 series LTE, 3G and 2G characteristics summary

TOBY-L4 series - System Integration Manual

Table 3: TOBY-L4 series supported bands2 and Carrier Aggregation combinations summary

Down-Link Rx diversity not supported on this band TOBY-L4 series modules support all the E-UTRA channel bandwidths for each operating band according to 3GPP TS 36.521-1 [13].

UBX-16024839 - R04 System description

Page 9 of 143

TOBY-L4 series - System Integration Manual

Cellular

Base-band

Processor

Memory

Power Management Unit

26 MHz

32.768 kHz

ANT1

Transceiver

ANT2

V_INT (I/O)

V_BCKP (RTC)

VCC (Supply)

2 x SIM

USB 2.0 / 3.0

2 x ADC

Power on

External reset

PAs

LNAs Filters

Filters

Duplexer

Filters

PAs

LNAs Filters

Filters

Duplexer

Filters

LNAs FiltersFilters

Switch

2 x DDC (I2C)

SDIO

4 x UART

Analog audio

Antenna detection

Host Select

2 x SPI

RGMII

eMCC

2 x Digital audio (I2S)

GPIOs

1.2 Architecture

Figure 1 summarizes the internal architecture of the TOBY-L4 series modules.

Figure 1: TOBY-L4 series modules simplified block diagram

TOBY-L4 series modules internally consist of the RF, Baseband and Power Management sections described herein with more details than the simplified block diagrams of Figure 1.

RF section

The RF section is composed of an RF transceiver, PAs, LNAs, crystal oscillator, filters, duplexers and RF switches. The Tx signal is pre-amplified by the RF transceiver, then output to the primary antenna input/output port (ANT1)

of the module via power amplifier (PA), SAW band pass filters band, specific duplexer and antenna switch. Dual receiving paths are implemented according to Carrier Aggregation, MIMO, and Receiver Diversity radio

technologies supported by the modules as LTE category 6 and HSDPA category 24 User Equipments: incoming signals are received through the primary (ANT1) and the secondary (ANT2) antenna input ports which are connected to the RF transceiver via specific antenna switch, diplexer, duplexer, LNA, SAW band pass filters.

 RF transceiver performs modulation, up-conversion of the baseband I/O signals for Tx, down-conversion and

demodulation of the dual RF signals for Rx. The RF transceiver contains:

Single chain high linearity receivers with integrated LNAs for multi-band multi-mode CA operation, Highly linear RF demodulator / modulator capable GMSK, 8-PSK, QPSK, 16-QAM, 64-QAM RF synthesizer, VCO.

 Power Amplifiers (PA) amplify the Tx signal modulated by the RF transceiver  RF switches connect the primary (ANT1) and secondary (ANT2) antenna ports to the suitable Tx / Rx path  SAW duplexers and band pass filters separate the Tx and Rx signal paths and provide RF filtering  26 MHz voltage-controlled temperature-controlled crystal oscillator (VC-TCXO) generates the clock reference

in active mode or connected mode.

UBX-16024839 - R04 System description

Page 10 of 143

TOBY-L4 series - System Integration Manual

Baseband and power management section

The Baseband and Power Management section is composed of the following main elements:

 A mixed signal ASIC, which integrates

o Microprocessor for control functions o DSP core for cellular Layer 1 and digital processing of Rx and Tx signal paths o Memory interface controller o Dedicated peripheral blocks for control of the USB, SIM and generic digital interfaces o Interfaces to the RF transceiver ASIC

 Memory system, which includes NAND flash and LPDDR2 RAM  Voltage regulators to derive all the subsystem supply voltages from the module supply input VCC  Voltage source for external use: V_INT  Hardware power on  Hardware reset  Low power idle mode support  32.768 kHz crystal oscillator to provide the clock reference in the low power idle mode, which can be set by

enabling the power saving configuration.

UBX-16024839 - R04 System description

Page 11 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

Power

VCC

70,71,72

Module supply input

VCC supply circuit affects the RF performance and compliance of the device integrating the module with applicable required certification schemes.

See section 1.5.1 for functional description / requirements. See section 2.2.1 for external circuit design-in.

GND

2, 30, 32, 44, 46, 69, 73, 74, 76, 78, 79, 80, 82, 83, 85, 86, 88-90, 92152, 209, 219, 226, 229, 232, 235, 238, 241

N/A

Ground

GND pins are internally connected each other. External ground connection affects the RF and thermal performance of the device. See section 1.5.1 for functional description. See section 2.2.1 for external circuit design-in.

V_BCKP

I/O

RTC back-up supply

If the VCC voltage is below the operating range, the RTC block can be externally supplied through the V_BCKP pin. See section 1.5.2 for functional description.

See section 2.2.2 for external circuit design-in.

V_INT

5 O Generic digital interfaces supply output

V_INT = 1.8 V (typical) generated by internal DC/DC regulator when the module is switched on. Test-Point for diagnostic access is recommended. See section 1.5.3 for functional description.

See section 2.2.3 for external circuit design-in.

System

PWR_ON

20 I Power-on input

Internal 35 k pull-up resistor to internal 1.3 V supply rail. Test-Point for diagnostic access is recommended. See section 1.6.1 for functional description. See section 2.3.1 for external circuit design-in.

RESET_N

23 I External reset input

Internal 100 k pull-up resistor to V_INT. Test-Point for diagnostic access is recommended. See section 1.6.3 for functional description. See section 2.3.2 for external circuit design-in.

HOST_SELECT0

I/O / I GPIO / External Interrupt

1.8 V GPIO or External Interrupt configurable by uCPU API. See sections 1.6.4, 1.13 for functional description. See sections 2.3.3, 2.10 for external circuit design-in.

HOST_SELECT1

I/O / I GPIO / External Interrupt

1.8 V GPIO or External Interrupt configurable by uCPU API. See sections 1.6.4, 1.13 for functional description. See sections 2.3.3, 2.10 for external circuit design-in.

Antennas

ANT1

I/O

Primary antenna

Main Tx / Rx antenna interface. 50  nominal characteristic impedance. Antenna circuit affects the RF performance and application

device compliance with required certification schemes. See section 1.7.1 for functional description / requirements. See section 2.4 for external circuit design-in.

ANT2

87 I Secondary antenna

Rx only for Down-Link CA, MIMO and Rx diversity. 50  nominal characteristic impedance. Antenna circuit affects the RF performance and application

device compliance with required certification schemes. See section 1.7.1 for functional description / requirements. See section 2.4 for external circuit design-in.

ANT_DET

75 I Antenna detection

ADC for antenna presence detection function. See section 1.7.2 for functional description. See section 2.4.2 for external circuit design-in.

1.3 Pin-out

Table 4 lists the pin-out of the TOBY-L4 series modules, with pins grouped by function.

UBX-16024839 - R04 System description

Page 12 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

SIM0

VSIM

59 O SIM0 supply output

VSIM = 1.8 V / 3 V output as per the connected SIM type. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_IO

I/O

SIM0 data

Data input/output for 1.8 V / 3 V SIM. Internal 4.7 k pull-up to VSIM. See section 1.8 for functional description.

See section 2.5 for external circuit design-in.

SIM_CLK

56 O SIM0 clock

3.9 MHz clock output for 1.8 V / 3 V SIM. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_RST

58 O SIM0 reset

Reset output for 1.8 V / 3 V SIM. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM1

VSIM1

172 O SIM1 supply output

VSIM1 = 1.8 V / 3 V output as per the connected SIM type. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM1_IO

178

I/O

SIM1 data

Data input/output for 1.8 V / 3 V SIM. Internal 4.7 k pull-up to VSIM1. See section 1.8 for functional description.

See section 2.5 for external circuit design-in.

SIM1_CLK

182 O SIM1 clock

3.9 MHz clock output for 1.8 V / 3 V SIM. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM1_RST

177 O SIM1 reset

Reset output for 1.8 V / 3 V SIM. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

USB

VUSB_DET

4 I USB detect input

VBUS (5 V typical) generated by the host must be connected to this pin to enable the module USB device interface. Test-Point for diagnostic / FW update access is recommended. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

USB_D–

I/O

USB High-Speed 2.0 diff. transceiver (–)

90  nominal differential impedance (Z0). 30  nominal common mode impedance (Z

). Pull-up or pull-down resistors and external series resistors as required by the USB 2.0 specifications [3] are part of the USB pin driver and need not be provided externally. Test-Point for diagnostic / FW update access is recommended. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

USB_D+

I/O

USB High-Speed 2.0 diff. transceiver (+)

90  nominal differential impedance (Z0). 30  nominal common mode impedance (Z

USB_ID

168 I USB device identification

Pin for ID resistance measurement. See section 1.9.1 for functional description.

See section 2.6.1 for external circuit design-in.

UBX-16024839 - R04 System description

Page 13 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

USB_SSTX+

175 O USB Super-Speed 3.0 diff. transmitter (+)

90  nominal differential characteristic impedance. Internal series 100 nF capacitor for AC coupling. Compliant with USB Revision 3.0 specification [4]. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

USB_SSTX–

176 O USB Super-Speed 3.0 diff. transmitter (–)

See section 2.6.1 for external circuit design-in.

USB_SSRX+

170 I USB Super-Speed 3.0 diff. receiver (+)

90  nominal differential characteristic impedance. Compliant with USB Revision 3.0 specification [4]. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

USB_SSRX–

171 I USB Super-Speed 3.0 diff. receiver (–)

UART0

RXD

17 O UART0 data output

1.8 V output, Circuit 104 (RXD) in ITU-T V.24. Test-Point for diagnostic access recommended. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

TXD

16 I UART0 data input

1.8 V input, Circuit 103 (TXD) in ITU-T V.24. Internal active pull-up to V_INT. Test-Point for diagnostic access recommended. See section 1.9.2 for functional description.

See section 2.6.2 for external circuit design-in.

CTS

15 O UART0 clear to send output

1.8 V output, Circuit 106 (CTS) in ITU-T V.24. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

RTS

14 I UART0 ready to send input

1.8 V input, Circuit 105 (RTS) in ITU-T V.24. Internal active pull-up to V_INT. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

DSR

I/O / I GPIO / External Interrupt

1.8 V GPIO or External Interrupt configurable by uCPU API. See sections 1.9.2, 1.13 for functional description. See sections 2.6.1, 2.10 for external circuit design-in.

O / I/O / I

UART0 ring indicator / GPIO / External Interrupt

1.8 V output, Circuit 125 (RI) in ITU-T V.24. Configurable as GPIO or External Interrupt. See sections 1.9.2, 1.13 for functional description.

See sections 2.6.1, 2.10 for external circuit design-in.

DTR

I/O / I GPIO / External Interrupt

1.8 V GPIO or External Interrupt configurable by uCPU API. See sections 1.9.2, 1.13 for functional description. See sections 2.6.1, 2.10 for external circuit design-in.

DCD

I/O / I GPIO / External Interrupt

1.8 V GPIO or External Interrupt configurable by uCPU API. See sections 1.9.2, 1.13 for functional description. See sections 2.6.1, 2.10 for external circuit design-in.

UBX-16024839 - R04 System description

Page 14 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

UART1

RXD1

160

O / O UART1 data output / SPI1 MOSI

1.8 V output, Circuit 104 (RXD) in ITU-T V.24, alternatively configurable as SPI1 MOSI by uCPU API. See section 1.9.2 / 1.9.3 for functional description. See section 2.6.2 / 2.6.3 for external circuit design-in.

TXD1

159

I / I UART1 data input / SPI1 MISO

1.8 V input, Circuit 103 (TXD) in ITU-T V.24, alternatively configurable as SPI1 MISO by uCPU API. Internal pull-up to V_INT enabled when UART1 data input. See section 1.9.2 / 1.9.3 for functional description. See section 2.6.2 / 2.6.3 for external circuit design-in.

CTS1

195

O / O UART1 CTS output / SPI1 Chip Select

1.8 V output, Circuit 106 (CTS) in ITU-T V.24, alternatively configurable as SPI1 Chip Select by uCPU API. See section 1.9.2 / 1.9.3 for functional description. See section 2.6.2 / 2.6.3 for external circuit design-in.

RTS1

193

I / O UART1 RTS input / SPI1 Clock

1.8 V input, Circuit 105 (RTS) in ITU-T V.24, alternatively configurable as SPI1 Clock by uCPU API. Internal pull-up to V_INT enabled when UART1 RTS input. See section 1.9.2 / 1.9.3 for functional description. See section 2.6.2 / 2.6.3 for external circuit design-in.

UART2

RXD2

162 O UART2 data output

1.8 V output, Circuit 104 (RXD) in ITU-T V.24. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

TXD2

161 I UART2 data input

1.8 V input, Circuit 103 (TXD) in ITU-T V.24. Internal active pull-up to V_INT. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

UART3

RXD3

19 O UART3 data output

1.8 V output, Circuit 104 (RXD) in ITU-T V.24. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

TXD3

18 I UART3 data input

1.8 V input, Circuit 103 (TXD) in ITU-T V.24. Internal active pull-up to V_INT. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

SPI0

SPI_MOSI

174 O SPI0 Master Output Slave Input

1.8 V, SPI0 data output. See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

SPI_MISO

169 I SPI0 Master Input Slave Output

1.8 V, SPI0 data input. See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

SPI_SCLK

179 O SPI0 Shift Clock

1.8 V, SPI0 clock. See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

SPI_CS

173 O SPI0 Chip Select 0

1.8 V, SPI0 chip select 0. See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

I2C0

SCL

54 O I2C0 clock

1.8 V open drain. External pull-up required. See section 1.9.4 for functional description. See section 2.6.4 for external circuit design-in.

SDA

I/O

I2C0 data

1.8 V open drain. External pull-up required. See section 1.9.4 for functional description. See section 2.6.4 for external circuit design-in.

UBX-16024839 - R04 System description

Page 15 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

I2C1

SCL1

54 O I2C1 clock

1.8 V open drain. External pull-up required. See section 1.9.4 for functional description. See section 2.6.4 for external circuit design-in.

SDA1

I/O

I2C1 data

1.8 V open drain. External pull-up required. See section 1.9.4 for functional description.

See section 2.6.4 for external circuit design-in.

SDIO

SDIO_D0

I/O

SDIO serial data [0]

SDIO interface for communication with Wi-Fi / Bluetooth. See section 1.9.5 for functional description. See section 2.6.5 for external circuit design-in.

SDIO_D1

I/O

SDIO serial data [1]

SDIO interface for communication with Wi-Fi / Bluetooth. See section 1.9.5 for functional description. See section 2.6.5 for external circuit design-in.

SDIO_D2

I/O

SDIO serial data [2]

SDIO interface for communication with Wi-Fi / Bluetooth. See section 1.9.5 for functional description. See section 2.6.5 for external circuit design-in.

SDIO_D3

I/O

SDIO serial data [3]

SDIO interface for communication with Wi-Fi / Bluetooth. See section 1.9.5 for functional description. See section 2.6.5 for external circuit design-in.

SDIO_CLK

64 O SDIO serial clock

SDIO interface for communication with Wi-Fi / Bluetooth. See section 1.9.5 for functional description. See section 2.6.5 for external circuit design-in.

SDIO_CMD

I/O

SDIO command

SDIO interface for communication with Wi-Fi / Bluetooth. See section 1.9.5 for functional description. See section 2.6.5 for external circuit design-in.

Ethernet

V_ETH

221 O Ethernet Interface supply output

Ethernet (RGMII / RMII) interface supply output. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_TX_CLK

Ethernet Transmission Clock

RGMII: Transmit reference clock (TXC). RMII: Reference clock (REF_CLK). See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_TX_CTL

33 O Ethernet Transmit Control

RGMII: Control signal for the transmit data (TXEN on TXC rising edge; TXEN xor TXER on TXC falling edge). RMII: Control signal for the transmit data (TX_EN). See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_TXD0

37 O Ethernet Transmit Data [0]

RGMII: Tx data bit 0 / 4 on TXC rising / falling edges. RMII: Tx data bit 0 in sync with REF_CLK. See section 1.9.6 for functional description.

See section 2.6.6 for external circuit design-in.

ETH_TXD1

36 O Ethernet Transmit Data [1]

RGMII: Tx data bit 1 / 5 on TXC rising / falling edges. RMII: Tx data bit 1 in sync with REF_CLK. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_TXD2

35 O Ethernet Transmit Data [2]

RGMII: Tx data bit 2 / 6 on TXC rising / falling edges. RMII: Not used. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_TXD3

34 O Ethernet Transmit Data [3]

RGMII: Tx data bit 3 / 7 on TXC rising / falling edges. RMII: Not used. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

UBX-16024839 - R04 System description

Page 16 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

ETH_RX_CLK

43 I Ethernet Receive Clock

RGMII: Receive reference clock (RXC). RMII: Not used. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_RX_CTL

42 I Ethernet Receive Control

RGMII: Control signal for receive data (RXDV on RXC rising edge; RXDV xor RXER on RXC falling edge). RMII: Control signal for receive data, contains carrier sense (CRS) and data valid (RX_DV) information. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_RXD0

38 I Ethernet Receive Data [0]

RGMII: Rx data bit 0 / 4 on RXC rising / falling edges. RMII: Rx data bit 0 in sync with REF_CLK. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_RXD1

39 I Ethernet Receive Data [1]

RGMII: Rx data bit 1 / 5 on RXC rising / falling edges. RMII: Rx data bit 1 in sync with REF_CLK. See section 1.9.6 for functional description.

See section 2.6.6 for external circuit design-in.

ETH_RXD2

40 I Ethernet Receive Data [2]

RGMII: Rx data bit 2 / 6 on RXC rising / falling edges. RMII: Not used. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_RXD3

41 I Ethernet Receive Data [3]

RGMII: Rx data bit 3 / 7 on RXC rising / falling edges. RMII: Not used. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_INTR

220 I Ethernet Interrupt Input

Input for the detection of an interrupt event in the PHY. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_MDIO

222

I/O

Ethernet Management Data Input Output

Ethernet management data input / output. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

ETH_MDC

223 O Ethernet Management Data Clock

Ethernet management data clock output. See section 1.9.6 for functional description. See section 2.6.6 for external circuit design-in.

eMMC

V_MMC

210 O Multi-Media Card Interface supply output

Embedded Multi-Media / SD Card memory supply. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

MMC_D0

214

I/O

Multi-Media Card Data [0]

Embedded Multi-Media / SD Card memory data [0]. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

MMC_D1

212

I/O

Multi-Media Card Data [1]

Embedded Multi-Media / SD Card memory data [1]. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

MMC_D2

217

I/O

Multi-Media Card Data [2]

Embedded Multi-Media / SD Card memory data [2]. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

MMC_D3

213

I/O

Multi-Media Card Data [3]

Embedded Multi-Media / SD Card memory data [3]. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

MMC_CMD

215

I/O

Multi-Media Card Command

Embedded Multi-Media / SD Card memory command. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

MMC_CLK

216 O Multi-Media Card Clock

Embedded Multi-Media / SD Card memory clock. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

UBX-16024839 - R04 System description

Page 17 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

MMC_RST_N

211 O Multi-Media Card Reset

Embedded Multi-Media / SD Card memory reset. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

MMC_CD_N

218 I Multi-Media Card Detect

Embedded Multi-Media / SD Card detect. See section 1.10 for functional description. See section 2.7 for external circuit design-in.

I2S0

I2S_TXD

I2S0 transmit data

I2S transmit data output. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

I2S_RXD

I2S0 receive data

I2S receive data input. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

I2S_CLK

I/O

I2S0 clock

I2S serial clock. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

I2S_WA

I/O

I2S0 word alignment

I2S word alignment. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

I2S1

I2S1_TXD

206

I2S1 transmit data

I2S transmit data output. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

I2S1_RXD

207

I2S1 receive data

I2S receive data input. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

I2S1_CLK

208

I/O

I2S1 clock

I2S serial clock. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

I2S1_WA

205

I/O

I2S1 word alignment

I2S word alignment. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

Analog audio

MIC_BIAS

231 O Microphone supply output

Supply output for external microphones. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

MIC_GND

230 I Microphone analog reference

Local ground for the external microphone. See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

MIC1_P

237

MIC1 differential analog audio input (+)

MIC1 differential analog audio signal input (positive). See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

MIC1_N

236

MIC1 differential analog audio input (–)

MIC1 differential analog audio signal input (negative). See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

MIC2_P

234

MIC2 differential analog audio input (+)

MIC2 differential analog audio signal input (positive). See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

MIC2_N

233

MIC2 differential analog audio input (–)

MIC2 differential analog audio signal input (negative). See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

UBX-16024839 - R04 System description

Page 18 of 143

TOBY-L4 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

SPK_P

227 O Differential analog audio output (+)

Differential analog audio signal output (positive). See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

SPK_N

228 O Differential analog audio output (–)

Differential analog audio signal output (negative). See sections 1.11 for functional description. See sections 2.8 for external circuit design-in.

ADC

ADC1

240 I ADC input

See section 1.12 for functional description. See section 2.9 for external circuit design-in.

ADC2

239 I ADC input

See section 1.12 for functional description. See section 2.9 for external circuit design-in.

GPIO

GPIO1

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.13 for functional description. See section 2.10 for external circuit design-in.

GPIO2

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.13 for functional description. See section 2.10 for external circuit design-in.

GPIO3

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. Configurable as External Interrupt by uCPU API. See section 1.13 for functional description. See section 2.10 for external circuit design-in.

GPIO4

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. Configurable as SPI0 Chip Select 1 by uCPU API. See sections 1.13, 1.9.3 for functional description. See sections 2.10, 2.6.3 for external circuit design-in.

GPIO5

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.13 for functional description. See section 2.10 for external circuit design-in.

GPIO6

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.13 for functional description. See section 2.10 for external circuit design-in.

GPIO7

248

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.13 for functional description. See section 2.10 for external circuit design-in.

GPIO8

247

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.13 for functional description. See section 2.10 for external circuit design-in.

Reserved

RSVD

N/A

Reserved pin

This pin must be connected to ground. See sections 1.14 and 2.11

RSVD

1, 7-9, 31, 45, 47-49, 77, 84, 91, 153-158, 163-167, 180, 181, 183-192, 194, 196-202, 224, 225, 242, 243, 244-246

N/A

Reserved pin

Leave unconnected. See sections 1.14 and 2.11

Table 4: TOBY-L4 series module pin definition, grouped by function

UBX-16024839 - R04 System description

Page 19 of 143

TOBY-L4 series - System Integration Manual

General Status

Operating Mode

Definition Power-down

Not-powered mode

VCC supply not present or below operating range: module is switched off.

Power-off mode

VCC supply within operating range and module is switched off.

Normal Operation

Idle mode

Module processor core runs with 32 kHz reference generated by the internal oscillator.

Active mode

Module processor core runs with 26 MHz reference generated by the internal oscillator.

Connected mode

RF Tx/Rx data connection enabled and processor core runs with 26 MHz reference.

Mode

Description

Transition between operating modes

Not-powered

Module is switched off. Application interfaces are not accessible.

When VCC supply is removed, the modules enter not-powered mode. When in not-powered mode, the modules do not switch on by applying VCC supply, or by using the PWR_ON pin. When in not-powered mode, the modules go to power-off mode by applying VCC supply.

Power-off

Module is switched off: normal shutdown by an appropriate power-off event (see 1.6.2). Application interfaces are not accessible.

When the modules are switched off by an appropriate power-off event (see 1.6.2), the modules enter power-off mode from active mode. When in power-off mode, the modules can be switched on by means of the PWR_ON pin (see 1.6.1). When in power-off mode, the modules enter not-powered mode by removing VCC supply.

Idle

Module is switched on with application interfaces temporarily disabled or suspended to reduce the current consumption (see 1.5.1.5) due to power saving configuration enabled by AT+UPSV command or uCPU API

The modules automatically switch from the active mode to low power idle mode whenever possible if power saving is enabled. The modules wake up from low power idle mode to active mode due to any necessary network related activity, external wake-up through the operating interfaces, or wake-up by means of dedicated uCPU API.

Active

Module is switched on with application interfaces enabled or not suspended: the module is ready to communicate with an external device by means of the application interfaces unless power saving configuration is enabled by AT+UPSV command or uCPU API.

When the modules are switched on by an appropriate power-on event (see 1.6.1), the module enter active mode from power-off mode.

If power saving configuration is enabled by the AT+UPSV command or uCPU API, the module automatically switches from active to idle mode whenever possible and the module wakes up from idle to active mode in the events listed above (see idle mode to active mode transition description above).

When a RF Tx/Rx data or voice connection is initiated or when RF Tx/Rx is required due to a connection previously initiated, the module switches from active to connected mode.

Connected

RF Tx/Rx data connection is in progress. The module is prepared to accept data signals

from an external device unless power saving configuration is enabled by AT+UPSV command or uCPU API.

When a data or voice connection is initiated, the module enters connected mode from active mode.

Connected mode is suspended if Tx/Rx data or voice is not in progress. In such case, the module automatically switches from connected to active mode and then, if power saving configuration is enabled by the AT+UPSV command or uCPU API, the module automatically switches to idle mode whenever possible. Vice-versa, the module wakes up from idle to active mode and then connected mode if RF Tx/Rx is necessary.

When a data connection is terminated, the module returns to the active mode.

1.4 Operating modes

TOBY-L4 series modules have several operating modes. The operating modes are defined in Table 5 and described in detail in Table 6, providing general guidelines for operation.

Table 5: TOBY-L4 series modules operating modes definition

Table 6: TOBY-L4 series modules operating modes descriptions

UBX-16024839 - R04 System description

Page 20 of 143

TOBY-L4 series - System Integration Manual

If power saving is enabled and there is no activity for a defined time interval

Any wake up event described in the module operating

modes summary table above

Incoming/outgoing call or other dedicated device network communication

No RF Tx/Rx in progress, Call terminated, Communication dropped

Remove VCC

Switch ON:

• PWR_ON

Not

powered

Power off

ActiveConnected Idle

Switch OFF:

• AT+CPWROFF

• uCPU API

• PWR_ON

Apply VCC

Figure 2 describes the transition between the various operating modes.

Figure 2: TOBY-L4 series modules operating modes transitions

UBX-16024839 - R04 System description

Page 21 of 143

TOBY-L4 series - System Integration Manual

VCC

TOBY-L4 series

Power

Management

Unit

Memory

Baseband

Processor

Transceiver

RF PMU

Cellular

Power Amplifiers

1.5 Supply interfaces

1.5.1 Module supply input (VCC)

The modules must be supplied via the three VCC pins that represent the module power supply input. The VCC pins are internally connected to the RF power amplifier and to the integrated Power Management Unit:

all supply voltages needed by the module are generated from the VCC supply by integrated voltage regulators, including the Real Time Clock supply, V_INT generic digital interfaces supply, VSIM SIM card supply, V_ETH RGMII interface supply, V_MMC eMMC interface supply, and any other internal rail.

During operation, the current drawn by the TOBY-L4 series modules through the VCC pins can vary by several orders of magnitude. This ranges from the pulse of current consumption during GSM transmitting bursts at maximum power level in connected mode (as described in section 1.5.1.2) to the low current consumption during low power idle mode with power saving enabled (as described in section 1.5.1.5).

Figure 3 provides a simplified block diagram of the TOBY-L4 series modules’ internal VCC supply routing.

Figure 3: TOBY-L4 series modules’ internal VCC supply routing simplified block diagram

UBX-16024839 - R04 System description

Page 22 of 143

TOBY-L4 series - System Integration Manual

Item

Requirement

Remark

VCC nominal voltage

Within VCC normal operating range:

3.40 V min. / 4.40 V max.

RF performance is guaranteed when VCC PA voltage is inside the normal operating range limits. RF performance may be affected when VCC PA voltage is outside the normal operating range limits, though the module is still fully functional until the VCC voltage is inside the extended operating range limits.

VCC voltage during normal operation

Within VCC extended operating range:

3.00 V min. / 4.50 V max.

VCC voltage must be above the extended operating range minimum limit to switch-on the module. The module may switch-off when the VCC voltage drops below the extended operating range minimum limit. Operation above VCC extended operating range is not recommended and may affect device reliability.

VCC average current

Support with adequate margin the highest averaged VCC current consumption value in connected mode conditions

The maximum average current consumption can be greater than the specified value according to the actual antenna mismatching, temperature and supply voltage. Sections 1.5.1.2, 1.5.1.3 and 1.5.1.4 describe the current consumption profiles in 2G, 3G and LTE connected modes.

VCC peak current

Support with margin the highest peak VCC current consumption value in connected mode conditions

The specified maximum peak of current consumption occurs during the GSM single transmit slot in 850/900 MHz connected mode, in case of a mismatched antenna.

Section 1.5.1.2 describes 2G Tx peak/pulse current.

VCC voltage drop during 2G Tx slots

Lower than 400 mV

Supply voltage drop values greater than recommended during 2G TDMA transmission slots directly affect the RF compliance with the applicable certification schemes.

Figure 5 describes supply voltage drop during 2G Tx slots.

VCC voltage ripple during 2G/3G/LTE Tx

Noise in the supply must be minimized

High supply voltage ripple values during LTE/3G/2G RF transmissions in connected mode directly affect the RF compliance with applicable certification schemes.

Figure 5 describes supply voltage ripple during RF Tx.

VCC under/over-shoot at start/end of Tx slots

Absent or at least minimized

Supply voltage under-shoot or over-shoot at the start or the end of 2G TDMA transmission slots directly affect the RF compliance with the applicable certification schemes.

Figure 5 describes supply voltage under/over-shoot

1.5.1.1 VCC supply requirements

Table 7 summarizes the requirements for the VCC modules supply. See section 2.2.1 for suggestions on how to properly design a VCC supply circuit compliant with the requirements listed in Table 7.

The supply circuit affects the RF compliance of the device integrating TOBY-L4 series modules

with applicable required certification schemes as well as antenna circuit design. Compliance is guaranteed if the requirements summarized in Table 7 are fulfilled.

Table 7: Summary of VCC modules supply requirements

UBX-16024839 - R04 System description

Page 23 of 143

TOBY-L4 series - System Integration Manual

Time [ms]

slot

unused

slot

unused

slot

TX slot

unused

slot

unused

slot

MON

slot

unused

slot

unused

slot

unused

slot

TX slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

Current [A]

200 mA

60-120 mA

1900 mA

Peak current depends

on TX power and

actual antenna load

GSM frame

4.615 ms

(1 frame = 8 slots)

60-120 mA

10-40 mA

0.0

1.5

1.0

0.5

2.0

2.5

Time [ms]

undershoot

overshoot

ripple

drop

Voltage [mV]

3.8 V (typ)

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

GSM frame

4.615 ms

(1 frame = 8 slots)

1.5.1.2 VCC current consumption in 2G connected mode

When a GSM call is established, the VCC module current consumption is determined by the current consumption profile typical of the GSM transmitting and receiving bursts.

The peak of current consumption during a transmission slot is strictly dependent on the RF transmitted power, which is regulated by the network (the current base station). The transmitted power in the transmit slot is also the more relevant factor for determining the average current consumption.

If the module is transmitting in 2G single-slot mode in the 850 or 900 MHz bands, at the maximum RF power level (approximately 2 W or 33 dBm in the allocated transmit slot/burst) the current consumption can reach an upper peak for 576.9 µs (width of the transmit slot/burst) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/burst), so with a 1/8 duty cycle according to GSM TDMA (Time Division Multiple Access).

If the module is transmitting in 2G single-slot mode in the 1800 or 1900 MHz bands, the current consumption figures are considerably lower than the one in the low bands, due to the 3GPP transmitter output power specifications.

During a GSM call, current consumption is not so significantly high in receiving or in monitor bursts and is low in the inactive unused bursts.

Figure 4 shows an example of the module current consumption profile versus time in 2G single-slot mode.

Figure 4: VCC current consumption profile versus time during a 2G single-slot call (1 TX slot, 1 RX slot)

Figure 5 illustrates VCC voltage profile versus time during a 2G single-slot call, according to the relative VCC current consumption profile illustrated in Figure 4.

Figure 5: VCC voltage profile versus time during a 2G single-slot call (1 TX slot, 1 RX slot)

UBX-16024839 - R04 System description

Page 24 of 143

TOBY-L4 series - System Integration Manual

Time [ms]

slot

unused

slot

MON

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

Current [A]

200mA

60-130mA

Peak current depends

on TX power and

actual antenna load

GSM frame

4.615 ms

(1 frame = 8 slots)

1600 mA

0.0

1.5

1.0

0.5

2.0

2.5

When a GPRS connection is established, more than one slot can be used to transmit and/or more than one slot can be used to receive. The transmitted power depends on the network conditions, which set the peak current consumption, but following the 3GPP specifications, the maximum Tx RF power is reduced if more than one slot is used to transmit, so the maximum peak of current is not as high as can be the case with a 2G single-slot call.

If the module transmits in GPRS class 12 in the 850 or 900 MHz bands, at the maximum RF power control level, the current consumption can reach a quite high peak but lower than the one achievable in 2G single-slot mode. This happens for 2.307 ms (width of the 4 transmit slots/bursts) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/bursts), so with a 1/2 duty cycle, according to 2G TDMA.

If the module is in GPRS connected mode in the 1800 or 1900 MHz bands, the current consumption figures are quite less high than the one in the low bands, due to 3GPP transmitter output power specifications.

Figure 6 reports the current consumption profiles in GPRS class 12 connected mode, in the 850 or 900 MHz bands, with 4 slots used to transmit and 1 slot used to receive.

It must be noted that the actual current consumption of the module in 2G connected mode depends also on the specific concurrent activities performed by the integrated CPU, beside the actual Tx power and antenna load.

Figure 6: VCC current consumption profile during a 2G GPRS/EDGE multi-slot connection (4 TX slots, 1 RX slot)

For EDGE connections, the VCC current consumption profile is very similar to the GPRS current profile, so the image shown in Figure 6, representing the current consumption profile in GPRS class 12 connected mode, is valid for the EDGE class 12 connected mode as well.

UBX-16024839 - R04 System description

Page 25 of 143

TOBY-L4 series - System Integration Manual

Time

[ms]

3G frame

10 ms

(1 frame = 15 slots)

Current [mA]

Current consumption value

depends on TX power and

actual antenna load

170 mA

1 slot

666 µs

850 mA

300

200

100

500

400

600

700

1.5.1.3 VCC current consumption in 3G connected mode

During a 3G connection, the module can transmit and receive continuously due to the Frequency Division Duplex (FDD) mode of operation with the Wideband Code Division Multiple Access (WCDMA).

The current consumption depends on output RF power, which is always regulated by the network (the current base station) sending power control commands to the module. These power control commands are logically divided into a slot of 666 µs, so the rate of power change can reach a maximum rate of 1.5 kHz.

There are no high current peaks as in the 2G connection, since transmission and reception are continuously enabled due to FDD WCDMA implemented in the 3G that differs from the TDMA implemented in the 2G case.

In the worst case scenario, corresponding to a continuous transmission and reception at maximum output power (approximately 250 mW or 24 dBm), the average current drawn by the module at the VCC pins is considerable. At the lowest output RF power (approximately 0.01 µW or –50 dBm), the current drawn by the internal power amplifier is strongly reduced. The total current drawn by the module at the VCC pins is due to baseband processing and transceiver activity.

Figure 7 shows an example of the current consumption profile of the module in 3G WCDMA/DC-HSPA+ continuous transmission mode.

It must be noted that the actual current consumption of the module in 3G connected mode depends also on the specific concurrent activities performed by the integrated CPU, beside the actual Tx power and antenna load.

Figure 7: VCC current consumption profile versus time during a 3G connection (TX and RX continuously enabled)

UBX-16024839 - R04 System description

Page 26 of 143

TOBY-L4 series - System Integration Manual

Time

[ms]

Current [mA]

Current consumption value

depends on TX power and

actual antenna load

1 Slot

1 Resource Block

(0.5 ms)

1 LTE Radio Frame

(10 ms)

300

200

100

500

400

600

700

800

900

1.5.1.4 VCC current consumption in LTE connected mode

During an LTE connection, the module can transmit and receive continuously due to the Frequency Division Duplex (FDD) mode of operation used in LTE radio access technology.

The current consumption depends on output RF power, which is always regulated by the network (the current base station) sending power control commands to the module. These power control commands are logically divided into a slot of 0.5 ms (time length of one Resource Block), thus the rate of power change can reach a maximum rate of 2 kHz.

The current consumption profile is similar to that in 3G radio access technology. Unlike the 2G connection mode, which uses the TDMA mode of operation, there are no high current peaks since transmission and reception are continuously enabled in FDD.

In the worst case scenario, corresponding to a continuous transmission and reception at maximum output power (approximately 250 mW or 24 dBm), the average current drawn by the module at the VCC pins is considerable. At the lowest output RF power (approximately 0.1 µW or –40 dBm), the current drawn by the internal power amplifier is greatly reduced and the total current drawn by the module at the VCC pins is due to baseband processing and transceiver activity.

Figure 8 shows an example of the module current consumption profile versus time in LTE connected mode. It must be noted that the actual current consumption of the module in LTE connected mode depends also on the

specific concurrent activities performed by the integrated CPU, beside the actual Tx power and antenna load.

Figure 8: VCC current consumption profile versus time during LTE connection (TX and RX continuously enabled)

UBX-16024839 - R04 System description

Page 27 of 143

TOBY-L4 series - System Integration Manual

~50 ms

IDLE MODE ACTIVE MODE IDLE MODE

Active Mode

Enabled

Idle Mode

Enabled

2G case: 0.44-2.09 s 3G case: 0.61-5.09 s

LTE case: 0.27-2.51 s

IDLE MODE

~50 ms

ACTIVE MODE

Time [s]

Current [mA]

Time [ms]

Current [mA]

Enabled

100

1.5.1.5 VCC current consumption in cyclic idle/active mode (power saving enabled)

The power saving configuration is disabled by default, but it can be enabled using the AT+UPSV command (see the u-blox AT Commands Manual [2]) or the dedicated uCPU API. When power saving is enabled, the module automatically enters the low power idle mode whenever possible, reducing current consumption.

During low power idle mode, the module processor runs with 32 kHz reference clock frequency. When the power saving configuration is enabled and the module is registered or attached to a network , the

module automatically enters the low power idle mode whenever possible, but it must periodically monitor the paging channel of the current base station (paging block reception), in accordance with the 2G/3G/LTE system requirements, even if connected mode is not enabled by the application. When the module monitors the paging channel, it wakes up to the active mode to enable the reception of the paging block. In between, the module switches to low power idle mode. This is known as discontinuous reception (DRX).

The module processor core is activated during the paging block reception, and automatically switches its reference clock frequency from 32 kHz to the 26 MHz used in active mode.

The time period between two paging block receptions is defined by the network. This is the paging period parameter, fixed by the base station through the broadcast channel sent to all users on the same serving cell:

 For 2G radio access technology, the paging period can vary from 470.8 ms (DRX = 2, length of 2 x 51 2G

frames = 2 x 51 x 4.615 ms) up to 2118.4 ms (DRX = 9, length of 9 x 51 2G frames = 9 x 51 x 4.615 ms)

 For 3G radio access technology, the paging period can vary from 640 ms (DRX = 6, i.e. length of 2

3G frames

= 64 x 10 ms) up to 5120 ms (DRX = 9, length of 29 3G frames = 512 x 10 ms).

 For LTE radio access technology, the paging period can vary from 320 ms (DRX = 5, i.e. length of 2

LTE frames

= 32 x 10 ms) up to 2560 ms (DRX = 8, length of 28 LTE frames = 256 x 10 ms).

Figure 9 illustrates a typical example of the module current consumption profile when power saving is enabled. The module is registered with the network, automatically enters the low power idle mode and periodically wakes up to active mode to monitor the paging channel for the paging block reception.

Figure 9: VCC current consumption profile with power saving enabled and module registered with the network: the module is in low-power idle mode and periodically wakes up to active mode to monitor the paging channel for paging block reception

UBX-16024839 - R04 System description

Page 28 of 143

TOBY-L4 series - System Integration Manual

ACTIVE MODE

2G case: 0.44-2.09 s 3G case: 0.61-5.09 s

LTE case: 0.32-2.56 s

Paging period

Time [s]

Current [mA]

Time [ms]

Current [mA]

Enabled

100

1.5.1.6 VCC current consumption in fixed active mode (power saving disabled)

When power saving is disabled, the module does not automatically enter the low power idle mode whenever possible: the module remains in active mode. Power saving configuration is by default disabled. It can also be disabled using the AT+UPSV command (see the u-blox AT Commands Manual [2]) or the dedicated uCPU API.

The module processor core is activated during idle mode, and the 26 MHz reference clock frequency is used. It would draw more current during the paging period than that in the power saving mode.

Figure 10 illustrates a typical example of the module current consumption profile when power saving is disabled. In such a case, the module is registered with the network and while active mode is maintained, the receiver is periodically activated to monitor the paging channel for paging block reception.

It must be noted that the actual current consumption of the module in active mode depends on the specific concurrent activities performed by the integrated CPU.

Figure 10: VCC current consumption profile with power saving disabled and module registered with the network: active mode is always held and the receiver is periodically activated to monitor the paging channel for paging block reception

UBX-16024839 - R04 System description

Page 29 of 143

TOBY-L4 series - System Integration Manual

Baseband

Processor

VCC

V_INT

Switching

Step-Down

Power

Management

TOBY-L4 series

Digital I/O

1.5.2 RTC back-up supply (V_BCKP)

When the VCC module supply input voltage is within the valid operating range, the internal Power Management Unit (PMU) supplies the Real Time Clock (RTC) through the rail available at the V_BCKP pin.

The RTC provides the module time reference (date and time) that is used to set the wake-up interval during the low power idle mode periods, and is able to make the programmable alarm functions available.

If the VCC module supply input voltage is under the minimum operating limit (e.g. during the not powered mode), the RTC can be externally supplied through the V_BCKP pin. This lets the time reference (date and time) run until the V_BCKP voltage is within its valid range, even when the main supply is not provided to the module.

Consider that the module cannot switch on if a valid voltage is not present on VCC even when the RTC is supplied through V_BCKP (meaning that VCC is mandatory to switch on the module).

The RTC has a very low current consumption, but is highly temperature dependent. If V_BCKP is left unconnected and the module main supply is not applied to the VCC pins, the RTC is supplied

from a small bypass capacitor mounted inside the module. However, this small capacitor is not able to provide a long buffering time: within a few milliseconds the voltage on V_BCKP will drop below the valid range. This has no impact on cellular connectivity, as all the module functionalities do not rely on date and time settings.

1.5.3 Generic digital interfaces supply output (V_INT)

The V_INT output pin of the TOBY-L4 series modules is connected to an internal 1.8 V supply. This supply is internally generated by a switching step-down regulator integrated in the Power Management Unit and it is internally used to source the generic digital I/O interfaces of the cellular module, as illustrated in Figure 11. The output of this regulator is enabled when the module is switched on and it is disabled when the module is switched off.

Figure 11: TOBY-L4 series generic digital interfaces supply output (V_INT) simplified block diagram

The switching regulator operates in Pulse Width Modulation (PWM) mode for greater efficiency at high output loads and it automatically switches to Pulse Frequency Modulation (PFM) power save mode for greater efficiency at low output loads.

UBX-16024839 - R04 System description

Page 30 of 143

TOBY-L4 series - System Integration Manual

Baseband

Processor

PWR_ON

TOBY-L4 series

Power-on

Power

Management

Power-on

35k

1.3 V

1.6 System function interfaces

1.6.1 Module power-on

TOBY-L4 series modules can be switched on in the following way: Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time period, when

the applied VCC voltage is stable at its nominal value within the valid operating range.

As illustrated in Figure 12, the TOBY-L4 series PWR_ON input is equipped with an internal active pull-up resistor to an internal 1.3 V supply rail: the PWR_ON input voltage thresholds are different from the other generic digital interfaces, and the line should be driven by an open drain, by an open collector or by a contact switch, without an external pull-up resistor.

Detailed electrical characteristics and specifications are described in TOBY-L4 series Data Sheet [1].

Figure 12: TOBY-L4 series PWR_ON input description

TOBY-L4 series modules do not switch on by applying the VCC supply only: a low pulse must be forced on

the PWR_ON pin when the VCC voltage is stable at its nominal value within the valid operating range.

UBX-16024839 - R04 System description

Page 31 of 143

TOBY-L4 series - System Integration Manual

VCC

PWR_ON

V_INT

RESET_N

Internal Reset

System State

Digital Pins State

Internal Reset → Operationa l Opera tional

Tristate / Floating

OFF

Internal Reset

Start of interface

configuration

Module interfaces

are configured

The module starts

the switch-on routine

Figure 13 shows the module power-on sequence, describing the following phases:

 The VCC module supply is stable at its nominal value within the normal operating range  The PWR_ON input pin is set low for a valid time period, representing the switch-on event.  All the generic digital pins of the modules are tri-stated until the switch-on of their supply source (V_INT): any

external signal connected to the generic digital pins must be tri-stated or set low at least until the activation of the V_INT supply output to avoid latch-up of circuits and allow a clean boot of the module.

 The V_INT generic digital interfaces supply output is enabled by the integrated power management unit.  The RESET_N line rises suddenly to the high logic level due to internal pull-up to V_INT.  The internal reset signal is held low by the integrated power management unit: the baseband processor core

and all the digital pins of the modules are held in reset state.

 When the internal reset signal is released, any digital pin is set in the correct sequence from the reset state to

the default operational configured state. The duration of this pins’ configuration phase differs within the generic digital interfaces and the USB interface due to host / device enumeration timings (see section 1.9.1).

 The module is fully ready to operate after all interfaces are configured.

Figure 13: TOBY-L4 series power-on sequence description

The Internal Reset signal is not available on a module pin, but the host application can monitor the V_INT Before the switch-on of the generic digital interface supply source (V_INT) of the module, no voltage driven Before the TOBY-L4 series module is fully ready to operate, the host application processor should not send The duration of the TOBY-L4 series modules’ switch-on routine can vary depending on the application /

UBX-16024839 - R04 System description

Page 32 of 143

pin to sense the start of the TOBY-L4 series module power-on sequence.

by an external application should be applied to any generic digital interface of the module.

any AT command over the AT communication interface (USB) of the module.

network settings and any concurrent module activities.

TOBY-L4 series - System Integration Manual

1.6.2 Module power-off

TOBY-L4 series can be properly switched off by:

 AT+CPWROFF command  uCPU application

(see the u-blox AT Commands Manual [2])

 Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time period (see

the TOBY-L4 series Data Sheet [1]), module normal switch-off: the internal switch-off sequence of the module starts when the external application releases the PWR_ON line from the low logic level, after that it has been set low for an appropriate time period.

The methods listed above represent the appropriate normal switch-off events, triggering an appropriate normal switch-off procedure of the module: the current parameter settings are saved in the module’s non-volatile memory and a clean network detach is performed.

An abrupt under-voltage shutdown occurs on TOBY-L4 series modules when the VCC module supply is removed. If this occurs, it is not possible to perform the storing of the current parameter settings in the module’s non-volatile memory or to perform a clean network detach.

It is highly recommended to avoid an abrupt removal of the VCC supply during TOBY-L4 series modules

normal operations: the switch-off procedure must be started by an appropriate switch-off event (see above), and then a suitable VCC supply must be held at least until the end of the modules’ internal switch-off sequence, which occurs when the generic digital interfaces supply output (V_INT) is switched off by the module.

An abrupt emergency shutdown procedure is triggered on TOBY-L4 series modules when a long enough low pulse is set at the PWR_ON input pin (see the TOBY-L4 series Data Sheet [1], module emergency switch-off). In this case, storage of the current parameter settings in the module’s non-volatile memory and the clean network detach are not performed.

This abrupt emergency shutdown procedure is intended only for use for emergency, e.g. if the module does not provide a reply to a specific AT command after a time period longer than the one defined in the u-blox AT Commands Manual [2], or if shutdown via a normal switch-off procedure fails.

An over-temperature shutdown occurs on TOBY-L4 series modules when the temperature measured within the cellular module reaches a critical range.

Not supported by "00" product version Not supported by "50" product version

UBX-16024839 - R04 System description

Page 33 of 143

TOBY-L4 series - System Integration Manual

VCC

PWR_ON

RESET_N

V_INT

Internal Reset

System State

BB Pads State

OFF

Tristate / Floating

Operational -> Tristate

Operational

The module starts

the switch-off routine

VCC

can be removed

Figure 14 describes the TOBY-L4 series modules’ switch-off sequence started by means of the PWR_ON input pin, allowing storage of current parameter settings in the module’s non-volatile memory and a clean network detach, with the following phases

 A low pulse with the appropriate time duration is applied at the PWR_ON input pin, which is normally set

high by an internal pull-up: the module starts the switch-off routine when the PWR_ON signal is released from the low logical level.

 At the end of the switch-off routine, all the digital pins are tri-stated and all the internal voltage regulators are

turned off, including the generic digital interfaces supply (V_INT).

 Then, the module remains in power-off mode as long as a switch-on event does not occur (i.e. applying a

suitable low level pulse to the PWR_ON input pin), and enters not-powered mode if the supply is removed from the VCC pins.

Figure 14: TOBY-L4 series power-off sequence description

The Internal Reset signal is not available on a module pin, but the application can monitor the V_INT pin to

sense the end of the power-off sequence.

The VCC supply can be removed only after the end of the module internal switch-off routine, i.e. only after

that the V_INT voltage level has gone low.

The duration of each phase in the TOBY-L4 series modules’ switch-off routines can largely vary depending

on the application / network settings and the concurrent module activities.

UBX-16024839 - R04 System description

Page 34 of 143

TOBY-L4 series - System Integration Manual

Baseband

Processor

RESET_N

TOBY-L4 series

V_INT

Reset

100k

1.6.3 Module reset

TOBY-L4 series modules can be properly reset (rebooted) by:

 AT+CFUN command  uCPU application

(see the u-blox AT Commands Manual [2])

The methods listed above represent appropriate reset (reboot) events, triggering an appropriate “internal” or “software” reset of the module: the current parameter settings are saved in the module’s non-volatile memory

and a clean network detach is performed.

An abrupt hardware reset occurs on TOBY-L4 series modules when a low level is applied on the RESET_N input pin. In this case, the current parameter settings are not saved in the module’s non-volatile memory and a clean network detach is not performed.

It is highly recommended to avoid an abrupt hardware reset of the module by forcing a low level on the

RESET_N input during modules normal operation: the RESET_N line should be set low only if reset via AT commands or if the uCPU application fails.

As illustrated in Figure 15, the RESET_N input pins are equipped with an internal pull-up to the V_INT supply.

Figure 15: TOBY-L4 series RESET_N input equivalent circuit description

1.6.4 Module / host configuration selection

Host Select pins are not supported by the "50" product version.

TOBY-L4 series modules include two 1.8 V digital pins (HOST_SELECT0, HOST_SELECT1), which can be configured for External Interrupt detection or as GPIO by means of the uCPU API.

Not supported by "00" product version Not supported by "50" product version

UBX-16024839 - R04 System description

Page 35 of 143

TOBY-L4 series - System Integration Manual

Item

Requirements

Remarks

Impedance

50  nominal characteristic impedance

The impedance of the antenna RF connection must match the 50  impedance of the ANT1 port.

Frequency Range

See the TOBY-L4 series Data Sheet [1]

The required frequency range of the antenna connected to the ANT1 port depends on the operating bands of the used cellular module and the used mobile network.

Return Loss

S11 < -10 dB (VSWR < 2:1) recommended S11 < -6 dB (VSWR < 3:1) acceptable

The Return loss or the S11, as the VSWR, refers to the amount of reflected power, measuring how well the antenna RF connection matches the 50  characteristic impedance of the ANT1 port. The impedance of the antenna termination must match as much as possible the 50  nominal impedance of the ANT1 port over the operating frequency range, reducing as much as possible the amount of reflected power.

Efficiency

> -1.5 dB ( > 70% ) recommended > -3.0 dB ( > 50% ) acceptable

The radiation efficiency is the ratio of the radiated power to the power delivered to antenna input: the efficiency is a measure of how well an antenna receives or transmits. The radiation efficiency of the antenna connected to the ANT1 port needs to be enough high over the operating frequency range to comply with the Over-The-Air (OTA) radiated performance requirements, as Total Radiated Power (TRP) and the Total Isotropic Sensitivity (TIS), specified by applicable related certification schemes.

Maximum Gain

According to radiation exposure limits

The power gain of an antenna is the radiation efficiency multiplied by the directivity: the gain describes how much power is transmitted in the direction of peak radiation to that of an isotropic source. The maximum gain of the antenna connected to ANT1 port must not exceed the herein stated value to comply with regulatory agencies’ radiation exposure limits.

Input Power

> 33 dBm ( > 2 W )

The antenna connected to the ANT1 port must support with adequate margin the maximum power transmitted by the modules.

1.7 Antenna interfaces

1.7.1 Antenna RF interfaces (ANT1 / ANT2)

TOBY-L4 series modules provide two RF interfaces for connecting the external antennas:

 The ANT1 represents the primary RF input/output for transmission and reception of LTE/3G/2G RF signals.

The ANT1 pin has a nominal characteristic impedance of 50  and must be connected to the primary Tx / Rx antenna through a 50  transmission line to allow clean RF transmission and reception.

 The ANT2 represents the secondary RF input for the reception of the RF signals for CA, MIMO and Rx diversity

configurations supported by TOBY-L4 series modules as a required feature for LTE category 6 UEs.

The ANT2 pin has a nominal characteristic impedance of 50  and must be connected to the secondary Rx antenna through a 50  transmission line to allow for clean RF reception.

1.7.1.1 Antenna RF interfaces requirements

Table 8, Table 9 and Table 10 summarize the requirements for the antennas’ RF interfaces (ANT1 / ANT2). See section 2.4.1 for suggestions on how to correctly design antennas circuits which are compliant with these requirements.

The antenna circuits affect the RF compliance of the device integrating TOBY-L4 series modules

with the applicable required certification schemes (for more details see section 4). Compliance is guaranteed if the antenna RF interfaces (ANT1 / ANT2) requirements summarized in Table 8, Table 9 and Table 10 are fulfilled.

Table 8: Summary of primary Tx/Rx antenna RF interface (ANT1) requirements

UBX-16024839 - R04 System description

Page 36 of 143

Item

Requirements

Remarks

Impedance

50  nominal characteristic impedance

The impedance of the antenna RF connection must match the 50  impedance of the ANT2 port.

Frequency Range

See the TOBY-L4 series Data Sheet [1]

The required frequency range of the antennas connected to ANT2 port depends on the operating bands of the used cellular module and the used mobile network.

Return Loss

S11 < -10 dB (VSWR < 2:1) recommended S11 < -6 dB (VSWR < 3:1) acceptable

The Return loss or the S11, as the VSWR, refers to the amount of reflected power, measuring how well the antenna RF connection matches the 50  characteristic impedance of the ANT2 port. The impedance of the antenna termination must match as much as possible the 50  nominal impedance of the ANT2 port over the operating frequency range, reducing as much as possible the amount of reflected power.

Efficiency

> -1.5 dB ( > 70% ) recommended > -3.0 dB ( > 50% ) acceptable

The radiation efficiency is the ratio of the radiated power to the power delivered to antenna input: the efficiency is a measure of how well an antenna receives or transmits. The radiation efficiency of the antenna connected to the ANT2 port needs to be enough high over the operating frequency range to comply with the Over-The-Air (OTA) radiated performance requirements, as the TIS, specified by applicable related certification schemes.

Table 9: Summary of secondary Rx antenna RF interface (ANT2) requirements

Item

Requirements

Remarks

Efficiency imbalance

< 0.5 dB recommended < 1.0 dB acceptable

The radiation efficiency imbalance is the ratio of the primary (ANT1) antenna efficiency to the secondary (ANT2) antenna efficiency: the efficiency imbalance is a measure of how much better an antenna receives or transmits compared to the other antenna. The radiation efficiency of the secondary antenna needs to be roughly the same as the radiation efficiency of the primary antenna for good RF performance.

Envelope Correlation Coefficient

< 0.4 recommended < 0.5 acceptable

The Envelope Correlation Coefficient (ECC) between the primary (ANT1) and the secondary (ANT2) antenna is an indicator of 3D radiation pattern similarity between the two antennas: low ECC results from antenna patterns with radiation lobes in different directions. The ECC between the primary and secondary antennas needs to be low enough to comply with the radiated performance requirements specified by related certification schemes.

Isolation

> 15 dB recommended > 10 dB acceptable

The antenna to antenna isolation is the loss between the primary (ANT1) and the secondary (ANT2) antenna: high isolation results from low coupled antennas.

The isolation between primary and secondary antenna needs to be high for good RF performance.

TOBY-L4 series - System Integration Manual

Table 10: Summary of primary (ANT1) and secondary (ANT2) antennas relationship requirements

UBX-16024839 - R04 System description

Page 37 of 143

TOBY-L4 series - System Integration Manual

1.7.2 Antenna detection interface (ANT_DET)

The antenna detection is based on ADC measurement. The ANT_DET pin is an Analog to Digital Converter (ADC) provided to sense the antenna presence.

The antenna detection function provided by ANT_DET pin is an optional feature that can be implemented if the application requires it.

The ANT_DET pin generates a DC current and measures the resulting DC voltage, thus determining the resistance from the antenna connector provided on the application board to GND. So the requirements to achieve antenna detection functionality are the following:

 an RF antenna assembly with a built-in resistor (diagnostic circuit) must be used  an antenna detection circuit must be implemented on the application board

See section 2.4.2 for the antenna detection circuit on the application board and the diagnostic circuit in the antenna assembly design-in guidelines.

1.8 SIM interfaces

1.8.1 SIM interfaces

TOBY-L4 series modules provide two SIM interfaces for the direct connection of two external SIM cards/chips, which can be used alternatively (only one SIM at a time can be used for network access):

 SIM0 interface (VSIM, SIM_IO, SIM_CLK, SIM_RST pins), which is enabled by default  SIM1 interface (VSIM1, SIM1_IO, SIM1_CLK, SIM1_RST pins), which can be alternatively enabled by

dedicated AT command7 (see the u-blox AT Commands Manual [2]), or by means of the uCPU application8.

Both 1.8 V and 3 V SIM types are supported by the SIM interfaces. Activation and deactivation with an automatic voltage switch from 1.8 V to 3 V is implemented according to ISO-IEC 7816-3 specifications.

High-speed SIM/ME interface and the PPS procedure for baud-rate selection is implemented according to the values proposed by the SIM card/chip.

Both the VSIM supply output and the VSIM1 supply output provide internal short circuit protection to limit the start-up current and protect the SIM from short circuits.

1.8.2 SIM detection interface

The GPIO5 pin of TOBY-L4 series modules can be configured to detect the mechanical / physical presence of an external SIM card connected to the SIM0 interface. The pin can sense SIM card presence as intended to be properly connected to the mechanical switch of a SIM card holder as described in section 2.5:

 Low logic level at GPIO5 input pin is recognized as SIM card not present  High logic level at GPIO5 input pin is recognized as SIM card present

The SIM card detection function provided by GPIO5 pin is an optional feature that can be implemented / used or not according to the application requirements: an Unsolicited Result Code (URC) is generated each time that there is a change of status.

The optional function “SIM card hot insertion/removal” can be additionally configured on the GPIO5 pin, in order to enable / disable the SIM0 interface upon detection of external SIM card physical insertion / removal.

Not supported by the "00" product version Not supported by the "50" product version

UBX-16024839 - R04 System description

Page 38 of 143

TOBY-L4 series - System Integration Manual

1.9 Data communication interfaces

TOBY-L4 series modules provide the following serial communication interfaces:

 USB interface (see section 1.9.1):

 USB Super-Speed 3.0 compliant interface  USB High-Speed 2.0 compliant interface, with the module acting as a USB device or host

 AT command  Data communication  Ethernet-over-USB virtual channel (CDC-NCM)  FW upgrades  Trace log capture (diagnostic purposes)  Auxiliary channel to tune internal audio parameters using a dedicated external tool  Linux console for uCPU API development and debug  Communication with external processor / device by means of uCPU API

 Up to four UART interfaces (see section 1.9.2):

 UART0 interface, providing:

 Communication with external serial devices by means of uCPU API  Trace log capture (diagnostic purposes)  Ring Indicator functionality

 UART1 interface

, providing:

 Communication with external serial devices by means of uCPU API

 UART2 interface, providing:

 Communication with external serial devices by means of uCPU API

 UART3 interface, providing:

 Linux console for uCPU API development and debug

 Up to two SPI interfaces

(see section 1.9.3):

 SPI0 interface, with the module acting as SPI master, providing:

 Communication with external SPI slave devices by means of uCPU API

 SPI1 interface

, with the module acting as SPI master, providing:

 Communication with external SPI slave devices by means of uCPU API

 Two DDC I

C bus compatible interfaces11 (see section 1.9.4):

 I2C0 interface, with the module acting as I

 Communication with u-blox GNSS positioning chips / modules  Communication with external I

 I2C1 interface, with the module acting as I

 Communication with external I

 SDIO interface

, with the module acting as SDIO host, providing (see section 1.9.5):

 Communication with compatible u-blox short range radio modules by means of uCPU API  Communication with external SDIO devices by means of uCPU API

 RGMII / RMII interface

 Ethernet connection enabled by means of uCPU API, through the external Ethernet PHY

, with the module acting as Ethernet MAC, providing (see section 1.9.6):

, with the module acting as a USB device:

C master, providing:

C slave devices by means of uCPU API

C master, providing:

C slave devices by means of uCPU API

, providing:

Supported by future FW versions

Not supported by the "00" product version Not supported by the "50" product version UART1 and SPI1 interfaces can be used alternatively, in mutually exclusive way, by means of uCPU API

UBX-16024839 - R04 System description

Page 39 of 143

TOBY-L4 series - System Integration Manual

1.9.1 USB interface

The USB Super-Speed 3.0 compliant interface will be supported by future firmware versions. The USB High-Speed 2.0 host role is not supported by the "50" product versions.

TOBY-L4 series modules include a USB Super-Speed 3.0 compliant interface, supporting up to 5 Gbit/s data rate, and also including a USB High-Speed 2.0 compliant interface, supporting up to 480 Mbit/s data rate.

The USB High-Speed 2.0 compliant interface consists of the following pins:

 USB_D+/USB_D–, USB High-Speed differential transceiver data lines as per USB 2.0 specification [3]  VUSB_DET input pin, which senses the VBUS USB supply presence (nominally 5 V at the source) to detect the

host connection and enable the USB 2.0 interface with the module acting as a USB device. Neither the USB interface, nor the whole module is supplied by the VUSB_DET input pin, which senses the

VBUS USB supply voltage presence and absorbs few microamperes.

 USB_ID pin, available for USB ID resistance measurement:

 if the USB_ID pin is externally connected to GND, then the module acts as a USB host  if the USB_ID pin is externally left unconnected (floating), then the module acts as a USB device

The USB High-Speed 2.0 compliant interface, with the module acting as a USB device, provides:

 AT command  Data communication  Ethernet-over-USB virtual channel  Trace log capture (diagnostic purposes)  Auxiliary channel to tune internal audio parameters using a dedicated external tool  Linux console for uCPU applications development and debug  FW upgrades

The module, acting as a USB device, identifies itself by its VID (Vendor ID) and PID (Product ID) combination, included in the USB device descriptor according to the USB 2.0 specifications [3].

If the module, acting as a USB device, is connected to the USB host before the module is switched on, or if the module is reset (rebooted) with the USB connected to the host, the VID and PID are automatically updated during the boot of the module. First, the VID and PID are the following:

 VID = 0x8087  PID = 0x0801

This VID and PID combination identifies a USB profile where no USB function described above is available: the AT commands must not be sent to the module over the USB profile identified by this VID and PID combination.

Then, after a time period (depending on the host / device enumeration timings), the VID and PID are updated to the one where the normal operative functions (AT, Data, Ethernet-over-USB, Trace, Linux console) are available. VID and PID for normal operative functions are the following:

 VID = 0x1546  PID = 0x1010

The USB High-Speed 2.0 compliant interface, with the module acting as USB host (OTG), provides:

 Communication with external device by means of the uCPU application

Not supported by the "00" product version Not supported by the "50" product version

UBX-16024839 - R04 System description

Page 40 of 143

TOBY-L4 series - System Integration Manual

D0 D1 D2 D3 D4 D5 D6 D7

Start of 1-Byte transfer

Start Bit (Always 0)

Possible Start of

next transfer

Stop Bit (Always 1)

bit

= 1/(Baudrate)

Normal Transfer, 8N1

The USB Super-Speed 3.0 compliant interface as per USB 3.0 specifications [4], with the module acting as a USB device, consists of the following additional pins:

 USB_SSTX+/USB_SSTX–, USB Super-Speed differential transmitter data lines  USB_SSRX+/USB_SSRX–, USB Super-Speed differential receiver data lines

USB drivers are available for Windows operating system platforms. TOBY-L4 series modules are compatible with standard Linux/Android USB kernel drivers.

1.9.2 UART interfaces

UART interfaces are not supported by the "50" product version, except for trace logging (diagnostic

purposes) and Ring Indicator functionality over the UART0 interface.

1.9.2.1 UART0 interface

The UART0 Universal Asynchronous Receiver/Transmitter serial interface has CMOS compatible signal levels (0 V for ON / active state and 1.8 V for OFF / idle state), providing:

 Communication with external devices by means of the uCPU API, over the following pins:

o RXD module output and TXD module input data lines o CTS module output and RTS module input hardware flow control lines

 Trace logging (diagnostic purpose), over the following pins:

o RXD module output and TXD module input data lines

 Ring Indicator functionality, over the following pin:

o RI module output line

The UART0 interface can operate at 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s, 57.6 kbit/s, 115.2 kbit/s, 230.4 kbit/s, 460.8 kbit/s, 921.6 kbit/s, 3 Mbit/s, 3.25 Mbit/s and 6.5 Mbit/s baud rates, with 8N1 frame format (illustrated in Figure

16), and with hardware flow control output (CTS line) driven to the OFF state when the module is not prepared to accept data by the UART0 interface.

Figure 16: Description of UART 8N1 frame format (8 data bits, no parity, 1 stop bit)

UBX-16024839 - R04 System description

Page 41 of 143

TOBY-L4 series - System Integration Manual

time [s]

151050

RI ON

RI OFF

Call incomes

time [s]

151050

RI ON

RI OFF

Call incomes

SMS arrives

time [s]

RI ON

RI OFF

time [s]

RI ON

RI OFF

The RI line can notify an incoming call: the RI line is switched from the OFF state to the ON state with a 4:1 duty cycle and a 5 s period (ON for 1 s, OFF for 4 s, see Figure 17), until the DTE attached to the module sends the ATA string and the module accepts the incoming data call. The RING string sent by the module (DCE) to the serial port at constant time intervals is not correlated with the switch of the RI line to the ON state.

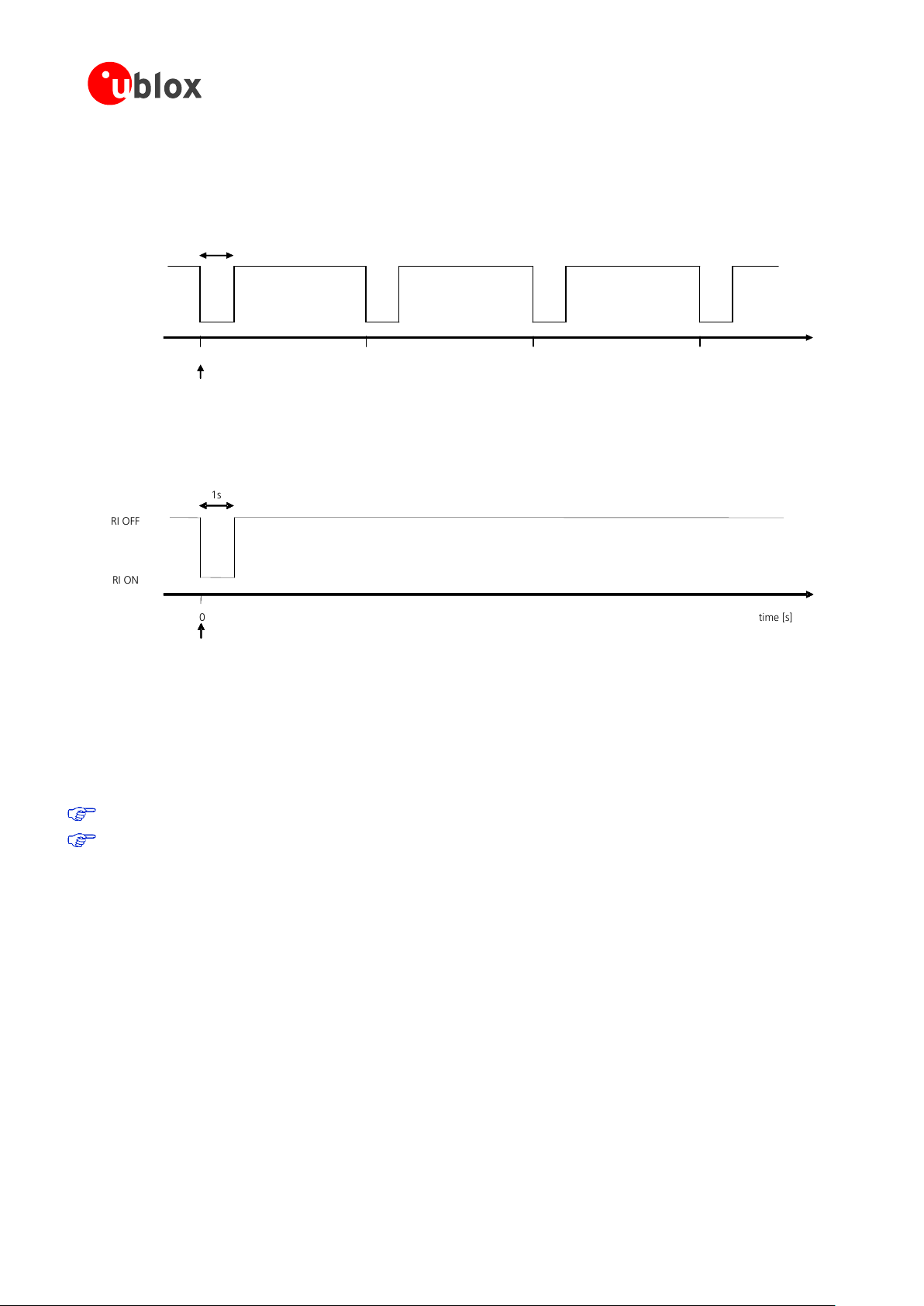

Figure 17: RI behavior during an incoming call

The RI output line can notify an SMS arrival. When the SMS arrives, the RI line switches from OFF to ON for 1 s (see Figure 18), if the feature is enabled by the AT+CNMI command (see the u-blox AT Commands Manual [2]).

Figure 18: RI behavior at SMS arrival

This behavior allows the DTE to stay in power saving mode until the DCE related event requests service. For SMS arrival, if several events coincidently occur or in quick succession, each event independently triggers the RI line, although the line will not be deactivated between each event. As a result, the RI line may stay to ON for more than 1 s, if an incoming call is answered within less than 1 s (with ATA or if auto-answering is set to ATS0=1) then the RI line is set to OFF earlier, so that:

RI line monitoring cannot be used by the DTE to determine the number of received SMSs. For multiple events (incoming call plus SMS received), the RI line cannot be used to discriminate the two

events, but the DTE must rely on subsequent URCs and interrogate the DCE with the suitable commands.

The RI line can additionally notify URCs and/or incoming data, if the feature is enabled by the specific AT+URING command (for more details, see the u-blox AT Commands Manual [2]): the RI line is asserted when one of the configured events occur and it remains asserted for 1 s unless another configured event will happen, with the same behavior illustrated in Figure 18.

The DTR, DSR, DCD and RI pins can be alternatively configured for External Interrupt detection or as GPIO by means of the uCPU API. The RI pin can be alternatively configured as GPIO by an AT command.

UBX-16024839 - R04 System description

Page 42 of 143

TOBY-L4 series - System Integration Manual

1.9.2.2 UART1 interface

The UART1 Universal Asynchronous Receiver/Transmitter serial interface, with CMOS compatible signal levels (0 V for ON / active state and 1.8 V for OFF / idle state), can operate as a

 serial interface for communication with external devices by means of the uCPU API, with the following pins:

o RXD1 module output and TXD1 module input data lines o CTS1 module output and RTS1 module input hardware flow control lines

The UART1 interface can operate at 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s, 57.6 kbit/s, 115.2 kbit/s, 230.4 kbit/s, 460.8 kbit/s, 921.6 kbit/s, 3 Mbit/s, 3.25 Mbit/s and 6.5 Mbit/s baud rates, with 8N1 frame format (illustrated in Figure

16), and with hardware flow control output (CTS1 line) driven to the OFF state when the module is not prepared to accept data by the UART1 interface.

The UART1 interface can be alternatively, in mutually exclusive way, configured as SPI1 interface by means of the uCPU API, for communication with external devices with the following pins:

o RXD1 pin, alternatively configured as SPI1 Master Output Slave Input (module output) o TXD1 pin, alternatively configured as SPI1 Master Input Slave Output (module input) o CTS1 pin, alternatively configured as SPI1 Chip Select (module output) o RTS1 pin, alternatively configured as SPI1 Clock (module output)

1.9.2.3 UART2 interface

The UART2 Universal Asynchronous Receiver/Transmitter serial interface, with CMOS compatible signal levels (0 V for ON / active state and 1.8 V for OFF / idle state), can operate as a

 serial interface for communication with external devices by means of the uCPU API, with the following pins:

o RXD2 module output and TXD2 module input data lines

The UART2 interface can operate at 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s, 57.6 kbit/s, 115.2 kbit/s, 230.4 kbit/s, 460.8 kbit/s, 921.6 kbit/s, 3 Mbit/s, 3.25 Mbit/s and 6.5 Mbit/s baud rates, with 8N1 frame format (illustrated in Figure

16).

1.9.2.4 UART3 interface

The UART3 Universal Asynchronous Receiver/Transmitter serial interface, with CMOS compatible signal levels (0 V for ON / active state and 1.8 V for OFF / idle state), can operate as

 Linux console for uCPU API development and debug, with the following pins:

o RXD3 module output and TXD3 module input data lines

The UART3 interface can operate at 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s, 57.6 kbit/s, 115.2 kbit/s, 230.4 kbit/s, 460.8 kbit/s, 921.6 kbit/s, 3 Mbit/s, 3.25 Mbit/s and 6.5 Mbit/s baud rates, with 8N1 frame format (illustrated in Figure

16).

UBX-16024839 - R04 System description

Page 43 of 143

TOBY-L4 series - System Integration Manual

1.9.3 SPI interfaces

SPI interfaces are not supported by the "50" product version.

1.9.3.1 SPI0 interface

The SPI0 1.8 V Serial Peripheral Interface supports communication with an external SPI slave devices, with the module acting as SPI master, by means of the uCPU API, with the following pins:

 SPI_MOSI pin, SPI0 Master Output Slave Input (module output)  SPI_MISO pin, SPI0 Master Input Slave Output (module input)  SPI_SCLK pin, SPI0 Serial Clock (module output)  SPI_CS pin, SPI0 Chip Select 0 (module output)  GPIO4 pin, alternatively configured as SPI0 Chip Select 1 (module output)

The SPI0 Serial Clock signal can be configured to different operating frequencies: 26 MHz (maximum frequency), and 26 / n MHz, where n is 2, 3, 4, etc.

1.9.3.2 SPI1 interface

The SPI1 1.8 V Serial Peripheral Interface supports communication with an external SPI slave devices, with the module acting as SPI master, by means of the uCPU API, with the following UART1 pins configured as alternative functions, in a mutually exclusive way:

 RXD1 pin, alternatively configured as SPI1 Master Output Slave Input (module output)  TXD1 pin, alternatively configured as SPI1 Master Input Slave Output (module input)  RTS1 pin, alternatively configured as SPI1 Serial Clock (module output)  CTS1 pin, alternatively configured as SPI1 Chip Select (module output)

The SPI1 Serial Clock signal can be configured at various operating frequencies: 26 MHz (maximum frequency), and 26 / n MHz, where n is 2, 3, 4, etc.

UBX-16024839 - R04 System description

Page 44 of 143

TOBY-L4 series - System Integration Manual

1.9.4 DDC (I

DDC (I

C) interfaces

C) interfaces are not supported by the "50" product version.

1.9.4.1 I2C0 interface

The SDA and SCL pins represent the I2C0 1.8 V I2C bus compatible Display Data Channel (DDC) interface, with the module acting as I2C master, available for

 communication with u-blox GNSS chips / modules  communication with other external I

C devices by means of the uCPU API

The I2C0 interface pins of the module are open drain outputs conforming to the I2C bus specifications [6], supporting up to 100 kbit/s data rate in Standard mode, and up to 400 kbit/s data rate in Fast mode. External pull-up resistors to suitable 1.8 V supply (e.g. V_INT) are required for operations.

u-blox has implemented special features to ease the design effort required for the integration of a u-blox cellular module with a u-blox GNSS receiver.

Combining a u-blox cellular module with a u-blox GNSS receiver allows designers to have full access to the positioning receiver directly via the cellular module: it relays control messages to the GNSS receiver via a dedicated DDC (I2C) interface. An interface connected to the positioning receiver is not necessary: the cellular module allows full control of the GNSS receiver.

The modules provide embedded GNSS aiding that is a set of specific features developed by u-blox to improve the cellular / GNSS system power consumption and the GNSS performance, decreasing the Time-To-First-Fix (TTFF), thus allowing to calculate the position in a shorter time with higher accuracy.

1.9.4.2 I2C1 interface

The SDA and SCL pins represent the I2C1 I2C bus compatible Display Data Channel (DDC) interface, with the module acting as the I2C master, available for

 communication with other external I

C devices by means of uCPU API

The I2C1 interface pins of the module are open drain outputs conforming to the I2C bus specifications [6], supporting up to 100 kbit/s data rate in Standard mode, and up to 400 kbit/s data rate in Fast mode. External pull-up resistors to a suitable 1.8 V supply (e.g. V_INT) are required for operations.

1.9.5 SDIO interface

SDIO interface is not supported by the "50" product version.

TOBY-L4 series modules include a 4-bit Secure Digital Input Output interface (SDIO_D0, SDIO_D1, SDIO_D2, SDIO_D3, SDIO_CLK, SDIO_CMD), where the module acts as an SDIO host controller designed to

 communicate with compatible u-blox short range radio communication modules by means of the uCPU API  communicate with external SDIO devices by means of the uCPU API

The SDIO interface supports up to 832 Mbit/s data rate with SD 3.0 SDR104 mode at 208 MHz clock frequency. Combining a u-blox cellular module with a u-blox short range communication module gives designers full access

to the Wi-Fi module directly via the cellular module, so that a second interface connected to the Wi-Fi module is not necessary. The cellular module allows a full control of the Wi-Fi module, because Wi-Fi control messages are relayed to the Wi-Fi module via the dedicated SDIO interface.

u-blox has implemented special features in the cellular modules to ease the design effort for the integration of a u-blox cellular module with a u-blox short range Wi-Fi module to provide Router functionality.

UBX-16024839 - R04 System description

Page 45 of 143

TOBY-L4 series - System Integration Manual

1.9.6 RGMII interface

RGMII interface is not supported by the "50" product version.

TOBY-L4 series modules include an Ethernet Media Access Control (MAC) block supporting up to 1 Gbit/s data rate via a Reduced Gigabit Media-Independent Interface compliant with the RGMII Version 1.3 specification [7] and the RMII Revision 1.2 specification [8].

The module represents an Ethernet MAC controller, which can be connected to an external Ethernet physical transceiver (PHY) chip for communication with a remote processor over Ethernet.

The following signals are provided for communication and management of an external Ethernet PHY:

 V_ETH Interface supply output  ETH_TX_CLK RGMII Transmit reference Clock (TXC) output

RMII Reference Clock (REF_CLK) output

 ETH_TX_CTL RGMII Transmit Control output, driven on both edges of the Transmit clock (TXC)

RMII Transmit Enable (TXEN) output, synchronous with Reference Clock (REF_CLK)

 ETH_TXD0 RGMII / RMII Transmit Data [0], from MAC to PHY (module output)  ETH_TXD1 RGMII / RMII Transmit Data [1], from MAC to PHY (module output)  ETH_TXD2 RGMII Transmit Data [2], from MAC to PHY (module output)  ETH_TXD3 RGMII Transmit Data [3], from MAC to PHY (module output)  ETH_RX_CLK RGMII Receive reference Clock (RXC) input  ETH_RX_CTL RGMII Receive Control input, sampled on both edges of the Receive clock (RXC)

RMII Carrier Sense (CRS) / Receive Data Valid (RX_DV) input

 ETH_RXD0 RGMII / RMII Receive Data [0], from PHY to MAC (module input)  ETH_RXD1 RGMII / RMII Receive Data [1], from PHY to MAC (module input)  ETH_RXD2 RGMII Receive Data [2], from PHY to MAC (module input)  ETH_RXD3 RGMII Receive Data [3], from PHY to MAC (module input)  ETH_INTR Ethernet Interrupt Input, from PHY to MAC (module input)

When this signal is high, it indicates an interrupt event in the PHY

 ETH_MDIO Management Data Input Output, bidirectional signal (module input/output)  ETH_MDC Management Data Clock, from MAC to PHY (module output)

UBX-16024839 - R04 System description

Page 46 of 143

TOBY-L4 series - System Integration Manual

1.10 eMMC interface

The eMMC interface is not supported by the "50" product version.

TOBY-L4 series modules include a 4-bit embedded Multi-Media Card interface compliant with the JESD84-B451 Embedded Multimedia Card (eMMC) Electrical Standard 4.51 [9].

The following signals are provided for connection and management of an external eMMC / SD memory by means of the uCPU API:

 V_MMC Interface supply output (module output)  MMC_D0 Multi-Media Card Data [0], bidirectional signal (module input/output)  MMC_D1 Multi-Media Card Data [1], bidirectional signal (module input/output)  MMC_D2 Multi-Media Card Data [2], bidirectional signal (module input/output)  MMC_D3 Multi-Media Card Data [3], bidirectional signal (module input/output)  MMC_CMD Multi-Media Card Command, bidirectional signal (module input/output)  MMC_CLK Multi-Media Card Clock (module output)  MMC_RST_N Multi-Media Card Reset (module output)  MMC_CD_N Multi-Media Card Detect (module input)

UBX-16024839 - R04 System description

Page 47 of 143

TOBY-L4 series - System Integration Manual

1.11 Audio interfaces

1.11.1 Analog audio interfaces

TOBY-L4 series modules provide the following analog audio interfaces:

 Analog audio inputs (analog audio uplink path)

 First differential analog audio input (MIC1_P, MIC1_N), which can be connected to the output of an

external analog audio device, or an external microphone for voice call or eCall purposes. The MIC1_P / MIC1_N pins are internally directly connected to a differential input (positive/negative) of

the Audio Front-End, consisting of a Low Noise Amplifier integrated in a dedicated IC, without any internal series capacitor for DC blocking. The LNA is internally followed by an integrated sigma-delta ADC connecting the analog Audio Front-End to the digital audio processing system.

 Second differential analog audio input (MIC2_P, MIC2_N), which can be connected to the output of an

external analog audio device, or an external microphone for voice call or eCall purposes. The MIC2_P / MIC2_N pins are internally directly connected to a differential input (positive/negative) of

 Supply output for external microphones (MIC_BIAS), which can provide the bias / supply for external

microphones by means of a simple circuit implemented on the application board. The MIC_BIAS pin is internally connected to the output of a low noise LDO linear regulator integrated

in a dedicated IC, with appropriate internal bypass capacitor provided to guarantee stable operation of the linear regulator.

 Local ground for the external microphone (MIC_GND)

The MIC_GND pin is internally connected to ground as a sense line, representing a clean ground reference for the analog audio input.

 Analog audio output (analog audio downlink path):

 Differential analog audio output (SPK_P, SPK_N), which can be connected to the input of an external

analog audio device, or an external speaker. The SPK_P / SPK_N pins are internally directly connected to a differential output (positive/negative) of

the Audio Front-End, consisting of a low power audio amplifier integrated in a dedicated IC, without any internal series capacitor for DC blocking. The low power audio amplifier is internally preceded by an integrated DAC connecting the analog Audio Front-End to the digital audio processing system.

The first differential analog audio input (MIC1_P, MIC1_N) and the second differential analog audio input (MIC2_P, MIC2_N) interfaces can

be used alternatively, in mutually exclusive way.

UBX-16024839 - R04 System description

Page 48 of 143

TOBY-L4 series - System Integration Manual

1.11.2 Digital audio interface

TOBY-L4 series modules include two 4-wire I2S digital audio interfaces:

 I2S0 digital audio interface, consisting of the following pins:

 I2S_TXD data output  I2S_RXD data input  I2S_CLK bit clock input/output  I2S_WA world alignment / synchronization signal input/output

 I2S1 digital audio interface consisting of the following pins:

 I2S1_TXD data output  I2S1_RXD data input  I2S1_CLK bit clock input/output  I2S1_WA world alignment / synchronization signal input/output

The second digital audio interface (I2S1) will be supported by future firmware versions.

Both I2S0 and I2S1 digital audio interfaces are suitable to transfer digital audio data with an external compatible digital audio device, as an audio codec or as an audio digital signal processor.

The I2S interfaces can be alternatively set in different modes:

 PCM mode (short synchronization signal): I

synchronization, and then is set low for 16 clock cycles according to the 17 or 18 clock cycles frame length.

 Normal I

S mode (long synchronization signal): I2S word alignment is set high / low with a 50% duty cycle

(high for 16 clock cycles / low for 16 clock cycles, according to the 32 clock cycles frame length).

The I2S interface can be alternatively set in 2 different roles:

 Master mode  Slave mode

The sample rate of transmitted/received words, which corresponds to the I2S word alignment / synchronization signal frequency (<I2S_sample_rate>), can be alternatively set to:

 8 kHz  11.025 kHz  12 kHz  16 kHz  22.05 kHz  24 kHz  32 kHz  44.1 kHz  48 kHz  96 kHz  192 kHz

The modules support I2S transmit and I2S receive data 16-bit words long, linear. Data is transmitted and read in 2’s complement notation. The MSB is transmitted and read first.

I2S clock signal frequency depends on the frame length, the sample rate and the selected mode of operation:

 17 x <I2S_sample_rate> or 18 x <I2S_sample_rate> in PCM mode (short synchronization signal)  16 x 2 x <I2S_sample_rate> in Normal I2S mode (long synchronization signal)

S word alignment signal is set high for 1 or 2 clock cycles for the

UBX-16024839 - R04 System description

Page 49 of 143

TOBY-L4 series - System Integration Manual

Function

Description

Configurable GPIOs

External Interrupt

External Interrupt detection (module input)

GPIO3, HOST_SELECT0, HOST_SELECT1, DTR, DSR, DCD, RI

SPI Chip Select

SPI0 Chip Select 1 (module output)

GPIO4

GNSS supply enable

Enable/disable the supply of u-blox GNSS receiver connected to the cellular module over the I2C0 interface

GPIO2

GNSS data ready

Sense when u-blox GNSS receiver connected to the module is ready for sending data over the I2C0 interface

GPIO3

GNSS RTC sharing

RTC synchronization signal to the u-blox GNSS receiver connected to the cellular module over the I2C0 interface

GPIO4 SIM card detection

External SIM card physical presence detection

GPIO5

SIM card hot insertion/removal

Enable / disable SIM interface upon detection of external SIM card physical insertion / removal

GPIO5

Wi-Fi enable

Switch-on/off the external u-blox Wi-Fi module connected to the cellular module over the SDIO interface

GPIO1 Wake-up

Wake-up the module from Suspend to RAM state

GPIO3

Core dump

Indicates core dump sent over Ethernet RGMII / RMII interface

GPIO8

Input

Input to sense high or low digital level

GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, HOST_SELECT0, HOST_SELECT1, DTR, DSR, DCD, RI

Output

Output to set the high or the low digital level

GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, HOST_SELECT0, HOST_SELECT1, DTR, DSR, DCD, RI

Pin disabled

Output tri-stated with an internal active pull-down enabled

GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, HOST_SELECT0, HOST_SELECT1, DTR, DSR, DCD, RI

1.12 ADC interfaces

The ADC pins are not supported by the "50" product version.

TOBY-L4 series modules include Analog to Digital Converter inputs (ADC1, ADC2), which can be handled by means of the dedicated uCPU API.

1.13 General Purpose Input/Output

TOBY-L4 series modules "00" product versions include 14 pins (GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, HOST_SELECT0, HOST_SELECT1, DTR, DSR, DCD, and RI) that can be configured by the uCPU

application as general purpose input/output or to provide custom functions as summarized in Table 11.

Table 11: TOBY-L4 series modules "00" product versions GPIO custom functions summary

UBX-16024839 - R04 System description

Page 50 of 143

TOBY-L4 series - System Integration Manual

Function

Description

Configurable GPIOs

Ring Indicator

UART0 Ring Indicator functionality (Circuit 125 in ITU-T V.24)

SIM card detection

External SIM card physical presence detection

GPIO5

SIM card hot insertion/removal

Enable / disable SIM interface upon detection of external SIM card physical insertion / removal

GPIO5

Input

Input to sense high or low digital level

GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, RI

Output

Output to set the high or the low digital level

GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, RI

Pin disabled

Output tri-stated with an internal active pull-down enabled

GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, RI

TOBY-L4 series modules "50" product versions include 9 pins (GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, and RI) that can be configured by AT commands as general purpose input/output or to provide custom functions as summarized in Table 12.

Table 12: TOBY-L4 series modules "50" product versions GPIO custom functions summary

1.14 Reserved pins (RSVD)

TOBY-L4 series modules have pins reserved for future use, marked as RSVD: they can all be left unconnected on the application board, except

 the RSVD pin number 6 that must be externally connected to ground

UBX-16024839 - R04 System description

Page 51 of 143

TOBY-L4 series - System Integration Manual

2 Design-in

2.1 Overview

For optimal integration of the modules in the application PCB, follow the design guidelines stated in this section. Every application circuit must be properly designed to guarantee the correct functionality of the relative interface,

but a number of points require greater attention during the design of the application device. The following list provides a rank of importance in the application design, starting with the most significant:

1. Module antenna connection:

Antenna circuit directly affects the RF compliance of the device integrating a TOBY-L4 series module with applicable certification schemes. Very carefully follow the suggestions provided in section 2.4 for the schematic and layout design.

2. Module supply:

The supply circuit affects the RF compliance of the device integrating a TOBY-L4 series module with applicable required certification schemes as well as the antenna circuit design. Very carefully follow the suggestions provided in section 2.2.1 for the schematic and layout design.

3. USB interface:

Accurate design is required to guarantee USB functionality. Carefully follow the suggestions provided in section 2.6.1 for the schematic and layout design.

4. SIM interface:

Accurate design is required to guarantee SIM card functionality reducing the risk of RF coupling. Carefully follow the suggestions provided in section 2.5 for the schematic and layout design.

5. System functions:

Accurate design is required to guarantee well defined voltage level during operation at Reset and Power-on inputs. Carefully follow the suggestions provided in section 2.3 for the schematic and layout design.

6. Analog audio:

Accurate design is required to obtain clear and high quality audio reducing the risk of noise from audio lines due to both supply burst noise coupling and RF detection. Carefully follow the suggestions provided in section

2.8.1 for the schematic and layout design.

7. SDIO, RGMII, eMMC interfaces:

Accurate design is required to guarantee SDIO, RGMII, eMMC interfaces functionality. Carefully follow the suggestions provided in section 2.6.5, 2.6.6, 2.7 for the schematic and layout design.

8. ADC interfaces:

Accurate design is required to guarantee ADC interfaces functionality. Carefully follow the suggestions provided in section 2.9 for the schematic and layout design.

9. Other digital interfaces: (UART, SPI, I

Accurate design is required to guarantee correct functionality and reduce the risk of digital data frequency harmonics coupling. Follow the suggestions provided in sections 2.6.1, 2.6.3, 2.6.4, 2.8.2, 2.3.3, 2.10, 2.11.

10. Other supplies: V_BCKP RTC supply and V_INT generic digital interfaces supply.

Correct design is required to guarantee functionality. Follow the suggestions provided in 2.2.2 and 2.2.3.

It is recommended to also follow the specific design guidelines provided by each manufacturer of any

external part selected for the application board that integrates the u-blox cellular modules.

C, I2S, Host Select, GPIOs, and Reserved pins).

UBX-16024839 - R04 Design-in

Page 52 of 143

TOBY-L4 series - System Integration Manual

Main Supply

Available?

Battery

Li-Ion 3.7 V

Linear LDO

Regulator

Main Supply

Voltage > 5V?

Switching Step-Down

Regulator

No, portable device

No, less than 5 V

Yes, greater than 5 V

Yes, always available

2.2 Supply interfaces

2.2.1 Module supply (VCC)

2.2.1.1 General guidelines for VCC supply circuit selection and design

All the available VCC pins must be connected to the external supply minimizing the power loss due to series resistance.

GND pins are internally connected. Application design shall connect all the available pads to solid ground on the application board, since a good (low impedance) connection to external ground can minimize power loss and improve RF and thermal performance.

TOBY-L4 series modules must be sourced through the VCC pins with a suitable DC power supply that should meet the following prerequisites to comply with the modules’ VCC requirements summarized in Table 7.

The suitable DC power supply can be selected according to the application requirements (see Figure 19) between the different possible supply sources types, which most common ones are the following:

 Switching regulator  Low Drop-Out (LDO) linear regulator  Rechargeable Lithium-ion (Li-Ion) or Lithium-ion polymer (Li-Pol) battery  Primary (disposable) battery

Figure 19: VCC supply concept selection

The switching step-down regulator is the typical choice when the available primary supply source has a nominal voltage much higher (e.g. greater than 5 V) than the operating supply voltage of TOBY-L4 series. The use of switching step-down provides the best power efficiency for the overall application and minimizes current drawn from the main supply source. See sections 2.2.1.2, 2.2.1.6, 2.2.1.10, 2.2.1.11 for specific design-in.

The use of an LDO linear regulator becomes convenient for a primary supply with a relatively low voltage (e.g. less or equal than 5 V). In this case the typical 90% efficiency of the switching regulator diminishes the benefit of voltage step-down and no true advantage is gained in input current savings. On the opposite side, linear regulators are not recommended for high voltage step-down as they dissipate a considerable amount of energy in thermal power. See sections 2.2.1.3, 2.2.1.6, 2.2.1.10, 2.2.1.11 for specific design-in.

If TOBY-L4 series modules are deployed in a mobile unit where no permanent primary supply source is available, then a battery will be required to provide VCC. A standard 3-cell Li-Ion or Li-Pol battery pack directly connected to VCC is the usual choice for battery-powered devices. During charging, batteries with Ni-MH chemistry typically reach a maximum voltage that is above the maximum rating for VCC, and should therefore be avoided. See sections 2.2.1.4, 2.2.1.6, 2.2.1.10, 2.2.1.11 for specific design-in.

Keep in mind that the use of rechargeable batteries requires the implementation of a suitable charger circuit which is not included in the modules. The charger circuit must be designed to prevent over-voltage on VCC pins, and it should be selected according to the application requirements: a DC/DC switching charger is the typical choice when the charging source has an high nominal voltage (e.g. ~12 V), whereas a linear charger is the typical choice when the charging source has a relatively low nominal voltage (~5 V). If both a permanent primary supply /

UBX-16024839 - R04 Design-in

Page 53 of 143

TOBY-L4 series - System Integration Manual

charging source (e.g. ~12 V) and a rechargeable back-up battery (e.g. 3.7 V Li-Pol) are available at the same time as possible supply source, then a suitable charger / regulator with integrated power path management function can be selected to supply the module while simultaneously and independently charging the battery. See sections

2.2.1.7, 2.2.1.8, and 2.2.1.4, 2.2.1.6, 2.2.1.10, 2.2.1.11 for specific design-in. An appropriate primary (not rechargeable) battery can be selected taking into account the maximum current

specified in the TOBY-L4 series Data Sheet [1] during connected mode, considering that primary cells might have weak power capability. See sections 2.2.1.5, and 2.2.1.6, 2.2.1.10, 2.2.1.11 for specific design-in.

The usage of more than one DC supply at the same time should be evaluated carefully: depending on the supply source characteristics, different DC supply systems can result as mutually exclusive.

The usage of a regulator or a battery not able to support the highest peak of VCC current consumption specified in the TOBY-L4 series Data Sheet [1] is generally not recommended. However, if the selected regulator or battery is not able to support the highest peak current of the module, it must be able to support with adequate margin at least the highest averaged current consumption value specified in the TOBY-L4 series Data Sheet [1]. The additional energy required by the module during a 2G Tx slot can be provided by an appropriate bypass tank capacitor or a super-capacitor with very large capacitance and very low ESR placed close to the module VCC pins. Depending on the actual capability of the selected regulator or battery, the required capacitance can be considerably larger than 1 mF and the required ESR can be in the range of few tens of m. Carefully evaluate the super-capacitor characteristics since aging and temperature may affect the actual characteristics.

The following sections highlight some design aspects for each of the supplies listed above providing application circuit design-in compliant with the module VCC requirements summarized in Table 7.

2.2.1.2 Guidelines for VCC supply circuit design using a switching regulator

The use of a switching regulator is suggested when the difference from the available supply rail source to the VCC value is high, since switching regulators provide good efficiency transforming a 12 V or greater voltage supply to the typical 3.8 V value of the VCC supply.

The characteristics of the switching regulator connected to VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 7:

 Power capability: the switching regulator with its output circuit must be capable of providing a voltage value

to the VCC pins within the specified operating range and must be capable of delivering to VCC pins the maximum peak / pulse current consumption during Tx burst at maximum Tx power specified in the TOBY-L4 series Data Sheet [1].

 Low output ripple: the switching regulator together with its output circuit must be capable of providing a

clean (low noise) VCC voltage profile.

 High switching frequency: for best performance and for smaller applications it is recommended to select a

switching frequency ≥ 600 kHz (since L-C output filter is typically smaller for high switching frequency). The use of a switching regulator with a variable switching frequency or with a switching frequency lower than 600 kHz must be evaluated carefully since this can produce noise in the VCC voltage profile and therefore negatively impact LTE/3G/2G modulation spectrum performance. An additional L-C low-pass filter between the switching regulator output to VCC supply pins can mitigate the ripple at the input of the module, but adds extra voltage drop due to resistive losses on series inductors.

 PWM mode operation: it is preferable to select regulators with Pulse Width Modulation (PWM) mode. While

in connected mode, the Pulse Frequency Modulation (PFM) mode and PFM/PWM modes transitions must be avoided to reduce noise on VCC voltage profile. Switching regulators can be used that are able to switch between low ripple PWM mode and high ripple PFM mode, provided that the mode transition occurs when the module changes status from the idle/active modes to connected mode. It is permissible to use a regulator that switches from the PWM mode to the burst or PFM mode at an appropriate current threshold.

UBX-16024839 - R04 Design-in

Page 54 of 143

TOBY-L4 series - System Integration Manual

12V

C2C1

VIN

RUN

SYNC

BOOST

GND

C7 C8

TOBY-L4 series

VCC

GND

Reference

Description

Part Number - Manufacturer

10 µF Capacitor Ceramic X7R 5750 15% 50 V

C5750X7R1H106MB - TDK

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

680 pF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71H681KA01 - Murata

22 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1H220JZ01 - Murata

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

470 nF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E474KA12 - Murata

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

Schottky Diode 40 V 3 A

MBRA340T3G - ON Semiconductor

10 µH Inductor 744066100 30% 3.6 A

744066100 - Wurth Electronics

470 k Resistor 0402 5% 0.1 W

2322-705-87474-L - Yageo

15 k Resistor 0402 5% 0.1 W

2322-705-87153-L - Yageo

22 k Resistor 0402 5% 0.1 W

2322-705-87223-L - Yageo

390 k Resistor 0402 1% 0.063 W

RC0402FR-07390KL - Yageo

100 k Resistor 0402 5% 0.1 W

2322-705-70104-L - Yageo

Step-Down Regulator MSOP10 3.5 A 2.4 MHz

LT3972IMSE#PBF - Linear Technology

Figure 20 and Table 13 show an example of a high reliability power supply circuit, where the module VCC input is supplied by a step-down switching regulator capable of delivering maximum current with low output ripple and with fixed switching frequency in PWM mode operation greater than 1 MHz.

Figure 20: Example of high reliability VCC supply application circuit using a step-down regulator

Table 13: Components for high reliability VCC supply application circuit using a step-down regulator

UBX-16024839 - R04 Design-in

Page 55 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

12V

C6C1

VCC

INH

FSW

SYNC

OUT

GND

COMP

VCC

Reference

Description

Part Number - Manufacturer

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 – Murata

100 µF Capacitor Tantalum B_SIZE 20% 6.3V 15m

T520B107M006ATE015 – Kemet

5.6 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H562KA88 – Murata

6.8 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H682KA88 – Murata

56 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H560JA01 – Murata

220 nF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E224KA88 – Murata

Schottky Diode 25V 2 A

STPS2L25 – STMicroelectronics

5.2 µH Inductor 30% 5.28A 22 m

MSS1038-522NL – Coilcraft

4.7 k Resistor 0402 1% 0.063 W

RC0402FR-074K7L – Yageo

910  Resistor 0402 1% 0.063 W

RC0402FR-07910RL – Yageo

82  Resistor 0402 5% 0.063 W

RC0402JR-0782RL – Yageo

8.2 k Resistor 0402 5% 0.063 W

RC0402JR-078K2L – Yageo

39 k Resistor 0402 5% 0.063 W

RC0402JR-0739KL – Yageo

Step-Down Regulator 8-VFQFPN 3 A 1 MHz

L5987TR – ST Microelectronics

Figure 21 and the components listed in Table 14 show an example of a low-cost power supply circuit, where the VCC module supply is provided by a step-down switching regulator capable of delivering to VCC pins the specified maximum peak / pulse current, transforming a 12 V supply input.

Figure 21: Example of low cost VCC supply application circuit using a step-down regulator

Table 14: Components for low cost VCC supply application circuit using a step-down regulator

UBX-16024839 - R04 Design-in

Page 56 of 143

TOBY-L4 series - System Integration Manual

C1 R1

IN OUT

ADJ

GND

C2R2

SHDN

TOBY-L4 series

VCC

GND

Reference

Description

Part Number - Manufacturer

C1, C2

10 µF Capacitor Ceramic X5R 0603 20% 6.3 V

GRM188R60J106ME47 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL - Yageo Phycomp

9.1 k Resistor 0402 5% 0.1 W

RC0402JR-079K1L - Yageo Phycomp

3.9 k Resistor 0402 5% 0.1 W

RC0402JR-073K9L - Yageo Phycomp

LDO Linear Regulator ADJ 3.0 A

LT1764AEQ#PBF - Linear Technology

2.2.1.3 Guidelines for VCC supply circuit design using a Low Drop-Out linear regulator

The use of a linear regulator is suggested when the difference from the available supply rail source and the VCC value is low. The linear regulators provide high efficiency when transforming a 5 VDC supply to a voltage value within the module VCC normal operating range.

The characteristics of the Low Drop-Out (LDO) linear regulator connected to the VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 7:

 Power capabilities: the LDO linear regulator with its output circuit must be capable of providing a voltage

value to the VCC pins within the specified operating range and must be capable of delivering to the VCC pins the maximum peak / pulse current consumption during Tx burst at maximum Tx power specified in the TOBY- L4 series Data Sheet [1].

 Power dissipation: the power handling capability of the LDO linear regulator must be checked to limit its

junction temperature to the maximum rated operating range (i.e. check the voltage drop from the maximum input voltage to the minimum output voltage to evaluate the power dissipation of the regulator).

Figure 22 and the components listed in Table 15 show an example of a power supply circuit where the VCC module supply is provided by an LDO linear regulator capable of delivering the required current with a suitable power handling capability.

It is recommended to configure the LDO linear regulator to generate a voltage supply value slightly below the maximum limit of the module VCC normal operating range (e.g. ~4.1 V for the VCC, as in the circuits illustrated in Figure 22 and Table 15). This reduces the power on the linear regulator and improves the thermal design of the circuit.

Figure 22: Example of high reliability VCC supply application circuit using an LDO linear regulator

Table 15: Components for high reliability VCC supply application circuit using an LDO linear regulator

UBX-16024839 - R04 Design-in

Page 57 of 143

TOBY-L4 series - System Integration Manual

IN OUT

ADJ

GND

C2R1

TOBY-L4 series

VCC

GND

Reference

Description

Part Number - Manufacturer

C1, C2

10 µF Capacitor Ceramic X5R 0603 20% 6.3 V

GRM188R60J106ME47 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

27 k Resistor 0402 5% 0.1 W

RC0402JR-0727KL - Yageo Phycomp

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

LDO Linear Regulator ADJ 3.0 A

LP38501ATJ-ADJ/NOPB - Texas Instrument

Figure 23 and the components listed in Table 16 show an example of a low-cost power supply circuit, where the VCC module supply is provided by an LDO linear regulator capable of delivering the specified highest peak / pulse current, with suitable power handling capability. The regulator illustrated in this example supports a limited input voltage range and it includes internal circuitry for current and thermal protection.

It is recommended to configure the LDO linear regulator to generate a voltage supply value slightly below the maximum limit of the module’s VCC normal operating range (e.g. ~4.1 V as in the circuit illustrated in Figure 23 and Table 16). This reduces the power on the linear regulator and improves the whole thermal design of the supply circuit.

Figure 23: Example of a low cost VCC supply application circuit using an LDO linear regulator

Table 16: Components for a low cost VCC supply application circuit using an LDO linear regulator

UBX-16024839 - R04 Design-in

Page 58 of 143

TOBY-L4 series - System Integration Manual

2.2.1.4 Guidelines for VCC supply circuit design using a rechargeable Li-Ion or Li-Pol battery

Rechargeable Li-Ion or Li-Pol batteries connected to the VCC pins should meet the following prerequisites to comply with the module’s VCC requirements as summarized in Table 7:

 Maximum pulse and DC discharge current: the rechargeable Li-Ion battery with its related output circuit

connected to the VCC pins must be capable of delivering a pulse current as the maximum peak / pulse current consumption during Tx burst at the maximum Tx power specified in the TOBY-L4 series Data Sheet [1] and must be capable of extensively delivering a DC current as the maximum average current consumption as specified in the TOBY-L4 series Data Sheet [1]. The maximum discharge current is not always reported in the data sheets of batteries, but the maximum DC discharge current is typically almost equal to the battery capacity in Amp-hours divided by 1 hour.

 DC series resistance: the rechargeable Li-Ion battery with its output circuit must be capable of avoiding a

VCC voltage drop below the operating range summarized in Table 7 during transmit bursts.

2.2.1.5 Guidelines for VCC supply circuit design using a primary (disposable) battery

The characteristics of a primary (non-rechargeable) battery connected to the VCC pins should meet the following prerequisites to comply with the module’s VCC requirements as summarized in Table 7:

 Maximum pulse and DC discharge current: the non-rechargeable battery with its related output circuit

connected to the VCC pins must be capable of delivering a pulse current as the maximum peak current consumption during Tx burst at the maximum Tx power specified in the TOBY-L4 series Data Sheet [1] and must be capable of extensively delivering a DC current as the maximum average current consumption as specified in the TOBY-L4 series Data Sheet [1]. The maximum discharge current is not always reported in the data sheets of batteries, but the maximum DC discharge current is typically almost equal to the battery capacity in Amp-hours divided by 1 hour.

 DC series resistance: the non-rechargeable battery with its output circuit must be capable of avoiding a VCC

voltage drop below the operating range as summarized in Table 7 during transmit bursts.

UBX-16024839 - R04 Design-in

Page 59 of 143

TOBY-L4 series - System Integration Manual

GND

C3 C4

TOBY-L4 series

VCC

C1 C5 C6

3V8

Reference

Description

Part Number - Manufacturer

8.2 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H8R2DZ01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H150JA01 - Murata

68 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H680JA01 - Murata

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

2.2.1.6 Additional guidelines for VCC supply circuit design

To reduce voltage drops, use a low impedance power source. The series resistance of the power supply lines (connected to the modules’ VCC and GND pins) on the application board and battery pack should also be considered and minimized: cabling and routing must be as short as possible to minimize power losses.

Three pins are allocated to the VCC supply. Several pins are designated for GND connection. It is recommended to correctly connect all of them to supply the module to minimize series resistance losses.

For modules supporting 2G radio access technology, to avoid voltage drop undershoot and overshoot at the start and end of a transmit burst during a GSM call (when current consumption on the VCC supply can rise up as specified in the TOBY-L4 series Data Sheet [1]), place a bypass capacitor with large capacitance (at least 100 µF) and low ESR near the VCC pins, for example:

 330 µF capacitance, 45 m ESR (e.g. KEMET T520D337M006ATE045, Tantalum Capacitor)

To reduce voltage ripple and noise, improving RF performance especially if the application device integrates an internal antenna, place the following bypass capacitors near the VCC pins:

 68 pF capacitor with Self-Resonant Frequency in the 800/900 MHz range (e.g. Murata GRM1555C1H680J)  15 pF capacitor with Self-Resonant Frequency in 1800/1900 MHz range (e.g. Murata GRM1555C1E150J)  8.2 pF capacitor with Self-Resonant Frequency in 2500/2600 MHz range (e.g. Murata GRM1555C1H8R2D)  10 nF capacitor (e.g. Murata GRM155R71C103K) to filter digital logic noise from clocks and data sources  100 nF capacitor (e.g. Murata GRM155R61C104K) to filter digital logic noise from clocks and data sources

A suitable series ferrite bead can be correctly placed on the VCC line for additional noise filtering if required by the specific application according to the whole application board design.

Figure 24: Suggested schematic for the VCC bypass capacitors to reduce ripple / noise on the supply voltage profile

Table 17: Suggested components to reduce ripple / noise on the VCC

The necessity of each part depends on the specific design, but it is recommended to provide all the bypass The ESD sensitivity rating of the VCC supply pins is 1 kV (HBM as per JESD22-A114). A higher protection

UBX-16024839 - R04 Design-in

Page 60 of 143

capacitors illustrated in Figure 24 / Table 17 if the application device integrates an internal antenna.

level can be required if the line is externally accessible on the application board, e.g. if the accessible battery connector is directly connected to the supply pins. A higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor) close to the accessible point.

TOBY-L4 series - System Integration Manual

C5 C8C7C6 C9

GND

TOBY-L4 series

VCC

USB

Supply

IUSB

IAC

IEND

TPRG

VIN

VINSNS

MODE

ISEL

C2C1

5V0

GND

VOUT

VOSNS

VREF

Li-Ion/Li-Pol

Battery Pack

Li-Ion/Li-Polymer

Battery Charger IC

Reference

Description

Part Number - Manufacturer

Li-Ion (or Li-Polymer) battery pack with 470  NTC

Various manufacturer

C1, C4

1 µF Capacitor Ceramic X7R 0603 10% 16 V

GRM188R71C105KA12 - Murata

C2, C6

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

1 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H102KA01 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

68 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H680JA01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H150JA01 - Murata

D1, D2

Low Capacitance ESD Protection

CG0402MLE-18G - Bourns

R1, R2

24 k Resistor 0402 5% 0.1 W

RC0402JR-0724KL - Yageo Phycomp

3.3 k Resistor 0402 5% 0.1 W

RC0402JR-073K3L - Yageo Phycomp

1.0 k Resistor 0402 5% 0.1 W

RC0402JR-071K0L - Yageo Phycomp

Single Cell Li-Ion (or Li-Polymer) Battery Charger IC

L6924U - STMicroelectronics

2.2.1.7 Guidelines for the external battery charging circuit

TOBY-L4 series modules do not have an on-board charging circuit. Figure 25 provides an example of a battery charger design which is suitable for applications that are battery powered with a Li-Ion (or Li-Polymer) cell.

In the application circuit, a rechargeable Li-Ion (or Li-Polymer) battery cell, that features the correct pulse and DC discharge current capabilities and the correct DC series resistance, is directly connected to the VCC supply input of the module. Battery charging is completely managed by the STMicroelectronics L6924U Battery Charger IC that, from a USB power source (5.0 V typ.), charges the battery as a linear charger, in three phases:

 Pre-charge constant current (active when the battery is deeply discharged): the battery is charged with a

low current, set to 10% of the fast-charge current.

 Fast-charge constant current: the battery is charged with the maximum current, configured by the value of

an external resistor to a value suitable for USB power source (~500 mA).

 Constant voltage: when the battery voltage reaches the regulated output voltage (4.2 V), the L6924U starts

to reduce the current until the charge termination is done. The charging process ends when the charging current reaches the value configured by an external resistor to ~15 mA or when the charging timer reaches the value configured by an external capacitor to ~9800 s.

Using a battery pack with an internal NTC resistor, the L6924U can monitor the battery temperature to protect the battery from operating under unsafe thermal conditions.

The L6924U, as a linear charger, is more suitable for applications where the charging source has a relatively low nominal voltage (~5 V), so that a switching charger is suggested for applications where the charging source has a relatively high nominal voltage (e.g. ~12 V, see the following section 2.2.1.8 for the specific design-in).

Figure 25: Li-Ion (or Li-Polymer) battery charging application circuit

Table 18: Suggested components for Li-Ion (or Li-Polymer) battery charging application circuit

UBX-16024839 - R04 Design-in

Page 61 of 143

TOBY-L4 series - System Integration Manual

GND

Power path management IC

VoutVin

Li-Ion/Li-Pol

Battery Pack

GND

System

12 V

Primary

Source

Charge

controller

DC/DC converter

and battery FET

control logic

Vbat

2.2.1.8 Guidelines for external battery charging and power path management circuit

Application devices where both a permanent primary supply / charging source (e.g. ~12 V) and a rechargeable back-up battery (e.g. 3.7 V Li-Pol) are available at the same time as possible supply source should implement a suitable charger / regulator with integrated power path management function to supply the module and the whole device while simultaneously and independently charging the battery.

Figure 26 reports a simplified block diagram circuit showing the working principle of a charger / regulator with an integrated power path management function. This component allows the system to be powered by a permanent primary supply source (e.g. ~12 V) using the integrated regulator which simultaneously and independently recharges the battery (e.g. 3.7 V Li-Pol) that represents the back-up supply source of the system: the power path management feature permits the battery to supplement the system current requirements when the primary supply source is not available or cannot deliver the peak system current.

A power management IC should meet the following prerequisites to comply with the module’s VCC requirements as summarized in Table 7:

 High efficiency internal step down converter, compliant with the performances specified in section 2.2.1.2  Low internal resistance in the active path Vout – Vbat, typically lower than 50 m  High efficiency switch mode charger with separate power path control

Figure 26: Charger / regulator with integrated power path management circuit block diagram

Figure 27 and the components listed in Table 19 provide an application circuit example where the MPS MP2617 switching charger / regulator with integrated power path management function provides the supply to the cellular module while concurrently and autonomously charging a suitable Li-Ion (or Li-Polymer) battery with the correct pulse and DC discharge current capabilities and the correct DC series resistance according to the rechargeable battery recommendations as described in section 2.2.1.4.

The MP2617 IC constantly monitors the battery voltage and selects whether to use the external main primary supply / charging source or the battery as the supply source for the module, and starts a charging phase accordingly.

The MP2617 IC normally provides a supply voltage to the module regulated from the external main primary source allowing immediate system operation even under missing or deeply discharged battery: the integrated switching step-down regulator is capable to provide up to 3 A output current with low output ripple and fixed 1.6 MHz switching frequency in PWM mode operation. The module load is satisfied in priority, then the integrated switching charger will take the remaining current to charge the battery.

Additionally, the power path control allows an internal connection from the battery to the module with a low series internal ON resistance (40 m typical), in order to supplement additional power to the module when the current demand increases over the external main primary source or when this external source is removed.

UBX-16024839 - R04 Design-in

Page 62 of 143

TOBY-L4 series - System Integration Manual

C10 C13

GND

C12C11 C14

TOBY-L4 series

VCC

Primary

Source

ILIM

ISET

TMR

AGND

VIN

C2C1

12V

NTC

PGND

SYS

BAT

Li-Ion/Li-Pol Battery Pack

Li-Ion/Li-Polymer Battery

Charger / Regulator with Power Path Managment

VCC

C3 C6

BST

VLIM

C7 C8

Reference

Description

Part Number - Manufacturer

Li-Ion (or Li-Polymer) battery pack with 10 k NTC

Various manufacturer

C1, C5, C6

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 - Murata

C2, C4, C11

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

1 µF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E105KA12 - Murata

C7, C13

68 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H680JA01 - Murata

C8, C14

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

C10

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

C12

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

D1, D2

Low Capacitance ESD Protection

CG0402MLE-18G - Bourns

R1, R3, R5

10 k Resistor 0402 5% 1/16 W

RC0402JR-0710KL - Yageo Phycomp

1.0 k Resistor 0402 5% 0.1 W

RC0402JR-071K0L - Yageo Phycomp

22 k Resistor 0402 5% 1/16 W

RC0402JR-0722KL - Yageo Phycomp

1.2 µH Inductor 6 A 21 m 20%

7447745012 - Wurth

Li-Ion/Li-Polymer Battery DC/DC Charger / Regulator with integrated Power Path Management function

MP2617 - Monolithic Power Systems (MPS)

Battery charging is managed in three phases:

 Pre-charge constant current (active when the battery is deeply discharged): the battery is charged with a

low current, set to 10% of the fast-charge current.

 Fast-charge constant current: the battery is charged with the maximum current, configured by the value of

an external resistor to a value suitable for the application.

 Constant voltage: when the battery voltage reaches the regulated output voltage (4.2 V), the current is

progressively reduced until the charge termination is done. The charging process ends when the charging current reaches 10% of the fast-charge current or when the charging timer reaches the value configured by an external capacitor.

Using a battery pack with an internal NTC resistor, the MP2617 can monitor the battery temperature to protect the battery from operating under unsafe thermal conditions.

Several parameters, such as the charging current, the charging timings, the input current limit, the input voltage limit, and the system output voltage, can be easily set according to the specific application requirements to the actual electrical characteristics of the battery and the external supply / charging source: suitable resistors or capacitors must be accordingly connected to the related pins of the IC.

Figure 27: Li-Ion (or Li-Polymer) battery charging and power path management application circuit

Table 19: Suggested components for a Li-Ion (or Li-Polymer) battery charging and power path management application circuit

UBX-16024839 - R04 Design-in

Page 63 of 143

TOBY-L4 series - System Integration Manual

GND

C2C1 C4

TOBY-L4 series

VCC

VCC Supply Source

GND

GPIO

Application

Processor

Reference

Description

Part Number - Manufacturer

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL - Yageo Phycomp

10 k Resistor 0402 5% 0.1 W

RC0402JR-0710KL - Yageo Phycomp

100 k Resistor 0402 5% 0.1 W

RC0402JR-07100KL - Yageo Phycomp

P-Channel MOSFET Low On-Resistance

AO3415 - Alpha & Omega Semiconductor Inc.

NPN BJT Transistor

BC847 - Infineon

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

56 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E560JA01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

2.2.1.9 Guidelines for removing VCC supply

As described in section 1.6.2 and Figure 14, the VCC supply can be removed after the end of the TOBY-L4 series module’s internal power-off sequence, which must be properly started as described in section 1.6.2.

Removing the VCC power can be useful in order to minimize the current consumption when the TOBY-L4 series modules are switched off. Then, the modules can be switched on again by re-applying the VCC supply.

If the VCC supply is generated by a switching or an LDO regulator, the application processor may control the input pin of the regulator which is provided to enable / disable the output of the regulator (as for example, the RUN input pin for the regulator illustrated in Figure 20, the INH input pin for the regulator illustrated in Figure 21, the SHDNn input pin for the regulator illustrated in Figure 22, or the EN input pin for the regulator illustrated in Figure

23), in order to apply / remove the VCC supply. If the regulator that generates the VCC supply does not provide an on / off pin, or for other applications such as

the battery-powered ones, the VCC supply can be switched off using an appropriate external p-channel MOSFET controlled by the application processor by means of a suitable inverting transistor as shown in Figure 28, given that the external p-channel MOSFET has provided:

 Very low R

(for example, less than 50 m), to minimize voltage drops

DS(ON)

 Adequate maximum Drain current (see the TOBY-L4 series Data Sheet [1] for module consumption figures)  Low leakage current, to minimize the current consumption

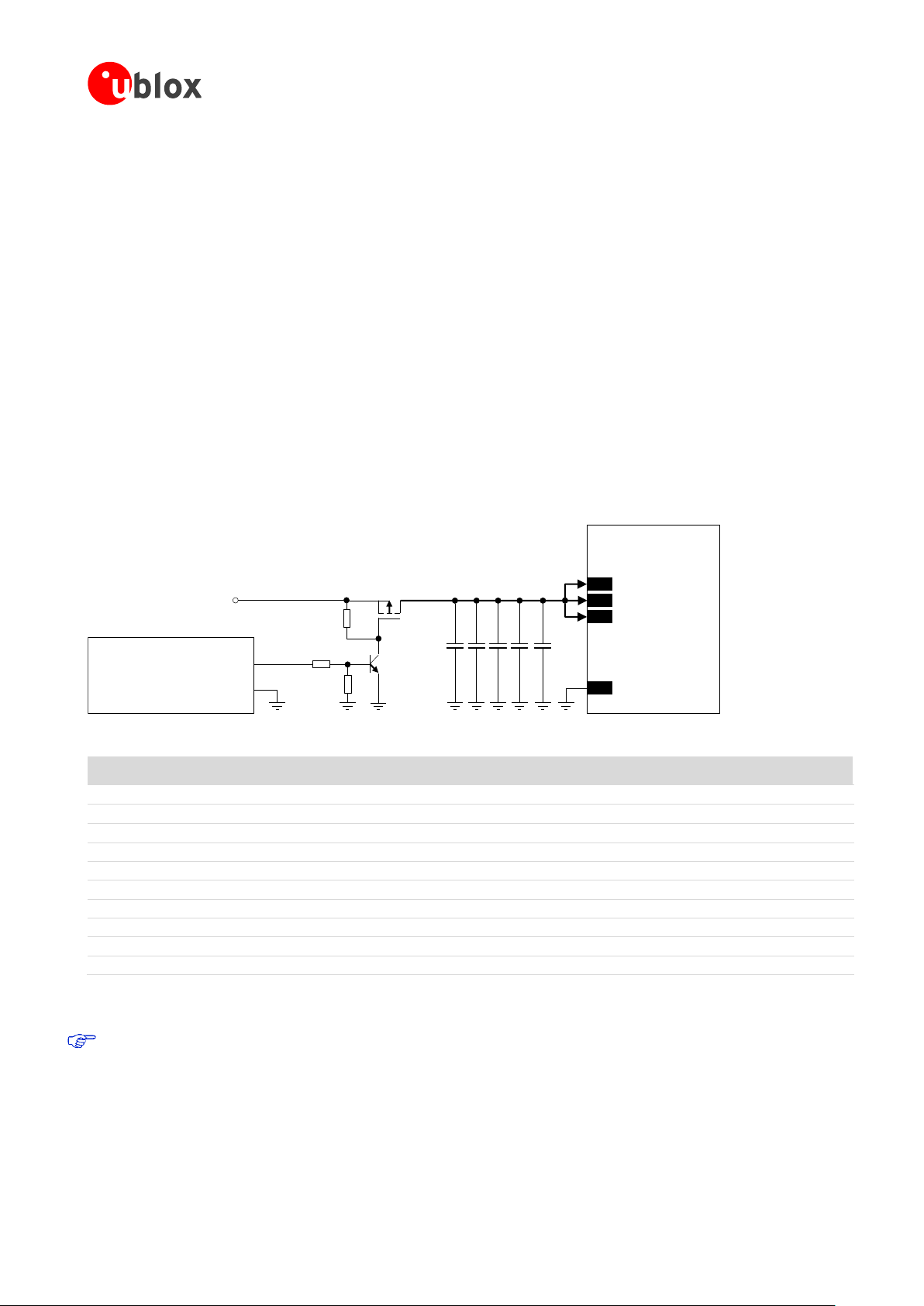

Figure 28: Example of application circuit for VCC supply removal

Table 20: Components for VCC supply removal application circuit

It is highly recommended to avoid an abrupt removal of the VCC supply during the TOBY-L4 series module’s

normal operations: the power off procedure must be started as described in section 1.6.2, and then a suitable VCC supply must be held at least until the end of the modules’ internal power off sequence, which occurs when the generic digital interfaces supply output (V_INT) is switched off by the module.

UBX-16024839 - R04 Design-in

Page 64 of 143

TOBY-L4 series - System Integration Manual

2.2.1.10 Guidelines for VCC supply layout design

A clean connection of the module VCC pins with a DC supply source is required for correct RF performance. Guidelines are summarized in the following list:

 All the available VCC pins must be connected to the DC source.  VCC connection must be as wide as possible and as short as possible.  Any series component with Equivalent Series Resistance (ESR) greater than few milliohms must be avoided.  VCC connection must be routed through a PCB area separated from RF lines / parts, sensitive analog signals

and sensitive functional units: it is good practice to interpose at least one layer of PCB ground between the VCC track and other signal routing.

 Coupling between VCC and digital lines, especially USB, must be avoided.  The tank bypass capacitor with low ESR for current spikes smoothing described in section 2.2.1.6 should be

placed close to the VCC pins. If the main DC source is a switching DC-DC converter, place the large capacitor close to the DC-DC output and minimize the VCC track length. Otherwise consider using separate capacitors for the DC-DC converter and module tank capacitor.

 The bypass capacitors in the pF range illustrated in Figure 24 and Table 17 should be placed as close as possible

to the VCC pins, where the VCC line narrows close to the module input pins, improving the RF noise rejection in the band centered on the Self-Resonant Frequency of the pF capacitors. This is highly recommended if the application device integrates an internal antenna.

 Since VCC input provides the supply to the RF Power Amplifiers, any voltage ripple at high frequency may

result in unwanted spurious modulation of the transmitter RF signal. This is more likely to happen with switching DC-DC converters, in which case it is better to select the highest operating frequency for the switcher and add a large L-C filter before connecting to the TOBY-L4 series modules in the worst case.

 Shielding of switching DC-DC converter circuit, or at least the use of shielded inductors for the switching DC-

DC converter, may be considered since all switching power supplies may potentially generate interfering signals as a result of high-frequency high-power switching.

 If the VCC is protected by a transient voltage suppressor to ensure that the voltage maximum ratings are not

exceeded, place the protecting device along the path from the DC source toward the module, preferably closer to the DC source (otherwise protection functionality may be compromised).

2.2.1.11 Guidelines for grounding layout design

A clean connection of the module GND pins with the application board solid ground layer is required for correct RF performance. It significantly reduces EMC issues and provides a thermal heat sink for the module.

 Connect each GND pin with the application board solid GND layer. It is strongly recommended that each GND

pad surrounding the VCC pins has one or more dedicated via down to the application board solid ground layer.

 The VCC supply current flows back to the main DC source through GND as the ground current: provide an

adequate return path with a suitable uninterrupted ground plane to the main DC source.

 It is recommended to implement one layer of the application board as a ground plane as wide as possible.  If the application board is a multilayer PCB, then all the board layers should be filled with GND plane as much

as possible and each GND area should be connected together with a complete via stack down to the main ground layer of the board.

 If the whole application device is composed of more than one PCB, then it is required to provide a good and

solid ground connection between the GND areas of all the multiple PCBs.

 Good grounding of the GND pads also ensures the thermal heat sink. This is critical during connection, when

the real network commands the module to transmit at maximum power: correct grounding helps prevent module overheating.

UBX-16024839 - R04 Design-in

Page 65 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

V_BCKP

TOBY-L4 series

(SuperCap)

V_BCKP

TOBY-L4 series

V_BCKP

Reference

Description

Part Number - Manufacturer

100 µF Tantalum Capacitor

GRM43SR60J107M - Murata

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

70 mF Capacitor

XH414H-IV01E - Seiko Instruments

2.2.2 RTC back-up supply (V_BCKP)

2.2.2.1 Guidelines for V_BCKP circuit design

TOBY-L4 series modules provide the V_BCKP pin, which can be used to:

 power the Real Time Clock (RTC) only when the voltage value at VCC main module supply input is too low

The RTC can be supplied from an external back-up battery or capacitor through the V_BCKP pin, when the main module voltage supply is not applied to the VCC pins. This lets the time reference (date and time) run as long as the V_BCKP voltage is within its valid range, even when the main supply is not provided to the module.

Figure 29 and Table 21 describe possible application circuits for V_BCKP Real Time Clock (RTC) back-up supply:

a. 100 µF capacitor, to let the RTC run for ~1 minute after the VCC removal b. 70 mF super-capacitor with a 4.7 k series resistor, to let the RTC run for ~1 hour after the VCC removal c. Coin non-rechargeable battery with series diode, to let the RTC run for days after the VCC removal

Figure 29: RTC back-up supply (V_BCKP) application circuits using a capacitor, a super-capacitor, or a non-rechargeable battery

Table 21: Example of components for RTC back-up supply (V_BCKP)

The V_BCKP supply output pin provides internal short circuit protection to limit the start-up current and protect the device in short circuit situations. No additional external short circuit protection is required.

The V_BCKP pin can be left unconnected if the RTC timing is not required when the VCC supply is removed. The internal regulator for V_BCKP is optimized for low leakage current and very light loads. Do not apply

loads which might exceed the limit for the maximum available current from V_BCKP supply, as this can cause malfunctions in the module. The TOBY-L4 series Data Sheet [1] describes the detailed electrical characteristics.

The ESD sensitivity rating of the V_BCKP supply pin is 1 kV (HBM according to JESD22-A114). A higher

protection level can be required if the line is externally accessible on the application board, e.g. if an accessible back-up battery connector is directly connected to the V_BCKP pin, and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the accessible point.

2.2.2.2 Guidelines for V_BCKP layout design

The V_BCKP supply requires careful layout: avoid injecting noise on this voltage domain, as it may affect the stability of the internal circuitry.

UBX-16024839 - R04 Design-in

Page 66 of 143

TOBY-L4 series - System Integration Manual

2.2.3 Generic digital interfaces supply output (V_INT)

2.2.3.1 Guidelines for V_INT circuit design

TOBY-L4 series provide the V_INT generic digital interfaces 1.8 V supply output, which can be mainly used to:

 Indicate when the module is switched on (as described in sections 1.6.1, 1.6.2)  Pull-up SIM detection signal (see section 2.5 for more details)  Supply voltage translators to connect 1.8 V module generic digital interfaces to 3.0 V devices (e.g. see 2.6.1)  Pull-up DDC (I  Supply a 1.8 V u-blox GNSS receiver (see section 2.6.4 for more details)  Supply an external device as an external 1.8 V audio codec (see section 2.8.2 for more details)

The V_INT supply output pin provides internal short circuit protection to limit the start-up current and protect the device in short circuit situations. No additional external short circuit protection is required.

C) interface signals (see section 2.6.4 for more details)

Do not apply loads which might exceed the limit for the maximum available current from V_INT supply as

this can cause malfunctions in the internal circuitry.

Since the V_INT supply is generated by an internal switching step-down regulator, it is not recommended

to supply sensitive analog circuitry without adequate filtering for digital noise.

V_INT can only be used as an output: do not connect any external supply source on V_INT. The ESD sensitivity rating of the V_INT supply pin is 1 kV (Human Body Model according to JESD22-A114).

A higher protection level could be required if the line is externally accessible and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the accessible point.

It is recommended to monitor the V_INT pin to sense the end of the internal switch-off sequence of TOBY-

L4 series modules: the VCC supply can be removed only after V_INT goes low

It is recommended to provide direct access to the V_INT pin on the application board by means of an

accessible test point directly connected to the V_INT pin, for diagnostic purposes.

2.2.3.2 Guidelines for V_INT layout design

The V_INT supply output is generated by an integrated switching step-down converter. Because of this, it can be a source of noise: avoid coupling with sensitive signals.

UBX-16024839 - R04 Design-in

Page 67 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

PWR_ON

Power-on

push button

ESD

Open Drain

Output

Application

Processor

TOBY-L4 series

35 k

1.3 V

PWR_ON

35 k

1.3 V

Reference

Description

Remarks

ESD

CT0402S14AHSG - EPCOS

Varistor array for ESD protection

2.3 System functions interfaces

2.3.1 Module power-on (PWR_ON)

2.3.1.1 Guidelines for PWR_ON circuit design

TOBY-L4 series PWR_ON input is equipped with an internal active pull-up resistor to an internal 1.3 V supply rail as illustrated in Figure 30: an external pull-up resistor is not required and should not be provided.

If connecting the PWR_ON input to a push button, the pin will be externally accessible on the application device. According to EMC/ESD requirements of the application, an additional ESD protection should be provided close to the accessible point, as illustrated in Figure 30 and Table 22.

The ESD sensitivity rating of the PWR_ON pin is 1 kV (Human Body Model according to JESD22-A114).

A higher protection level can be required if the line is externally accessible on the application board, e.g. if an accessible push button is directly connected to the PWR_ON pin, and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor) close to the accessible point.

An open drain or open collector output is suitable to drive the PWR_ON input from an application processor, as the pin is equipped with an internal active pull-up resistor, as illustrated in Figure 30.

Figure 30: PWR_ON application circuits using a push button and an open drain output of an application processor

Table 22: Example ESD protection component for the PWR_ON application circuit

It is recommended to provide direct access to the PWR_ON pin on the application board by means of an

accessible test point directly connected to the PWR_ON pin, for diagnostic purposes.

2.3.1.2 Guidelines for PWR_ON layout design

The power-on circuit (PWR_ON) requires careful layout since it is the sensitive input available to switch on the TOBY-L4 series modules. It is required to ensure that the voltage level is well defined during operation and no transient noise is coupled on this line, otherwise the module might detect a spurious power-on request.

UBX-16024839 - R04 Design-in

Page 68 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

V_INT

RESET_N

Power-on

push button

ESD

Open

Drain Output

Application

Processor

TOBY-L4 series

V_INT

RESET_N

100 k

Reference

Description

Remarks

ESD

Varistor for ESD protection

CT0402S14AHSG - EPCOS

2.3.2 Module reset (RESET_N)

2.3.2.1 Guidelines for RESET_N circuit design

TOBY-L4 series RESET_N line is equipped with an internal pull-up to the V_INT supply as illustrated in Figure 31. An external pull-up resistor is not required.

If connecting the RESET_N input to a push button, the pin will be externally accessible on the application device. According to the EMC/ESD requirements of the application, an additional ESD protection device (e.g. the EPCOS CA05P4S14THSG varistor) should be provided close to the accessible point on the line connected to this pin, as illustrated in Figure 31 and Table 23.

The ESD sensitivity rating of the RESET_N pin is 1 kV (HBM according to JESD22-A114). A higher protection

level can be required if the line is externally accessible on the application board, e.g. if an accessible push button is directly connected to the RESET_N pin, and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor) close to the accessible point.

An open drain output is suitable to drive the RESET_N input from an application processor as it is equipped with an internal pull-up to V_INT supply, as illustrated in Figure 31.

A compatible push-pull output of an application processor can also be used. In any case, take care to set the correct level in all the possible scenarios to avoid an inappropriate module reset.

Figure 31: RESET_N application circuits using a push button and an open drain output of an application processor

Table 23: Example of ESD protection component for the RESET_N application circuits

If the external reset function is not required by the customer application, the RESET_N input pin can be left

unconnected to external components, but it is recommended to provide direct access on the application board by means of an accessible test point directly connected to the RESET_N pin.

2.3.2.2 Guidelines for RESET_N layout design

The RESET_N circuit requires careful layout due to the pin function: ensure that the voltage level is well defined during operation and no transient noise is coupled on this line, otherwise the module might detect a spurious reset request. It is recommended to keep the connection line to the RESET_N pin as short as possible.

UBX-16024839 - R04 Design-in

Page 69 of 143

TOBY-L4 series - System Integration Manual

2.3.3 Module / host configuration selection

Host Select pins are not supported by the "50" product version.

2.3.3.1 Guidelines for HOST_SELECTx circuit design

TOBY-L4 series modules include two 1.8 V digital pins (HOST_SELECT0, HOST_SELECT1), which can be configured for External Interrupt detection or as GPIO by means of the uCPU API: the pins can be connected to external devices following the guidelines provided in section 2.10.

Do not apply voltage to the HOST_SELECT0 and HOST_SELECT1 pins before the switch-on of their supply

source (V_INT), to avoid latch-up of circuits and allow a correct boot of the module.

The ESD sensitivity rating of the HOST_SELECT0 and HOST_SELECT1 pins is 1 kV (HBM as per JESD22-

A114). A higher protection level could be required if the lines are externally accessible and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the accessible points.

If the functionality of the HOST_SELECT0 and HOST_SELECT1 pins is not required, the pins can be left

unconnected on the application board.

2.3.3.2 Guidelines for HOST_SELECTx layout design

The design for the HOST_SELECT0 and HOST_SELECT1 pins functions is generally not critical for layout.

UBX-16024839 - R04 Design-in

Page 70 of 143

TOBY-L4 series - System Integration Manual

2.4 Antenna interface

TOBY-L4 series modules provide two RF interfaces for connecting the external antennas:

 The ANT1 pin represents the primary RF input/output for LTE/3G/2G RF signals transmission and reception.  The ANT2 pin represents the secondary RF input for MIMO and Rx diversity RF signals reception.

Both the ANT1 and the ANT2 pins have a nominal characteristic impedance of 50  and must be connected to the related antenna through a 50  transmission line to allow correct transmission / reception of RF signals.

Two antennas (one connected to ANT1 pin and one connected to ANT2 pin) must be used to support the

CA, MIMO and Rx diversity configurations. This is a required feature for LTE category 6 User Equipments (up to 301.5 Mbit/s Down-Link data rate) according to the 3GPP specifications.

2.4.1 Antenna RF interfaces (ANT1 / ANT2)

2.4.1.1 General guidelines for antenna selection and design

The antenna is the most critical component to be evaluated. Designers must take care of the antennas from all perspectives at the very start of the design phase when the physical dimensions of the application board are under analysis/decision, since the RF compliance of the device integrating TOBY-L4 series modules with all the applicable required certification schemes depends on the antenna radiating performance.

LTE/3G/2G antennas are typically available in the types of linear monopole or PCB antennas such as patches or ceramic SMT elements.

 External antennas (e.g. linear monopole)

o External antennas basically do not imply a physical restriction to the design of the PCB where the TOBY-

L4 series module is mounted.

o The radiation performance mainly depends on the antennas. It is required to select antennas with optimal

radiating performance in the operating bands.

o RF cables should be carefully selected to have minimum insertion losses. Additional insertion loss will be

introduced by low quality or long cable. Large insertion loss reduces both transmit and receive radiation performance.

o A high quality 50  RF connector provides suitable PCB-to-RF-cable transition. It is recommended to strictly

follow the layout and cable termination guidelines provided by the connector manufacturer.

 Integrated antennas (e.g. patch-like antennas):

o Internal integrated antennas imply a physical restriction to the design of the PCB:

An integrated antenna excites RF currents on its counterpoise, typically the PCB ground plane of the device that becomes part of the antenna: its dimension defines the minimum frequency that can be radiated. Therefore, the ground plane can be reduced down to a minimum size that should be similar to the quarter of the wavelength of the minimum frequency that must be radiated, given that the orientation of the ground plane relative to the antenna element must be considered.

The isolation between the primary and the secondary antennas must be as high as possible and the correlation between the 3D radiation patterns of the two antennas must be as low as possible. In general, a separation of at least a quarter wavelength between the two antennas is required to achieve a good isolation and low pattern correlation.

As a numerical example, the physical restriction to the PCB design can be considered as following:

Frequency = 750 MHz  Wavelength = 40 cm  Minimum GND plane size = 10 cm

o Radiation performance depends on the whole PCB and antenna system design, including product

mechanical design and usage. Antennas should be selected with optimal radiating performance in the operating bands according to the mechanical specifications of the PCB and the whole product.

UBX-16024839 - R04 Design-in

Page 71 of 143

TOBY-L4 series - System Integration Manual

Min.

250 µm

Min. 400 µm

GND

ANT1

GND clearance

on very close buried layer

below ANT1 pad

GND clearance

on top layer

around ANT1 pad

Min.

250 µm

Min. 400 µm

GND

ANT2

GND clearance

on very close buried layer

below ANT2 pad

GND clearance

on top layer

around ANT2 pad

o It is recommended to select a pair of custom antennas designed by an antennas’ manufacturer if the

required ground plane dimensions are very small (e.g. less than 6.5 cm long and 4 cm wide). The antenna design process should begin at the start of the whole product design process.

o It is highly recommended to strictly follow the detailed and specific guidelines provided by the antenna

manufacturer regarding correct installation and deployment of the antenna system, including PCB layout and matching circuitry.

o Further to the custom PCB and product restrictions, antennas may require tuning to obtain the required

performance for compliance with all the applicable required certification schemes. It is recommended to consult the antenna manufacturer for the design-in guidelines for antenna matching relative to the custom application.

In both cases, selecting external or internal antennas, these recommendations should be observed:

 Select antennas providing optimal return loss (or VSWR) figures over all the operating frequencies.  Select antennas providing optimal efficiency figures over all the operating frequencies.  Select antennas providing similar efficiency for both the primary (ANT1) and the secondary (ANT2) antenna.  Select antennas providing appropriate gain figures (i.e. combined antenna directivity and efficiency figures) so

that the electromagnetic field radiation intensity does not exceed the regulatory limits specified in certain countries (e.g. by the FCC in the United States).

 Select antennas capable of providing a low Envelope Correlation Coefficient between the primary (ANT1) and

the secondary (ANT2) antenna: the 3D antenna radiation patterns should have lobes in different directions.

2.4.1.2 Guidelines for antenna RF interface design

Guidelines for ANT1 / ANT2 pins RF connection design

Correct transition between the ANT1 / ANT2 pads and the application board PCB must be provided, implementing the following design-in guidelines for the application PCB layout close to the ANT1 / ANT2 pads:

 On a multilayer board, the whole layer stack below the RF connection should be free of digital lines.  Increase GND keep-out (i.e. clearance, a void area) around the ANT1 / ANT2 pads, on the top layer of the

application PCB, to at least 250 µm up to the adjacent pads metal definition and up to 400 µm on the area below the module, to reduce parasitic capacitance to ground, as illustrated in the left example of Figure 32.

 Add GND keep-out (i.e. clearance, a void area) on the buried metal layer below the ANT1 / ANT2 pads if the

top-layer to buried layer dielectric thickness is below 200 µm, to reduce parasitic capacitance to ground, as illustrated in the right example of Figure 32.

Figure 32: GND keep-out area on top layer around ANT1 / ANT2 pads and on very close buried layer below ANT1 / ANT2 pads

UBX-16024839 - R04 Design-in

Page 72 of 143

TOBY-L4 series - System Integration Manual

35 µm

270 µm

760 µm

L1 Copper

L3 Copper

L2 Copper

L4 Copper

FR-4 dielectric

380 µm 500 µm500 µm

35 µm

1510 µm

L2 Copper

L1 Copper

FR-4 dielectric

1200 µm 400 µm400 µm

Guidelines for RF transmission line design

Any RF transmission line, such as the ones from the ANT1 and ANT2 pads up to the related antenna connector or up to the related internal antenna pad, must be designed so that the characteristic impedance is as close as possible to 50 .

RF transmission lines can be designed as a micro strip (consists of a conducting strip separated from a ground plane by a dielectric material) or a strip line (consists of a flat strip of metal which is sandwiched between two parallel ground planes within a dielectric material). The micro strip, implemented as a coplanar waveguide, is the most common configuration for printed circuit boards.

Figure 33 and Figure 34 provide two examples of suitable 50  coplanar waveguide designs. The first example of an RF transmission line can be implemented for a 4-layer PCB stack-up herein illustrated, and the second example of an RF transmission line can be implemented for a 2-layer PCB stack-up herein illustrated.

Figure 33: Example of a 50  coplanar waveguide transmission line design for the described 4-layer board layup

Figure 34: Example of a 50  coplanar waveguide transmission line design for the described 2-layer board layup

If the two examples do not match the application PCB stack-up, the 50  characteristic impedance calculation can be made using the HFSS commercial finite element method solver for electromagnetic structures from Ansys Corporation, or using freeware tools like AppCAD from Agilent (www.agilent.com) or TXLine from Applied Wave Research (www.mwoffice.com), taking care of the approximation formulas used by the tools for the impedance computation.

To achieve a 50  characteristic impedance, the width of the transmission line must be chosen depending on:

 the thickness of the transmission line itself (e.g. 35 µm in the examples of Figure 33 and Figure 34)  the thickness of the dielectric material between the top layer (where the transmission line is routed) and the

inner closer layer implementing the ground plane (e.g. 270 µm in Figure 33, 1510 µm in Figure 34)

UBX-16024839 - R04 Design-in

Page 73 of 143

TOBY-L4 series - System Integration Manual

SMA Connector

Primary Antenna

SMA Connector

Secondary Antenna

TOBY-L4

 the dielectric constant of the dielectric material (e.g. dielectric constant of the FR-4 dielectric material in Figure

33 and Figure 34)

 the gap from the transmission line to the adjacent ground plane on the same layer of the transmission line

(e.g. 500 µm in Figure 33, 400 µm in Figure 34)

If the distance between the transmission line and the adjacent GND area (on the same laye r) does not exceed 5 times the track width of the micro strip, use the “Coplanar Waveguide” model for the 50  calculation.

Additionally to the 50  impedance, the following guidelines are recommended for transmission line design:

 Minimize the transmission line length: the insertion loss should be minimized as much as possible, in the order

of a few tenths of a dB.

 Add GND keep-out (i.e. clearance, a void area) on buried metal layers below any pad of a component present

on the RF transmission lines, if the top-layer to buried layer dielectric thickness is below 200 µm, to reduce parasitic capacitance to ground.

 The transmission lines width and spacing to GND must be uniform and routed as smoothly as possible: avoid

abrupt changes of width and spacing to GND.

 Add GND stitching vias around the transmission lines, as illustrated in Figure 35.  Ensure a solid metal connection of the adjacent metal layer on the PCB stack-up to the main ground layer,

providing enough vias on the adjacent metal layer, as illustrated in Figure 35.

 Route RF transmission lines far from any noise source (as switching supplies and digital lines) and from any

sensitive circuit (as USB).

 Avoid stubs on the transmission lines.  Avoid signal routing in parallel to the transmission lines or crossing the transmission lines on a buried metal

layer.

 Do not route the microstrip lines below discrete components or other mechanics placed on the top layer.

An example of a suitable RF circuit design is illustrated in Figure 35. In this case, the ANT1 and ANT2 pins are directly connected to SMA connectors by means of suitable 50  transmission lines, designed with a suitable layout.

Figure 35: Example of the circuit and layout for antenna RF circuits on the application board

UBX-16024839 - R04 Design-in

Page 74 of 143

TOBY-L4 series - System Integration Manual

Guidelines for RF termination design

RF terminations must provide a characteristic impedance of 50  as well as the RF transmission lines up to the RF terminations themselves, to match the characteristic impedance of the ANT1 / ANT2 ports of the modules.

However, real antennas do not have a perfect 50  load on all the supported frequency bands. Therefore, to reduce as much as possible any performance degradation due to antennas mismatch, the RF terminations must provide optimal return loss (or VSWR) figures over all the operating frequencies, as summarized in Table 8 and Table 9.

If external antennas are used, the antenna connectors represent the RF termination on the PCB:

 Use suitable 50  connectors providing a correct PCB-to-RF-cable transition.  Strictly follow the connector manufacturer’s recommended layout, for example:

o SMA Pin-Through-Hole connectors require GND keep-out (i.e. clearance, a void area) on all the layers

around the central pin up to the annular pads of the four GND posts, as shown in Figure 35.

o U.FL surface-mounted connectors require no conductive traces (i.e. clearance, a void area) in the area

below the connector between the GND land pads.

 Cut out the GND layer under RF connectors and close to buried vias, in order to remove stray capacitance and

thus keep the RF line 50 , e.g. the active pad of U.FL connectors needs to have a GND keep-out (i.e. clearance, a void area) at least on the first inner layer to reduce parasitic capacitance to ground.

If integrated antennas are used, the RF terminations are represented by the integrated antennas themselves. The following guidelines should be followed:

 Use antennas designed by an antenna manufacturer, providing the best possible return loss (or VSWR).  Provide a ground plane large enough according to the relative integrated antenna requirements. The ground

plane of the application PCB can be reduced down to a minimum size that must be similar to one quarter of a wavelength of the minimum frequency that must be radiated. As a numerical example,

Frequency = 750 MHz  Wavelength = 40 cm  Minimum GND plane size = 10 cm

 It is highly recommended to strictly follow the detailed and specific guidelines provided by the antenna

manufacturer regarding correct installation and deployment of the antenna system, including PCB layout and matching circuitry.

 Further to the custom PCB and product restrictions, antennas may require a tuning to comply with all the

applicable required certification schemes. It is recommended to consult the antenna manufacturer for the design-in guidelines for the antenna matching relative to the custom application.

Additionally, these recommendations regarding the antenna system placement must be followed:

 Do not place antennas within a closed metal case.  Do not place the antennas in close vicinity to the end user since the emitted radiation in human tissue is limited

by regulatory requirements.

 Place the antennas far from sensitive analog systems or employ countermeasures to reduce EMC issues.  Take care of interaction between co-located RF systems since the LTE/3G/2G transmitted power may interact

or disturb the performance of companion systems.

 Place the two LTE antennas providing low Envelope Correlation Coefficient (ECC) between the primary (ANT1)

and secondary (ANT2) antenna: the antenna 3D radiation patterns should have lobes in different directions. The ECC between the primary and secondary antennas needs to be low enough to comply with the radiated performance requirements specified by related certification schemes, as indicated in Table 10.

 Place the two LTE antennas providing enough high isolation (see Table 10) between the primary (ANT1) and

secondary (ANT2) antennas. The isolation depends on the distance between antennas (separation of at least a quarter wavelength required for good isolation), antenna type (using antennas with different polarization improves isolation), and the antenna 3D radiation patterns (uncorrelated patterns improve isolation).

UBX-16024839 - R04 Design-in

Page 75 of 143

TOBY-L4 series - System Integration Manual

Manufacturer

Part Number

Product Name

Description

Taoglas

PA.710.A

Warrior

GSM / WCDMA / LTE SMD Antenna

698..960 MHz, 1710..2170 MHz, 2300..2400 MHz, 2490..2690 MHz

40.0 x 6.0 x 5.0 mm

Taoglas

PA.711.A

Warrior II

GSM / WCDMA / LTE SMD Antenna Pairs with the Taoglas PA.710.A Warrior for LTE MIMO applications

698..960 MHz, 1710..2170 MHz, 2300..2400 MHz, 2490..2690 MHz

40.0 x 6.0 x 5.0 mm

Antenova

SR4L002

Lucida

GSM / WCDMA / LTE SMD Antenna

698..960 MHz, 1710..2170 MHz, 2300..2400 MHz, 2490..2690 MHz

35.0 x 8.5 x 3.2 mm

Manufacturer

Part Number

Product Name

Description

Taoglas

FXUB66.07.0150C

Maximus

GSM / WCDMA / LTE PCB Antenna with cable and U.FL

698..960 MHz, 1390..1435 MHz, 1575.42 MHz, 1710..2170 MHz,

2300..2700 MHz, 3400..3600 MHz, 4800..6000 MHz

120.2 x 50.4 mm

Ethertronics

5001537

Prestta

GSM / WCDMA / LTE PCB Antenna with cable

704..960 MHz, 1710..2170 MHz, 2300..2400 MHz, 2500..2690 MHz

80.0 x 18.0 mm

Manufacturer

Part Number

Product Name

Description

Taoglas

GSA.8827.A.101111

Phoenix

GSM / WCDMA / LTE adhesive-mount antenna with cable and SMA(M)

698..960 MHz, 1575.42 MHz, 1710..2700 MHz 105 x 30 x 7.7 mm

Taoglas

MA241.BI.001

Genesis

GSM / WCDMA / LTE MIMO 2-in-1 adhesive-mount combination antenna waterproof IP67 rated with cable and SMA(M)

698..960 MHz, 1710..2690 MHz

205.8 x 58 x 12.4 mm

Laird Tech.

TRA6927M3PW-001

GSM / WCDMA / LTE screw-mount antenna with N-type(F)

698..960 MHz, 1710..2170 MHz, 2300..2700 MHz

83.8 x Ø 36.5 mm

Laird Tech.

OC69271-FNM

GSM / WCDMA / LTE pole-mount antenna with N-type(M)

698..960 MHz, 1710..2690 MHz 248 x Ø 24.5 mm

Laird Tech.

CMD69273-30NM

GSM / WCDMA / LTE ceiling-mount MIMO antenna with cables & N-type(M)

698..960 MHz, 1710..2700 MHz

43.5 x Ø 218.7 mm

Pulse Electronics

WA700/2700SMA

GSM / WCDMA / LTE clip-mount MIMO antenna with cables and SMA(M)

698..960 MHz,1710..2700 MHz 149 x 127 x 5.1 mm

Examples of antennas

Table 24 lists some examples of possible internal on-board surface-mount antennas.

Table 24: Examples of internal surface-mount antennas

Table 25 lists some examples of possible internal off-board PCB-type antennas with cable and connector.

Table 25: Examples of internal antennas with cable and connector

Table 26 lists some examples of possible external antennas.

Table 26: Examples of external antennas

UBX-16024839 - R04 Design-in

Page 76 of 143

TOBY-L4 series - System Integration Manual

Application Board

Antenna Cable

TOBY-L4 series

ANT1

ANT_DET

C1 D1

Z0= 50 ohm Z0= 50 ohm

Z0= 50 ohm

Primary Antenna Assembly

Radiating

Element

Diagnostic

Circuit

Antenna Cable

ANT2

Z0= 50 ohm Z0= 50 ohm

Z0= 50 ohm

Secondary Antenna Assembly

Radiating

Element

Diagnostic

Circuit

Reference

Description

Part Number - Manufacturer

27 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H270J - Murata

C2, C3

33 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H330J - Murata

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

L1, L2

68 nH Multilayer Inductor 0402 (SRF ~1 GHz)

LQG15HS68NJ02 - Murata

10 k Resistor 0402 1% 0.063 W

RK73H1ETTP1002F - KOA Speer

J1, J2

SMA Connector 50  Through Hole Jack

SMA6251A1-3GT50G-50 - Amphenol

C4, C5

22 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1H220J - Murata

L3, L4

68 nH Multilayer Inductor 0402 (SRF ~1 GHz)

LQG15HS68NJ02 - Murata

R2, R3

15 k Resistor for Diagnostic

Various Manufacturers

2.4.2 Antenna detection interface (ANT_DET)

2.4.2.1 Guidelines for ANT_DET circuit design

Figure 36 and Table 27 describe the recommended schematic / components for the antennas detection circuit that must be provided on the application board and for the diagnostic circuit that must be provided on the antennas’ assembly to achieve primary and secondary antenna detection functionality.

Figure 36: Suggested schematic for the antenna detection circuit on the application board and the diagnostic circuit on the antennas assembly

Table 27: Suggested components for the antenna detection circuit on the application board and the diagnostic circuit on the antennas assembly

The antenna detection circuit and diagnostic circuit suggested in Figure 36 and Table 27 are explained here:

 When antenna detection is forced by the AT+UANTR command, ANT_DET generates a DC current measuring

the resistance (R2 // R3) from the antenna connectors (J1, J2) provided on the application board to GND.

 DC blocking capacitors are needed at the ANT1 / ANT2 pins (C2, C3) and at the antenna radiating element

(C4, C5) to decouple the DC current generated by the ANT_DET pin.

 Choke inductors with a Self Resonance Frequency (SRF) in the range of 1 GHz are needed in series at the

ANT_DET pin (L1, L2) and in series at the diagnostic resistor (L3, L4), to avoid a reduction of the RF performance of the system, improving the RF isolation of the load resistor.

 Additional components (R1, C1 and D1 in Figure 36) are needed at the ANT_DET pin as ESD protection.  The ANT1 / ANT2 pins must be connected to the antenna connector by means of a transmission line with a

nominal characteristic impedance as close as possible to 50 .

UBX-16024839 - R04 Design-in

Page 77 of 143

TOBY-L4 series - System Integration Manual

The DC impedance at the RF port for some antennas may be a DC open (e.g. linear monopole) or a DC short to reference GND (e.g. PIFA antenna). For those antennas without the diagnostic circuit of Figure 36, the measured DC resistance is always at the limits of the measurement range (respectively open or short), and there is no means to distinguish between a defect on the antenna path with similar characteristics (respectively: removal of linear antenna or RF cable shorted to GND for a PIFA antenna).

Furthermore, any other DC signal injected to the RF connection from an ANT connector to a radiating element will alter the measurement and produce invalid results for antenna detection.

It is recommended to use an antenna with a built-in diagnostic resistor in the range from 5 k to 30 k to

assure good antenna detection functionality and avoid a reduction of module RF performance. The choke inductor should exhibit a parallel Self Resonance Frequency (SRF) in the range of 1 GHz to improve the RF isolation of the load resistor.

For example:

Consider an antenna with a built-in DC load resistor of 15 k. Using the +UANTR AT command, the module reports the resistance value evaluated from the antenna connector provided on the application board to GND:

 Reported values close to the used diagnostic resistor nominal value (i.e. values from 13 k to 17 k if a 15 k

diagnostic resistor is used) indicate that the antenna is properly connected.

 Values close to the measurement range maximum limit (approximately 50 k) or an open-circuit “over range”

report (see the u-blox AT Commands Manual [2]) means that that the antenna is not connected or the RF cable is broken.

 Reported values below the measurement range minimum limit (1 k) indicate a short to GND at the antenna

or along the RF cable.

 Measurement inside the valid measurement range and outside the expected range may indicate an incorrect

connection, damaged antenna or wrong value of antenna load resistor for diagnostics.

 The reported value could differ from the real resistance value of the diagnostic resistor mounted inside the

antenna assembly due to the antenna cable length, the antenna cable capacity or the measurement method used.

If the primary / secondary antenna detection function is not required by the customer application, the

ANT_DET pin can be left unconnected and the ANT1 / ANT2 pins can be directly connected to the related antenna connector by means of a 50  transmission line as illustrated in Figure 35.

2.4.2.2 Guidelines for ANT_DET layout design

The recommended layout for the primary antenna detection circuit to be provided on the application board to achieve the primary antenna detection functionality, implementing the recommended schematic illustrated in Figure 36 and Table 27, is explained here:

 The ANT1 / ANT2 pins must be connected to the antenna connector by means of a 50  transmission line,

implementing the design guidelines described in section 2.4.1 and the recommendations of the SMA connector manufacturer.

 DC blocking capacitor at ANT1 / ANT2 pins (C2, C3) must be placed in series to the 50  RF line.  The ANT_DET pin must be connected to the 50  transmission line by means of a sense line.  Choke inductors in series at the ANT_DET pin (L1, L2) must be placed so that one pad is on the 50 

transmission line and the other pad represents the start of the sense line to the ANT_DET pin.

 The additional components (R1, C1 and D1) on the ANT_DET line must be placed as ESD protection.

UBX-16024839 - R04 Design-in

Page 78 of 143

TOBY-L4 series - System Integration Manual

2.5 SIM interfaces

2.5.1 Guidelines for SIM circuit design

Guidelines for SIM cards, SIM connectors and SIM chips selection

TOBY-L4 series modules provide two SIM interfaces for the direct connection of two external SIM cards/chips, which can be used alternatively (only one SIM at a time can be used for network access):

 SIM0 interface (VSIM, SIM_IO, SIM_CLK, SIM_RST pins), enabled by default  SIM1 interface (VSIM1, SIM1_IO, SIM1_CLK, SIM1_RST pins), alternatively enabled

The ISO/IEC 7816, the ETSI TS 102 221 and the ETSI TS 102 671 specifications define the physical, electrical and functional characteristics of Universal Integrated Circuit Cards (UICC), which contains the Subscriber Identification Module (SIM) integrated circuit that securely stores all the information needed to identify and authenticate subscribers over the LTE/3G/2G network.

Removable UICC / SIM card contact mapping is defined by ISO/IEC 7816 and ETSI TS 102 221 as follows:

 Contact C1 = VCC (Supply)  It must be connected to VSIM / VSIM1  Contact C2 = RST (Reset)  It must be connected to SIM_RST / SIM1_RST  Contact C3 = CLK (Clock)  It must be connected to SIM_CLK / SIM1_CLK  Contact C4 = AUX1 (Auxiliary contact)  It must be left not connected  Contact C5 = GND (Ground)  It must be connected to GND  Contact C6 = VPP (Programming supply)  It can be left not connected  Contact C7 = I/O (Data input/output)  It must be connected to SIM_IO / SIM1_IO  Contact C8 = AUX2 (Auxiliary contact)  It must be left not connected

A removable SIM card can have 6 contacts (C1, C2, C3, C5, C6, C7) or 8 contacts, also including the auxiliary contacts C4 and C8. Only 6 contacts are required and must be connected to the module SIM interface.

Removable SIM cards are suitable for applications requiring a change of SIM card during the product’s lifetime.

A SIM card holder can have 6 or 8 positions if a mechanical card presence detector is not provided, or it can have 6+2 or 8+2 positions if two additional pins relative to the normally-open mechanical switch integrated in the SIM connector for the mechanical card presence detection are provided. Select a SIM connector providing 6+2 or 8+2 positions if the optional SIM detection feature is required by the custom application, otherwise a connector without an integrated mechanical presence switch can be selected.

Solderable UICC / SIM chip contact mapping (M2M UICC Form Factor) is defined by ETSI TS 102 671 as:

 Case Pin 8 = UICC Contact C1 = VCC (Supply)  It must be connected to VSIM / VSIM1  Case Pin 7 = UICC Contact C2 = RST (Reset)  It must be connected to SIM_RST / SIM1_RST  Case Pin 6 = UICC Contact C3 = CLK (Clock)  It must be connected to SIM_CLK / SIM1_CLK  Case Pin 5 = UICC Contact C4 = AUX1 (Aux.contact)  It must be left not connected  Case Pin 1 = UICC Contact C5 = GND (Ground)  It must be connected to GND  Case Pin 2 = UICC Contact C6 = VPP (Progr. supply)  It can be left not connected  Case Pin 3 = UICC Contact C7 = I/O (Data I/O)  It must be connected to SIM_IO / SIM1_IO  Case Pin 4 = UICC Contact C8 = AUX2 (Aux. contact)  It must be left not connected

A solderable SIM chip has 8 contacts and can also include the auxiliary contacts C4 and C8 for other uses, but only 6 contacts are required and must be connected to the module SIM card interface as described above.

Solderable SIM chips are suitable for M2M applications where it is not required to change the SIM once installed.

UBX-16024839 - R04 Design-in

Page 79 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

VSIMx

SIMx_IO

SIMx_CLK

SIMx_RST

SIM CARD

HOLDER

C5C6C

C1C2C

SIM Card

Bottom View

(contacts side)

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

D1 D2 D3 D4

C 8

C 4

Reference

Description

Part Number - Manufacturer

C1, C2, C3, C4

47 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H470JA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

D1, D2, D3, D4

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

SIM Card Holder, 6 p, without card presence switch

Various manufacturers, as C707 10M006 136 2 - Amphenol

Guidelines for single SIM card connection without detection

A removable SIM card placed in a SIM card holder must be connected to the SIM0 or the SIM1 interface of TOBYL4 series modules as illustrated in Figure 37, where the optional SIM detection feature is not implemented.

Follow these guidelines to connect the module to a SIM connector without SIM presence detection:

 Connect the UICC / SIM contact C1 (VCC) to the VSIM or the VSIM1 pin of the module.  Connect the UICC / SIM contact C7 (I/O) to the SIM_IO or the SIM1_IO pin of the module.  Connect the UICC / SIM contact C3 (CLK) to the SIM_CLK or the SIM1_CLK pin of the module.  Connect the UICC / SIM contact C2 (RST) to the SIM_RST or the SIM1_RST pin of the module.  Connect the UICC / SIM contact C5 (GND) to ground.  Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) on SIM supply line, close to the relative

pad of the SIM connector, to prevent digital noise.

 Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line, very

close to each related pad of the SIM connector, to prevent RF coupling especially when the RF antenna is placed closer than 10 - 30 cm from the SIM card holder.

 Provide a very low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco PESD0402-140) on each

externally accessible SIM line, close to each relative pad of the SIM connector. The ESD sensitivity rating of the SIM interface pins is 1 kV (HBM). So that, according to EMC/ESD requirements of the custom application, a higher protection level can be required if the lines are externally accessible on the application device.

 Limit the capacitance and series resistance on each SIM signal to match the SIM requirements (27.7 ns is the

maximum allowed rise time on the clock line, 1.0 µs is the maximum allowed rise time on the data and reset lines).

Figure 37: Application circuits for the connection to a single removable SIM card, with SIM detection not implemented

Table 28: Example of components for the connection to a single removable SIM card, with SIM detection not implemented

UBX-16024839 - R04 Design-in

Page 80 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

VSIMx

SIMx_IO

SIMx_CLK

SIMx_RST

SIM CHIP

SIM Chip

Bottom View

(contacts side)

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

C1 C5

C2 C6

C3 C7

C4 C8

Reference

Description

Part Number - Manufacturer

C1, C2, C3, C4

47 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H470JA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

SIM chip (M2M UICC Form Factor)

Various Manufacturers

Guidelines for single SIM chip connection

A solderable SIM chip (M2M UICC Form Factor) must be connected the SIM0 / SIM1 interface of TOBY-L4 series modules as illustrated in Figure 38.

Follow these guidelines to connect the module to a solderable SIM chip without SIM presence detection:

pad of the SIM chip, to prevent digital noise.

 Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line, to

prevent RF coupling especially when the RF antenna is placed closer than 10 - 30 cm from the SIM lines.

 Limit the capacitance and series resistance on each SIM signal to match the SIM requirements (20.5 ns is the

maximum rise time on the clock line, 1.0 µs is the maximum rise time on the data and reset lines).

Figure 38: Application circuits for the connection to a single solderable SIM chip, with SIM detection not implemented

Table 29: Example of components for the connection to a single solderable SIM chip, with SIM detection not implemented

UBX-16024839 - R04 Design-in

Page 81 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

V_INT

GPIO5

SIM CARD

HOLDER

C5C6C

C1C2C

SIM Card

Bottom View

(contacts side)

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

SW1

SW2

D1 D2 D3 D4 D5 D6

C 8

C 4

VSIM

SIM_IO

SIM_CLK

SIM_RST

Reference

Description

Part Number - Manufacturer

C1, C2, C3, C4

47 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H470JA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

D1, … , D6

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

1 k Resistor 0402 5% 0.1 W

RC0402JR-071KL - Yageo Phycomp

470 k Resistor 0402 5% 0.1 W

RC0402JR-07470KL- Yageo Phycomp

SIM Card Holder, 6 + 2 p, with card presence switch

Various manufacturers, as CCM03-3013LFT R102 - C&K

Guidelines for single SIM card connection with detection

If the optional SIM card detection feature is required by the application, then a removable SIM card placed in a SIM card holder must be connected to the SIM0 interface of TOBY-L4 series modules as illustrated in Figure 39:

Follow these guidelines to connect the module to a SIM connector implementing SIM presence detection:

 Connect the UICC / SIM contact C1 (VCC) to the VSIM pin of the module.  Connect the UICC / SIM contact C7 (I/O) to the SIM_IO pin of the module.  Connect the UICC / SIM contact C3 (CLK) to the SIM_CLK pin of the module.  Connect the UICC / SIM contact C2 (RST) to the SIM_RST pin of the module.  Connect the UICC / SIM contact C5 (GND) to ground.  Connect one pin of the normally-open mechanical switch integrated in the SIM connector (e.g. the SW2 pin

as illustrated in Figure 39) to the GPIO5 input pin of the module.

 Connect the other pin of the normally-open mechanical switch integrated in the SIM connector (e.g. the SW1

pin as illustrated in Figure 39) to the V_INT 1.8 V supply output of the module by means of a strong (e.g. 1 k) pull-up resistor, as the R1 resistor in Figure 39.

 Provide a weak (e.g. 470 k) pull-down resistor at the SIM detection line, as the R2 resistor in Figure 39.  Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply line, close to the related

pad of the SIM connector, to prevent digital noise.

 Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line, very

close to each related pad of the SIM connector, to prevent RF coupling especially when the RF antenna is placed closer than 10 - 30 cm from the SIM card holder.

 Provide a very low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco PESD0402-140) on each

externally accessible SIM line, close to each related pad of the SIM connector: ESD sensitivity rating of the SIM interface pins is 1 kV (HBM), so that, according to the EMC/ESD requirements of the custom application, a higher protection level can be required if the lines are externally accessible on the application device.

 Limit the capacitance and series resistance on each SIM signal to match the SIM requirements (20.5 ns is the

maximum rise time on the clock line, 1.0 µs is the maximum rise time on the data and reset lines).

Figure 39: Application circuit for the connection to a single removable SIM card, with SIM detection implemented

Table 30: Example of components for the connection to a single removable SIM card, with SIM detection implemented

UBX-16024839 - R04 Design-in

Page 82 of 143

TOBY-L4 series - System Integration Manual

Guidelines for dual SIM card / chip connection

Two SIM cards / chips can be connected to the SIM interfaces of TOBY-L4 modules as illustrated in Figure 40. TOBY-L4 series modules do not support the usage of two SIMs at the same time, but two SIMs can be populated

on the application board:

 connecting the first SIM to the SIM0 interface of the module and connecting the second SIM to the SIM1

interface of the module, as illustrated in Figure 40 top side In this case, the SIM interface and the related external SIM card / chip to be used can be selected by means of

the AT+XSIMSWITCH command (see u-blox AT Commands Manual [2]) or by means of uCPU application, performing the SIM switch operation

 providing a suitable switch to connect only the first or only the second SIM at a time to the SIM0 interface of

the module, as illustrated in Figure 40 bottom side In this case, if the SIM hot insertion / removal feature is enabled on the GPIO5 pin by AT commands (see

sections 1.8.2 and 1.13, and the u-blox AT Commands Manual [2], +UGPIOC, +UDCONF=50 commands) or by means of uCPU application, than the switch from the first to the second external SIM can be properly done when a Low logic level is present on the GPIO5 pin (“SIM not inserted” = SIM interface not enabled), without the necessity of a module re-boot, so that the SIM interface will be re-enabled by the module to use the second SIM when a high logic level is re-applied on the GPIO5 pin. The application processor will drive the SIM switch using its own GPIO to properly select the SIM that is used by the module. Another GPIO may be used to handle the SIM hot insertion / removal function of TOBY-L4 series modules, which can also be handled by other external circuits or by the cellular module GPIO according to the application requirements.

The dual SIM connection circuit illustrated in Figure 40 can be implemented for SIM chips as well. If it is required to switch between more than 2 SIMs, a circuit similar to the one illustrated in Figure 40 bottom

side can be implemented, using suitable switches.

Follow these guidelines to connect the module to two external UICC / SIM:

 Connect the contact C1 (VCC) of the first external UICC / SIM to the VSIM pin of the module and the one of

the second external UICC / SIM to the VSIM1 pin of the module.

 Connect the contact C7 (I/O) of the first external UICC / SIM to the SIM_IO pin of the module and the one of

the second external UICC / SIM to the SIM1_IO pin of the module.

 Connect the contact C3 (CLK) of the first external UICC / SIM to the SIM_CLK pin of the module and the one

of the second external UICC / SIM to the SIM1_CLK pin of the module.

 Connect the contact C2 (RST) of the first external UICC / SIM to the SIM_RST pin of the module and the one

of the second external UICC / SIM to the SIM1_RST pin of the module.

 Connect the contact C5 (GND) of each external UICC / SIM to ground.  Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply (VSIM / VSIM1), close

to the related pad of each external UICC / SIM, to prevent digital noise.

 Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line, very

close to each related pad of each external SIM connector, to prevent RF coupling especially when the RF antenna is placed closer than 10 - 30 cm from the SIM card holders.

 Provide a very low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco Electronics PESD0402-140) on

each externally accessible SIM line, close to each pad of each external SIM connector, according to the EMC/ESD requirements of the custom application.

 Limit the capacitance and series resistance on each SIM signal to match the SIM requirements (20.5 ns is the

maximum rise time on the clock line, 1.0 µs is the maximum rise time on the data and reset lines).

 If a circuit as the one illustrated in Figure 40 bottom side is implemented, use a suitable low on resistance (i.e.

few ohms) and low on capacitance (i.e. few pF) 2-throw analog switch (e.g. Fairchild FSA2567) as SIM switch to ensure high-speed data transfer according to SIM requirements.

UBX-16024839 - R04 Design-in

Page 83 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

FIRST

SIM CARD

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

D1 D2 D3 D4

VSIM

SIM_IO

SIM_CLK

SIM_RST

SECOND

SIM CARD

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C6 C7 C8 C10

D5 D6 D7 D8

182

SIM1_CLK

172

VSIM1

178

SIM1_IO

177

SIM1_RST

TOBY-L4 series

FIRST

SIM CARD

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

D1 D2 D3 D4

GND

VSIM

1VSIM 2VSIM

VCC

C11

4PDT Analog Switch

3V8

SIM_IO

DAT

1DAT 2DAT

SIM_CLK

CLK

1CLK 2CLK

SIM_RST

RST

1RST 2RST

SEL

SECOND

SIM CARD

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C6 C7 C8 C10

D5 D6 D7 D8

Application

Processor

GPIO

Reference

Description

Part Number – Manufacturer

C1 – C4, C6 – C9

33 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1H330JZ01 – Murata

C5, C10, C11

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 – Murata

D1 – D8

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL- Yageo Phycomp

J1, J2

SIM Card Holder, 6 + 2 p., with card presence switch

CCM03-3013LFT R102 - C&K Components

4PDT Analog Switch, with Low On-Capacitance and Low On-Resistance

FSA2567 - Fairchild Semiconductor

Figure 40: Application circuits for the connection to two removable SIM cards, with SIM detection not implemented

Table 31: Example of components for the connection to two removable SIM cards, with SIM detection not implemented

UBX-16024839 - R04 Design-in

Page 84 of 143

TOBY-L4 series - System Integration Manual

2.5.2 Guidelines for SIM layout design

The layout of the SIM card interfaces lines (VSIM, SIM_CLK, SIM_IO, SIM_RST for the SIM0 interface, and VSIM1, SIM1_IO, SIM1_CLK, SIM1_RST for the SIM1 interface) may be critical if the SIM card is placed far away from

the TOBY-L4 series modules or in close proximity to the RF antenna: these two cases should be avoided or at least mitigated as described below.

In the first case, the long connection can cause the radiation of some harmonics of the digital data frequency as any other digital interface. It is recommended to keep the traces short and avoid coupling with the RF line or sensitive analog inputs.

In the second case, the same harmonics can be picked up and create self-interference that can reduce the sensitivity of LTE/3G/2G receiver channels whose carrier frequency is coincidental with the harmonic frequencies. It is strongly recommended to place the RF bypass capacitors suggested in Figure 37 near the SIM connector.

In addition, since the SIM card is typically accessed by the end user, it can be subjected to ESD discharges. Add adequate ESD protection as suggested to protect the module SIM pins near the SIM connector.

Limit the capacitance and series resistance on each SIM signal to match the SIM specifications. The connections should always be kept as short as possible.

Avoid coupling with any sensitive analog circuit, since the SIM signals can cause the radiation of some harmonics of the digital data frequency.

UBX-16024839 - R04 Design-in

Page 85 of 143

TOBY-L4 series - System Integration Manual

D+

D–

GND

USB_D+

USB_D–

GND

USB 2.0 DEVICE

CONNECTOR

VBUS

D+

D–

GND

USB 2.0 HOST

PROCESSOR

TOBY-L4 series

VBUS

VUSB_DET

D1 D2 D3

USB_D+

USB_D–

GND

TOBY-L4 series

VUSB_DET

168

USB_ID

168

USB_ID

170

USB_SSRX+

171

USB_SSRX–

175

USB_SSTX+

176

USB_SSTX–

170

USB_SSRX+

171

USB_SSRX–

175

USB_SSTX+

176

USB_SSTX–

Reference

Description

Part Number - Manufacturer

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

D1, D2, D3

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

2.6 Data communication interfaces

2.6.1 USB interface

2.6.1.1 Guidelines for USB circuit design

Different application circuits can be implemented for the USB interface according to specific use-case:

 USB 2.0 interface, with the module acting as USB device, as illustrated in Figure 41 and Table 32  USB 2.0 interface, with the module acting as USB host, as illustrated in Figure 42 and Table 33  USB 3.0 interface, with the module acting as USB device, as illustrated in Figure 43 and Table 34

USB pull-up or pull-down resistors and external series resistors on the USB_D+ and USB_D– lines as required by the USB 2.0 specification [3] are part of the module USB pins driver and do not need to be externally provided.

Series DC decoupling capacitors are internally provided on the USB_SSTX+ and USB_SSTX– lines as required by the USB 3.0 specification [4] and do not need to be externally provided.

The USB_SSTX+/USB_SSTX– USB Super-Speed differential transmitter data output lines of the module must be connected to the USB Super-Speed differential receiver data input lines of the external USB 3.0 host.

The USB_SSRX+/USB_SSRX– USB Super-Speed differential receiver data input lines of the module must be connected to the USB Super-Speed differential transmitter data output lines of the external USB 3.0 host, with series DC decoupling capacitors being provided on the host side as per the USB 3.0 specification [4].

Routing the USB pins to a connector, they will be externally accessible on the application device. According to the EMC/ESD requirements of the application, an additional ESD protection device with very low capacitance should be provided close to the accessible point on the line connected to this pin.

The USB interface pins ESD sensitivity rating is 1 kV (Human Body Model according to JESD22-A114F).

A higher protection level could be required if the lines are externally accessible and it can be achieved by mounting a very low capacitance (i.e. less or equal to 1 pF) ESD protection (e.g. Tyco Electronics PESD0402140 ESD protection device) on the lines connected to these pins, close to the accessible points.

The USB pins of the modules can be directly connected to the USB host application processor without additional ESD protections if they are not externally accessible or according to EMC/ESD requirements.

Figure 41: USB 2.0 interface application circuits, with TOBY-L4 series module acting as a USB device

Table 32: Component for USB 2.0 interface application circuits, with TOBY-L4 series module acting as a USB device

UBX-16024839 - R04 Design-in

Page 86 of 143

TOBY-L4 series - System Integration Manual

D+

D–

GND

USB_D+

USB_D–

GND

USB 2.0 HOST

CONNECTOR

VBUS

D+

D–

GND

USB 2.0 DEVICE

PROCESSOR

TOBY-L4 series

VBUS

VUSB_DET

D1 D2 D3

USB_D+

USB_D–

GND

TOBY-L4 series

VUSB_DET

168

USB_ID

168

USB_ID

170

USB_SSRX+

171

USB_SSRX–

175

USB_SSTX+

176

USB_SSTX–

170

USB_SSRX+

171

USB_SSRX–

175

USB_SSTX+

176

USB_SSTX–

Boost

INOUT

Boost

INOUT

VCC

U1 U1

Reference

Description

Part Number - Manufacturer

C1, C2

10 µF Capacitor Ceramic X7R 5750 15% 50 V

C5750X7R1H106MB - TDK

D1, D2, D3

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

DC/DC Boost Regulator

Various Manufacturer

D+

D–

GND

USB_D+

USB_D–

GND

USB 3.0 DEVICE

CONNECTOR

VBUS

D+

D–

GND

USB 2.0 HOST

PROCESSOR

TOBY-L4 series

VBUS

VUSB_DET

D1 D2 D3

USB_D+

USB_D–

GND

TOBY-L4 series

VUSB_DET

168

USB_ID

168

USB_ID

170

USB_SSRX+

171

USB_SSRX–

175

USB_SSTX+

176

USB_SSTX–

170

USB_SSRX+

171

USB_SSRX–

175

USB_SSTX+

176

USB_SSTX–

SSRX+

SSRX–

SSTX+

SSTX–

SSTX+

SSTX–

SSRX+

SSRX–

Reference

Description

Part Number - Manufacturer

C1, C2, C3

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

D1, D2, D3

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

Figure 42: USB 2.0 interface application circuits, with TOBY-L4 series module acting as a USB host

Table 33: Component for USB 2.0 interface application circuits, with TOBY-L4 series module acting as a USB host

Figure 43: USB 3.0 interface application circuits, with TOBY-L4 series module acting as a USB device

Table 34: Component for USB 3.0 interface application circuits, with TOBY-L4 series module acting as a USB device

USB High-Speed 2.0 host role is not supported by the "50" product versions. USB Super-Speed 3.0 compliant interface will be supported by future firmware versions.

If the USB interface pins are not used, they can be left unconnected on the application board, but it is

recommended to provide accessible test points directly connected to the VUSB_DET, USB_D+, USB_D– pins, for diagnostic and FW update purposes.

UBX-16024839 - R04 Design-in

Page 87 of 143

TOBY-L4 series - System Integration Manual

35 µm

270 µm

760 µm

L1 Copper

L3 Copper

L2 Copper

L4 Copper

FR-4 dielectric

350 µm 400 µm400 µm350 µm400 µm

35 µm

1510 µm

L2 Copper

L1 Copper

FR-4 dielectric

740 µm 410 µm410 µm740 µm410 µm

2.6.1.2 Guidelines for USB layout design

The USB_D+/USB_D–, USB_SSTX+/USB_SSTX– and USB_SSRX+/USB_SSRX– lines require accurate layout design to achieve reliable signaling at the high speed data rates (up to 480 Mbit/s or up to 5 Gbit/s) supported by the USB 2.0 or USB 3.0 interface.

The characteristic impedance of the USB_D+/USB_D–, USB_SSTX+/USB_SSTX– and USB_SSRX+/USB_SSRX– lines is specified by the USB 2.0 specification [3] and the USB 3.0 specification [4]. The most important parameter is the differential characteristic impedance applicable for the odd-mode electromagnetic field, which should be as close as possible to 90  differential. Signal integrity may be degraded if the PCB layout is not optimal, especially when the USB signaling lines are very long.

Use the following general routing guidelines to minimize signal quality problems:

 Route USB_D+/USB_D–, USB_SSTX+/USB_SSTX– and USB_SSRX+/USB_SSRX– lines as a differential pair  Route USB_D+/USB_D–, USB_SSTX+/USB_SSTX– and USB_SSRX+/USB_SSRX– lines as short as possible  Ensure the differential characteristic impedance (Z  Ensure the common mode characteristic impedance (Z

) is as close as possible to 90 

) is as close as possible to 30 

 Consider design rules for USB_D+/USB_D–, USB_SSTX+/USB_SSTX– and USB_SSRX+/USB_SSRX– similar

to RF transmission lines, these being coupled differential micro-strip or buried stripline: avoid any stubs, abrupt change of layout, and route on clear PCB area

Figure 44 and Figure 45 provide two examples of coplanar waveguide designs with differential characteristic impedance close to 90  and common mode characteristic impedance close to 30 . The first transmission line can be implemented for a 4-layer PCB stack-up herein illustrated; the second transmission line can be implemented for a 2-layer PCB stack-up herein illustrated.

Figure 44: Example of USB line design, with Z0 close to 90  and ZCM close to 30 , for the described 4-layer board layup

Figure 45: Example of USB line design, with Z0 close to 90  and ZCM close to 30 , for the described 2-layer board layup

UBX-16024839 - R04 Design-in

Page 88 of 143

TOBY-L4 series - System Integration Manual

TxD

1.8V Processor / Device

RxD

RTS

CTS

GND

TOBY-L4 series

TXDx

RXDx

RTSx

CTSx

GND

0Ω

V_INT

TxD

3V Processor / Device

RxD

RTS

CTS

GND

TOBY-L4 series

TXDx

RXDx

RTSx

CTSx

GND

1V8

B1 A1

GND

B3A3

VCCBVCCA

Unidirectional Voltage Translator

3V0

DIR3

DIR2 OE

DIR1

VCC

B2 A2

B4A4

DIR4

0Ω

Reference

Description

Part Number - Manufacturer

C1, C2

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

Unidirectional Voltage Translator

SN74AVC4T77416 - Texas Instruments

2.6.2 UART interfaces

UART interfaces are not supported by the "50" product version, except for trace logging (diagnostic

purposes) and Ring Indicator functionality over the UART0 interface.

2.6.2.1 Guidelines for UART circuit design

4-wire UART

If RS-232 compatible signal levels are needed, the Maxim MAX13234E voltage level translator can be used. This chip translates voltage levels from 1.8 V (module side) to the RS-232 standard.

If a 1.8 V external Processor / Device is used, the circuit should be implemented as illustrated in Figure 46.

Figure 46: 4-wire UART interface application circuit to connect an external 1.8 V processor / device

If a 3.0 V external Processor / Device is used, then it is recommended to connect the 1.8 V UART interface of the module by means of appropriate unidirectional voltage translators using the module V_INT output as a 1.8 V supply for the voltage translators on the module side, as illustrated in Figure 47.

Figure 47: 4-wire UART interface application circuit to connect an external 3.0V processor / device

Table 35: Component for 4-wire UART interface application circuit to connect an external 3.0V processor / device

Test-Points for diagnostic access are recommended to be provided on the UART0 TXD and RXD lines. They

are not required on other UART lines.

Voltage translator providing partial power down feature so that the external 3.0 V supply can be ramped up before the V_INT 1.8 V supply

UBX-16024839 - R04 Design-in

Page 89 of 143

TOBY-L4 series - System Integration Manual

TxD

1.8V Processor / Device

RxD

GND

TOBY-L4 series

TXDx

RXDx

GND

0Ω

V_INT

TxD

3V Processor / Device

RxD

GND

TOBY-L4 series

TXDx

RXDx

GND

1V8

B1 A1

GND

VCCBVCCA

Unidirectional

Voltage Translator

3V0

DIR1

DIR2

VCC

B2 A2

0Ω

Reference

Description

Part Number - Manufacturer

C1, C2

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

Unidirectional Voltage Translator

SN74AVC2T24517 - Texas Instruments

2-wire UART If the functionality of the CTSx and RTSx are not required in the application, or the lines are not available, then:

 Consider to connect the module RTSx input line to GND or to the CTSx output line of the module, since the

module requires RTSx active (low electrical level) if HW flow-control is enabled

If RS-232 compatible signal levels are needed, the Maxim MAX13234E voltage level translator can be used. This chip translates voltage levels from 1.8 V (module side) to the RS-232 standard.

If a 1.8 V external Processor / Device is used, the circuit that should be implemented as illustrated in Figure 48.

Figure 48: 2-wire UART interface application circuit to connect an external 1.8V processor / device

Figure 49: 2-wire UART interface application circuit to connect an external 3.0 V processor / device

Table 36: Component for 2-wire UART interface application circuit to connect an external 3.0 V processor / device

Test-Points for diagnostic access are recommended to be provided on the UART0 TXD and RXD lines for

diagnostic purposes. Test-Points are not required on other UART lines.

Voltage translator providing partial power down feature so that the external 3.0 V supply can be ramped up before V_INT 1.8 V supply

UBX-16024839 - R04 Design-in

Page 90 of 143

TOBY-L4 series - System Integration Manual

1.8V Processor / Device

GND

TOBY-L4 series

GND

V_INT

3V Processor / Device

GND

TOBY-L4 series

GND

1V8

B1 A1

GND

VCCBVCCA

Unidi rectional Voltage Translator

3V0

DIR2

VCC

B2 A2

DIR1

Reference

Description

Part Number - Manufacturer

C1, C2

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

Unidirectional Voltage Translator

SN74AVC2T24518 - Texas Instruments

Ring Indicator

If a 1.8 V external Processor / Device is used, the Ring Indicator circuit should be implemented as illustrated in Figure 50.

Figure 50: Ring Indicator application circuit to connect an external 1.8V processor / device

If a 3.0 V external Processor / Device is used, then it is recommended to connect the 1.8 V Ring Indicator output of the module by means of appropriate unidirectional voltage translators using the module V_INT output as a

1.8 V supply for the voltage translator on the module side, as illustrated in Figure 51.

Figure 51: Ring Indicator application circuit to connect an external 3.0V processor / device

Table 37: Component for the Ring Indicator application circuit to connect an external 3.0V processor / device

Voltage translator providing partial power down feature so that the external 3.0 V supply can be ramped up before the V_INT 1.8 V supply

UBX-16024839 - R04 Design-in

Page 91 of 143

TOBY-L4 series - System Integration Manual

Additional considerations

If a 3.0 V external Processor / Device is used, the voltage scaling from any 3.0 V output of the external Processor / Device to the corresponding 1.8 V input of the module can be implemented as an alternative low-cost solution, by means of an appropriate voltage divider. Consider the value of the pull-up integrated at the input of the module for the correct selection of the voltage divider resistance values and mind that any DTE signal connected to the module must be tri-stated or set low when the module is in power-down mode and during the module power-on sequence (at least until the activation of the V_INT supply output of the module), to avoid latch-up of circuits and allow a clean boot of the module (see the remark below).

Moreover, the voltage scaling from any 1.8 V output of the cellular module to the corresponding 3.0 V input of the external Processor / Device can be implemented by means of an appropriate low-cost non-inverting buffer with open drain output. The non-inverting buffer should be supplied by the V_INT supply output of the cellular module. Consider the value of the pull-up integrated at each input of the external Processor / Device (if any) and the baud rate required by the application for the appropriate selection of the resistance value for the external pull-up biased by the application processor supply rail.

Do not apply voltage to any UART interfaces pin before the switch-on of the UART supply source (V_INT),

to avoid latch-up of circuits and allow a clean boot of the module.

The ESD sensitivity rating of UART interfaces pins is 1 kV (Human Body Model according to JESD22-A114).

A higher protection level could be required if the lines are externally accessible and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the accessible points.

If the UART interfaces pins are not used, they can be left unconnected on the application board, but it is

recommended to provide accessible test points directly connected to the UART0 TXD and RXD pins for diagnostic purposes.

2.6.2.2 Guidelines for UART layout design

The UART serial interface requires the same considerations regarding electro-magnetic interference as any other digital interface. Keep the traces short and avoid coupling with RF line or sensitive analog inputs, since the signals can cause the radiation of some harmonics of the digital data frequency.

UBX-16024839 - R04 Design-in

Page 92 of 143

TOBY-L4 series - System Integration Manual

TOBY-L4 series

(Master, 1.8V)

SCLK

MOSI

MISO

GND

SPI_SCLK

SPI_CS

SPI_MOSI

SPI_MISO

SPI Device

(Slave, 1.8V)

GND

SCLK

MOSI

MISO

SPI Device

(Slave, 1.8V)

GND

GPIO4

2.6.3 SPI interfaces

SPI interfaces are not supported by the "50" product version.

2.6.3.1 Guidelines for SPI circuit design

TOBY-L4 series modules include up to two 1.8 V Serial Peripheral Interfaces to communicate with external SPI slave devices, with the module acting as SPI master, by means of the uCPU API.

Figure 52 describes a possible application circuit for the SPI0 interface, where two SPI slave devices are connected to the module using the two SPI0 Chip Select 0 (SPI_CS pin) and SPI0 Chip Select 1 (GPIO4 pin) to select the specific SPI slave device.

The external SPI slave device must provide compatible voltage levels (1.80 V typ.), otherwise it is recommended to connect the 1.8 V SPI interface of the module to the external 3.0 V (or similar) SPI device by means of appropriate unidirectional voltage translators (e.g. TI SN74AVC4T774 or SN74AVC2T245, providing partial power down feature so that the digital audio device 3.0 V supply can be also ramped up before V_INT 1.8 V supply), using the module’s V_INT output as a 1.8 V supply for the voltage translators on the module side.

Figure 52: SPI interface application circuit for connecting two external SPI slave devices

2.6.3.2 Guidelines for SPI layout design

The SPI serial interface requires the same considerations regarding electro-magnetic interference as any other digital interface. Keep the traces short and avoid coupling with RF line or sensitive analog inputs, since the signals can cause the radiation of some harmonics of the digital data frequency.

UBX-16024839 - R04 Design-in

Page 93 of 143

Do not apply voltage to any SPI interface pins before the switch-on of the SPI supply source (V_INT), to

avoid latch-up of circuits and allow a clean boot of the module.

The ESD sensitivity rating of SPI interfaces pins is 1 kV (Human Body Model according to JESD22-A114).

If the SPI interfaces pins are not used, they can be left unconnected on the application board.

TOBY-L4 series - System Integration Manual

1.8V I2C Device

SDA

SCL

1V8

V_INT

R1 R2

1V8 1V 8

SDAx

SCLx

TOBY-L4 series

R1 R2

3V0

SDAx SCLx

R3 R4

1V8

SDA_A SDA_B

GND

SCL_ASCL_B

VCCA

VCCB

I2C-bus Bidirectional Voltage Translator

V_INT

C1 C2

SDA

SCL

GND GND

3V I2C Device

TOBY-L4 series

GND GND

Reference

Description

Part Number - Manufacturer

R1, R2, R3, R4

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

C1, C2

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

I2C-bus Bidirectional Voltage Translator

TCA9406DCUR19 - Texas Instruments

2.6.4 DDC (I

DDC (I

C) interfaces

C) interfaces are not supported by the "50" product version.

2.6.4.1 General guidelines for DDC (I

C) circuit design

The DDC I2C-bus pins of the module are open drain outputs conforming to the I2C bus specifications [6]. External pull-up resistors to a suitable 1.8 V supply (e.g. V_INT) are required for operations: for example, 4.7 k resistors can be commonly used.

Connect the DDC (I

C) pull-ups to the V_INT 1.8 V supply source, or another 1.8 V supply source enabled after V_INT (e.g., as the GNSS 1.8 V supply present in Figure 54 application circuit), as any external signal connected to the DDC (I2C) interface must not be set high before the switch-on of the V_INT supply of DDC (I2C) pins, to avoid latch-up of circuits and allow a clean boot of the module.

The signal shape is defined by the values of the pull-up resistors and the bus capacitance. Long wires on the bus will increase the capacitance. If the bus capacitance is increased, use pull-up resistors with a nominal resistance value lower than 4.7 k, to match the I2C bus specifications [6] regarding the rise and fall times of the signals.

Figure 53 and Table 38 describe typical application circuits for connecting TOBY-L4 series modules to 1.8 V I2C devices (see Figure 53 top side) or 3 V I2C devices (see Figure 53 bottom side).

Figure 53: Application circuit for connecting TOBY-L4 series modules to 1.8 V or 3 V I2C devices

Table 38: Components for connecting TOBY-L4 series modules to 1.8 V or 3 V I2C devices

The ESD sensitivity rating of the DDC (I

If the pins are not used as DDC bus interface, they can be left unconnected.

Voltage translator providing partial power down feature so that the external 3 V supply can be also ramped up before V_INT 1.8 V supply

UBX-16024839 - R04 Design-in

Page 94 of 143

C) pins is 1 kV (Human Body Model according to JESD22-A114).

TOBY-L4 series - System Integration Manual

OUT

GND

GNSS LDO Regulator

SHDNn

u-blox GNSS

1.8 V receiver

SDA2

SCL2

1V8 1V8

VMAIN1V8

GPIO2

SDA

SCL

TxD1 GPIO3

VCC

GNSS Tx data ready

GNSS supply enabled

TOBY-L4 series

EXTINT0 GPIO4

GNSS RTC sharing

Reference

Description

Part Number - Manufacturer

R1, R2

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL - Yageo Phycomp

U1, C1

Voltage Regulator for GNSS receiver and capacitor

See GNSS receiver Hardware Integration Manual

Connection with u-blox 1.8 V GNSS receivers

Figure 54 shows an application circuit for connecting the cellular modules to a u-blox 1.8 V GNSS receiver.

 SDA / SCL pins of the cellular module are directly connected to the relative I

C pins of the u-blox 1.8 V GNSS receiver, with appropriate pull-up resistors connected to the 1.8 V GNSS supply enabled after the V_INT supply of the I2C pins of the cellular module.

 GPIO2 pin is connected to the shutdown input pin (SHDNn) of the LDO regulators providing the 1.8 V supply

rail for the u-blox 1.8 V GNSS receiver implementing the “GNSS enable” function, with an appropriate pulldown resistor mounted on the GPIO2 line to avoid an improper switch-on of the u-blox GNSS receiver.

 GPIO3 and GPIO4 pins are directly connected respectively to the TXD1 and EXTINT0 pins of the u-blox 1.8 V

GNSS receiver providing “GNSS Tx data ready” and “GNSS RTC sharing” functions.

Figure 54: Application circuit for connecting TOBY-L4 series modules to u-blox 1.8 V GNSS receivers

Table 39: Components for connecting TOBY-L4 series modules to u-blox 1.8 V GNSS receivers

Custom functions over GPIO pins, to improve the integration with u-blox positioning chips and modules,

will be supported by future firmware versions.

UBX-16024839 - R04 Design-in

Page 95 of 143

TOBY-L4 series - System Integration Manual

u-blox GNSS

1.8 V receiver

TxD1

SDA2

SCL2

VCC

1V8

V_INT

R1 R2

1V8 1V8

GNSS data ready

GNSS supply enabled

GPIO2

SDA

SCL

GPIO3

TOBY-L4 series

EXTINT0 GPIO4

GNSS RTC sharing

Reference

Description

Part Number - Manufacturer

R1, R2

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL - Yageo Phycomp

10 k Resistor 0402 5% 0.1 W

RC0402JR-0710KL - Yageo Phycomp

100 k Resistor 0402 5% 0.1 W

RC0402JR-07100KL - Yageo Phycomp

P-Channel MOSFET Low On-Resistance

IRLML6401 - International Rectifier or NTZS3151P - ON Semi

NPN BJT Transistor

BC847 - Infineon

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

Figure 55 illustrates an alternative application circuit solution in which the cellular module supplies a u-blox 1.8 V GNSS receiver. The V_INT 1.8 V regulated supply output of the cellular module can be used as supply source for a u-blox 1.8 V GNSS receiver (u-blox 6 generation receiver or newer) instead of using an external voltage regulator, as shown in Figure 54. The V_INT supply is able to support the maximum current consumption of these positioning receivers.

The internal switching step-down regulator that generates the V_INT supply is set to 1.8 V (typical) when the cellular module is switched on and it is disabled when the module is switched off.

The supply of the u-blox 1.8 V GNSS receiver can be switched off using an external p-channel MOS controlled by the GPIO2 pin of the cellular modules by means of a suitable inverting transistor as shown in Figure 55, implementing the “GNSS supply enable” function. If this feature is not required, the V_INT supply output can be directly connected to the u-blox 1.8 V GNSS receiver, so that it will switch on when V_INT output is enabled.

According to the V_INT supply output voltage ripple characteristic specified in the TOBY-L4 series Data Sheet [1]:

 Additional filtering may be needed to properly supply an external LNA, depending on the characteristics of

the used LNA, adding a series ferrite bead and a bypass capacitor (e.g. the Murata BLM15HD182SN1 ferrite bead and the Murata GRM1555C1H220J 22 pF capacitor) at the input of the external LNA supply line.

Figure 55: Application circuit for connecting TOBY-L4 series modules to u-blox 1.8 V GNSS receivers using V_INT as supply

Table 40: Components for connecting TOBY-L4 series modules to u-blox 1.8 V GNSS receivers using V_INT as supply

Custom functions over GPIO pins, to improve the integration with u-blox positioning chips and modules,

will be supported by future firmware versions.

UBX-16024839 - R04 Design-in

Page 96 of 143

TOBY-L4 series - System Integration Manual

u-blox GNSS

3.0 V receiver

GPIO3

1V8

B1 A1

GND

B2A2

VCCBVCCA

Unidirectional Voltage Translator

3V0

TxD1

INOUT

GNSS LDO Regulator

SHDNn

VMAIN3V0

GPIO2

SDA

SCL

R4 R5

1V8

SDA_A SDA_B

GND

SCL_ASCL_B

VCCA

VCCB

I2C-bus Bidirectional Voltage Translator

V_INT

C2 C3

SDA2

SCL2

VCC

DIR1

DIR2 OEn

GNSS data ready

GNSS supply enabled

GND

TOBY-L4 series

EXTINT0 GPIO4

GNSS RTC sharing

Reference

Description

Part Number - Manufacturer

R1, R2, R4, R5

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL - Yageo Phycomp

C2, C3, C4, C5

100 nF Capacitor Ceramic X5R 0402 10% 10V

GRM155R71C104KA01 - Murata

U1, C1

Voltage Regulator for GNSS receiver and capacitor

See GNSS receiver Hardware Integration Manual

I2C-bus Bidirectional Voltage Translator

TCA9406DCUR - Texas Instruments

Generic Unidirectional Voltage Translator

SN74AVC2T245 - Texas Instruments

Connection with u-blox 3.0 V GNSS receivers

Figure 56 shows an application circuit for connecting the cellular modules to a u-blox 3.0 V GNSS receiver:

 As the SDA and SCL pins of the cellular module are not tolerant up to 3.0 V, the connection to the related

I2C pins of the u-blox 3.0 V GNSS receiver must be provided using a suitable I2C-bus Bidirectional Voltage Translator with appropriate pull-up resistors (e.g. the TI TCA9406 additionally provides the partial power down feature so that the GNSS 3.0 V supply can be ramped up before the V_INT 1.8 V cellular supply).

 GPIO2 pin is connected to the shutdown input pin (SHDNn) of the LDO regulators providing the 3.0 V supply

rail for the u-blox 3.0 V GNSS receiver implementing the “GNSS enable” function, with an appropriate pulldown resistor mounted on the GPIO2 line to avoid an improper switch-on of the u-blox GNSS receiver.

 As the GPIO3 and GPIO4 pins of the cellular module are not tolerant up to 3.0 V, the connection to the

related pins of the u-blox 3.0 V GNSS receiver must be provided using a suitable Unidirectional General Purpose Voltage Translator (e.g. TI SN74AVC2T245, which additionally provides the partial power down feature so that the 3.0 V GNSS supply can be also ramped up before the V_INT 1.8 V cellular supply).

Figure 56: Application circuit for connecting TOBY-L4 series modules to u-blox 3.0 V GNSS receivers

Table 41: Components for connecting TOBY-L4 series modules to u-blox 3.0 V GNSS receivers

Custom functions over GPIO pins, to improve the integration with u-blox positioning chips and modules,

will be supported by future firmware versions.

2.6.4.2 Guidelines for DDC (I

The DDC (I2C) serial interface requires the same considerations regarding electro-magnetic interference as any other digital interface. Keep the traces short and avoid coupling with RF line or sensitive analog inputs, since the signals can cause the radiation of some harmonics of the digital data frequency.

UBX-16024839 - R04 Design-in

Page 97 of 143

C) layout design

TOBY-L4 series - System Integration Manual

LDO regulator

EMMY-W161

Wi-Fi module

3V3VCC

SD_D0

SD_D1

SD_D2

SD_D3

SD_CLK

SD_CMD

OUTIN

SENSE

BYP

SHDNn

GND

TOBY-L4 series

cellular module

SDIO_D0

SDIO_D1

SDIO_D2

SDIO_D3

SDIO_CLK

SDIO_CMD

V_INT

3V3

LDO regulator 1V8VCC

OUTIN

SENSE

BYP

SHDNn

GND

VIO1

VIO2

ANT1

ANT2

Wi-Fi

antenna

Wi-Fi enable

PDn

GPIO1

GNDGND

3V3

Open Drain Buffer

2.6.5 SDIO interface

The SDIO interface is not supported by the "50" product version.

2.6.5.1 Guidelines for SDIO circuit design

TOBY-L4 series modules include a 4-bit Secure Digital Input Output interface (SDIO_D0, SDIO_D1, SDIO_D2, SDIO_D3, SDIO_CLK, SDIO_CMD), where the module acts as an SDIO host controller designed to

 communicate with compatible u-blox short range radio communication modules by means of the uCPU API  communicate with external SDIO devices by means of the uCPU API

Connection with u-blox short range radio communication modules

Figure 58 and Table 43 show an application circuit for connecting TOBY-L4 series cellular modules to u-blox EMMY-W161 short range radio communication modules supporting IEEE 802.11a/b/g/n/ac data rates for Wi-Fi:

 The SDIO pins of the cellular module are connected to the related SDIO pins of the u-blox EMMY-W161 short

range radio communication module, with appropriate low value series damping resistors to avoid reflections and other losses in signal integrity, which may create ringing and loss of a square wave shape.

The most appropriate value for the series damping resistors on the SDIO lines depends on the specific line lengths and layout implemented. In general, the SDIO series resistors are not strictly required, but it is recommended to slow the SDIO signal, for example with 22  or 33  resistors, and avoid any possible ringing problem without violating the rise / fall time requirements.

 The V_INT supply output pin of the cellular module is connected to the shutdown input pin (SHDNn) of the

two LDO regulators providing the 3.3 V and 1.8 V supply rails for the u-blox EMMY-W161 module, with appropriate pull-down resistors to avoid an improper switch-on of the Wi-Fi module before the switch-on of the V_INT supply source of the cellular module SDIO interface pins.

 The GPIO1 pin of the cellular module is connected to the active low full power down input pin (PDn) of the

u-blox EMMY-W161 module, implementing the Wi-Fi enable function.

 The WLAN antenna RF input/output (ANT1) of the u-blox EMMY-W161 Wi-Fi module is directly connected to

a Wi-Fi antenna considering that the u-blox EMMY-W161 module integrates a 2.4 GHz BAW band pass filter that enables co-existence with LTE RF signals.

Figure 57: Application circuit for TOBY-L4 cellular module and u-blox EMMY-W161 short range radio communication module

UBX-16024839 - R04 Design-in

Page 98 of 143

TOBY-L4 series - System Integration Manual

Reference

Description

Part Number - Manufacturer

C1, C2

1 µF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E105KA12 - Murata

C3, C4

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

C5, C6

10 µF Capacitor Ceramic X5R 0603 20% 6.3 V

GRM188R60J106ME47 - Murata

470 k Resistor 0402 5% 0.1 W

RK73B1ETTD474J - KOA

R2, R3, R4, R5, R6, R7

22  Resistor 0402 5% 0.1 W

RK73B1ETTP220J - KOA

47 k Resistor 0402 5% 0.1 W

RK73B1ETTD473J - KOA

47 k Resistor 0402 5% 0.1 W

RK73B1ETTD473J - KOA

LDO Linear Regulator 3.3 V 0.5 A

LT1963CS8-3.3 - Linear Technology

LDO Linear Regulator 1.8 V 0.3 A

LT1962EMS8-1.8 - Linear Technology

SDIO Device

SD_D0 SD_D1 SD_D2 SD_D3

SD_CLK SD_CMD

TOBY-L4 series

SDIO_D0

SDIO_D1

SDIO_D2

SDIO_D3

SDIO_CLK

SDIO_CMD

GNDGND

Reference

Description

Part Number - Manufacturer

R1, R2, R3, R4, R5, R6

22  Resistor 0402 5% 0.1 W

RK73B1ETTP220J - KOA

Table 42: Components for connecting TOBY-L4 cellular modules and u-blox EMMY-W161 short range communication modules

Connection with external SDIO devices

Figure 58 and Table 43 show an application circuit example for connecting the SDIO interface of TOBY-L4 series modules to a 1.8 V SDIO device: the SDIO pins of the cellular module are connected to the related SDIO pins of the SDIO device, with appropriate low value series damping resistors to avoid reflections and other losses in signal integrity, which may create ringing and loss of a square wave shape.

Figure 58: Application circuit for connecting TOBY-L4 series modules to a 1.8 V SDIO device

Table 43: Components for connecting TOBY-L4 series modules to a 1.8 V SDIO device

The ESD sensitivity rating of SDIO interface pins is 1 kV (HMB according to JESD22-A114). A higher

If the SDIO interface pins are not used, they can be left unconnected on the application board.

2.6.5.2 Guidelines for SDIO layout design

The SDIO serial interface requires the same considerations regarding electro-magnetic interference as any other high speed digital interface.

Keep the traces short, avoid stubs and avoid coupling with RF lines / parts or sensitive analog inputs, since the signals can cause the radiation of some harmonics of the digital data frequency.

Consider the usage of low value series damping resistors to avoid reflections and other losses in signal integrity, which may create ringing and loss of a square wave shape.

UBX-16024839 - R04 Design-in

Page 99 of 143

protection level could be required if the lines are externally accessible and this can be achieved by mounting a very low capacitance ESD protection (e.g. Tyco Electronics PESD0402-140 ESD) close to the accessible points.

TOBY-L4 series - System Integration Manual

TOBY-L4 series

Ethernet

MAC

RGMII

Connector

Ethernet

PHY

Unshielded Twisted Pair

2.6.6 RGMII interface

The RGMII interface is not supported by the "50" product version.

2.6.6.1 Guidelines for RGMII circuit design

The module represents an Ethernet MAC controller, which can be connected to a compatible external Ethernet physical transceiver (PHY) chip to provide communication over Ethernet as illustrated in Figure 59.

Recommended compatible Ethernet PHY chips are:

 Marvell 88E1510  Marvell 88E1512

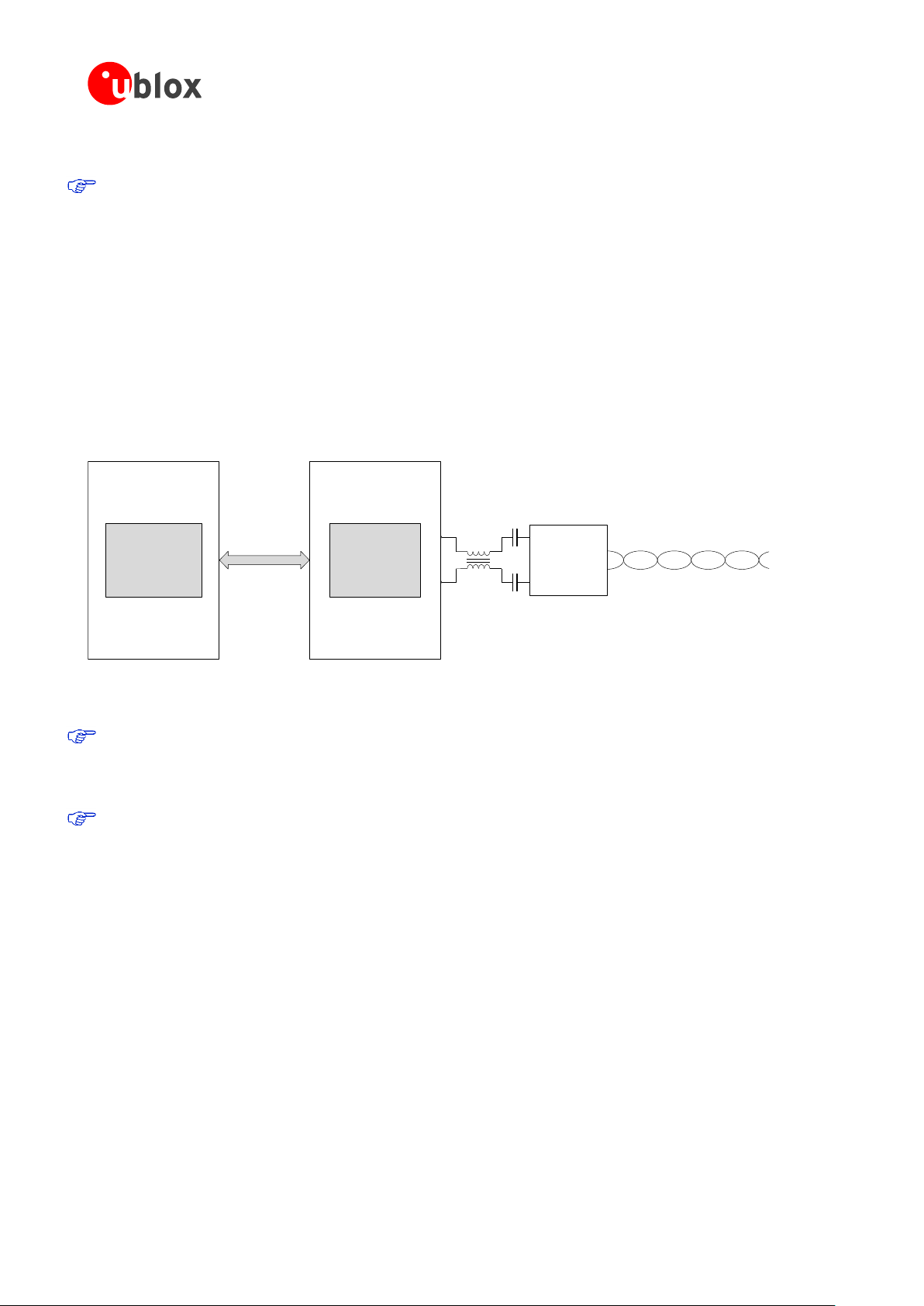

Figure 59: RGMII interface application circuit block diagram

The ESD sensitivity rating of RGMII interface pins is 1 kV (HMB according to JESD22-A114). A higher

protection level could be required if the lines are externally accessible and it can be achieved by mounting a very low capacitance ESD protection (e.g. Tyco Electronics PESD0402-140 ESD) close to the accessible points.

If the RGMII interface pins are not used, they can be left unconnected on the application board.

2.6.6.2 Guidelines for RGMII layout design

The RGMII / RMII interface requires the same considerations regarding electro-magnetic interference as any other high speed digital interface.

Keep the traces short, avoid stubs and avoid coupling with RF lines / parts or sensitive analog inputs, since the signals can cause the radiation of some harmonics of the digital data frequency.

Consider the usage of low value series damping resistors to avoid reflections and other losses in signal integrity, which may create ringing and loss of a square wave shape.

UBX-16024839 - R04 Design-in

Page 100 of 143

u blox 1EHQ37NN Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Contents

1 System description

1.1 Overview

1.2 Architecture

RF section

Baseband and power management section

1.3 Pin-out

1.4 Operating modes

1.5 Supply interfaces

1.5.1 Module supply input (VCC)

1.5.1.1 VCC supply requirements

1.5.1.2 VCC current consumption in 2G connected mode

1.5.1.3 VCC current consumption in 3G connected mode

1.5.1.4 VCC current consumption in LTE connected mode
