u blox 1DIQN3NN System Integrator Manual

Abstract

This document describes the features and the system integration of LARA-R2 series multi-mode cellular modules. These modules are a complete, cost efficient and performance optimized LTE Cat 1 / 3G / 2G multi-mode solution covering up to 4 LTE bands, up to 2 UMTS/HSPA bands and up to 2 GSM/EGPRS bands in the very small and compact LARA form factor.

www.u-blox.com

UBX-16010573 - R08

LARA-R2 series

Size-optimized LTE Cat 1 modules in single and multi-mode configurations

System Integration Manual

Document Information

Title

LARA-R2 series

Subtitle

Size-optimized LTE Cat 1 modules in single and multi-mode configurations

Document type

System Integration Manual

Document number

UBX-16010573

Revision, date

R08

02-Aug-2017

Disclosure restriction

Name

Type number

Modem version

Application version

PCN reference

Product status

LARA-R202

LARA-R202-02B-00

30.36

A01.01

UBX-17024230

Prototypes

LARA-R203

LARA-R203-02B-00

30.39

A01.00

UBX-17048311

Initial Production

LARA-R204

LARA-R204-02B-00

31.34

A01.00

UBX-17012269

Initial Production

LARA-R211

LARA-R211-02B-00

30.31

A01.00

UBX-17012270

Initial Production

LARA-R220

LARA-R220-62B-00

30.38

A01.00

UBX-17047628

Prototypes

LARA-R280

LARA-R280-02B-00

30.39

A01.00

UBX-17048310

Prototypes

This document applies to the following products:

LARA-R2 series - System Integration Manual

u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this document or any part thereof without the express permission of u-blox is strictly prohibited.

The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by u-blox at any time. For most recent documents, please visit www.u-blox.com.

u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other registered trademarks or trademarks mentioned in this document are property of their respective owners.

UBX-16010573 - R08

Page 2 of 155

LARA-R2 series - System Integration Manual

Preface

u-blox Technical Documentation

As part of our commitment to customer support, u-blox maintains an extensive volume of technical documentation for our products. In addition to our product-specific technical data sheets, the following manuals are available to assist u-blox customers in product design and development.

 AT Commands Manual: This document provides the description of the AT commands supported by the

u-blox cellular modules.

 System Integration Manual: This document provides the description of u-blox cellular modules’ system

from the hardware and the software point of view, it provides hardware design guidelines for the optimal integration of the cellular modules in the application device and it provides information on how to set up production and final product tests on application devices integrating the cellular modules.

 Application Notes: These documents provide guidelines and information on specific hardware and/or

software topics on u-blox cellular modules. See Related documents for a list of application notes related to your cellular module.

How to use this Manual

The LARA-R2 series System Integration Manual provides the necessary information to successfully design in and configure these u-blox cellular modules.

This manual has a modular structure. It is not necessary to read it from the beginning to the end. The following symbols are used to highlight important information within the manual:

An index finger points out key information pertaining to module integration and performance.

A warning symbol indicates actions that could negatively impact or damage the module.

Questions

If you have any questions about u-blox cellular Integration:

 Read this manual carefully.  Contact our information service on the homepage http://www.u-blox.com

Technical Support

Worldwide Web

Our website (http://www.u-blox.com) is a rich pool of information. Product information and technical documents can be accessed 24h a day.

By E-mail

If you have technical problems or cannot find the required information in the provided documents, contact the closest Technical Support office. To ensure that we process your request as soon as possible, use our service pool email addresses rather than personal staff email addresses. Contact details are at the end of the document.

Helpful Information when Contacting Technical Support

When contacting Technical Support, have the following information ready:

 Module type (e.g. LARA-R204) and firmware version  Module configuration  Clear description of your question or the problem  A short description of the application  Your complete contact details

UBX-16010573 - R08 Preface

Page 3 of 155

LARA-R2 series - System Integration Manual

Preface ................................................................................................................................ 3

Contents .............................................................................................................................. 4

1 System description ....................................................................................................... 7

1.1 Overview .............................................................................................................................................. 7

1.2 Architecture ........................................................................................................................................ 10

1.3 Pin-out ............................................................................................................................................... 12

1.4 Operating modes ................................................................................................................................ 17

1.5 Supply interfaces ................................................................................................................................ 19

1.5.1 Module supply input (VCC) ......................................................................................................... 19

1.5.2 RTC supply input/output (V_BCKP) .............................................................................................. 27

1.5.3 Generic digital interfaces supply output (V_INT) ........................................................................... 28

1.6 System function interfaces .................................................................................................................. 29

1.6.1 Module power-on ....................................................................................................................... 29

1.6.2 Module power-off ....................................................................................................................... 31

1.6.3 Module reset ............................................................................................................................... 34

1.6.4 Module / host configuration selection ......................................................................................... 34

1.7 Antenna interface ............................................................................................................................... 35

1.7.1 Antenna RF interfaces (ANT1 / ANT2) .......................................................................................... 35

1.7.2 Antenna detection interface (ANT_DET) ...................................................................................... 37

1.8 SIM interface ...................................................................................................................................... 37

1.8.1 SIM card interface ....................................................................................................................... 37

1.8.2 SIM card detection interface (SIM_DET) ....................................................................................... 37

1.9 Data communication interfaces .......................................................................................................... 38

1.9.1 UART interface ............................................................................................................................ 38

1.9.2 USB interface............................................................................................................................... 49

1.9.3 HSIC interface ............................................................................................................................. 52

1.9.4 DDC (I2C) interface ...................................................................................................................... 53

1.9.5 SDIO interface ............................................................................................................................. 54

1.10 Audio interface ............................................................................................................................... 55

1.10.1 Digital audio interface ................................................................................................................. 55

1.11 Clock output ................................................................................................................................... 56

1.12 General Purpose Input/Output (GPIO) ............................................................................................. 56

1.13 Reserved pins (RSVD) ...................................................................................................................... 56

1.14 System features............................................................................................................................... 57

1.14.1 Network indication ...................................................................................................................... 57

1.14.2 Antenna detection ...................................................................................................................... 57

1.14.3 Jamming detection ...................................................................................................................... 57

1.14.4 Dual stack IPv4/IPv6 ..................................................................................................................... 58

1.14.5 TCP/IP and UDP/IP ....................................................................................................................... 58

1.14.6 FTP .............................................................................................................................................. 58

1.14.7 HTTP ........................................................................................................................................... 58

UBX-16010573 - R08 Contents

Page 4 of 155

LARA-R2 series - System Integration Manual

1.14.8 SSL/TLS ........................................................................................................................................ 59

1.14.9 Bearer Independent Protocol ....................................................................................................... 60

1.14.10 AssistNow clients and GNSS integration ................................................................................... 60

1.14.11 Hybrid positioning and CellLocate® .......................................................................................... 61

1.14.12 Wi-Fi integration ...................................................................................................................... 63

1.14.13 Firmware upgrade Over AT (FOAT) .......................................................................................... 63

1.14.14 Firmware update Over The Air (FOTA) ...................................................................................... 64

1.14.15 Smart temperature management ............................................................................................. 64

1.14.16 Power Saving ........................................................................................................................... 66

2 Design-in ..................................................................................................................... 67

2.1 Overview ............................................................................................................................................ 67

2.2 Supply interfaces ................................................................................................................................ 68

2.2.1 Module supply (VCC) .................................................................................................................. 68

2.2.2 RTC supply (V_BCKP) ................................................................................................................... 82

2.2.3 Interface supply (V_INT) ............................................................................................................... 84

2.3 System functions interfaces ................................................................................................................ 85

2.3.1 Module power-on (PWR_ON) ...................................................................................................... 85

2.3.2 Module reset (RESET_N) .............................................................................................................. 86

2.3.3 Module / host configuration selection ......................................................................................... 87

2.4 Antenna interface ............................................................................................................................... 88

2.4.1 Antenna RF interface (ANT1 / ANT2) ........................................................................................... 88

2.4.2 Antenna detection interface (ANT_DET) ...................................................................................... 95

2.5 SIM interface ...................................................................................................................................... 97

2.6 Data communication interfaces ........................................................................................................ 103

2.6.1 UART interface .......................................................................................................................... 103

2.6.2 USB interface............................................................................................................................. 108

2.6.3 HSIC interface ........................................................................................................................... 110

2.6.4 DDC (I2C) interface .................................................................................................................... 112

2.6.5 SDIO interface ........................................................................................................................... 116

2.7 Audio interface ................................................................................................................................. 117

2.7.1 Digital audio interface ............................................................................................................... 117

2.8 General Purpose Input/Output (GPIO) ............................................................................................... 121

2.9 Reserved pins (RSVD) ........................................................................................................................ 122

2.10 Module placement ........................................................................................................................ 122

2.11 Module footprint and paste mask ................................................................................................. 123

2.12 Thermal guidelines ........................................................................................................................ 124

2.13 ESD guidelines .............................................................................................................................. 125

2.13.1 ESD immunity test overview ...................................................................................................... 125

2.13.2 ESD immunity test of u-blox LARA-R2 series reference designs .................................................. 125

2.13.3 ESD application circuits .............................................................................................................. 126

2.14 Schematic for LARA-R2 series module integration ......................................................................... 128

2.15 Design-in checklist ........................................................................................................................ 129

2.15.1 Schematic checklist ................................................................................................................... 129

2.15.2 Layout checklist ......................................................................................................................... 130

UBX-16010573 - R08 Contents

Page 5 of 155

LARA-R2 series - System Integration Manual

2.15.3 Antenna checklist ...................................................................................................................... 130

3 Handling and soldering ........................................................................................... 131

3.1 Packaging, shipping, storage and moisture preconditioning ............................................................. 131

3.2 Handling ........................................................................................................................................... 131

3.3 Soldering .......................................................................................................................................... 132

3.3.1 Soldering paste.......................................................................................................................... 132

3.3.2 Reflow soldering ....................................................................................................................... 132

3.3.3 Optical inspection ...................................................................................................................... 133

3.3.4 Cleaning .................................................................................................................................... 133

3.3.5 Repeated reflow soldering ......................................................................................................... 134

3.3.6 Wave soldering.......................................................................................................................... 134

3.3.7 Hand soldering .......................................................................................................................... 134

3.3.8 Rework ...................................................................................................................................... 134

3.3.9 Conformal coating .................................................................................................................... 134

3.3.10 Casting ...................................................................................................................................... 134

3.3.11 Grounding metal covers ............................................................................................................ 134

3.3.12 Use of ultrasonic processes ........................................................................................................ 134

4 Approvals .................................................................................................................. 135

4.1 Product certification approval overview ............................................................................................. 135

4.2 US Federal Communications Commission notice ............................................................................... 136

4.2.1 Safety warnings review the structure ......................................................................................... 136

4.2.2 Declaration of conformity .......................................................................................................... 136

4.2.3 Modifications ............................................................................................................................ 137

4.3 Innovation, Science and Economic Development Canada notice ....................................................... 138

4.3.1 Declaration of Conformity ......................................................................................................... 138

4.3.2 Modifications ............................................................................................................................ 138

4.4 European Conformance CE mark ...................................................................................................... 140

5 Product testing ......................................................................................................... 141

5.1 u-blox in-series production test ......................................................................................................... 141

5.2 Test parameters for OEM manufacturer ............................................................................................ 142

5.2.1 “Go/No go” tests for integrated devices .................................................................................... 142

5.2.2 Functional tests providing RF operation ..................................................................................... 142

Appendix ........................................................................................................................ 144

A Migration between SARA-U2 and LARA-R2 ........................................................... 144

A.1 Overview .......................................................................................................................................... 144

A.2 Pin-out comparison between SARA-U2 and LARA-R2 ....................................................................... 148

A.3 Schematic for SARA-U2 and LARA-R2 integration ............................................................................. 150

B Glossary .................................................................................................................... 151

Related documents......................................................................................................... 153

Revision history .............................................................................................................. 154

Contact ............................................................................................................................ 155

UBX-16010573 - R08 Contents

Page 6 of 155

LARA-R2 series - System Integration Manual

1 System description

1.1 Overview

The LARA-R2 series comprises LTE Cat 1 / 3G / 2G multi-mode modules supporting up to four LTE bands, up to two 3G UMTS/HSPA bands and up to two 2G GSM/(E)GPRS bands for voice and/or data transmission in the very small LARA LGA form-factor (26.0 x 24.0 mm, 100-pin), easy to integrate in compact designs:

 LARA-R202 is designed mainly for operation in America (on AT&T LTE and 3G network)  LARA-R203 is designed mainly for operation in America (on AT&T LTE network)  LARA-R204 is designed primarily for operation in North America (on Verizon network)  LARA-R211 is designed primarily for operation in Europe, Asia and other countries  LARA-R220 is designed mainly for operation in Japan (on NTT DoCoMo LTE network)  LARA-R280 is designed mainly for operation in Asia, Oceania and other countries, on LTE and 3G networks

LARA-R2 series modules are form-factor compatible with u-blox SARA, LISA and TOBY cellular module families: this facilitates easy migration from u-blox GSM/GPRS, CDMA, UMTS/HSPA, and LTE high data rate modules, maximizes the investments of customers, simplifies logistics, and enables very short time-to-market.

The modules are ideal for applications that are transitioning to LTE from 2G and 3G, due to the long term availability and scalability of LTE networks.

With a range of interface options and an integrated IP stack, the modules are designed to support a wide range of data-centric applications. The unique combination of performance and flexibility make these modules ideally suited for medium speed M2M applications, such as smart energy gateways, remote access video cameras, digital signage, telehealth and telematics.

LARA-R2 series modules provide Voice over LTE (VoLTE)1 as well as Circuit-Switched-Fall-Back (CSFB)2 voice service over 3G / 2G (CSFB) for applications that require voice, such as security and surveillance systems.

Not supported by LARA-R204 and LARA-R280 modules “02” product version, LARA-R220 modules “62” product version. Not supported by LARA-R203, LARA-R204 and LARA-R220 modules.

UBX-16010573 - R08 System description

Page 7 of 155

LARA-R2 series - System Integration Manual

Model

Region

Radio Access Technology

Positioning

Interfaces

Audio

Features

Grade

LTE Bands

UMTS Bands

GSM Bands

GNSS via modem

AssistNow Software

CellLocate

UART

USB 2.0

HSIC *

SDIO *

DDC (I

GPIOs

Analog audio

Digital audio

Network indication

VoLTE

Antenna supervisor

Rx Diversity

Jamming detection

Embedded TCP/UDP stack

Embedded HTTP,FTP,SSL

FOTA

eCall / ERA GLONASS

Dual stack IPv4/IPv6

Standard

Professional

Automotive

LARA-R202

North

America

2,4

5,12

850

1900

● ● ●

1 1 1 1 1 9

● ● ● ● ● □ ● ● ● ●

LARA-R203

North

America

2,4,12

● ● ●

1 1 1 1 1 9

● ● ● ● ●

□

● ● ● ●

LARA-R204

North

America

4,13

□ □ □

1 1 1 1 1 9 □ ● □ ●

● □ ● ● ● ●

LARA-R211

Europe,

APAC

3,7,20

900

1800

□ □ □

1 1 1 1 1 9 ● ● ● ●

● □ ● ● ● □ ●

LARA-R220

Japan

1,19

● ● ●

1 1 1 1 1 9

□ ● □ ● ● □ ● ● ● ●

LARA-R280

APAC

3,8,28

2100

● ● ●

1 1 1 1 1 9

● ● ■ ● ● □ ● ● ● ●

● = Available in any firmware

■ = CSFB only

□ = Available in future firmware

* = HW ready

Table 1 summarizes the main features and interfaces of LARA-R2 series modules.

Table 1: LARA-R2 series main features summary

LTE band 12 is a superset that includes band 17: the LTE band 12 is supported along with Multi-Frequency Band Indicator (MFBI) feature

UBX-16010573 - R08 System description

Page 8 of 155

LARA-R2 series - System Integration Manual

4G LTE

3G UMTS/HSDPA/HSUPA

2G GSM/GPRS/EDGE

3GPP Release 9 Long Term Evolution (LTE) Evolved Univ.Terrestrial Radio Access (E-UTRA) Frequency Division Duplex (FDD) DL Rx diversity

3GPP Release 9 High Speed Packet Access (HSPA) UMTS Terrestrial Radio Access (UTRA) Frequency Division Duplex (FDD) DL Rx Diversity

3GPP Release 9 Enhanced Data rate GSM Evolution (EDGE) GSM EGPRS Radio Access (GERA) Time Division Multiple Access (TDMA) DL Advanced Rx Performance Phase 1

Band support4:

 LARA-R202:

 Band 12 (700 MHz)

 Band 5 (850 MHz)  Band 4 (1700 MHz)  Band 2 (1900 MHz)

Band support:

 LARA-R202:

 Band 5 (850 MHz)  Band 2 (1900 MHz)

Band support:

 LARA-R203:

 Band 12 (700 MHz)

 Band 4 (1700 MHz)  Band 2 (1900 MHz)

 LARA-R204:

 Band 13 (750 MHz)  Band 4 (1700 MHz)

 LARA-R211:

 Band 20 (800 MHz)  Band 3 (1800 MHz)  Band 7 (2600 MHz)

 LARA-R211:

 E-GSM 900 MHz  DCS 1800 MHz

 LARA-R220:

 Band 19 (850 MHz)  Band 1 (2100 MHz)

 LARA-R280:

 Band 28 (750 MHz)  Band 8 (900 MHz)  Band 3 (1800 MHz)

 LARA-R280:

 Band 1 (2100 MHz)

LTE Power Class  Power Class 3 (23 dBm)

UMTS/HSDPA/HSUPA Power Class  Class 3 (24 dBm)

GSM/GPRS (GMSK) Power Class

 Power Class 4 (33 dBm) for E-GSM band  Power Class 1 (30 dBm) for DCS band

EDGE (8-PSK) Power Class

 Power Class E2 (27 dBm) for E-GSM band  Power Class E2 (26 dBm) for DCS band

Data rate  LTE category 1:

up to 10.3 Mb/s DL, 5.2 Mb/s UL

Data rate  HSDPA category 8:

up to 7.2 Mb/s DL

 HSUPA category 6:

up to 5.76 Mb/s UL

Data Rate6  GPRS multi-slot class 33

, CS1-CS4,

up to 107 kb/s DL, up to 85.6 kb/s UL

 EDGE multi-slot class 33

, MCS1-MCS9,

up to 296 kb/s DL, up to 236.8 kb/s UL

Table 2 reports a summary of cellular radio access technologies characteristics of LARA-R2 series modules.

Table 2: LARA-R2 series LTE, 3G and 2G characteristics

LARA-R2 series modules support all the E-UTRA channel bandwidths for each operating band according to 3GPP TS 36.521-1 [13]. LTE band 12 is a superset that includes band 17: the LTE band 12 is supported along with Multi-Frequency Band Indicator (MFBI) feature GPRS/EDGE multi-slot class determines the number of timeslots available for upload and download and thus the speed at which data can

be transmitted and received, with higher classes typically allowing faster data transfer rates.

GPRS/EDGE multi-slot class 33 implies a maximum of 5 slots in DL (reception) and 4 slots in UL (transmission) with 6 slots in total.

UBX-16010573 - R08 System description

Page 9 of 155

LARA-R2 series - System Integration Manual

Cellular

Base-band

processor

Memory

Power Management Unit

26 MHz

32.768 kHz

ANT1

transceiver

ANT2

V_INT (I/O)

V_BCKP (RTC)

VCC (Supply)

SIM

USB

HSIC

Power On

External Reset

PAs

LNAs Filters

Filters

Duplexer

Filters

PAs

LNAs Filters

Filters

Duplexer

Filters

LNAs FiltersFilters

Switch

DDC(I2C)

SDIO

UART

ANT_DET

Host Select

GPIO

Digital audio (I2S)

1.2 Architecture

Figure 1 summarizes the internal architecture of LARA-R2 series modules.

Figure 1: LARA-R2 series modules simplified block diagram

LARA-R2 series modules internally consists of the RF, Baseband and Power Management sections here described with more details than the simplified block diagrams of Figure 1.

RF section

The RF section is composed of RF transceiver, PAs, LNAs, crystal oscillator, filters, duplexers and RF switches. Tx signal is pre-amplified by RF transceiver, then output to the primary antenna input/output port (ANT1) of the

module via power amplifier (PA), SAW band pass filters band, specific duplexer and antenna switch. Dual receiving paths are implemented according to LTE Receiver Diversity radio technology supported by the

modules as LTE category 1 User Equipments: incoming signal is received through the primary (ANT1) and the secondary (ANT2) antenna input ports which are connected to the RF transceiver via specific antenna switch, diplexer, duplexer, LNA, SAW band pass filters.

 RF transceiver performs modulation, up-conversion of the baseband I/Q signals for Tx, down-conversion and

demodulation of the dual RF signals for Rx. The RF transceiver contains:

Single chain high linearity receivers with integrated LNAs for multi band multi mode operation, Highly linear RF demodulator / modulator capable GMSK, 8-PSK, QPSK, 16-QAM, RF synthesizer, VCO.

 Power Amplifiers (PA) amplify the Tx signal modulated by the RF transceiver  RF switches connect primary (ANT1) and secondary (ANT2) antenna ports to the suitable Tx / Rx path  SAW duplexers and band pass filters separate the Tx and Rx signal paths and provide RF filtering  26 MHz voltage-controlled temperature-controlled crystal oscillator generates the clock reference in

active-mode or connected-mode.

UBX-16010573 - R08 System description

Page 10 of 155

LARA-R2 series - System Integration Manual

Baseband and power management section

The Baseband and Power Management section is composed of the following main elements:

 A mixed signal ASIC, which integrates

Microprocessor for control functions DSP core for cellular Layer 1 and digital processing of Rx and Tx signal paths Memory interface controller Dedicated peripheral blocks for control of the USB, SIM and generic digital interfaces Interfaces to RF transceiver ASIC

 Memory system, which includes NAND flash and LPDDR2 RAM  Voltage regulators to derive all the subsystem supply voltages from the module supply input VCC  Voltage sources for external use: V_BCKP and V_INT  Hardware power on  Hardware reset  Low power idle-mode support  32.768 kHz crystal oscillator to provide the clock reference in the low power idle-mode, which can be set by

enable power saving configuration using the AT+UPSV command.

UBX-16010573 - R08 System description

Page 11 of 155

LARA-R2 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

Power

VCC

51, 52, 53

Module supply input

VCC supply circuit affects the RF performance and compliance of the device integrating the module with applicable required certification schemes.

See section 1.5.1 for description and requirements. See section 2.2.1 for external circuit design-in.

GND

1, 3, 5, 14, 20, 22, 30, 32, 43, 50, 54, 55, 57, 58, 60, 61, 63, 64, 65-96

N/A

Ground

GND pins are internally connected each other. External ground connection affects the RF and thermal

performance of the device. See section 1.5.1 for functional description.

See section 2.2.1 for external circuit design-in.

V_BCKP

I/O

RTC supply input/output

V_BCKP = 1.8 V (typical) generated by internal regulator when valid VCC supply is present.

See section 1.5.2 for functional description. See section 2.2.2 for external circuit design-in.

V_INT

4 O Generic Digital Interfaces supply output

V_INT = 1.8 V (typical), generated by internal DC/DC regulator when the module is switched on.

Test-Point for diagnostic access is recommended. See section 1.5.3 for functional description.

See section 2.2.3 for external circuit design-in.

System

PWR_ON

15 I Power-on input

Internal 10 k pull-up resistor to V_BCKP. See section 1.6.1 for functional description.

See section 2.3.1 for external circuit design-in.

RESET_N

18 I External reset input

Internal 10 k pull-up resistor to V_BCKP. Test-Point for diagnostic access is recommended. See section 1.6.3 for functional description.

See section 2.3.2 for external circuit design-in.

HOST_SELECT

I/O

Selection of module / host configuration

Not supported by “02” and “62” product versions. Pin available to select, enable, connect, disconnect and

subsequently re-connect the HSIC interface. Test-Point for diagnostic access is recommended. See section 1.6.4 for functional description.

See section 2.3.3 for external circuit design-in.

Antenna

ANT1

I/O

Primary antenna

Main Tx / Rx antenna interface. 50  nominal characteristic impedance. Antenna circuit affects the RF performance and compliance of

the device integrating the module with applicable required certification schemes.

See section 1.7 for description and requirements. See section 2.4 for external circuit design-in.

ANT2

62 I Secondary antenna

Rx only for Rx diversity. 50  nominal characteristic impedance. Antenna circuit affects the RF performance and compliance of

the device integrating the module with applicable required certification schemes.

See section 1.7 for description and requirements. See section 2.4 for external circuit design-in.

ANT_DET

59 I Input for antenna detection

ADC for antenna presence detection function. See section 1.7.2 for functional description.

See section 2.4.2 for external circuit design-in.

1.3 Pin-out

Table 3 lists the pin-out of the LARA-R2 series modules, with pins grouped by function.

UBX-16010573 - R08 System description

Page 12 of 155

LARA-R2 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

SIM

VSIM

41 O SIM supply output

VSIM = 1.8 V / 3 V output as per the connected SIM type. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_IO

I/O

SIM data

Data input/output for 1.8 V / 3 V SIM Internal 4.7 k pull-up to VSIM. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_CLK

38 O SIM clock

3.25 MHz clock output for 1.8 V / 3 V SIM See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_RST

40 O SIM reset

Reset output for 1.8 V / 3 V SIM See section 1.8 for functional description. See section 2.5 for external circuit design-in.

UART

RXD

13 O UART data output

1.8 V output, Circuit 104 (RXD) in ITU-T V.24, for AT commands, data communication, FOAT, FW update by u-blox EasyFlash tool and diagnostic.

Test-Point and series 0  for diagnostic access recommended. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

TXD

12 I UART data input

1.8 V input, Circuit 103 (TXD) in ITU-T V.24, for AT commands, data communication, FOAT, FW update by u-blox EasyFlash tool and diagnostic.

Internal active pull-up to V_INT. Test-Point and series 0  for diagnostic access recommended. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

CTS

11 O UART clear to send output

1.8 V output, Circuit 106 (CTS) in ITU-T V.24. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

RTS

10 I UART ready to send input

1.8 V input, Circuit 105 (RTS) in ITU-T V.24. Internal active pull-up to V_INT. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

DSR 6 O

UART data set ready output

1.8 V output, Circuit 107 (DSR) in ITU-T V.24. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

RI 7 O

UART ring indicator output

1.8 V output, Circuit 125 (RI) in ITU-T V.24. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

DTR 9 I

UART data terminal ready input

1.8 V input, Circuit 108/2 (DTR) in ITU-T V.24. Internal active pull-up to V_INT. Test-Point and series 0  for diagnostic access recommended. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

DCD 8 O

UART data carrier detect output

1.8 V input, Circuit 109 (DCD) in ITU-T V.24. Test-Point and series 0  for diagnostic access recommended. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

UBX-16010573 - R08 System description

Page 13 of 155

LARA-R2 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

USB

VUSB_DET

17 I USB detect input

VBUS (5 V typical) USB supply generated by the host must be connected to this input pin to enable the USB interface.

If the USB interface is not used by the Application Processor, Test-Point for diagnostic / FW update access recommended.

See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

USB_D-

I/O

USB Data Line D-

USB interface for AT commands, data communication, FOAT, FW update by u-blox EasyFlash tool and diagnostic.

90  nominal differential impedance (Z0) 30  nominal common mode impedance (Z

)

Pull-up or pull-down resistors and external series resistors as required by the USB 2.0 specifications [9] are part of the USB pin driver and need not be provided externally.

If the USB interface is not used by the Application Processor, Test-Point for diagnostic / FW update access is recommended.

See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

USB_D+

I/O

USB Data Line D+

USB interface for AT commands, data communication, FOAT, FW update by u-blox EasyFlash tool and diagnostic.

90  nominal differential impedance (Z0) 30  nominal common mode impedance (Z

)

Pull-up or pull-down resistors and external series resistors as required by the USB 2.0 specifications [9] are part of the USB pin driver and need not be provided externally.

If the USB interface is not used by the Application Processor, Test-Point for diagnostic / FW update access is recommended

See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

HSIC

HSIC_DATA

I/O

HSIC USB data line

Not supported by “02” and “62” product versions. USB High-Speed Inter-Chip compliant interface for AT

commands, data communication, FOAT, FW update by u-blox EasyFlash tool and diagnostic.

50  nominal characteristic impedance. Test-Point for diagnostic / FW update access is recommended. See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

HSIC_STRB

100

I/O

HSIC USB strobe line

Not supported by “02” and “62” product versions. HSIC interface for AT commands, data communication, FOAT,

FW update by u-blox EasyFlash tool and diagnostic. 50  nominal characteristic impedance. Test-Point for diagnostic / FW update access is recommended. See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

DDC

SCL

27 O I2C bus clock line

1.8 V open drain, for communication with I2C-slave devices. See section 1.9.4 for functional description. See section 2.6.4 for external circuit design-in.

SDA

I/O

I2C bus data line

1.8 V open drain, for communication with I2C-slave devices. See section 1.9.4 for functional description. See section 2.6.4 for external circuit design-in.

SDIO

SDIO_D0

I/O

SDIO serial data [0]

Not supported by “02” and “62” product versions. SDIO interface for communication with u-blox Wi-Fi module See section 1.9.5 for functional description.

See section 2.6.5 for external circuit design-in.

UBX-16010573 - R08 System description

Page 14 of 155

LARA-R2 series - System Integration Manual

Function

Pin Name

Pin No

I/O

Description

Remarks

SDIO_D1

I/O

SDIO serial data [1]

Not supported by “02” and “62” product versions. SDIO interface for communication with u-blox Wi-Fi module See section 1.9.5 for functional description.

See section 2.6.5 for external circuit design-in.

SDIO_D2

I/O

SDIO serial data [2]

Not supported by “02” and “62” product versions. SDIO interface for communication with u-blox Wi-Fi module See section 1.9.5 for functional description.

See section 2.6.5 for external circuit design-in.

SDIO_D3

I/O

SDIO serial data [3]

Not supported by “02” and “62” product versions. SDIO interface for communication with u-blox Wi-Fi module See section 1.9.5 for functional description.

See section 2.6.5 for external circuit design-in.

SDIO_CLK

45 O SDIO serial clock

Not supported by “02” and “62” product versions. SDIO interface for communication with u-blox Wi-Fi module See section 1.9.5 for functional description.

See section 2.6.5 for external circuit design-in.

SDIO_CMD

I/O

SDIO command

Not supported by “02” and “62” product versions. SDIO interface for communication with u-blox Wi-Fi module See section 1.9.5 for functional description.

See section 2.6.5 for external circuit design-in.

Audio

I2S_TXD

O / I/O

I2S transmit data / GPIO

I2S transmit data output, alternatively configurable as GPIO. I2S not supported by LARA-R204-02B and LARA-R220-62B. See sections 1.10 and 1.12 for functional description. See sections 2.7 and 2.8 for external circuit design-in.

I2S_RXD

I / I/O

I2S receive data / GPIO

I2S receive data input, alternatively configurable as GPIO. I2S not supported by LARA-R204-02B and LARA-R220-62B. See sections 1.10 and 1.12 for functional description. See sections 2.7 and 2.8 for external circuit design-in.

I2S_CLK

I/O / I/O

I2S clock / GPIO

I2S serial clock, alternatively configurable as GPIO. I2S not supported by LARA-R204-02B and LARA-R220-62B. See sections 1.10 and 1.12 for functional description. See sections 2.7 and 2.8 for external circuit design-in.

I2S_WA

I/O / I/O

I2S word alignment / GPIO

I2S word alignment, alternatively configurable as GPIO. I2S not supported by LARA-R204-02B and LARA-R220-62B. See sections 1.10 and 1.12 for functional description. See sections 2.7 and 2.8 for external circuit design-in.

Clock output

GPIO6

19 O Clock output

1.8 V configurable clock output. See section 1.11 for functional description. See section 2.7 for external circuit design-in.

GPIO

GPIO1

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.12 for functional description. See section 2.8 for external circuit design-in.

GPIO2

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.12 for functional description. See section 2.8 for external circuit design-in.

GPIO3

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.12 for functional description. See section 2.8 for external circuit design-in.

UBX-16010573 - R08 System description

Page 15 of 155

Function

Pin Name

Pin No

I/O

Description

Remarks

GPIO4

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.12 for functional description. See section 2.8 for external circuit design-in.

GPIO5

I/O

GPIO

1.8 V GPIO with alternatively configurable functions. See section 1.12 for functional description. See section 2.8 for external circuit design-in.

Reserved

RSVD

N/A

RESERVED pin

This pin must be connected to ground. See sections 1.13 and 2.9

RSVD

31, 97, 98

N/A

RESERVED pin

Internally not connected. Leave unconnected. See sections 1.13 and 2.9

Table 3: LARA-R2 series modules pin definition, grouped by function

LARA-R2 series - System Integration Manual

UBX-16010573 - R08 System description

Page 16 of 155

LARA-R2 series - System Integration Manual

General Status

Operating Mode

Definition Power-down

Not-Powered Mode

VCC supply not present or below operating range: module is switched off.

Power-Off Mode

VCC supply within operating range and module is switched off.

Normal operation

Idle-Mode

Module processor core runs with 32 kHz reference generated by the internal oscillator.

Active-Mode

Module processor core runs with 26 MHz reference generated by the internal oscillator.

Connected-Mode

RF Tx/Rx data connection enabled and processor core runs with 26 MHz reference.

Mode

Description

Transition between operating modes

Not-Powered

Module is switched off. Application interfaces are not accessible.

When VCC supply is removed, the module enters not-powered mode. When in not-powered mode, the modules cannot be switched on by

PWR_ON, RESET_N or RTC alarm. When in not-powered mode, the modules can be switched on applying

VCC supply (see 1.6.1) so that the module switches from not-powered to active-mode.

Power-Off

Module is switched off: normal shutdown by an appropriate power-off event (see 1.6.2).

Application interfaces are not accessible.

When the module is switched off by an appropriate switch-off event (see 1.6.2), the module enters power-off mode from active-mode.

When in power-off mode, the modules can be switched on by PWR_ON, RESET_N or RTC alarm (see 1.6.1): the module switches from power-off to active-mode.

When in power-off mode, the modules enter not-powered mode by removing VCC supply.

Idle

Module is switched on with application interfaces temporarily disabled or suspended: the module is temporarily not ready to communicate with an external device by means of the application interfaces as configured to reduce the current consumption.

The module enters the low power idle-mode whenever possible if power saving is enabled by AT+UPSV (see u-blox AT Commands Manual [2]) reducing power consumption (see 1.5.1.5).

The CTS output line indicates when the UART interface is disabled/enabled due to the module idle/active-mode according to power saving and HW flow control settings (see 1.9.1.3, 1.9.1.4).

Power saving configuration is not enabled by default: it can be enabled by AT+UPSV (see the u-blox AT Commands Manual [2]).

The module automatically switches from active-mode to idle-mode whenever possible if power saving is enabled (see sections 1.5.1.5,

1.9.1.4, 1.9.2.4 and to the u-blox AT Commands Manual [2], AT+UPSV command).

The module wakes up from idle to active mode in the following events:

 Automatic periodic monitoring of the paging channel for the

paging block reception according to network conditions (see

1.5.1.4, 1.9.1.4)

 Automatic periodic enable of the UART interface to receive and

send data, if AT+UPSV=1 power saving is set (see 1.9.1.4)

 Data received on UART interface, according to HW flow control

(AT&K) and power saving (AT+UPSV) settings (see 1.9.1.4)

 RTS input set ON by the host DTE, with HW flow control disabled

and AT+UPSV=2 (see 1.9.1.4)

 DTR input set ON by the host DTE, with AT+UPSV=3 (see 1.9.1.4)  USB detection, applying 5 V (typ.) to VUSB_DET input (see 1.9.2)  The connected USB host forces a remote wakeup of the module

as USB device (see 1.9.2.4)

 The connected u-blox GNSS receiver forces a wakeup of the

cellular module using the GNSS Tx data ready function over the GPIO3 pin (see 1.9.4)

 The connected SDIO device forces a wakeup of the module as

SDIO host (see 1.9.5)

 RTC alarm occurs (see u-blox AT Commands Manual [2], +CALA)

1.4 Operating modes

LARA-R2 series modules have several operating modes. The operating modes defined in Table 4 and described in detail in Table 5 provide general guidelines for operation.

Table 4: Module operating modes definition

UBX-16010573 - R08 System description

Page 17 of 155

Mode

Description

Transition between operating modes

Active

The module is ready to communicate with an external device by means of the application interfaces unless power saving configuration is enabled by the AT+UPSV command (see sections 1.5.1.4, 1.9.1.4 and to the u-blox AT Commands Manual [2]).

When the module is switched on by an appropriate power-on event (see 2.3.1), the module enters active-mode from not-powered or power-off mode.

If power saving configuration is enabled by the AT+UPSV command, the module automatically switches from active to idle-mode whenever possible and the module wakes up from idle to active-mode in the events listed above (see idle to active transition description).

When a voice call or a data call is initiated, the module switches from active-mode to connected-mode.

Connected

A voice call or a data call is in progress. The module is ready to communicate with an

external device by means of the application interfaces unless power saving configuration is enabled by the AT+UPSV command (see sections 1.5.1.4, 1.9.1.4 and the u-blox AT Commands Manual [2]).

When a data or voice connection is initiated, the module enters connected-mode from active-mode.

Connected-mode is suspended if Tx/Rx data is not in progress, due to connected discontinuous reception and fast dormancy capabilities of the module and according to network environment settings and scenario. In such case, the module automatically switches from connected to active mode and then, if power saving configuration is enabled by the AT+UPSV command, the module automatically switches to idle-mode whenever possible. Vice-versa, the module wakes up from idle to active mode and then connected mode if RF Tx/Rx is necessary.

When a data connection is terminated, the module returns to the active-mode.

Table 5: Module operating modes description

Switch ON:

• Apply VCC

If power saving is enabled and there is no activity for a defined time interval

Any wake up event described in the module operating modes summary table above

Incoming/outgoing call or other dedicated device network communication

No RF Tx/Rx in progress, Call terminated, Communication dropped

Remove VCC

Switch ON:

• PWR_ON

• RTC alarm

• RESET_N

Not

powered

Power off

ActiveConnected Idle

Switch OFF:

• AT+CPWROFF

• PWR_ON

LARA-R2 series - System Integration Manual

Figure 2 describes the transition between the different operating modes.

Figure 2: Operating modes transition

UBX-16010573 - R08 System description

Page 18 of 155

LARA-R2 series - System Integration Manual

VCC

LARA-R2 series

(except LARA-R211)

Power

Management

Unit

Memory

Baseband

Processor

Transceiver

RF PMU

LTE PA

VCC

LARA-R211

Power

Management

Unit

Memory

Baseband

Processor

Transceiver

RF PMU

LTE / 2G PAs

1.5 Supply interfaces

1.5.1 Module supply input (VCC)

The modules must be supplied via the three VCC pins that represent the module power supply input. The VCC pins are internally connected to the RF power amplifier and to the integrated Power Management Unit:

all supply voltages needed by the module are generated from the VCC supply by integrated voltage regulators, including V_BCKP Real Time Clock supply, V_INT digital interfaces supply and VSIM SIM card supply.

During operation, the current drawn by the LARA-R2 series modules through the VCC pins can vary by several orders of magnitude. This ranges from the pulse of current consumption during GSM transmitting bursts at maximum power level in connected-mode (as described in section 1.5.1.2) to the low current consumption during low power idle-mode with power saving enabled (as described in section 1.5.1.5).

LARA-R211 modules provide separate supply inputs over the three VCC pins:

 VCC pins #52 and #53 represent the supply input for the internal RF power amplifier, demanding most of

the total current drawn of the module when RF transmission is enabled during a voice/data call

 VCC pin #51 represents the supply input for the internal baseband Power Management Unit and the internal

transceiver, demanding minor part of the total current drawn of the module when RF transmission is enabled during a voice/data call

Figure 3 provides a simplified block diagram of LARA-R2 series modules internal VCC supply routing.

Figure 3: LARA-R2 series modules internal VCC supply routing simplified block diagram

UBX-16010573 - R08 System description

Page 19 of 155

LARA-R2 series - System Integration Manual

Item

Requirement

Remark

VCC nominal voltage

Within VCC normal operating range:

3.30 V min. / 4.40 V max

RF performance is guaranteed when VCC PA voltage is inside the normal operating range limits. RF performance may be affected when VCC PA voltage is outside the normal operating range limits, though the module is still fully functional until the VCC voltage is inside the extended operating range limits.

VCC voltage during normal operation

Within VCC extended operating range:

3.00 V min. / 4.50 V max

VCC voltage must be above the extended operating range minimum limit to switch-on the module. The module may switch-off when the VCC voltage drops below the extended operating range minimum limit. Operation above VCC extended operating range is not recommended and may affect device reliability.

VCC average current

Support with adequate margin the highest averaged VCC current consumption value in connected-mode conditions specified in LARA-R2 series Data Sheet [1]

The highest averaged VCC current consumption can be greater than the specified value according to the actual antenna mismatching, temperature and VCC voltage.

See 1.5.1.2, 1.5.1.4 for connected-mode current profiles.

VCC peak current

Support with margin the highest peak VCC current consumption value in connected-mode conditions specified in LARA-R2 series Data Sheet [1]

The specified highest peak of VCC current consumption occurs during GSM single transmit slot in 850/900 MHz connected-mode, in case of mismatched antenna.

See 1.5.1.2 for 2G connected-mode current profiles.

VCC voltage drop during 2G Tx slots

Lower than 400 mV

VCC voltage drop directly affects the RF compliance with applicable certification schemes.

Figure 5 describes VCC voltage drop during Tx slots.

VCC voltage ripple during 2G/3G/LTE Tx

Noise in the supply has to be minimized

VCC voltage ripple directly affects the RF compliance with applicable certification schemes. Figure 5 describes VCC voltage ripple during Tx slots.

VCC under/over-shoot at start/end of Tx slots

Absent or at least minimized

VCC under/over-shoot directly affects the RF compliance with applicable certification schemes. Figure 5 describes VCC voltage under/over-shoot.

1.5.1.1 VCC supply requirements

Table 6 summarizes the requirements for the VCC module supply. See section 2.2.1 for all the suggestions to properly design a VCC supply circuit compliant to the requirements listed in Table 6.

VCC supply circuit affects the RF compliance of the device integrating LARA-R2 series modules

with applicable required certification schemes as well as antenna circuit design. Compliance is guaranteed if the VCC requirements summarized in the Table 6 are fulfilled.

Table 6: Summary of VCC supply requirements

UBX-16010573 - R08 System description

Page 20 of 155

LARA-R2 series - System Integration Manual

Time [ms]

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

Current [A]

200 mA

60-120 mA

1900 mA

Peak current depends

on TX power and

actual antenna load

GSM frame

4.615 ms

(1 frame = 8 slots)

60-120 mA

10-40 mA

0.0

1.5

1.0

0.5

2.0

Time

undershoot

overshoot

ripple

drop

Voltage

3.8 V (typ)

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

GSM frame

4.615 ms

(1 frame = 8 slots)

1.5.1.2 VCC current consumption in 2G connected-mode

When a GSM call is established, the VCC consumption is determined by the current consumption profile typical of the GSM transmitting and receiving bursts.

The current consumption peak during a transmission slot is strictly dependent on the transmitted power, which is regulated by the network. The transmitted power in the transmit slot is also the more relevant factor for determining the average current consumption.

If the module is transmitting in 2G single-slot mode (as in GSM talk mode) in the 850 or 900 MHz bands, at the maximum RF power control level (approximately 2 W or 33 dBm in the Tx slot/burst), the current consumption can reach an high peak / pulse (see LARA-R2 series Data Sheet [1]) for 576.9 µs (width of the transmit slot/burst) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/burst), so with a 1/8 duty cycle according to GSM TDMA (Time Division Multiple Access).

If the module is transmitting in 2G single-slot mode in the 1800 or 1900 MHz bands, the current consumption figures are quite less high than the one in the low bands, due to 3GPP transmitter output power specifications.

During a GSM call, current consumption is not so significantly high in receiving or in monitor bursts and it is low in the bursts unused to transmit / receive.

Figure 4 shows an example of the module current consumption profile versus time in GSM talk mode.

Figure 4: VCC current consumption profile versus time during a GSM call (1 TX slot, 1 RX slot)

Figure 5 illustrates VCC voltage profile versus time during a GSM call, according to the related VCC current consumption profile described in Figure 4.

Figure 5: Description of the VCC voltage profile versus time during a GSM call (1 TX slot, 1 RX slot)

UBX-16010573 - R08 System description

Page 21 of 155

LARA-R2 series - System Integration Manual

Time [ms]

RX slot

unused

slot

MON

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

Current [A]

200mA

60-130mA

Peak current depends

on TX power and

actual antenna load

GSM frame

4.615 ms

(1 frame = 8 slots)

1600 mA

0.0

1.5

1.0

0.5

2.0

When a GPRS connection is established, more than one slot can be used to transmit and/or more than one slot can be used to receive. The transmitted power depends on network conditions, which set the peak current consumption, but following the 3GPP specifications the maximum Tx RF power is reduced if more than one slot is used to transmit, so the maximum peak of current is not as high as can be in case of a 2G single-slot call.

The multi-slot transmission power can be further reduced by configuring the actual Multi-Slot Power Reduction profile with the dedicated AT command, AT+UDCONF=40 (see the u-blox AT Commands Manual [2]).

If the module transmits in GPRS class 12 in the 850 or 900 MHz bands, at the maximum RF power control level, the current consumption can reach a quite high peak but lower than the one achievable in 2G single-slot mode. This happens for 2.307 ms (width of the 4 transmit slots/bursts) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/bursts), so with a 1/2 duty cycle, according to 2G TDMA.

If the module is in GPRS connected mode in the 1800 or 1900 MHz bands, the current consumption figures are quite less high than the one in the low bands, due to 3GPP transmitter output power specifications.

Figure 6 reports the current consumption profiles in GPRS class 12 connected mode, in the 850 or 900 MHz bands, with 4 slots used to transmit and 1 slot used to receive.

Figure 6: VCC current consumption profile versus time during a 2G GPRS/EDGE multi-slot connection (4 TX slots, 1 RX slot)

In case of EDGE connections the VCC current consumption profile is very similar to the GPRS current profile, so the image shown in Figure 6, representing the current consumption profile in GPRS class 12 connected mode, is valid for the EDGE class 12 connected mode as well.

UBX-16010573 - R08 System description

Page 22 of 155

LARA-R2 series - System Integration Manual

Time

[ms]

3G frame

10 ms

(1 frame = 15 slots)

Current [mA]

Current consumption value

depends on TX power and

actual antenna load

170 mA

1 slot

666 µs

850 mA

300

200

100

500

400

600

700

1.5.1.3 VCC current consumption in 3G connected mode

During a 3G connection, the module can transmit and receive continuously due to the Frequency Division Duplex (FDD) mode of operation with the Wideband Code Division Multiple Access (WCDMA).

The current consumption depends on output RF power, which is always regulated by the network (the current base station) sending power control commands to the module. These power control commands are logically divided into a slot of 666 µs, thus the rate of power change can reach a maximum rate of 1.5 kHz.

There are no high current peaks as in the 2G connection, since transmission and reception are continuously enabled due to FDD WCDMA implemented in the 3G that differs from the TDMA implemented in the 2G case.

In the worst scenario, corresponding to a continuous transmission and reception at maximum output power (approximately 250 mW or 24 dBm), the average current drawn by the module at the VCC pins is considerable (see the “Current consumption” section in LARA-R2 series Data Sheet [1]). At the lowest output RF power (approximately 0.01 µW or –50 dBm), the current drawn by the internal power amplifier is strongly reduced. The total current drawn by the module at the VCC pins is due to baseband processing and transceiver activity.

Figure 7 shows an example of current consumption profile of the module in 3G WCDMA/HSPA continuous transmission mode.

Figure 7: VCC current consumption profile versus time during a 3G connection (TX and RX continuously enabled)

UBX-16010573 - R08 System description

Page 23 of 155

LARA-R2 series - System Integration Manual

Time

[ms]

Current [mA]

Current consumption value

depends on TX power and

actual antenna load

1 Slot

1 Resource Block

(0.5 ms)

1 LTE Radio Frame

(10 ms)

300

200

100

500

400

600

700

1.5.1.4 VCC current consumption in LTE connected-mode

During an LTE connection, the module can transmit and receive continuously due to the Frequency Division Duplex (FDD) mode of operation used in LTE radio access technology.

The current consumption depends on output RF power, which is always regulated by the network (the current base station) sending power control commands to the module. These power control commands are logically divided into a slot of 0.5 ms (time length of one Resource Block), thus the rate of power change can reach a maximum rate of 2 kHz.

The current consumption profile is similar to that in 3G radio access technology. Unlike the 2G connection mode, which uses the TDMA mode of operation, there are no high current peaks since transmission and reception are continuously enabled in FDD.

In the worst scenario, corresponding to a continuous transmission and reception at maximum output power (approximately 250 mW or 24 dBm), the average current drawn by the module at the VCC pins is considerable (see the “Current consumption” section in LARA-R2 series Data Sheet [1]). At the lowest output RF power (approximately 0.1 µW or –40 dBm), the current drawn by the internal power amplifier is strongly reduced and the total current drawn by the module at the VCC pins is due to baseband processing and transceiver activity.

Figure 8 shows an example of the module current consumption profile versus time in LTE connected-mode. Detailed current consumption values can be found in LARA-R2 series Data Sheet [1].

Figure 8: VCC current consumption profile versus time during LTE connection (TX and RX continuously enabled)

UBX-16010573 - R08 System description

Page 24 of 155

LARA-R2 series - System Integration Manual

~50 ms

IDLE MODE ACTIVE MODE IDLE MODE

Active Mode

Enabled

Idle Mode

Enabled

2G case: 0.44-2.09 s 3G case: 0.61-5.09 s LTE case: 0.27-2.51 s

IDLE MODE

~50 ms

ACTIVE MODE

Time [s]

Current [mA]

Time [ms]

Current [mA]

Enabled

100

1.5.1.5 VCC current consumption in cyclic idle/active-mode (power saving enabled)

The power saving configuration is by default disabled, but it can be enabled using the appropriate AT command (see u-blox AT Commands Manual [2], AT+UPSV command). When power saving is enabled, the module automatically enters low power idle-mode whenever possible, reducing current consumption.

When the power saving configuration is enabled and the module is registered or attached to a network, the module automatically enters the low power idle-mode whenever possible, but it must periodically monitor the paging channel of the current base station (paging block reception), in accordance to the 2G / 3G / LTE system requirements, even if connected-mode is not enabled by the application. When the module monitors the paging channel, it wakes up to the active-mode, to enable the reception of paging block. In between, the module switches to low power idle-mode. This is known as discontinuous reception (DRX).

The module processor core is activated during the paging block reception, and automatically switches its reference clock frequency from 32 kHz to the 26 MHz used in active-mode.

The time period between two paging block receptions is defined by the network. This is the paging period parameter, fixed by the base station through broadcast channel sent to all users on the same serving cell:

 In case of 2G radio access technology, the paging period can vary from 470.8 ms (DRX = 2, length of 2 x 51

2G frames = 2 x 51 x 4.615 ms) up to 2118.4 ms (DRX = 9, length of 9 x 51 2G frames = 9 x 51 x 4.615 ms)

 In case of 3G radio access technology, the paging period can vary from 640 ms (DRX = 6, i.e. len gth of 2

3G frames = 64 x 10 ms) up to 5120 ms (DRX = 9, length of 29 3G frames = 512 x 10 ms).

 In case of LTE radio access technology, the paging period can vary from 320 ms (DRX = 5, i.e. length of 2

LTE frames = 32 x 10 ms) up to 2560 ms (DRX = 8, length of 28 LTE frames = 256 x 10 ms).

Figure 9 illustrates a typical example of the module current consumption profile when power saving is enabled. The module is registered with network, automatically enters the low power idle-mode and periodically wakes up to active-mode to monitor the paging channel for the paging block reception. Detailed current consumption values can be found in LARA-R2 series Data Sheet [1]).

Figure 9: VCC current consumption profile with power saving enabled and module registered with the network: the module is in low-power idle-mode and periodically wakes up to active-mode to monitor the paging channel for paging block reception

UBX-16010573 - R08 System description

Page 25 of 155

LARA-R2 series - System Integration Manual

ACTIVE MODE

2G case: 0.44-2.09 s 3G case: 0.61-5.09 s

LTE case: 0.32-2.56 s

Paging period

Time [s]

Current [mA]

Time [ms]

Current [mA]

Enabled

100

1.5.1.6 VCC current consumption in fixed active-mode (power saving disabled)

Power saving configuration is by default disabled, or it can be disabled using the appropriate AT command (see u-blox AT Commands Manual [2], AT+UPSV command). When power saving is disabled, the module does not automatically enter idle-mode whenever possible: the module remains in active-mode.

The module processor core is activated during active-mode, and the 26 MHz reference clock frequency is used. Figure 10 illustrates a typical example of the module current consumption profile when power saving is disabled.

In such case, the module is registered with the network and while active-mode is maintained, the receiver is periodically activated to monitor the paging channel for paging block reception. Detailed current consumption values can be found in LARA-R2 series Data Sheet [1].

Figure 10: VCC current consumption profile with power saving disabled and module registered with the network: active-mode is always held and the receiver is periodically activated to monitor the paging channel for paging block reception

UBX-16010573 - R08 System description

Page 26 of 155

LARA-R2 series - System Integration Manual

Baseband

Processor

VCC

V_BCKP

Linear

LDO

RTC

Power

Management

LARA-R2 series

32 kHz

1.5.2 RTC supply input/output (V_BCKP)

The V_BCKP pin of LARA-R2 series modules connects the supply for the Real Time Clock (RTC) and Power-On internal logic. This supply domain is internally generated by a linear LDO regulator integrated in the Power Management Unit, as described in Figure 11. The output of this linear regulator is always enabled when the main voltage supply provided to the module through the VCC pins is within the valid operating range, with the module switched off or switched on.

Figure 11: RTC supply input/output (V_BCKP) and 32 kHz RTC timing reference clock simplified block diagram

The RTC provides the module time reference (date and time) that is used to set the wake-up interval during the low power idle-mode periods, and is able to make available the programmable alarm functions.

The RTC functions are available also in power-down mode when the V_BCKP voltage is within its valid range (specified in the “Input characteristics of Supply/Power pins” table in LARA-R2 series Data Sheet [1]). The RTC can be supplied from an external back-up battery through the V_BCKP, when the main module voltage supply is not applied to the VCC pins. This lets the time reference (date and time) run until the V_BCKP voltage is within its valid range, even when the main supply is not provided to the module.

Consider that the module cannot switch on if a valid voltage is not present on VCC even when the RTC is supplied through V_BCKP (meaning that VCC is mandatory to switch on the module).

The RTC has very low current consumption, but is highly temperature dependent. For example, V_BCKP current consumption at the maximum operating temperature can be higher than the typical value at 25 °C specified in the “Input characteristics of Supply/Power pins” table in the LARA-R2 series Data Sheet [1].

If V_BCKP is left unconnected and the module main voltage supply is removed from VCC, the RTC is supplied from the bypass capacitor mounted inside the module. However, this capacitor is not able to provide a long buffering time: within few milliseconds the voltage on V_BCKP will go below the valid range. This has no impact on cellular connectivity, as all the module functionalities do not rely on date and time setting.

UBX-16010573 - R08 System description

Page 27 of 155

LARA-R2 series - System Integration Manual

Baseband

Processor

VCC

V_INT

Switching

Step-Down

Digital I/O

Interfaces

Power

Management

LARA-R2 series

1.5.3 Generic digital interfaces supply output (V_INT)

The V_INT output pin of the LARA-R2 series modules is connected to an internal 1.8 V supply with current capability specified in the LARA-R2 series Data Sheet [1]. This supply is internally generated by a switching stepdown regulator integrated in the Power Management Unit and it is internally used to source the generic digital I/O interfaces of the cellular module, as described in Figure 12. The output of this regulator is enabled when the module is switched on and it is disabled when the module is switched off.

Figure 12: LARA-R2 series interfaces supply output (V_INT) simplified block diagram

The switching regulator operates in Pulse Width Modulation (PWM) mode for greater efficiency at high output loads and it automatically switches to Pulse Frequency Modulation (PFM) power save mode for greater efficiency at low output loads. The V_INT output voltage ripple is specified in the LARA-R2 series Data Sheet [1].

UBX-16010573 - R08 System description

Page 28 of 155

LARA-R2 series - System Integration Manual

Baseband Processor

PWR_ON

LARA-R2 series

V_BCKP

Power-on

Power

Management

Power-on

10k

1.6 System function interfaces

1.6.1 Module power-on

When the LARA-R2 series modules are in the not-powered mode (switched off, i.e. the VCC module supply is not applied), they can be switched on as following:

 Rising edge on the VCC input to a valid voltage for module supply, i.e. applying module supply: the modules

switch on if the VCC supply is applied, starting from a voltage value of less than 2.1 V, with a rise time from

2.3 V to 2.8 V of less than 4 ms, reaching a proper nominal voltage value within VCC operating range.

Alternately, in case for example the fast rise time on VCC rising edge cannot be guaranteed by the application, LARA-R2 series modules can be switched on from not-powered mode as following:

 RESET_N input pin is held low by the external application during the VCC rising edge, so that the modules

will switch on when the external application releases the RESET_N input pin from the low logic level after that the VCC supply voltage stabilizes at its proper nominal value within the operating range

 PWR_ON input pin is held low by the external application during the VCC rising edge, so that the modules

will switch on when the external application releases the PWR_ON input pin from the low logic level after that the VCC supply voltage stabilizes at its proper nominal value within the operating range

When the LARA-R2 series modules are in the power-off mode (i.e. properly switched off as described in section

1.6.2, with valid VCC module supply applied), they can be switched on as following:

 Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time period: the

modules start the internal switch-on sequence when the external application releases the PWR_ON pin from the low logic level after that it has been set low for an appropriate time period

 Rising edge on the RESET_N pin, i.e. releasing the pin from the low level, as that the pin is normally set high

by an internal pull-up: the modules start the internal switch-on sequence when the external application releases the RESET_N pin from the low logic level

 RTC alarm, i.e. pre-programmed alarm by AT+CALA command (see u-blox AT Commands Manual [2]).

As described in Figure 13, the LARA-R2 series PWR_ON input is equipped with an internal active pull-up resistor to the V_BCKP supply: the PWR_ON input voltage thresholds are different from the other generic digital interfaces. Detailed electrical characteristics are described in LARA-R2 series Data Sheet [1].

Figure 13: LARA-R2 series PWR_ON input description

UBX-16010573 - R08 System description

Page 29 of 155

LARA-R2 series - System Integration Manual

VCC

V_BCKP

PWR_ON

RESET_N

V_INT

Internal Reset

System State

BB Pads State

Internal Reset → Operationa l Operational

Tristate / Floating

Internal Reset

OFF

Start of interface

configuration

Module interfaces

are configured

Start-up

event

Figure 14 shows the module switch-on sequence from the not-powered mode, describing the following phases:

 The external supply is applied to the VCC module supply inputs, representing the start-up event.  The V_BCKP RTC supply output is suddenly enabled by the module as VCC reaches a valid voltage value.  The PWR_ON and the RESET_N pins suddenly rise to high logic level due to internal pull-ups.  All the generic digital pins of the module are tri-stated until the switch-on of their supply source (V_INT).  The internal reset signal is held low: the baseband core and all the digital pins are held in the reset state. The

reset state of all the digital pins is reported in the pin description table of LARA-R2 series Data Sheet [1].

 When the internal reset signal is released, any digital pin is set in a proper sequence from the reset state to

the default operational configured state. The duration of this pins’ configuration phase differs within generic digital interfaces and the USB interface due to host / device enumeration timings (see section 1.9.2).

 The module is fully ready to operate after all interfaces are configured.

Figure 14: LARA-R2 series switch-on sequence description

The greeting text can be activated by means of +CSGT AT command (see u-blox AT Commands Manual [2]) to notify the external application that the module is ready to operate (i.e. ready to reply to AT commands) and the first AT command can be sent to the module, given that autobauding has to be disabled on the UART to let the module sending the greeting text: the UART has to be configured at fixed baud rate (the baud rate of the application processor) instead of the default autobauding, otherwise the module does not know the baud rate to be used for sending the greeting text (or any other URC) at the end of the internal boot sequence.

The Internal Reset signal is not available on a module pin, but the host application can monitor the V_INT

pin to sense the start of the LARA-R2 series module switch-on sequence.

Before the switch-on of the generic digital interface supply source (V_INT) of the module, no voltage

driven by an external application should be applied to any generic digital interface of the module.

Before the LARA-R2 series module is fully ready to operate, the host application processor should not send

any AT command over the AT communication interfaces (USB, UART) of the module.

The duration of the LARA-R2 series modules’ switch-on routine can vary depending on the application /

network settings and the concurrent module activities.

UBX-16010573 - R08 System description

Page 30 of 155

LARA-R2 series - System Integration Manual

1.6.2 Module power-off

LARA-R2 series can be properly switched off by:

 AT+CPWROFF command (see u-blox AT Commands Manual [2]). The current parameter settings are saved in

the module’s non-volatile memory and a proper network detach is performed.

 Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time period (see

LARA-R2 series Data Sheet [1]): the modules start the internal switch-off sequence when the external application releases the PWR_ON line from the low logic level, after that it has been set low for a proper time period.

An abrupt under-voltage shutdown occurs on LARA-R2 series modules when the VCC module supply is

removed. If this occurs, it is not possible to perform the storing of the current parameter settings in the module’s

non-volatile memory or to perform the proper network detach.

It is highly recommended to avoid an abrupt removal of the VCC supply during LARA-R2 series modules

normal operations: the switch off procedure must be started by the AT+CPWROFF command, waiting the command response for a proper time period (see u-blox AT Commands Manual [2]), and then a proper VCC supply has to be held at least until the end of the modules’ internal switch off sequence, which occurs when the generic digital interfaces supply output (V_INT) is switched off by the module.

An abrupt hardware shutdown occurs on LARA-R2 series modules when a low level is applied on RESET_N pin. In this case, the current parameter settings are not saved in the module’s non-volatile memory and a proper network detach is not performed.

It is highly recommended to avoid an abrupt hardware shutdown of the module by forcing a low level on

the RESET_N input pin during module normal operation: the RESET_N line should be set low only if reset or shutdown via AT commands fails or if the module does not reply to a specific AT command after a time period longer than the one defined in the u-blox AT Commands Manual [2].

An over-temperature or an under-temperature shutdown occurs on LARA-R2 series modules when the temperature measured within the cellular module reaches the dangerous area, if the optional Smart Temperature Supervisor feature is enabled and configured by the dedicated AT command. For more details see section 1.14.15 and u-blox AT Commands Manual [2], +USTS AT command.

UBX-16010573 - R08 System description

Page 31 of 155

LARA-R2 series - System Integration Manual

VCC

V_BCKP

PWR_ON

RESET_N

V_INT

Internal Reset

System State

BB Pads State Operational

OFF

Tristate / Floating

Operational → Tristate

AT+CPWROFF

sent to the module

replied by the module

VCC

can be removed

Figure 15 describes the LARA-R2 series modules switch-off sequence started by means of the AT+CPWROFF command, allowing storage of current parameter settings in the module’s non-volatile memory and a proper network detach, with the following phases:

 When the +CPWROFF AT command is sent, the module starts the switch-off routine.  The module replies OK on the AT interface: the switch-off routine is in progress.  At the end of the switch-off routine, all the digital pins are tri-stated and all the internal voltage regulators

are turned off, including the generic digital interfaces supply (V_INT), except the RTC supply (V_BCKP).

 Then, the module remains in power-off mode as long as a switch on event does not occur (e.g. applying a

proper low level to the PWR_ON input, or applying a proper low level to the RESET_N input), and enters not-powered mode if the supply is removed from the VCC pins.

Figure 15: LARA-R2 series switch-off sequence by means of AT+CPWROFF command

The Internal Reset signal is not available on a module pin, but the application can monitor the V_INT pin

to sense the end of the LARA-R2 series switch-off sequence.

The VCC supply can be removed only after the end of the module internal switch-off routine, i.e. only

after that the V_INT voltage level has gone low.

The duration of each phase in the LARA-R2 series modules’ switch-off routines can largely vary depending

on the application / network settings and the concurrent module activities.

UBX-16010573 - R08 System description

Page 32 of 155

LARA-R2 series - System Integration Manual

VCC

V_BCKP

PWR_ON

RESET_N

V_INT

Internal Reset

System State

BB Pads State

OFF

Tristate / Floating

Operational -> Tristate

Operational

The module starts

the switch-off routine

VCC

can be removed

Figure 16 describes the LARA-R2 series modules’ switch-off sequence started by means of the PWR_ON input pin, allowing storage of current parameter settings in the module’s non-volatile memory and a proper network detach, with the following phases:

 A low pulse with appropriate time duration (see LARA-R2 series Data Sheet [1]) is applied at the PWR_ON

input pin, which is normally set high by an internal pull-up: the module starts the switch-off routine when the PWR_ON signal is released from the low logical level.

 At the end of the switch-off routine, all the digital pins are tri-stated and all the internal voltage regulators

are turned off, including the generic digital interfaces supply (V_INT), except the RTC supply (V_BCKP).

 Then, the module remains in power-off mode as long as a switch on event does not occur (e.g. applying a

proper low level to the PWR_ON input, or applying a proper low level to the RESET_N input), and enters not-powered mode if the supply is removed from the VCC pins.

Figure 16: LARA-R2 series switch-off sequence by means of PWR_ON pin

The Internal Reset signal is not available on a module pin, but the application can monitor the V_INT pin

to sense the end of the switch-off sequence.

The VCC supply can be removed only after the end of the module internal switch-off routine, i.e. only

after that the V_INT voltage level has gone low.

The duration of each phase in the LARA-R2 series modules’ switch-off routines can largely vary depending

on the application / network settings and the concurrent module activities.

UBX-16010573 - R08 System description

Page 33 of 155

LARA-R2 series - System Integration Manual

Baseband

Processor

RESET_N

LARA-R2 series

V_BCKP

Reset

Power

Management

Reset

10k

1.6.3 Module reset

LARA-R2 series modules can be properly reset (rebooted) by:

 AT+CFUN command (see the u-blox AT Commands Manual [2] for more details).

This command causes an “internal” or “software” reset of the module, which is an asynchronous reset of the module baseband processor. The current parameter settings are saved in the module’s non-volatile memory and

a proper network detach is performed: this is the proper way to reset the modules.

An abrupt hardware reset occurs on LARA-R2 series modules when a low level is applied on the RESET_N input pin for a specific time period. In this case, the current parameter settings are not saved in the module’s nonvolatile memory and a proper network detach is not performed.

It is highly recommended to avoid an abrupt hardware reset of the module by forcing a low level on the

RESET_N input during modules normal operation: the RESET_N line should be set low only if reset or shutdown via AT commands fails or if the module does not provide a reply to a specific AT command after a time period longer than the one defined in the u-blox AT Commands Manual [2].

As described in Figure 17, the RESET_N input pins are equipped with an internal pull-up to the V_BCKP supply.

Figure 17: LARA-R2 series RESET_N input equivalent circuit description

For more electrical characteristics details see LARA-R2 series Data Sheet [1].

1.6.4 Module / host configuration selection

The functionality of the HOST_SELECT pin is not supported by “02” and “62” product versions.

The modules include one pin (HOST_SELECT) to select the module / host application processor configuration: the pin is available to select, enable, connect, disconnect and subsequently re-connect the HSIC interface.

LARA-R2 series Data Sheet [1] describes the detailed electrical characteristics of the HOST_SELECT pin.

UBX-16010573 - R08 System description

Page 34 of 155

LARA-R2 series - System Integration Manual

Item

Requirements

Remarks

Impedance

50  nominal characteristic impedance

The impedance of the antenna RF connection must match the 50  impedance of the ANT1 port.

Frequency Range

See the LARA-R2 series Data Sheet [1]

The required frequency range of the antenna connected to ANT1 port depends on the operating bands of the used cellular module and the used mobile network.

Return Loss

S11 < -10 dB (VSWR < 2:1) recommended S11 < -6 dB (VSWR < 3:1) acceptable

The Return loss or the S11, as the VSWR, refers to the amount of reflected power, measuring how well the antenna RF connection matches the 50  characteristic impedance of the ANT1 port. The impedance of the antenna termination must match as much as possible the 50  nominal impedance of the ANT1 port over the operating frequency range, reducing as much as possible the amount of reflected power.

Efficiency

> -1.5 dB ( > 70% ) recommended > -3.0 dB ( > 50% ) acceptable

The radiation efficiency is the ratio of the radiated power to the power delivered to antenna input: the efficiency is a measure of how well an antenna receives or transmits. The radiation efficiency of the antenna connected to the ANT1 port needs to be enough high over the operating frequency range to comply with the Over-The-Air (OTA) radiated performance requirements, as Total Radiated Power (TRP) and the Total Isotropic Sensitivity (TIS), specified by applicable related certification schemes.

Maximum Gain

According to radiation exposure limits

The power gain of an antenna is the radiation efficiency multiplied by the directivity: the gain describes how much power is transmitted in the direction of peak radiation to that of an isotropic source. The maximum gain of the antenna connected to ANT1 port must not exceed the herein stated value to comply with regulatory agencies radiation exposure limits.

For additional info see sections 4.2.2, 4.3.1 and/or 4.4

Input Power

> 33 dBm ( > 2 W ) for LARA-R211 > 24 dBm ( > 250 mW ) for other LARA-R2

The antenna connected to the ANT1 port must support with adequate margin the maximum power transmitted by the modules

1.7 Antenna interface

1.7.1 Antenna RF interfaces (ANT1 / ANT2)

LARA-R2 series modules provide two RF interfaces for connecting the external antennas:

 The ANT1 represents the primary RF input/output for transmission and reception of LTE/3G/2G RF signals.

The ANT1 pin has a nominal characteristic impedance of 50  and must be connected to the primary Tx / Rx antenna through a 50  transmission line to allow proper RF transmission and reception.

 The ANT2 represents the secondary RF input for the reception of the LTE / 3G RF signals for the Down-Link

Rx diversity radio technology supported by LARA-R2 modules as required feature for LTE category 1 UEs.

The ANT2 pin has a nominal characteristic impedance of 50  and must be connected to the secondary Rx antenna through a 50  transmission line to allow proper RF reception.

1.7.1.1 Antenna RF interface requirements

Table 7, Table 8 and Table 9 summarize the requirements for the antennas RF interfaces (ANT1 / ANT2). See section 2.4.1 for suggestions to properly design antennas circuits compliant with these requirements.

The antenna circuits affect the RF compliance of the device integrating LARA-R2 series modules

with applicable required certification schemes (for more details see section 4). Compliance is guaranteed if the antenna RF interfaces (ANT1 / ANT2) requirements summarized in Table 7, Table 8 and Table 9 are fulfilled.

Table 7: Summary of primary Tx/Rx antenna RF interface (ANT1) requirements

UBX-16010573 - R08 System description

Page 35 of 155

Item

Requirements

Remarks

Impedance

50  nominal characteristic impedance

The impedance of the antenna RF connection must match the 50  impedance of the ANT2 port.

Frequency Range

See the LARA-R2 series Data Sheet [1]

The required frequency range of the antennas connected to ANT2 port depends on the operating bands of the used cellular module and the used Mobile Network.

Return Loss

S11 < -10 dB (VSWR < 2:1) recommended S11 < -6 dB (VSWR < 3:1) acceptable

The Return loss or the S11, as the VSWR, refers to the amount of reflected power, measuring how well the antenna RF connection matches the 50  characteristic impedance of the ANT2 port. The impedance of the antenna termination must match as much as possible the 50  nominal impedance of the ANT2 port over the operating frequency range, reducing as much as possible the amount of reflected power.

Efficiency

> -1.5 dB ( > 70% ) recommended > -3.0 dB ( > 50% ) acceptable

The radiation efficiency is the ratio of the radiated power to the power delivered to antenna input: the efficiency is a measure of how well an antenna receives or transmits. The radiation efficiency of the antenna connected to the ANT2 port needs to be enough high over the operating frequency range to comply with the Over-The-Air (OTA) radiated performance requirements, as the TIS, specified by applicable related certification schemes.

Item

Requirements

Remarks

Efficiency imbalance

< 0.5 dB recommended < 1.0 dB acceptable

The radiation efficiency imbalance is the ratio of the primary (ANT1) antenna efficiency to the secondary (ANT2) antenna efficiency: the efficiency imbalance is a measure of how much better an antenna receives or transmits compared to the other antenna. The radiation efficiency of the secondary antenna needs to be roughly the same of the radiation efficiency of the primary antenna for good RF performance.

Envelope Correlation Coefficient

< 0.4 recommended < 0.5 acceptable

The Envelope Correlation Coefficient (ECC) between the primary (ANT1) and the secondary (ANT2) antenna is an indicator of 3D radiation pattern similarity between the two antennas: low ECC results from antenna patterns with radiation lobes in different directions. The ECC between primary and secondary antenna needs to be enough low to comply with radiated performance requirements specified by related certification schemes.

Isolation

> 15 dB recommended > 10 dB acceptable

The antenna to antenna isolation is the loss between the primary (ANT1) and the secondary (ANT2) antenna: high isolation results from low coupled antennas. The isolation between primary and secondary antenna needs to be high for good RF performance.

Table 8: Summary of secondary Rx antenna RF interface (ANT2) requirements

LARA-R2 series - System Integration Manual

Table 9: Summary of primary (ANT1) and secondary (ANT2) antennas relationship requirements

UBX-16010573 - R08 System description

Page 36 of 155

LARA-R2 series - System Integration Manual

1.7.2 Antenna detection interface (ANT_DET)

The antenna detection is based on ADC measurement. The ANT_DET pin is an Analog to Digital Converter (ADC) provided to sense the antenna presence.

The antenna detection function provided by ANT_DET pin is an optional feature that can be implemented if the application requires it. The antenna detection is forced by the +UANTR AT command. See the u-blox AT Commands Manual [2] for more details on this feature.

The ANT_DET pin generates a DC current (for detailed characteristics see the LARA-R2 series Data Sheet [1]) and measures the resulting DC voltage, thus determining the resistance from the antenna connector provided on the application board to GND. So, the requirements to achieve antenna detection functionality are the following:

 an RF antenna assembly with a built-in resistor (diagnostic circuit) must be used  an antenna detection circuit must be implemented on the application board

See section 2.4.2 for antenna detection circuit on application board and diagnostic circuit on antenna assembly design-in guidelines.

1.8 SIM interface

1.8.1 SIM card interface

LARA-R2 series modules provide a high-speed SIM/ME interface, including automatic detection and configuration of the voltage required by the connected SIM card or chip.

Both 1.8 V and 3 V SIM types are supported: activation and deactivation with automatic voltage switch from

1.8 V to 3 V is implemented, according to ISO-IEC 7816-3 specifications. The VSIM supply output pin provides internal short circuit protection to limit start-up current and protect the device in short circuit situations.

The SIM driver supports the PPS (Protocol and Parameter Selection) procedure for baud-rate selection, according to the values determined by the SIM Card.

1.8.2 SIM card detection interface (SIM_DET)

The GPIO5 pin is by default configured to detect the external SIM card mechanical / physical presence. The pin is configured as input, and it can sense SIM card presence as intended to be properly connected to the mechanical switch of a SIM card holder as described in section 2.5:

 Low logic level at GPIO5 input pin is recognized as SIM card not present  High logic level at GPIO5 input pin is recognized as SIM card present

The SIM card detection function provided by GPIO5 pin is an optional feature that can be implemented / used or not according to the application requirements: an Unsolicited Result Code (URC) is generated each time that there is a change of status (for more details see u-blox AT Commands Manual [2], +UGPIOC, +CIND, +CMER).

The optional function “SIM card hot insertion/removal” can be additionally configured on the GPIO5 pin by specific AT command (see the u-blox AT Commands Manual [2], +UDCONF=50), in order to enable / disable the SIM interface upon detection of external SIM card physical insertion / removal.

UBX-16010573 - R08 System description

Page 37 of 155

LARA-R2 series - System Integration Manual

1.9 Data communication interfaces

LARA-R2 series modules provide the following serial communication interfaces:

 UART interface: Universal Asynchronous Receiver/Transmitter serial interface available for the communication

with a host application processor (AT commands, data communication, FW update by means of FOAT), for FW update by means of the u-blox EasyFlash tool and for diagnostic. (see section 1.9.1)

 USB interface: Universal Serial Bus 2.0 compliant interface available for the communication with a host

application processor (AT commands, data communication, FW update by means of the FOAT feature), for FW update by means of the u-blox EasyFlash tool and for diagnostic. (see section 1.9.2)

 HSIC interface: High-Speed Inter-Chip USB compliant interface available for the communication with a host

application processor (AT commands, data communication, FW update by means of the FOAT feature), for FW update by means of the u-blox EasyFlash tool and for diagnostic. (see section 1.9.3)

 DDC interface: I

chips or modules and with external I2C devices as an audio codec. (see section 1.9.4)

 SDIO interface: Secure Digital Input Output interface available for the communication with compatible

u-blox short range radio communication Wi-Fi modules. (see section 1.9.5)

C bus compatible interface available for the communication with u-blox GNSS positioning

1.9.1 UART interface

1.9.1.1 UART features

The UART interface is a 9-wire 1.8 V unbalanced asynchronous serial interface available on all the LARA-R2 series modules, supporting:

 AT command mode  Data mode and Online command mode

 Multiplexer protocol functionality (see 1.9.1.5)  FW upgrades by means of the FOAT feature (see 1.14.13 and Firmware update application note [23])  FW upgrades by means of the u-blox EasyFlash tool (see the Firmware update application note [23])  Trace log capture (diagnostic purpose)

UART interface provides RS-232 functionality conforming to the ITU-T V.24 Recommendation [5], with CMOS compatible signal levels: 0 V for low data bit or ON state, and 1.8 V for high data bit or OFF state (for detailed electrical characteristics see LARA-R2 series Data Sheet [1]), providing:

 data lines (RXD as output, TXD as input),  hardware flow control lines (CTS as output, RTS as input),  modem status and control lines (DTR as input, DSR as output, DCD as output, RI as output).

LARA-R2 series modules are designed to operate as cellular modems, i.e. as the data circuit-terminating equipment (DCE) according to the ITU-T V.24 Recommendation [5]. A host application processor connected to the module through the UART interface represents the data terminal equipment (DTE).

UART signal names of the modules conform to the ITU-T V.24 Recommendation [5]: e.g. TXD line

represents data transmitted by the DTE (host processor output) and received by the DCE (module input).

LARA-R2 series modules’ UART interface is by default configured in AT command mode: the module waits for AT command instructions and interprets all the characters received as commands to execute.

See the u-blox AT Commands Manual [2] for the definition of the command mode, data mode, and online command mode.

UBX-16010573 - R08 System description

Page 38 of 155

LARA-R2 series - System Integration Manual

D0 D1 D2 D3 D4 D5 D6 D7

Start of 1-Byte transfer

Start Bit (Always 0)

Possible Start of

next transfer

Stop Bit (Always 1)

bit

= 1/(Baudrate)

Normal Transfer, 8N1

All the functionalities supported by LARA-R2 series modules can be set and configured by AT commands:

 AT commands according to 3GPP TS 27.007 [6], 3GPP TS 27.005 [7], 3GPP TS 27.010 [8]  u-blox AT commands (for the complete list and syntax see the u-blox AT Commands Manual [2])

All flow control handshakes are supported by the UART interface and can be set by appropriate AT commands (see u-blox AT Commands Manual [2], &K, +IFC, \Q AT commands): hardware, software, or none flow control.

Hardware flow control is enabled by default.

The one-shot autobauding is supported: the automatic baud rate detection is performed only once, at module start up. After the detection, the module works at the detected baud rate and the baud rate can only be changed by AT command (see u-blox AT Commands Manual [2], +IPR command).

One-shot automatic baud rate recognition (autobauding) is enabled by default.

The following baud rates can be configured by AT command (see u-blox AT Commands Manual [2], +IPR):

 9600 b/s  19200 b/s  38400 b/s  57600 b/s  115200 b/s, default value when one-shot autobauding is disabled  230400 b/s  460800 b/s  921600 b/s  3000000 b/s  3250000 b/s  6000000 b/s  6500000 b/s

Baud rates higher than 460800 b/s cannot be automatically detected by LARA-R2 series modules.

The modules support the one-shot automatic frame recognition in conjunction with the one-shot autobauding. The following frame formats can be configured by AT command (see u-blox AT Commands Manual [2], +ICF):

 8N1 (8 data bits, No parity, 1 stop bit), default frame configuration with fixed baud rate, see Figure 18  8E1 (8 data bits, even parity, 1 stop bit)  8O1 (8 data bits, odd parity, 1 stop bit)  8N2 (8 data bits, No parity, 2 stop bits)  7E1 (7 data bits, even parity, 1 stop bit)  7O1 (7 data bits, odd parity, 1 stop bit)

Figure 18: Description of UART 8N1 frame format (8 data bits, no parity, 1 stop bit)

UBX-16010573 - R08 System description

Page 39 of 155

LARA-R2 series - System Integration Manual

Interface

AT Settings

Comments

UART interface

AT interface: enabled

AT command interface is enabled by default on the UART physical interface

AT+IPR=0

One-shot autobauding enabled by default on the modules

AT+ICF=3,1

8N1 frame format enabled by default

AT&K3

HW flow control enabled by default

AT&S1

DSR line (Circuit 107 in ITU-T V.24) set ON in data mode9 and set OFF in command mode9

AT&D1

Upon an ON-to-OFF transition of DTR line (Circuit 108/2 in ITU-T V.24), the module (DCE) enters online command mode9 and issues an OK result code

AT&C1

DCD line (Circuit 109 in ITU-T V.24) changes in accordance with the Carrier detect status; ON if the Carrier is detected, OFF otherwise

MUX protocol: disabled

Multiplexing mode is disabled by default and it can be enabled by AT+CMUX command. For more details, see the Mux Implementation Application Note [21]. The following virtual channels are defined:

 Channel 0: control channel  Channel 1 – 5: AT commands / data connection  Channel 6: GNSS tunneling

1.9.1.2 UART AT interface configuration

The UART interface of LARA-R2 series modules is available as AT command interface with the default configuration described in Table 10 (for more details and information about further settings, see the u-blox AT Commands Manual [2]).

Table 10: Default UART AT interface configuration

1.9.1.3 UART signal behavior

At the module switch-on, before the UART interface initialization (as described in the power-on sequence reported in Figure 14), each pin is first tri-stated and then is set to its related internal reset state11. At the end of the boot sequence, the UART interface is initialized, the module is by default in active-mode, and the UART interface is enabled as AT commands interface.

The configuration and the behavior of the UART signals after the boot sequence are described below. See section 1.4 for definition and description of module operating modes referred to in this section.

RXD signal behavior

The module data output line (RXD) is set by default to the OFF state (high level) at UART initialization. The module holds RXD in the OFF state until the module does not transmit some data.

TXD signal behavior

The module data input line (TXD) is set by default to the OFF state (high level) at UART initialization. The TXD line is then held by the module in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the module on the TXD input.

See the u-blox AT Commands Manual [2] for the definition of the command mode, data mode, and online command mode

Not supported by LARA-R204-02B and LARA-R211-02B product versions. Refer to the pin description table in the LARA-R2 series Data Sheet [1].

UBX-16010573 - R08 System description

Page 40 of 155

LARA-R2 series - System Integration Manual

CTS signal behavior

The module hardware flow control output (CTS line) is set to the ON state (low level) at UART initialization. If the hardware flow control is enabled, as it is by default, the CTS line indicates when the UART interface is

enabled (data can be sent and received). The module drives the CTS line to the ON state or to the OFF state when it is either able or not able to accept data from the DTE over the UART (see 1.9.1.4 for more details).

If hardware flow control is enabled, then when the CTS line is OFF it does not necessarily mean that the

module is in low power idle-mode, but only that the UART is not enabled, as the module could be forced to stay in active-mode for other activities, e.g. related to the network or related to other interfaces.

When the multiplexer protocol is active, the CTS line state is mapped to FCon / FCoff MUX command for

flow control issues outside the power saving configuration while the physical CTS line is still used as a power state indicator. For more details, see Mux Implementation Application Note [21].

The CTS hardware flow control setting can be changed by AT commands (for more details, see u-blox AT Commands Manual [2], AT&K, AT\Q, AT+IFC, AT+UCTS AT command).

When the power saving configuration is enabled by AT+UPSV command and the hardware flow-control is

not implemented in the DTE/DCE connection, data sent by the DTE can be lost: the first character sent when the module is in low power idle-mode will not be a valid communication character (see section

1.9.1.4 and in particular the sub-section “Wake up via data reception” for further details).

RTS signal behavior

The hardware flow control input (RTS line) is set by default to the OFF state (high level) at UART initialization. The module then holds the RTS line in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the module on the RTS input.

If the HW flow control is enabled, as it is by default, the module monitors the RTS line to detect permission from the DTE to send data to the DTE itself. If the RTS line is set to the OFF state, any on-going data transmission from the module is interrupted until the subsequent RTS line change to the ON state.

The DTE must still be able to accept a certain number of characters after the RTS line is set to the OFF

state: the module guarantees the transmission interruption within two characters from RTS state change.

Module behavior according to RTS hardware flow control status can be configured by AT commands (for more details, see u-blox AT Commands Manual [2], AT&K, AT\Q, AT+IFC command descriptions).

If AT+UPSV=2 is set and HW flow control is disabled, the module monitors the RTS line to manage the power saving configuration (For more details, see section 1.9.1.4 and u-blox AT Commands Manual [2], AT+UPSV):

 When an OFF-to-ON transition occurs on the RTS input, the UART is enabled and the module is forced to

active-mode. After ~20 ms, the switch is completed and data can be received without loss. The module cannot enter low power idle-mode and the UART is enabled as long as the RTS is in the ON state

 If the RTS input line is set to the OFF state by the DTE, the UART is disabled (held in low power mode) and

the module automatically enters low power idle-mode whenever possible

DSR signal behavior

If AT&S1 is set, as it is by default, the DSR module output line is set by default to the OFF state (high level) at UART initialization. The DSR line is then set to the OFF state when the module is in command mode12 or in online command mode12 and is set to the ON state when the module is in data mode12.

If AT&S0 is set, the DSR module output line is set by default to the ON state (low level) at UART initialization and is then always held in the ON state.

See the u-blox AT Commands Manual [2] for the definition of the command mode, data mode, and online command mode

UBX-16010573 - R08 System description

Page 41 of 155

LARA-R2 series - System Integration Manual

DTR signal behavior

The DTR module input line is set by default to the OFF state (high level) at UART initialization. The module then holds the DTR line in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the module on the DTR input.

Module behavior according to DTR status can be changed by AT command (for more details, see u-blox AT Commands Manual [2], AT&D command description).

If AT+UPSV=3 is set, the DTR line is monitored by the module to manage the power saving configuration (for more details, see section 1.9.1.4 and u-blox AT Commands Manual [2], AT+UPSV command):

 When an OFF-to-ON transition occurs on the DTR input, the UART is enabled and the module is forced to

active-mode. After ~20 ms, the switch is completed and data can be received without loss. The module cannot enter low power idle-mode and the UART is enabled as long as the DTR is in the ON state

 If the DTR input line is set to the OFF state by the DTE, the UART is disabled (held in low power mode) and

the module automatically enters low power idle-mode whenever possible

DCD signal behavior

If AT&C1 is set, as it is by default, the DCD module output line is set by default to the OFF state (high level) at UART initialization. The module then sets the DCD line according to the carrier detect status: ON if the carrier is detected, OFF otherwise.

In case of voice calls, DCD is set to the ON state when the call is established. In case of data calls, there are the following scenarios regarding the DCD signal behavior:

 Packet Switched Data call: Before activating the PPP protocol (data mode) a dial-up application must

provide the ATD*99***<context_number># to the module: with this command the module switches from command mode to data mode and can accept PPP packets. The module sets the DCD line to the ON state, then answers with a CONNECT to confirm the ATD*99 command. The DCD ON is not related to the context activation but with the data mode

 Circuit Switched Data call: To establish a data call, the DTE can send the ATD<number> command to the

module which sets an outgoing data call to a remote modem (or another data module). Data can be transparent (non reliable) or non transparent (with the reliable RLP protocol). When the remote DCE accepts the data call, the module DCD line is set to ON and the CONNECT <communication baudrate> string is returned by the module. At this stage the DTE can send characters through the serial line to the data module which sends them through the network to the remote DCE attached to a remote DTE

The DCD is set to ON during the execution of the +CMGS, +CMGW, +USOWR, +USODL AT commands

requiring input data from the DTE: the DCD line is set to the ON state as soon as the switch to binary/text input mode is completed and the prompt is issued; DCD line is set to OFF as soon as the input mode is interrupted or completed (for more details see the u-blox AT Commands Manual [2]).

The DCD line is kept in the ON state, even during the online command mode

call is still established even if suspended, while if the module enters command mode13, the DSR line is set to the OFF state. For more details see DSR signal behavior description.

, to indicate that the data

For scenarios when the DCD line setting is requested for different reasons (e.g. SMS texting during online

command mode13), the DCD line changes to guarantee the correct behavior for all the scenarios. For example, in case of SMS texting in online command mode13, if the data call is released, DCD is kept ON till the SMS command execution is completed (even if the data call release would request DCD set OFF).

If AT&C0 is set, the DCD module output line is set by default to the ON state (low level) at UART initialization and is then always held in the ON state.

See the u-blox AT Commands Manual [2] for the definition of the command mode, data mode, and online command mode

UBX-16010573 - R08 System description

Page 42 of 155

LARA-R2 series - System Integration Manual

SMS arrives

time [s]

RI ON

RI OFF

SMS

time [s]

RI ON

RI OFF

time [s]

151050

RI ON

RI OFF

Call incomes

time [s]

151050

RI ON

RI OFF

Call incomes

RI signal behavior

The RI module output line is set by default to the OFF state (high level) at UART initialization. Then, during an incoming call, the RI line is switched from the OFF state to the ON state with a 4:1 duty cycle and a 5 s period (ON for 1 s, OFF for 4 s, see Figure 19), until the DTE attached to the module sends the ATA string and the module accepts the incoming data call. The RING string sent by the module (DCE) to the serial port at constant time intervals is not correlated with the switch of the RI line to the ON state.

Figure 19: RI behavior during an incoming call

The RI line can notify an SMS arrival. When the SMS arrives, the RI line switches from OFF to ON for 1 s (see Figure 20), if the feature is enabled by the AT+CNMI command (see the u-blox AT Commands Manual [2]).

Figure 20: RI behavior at SMS arrival

This behavior allows the DTE to stay in power saving mode until the DCE related event requests service. For SMS arrival, if several events coincidently occur or in quick succession each event independently triggers the RI line, although the line will not be deactivated between each event. As a result, the RI line may stay to ON for more than 1 s.

If an incoming call is answered within less than 1 s (with ATA or if auto-answering is set to ATS0=1) than the RI line is set to OFF earlier.

As a result:

RI line monitoring cannot be used by the DTE to determine the number of received SMSes. For multiple events (incoming call plus SMS received), the RI line cannot be used to discriminate the two

events, but the DTE must rely on the subsequent URCs and interrogate the DCE with proper commands.

The RI line can additionally notify all the URCs and all the incoming data in PPP and Direct Link connections, if the feature is enabled by the AT+URING command (for more details see the u-blox AT Commands Manual [2]): the RI line is asserted when one of the configured events occur and it remains asserted for 1 s unless another configured event will happen, with the same behavior described in Figure 20.

UBX-16010573 - R08 System description

Page 43 of 155

LARA-R2 series - System Integration Manual

AT+UPSV

HW flow control

RTS line

DTR line

Communication during idle-mode and wake up

Enabled (AT&K3)

ON or OFF

Data sent by the DTE are correctly received by the module. Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

ON or OFF

Data sent by the DTE are correctly received by the module. Data sent by the module is buffered by the module and will be correctly received by the DTE when it is ready to receive data (i.e. RTS line will be ON).

Disabled (AT&K0)

ON or OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data is lost.

Enabled (AT&K3)

ON or OFF

Data sent by the DTE is buffered by the DTE and will be correctly received by the module when it is ready to receive data (when UART is enabled). Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

ON or OFF

Data sent by the DTE is buffered by the DTE and will be correctly received by the module when it is ready to receive data (when UART is enabled). Data sent by the module is buffered by the module and will be correctly received by the DTE when it is ready to receive data (i.e. RTS line will be ON).

Disabled (AT&K0)

ON or OFF

The first character sent by the DTE is lost by the module, but after ~20 ms the UART and the module are woken up: recognition of subsequent characters is guaranteed only after the UART / module complete wake-up (after ~20 ms). Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise the data is lost.

Enabled (AT&K3)

ON or OFF

Not Applicable: HW flow control cannot be enabled with AT+UPSV=2.

Disabled (AT&K0)

ON or OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data is lost.

Disabled (AT&K0)

OFF

ON or OFF

Data sent by the DTE is lost by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data is lost.

1.9.1.4 UART and power-saving

The power saving configuration is controlled by the AT+UPSV command (for the complete description, see u-blox AT Commands Manual [2]). When power saving is enabled, the module automatically enters low power idle-mode whenever possible, and otherwise the active-mode is maintained by the module (see section 1.4 for definition and description of module operating modes referred to in this section).

The AT+UPSV command configures both the module power saving and also the UART behavior in relation to the power saving. The conditions for the module entering low power idle-mode also depend on the UART power saving configuration, as the module does not enter the low power idle-mode according to any required activity related to the network (within or outside an active call) or any other required concurrent activity related to the functions and interfaces of the module, including the UART interface.

Three different power saving configurations can be set by the AT+UPSV command:

 AT+UPSV=0, power saving disabled (default configuration)  AT+UPSV=1, power saving enabled cyclically  AT+UPSV=2, power saving enabled and controlled by the UART RTS input line  AT+UPSV=3, power saving enabled and controlled by the UART DTR input line

The different power saving configurations that can be set by the +UPSV AT command are described in details in the following subsections. Table 11 summarizes the UART interface communication process in the different power saving configurations, in relation with HW flow control settings and RTS input line status. For more details on the +UPSV AT command description, refer to u-blox AT commands Manual [2].

UBX-16010573 - R08 System description

Page 44 of 155

LARA-R2 series - System Integration Manual

AT+UPSV

HW flow control

RTS line

DTR line

Communication during idle-mode and wake up

Enabled (AT&K3)

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

Data sent by the DTE is lost by the module. Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is buffered by the module and will be correctly received by the DTE when it is ready to receive data (i.e. RTS line will be ON).

Enabled (AT&K3)

OFF

Data sent by the DTE is lost by the module. Data sent by the module is buffered by the module and will be correctly received by the DTE when it is ready to receive data (i.e. RTS line will be ON).

Disabled (AT&K0)

ON or OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data are lost.

Disabled (AT&K0)

ON or OFF

OFF

Data sent by the DTE is lost by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data are lost.

Table 11: UART and power-saving summary

AT+UPSV=0: power saving disabled, fixed active-mode

The module does not enter low power idle-mode and the UART interface is enabled (data can be sent and received): the CTS line is always held in the ON state after UART initialization. This is the default configuration.

AT+UPSV=1: power saving enabled, cyclic idle/active-mode

When the AT+UPSV=1 command is issued by the DTE, the UART will be normally disabled, and then periodically or upon necessity enabled as following:

 During the periodic UART wake up to receive or send data, also according to the module wake up for the

paging reception (see section 1.5.1.5) or other activities

 If the module needs to transmit some data (e.g. URC), the UART is temporarily enabled to send data  If the DTE send data with HW flow control disabled, the first character sent causes the UART and module

wake-up after ~20 ms: recognition of subsequent characters is guaranteed only after the complete wake-up (see the following subsection “wake up via data reception”)

The module automatically enters the low power idle-mode whenever possible but it wakes up to active-mode according to the UART periodic wake up so that the module cyclically enters the low power idle-mode and the active-mode. Additionally, the module wakes up to active-mode according to any required activity related to the network (e.g. for the periodic paging reception described in section 1.5.1.5, or for any other required RF Tx / Rx) or any other required activity related to module functions / interfaces (including the UART itself).

The time period of the UART enable/disable cycle is configured differently when the module is registered with a 2G network compared to when the module is registered with a 3G or LTE network:

 2G: UART is enabled synchronously with some paging receptions: UART is enabled concurrently to a paging

reception, and then, as data has not been received or sent, UART is disabled until the first paging reception that occurs after a timeout of 2.0 s, and therefore the interface is enabled again

 3G or LTE: UART is asynchronously enabled to paging receptions, as UART is enabled for ~20 ms, and then,

if data are not received or sent, UART is disabled for 2.5 s, and afterwards the interface is enabled again

 Not registered: when a module is not registered with a network, UART is enabled for ~20 ms, and then, if

data has not been received or sent, UART is disabled for 2.5 s, and afterwards the interface is enabled again

When the UART interface is enabled, data can be received. When a character is received, it forces the UART interface to stay enabled for a longer time and it forces the module to stay in the active-mode for a longer time, according to the timeout configured by the second parameter of the +UPSV AT command. The timeout can be

UBX-16010573 - R08 System description

Page 45 of 155

LARA-R2 series - System Integration Manual

time [s]

~9.2 s (default)

Data input

CTS ON

CTS OFF

set from 40 2G-frames (i.e. 40 x 4.615 ms = 184 ms) up to 65000 2G-frames (i.e. 65000 x 4.615 ms = 300 s). Default value is 2000 2G-frames (i.e. 2000 x 4.615 ms = 9.2 s). Every subsequent character received during the active-mode, resets and restarts the timer; hence the active-mode duration can be extended indefinitely.

The CTS output line is driven to the ON or OFF state when the module is either able or not able to accept data from the DTE over the UART: Figure 21 illustrates the CTS output line toggling due to paging reception and data received over the UART, with AT+UPSV=1 configuration.

Figure 21: CTS output pin indicates when module’s UART is enabled (CTS = ON = low level) or disabled (CTS = OFF = high level)

AT+UPSV=2: power saving enabled and controlled by the RTS line

This configuration can only be enabled with the module hardware flow control disabled (i.e. AT&K0 setting). The UART interface is disabled after the DTE sets the RTS line to OFF. Afterwards, the UART is enabled again, and the module does not enter low power idle-mode, as following:

 If an OFF-to-ON transition occurs on the RTS input, this causes the UART / module wake-up after ~20 ms:

recognition of subsequent characters is guaranteed only after the complete wake-up, and the UART is kept enabled as long as the RTS input line is set to ON.

 If the module needs to transmit some data (e.g. URC), the UART is temporarily enabled to send data

The module automatically enters the low power idle-mode whenever possible but it wakes up to active-mode according to any required activity related to the network (e.g. for the periodic paging reception described in section 1.5.1.5, or for any other required RF transmission / reception) or any other required activity related to the module functions / interfaces (including the UART itself).

AT+UPSV=3: power saving enabled and controlled by the DTR line

The UART interface is disabled after the DTE sets the DTR line to OFF. Afterwards, the UART is enabled again, and the module does not enter low power idle-mode, as following:

 If an OFF-to-ON transition occurs on the DTR input, this causes the UART / module wake-up after ~20 ms:

recognition of subsequent characters is guaranteed only after the complete wake-up, and the UART is kept enabled as long as the DTR input line is set to ON

 If the module needs to transmit some data (e.g. URC), the UART is temporarily enabled to send data

The module automatically enters the low power idle-mode whenever possible but it wakes up to active-mode according to any required activity related to the network (e.g. for the periodic paging reception described in section 1.5.1.5, or for any other required RF signal transmission or reception) or any other required activity related to the functions / interfaces of the module.

The AT+UPSV=3 configuration can be enabled regardless the flow control setting on UART. In particular, the HW flow control can be enabled (AT&K3) or disabled (AT&K0) on UART during this configuration. In both cases, with the AT+UPSV=3 configuration, the CTS line indicates when the module is either able or not able to accept data from the DTE over the UART.

When the AT+UPSV=3 configuration is enabled, the DTR input line can still be used by the DTE to control the module behavior according to AT&D command configuration (see u-blox AT commands Manual [2]).

UBX-16010573 - R08 System description

Page 46 of 155

LARA-R2 series - System Integration Manual

Wake up character

Not recognized by DCE

OFF

DCE UART is enabled for 2000 GSM frames (~9.2 s)

time

Wake up time: ~20 ms

time

TXD input

UART

OFF

Wake up character

Not recognized by DCE

Valid characters Recognized by DCE

DCE UART is enabled for 2000 GSM frames (~9.2s)

after the last data received

time

Wake up time: ~20 ms

time

OFF

TXD input

UART

OFF

Wake up via data reception

The UART wake up via data reception consists of a special configuration of the module TXD input line that causes the system wake-up when a low-to-high transition occurs on the TXD input line. In particular, the UART is enabled and the module switches from the low power idle-mode to active-mode within ~20 ms from the first character received: this is the system “wake up time”.

As a consequence, the first character sent by the DTE when the UART is disabled (i.e. the wake up character) is not a valid communication character even if the wake up via data reception configuration is active, because it cannot be recognized, and the recognition of the subsequent characters is guaranteed only after the complete system wake-up (i.e. after ~20 ms).

The UART wake up via data reception configuration is active in the following cases:

 AT+UPSV=1 is set with HW flow control disabled

Figure 22 and Figure 23 show examples of common scenarios and timing constraints:

 AT+UPSV=1 power saving configuration is active and the timeout from last data received to idle-mode start

is set to 2000 frames (AT+UPSV=1,2000)

 Hardware flow control is disabled

Figure 22 shows the case where the module UART is disabled and only a wake-up is forced. In this scenario the only character sent by the DTE is the wake-up character; as a consequence, the DCE module UART is disabled when the timeout from last data received expires (2000 frames without data reception, as the default case).

Figure 22: Wake-up via data reception without further communication

Figure 23 shows the case where in addition to the wake-up character further (valid) characters are sent. The wake up character wakes-up the module UART. The other characters must be sent after the “wake up time” of ~20 ms. If this condition is satisfied, the module (DCE) recognizes characters. The module will disable the UART after 2000 GSM frames from the latest data reception.

Figure 23: Wake-up via data reception with further communication

UBX-16010573 - R08 System description

Page 47 of 155

LARA-R2 series - System Integration Manual

The “wake-up via data reception” feature cannot be disabled. In command mode

should always send a dummy character to the module before the “AT” prefix set at the beginning of each

command line: the first dummy character is ignored if the module is in active-mode, or it represents the wake-up character if the module is in low power idle-mode.

In command mode

should always send a dummy “AT” to the module before each command line: the first dummy “AT” is

not ignored if the module is in active-mode (i.e. the module replies “OK”), or it represents the wake up character if the module is in low power idle-mode (i.e. the module does not reply).

Additional considerations

If the USB is connected and not suspended, the module is kept ready to communicate over USB regardless the AT+UPSV settings, which have instead effect on the UART behavior, as they configure the UART power saving, so that UART is enabled / disabled according to the AT+UPSV settings.

To set the AT+UPSV=1, AT+UPSV=2 or AT+UPSV=3 configuration over the USB interface, the autobauding must be previously disabled on the UART by the +IPR AT command over the used USB AT interface, and this +IPR AT

command configuration must be saved in the module’ non-volatile memory (see the u-blox AT Commands Manual [2]). Then, after the subsequent module re-boot, AT+UPSV=1, AT+UPSV=2 or AT+UPSV=3 can be issued

over the used AT interface (the USB): all the AT profiles are updated accordingly.

, with “wake-up via data reception” enabled and autobauding enabled, the DTE

, with “wake-up via data reception” enabled and autobauding disabled, the DTE

1.9.1.5 Multiplexer protocol (3GPP TS 27.010)

LARA-R2 series modules include multiplexer functionality as per 3GPP TS 27.010 [8], on the UART physical link. This is a data link protocol which uses HDLC-like framing and operates between the module (DCE) and the

application processor (DTE) and allows a number of simultaneous sessions over the used physical link (UART): the user can concurrently use AT interface on one MUX channel and data communication on another MUX channel.

The following virtual channels are defined (for more details, see Mux implementation Application Note [21]):

 Channel 0: Multiplexer control  Channel 1 – 5: AT commands / data connection  Channel 6: GNSS data tunneling

GNSS data tunneling channel is not supported by LARA-R204-02B and LARA-R211-02B product versions.

See the u-blox AT Commands Manual [2] for the definition of the command mode, data mode, and online command mode.

UBX-16010573 - R08 System description

Page 48 of 155

LARA-R2 series - System Integration Manual

1.9.2 USB interface

1.9.2.1 USB features

LARA-R2 series modules include a High-Speed USB 2.0 compliant interface with 480 Mb/s maximum data rate, representing the main interface for transferring high speed data with a host application processor, supporting:

 AT command mode  Data mode and Online command mode

 FW upgrades by means of the FOAT feature (see 1.14.13 and Firmware update application note [23])  FW upgrades by means of the u-blox EasyFlash tool (see the Firmware update application note [23])  Trace log capture (diagnostic purpose)

The module itself acts as a USB device and can be connected to a USB host such as a Personal Computer or an embedded application microprocessor equipped with compatible drivers.

The USB_D+/USB_D- lines carry USB serial bus data and signaling according to the Universal Serial Bus Revision

2.0 specification [9], while the VUSB_DET input pin senses the VBUS USB supply presence (nominally 5 V at the source) to detect the host connection and enable the interface.

The USB interface of the module is enabled only if a valid voltage is detected by the VUSB_DET input (see the LARA-R2 series Data Sheet [1]). Neither the USB interface, nor the whole module is supplied by the VUSB_DET input: the VUSB_DET senses the USB supply voltage and absorbs few microamperes.

The USB interface is controlled and operated with:

 AT commands according to 3GPP TS 27.007 [6], 3GPP TS 27.005 [7]  u-blox AT commands (for the complete list and syntax see the u-blox AT Commands Manual [2])

The USB interface of LARA-R2 series modules, according to the configured USB profile, can provide different USB functions with various capabilities and purposes, such as:

 CDC-ACM for AT commands and data communication  CDC-ACM for GNSS tunneling  CDC-ACM for SAP (SIM Access Profile)  CDC-ACM for Diagnostic log  CDC-NCM for Ethernet-over-USB

CDC-ACM for GNSS tunneling is not supported by LARA-R204-02B and LARA-R211-02B product versions CDC-ACM for SAP and CDC-NCM for Ethernet-over-USB are not supported by “02” and “62” versions The RI virtual signal is not supported over USB CDC-ACM by “02” and “62” product versions

The USB profile of LARA-R2 series modules identifies itself by its VID (Vendor ID) and PID (Product ID) combination, included in the USB device descriptor according to the USB 2.0 specification [9].

If the USB is connected to the host before the module is switched on, or if the module is reset (rebooted) with the USB connected to the host, the VID and PID are automatically updated during the boot of the module. First, VID and PID are the following:

 VID = 0x8087  PID = 0x0716

This VID and PID combination identifies a USB profile where no USB function described above is available: AT commands must not be sent to the module over the USB profile identified by this VID and PID combination.

See the u-blox AT Commands Manual [2] for the definition of the command mode, data mode, and online command mode.

UBX-16010573 - R08 System description

Page 49 of 155

LARA-R2 series - System Integration Manual

Default profile configuration

Interface 0 Abstract Control Model

EndPoint Transfer: Interrupt

Interface 1 Data

EndPoint Transfer: Bulk

Function AT and Data

Interface 2 Abstract Control Model

EndPoint Transfer: Interrupt

Interface 3 Data

EndPoint Transfer: Bulk

Function AT and Data

Interface 4 Abstract Control Model

EndPoint Transfer: Interrupt

Interface 5 Data

EndPoint Transfer: Bulk

Function AT and Data

Interface 6 Abstract Control Model

EndPoint Transfer: Interrupt

Interface 7 Data

EndPoint Transfer: Bulk

Function GNSS tunneling

Interface 8 Abstract Control Model

EndPoint Transfer: Interrupt

Interface 9 Data

EndPoint Transfer: Bulk

Function SAP

Interface 10 Abstract Control Model

EndPoint Transfer: Interrupt

Interface 11 Data

EndPoint Transfer: Bulk

Function Primary Log

Then, after a time period (which depends on the host / device enumeration timings), the VID and PID are updated to the ones related to the default USB profile providing the following set of USB functions:

 6 CDC-ACM modem COM ports enumerated as follows:

o USB1: AT and data o USB2: AT and data o USB3: AT and data o USB4: GNSS tunneling o USB5: SAP (SIM Access Profile) o USB6: Primary Log (diagnostic purpose)

VID and PID of this USB profile with the set of functions described above (6 CDC-ACM) are the following:

 VID = 0x1546  PID = 0x110A

Figure 24 summarizes the USB end-points available with the default USB profile.

Figure 24: LARA-R2 series USB End-Points summary for the default USB profile configuration

UBX-16010573 - R08 System description

Page 50 of 155

LARA-R2 series - System Integration Manual

1.9.2.2 USB in Windows

USB drivers are provided for Windows operating system platforms and should be properly installed / enabled by following the step-by-step instructions available in the EVK-R2xx User Guide [3] or in the Windows Embedded OS USB Driver Installation Application Note [4].

USB drivers are available for the following operating system platforms:

 Windows 7  Windows 8  Windows 8.1  Windows 10  Windows Embedded CE 6.0  Windows Embedded Compact 7  Windows Embedded Compact 2013  Windows 10 IoT

The module firmware can be upgraded over the USB interface by means of the FOAT feature, or using the u-blox EasyFlash tool (for more details see Firmware Update Application Note [23].

1.9.2.3 USB in Linux/Android

It is not required to install a specific driver for each Linux-based or Android-based operating system (OS) to use the module USB interface, which is compatible with standard Linux/Android USB kernel drivers.

The full capability and configuration of the module USB interface can be reported by running “lsusb –v” or an equivalent command available in the host operating system when the module is connected.

1.9.2.4 USB and power saving

The modules automatically enter the USB suspended state when the device has observed no bus traffic for a specific time period according to the USB 2.0 specifications [9]. In suspended state, the module maintains any USB internal status as device. In addition, the module enters the suspended state when the hub port it is attached to is disabled. This is referred to as USB selective suspend.

If the USB is suspended and a power saving configuration is enabled by the AT+UPSV command, the module automatically enters the low power idle-mode whenever possible but it wakes up to active-mode according to any required activity related to the network (e.g. the periodic paging reception described in section 1.5.1.5) or any other required activity related to the functions / interfaces of the module.

The USB exits suspend mode when there is bus activity. If the USB is connected and not suspended, the module is kept ready to communicate over USB regardless the AT+UPSV settings, therefore the AT+UPSV settings are overruled but they have effect on the power saving configuration of the other interfaces (see 1.9.1.4).

The modules are capable of USB remote wake-up signaling: i.e. it may request the host to exit suspend mode or selective suspend by using electrical signaling to indicate remote wake-up, for example due to incoming call, URCs, data reception on a socket. The remote wake-up signaling notifies the host that it should resume from its suspended mode, if necessary, and service the external event. Remote wake-up is accomplished using electrical signaling described in the USB 2.0 specifications [9].

For the module current consumption description with power saving enabled and USB suspended, or with power saving disabled and USB not suspended, see sections 1.5.1.5, 1.5.1.6 and LARA-R2 series Data Sheet [1].

The additional VUSB_DET input pin available on LARA-R2 series modules provides the complete bus detach functionality: the modules disable the USB interface when a low logic level is sensed after a high-to-low logic level transition on the VUSB_DET input pin. This allows a further reduction of the module current consumption, in particular as compared to the USB suspended status during low-power idle mode with power saving enabled.

UBX-16010573 - R08 System description

Page 51 of 155

LARA-R2 series - System Integration Manual

1.9.3 HSIC interface

The HSIC interface is not supported by “02” and “62” product versions except for diagnostic purposes.

1.9.3.1 HSIC features

LARA-R2 series modules include a USB High-Speed Inter-Chip compliant interface with maximum 480 Mb/s data rate according to the High-Speed Inter-Chip USB Electrical Specification Version 1.0 [10] and USB Specification Revision 2.0 [9]. The module itself acts as a device and can be connected to any compatible host.

The HSIC interface provides:

 AT command mode  Data mode and Online command mode  FW upgrades by means of the FOAT feature (see 1.14.13 and Firmware update application note [23])  FW upgrades by means of the u-blox EasyFlash tool (see the Firmware update application note [23])  Trace log capture (diagnostic purpose)

The HSIC interface consists of a bi-directional DDR data line (HSIC_DATA) for transmitting and receiving data synchronously with the bi-directional strobe line (HSIC_STRB).

The modules include also the HOST_SELECT pin to select the module / host application processor configuration: the pin is available to select, enable, connect, disconnect and subsequently re-connect the HSIC interface.

The USB interface is controlled and operated with:

 AT commands according to 3GPP TS 27.007 [6], 3GPP TS 27.005 [7]  u-blox AT commands (for the complete list and syntax see the u-blox AT Commands Manual [2])

See the u-blox AT Commands Manual [2] for the definition of the command mode, data mode, and online command mode.

UBX-16010573 - R08 System description

Page 52 of 155

LARA-R2 series - System Integration Manual

1.9.4 DDC (I

Communication with u-blox GNSS receivers over I

C) interface

C bus compatible Display Data Channel interface, AssistNow embedded GNSS positioning aiding, CellLocate® positioning through cellular info, and custom functions over GPIOs for the integration with u-blox positioning chips / modules are not supported by LARA-R204-02B and LARA-R211-02B product versions.

The SDA and SCL pins represent an I2C bus compatible Display Data Channel (DDC) interface available for

 communication with u-blox GNSS chips / modules,  communication with other external I

C devices as audio codecs. The AT commands interface is not available on the DDC (I2C) interface. DDC (I2C) slave-mode operation is not supported: the LARA-R2 series module can act as I2C master that can

communicate with more I2C slaves in accordance to the I2C bus specifications [11]. The DDC (I2C) interface pins of the module, serial data (SDA) and serial clock (SCL), are open drain outputs

conforming to the I2C bus specifications [11].

u-blox has implemented special features to ease the design effort required for the integration of a u-blox cellular module with a u blox GNSS receiver.

Combining a u-blox cellular module with a u-blox GNSS receiver allows designers to have full access to the positioning receiver directly via the cellular module: it relays control messages to the GNSS receiver via a dedicated DDC (I2C) interface. A 2nd interface connected to the positioning receiver is not necessary: AT commands via the UART or USB serial interface of the cellular module allows a fully control of the GNSS receiver from any host processor.

The modules feature embedded GNSS aiding that is a set of specific features developed by u-blox to enhance GNSS performance, decreasing the Time To First Fix (TTFF), thus allowing to calculate the position in a shorter time with higher accuracy.

These GNSS aiding types are available:

 Local aiding  AssistNow Online  AssistNow Offline  AssistNow Autonomous

The embedded GNSS aiding features can be used only if the DDC (I2C) interface of the cellular module is connected to the u-blox GNSS receivers.

The cellular modules provide additional custom functions over GPIO pins to improve the integration with u-blox positioning chips and modules. GPIO pins can handle:

 GNSS receiver power-on/off: “GNSS supply enable” function provided by GPIO2 improves the positioning

receiver power consumption. When the GNSS functionality is not required, the positioning receiver can be completely switched off by the cellular module that is controlled by AT commands

 The wake up from idle-mode when the GNSS receiver is ready to send data: “GNSS Tx data ready” function

provided by GPIO3 improves the cellular module power consumption. When power saving is enabled in the cellular module by the AT+UPSV command and the GNSS receiver does not send data by the DDC (I2C) interface, the module automatically enters idle-mode whenever possible. With the “GNSS Tx data ready” function the GNSS receiver can indicate to the cellular module that it is ready to send data by the DDC (I2C) interface: the positioning receiver can wake up the cellular module if it is in idle-mode, so the cellular module does not lose the data sent by the GNSS receiver even if power saving is enabled

UBX-16010573 - R08 System description

Page 53 of 155

LARA-R2 series - System Integration Manual

 The RTC synchronization signal to the GNSS receiver: “GNSS RTC sharing” function provided by GPIO4

improves GNSS receiver performance, decreasing the Time To First Fix (TTFF), and thus allowing to calculate the position in a shorter time with higher accuracy. When GPS local aiding is enabled, the cellular module automatically uploads data such as position, time, ephemeris, almanac, health and ionospheric parameter from the positioning receiver into its local memory, and restores this to the GNSS receiver at the next power up of the positioning receiver

The “GNSS RTC sharing” function is not supported by “02” and “62” product versions. For more details regarding the handling of the DDC (I

GNSS related functions over GPIOs, see section 1.12, to the u-blox AT Commands Manual [2] (AT+UGPS, AT+UGPRF, AT+UGPIOC AT commands) and the GNSS Implementation Application Note [22].

C) interface, the GNSS aiding features and the

“GNSS Tx data ready” and “GNSS RTC sharing” functions are not supported by all u-blox GNSS receivers

HW or ROM/FW versions. See the GNSS Implementation Application Note [22] or to the Hardware Integration Manual of the u-blox GNSS receivers for the supported features.

As additional improvement for the GNSS receiver performance, the V_BCKP supply output of the cellular modules can be connected to the V_BCKP supply input pin of u-blox positioning chips and modules to provide the supply for the GNSS real time clock and backup RAM when the VCC supply of the cellular module is within its operating range and the VCC supply of the GNSS receiver is disabled.

This enables the u-blox positioning receiver to recover from a power breakdown with either a hot start or a warm start (depending on the duration of the GNSS receiver VCC outage) and to maintain the configuration settings saved in the backup RAM.

1.9.5 SDIO interface

Secure Digital Input Output interface is not supported by “02” and “62” product versions.

LARA-R2 series modules include a 4-bit Secure Digital Input Output interface (SDIO_D0, SDIO_D1, SDIO_D2, SDIO_D3, SDIO_CLK, SDIO_CMD) designed to communicate with an external u-blox short range Wi-Fi module:

the cellular module acts as an SDIO host controller which can communicate over the SDIO bus with a compatible u-blox short range radio communication Wi-Fi module acting as SDIO device.

The SDIO interface is the only one interface of LARA-R2 series modules dedicated for communication between the u-blox cellular module and the u-blox short range Wi-Fi module.

The AT commands interface is not available on the SDIO interface of LARA-R2 series modules.

Combining a u-blox cellular module with a u-blox short range communication module gives designers full access to the Wi-Fi module directly via the cellular module, so that a second interface connected to the Wi-Fi module is not necessary. AT commands via the AT interfaces of the cellular module allows a full control of the Wi-Fi module from any host processor, because Wi-Fi control messages are relayed to the Wi-Fi module via the dedicated SDIO interface.

u-blox has implemented special features in the cellular modules to ease the design effort for the integration of a u-blox cellular module with a u-blox short range Wi-Fi module to provide Router functionality.

Additional custom function over GPIO pins is designed to improve the integration with u-blox Wi-Fi modules:

 Wi-Fi enable Switch-on / switch-off the Wi-Fi

Wi-Fi enable function over GPIO is not supported by “02” and “62” product versions.

UBX-16010573 - R08 System description

Page 54 of 155

LARA-R2 series - System Integration Manual

1.10 Audio interface

Audio is not supported by LARA-R204-02B and LARA-R220-62B product versions.

1.10.1 Digital audio interface

LARA-R2 series modules include a 4-wire I2S digital audio interface (I2S_TXD data output, I2S_RXD data input, I2S_CLK clock input/output, I2S_WA world alignment / synchronization signal input/output), which can be

configured by AT command for digital audio communication with external digital audio devices as an audio codec (for more details see the u-blox AT Commands Manual [2], +UI2S AT command).

The I2S interface can be alternatively set in different modes, by <I2S_mode> parameter of AT+UI2S command:

 PCM mode (short synchronization signal): I

synchronization, and then is set low for 16 clock cycles according to the 17 or 18 clock cycles frame length.

 Normal I

S mode (long synchronization signal): I2S word alignment is set high / low with a 50% duty cycle

(high for 16 clock cycles / low for 16 clock cycles, according to the 32 clock cycles frame length).

The I2S interface can be alternatively set in different roles, by <I2S_Master_Slave> parameter of AT+UI2S:

 Master mode  Slave mode

The sample rate of transmitted/received words, which corresponds to the I2S word alignment / synchronization signal frequency, can be alternatively set by the <I2S_sample_rate> parameter of AT+UI2S to:

 8 kHz  11.025 kHz  12 kHz  16 kHz  22.05 kHz  24 kHz  32 kHz  44.1 kHz  48 kHz

The modules support I2S transmit and I2S receive data 16-bit words long, linear, mono (or also dual mono in Normal I2S mode). Data is transmitted and read in 2’s complement notation. MSB is transmitted and read first.

I2S clock signal frequency depends on the frame length, the sample rate and the selected mode of operation:

 17 x <I2S_sample_rate> or 18 x <I2S_sample_rate> in PCM mode (short synchronization signal)  16 x 2 x <I2S_sample_rate> in Normal I2S mode (long synchronization signal)

For the complete description of the possible configurations and settings of the I

for PCM and Normal I2S modes refer to the u-blox AT Commands Manual [2], +UI2S AT command.

S word alignment signal is set high for 1 or 2 clock cycles for the

S digital audio interface

UBX-16010573 - R08 System description

Page 55 of 155

LARA-R2 series - System Integration Manual

Function

Description

Default GPIO

Configurable GPIOs

Network status indication

Network status: registered home network, registered roaming, data transmission, no service

GPIO1-GPIO4

GNSS supply enable17

Enable/disable the supply of u-blox GNSS receiver connected to the cellular module

GPIO2

GPIO1-GPIO4

GNSS data ready17

Sense when u-blox GNSS receiver connected to the module is ready for sending data by the DDC (I2C)

GPIO3

GNSS RTC sharing18

RTC synchronization signal to the u-blox GNSS receiver connected to the cellular module

GPIO4 SIM card detection

External SIM card physical presence detection

GPIO5

SIM card hot insertion/removal

Enable / disable SIM interface upon detection of external SIM card physical insertion / removal

GPIO5

I2S digital audio interface

I2S_RXD, I2S_TXD, I2S_CLK, I2S_WA

Wi-Fi control18

Control of an external Wi-Fi chip or module

General purpose input

Input to sense high or low digital level

All

General purpose output

Output to set the high or the low digital level

GPIO4

All

Pin disabled

Tri-state with an internal active pull-down enabled

GPIO1

All

1.11 Clock output

LARA-R2 series modules provide master digital clock output function on GPIO6 pin, which can be configured to provide a 13 MHz or 26 MHz square wave. This is mainly designed to feed the master clock input of an external audio codec, as the clock output can be configured in “Audio dependent” mode (generating the square wave only when the audio path is active), or in “Continuous” mode.

For more details see the u-blox AT Commands Manual [2], +UMCLK AT command.

1.12 General Purpose Input/Output (GPIO)

LARA-R2 series modules include 9 pins (GPIO1-GPIO5, I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA) which can be configured as General Purpose Input/Output or to provide custom functions via u-blox AT commands (for more details see the u-blox AT Commands Manual [2], +UGPIOC, +UGPIOR, +UGPIOW AT commands), as summarized in Table 12.

Table 12: LARA-R2 series GPIO custom functions configuration

1.13 Reserved pins (RSVD)

LARA-R2 series modules have pins reserved for future use, named RSVD: they can all be left unconnected on the application board, except

 the RSVD pin number 33 that must be externally connected to ground

Not supported by LARA-R204-02B and LARA-R211-02B product versions. For these products GPIO2 and GPIO3 pins are by default disabled Not supported by “02” and “62” product versions

UBX-16010573 - R08 System description

Page 56 of 155

LARA-R2 series - System Integration Manual

1.14 System features

1.14.1 Network indication

GPIOs can be configured by the AT command to indicate network status (for further details see section 1.12 and to u-blox AT Commands Manual [2], GPIO commands):

 No service (no network coverage or not registered)  Registered 2G / 3G / LTE home network  Registered 2G / 3G / LTE visitor network (roaming)  Call enabled (RF data transmission / reception)

1.14.2 Antenna detection

The antenna detection function provided by the ANT_DET pin is based on an ADC measurement as optional feature that can be implemented if the application requires it. The antenna supervisor is forced by the +UANTR AT command (see the u-blox AT Commands Manual [2] for more details).

The requirements to achieve antenna detection functionality are the following:

 an RF antenna assembly with a built-in resistor (diagnostic circuit) must be used  an antenna detection circuit must be implemented on the application board

See section 1.7.2 for detailed antenna detection interface functional description and see section 2.4.2 for detection circuit on application board and diagnostic circuit on antenna assembly design-in guidelines.

1.14.3 Jamming detection

Congestion detection (i.e. jamming detection) is not supported by “02” and “62” product versions.

In real network situations modules can experience various kind of out-of-coverage conditions: limited service conditions when roaming to networks not supporting the specific SIM, limited service in cells which are not suitable or barred due to operators’ choices, no cell condition when moving to poorly served or highly interfered areas. In the latter case, interference can be artificially injected in the environment by a noise generator covering a given spectrum, thus obscuring the operator’s carriers entitled to give access to the LTE/3G/2G service.

The congestion (i.e. jamming) detection feature can be enabled and configured by the +UCD AT command: the feature consists of detecting an anomalous source of interference and signaling the start and stop of such conditions to the host application processor with an unsolicited indication, which can react appropriately by e.g. switching off the radio transceiver of the module (i.e. configuring the module in “airplane mode” by means of the +CFUN AT command) in order to reduce power consumption and monitoring the environment at constant periods (for more details see the u-blox AT Commands Manual [2], +UCD AT command).

UBX-16010573 - R08 System description

Page 57 of 155

LARA-R2 series - System Integration Manual

1.14.4 Dual stack IPv4/IPv6

LARA-R2 series support both Internet Protocol version 4 and Internet Protocol version 6 in parallel. For more details about dual stack IPv4/IPv6 see the u-blox AT Commands Manual [2].

1.14.5 TCP/IP and UDP/IP

LARA-R2 series modules provide embedded TCP/IP and UDP/IP protocol stack: a PDP context can be configured, established and handled via the data connection management packet switched data commands.

LARA-R2 series modules provide Direct Link mode to establish a transparent end-to-end communication with an already connected TCP or UDP socket via serial interfaces. In Direct Link mode, data sent to the serial interface from an external application processor is forwarded to the network and vice-versa.

For more details about embedded TCP/IP and UDP/IP functionalities see the u-blox AT Commands Manual [2]

1.14.6 FTP

LARA-R2 series provide embedded File Transfer Protocol (FTP) services. Files are read and stored in the local file system of the module.

FTP files can also be transferred using FTP Direct Link:

 FTP download: data coming from the FTP server is forwarded to the host processor via serial interfaces (for

FTP without Direct Link mode the data is always stored in the module’s Flash File System)

 FTP upload: data coming from the host processor via serial interfaces is forwarded to the FTP server (for FTP

without Direct Link mode the data is read from the module’s Flash File System)

When Direct Link is used for a FTP file transfer, only the file content pass through USB / UART serial interface, whereas all the FTP commands handling is managed internally by the FTP application.

For more details about embedded FTP functionalities see u-blox AT Commands Manual [2].

1.14.7 HTTP

LARA-R2 series modules provide the embedded Hyper-Text Transfer Protocol (HTTP) services via AT commands for sending requests to a remote HTTP server, receiving the server response and transparently storing it in the module’s Flash File System (FFS).

For more details about embedded HTTP functionalities see the u-blox AT Commands Manual [2].

UBX-16010573 - R08 System description

Page 58 of 155

LARA-R2 series - System Integration Manual

Settings

Value

Meaning

Certificates validation level

Level 0

The server certificate will not be checked or verified

Minimum SSL/TLS version

Any

The server can use any of the TLS1.0/TLS1.1/TLS1.2 versions for the connection

Cipher suite

Automatic

The cipher suite will be negotiated in the handshake process

Trusted root certificate internal name

None

No certificate will be used for the server authentication

Expected server host-name

None

No server host-name is expected

Client certificate internal name

None

No client certificate will be used

Client private key internal name

None

No client private key will be used

Client private key password

None

No client private key password will be used

Pre-shared key

None

No pre-shared key password will be used

SSL/TLS Version

SSL 2.0

SSL 3.0

YES

TLS 1.0

YES

TLS 1.1

YES

TLS 1.2

YES

Algorithm

RSA YES

PSK YES

Algorithm

RC4 NO

DES YES

3DES

YES

AES128

YES

AES256

YES

1.14.8 SSL/TLS

LARA-R2 series modules support the Secure Sockets Layer (SSL) / Transport Layer Security (TLS) with certificate key sizes up to 4096 bits to provide security over the FTP and HTTP protocols.

The SSL/TLS support provides different connection security aspects:

 Server authentication: use of the server certificate verification against a specific trusted certificate or a

trusted certificates list

 Client authentication: use of the client certificate and the corresponding private key  Data security and integrity: data encryption and Hash Message Authentication Code (HMAC) generation

The security aspects used during a connection depend on the SSL/TLS configuration and features supported. Table 13 contains the settings of the default SSL/TLS profile and Table 14 to Table 18 report the main SSL/TLS

supported capabilities of the products. For a complete list of supported configurations and settings see the u-blox AT Commands Manual [2].

Table 13: Default SSL/TLS profile

Table 14: SSL/TLS version support

Table 15: Authentication

Table 16: Encryption

UBX-16010573 - R08 System description

Page 59 of 155

Algorithm

MD5 NO

SHA/SHA1

YES

SHA256

YES

SHA384

YES

Table 17: Message digest

Description

Registry value

TLS_RSA_WITH_AES_128_CBC_SHA

0x00,0x2F

YES

TLS_RSA_WITH_AES_128_CBC_SHA256

0x00,0x3C

YES

TLS_RSA_WITH_AES_256_CBC_SHA

0x00,0x35

YES

TLS_RSA_WITH_AES_256_CBC_SHA256

0x00,0x3D

YES

TLS_RSA_WITH_3DES_EDE_CBC_SHA

0x00,0x0A

YES

TLS_RSA_WITH_RC4_128_MD5

0x00,0x04

TLS_RSA_WITH_RC4_128_SHA

0x00,0x05

TLS_PSK_WITH_AES_128_CBC_SHA

0x00,0x8C

YES

TLS_PSK_WITH_AES_256_CBC_SHA

0x00,0x8D

YES

TLS_PSK_WITH_3DES_EDE_CBC_SHA

0x00,0x8B

YES

TLS_RSA_PSK_WITH_AES_128_CBC_SHA

0x00,0x94

YES

TLS_RSA_PSK_WITH_AES_256_CBC_SHA

0x00,0x95

YES

TLS_RSA_PSK_WITH_3DES_EDE_CBC_SHA

0x00,0x93

YES

TLS_PSK_WITH_AES_128_CBC_SHA256

0x00,0xAE

YES

TLS_PSK_WITH_AES_256_CBC_SHA384

0x00,0xAF

YES

TLS_RSA_PSK_WITH_AES_128_CBC_SHA256

0x00,0xB6

YES

TLS_RSA_PSK_WITH_AES_256_CBC_SHA384

0x00,0xB7

YES

LARA-R2 series - System Integration Manual

Table 18: TLS cipher suite registry

1.14.9 Bearer Independent Protocol

The Bearer Independent Protocol (BIP) is a mechanism by which a cellular module provides a SIM with access to the data bearers supported by the network. With the BIP for Over-the-Air SIM provisioning, the data transfer from and to the SIM uses either an already active PDP context or a new PDP context established with the APN provided by the SIM card. For more details, see the u-blox AT Commands Manual [2].

1.14.10 AssistNow clients and GNSS integration

AssistNow clients and u-blox GNSS receiver integration are not supported by the LARA-R204-02B and

LARA-R211-02B product versions.

For customers using u-blox GNSS receivers, the LARA-R2 series cellular modules feature embedded AssistNow clients. AssistNow A-GPS provides better GNSS performance and faster Time-To-First-Fix. The clients can be enabled and disabled with an AT command (see the u-blox AT Commands Manual [2]).

LARA-R2 series cellular modules act as a stand-alone AssistNow client, making AssistNow available with no additional requirements for resources or software integration on an external host micro controller. Full access to u-blox positioning receivers is available via the cellular modules, through a dedicated DDC (I2C) interface, while the available GPIOs can handle the positioning chipset / module power-on/off. This means that the cellular module and the GNSS receiver can be controlled through a single serial port from any host processor.

UBX-16010573 - R08 System description

Page 60 of 155

LARA-R2 series - System Integration Manual

1.14.11 Hybrid positioning and CellLocate

Hybrid positioning and CellLocate

are not supported by LARA-R204-02B and LARA-R211-02B product

versions.

Although GNSS is a widespread technology, its reliance on the visibility of extremely weak GNSS satellite signals means that positioning is not always possible. Especially difficult environments for GNSS are indoors, in enclosed or underground parking garages, as well as in urban canyons where GNSS signals are blocked or jammed by multipath interference. The situation can be improved by augmenting GNSS receiver data with cellular network information to provide positioning information even when GNSS reception is degraded or absent. This additional information can benefit numerous applications.

Positioning through cellular information: CellLocate®

u-blox CellLocate® enables the device position estimation based on the parameters of the mobile network cells visible to the specific device. To estimate its position the u-blox cellular module sends the CellLocate® server the parameters of network cells visible to it using a UDP connection. In return the server provides the estimated position based on the CellLocate® database. The module can either send the parameters of the visible home network cells only (normal scan) or the parameters of all surrounding cells of all mobile operators (deep scan).

The deep scan is not supported by “02” product versions.

The CellLocate® database is compiled from the position of devices which observed, in the past, a specific cell or set of cells (historical observations) as follows:

1. Several devices reported their position to the CellLocate

picture represent the position of the devices which observed the same cell A)

server when observing a specific cell (the As in the

UBX-16010573 - R08 System description

Page 61 of 155

LARA-R2 series - System Integration Manual

2. CellLocate

server defines the area of Cell A visibility

3. If a new device reports the observation of Cell A CellLocate

the area of visibility

is able to provide the estimated position from

4. The visibility of multiple cells provides increased accuracy based on the intersection of areas of visibility.

CellLocate® is implemented using a set of two AT commands that allow configuration of the CellLocate® service (AT+ULOCCELL) and requesting position according to the user configuration (AT+ULOC). The answer is provided in the form of an unsolicited AT command including latitude, longitude and estimated accuracy.

The accuracy of the position estimated by CellLocate

depends on the availability of historical observations

in the specific area.

UBX-16010573 - R08 System description

Page 62 of 155

LARA-R2 series - System Integration Manual

Hybrid positioning

With u-blox hybrid positioning technology, u-blox cellular modules can be triggered to provide their current position using either a u-blox GNSS receiver or the position estimated from CellLocate®. The choice depends on which positioning method provides the best and fastest solution according to the user configuration, exploiting the benefit of having multiple and complementary positioning methods.

Hybrid positioning is implemented through a set of three AT commands that allow GNSS receiver configuration (AT+ULOCGNSS), CellLocate® service configuration (AT+ULOCCELL), and requesting the position according to the user configuration (AT+ULOC). The answer is provided in the form of an unsolicited AT command including latitude, longitude and estimated accuracy (if the position has been estimated by CellLocate®), and additional parameters if the position has been computed by the GNSS receiver.

The configuration of mobile network cells does not remain static (e.g. new cells are continuously added or existing cells are reconfigured by the network operators). For this reason, when a hybrid positioning method has been triggered and the GNSS receiver calculates the position, a database self-learning mechanism has been implemented so that these positions are sent to the server to update the database and maintain its accuracy.

The use of hybrid positioning requires a connection via the DDC (I2C) bus between the cellular modules and the u-blox GNSS receiver (see section 2.6.4).

See GNSS Implementation Application Note [22] for the complete description of the feature.

u-blox is extremely mindful of user privacy. When a position is sent to the CellLocate

unable to track the SIM used or the specific device.

server u-blox is

1.14.12 Wi-Fi integration

Integration of u-blox short range communication Wi-Fi modules is not supported by the “02” and “62”

product versions.

Full access to u-blox short range communication Wi-Fi modules is available through a dedicated SDIO interface (see sections 1.9.5 and 2.6.5). This means that combining a LARA-R2 series cellular module with a u-blox short range communication module gives designers full access to the Wi-Fi module directly via the cellular module, so that a second interface connected to the Wi-Fi module is not necessary.

AT commands via the AT interfaces of the cellular module (UART, USB) allows a full control of the Wi-Fi module from any host processor, because Wi-Fi control messages are relayed to the Wi-Fi module via the dedicated SDIO interface.

All the management software for Wi-Fi module operations runs inside the cellular module in addition to those required for cellular-only operation.

1.14.13 Firmware upgrade Over AT (FOAT)

This feature allows upgrading the module firmware over USB / UART serial interfaces, using AT commands.

 The +UFWUPD AT command triggers a reboot followed by the upgrade procedure at specified a baud rate  A special boot loader on the module performs firmware installation, security verifications and module reboot  Firmware authenticity verification is performed via a security signature during the download. The firmware is

then installed, overwriting the current version. In case of power loss during this phase, the boot loader detects a fault at the next wake-up, and restarts the firmware download. After completing the upgrade, the module is reset again and wakes-up in normal boot

For more details about Firmware update Over AT procedure see the Firmware Update Application Note [23] and the u-blox AT Commands Manual [2], +UFWUPD AT command.

UBX-16010573 - R08 System description

Page 63 of 155

LARA-R2 series - System Integration Manual

Warning

area

-1

-2

Valid temperature range

Safe

area

Dangerous

area

Dangerous

area

Warning

area

1.14.14 Firmware update Over The Air (FOTA)

This feature allows upgrading the module firmware over the LTE/3G/2G air interface. In order to reduce the amount of data to be transmitted over the air, the implemented FOTA feature requires

downloading only a “delta file” instead of the full firmware. The delta file contains only the differences between the two firmware versions (old and new), and is compressed. The firmware update procedure can be triggered using dedicated AT command with the delta file stored in the module file system via over the air FTP.

For more details about Firmware update Over The Air procedure see the Firmware Update Application Note [23] and the u-blox AT Commands Manual [2], +UFWINSTALL AT command.

1.14.15 Smart temperature management

Cellular modules – independently from the specific model – always have a well-defined operating temperature range. This range should be respected to guarantee full device functionality and long life span.

Nevertheless there are environmental conditions that can affect operating temperature, e.g. if the device is located near a heating/cooling source, if there is/is not air circulating, etc.

The module itself can also influence the environmental conditions; such as when it is transmitting at full power. In this case its temperature increases very quickly and can raise the temperature nearby.

The best solution is always to properly design the system where the module is integrated. Nevertheless an extra check/security mechanism embedded into the module is a good solution to prevent operation of the device outside of the specified range.

Smart Temperature Supervisor (STS)

The Smart Temperature Supervisor is activated and configured by a dedicated AT+USTS command. See u-blox AT Commands Manual [2] for more details. An URC indication is provided once the feature is enabled and at the

module power on. The cellular module measures the internal temperature (Ti) and its value is compared with predefined thresholds

to identify the actual working temperature range.

Temperature measurement is done inside the module: the measured value could be different from the

environmental temperature (Ta).

Figure 25: Temperature range and limits

The entire temperature range is divided into sub-regions by limits (see Figure 25) named t-2, t-1, t+1 and t+2.

 Within the first limit, (t  In the Warning Area, (t

range, but the measured temperature is approaching the limit (upper or lower). The module sends a warning to the user (through the active AT communication interface), which can take, if possible, the necessary actions to return to a safer temperature range or simply ignore the indication. The module is still in a valid and good working condition

< Ti < t+1), the cellular module is in the normal working range, the Safe Area

-1

< Ti < t.1) or (t+1 < Ti < t+2), the cellular module is still inside the valid temperature

-2

UBX-16010573 - R08 System description

Page 64 of 155

LARA-R2 series - System Integration Manual

IF STS

enabled

Read

temperature

(t-1<Ti<t+1)

(t-2<Ti<t+2)

Send

notification

(warning)

Send

notification

(dangerous)

Wait emergency

call termination

emerg.

call in

progress

Shut the device

down

Yes

Send

shutdown

notification

Feature enabled (full logic or

indication only)

Full Logic

Enabled

Feature disabled:

no action

Temperature is within normal operating range

Yes

Tempetature is within warning area

Tempetature is outside valid temperature range

Feature enabled in full logic mode

Feature enabled in indication only mode: no further actions

Send

notification

(safe)

Previously outside of Safe Area

Tempetature is back to safe area

No further actions

Yes

 Outside the valid temperature range, (Ti < t

) or (Ti > t+2), the device is working outside the specified range

-2

and represents a dangerous working condition. This condition is indicated and the device shuts down to avoid damage

For security reasons the shutdown is suspended in case an emergency call is in progress. In this case the

device switches off at call termination.

The user can decide at anytime to enable/disable the Smart Temperature Supervisor feature. If the feature

is disabled there is no embedded protection against disallowed temperature conditions.

Figure 26 shows the flow diagram implemented for the Smart Temperature Supervisor.

Figure 26: Smart Temperature Supervisor (STS) flow diagram

UBX-16010573 - R08 System description

Page 65 of 155

LARA-R2 series - System Integration Manual

Symbol

Parameter

Temperature

t-2

Low temperature shutdown

–40 °C

t-1

Low temperature warning

–30 °C

t+1

High temperature warning

+77 °C

t+2

High temperature shutdown

+97 °C

Threshold definitions

When the application of cellular module operates at extreme temperatures with Smart Temperature Supervisor enabled, the user should note that outside the valid temperature range the device will automatically shut down as described above.

The input for the algorithm is always the temperature measured within the cellular module (Ti, internal). This value can be higher than the working ambient temperature (Ta, ambient), since (for example) during transmission at maximum power a significant fraction of DC input power is dissipated as heat. This behavior is partially compensated by the definition of the upper shutdown threshold (t+2) that is slightly higher than the declared environmental temperature limit.

The temperature thresholds are defined according the Table 19.

Table 19: Thresholds definition for Smart Temperature Supervisor

The sensor measures board temperature inside the shields, which can differ from ambient temperature.

1.14.16 Power Saving

The power saving configuration is by default disabled, but it can be enabled using the AT+UPSV command (for the complete description of the AT+UPSV command, see the u-blox AT Commands Manual [2]).

When power saving is enabled, the module automatically enters the low power idle-mode whenever possible, reducing current consumption (see section 1.5.1.5, LARA-R2 series Data Sheet [1]).

During the low power idle-mode, the module is temporarily not ready to communicate with an external device, as it is configured to reduce power consumption. The module wakes up from low power idle-mode to activemode in the following events:

 Automatic periodic monitoring of the paging channel for the paging block reception according to network

conditions (see 1.5.1.5, 1.9.1.4)

 Automatic periodic enable of the UART interface to receive / send data, with AT+UPSV=1 (see 1.9.1.4)  RTS input set ON by the host DTE, with HW flow control disabled and AT+UPSV=2 (see 1.9.1.4)  DTR input set ON by the host DTE, with AT+UPSV=3 (see 1.9.1.4)  USB detection, applying 5 V (typ.) to VUSB_DET input (see 1.9.2)  The connected USB host forces a remote wakeup of the module as USB device (see 1.9.2.4)  The connected u-blox GNSS receiver forces a wakeup of the cellular module using the GNSS Tx data ready

function over GPIO3 (see 1.9.4)

 The connected SDIO device forces a wakeup of the module as SDIO host (see 1.9.5)  A preset RTC alarm occurs (see u-blox AT Commands Manual [2], AT+CALA)

For the definition and the description of LARA-R2 series modules operating modes, including the events forcing transitions between the different operating modes, see the section 1.4.

UBX-16010573 - R08 System description

Page 66 of 155

LARA-R2 series - System Integration Manual

2 Design-in

2.1 Overview

For an optimal integration of LARA-R2 series modules in the final application board follow the design guidelines stated in this section.

Every application circuit must be properly designed to guarantee the correct functionality of the related interface, however a number of points require higher attention during the design of the application device.

The following list provides a ranking of importance in the application design, starting from the highest relevance:

1. Module antenna connection: ANT1, ANT2 and ANT_DET pins.

Antenna circuit directly affects the RF compliance of the device integrating a LARA-R2 series module with the applicable certification schemes. Very carefully follow the suggestions provided in section 2.4 for schematic and layout design.

2. Module supply: VCC and GND pins.

The supply circuit affects the RF compliance of the device integrating a LARA-R2 series module with applicable certification schemes as well as antenna circuit design. Very carefully follow the suggestions provided in section 2.2.1 for schematic and layout design.

3. USB interface: USB_D+, USB_D- and VUSB_DET pins.

Accurate design is required to guarantee USB 2.0 high-speed interface functionality. Carefully follow the suggestions provided in the related section 2.6.1 for schematic and layout design.

4. SIM interface: VSIM, SIM_CLK, SIM_IO, SIM_RST, SIM_DET pins.

Accurate design is required to guarantee SIM card functionality and compliance with applicable conformance standards, reducing also the risk of RF coupling. Carefully follow the suggestions provided in section 2.5 for schematic and layout design.

5. HSIC interface: HSIC_DATA, HSIC_STRB pins.

Accurate design is required to guarantee HSIC interface functionality. Carefully follow the suggestions provided in the relative section 2.6.3 for schematic and layout design.

6. SDIO interface: SDIO_D0, SDIO_D1, SDIO_D2, SDIO_D3, SDIO_CLK, SDIO_CMD pins.

Accurate design is required to guarantee SDIO interface functionality. Carefully follow the suggestions provided in the relative section 2.6.5 for schematic and layout design.

7. System functions: RESET_N, PWR_ON pins.

Accurate design is required to guarantee that the voltage level is well defined during operation. Carefully follow the suggestions provided in section 2.3 for schematic and layout design.

8. Other digital interfaces: UART, I

Accurate design is required to guarantee proper functionality and reduce the risk of digital data frequency harmonics coupling. Follow the suggestions provided in sections 2.6.1, 2.6.4, 2.7.1, 2.3.3, 2.8 and 2.9 for schematic and layout design.

9. Other supplies: the V_BCKP RTC supply input/output and the V_INT digital interfaces supply output.

Accurate design is required to guarantee proper functionality. Follow the suggestions provided in sections

2.2.2 and 2.2.3 for schematic and layout design.

It is recommended to follow the specific design guidelines provided by each manufacturer of any external

part selected for the application board integrating the u-blox cellular modules.

C, I2S, Host Select, GPIOs, and Reserved pins.

UBX-16010573 - R08 Design-in

Page 67 of 155

LARA-R2 series - System Integration Manual

Main Supply

Available?

Battery

Li-Ion 3.7 V

Linear LDO

Regulator

Main Supply

Voltage > 5V?

Switching Step-Down

Regulator

No, portable device

No, less than 5 V

Yes, greater than 5 V

Yes, always available

2.2 Supply interfaces

2.2.1 Module supply (VCC)

2.2.1.1 General guidelines for VCC supply circuit selection and design

All the available VCC pins have to be connected to the external supply minimizing the power loss due to series resistance.

GND pins are internally connected but connect all the available pins to solid ground on the application board, since a good (low impedance) connection to external ground can minimize power loss and improve RF and thermal performance.

LARA-R2 series modules must be supplied through the VCC pins by a proper DC power supply that should comply with the module VCC requirements summarized in Table 6.

The proper DC power supply can be selected according to the application requirements (see Figure 27) between the different possible supply sources types, which most common ones are the following:

 Switching regulator  Low Drop-Out (LDO) linear regulator  Rechargeable Lithium-ion (Li-Ion) or Lithium-ion polymer (Li-Pol) battery  Primary (disposable) battery

Figure 27: VCC supply concept selection

The DC/DC switching step-down regulator is the typical choice when the available primary supply source has a nominal voltage much higher (e.g. greater than 5 V) than the modules VCC operating supply voltage. The use of switching step-down provides the best power efficiency for the overall application and minimizes current drawn from the main supply source. See sections 2.2.1.2 and 2.2.1.6, 0, 2.2.1.12 for specific design-in.

The use of an LDO linear regulator becomes convenient for a primary supply with a relatively low voltage (e.g. less than 5 V). In this case the typical 90% efficiency of the switching regulator diminishes the benefit of voltage step-down and no true advantage is gained in input current savings. On the opposite side, linear regulators are not recommended for high voltage step-down as they dissipate a considerable amount of energy in thermal power. See sections 2.2.1.3 and 2.2.1.6, 0, 2.2.1.12 for specific design-in.

If LARA-R2 series modules are deployed in a mobile unit where no permanent primary supply source is available, then a battery will be required to provide VCC. A standard 3-cell Li-Ion or Li-Pol battery pack directly connected to VCC is the usual choice for battery-powered devices. During charging, batteries with Ni-MH chemistry typically reach a maximum voltage that is above the maximum rating for VCC, and should therefore be avoided. See sections 2.2.1.4, 2.2.1.6, 2.2.1.7, 0, 2.2.1.12 for specific design-in.

Keep in mind that the use of rechargeable batteries requires the implementation of a suitable charger circuit which is not included in the modules. The charger circuit has to be designed to prevent over-voltage on VCC pins, and it should be selected according to the application requirements: a DC/DC switching charger is the typical choice when the charging source has an high nominal voltage (e.g. ~12 V), whereas a linear charger is

UBX-16010573 - R08 Design-in

Page 68 of 155

LARA-R2 series - System Integration Manual

the typical choice when the charging source has a relatively low nominal voltage (~5 V). If both a permanent primary supply / charging source (e.g. ~12 V) and a rechargeable back-up battery (e.g. 3.7 V Li-Pol) are available at the same time as possible supply source, then a proper charger / regulator with integrated power path management function can be selected to supply the module while simultaneously and independently charging the battery. See sections 2.2.1.8, 2.2.1.9, and 2.2.1.4, 2.2.1.6, 2.2.1.7, 0, 2.2.1.12 for specific design-in.

An appropriate primary (not rechargeable) battery can be selected taking into account the maximum current specified in LARA-R2 series Data Sheet [1] during connected-mode, considering that primary cells might have weak power capability. See sections 2.2.1.5, 2.2.1.6, 0, and 2.2.1.12 for specific design-in.

The usage of more than one DC supply at the same time should be carefully evaluated: depending on the supply source characteristics, different DC supply systems can result as mutually exclusive.

The usage of a regulator or a battery not able to support the highest peak of VCC current consumption specified in the LARA-R2 series Data Sheet [1] is generally not recommended. However, if the selected regulator or battery is not able to support the highest peak current of the module, it must be able to support with adequate margin at least the highest averaged current consumption value specified in the LARA-R2 series Data Sheet [1]. The additional energy required by the module during a 2G Tx slot can be provided by an appropriate bypass tank capacitor or super-capacitor with very large capacitance and very low ESR placed close to the module VCC pins. Depending on the actual capability of the selected regulator or battery, the required capacitance can be considerably larger than 1 mF and the required ESR can be in the range of few tens of m. Carefully evaluate the super-capacitor characteristics since aging and temperature may affect the actual characteristics.

The following sections highlight some design aspects for each of the supplies listed above providing application circuit design-in compliant with the module VCC requirements summarized in Table 6.

2.2.1.2 Guidelines for VCC supply circuit design using a switching regulator

The use of a switching regulator is suggested when the difference from the available supply rail to the VCC value is high: switching regulators provide good efficiency transforming a 12 V or greater voltage supply to the typical

3.8 V value of the VCC supply. The characteristics of the switching regulator connected to VCC pins should meet the following prerequisites to

comply with the module VCC requirements summarized in Table 6:

 Power capability: the switching regulator with its output circuit must be capable of providing a voltage

value to the VCC pins within the specified operating range and must be capable of delivering to VCC pins the specified maximum peak / pulse current consumption during Tx burst at maximum Tx power specified in LARA-R2 series Data Sheet [1]

 Low output ripple: the switching regulator together with its output circuit must be capable of providing a

clean (low noise) VCC voltage profile.

 High switching frequency: for best performance and for smaller applications it is recommended to select a

switching frequency ≥ 600 kHz (since L-C output filter is typically smaller for high switching frequency). The use of a switching regulator with a variable switching frequency or with a switching frequency lower than 600 kHz must be carefully evaluated since this can produce noise in the VCC voltage profile and therefore negatively impact modulation spectrum performance.

 PWM mode operation: it is preferable to select regulators with Pulse Width Modulation (PWM) mode.

While in connected-mode, the Pulse Frequency Modulation (PFM) mode and PFM/PWM modes transitions must be avoided to reduce noise on VCC voltage profile. Switching regulators can be used that are able to switch between low ripple PWM mode and high ripple PFM mode, provided that the mode transition occurs when the module changes status from the idle/active-modes to connected-mode. It is permissible to use a regulator that switches from the PWM mode to the burst or PFM mode at an appropriate current threshold.

 Output voltage slope: the use of the soft start function provided by some voltage regulators should be

carefully evaluated, as the VCC voltage must ramp from 2.3 V to 2.8 V in less than 4 ms to switch on the module by applying VCC supply. The module can be otherwise switched on by forcing a low level on the RESET_N pin during the VCC rising edge and then releasing the RESET_N pin when the VCC supply voltage stabilizes at its proper nominal value.

UBX-16010573 - R08 Design-in

Page 69 of 155

LARA-R2 series - System Integration Manual

LARA-R2 series

12V

C2C1

VIN

RUN

SYNC

BOOST

GND

C7 C8

VCC

GND

Reference

Description

Part Number - Manufacturer

10 µF Capacitor Ceramic X7R 5750 15% 50 V

C5750X7R1H106MB - TDK

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

680 pF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71H681KA01 - Murata

22 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1H220JZ01 - Murata

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

470 nF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E474KA12 - Murata

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

Schottky Diode 40 V 3 A

MBRA340T3G - ON Semiconductor

10 µH Inductor 744066100 30% 3.6 A

744066100 - Wurth Electronics

470 k Resistor 0402 5% 0.1 W

2322-705-87474-L - Yageo

15 k Resistor 0402 5% 0.1 W

2322-705-87153-L - Yageo

22 k Resistor 0402 5% 0.1 W

2322-705-87223-L - Yageo

390 k Resistor 0402 1% 0.063 W

RC0402FR-07390KL - Yageo

100 k Resistor 0402 5% 0.1 W

2322-705-70104-L - Yageo

Step-Down Regulator MSOP10 3.5 A 2.4 MHz

LT3972IMSE#PBF - Linear Technology

Figure 28 and the components listed in Table 20 show an example of a high reliability power supply circuit, where the module VCC is supplied by a step-down switching regulator capable of delivering to VCC pins the specified maximum peak / pulse current, with low output ripple and with fixed switching frequency in PWM mode operation greater than 1 MHz.

Figure 28: Example of high reliability VCC supply application circuit using a step-down regulator

Table 20: Components for high reliability VCC supply application circuit circuit using a step-down regulator

UBX-16010573 - R08 Design-in

Page 70 of 155

LARA-R2 series - System Integration Manual

LARA-R2 series

12V

C6C1

VCC

INH

FSW

SYNC

OUT

GND

COMP

VCC

Reference

Description

Part Number - Manufacturer

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 – Murata

100 µF Capacitor Tantalum B_SIZE 20% 6.3V 15m

T520B107M006ATE015 – Kemet

5.6 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H562KA88 – Murata

6.8 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H682KA88 – Murata

56 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H560JA01 – Murata

220 nF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E224KA88 – Murata

Schottky Diode 25V 2 A

STPS2L25 – STMicroelectronics

5.2 µH Inductor 30% 5.28A 22 m

MSS1038-522NL – Coilcraft

4.7 k Resistor 0402 1% 0.063 W

RC0402FR-074K7L – Yageo

910  Resistor 0402 1% 0.063 W

RC0402FR-07910RL – Yageo

82  Resistor 0402 5% 0.063 W

RC0402JR-0782RL – Yageo

8.2 k Resistor 0402 5% 0.063 W

RC0402JR-078K2L – Yageo

39 k Resistor 0402 5% 0.063 W

RC0402JR-0739KL – Yageo

Step-Down Regulator 8-VFQFPN 3 A 1 MHz

L5987TR – ST Microelectronics

Figure 29 and the components listed in Table 21 show an example of a low cost power supply circuit, where the VCC module supply is provided by a step-down switching regulator capable of delivering to VCC pins the specified maximum peak / pulse current, transforming a 12 V supply input.

Figure 29: Example of low cost VCC supply application circuit using step-down regulator

Table 21: Components for low cost VCC supply application circuit using a step-down regulator

UBX-16010573 - R08 Design-in

Page 71 of 155

LARA-R2 series - System Integration Manual

IN OUT

ADJ

GND

C2R1

SHDN

LARA-R2 series

VCC

GND

Reference

Description

Part Number - Manufacturer

C1, C2

10 µF Capacitor Ceramic X5R 0603 20% 6.3 V

GRM188R60J106ME47 - Murata

9.1 k Resistor 0402 5% 0.1 W

RC0402JR-079K1L - Yageo Phycomp

3.9 k Resistor 0402 5% 0.1 W

RC0402JR-073K9L - Yageo Phycomp

LDO Linear Regulator ADJ 3.0 A

LT1764AEQ#PBF - Linear Technology

2.2.1.3 Guidelines for VCC supply circuit design using a Low Drop-Out (LDO) linear regulator

The use of a linear regulator is suggested when the difference from the available supply rail and the VCC value is low: linear regulators provide high efficiency when transforming a 5 V supply to a voltage value within the module VCC normal operating range.

The characteristics of the LDO linear regulator connected to the VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 6:

 Power capabilities: the LDO linear regulator with its output circuit must be capable of providing a voltage

value to the VCC pins within the specified operating range and must be capable of delivering to VCC pins the maximum peak / pulse current consumption during Tx burst at maximum Tx power specified in LARA-R2 series Data Sheet [1].

 Power dissipation: the power handling capability of the LDO linear regulator must be checked to limit its

junction temperature to the maximum rated operating range (i.e. check the voltage drop from the max input voltage to the min output voltage to evaluate the power dissipation of the regulator).

 Output voltage slope: the use of the soft start function provided by some voltage regulators should be

Figure 30 and the components listed in Table 22 show an example of a high reliability power supply circuit, where the VCC module supply is provided by an LDO linear regulator capable of delivering the specified highest peak / pulse current, with proper power handling capability. The regulator described in this example supports a wide input voltage range, and it includes internal circuitry for reverse battery protection, current limiting, thermal limiting and reverse current protection.

It is recommended to configure the LDO linear regulator to generate a voltage supply value slightly below the maximum limit of the module VCC normal operating range (e.g. ~4.1 V as in the circuit described in Figure 30 and Table 22). This reduces the power on the linear regulator and improves the whole thermal design of the supply circuit.

Figure 30: Example of high reliability VCC supply application circuit using an LDO linear regulator

Table 22: Components for high reliability VCC supply application circuit using an LDO linear regulator

UBX-16010573 - R08 Design-in

Page 72 of 155

LARA-R2 series - System Integration Manual

IN OUT

ADJ

GND

C2R1

LARA-R2 series

VCC

GND

Reference

Description

Part Number - Manufacturer

C1, C2

10 µF Capacitor Ceramic X5R 0603 20% 6.3 V

GRM188R60J106ME47 - Murata

27 k Resistor 0402 5% 0.1 W

RC0402JR-0727KL - Yageo Phycomp

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

LDO Linear Regulator ADJ 3.0 A

LP38501ATJ-ADJ/NOPB - Texas Instrument

Figure 31 and the components listed in Table 23 show an example of a low cost power supply circuit, where the VCC module supply is provided by an LDO linear regulator capable of delivering the specified highest peak / pulse current, with proper power handling capability. The regulator described in this example supports a limited input voltage range and it includes internal circuitry for current and thermal protection.

It is recommended to configure the LDO linear regulator to generate a voltage supply value slightly below the maximum limit of the module VCC normal operating range (e.g. ~4.1 V as in the circuit described in Figure 31 and Table 23). This reduces the power on the linear regulator and improves the whole thermal design of the supply circuit.

Figure 31: Example of low cost VCC supply application circuit using an LDO linear regulator

Table 23: Components for low cost VCC supply application circuit using an LDO linear regulator

UBX-16010573 - R08 Design-in

Page 73 of 155

LARA-R2 series - System Integration Manual

2.2.1.4 Guidelines for VCC supply circuit design using a rechargeable Li-Ion or Li-Pol battery

Rechargeable Li-Ion or Li-Pol batteries connected to the VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 6:

 Maximum pulse and DC discharge current: the rechargeable Li-Ion battery with its related output circuit

connected to the VCC pins must be capable of delivering a pulse current as the maximum peak / pulse current consumption during Tx burst at maximum Tx power specified in LARA-R2 series Data Sheet [1] and must be capable of extensively delivering a DC current as the maximum average current consumption specified in LARA-R2 series Data Sheet [1]. The maximum discharge current is not always reported in the data sheets of batteries, but the maximum DC discharge current is typically almost equal to the battery capacity in Amp-hours divided by 1 hour.

 DC series resistance: the rechargeable Li-Ion battery with its output circuit must be capable of avoiding a

VCC voltage drop below the operating range summarized in Table 6 during transmit bursts.

2.2.1.5 Guidelines for VCC supply circuit design using a primary (disposable) battery

The characteristics of a primary (non-rechargeable) battery connected to VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 6:

 Maximum pulse and DC discharge current: the non-rechargeable battery with its related output circuit

connected to the VCC pins must be capable of delivering a pulse current as the maximum peak current consumption during Tx burst at maximum Tx power specified in LARA-R2 series Data Sheet [1] and must be capable of extensively delivering a DC current as the maximum average current consumption specified in LARA-R2 series Data Sheet [1]. The maximum discharge current is not always reported in the data sheets of batteries, but the max DC discharge current is typically almost equal to the battery capacity in Amp-hours divided by 1 hour.

 DC series resistance: the non-rechargeable battery with its output circuit must be capable of avoiding a

VCC voltage drop below the operating range summarized in Table 6 during transmit bursts.

UBX-16010573 - R08 Design-in

Page 74 of 155

LARA-R2 series - System Integration Manual

GND

C3 C4

LARA-R2 series

VCC

C1 C6

3V8

Recommended for

cellular modules

supporting 2G

Recommended for

cellular modules

supporting LTE band-7

Reference

Description

Part Number - Manufacturer

8.2 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H8R2DZ01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H150JA01 - Murata

68 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H680JA01 - Murata

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

2.2.1.6 Additional guidelines for VCC supply circuit design

To reduce voltage drops, use a low impedance power source. The series resistance of the power supply lines (connected to the VCC and GND pins of the module) on the application board and battery pack should also be considered and minimized: cabling and routing must be as short as possible to minimize power losses.

Three pins are allocated for VCC supply. Several pins are designated for GND connection. It is recommended to properly connect all of them to supply the module to minimize series resistance losses.

In case of modules supporting 2G radio access technology, to avoid voltage drop undershoot and overshoot at the start and end of a transmit burst during a GSM call (when current consumption on the VCC supply can rise up as specified in the LARA-R2 series Data Sheet [1]), place a bypass capacitor with large capacitance (at least 100 µF) and low ESR near the VCC pins, for example:

 330 µF capacitance, 45 m ESR (e.g. KEMET T520D337M006ATE045, Tantalum Capacitor)

To reduce voltage ripple and noise, improving RF performance especially if the application device integrates an internal antenna, place the following bypass capacitors near the VCC pins:

 68 pF capacitor with Self-Resonant Frequency in 800/900 MHz range (e.g. Murata GRM1555C1E560J)  15 pF capacitor with Self-Resonant Frequency in 1800/1900 MHz range (e.g. Murata GRM1555C1E150J)  8.2 pF capacitor with Self-Resonant Frequency in 2500/2600 MHz range (e.g. Murata GRM1555C1H8R2D)  10 nF capacitor (e.g. Murata GRM155R71C103K) to filter digital logic noise from clocks and data sources  100 nF capacitor (e.g Murata GRM155R61C104K) to filter digital logic noise from clocks and data sources

A suitable series ferrite bead can be properly placed on the VCC line for additional noise filtering if required by the specific application according to the whole application board design.

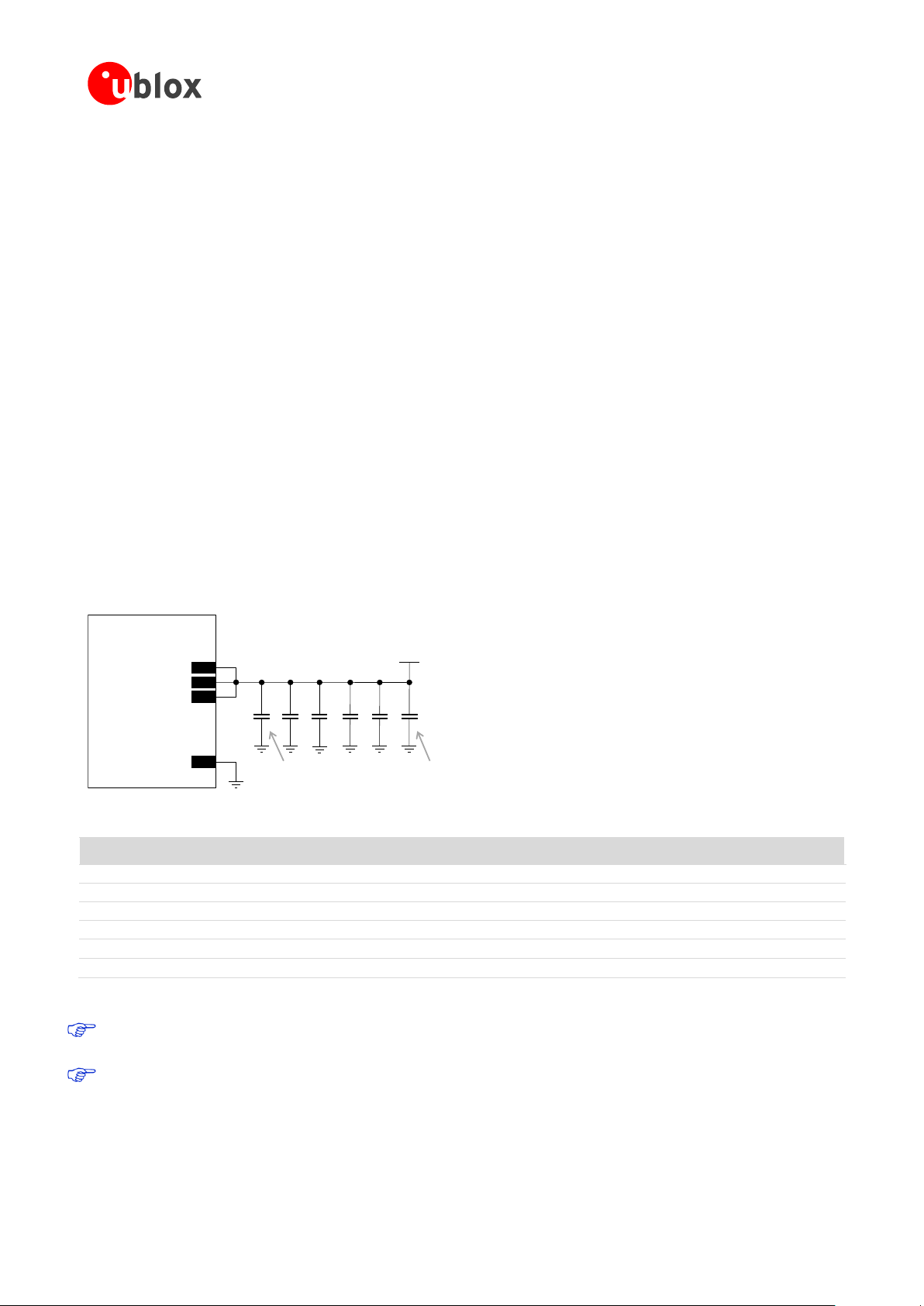

Figure 32: Suggested schematic for the VCC bypass capacitors to reduce ripple / noise on supply voltage profile

Table 24: Suggested components to reduce ripple / noise on VCC

The necessity of each part depends on the specific design, but it is recommended to provide all the bypass ESD sensitivity rating of the VCC supply pins is 1 kV (Human Body Model according to JESD22-A114).

UBX-16010573 - R08 Design-in

Page 75 of 155

capacitors described in Figure 32 / Table 24 if the application device integrates an internal antenna.

Higher protection level can be required if the line is externally accessible on the application board, e.g. if accessible battery connector is directly connected to VCC pins. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

LARA-R2 series - System Integration Manual

C1 C4

GND

C3C2 C6

LARA-R211

VCC

Li-Ion/Li-Pol

Battery

SWVIN

SHDNn

GND

Step-up

Regulator

Reference

Description

Part Number - Manufacturer

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

68 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H680JA01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

8.2 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H8R2DZ01 - Murata

10 µF Capacitor Ceramic X5R 0603 20% 6.3 V

GRM188R60J106ME47 - Murata

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 - Murata

10 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E100JA01 - Murata

Schottky Diode 40 V 1 A

SS14 - Vishay General Semiconductor

10 µH Inductor 20% 1 A 276 m

SRN3015-100M - Bourns Inc.

1 M Resistor 0402 5% 0.063 W

RC0402FR-071ML - Yageo Phycomp

412 k Resistor 0402 5% 0.063 W

RC0402FR-07412KL - Yageo Phycomp

Step-up Regulator 350 mA

AP3015 - Diodes Incorporated

2.2.1.7 Additional guidelines for VCC supply circuit design of LARA-R211 modules

LARA-R211 modules provide separate supply inputs over the VCC pins (see Figure 3):

 VCC pins #52 and #53 represent the supply input for the internal RF power amplifier, demanding most of

the total current drawn of the module when RF transmission is enabled during a voice/data call

 VCC pin #51 represents the supply input for the internal baseband Power Management Unit and the internal

transceiver, demanding minor part of the total current drawn of the module when RF transmission is enabled during a voice/data call

LARA-R211 modules support two different extended operating voltage ranges: one for the VCC pins #52 and #53, and another one for the VCC pin #51 (see the LARA-R2 series Data Sheet [1]).

All the VCC pins are in general intended to be connected to the same external power supply circuit, but separate supply sources can be implemented for specific (e.g. battery-powered) applications considering that the voltage at the VCC pins #52 and #53 can drop to a value lower than the one at the VCC pin #51, keeping the module still switched-on and functional. Figure 33 describes a possible application circuit.

Figure 33: VCC circuit example with separate supply for LARA-R211 modules

Table 25: Example of components for VCC circuit with separate supply for LARA-R211 modules

UBX-16010573 - R08 Design-in

Page 76 of 155

LARA-R2 series - System Integration Manual

C5 C8

GND

C7C6 C9

LARA-R2 series

VCC

USB

Supply

IUSB

IAC

IEND

TPRG

VIN

VINSNS

MODE

ISEL

C2C1

GND

VOUT

VOSNS

VREF

Li-Ion/Li-Pol

Battery Pack

Li-Ion/Li-Polymer Battery Charger IC

C10

Reference

Description

Part Number - Manufacturer

Li-Ion (or Li-Polymer) battery pack with 470  NTC

Various manufacturer

C1, C4

1 µF Capacitor Ceramic X7R 0603 10% 16 V

GRM188R71C105KA12 - Murata

C2, C6

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

1 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H102KA01 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

68 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H680JA01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

C10

8.2 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H8R2DZ01 - Murata

D1, D2

Low Capacitance ESD Protection

CG0402MLE-18G - Bourns

R1, R2

24 k Resistor 0402 5% 0.1 W

RC0402JR-0724KL - Yageo Phycomp

3.3 k Resistor 0402 5% 0.1 W

RC0402JR-073K3L - Yageo Phycomp

1.0 k Resistor 0402 5% 0.1 W

RC0402JR-071K0L - Yageo Phycomp

Single Cell Li-Ion (or Li-Polymer) Battery Charger IC for USB port and AC Adapter

L6924U - STMicroelectronics

2.2.1.8 Guidelines for external battery charging circuit

LARA-R2 series modules do not have an on-board charging circuit. Figure 34 provides an example of a battery charger design, suitable for applications that are battery powered with a Li-Ion (or Li-Polymer) cell.

In the application circuit, a rechargeable Li-Ion (or Li-Polymer) battery cell, that features proper pulse and DC discharge current capabilities and proper DC series resistance, is directly connected to the VCC supply input of the module. Battery charging is completely managed by the STMicroelectronics L6924U Battery Charger IC that, from a USB power source (5.0 V typ.), charges as a linear charger the battery, in three phases:

 Pre-charge constant current (active when the battery is deeply discharged): the battery is charged with a

low current, set to 10% of the fast-charge current

 Fast-charge constant current: the battery is charged with the maximum current, configured by the value

of an external resistor to a value suitable for USB power source (~500 mA)

 Constant voltage: when the battery voltage reaches the regulated output voltage (4.2 V), the L6924U

starts to reduce the current until the charge termination is done. The charging process ends when the charging current reaches the value configured by an external resistor to ~15 mA or when the charging timer reaches the value configured by an external capacitor to ~9800 s

Using a battery pack with an internal NTC resistor, the L6924U can monitor the battery temperature to protect the battery from operating under unsafe thermal conditions.

The L6924U, as linear charger, is more suitable for applications where the charging source has a relatively low nominal voltage (~5 V), so that a switching charger is suggested for applications where the charging source has a relatively high nominal voltage (e.g. ~12 V, see the following section 2.2.1.9 for specific design-in).

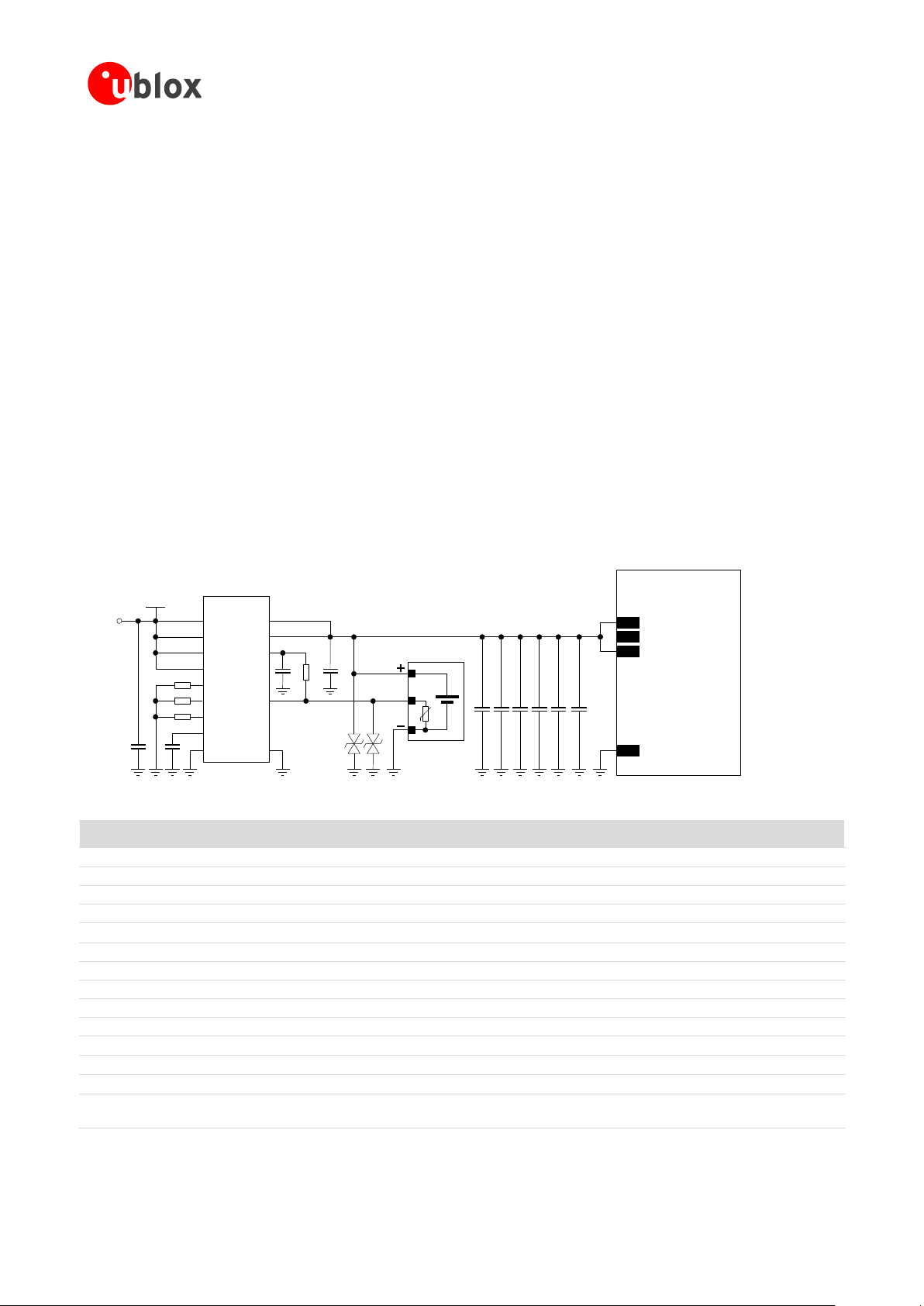

Figure 34: Li-Ion (or Li-Polymer) battery charging application circuit

Table 26: Suggested components for Li-Ion (or Li-Polymer) battery charging application circuit

UBX-16010573 - R08 Design-in

Page 77 of 155

LARA-R2 series - System Integration Manual

GND

Power path management IC

VoutVin

Li-Ion/Li-Pol

Battery Pack

GND

System

12 V

Primary

Source

Charge

controller

DC/DC converter

and battery FET

control logic

Vbat

2.2.1.9 Guidelines for external battery charging and power path management circuit

Application devices where both a permanent primary supply / charging source (e.g. ~12 V) and a rechargeable back-up battery (e.g. 3.7 V Li-Pol) are available at the same time as possible supply source should implement a suitable charger / regulator with integrated power path management function to supply the module and the whole device while simultaneously and independently charging the battery.

Figure 35 reports a simplified block diagram circuit showing the working principle of a charger / regulator with integrated power path management function. This component allows the system to be powered by a permanent primary supply source (e.g. ~12 V) using the integrated regulator which simultaneously and independently recharges the battery (e.g. 3.7 V Li-Pol) that represents the back-up supply source of the system: the power path management feature permits the battery to supplement the system current requirements when the primary supply source is not available or cannot deliver the peak system currents.

A power management IC should meet the following prerequisites to comply with the module VCC requirements summarized in Table 6:

 High efficiency internal step down converter, compliant with the performances specified in section 2.2.1.2  Low internal resistance in the active path Vout – Vbat, typically lower than 50 m  High efficiency switch mode charger with separate power path control

Figure 35: Charger / regulator with integrated power path management circuit block diagram

Figure 36 and the components listed in Table 27 provide an application circuit example where the MPS MP2617 switching charger / regulator with integrated power path management function provides the supply to the cellular module while concurrently and autonomously charging a suitable Li-Ion (or Li-Polymer) battery with proper pulse and DC discharge current capabilities and proper DC series resistance according to the rechargeable battery recommendations described in section 2.2.1.4.

The MP2617 IC constantly monitors the battery voltage and selects whether to use the external main primary supply / charging source or the battery as supply source for the module, and starts a charging phase accordingly.

The MP2617 IC normally provides a supply voltage to the module regulated from the external main primary source allowing immediate system operation even under missing or deeply discharged battery: the integrated switching step-down regulator is capable to provide up to 3 A output current with low output ripple and fixed

1.6 MHz switching frequency in PWM mode operation. The module load is satisfied in priority, then the integrated switching charger will take the remaining current to charge the battery.

Additionally, the power path control allows an internal connection from battery to the module with a low series internal ON resistance (40 m typical), in order to supplement additional power to the module when the current demand increases over the external main primary source or when this external source is removed.

UBX-16010573 - R08 Design-in

Page 78 of 155

LARA-R2 series - System Integration Manual

C12

GND

C11C10 C13

LARA-R2 series

VCC

Primary

Source

ILIM

ISET

TMR

AGND

VIN

C2C1

12V

NTC

PGND

SYS

BAT

Li-Ion/Li-Pol Battery Pack

Li-Ion/Li-Polymer Battery

Charger / Regulator with

Power Path Managment

VCC

C3 C6

BST

VLIM

C7 C8 C9

C14 C15

Reference

Description

Part Number - Manufacturer

Li-Ion (or Li-Polymer) battery pack with 10 k NTC

Various manufacturer

C1, C5, C6

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 - Murata

C2, C4, C11

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

1 µF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E105KA12 - Murata

C7, C13

68 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H680JA01 - Murata

C8, C14

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

C9, C15

8.2 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H8R2DZ01 - Murata

C10

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

C12

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

D1, D2

Low Capacitance ESD Protection

CG0402MLE-18G - Bourns

R1, R3, R5

10 k Resistor 0402 5% 1/16 W

RC0402JR-0710KL - Yageo Phycomp

1.0 k Resistor 0402 5% 0.1 W

RC0402JR-071K0L - Yageo Phycomp

22 k Resistor 0402 5% 1/16 W

RC0402JR-0722KL - Yageo Phycomp

1.2 µH Inductor 6 A 21 m 20%

7447745012 - Wurth

Li-Ion/Li-Polymer Battery DC/DC Charger / Regulator with integrated Power Path Management function

MP2617 - Monolithic Power Systems (MPS)

Battery charging is managed in three phases:

 Pre-charge constant current (active when the battery is deeply discharged): the battery is charged with a

low current, set to 10% of the fast-charge current

 Fast-charge constant current: the battery is charged with the maximum current, configured by the value

of an external resistor to a value suitable for the application

 Constant voltage: when the battery voltage reaches the regulated output voltage (4.2 V), the current is

progressively reduced until the charge termination is done. The charging process ends when the charging current reaches the 10% of the fast-charge current or when the charging timer reaches the value configured by an external capacitor

Using a battery pack with an internal NTC resistor, the MP2617 can monitor the battery temperature to protect the battery from operating under unsafe thermal conditions.

Several parameters as the charging current, the charging timings, the input current limit, the input voltage limit, the system output voltage can be easily set according to the specific application requirements, as the actual electrical characteristics of the battery and the external supply / charging source: proper resistors or capacitors have to be accordingly connected to the related pins of the IC.

Figure 36: Li-Ion (or Li-Polymer) battery charging and power path management application circuit

Table 27: Suggested components for Li-Ion (or Li-Polymer) battery charging and power path management application circuit

UBX-16010573 - R08 Design-in

Page 79 of 155

LARA-R2 series - System Integration Manual

GND

C2C1 C4

LARA-R2 series

VCC

VCC Supply Source

GND

GPIO

C5 C6

Application

Processor

Reference

Description

Part Number - Manufacturer

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL - Yageo Phycomp

10 k Resistor 0402 5% 0.1 W

RC0402JR-0710KL - Yageo Phycomp

100 k Resistor 0402 5% 0.1 W

RC0402JR-07100KL - Yageo Phycomp

P-Channel MOSFET Low On-Resistance

AO3415 - Alpha & Omega Semiconductor Inc.

NPN BJT Transistor

BC847 - Infineon

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

56 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E560JA01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

8.2 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H8R2DZ01 - Murata

2.2.1.10 Guidelines for removing VCC supply

As described in section 1.6.2 and Figure 15, the VCC supply can be removed after the end of LARA-R2 series modules internal power-off sequence, which has to be properly started sending the AT+CPWROFF command (see u-blox AT Commands Manual [2]).

Removing the VCC power can be useful in order to minimize the current consumption when the LARA-R2 series modules are switched off. Then, the modules can be switched on again by re-applying the VCC supply.

If the VCC supply is generated by a switching or an LDO regulator, the application processor may control the input pin of the regulator which is provided to enable / disable the output of the regulator (as for example the RUN input pin for the regulator described in Figure 28, the INH input pin for the regulator described in Figure 29, the SHDNn input pin for the regulator described in Figure 30, the EN input pin for the regulator described in Figure 31), in order to apply / remove the VCC supply.

If the regulator that generates the VCC supply does not provide an on / off pin, or for other applications such as the battery-powered ones, the VCC supply can be switched off using an appropriate external p-channel MOSFET controlled by the application processor by means of a proper inverting transistor as shown in Figure 37, given that the external p-channel MOSFET has provide:

 Very low R

(for example, less than 50 m), to minimize voltage drops

DS(ON)

 Adequate maximum Drain current (see LARA-R2 series Data Sheet [1] for module consumption figures)  Low leakage current, to minimize the current consumption

Figure 37: Example of application circuit for VCC supply removal

Table 28: Components for VCC supply removal application circuit

It is highly recommended to avoid an abrupt removal of the VCC supply during LARA-R2 series modules

normal operations: the power off procedure must be started by the AT+CPWROFF command, waiting the command response for a proper time period (see u-blox AT Commands Manual [2]), and then a proper VCC supply has to be held at least until the end of the modules’ internal power off sequence, which occurs when the generic digital interfaces supply output (V_INT) is switched off by the module.

UBX-16010573 - R08 Design-in

Page 80 of 155

LARA-R2 series - System Integration Manual

2.2.1.11 Guidelines for VCC supply layout design

Good connection of the module VCC pins with DC supply source is required for correct RF performance. Guidelines are summarized in the following list:

 All the available VCC pins must be connected to the DC source.  VCC connection must be as wide as possible and as short as possible.  Any series component with Equivalent Series Resistance (ESR) greater than few milliohms must be avoided.  VCC connection must be routed through a PCB area separated from sensitive analog signals and sensitive

functional units: it is good practice to interpose at least one layer of PCB ground between VCC track and other signal routing.

 Coupling between VCC and audio lines (especially microphone inputs) must be avoided, because the typical

GSM burst has a periodic nature of approx. 217 Hz, which lies in the audible audio range.

 The tank bypass capacitor with low ESR for current spikes smoothing described in section 2.2.1.6 should be

placed close to the VCC pins. If the main DC source is a switching DC-DC converter, place the large capacitor close to the DC-DC output and minimize the VCC track length. Otherwise consider using separate capacitors for DC-DC converter and cellular module tank capacitor.

 The bypass capacitors in the pF range described in section 2.2.1.6 should be placed as close as possible to

the VCC pins. This is highly recommended if the application device integrates an internal antenna.

 Since VCC is directly connected to RF Power Amplifiers, voltage ripple at high frequency may result in

unwanted spurious modulation of transmitter RF signal. This is more likely to happen with switching DC-DC converters, in which case it is better to select the highest operating frequency for the switcher and add a large L-C filter before connecting to the LARA-R2 series modules in the worst case.

 Shielding of switching DC-DC converter circuit, or at least the use of shielded inductors for the switching

DC-DC converter, may be considered since all switching power supplies may potentially generate interfering signals as a result of high-frequency high-power switching.

 If VCC is protected by transient voltage suppressor to ensure that the voltage maximum ratings are not

exceeded, place the protecting device along the path from the DC source toward the cellular module, preferably closer to the DC source (otherwise protection functionality may be compromised).

2.2.1.12 Guidelines for grounding layout design

Good connection of the module GND pins with application board solid ground layer is required for correct RF performance. It significantly reduces EMC issues and provides a thermal heat sink for the module.

 Connect each GND pin with application board solid GND layer. It is strongly recommended that each GND

pin surrounding VCC pins have one or more dedicated via down to the application board solid ground layer.

 The VCC supply current flows back to main DC source through GND as ground current: provide adequate

return path with suitable uninterrupted ground plane to main DC source.

 It is recommended to implement one layer of the application board as ground plane as wide as possible.  If the application board is a multilayer PCB, then all the board layers should be filled with GND plane as

much as possible and each GND area should be connected together with complete via stack down to the main ground layer of the board. Use as many vias as possible to connect the ground planes

 Provide a dense line of vias at the edges of each ground area, in particular along RF and high speed lines  If the whole application device is composed by more than one PCB, then it is required to provide a good and

solid ground connection between the GND areas of all the different PCBs.

 Good grounding of GND pins also ensures thermal heat sink. This is critical during call connection, when the

real network commands the module to transmit at maximum power: proper grounding helps prevent module overheating.

UBX-16010573 - R08 Design-in

Page 81 of 155

LARA-R2 series - System Integration Manual

LARA-R2 series

(a)

V_BCKP

LARA-R2 series

(superCap)

(b)

V_BCKP

LARA-R2 series

(c)

V_BCKP

Reference

Description

Part Number - Manufacturer

100 µF Tantalum Capacitor

GRM43SR60J107M - Murata

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

70 mF Capacitor

XH414H-IV01E - Seiko Instruments

2.2.2 RTC supply (V_BCKP)

2.2.2.1 Guidelines for V_BCKP circuit design

LARA-R2 series modules provide the V_BCKP RTC supply input/output, which can be mainly used to:

 Provide RTC back-up when VCC supply is removed

If RTC timing is required to run for a time interval of T [s] when VCC supply is removed, place a capacitor with a nominal capacitance of C [µF] at the V_BCKP pin. Choose the capacitor using the following formula:

C [µF] = (Current_Consumption [µA] x T [s]) / Voltage_Drop [V]

= 2.5 x T [s]

For example, a 100 µF capacitor can be placed at V_BCKP to provide RTC backup holding the V_BCKP voltage within its valid range for around 40 s at 25 °C, after the VCC supply is removed. If a longer buffering time is required, a 70 mF super-capacitor can be placed at V_BCKP, with a 4.7 k series resistor to hold the V_BCKP voltage within its valid range for approximately 8 hours at 25 °C, after the VCC supply is removed. The purpose of the series resistor is to limit the capacitor charging current due to the large capacitor specifications, and also to let a fast rise time of the voltage value at the V_BCKP pin after VCC supply has been provided. These capacitors allow the time reference to run during battery disconnection.

Figure 38: Real time clock supply (V_BCKP) application circuits: (a) using a 100 µF capacitor to let the RTC run for ~1 minute after VCC removal; (b) using a 70 mF capacitor to let RTC run for ~10 hours after VCC removal; (c) using a non-rechargeable battery

Table 29: Example of components for V_BCKP buffering

If longer buffering time is required to allow the RTC time reference to run during a disconnection of the VCC supply, then an external battery can be connected to V_BCKP pin. The battery should be able to provide a proper nominal voltage and must never exceed the maximum operating voltage for V_BCKP (specified in the Input characteristics of Supply/Power pins table in the LARA-R2 series Data Sheet [1]). The connection of the battery to V_BCKP should be done with a suitable series resistor for a rechargeable battery, or with an appropriate series diode for a non-rechargeable battery. The purpose of the series resistor is to limit the battery charging current due to the battery specifications, and also to allow a fast rise time of the voltage value at the V_BCKP pin after the VCC supply has been provided. The purpose of the series diode is to avoid a current flow from the module V_BCKP pin to the non-rechargeable battery.

If the RTC timing is not required when the VCC supply is removed, it is not needed to connect the

V_BCKP pin to an external capacitor or battery. In this case the date and time are not updated when VCC

is disconnected. If VCC is always supplied, then the internal regulator is supplied from the main supply and there is no need for an external component on V_BCKP.

UBX-16010573 - R08 Design-in

Page 82 of 155

LARA-R2 series - System Integration Manual

Combining a LARA-R2 series cellular module with a u-blox GNSS positioning receiver, the positioning receiver

VCC supply is controlled by the cellular module by means of the “GNSS supply enable” function provided by the GPIO2 of the cellular module. In this case the V_BCKP supply output of the cellular module can be connected to

the V_BCKP backup supply input pin of the GNSS receiver to provide the supply for the positioning real time clock and backup RAM when the VCC supply of the cellular module is within its operating range and the VCC supply of the GNSS receiver is disabled. This enables the u-blox GNSS receiver to recover from a power breakdown with either a hot start or a warm start (depending on the duration of the positioning VCC outage) and to maintain the configuration settings saved in the backup RAM. Refer to section 2.6.4 for more details regarding the application circuit with a u-blox GNSS receiver.

The internal regulator for V_BCKP is optimized for low leakage current and very light loads. Do not apply

loads which might exceed the limit for maximum available current from V_BCKP supply, as this can cause malfunctions in the module. LARA-R2 series Data Sheet [1] describes the detailed electrical characteristics.

V_BCKP supply output pin provides internal short circuit protection to limit start-up current and protect the device in short circuit situations. No additional external short circuit protection is required.

ESD sensitivity rating of the V_BCKP supply pin is 1 kV (Human Body Model according to JESD22-A114).

Higher protection level can be required if the line is externally accessible on the application board, e.g. if an accessible back-up battery connector is directly connected to V_BCKP pin, and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the accessible point.

2.2.2.2 Guidelines for V_BCKP layout design

RTC supply (V_BCKP) requires careful layout: avoid injecting noise on this voltage domain as it may affect the stability of the 32 kHz oscillator.

UBX-16010573 - R08 Design-in

Page 83 of 155

LARA-R2 series - System Integration Manual

2.2.3 Interface supply (V_INT)

2.2.3.1 Guidelines for V_INT circuit design

LARA-R2 series provide the V_INT generic digital interfaces 1.8 V supply output, which can be mainly used to:

 Indicate when the module is switched on (see sections 1.6.1, 1.6.2 for more details)  Pull-up SIM detection signal (see section 2.5 for more details)  Supply voltage translators to connect digital interfaces of the module to a 3.0 V device (see section 2.6.1)  Pull-up DDC (I  Supply a 1.8 V u-blox 6 or subsequent GNSS receiver (see section 2.6.4 for more details)  Supply an external device, as an external 1.8 V audio codec (see section 2.7.1 for more details)

V_INT supply output pin provides internal short circuit protection to limit start-up current and protect the device in short circuit situations. No additional external short circuit protection is required.

C) interface signals (see section 2.6.4 for more details)

Do not apply loads which might exceed the limit for maximum available current from V_INT supply (see

the LARA-R2 series Data Sheet [1]) as this can cause malfunctions in internal circuitry.

Since the V_INT supply is generated by an internal switching step-down regulator, the V_INT voltage

ripple can range as specified in the LARA-R2 series Data Sheet [1]: it is not recommended to supply sensitive analog circuitry without adequate filtering for digital noise.

V_INT can only be used as an output: do not connect any external supply source on V_INT. ESD sensitivity rating of the V_INT supply pin is 1 kV (Human Body Model according to JESD22-A114).

Higher protection level could be required if the line is externally accessible and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the accessible point.

It is recommended to provide direct access to the V_INT pin on the application board by means of an

accessible test point directly connected to the V_INT pin.

2.2.3.2 Guidelines for V_INT layout design

V_INT supply output is generated by an integrated switching step-down converter, used internally to supply the

generic digital interfaces. Because of this, it can be a source of noise: avoid coupling with sensitive signals.

UBX-16010573 - R08 Design-in

Page 84 of 155

LARA-R2 series - System Integration Manual

LARA-R2 series

V_BCKP

PWR_ON

Power-on

push button

ESD

Open

Drain

Output

Application

Processor

LARA-R2 series

V_BCKP

PWR_ON

10 k

Reference

Description

Remarks

ESD

CT0402S14AHSG - EPCOS

Varistor array for ESD protection

2.3 System functions interfaces

2.3.1 Module power-on (PWR_ON)

2.3.1.1 Guidelines for PWR_ON circuit design

LARA-R2 series modules’ PWR_ON input is equipped with an internal active pull-up resistor to the VCC module supply as described in Figure 39: an external pull-up resistor is not required and should not be provided.

If connecting the PWR_ON input to a push button, the pin will be externally accessible on the application device. According to EMC/ESD requirements of the application, an additional ESD protection should be provided close to the accessible point, as described in Figure 39 and Table 30.

ESD sensitivity rating of the PWR_ON pin is 1 kV (Human Body Model according to JESD22-A114). Higher

protection level can be required if the line is externally accessible on the application board, e.g. if an accessible push button is directly connected to PWR_ON pin. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

An open drain or open collector output is suitable to drive the PWR_ON input from an application processor, as the pin is equipped with an internal active pull-up resistor to the V_BCKP supply, as described in Figure 39.

A compatible push-pull output of an application processor can also be used. In any case, take care to set the proper level in all the possible scenarios to avoid an inappropriate module switch-on.

Figure 39: PWR_ON application circuits using a push button and an open drain output of an application processor

Table 30: Example of pull-up resistor and ESD protection for the PWR_ON application circuit

It is recommended to provide direct access to the PWR_ON pin on the application board by means of

accessible testpoint directly connected to the PWR_ON pin.

2.3.1.2 Guidelines for PWR_ON layout design

The power-on circuit (PWR_ON) requires careful layout since it is the sensitive input available to switch on the LARA-R2 series modules. It is required to ensure that the voltage level is well defined during operation and no transient noise is coupled on this line, otherwise the module might detect a spurious power-on request.

UBX-16010573 - R08 Design-in

Page 85 of 155

LARA-R2 series - System Integration Manual

LARA-R2 series

V_BCKP

RESET_N

Power-on

push button

ESD

Open Drain Output

Application

Processor

LARA-R2 series

V_BCKP

RESET_N

10 k

Reference

Description

Remarks

ESD

Varistor for ESD protection

CT0402S14AHSG - EPCOS

2.3.2 Module reset (RESET_N)

2.3.2.1 Guidelines for RESET_N circuit design

LARA-R2 series RESET_N is equipped with an internal pull-up to the V_BCKP supply as described in Figure 40. An external pull-up resistor is not required.

If connecting the RESET_N input to a push button, the pin will be externally accessible on the application device. According to EMC/ESD requirements of the application, an additional ESD protection device (e.g. the EPCOS CA05P4S14THSG varistor) should be provided close to accessible point on the line connected to this pin, as described in Figure 40 and Table 31.

ESD sensitivity rating of the RESET_N pin is 1 kV (Human Body Model according to JESD22-A114). Higher

protection level can be required if the line is externally accessible on the application board, e.g. if an accessible push button is directly connected to RESET_N pin. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

An open drain output is suitable to drive the RESET_N input from an application processor as it is equipped with an internal pull-up to V_BCKP supply, as described in Figure 40.

A compatible push-pull output of an application processor can also be used. In any case, take care to set the proper level in all the possible scenarios to avoid an inappropriate module reset, switch-on or switch-off.

Figure 40: RESET_N application circuits using a push button and an open drain output of an application processor

Table 31: Example of ESD protection component for the RESET_N application circuit

If the external reset function is not required by the customer application, the RESET_N input pin can be

left unconnected to external components, but it is recommended providing direct access on the application board by means of accessible testpoint directly connected to the RESET_N pin.

2.3.2.2 Guidelines for RESET_N layout design

The reset circuit (RESET_N) requires careful layout due to the pin function: ensure that the voltage level is well defined during operation and no transient noise is coupled on this line, otherwise the module might detect a spurious reset request. It is recommended to keep the connection line to RESET_N as short as possible.

UBX-16010573 - R08 Design-in

Page 86 of 155

LARA-R2 series - System Integration Manual

2.3.3 Module / host configuration selection

2.3.3.1 Guidelines for HOST_SELECT circuit design

The functionality of the HOST_SELECT pin is not supported by “02” and “62” product versions.

LARA-R2 series modules include one pin (HOST_SELECT) to select the module / host application processor configuration: the pin is available to select, enable, connect, disconnect and subsequently re-connect the HSIC (USB High-Speed Inter-Chip) interface.

LARA-R2 series Data Sheet [1] describes the detailed electrical characteristics of the HOST_SELECT pin.

Further guidelines for HOST_SELECT pin circuit design will be described in detail in a successive release of

the System Integration Manual.

Do not apply voltage to HOST_SELECT pin before the switch-on of its supply source (V_INT), to avoid

latch-up of circuits and allow a proper boot of the module. If the external signal connected to the cellular module cannot be tri-stated or set low, insert a multi channel digital switch (e.g. TI SN74CB3Q16244, TS5A3159, or TS5A63157) between the two-circuit connections and set to high impedance before V_INT switch-on.

ESD sensitivity rating of the HOST_SELECT pin is 1 kV (HBM as per JESD22-A114). Higher protection level

could be required if the lines are externally accessible and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible points

If the HOST_SELECT pin is not used, they can be left unconnected on the application board.

2.3.3.2 Guidelines for HOST_SELECT layout design

The pin for the selection of the module / host application processor configuration (HOST_SELECT) is generally not critical for layout.

UBX-16010573 - R08 Design-in

Page 87 of 155

LARA-R2 series - System Integration Manual

2.4 Antenna interface

LARA-R2 series modules provide two RF interfaces for connecting the external antennas:

 The ANT1 pin represents the primary RF input/output for LTE/3G/2G RF signals transmission and reception.  The ANT2 pin represents the secondary RF input for LTE/3G Rx diversity RF signals reception.

Both the ANT1 and the ANT2 pins have a nominal characteristic impedance of 50  and must be connected to the related antenna through a 50  transmission line to allow proper transmission / reception of RF signals.

Two antennas (one connected to ANT1 pin and one connected to ANT2 pin) must be used to support the

LTE/3G Rx diversity radio technology. This is a required feature for LTE category 1 User Equipments (up to

10.2 Mb/s Down-Link data rate) according to 3GPP specifications.

2.4.1 Antenna RF interface (ANT1 / ANT2)

2.4.1.1 General guidelines for antenna selection and design

The antenna is the most critical component to be evaluated. Designers must take care of the antennas from all perspective at the very start of the design phase when the physical dimensions of the application board are under analysis/decision, since the RF compliance of the device integrating LARA-R2 series modules with all the applicable required certification schemes depends on antennas radiating performance.

Cellular antennas are typically available in the types of linear monopole or PCB antennas such as patches or ceramic SMT elements.

 External antennas (e.g. linear monopole)

o External antennas basically do not imply physical restriction to the design of the PCB where the LARA-R2

series module is mounted.

o The radiation performance mainly depends on the antennas. It is required to select antennas with

optimal radiating performance in the operating bands.

o RF cables should be carefully selected to have minimum insertion losses. Additional insertion loss will be

introduced by low quality or long cable. Large insertion loss reduces both transmit and receive radiation performance.

o A high quality 50  RF connector provides proper PCB-to-RF-cable transition. It is recommended to

strictly follow the layout and cable termination guidelines provided by the connector manufacturer.

o If antenna detection functionality is required, select an antenna assembly provided with a proper built-in

diagnostic circuit with a resistor connected to ground: see guidelines in section 2.4.2.

 Integrated antennas (e.g. patch-like antennas):

o Internal integrated antennas imply physical restriction to the design of the PCB:

Integrated antenna excites RF currents on its counterpoise, typically the PCB ground plane of the device that becomes part of the antenna: its dimension defines the minimum frequency that can be radiated. Therefore, the ground plane can be reduced down to a minimum size that should be similar to the quarter of the wavelength of the minimum frequency that has to be radiated, given that the orientation of the ground plane relative to the antenna element must be considered.

The isolation between the primary and the secondary antennas has to be as high as possible and the correlation between the 3D radiation patterns of the two antennas has to be as low as possible. In general, a separation of at least a quarter wavelength between the two antennas is required to achieve a good isolation and low pattern correlation.

As numerical example, the physical restriction to the PCB design can be considered as following:

Frequency = 750 MHz  Wavelength = 40 cm  Minimum GND plane size = 10 cm

UBX-16010573 - R08 Design-in

Page 88 of 155

LARA-R2 series - System Integration Manual

Min.

250 µm

Min. 400 µm

GND

ANT1

GND clearance

on very close buried layer

below ANT1 pad

GND clearance

on top layer

around ANT1 pad

Min.

250 µm

Min. 400 µm

GND

ANT2

GND clearance

on very close buried layer

below ANT2 pad

GND clearance

on top layer

around ANT2 pad

o Radiation performance depends on the whole PCB and antenna system design, including product

mechanical design and usage. Antennas should be selected with optimal radiating performance in the operating bands according to the mechanical specifications of the PCB and the whole product.

o It is recommended to select a pair of custom antennas designed by an antennas’ manufacturer if the

required ground plane dimensions are very small (e.g. less than 6.5 cm long and 4 cm wide). The antenna design process should begin at the start of the whole product design process

o It is highly recommended to strictly follow the detailed and specific guidelines provided by the antenna

manufacturer regarding correct installation and deployment of the antenna system, including PCB layout and matching circuitry

o Further to the custom PCB and product restrictions, antennas may require tuning to obtain the required

performance for compliance with all the applicable required certification schemes. It is recommended to consult the antenna manufacturer for the design-in guidelines for antenna matching relative to the custom application

In both of cases, selecting external or internal antennas, these recommendations should be observed:

 Select antennas providing optimal return loss (or V.S.W.R.) figure over all the operating frequencies.  Select antennas providing optimal efficiency figure over all the operating frequencies.  Select antennas providing similar efficiency for both the primary (ANT1) and the secondary (ANT2) antenna.  Select antennas providing appropriate gain figure (i.e. combined antenna directivity and efficiency figure) so

that the electromagnetic field radiation intensity do not exceed the regulatory limits specified in some countries (e.g. by FCC in the United States, as reported in the section 4.2.2).

 Select antennas capable to provide low Envelope Correlation Coefficient between the primary (ANT1) and

the secondary (ANT2) antenna: the 3D antenna radiation patterns should have lobes in different directions.

2.4.1.2 Guidelines for antenna RF interface design

Guidelines for ANT1 / ANT2 pins RF connection design

Proper transition between ANT1 / ANT2 pads and the application board PCB must be provided, implementing the following design-in guidelines for the layout of the application PCB close to the ANT1 / ANT2 pads:

 On a multilayer board, the whole layer stack below the RF connection should be free of digital lines  Increase GND keep-out (i.e. clearance, a void area) around the ANT1 / ANT2 pads, on the top layer of the

 Add GND keep-out (i.e. clearance, a void area) on the buried metal layer below the ANT1 / ANT2 pads if

Figure 41: GND keep-out area on top layer around ANT1 / ANT2 pads and on very close buried layer below ANT1 / ANT2 pads

application PCB, to at least 250 µm up to adjacent pads metal definition and up to 400 µm on the area below the module, to reduce parasitic capacitance to ground, as described in the left picture in Figure 41

the top-layer to buried layer dielectric thickness is below 200 µm, to reduce parasitic capacitance to ground, as described in the right picture in Figure 41

UBX-16010573 - R08 Design-in

Page 89 of 155

LARA-R2 series - System Integration Manual

35 µm

270 µm

760 µm

L1 Copper

L3 Copper

L2 Copper

L4 Copper

FR-4 dielectric

380 µm 500 µm500 µm

35 µm

1510 µm

L2 Copper

L1 Copper

FR-4 dielectric

1200 µm 400 µm400 µm

Guidelines for RF transmission line design

Any RF transmission line, such as the ones from the ANT1 and ANT2 pads up to the related antenna connector or up to the related internal antenna pad, must be designed so that the characteristic impedance is as close as possible to 50 .

RF transmission lines can be designed as a micro strip (consists of a conducting strip separated from a ground plane by a dielectric material) or a strip line (consists of a flat strip of metal which is sandwiched between two parallel ground planes within a dielectric material). The micro strip, implemented as a coplanar waveguide, is the most common configuration for printed circuit board.

Figure 42 and Figure 43 provide two examples of proper 50  coplanar waveguide designs. The first example of RF transmission line can be implemented in case of 4-layer PCB stack-up herein described, and the second example of RF transmission line can be implemented in case of 2-layer PCB stack-up herein described.

Figure 42: Example of 50  coplanar waveguide transmission line design for the described 4-layer board layup

Figure 43: Example of 50  coplanar waveguide transmission line design for the described 2-layer board layup

If the two examples do not match the application PCB layup, the 50  characteristic impedance calculation can be made using the HFSS commercial finite element method solver for electromagnetic structures from Ansys Corporation, or using freeware tools like AppCAD from Agilent (www.agilent.com) or TXLine from Applied Wave Research (www.mwoffice.com), taking care of the approximation formulas used by the tools for the impedance computation.

To achieve a 50  characteristic impedance, the width of the transmission line must be chosen depending on:

 the thickness of the transmission line itself (e.g. 35 µm in the example of Figure 42 and Figure 43)  the thickness of the dielectric material between the top layer (where the transmission line is routed) and the

inner closer layer implementing the ground plane (e.g. 270 µm in Figure 42, 1510 µm in Figure 43)

UBX-16010573 - R08 Design-in

Page 90 of 155

LARA-R2 series - System Integration Manual

LARA

SMA

 the dielectric constant of the dielectric material (e.g. dielectric constant of the FR-4 dielectric material in

Figure 42 and Figure 43)

 the gap from the transmission line to the adjacent ground plane on the same layer of the transmission line

(e.g. 500 µm in Figure 42, 400 µm in Figure 43)

If the distance between the transmission line and the adjacent GND area (on the same layer) does not exceed 5 times the track width of the micro strip, use the “Coplanar Waveguide” model for the 50  calculation.

Additionally to the 50  impedance, the following guidelines are recommended for the transmission line design:

 Minimize the transmission line length: the insertion loss should be minimized as much as possible, in the

order of a few tenths of a dB.

 Add GND keep-out (i.e. clearance, a void area) on buried metal layers below any pad of component present

on the RF transmission line, if top-layer to buried layer dielectric thickness is below 200 µm, to reduce parasitic capacitance to ground.

 The transmission line width and spacing to GND must be uniform and routed as smoothly as possible: avoid

abrupt changes of width and spacing to GND.

 Add GND vias around transmission line, as described in Figure 44.  Ensure solid metal connection of the adjacent metal layer on the PCB stack-up to main ground layer,

providing enough on the adjacent metal layer, as described in Figure 44.

 Route RF transmission line far from any noise source (as switching supplies and digital lines) and from any

sensitive circuit (as analog audio lines).

 Avoid stubs on the transmission line.  Avoid signal routing in parallel to transmission line or crossing the transmission line on buried metal layer.  Do not route microstrip line below discrete component or other mechanics placed on top layer.

An example of proper RF circuit design is reported in Figure 44. In this case, the ANT1 and ANT2 pins are directly connected to SMA connectors by means of proper 50  transmission lines, designed with proper layout.

Figure 44: Example of circuit and layout for antenna RF circuits on application board

UBX-16010573 - R08 Design-in

Page 91 of 155

LARA-R2 series - System Integration Manual

Guidelines for RF termination design

RF terminations must provide a characteristic impedance of 50  as well as the RF transmission lines up to the RF terminations themselves, to match the characteristic impedance of the ANT1 / ANT2 ports of the modules.

However, real antennas do not have perfect 50  load on all the supported frequency bands. Therefore, to reduce as much as possible performance degradation due to antennas mismatch, RF terminations must provide optimal return loss (or V.S.W.R.) figure over all the operating frequencies, as summarized in Table 7 and Table 8.

If external antennas are used, the antenna connectors represent the RF termination on the PCB:

 Use suitable 50  connectors providing proper PCB-to-RF-cable transition.  Strictly follow the connector manufacturer’s recommended layout, for example:

o SMA Pin-Through-Hole connectors require GND keep-out (i.e. clearance, a void area) on all the layers

around the central pin up to annular pads of the four GND posts, as shown in Figure 44.

o U.FL surface mounted connectors require no conductive traces (i.e. clearance, a void area) in the area

below the connector between the GND land pads.

 Cut out the GND layer under RF connectors and close to buried vias, to remove stray capacitance and thus

keep the RF line 50 , e.g. the active pad of UFL connectors needs to have a GND keep-out (i.e. clearance, a void area) at least on first inner layer to reduce parasitic capacitance to ground.

If integrated antennas are used, the RF terminations are represented by the integrated antennas themselves. The following guidelines should be followed:

 Use antennas designed by an antenna manufacturer, providing the best possible return loss (or V.S.W.R.).  Provide a ground plane large enough according to the relative integrated antenna requirements. The ground

plane of the application PCB can be reduced down to a minimum size that must be similar to one quarter of wavelength of the minimum frequency that has to be radiated. As numerical example,

Frequency = 750 MHz  Wavelength = 40 cm  Minimum GND plane size = 10 cm

 It is highly recommended to strictly follow the detailed and specific guidelines provided by the antenna

manufacturer regarding correct installation and deployment of the antenna system, including PCB layout and matching circuitry.

 Further to the custom PCB and product restrictions, antennas may require a tuning to comply with all the

applicable required certification schemes. It is recommended to consult the antenna manufacturer for the design-in guidelines for the antenna matching relative to the custom application.

Additionally, these recommendations regarding the antenna system placement must be followed:

 Do not place antennas within closed metal case.  Do not place the antennas in close vicinity to end user since the emitted radiation in human tissue is limited

by regulatory requirements.

 Place the antennas far from sensitive analog systems or employ countermeasures to reduce EMC issues.  Take care of interaction between co-located RF systems since the cellular transmitted power may interact or

disturb the performance of companion systems.

 Place the two LTE antennas providing low Envelope Correlation Coefficient (ECC) between primary (ANT1)

and secondary (ANT2) antenna: the antenna 3D radiation patterns should have lobes in different directions. The ECC between primary and secondary antenna needs to be enough low to comply with the radiated performance requirements specified by related certification schemes, as indicated in Table 9.

 Place the two LTE antennas providing enough high isolation (see Table 9) between primary (ANT1) and

secondary (ANT2) antenna. The isolation depends on the distance between antennas (separation of at least a quarter wavelength required for good isolation), antenna type (using antennas with different polarization improves isolation), antenna 3D radiation patterns (uncorrelated patterns improve isolation).

UBX-16010573 - R08 Design-in

Page 92 of 155

LARA-R2 series - System Integration Manual

Manufacturer

Part Number

Product Name

Description

Taoglas

PA.710.A

Warrior

GSM / WCDMA / LTE SMD Antenna

698..960 MHz, 1710..2170 MHz, 2300..2400 MHz, 2490..2690 MHz

40.0 x 6.0 x 5.0 mm

Taoglas

PA.711.A

Warrior II

GSM / WCDMA / LTE SMD Antenna Pairs with the Taoglas PA.710.A Warrior for LTE MIMO applications

698..960 MHz, 1710..2170 MHz, 2300..2400 MHz, 2490..2690 MHz

40.0 x 6.0 x 5.0 mm

Taoglas

PCS.06.A

Havok

GSM / WCDMA / LTE SMD Antenna

698..960 MHz, 1710..2170 MHz, 2500..2690 MHz

42.0 x 10.0 x 3.0 mm

Antenova

SR4L002

Lucida

GSM / WCDMA / LTE SMD Antenna

698..960 MHz, 1710..2170 MHz, 2300..2400 MHz, 2490..2690 MHz

35.0 x 8.5 x 3.2 mm

Manufacturer

Part Number

Product Name

Description

Taoglas

FXUB63.07.0150C

GSM / WCDMA / LTE PCB Antenna with cable and U.FL

698..960 MHz, 1575.42 MHz, 1710..2170 MHz, 2400..2690 MHz

96.0 x 21.0 mm

Taoglas

FXUB66.07.0150C

Maximus

GSM / WCDMA / LTE PCB Antenna with cable and U.FL

698..960 MHz, 1390..1435 MHz, 1575.42 MHz, 1710..2170 MHz,

2400..2700 MHz, 3400..3600 MHz, 4800..6000 MHz

120.2 x 50.4 mm

Taoglas

FXUB70.A.07.C.001

GSM / WCDMA / LTE PCB MIMO Antenna with cables and U.FL

698..960 MHz, 1575.42 MHz, 1710..2170 MHz, 2400..2690 MHz

182.2 x 21.2 mm

EAD

FSQS35241-UF-10

SQ7

GSM / WCDMA / LTE PCB Antenna with cable and U.FL

690..960 MHz, 1710..2170 MHz, 2500..2700 MHz

110.0 x 21.0 mm

Examples of antennas

Table 32 lists some examples of possible internal on-board surface-mount antennas.

Table 32: Examples of internal surface-mount antennas

Table 33 lists some examples of possible internal off-board PCB-type antennas with cable and connector.

Table 33: Examples of internal antennas with cable and connector

UBX-16010573 - R08 Design-in

Page 93 of 155

Table 34 lists some examples of possible external antennas.

Manufacturer

Part Number

Product Name

Description

Taoglas

GSA.8827.A.101111

Phoenix

GSM / WCDMA / LTE adhesive-mount antenna with cable and SMA(M)

698..960 MHz, 1575.42 MHz, 1710..2170 MHz, 2490..2690 MHz 105 x 30 x 7.7 mm

Taoglas

TG.30.8112

GSM / WCDMA / LTE swivel dipole antenna with SMA(M)

698..960 MHz, 1575.42 MHz, 1710..2170 MHz, 2400..2700 MHz

148.6 x 49 x 10 mm

Taoglas

MA241.BI.001

Genesis

GSM / WCDMA / LTE MIMO 2in1 adhesive-mount combination antenna waterproof IP67 rated with cable and SMA(M)

698..960 MHz, 1710..2170 MHz, 2400..2700 MHz

205.8 x 58 x 12.4 mm

Laird Tech.

TRA6927M3PW-001

GSM / WCDMA / LTE screw-mount antenna with N-type(F)

698..960 MHz, 1710..2170 MHz, 2300..2700 MHz

83.8 x Ø 36.5 mm

Laird Tech.

CMS69273

GSM / WCDMA / LTE ceiling-mount antenna with cable and N-type(F)

698..960 MHz, 1575.42 MHz, 1710..2700 MHz 86 x Ø 199 mm

Laird Tech.

OC69271-FNM

GSM / WCDMA / LTE pole-mount antenna with N-type(M)

698..960 MHz, 1710..2690 MHz 248 x Ø 24.5 mm

Laird Tech.

CMD69273-30NM

GSM / WCDMA / LTE ceiling-mount MIMO antenna with cables & N-type(M)

698..960 MHz, 1710..2700 MHz

43.5 x Ø 218.7 mm

Pulse Electronics

WA700/2700SMA

GSM / WCDMA / LTE clip-mount MIMO antenna with cables and SMA(M)

698..960 MHz,1710..2700 MHz 149 x 127 x 5.1 mm

LARA-R2 series - System Integration Manual

Table 34: Examples of external antennas

UBX-16010573 - R08 Design-in

Page 94 of 155

LARA-R2 series - System Integration Manual

Application Board

Antenna Cable

LARA-R2 series

ANT1

ANT_DET

C1 D1

Z0= 50 ohm Z0= 50 ohm

Z0= 50 ohm

Primary Antenna Assembly

Radiating

Element

Diagnostic

Circuit

Antenna Cable

ANT2

Z0= 50 ohm Z0= 50 ohm

Z0= 50 ohm

Secondary Antenna Assembly

Radiating

Element

Diagnostic

Circuit

Reference

Description

Part Number - Manufacturer

27 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H270J - Murata

C2, C3

33 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H330J - Murata

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

Ultra Low Capacitance ESD Protection

ESD0P2RF-02LRH - Infineon

L1, L2

68 nH Multilayer Inductor 0402 (SRF ~1 GHz)

LQG15HS68NJ02 - Murata

10 k Resistor 0402 1% 0.063 W

RK73H1ETTP1002F - KOA Speer

J1, J2

SMA Connector 50  Through Hole Jack

SMA6251A1-3GT50G-50 - Amphenol

C4, C5

22 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1H220J - Murata

L3, L4

68 nH Multilayer Inductor 0402 (SRF ~1 GHz)

LQG15HS68NJ02 - Murata

R2, R3

15 k Resistor for Diagnostic

Various Manufacturers

2.4.2 Antenna detection interface (ANT_DET)

2.4.2.1 Guidelines for ANT_DET circuit design

Figure 45 and Table 35 describe the recommended schematic / components for the antennas detection circuit that must be provided on the application board and for the diagnostic circuit that must be provided on the antennas’ assembly to achieve primary and secondary antenna detection functionality.

Figure 45: Suggested schematic for antenna detection circuit on application board and diagnostic circuit on antennas assembly

Table 35: Suggested components for antenna detection circuit on application board and diagnostic circuit on antennas assembly

The antenna detection circuit and diagnostic circuit suggested in Figure 45 and Table 35 are explained here:

 When antenna detection is forced by AT+UANTR command, ANT_DET generates a DC current measuring

the resistance (R2 // R3) from antenna connectors (J1, J2) provided on the application board to GND.

 DC blocking capacitors are needed at the ANT1 / ANT2 pins (C2, C3) and at the antenna radiating element

(C4, C5) to decouple the DC current generated by the ANT_DET pin.

 Choke inductors with a Self Resonance Frequency (SRF) in the range of 1 GHz are needed in series at the

ANT_DET pin (L1, L2) and in series at the diagnostic resistor (L3, L4), to avoid a reduction of the RF performance of the system, improving the RF isolation of the load resistor.

 Additional components (R1, C1 and D1 in Figure 45) are needed at the ANT_DET pin as ESD protection  The ANT1 / ANT2 pins must be connected to the antenna connector by means of a transmission line with

nominal characteristics impedance as close as possible to 50 .

UBX-16010573 - R08 Design-in

Page 95 of 155

LARA-R2 series - System Integration Manual

The DC impedance at RF port for some antennas may be a DC open (e.g. linear monopole) or a DC short to reference GND (e.g. PIFA antenna). For those antennas, without the diagnostic circuit of Figure 45, the measured DC resistance is always at the limits of the measurement range (respectively open or short), and there is no means to distinguish between a defect on antenna path with similar characteristics (respectively: removal of linear antenna or RF cable shorted to GND for PIFA antenna).

Furthermore, any other DC signal injected to the RF connection from ANT connector to radiating element will alter the measurement and produce invalid results for antenna detection.

It is recommended to use an antenna with a built-in diagnostic resistor in the range from 5 k to 30 k

to assure good antenna detection functionality and avoid a reduction of module RF performance. The choke inductor should exhibit a parallel Self Resonance Frequency (SRF) in the range of 1 GHz to improve the RF isolation of load resistor.

For example:

Consider an antenna with built-in DC load resistor of 15 k. Using the +UANTR AT command, the module reports the resistance value evaluated from the antenna connector provided on the application board to GND:

 Reported values close to the used diagnostic resistor nominal value (i.e. values from 13 k to 17 k if a

15 k diagnostic resistor is used) indicate that the antenna is properly connected.

 Values close to the measurement range maximum limit (approximately 50 k) or an open-circuit

“over range” report (see u-blox AT Commands Manual [2]) means that that the antenna is not connected or the RF cable is broken.

 Reported values below the measurement range minimum limit (1 k) highlights a short to GND at antenna

or along the RF cable.

 Measurement inside the valid measurement range and outside the expected range may indicate an improper

connection, damaged antenna or wrong value of antenna load resistor for diagnostic.

 Reported value could differ from the real resistance value of the diagnostic resistor mounted inside the

antenna assembly due to antenna cable length, antenna cable capacity and the used measurement method.

If the primary / secondary antenna detection function is not required by the customer application, the

ANT_DET pin can be left not connected and the ANT1 / ANT2 pins can be directly connected to the related antenna connector by means of a 50  transmission line as described in Figure 44.

2.4.2.2 Guidelines for ANT_DET layout design

The recommended layout for the primary antenna detection circuit to be provided on the application board to achieve the primary antenna detection functionality, implementing the recommended schematic described in Figure 45 and Table 35, is explained here:

 The ANT1 / ANT2 pins have to be connected to the antenna connector by means of a 50  transmission

line, implementing the design guidelines described in section 2.4.1 and the recommendations of the SMA connector manufacturer.

 DC blocking capacitor at ANT1 / ANT2 pins (C2, C3) has to be placed in series to the 50  RF line.  The ANT_DET pin has to be connected to the 50  transmission line by means of a sense line.  Choke inductors in series at the ANT_DET pin (L1, L2) have to be placed so that one pad is on the 50 

transmission line and the other pad represents the start of the sense line to the ANT_DET pin.

 The additional components (R1, C1 and D1) on the ANT_DET line have to be placed as ESD protection.

UBX-16010573 - R08 Design-in

Page 96 of 155

LARA-R2 series - System Integration Manual

2.5 SIM interface

2.5.1.1 Guidelines for SIM circuit design

Guidelines for SIM cards, SIM connectors and SIM chips selection

The ISO/IEC 7816, the ETSI TS 102 221 and the ETSI TS 102 671 specifications define the physical, electrical and functional characteristics of Universal Integrated Circuit Cards (UICC) which contains the Subscriber Identification Module (SIM) integrated circuit that securely stores all the information needed to identify and authenticate subscribers over the cellular network.

Removable UICC / SIM card contacts mapping is defined by ISO/IEC 7816 and ETSI TS 102 221 as follows:

 Contact C1 = VCC (Supply)  It must be connected to VSIM  Contact C2 = RST (Reset)  It must be connected to SIM_RST  Contact C3 = CLK (Clock)  It must be connected to SIM_CLK  Contact C4 = AUX1 (Auxiliary contact)  It must be left not connected  Contact C5 = GND (Ground)  It must be connected to GND  Contact C6 = VPP (Programming supply)  It can be left not connected  Contact C7 = I/O (Data input/output)  It must be connected to SIM_IO  Contact C8 = AUX2 (Auxiliary contact)  It must be left not connected

A removable SIM card can have 6 contacts (C1, C2, C3, C5, C6, C7) or 8 contacts, also including the auxiliary contacts C4 and C8. Only 6 contacts are required and must be connected to the module SIM interface.

Removable SIM cards are suitable for applications requiring a change of SIM card during the product lifetime.

A SIM card holder can have 6 or 8 positions if a mechanical card presence detector is not provided, or it can have 6+2 or 8+2 positions if two additional pins relative to the normally-open mechanical switch integrated in the SIM connector for the mechanical card presence detection are provided. Select a SIM connector providing 6+2 or 8+2 positions if the optional SIM detection feature is required by the custom application, otherwise a connector without integrated mechanical presence switch can be selected.

Solderable UICC / SIM chip contact mapping (M2M UICC Form Factor) is defined by ETSI TS 102 671 as:

 Case Pin 8 = UICC Contact C1 = VCC (Supply)  It must be connected to VSIM  Case Pin 7 = UICC Contact C2 = RST (Reset)  It must be connected to SIM_RST  Case Pin 6 = UICC Contact C3 = CLK (Clock)  It must be connected to SIM_CLK  Case Pin 5 = UICC Contact C4 = AUX1 (Aux.contact)  It must be left not connected  Case Pin 1 = UICC Contact C5 = GND (Ground)  It must be connected to GND  Case Pin 2 = UICC Contact C6 = VPP (Progr. supply)  It can be left not connected  Case Pin 3 = UICC Contact C7 = I/O (Data I/O)  It must be connected to SIM_IO  Case Pin 4 = UICC Contact C8 = AUX2 (Aux. contact)  It must be left not connected

A solderable SIM chip has 8 contacts and can also include the auxiliary contacts C4 and C8 for other uses, but only 6 contacts are required and must be connected to the module SIM card interface as described above.

Solderable SIM chips are suitable for M2M applications where it is not required to change the SIM once installed.

UBX-16010573 - R08 Design-in

Page 97 of 155

LARA-R2 series - System Integration Manual

LARA-R2 series

VSIM

SIM_IO

SIM_CLK

SIM_RST

V_INT

GPIO5

SIM CARD

HOLDER

C5C6C

C1C2C

SIM Card

Bottom View

(contacts side)

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

D1 D2 D3 D4

C 8

Reference

Description

Part Number - Manufacturer

C1, C2, C3, C4

47 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H470JA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

D1, D2, D3, D4

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

SIM Card Holder 6 positions, without card presence switch

Various Manufacturers, C707 10M006 136 2 - Amphenol

Guidelines for single SIM card connection without detection

A removable SIM card placed in a SIM card holder has to be connected to the SIM card interface of LARA-R2 series modules as described in Figure 46, where the optional SIM detection feature is not implemented.

Follow these guidelines connecting the module to a SIM connector without SIM presence detection:

 Connect the UICC / SIM contacts C1 (VCC) to the VSIM pin of the module.  Connect the UICC / SIM contact C7 (I/O) to the SIM_IO pin of the module.  Connect the UICC / SIM contact C3 (CLK) to the SIM_CLK pin of the module.  Connect the UICC / SIM contact C2 (RST) to the SIM_RST pin of the module.  Connect the UICC / SIM contact C5 (GND) to ground.  Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply line (VSIM), close to

the related pad of the SIM connector, to prevent digital noise.

 Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line

(VSIM, SIM_CLK, SIM_IO, SIM_RST), very close to each related pad of the SIM connector, to prevent RF coupling especially in case the RF antenna is placed closer than 10 - 30 cm from the SIM card holder.

 Provide a low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco Electronics PESD0402-140) on each

externally accessible SIM line, close to each related pad of the SIM connector: ESD sensitivity rating of the SIM interface pins is 1 kV (HBM), so that, according to the EMC/ESD requirements of the custom application, higher protection level can be required if the lines are externally accessible on the application device.

 Limit capacitance and series resistance on each signal of the SIM interface (SIM_CLK, SIM_IO, SIM_RST), to

match the SIM interface specifications requirements (27.7 ns is the maximum allowed rise time on the

SIM_CLK line, 1.0 µs is the maximum allowed rise time on the SIM_IO and SIM_RST lines).

Figure 46: Application circuit for the connection to a single removable SIM card, with SIM detection not implemented

Table 36: Example of components for the connection to a single removable SIM card, with SIM detection not implemented

UBX-16010573 - R08 Design-in

Page 98 of 155

LARA-R2 series - System Integration Manual

VSIM

SIM_IO

SIM_CLK

SIM_RST

V_INT

GPIO5

SIM CHIP

SIM Chip

Bottom View

(contacts side)

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

C1 C5

C2 C6

C3 C7

C4 C8

LARA-R2 series

Reference

Description

Part Number - Manufacturer

C1, C2, C3, C4

47 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H470JA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

SIM chip (M2M UICC Form Factor)

Various Manufacturers

Guidelines for single SIM chip connection

A solderable SIM chip (M2M UICC Form Factor) has to be connected the SIM card interface of LARA-R2 series modules as described in Figure 47.

Follow these guidelines connecting the module to a solderable SIM chip without SIM presence detection:

the related pad of the SIM chip, to prevent digital noise.

 Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line

(VSIM, SIM_CLK, SIM_IO, SIM_RST), to prevent RF coupling especially in case the RF antenna is placed closer than 10 - 30 cm from the SIM card holder.

 Limit capacitance and series resistance on each signal of the SIM interface (SIM_CLK, SIM_IO, SIM_RST), to

match the SIM specifications requirements (27.7 ns is the maximum allowed rise time on the SIM_CLK line,

1.0 µs is the maximum allowed rise time on the SIM_IO and SIM_RST lines).

Figure 47: Application circuit for the connection to a single solderable SIM chip, with SIM detection not implemented

Table 37: Example of components for the connection to a single solderable SIM chip, with SIM detection not implemented

UBX-16010573 - R08 Design-in

Page 99 of 155

LARA-R2 series - System Integration Manual

LARA-R2 series

VSIM

SIM_IO

SIM_CLK

SIM_RST

V_INT

GPIO5

SIM CARD

HOLDER

C5C6C

C1C2C

SIM Card

Bottom View

(contacts side)

VPP (C6)

VCC (C1)

IO (C7)

CLK (C3)

RST (C2)

GND (C5)

C2 C3 C5

SW1

SW2

D1 D2 D3 D4 D5 D6

C 8

Reference

Description

Part Number - Manufacturer

C1, C2, C3, C4

47 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H470JA01 - Murata

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

D1 – D6

Very Low Capacitance ESD Protection

PESD0402-140 - Tyco Electronics

1 k Resistor 0402 5% 0.1 W

RC0402JR-071KL - Yageo Phycomp

470 k Resistor 0402 5% 0.1 W

RC0402JR-07470KL- Yageo Phycomp

SIM Card Holder 6 + 2 positions, with card presence switch

Various Manufacturers, CCM03-3013LFT R102 - C&K Components

Guidelines for single SIM card connection with detection

A removable SIM card placed in a SIM card holder must be connected to the SIM card interface of LARA-R2 series modules as described in Figure 48, where the optional SIM card detection feature is implemented.

Follow these guidelines connecting the module to a SIM connector implementing SIM presence detection:

 Connect the UICC / SIM contacts C1 (VCC) to the VSIM pin of the module.  Connect the UICC / SIM contact C7 (I/O) to the SIM_IO pin of the module.  Connect the UICC / SIM contact C3 (CLK) to the SIM_CLK pin of the module.  Connect the UICC / SIM contact C2 (RST) to the SIM_RST pin of the module.  Connect the UICC / SIM contact C5 (GND) to ground.  Connect one pin of the normally-open mechanical switch integrated in the SIM connector (e.g. the SW2 pin

as described in Figure 48) to the GPIO5 input pin of the module.

 Connect the other pin of the normally-open mechanical switch integrated in the SIM connector (e.g. the

SW1 pin as described in Figure 48) to the V_INT 1.8 V supply output of the module by means of a strong (e.g. 1 k) pull-up resistor, as the R1 resistor in Figure 48.

 Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply line (VSIM), close to

the related pad of the SIM connector, to prevent digital noise.

 Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line

 Provide a low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco Electronics PESD0402-140) on each

externally accessible SIM line, close to each related pad of the SIM connector: ESD sensitivity rating of SIM interface pins is 1 kV (HBM according to JESD22-A114), so that, according to the EMC/ESD requirements of the custom application, higher protection level can be required if the lines are externally accessible.

 Limit capacitance and series resistance on each SIM signal to match the SIM specifications requirements

(27.7 ns = max allowed rise time on SIM_CLK, 1.0 µs = max allowed rise time on SIM_IO and SIM_RST).

Figure 48: Application circuit for the connection to a single removable SIM card, with SIM detection implemented

Table 38: Example of components for the connection to a single removable SIM card, with SIM detection implemented

UBX-16010573 - R08 Design-in

Page 100 of 155

u blox 1DIQN3NN System Integrator Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Contents

1 System description

1.1 Overview

1.2 Architecture
