Funkvernetzt mit
Stromverbrauchsmessung
Leistungsschalter S2
230 V ~/50 Hz, 2 x 500 VA
2 12 1
Leistungsschalter S1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~/50 Hz, 3.680 VA
Funkvernetzt mit
Stromverbrauchsmessung
Universaldimmer D1
230 V ~/50 Hz, 500 VA
2 1
Funkvernetzt mit
Stromverbrauchsmessung
Universaldimmer D1
230 V ~/50 Hz, 500 VA
21 2143
Funkvernetzt
Bedieneinheit C4
AC 230 V ~/50 Hz
2
43 mm
12 mm
143 mm
47 mm 12 mm47 mm 12 mm47 mm 17 mm 47 mm
43 mm
12 mm
143 mm
12 mm
Funkvernetzt mit
Stromverbrauchsmessung
Leistungsschalter S2
230 V ~/50 Hz, 2 x 500 VA
2 12 1
Leistungsschalter S1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~/50 Hz, 3.680 VA
Funkvernetzt mit
Stromverbrauchsmessung
Jalousiesteuerung J1
Funkvernetzt mit
Stromverbrauchsmessung
Universaldimmer D1
230 V ~/50 Hz, 500 VA
2 1
Button
LED
Button
LED
Button
LED
Shutter control J1
Radio linked with power consumption measurement
Factory Reset
Power-Cycle Sequencing Factory Reset: It is possible to instigate a factory
reset using a special power-cycle sequence. This is equivalent to selecting
menu item #5, with the advantage that you need no access to the device
itself (only to its power supply).
1. Power the device for at least four seconds.
2. Interrupt the power supply for at least a second.
3. Reapply power for less than two seconds but more than half a second.
Notice that at the end of this cycle, the device is off and should remain off for
Specifications
The shutter control J1 is a radio controlled universal shutter actuator with
integrated power consumption measurement. In the current flush mount
version, it is compatible to standard switch boxes and fully integrates into the
rest of your smart home. It is not only suitable for new buildings, but also for
existing buildings, because retrofitting has, due to use of radio technology,
no special requirements to the electrical installation. For new buildings and
renovations, it helps reducing both planning and cabling costs. The system
can gradually be extended by adding new components. Determine scope and
timing at any time by yourself.
The shutter control J1 offers full functionality when combined with other components of the ubisys smart home product line and allows for example:
• Freely configurable assignments between control elements and consu-
mers
• Scenes and group controlling
• Time and event controlled actions
• Continuous metering
• Surveillance
• Controlling via smart home display, smartphone app or, as usual, via
button or switch
More information about the features of the ubisys smart home product line
can be found at www.ubisys.de.

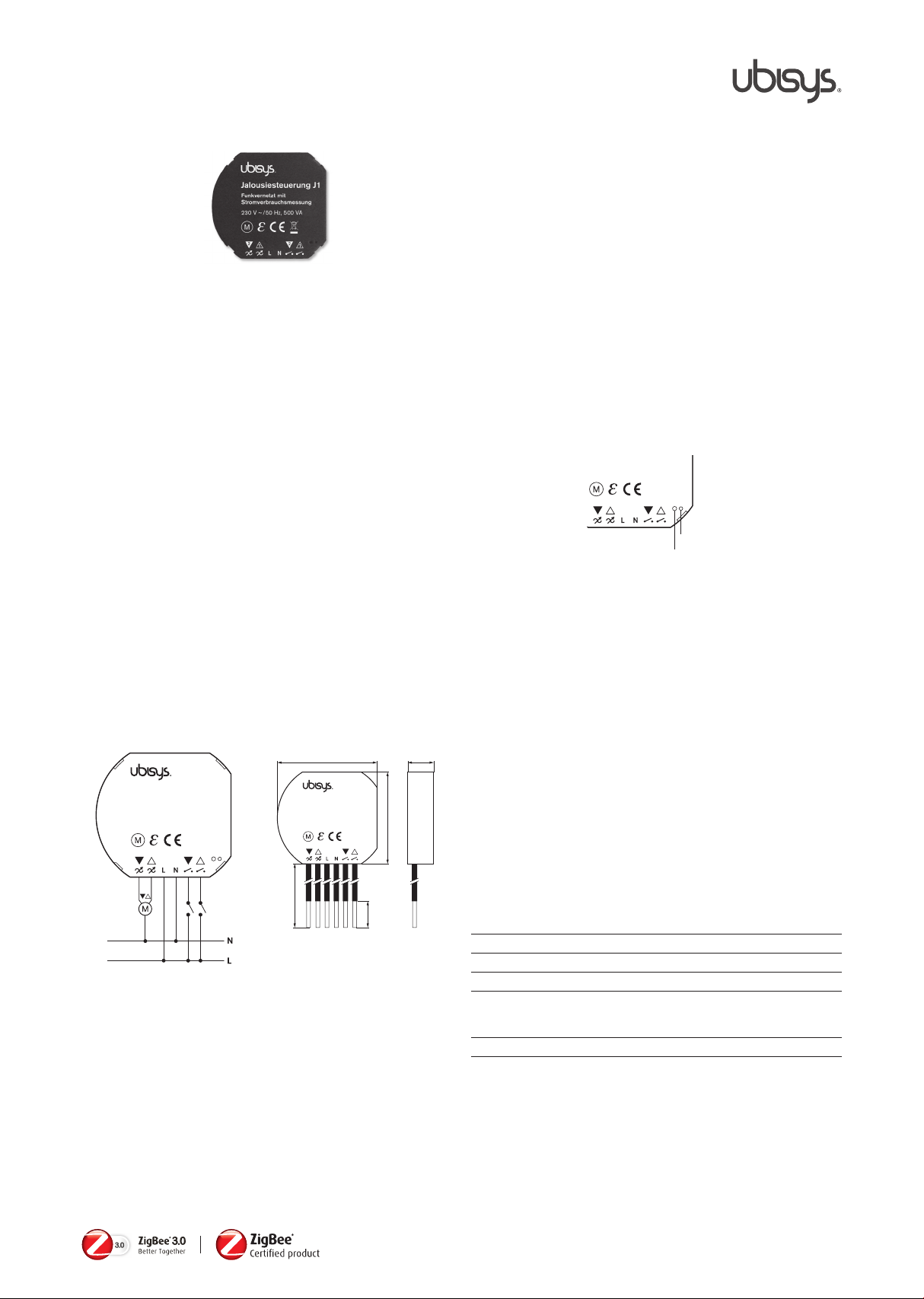

Installation
The shutter control J1 is designed for installation in flush mounted sockets
according to DIN 49073. For installation behind a switch or power socket,
deep sockets are recommended.
Leads: Dimensions:
47 mm
Jalousiesteuerung J1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~/50 Hz, 500 VA
2
2
1
1
Jalousiesteuerung J1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~/50 Hz, 500 VA
2
1
143 mm
2
1
For installation of the shutter control J1, the included clamps can be used.
During installation, the general risks of household voltage networks have to
be noted!
Basic ZigBee Commissioning
The device joins an open ZigBee network when it is factory new and power
is applied.
12 mm
43 mm
12 mm
at least a second.
4. Repeat the previous step two more times, for a total of three short
power cycles.
5. Apply power to the device and leave it powered on. The device will now
factory reset and reboot.
Factory Reset via Button: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
larger of the two holes on the front for more than 10 seconds until the LED
starts flashing rapidly.*)
Only use the electrically isolated tool provided with the device to press the
button in the hole.
230 V ~/50 Hz, 500 VA
2
*) If the device has legacy firmware this feature might not be available. In this
case, keep the button pressed for one second, until the LED flashes three
times and then blinks once every second. Then press the button four times
for less than a second, until the LED flashes five times, followed by a pause,
then flashes five times again, followed by a pause, etc. In this state, keep the
button pressed for more than a second until the LED starts flashing rapidly.
Configuration
Upon delivery the factory settings of shutter control J1 has switching inputs 1
and 2 assigned to the corresponding switching outputs. So it can initially be
operated autonomously without a radio network.
For integration into the smart home radio network, the shutter control J1 has
to be configured first. Direct access to the shutter control J1 is not necessary
for configuration. That means that network configuration can also be done
after successful electrical installation. It is best to hold the 16 digit serial
number of the shutter control J1 in the construction plan during installation.
This allows you to allocate the device at a later point.
When connected to power, the shutter control J1 automatically logs into the
ZigBee network. After that it can be configured via the electrician’s installation software (ubisys Network Manager) or the ubisys smartphone app.
More information about adding and configuring ubisys smart home components can be found in the ubisys Smart Home Installation manual.
Technical Information
Rated voltage 230 V ~, 50 Hz
Max. switching power 500 VA
Own consumption 0.3 W
Radio technology ZigBee 3.0 in 2.4 GHz ISM Band,
Environment temperature -20°C - +45°C
*) More information about radio technology can be found at www.ubisys.de.
2
1
1
LED
Button
IEEE 802.15.4 channels 11-26, 0…5dBm
transmitting power *)
As per 01/2018Page 1/2
Shutter control J1
Radio linked with power consumption measurement
Caution
Subjecting the inputs (white, grey) with voltage without correct connection of L, N will
destroy the device.
Caution
Subjecting the inputs (white, grey) with a phase different from the operating voltage’s
one (L, brown) will destroy the device.
Caution
Even unconnected ports (white, grey) can carry threatening voltages.
Caution
Parallel connection of actuators is not permitted and can lead to destruction of the
unit, drive or driven objects (blinds, shutters, doors, windows etc.)!
Hazard notes
Installation should only be performed by a qualified electrician. Wrong wiring from not
following instructions can cause unforeseen behavior, such as fire or destruction of
the device. There is a risk of electric shock. Electrical shock can result in death. Prior
to installation, enable voltage and cover live parts. Opening the unit or other devices
voids the warranty.
Conformity
This device complies with the applicable directives and standards of the EU
match.
Manufacturer
ubisys technologies GmbH
Neumannstr. 10
40235 Düsseldorf
Germany
info@ubisys.de
www.ubisys.de
As per 01/2018Page 2/2
