Page 1

Datasheet

Managed PoE+ Gigabit Switches with SFP

Models: US-8-150W, US-16-150W, US-24-250W, US-24-500W, US-48-500W, US-48-750W

Non-Blocking Throughput Switching Performance

Gigabit Ethernet RJ45 and SFP+/SFP Ports

Auto-Sensing IEEE 802.3af/at PoE

Page 2

Build and expand your network with

UniFi VoIP Phones

Calculator

Calendar

Gallery

Sound Recorder

Hangouts

Gmail

Settings

Drive

Calculator

Calendar

Gallery

Sound Recorder

Hangouts

Gmail

Settings

Drive

Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products.

Datasheet

The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

Switching Performance

The UniFi Switch offers the forwarding capacity to simultaneously process

trafc on all ports at line rate without

PoE+ Flexibility

The UniFi Switch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at PoE to simplify your infrastructure.

For your convenience, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE – no need to manually enable or

congure any settings.

any packet loss.

Fiber Connectivity

The UniFi Switch provides ber

connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.

Each 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

Wireless Clients

UniFi Controller

UniFi Security Gateway PRO

UniFi AC HD

Wired Clients

UniFi Server

UniFi Switch (LAN Devices)

UniFi Switch

UniFi Switch (VoIP Devices)

1:28

TUE, MAY 20

1:28

TUE, MAY 20

Internet

Page 3

UniFi Controller

Designed for convenient management, the UniFi Controller

software allows admins to congure

and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download the controller from www.ubnt.com at no additional charge – there is no separate software, licensing, or support fee.

Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own unique network monitoring,

conguration, maps, statistics, and

admin accounts.

Switch Conguration

You can access any managed UniFi Switch through the UniFi Controller to

congure a variety of features:

• PoE setting per port

• Operation mode (switching, mirroring, or aggregate) per port

• Network/VLAN conguration

• Jumbo frame and ow control

conguration

• Network settings

• Storm control setting per port

• Spanning tree conguration

Datasheet

Statistics

The Switch Statistics screen displays a graphical overview of all LAN throughput for each port on the selected switch. Under the same pane of glass, it also shows

LAN, WLAN, and Internet trafc, including the breakdown of protocols being used

(requires a UniFi Security Gateway).

Switch Port Status

You can also view status information

for each port:

• Connection speed and duplexmode

• TX/RX data rates

• PoE status

• Network/VLAN setting

Software Features

The UnIFi Controller software offers

the following features:

• Centralized conguration management (including

conguration cloning)

• Auto-MDIX automatically adjusts as needed for straight through or crossover cable

• 802.1X (RADIUS) authentication and dynamic VLAN

Topology View

The Topology screen displays a topology diagram of your UniFi system. You can

lter the type of information displayed, such as client devices, labels, and link

settings.

• Auto-generated topology view

• Centralized statistics in controller

• RSTP and Spanning Tree Protocol

• SNMP

• Storm control (independent broadcast, multicast, and unknown destination unicast limits per port)

• 802.3x ow control

• 9216-byte jumbo frame support

• VLAN support

• Port mirroring

• Port aggregation (LACP)

• Port isolation (protected port) for port-level isolation

Page 4

Model: US-8-150W

Datasheet

• (8) Gigabit RJ45 Ports

• (2) SFP Ports

• Non-Blocking Throughput: 10 Gbps

• Switching Capacity: 20 Gbps

• Forwarding Rate: 14.88 Mpps

• Maximum Power Consumption: 150W

• Supports PoE+ IEEE 802.3at/af

• Quiet, Fanless Operation

• Rackmountable with Rack-Mount Brackets (Included)

• Desktop-Mountable (Do not physically stack the US-8-150W.)

Model: US-16-150W

• (16) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 18 Gbps

• Switching Capacity: 36 Gbps

• Forwarding Rate: 26.78 Mpps

• Maximum Power Consumption: 150W

• Supports PoE+ IEEE 802.3at/af

• Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included)

Model: US-24-250W

• (24) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 26 Gbps

• Switching Capacity: 52 Gbps

• Forwarding Rate: 38.69 Mpps

• Maximum Power Consumption: 250W

• Supports PoE+ IEEE 802.3at/af

• Rack-Mountable

Model: US-24-500W

• (24) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 26 Gbps

• Switching Capacity: 52 Gbps

• Forwarding Rate: 38.69 Mpps

• Maximum Power Consumption: 500W

• Supports PoE+ IEEE 802.3at/af

• Rack-Mountable

Page 5

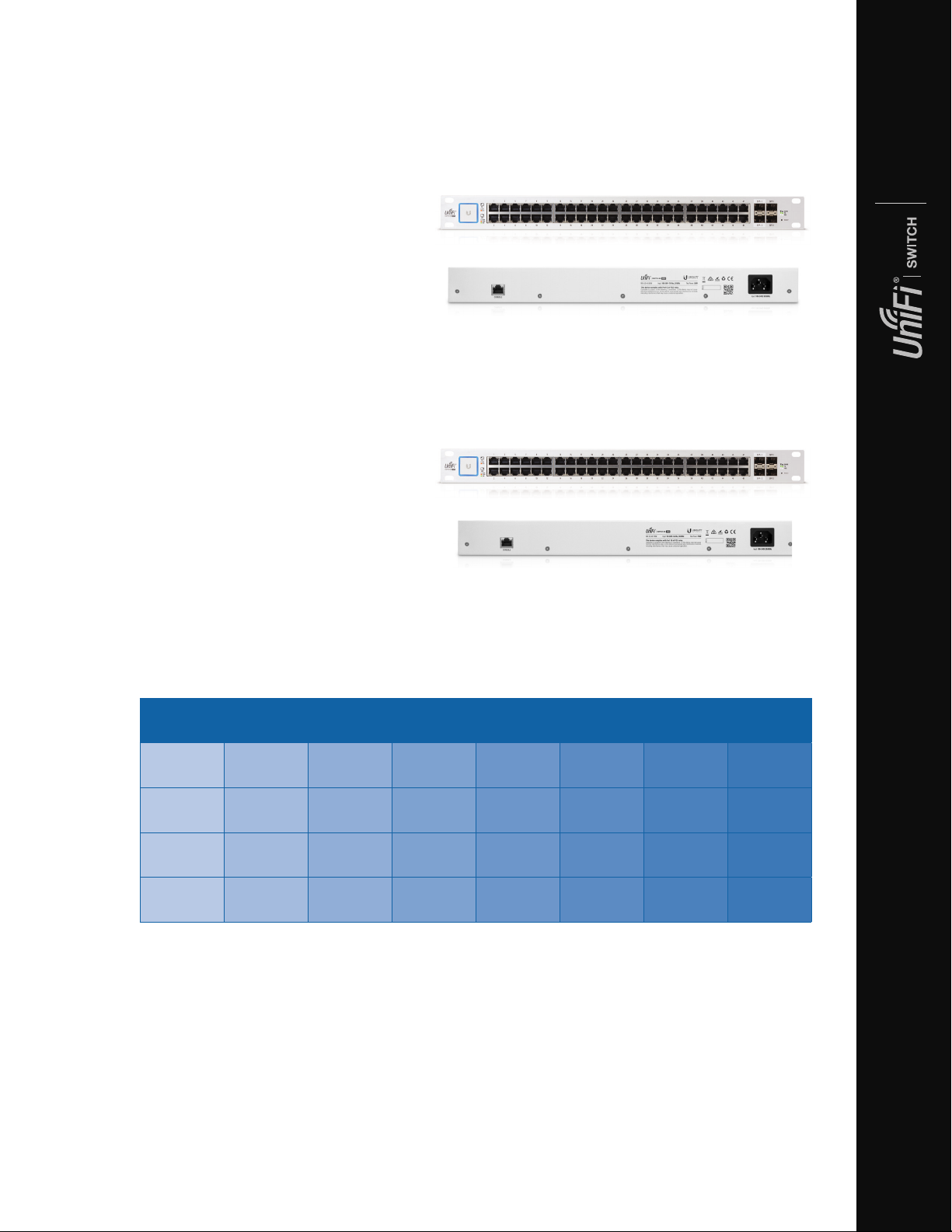

Model: US-48-500W

• (48) Gigabit RJ45 Ports

• (2) SFP+ Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 70 Gbps

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• Maximum Power Consumption: 500W

• Supports PoE+ IEEE 802.3at/af

• Rack-Mountable

Model: US-48-750W

• (48) Gigabit RJ45 Ports

• (2) SFP+ Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 70 Gbps

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• Maximum Power Consumption: 750W

• Supports PoE+ IEEE 802.3at/af

• Rack-Mountable

Datasheet

Model Comparison Chart

US-8 US-8-60W US-8-150W US-16-150W US-24

Gigabit

RJ45 Ports

SFP Ports 2 2 2 2 2 2

SFP+ Ports 2 2

Sound Level

8 8 8 16 24 24 48 48

35 dBa

(fanless)

35 dBa

(fanless)

34 dBa

(fanless)

34-37 dBa 34-37 dBa

US-24-250W US-24-500W

38-47 dBa 40-53 dBa

US-48

34-37 dBa

US-48-500W

US-48-750W

40-47 dBa

40-48 dBa

Page 6

Specications

US-8-150W

Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")

Datasheet

Weight Rack-Mount Brackets Excluded Rack-Mount Brackets Included

1.65 kg (3.67 lb) 1.7 kg (3.75 lb)

Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface Ethernet In-Band

Total Non-Blocking Throughput 10 Gbps

Switching Capacity 20 Gbps

Forwarding Rate 14.88 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 150W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

150W 20W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level 34 dBa

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Page 7

Specications

US-16-150W

Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")

Weight Rack-Mount Brackets Excluded Rack-Mount Brackets Included

2.80 kg (6.17 lb) 2.89 kg (6.37 lb)

Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface Ethernet In-Band

Total Non-Blocking Throughput 18 Gbps

Switching Capacity 36 Gbps

Forwarding Rate 26.78 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Datasheet

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 150W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

150W 28W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level Fan Level: 0 Fan Level: 1, 2, 3

34 dBa 37 dBa

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Page 8

Specications

US-24-250W

Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")

Datasheet

Weight 4.7 kg (10.4 lb)

Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 26 Gbps

Switching Capacity 52 Gbps

Forwarding Rate 38.69 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 250W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

250W 30W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

38 dBa 42 dBa 44 dBa 47 dBa

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Page 9

Specications

US-24-500W

Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")

Weight 4.8 kg (10.6 lb)

Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 26 Gbps

Switching Capacity 52 Gbps

Forwarding Rate 38.69 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Datasheet

Monitoring Sessions

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 500W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

500W 30W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

40 dBa 45 dBa 49 dBa 53 dBa

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Page 10

Specications

US-48-500W

Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")

Datasheet

Weight 6.1 kg (13.5 lb)

Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1/10 Gbps SFP+ Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 70 Gbps

Switching Capacity 140 Gbps

Forwarding Rate 104.16 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 500W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

500W 64W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

40 dBa 43 dBa 45 dBa 47 dBa

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Page 11

Specications

US-48-750W

Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")

Weight 6.5 kg (14.3 lb)

Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1/10 Gbps SFP+ Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 70 Gbps

Switching Capacity 140 Gbps

Forwarding Rate 104.16 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Datasheet

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 750W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

750W 64W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

40 dBa 43 dBa 45 dBa 48 dBa

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Page 12

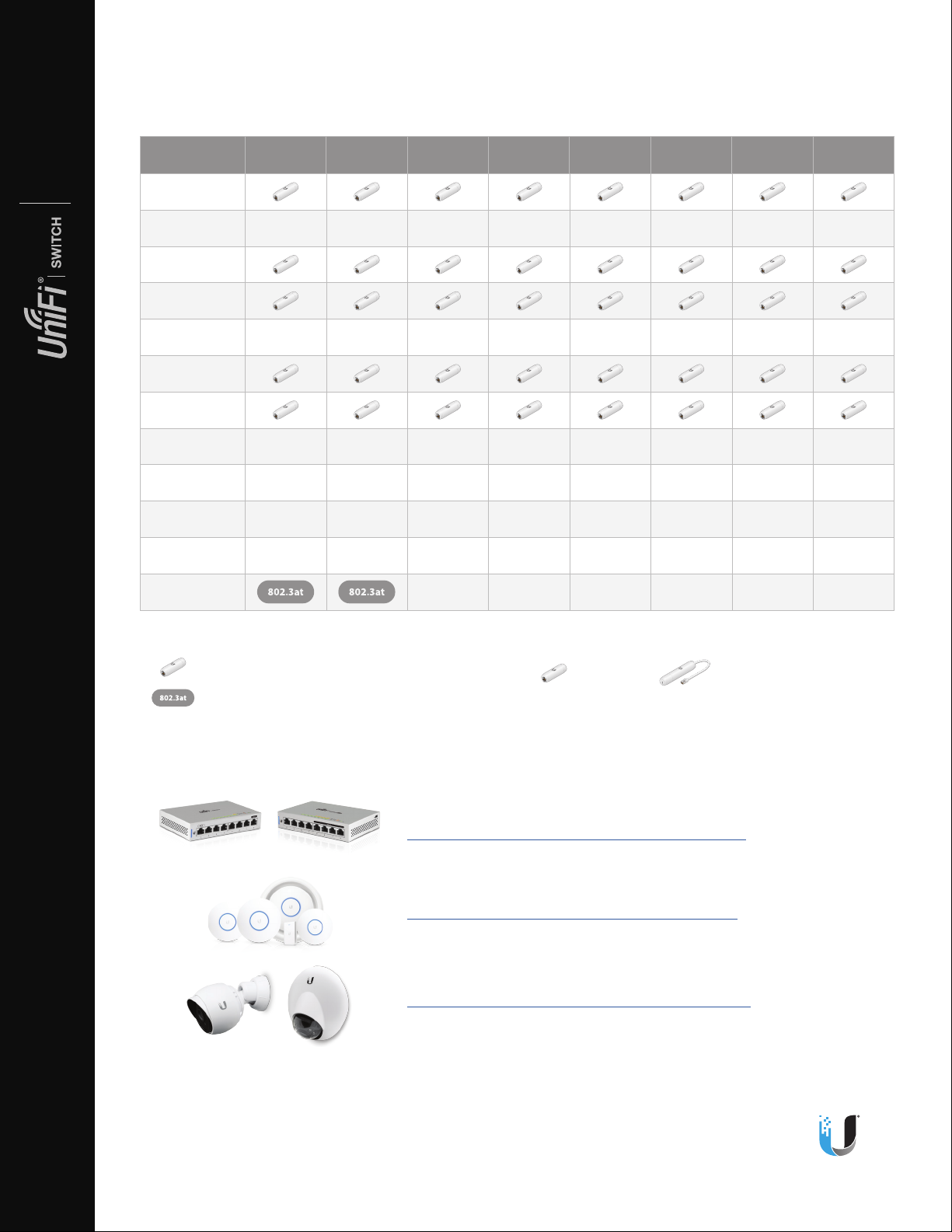

UniFi AP and Video Camera Compatibility

The UniFi Switch is compatible with UniFi Access Points and UniFi G3 Video Cameras, as detailed below.

Camera or AP

Model

US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W

Datasheet

UVC-G3

UVC-G3-DOME

UAP

UAP-LR

UAP-PRO

UAP-AC-LITE

UAP-AC-LR

UAP-AC-PRO

UAP-AC-M

UAP-AC-M-PRO

UAP-AC-IW

UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓

✓

Compatible with the UniFi switch

Requires Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G or INS-3AF-O-G

Requires 802.3at power; switch provides 802.3af only
