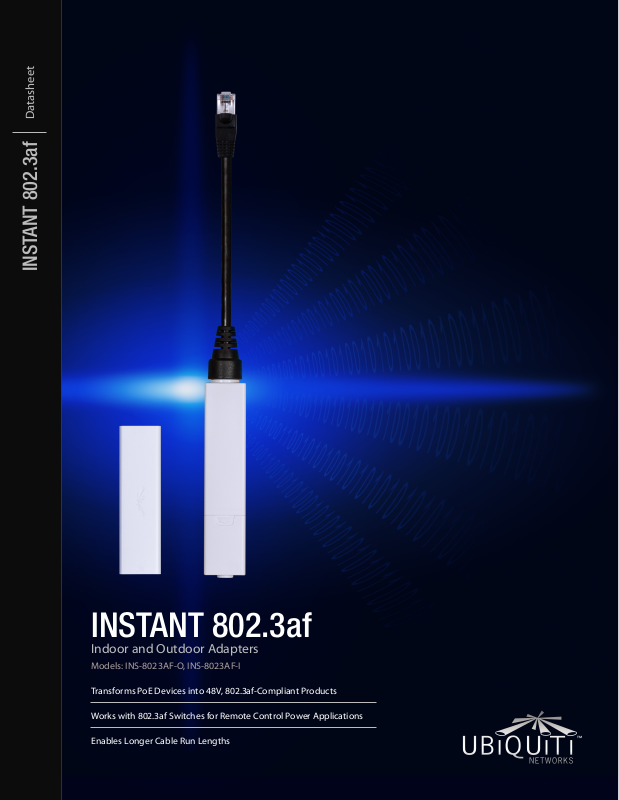

Page 1

Datasheet

INSTANT 802.3af

Indoor and Outdoor Adapters

Models: INS-8023AF-O, INS-8023AF-I

Transforms PoE Devices into 48V, 802.3af-Compliant Products

Works with 802.3af Switches for Remote Control Power Applications

Enables Longer Cable Run Lengths

Page 2

Overview

OUTINOUT

The Instant 802.3af Adapter transforms almost any Ubiquiti PoE (Power over Ethernet) device into a fully compliant 48V, 802.3af-compatible product.

Datasheet

INSTANT 802.3af

PoE Switch Compatibility

The Instant 802.3af Adapter works seamlessly with a variety of 802.3af switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your

802.3af switch.

For ease of power management, you can centralize the 802.3af switch and power source, and you can include a UPS (Uninterruptible Power Supply) as a backup. This way your network continues to run even during a temporary power outage.

Ubiquiti Compatibility

airMAX

Adapter

airCam

Adapter

™

NanoBridge

with Outdoor

Instant 802.3af

with Outdoor

Instant 802.3af

airMAX

Rocket™M5 with

Outdoor Instant

802.3af Adapter

802.3af Switch

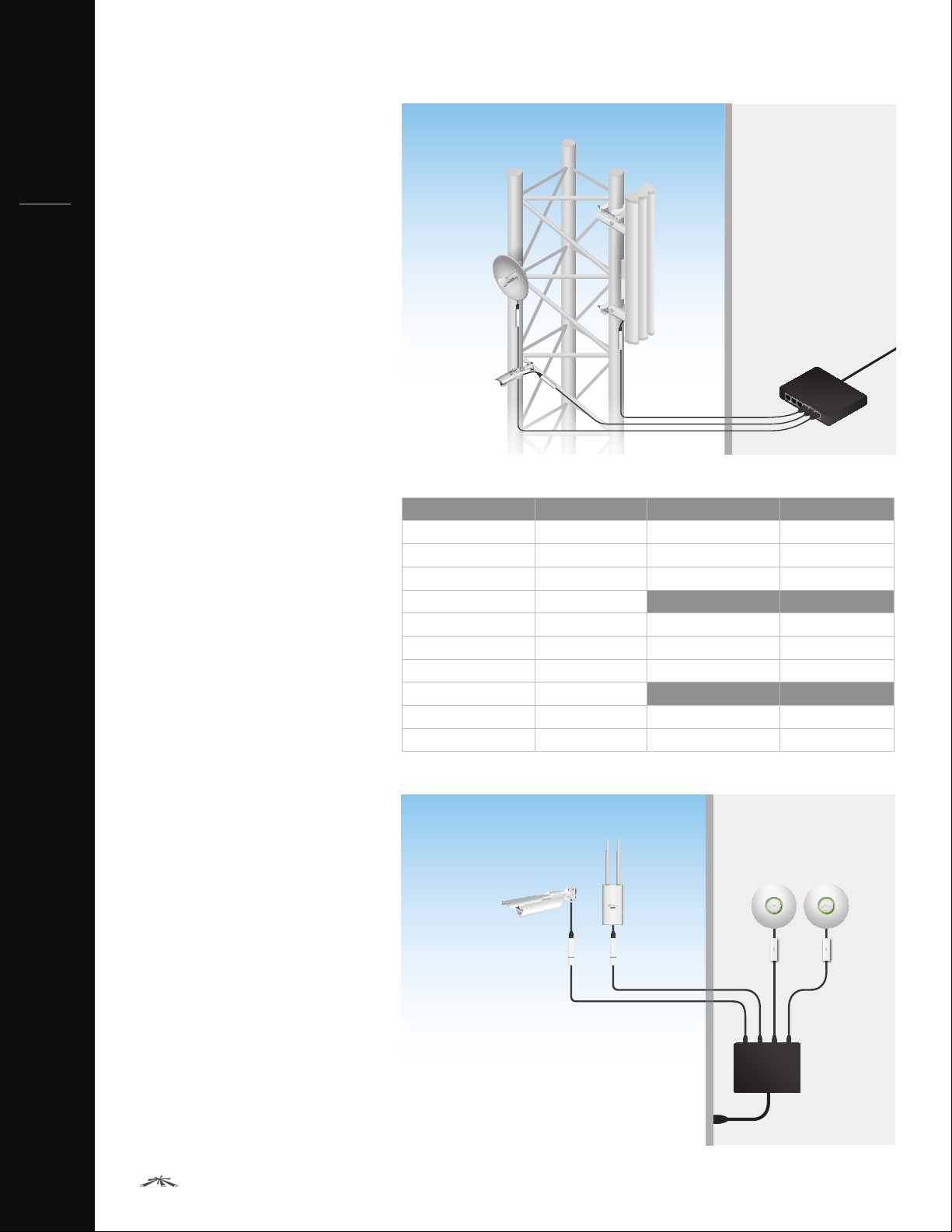

Outdoor products powered by 802.3af switch

Available in both indoor and outdoor versions, the Instant 802.3af Adapter is compatible with most Ubiquiti PoE devices* using 100 Mbps ports, including:

• airMAX

• airVision

• UniFi

• mFi

™

Longer Cable Runs

High voltage carries power more

efciently (using less current) than low

voltage. The Instant 802.3af Adapter enables longer 48V cable runs due to

a more efcient power delivery – so

your products can get the power they require even when they are located far from the 802.3af switch.

ESD/Surge Protection

The Instant 802.3af Adapter provides an additional ±15kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.

airMAX Product Compatibility airVision Product Compatibility

RocketM

BulletM

Bullet TitaniumM

NanoBridgeM

NanoStationM

NanoStationlocoM

PowerBridgeM

NanoBridgeM

airGridM

PicoStationM

Ubiquiti products compatible with Instant 802.3af Adapters

UniFi AP Outdoor

airCam

with Outdoor

Instant 802.3af

Adapter

with Outdoor

Instant 802.3af

Adapter

✓

airCam

airCam Dome

airCam Mini

UniFi Product Compatibility

UniFi AP

UniFi AP LR

UniFi AP Outdoor

mFi Product Compatibility

mPort

mPort Serial

UniFi APs

with Indoor

Instant 802.3af

Adapters

✓

802.3af Switch

* Check product specications to verify voltage

compatibility.

Indoor and outdoor products powered by 802.3af switch

www.ubnt.com/airmax#airMaxAntennas

Page 3

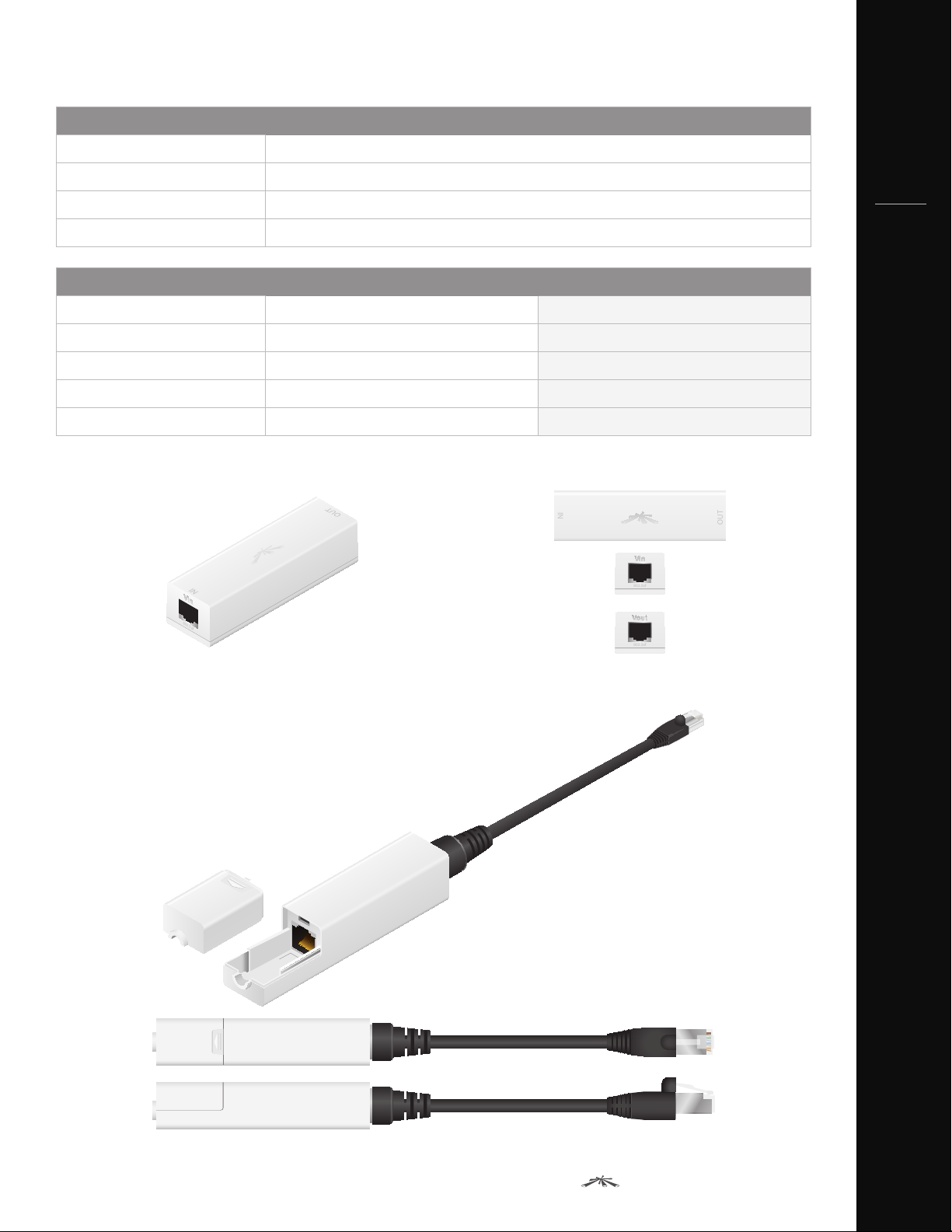

Specications

802.3af

Electrical Information

Input Power 48V, 802.3af (with Sensing Capability)

Output Power 18V, 0.7A

Output PoE Method Positive 4, 5; Return 7, 8

Ethernet ESD/Surge Protection ±15kV

Physical Information

Model INS-8023AF-I INS-8023AF-O

Dimensions (mm) 93.5 x 27 x 21.5 315 x 25.8 x 24.8

Weight 200 g 300 g

Operating Temperature 0 to 70° C -30 to 70° C

Output Ethernet Cable N/A Shielded CAT5, Length: 10 cm

Instant 802.3af Adapter, Indoor Version, model INS-8023AF-I

Datasheet

INSTANT 802.3af

Instant 802.3af Adapter, Outdoor Version, model INS-8023AF-O

www.ubnt.com/airmax#airMaxAntennas

Page 4

All speci cations in this document are subject to change without notice.

www.ubnt.com

Protect your networks from the most brutal environments with Ubiquiti Networks’ industrial-grade, shielded Ethernet cable, TOUGHCable.

Increase Performance

Dramatically improve your Ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.

Extreme Weatherproof

Designed for outdoor use, TOUGHCables have been built to perform even in the harshest weather and environments.

ESD Damage Protection

Protect your networks from devastating electrostatic discharge (ESD) attacks.

Extended Cable Support

TOUGHCables have been developed to increase power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

TOUGHCable PRO

outdoor, carrier-class shielded cable with an integrated ESD drain wire.

TOUGHCable CARRIER

Category5e, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.

Additional Information:

Ubiquiti TOUGHCable and TOUGHCable

INSTANT 802.3af

Datasheet

is a Category 5e,

TOUGHCable Connectors

Speci cally designed for use with Ubiquiti TOUGHCables, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid  eld deployment without soldering. The standard TOUGHCable Connectors are available in 100-pc. bags, while the TC-GND versions include ground wires and are available in 20-pc. bags.

ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network.

By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with

Connectors, you can effectively protect against ESD attacks.

• 24 AWG copper conductor pairs

• 26 AWG integrated ESD drain wire

to prevent ESD attacks and damage

• PE outdoor-rated, weatherproof

jacket

• Multi-layered shielding

• Available in lengths of 1000 ft

(304.8m)

is a

Unshielded

cable with

no ESD drain

PoE adapter with

no earth ground

Ubiquiti

Instant 802.3af

Adapter

Ubiquiti

TOUGHCable

JL051413
