Ubiquiti SM-SP-40 operation manual

SolarPoint

4x PoE Smart MPPT Charger

Model: SM-SP-40

Introduction

Thank you for purchasing the Ubiquiti® SolarPoint™ MPPT
Charger. This Quick Start Guide is designed to guide you through
installation and includes the warranty terms.

Package Contents

SolarPoint NTC Thermistor Ferrules

(Qty. 6)

Wall Mount Kit Screw Kit H4 Connector

Removal Tool

Metal Strap

Zip Tie

Installation Requirements

• Flathead screwdriver

• 7 mm socket wrench

• Ferrule crimper or pliers

• 18 - 14 AWG wires for battery connection

• 24V or 2x 12V SLA, AGM, or Gel Lead battery

• Solar panel with H4 connectors (10 - 60V open circuit voltage)

• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections

• We recommend that you protect your networks from harmful
outdoor environments and destructive ESD events with
industrial-grade, shielded Ethernet cable from Ubiquiti. For
more details, visit: ui.com/toughcable

Hardware Overview

Power

Ethernet

Ports

Output

LED

System

LED

PV Panel

Terminal

Battery and NTC

Thermistor Terminal

Reset

Button

Terminal

Note: NTC Thermistor must be connected in order for

the battery to charge.

Interface

System LED

Description

Steady on when system is powered on;
Red when battery polarity is reversed.

Press and hold the Reset button for 10
seconds to restore factory default settings.

Press and hold the Reset button for 16

seconds if:
Reset
Button

• The device does not respond to a factory
reset.

• The web interface is unreachable.

• There doesn't appear to be any other
noticeable activity

Battery and
NTC Thermistor
Terminal

Power Terminal

PV Panel Terminals

Ethernet Ports

Output LED

Terminal block for NTC Thermistor and battery.
(

NTC Thermistor must be connected in

order for the battery to charge
Two-pin terminal block for power (24VDC out)
H4 connectors for solar panel

Maximum open circuit voltage 60V
Supports 10/100 Ethernet connections and

passive 24V, 2-pair PoE output.
Steady on when output power is enabled.

PV Panel
Terminal

.)

Hardware Installation

Note: Prior to use, it is recommended to write down the

factory default password for this device. The password can
be found on the sticker located under the SolarPoint cover.

Pole Mounting

1. Open the Metal Strap and feed it through the mounting slots
on the back of the SolarPoint.

2. Wrap the Metal Strap around the pole. Use a 7 mm socket
wrench to turn the screw clockwise and securely fasten the
strap to the pole.

Wall Mounting

1. Attach the two wall mount brackets to the back of the
SolarPoint.

2. Install the wall mount level securely to the wall.

3. Align the wall mount brackets over the wall mount level and
slide it down until it is secure.

Electrical Connections

1. Press down and slide the port cover forward.

2. Lift the port cover up.

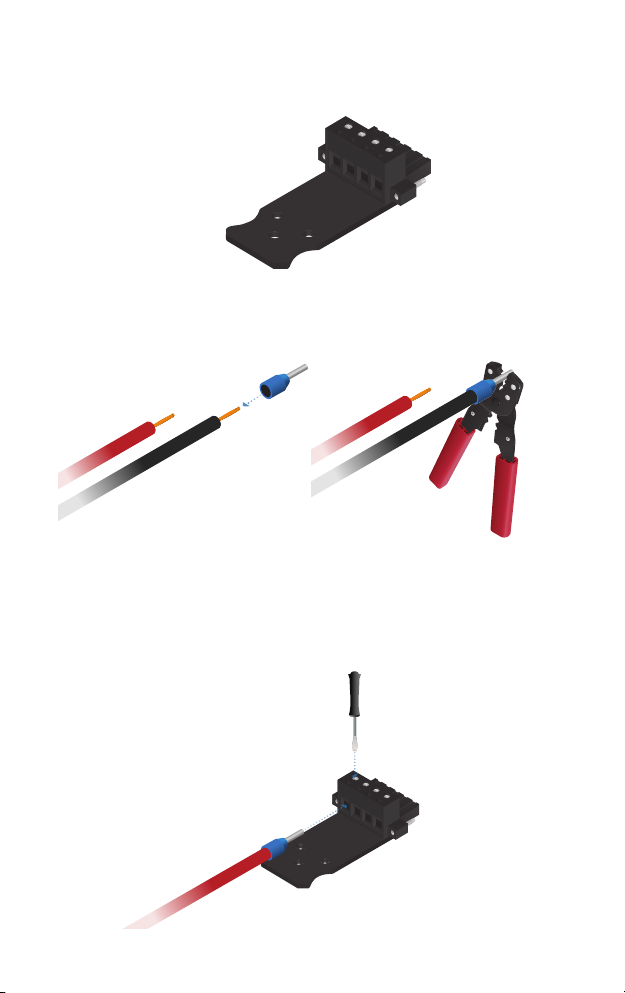

3. Remove the four-pin connector from the battery terminal block.

4. Crimp a ferrule on one end of the wire.

5. Insert the crimped wire into the appropriate slot on the
four-pin connector. Using a flathead screwdriver, secure the
wire to the connector by tightening the screw until it stops.

6. Repeat steps four and five until the connector is fully occupied
with all four wires.

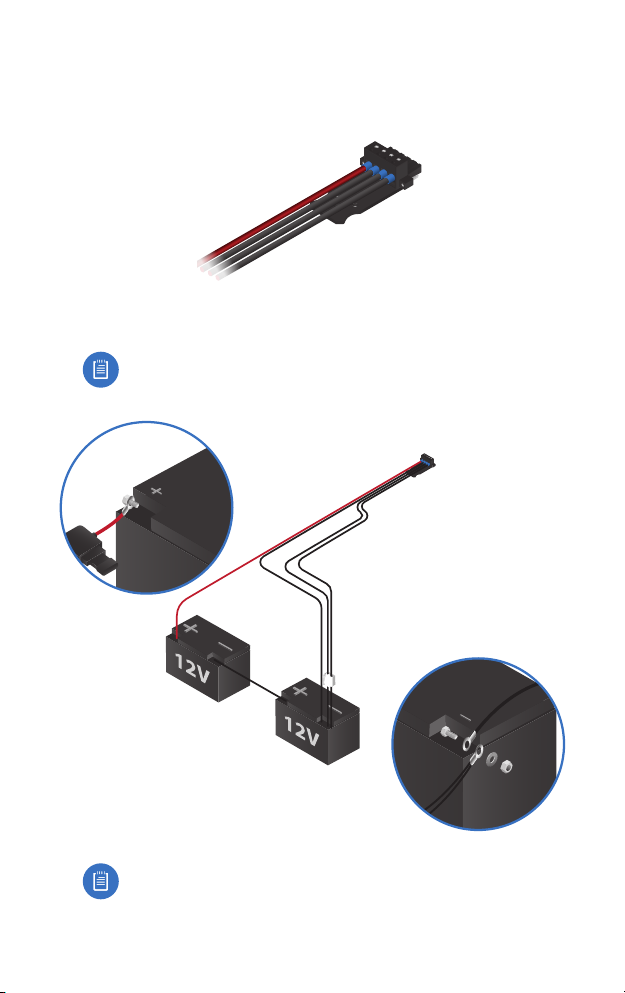

7. Connect wires and NTC Thermistor to batteries.

Note: The battery will not be charged without

connecting the NTC Thermistor.

24VDC

NTC
Thermistor

NTC
Thermistor

Note: Use SLA, AGM or Gel Lead batteries.

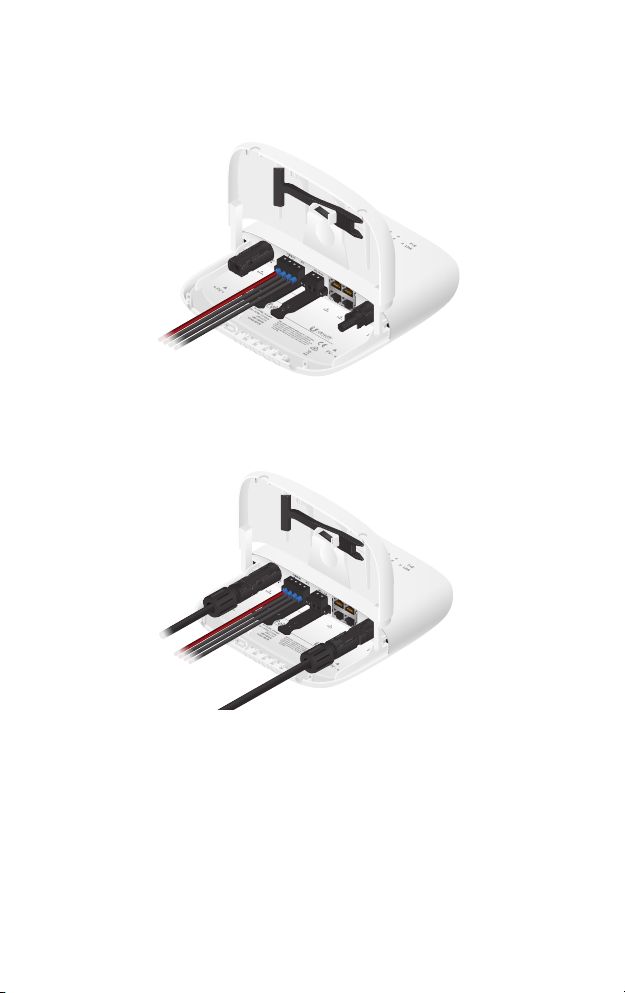

8. Attach the NTC Thermistor and battery cable using the four-pin
connector.

9. Attach the PV panel cables.

Connecting Ethernet

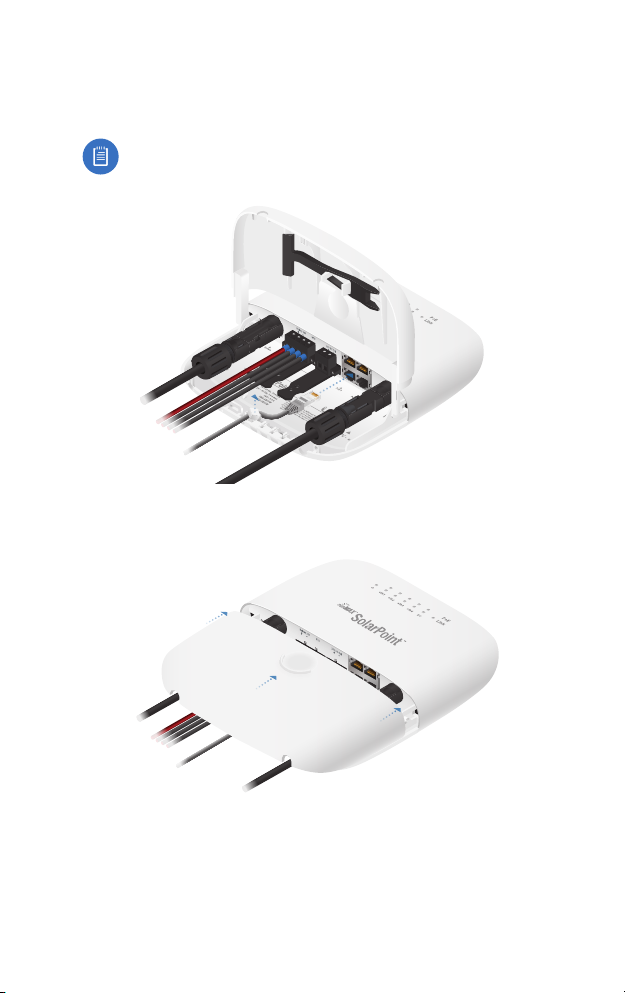

1. Connect Ethernet cable(s) to the Ethernet port(s).

Note: PoE is disabled by default and can be enabled

using the configuration interface.

2. When you are finished, close the port cover.

Configuration

Connect to your LAN via Ethernet or Wi-Fi.

Ethernet

If connected to the LAN via Ethernet, the SolarPoint will attempt
to obtain an IP address automatically from a DHCP server. Use the
Ubiquiti Device Discovery Tool to determine its IP address.

If there is no DHCP server on the LAN, the SolarPoint will fall back
to the following IP address: 192.168.1.20

Wi-Fi

Connect your notebook, tablet, or smartphone to the SolarPoint
SSID named SolarPoint-XYZ, where XYZ represents the last three
characters in the MAC address of the SolarPoint.

Once connected to your wireless network, the SolarPoint will use
the following IP address: 192.168.153.1

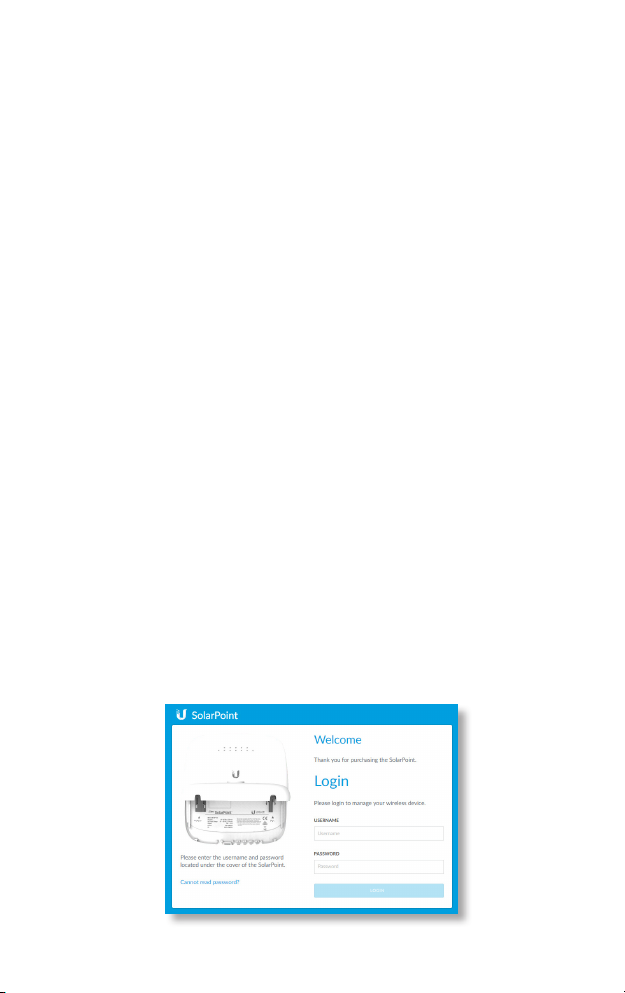

User Interface

1. Launch a web browser and enter the IP address of the
SolarPoint. Press Enter (PC) or Return (Mac).

2. Enter ubnt in the Username field.

3. Enter the password in the Password field (the password can be
found on the sticker located under the port cover.)

4. Click Set Device Location to set the location for your solar
system installation.

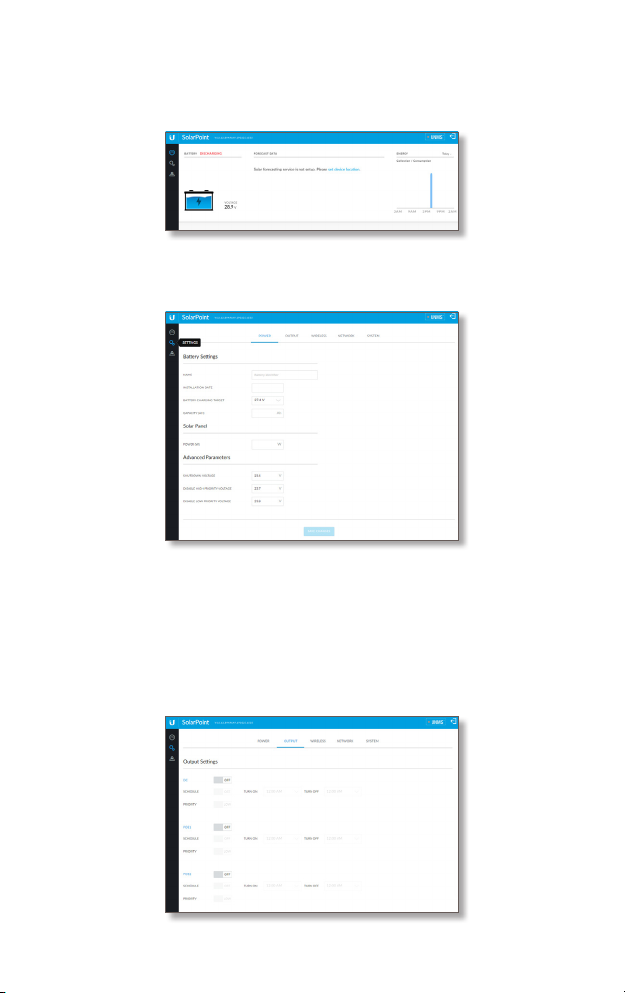

5. Click Power on the Settings screen and fill out the battery and
solar panel information.

Enabling PoE

To enable PoE on the SolarPoint:

1. Click Output on the Settings screen.

2. Click the toggle button from OFF to ON, for each port you
want to enable.

Specifications

SM-SP-40

Dimensions 202 x 186 x 50 mm (7.95 x 7.32 x 1.97")
Weight 650 g (1.43 lb)
Enclosure Characteristics UV-Resistant Polycarbonate, Outdoor Use
Max. Power Consumption 2W
Networking Interface (4) 10/100 Fast Ethernet Ports
Management Interface Ethernet

Button Reset
LEDs System, Output
Power Source PV Panel (H4 Connectors)
PV Input Voltage Range 10 - 60V

(Reverse Protection, Surge Protection)

Maximum Open Circuit Voltage 60V
PV Maximum Current 10A
PV Power Control MPPT
Output Interfaces 24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Output Voltage Battery Voltage Limited to 24V

Maximum Power Output PoE: 17W

Battery Type 24V SLA, AGM, Gel lead battery
Absorption Voltage Steps 27.4V, 28.2V, 29.1V, 30V
Float Charge Voltage 95% of Absorption Voltage
Max. Charge Current 7A
Under Voltage Protection 22 – 23.6V Software Congurable

22V Hardware Protection

Two Priority Levels for Output Disable
Operating Temperature -20 to 50° C (-4 to 122° F)
Operating Humidity IPx4

Certications

Wi-Fi (2.4 GHz)

24VDC Terminal Block

(Surge Protection)

DC Out: 24W

Total: 40W Max.

FCC, IC, CE

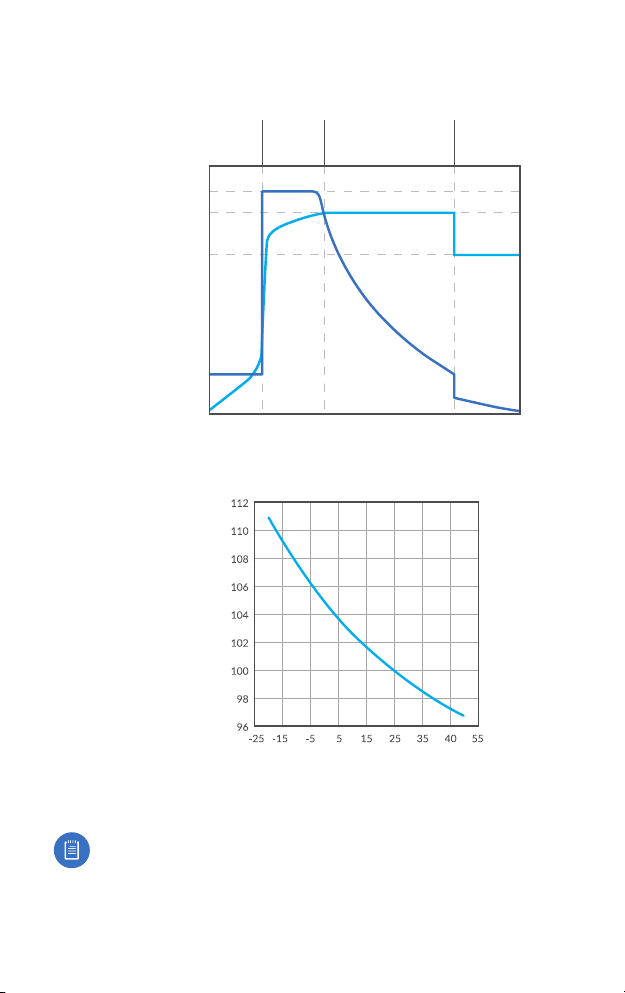

Battery Charging Profile

Battery Charging Prole

Maximum Charging Current

Absorption Charge Voltage

Float Voltage

(95% of Absorption

Charge Voltage)

Trickle
Charge

% of Target Charging Voltage

Bulk

Charge

Charging Time

Absorption

Charge

Charging

Current

Battery
Voltage

Float

Charge

Battery Temperature ( C)

Absorption Charge Voltage

Dependency from Temperature



Note: Maximum charging current is limited by the power

available from the solar panel and is not to exceed 7A.

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specified by the manufacturer.

WARNING: Do not use this product in location that can be

submerged by water.

WARNING: Avoid using this product during an electrical

storm. There may be a remote risk of electric shock from
lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a different
power source than those specified may result in improper operation, damage to
the equipment or pose a fire hazard if the limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service should be
provided only by a qualified service technician.

3. The equipment requires the use of the ground wire as a part of the safety
certification, modification or misuse can provide a shock hazard that can result in
serious injury or death.
