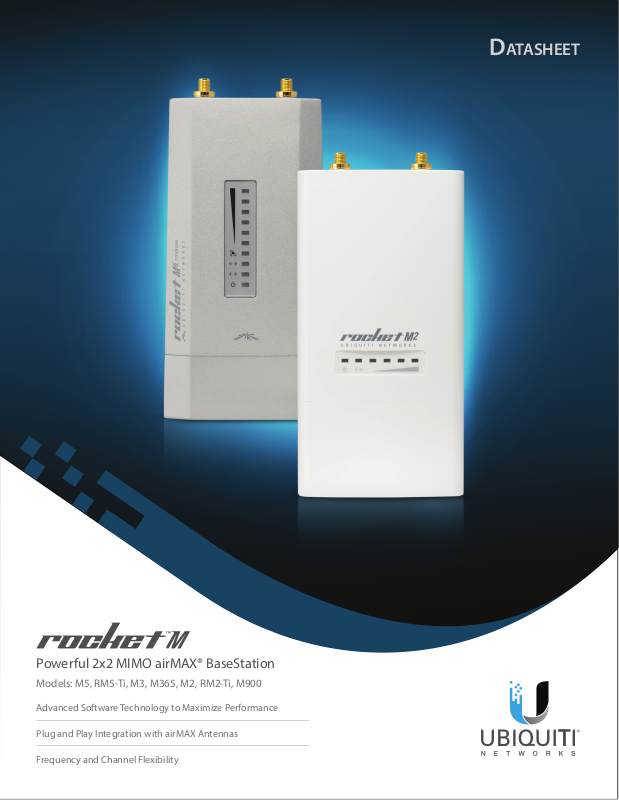

Ubiquiti ROCKETM365 Specsheet

Datasheet

Powerful 2x2 MIMO airMAX® BaseStation

Models: M5, RM5-Ti, M3, M365, M2, RM2-Ti, M900

Advanced Software Technology to Maximize Performance

Plug and Play Integration with airMAX Antennas

Frequency and Channel Flexibility

Overview

Packet Prioritization

Featuring mix-and-match industrial
design, the Rocket

™

is a Ubiquiti
Networks® airMAX® BaseStation that
supports speeds of up to 150+ Mbps
real TCP/IP throughput. It is ideal for
deployment in Point-to-Point (PtP)
bridging or Point-to-MultiPoint (PtMP)
airMAX applications.

Internet

Datasheet

Flexibility

Backbone

ISP

Network

Application Example

RocketDish

with RocketM

PtP (Point-to-Point)

Backhaul Link

RocketDish

with RocketM

The Rocket is available in several
frequency models: 900 MHz, 2.4 GHz,

3/3.65GHz, and 5 GHz, to support
your specic application. You have the

freedom to locate, deploy, and operate
the Rocket in these unlicensed bands

PtMP (Point-to-MultiPoint)

airMAX Links

airMAX Sector with RocketM

H
V

(subject to local country regulations).

The Rocket allows for a high degree

of exibility in conguring channel

bandwidths: 2, 3, 5, 8, 10, 20, 25, 30,
and/or 40 MHz, depending on the

specic product model and local

country regulations.

Plug and Play Integration

Rocket radios and airMAX antennas
have been designed to seamlessly
work together. Every airMAX Sector,
RocketDish

™

, Omni, or Yagi antenna

has a built-in Rocket mount, so
installation requires no special tools.
Snap the Rocket securely into place
and mount the antenna; then you
have the optimal combination of
Rocket radio and airMAX antenna for
your PtP or PtMP application.

Corporate Building

Residence

Internet Cafe Small Business Outdoor

Hotspot

airMAX Technology
Included

Unlike standard Wi-Fi protocol,
Ubiquiti’s Time Division Multiple
Access (TDMA) airMAX protocol
allows each client to send and receive
data using pre-designated time
slots scheduled by an intelligent AP
controller.

This time slot method eliminates
hidden node collisions and maximizes

airtime efciency. It provides

many magnitudes of performance
improvements in latency, throughput,
and scalability compared to all other
outdoor systems in its class.

Intelligent QoS Priority is given to
voice/video for seamless streaming.

Scalability High capacity and
scalability.

Long Distance Capable of
high-speed, carrier-class links.

airMAX TDMA Technology

Timeline

Time Slot 1

Time Slots

Up to 100 airMAX stations can be connected to an airMAX Sector; four airMAX
stations are shown to illustrate the general concept.

VOIP

Time Slot 2

Data

VOIP

VOIP

Time Slot 3

Time Slot 4

2

Software

Built upon an intuitive user interface
foundation, airOS® 5 is an advanced
operating system for Ubiquiti airMAX
M Series products.

• airMAX Protocol Support

• Long-Range PtP Link Mode

• Transmit Power Control:

Automatic/Manual

• Automatic Distance Selection

(ACKTiming)

• Device Statistics

• Diagnostic Tools

Integrated on all Ubiquiti M products,

®

airView
analyzer functionality: waterfall,
waveform, and real-time spectral
views allow operators to identify noise
signatures and plan their networks to
minimize noise interference.

• Waterfall Aggregate energy over

• Waveform Aggregate energy

• Real-time Energy is shown in real

• Recording Automate airView to

provides advanced spectrum

time for each frequency.

collected.

time as a function of frequency.

record and report results.

Datasheet

airControl® is a powerful and
intuitive, web-based server network
management application, which
allows operators to centrally manage
entire networks of Ubiquiti devices.

• Network Map

• Monitor Device Status

• Mass Firmware Upgrade

• Web UI Access

• Manage Groups of Devices

• Task Scheduling

3

5 GHz Models

The 5 GHz frequency band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links.

However, 5 GHz signals have more difculty passing through obstacles than lower-frequency signals.

M5

The Rocket enclosure is built to survive harsh environments

and ts the Rocket mount built into every airMAX antenna.

Pair the Rocket with the appropriate antenna for your PtP
link or PtMP network.

RM5-Ti

Its Gigabit Ethernet connection delivers high throughput,
and its aircraft-grade aluminum casing improves
performance in harsh RF environments and extreme

weatherconditions.

Datasheet

3/3.65 GHz Models

The 3 or 3.65 GHz frequency band is noise-free in most areas; however, its use requires a license. There may be additional
restrictions on its use depending on local country regulations.

M3

The Rocket enclosure is built to survive harsh environments

and ts the Rocket mount built into every airMAX antenna.

Pair the Rocket with the appropriate antenna for your PtP
link or PtMP network.

M365

The Rocket enclosure is built to survive harsh environments

and ts the Rocket mount built into every airMAX antenna.

Pair the Rocket with the appropriate antenna for your PtP
link or PtMP network.

4

2.4 GHz Models

The 2.4 GHz frequency band is free to use, worldwide; however, it is extremely crowded due to interference from other
wireless devices. Also, there are only three non-overlapping, 20 MHz channels available for use.

M2

The Rocket enclosure is built to survive harsh environments

and ts the Rocket mount built into every airMAX antenna.

Pair the Rocket with the appropriate antenna for your PtP
link or PtMP network.

RM2-Ti

Its Gigabit Ethernet connection delivers high throughput,
and its aircraft-grade aluminum casing improves
performance in harsh RF environments and extreme

weatherconditions.

Datasheet

900 MHz Model

The 900 MHz frequency band has a higher tolerance for obstacles that may obstruct line of sight; however noise levels are
typically higher. Also its use may require a license in some parts of the world.

M900

The Rocket enclosure is built to survive harsh environments

and ts the Rocket mount built into every airMAX antenna.

Pair the Rocket with the appropriate antenna for your PtP
link or PtMP network.

5

Specications

M5 Physical / Electrical / Environmental Information

Dimensions

Weight 500 g (1.1 lb)

Enclosure Characteristics Outdoor UV Stabilized Plastic

Datasheet

Processor MIPS 74Kc

Memory 128 MB SDRAM, 8 MB Flash

Networking Interface (1) 10/100 Mbps

RF Connections (2) RP-SMA (Waterproof )

LEDs Power, Ethernet, (4) Signal Strength

Max. Power Consumption 8W

Power Supply 24V, 1A PoE Adapter

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

ESD/EMP Protection ± 24KV Air / Contact

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4

160 x 80 x 30 mm (6.30 x 3.15 x 1.18")

M5 Software Information

Modes Access Point, Station

Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment Dynamic Ack and Ackless Mode

Power Adjustment Software Adjustable UI or CLI

Security WPA2 AES Only

QoS Supports Packet Level Classication WMM and User Customer Level: High/Medium/Low

Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other

Ubiquiti Specic Features

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM,

5/8/10/20/30/40 MHz Channel Width Support

airMAX Mode, Trafc Shaping with Burst Support,

Discovery Protocol, Frequency Band Offset, Ackless Mode

M5 Compliance

6

M5 Operating Frequency

Operating Frequency

Worldwide: 5170 - 5875 MHz

USA: 5725 - 5850 MHz*

Output Power 27 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

6 - 24 Mbps 27 dBm ± 2 dB

36 Mbps 25 dBm ± 2 dB 36 Mbps -80 dBm ± 2 dB

802.11a

802.11n/airMAX

48 Mbps 23 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB

54 Mbps 22 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB

MCS0 27 dBm ± 2 dB

MCS1 27 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 27 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 27 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 26 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 24 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 22 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 21 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

MCS8 27 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 27 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 27 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 27 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 26 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 24 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 22 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 21 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

802.11a

802.11n/airMAX

6 - 24 Mbps -94 dBm Min. ± 2 dB

MCS0 -96 dBm ± 2 dB

Datasheet

5 GHz

27 dBm

* US units with FCC ID: SWX-RM5 are allowed 5250-5850 MHz.

10/100

7

Specications

RM5-Ti Physical / Electrical / Environmental Information

Dimensions 160 x 80 x 44 mm (6.30 x 3.15 x 1.73")

Weight 350 g (12.35 oz)

Enclosure Characteristics Die-Cast Aluminum

Datasheet

Processor MIPS 74Kc

Memory 128 MB SDRAM, 8 MB Flash

Networking Interface

RF Connections (2) RP-SMA (Waterproof ), 1 SMA (GPS)

LEDs Power, (2) Ethernet, (6) Signal Strength, GPS

Max. Power Consumption 8W

Power Supply 48V, 0.5A PoE Adapter

Power Method

ESD/EMP Protection ± 30KV Air / Contact

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4

Passive PoE (Pairs 4, 5+; 7, 8 Return)

(1) 10/100/1000 Mbps

(1) 10/100 Mbps

802.3af Compliant

RM5-Ti Software Information

Modes Access Point, Station

Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment Dynamic Ack and Ackless Mode

Power Adjustment Software Adjustable UI or CLI

Security WPA2 AES Only

QoS Supports Packet Level Classication WMM and User Customer Level: High/Medium/Low

Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other

Ubiquiti Specic Features

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM,

5/8/10/20/30/40 MHz Channel Width Support

airMAX Mode, Trafc Shaping with Burst Support,

Discovery Protocol, Frequency Band Offset, Ackless Mode

RM5-Ti Compliance

8

RM5-Ti Operating Frequency

Operating Frequency

Worldwide: 5170 - 5875 MHz

USA: 5725 - 5850 MHz*

Output Power 27 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

6 - 24 Mbps 27 dBm ± 2 dB

36 Mbps 25 dBm ± 2 dB 36 Mbps -80 dBm ± 2 dB

802.11a

802.11n/airMAX

48 Mbps 23 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB

54 Mbps 22 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB

MCS0 27 dBm ± 2 dB

MCS1 27 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 27 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 27 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 26 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 24 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 22 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 21 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

MCS8 27 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 27 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 27 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 27 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 26 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 24 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 22 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 21 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

802.11a

802.11n/airMAX

6 - 24 Mbps -94 dBm Min. ± 2 dB

MCS0 -96 dBm ± 2 dB

Datasheet

5 GHz

27 dBm

* US units with FCC ID: SWX-RM5T-DFS are allowed 5250-5850 MHz.

10/100/1000 10/100

9

Specications

M3/M365 Physical / Electrical / Environmental Information

Dimensions

Weight 500 g (1.1 lb)

Enclosure Characteristics Outdoor UV Stabilized Plastic

Datasheet

Processor MIPS 24Kc

Memory 64 MB SDRAM, 8 MB Flash

Networking Interface (1) 10/100 Mbps

RF Connections (2) RP-SMA (Waterproof )

LEDs Power, Ethernet, (4) Signal Strength

Max. Power Consumption 6.5W

Power Supply 24V, 1A PoE Adapter

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

ESD/EMP Protection ± 24KV Air / Contact

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4

160 x 80 x 30 mm (6.30 x 3.15 x 1.18")

M3/M365 Software Information

Modes Access Point, Station

Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment Dynamic Ack and Ackless Mode

Power Adjustment Software Adjustable UI or CLI

Security WPA2 AES Only

QoS Supports Packet Level Classication WMM and User Customer Level: High/Medium/Low

Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other

M3

M365

Ubiquiti Specic Features

Wireless Approvals

M3

M365

RoHS Compliance Yes

Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM

5/8/10/20/25/40 MHz Channel Width Support

5/10/20/25 MHz Channel Width Support

airMAX Mode, Trafc Shaping with Burst Support,

Discovery Protocol, Frequency Band Offset, Ackless Mode

M3/M365 Compliance

FCC, IC, CE

FCC Part 90Y

10

M3/M365 Operating Frequency

Operating Frequency

M3

M365

3370 - 3730 MHz*

3650 - 3675 MHz

Output Power 25 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX

MCS0 25 dBm ± 2 dB

MCS1 25 dBm ± 2 dB MCS1 -93 dBm ± 2 dB

MCS2 25 dBm ± 2 dB MCS2 -90 dBm ± 2 dB

MCS3 25 dBm ± 2 dB MCS3 -89 dBm ± 2 dB

MCS4 24 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 23 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 22 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 20 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

MCS8 25 dBm ± 2 dB MCS8 -93 dBm ± 2 dB

MCS9 25 dBm ± 2 dB MCS9 -91 dBm ± 2 dB

MCS10 25 dBm ± 2 dB MCS10 -89 dBm ± 2 dB

MCS11 25 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 24 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 23 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 22 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 20 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

airMAX

MCS0 -94 dBm Min. ± 2 dB

Datasheet

3 GHz

3.65 GHz

* RocketM3 not supported in the USA

25 dBm 10/100

11

Specications

M2 Physical / Electrical / Environmental Information

Dimensions 160 x 80 x 30 mm (6.30 x 3.15 x 1.18")

Weight 500 g (1.1 lb)

Enclosure Characteristics Outdoor UV Stabilized Plastic

Datasheet

Processor MIPS 24Kc

Memory 128 MB SDRAM, 8 MB Flash

Networking Interface (1) 10/100 Mbps

RF Connections (2) RP-SMA (Waterproof )

LEDs Power, Ethernet, (4) Signal Strength

Max. Power Consumption 6.5W

Power Supply 24V, 1A PoE Adapter

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

ESD/EMP Protection ± 24KV Air / Contact

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4

M2 Software Information

Modes Access Point, Station

Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment Dynamic Ack and Ackless Mode

Power Adjustment Software Adjustable UI or CLI

Security WPA2 AES Only

QoS Supports Packet Level Classication WMM and User Customer Level: High/Medium/Low

Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other

Ubiquiti Specic Features

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM,

5/8/10/20/30/40 MHz Channel Width Support

airMAX Mode, Trafc Shaping with Burst Support,

Discovery Protocol, Frequency Band Offset, Ackless Mode

M2 Compliance

12

M2 Operating Frequency

Operating Frequency 2402 - 2462 MHz

Output Power 28 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

1 - 24 Mbps 28 dBm ± 2 dB

36 Mbps 26 dBm ± 2 dB 36 Mbps -80 dBm ± 2 dB

802.11g

802.11n/airMAX

48 Mbps 25 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB

54 Mbps 24 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB

MCS0 28 dBm ± 2 dB

MCS1 28 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 28 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 28 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 27 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 25 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 23 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 22 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

MCS8 28 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 28 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 28 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 28 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 27 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 25 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 23 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 22 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

802.11g

802.11n/airMAX

1 - 24 Mbps

MCS0 -96 dBm ± 2 dB

-97 dBm Min. ± 2 dB

Datasheet

2.4 GHz

28 dBm 10/100

13

Specications

RM2-Ti Physical / Electrical / Environmental Information

Dimensions 160 x 80 x 44 mm (6.30 x 3.15 x 1.73")

Weight 350 g (12.35 oz)

Enclosure Characteristics Die-Cast Aluminum

Datasheet

Processor MIPS 74Kc

Memory 128 MB SDRAM, 8 MB Flash

Networking Interface

RF Connections (2) RP-SMA (Waterproof )

LEDs Power, (2) Ethernet, (6) Signal Strength

Max. Power Consumption 6.5W

Power Supply 48V, 0.5A PoE Adapter

Power Method

ESD/EMP Protection ± 30KV Air / Contact

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4

Passive PoE (Pairs 4, 5+; 7, 8 Return)

(1) 10/100/1000 Mbps

(1) 10/100 Mbps

802.3af Compliant

RM2-Ti Software Information

Modes Access Point, Station

Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment Dynamic Ack and Ackless Mode

Power Adjustment Software Adjustable UI or CLI

Security WPA2 AES Only

QoS Supports Packet Level Classication WMM and User Customer Level: High/Medium/Low

Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other

Ubiquiti Specic Features

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM,

5/8/10/20/30/40 MHz Channel Width Support

airMAX Mode, Trafc Shaping with Burst Support,

Discovery Protocol, Frequency Band Offset, Ackless Mode

RM2-Ti Compliance

14

RM2-Ti Operating Frequency

Operating Frequency 2402 - 2462 MHz

Output Power 28 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

1 - 24 Mbps 28 dBm ± 2 dB

36 Mbps 26 dBm ± 2 dB 36 Mbps -80 dBm ± 2 dB

802.11g

802.11n/airMAX

48 Mbps 25 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB

54 Mbps 24 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB

MCS0 28 dBm ± 2 dB

MCS1 28 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 28 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 28 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 27 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 25 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 23 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 22 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

MCS8 28 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 28 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 28 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 28 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 27 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 25 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 23 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 22 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

802.11g

802.11n/airMAX

1 - 24 Mbps

MCS0 -96 dBm ± 2 dB

-97 dBm Min. ± 2 dB

Datasheet

2.4 GHz

28 dBm 10/100/1000 10/100

15

Specications

M900 Physical / Electrical / Environmental Information

Dimensions 160 x 80 x 30 mm (6.30 x 3.15 x 1.18")

Weight 500 g (1.1 lb)

Enclosure Characteristics Outdoor UV Stabilized Plastic

Datasheet

Processor MIPS 24Kc

Memory 64 MB SDRAM, 8 MB Flash

Networking Interface (1) 10/100 Mbps

RF Connections (2) RP-SMA (Waterproof )

LEDs Power, Ethernet, (4) Signal Strength

Max. Power Consumption 6.5W

Power Supply 24V, 1A PoE Adapter

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

ESD/EMP Protection ± 24KV Air / Contact

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4

M900 Software Information

Modes Access Point, Station

Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment Dynamic Ack and Ackless Mode

Power Adjustment Software Adjustable UI or CLI

Security WPA2 AES Only

QoS Supports Packet Level Classication WMM and User Customer Level: High/Medium/Low

Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other

Ubiquiti Specic Features

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM,

3/5/8/10/20 MHz Channel Width Support

airMAX Mode, Trafc Shaping with Burst Support,

Discovery Protocol, Frequency Band Offset, Ackless Mode

M900 Compliance

16

M900 Operating Frequency

Operating Frequency 902 - 928 MHz

Output Power 28 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX

MCS0 28 dBm ± 2 dB

MCS1 28 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 28 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 28 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 28 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 24 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 22 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 21 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

MCS8 28 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 28 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 28 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 28 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 28 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 24 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 22 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 21 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

airMAX

MCS0 -96 dBm ± 2 dB

Datasheet

900 MHz 28 dBm 10/100

17

Datasheet

Frequency Band

Sector

RocketM9

RocketM2

RocketM2-Ti

RocketM3

RocketM365

RocketM5

RocketM5-Ti

900 MHz 3/3.65 GHz2.4 GHz 5 GHz

AM-V5G-Ti

AM-M-V5G-Ti

AM-V2G-Ti

AM-9M13 AM-3G18-120

AM-2G15-120

AM-2G16-90

RD-2G24 RD-3G26

AM-5G16-120

AM-5G17-90

AM-5G19-120

AM-5G20-90

AM-5AC21-60

AM-5AC22-45

RD-5G31-AC

RD-5G30-LW

RD-5G30

18

Rocket Dish

AMO-2G10

AMO-2G13

Omni

AMY-9M16

Yagi

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty
©2011-2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airControl,
airOS, airView, Rocket, RocketDish, TOUGHCable, and TOUGHSwitch are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United
States and in other countries. All other trademarks are the property of their respective owners.

AMO-3G12

RD-5G34

AMO-5G10

AMO-5G13

www.ubnt.com

JL042015
