Ubiquiti RD-5G30, RD-2G24, RD-3G26 Specsheet
Datasheet
airMAX® 2x2 PtP Bridge Dish Antenna

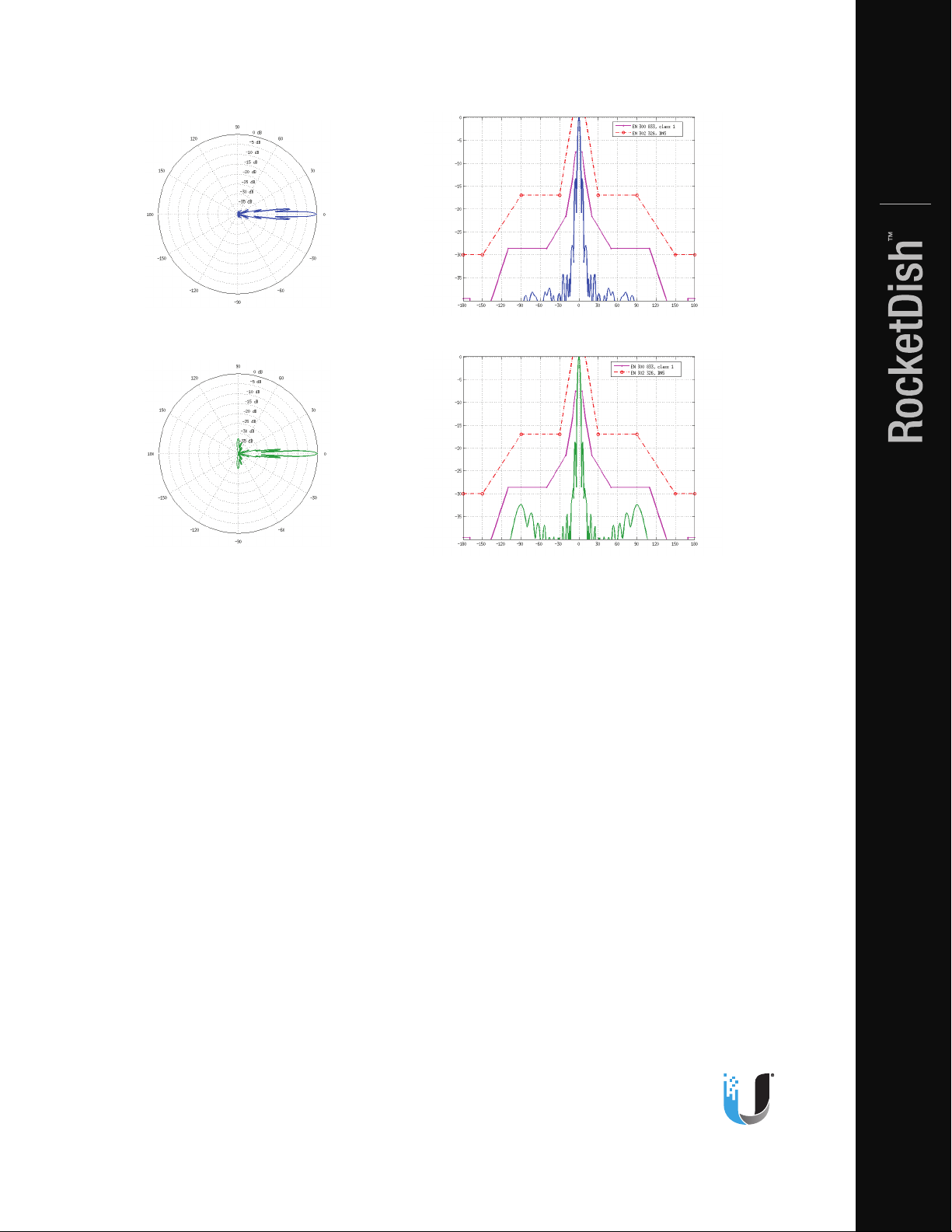

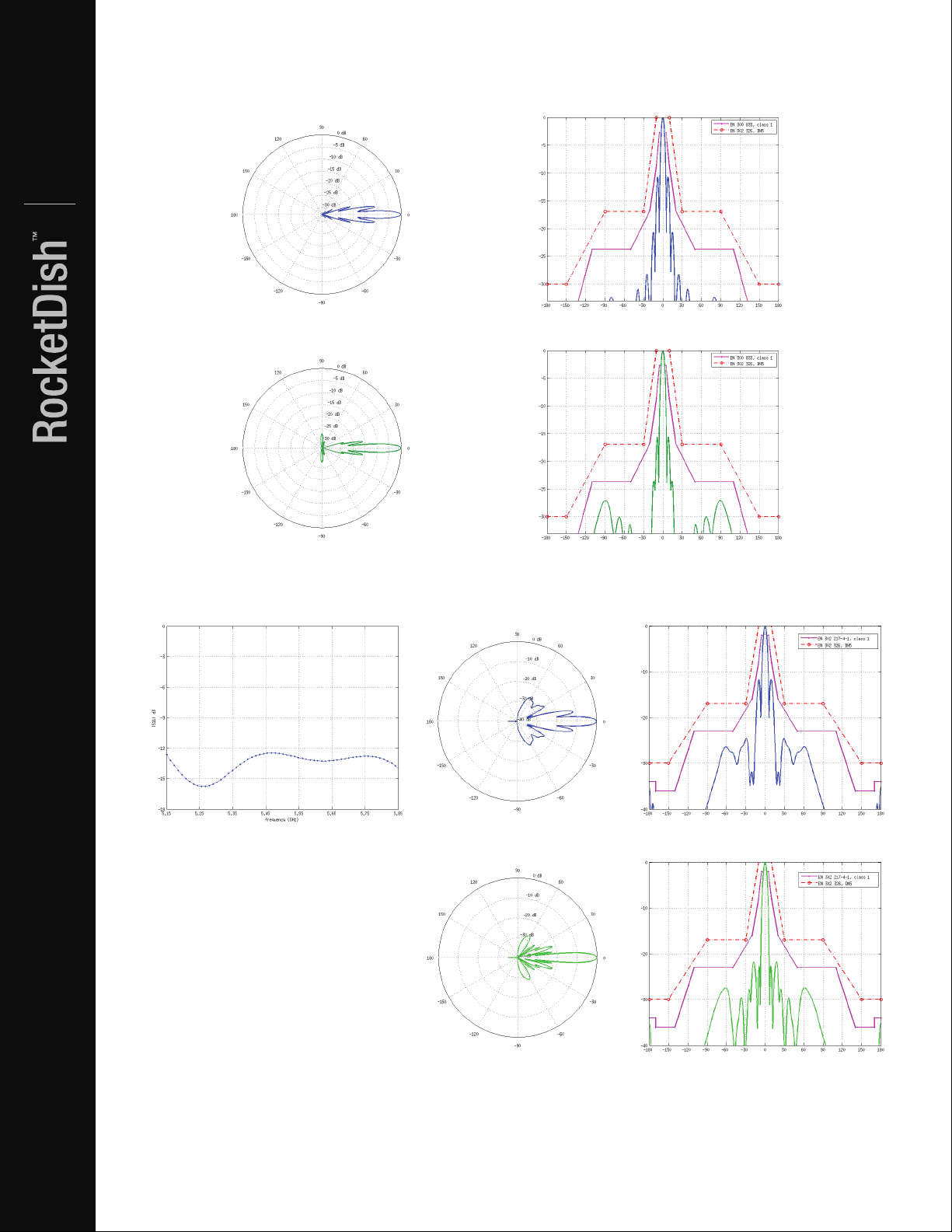

Models: RD-2G24, RD-3G26, RD-5G30, RD-5G30-LW, RD-5G34
Powerful Performance for Long-Range Links
Robust Design and Construction for Outdoor Use
Seamless Integration with Rocket Radios
Overview
Datasheet
Pair a RocketDish™ antenna with a
Rocket® basestation to create the
endpoint of a high-performance,
Point-to-Point (PtP) bridge or network
backhaul (Rocket sold separately).
The RocketDish is available in the
following frequency models:
• 2.4 GHz
• 3 GHz
• 5 GHz
Powerful Performance
The RocketDish antenna delivers
2x2, dual-polarity performance. On
the right is one example of how
the RocketDish with Rocket can be
deployed in a backhaul link to deliver
bandwidth from an ISP network out to
a neighborhood tower. From there, an
airMAX® Sector with Rocket delivers
bandwidth to the ISP’s customers.
Carrier-Class Construction
Incorporating a dish reector design
for excellent beam directivity,
the RocketDish antennas feature
robust mechanical design using
industrial-strength hardware for
outdoor application use.
Internet
Backbone
Corporate Building
ISP
Network
Application Example
RocketDish
with Rocket
Point-to-MultiPoint (PtMP)
airMAX Links
Residence
Internet Cafe Small Business Outdoor Hotspot
Point-to-Point (PtP)
Backhaul Link
airMAX Sector
with Rocket
RocketDish
with Rocket
Plug and Play Integration
RocketDish antennas and Rocket
basestations have been designed
to seamlessly work together. Every
RocketDish has a built-in Rocket
mount, so installation requires no
special tools.
Snap the Rocket securely into place
and mount the antenna; you then
have the optimal combination of
RocketDish and Rocket for your PtP
application.
Mounting a Rocket on the RD-5G30-LW
2
Hardware Overview

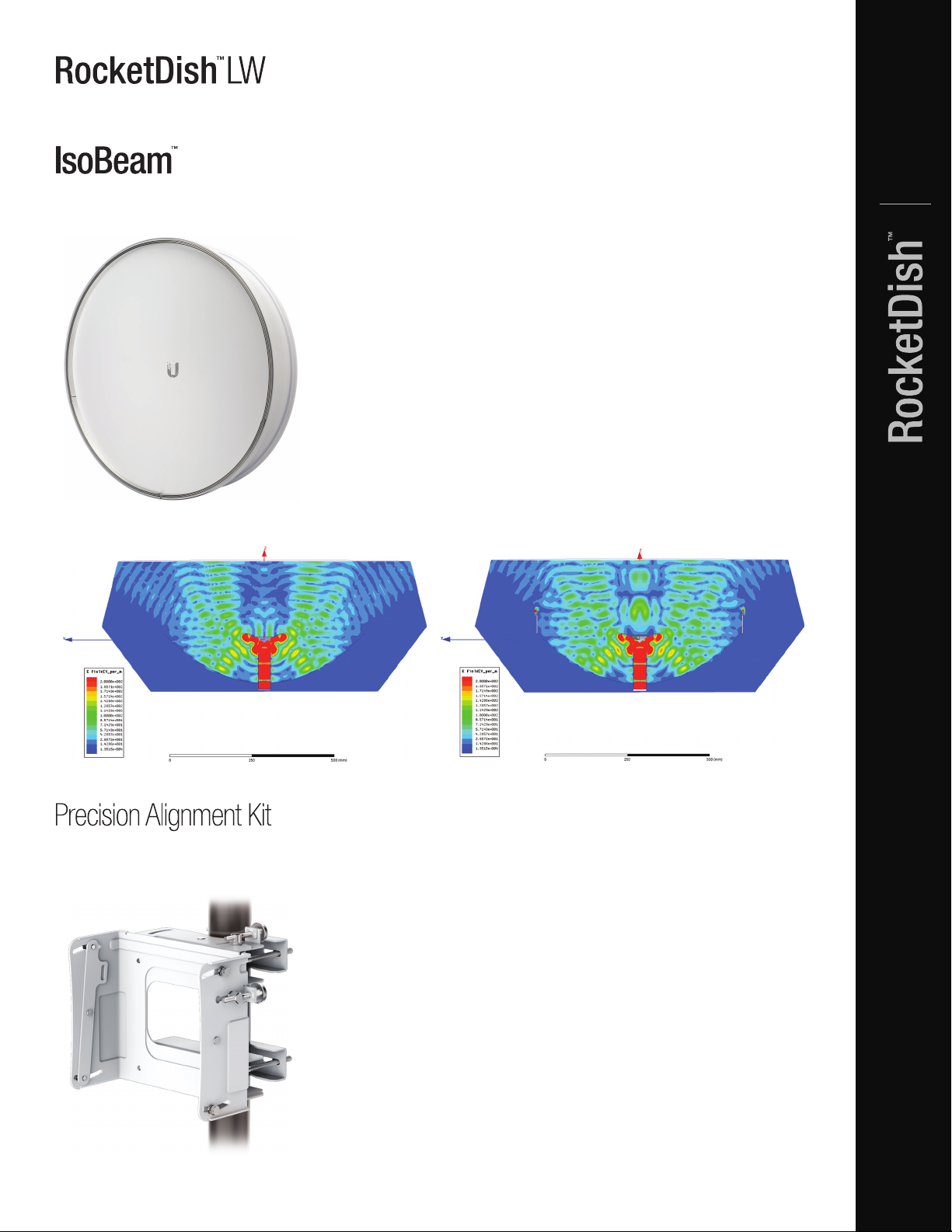

Innovative Mechanical Design
• Secure pole-mounting The hardware is designed to
securely mount and maintain the position of the dish
during harsh outdoor conditions.
• Convenient installation The bubble level allows for
easy alignment.
• Precision elevation adjustment of the RD-5G30-LW
Use this new feature to quickly ne-tune and adjust
the elevation.
Weatherproof Design
• Protective shroud The shroud* protects the cables and
connectors from nature’s elements.
• Mounting hardware of the RD-5G30-LW Made of
galvanized steel that is powder-coated for superior
corrosion resistance.
• Fasteners of the RD-5G30-LW GEOMET-coated for
improved corrosion resistance when compared with
zinc-plated fasteners.
Datasheet
Protective Shroud
Pole Clamp
Elevation Rod
Mounting Bracket
Pole Clamp
Stabilizer Brackets
Back View of the Fully Assembled RD-5G30-LW
* All models except for the RD-2G24 include a shroud.
3
Datasheet

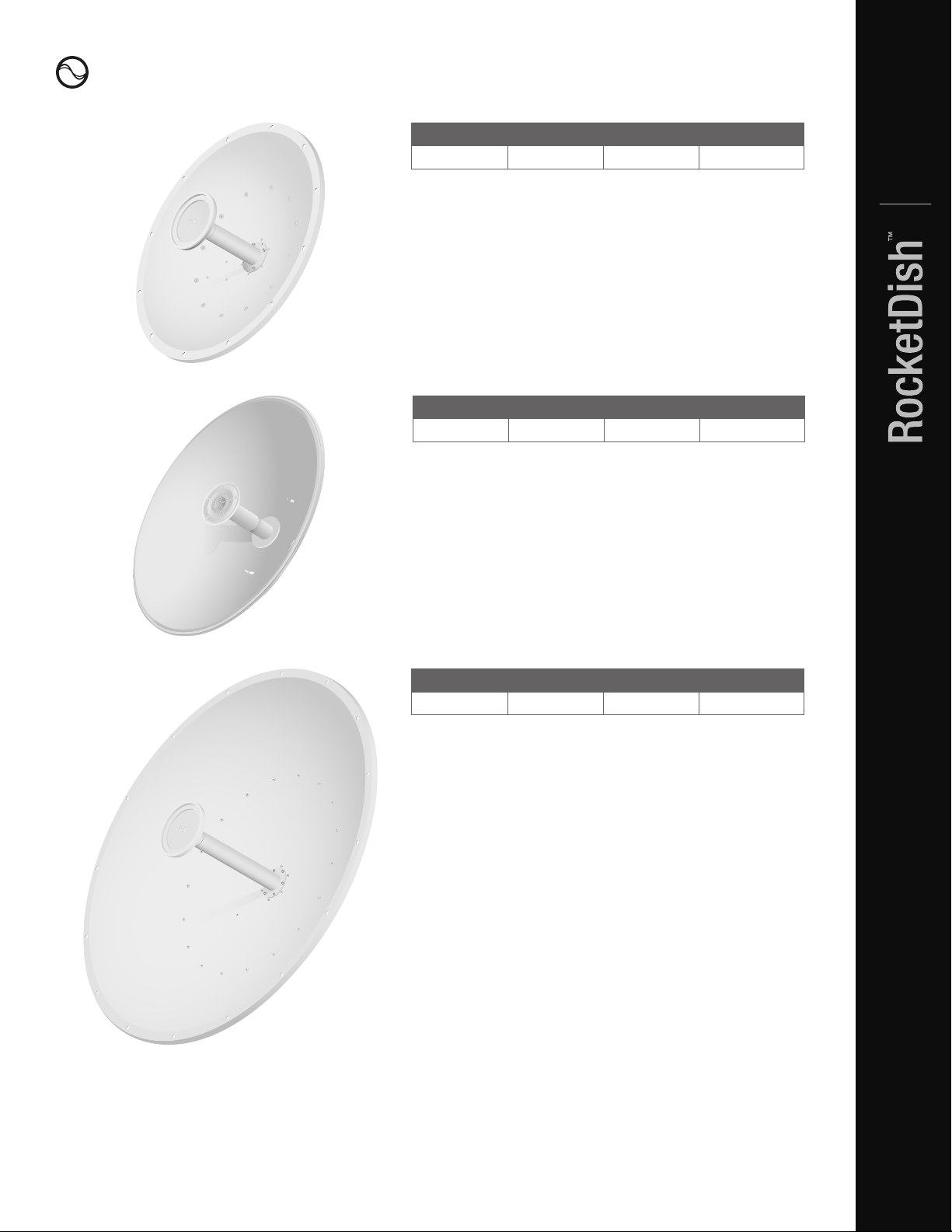

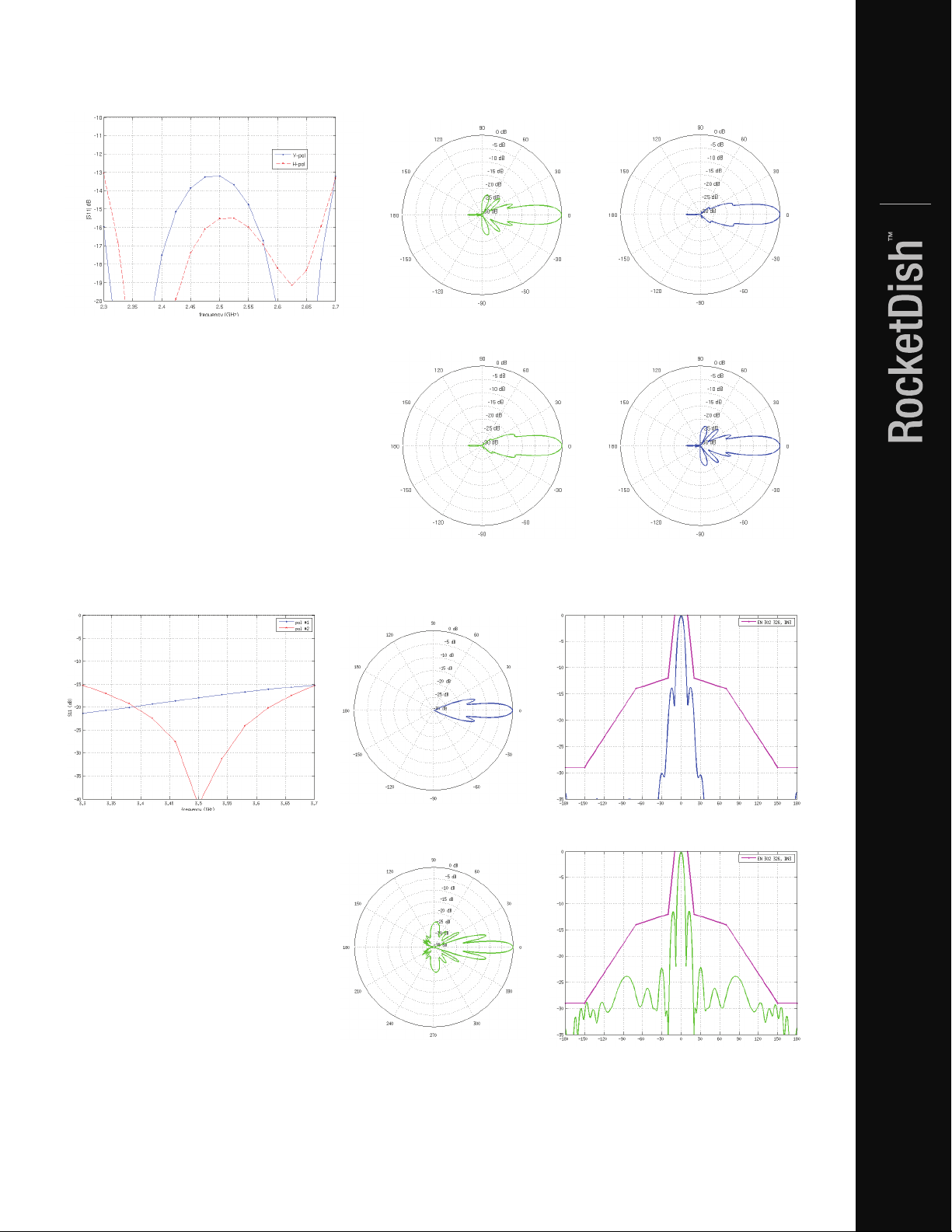

2.4 GHz Model
Model Frequency Gain Radome*

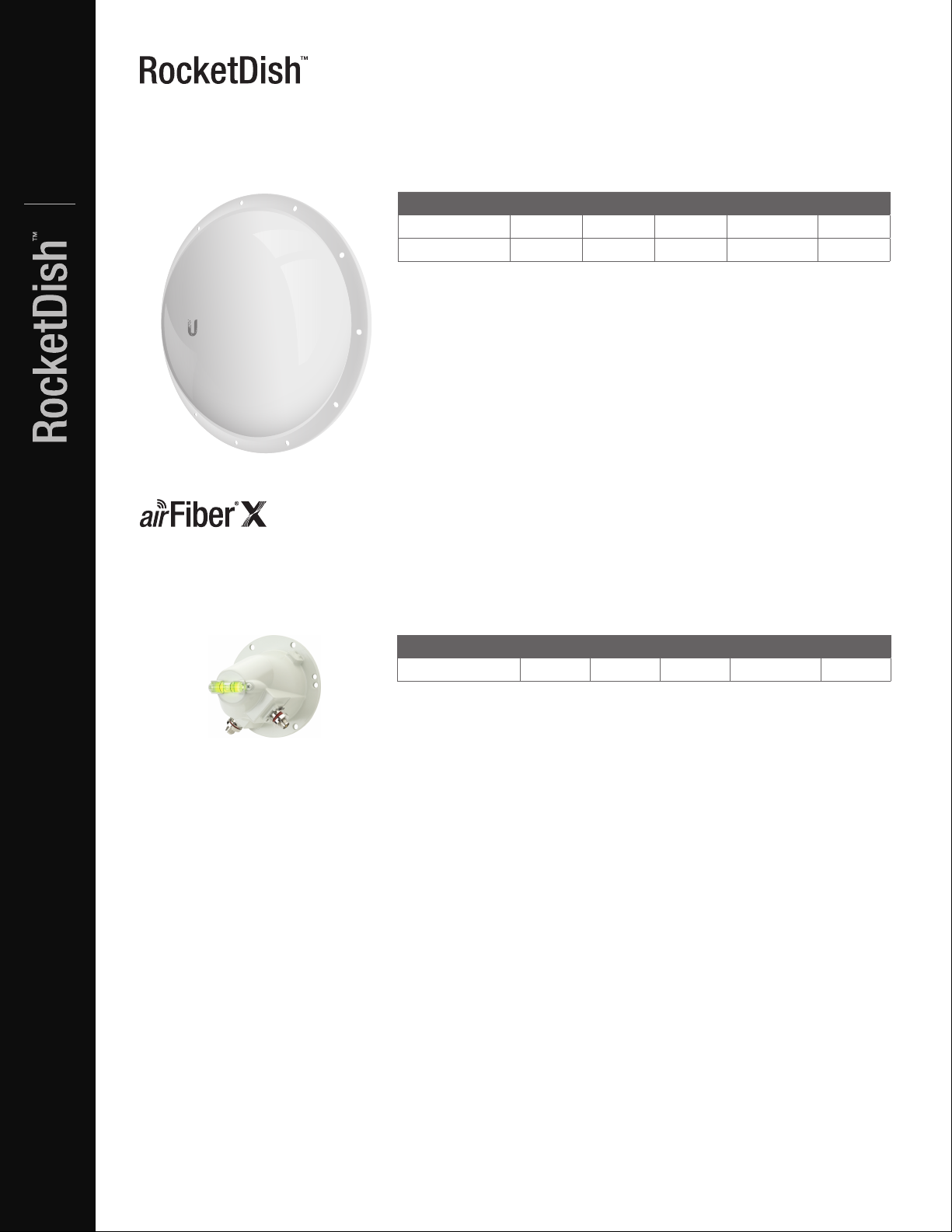

RD-2G24 2 GHz 24 dBi RAD-RD2
The 2.4 GHz frequency band is free to use, worldwide; however,
it is extremely crowded due to interference from other wireless
devices. Also, there are only three non-overlapping, 20 MHz
channels available for use.
3 GHz Model
Model Frequency Gain Radome*
RD-3G26 3 GHz 26 dBi RAD-RD2
The 3 or 3.65 GHz frequency band is noise-free in most areas;
however, its use requires a license. There may be additional
restrictions on its use depending on local country regulations.
4
