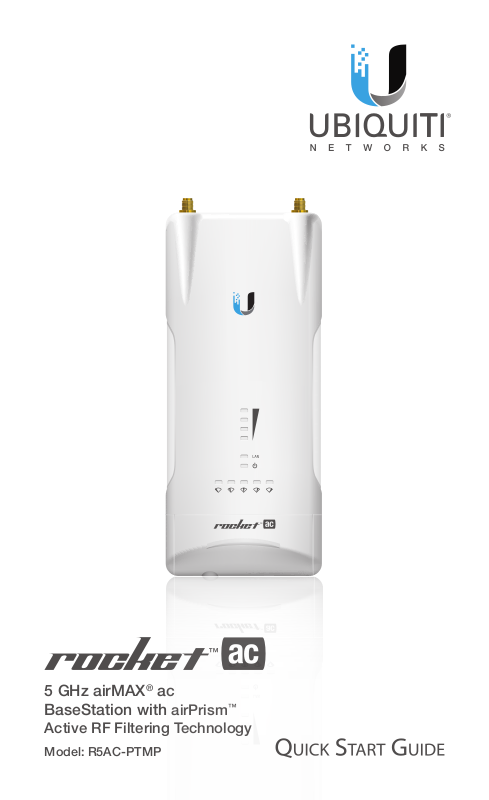

Ubiquiti R5ACPTMP User Manual
5 GHz airMAX® ac
BaseStation with airPrism
Active RF Filtering Technology
Model: R5AC-PTMP
™
Introduction
Thank you for purchasing the Ubiquiti Networks® Rocket™5ac
PtMP. This Quick Start Guide is designed to guide you through
installation and show how to access the airOS® Configuration
Interface. This guide also includes the warranty terms and is
for use with the Rocket5ac PtMP, model R5AC-PTMP.
Package Contents
5 GHz airMAX® ac
airPrism™
BaseStation with
Active RF Filtering Technology
Model: R5AC-PTMP
Rocket5ac
Installation Requirements
• Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is
designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.
PtMP
Gigabit PoE Adapter
(24V, 0.5A)
Power Cord Quick Start
Guide
www.ubnt.com/toughcable
Hardware Overview
RP-SMA Antenna
Connectors
Port Cover
LED Panel
LED Panel
Vertical Row
Signal In airOS, you can modify the wireless
signal strength threshold values for each LED on
the Advanced tab under Signal LED Thresholds.
The default values are shown below:
LED will light blue when the wireless
signal strength is above -65 dBm.
LED will light blue when the wireless
signal strength is above -73 dBm.
LED will light blue when the wireless
signal strength is above -80 dBm.
LED will light blue when the wireless
signal strength is above -94 dBm.
LAN LAN The LAN LED will light steady blue when an
active Ethernet connection is made to the LAN
port and flash when there is activity.
Power The Power LED will light blue when the
device is connected to a power source.
Horizontal Row
These LEDs are reserved for future use.
Ports
Reset
Button
LAN Port
LAN/PoE The Gigabit Ethernet port is used to connect the
power and should be connected to the LAN.
Reset Button To reset to factory defaults, press and hold the
Reset button for more than 10 seconds while the Rocket is
already poweredon. Alternatively, the Rocket may be reset
remotely via a Reset button located on the bottom of the
Gigabit PoE Adapter.

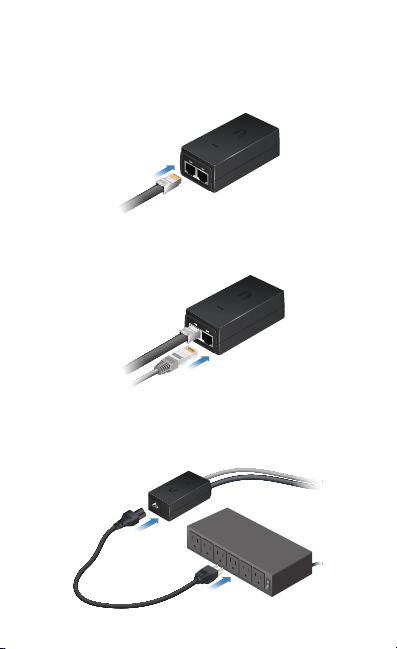

Switching Gigabit Power Supply / PoE
Reset
Button
RESET
Hardware Installation
The Rocket5ac PtMP is designed to mount directly onto a
Ubiquiti airMAX Sector Antenna.
1. Press down on the Port Cover of the Rocket and slide it off.
2. Connect an Ethernet cable to the LAN port.
3. Replace the Port Cover.
*640-00131-07*
640-00131-07
4. Connect the RF cables to the RP-SMA Connectors located on
top of the Rocket.
5. Attach the Rocket to the sector antenna.
a. Align the mounting tabs on the back of the Rocket with
the four mounting slots on the sector antenna.
b. Slide the Rocket down until it locks into place.
6. Attach the other ends of the RF Cables to the RF connectors
in this combination: Chain 1 to H and Chain 0 to V.
7. Slide the Protective Shroud over the Rocket until it locks
into place on the Sector Antenna.
