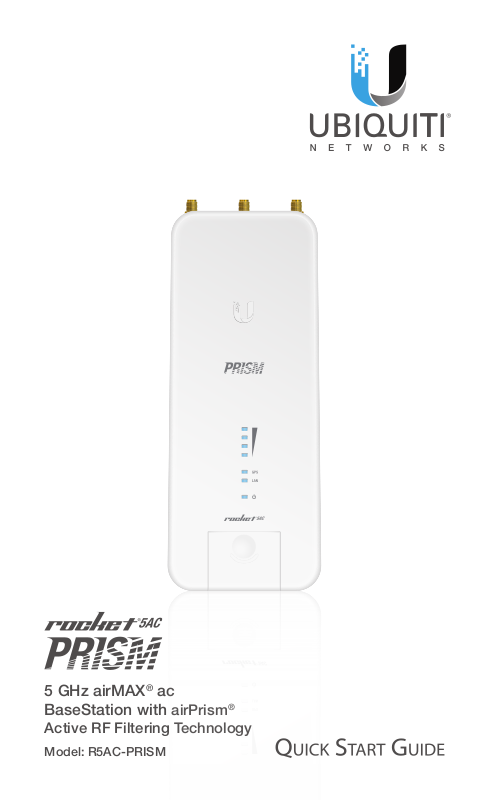

Ubiquiti R5ACPRISM User Manual
5 GHz airMAX® ac
BaseStation with airPrism
Active RF Filtering Technology
Model: R5AC-PRISM
®
Introduction
Thank you for purchasing the Ubiquiti Networks® Rocket®5ac
Prism. This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.
Package Contents
Rocket5ac Prism GPS Antenna
5 GHz airMAX® ac
airPrism®
BaseStation with
Active RF Filtering Technology
Gigabit PoE (24V, 0.5A)
with Mounting Bracket
Power Cord
Installation Requirements
• The GPS Antenna needs to have clear line of sight to thesky
for proper GPS operation.
• Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is
designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.
www.ubnt.com/toughcable
Model: R5AC-PRISM
Quick Start Guide
Hardware Overview
RP-SMA
Antenna
Connector:
Chain 1
LED Panel
GPS
Antenna
Connector
Port Cover
RP-SMA
Antenna
Connector:
Chain 0
LED Panel

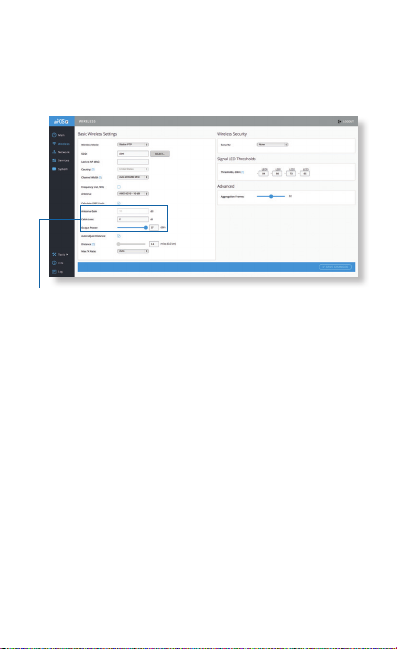

Signal In airOS, you can modify the wireless
signal strength threshold values for each LED on
the Wireless tab under Signal LED Thresholds. The
default values are shown below:
LED will light blue when the wireless
signal strength is above ‑65 dBm.
LED will light blue when the wireless
signal strength is above ‑73 dBm.
LED will light blue when the wireless
signal strength is above ‑80 dBm.
LED will light blue when the wireless
signal strength is above ‑94 dBm.
GPS GPS The GPS LED will light steady blue when the
GPS signal strength is sufficient. This requires a
minimum of three satellite connections.
LAN LAN The LAN LED will light steady blue when an
active Ethernet connection is made to the LAN
port and flash when there is activity.
Power The Power LED will light blue when the
device is connected to a power source.
Ports
Reset
Button
LAN Port
LAN The Gigabit Ethernet port is used to connect the power
and should be connected to the LAN.
Reset Button To reset to factory defaults, press and hold the
Reset button for more than 10 seconds while the Rocket is
already poweredon. Alternatively, the Rocket may be reset
remotely via a Reset button located on the bottom of the
Gigabit PoE adapter.
Hardware Installation
The Rocket5ac Prism is designed to mount directly onto a
Ubiquiti airMAX RocketDish™ antenna for Point‑to‑Point use or
an airMAX Sector antenna for Point‑to‑MultiPoint use.
1. Lift the release latch on the bottom of the Rocket and slide
the Port Cover off.
2. Connect an Ethernet cable to the LAN port.
3. Replace the Port Cover.
*640-00220-01*
640-00220-01
4. Connect the RF cables (included with the antenna) to the
RP-SMA Antenna Connectors located on top of the Rocket.
5. Attach the Rocket to the antenna.
a. Align the mounting tabs on the back of the Rocket with
the four mounting slots on the antenna.
b. Slide the Rocket down until it locks into place.
CHAIN 1
CHAIN 1
GPS
GPS
CHAIN 0
CHAIN 0
H
V
CHAIN 1
CHAIN 1
GPS
GPS
CHAIN 0
CHAIN 0
Mounting on a RocketDish Mounting on a Sector Antenna
6. Attach the other end of the RF cables to the RF connectors
on the antenna.
H
V
CHAIN 1
GPS
CHAIN 0
CHAIN 1
GPS
CHAIN 0
Connecting to a RocketDish Connecting to a Sector Antenna
7. Connect the GPS Antenna to the GPS Antenna Connector
on the Rocket.
H
V
CHAIN 1
GPS
CHAIN 0
CHAIN 1
GPS
CHAIN 0
Connecting the GPS Antenna Connecting the GPS Antenna
