Page 1
Datasheet
Machine-to-Machine
Management System
Models: mPort, mPort-S, mPower, mPower mini,
mPower PRO, mFi-CS, mFi-DS, mFi-THS, mFi-MSC,
mFi-MSW, mFi-LD, mFi-MPW
Automated Machine Control
Sensor Data Collection and Analytics
Plug and Play Installations
Page 2
Overview
Datasheet
mFi® is a Machine-to-Machine management system
from Ubiquiti Networks®. mFi hardware is managed and
monitored from the mFi Controller software. The mFi
Controller allows you to create rules that trigger actions
based on data from your mFi sensors. For example, motion
detection can turn a light on, or a high temperature reading
can trigger a fan. The mFi platform is compatible with
third-party devices, making the options unlimited!
Features
Plug and Play Installation Use standard Ethernet cable
to connect machines and sensors. Use Wi-Fi to seamlessly
connect mFi nodes to your IP network. Unlimited device
scalability allows you to add mFi devices as needed.
Powerful Functionality Create powerful relationships
between sensors, machines, and powered devices.
Mobile Support The mFi iOS application is available for
iPhone and iPad. Other mobile devices can connect to a
customized mobile version of the mFi Controller interface
using a web browser.
Sophisticated User Experience From auto-detection of
machines through intuitive and powerful rule creation,
the mFi Controller transforms a machine network into an
automated symphony.
Hardware
In-Wall Devices There are two in-wall devices available for
mFi management. The mFi Outlet is a standard in-wall dual
electrical outlet with Wi-Fi that features energy monitoring
and can be independently controlled by an mFi Controller.
The mFi Switch is an in-wall manageable switch/dimmer.
In switch mode, it can be used to turn lights on and off.
In dimmer mode, it can control incandescent, halogen,
dimmable CFL, or dimmable LED lamps. Energy monitoring
and controls are available in the mFi Controller.
mPower The mPower™ products are mFi-controllable
power outlets with Wi-Fi capability. There are three mPower
models available. The mPower mini is a single-port outlet,
the mPower is our standard 3-port power strip, and the
mPower PRO is an 8-port power strip that also includes an
Ethernet port. All feature independent, switchable AC ports
and energy monitoring.
mPorts and Sensors There are two mPort™ models
available for connecting devices to the mFi network. The
mPort has two mFi RJ45 connectors and a terminal block
connector. The mPort Serial features RS232/422/485
serial connectivity through a standard DB9 serial port or
a terminal block connector. Both have built-in Wi-Fi and
Ethernet to connect to the IP network. Ubiquiti offers a
variety of motion, temperature, current, and door sensors to
connect to the mPort and your mFi network. These sensors
connect to the mPort using a standard RJ45 cable, except
for the mFi-DS, which connects using a terminal block
connector.
2
Page 3
Software
The mFi Controller software is designed to work
with the Ubiquiti Networks mFi product line
and third-party devices. The software interface
design is based on the popular and easy-to-use
UniFi® software interface. The mFi Controller
software allows you to manage your mPort,
mPower, sensor, in-wall, and third-party devices
from your web browser.
Features
Machine Auto Detection The mFi Controller
software will auto-detect and provision mFi
devices and connected machines on the
machine network.
Advanced Analytics Powerful graphing with
user-dened views provides in-depth analysis of
the machine network.
Events and Alerts User-dened event
recording and alerts provide feedback on
machine network activity.
Remote Control Capability Remotely control
the power and functionality of the machine
network.
Remote Terminal Support Terminal command
windows support unlimited machine network
scalability through a single interface.
Datasheet
Maps
Upload map images of your location(s) for a visual representation
of your machine network.
System Requirements
• Microsoft Windows 7/8, Windows Vista,
MacOS X, or Ubuntu Linux 12.04 or later
64-Bit Operating System
• Web Browser: Mozilla Firefox, Google Chrome,
or Microsoft Internet Explorer 8 (or higher)
• Java Runtime Environment 1.6
(1.6.0_26 or higher recommended)
• Flash Player 10
• Minimum 2 GB RAM is highly recommended
Customizable Data Views
Display information on your machines and sensors in a
customizable view with selected times and date ranges.
Advanced Rule Creation
Create powerful relationships and automation in your machine
network with complete freedom.
3
Page 4
In-Wall Device Specications
In-Wall Manageable Outlet
mFi-MPW, mFi-MPW-W
Datasheet
Dimensions 110.8 x 71 x 67.7 mm (4.32 x 2.8 x 2.67")
Weight (without Wall Plate) 160 g (5.6 oz)
Electrical Rating 110 - 125VAC, 50 - 60 Hz, 15A
Maximum Power Load
Wires Line, Neutral, and Ground
Wall Plate Removable
Interface
LED Yellow/Blue
Wi-Fi 802.11b/g/n
Functions
ESD/EMP Protection Air: ± 8KV, Contact: ± 4KV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 95% Noncondensing
Shock and Vibration -40° C, 2 Hrs / +85° C, 2 Hrs, 5 Cycles
15A per Socket (Not Simultaneous)
15A Total Combined
Status LED
Reset Button
Initialize Button
Dual Relays for Power Control
Energy Monitoring
Safety UL Listed
mFi-MPW mFi-MPW-W Back View
4
Page 5

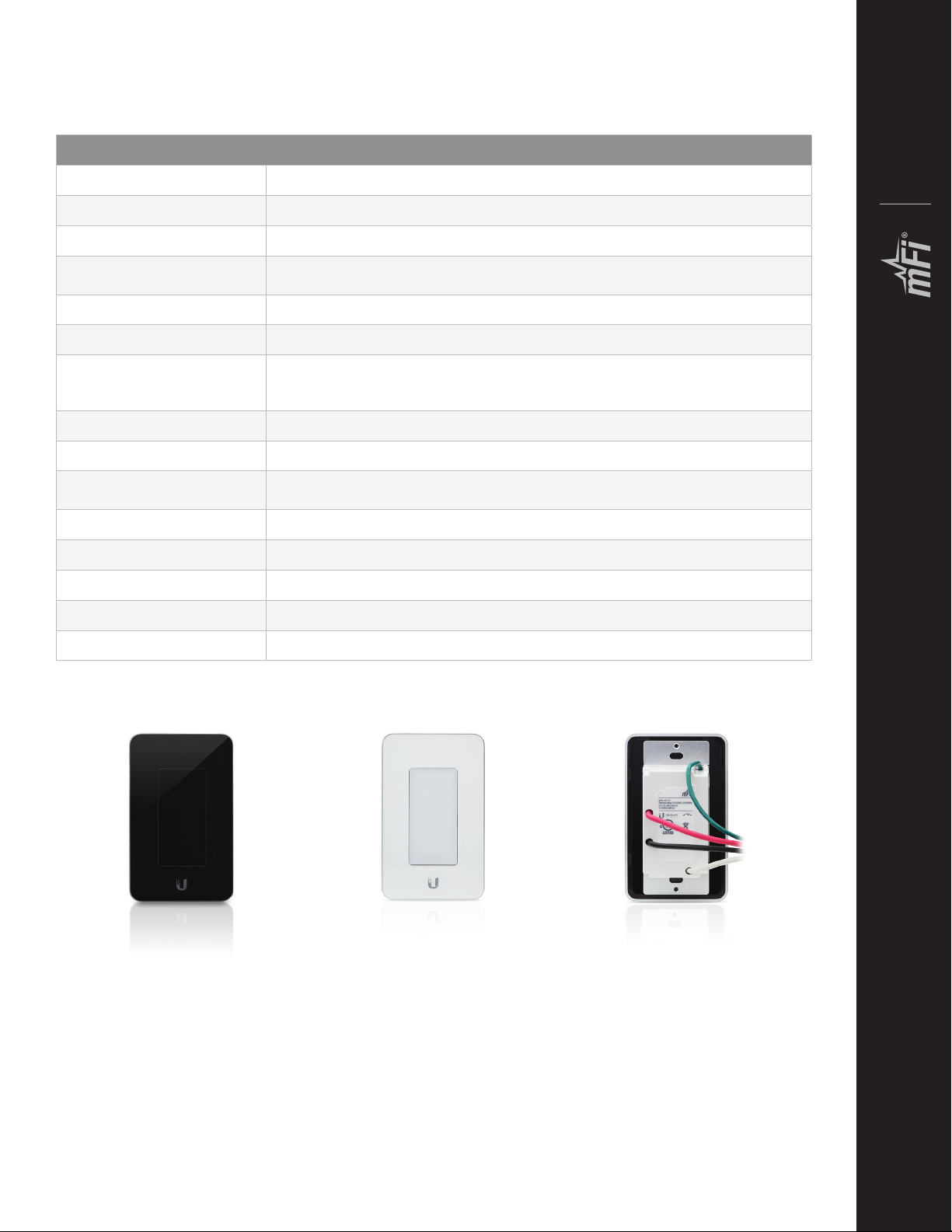

In-Wall Device Specications
In-Wall Manageable Switch/Dimmer
mFi-LD, mFi-LDW
Dimensions 110.8 x 71 x 67.7 mm (4.32 x 2.8 x 2.67")
Weight (without Wall Plate) 150 g (5.3 oz)
Electrical Rating 110 - 125VAC, 60 Hz
Maximum Power Load
Wires Line, Neutral, Load, and Ground
Wall Plate Removable
Interface
LED Yellow/Blue
Wi-Fi 802.11b/g/n
Functions
ESD/EMP Protection Air: ± 8KV, Contact: ± 4KV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 95% Noncondensing
Shock and Vibration -40° C, 2 Hrs / +85° C, 2 Hrs, 5 Cycles
15A in Switch Mode
5A in Dimmer Mode
Status LED
Initialize Button
Air Gap Switch
Switch or Dimmer Mode
Energy Monitoring
Datasheet
Safety UL Listed
mFi-LD mFi-LD-W Back View
5
Page 6

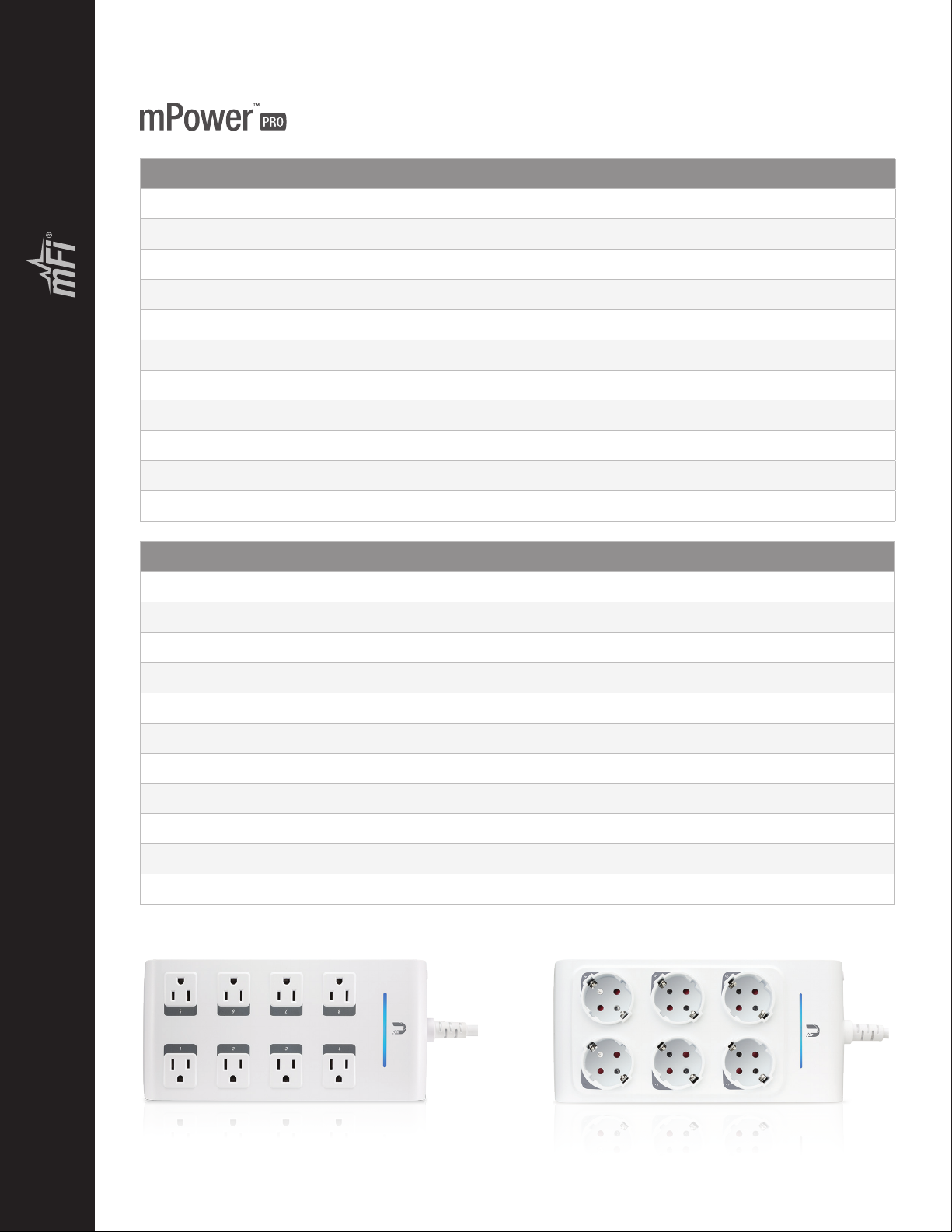

mPower Specications
Datasheet
Dimensions 250.37 x 116.7 x 42 mm (9.86 x 4.59 x 1.65")
Weight 754.4 g (26.61 oz)
Mounting Wall (Kit Included)
Power 110 - 125VAC, 50 - 60 Hz,15A Per Outlet, 15A Total
Outlets 8
Networking Interface (1) 10/100 Ethernet Port
Memory 16 MB RAM, 8 MB Flash
Wi-Fi Standards 802.11b/g/n
LEDs 1 LED (Status)
Operating Temperature 0 to 40° C (32 to 104° F)
Humidity 95% RH Max.
Dimensions 250,37 x 116,7 x 49 mm (9.86 x 4.59 x 1.93")
Weight 754,4 g (26.61 oz)
mPower PRO
mPower PRO (EU)
Mounting Wall (Kit Included)
Power 220 - 250VAC, 50 Hz, 16A Per Outlet, 16A Total
Outlets 6
Networking Interface (1) 10/100 Ethernet Port
Memory 16 MB RAM, 8 MB Flash
Wi-Fi Standards 802.11b/g/n
LEDs 1 LED (Status)
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 90% Noncondensing
mPower PRO mPower PRO (EU)
6
Page 7

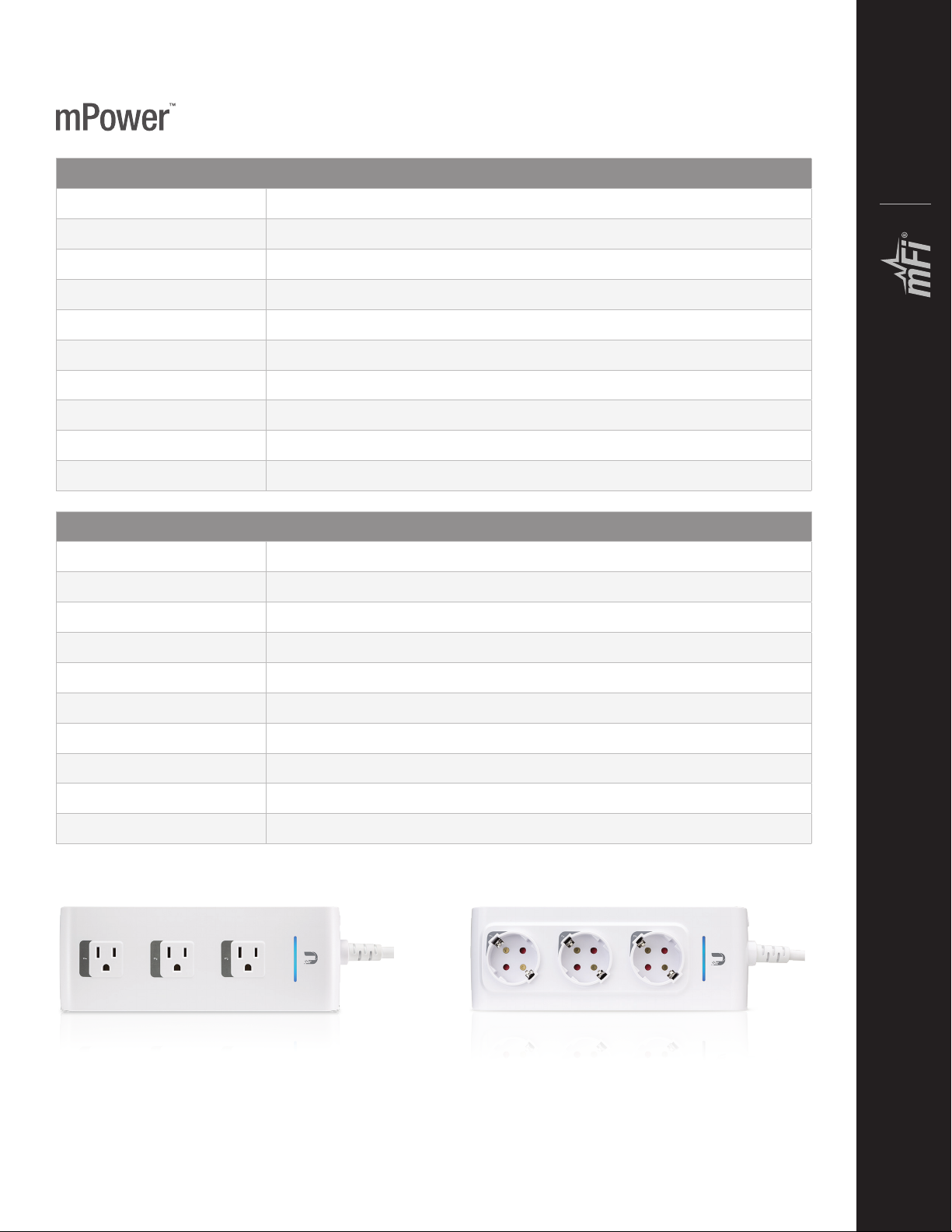

mPower Specications
mPower
Dimensions 241.3 x 116.9 x 41.27 mm (9.5 x 4.60 x 1.62")
Weight 790 g (27.87 oz)
Mounting Wall (Kit Included)
Power 110 - 125VAC, 50 - 60 Hz, 15A Per Outlet, 15A Total
Outlets 3
Memory 16 MB RAM, 8 MB Flash
Wi-Fi Standards 802.11b/g/n
LEDs 1 LED (Status)
Operating Temperature -10 to 45° C (14 to 113° F)
Humidity 95% RH Max.
mPower (EU)
Dimensions 240 x 82,8 x 41,5 mm (9.45 x 3.26 x 1.63")
Weight 545 g (19.22 oz)
Mounting Wall (Kit Included)
Datasheet
Power 220 - 250VAC, 50 Hz, 16A Per Outlet, 16A Total
Outlets 3
Memory 16 MB RAM, 8 MB Flash
Wi-Fi Standards 802.11b/g/n
LEDs 1 LED (Status)
Operating Temperature -10 to 45° C (14 to 113° F)
Humidity 95% RH Max.
mPower mPower (EU)
7
Page 8
mPower Specications
Datasheet
Dimensions 110.8 x 71 x 67.7 mm (4.36 x 2.79 x 2.67")
Weight 150 g (5.29 oz)
Power 110 - 125VAC, 50 - 60 Hz, 15A
Outlets 1
Memory 16 MB RAM, 8 MB Flash
Wi-Fi Standards 802.11b/g/n
LEDs 1 LED (Status)
Operating Temperature 0 to 45° C (32 to 113° F)
Humidity 10-95%, Noncondensing
Dimensions 110,8 x 71 x 67,7 mm (4.36 x 2.79 x 2.67")
Weight 170 g (6 oz)
Power 220 - 250VAC, 50 Hz, 10A
Outlets 1
mPower mini
mPower mini (EU)
Memory 16 MB RAM, 8 MB Flash
Wi-Fi Standards 802.11b/g/n
LEDs 1 LED (Status)
Operating Temperature 0 to 45° C (32 to 113° F)
Humidity 10-95%, Noncondensing
mPower mini mPower mini (EU)
8
Page 9

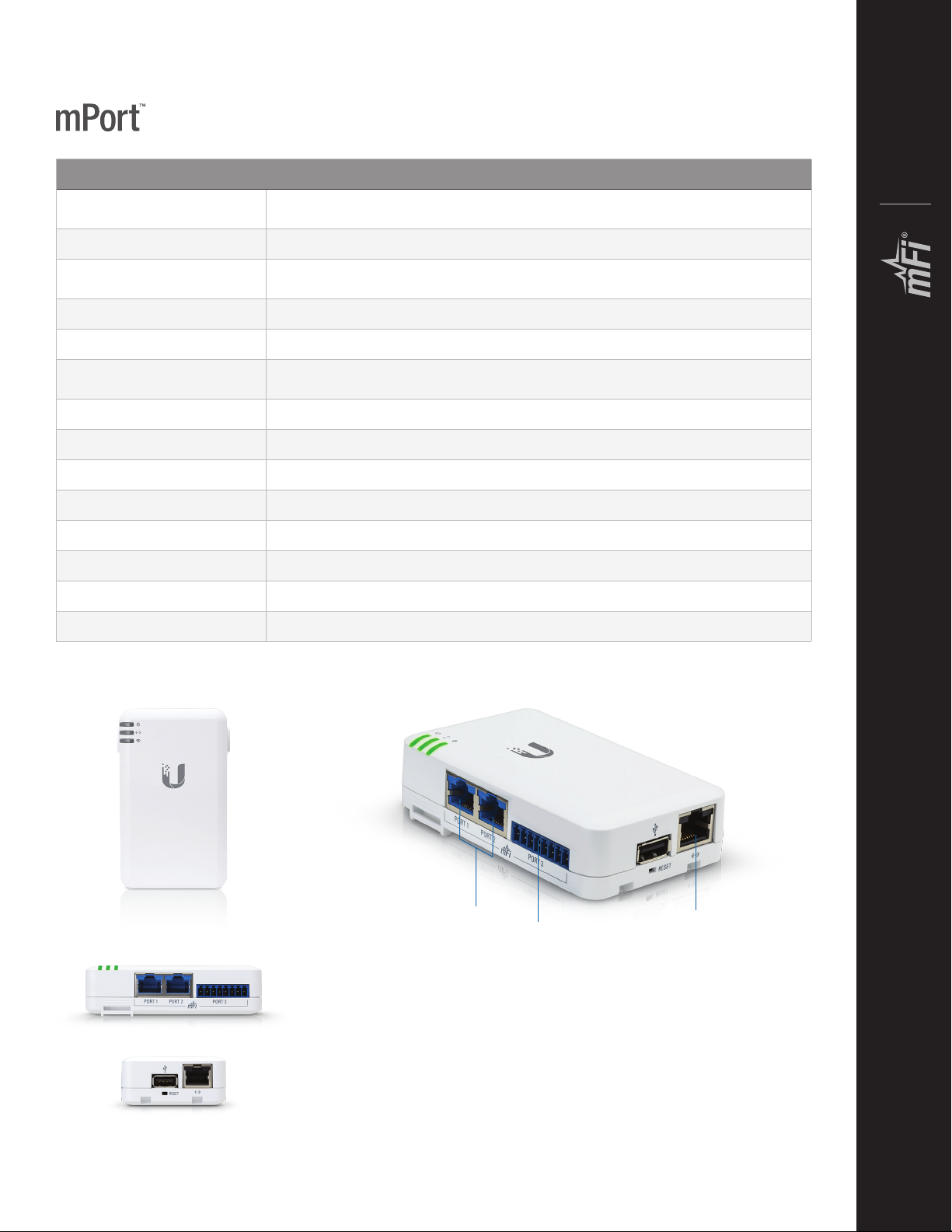

mPort Specications
mPort
Dimensions (without Bracket)
(with Bracket)
Weight (with Bracket) 119 g (4.2 oz)
Power Supply
Max. Power Consumption 3W
Networking Interface (1) 10/100 Ethernet Port
Ports
Antenna Internal
Output Power 18 dBm
Wi-Fi Standards 802.11b/g/n
Memory 16 MB RAM, 8 MB Flash
LEDs 3 LEDs (Power, Ethernet, Status)
Mounting Wall-Mount Bracket (Included)
Operating Temperature -10 to 70° C (14 to 158° F)
100 x 60 x 27.5 mm (3.94 x 2.36 x 1.08")
100 x 60 x 36.5 mm ( 3.94 x 2.36 x 1.44")
24V, 0.5A Surge Protection
Integrated PoE Adapter (Included)
(2) mFi RJ45 Ports
(1) mFi Terminal Block Port
Datasheet
Operating Humidity 5 to 80% Noncondensing
mFi RJ45 Ports
mFi Terminal
Block Port
Ethernet Port
9
Page 10

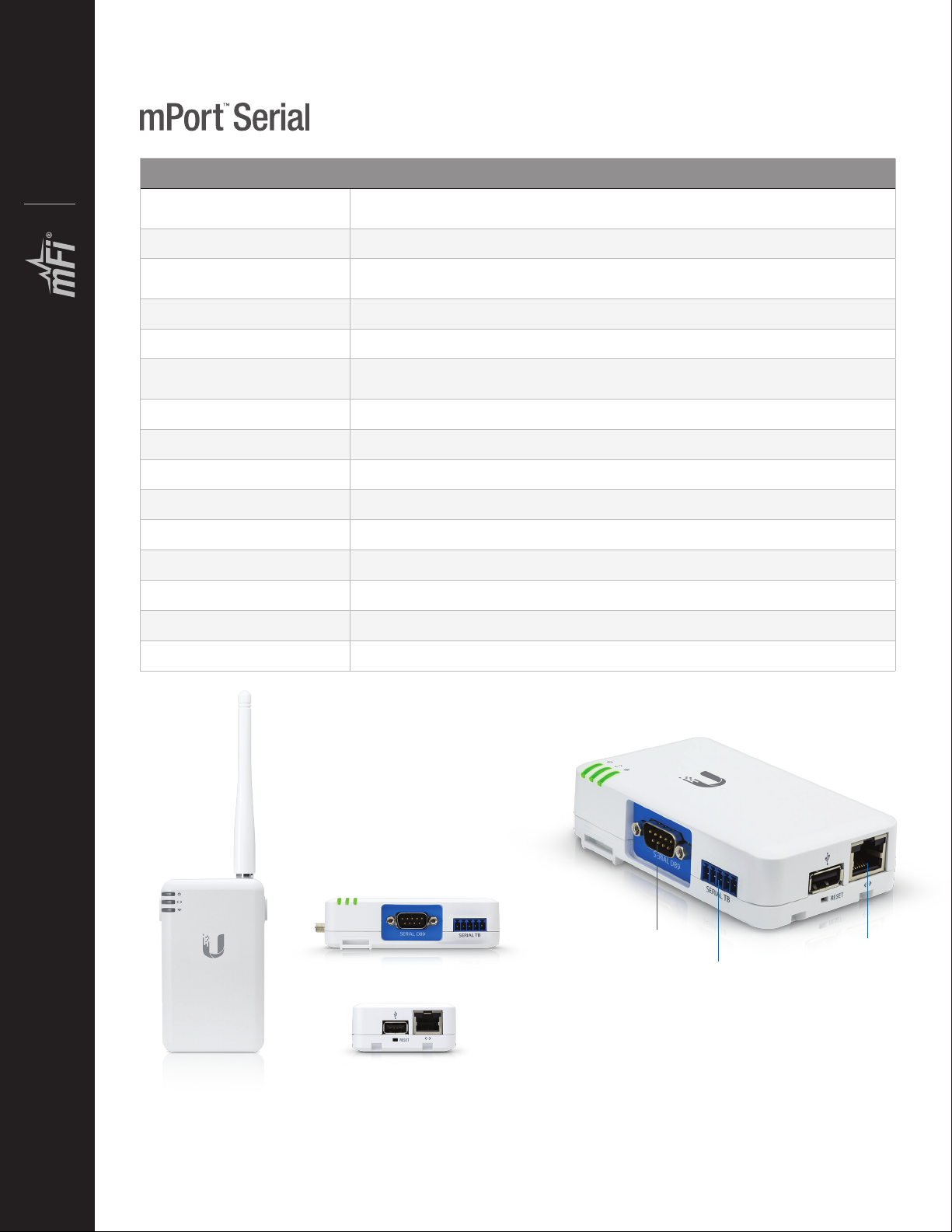

mPort Specications
Datasheet
Dimensions (without Bracket)
(with Bracket)
Weight (with Bracket) 119 g (4.2 oz)
Power Supply
Max. Power Consumption 3W
Networking Interface (1) 10/100 Ethernet Port
Ports
Antenna Internal and External, Antenna included
Output Power 18 dBm
Wi-Fi Standards 802.11b/g/n
Serial Protocols RS232, RS422, RS485
Memory 16 MB RAM, 8 MB Flash
LEDs 3 LEDs (Power, Ethernet, Status)
Mounting Wall-Mount Bracket (Included)
mPort-S
100 x 60 x 27.5 mm (3.94 x 2.36 x 1.08")
100 x 60 x 36.5 mm ( 3.94 x 2.36 x 1.44")
24V, 0.5A Surge Protection
Integrated PoE Adapter (Included)
(1) DB9 Serial Port
(1) Terminal Block Serial Port
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 80% Noncondensing
Serial DB9 Port
Serial Terminal
Block Port
Ethernet Port
10
Page 11

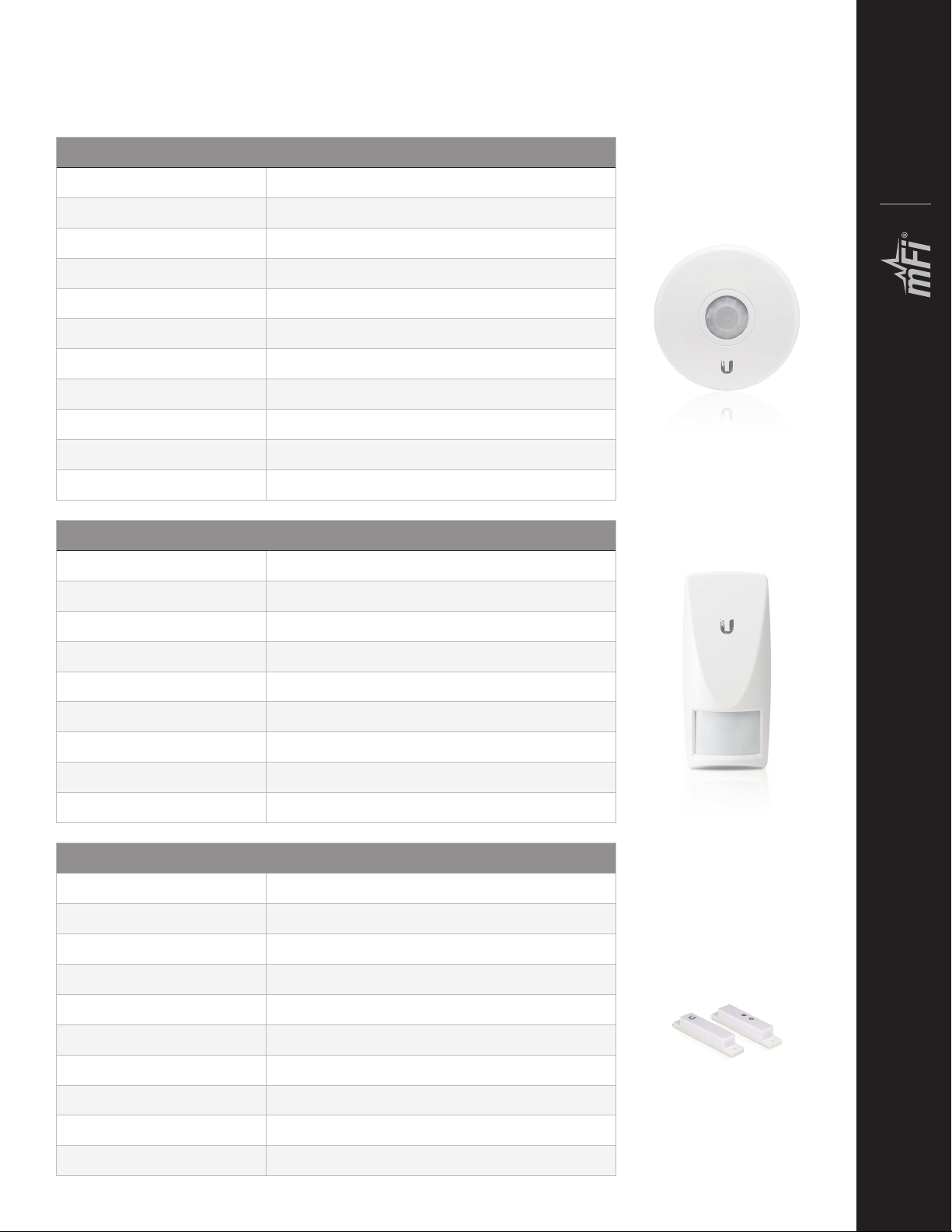

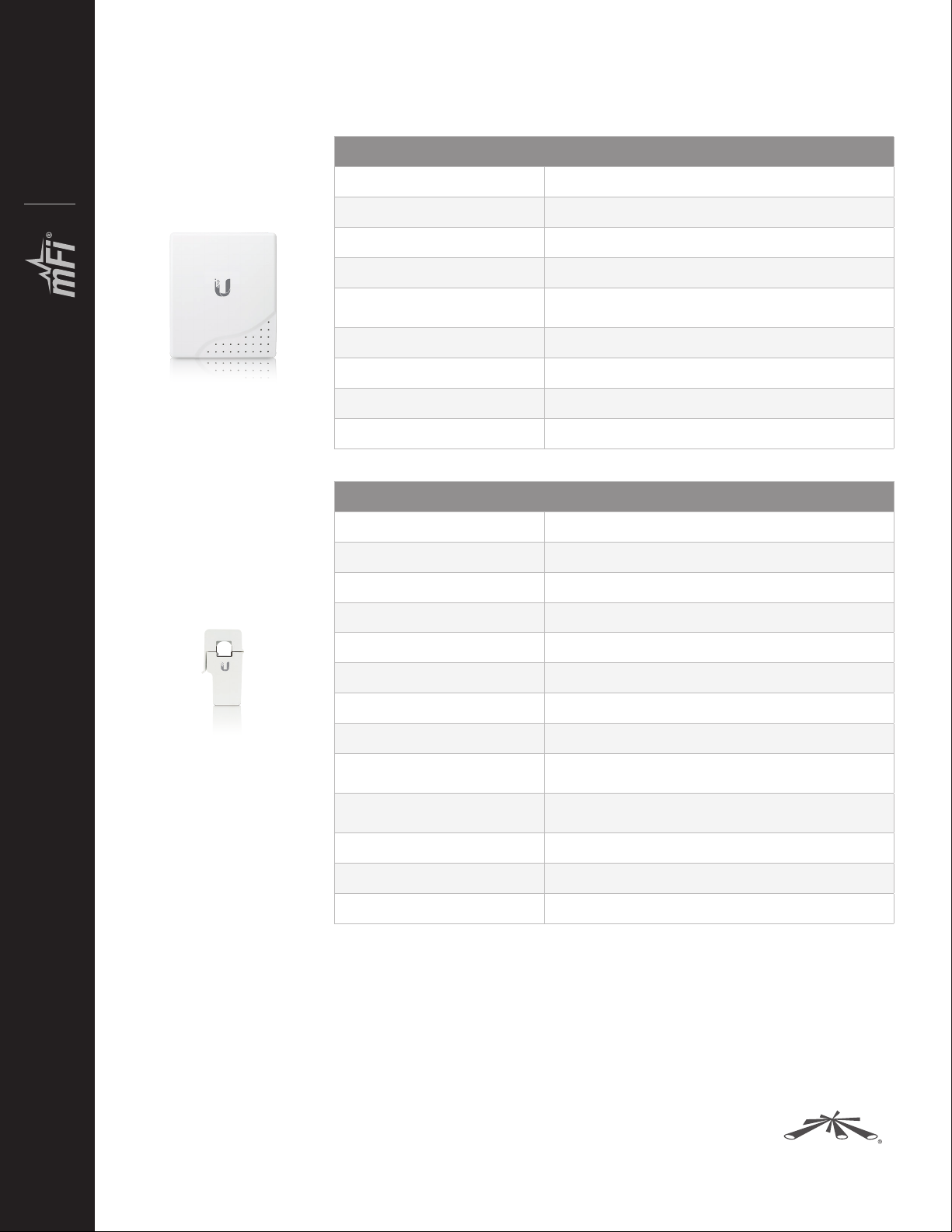

mPort Sensor Specications
These sensors are designed to be used with the mFi mPort.
mFi-MSC
Dimensions 134.5 x 134.5 x 30.5 mm (5.30 x 5.30 x 1.20")
Weight 136 g (4.80 oz)
RF Immunity 10V/m at 80 MHz to 2 GHz
Warm Time 2 Minutes
Angle of View 360°
Cone of Detection 110° Wide Angle
Ports (1) mFi RJ45 Port
Mounting Ceiling-Mount Bracket (Included)
Mounting Height Up to 4.5 m (15 ft.)
Operating Temperature 0 to 50° C (32 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Datasheet
Ceiling Mount
Motion Sensor
mFi-MSW
Dimensions 146 x 66 x 52 mm (5.75 x 2.60 x 2.05")
Weight 127 g (4.48 oz)
RFI Immunity Avg. 10 V/m (80 to 2,000 MHz)
Detection Range 10 x 10 m, 110° @ 25° C
Ports (1) mFi RJ45 Port
Mounting Wall/Ceiling-Mount Bracket (Kits included)
Mounting Height 2.3 m Typical
Operating Temperature -10° to 45° C (14 to 113° F)
Operating Humidity 95% RH Max.
mFi-DS
Dimensions 50 x 9.5 x 7.7 mm (1.97 x 0.37 x 0.30")
Weight (Magnet and Switch) 350 g (12.35 oz)
Contact Form Form A (SPST)
Maximum Rating 1.0A @ 28VDC
Initial Contact Resistance 0.3 Ω Maximum
Wall Mount
Motion Sensor
Door Sensor
Operating Range 20 mm (Typical)
Wiring Screw Terminal
Mounting Adhesive or Screws (Included)
Operating Temperature -10 to 60° C (14 to 140° F)
Operating Humidity ≤80% Noncondensing
11
Page 12
mPort Sensor Specications
These sensors are designed to be used with the mFi mPort.
mFi-THS
Datasheet
Temperature Sensor
Current Sensor
Dimensions 100 x 85 x 27.8 mm (3.94 x 3.35 x 1.09")
Weight 80 g (2.82 oz)
Temperature Range -10 to 50° C (14 to 122° F)
Accuracy at +25° C, 50% RH ±0.5° C
Temperature Accuracy
from -10 to +50° C
Response Time <15 Seconds
Ports (1) mFi RJ45 Port
Operating Temperature -25 to 60° C (-13 to 140° F)
Operating Humidity 0 to 95% Noncondensing
mFi-CS
Dimensions 32 x 57 x 22 mm (1.26 x 2.24 x 0.87")
Size of Opening 13 x 13 mm (0.51 x 0.51")
Weight 50 g (1.76 oz)
Ports (1) mFi RJ45 Port
Max. ±1.3° C
Input Current 0 to 100A
Load Linear*
Core Material Ferrite
Bobbin Nylon
Mechanical Strength
Dielectric Strength
(Between Shell and Output)
Fire Resistance Rating UL94-V0
Operating Temperature -25 to 70° C (-13 to 158° F)
Operating Humidity ≤85% Noncondensing
* Non-linear loads are approximated as linear loads (sine wave).
Number of Switching Operations ≥ 1000 Times
(Tested at 20° C)
6000VAC/1 min.
12
Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty
©2011-2014 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, mPort,
mPower, mFi, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
All other trademarks are the property of their respective owners.
www.ubnt.com
RR062714
Loading...
