Ubiquiti MFI-MSW Quick User Guide
Wall Mount Motion Sensor
Model: mFi-MSW
ntroduction
Thank you for purchasing the Ubiquiti Networks® mFi® Wall
Mount Motion Sensor. This sensor is designed for use with the
™
mFi mPort
. Once they are connected, you can use the mFi
Controller software to monitor your sensors using your web
browser.
Package Contents
Wall Mount
Motion Sensor
Anchors
(Qty. 2)
Mounting
Bracket
M3x20 mm Screws
(Qty. 2)
Mounting
Base
M2.6x8 mm Screws
(Qty. 2)
System Requirements
• mFi mPort
• CAT5/6 Cable
• Drill with 6 mm Drill Bit (Optional for Wall-Mount)
• Phillips Screwdriver
Jumpers
(Qty. 3)
Wall Mount Motion Sensor
Model: mFi-MSW
Quick Start
Guide
Hardware Overview
Front
Back
Motion Sensor
mFi RJ45 Port
Hardware Installation
Installation Tips
• Avoid installing the sensor in areas where it will face direct
or reflected sunlight.
• Ensure there are no obstructions in the field of view.
• Avoid placing the sensor in areas where the environmental
temperature may change rapidly.
• Locate the sensor at least 1 meter away from the nearest
fluorescent light to avoid interference.
Ceiling-Mount
1. Use a Phillips screwdriver to secure the Mounting Bracket to
the ceiling with the two M3x20 mm Screws.

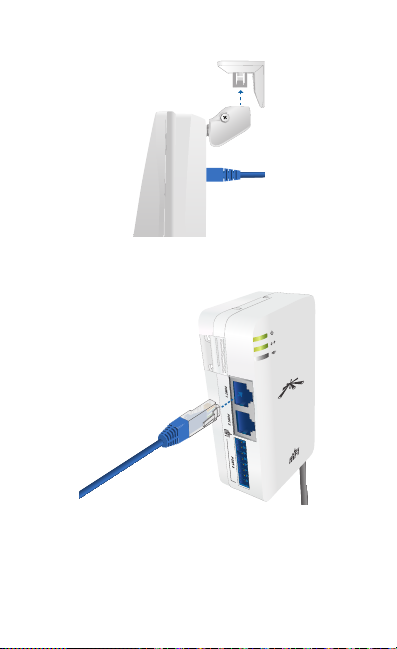

Proceed to the Connecting the Cabling and Mounting Base
section.
Wall-Mount
20 mm
1. Use a 6 mm drill bit to drill two holes 20 mm apart with one
directly above the other.
2. Insert the anchors into the holes.
3. Use a Phillips screwdriver to secure a M3x20 Screw to
the top anchor in the wall. Ensure to leave a clearance
of approximately 1 mm between the screw head and
theanchor.
1 mm
4. Align the top hole of the Mounting Bracket over the screw
and slide the Mounting Bracket down.
5. Use the Phillips screwdriver to secure the second M3x20
Screw through the bottom of the Mounting Bracket into
the anchor.
