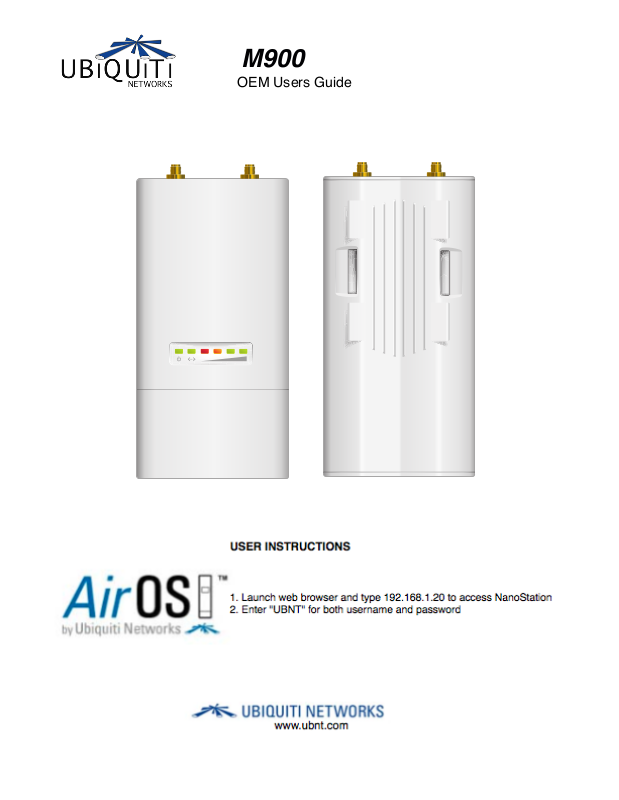

Ubiquiti M900 User Manual
M900
OEM Users Guide
TECH SPECS
|
SYSTEM INFORMATION |
|
|
Processor Specs |
Atheros MIPS 24KC, 400MHz |
Memory Information |
64MB SDRAM, 8MB Flash |
Networking Interface |
1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals |
|
|
|
|
|
|
|
|
FCC Part 15.247 |
|||
RoHS Compliance |
|
|
|
|
|
|
|
|
|
YES |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPERATING FREQUENCY |
907-922 MHz |
|
|
|
|
|
||
TX POWER SPECIFICATIONS |
|
|
RX SPECIFICATIONS |
|
|
|||||||
|
|
DataRate |
Avg. TX |
|
Tolerance |
|
|
DataRate |
|
Sensitivity |
|
Tolerance |
|
|
1-24Mbps |
23 dBm |
|
+/-2dB |
|
|
24Mbps |
|
-83 dBm |
|
+/-2dB |
OFDM |
|
36Mbps |
23 dBm |
|
+/-2dB |
|
OFDM |
36Mbps |
|
-80 dBm |
|
+/-2dB |
|
48Mbps |
23 dBm |
|
+/-2dB |
|
48Mbps |
|
-77 dBm |
|
+/-2dB |
||
|
54Mbps |
22 dBm |
|
+/-2dB |
|
54Mbps |
|
-75 dBm |
|
+/-2dB |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MCS0 |
23 dBm |
|
+/-2dB |
|
|
MCS0 |
|
-96 dBm |
|
+/-2dB |
|
|
MCS1 |
23 dBm |
|
+/-2dB |
|
|
MCS1 |
|
-95 dBm |
|
+/-2dB |
|
|
MCS2 |
23 dBm |
|
+/-2dB |
|
|
MCS2 |
|
-92 dBm |
|
+/-2dB |
|
|
MCS3 |
23 dBm |
|
+/-2dB |
|
|
MCS3 |
|
-90 dBm |
|
+/-2dB |
|
|
MCS4 |
23 dBm |
|
+/-2dB |
|
|
MCS4 |
|
-86 dBm |
|
+/-2dB |
|
|
MCS5 |
23 dBm |
|
+/-2dB |
|
|
MCS5 |
|
-83 dBm |
|
+/-2dB |
MIMO |
|
MCS6 |
22 dBm |
|
+/-2dB |
|
MIMO |
MCS6 |
|
-77 dBm |
|
+/-2dB |
|
MCS7 |
21 dBm |
|
+/-2dB |
|
MCS7 |
|
-74 dBm |
|
+/-2dB |
||
|
MCS8 |
23 dBm |
|
+/-2dB |
|
MCS8 |
|
-95 dBm |
|
+/-2dB |
||
|
MCS9 |
23 dBm |
|
+/-2dB |
|
MCS9 |
|
-93 dBm |
|
+/-2dB |
||
|
|
|
|
|
|
|
||||||
|
|
MCS10 |
23 dBm |
|
+/-2dB |
|
|
MCS10 |
|
-90 dBm |
|
+/-2dB |
|
|
MCS11 |
23 dBm |
|
+/-2dB |
|
|
MCS11 |
|
-87 dBm |
|
+/-2dB |
|
|
MCS12 |
23 dBm |
|
+/-2dB |
|
|
MCS12 |
|
-84 dBm |
|
+/-2dB |
|
|
MCS13 |
23 dBm |
|
+/-2dB |
|
|
MCS13 |
|
-79 dBm |
|
+/-2dB |
|
|
MCS14 |
22 dBm |
|
+/-2dB |
|
|
MCS14 |
|
-78 dBm |
|
+/-2dB |
|
|
MCS15 |
21 dBm |
|
+/-2dB |
|
|
MCS15 |
|
-75 dBm |
|
+/-2dB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PHYSICAL / ELECTRICAL / ENVIRONMENTAL |
|
|
|
|
||||
Enclosure Size |
|
|
|
|
|
|
16cm length x 8cm width x 3cm height |
|||||
Weight |
|
|
|
|
|
|
|
|
|
|
0.5 kg |
|
RF Connector |
|
|
|
|
|
|
|
|
2x RPSMA (Waterproof) |
|||
Enclosure Characteristics |
|
|
|
|
|
|
Outdoor UV Stabalized Plastic |
|||||
Mounting Kit |
|
|
|
|
|
|
|
|
Pole Mounting Kit included |
|||
Max Power Consumption |
|
|
|
|
|
|
|
|
|
6.5 Watts |
||
Power Supply |
|
|
|
|
|
|
|
|
24V, 1A POE Supply Included |
|||
Power Method |
|
|
|
|
|
Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
||||||
Operating Temperature |
|
|
|
|
|
|
|
|
|
-30C to 75C |
||
Operating Humidity |
|
|
|
|
|
|
|
5 to 95% Condensing |
||||
Shock and Vibration |
|
|
|
|
|
|
|
|
ETSI300-019-1.4 |
|||
