Ubiquiti LiteBeam 5AC LR Quick Start Manual

5 GHz airMAX® AC Long-Range
CPE with InnerFeed® Technology

Model: LBE-5AC-LR

Introduction

Thank you for purchasing the Ubiquiti Networks®
LiteBeam®5AC LR. This Quick Start Guide is designed to guide

you through installation and also includes warrantyterms.

Package Contents

Antenna Feed Center Reflector

Panel

Side Reflector Panels

(Qty. 2)

0

0

Mounting Bracket Rear Housing Pivot Panels

(Qty. 2)

M4 SEM

Screws
(Qty. 8)

M8 SEM

Screws
(Qty. 4)

Metal Straps

(Qty. 3)

Gigabit PoE

(24V, 0.3A)

with Mounting Bracket

Power Cord

Installation Requirements

• Phillips screwdriver

• 13 mm wrench

• 7 mm socket wrench or screwdriver

• Shielded Category 5 (or above) cabling with drain wire
should be used for all wired Ethernet connections and
should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit:

www.ubnt.com/toughcable

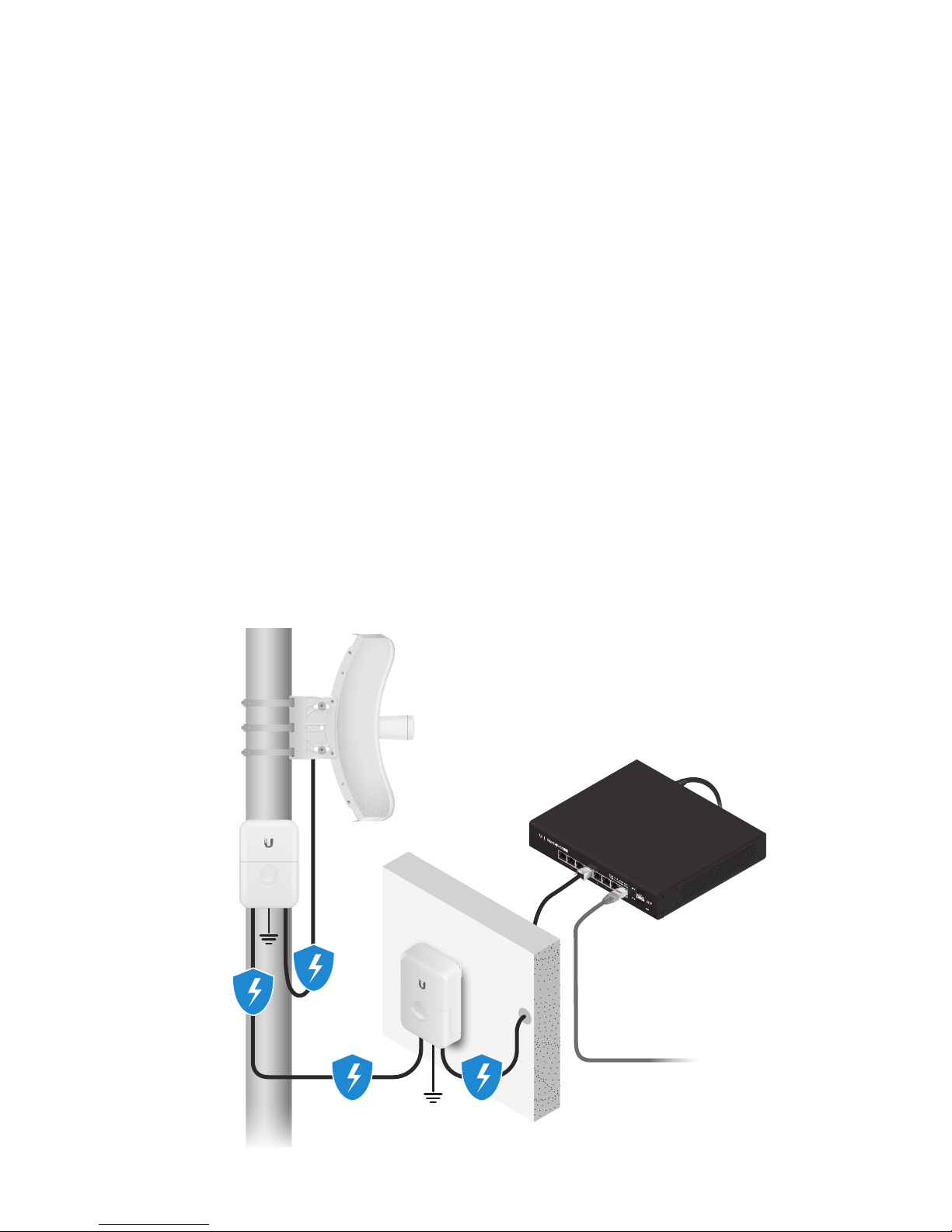

• Surge protection should be used for all outdoor installations.
We recommend that you use two Ethernet Surge Protectors,
model ETH‑SP, one near the LiteBeam and the other at the
entry point to the building. The ETH‑SP will absorb power
surges and safely discharge them into the ground.

To LAN

ETH-SP

ETH-SP

ES-8-150W

LBE-5AC-LR

Application Examples

The LiteBeam mounted outdoors with the reflector
installed provides directional outdoor coverage (gain
reflector‑dependent).

The LiteBeam mounted outdoors without the reflector
installed provides outdoor‑to‑indoor coverage using the 3 dBi
Antenna Feed only.

Hardware Overview

Bottom View

Technology

Reset Button

Port Cover

Ethernet Port

LEDs

Reflector Assembly

Antenna Feed

Rear Housing

Pivot Panels

Mounting Bracket

LEDs

Ethernet The LED will light steady blue when an

active Ethernet connection is made and flash when
there is activity.

Power The LED will light blue when the device is

connected to a power source.

Button

Reset To reset to factory defaults, press and hold the Reset

button for more than 10 seconds while the LiteBeam is

poweredon. The LiteBeam may also be reset remotely using

the auxiliary Reset button located on the bottom of the Gigabit
PoEadapter.

Reset Button

Ethernet Port

Port

Ethernet Supports 10/100/1000 connections and passive PoE.

This port should be connected to the LAN and DHCP server.

Hardware Installation

The LiteBeam was designed for outdoor use and quick
mounting on a pole.

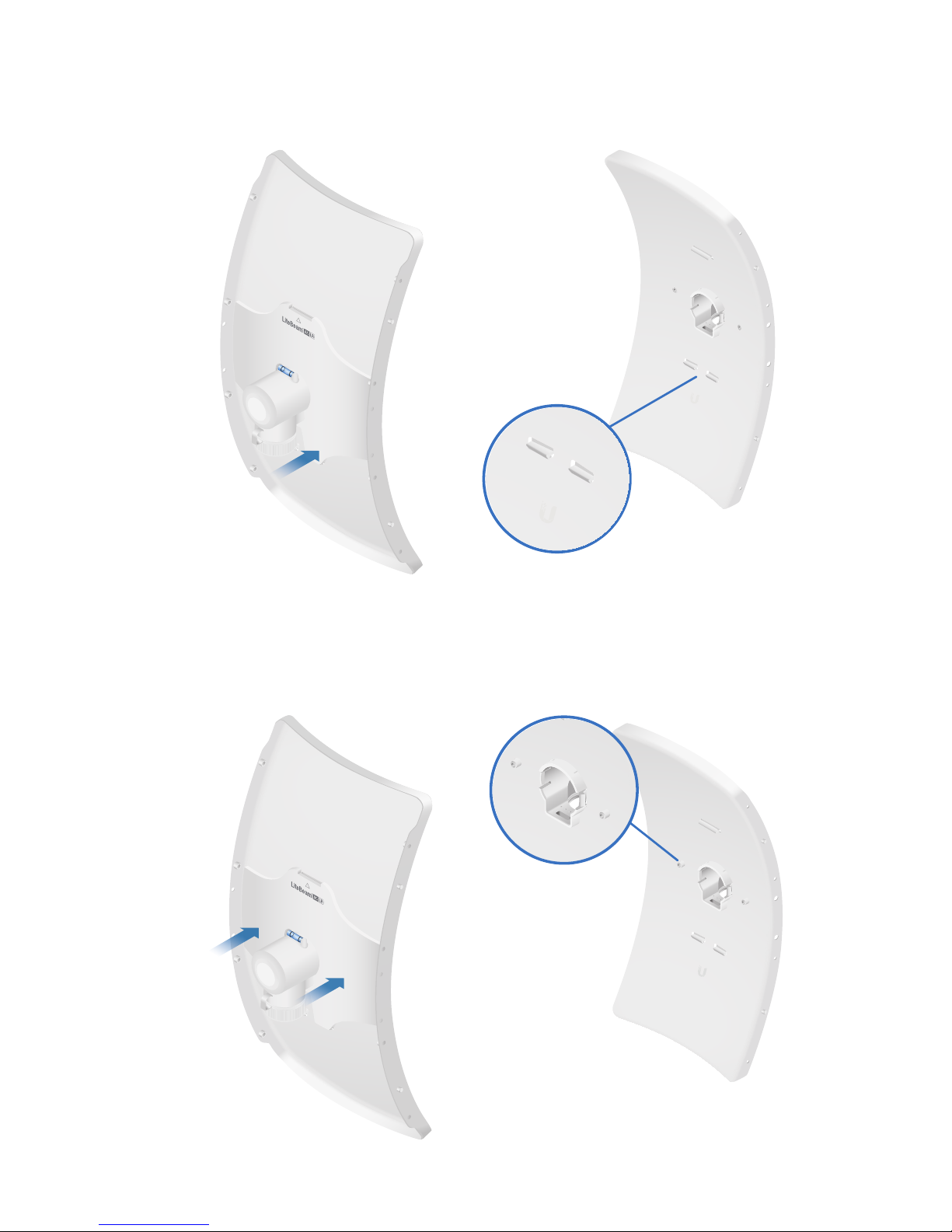

1. Hold the Center Reflector Panel by hand (do not use a

tabletop or flat surface) and insert the Rear Housing:

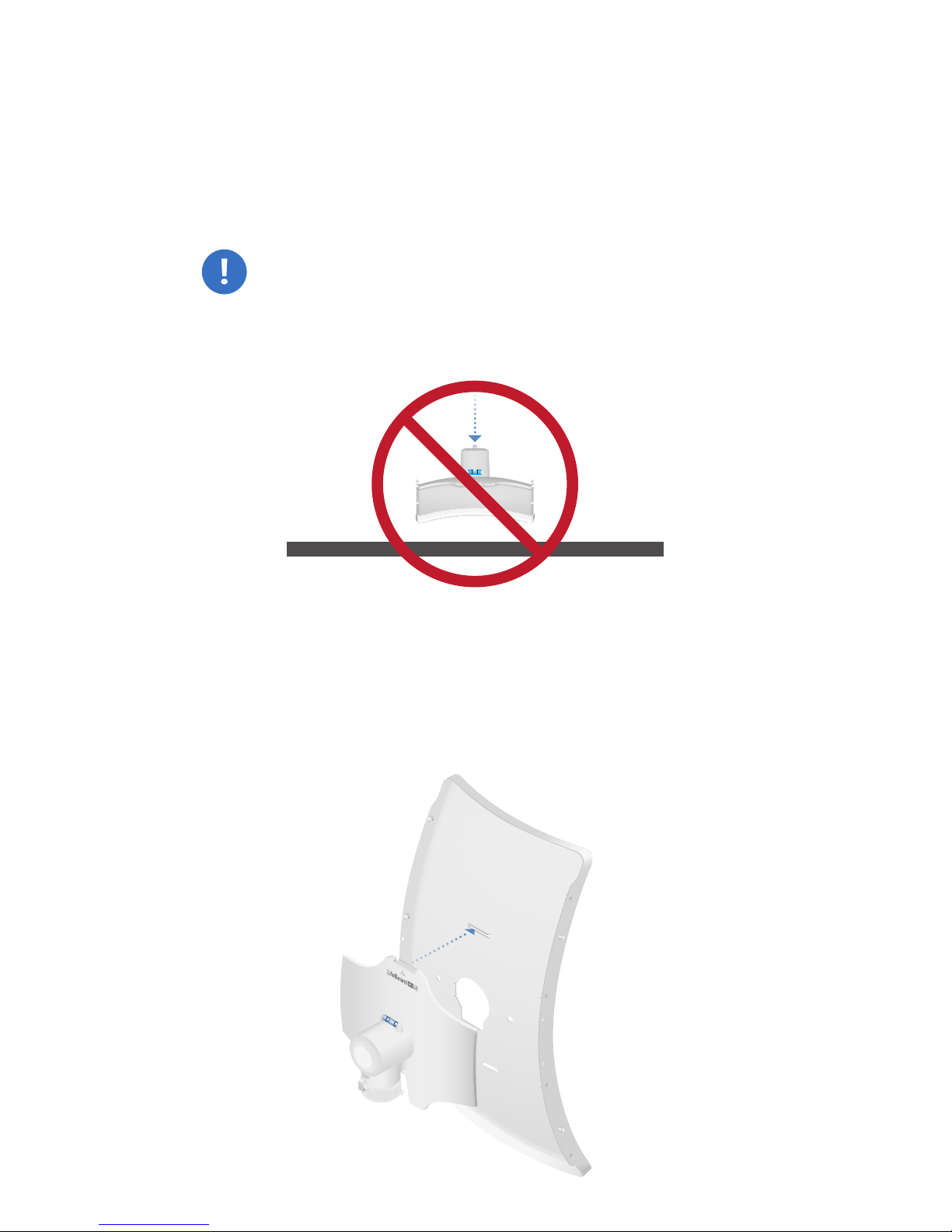

WARNING: Do not install the Rear Housing into

the Center Reflector Panel by pushing down onto a
tabletop or other flat surface as this can deform the
panel. Hold the Center Reflector Panel by hand.

a. Line up the three snap hooks and two mounting studs

of the Rear Housing with the corresponding slots and
holes of the Center ReflectorPanel.

b. Press the top snap hook into the top slot until it locks

into place.

c. Press the bottom two snap hooks into the bottom

twoslots until they lock into place.

Back View Front View

d. Press the heads of the two mounting studs into the

correspondingholes until they lock into place.

Back View Front View

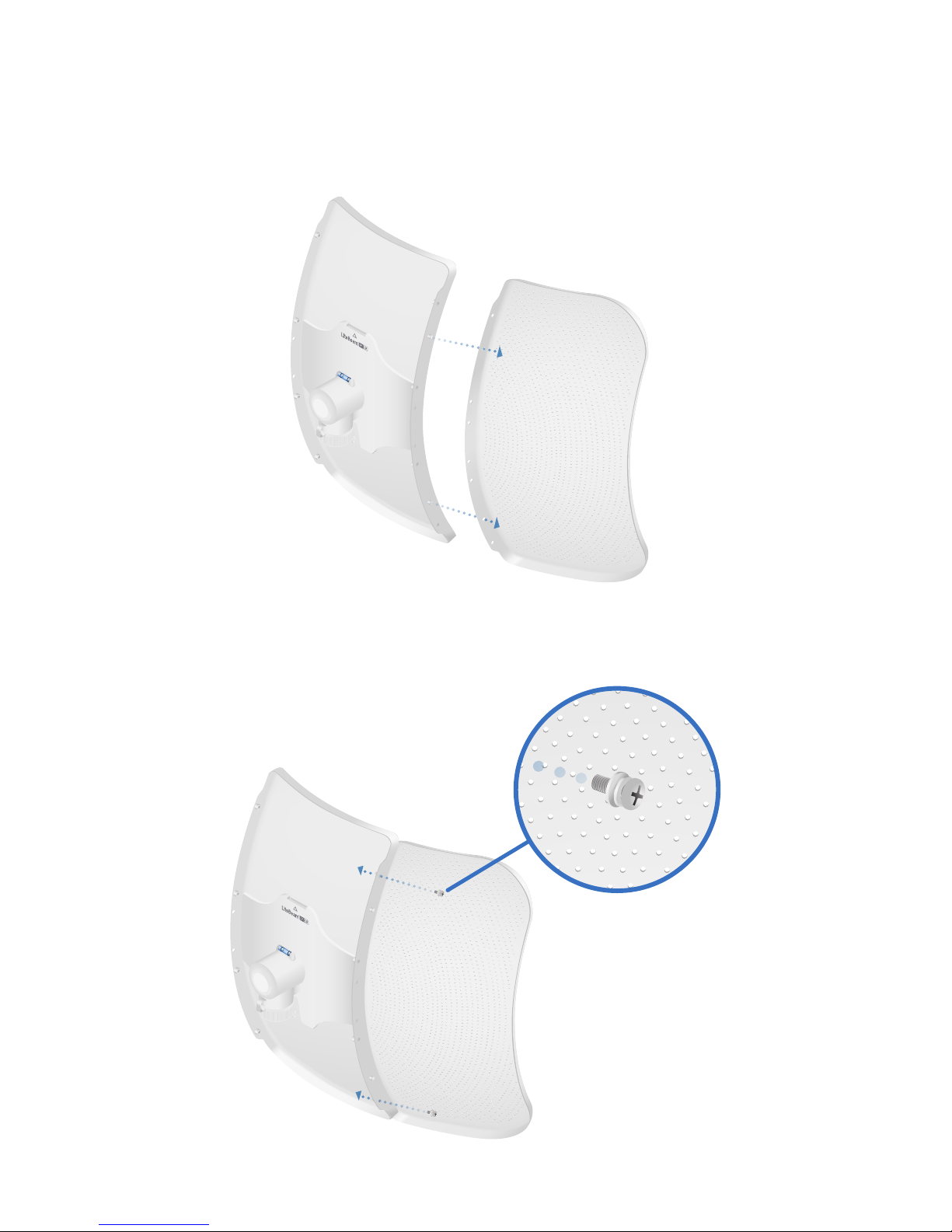

2. Assemble the antenna reflector by attaching the

SideReflector Panels to the Center Reflector Panel:
a. Insert the two locating pins on the Center Reflector Panel

into the corresponding holes of the Side Reflector Panel.

b. Use two M4 SEM Screws to fasten the top and bottom of

the two panels.

c. Repeat the assembly for the other Side Reflector Panel.

3. Use two M4 SEM Screws to fasten each Pivot Panel to the

Reflector Assembly.

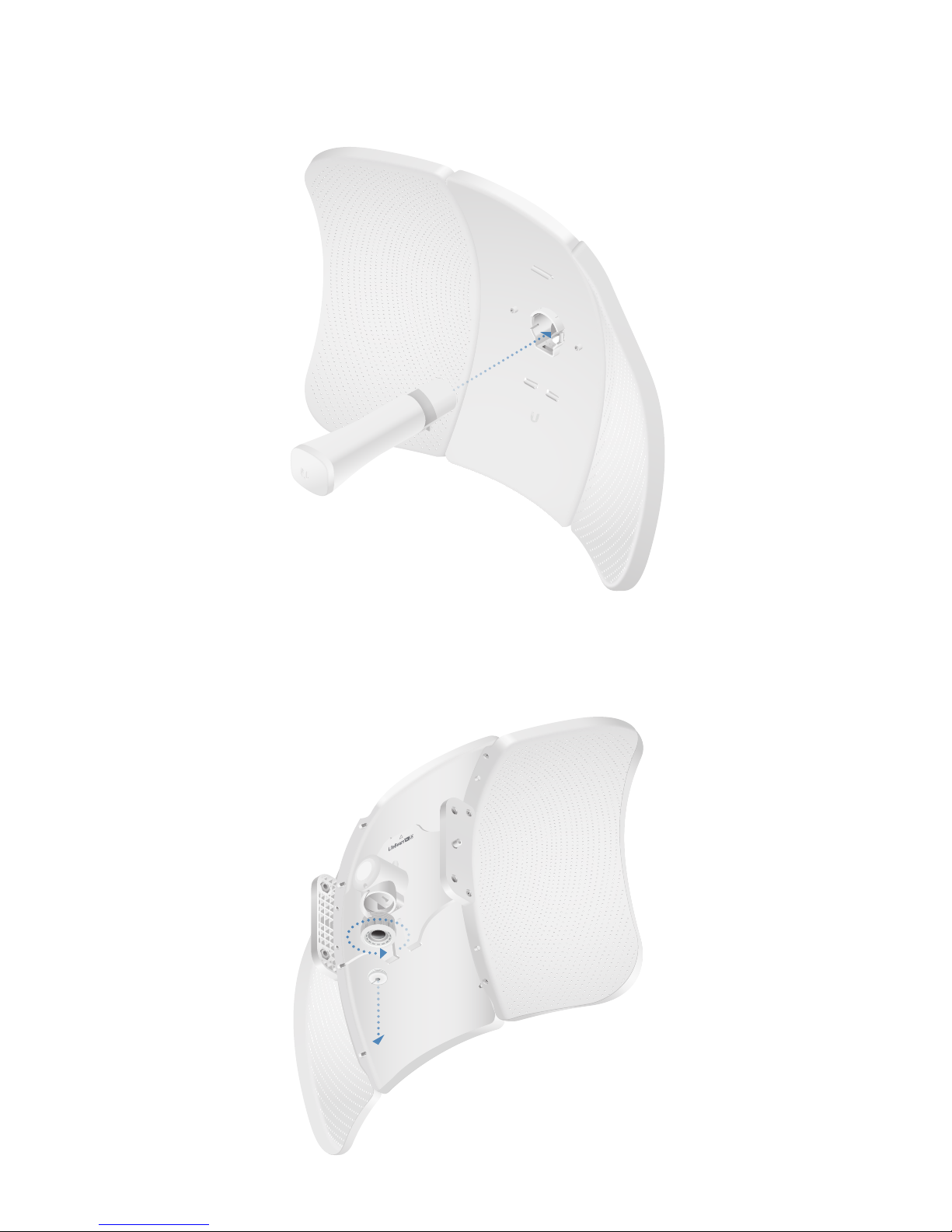

4. Insert the Antenna Feed into the Rear Housing until the feed

locks into place.

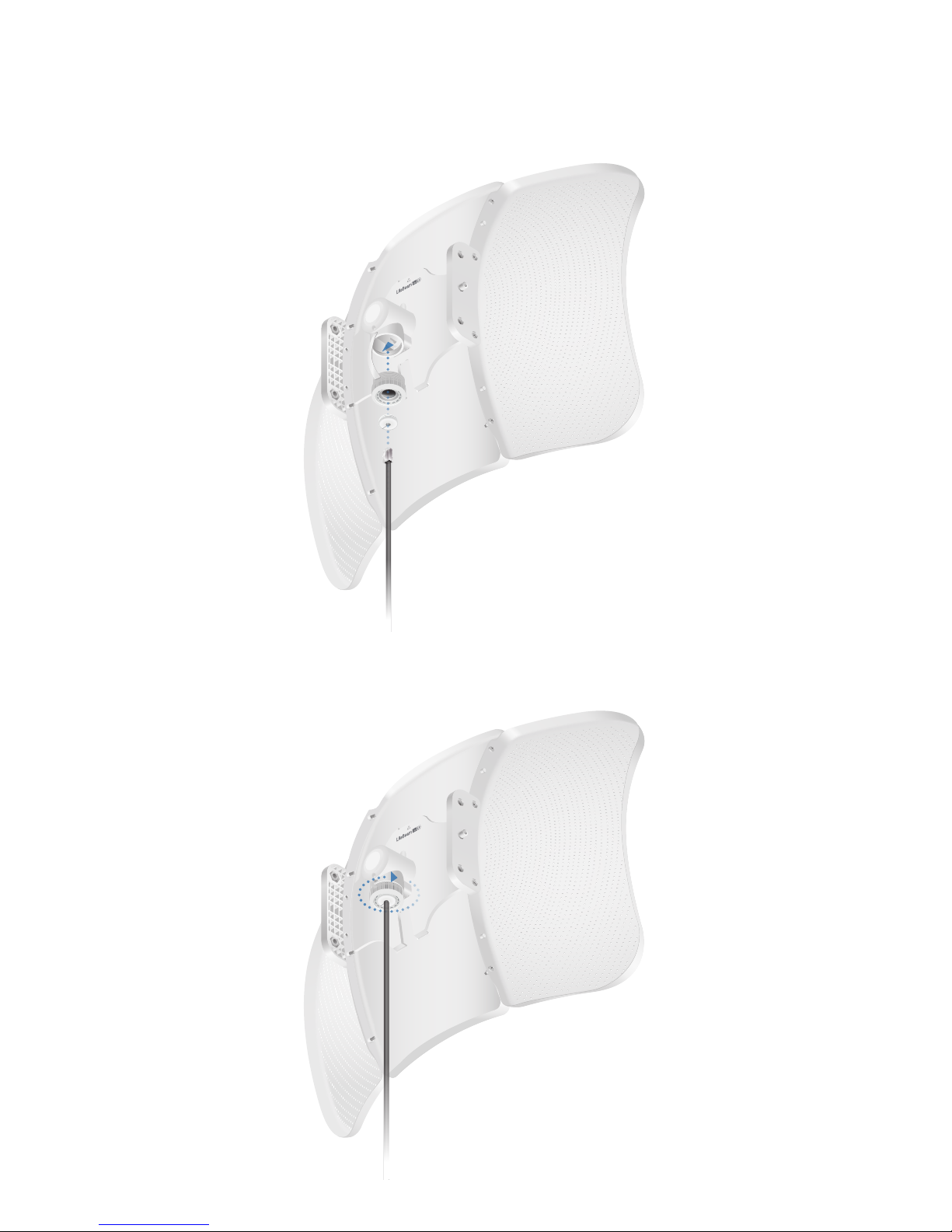

5. Turn the Port Cover counterclockwise to access the

EthernetPort on the Antenna Feed. Then remove the

rubberplug.

6. Take one end of an Ethernet cable and push it through

the rubber plug on the Port Cover and connect it to the
Ethernet Port.

7. Replace the rubber plug and reattach the Port Cover to the

Rear Housing by turning it clockwise until it is secure.

Pole Mounting

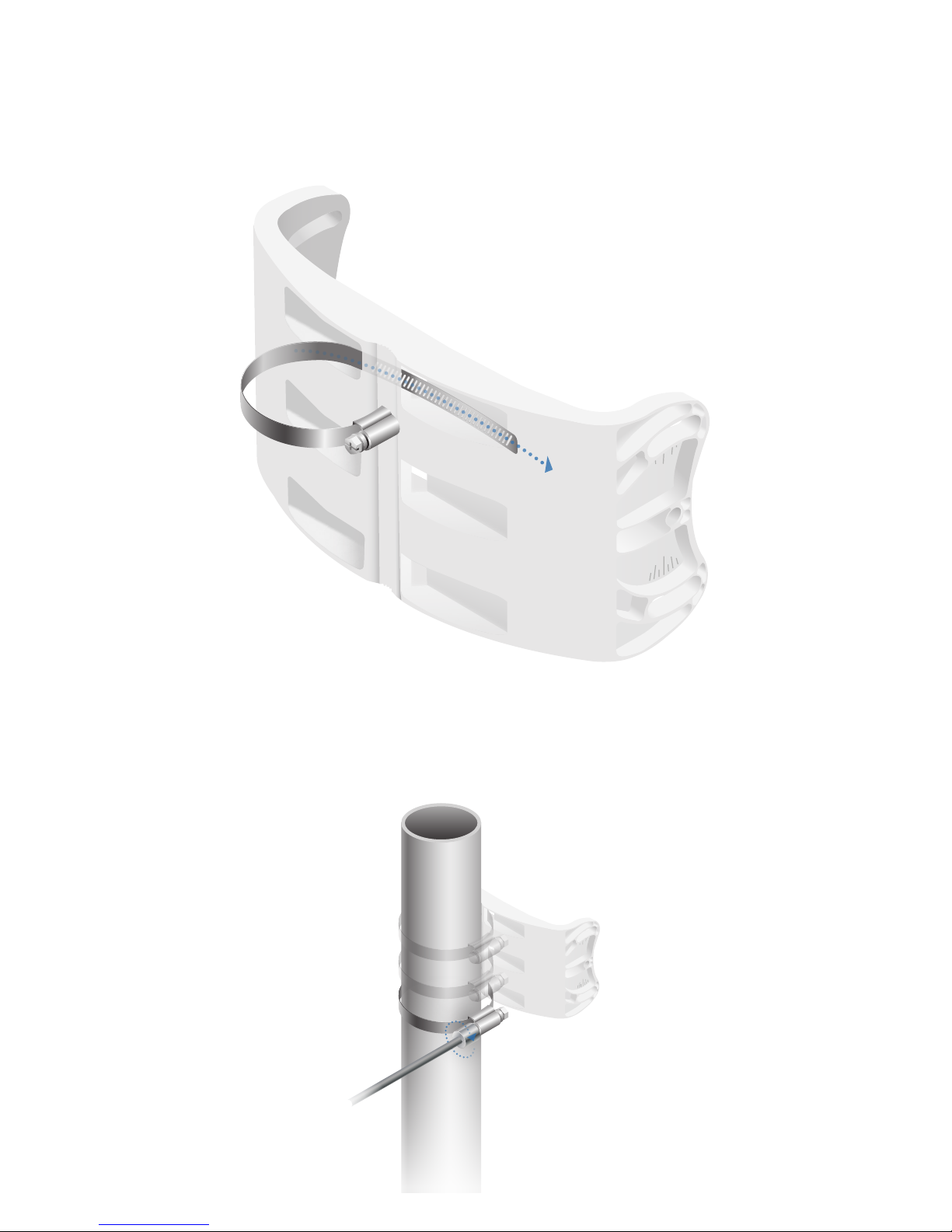

1. Open a Metal Strap and feed it through a slot of the

Mounting Bracket. Repeat for the remaining Metal Straps.

0

0

2. To mount the Mounting Bracket, wrap each Metal Strap

around the pole. Use a 7 mm socket wrench or screwdriver
to turn the screw clockwise and securely fasten the strap
to the pole.

0

0

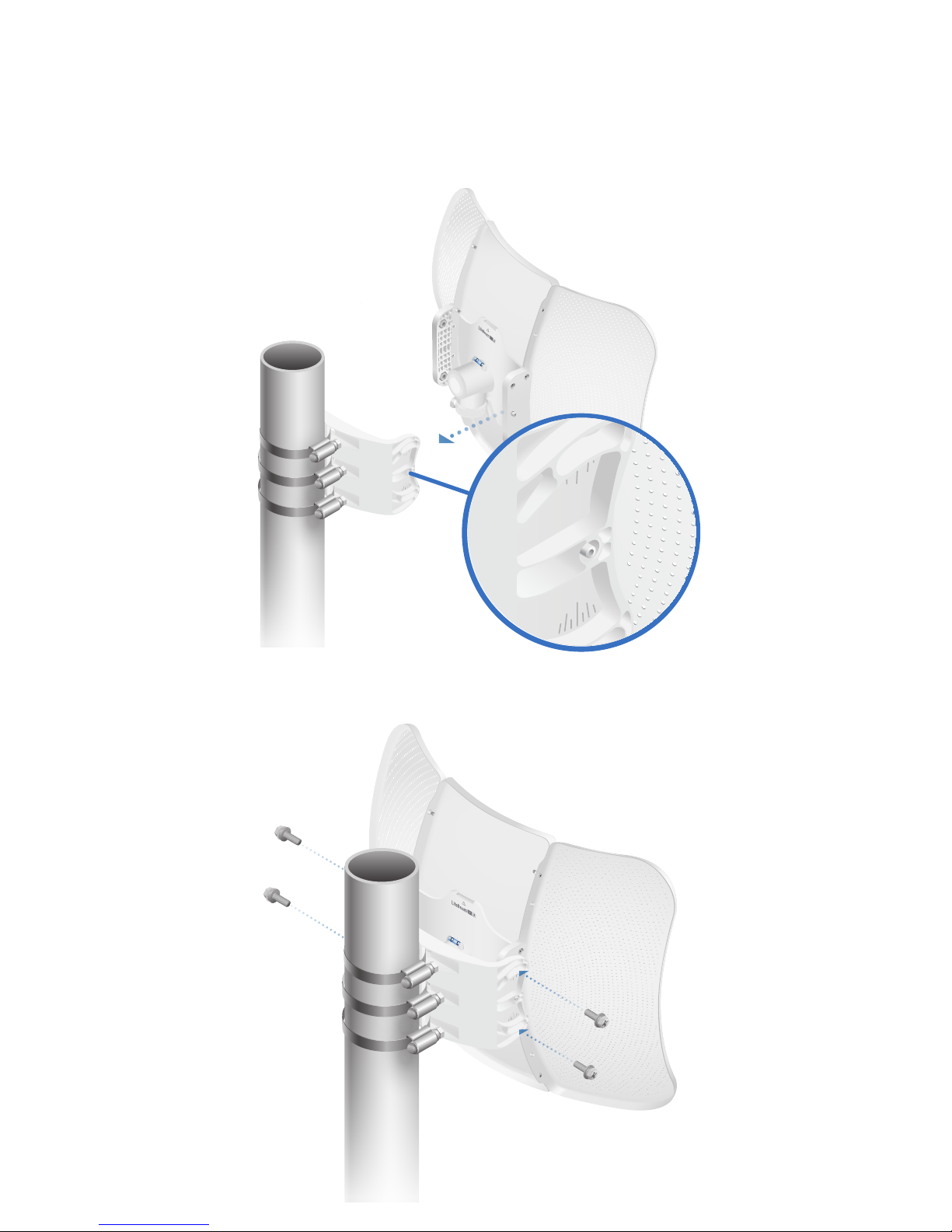

3. To mount the LiteBeam, start with one side: insert the

locating pin on one Pivot Panel into the corresponding hole
of the Mounting Bracket. Then insert the locating pin of the
other Pivot Panel into its corresponding hole.

0

0

0

0

4. Install the four M8 SEM Screws loosely.

0

0

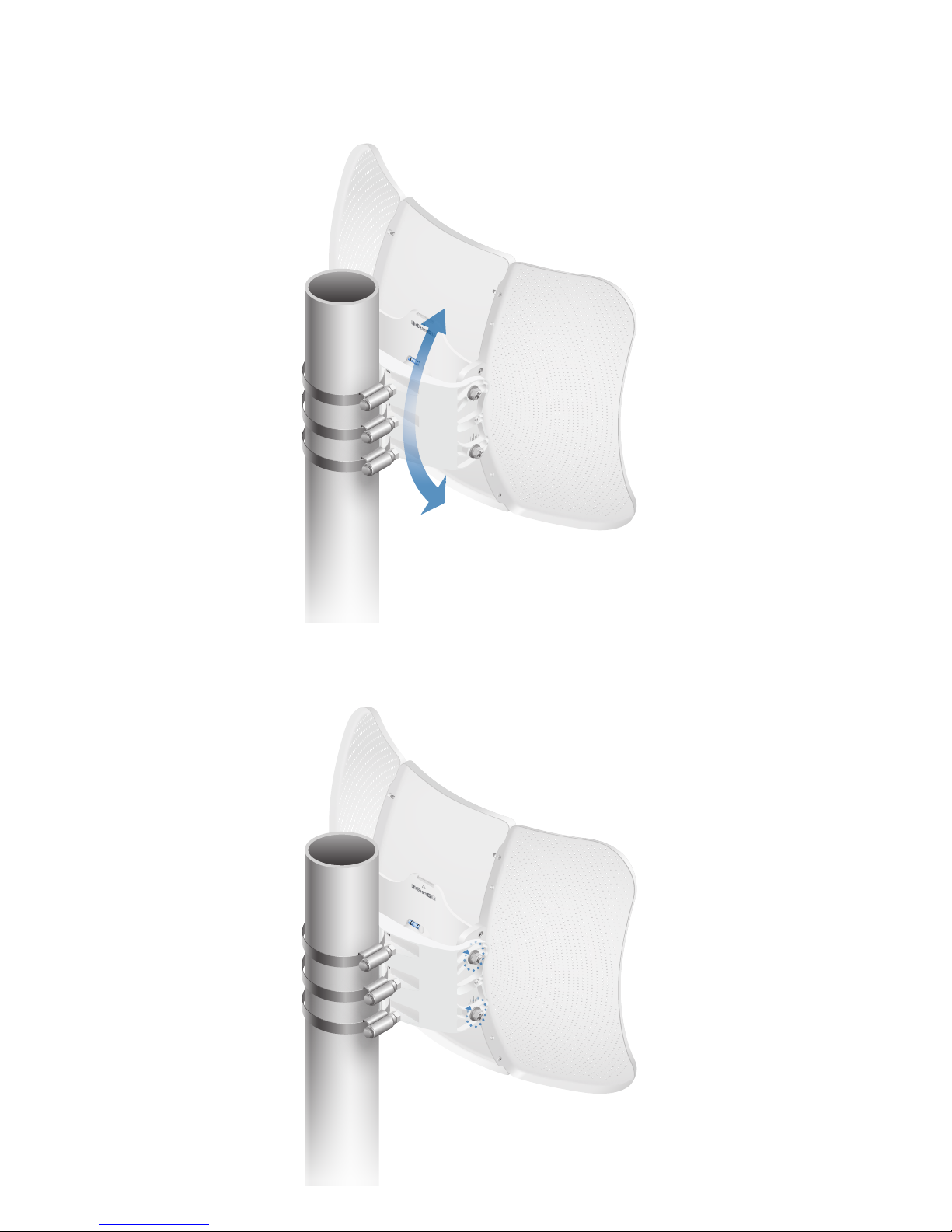

5. You have ±15° of elevation adjustment available. Aim the

LiteBeam toward the other end of the wireless link.

0

0

6. Lock the aim by tightening the four M8 SEM Screws.

0

0

Connect the power using one of the following options:

• Using the included Gigabit PoE Adapter: Go to Connecting
to the PoE Adapter.

• Using a separate PoE switch: Connect the Ethernet cable
from the LiteBeam’s Ethernet port to a PoE‑enabled
Ethernet port on the switch.

WARNING: The switch port must comply with the

power specifications listed in the Specifications
section of this Quick Start Guide.

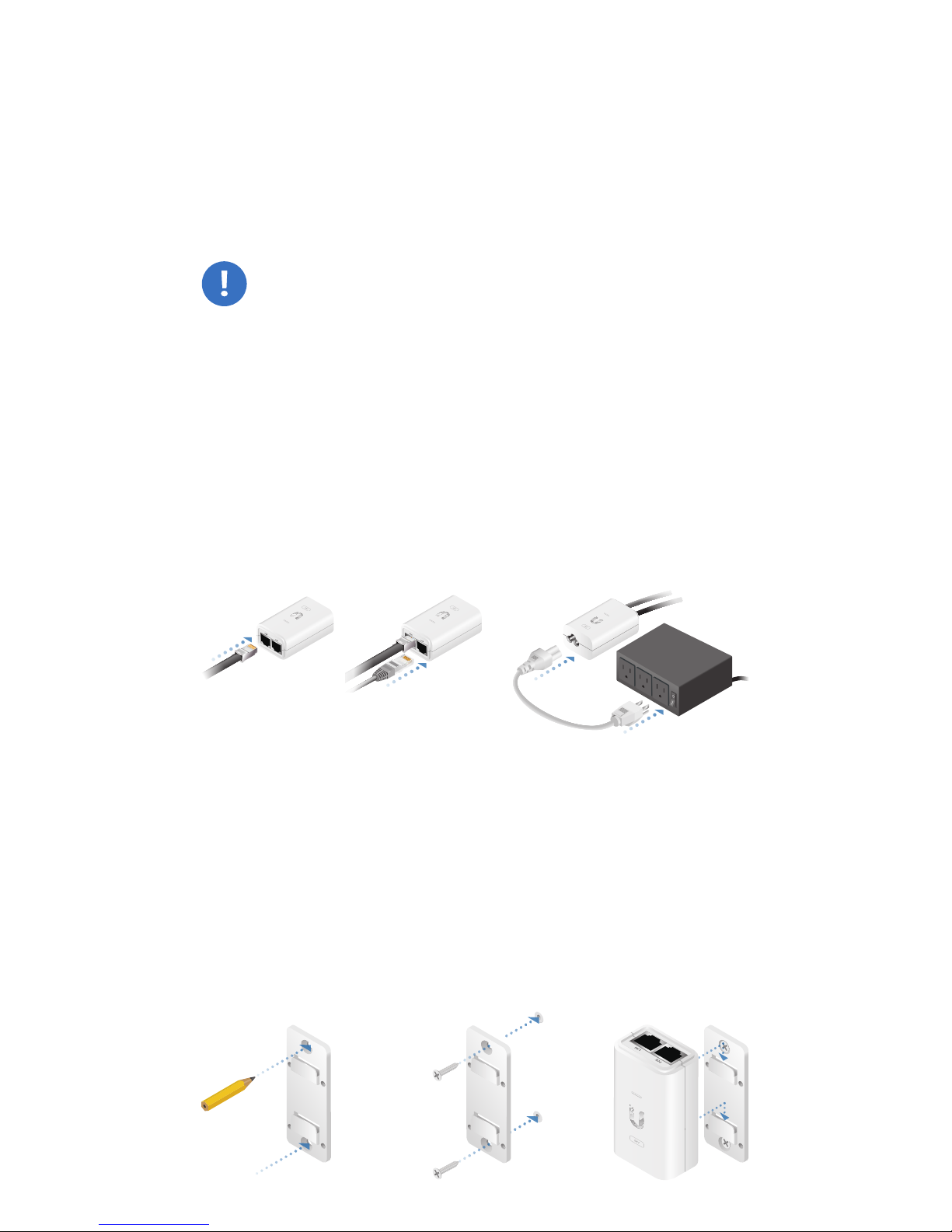

Connecting to the PoE Adapter

1. Connect the Ethernet cable from the device to the POE
port on the Power Adapter.

2. Connect an Ethernet cable from your LAN to the LAN port
on the Power Adapter.

3. Connect the Power Cord to the Power Adapter, and then
plug the Power Cord to a power outlet.

Mounting the PoE Adapter (Optional)

1. Remove the PoE Mounting Bracket from the adapter, place
the bracket at the desired location, and mark the two holes.

2. Pre‑drill the holes if necessary, and secure the bracket
using two fasteners (not included).

3. Align the adapter’s slots with the tabs of the PoE Mounting

Bracket, and then slide the adapterdown.

Accessing airOS via Wi‑Fi

Verify connectivity in the airOS® Configuration Interface. There
are two methods, the UNMS™ App and Web Portal. Both are
available for 15 minutes immediately after you power on the
device. If necessary, you can power cycle the LiteBeam to
re‑enable its Wi‑Fi.

Proceed to the appropriate instructions:

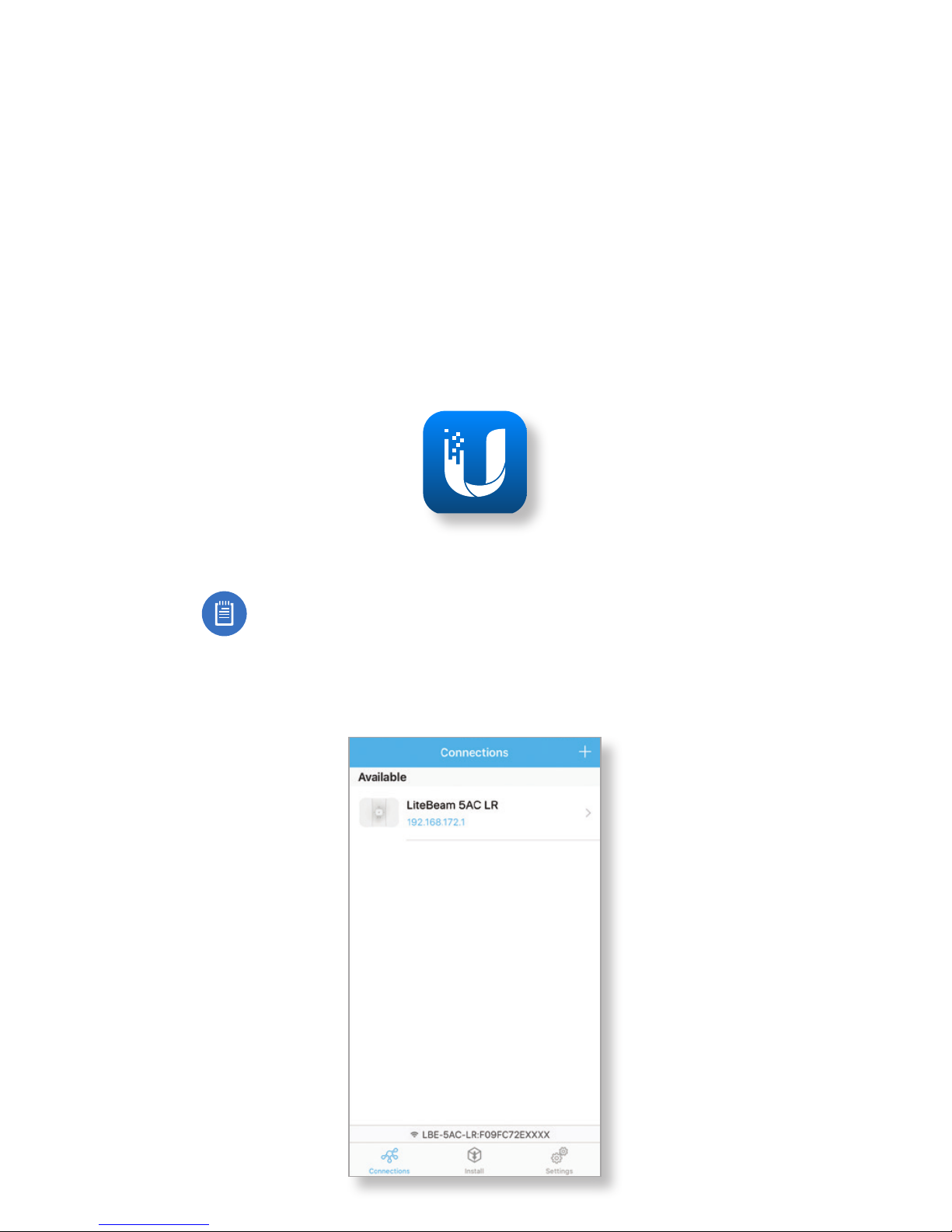

UNMS App

1. Download the UNMS app from the AppStore® (iOS) or
Google Play™ (Android).

2. Connect your device’s Wi‑Fi to the LiteBeam SSID named:

LBE-5AC-LR:<MAC Address>

Note: Ensure that DHCP is enabled on your

Wi‑Fiadapter.

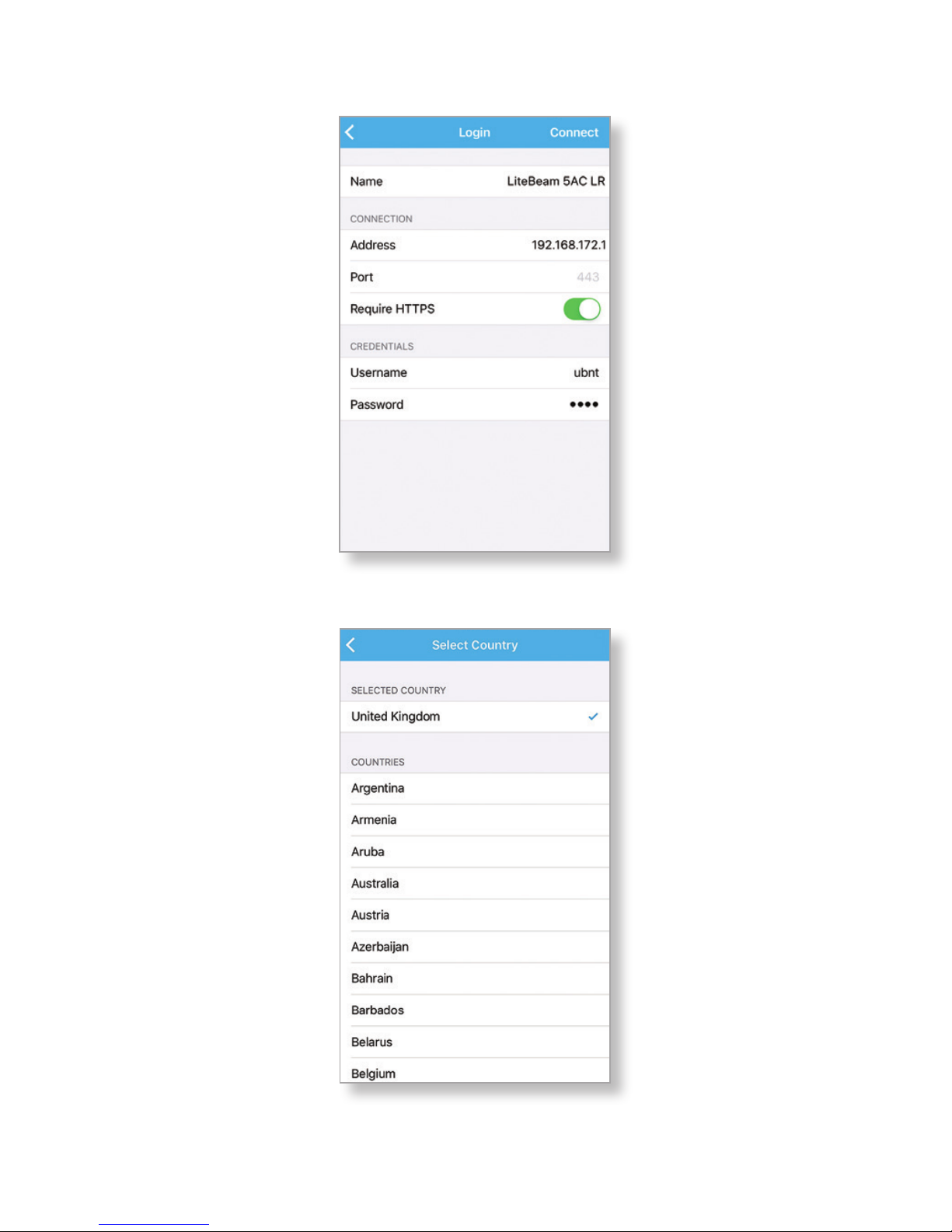

3. Launch the app.

4. Tap the LiteBeam on the Connections screen.

5. Tap Connect on the Login screen.

6. Select your Country and tap Done.

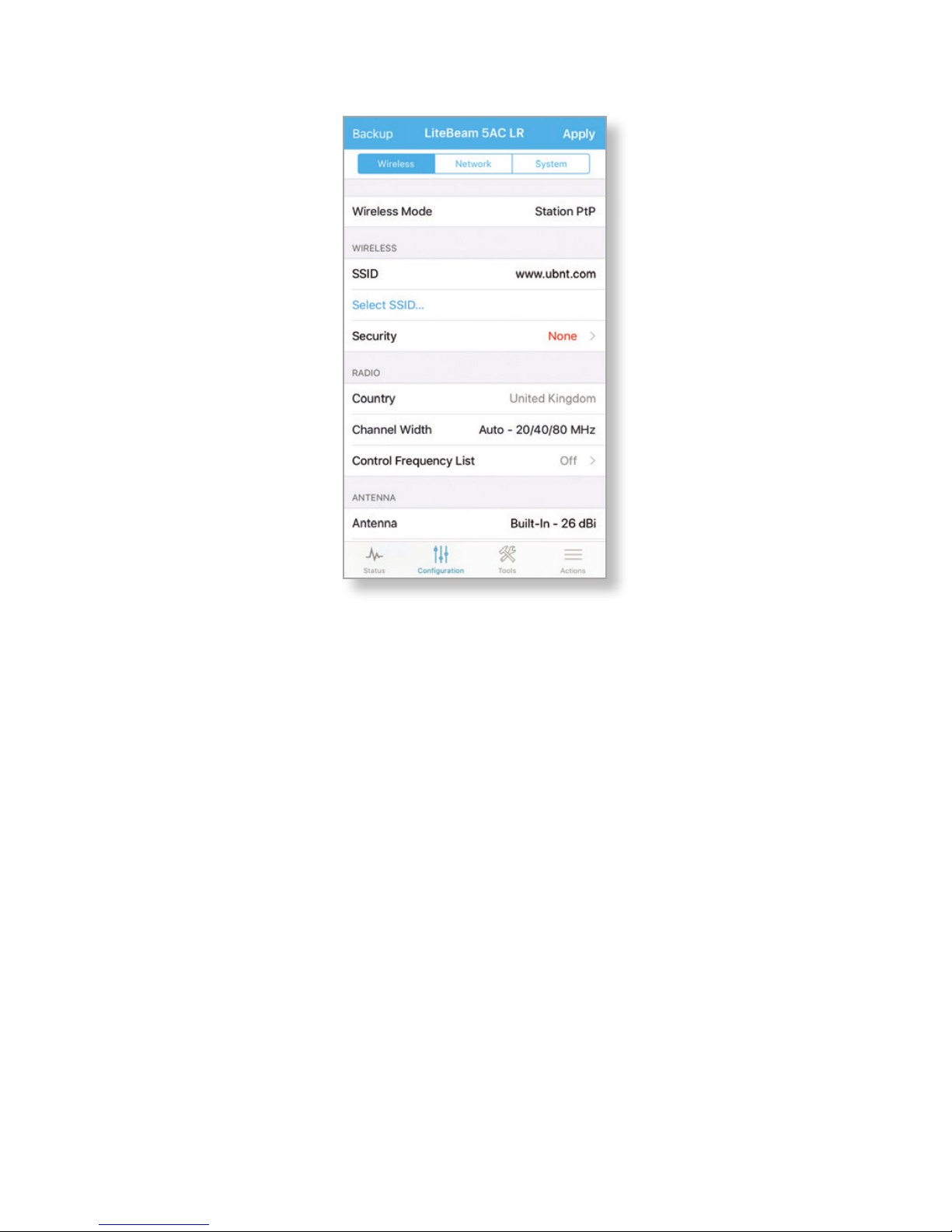

7. Under Configuration, customize your settings as needed.

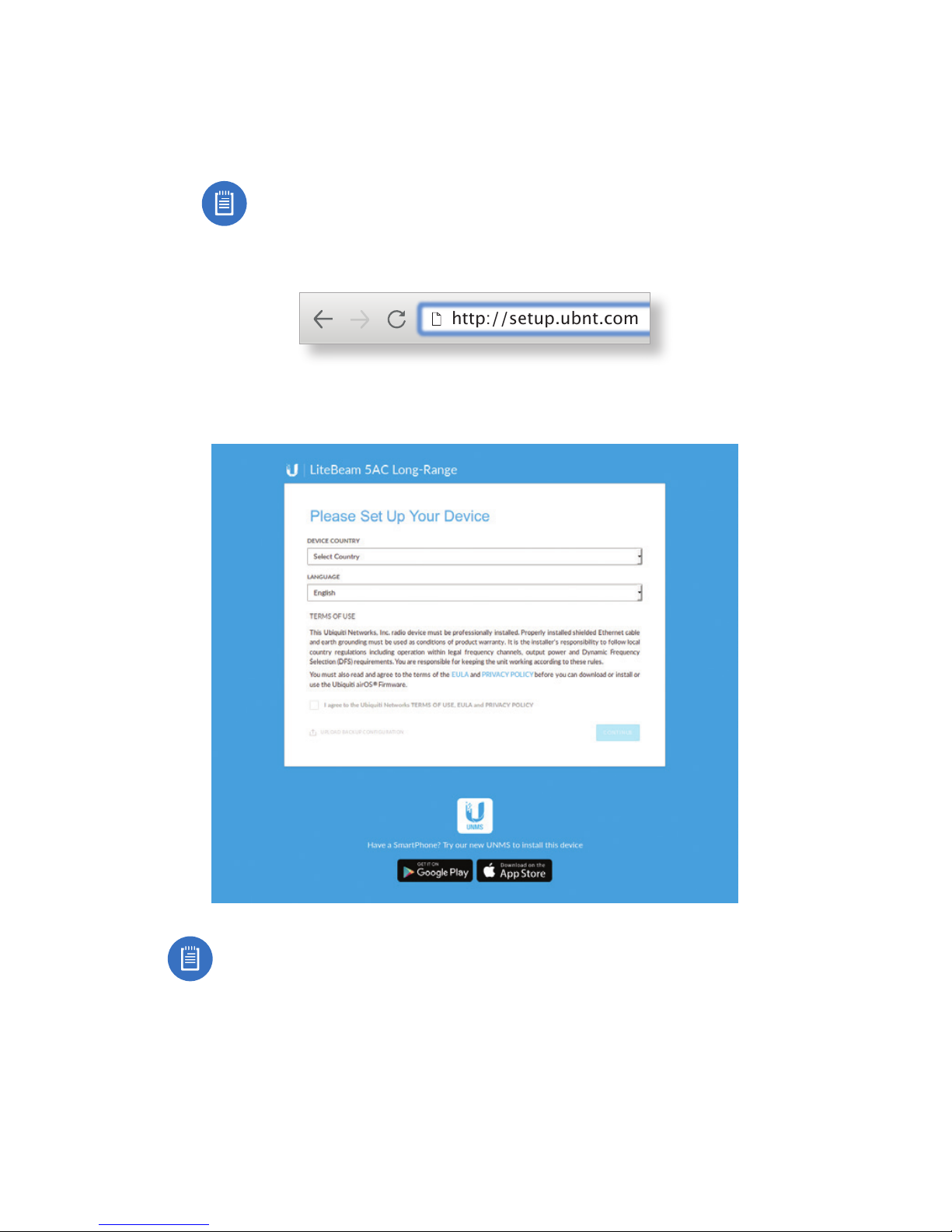

Web Portal

1. Connect your device’s Wi‑Fi to the LiteBeam SSID named:

LBE-5AC-LR:<MAC Address>

Note: Ensure that your Wi‑Ficonnection has DHCP

enabled.

2. Launch a web browser and go to: http://setup.ubnt.com

http://setup.ubnt.com

3. Select your Country and Language. You must agree to the
Terms of Use to use the product. Click Continue.

Note:

The Country setting for U.S. product versions is
restricted to a choice of Canada, Puerto Rico, or the
U.S. to ensure compliance with FCC/IC regulations.

4. Create a username and password. Confirm your new
password and then click Save.

The airOS Configuration Interface will appear, allowing you
to customize your settings as needed. For additional details
on the airOS Configuration Interface, refer to the User Guide
available at www.ubnt.com/download/airmax

Installer Compliance Responsibility

Devices must be professionally installed and it is the
professional installer's responsibility to make sure the device is
operated within local country regulatory requirements.

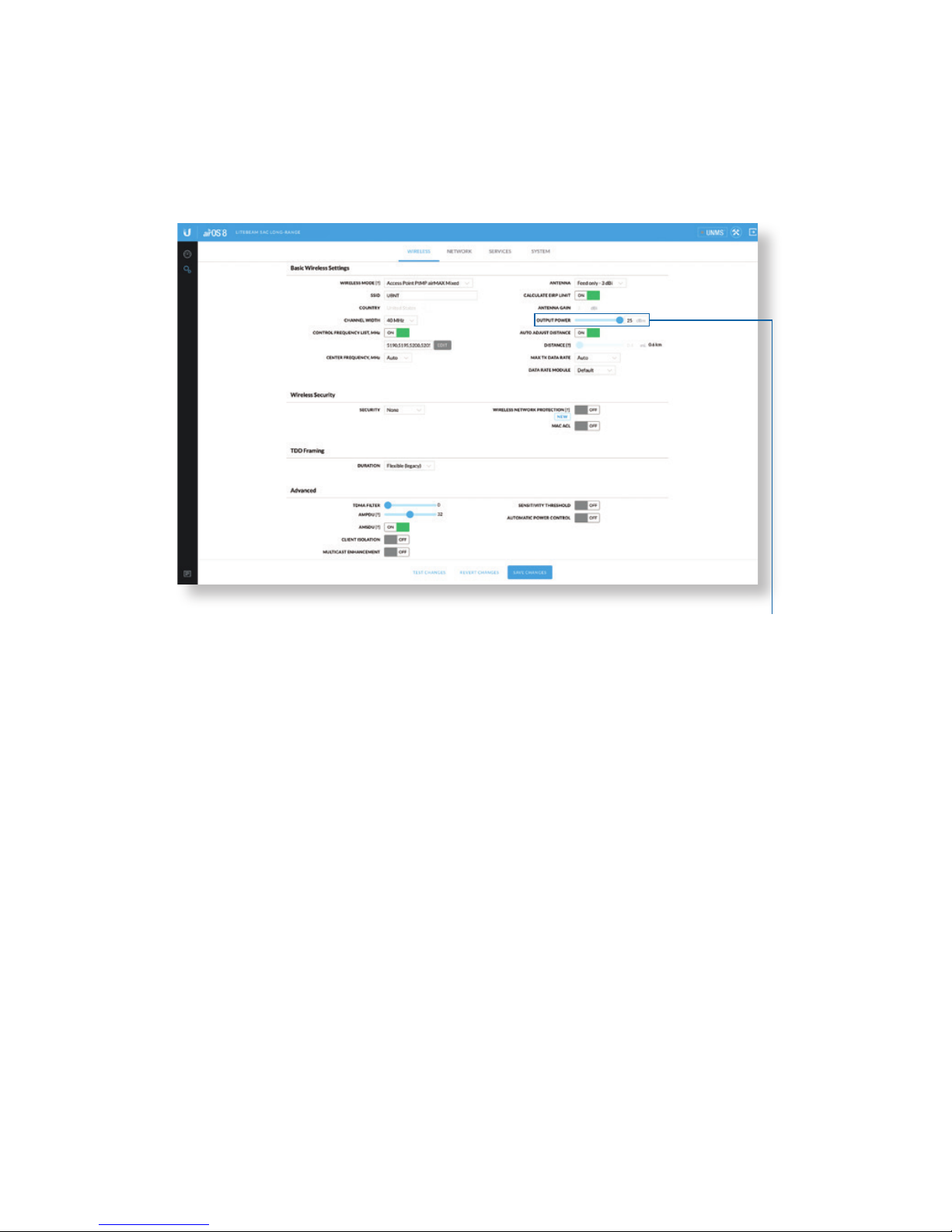

The Output Power field is provided to the professional installer
to assist in meeting regulatory requirements.

Specifications

LBE‑5AC‑LR

Dimensions 512.5 x 385.75 x 258.3 mm

(20.18 x 15.19 x 10.17")

Weight

With Mount

1.360 kg (2.998 lb)

1.735 kg (3.825 lb)

Networking Interface (1) 10/100/1000 Ethernet Port

Antenna Gain 26 dBi

Max. Power Output 25 dBm

Max. Power Consumption 7W

Power Supply 24V, 0.3A Gigabit PoE Adapter

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Operating Temperature ‑40 to 70° C

(‑40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

ESD/EMP Protection ± 24 kV Contact / Air

Shock and Vibration ETSI300‑019‑1.4

Wind Survivability 200 km/h (125 mph)

Wind Loading 550 N @ 200 km/h

(123.6 lbf @ 125 mph)

Certications CE, FCC, IC

Operating Frequency (MHz)

Worldwide 5150 ‑ 5875

US/CA

U‑NII‑1 U‑NII‑2A U‑NII‑2C U‑NII‑3

5150 ‑ 5250 5250 ‑ 5350 5470 ‑ 5725 5725 ‑ 5850

Management Radio (MHz)

Worldwide 2412 ‑ 2472

US/CA 2412 ‑ 2462

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specified by the manufacturer.

WARNING: Do not use this product in a location that can

be submerged by water.

WARNING: Avoid using this product during an electrical

storm. There may be a remote risk of electric shock from
lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.

3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.

a. Do not substitute the power cord with one that is not the provided

approved type. Never use an adapter plug to connect to a 2‑wire
outlet as this will defeat the continuity of the grounding wire.

b. The equipment requires the use of the ground wire as a part of the

safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.

c. Contact a qualified electrician or the manufacturer if there

are questions about the installation prior to connecting the
equipment.

d. Protective earthing is provided by Listed AC adapter. Building

installation shall provide appropriate short‑circuit backup
protection.

e. Protective bonding must be installed in accordance with local

national wiring rules and regulations.

Limited Warranty

www.ubnt.com/support/warranty/

The limited warranty requires the use of arbitration to resolve disputes on
an individual basis, and, where applicable, specify arbitration instead of
jury trials or class actions.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including
interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operations of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.

This radio transmitter (FCC ID: SWX‑LBE5ACLR) has been approved by
FCC to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.

Antenna Information: Antenna, Gain: 26 dBi

ISED Canada

CAN ICES‑3(A)/NMB‑3(A)

This device complies with ISED Canada licence‑exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that
may cause undesired operation of the device.

This radio transmitter (IC: 6545A‑LBE5ACLR) has been approved by ISED
Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.

Antenna Information: Antenna, Gain: 26 dBi
The device for operation in the band 5150‑5250 MHz is only for indoor

use to reduce the potential for harmful interference to co‑channel mobile
satellite systems.

CAN ICES‑3(A)/NMB‑3(A)

Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :

1. l’appareil ne doit pas produire de brouillage;

2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.

Le présent émetteur radio (IC : 6545A‑LBE5ACLR) a été approuvé par ISDE
Canada pour l’exploitation avec l’antenne types énumérés ci‑dessous avec
le gain maximal admissible et requis l’impédance de l’antenne pour chaque
type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant
un gain supérieur au gain maximal indiqué pour ce type, sont strictement
interdits pour une utilisation avec cet appareil.

Informations d’antenne : Antenne, Gain : 26 dBi
Les dispositifs fonctionnant dans la bande 5150‑5250 MHz sont réservés

uniquement pour une utilisation à l’intérieur afin de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.

IMPORTANT NOTE:

Radiation Exposure Statement:

• This equipment complies with radiation exposure limits set forth for an

uncontrolled environment.

• This equipment should be installed and operated with minimum

distance 103 cm between the radiator and your body.

• This transmitter must not be co‑located or operating in conjunction with

any other antenna or transmitter.

AVIS IMPORTANT :

Déclaration sur l’exposition aux rayonnements :

• Cet équipement est conforme aux limites prévues pour l’exposition aux

rayonnements dans un environnement non contrôlé.

• Lors de l’installation et de la mise en fonctionnement de l’équipement,

assurez‑vous qu’il y ait une distance minimale de 103 cm entre l’élément
rayonnant et vous.

• Cet émetteur ne doit être installé à proximité d’aucune autre antenne

ni d’aucun autre émetteur, et ne doit être utilisé conjointement à aucun
autre de ces appareils.

Australia and New Zealand

Warning: Operation of this equipment in a residential environment
could cause radio interference.

Brazil

Nota: Este equipamento não tem direito à proteção contra

interferência prejudicial e não pode causar interferência em
sistemas devidamente autorizados.

CE Marking

CE marking on this product represents the product is in compliance with all
directives that are applicable to it.

Country List

AT BE BG CY CZ DE DK EE EL ES FI FR HR HU

IE IT LV LT LU MT NL PL PT RO SE SI SK UK

BFWA (Broadband Fixed Wireless Access) members noted in blue

Note: This device meets Max. TX power limit per ETSI regulations.

The following apply to products that operate in the 5 GHz frequency range:

Note: This device is restricted to indoor use only when operating

in the 5150 ‑ 5350 MHz frequency range within all member states.

Note: All countries listed may operate at 30 dBm. BFWA member

states may operate at 36 dBm.

Note: Operation in the 5.8 GHz frequency band is prohibited in

BFWA member states. Other countries listed may use the 5.8 GHz
frequency band.

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.

Deutsch

Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.

Español

La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.

Français

La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.

Italiano

La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.

Declaration of Conformity

български [Bulgarian] С настоящото UBIQUITI NETWORKS декларира, че този тип

радиосъоръжение LBE-5AC-LR е в съответствие с Директива 2014/53/ЕС. Цялостният
текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес:

www.ubnt.com/compliance

Hrvatski [Croatian] UBIQUITI NETWORKS ovime izjavljuje da je radijska oprema tipa LBE-5AC-LR

u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na
sljedećoj internetskoj adresi:

www.ubnt.com/compliance

Čeština [Czech] Tímto UBIQUITI NETWORKS prohlašuje, že typ rádiového zařízení LBE-5AC-LR

je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této
internetové adrese:

www.ubnt.com/compliance

Dansk [Danish] Hermed erklærer UBIQUITI NETWORKS, at radioudstyrstypen LBE-5AC-LR er i

overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan
findes på følgende internetadresse:

www.ubnt.com/compliance

Nederlands [Dutch] Hierbij verklaar ik, UBIQUITI NETWORKS, dat het type

radioapparatuur LBE-5AC-LR conform is met Richtlijn 2014/53/EU. De volledige tekst van
de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres:

www.ubnt.com/compliance

English

Hereby, UBIQUITI NETWORKS declares that the radio equipment type

LBE-5AC-LR

is
in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address: www.ubnt.com/compliance

Eesti keel [Estonian] Käesolevaga deklareerib UBIQUITI NETWORKS, et käesolev raadioseadme

tüüp LBE-5AC-LR vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on
kättesaadav järgmisel internetiaadressil:

www.ubnt.com/compliance

Suomi [Finnish] UBIQUITI NETWORKS vakuuttaa, että radiolaitetyyppi LBE-5AC-LR on direktiivin

2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla
seuraavassa internetosoitteessa:

www.ubnt.com/compliance

Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique

du type LBE-5AC-LR est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE
de conformité est disponible à l’adresse internet suivante:

www.ubnt.com/compliance

Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp LBE-5AC-LR der

Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der
folgenden Internetadresse verfügbar:

www.ubnt.com/compliance

Ελληνικά [Greek] Με την παρούσα ο/η UBIQUITI NETWORKS, δηλώνει ότι ο ραδιοεξοπλισμός

LBE-5AC-LR πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ
διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:

www.ubnt.com/compliance

Magyar [Hungarian] UBIQUITI NETWORKS igazolja, hogy a LBE-5AC-LR típusú rádióberendezés

megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a
következő internetes címen:

www.ubnt.com/compliance

Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að LBE-5AC-LR er í samræmi

við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti ESB
samræmisyfirlýsing er að finna á eftirfarandi netfangi:

www.ubnt.com/compliance

Italiano [Italian] Il fabbricante, UBIQUITI NETWORKS, dichiara che il tipo di apparecchiatura

radio LBE-5AC-LR èconforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di
conformità UE è disponibile al seguente indirizzo Internet:

www.ubnt.com/compliance

Latviešu valoda [Latvian] Ar šo UBIQUITI NETWORKS deklarē, ka radioiekārta LBE-5AC-LR atbilst

Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:

www.ubnt.com/compliance

Lietuvių kalba [Lithuanian] Aš, UBIQUITI NETWORKS, patvirtinu, kad radijo įrenginių tipas

LBE-5AC-LR atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo
interneto adresu:

www.ubnt.com/compliance

Malti [Maltese]

B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju

LBE-5AC-LR
huwa konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata
minn www.ubnt.com/compliance

Norsk [Norwegian]

UBIQUITI NETWORKS erklærer herved at utstyret

LBE-5AC-LR

er i
samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU. Den
fulle teksten til EU-samsvarserklæringen er tilgjengelig på følgende internettadresse:

www.ubnt.com/compliance

Polski [Polish] UBIQUITI NETWORKS niniejszym oświadcza, że typ urządzenia radiowego

LBE-5AC-LR jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest
dostępny pod następującym adresem internetowym:

www.ubnt.com/compliance

Português [Portuguese] O(a) abaixo assinado(a) UBIQUITI NETWORKS declara que o presente

tipo de equipamento de rádio LBE-5AC-LR está em conformidade com a Diretiva 2014/53/UE. O
texto integral da declaração de conformidade está disponível no seguinte endereço de Internet:

www.ubnt.com/compliance

Română [Romanian] Prin prezenta, UBIQUITI NETWORKS declară că tipul de echipamente radio

LBE-5AC-LR este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de
conformitate este disponibil la următoarea adresă internet:

www.ubnt.com/compliance

Slovenčina [Slovak]

UBIQUITI NETWORKS

týmto vyhlasuje, že rádiové zariadenie typu LBE-5AC-LR
je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto
internetovej adrese:

www.ubnt.com/compliance

Slovenščina [Slovenian]

UBIQUITI NETWORKS potrjuje, da je tip radijske opreme

LBE-5AC-LR
skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem
spletnem naslovu: www.ubnt.com/compliance

Español [Spanish] Por la presente, UBIQUITI NETWORKS declara que el tipo de equipo

radioeléctrico LBE-5AC-LR es conforme con la Directiva 2014/53/UE. El texto completo
de la declaración UE de conformidad está disponible en la dirección Internet siguiente:

www.ubnt.com/compliance

Svenska [Swedish] Härmed försäkrar UBIQUITI NETWORKS att denna typ av radioutrustning

LBE-5AC-LR överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-försäkran
om överensstämmelse finns på följande webbadress:

www.ubnt.com/compliance

Online Resources

Support help.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com

www.ubnt.com

Ubiquiti Networks, Inc.

685 Third Avenue, 27th Floor

New York, NY 10017

USA

©2018‑2019 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti,

UbiquitiNetworks, the UbiquitiU logo, the Ubiquiti beam logo, airMAX,

airOS, InnerFeed, LiteBeam, TOUGHCable, and UNMS are trademarks or

registered trademarks of UbiquitiNetworks, Inc. in the United States and
inother countries. Apple and the Apple logo are trademarks of Apple Inc.,

registered in the U.S. and other countries. App Store is a service mark of
Apple Inc., registered in the U.S. and other countries. Android, Google,
Google Play, the Google Play logo and other marks are trademarks of Google
LLC. All other trademarks are the property of their respectiveowners. JL011019
