Ubiquit U-LTE Quick Start Guide
4/19/2021 U-LTE Quick Start Guide

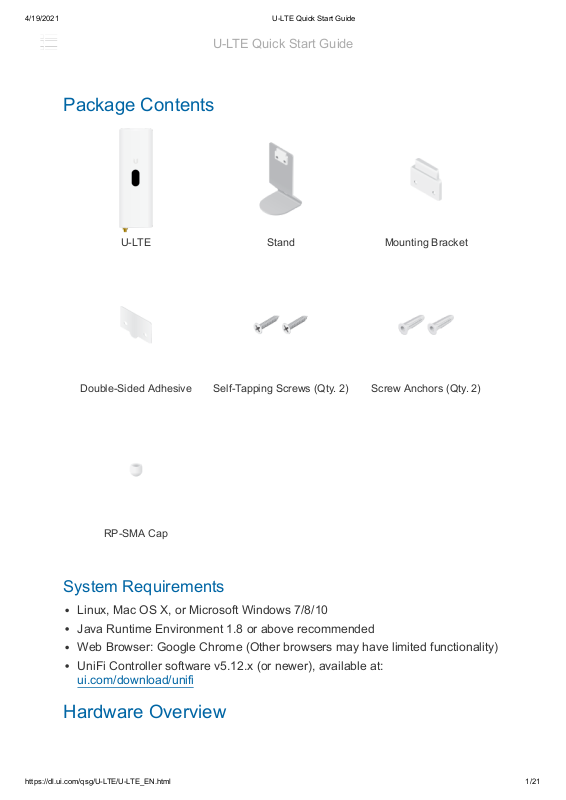

U-LTE Stand Mounting Bracket
Double-Sided Adhesive Self-Tapping Screws (Qty. 2) Screw Anchors (Qty. 2)
RP-SMA Cap
Package Contents
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.8 or above recommended
Web Browser: Google Chrome (Other browsers may have limited functionality)
UniFi Controller software v5.12.x (or newer), available at:
ui.com/download/unifi
Hardware Overview
U-LTE Quick Start Guide
https://dl.ui.com/qsg/U-LTE/U-LTE_EN.html 1/21
4/19/2021 U-LTE Quick Start Guide
RP-SMA Antenna Connector
Reset Button
Secondary
Main
You can connect an optional external LTE antenna (not included). If you are
not using an external antenna, then you can cover the connector with the RPSMA Cap.
The Reset Button serves two functions:
Restart Press and release the Reset button quickly.
Restore to Factory Default Settings Press and hold the Reset button for
more than five seconds, until the display indicates “Factory Reset”.
This Gigabit Ethernet port is used for bridging and can provide passive PoE to
a device.
U-LTE Quick Start Guide
https://dl.ui.com/qsg/U-LTE/U-LTE_EN.html 2/21
4/19/2021 U-LTE Quick Start Guide
LCD Screen
This Gigabit Ethernet port is used to connect the power and should be
connected to the LAN and DHCP server. 803.2at PoE+ can be provided by an
802.3at PoE+ switch, such as a UniFi PoE Switch.
Displays status information, including the LTE signal strength.
Installation Requirements
Phillips screwdriver
Wall-mounting (optional): drill with 6 mm drill bit
For WAN failover:
UniFi Dream Machine, model UDM
UniFi Security Gateway, model USG, USG-PRO-4, or USG-XG-8
UniFi cloud account
Note: The U-LTE can only be adopted via remote access at:
unifi.ui.com
Activation of Ubiquiti LTE data plan
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be
used for all wired Ethernet connections and should be grounded through the
AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable
WARNING: To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Note: Although the cabling can be located outdoors, the U-LTE itself
should be housed inside a protective enclosure.

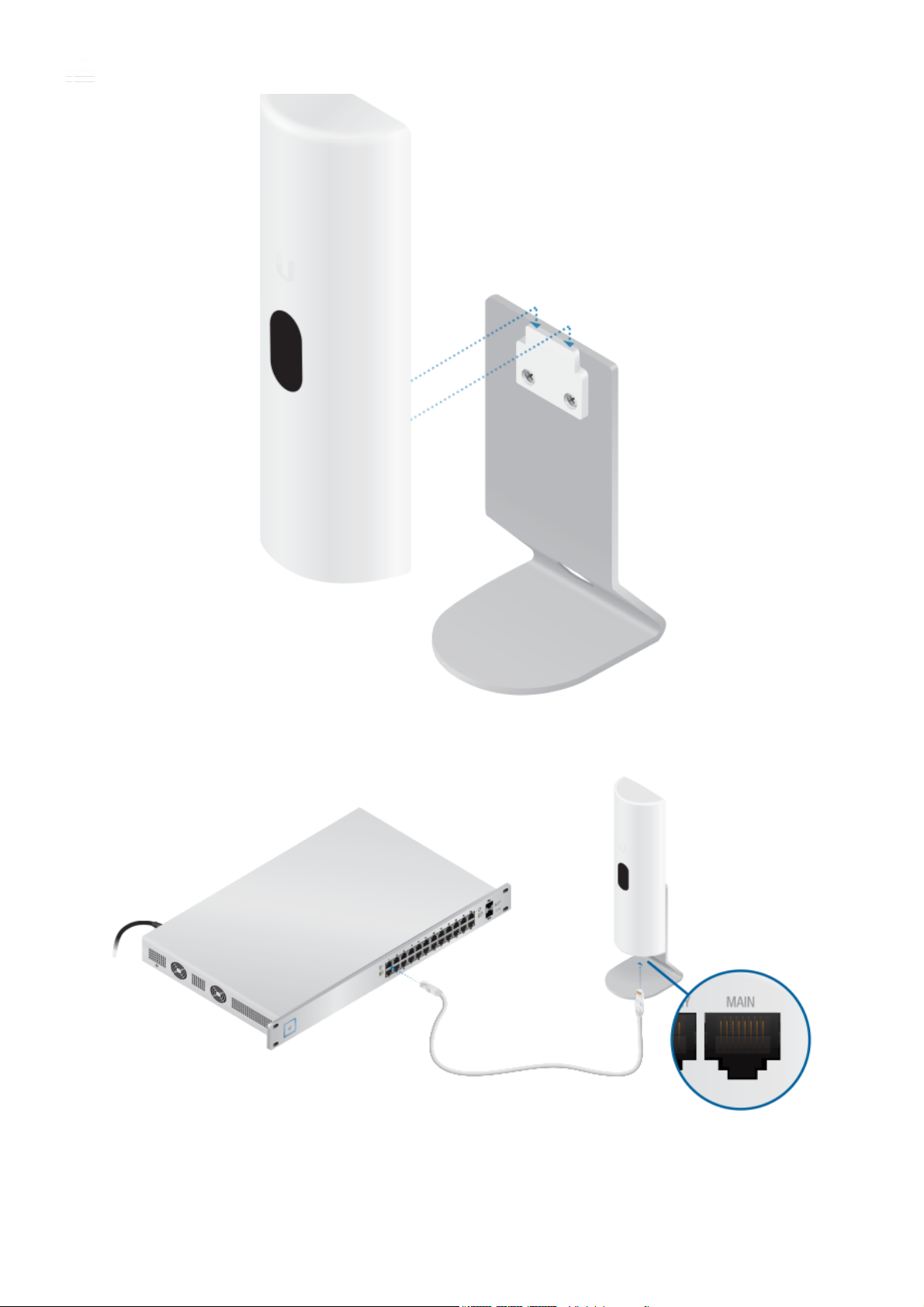

Hardware Installation
The U-LTE can be mounted in three ways:
Screw Mount

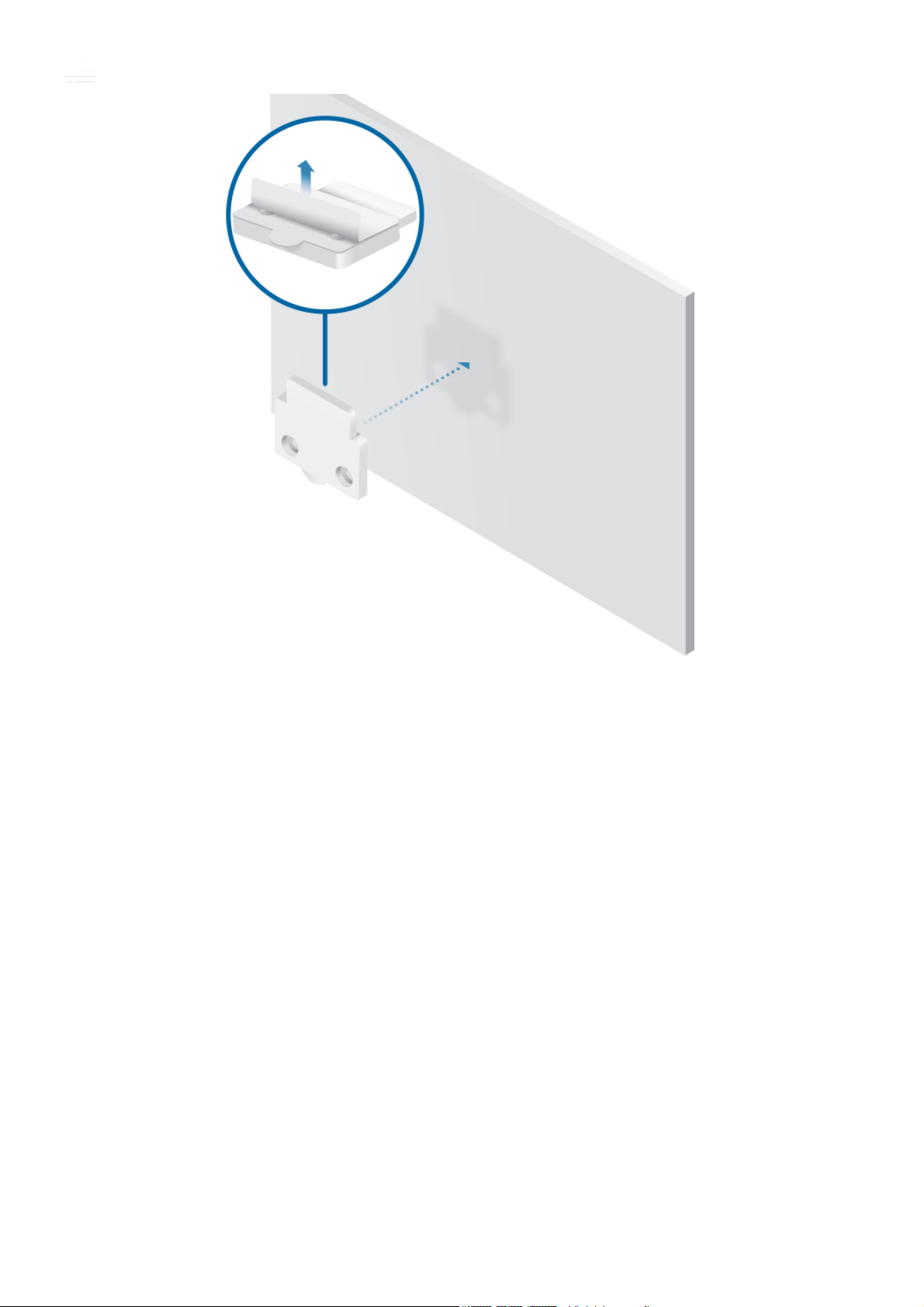

“Adhesive Mount”
“Desktop Mount”
Screw Mount
1.
U-LTE Quick Start Guide
https://dl.ui.com/qsg/U-LTE/U-LTE_EN.html 3/21
4/19/2021 U-LTE Quick Start Guide
2.
U-LTE Quick Start Guide
https://dl.ui.com/qsg/U-LTE/U-LTE_EN.html 4/21
4/19/2021 U-LTE Quick Start Guide
3.
U-LTE Quick Start Guide
https://dl.ui.com/qsg/U-LTE/U-LTE_EN.html 5/21
4/19/2021 U-LTE Quick Start Guide
4.
U-LTE Quick Start Guide
https://dl.ui.com/qsg/U-LTE/U-LTE_EN.html 6/21
4/19/2021 U-LTE Quick Start Guide
5.
U-LTE Quick Start Guide
https://dl.ui.com/qsg/U-LTE/U-LTE_EN.html 7/21
