UBI ScanPlus 1800, ScanPlus 1802, ScanPlus SP, ScanPlus ER, ScanPlus XP Installation Manual

ScanPlus

Installation Guide

Edition 1.2

SP/XX/IG/12/E/980228

Notice

The ScanPlus products described in this manual comply with CE directives for electrom agnetic
emission levels and electrical immunity.

The information contained in this manual is for informational purposes only and i s subj ect t o
change without notice. No part of t hi s manual may be copied or reproduced in any manner without
the prior written permi ssi on of Uni t ed Barcode Industries.

ScanPlus products are covered by patents issued or pending in the USA and other countries.
ScanPlus is a trademark of Uni t ed Barcode Industries.

This Install at ion Guide can be used with all ScanPlus products except the ScanPlus CL.

SP/XX/IG/12/E/980228

Scanner Technology Center

DECLARATION OF CONFORMITY

We,

UBI Scanner Technology Center

Immeuble Le Naurouze, Rue Carmin

Voie No.3, Innopole - BP 187

31676 Labège Cedex

France

declare under our sole responsibility

ScanPlus SP / ER / XP / PDF

Cable Management Modules

to which this declaration relates

is (are) in conformity with the following standards:

Emiss ion: EN 50081-1

EN 55022

Immunity : EN 50082-1

IEC 801-2
IEC 801-3
IEC 801-4

Low voltage: EN 60950

following the provisions of D irectives

89/336/EEC

73/23/EEC

Toulouse 30/11/ 1996

1

that the product(s)

(1992)

Class B

(1987)

(1992)

(1984 -91)

3 V/m

(1984)

1kV

(1988)

(1993)

8kV in the air

...................................................................

Sven Skarendahl

President

1

UBI assumes no r e s pons ibility as regards fulfilling the CE Directive if the product(s) is ( ar e)

handled, modified or installed in other manners than those described in UB I's manuals.

UBI Scanner Technology Center

Voie No.3, Innopole - BP 187, 31676 Labège Cedex, France

Immeuble Le Naurouze, Rue Carmin

Tel: [phone] • Fax: [phone]

SP/XX/IG/12/E/980228 iii

iv SP/XX/IG/12/E/980228

What you are going to do . . .

This Installation Guide tells you how to install and set up your ScanPlus to operate
successfully in most worki ng situations.

The present guide does not cover all the conf iguration capabilities of your ScanPlus. The
full set of confi gur at i on opt ions is provided in the

Step by step how to install and set up your ScanPlus

1 Check you have everything you need........................................................ 1-1

2 Switch off the host system and connect up the ScanPlus.......................... 2-1

3 Switch on the host system........................................................................3-1

4 Enter the interface number for your host system.......................................4-1

5 Set up the data transmission parameters..................................................5-1

6 Set up the symbology parameters............................................................6-1

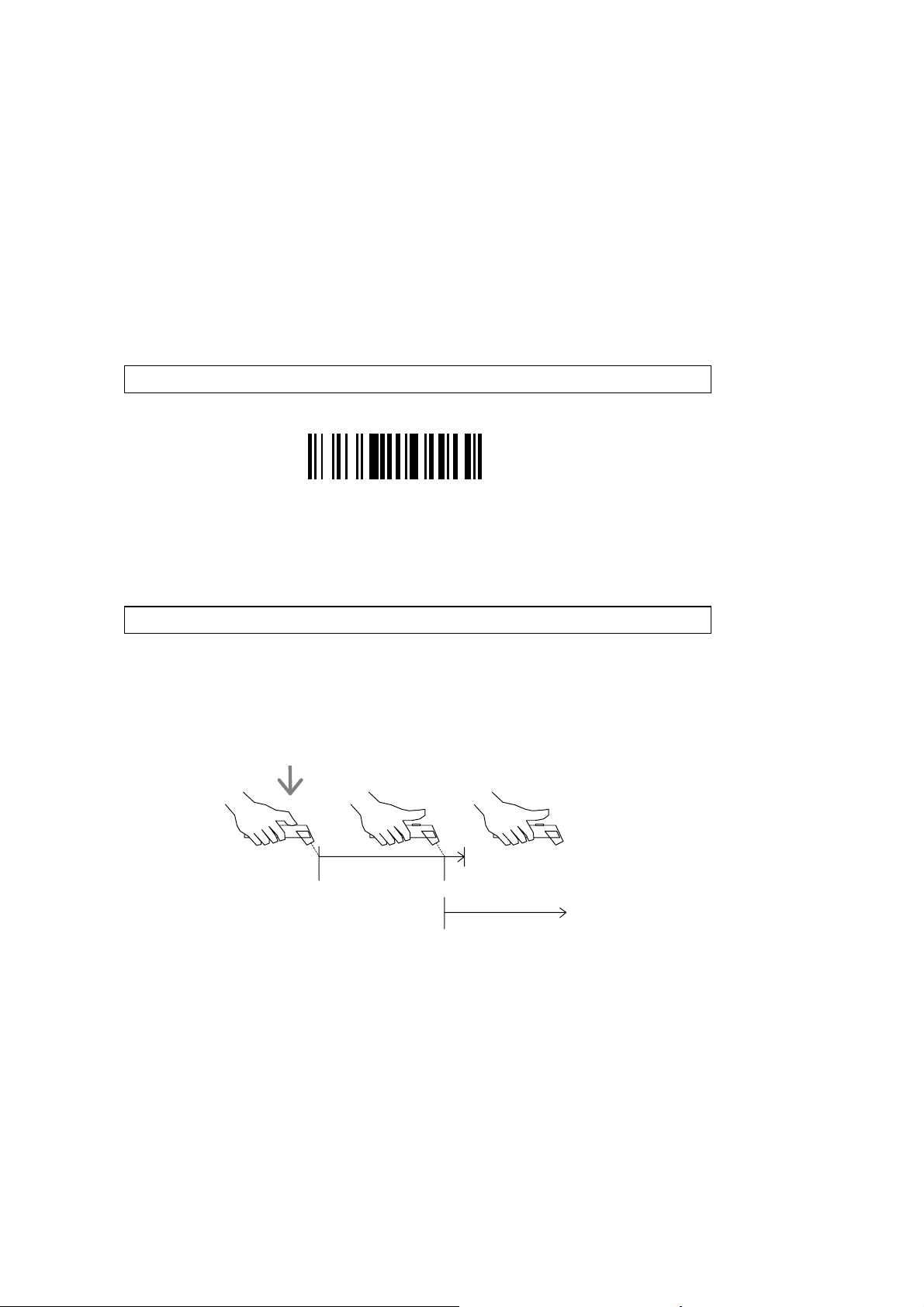

7 Set up the operating parameters—Activate the pushbutton.......................7-1

ScanPlus Reference Manual

.

Additional information is provided in the Appendix

A Pin assignments—Singl e-output RS-232 CMM.........................................A-1

B Jumper settings—Dual-output RS-232 CMM............................................. B-1

C If you have a problem . . ..........................................................................C-1

D Test codes ...............................................................................................D-1

SP/XX/IG/12/E/980228 v

What you are going to do . . .

vi SP/XX/IG/12/E/980228

1

Check you have everything you need

Checklist of items for your installation



all systems

the right ScanPlus model



this



ScanPlus user's leaflet if applic abl e



options

external power supply

keyboard wedge

CMM

external power supply



keyboard wedge CMM and associated keyboard/system cables



single-output or dual - out put RS-232 CMM and associated cables if applicable



ScanPlus Installation Guide

ScanPlus Reference Manual

5V or 12V mains power supply adapter—necessary if the host
system does not provide enough electrical power to drive the
ScanPlus

ScanPlus connected between a keyboard and the host system—
data from t he ScanPlus is t r ansmitted in keyboard emulati on mode
to provide instant software compatibility (an external power supply
may be necessary)

Cable Management Module—cable adapter used to connect the
ScanPlus to the host system if a di r ect connection i s not possible
(some keyboard wedge configurations, need for an external power
supply, ...)

single-output RS-232 CMM

dual-output RS-232 CMM

SP/XX/IG/12/E/980228 1-1

CMM for RS-232 configuration wi t h external power supply

CMM for ScanPlus connected between two systems communicat i ng
through an RS-232 link (external power supply necessary)

1. Check you have everything you need

SP/XX/IG/12/E/9802281-2

2

Switch off the host system and
connect up the ScanPlus

Direct connection or Cable Management Module (CMM) ?

Depending on your system configuration, you will either be able to
connect you r Sca nPlus dir ectly to t he host syst em or you will need to
use a CMM cable adapter.

Host interfaces

Keyboard wedge—ScanPlus with Y cable (PC AT and compatible)........... 2-2

Keyboard wedge—CMM and external power supply (if required) ...............2-3

RS-232—Direct connection ......................................................................2-4

RS-232—Single-output CMM and external power supply...........................2-4

RS-232—Dual-output CMM and external power supply.............................2-5

IBM 46xx cash registers............................................................................2-6

OCIA cash registers................................................................................. 2-6

Laser emulation........................................................................................2-7

Wand emulation.......................................................................................2-7

SP/XX/IG/12/E/980228 2-1

2. Switch off the host system and connect up the ScanPlus

Keyboard wedge—ScanPlus with Y cable (PC AT and compatible)

keyboard input

connector

DIN/mini-DIN

adaptor

Ö

keyboard

cable

use the DIN / mini-DIN

adaptor if appl i c abl e

1. Switch of f the host s ys tem.

2. Disconnec t the keyboard from t he hos t
computer.

3. Connect the Sca nPlus Y c able bet ween
the keyboa rd and t he hos t computer.

ScanPlus with

keyboard wedge

Y cable

4. If your host system requires an external power supply:

•

Connect the power s upply to the ScanPlus Y cable.

•

Plug the power supply into the mains socket.

host computer

use double-sided adhesive to

fix the Y cable overmold to

the worktop or PC if required

power supply

(if required)

2

1

The jack connector of the external power supply has been designed to f it tightl y
in the Y cable socket—tilt the jack slightly to ease insertion (1) and then push
hard vertically (2) .

Do not switch on the host computer until you have connect ed up and

0

0

plugged in the external power supply.

SP/XX/IG/12/E/9802282-2

2. Switch off the host system and connect up the ScanPlus

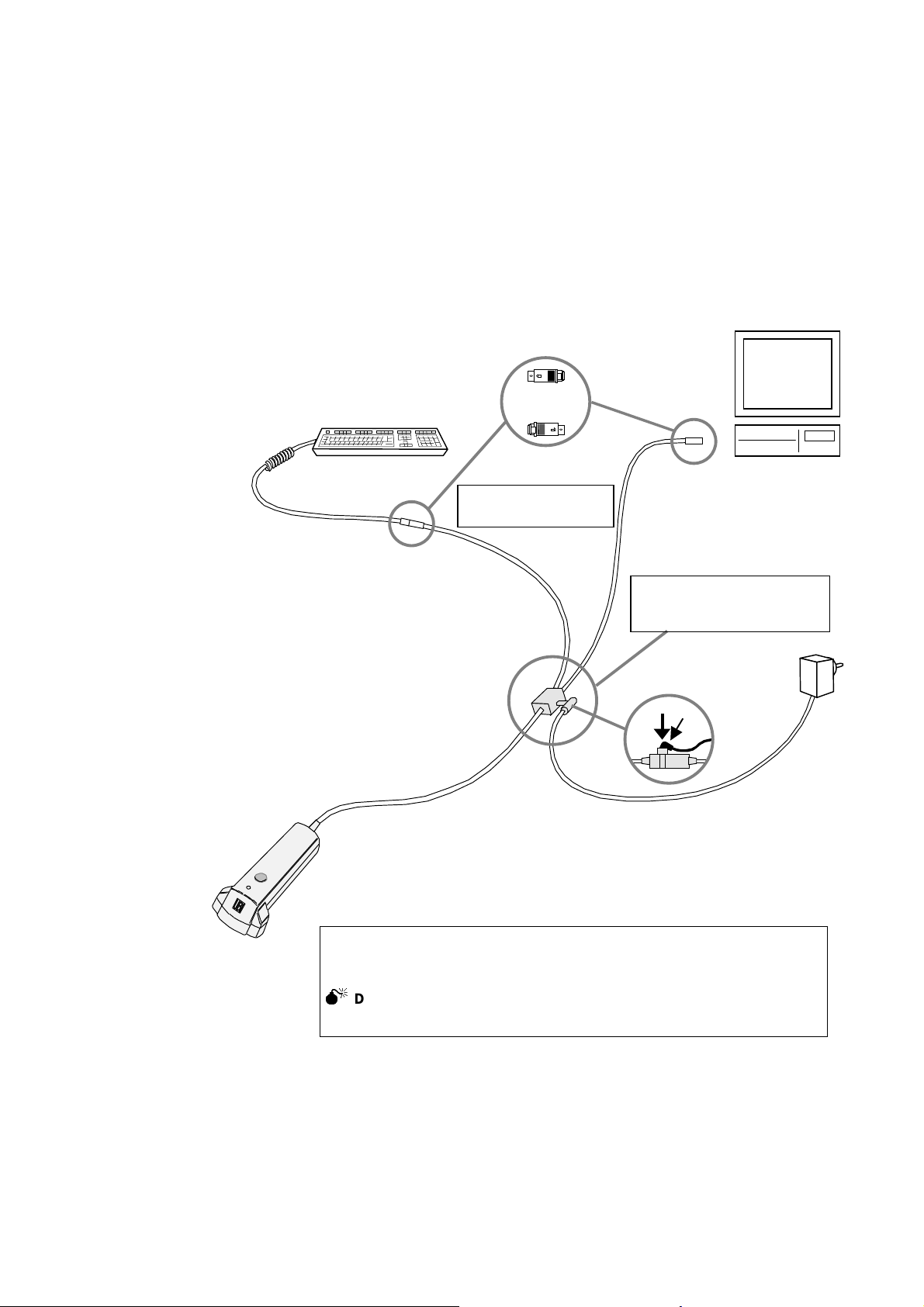

Keyboard wedge—CMM and external power supply (if required)

1. Switch off t he hos t system.

2. Disconnect the keyboar d f rom the host
computer.

keyboard

cable

3. Use the appropriate keyboard
wedge cables to connect the
wedge CMM between the

To Keyboard

keyboard and the host
computer.

power supply

(optional)

4. Connect t he ScanP lus to the
wedge CMM .

keyboard to

CMM cable

Power

Supply

to keyboard

input connector

Reader

wedge

CMM

Ö

CMM t o

host cable

To Display

5. If your syst em r equ ires an
external power supply:

•

Connect the power s upply to the wedge CMM.

•

Plug the power supply into the mains socket.

Do not switch on the host com puter until you have connected up and pl ugged i n t he

0

0

external power supply.

SP/XX/IG/12/E/980228 2-3

2. Switch off the host system and connect up the ScanPlus

RS-232—Direct connection

1. Switch off the host system.

2. Connect the ScanPlus to the host computer.

serial port

Ö

RS-232—Single-output CMM and external power supply

1. Switch off the host system.

2. Use the single-output RS-232 CMM to

connect the ScanPlus to the host computer.

power

supply

Power

Supply

RS-232 Port

serial port

Ö

Reader

0

Do not switch on the host c omputer

0

until you have connected up and
plugged in the external power supply.

single

RS-232 CMM

Pin assignments for the single­output RS-232 CMM are
described in Appendix A.

SP/XX/IG/12/E/9802282-4

2. Switch off the host system and connect up the ScanPlus

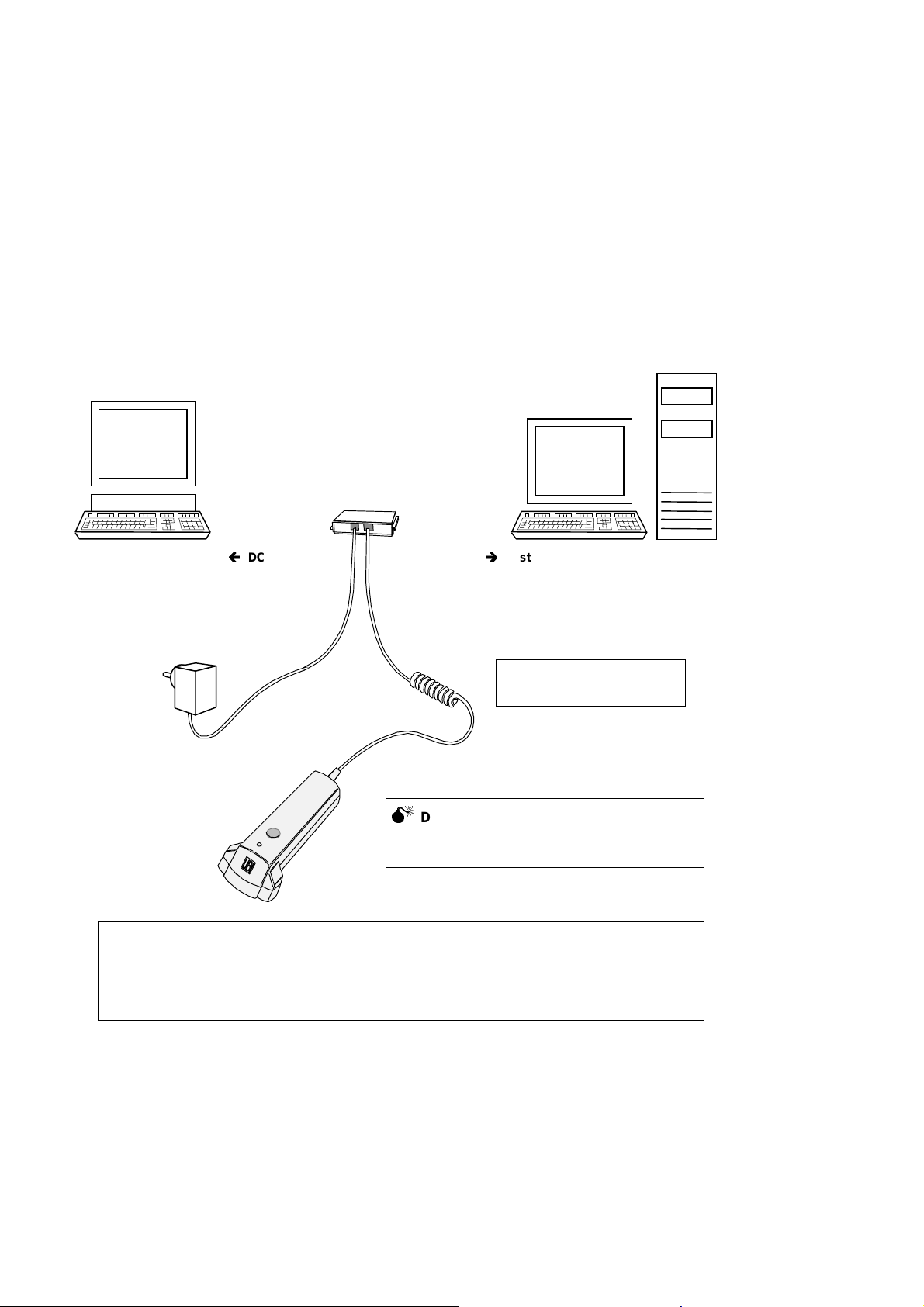

RS-232—Dual-output CMM and external power supply

1. Switch of f the host s ys tem.

2. Use the dual-output RS-232 CMM to connect the Sca nPlus between the termina l
and t he hos t computer.

serial port

terminal

power

supply

dual RS-232

CMM

Õ

Í

Í

J2 male

(*J1 female)

DCE DTE

J1 female
(*J2 male)

Do not switch on t he host computer until

0

0

you have connected up and plugged in the
external power supply.

serial port

Ö

host

Î

Î

* reverse gender dual-output
RS-232 CMM

By default, dual-out put RS-232 CMMs for the ScanPlus are configured for data transmission
on the DTE connector (to host) only.

By modifyi ng internal jumper settings, the dual-out put RS-232 CMM can be set to transmi t
data on the DCE connector (to terminal ) only or on both DTE and DCE—see Appendix B.

SP/XX/IG/12/E/980228 2-5

2. Switch off the host system and connect up the ScanPlus

IBM 46xx cash registers

1. Switch off the host system.

2. Con nect the ScanPlus to the ca sh register .

OCIA cash registers

1. Switch off the host system.

2. Con nect the ScanPlus to the ca sh register .

port

5x or 9x

Ö

scanner

input port

Ö

SP/XX/IG/12/E/9802282-6

2. Switch off the host system and connect up the ScanPlus

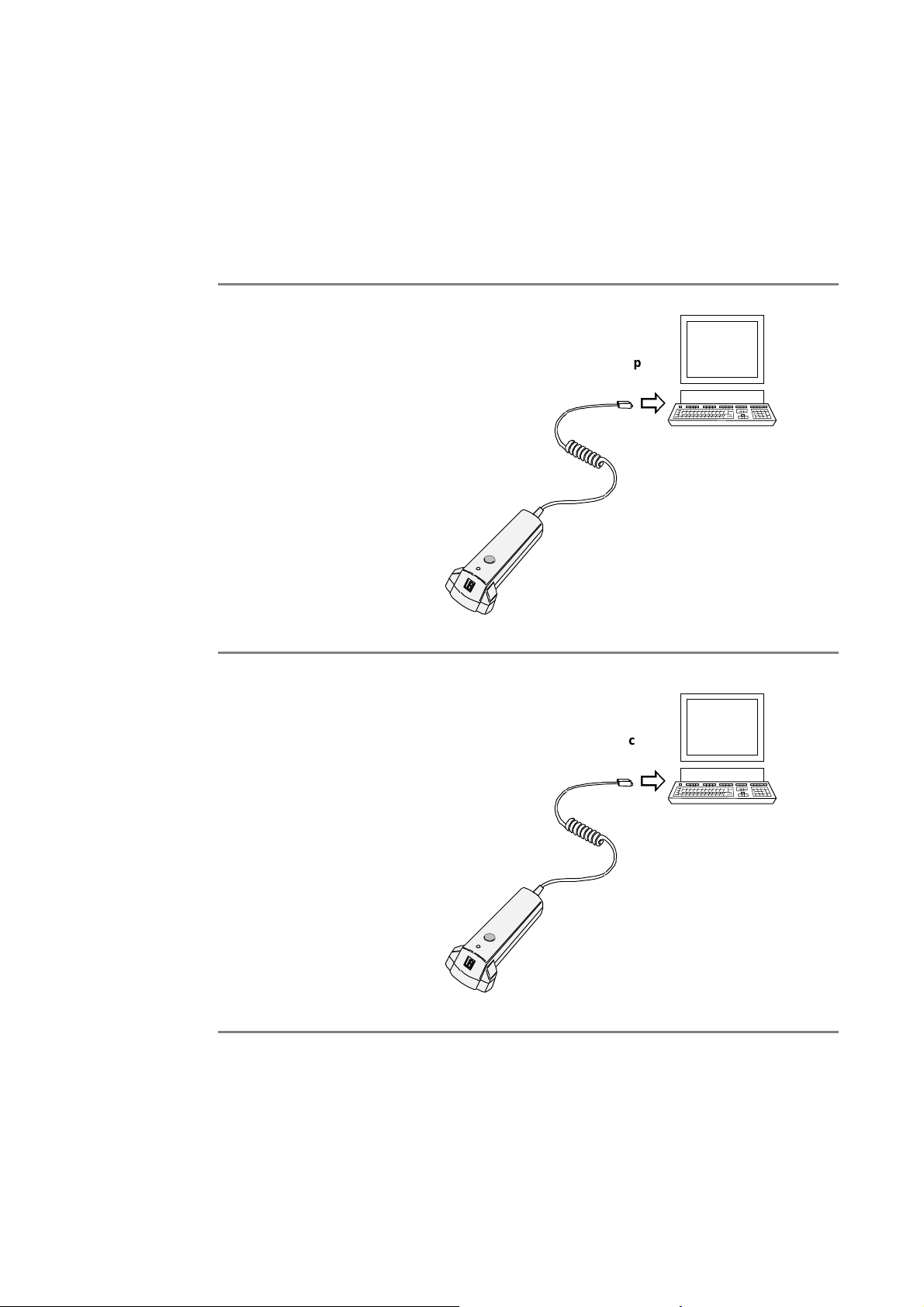

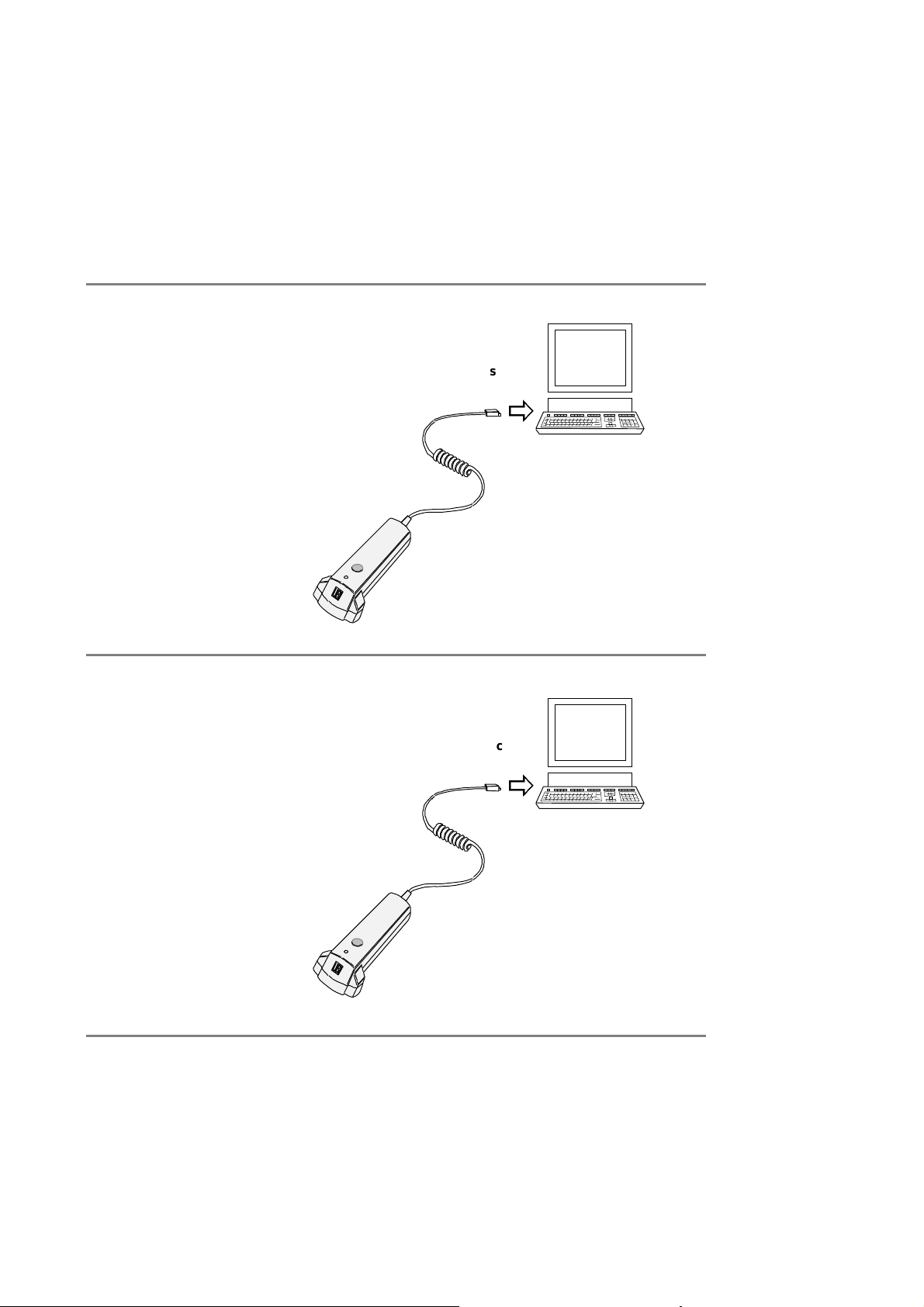

Laser emulation

1. Switch off the host system.

2. Connect the ScanPlus to the host computer.

Wand e m ulation

1. Switch off the host system.

2. Connect the ScanPlus to the host computer.

scanner

input port

Ö

scanner

input port

Ö

SP/XX/IG/12/E/980228 2-7

2. Switch off the host system and connect up the ScanPlus

SP/XX/IG/12/E/9802282-8

3

What the beeps and LED flashes mean

Switch on the host system

The ScanPlus should emit two beeps to indicate that the power-up
sequence has been completed.

The green indicator LED will then indicat e the interface t ype selected
for the ScanPlus.

green LED indication selected interf ace t ype P/N identification

continuous LED null interface factory default setting

no LED laser em ulation x - x x x x x 0 - x x - x x
1 flash wand emulation x - x x x x x 1 - x x - x x
2 flashes RS-232 C x - x x x x x 2 - x x - x x
3 flashes IBM 46xx cas h registers x - x x x x x 3 - x x - x x
4 flashes RS-232 TTL x - x x x x x 4 - x x - x x
5 flashes OCIA cash regi sters x - x x x x x 5 - x x - x x
7 flashes keyboard wedge x - x x x x x 7 - x x - x x

(all models)

The Part Number (P/N) indicates the hardware interface setup for your ScanPlus model.

If you have an energy saver pushbutton model and the pushbutton is act ivated, the
power-up beeps and power-up LED will not operate.

SP/XX/IG/12/E/980228 3-1

3. Switch on the host system

SP/XX/IG/12/E/9802283-2

4

Enter the interface number for your
host system

interface number

Using your ScanPlus

If you have any problems reading the configuration codes, refer to Appendix C for help.
For full details on how to use your ScanPlus, see the user's leaflet for your ScanPlus

product if appl i cable.

Configuration codes wit h an ast er i sk ( * ) ar e f actory default settings.

automati cally configures your ScanPlus by setting interface-specific
parameters—in parti cul ar data transmission par ameters—to suit your
operating environment

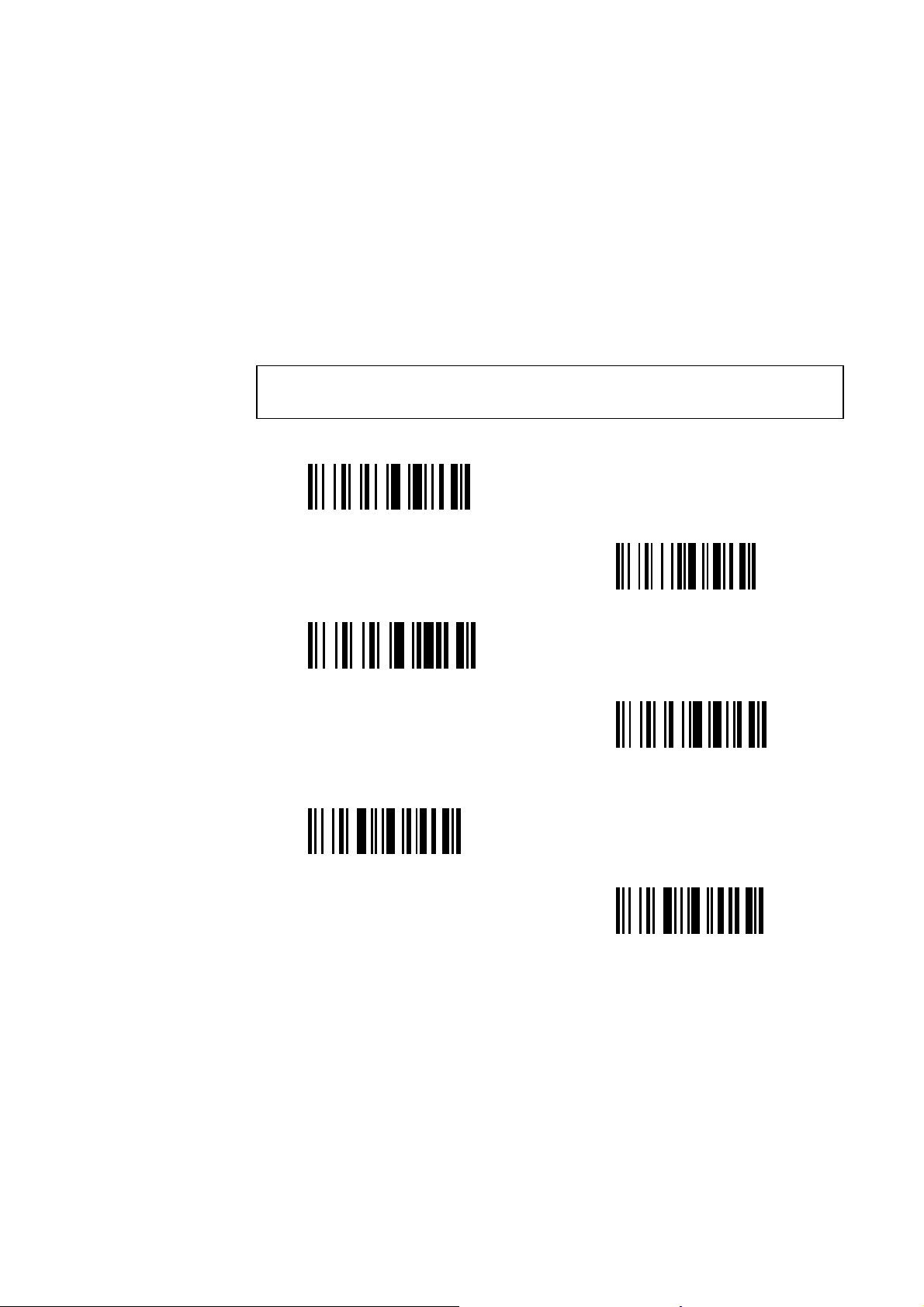

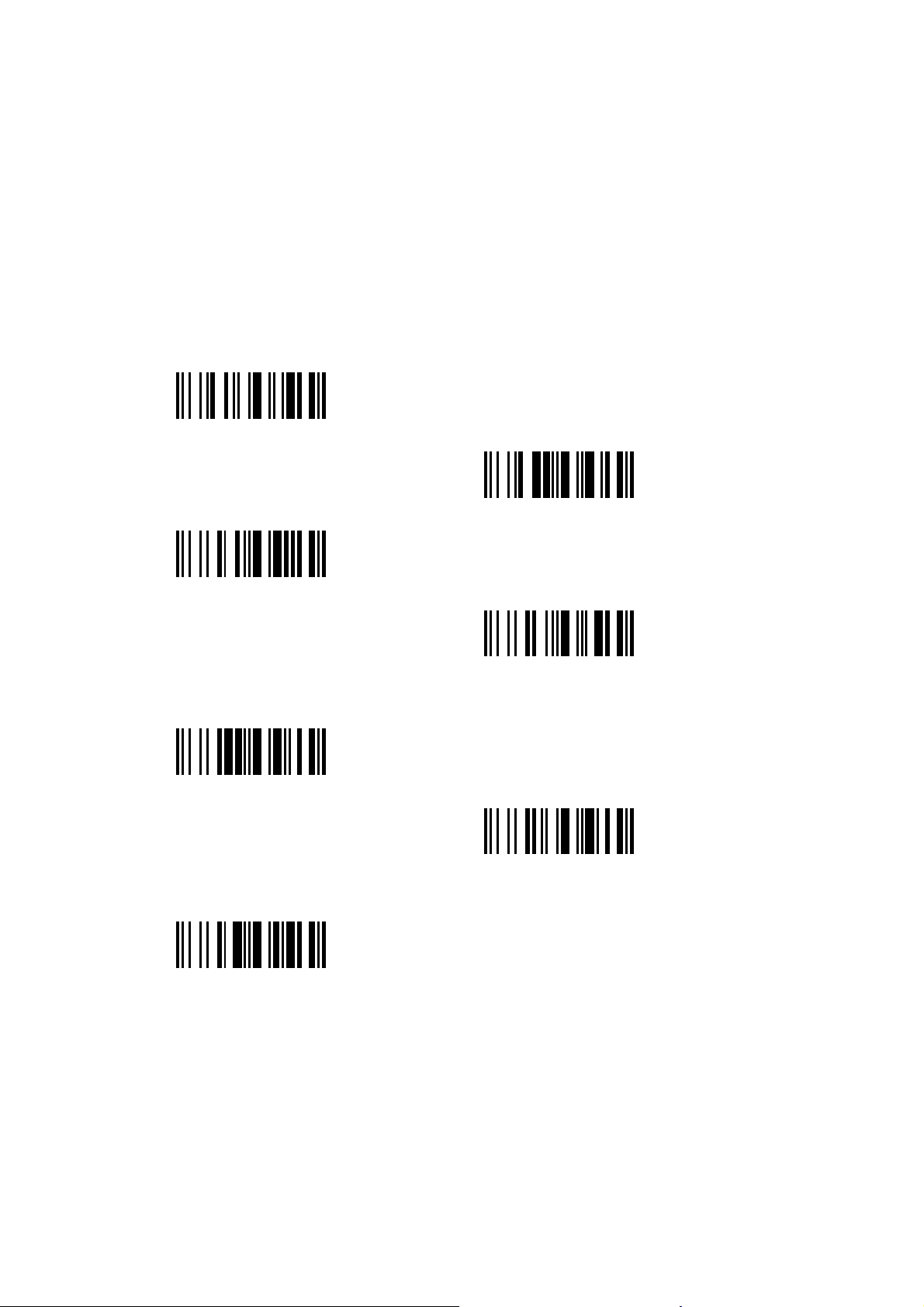

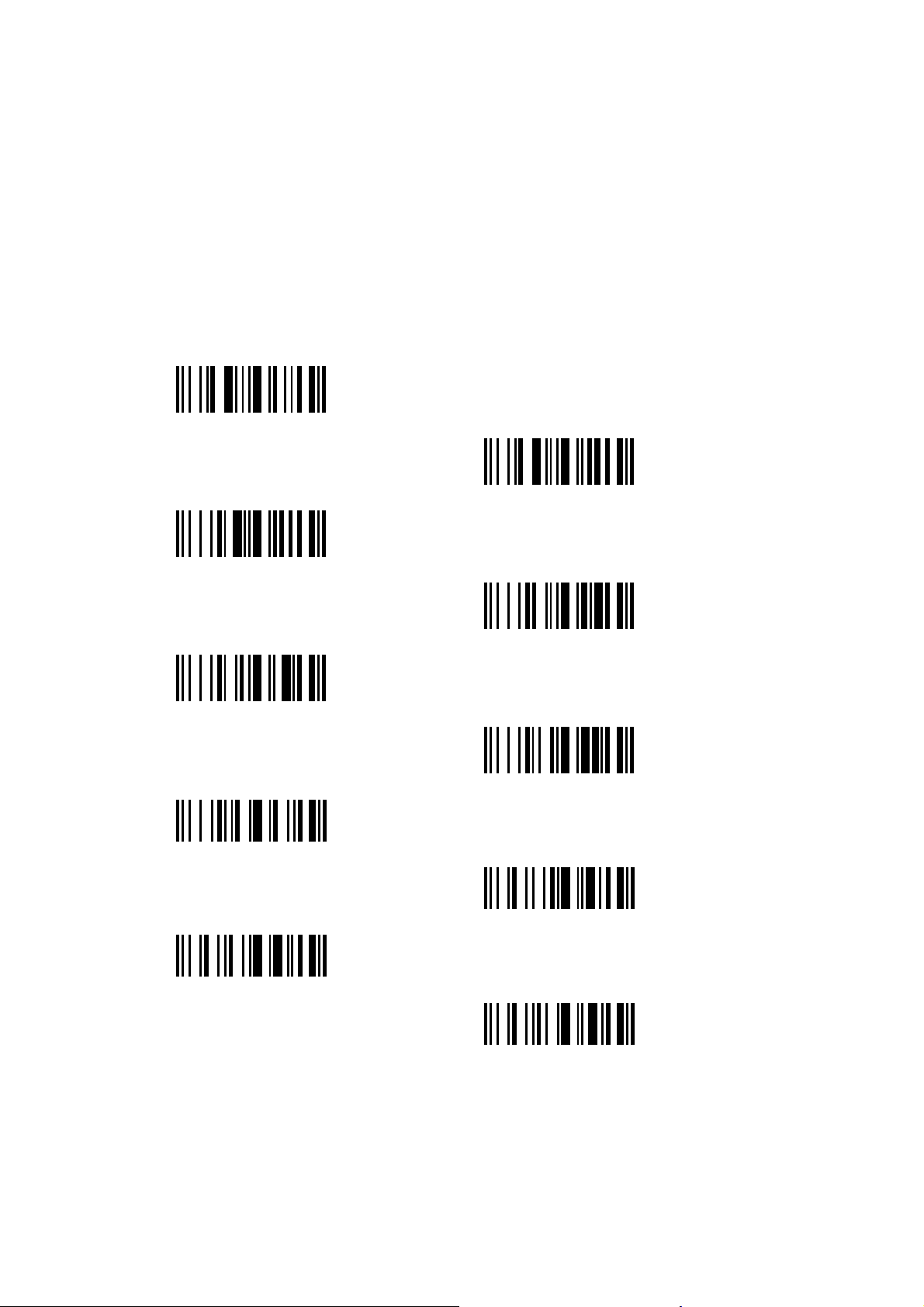

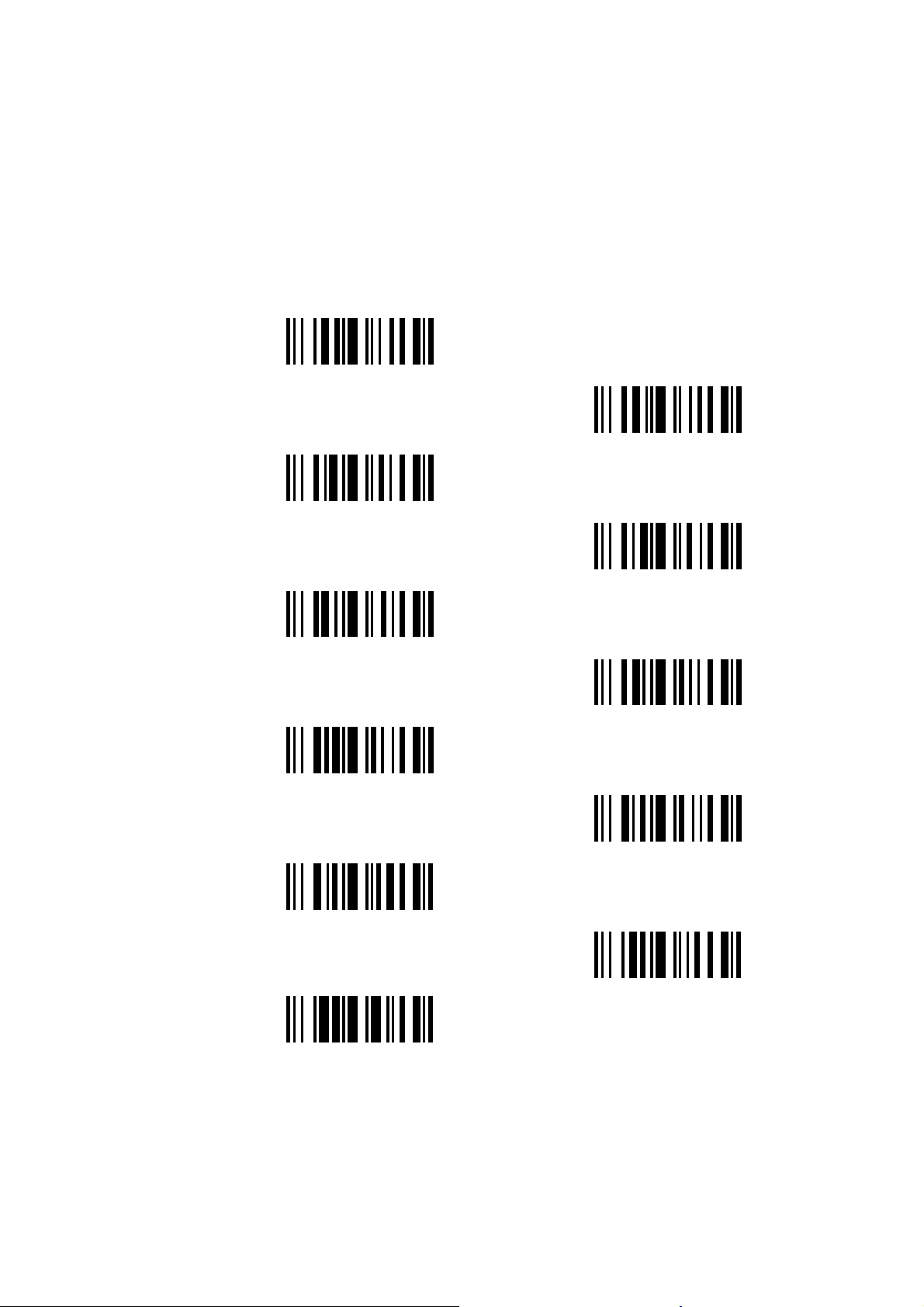

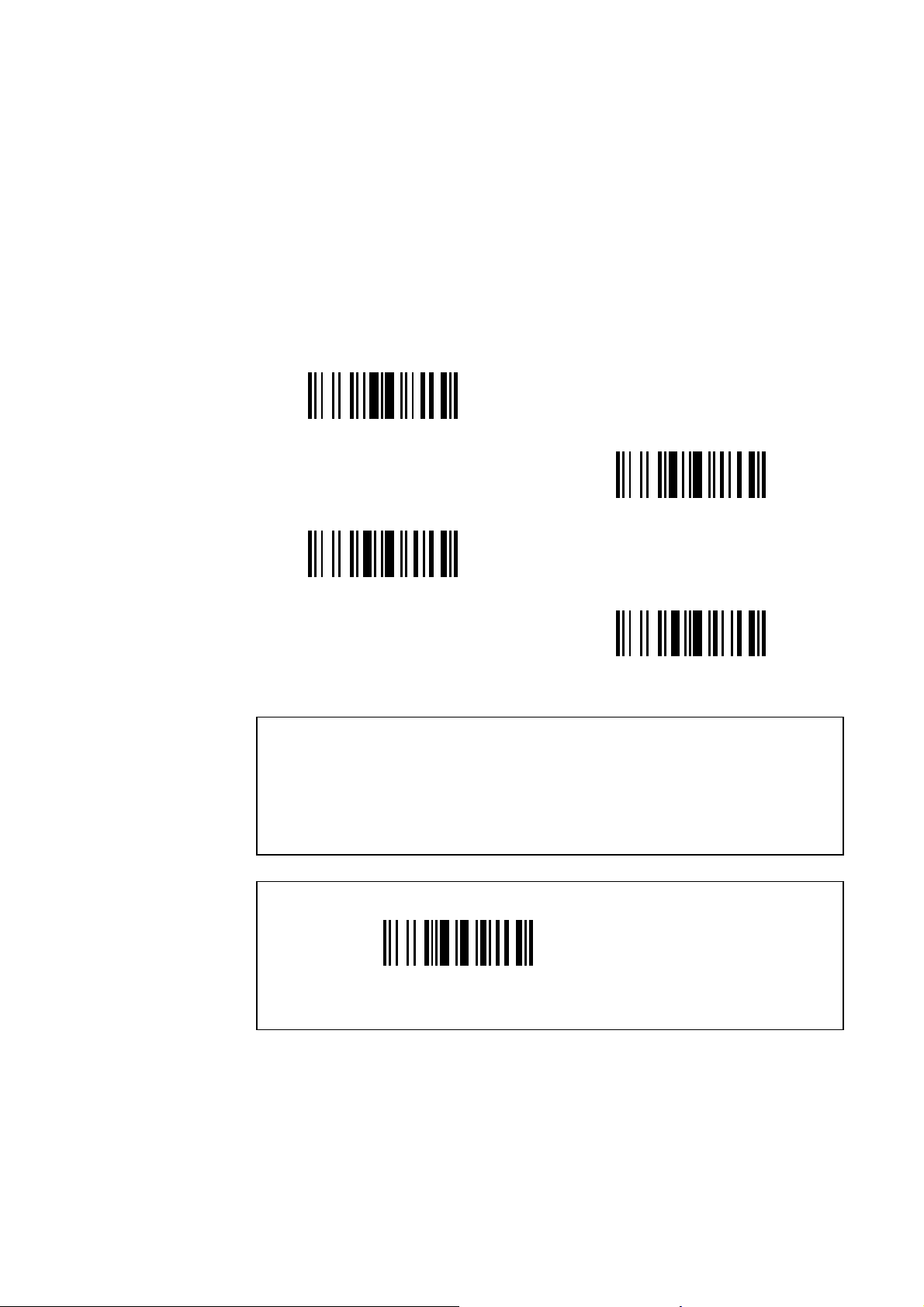

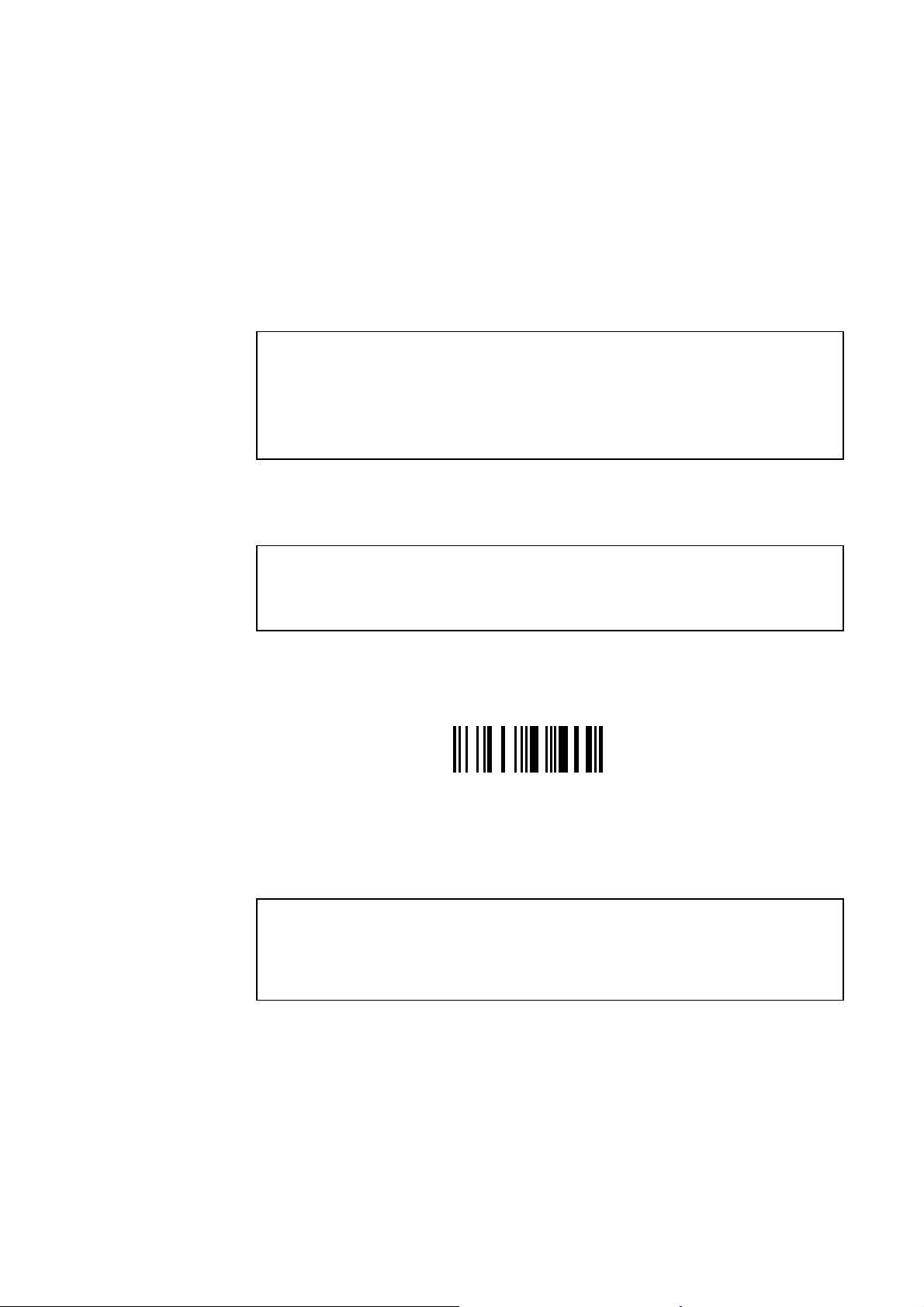

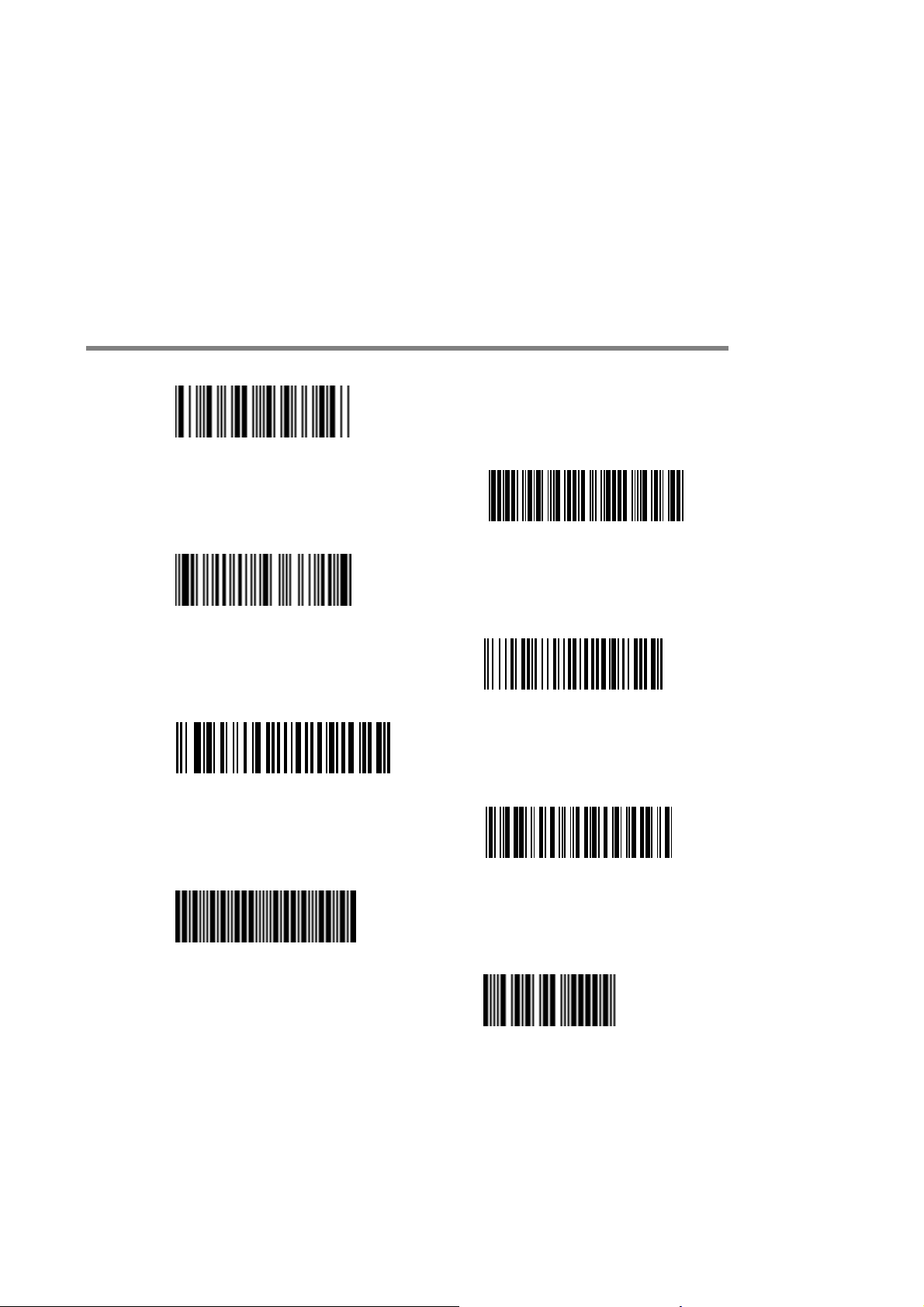

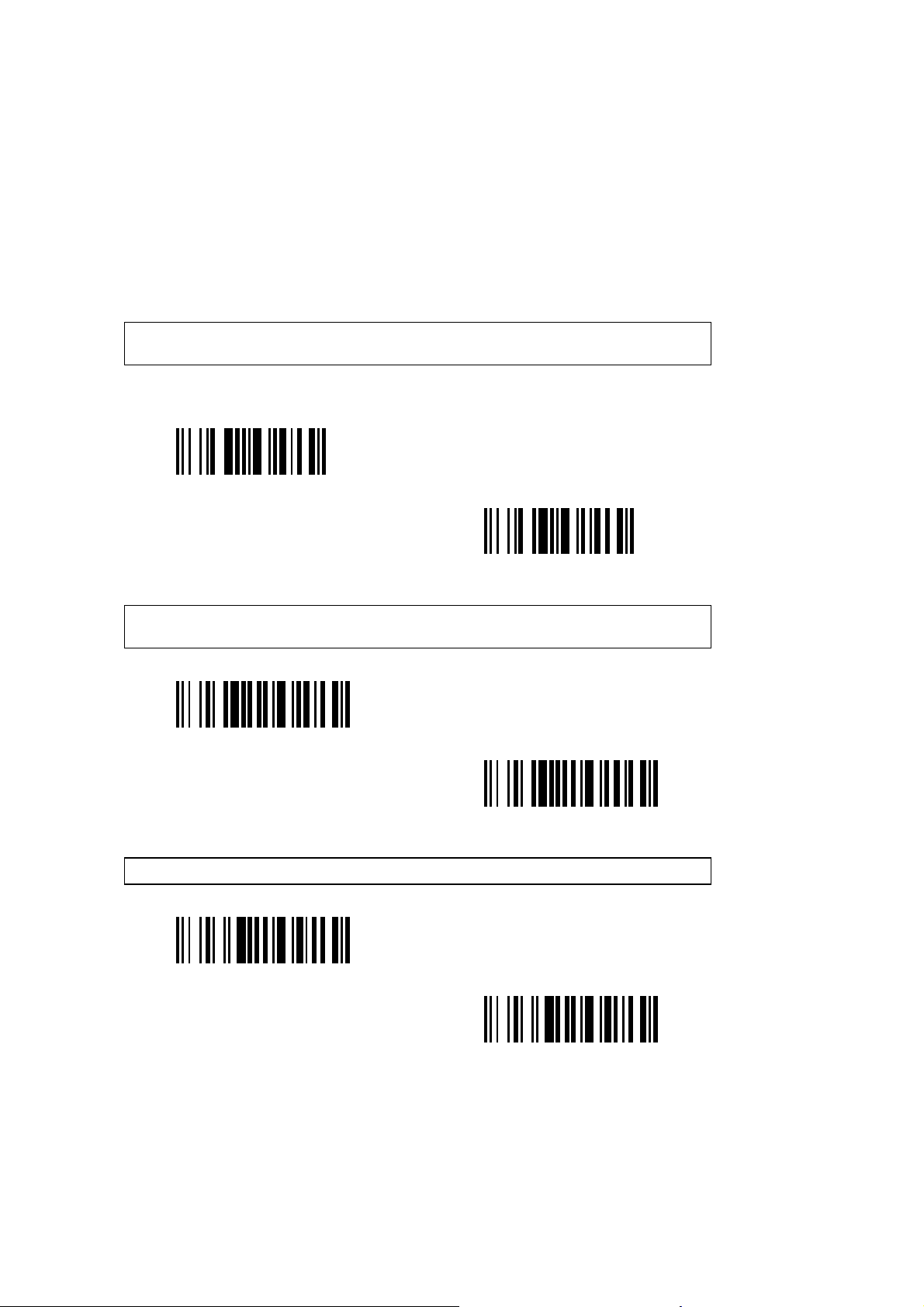

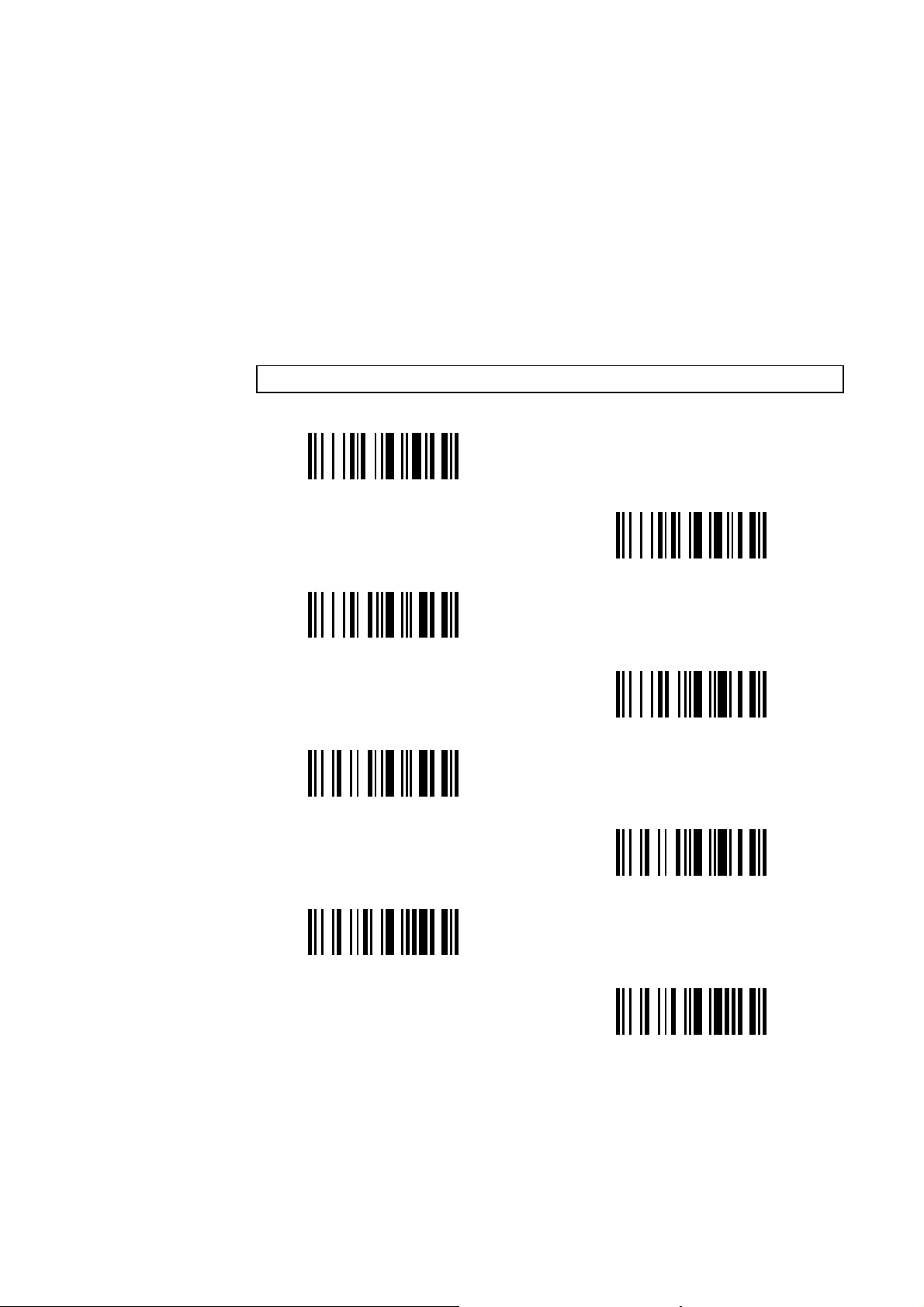

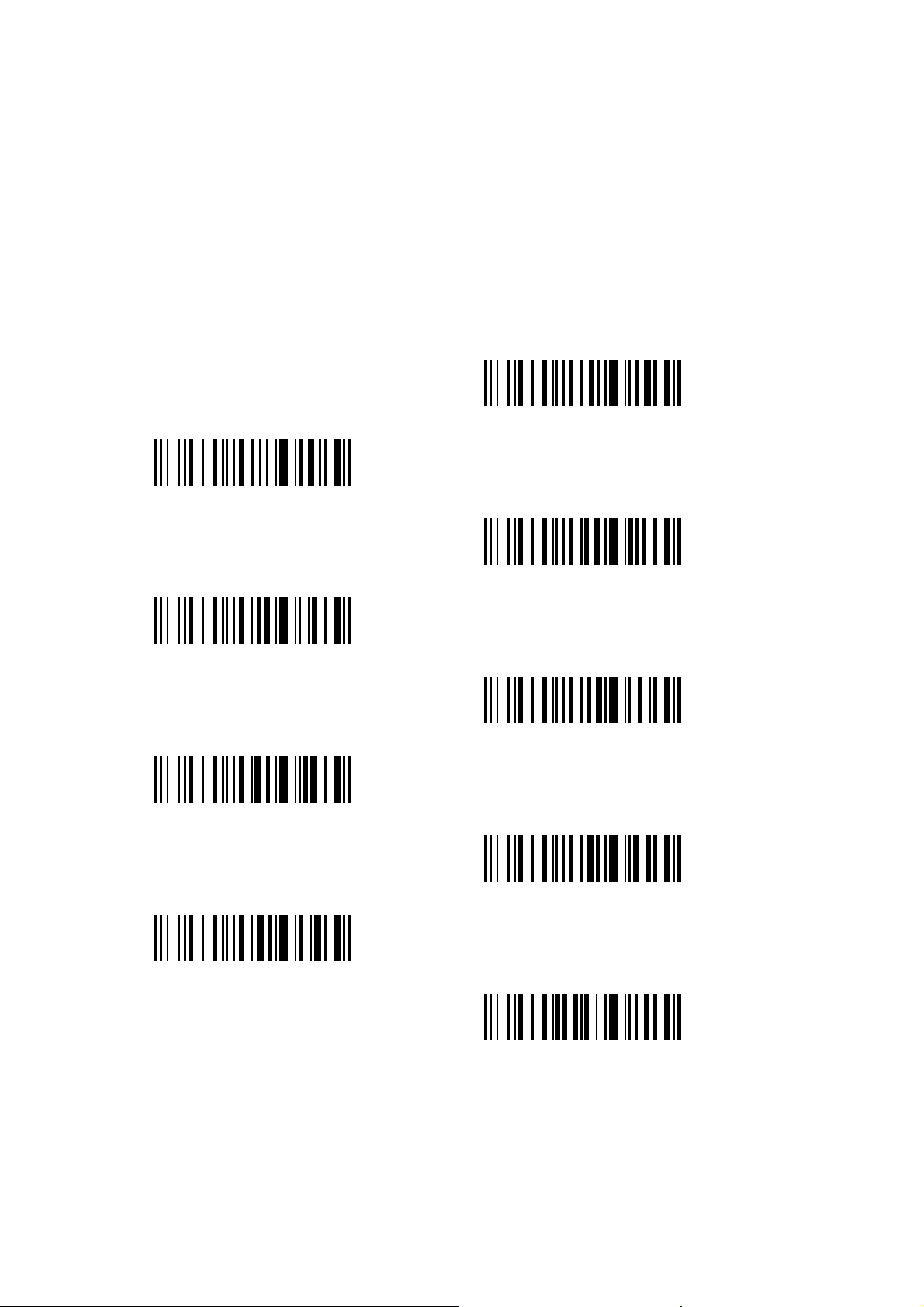

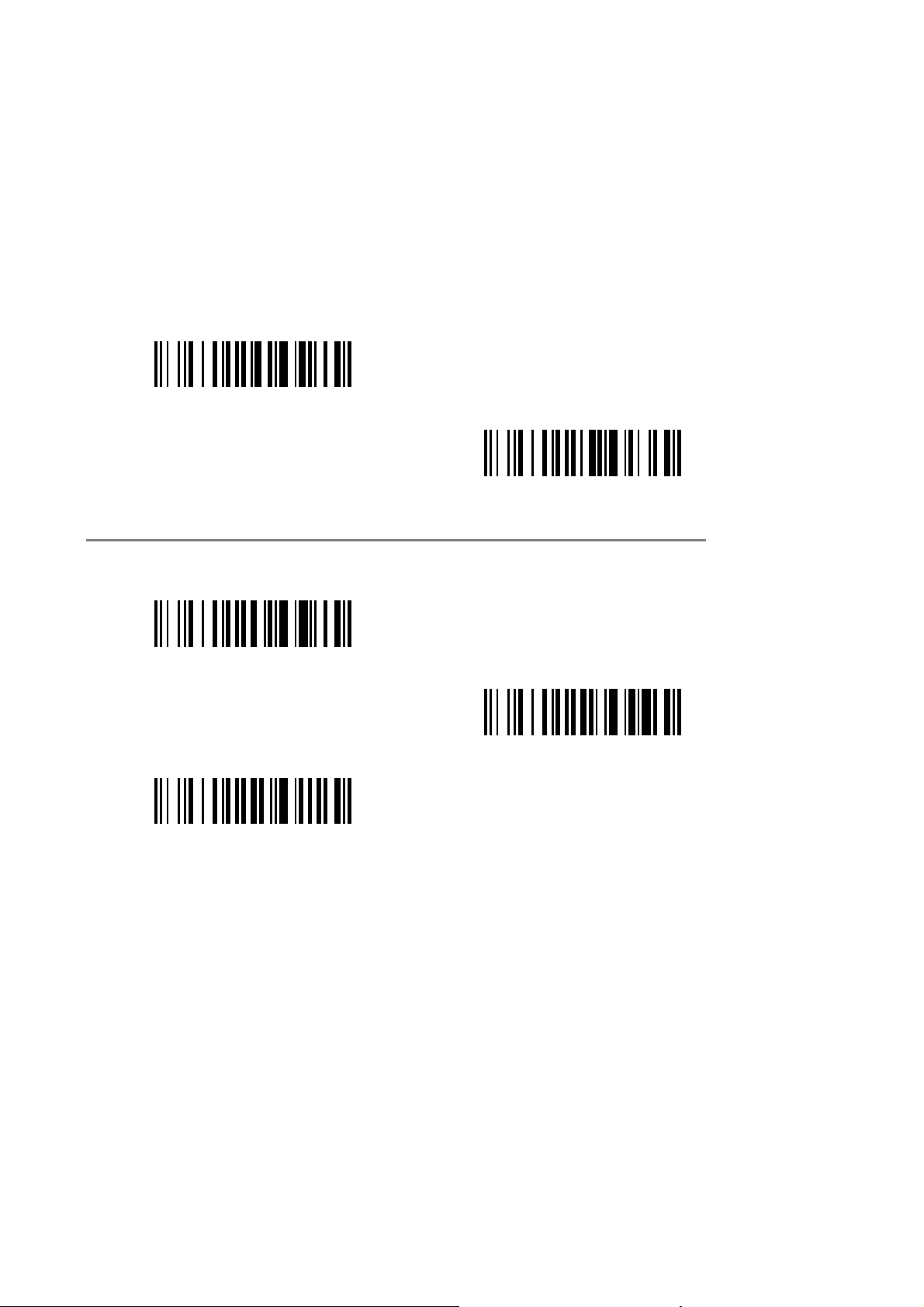

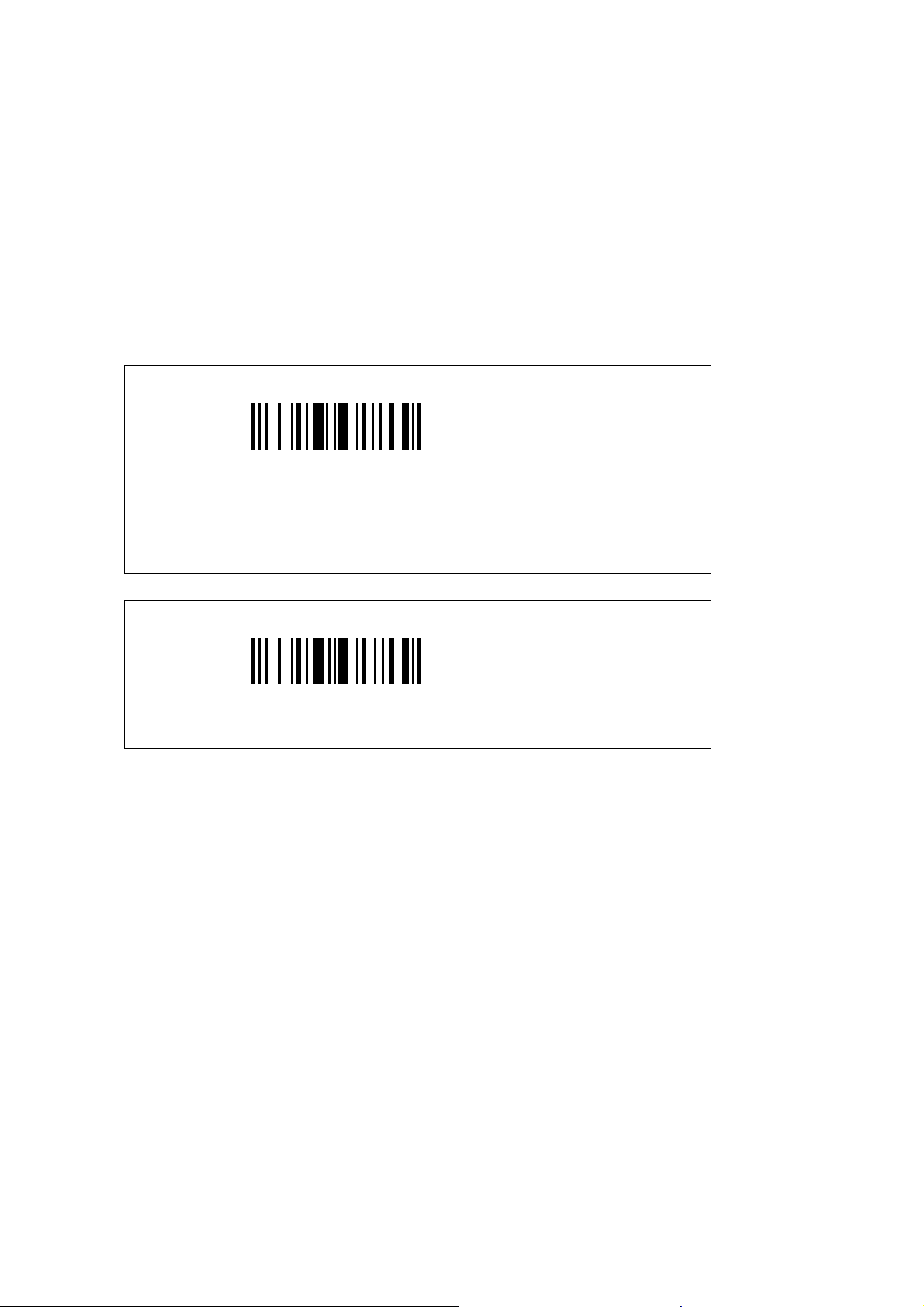

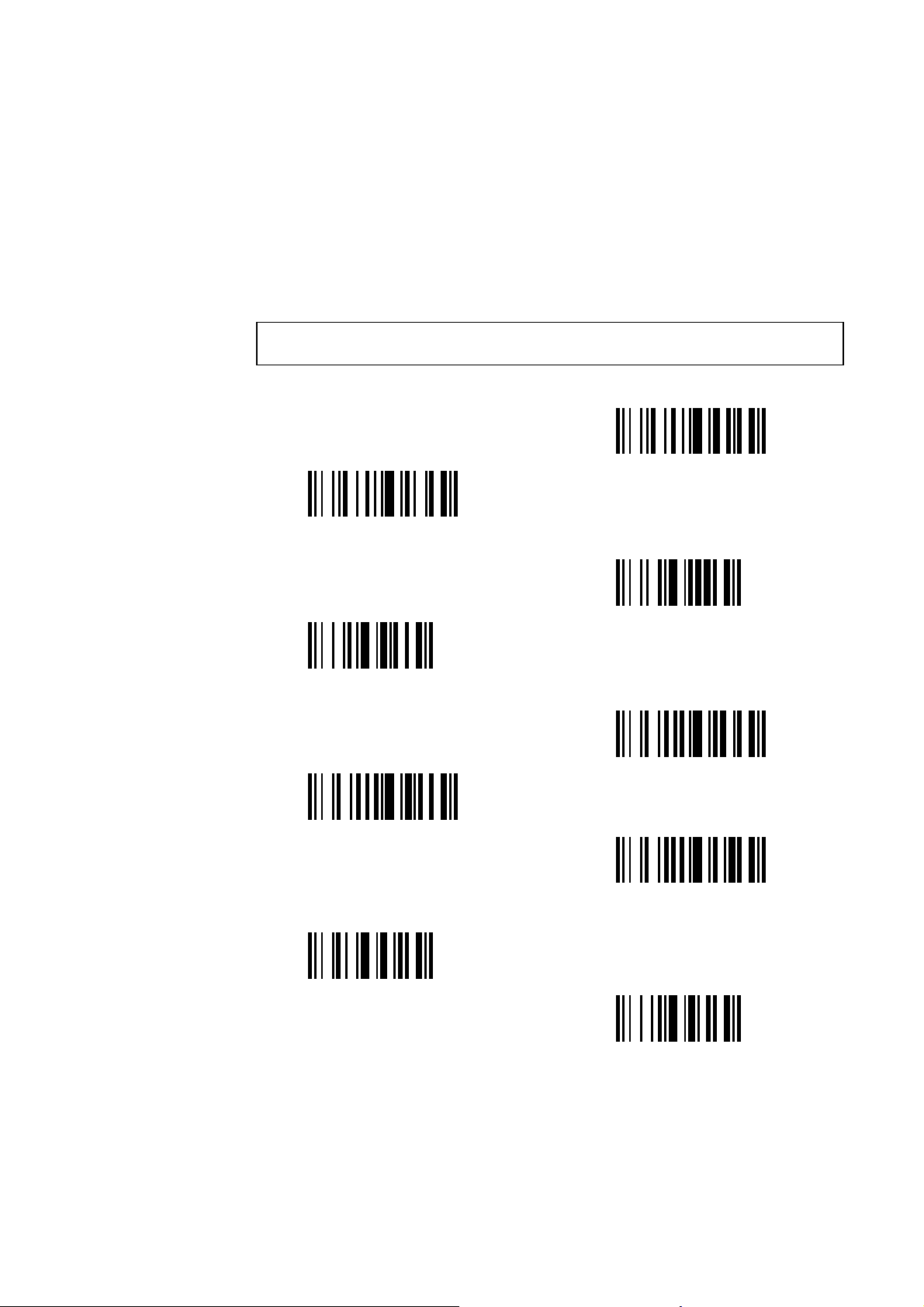

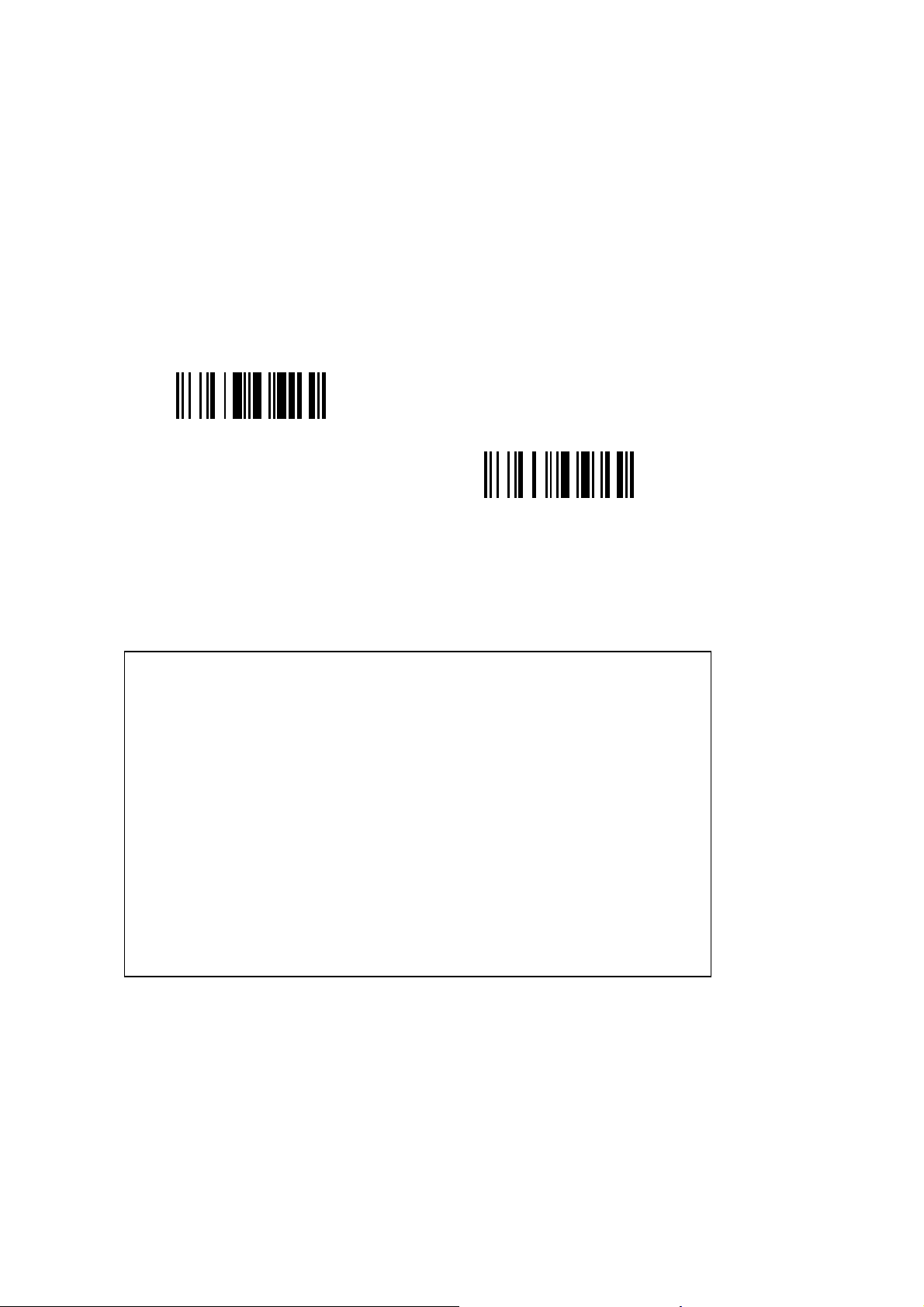

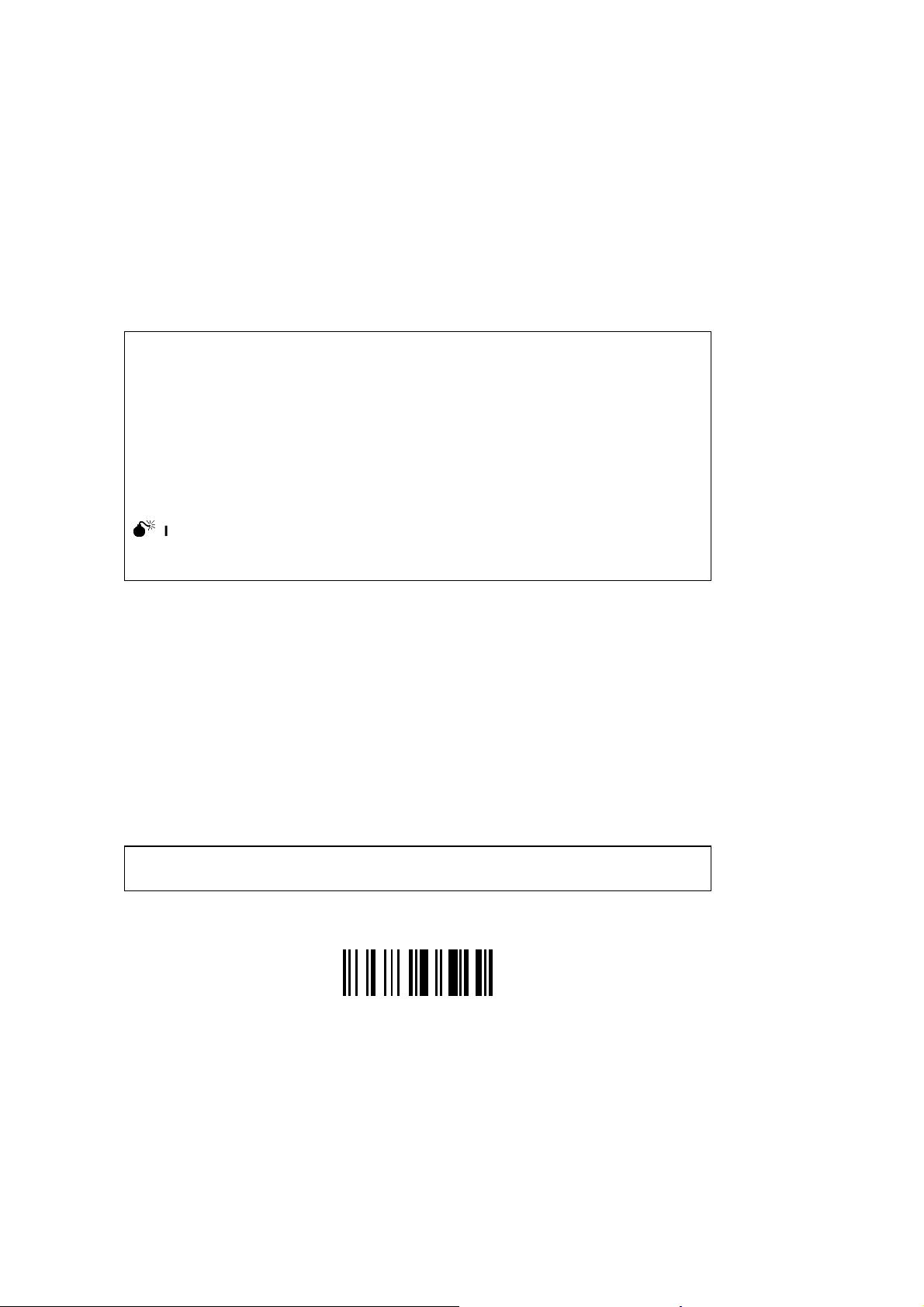

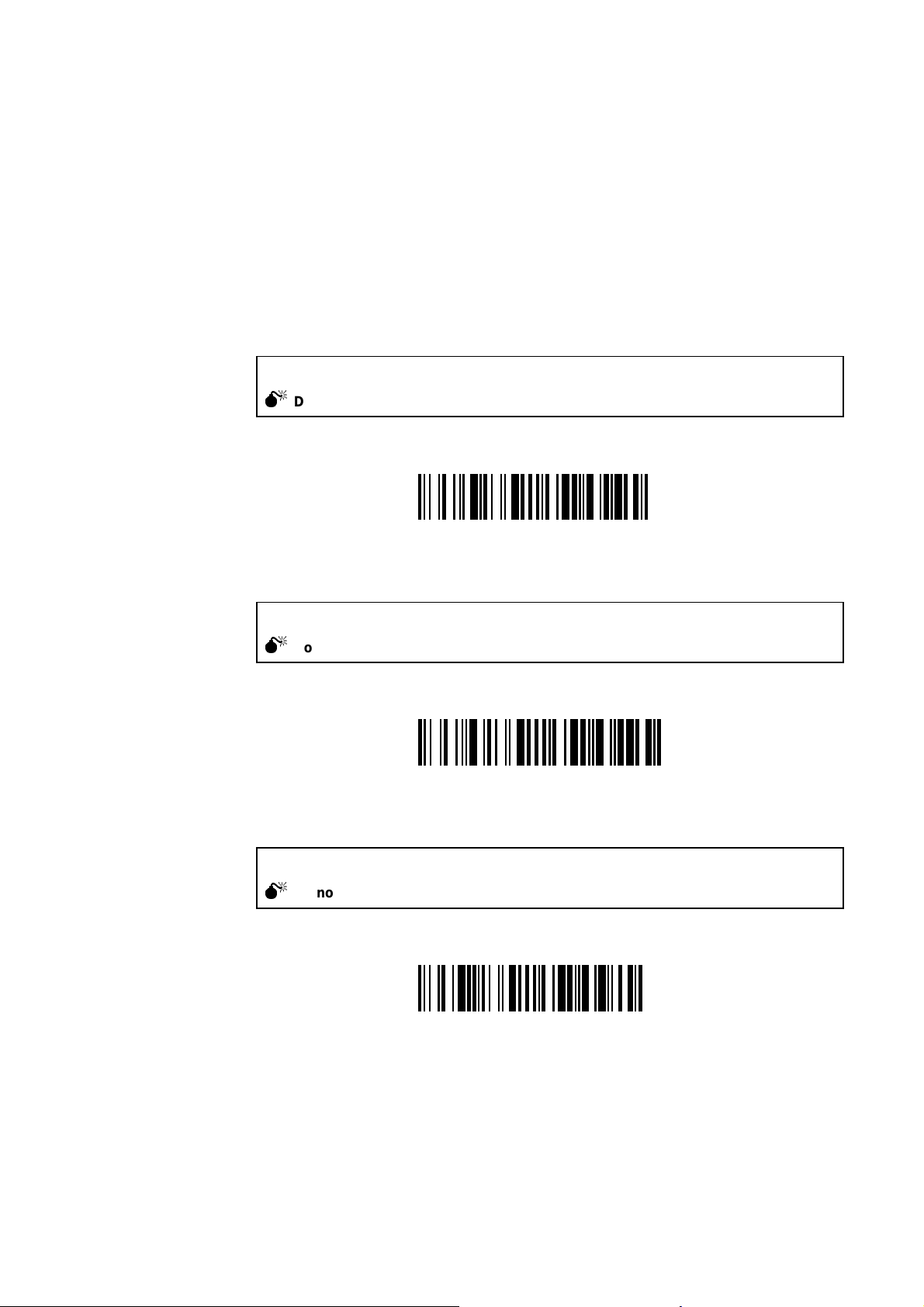

You ar e going to us e your S canP lus t o read s ome of the conf igura tion
bar codes provided in this Installation Guide.

The Sc anPlus has sp ecial beeps for configur ation bar codes:

•

two beeps indicate that the ScanPlus has successfully read the
configuration c ode and saved t he setting,

•

six shor t beeps indic ate a setup err or (incor rect configur at ion code)
for the s el ected interface type.

SP/XX/IG/12/E/980228 4-1

4. Enter the interface number for your host system

Which interface number?

1. Look on the next pa ges to s ee if ther e is a pr edefined inter fa ce nu mber
for your host system hardwar e c onf iguration:

Keyboard wedge.................................4-3

RS-232...............................................4-7

Laser emulation..................................4-8

Wand emulation................................. 4-8

IBM 46xx cash registers......................4-9

OCIA cash registers ...........................4-9

2. If you find a number for your hardware configuration, use your
ScanPlus to read the corr esponding ba r code.

If you do not find an interface number for your host system configuration . . .

If your interface num ber is not am ong the predefined interface numbers provided below,
you must compose the number yourself.

If you do not know which num ber to enter, contact your UBI r epresentative.

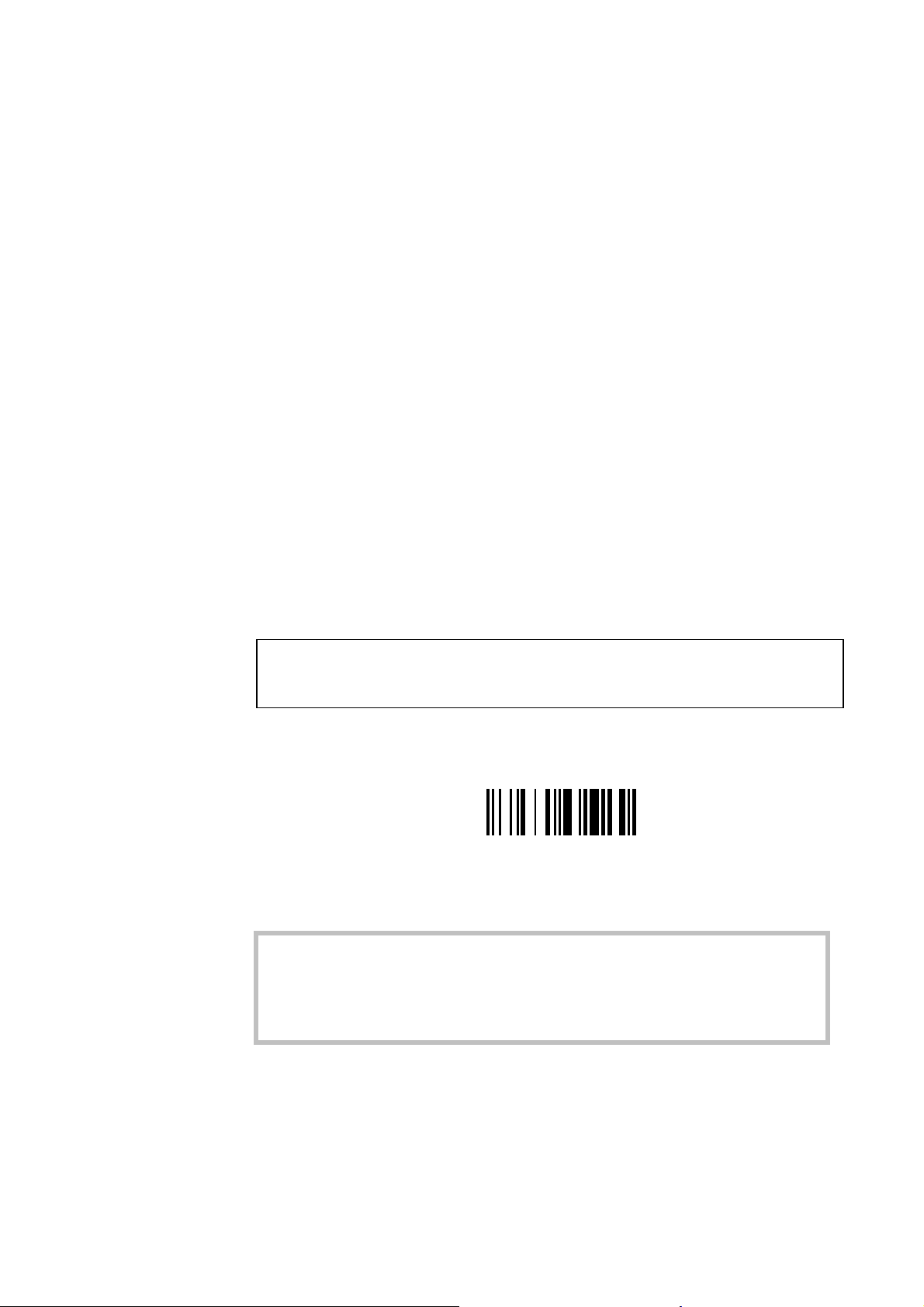

1. Use your S canPlus to read the Compos e Interfac e Number ba r code:

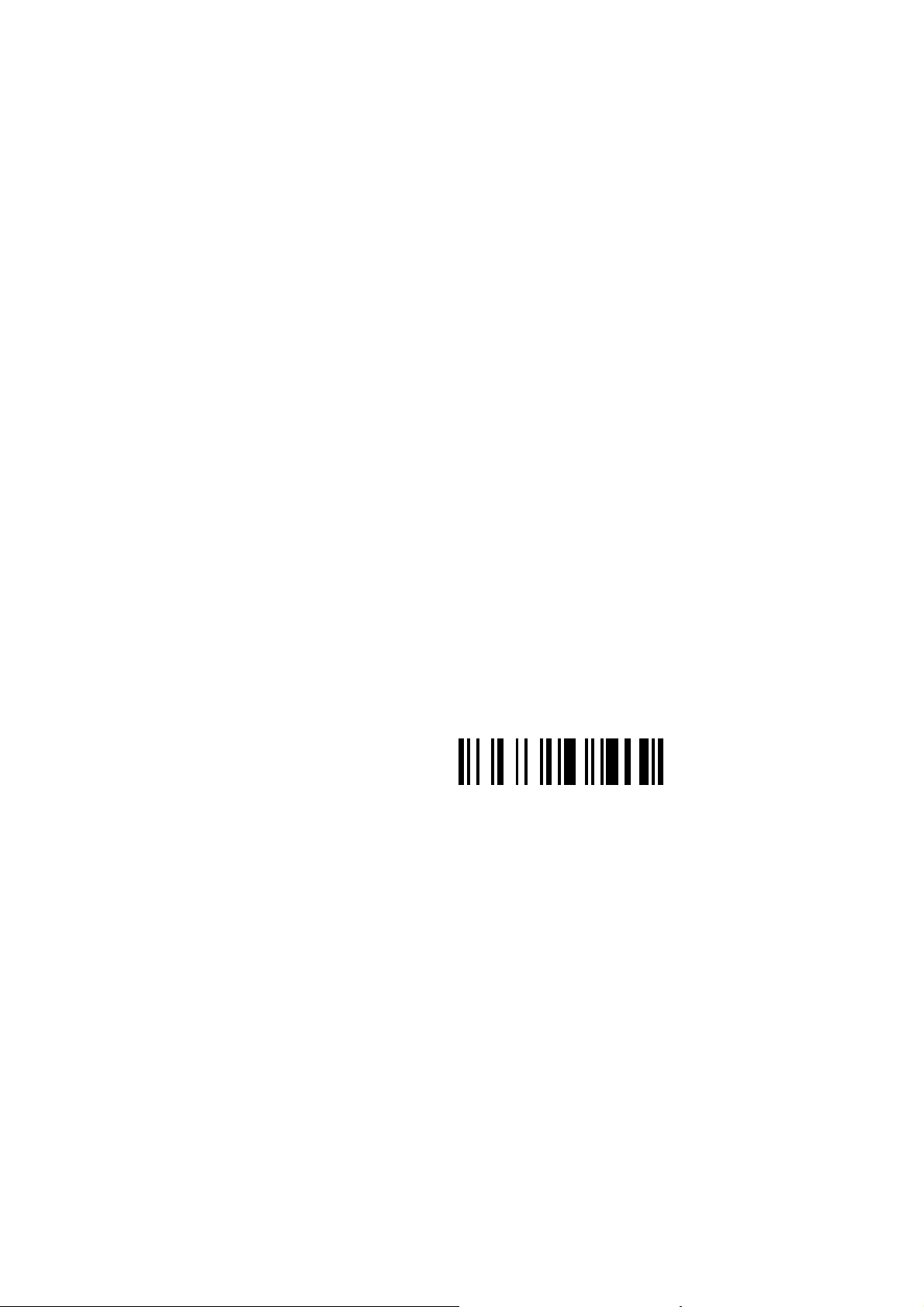

Compose Int erface Number

2. Read each digit of your interface number using the number codes on
the ba c k c over of this Installation Guide a nd scan the End Selection bar
code—also on the bac k c over—to finish.

Example To enter the number 102:

1. Scan Compose Interface Number.

2. Scan 1, t hen 0, then 2.

3. Scan End Selection.

SP/XX/IG/12/E/9802284-2

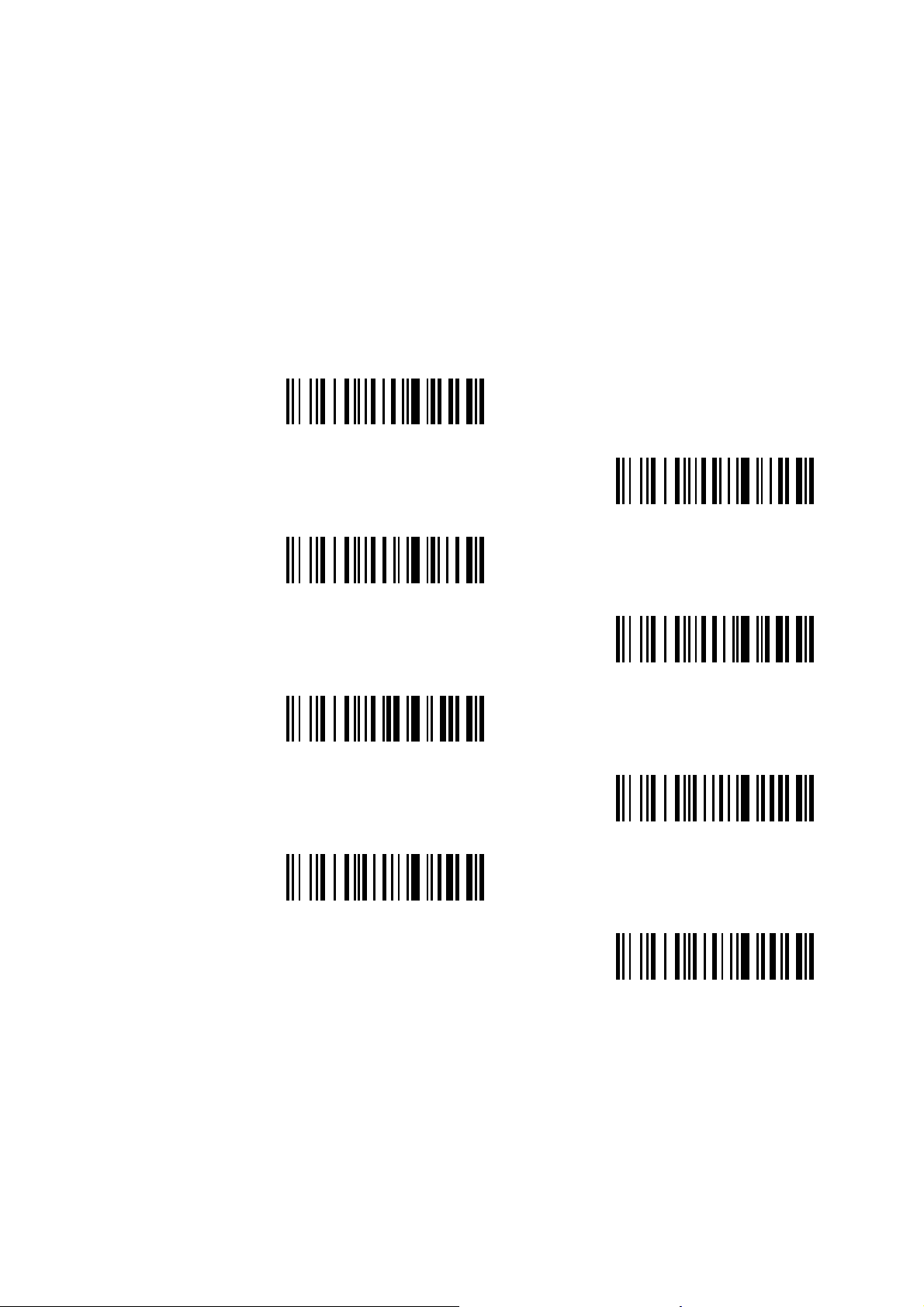

Keyboard wedge

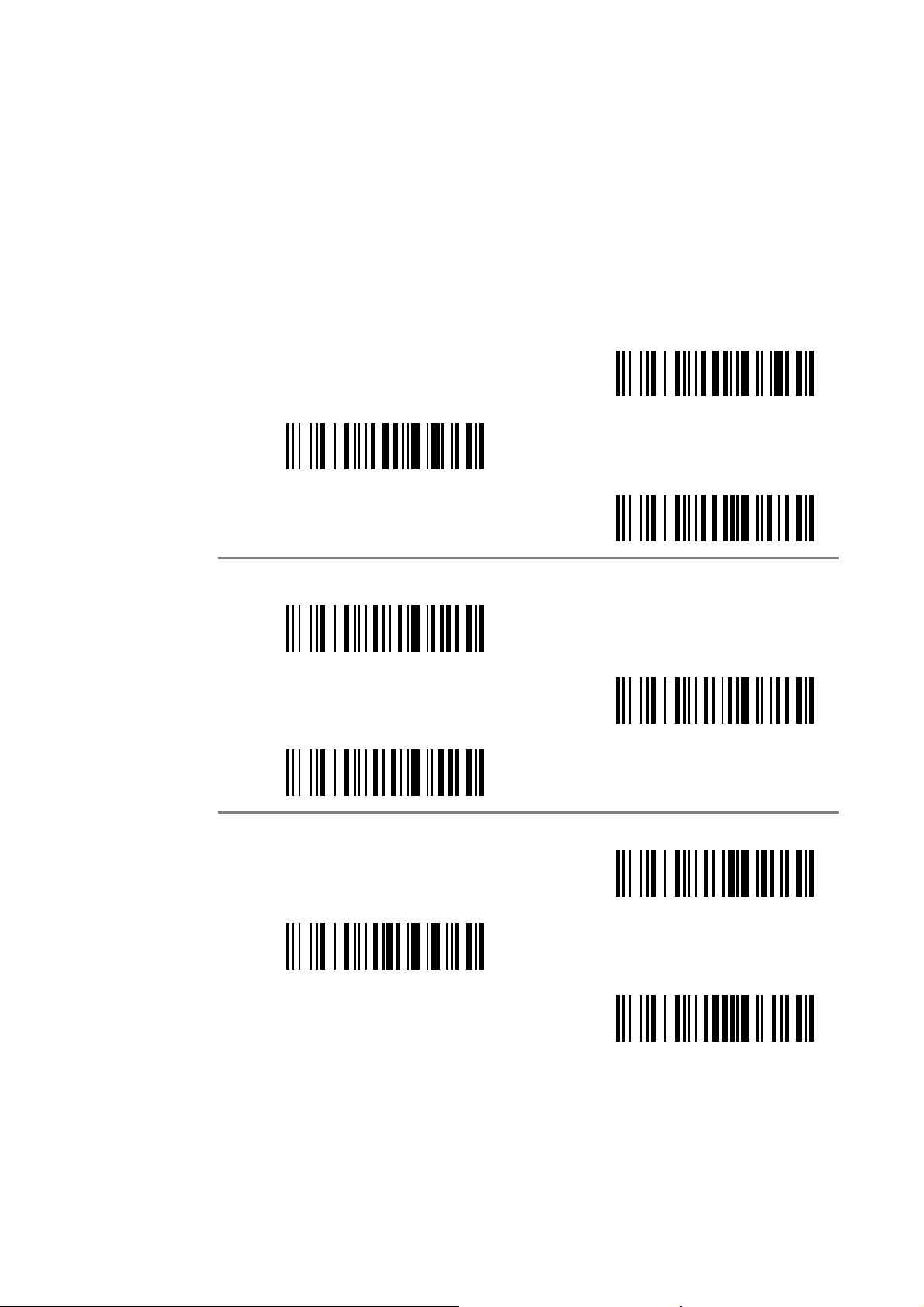

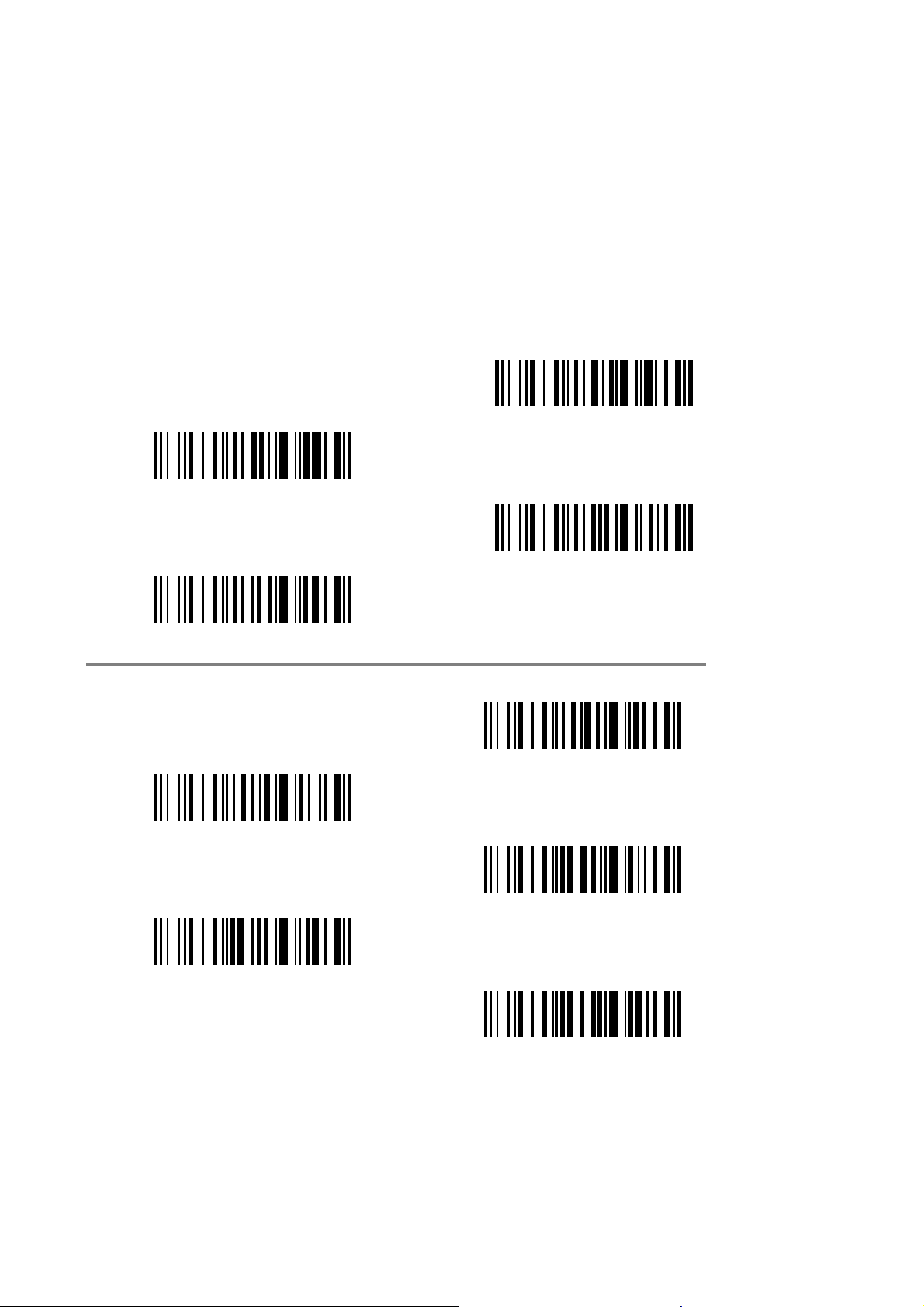

IBM PC AT and compatible

N° 201 - AZERTY - French

N° 205 - QW ERTY - Swedish / Finnish

4. Enter the interface number for your host system

N° 200 - QW ERTY - Engl ish

N° 204 - QW ERTZ - German

N° 206 - QW ERTY - I talian

N° 207 - QW ERTY - Norwegian

N° 208 - QW ERTY - Danish

N° 209 - QW ERTY - Spanish

N° 2020 - QW ERTZ - Swiss / Fr ench

SP/XX/IG/12/E/980228 34-3

4. Enter the interface number for your host system

Keyboard wedge

IBM 31xx, 32xx, 34xx

N° 230 - QW ERTY - Engl ish

N° 231 - AZERTY - French

N° 232 - AZERTY - international

N° 233 - AZERTY - caps QWERTY

N° 234 - QW ERTZ - German

N° 2313 - AZERTY - data entry

N° 2310 - QW ERTY - dat a entry

N° 2314 - QW ERTZ - numeric keypad

SP/XX/IG/12/E/9802284-4

Keyboard wedge

DEC VT 220, 320, 420

N° 411 - AZERTY - PC type

N° 415 - QW ERTY - PC type - Swedish / Finni sh

DEC VT/PC 510

4. Enter the interface number for your host system

N° 410 - QW ERTY - PC type

N° 414 - QW ERTZ - PC t ype

N° 271 - AZERTY - PC type

N° 275 - QW ERTY - PC type - Swedish / Finni sh

N° 2717 - AZERTY - VT type - French

N° 2718 - QW ERTY - VT type - Swedish / Finni sh

N° 2720 - QW ERTZ - PC type - Swiss / Fr ench

SP/XX/IG/12/E/980228 54-5

4. Enter the interface number for your host system

Keyboard wedge

Apple / Macintosh

N° 220 - QW ERTY - Engl ish

N° 221 - AZERTY - French

N° 224 - QW ERTZ - German

Hewlett Packard 700/92

N° 260 - QW ERTY - Engl ish

N° 261 - AZERTY - French

N° 264 - QW ERTZ - German

Wyse 60, 65, 99GT, 120

N° 301 -

AZERTY

N° 300 - QW ERTY 102 keys PC/AT fast

102 keys PC/AT fast

N° 304 - QW ERTZ 102 keys PC/AT fast

SP/XX/IG/12/E/9802284-6

RS-232

4. Enter the interface number for your host system

N° 100 - Standard RS-232 C (9600, 7, E, 2)

N° 101 - RS-232 TTL Level

N° 102 - RS-232 PC Term

N° 103 - RS-232 Compatibl e ScanPlus CL Slave Mode

N° 105 - RS-232 Slave Mode

SP/XX/IG/12/E/980228 74-7

4. Enter the interface number for your host system

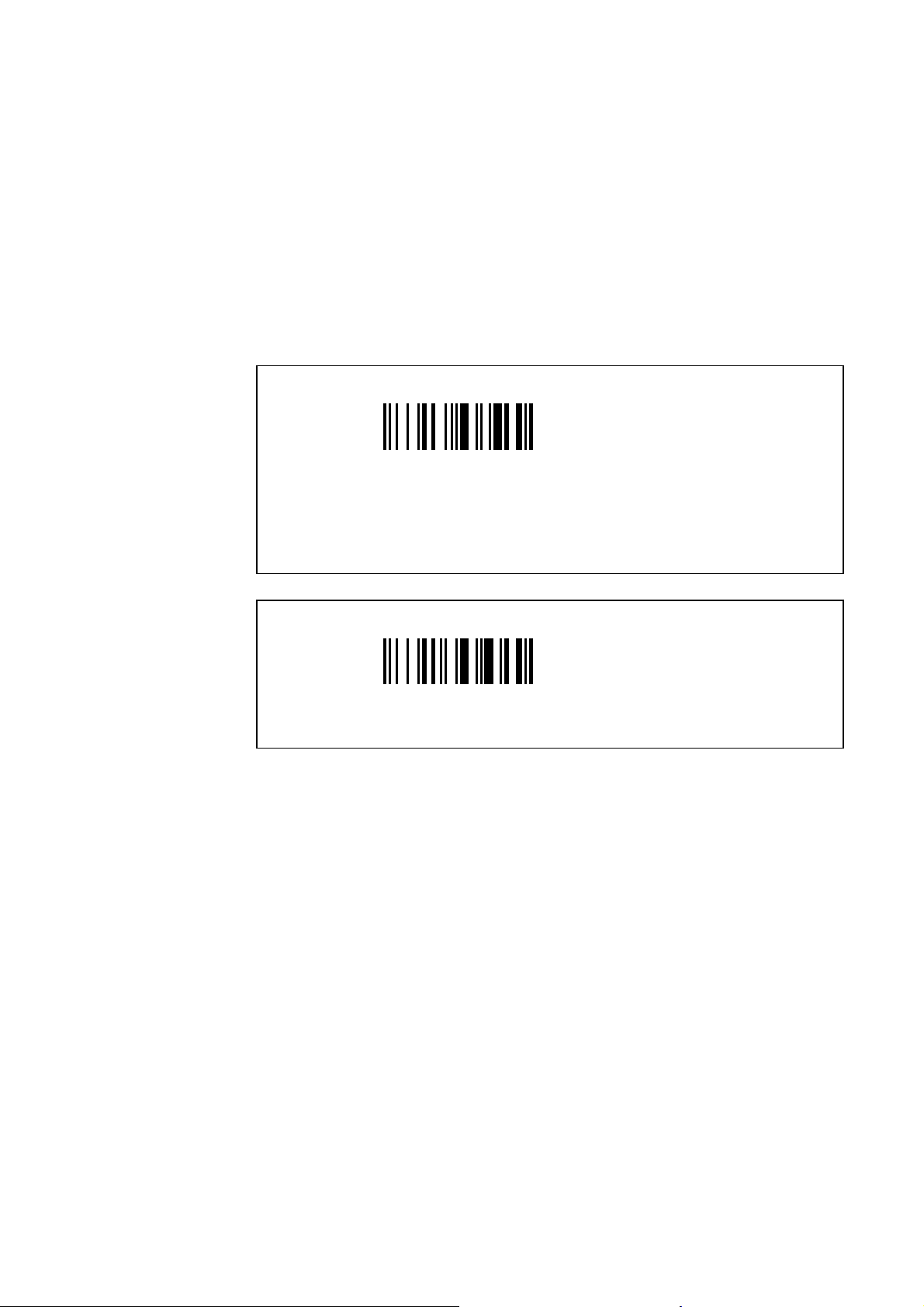

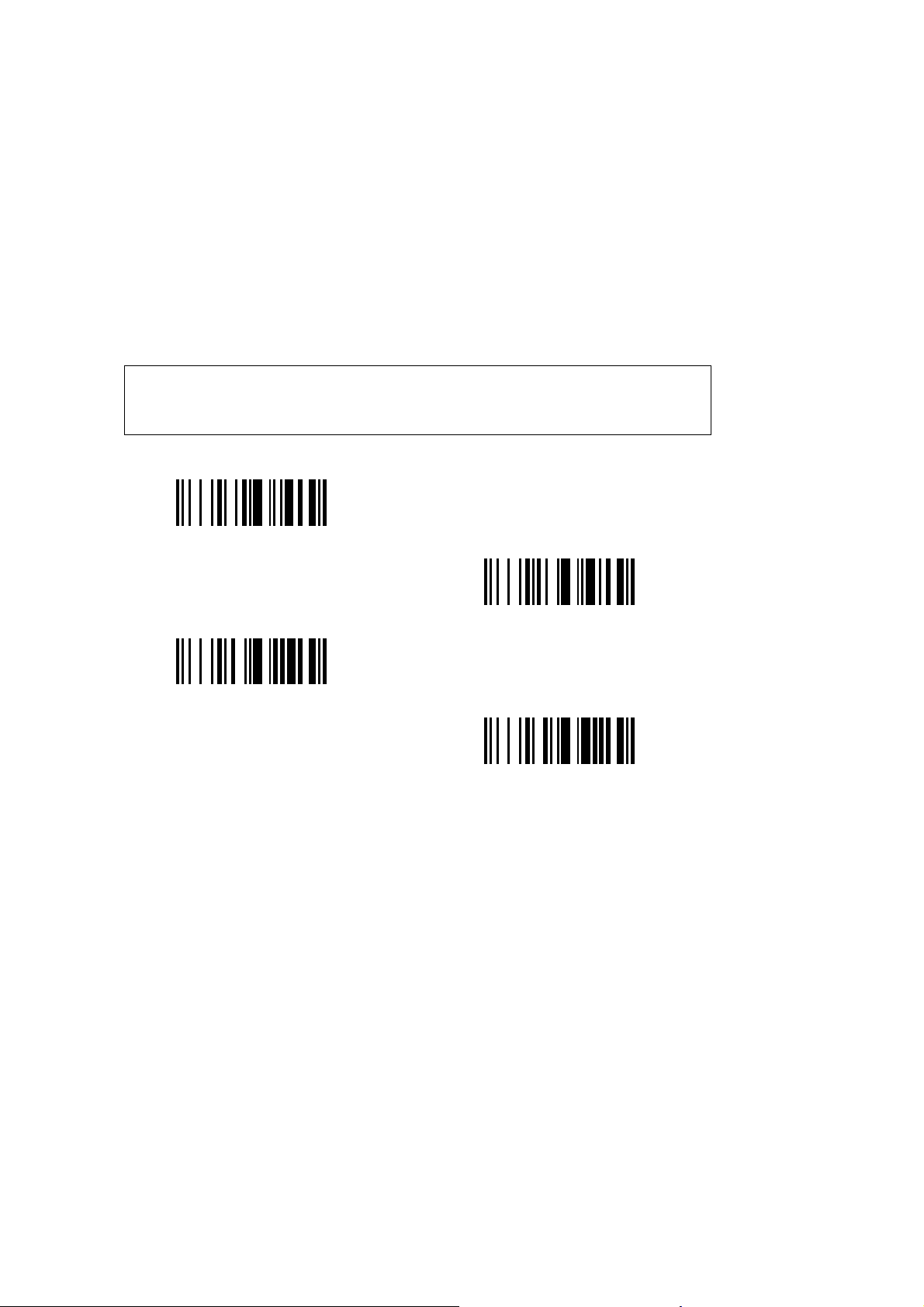

Laser emulation

N° 132 - Laser With Pushbut t on

N° 134 - Connection to MicroBar LS

Wand e m ulation

N° 130 - Digital Wand Emulat i on

N° 131 - Analog Wand Emulation–Intermec Interface

Read N° 131 - Analog Wand Emul ati on–Interm ec Interface if you want t o use the foll owing
ScanPlus products:

•

ScanPlus SP - P/N 0-320311-11

•

ScanPlus ER - P/N 0-330311-11

•

ScanPlus XP - P/N 0-340311-11

•

wand cable for all three products – P/N 0-332097-01

in wand emulation wi t h the following Intermec products ( whi t e high):

•

97XX wedge products

•

JANUS™ 2010 hand-held computers

•

TRAKKER® Antares™ 242X term inals

SP/XX/IG/12/E/9802284-8

4. Enter the interface number for your host system

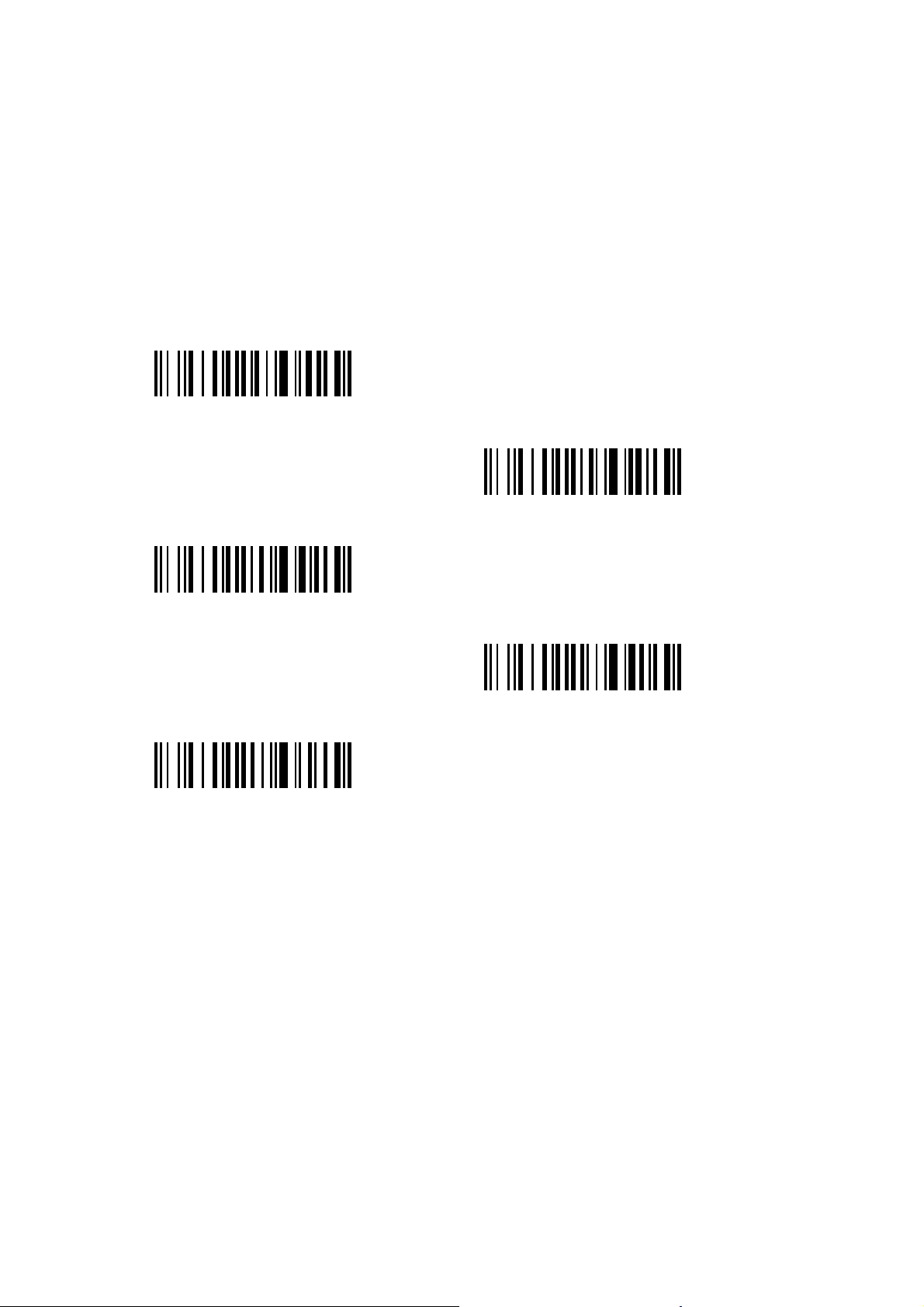

IBM 46xx cash registers

N° 110 - IBM 46xx cash registers—Port 9x

OCIA cash registers

N° 120 - OCIA TEC cash registers - First Type

N° 111 - IBM 46xx cash registers—Port 5x

N° 121 - OCIA TEC cash registers - Second Type

N° 122 - OCIA NCR cash registers

SP/XX/IG/12/E/980228 94-9

4. Enter the interface number for your host system

SP/XX/IG/12/E/9802284-10

5

Set up the data transmission
parameters

data transmission
parameters

The full set of data transmission parameter options for all the host system
interfaces support ed is provided in the

Keep a list of your custom settings—this will be useful if you have to perform a
reset.

Resetting the predefined data transmission settings

interface-specific communication parameters—in certain cases they
need to be modified to optim ize the performance of the ScanPlus

Sca nning the int erfa ce number au toma tica lly configu r es your S ca nPlu s
to su it your oper ating environment b y modifying the settings f or dat a
transmission to the host system.

This section lists the data transmission parameter settings for all the
host systems supported and provides some common data transmission
options for output to keyboard wedge and RS-232 host systems—use
your ScanP l us to r ead the configuration c odes if required.

ScanPlus Reference Manual

If you want to reset all the predefined data transmission settings for
your hos t syst em, res can t he app ropr iat e host s ystem inter face nu mber
(see secti o n 4, Enter the interface number for your host system).

.

Selecting the inter fac e number us ually only modifies da ta tra nsmission
settings, but in some special cases, other parameter settings—
pushbutton activation, beep/indicator LED settings, symbology
sett ings—may be modified for specific interface configurations.

SP/XX/IG/12/E/980228 5-1

5. Set up the data transmission parameters

Keyboard wedge

An asterisk (*) indicat es the predefined parameter settings for keyboard wedge interface
N° 200 (QW ERTY - Engli s h) .

Inter-character delay

No Delay (*)

20 ms

Postamble

Enter (*)

Carriage Return

Tab

Field Exit

Field Advance

No Postamble

SP/XX/IG/12/E/9802285-2

Keyboard wedge

5. Set up the data transmission parameters

Additional parameters—

"code mark" symbology identifiers - not transmitted (*)

AIM symbology identif i ers - not transm i t ted (*)

special keys interpretation (Code 39) - not active (*)

special keys transmissi on - control characters on (* )

end-of-transmission keyboard character status - lower case (*)

ScanPlus Reference Manual

preamble - no pream ble (*)

- user-defined

postamble - Down Arrow

- user-defined

- transmit ted

- defaul t / user-defined

transmitted

- always active

- only active if separate 2-character label
or if preceded by a hyphen (-)

- only active if separate 2-character label

- control characters off

- Alt mode off (*)

- Alt mode on

- upper case

inter-character delay - 10 - 30 - 40 - 50 ms

- user-defined 1 to 999 ms

inter-message delay - none (*)

- 10 - 30 - 50 - 80 - 100 m s

- user-defined 1 to 999 ms

SP/XX/IG/12/E/980228 5-3

5. Set up the data transmission parameters

RS-232

An asterisk (*) indicat es the predefined parameter settings for interface N° 100 ( Standard
RS-232 C).

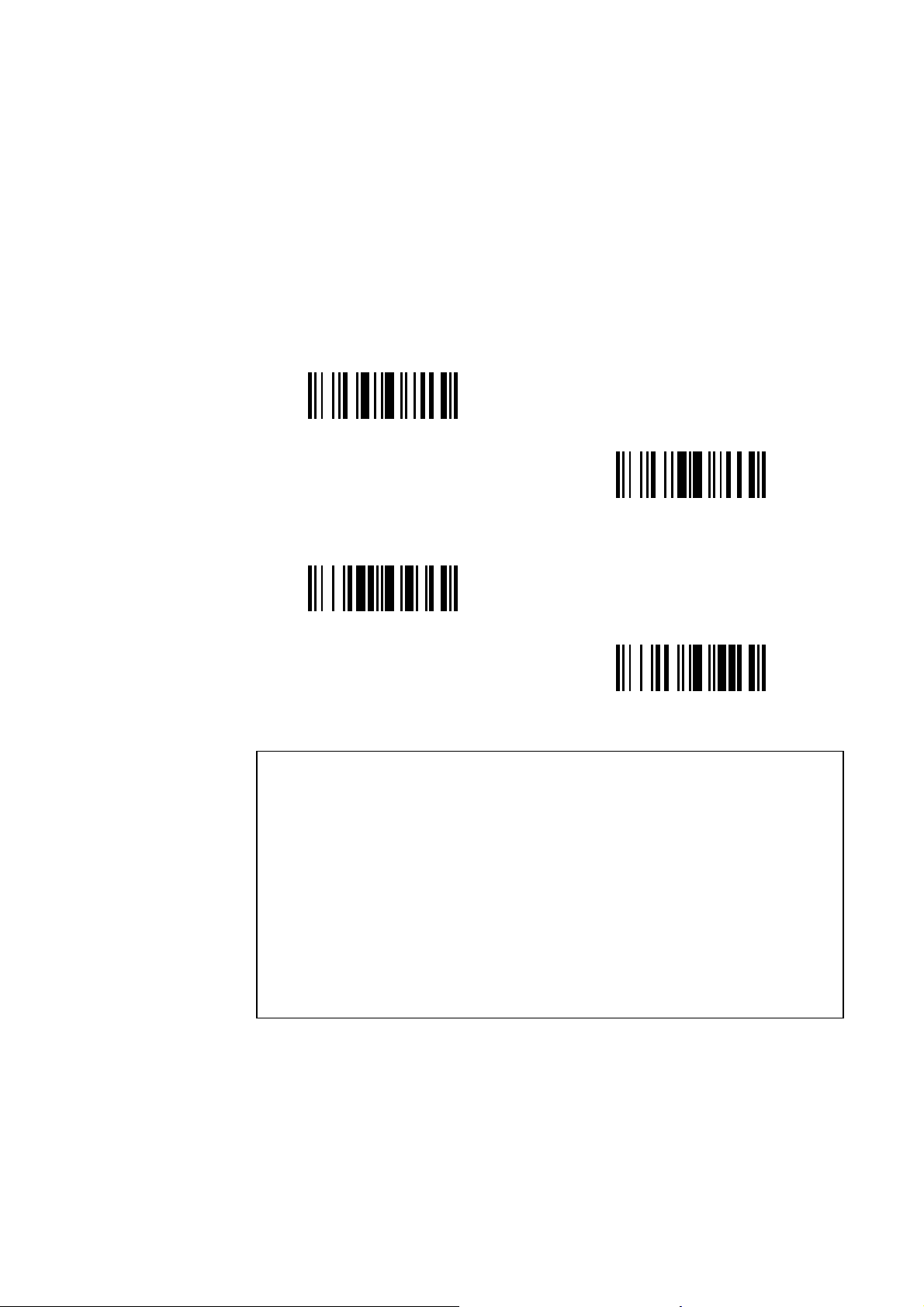

Baud Rate

Data bits

Parity

9600 (*)

19200

Seven (*)

Eight

Even (*)

Odd

None

Stop bits

Two (*)

One

SP/XX/IG/12/E/9802285-4

RS-232

RTS/CTS hardware protocol

5. Set up the data transmission parameters

Not Active

Inter-character delay

No Delay (*)

Postamble

Carriage Return + Line Feed (*)

(*)

Active

10 ms

Carriage Return

Line Feed

No Postamble

SP/XX/IG/12/E/980228 5-5

5. Set up the data transmission parameters

RS-232

Additional parameters—

hardware/software protocols ti meout - 1000 ms ( *)

XON/XOFF software protocol - not active (*)

LRC (longitudinal r edundancy check) - not act i ve (*)

"code mark" symbology identifiers - not transmitted (*)

AIM symbology identif i ers - not transm i t ted (*)

inter-character delay - 20 - 30 - 40 - 50 ms

inter-message delay - none (*)

ScanPlus Reference Manual

baud rate - 75 - 150 - 300 - 600 - 1200 - 2400 - 4800 -

38400

- unlimited

- user-defined 1 to 2500 ms

ENQ (Hex 05) - not used (*)

- ENQ (HEX 05)

- user-defined

ACK (Hex 06) - not used (*)

- ACK (HEX 06)

- user-defined

NAK (Hex 15) - not used (*)

- NAK (HEX 15)

- user-defined

- active

- active

preamble - no pream ble

- user-defined

postamble - user-defined

- transmit ted

- defaul t / user-defined

transmitted

- user-defined 1 to 999 ms

- 10 - 30 - 50 - 80 - 100 m s

- user-defined 1 to 999 ms

SP/XX/IG/12/E/9802285-6

Laser emulation

5. Set up the data transmission parameters

Additional parameters—

An asterisk (*) indicates the predefined parameter settings for interface N° 132 (laser with
pushbutton).

transmi t t ed sym bology type - transmission in original code (*)

logical signal state during transm i ssion - bar = 1, space = 0, m ar gi n = 0 ( * )

logical signal state outside transmission - quiet zone = 1 (*)

ScanPlus Reference Manual

- transmission in Code 39

inter-message delay - none (*)

- 1 to 999 ms

margin size - 10 x narrow bar width (*)

- user-defined

- bar = 0, space = 1, margi n = 1

- quiet zone = 0

Wand e m ulation

Additional parameters—

An asterisk (*) indicates the predefined parameter settings for interface N° 130 (digital
wand emulation).

transmi t t ed sym bology type - transmission in original code (*)

logical signal state during transm i ssion - bar = 1, space = 0, m ar gi n = 0 ( * )

logical signal state outside transmission - quiet zone = 0 (*)

ScanPlus Reference Manual

- transmission in Code 39

inter-message delay - none (*)

- 1 to 999 ms

margin size - 10 x narrow bar width (*)

- user-defined

- bar = 0, space = 1, margi n = 1

- quiet zone = 1

pulse duration-0.88 ms (37. 5 cm/s) (*)

0.19 ms (175 cm/s) - 0.26 m s ( 125 cm/s) -

-

0.44 ms (75 cm/s) - 0.66 m s ( 50 cm/s) -

1.32 ms (25 cm/s) - 2.64 m s ( 12. 5 cm/s) -

6.60 ms (5 cm/s)

SP/XX/IG/12/E/980228 5-7

5. Set up the data transmission parameters

IBM 46xx cash registers

Additional parameters—

The main predefined parameter settings for IBM 46xx cash registers depend on cash
register protocols and can not be modi f i ed.

An asterisk (*) indicat es the predefined transmissi on delay setting for interface N° 110 /
N° 111 (IBM 46xx cash registers—Port 9x / Port 5x).

ScanPlus Reference Manual

inter-message delay - none (*)

- 1 to 999 ms

OCIA cash registers

Additional parameters—

The main predefined parameter settings for OCIA cash registers depend on cash register
protocols and can not be modified.

An asterisk (*) indicat es the predefined transmissi on delay settings for interface N° 120 /
N° 121 / N° 122 (OCIA ca sh r egisters—TEC First Type / TEC Second Type / NCR).

ScanPlus Reference Manual

inter-character delay - none (*)

- 1 to 999 ms

inter-message delay - none (*)

- 1 to 999 ms

SP/XX/IG/12/E/9802285-8

6

Set up the symbology parameters

symbology

Symbologies and symbology parameters

The full set of symbology param eter options is provi ded in the

Manual

(

Symbologies

Î

barcode type or "family"—Code 39, UPC and EAN are examples of
comm on symbologies

The ScanPlus supports all the most common symbologies. Depending
on your ScanPlus model, certain symbologies a re already selected by
default:

ScanPlus SP / ER / XP - Code 39, UPC/EAN code families
ScanPlus PDF - PDF417

This section provides the different symbology activation codes and
some common parameter settings—if you want to select different
symbologies or modify the parameter settings, use your ScanPlus to
rea d the corr es ponding bar codes.

).

ScanPlus Reference

SP/XX/IG/12/E/980228 6-1

6. Set up the symbology pa rame ters

Symbology default settings

When you install your ScanPlus for the first time, Code 39 and UPC/EAN (ScanPlus SP /
ER / XP) or PDF417 (ScanPlus PDF) are preselected by default and all the symbology
parameters are set to their factory default setti ngs.

The symbology default settings are global factory defaults—they are independent of the
different symbology act i vation codes.

Factory default setti ngs ar e i ndicated by an asterisk (*).

Resetting symbology default settings

If you want to reset all the default symbology settings, you can scan the Reset Factory
Defaults bar code provided in Appendix C, but you will then have to completely reconfigure
your ScanPlus.

In most cases, it i s easier to perform the following symbol ogy r eset procedure.

1. Scan the Disa ble All Symbologies ba r code:

Disable All Symbol ogies

2. Select the activation codes for t he s ymb ologies you want t o read.

3. Customize the symbology parameter settings if requ ired.

The Disable All Symbologies code deactivates all the symbologies activated. If you want to
deactivate individual symbologies, use the Not Active codes for each symbology.

Disable All Symbologies does not reset the individual parameter settings for each
symbology. W hen you reactivate a symbology, you r ecover the parameter settings st ored
in memory f or t hat symbology when it was disabled.

SP/XX/IG/12/E/9802286-2

6. Set up the symbology pa rame ters

Symbology activation codes and common parameter settings

All symbol ogies are available with all ScanPlus models unless otherwise specified.

To optimi ze the perform ance of your ScanPlus and to ensure t rouble-fr ee scanning,
do not select symbologies that you do not need—deactivate the Code 39 and
UPC/EAN default sym bologies if you do not need to use them.

Keep a list of your custom settings—this will be useful if you have to perform a
reset.

Codabar ...................................................................................................6-4

Codablock................................................................................................ 6-6

Code 39................................................................................................... 6-7

Code 93................................................................................................. 6-10

Code 128 / EAN 128...............................................................................6-11

Interleaved 2 of 5....................................................................................6-13

Matrix 2 of 5...........................................................................................6-15

MSI Code ............................................................................................... 6-16

PDF417..................................................................................................6-17

Plessey Code.........................................................................................6-18

Standard 2 of 5 ......................................................................................6-19

UPC/EAN code families (UPC-A, UPC-E, EAN-8, EAN-13).....................6-21

SP/XX/IG/12/E/980228 6-3

6. Set up the symbology pa rame ters

Codabar

Activation

Not Active (*)

Start/stop

Not Transmitted (*)

Active

a, b, c, d

Barcode length

The minimum length possible for Codabar i s 3 char act ers:

[start + barcode data + check digit if applicable + stop]

For maximum security, we recommend that you use one of the following paramet er s
with all ScanPl us pr oduct s:

Compose 1 or 2 Fixed Lengt hs ( t he safest configuration) ,

•

Compose M inimum Lengt h.

•

Compose 1 or 2 Fixed Lengths provides the best security if the codes in your application
have fixed lengths.

Compose Minimum Length is recommended if the codes in your applicati on do not have
fixed lengths.

Use the special number codes provided on the back cover of this Install ation Guide and
scan End Selection once or twice as required.

SP/XX/IG/12/E/9802286-4

Codabar

Barcode length

Compose 1 or 2 Fixed Lengths

1 fixed length: Compose 1 or 2 Fixed Lengths

<length>—

2 fixed lengths: Compose 1 or 2 Fixed Lengths

<first length>—End Selection
<second length>—

Compose Minimum Length (default = 6)

End Selection—End Select ion

6. Set up the symbology pa rame ters

End Selection—End Select ion

mini mum length: Compose Minimum Length

<length>—End Selection

Additional parameters—

check digit (AIM recomm endation) - not used (*)

barcode length (number of characters) - mini mum length = 6 (*)

SP/XX/IG/12/E/980228 6-5

ScanPlus Reference Manual

start/stop - A, B, C, D

- a, b, c, d / t, n, *, e

- DC1, DC2, DC3, DC4

CLSI library system - not active (*)

- active

- checked and transmitted

- checked but not transmitted

- any length

6. Set up the symbology pa rame ters

Codablock

Activation

Codablock is only availabl e wi th the ScanPlus XP and ScanPlus PDF.

Select the desired Codablock form at and scan Active to enable.

Not Active (*)

Active

Codablock F (*)

Codablock A

Check digit

Not Transmitted (*)

Additional parameters—

time-out between reads - active (*)

Transmitted

ScanPlus Reference Manual

- not active

SP/XX/IG/12/E/9802286-6

Code 39

Activation

Start/stop

6. Set up the symbology pa rame ters

Active (* ) (ScanPlus SP / ER / XP)

Not Active (*) (ScanPlus PDF)

Standard 43 Characters (*)

Full ASCII

Not Transmitted

(*)

Transmitted

Check digit

Check Digit Not Used (*)

SP/XX/IG/12/E/980228 6-7

6. Set up the symbology pa rame ters

Code 39

Check digit

French CIP Check Digit - Checked And Transmit t ed

French CIP Check Digit - Checked But Not Tr a ns mitted

Italian CPI Check Digit - Checked And Transmitted

Italian CPI Check Digit - Checked But Not Transmitted

Barcode length

The minimum length possible for Code 39 is 3 characters:

[start + barcode data + check digit if applicable + stop]

Compose M inim um Lengt h is recom m ended i f you know the m ini m um l ength of the
codes in your application (especi ally recommended for t he ScanPl us ER).

Use the special number codes provided on the back cover of this Install ation Guide and
scan End Selection.

Compose Minimum Length (default = any length)

mini mum length: Compose Minimum Length

<length>—End Selection

SP/XX/IG/12/E/9802286-8

Code 39

6. Set up the symbology pa rame ters

Additional parameters—

accepted start/stop characters - " * " onl y ( *)

barcode length (number of characters) - any length (*)

special keys interpretation (keyboard wedge) - not active (*)

ScanPlus Reference Manual

- " $ " only

- " $ " and " * " accepted

modulo 43 check digit - checked and transmitted

- checked but not transmitted

- minimum length = 6

- always active

- only active if separate 2-character label
or if preceded by a hyphen (-)

- only active if separate 2-character label

SP/XX/IG/12/E/980228 6-9

6. Set up the symbology pa rame ters

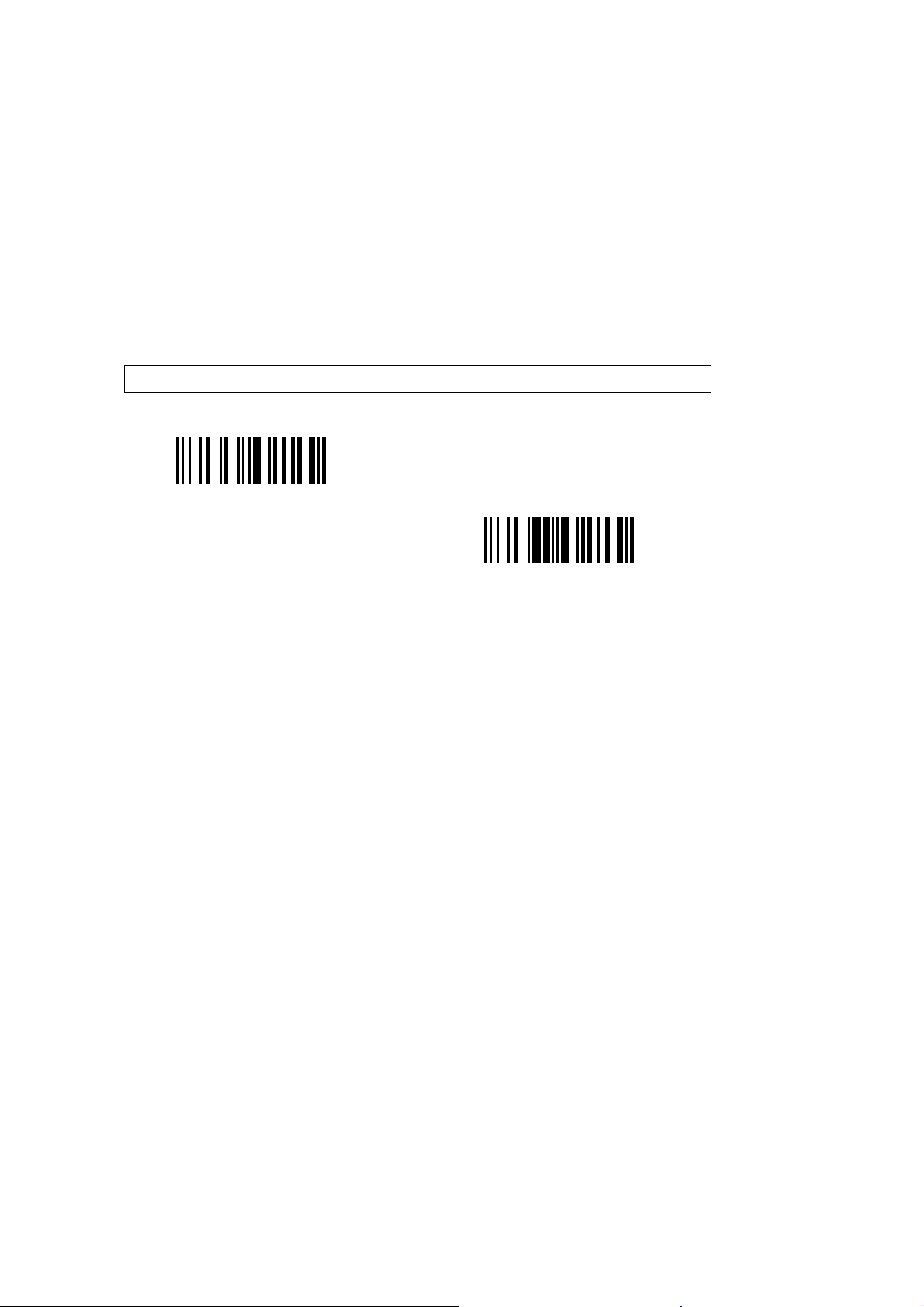

Code 93

Activation

Not Active (*)

Active

Additional parameters—

barcode length (number of characters) - any length (*)

ScanPlus Reference Manual

- minimum length = 6

- minimum length—user-defined

SP/XX/IG/12/E/9802286-10

6. Set up the symbology pa rame ters

Code 128 / EAN 128

New normalizati on all ows decoding of t he UCC/EAN standar d extension. EAN 128 i s auto­discrim inating with Code 128 (recognition of the FNC1 start character used).

Activation

Not Active (*)

Active

EAN 128 identifier

The ]C1 AIM identifier for EAN 128 is autom atically added by default in front of EAN 128
bar codes.

Include ]C1 Identifier (*)

Remove ]C1 Identifier

CIP 128 French pharmaceut ical codes

embedded CIP 39 data, fixed length 14 characters, Code 128 character set C

Not Active (*)

Active

SP/XX/IG/12/E/980228 6-11

6. Set up the symbology pa rame ters

Code 128 / EAN 128

Additional parameters—

FNC1 separator character—EAN-128 norms - GS function charact er (ASCII 29) ( * )

barcode length (number of characters) - any length (*)

ScanPlus Reference Manual

- user-defined

- minimum length = 6

- minimum length—user-defined

SP/XX/IG/12/E/9802286-12

6. Set up the symbology pa rame ters

Interleaved 2 of 5

Activation

Not Active (*)

Active

Barcode length

The minim um length possible for Interleaved 2 of 5 is 2 characters:

[barcode data + check digit if applicable]

Interleaved 2 of 5 always encodes an even number of characters. To handle codes with an
odd number of characters, the ScanPlus will accept a code with the last character printed
as 5 narrow bars. In thi s case, all useful characters are transmitt ed.

For maxim um security, we strongly recom mend that you use one of the fol lowing
paramete r s with all ScanPlus products:

Compose 1 or 2 Fixed Lengt hs ( t he safest configuration) ,

•

Compose M inimum Lengt h.

•

Compose 1 or 2 Fixed Lengths provides the best security if the codes in your application
have fixed lengths.

Compose Minimum Length is recommended if the codes in your applicati on do not have
fixed lengths.

Use the special number codes provided on the back cover of this Install ation Guide and
scan End Selection once or twice as required.

SP/XX/IG/12/E/980228 6-13

6. Set up the symbology pa rame ters

Interleaved 2 of 5

Barcode length

Compose 1 or 2 Fixed Lengths

1 fixed length: Compose 1 or 2 Fixed Lengths

<length>—

2 fixed lengths: Compose 1 or 2 Fixed Lengths

<first length>—End Selection
<second length>—

Compose Minimum Length (default = 6)

End Selection—End Select ion

End Selection—End Select ion

mini mum length: Compose Minimum Length

<length>—End Selection

Additional parameters—

French CIP HR check digit - checked and transmitted

barcode length (number of characters) - mini mum length = 6 (*)

ScanPlus Reference Manual

check digit - not used (*)

check digit mod 10 - checked and transmitted

- checked but not transmitted

- checked but not transmitted

- any length

SP/XX/IG/12/E/9802286-14

6. Set up the symbology pa rame ters

Matrix 2 of 5

Activation

Not Active (*)

Active

Barcode length

The minimum length possible for Matri x 2 of 5 i s 3 characters:

[barcode data]

For maxim um secur ity, we recom mend that you use the Compose M inim um Length
paramete r wit h all ScanPlus products.

Use the special number codes provided on the back cover of this Install ation Guide and
scan End Selection.

Compose Minimum Length (default = 6)

mini mum length: Compose Minimum Length

<length>—End Selection

Additional parameters—

barcode length (number of characters) - minimum length = 6 (* )

SP/XX/IG/12/E/980228 6-15

ScanPlus Reference Manual

- any length

6. Set up the symbology pa rame ters

MSI Code

Activation

Not Active (*)

Check Digit

Check Digit Mod 10—Checked And Transmitted (*)

Active

Check Digit Mod 10—Checked But Not Transmi t t ed

Check Digit Double Mod 10—Checked And Transmitted

Check Digit Double Mod 10—Checked But Not Transmitt ed

Additional parameters—

barcode length (number of characters) - minimum length = 6 (* )

ScanPlus Reference Manual

- any length

- minimum length—user-defined

SP/XX/IG/12/E/9802286-16

PDF417

Activation

PDF417 is only available with the ScanPlus PDF.

Not Active

6. Set up the symbology pa rame ters

Active (*)

SP/XX/IG/12/E/980228 6-17

6. Set up the symbology pa rame ters

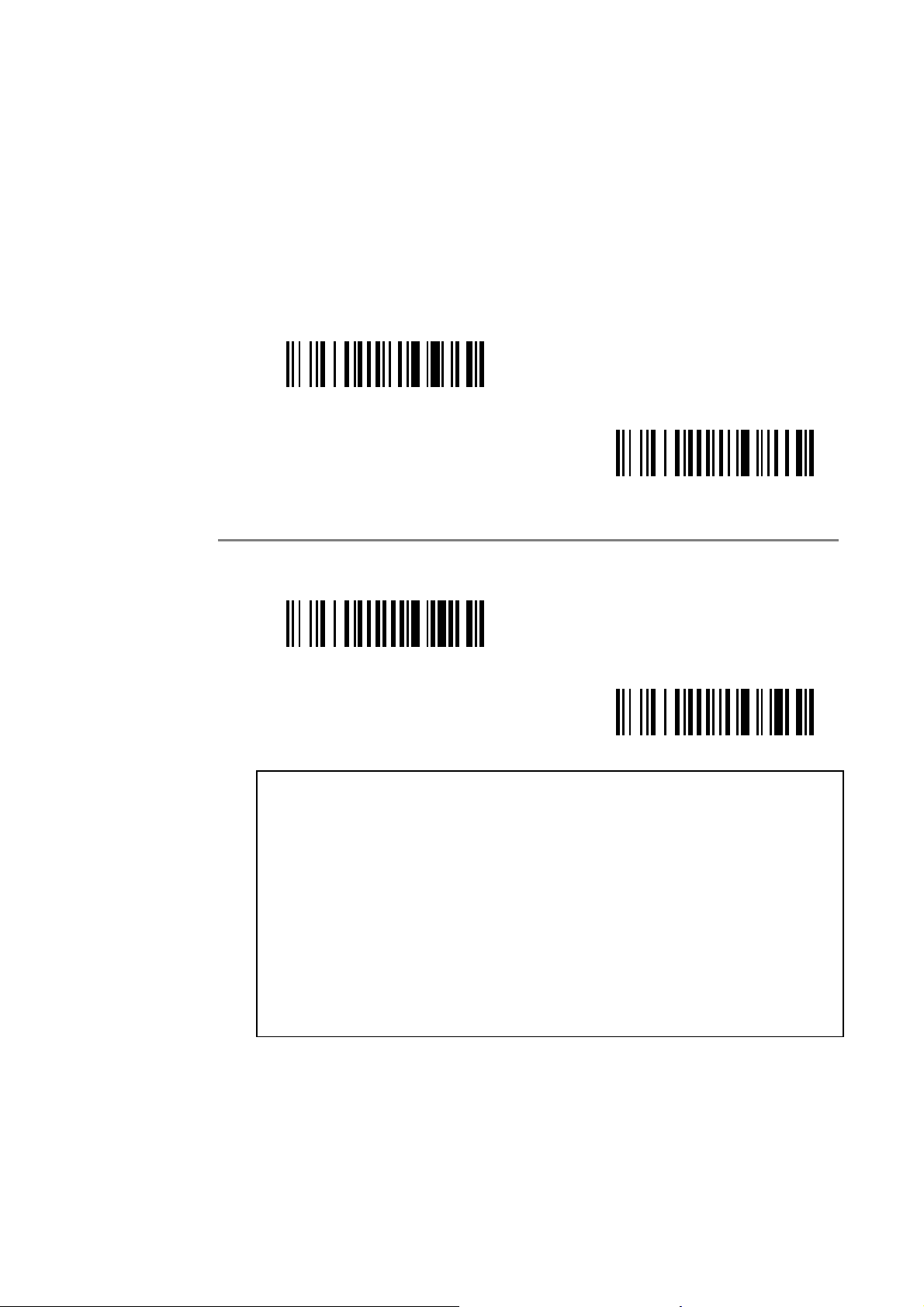

Plessey Code

Activation

Not Active (*)

Check digit

Active

Not Transmitted

Additional parameters—

barcode length (number of characters) - any length (*)

(*)

Transmitted

ScanPlus Reference Manual

- minimum length = 6

- minimum length—user-defined

SP/XX/IG/12/E/9802286-18

6. Set up the symbology pa rame ters

Standard 2 of 5

Standard 2 of 5 is also referred to as "Straight 2 of 5" and "Industrial 2 of 5".

Activation

Not Active (*)

Active (default format = Identicon)

Barcode length

The minimum length possible for Standard 2 of 5 is 3 characters:

[barcode data + check digit if applicable]

For maxim um security, we strongly recom mend that you use one of the fol lowing
paramete r s with all ScanPlus products:

Compose 1 or 2 Fixed Lengt hs ( t he safest configuration) ,

•

Compose M inimum Lengt h.

•

Compose 1 or 2 Fixed Lengths provides the best security if the codes in your application
have fixed lengths.

Compose Minimum Length is recommended if the codes in your applicati on do not have
fixed lengths.

Use the special number codes provided on the back cover of this Install ation Guide and
scan End Selection once or twice as required.

SP/XX/IG/12/E/980228 6-19

6. Set up the symbology pa rame ters

Standard 2 of 5

Barcode length

Compose 1 or 2 Fixed Lengths

1 fixed length: Compose 1 or 2 Fixed Lengths

<length>—

2 fixed lengths: Compose 1 or 2 Fixed Lengths

<first length>—End Selection
<second length>—

Compose Minimum Length (default = 6)

End Selection—End Select ion

End Selection—End Select ion

mini mum length: Compose Minimum Length

<length>—End Selection

Additional parameters—

barcode length (number of characters) - mini mum length = 6 (*)

ScanPlus Reference Manual

start/stop bar s - Identicon (6 bars) (* )

check digit mod 10 - not used (*)

- Computer Identics (4 bars)

- checked and transmitted

- checked but not transmitted

- any length

SP/XX/IG/12/E/9802286-20

6. Set up the symbology pa rame ters

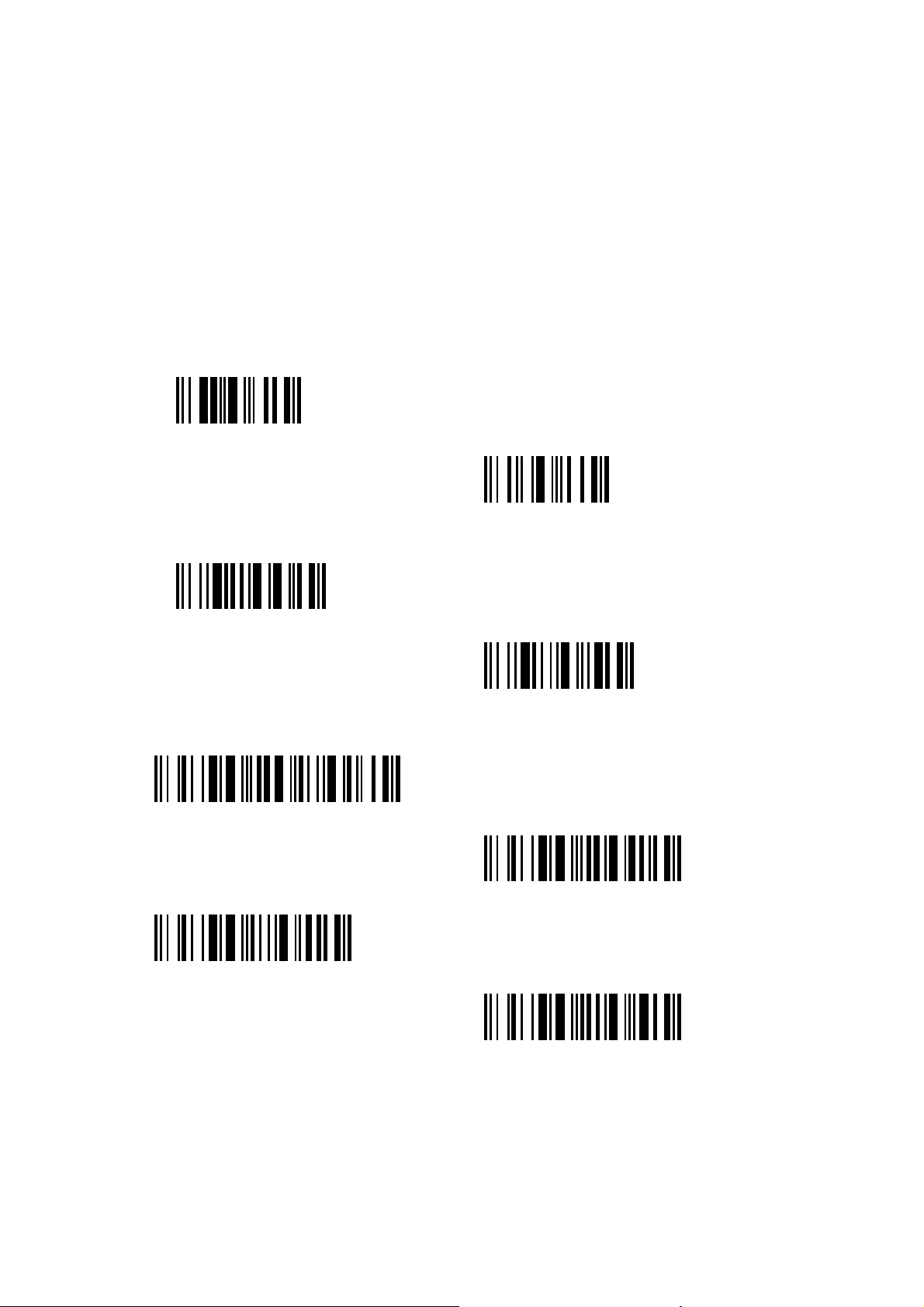

UPC/EAN code families (UPC-A, UPC-E, EAN-8, EAN-13)

Activation

Active—UPC/EAN (*) (ScanPlu s SP / ER / XP)

Not Acti v e—UPC/EAN (*) (ScanPl us PDF)

UPC-A Transmitt ed as EAN-13 (*)

UPC-A Transmitted as UPC-A

Add-On Digits—Not Required But Transmitted If Read (*)

Add-On Digits—Required And Transm i tted

Add-On 2—Not Active (*)

Add-On 2—Active

Add-On 5—Not Active (*)

Add-On 5—Active

SP/XX/IG/12/E/980228 6-21

6. Set up the symbology pa rame ters

UPC/EAN code families (UPC-A, UPC-E, EAN-8, EAN-13)

Check digit

UPC/EAN code format:

UPC-A Check Digi t—Transm itted (*)

UPC-E Check Digi t—Transm itted (*)

EAN-8 Check Digit—Transmit ted (*)

<leading character> <number system> <data> <check digit>

UPC-A Check Digi t—Not Transmitted

UPC-E Check Digi t—Not Transmitted

EAN-8 Check Digit—Not Transmitted

EAN-13 Check Digit—Transmit ted (*)

EAN-13 Check Digit—Not Transmi t t ed

SP/XX/IG/12/E/9802286-22

6. Set up the symbology pa rame ters

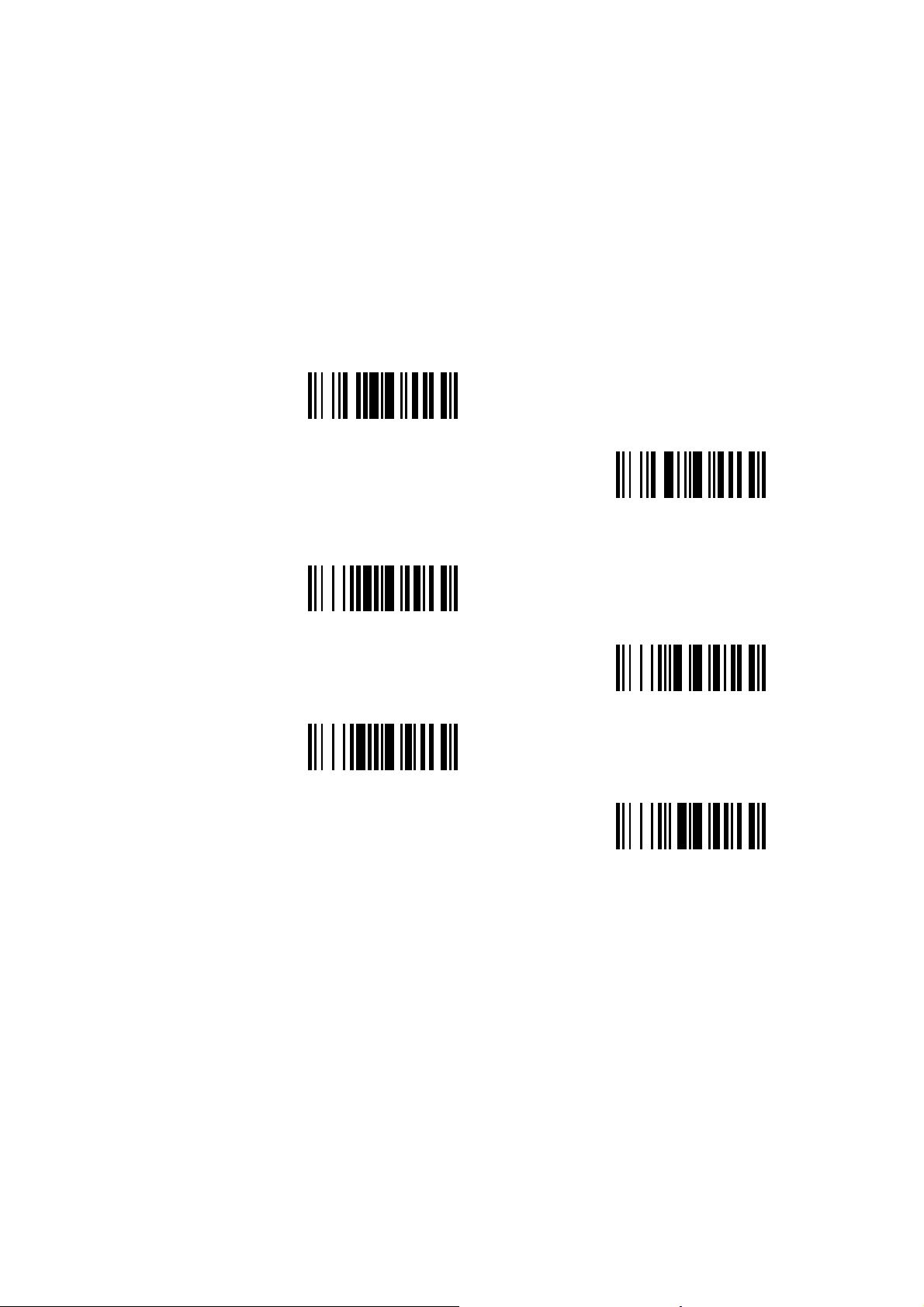

UPC/EAN code families (UPC-A, UPC-E, EAN-8, EAN-13)

T ransmission of number system

UPC/EAN code format:
A regular UPC-A has a transmi tted number system equal to 0. To transm it the addi tional

leading character (country code), select the param eter UPC-A Transmitted As EAN-13.

UPC-A Numb er Sy s tem—Transmitted (* )

UPC-E Numb er Sy s tem—Transmitted (* )

Additional parameters—

<leading character> <number system> <data> <check digit>

UPC-A Numb er Sys tem—Not Transmitted

UPC-E Numb er Sys tem—Not Transmitted

ScanPlus Reference Manual

UPC/EAN format selection - reactivate all—UPC-A, UPC-E, EAN-8, EAN-13 (*)

- UPC-A deactivated

- UPC-E deactivated

- EAN-8 deactivated

- EAN-13 deactivated

re-encoding UPC-E, EAN-8 - UPC-E transmit t ed as UPC-E (*)

- UPC-E transmitt ed as UPC-A

- EAN-8 transmitt ed as EAN 8 (*)

- EAN-8 transmitt ed as EAN-13

SP/XX/IG/12/E/980228 6-23

6. Set up the symbology pa rame ters

SP/XX/IG/12/E/9802286-24

7

Set up the operating parameters—
Activate the pushbutton

operating
parameters

ScanPlus operating parameters

The full set of ScanPlus operating parameter options is provided in the

Reference Manual

parameters that affect the way the different ScanPlus models
operate—general operating param eters include pushbutton act ivation,
beep and indicator LED settings, operating mode settings, etc.

Now that you have enter ed your inter fa ce number and s et u p your da ta
tr ansmiss ion and symbology pa ra meters ( if requir ed), you ar e ready t o
use your ScanPlus in most working situat ions.

If you have a pushbutton model, you may still have to activate the
pushbutton—the pushbutton is deactivated by default. Use your
Sca nPlus to r ead the ap propri ate pus hbutton a ctivat ion code provided
on the following pages.

At the end of this s ection you will find a f ull lis t of a ddit iona l S ca nP lu s
operating settings.

.

ScanPlus

Resetting the default ScanPlus operating settings

If you want t o r eset a ll t he defau lt S ca nP l us op erating set t ings , you c a n
sca n the Res et F act ory D efau lts ba r code pr ovided in Ap pendix C, b ut
you will then have t o c omplet ely reconfigure you r ScanPlus.

In most cases, it is easier to reselect the individual settings as required.

SP/XX/IG/12/E/980228 7-1

7. Set up the operating parameters—Activate the pushbutton

Pushbutton models

By default, the pushbutton on ScanPl us pushbut ton models is deacti vat ed.

To activate the pushbutton, you m ust select the appropriate pushbutton acti vation code for
your ScanPlus model (standar d or energy saver).

The ScanPlus does not flash in standby when the pushbutton is activated.

Standard pushbutton models

Standard pushbutton models are suitable for standard applications
where energy cons umption is not a crit ic al parameter .

When the ScanPlus goes into standby after one of the time-out
conditions has been satisfied, the reading light and read function are
switched off. Full energy is restored when the next reading situation
occurs.

Sca nPlus ER /XP/P DF st andard p ushbutt on models ca n be configur ed
to pr odu ce a n a iming b eam when in st a ndb y mode. T he a iming b ea m is
a r ed light us ed to position t he ScanPlu s correc tly over the ba r codes
before reading is activated.

En ergy saver pushbutton models

Energy saver pushbutton models are specially designed for energy­critical applications—using the ScanPlus with laptop computers for
example.

When the ScanPlus goes into standby after one of the time-out
conditions has been sat isfied, cur rent cons umption drops to zero unt il
the next reading situat ion oc c urs.

Activating energy saver pushbutton models deactivates the power-up
beeps a nd power-up LE D—they ca n not be ac tivat ed in Energy Sa ver
mode.

SP/XX/IG/12/E/9802287-2

7. Set up the operating parameters—Activate the pushbutton

Pushbutton models

Pu shbutton deactivation

By default, the pushbutton on ScanPl us pushbut ton models is deacti vat ed.

Pushbutton Not Active (*)

Pushbutton activation

Pu shbutton operating scenario

Other pushbutton operating scenarios are provided in the

The sa me opera ting scenar io is provided for all pu shbutt on models—
when the pushbutton is pressed, the ScanPlus remains active for a
defaul t per iod of 2 s a nd goes into s t a ndb y befor e t he end of this p er iod
if there is a good read.

2 s

good readpress pushbu tton

standby

Active For Read Duration (2 s)—Standby After Good Read

ScanPlus Reference Manual

.

SP/XX/IG/12/E/980228 7-3

7. Set up the operating parameters—Activate the pushbutton

Pushbutton models

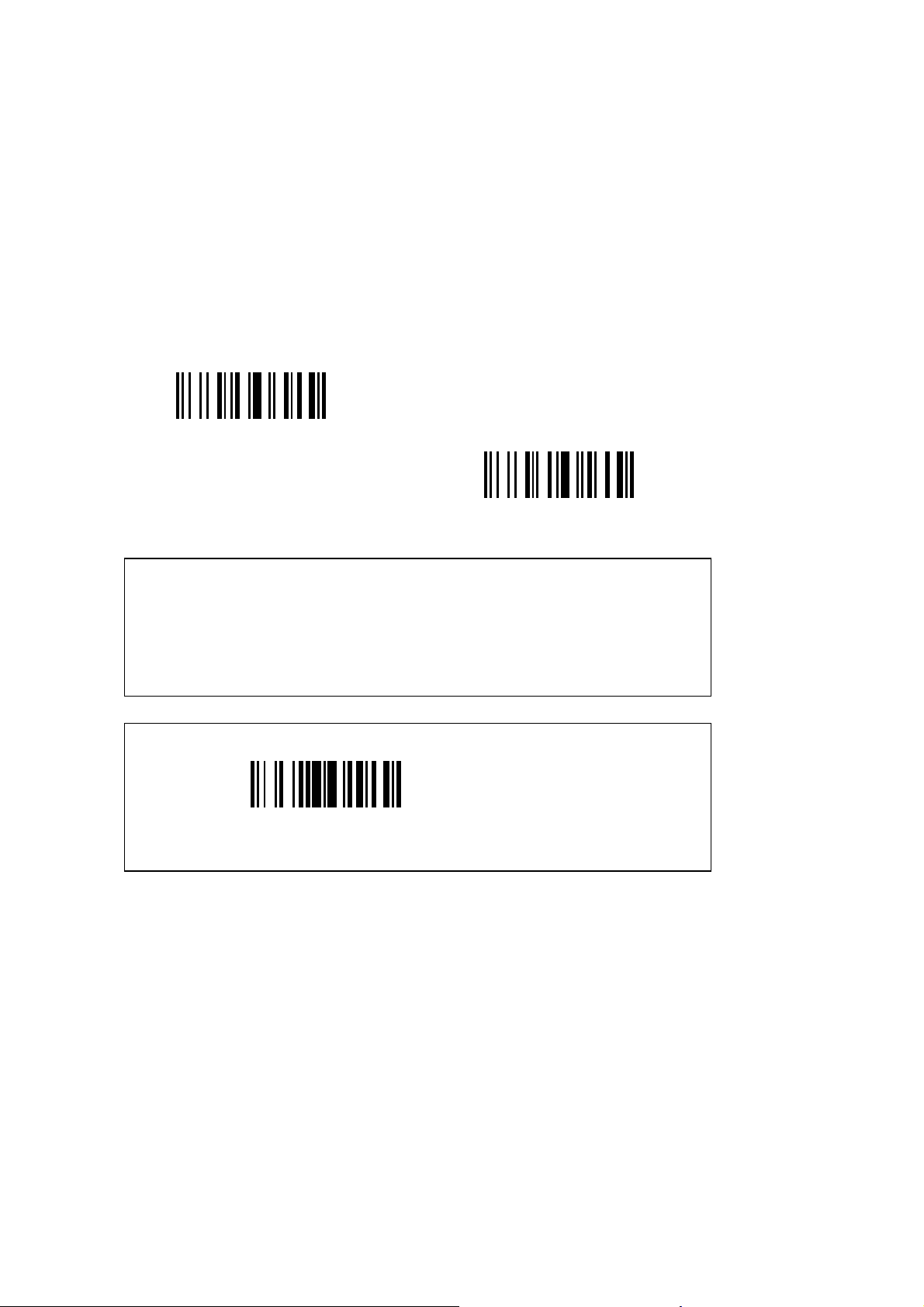

Activation—Standard pushbutton models

Only supported by ScanPlus m odels wi t h par t numbers 0-xxxxxx-2x-xx.

Do not use this code with ScanPlus models that do not have a pushbutton.

0

0

Standard Pushbutton
Active For Read Duration (2 s)—Standby After Good Read

Activation—Standard pushbutton models—Aiming beam

Only supported by ScanPlus ER / XP / PDF models wi t h par t numbers 0-xxxxxx-2x-xx.

Do not use this code with ScanPlus models that do not have a pushbutton.

0

0

Standard Pushbutton—Aiming Beam
Active For Read Duration (2 s)—Standby After Good Read

Activati on—Energy saver pushbutton models

Only supported by ScanPlus m odels wi t h par t numbers 0-xxxxxx-1x-xx.

Do not use this code with ScanPlus models that do not have a pushbutton.

0

0

Energy Saver
Active For Read Duration (2 s)—Standby After Good Read

SP/XX/IG/12/E/9802287-4

7. Set up the operating parameters—Activate the pushbutton

Pushbutton models

Additional parameters—

standard pushbutton models - active for read duration (2 s)

standard pushbutton models—aiming beam - active for read duration (2 s)

energy saver pushbutton m odels - active for read durati on ( 2 s)

pushbutton read duration - user-defined (default 2 s, m aximum = 65 s)

ScanPlus Reference Manual

repeat read duration after good read

- active while pushbutton pressed
standby after good read

repeat read duration after good read

- active while pushbutton pressed
standby after good read

repeat read duration after good read

- active while pushbutton pressed
standby after good read

SP/XX/IG/12/E/980228 7-5

7. Set up the operating parameters—Activate the pushbutton

Additional operating parameters—

Additional opera t i ng par a meters not provided i n t hi s I nst allation Guide.
Factory default setti ngs ar e i ndicated by an asterisk (*).

Configuration modes

configurati on aut hor ization modes - enable (*)

temporary confi gur ation mode - enable

transparent configurat ion mode - enable

display data string mode - enable

RS-232 slave mode - enable

Flashing mode

LED economizer flash - flash after 10 mi nut es (*)

ScanPlus Reference Manual

- configurati on inhibit after 1 m n

- restore current configurati on

- update current configurati on

- no flash

- user-defined time-out before flash (1 to 60
minutes)

Beeps / green indicator LED

power-up beeps / power-up LED - on (*)

good read beeps - 1beep (*)

timing of good read beeps - before transmission (*)

duration of good read beeps - 80 ms (*)

good read LED - on (*)

-off

- 2 b eeps

- no beep

- after transmission

- 60 ms

- 200 ms

- 300 ms

- user-defined (0 to 999 ms)

-off

SP/XX/IG/12/E/9802287-6

7. Set up the operating parameters—Activate the pushbutton

2D crackle / LED flicker - crackle on (*)

- LED flicker on

- crackle off - LED flicker off

Data decoding security parameters

predefined security levels - normal security level (*)

- medium security l evel

- high security level

consecutive same read data validation - single read before transmission (* )

- user-defined number of consecutive same reads
before transmission ( maximum = 10)

time-out between identical consecutive codes - 300 ms (*)

- user-defined (maximum = 2550 ms)

time-out between different consecutive codes - no time-out (*)

- user-defined (maximum time-out = 2550 ms)

Scan rat e parameters—ScanPlus S P

scan rate - 90 scans/s (*)

- 115 scans/s

- 140 scans/s

- 230 scans/s

scan rate / decode rate ratio - decode rate = scan rate (*)

- decode rate = scan rate / 2

SP/XX/IG/12/E/980228 7-7

7. Set up the operating parameters—Activate the pushbutton

SP/XX/IG/12/E/9802287-8

A

Pin assignments—Single-output
RS-232 CMM

Standard DB-25S "DTE" fe male

(P/N 704300)

1 Frame Ground 1 Frame Ground
2 Transmit Data 2 Transmit Data
3 Rec eive Da ta 3 Rec eive Da ta
4 Request to Send 4 Request to Send
5 Clear to Send 5 Clear to Send
6NC 6NC
7 Signal Ground 7 Signal G round
8NC 8NC
12 +5 Volts 12 +5 Volts
20 NC 20 NC

Standard DB-25 S " DCE" f e male

(P/N 704320)

1 Frame Ground 1 NC
2 Receive Data 2 Transmit Data
3 Transmit Data 3 Receive Data
4 Clear to Send 4 NC
5 Request to Send 5 Signal Ground
6NC 6NC
7 Signal Ground 7 Clear to Send
8 NC 8 Request to Send
12 +5 Volts 9 NC
20 NC

Standard DB-25S "DTE" male

(P/N 704310)

Standard AT 9-pin serial "DCE"

female (P/ N 704340)

pins 6, 8, and 20 on 25-pi n connectors ar e shorted

SP/XX/IG/12/E/980228 A-1

A. Pin assignments—Single-output RS-232 CMM

SP/XX/IG/12/E/980228A-2

B

Jumper settings—Dual-output
RS-232 CMM

Changing the jumper settings

1. Remove the four a ttac hment screws and remove the cover of the CMM.

2. Set the jumpers as required (see the available settings on the next

page).

Jumper settings are identical for st andar d and r everse gender dual-output RS-232 CMMs.

Make sure the
reassemble the CM M (see
Section 2).

TO

HOST

and

TO TERMINAL

RS-232—Dual-output CMM and external power supply

labels are correctly positioned when you

in

SP/XX/IG/12/E/980228 B-1

B. Jumper settings—Dual-output RS-232 CMM

UBI

DUAL RS232

Dual-output RS-232 CMM

Í

terminal

DCE

DB 25-position

male connec tor

DTE Î host

DB 25-position

female connector

TXD < 2
RXD > 3
RTS < 4
CTS > 5

GND 7

+5V 9

C1

IC1

J2

+

+

C13

3

X1

3

X2
X3

Jumper settings

Data transmission settings

transmit to hos t only (d efault)

1

3

X1

3

X2

3

X3

1

1

X5

1

C3

R3R1R2R4

C16

++

1

1
1

power supply

X1
X2
X3

IC4

input

3
3
3

C10

C2

IC3

+

C11

+

J3 J4

C4

IC2

+

C12

1

++

C7C6 C8

C5

X5

J1

< 2 RXD
> 3 TXD
< 4 CTS
> 5 RTS

7GND

9+5V

REV A

ScanPlus

input

transmit to hos t and t er minaltransmit to terminal only

1

1

1

X5

1

3

X1

3

X2

3

X3

1

1

1

X5

1

ScanPlus-host RTS/CTS handshaking settings

RTS/CTS handshaking on (default)

1

3

X1

3

X2
X3

1

1

X5

1

RTS/CTS handshaking off

1

3

X1

3

X2
X3

1

1

X5

1

SP/XX/IG/12/E/980228B-2

C

This appendix describes things you can try if you have problems with your ScanPlus duri ng
power-up, configurati on and nor mal operation.

If you can not solve the problem yourself, please contact your UBI represent at ive.

Before you contact your UBI representative . . .

Look in the following checklist s i f you have any of the following problems:

• no LEDs,

• no beeps,

• error beeps,

• no transm i ssion,

• incorrect transmission.

Setup problems checklist

If you have a problem . . .



correct ScanPlus model



correct CMM / cables / external power supply



ScanPlu s connected up correctly



system switc hed o n —suffici en t elect rical power



correct power-up indication—2 beeps



number of green indicator LED flashes at power-up—correct

interf ace number selected for your ScanPlus model



End Selection scanned once or twice if required for certain

configuration c odes

SP/XX/IG/12/E/980228 C-1

C. If you have a problem . . .

Reading problems checklist



correct symbologies selected for the codes you are trying to read



symbologies you read are available for you r Sca nPlus



all unneces sary s ymbologies disabled



barcode length compatible with minimum length / fixed length
parameter settings of ScanPlus



Sca nPlus configu red for check digit and no check digit present in
code



barcode quality, damaged or poorly printed codes, "fragile"
symbologies—read the appropriate test code to see if there is a
problem with the symbology (Appendix D)



correct operating parameters



pus hbutt on activated



pushbutton pressed



aiming bea m a ctivat ed if required (s tanda rd pus hb utton models)

T ransmission problems checklist



interface number selected—if indicator LED stays green after
power-up, no i n terf ace nu mber has b een selected



correct interface number selected for your host system hardware
configuration



all unneces sary s ymbologies disabled



correct da ta transmission sett ings for you r host system



inter- charac ter delay valu e requir ed if trans mitted da ta incomplete
or incorrect

SP/XX/IG/12/E/980228C-2

C. If you have a problem . . .

Try a general reset of the ScanPlus . . .

If you do not find a sol uti on after checking the above point s, you can tr y a general reset of
the ScanPlus.

Reset Factory Defaults resets all the ScanPlus operating parameters to their f act or y default
settings:

•

null interface (no host system i nt erface driver selected—no transmi ssi on) ,

•

default symbologies and symbology settings,

•

default ScanPlus operating settings (pushbutton deactivated, default LED and beep

settings, etc.).

If you scan Reset Factory Defaults, you will have to re-enter the appropriate

0

0

interface number for your host system and any custom sett ings if applicable. It i s
often easier to reset individual param eters.

1. Switch off the electrical supply to the ScanPlus:

Switc h of f the host system or disconnect the ScanPlus .

1.

Disc onnect the Sc anPlus exter nal power supply if applicable.

2.

2. Position t he ScanP l us over the Reset Factory Defau lts code.

3. Provide electrical power to the ScanPlus:

Reconnect the Sca nPlus ex terna l power supply if applicable.

1.

Switc h on the host sys tem or reconnect the ScanPlus.

2.

If you have a pushbutton model , press and hold t he pushbutton when you perform
step 3.

Reset Factory Defaults

SP/XX/IG/12/E/980228 C-3

C. If you have a problem . . .

4. Scan the interface number for your system (section 4, Enter the
interface number for your host system).

5. Customize the data transmission settings for your host system if
required (section 5 , Set up the data transmission parameters).

6. Cus tomize the symbology par ameter s ettings if requir ed (section 6, Set
up the symbology parameters).

7. If you ha ve a p us hb ut t on model, a c t iva t e t he p us hb ut t on (s ect ion 7, Set
up the operating parameters—Activate the pushbutton).

If you still have a problem . . .

Contact your UBI rep resenta tive and give full details of the p roblem.
Your UBI repres entative may a sk you to p rovide the sof tware / CPU

version nu mbers for your Sc anP lus . I f the S ca nPlu s is power ed up, tr y
to read the following code to display this information on your host
system screen if applica b le.

Software / CPU Versions

SP/XX/IG/12/E/980228C-4

D

Test codes

Codabar

123456

Code 93

CODE-93

EAN 128

]C1EAN 128

Code 39

CODE-39

Code 128

CODE-128

Interleaved 2 of 5

12345678901234

Standard 2 of 5

123456

Matrix 2 of 5

012345

SP/XX/IG/12/E/980228 D-1

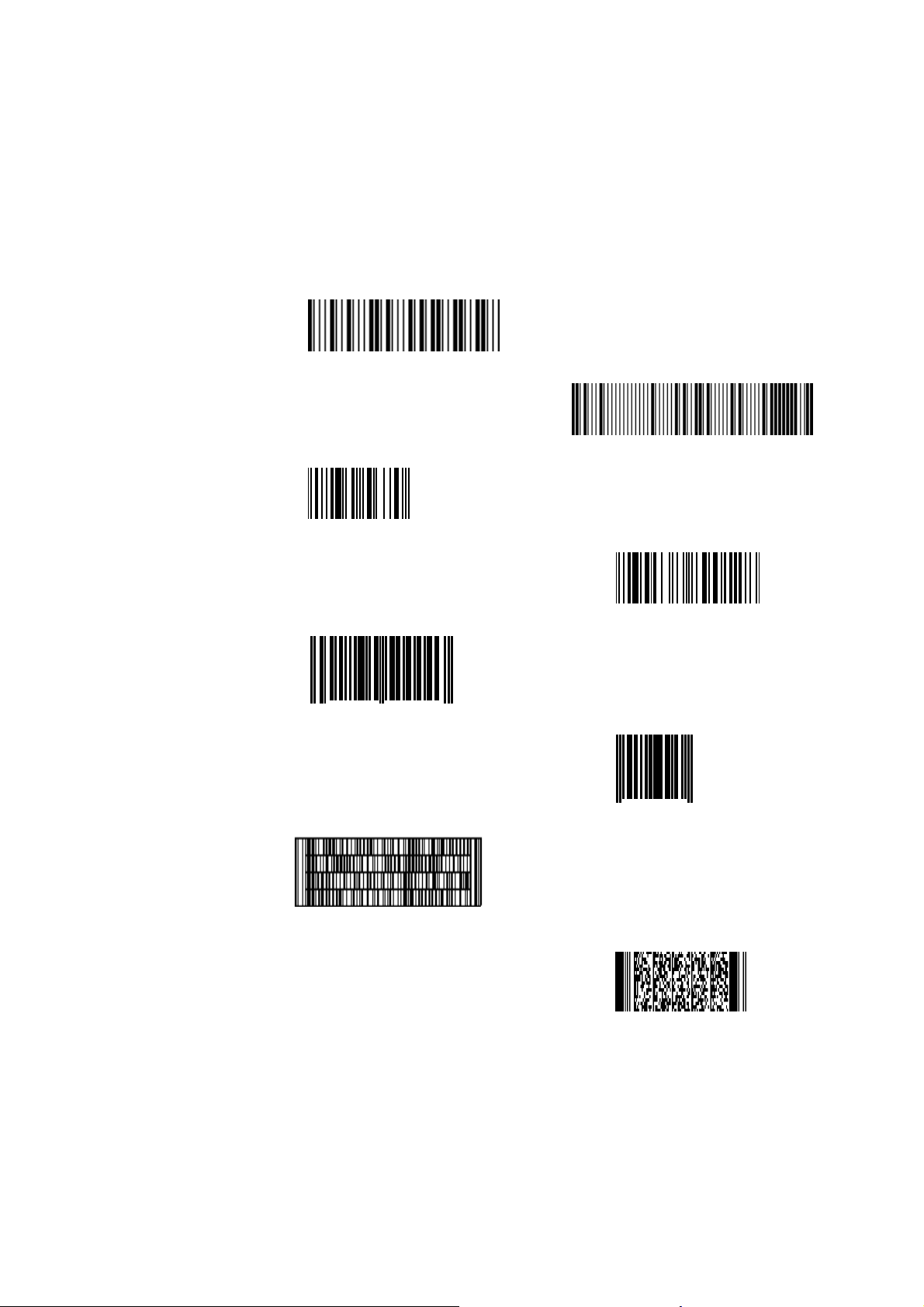

D. Test codes

MSI Code

12345666

EAN-8

12345670

UPC-A

Plessey Code

80001495050

EAN-13

1234567890128

01234 50000

0

Codablock F

UBI ScanPlus XP and XP PDF

CCD Bar Co de Scanners

7

UPC-E

012345

0

7

PDF417

UBI ScanPlus XP and XP PDF

CCD Bar Co de Scan ners

SP/XX/IG/12/E/980228D-2

Ammendale Technology Park

UBI Inc.

12240 Indian Creek Court

Beltsville

MD 20705

USA

Tel: [phone]

Fax: [phone]

UBI Ltd

Attenborough House

15 Bennet Roa d

Reading

Berkshire RG20QX

ENGLAND

Tel: [phone]

Fax: [phone]

UBI International / UBI France SA

Immeuble "Le Newton"

23 avenue de l'Europe

78402 Chatou Cedex

FRANCE

Tel: [phone]

Fax: [phone]

UBI GmbH

Max-Planck-Strasse 9-13

D-85716 Unterschleissheim/München

GERMANY

Tel: [phone]

Fax: [phone]

UBI Danmark AS

Hovedvejen 122

2600 Glostrup

DENMARK

Tel: [phone]

Fax: [phone]

UBI OY

Valkjärventie 1

02130 Espoo

FINLAND

Tel: [phone]

Fax: [phone]

UBI SrL

Via Speranza 35

40068 San Lazzaro di Savena

Bologna

ITALY

Tel: [phone]
Fax: [phone]

UBI Nordic AB

Bredgatan 10

222 21 Lund

SWEDEN

Tel: [phone]
Fax: [phone]

UBI Norge A/S

Postboks 33

1483 Skytta

NORWAY

Tel: [phone]

Fax: [phone]

UBI Russia

Kamennoostrovskii Prospect 29-2

St Petersburg 197 022

RUSSIA

Tel: [phone]

Fax: [phone]

UBI representative:

SP/XX/IG/12/E/980228

Number codes

1

2

3

4

5

6

7

8

9

0

End Selection

SP/XX/IG/12/E/980228 UBI Part Number: 0-300049-01-12
