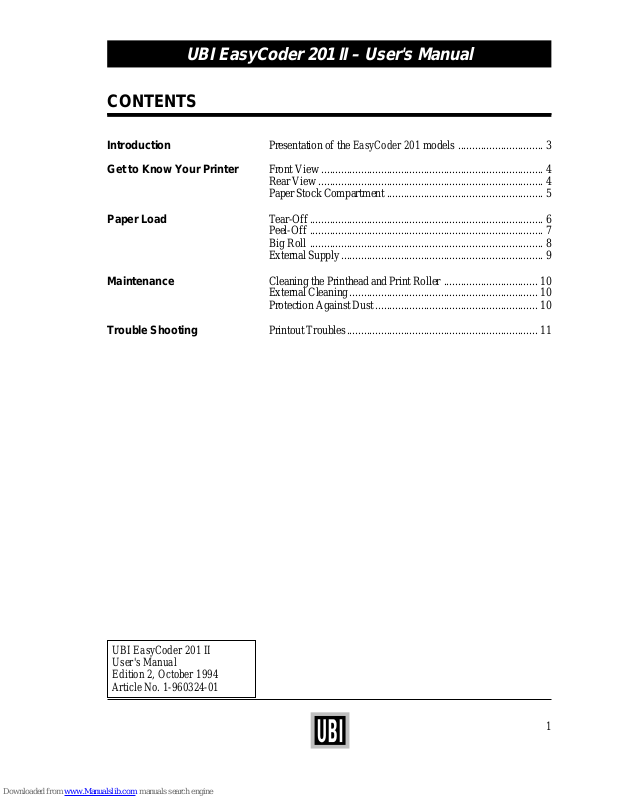

UBI EasyCoder 201 II – User's Manual
1
Introduction Presentation of the EasyCoder 201 models .............................. 3
Get to Know Your Printer Front View .............................................................................. 4
Rear View ............................................................................... 4
Paper Stock Compartment ....................................................... 5
Paper Load Tear-Off .................................................................................. 6
Peel-Off .................................................................................. 7
Big Roll .................................................................................. 8
External Supply.......................................................................9
Maintenance Cleaning the Printhead and Print Roller ................................. 10
External Cleaning.................................................................. 10
Protection Against Dust......................................................... 10
Trouble Shooting Printout Troubles................................................................... 11
CONTENTS
UBI EasyCoder 201 II
User's Manual
Edition 2, October 1994
Article No. 1-960324-01
UBI EasyCoder 201 II – User's Manual
2
Information in this manual is subject to change without prior notice and does not represent a commitment
on the part of UBI Printer AB.
© Copyright UBI Printer AB, 1993. All rights reserved. Published in Sweden.
EasyCoder and LabelShop are trademarks of United Barcode Industries (UBI).
Macintosh is a registered trademark of Apple Computer Inc.
Microsoft is a registered trademark of Microsoft Corporation.
Windows is a trademark of Microsoft Corporation.
FCC Notice
United States of America
WARNING:
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with
the instructions manual, may cause interference to radio communications. It has been tested and found to comply with the
limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference when operated in a commercial environment. Operation of this equipment
in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
DOC Notice
Canada
Canadian Dept. of Communication
REGULATIONS COMPLIANCE
(DOC-A)
This digital apparatus does not exceed the class A limits for radio noise emissions from a digital apparatus as set out in
the radio interference regulations of the Canadian Department of Communication.
✳ ✳ ✳
Ministère des Communications du Canada
CONFORMITE DE REGLEMENTS
(DOC-A)
Le présent appareil numérique n´émet pas de bruits radio-électriques dépassant les limites applicables aux appareils
numériques de classe A prescrites dans le règlement sur brouillage radioélectrique édicté par le Ministère des
Communications du Canada.
VDE Notice
Germany
ALLGEMEINE VORSCHRIFT:
Reparaturen oder sonstige Eingriffe, die sich nicht auf normale Bedienung der Maschine beziehen, dürfen ausschließlich
nur von einem ausgebildeten, zuständigen Fachmann vorgenommen werden.
UBI EasyCoder 201 II – User's Manual
3
INTRODUCTION
The UBI EasyCoder 201 II is a series of medium
to heavy duty direct thermal printers. They come in
three main models intended for different types of
applications:
• EasyCoder 201 II is mainly intended to be con-
trolled by a host computer using standard or
custom-made application software, e.g. the UBI
LabelShop label-design program for Microsoft
Windows. Being a low-cost alternative, it has
fewer options than the other members of the
EasyCoder 201 II printer family. Externally, the
EasyCoder 201 II is distinguished by the absence
of any built-in keyboard.
• EasyCoder 201 IIE (Enhanced) offers a built-in
keyboard and a larger number of options in regard
of computer connection. It is recommended for
installations, where you want to switch between
different application programs, or create your
own programs in the built-in UBI Fingerprint
programming language. This printer model is
easily recognized by its 21-key membrane setup
keyboard (F1–F5).
• EasyCoder 201 IISA is very similar to the
EasyCoder 201 IIE model, but is fitted with a
special “Stand-Alone” software and a special
keyboard, which allows the printer to be operated
independently, without any computer connection.
The EasyCoder 201 IISA can easily be “docked”
to a personal computer and loaded with label texts
and formats created in the UBI LabelShop labelediting program running under Microsoft Win-
dows.
Information on the different models and options
can be found in the Technical Manual, which also
describes installation and computer connection.
The following manuals may be of interest to the
operator or programmer:
• UBI Shell 3.1 Standard, Startup Manual
• UBI Shell 3.1 Enhanced, Startup Manual
• UBI EasyCoder 201 II, Technical Manual
• UBI Stand-Alone Concept, Operating Instructions
• UBI Fingerprint 5.0, Programmer's Manual
• UBI Fingerprint 5.1, Update Information
• UBI LabelShop, Operator's Manual
• UBI Windows Driver, Installation Instructions
• UBI Macintosh Driver, Installation Instructions
Power
Ready
Error
F1
Pause
Setup
Feed
Enter
7
4
1
.
8
5
2
0
9
6
3
C
F2 F3
F4
F5
UBI
UBI
Power
Ready
Error
EasyCoder 201 II
UBI
UBI
EasyCoder 201 IIE
Power
Ready
Error
Ins
Pause
Save
Feed
Enter
7
4
1
-
8
5
2
0
9
6
3
C
Del Esc
UBI
UBI
EasyCoder 201 IISA
UBI EasyCoder 201 II
UBI EasyCoder 201 IIE
UBI EasyCoder 201 IISA
UBI EasyCoder 201 II – User's Manual
4
GET TO KNOW YOUR PRINTER
Continued!
MADE IN SWEDEN
Type
Art. No.
Ser. No.
115/230 V 2.6/1.3 A 50–60 Hz
TA
Power
Ready
Error
F1
Pause
Setup
Feed
Enter
7
4
1
.
8
5
2
0
9
6
3
C
F2 F3
F4
F5
EasyCoder 201 IIE
LED Indicator Lamps
Display Window
Keyboard
(3 different types)
Front Lid
Print Output Slot
Print Button
Right-hand Door
Latch
External Paper Intake
Voltage Switch
Provision for Optional Interface Connectors
Serial Interface Connector "uart1:"
Machine Sign
Mains Receptacle
Main Switch
UBI EasyCoder 201 II – User's Manual
5
GET TO KNOW YOUR PRINTER, cont'd.
The paper stock compartment becomes accessible when the righthand door is swung open. Although the printer is operable when this
door is left opened or completely removed, you are strongly
recommended to keep it closed during normal operation, so as to
prevent the printer mechanism from being exposed to dust.
Label Stop Sensor
Printhead Lift Lever
Guide Ring
Dispenser Shaft
(optional)
Paper Supply Spool
Backing Paper Take-Up
(optional)
Clip
External Paper Intake
Motor
Thermal
Printhead
Adapter for 76 mm (3") core
UBI EasyCoder 201 II – User's Manual
6
PAPER LOAD
Tear-Off
Roll with thermal layer facing outwards
Roll with thermal layer facing inwards
1 Turn the printhead lift lever counter-clockwise as far as it goes.
2 Fit a new paper roll on the paper supply spool and push the roll
inwards as far as it will go.
3 Thread the paper underneath shaft of the printhead lift lever and
under the upper leg of the label stop sensor.
4 Thread the paper past the print roller.
5 Adjust the green guide ring on the shaft so that the paper is guided
with a minimum of play.
6 Turn the printhead lift lever clockwise until it snaps into locked
position.
7 Feed out at least one label. To tear off the paper, pull it upwards.
UBI EasyCoder 201 II – User's Manual
7
PAPER LOAD, cont'd.
Peel-Off
1 Turn the printhead lift lever counter-clockwise as far as it goes.
2 Pull out the green clip on the backing paper take-up and dispose
of all wound-up backing paper.
3 Fit a new paper roll on the paper supply spool and push the roll
inwards as far as it will go.
4 Thread the paper underneath the shaft of the printhead lift lever
and under the upper leg of the label stop sensor.
5 Thread the paper past the print roller.
6 Remove the labels from the first 25 cm (10") of the paper web.
Wrap the backing paper around the print roller and dispenser
shaft, as illustrated to the left. Then thread it back under the print
mechanism and the shaft of the printhead lift lever.
7 Fold the backing paper around the clip on the backing paper
take-up as illustrated to the left. The rotate the shaft counterclockwise a few turns until the backing paper is firmly attached.
8 Tighten the paper web and adjust the green guide ring so that the
paper is guided with a minimum of play.
9 Turn the printhead lift lever clockwise until it snaps into locked
position.
10 Feed out at least one label.
Attach the backing paper to the take-up
shaft like this. Then rotate the shaft
c.c.w. a few turns.
The dispenser shaft separates the labels
from the backing paper.
UBI EasyCoder 201 II – User's Manual
8
PAPER LOAD, cont'd.
Big Roll
1 Turn the printhead lift lever counter-clockwise as far as it goes.
2 Fit a new paper roll on the paper supply spool and push the roll
inwards as far as it will go. (If necessary, fit the 3" bobbin adapter
onto the paper supply spool and secure it with the screw before
fitting the paper roll).
3 In case of a paper roll with the thermal layer facing inwards,
thread the paper above the guide shaft immediately to the rear of
the printhead lift lever.
4 Thread the paper underneath shaft of the printhead lift lever and
under the upper leg of the label stop sensor.
5 Thread the paper past the print roller.
6 Adjust the green guide rings on the shafts so that the paper is
guided with a minimum of play.
7 Turn the printhead lift lever clockwise until it snaps into locked
position.
8 Feed out at least one label. To tear off the paper, pull it upwards.
Roll with thermal layer facing outwards
Roll with thermal layer facing inwards
UBI EasyCoder 201 II – User's Manual
9
PAPER LOAD, cont'd.
External Supply The EasyCoder 201 II printers can use various types of external
supplies, e.g. boxes of fan-folded tickets or an external paper roll
thanks to its external paper intake. The outer guide is adjustable for
different paper widths.
The EasyCoder 201 II Bag Tag printer is fitted with guide rails
under its bottom plate, that makes it possible to thread the paper
without opening the right-hand door.
1 Turn the printhead lift knob counter-clockwise as far as it goes.
2 Pull out any remaining paper stock.
3 Insert the new paper web between the guides underneath the
printer's rear plate. The thermal layer should face upwards.
4 Gently push the paper web until it protrudes through the feed-out
slot at the front.
6 Turn the printhead lift knob clockwise until it snaps into locked
position.
7 Feed out at least one label. To tear off the paper, pull it upwards.
Note!
When an external paper supply is
used, take precautions to protect
the paper stock from sand, grit and
other hard particle, that may damage the printhead.
Power
Ready
Error
F1
Pause
Setup
Feed
Enter
7
4
1
.
8
5
2
0
9
6
3
F2 F3
F4
F5
EasyCoder 201 IIE
C
UBI EasyCoder 201 II – User's Manual
10
MAINTENANCE
Cleaning on a regular basis is important for life of the printer and
for the printout quality.
1 Turn the printhead lift lever counter-clockwise and remove the
paper web.
2 Insert a Printhead Cleaning Card into the print mechanism,
allowing 2–3 cm (1") to extend in front of the printhead.
4 Turn the knob clockwise to locked position and slowly pull out
the cleaning card. Repeat if necessary.
5 Using a piece of cloth or blotting paper slightly moistened with
isopropanol, clean the print roller and the dispenser edge.
6 Important!
Allow a couple of minutes for the cleaned parts to get dry before
loading paper and ribbon.
Wipe the outside surfaces using a damp piece of cloth. If necessary,
add a mild detergent. Be careful not to allow any water to penetrate
into the interior of the printer.
Protect paper and ribbon from dust by always keeping the stock
compartment door closed. In case of an external paper supply, it is
strongly recommended that both the actual supply and the web path
be protected by some kind of dust cover. Dirt, sand, grit etc. may
rapidly cause irreparable damage to the printhead.
Cleaning the Printhead and
Print Roller
WARNING!
The printhead and print roller
are very delicate.
Never use any tools to remove stuck
labels or to clean the printhead.
External Cleaning
CAUTION!
Remove the power cord
before cleaning.
Dangerous voltage!
Protection Against Dust
Cleaning Card
UBI EasyCoder 201 II – User's Manual
11
Symptom Possible Cause Remedy Refer to
Overall weak printout Wrong Paper type setup Change Technical Manual
Low Contrast setup Increase value Technical Manual
Worn printhead Replace TPH Install Instructions
Wrong printhead voltage Repair CPU ☎ Call Service
Printout weaker on one side Uneven printhead pressure Adjust ☎ Call Service
Weak spots Foreign particles on paper Remove n.a.
Poor paper quality Use other media Technical Manual
Worn printhead Replace TPH Install Instructions
Worn pressing roller Replace ☎ Call Service
Overall dark printout Wrong Paper Type setup Change Technical Manual
Contrast setup too high Decrease Technical Manual
Wrong printhead voltage Repair CPU ☎ Call Service
Excessive bleeding Wrong Paper Type setup Change Technical Manual
Contrast setup too high Decrease Technical Manual
Faulty energy control Check CPU board ☎ Call Service
Dark lines along paper web Foreign objects on printhead Clean User's Manual p. 10
White lines along paper web Printhead dirty Clean User's Manual p. 10
Missing dots on printhead Replace TPH Install Instructions
Large part of dot line missing Wrong X-start or Width setup Change Technical Manual
Failing printhead Replace TPH Install Instructions
Failing strobe signal Check CPU-board ☎ Call Service
Last part of label missing Too small image buffer Increase size Technical Manual
Printout missing along inner edge Bad paper alignment Adjust User's Manual p. 6-9
X-start setup too low Increase value Technical Manual
TROUBLE SHOOTING
Printout Troubles
The list below is intended to help the operator to correct possible
printout troubles or flaws in printout quality, and to decide when
assistance from the Service dept. of the nearest UBI distributor is
required. Note that most problems are due to operating errors or
normal wear of the printhead.
UBI EasyCoder 201 II – User's Manual
12
NOTES
Loading...
