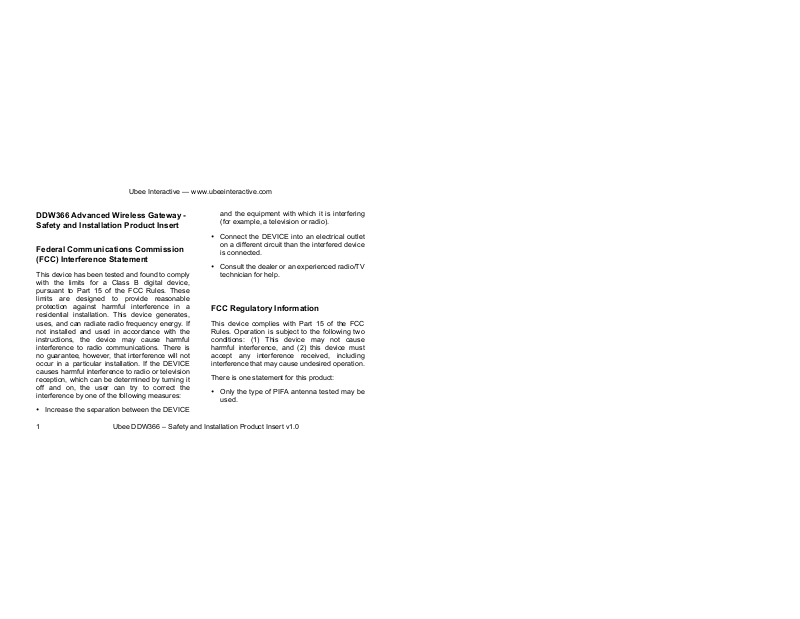

1 Ubee DDW366 – Safety and Installation Product Insert v1.0

DDW366 Advanced Wireless Gateway ­Safety and Installation Product Insert

Federal Communications Commission
(FCC) Interference Statement

This device has been tested and found to comply
with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This device generates,
uses, and can radiate radio frequency energy. If
not installed and used in accordance with the
instructions, the device may cause harmful
interference to radio communications. There is
no guarantee, however, that interference will not
occur in a particular installation. If the DEVICE
causes harmful interference to radio or television
reception, which can be determined by turning it
off and on, the user can try to correct the
interference by one of the following measures:

• Increase the separation between the DEVICE

and the equipment with which it is interfering
(for example, a television or radio).

• Connect the DEVICE into an electrical outlet
on a different circuit than the interfered device
is connected.

• Consult the dealer or an experienced radio/TV
technician for help.

FCC Regulatory Information

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation.

There is one statement for this product:

• Only the type of PIFA antenna tested may be
used.

Ubee Interactive — www.ubeeinteractive.com

2 Ubee DDW366 – Safety and Installation Product Insert v1.0

FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate this device.

IEEE 802.11b or 802.11g operation of this device
in the U.S.A. is firmware-limited to channels 1
through 11.

For operation within 5.15 ~ 5.35GHz / 5.47
~5.725GHz frequency range, it is restricted to
indoor environment.

FCC Radiation Exposure Statement:

This device complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This device should be installed and
operated at a minimum distance of 20cm
between itself and your body.

This device must not be co-located or operating
in conjunction with any other antenna or
transmitter.

Safety Notices

Read these instructions carefully before
operating the device. It is important to be aware
of these safety instructions. Install the device
according to these instructions and keep this
guide for future reference.

1. Do not use this device in a humid space, in

the rain, or near splashing water.

2. Do not install during thunder or lightning

storms.

3. Do not cover any ventilation openings in the

device case.

4. Do not place the device near heat sources

such as radiators or stoves.

5. Clean the device only with a clean, dry cloth.

Do not use liquid or chemical cleaners.

6. Avoid static discharge when touching the

device by first touching the coaxial connector
of the coaxial cable.

Ubee Interactive — www.ubeeinteractive.com

3 Ubee DDW366 – Safety and Installation Product Insert v1.0

7. Installation of the device should include
grounding the coaxial cable to the earth at the
building entrance per ANSI/NFPA 70 and the
National Electrical Code (NEC, in particular,
Section 820.93, Grounding of the Outer
Conductive Shield of a Coaxial Cable). The
device is designed for IT power systems with
phase-to-phase voltage at 120V.

8. Disconnecting the Device: If the device
becomes damaged or encounters some other
abnormality, disconnect the power plug from
the AC wall outlet immediately.

9. The device should be installed in a location
not to exceed the maximum temperature of
40 degrees Celsius (104 degrees
Fahrenheit).

10. When this device is placed upright with the
aid of the stand, the stand must be fixed at a
90-degree angle to the device. Otherwise, the
device will have the risk of tipping over.

Installation

To install this device, follow the procedures
below and refer to the following page for a
connection diagram.

1. Connect one end of a coaxial cable (not
included) to the CABLE port on the device.
Connect the other end to a cable splitter or the
cable wall outlet. Be sure not to bend or over
tighten the cables as this may strain the
connector and cause damage. If you plan to
connect the device and a television to the
same cable wall outlet, you must use a cable
line splitter (not included).

2. Connect one end of the supplied Ethernet
cable to one of the ETHERNET ports (ETH1
to ETH4) on the device. Connect the other
end to the ETHERNET port on a PC. Note:
Category 5e or Category 6 Ethernet cables
with RJ-45 connectors must be used when
connecting Ethernet devices to the LAN ports.
This ensures Gigabit Ethernet speeds (unless
the computer does not support it).
