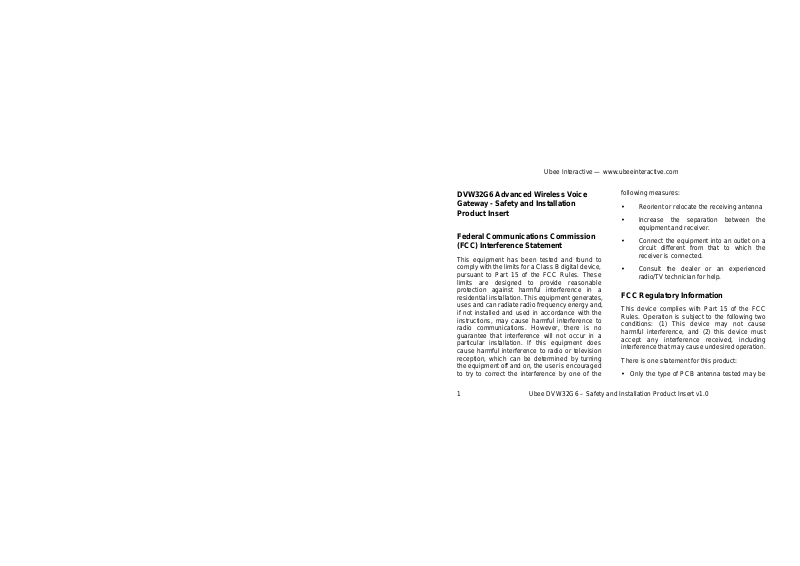

DVW32G6 Advanced Wireless Voice Gateway - Safety and Installation Product Insert
Federal Communications Commission (FCC) Interference Statement
1 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Regulatory Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
There is one statement for this product:
Only the type of PCB antenna tested may be
Ubee Interactive — www.ubeeinteractive.com
used.
Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the 5600 - 5650 MHz band.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
For product available in the USA/Canada market, only channel 1 ~ 11 can be operated. Selection of other channels is not possible.
For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to indoor environment.
FCC Radiation Exposure Statement:
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated at a minimum distance of 28cm between itself and your body.
2 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
Safety Notices
Read these instructions carefully before operating the device. It is important to be aware of these safety instructions. Install the device according to these instructions and keep this guide for future reference.
1. Do not use this device in a humid space, in
the rain, or near splashing water.
2. Do not install during thunder or lightning
storms.
3. Do not cover any ventilation openings in the
device case.
4. Do not place the device near heat sources
such as radiators or stoves.
Ubee Interactive — www.ubeeinteractive.com
5. Clean the device only with a clean, dry cloth. Do not use liquid or chemical cleaners.
6. Avoid static discharge when touching the device by first touching the coaxial connector of the coaxial cable.
7. Installation of the device should include grounding the coaxial cable to the earth at the building entrance per ANSI/NFPA 70 and the National Electrical Code (NEC, in particular, Section 820.93, Grounding of the Outer Conductive Shield of a Coaxial Cable). The device is designed for IT power systems with phase-to-phase voltage at 110V.
8. Disconnecting the Device: If the device becomes damaged or encounters some other abnormality, disconnect the power plug from the AC wall outlet immediately.
9. The device should be installed in a location not to exceed the maximum temperature of 40 degrees Celsius (104 degrees Fahrenheit).
3 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
10. This device MUST be placed upright for best WiFi coverage with the aid of the stand, the stand must be fixed at a 90-degree angle to the device. Otherwise, the device will have the risk of tipping over.
11. Keep the device away from Children and Pets.
12. Place the device on a cool surface. Failure to do so may result in overheating which can cause extreme damage.
13. Do not modify or attempt to disassemble the device. Use it only according to the instructions.
14. Do not dispose of the device in a trash container. Please recycle.
Ubee Interactive — www.ubeeinteractive.com
Installation
To install this device, follow the procedures below and refer to the following page for a connection diagram.
1. Connect one end of a coaxial cable (not included) to the CABLE port on the device. Connect the other end to a cable splitter or the cable wall outlet. Be sure not to bend or over tighten the cables as this may strain the connector and cause damage. If you plan to connect the device and a television to the same cable wall outlet, you must use a cable line splitter (not included).
2. Connect one end of the supplied Ethernet cable to one of the ETHERNET ports (ETH1 to ETH4) on the device. Connect the other end to the ETHERNET port on a PC. Note: Category 5e or Category 6 Ethernet cables with RJ-45 connectors must be used when connecting Ethernet devices to the LAN ports. This ensures Gigabit Ethernet speeds (unless the computer does not support it).
4 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
3. Connect one end of an RJ-11 phone cable to one of the TEL ports on the device (a port that has been provisioned for voice service as specified by the service provider). Connect the other end to the phone port of the telephone. Note: If voice service is not provisioned through the service provider, telephone service is not available.
4. Connect the power cord to the POWER port on the device. Plug the other end of the power cord into the AC wall outlet. Important: Use only the power cord that is shipped with the device.
Ubee Interactive — www.ubeeinteractive.com
B C
Wall-Mount Installation
You can mount the device on a wall using the 2 mounting brackets on the bottom of the device. We recommend that you use two round or pan head screws.
1. Install two screws horizontally apart on a wall using the measurement shown to the right. The screws should protrude from the wall so that you can fit the device between the head of the screw and the wall. If you install the screws in drywall, use hollow wall anchors to ensure that the unit does not pull away from the wall due to prolonged strain from the cable and power connectors.
2. Remove the device from the product package.
3. Mount the device on the wall.
4. Refer to the following figure.
5 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
The Distance of the Pothook (Horizontal)
A
The Screw’s Size (mm)
A 6.65+/-0.35 B 1.9+/-0.15 C 19.0+/1.20
Ubee Interactive — www.ubeeinteractive.com
Additional Information
1. RESET Button (back of device): This button resets the device to factory defaults. Using a pointed object, insert it into the button opening, and hold for more than 10 seconds. The device will reset and reboot. Note: Not all parameters are reset to factory defaults. Refer to the User Guide for more information.
2. Battery (bottom of device): A slot is provided that houses the battery and can be opened/closed for battery insertion or replacement.
3. WPS button (top of device): The WPS button is used for the Wi-Fi Protected Setup (WPS) method to connect a Wi-Fi device to the DEVICE. Refer to the User Manual for more information.
6 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
LEDs and Other Device Indicators
See the following diagram and descriptions of the device’s LED behavior, and the behavior of the back-panel Ethernet indicators.
LED Indicators (Color = Blue When On): Power—If On, indicates that
the device has successfully completed internal power-on tests. LED flashes if power-on fails or if the device is operating on battery. Note that the LED flashes briefly immediately after powering the device.
DS/US—When the device initializes, the LED flashes. When the device locks on to channels and registers OK, the LED is On. When the device performs a firmware upgrade, the LED flashes.
Ubee Interactive — www.ubeeinteractive.com
ONLINE—When the device is obtaining an IP address and configuration file, the LED flashes. When device obtains these items, the LED is On.
2.4G—When 2.4G Wi-Fi is enabled, the LED is
On. When 2.4G Wi-Fi is disabled, the LED is Off. 5G
When 5G Wi-Fi is enabled, the LED is On. When 5G Wi-Fi is disabled, the LED is Off.
Tel 1/Tel 2—The LED is On when a telephone is on-hook. The LED flashes when a telephone is off-hook.
MoCA— When MoCA is enabled, the LED is On. When MoCA is disabled, the LED is Off. When passing MoCA network traffic, the LED is flashing.
Battery—LED is On when the battery is installed and charged. LED is Off if no battery is installed. If the battery is at low power level (30mins left), the battery LED will flash.
WPS (top of device)—If not used, the LED is Off.
7 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
When the user pushes the WPS button or triggers WPS via the device’s web GUI, the LED flashes white for 4 minutes until a PIN is entered from a wireless client that wishes to connect. After a Wi-Fi client attaches successfully, the LED remains solid white for 5 minutes, and then turns off.
Ubee Interactive — www.ubeeinteractive.com
Back Panel Ethernet Indicators (Color = Orange or Green):
When an Ethernet device, such as a computer,
is connected to the device, the LED is Orange when connected at 10/100 Mbps speeds.
When an Ethernet device, such as a computer,
is connected to the device, the LED is Green when connected at 1000 Mbps speeds (Gigabit Ethernet).
When data is being passed between the
device and the connected device, the LED flashes.
8 Ubee DVW32G6 – Safety and Installation Product Insert v1.0
