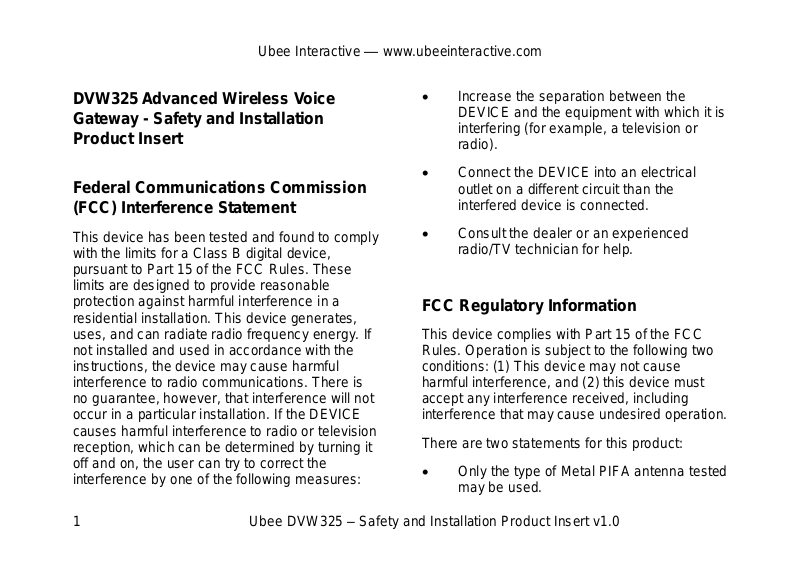

DVW325 Advanced Wireless Voice
Gateway - Safety and Installation
Product Insert

Federal Communications Commission
(FCC) Interference Statement

This device has been tested and found to comply
with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This device generates,
uses, and can radiate radio frequency energy. If
not installed and used in accordance with the
instructions, the device may cause harmful
interference to radio communications. There is
no guarantee, however, that interference will not
occur in a particular installation. If the DEVICE
causes harmful interference to radio or television
reception, which can be determined by turning it
off and on, the user can try to correct the
interference by one of the following measures:

1 Ubee DVW325 – Safety and Installation Product Insert v1.0

 Increase the separation between the

DEVICE and the equipment with which it is
interfering (for example, a television or
radio).

 Connect the DEVICE into an electrical

outlet on a different circuit than the
interfered device is connected.

 Consult the dealer or an experienced

radio/TV technician for help.

FCC Regulatory Information

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation.

There are two statements for this product:
 Only the type of Metal PIFA antenna tested

may be used.

Ubee Interactive — www.ubeeinteractive.com

 The device must carry a label stating “FCC

ID: XCNDVW325.”

FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate this device.

IEEE 802.11b or 802.11g operation of this device
in the U.S.A. is firmware-limited to channels 1
through 11.

For operation within 5.15 ~ 5.25GHz frequency
range, it is restricted to indoor environment. This
device meets all the other requirements specified
in Part 15E, Section 15.407 of the FCC Rules

FCC Radiation Exposure Statement:

This device complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This device should be installed and
operated at a minimum distance of 20cm
between itself and your body.

2 Ubee DVW325 – Safety and Installation Product Insert v1.0

This device must not be co-located or operating
in conjunction with any other antenna or
transmitter.

Safety Notices

Read these instructions carefully before
operating the device. It is important to be aware
of these safety instructions. Install the device
according to these instructions and keep this
guide for future reference.

1. Do not use this device in a humid
space, in the rain, or near splashing
water.

2. Do not install during thunder or
lightening storms.

3. Do not cover any ventilation openings
in the device case.

4. Do not place the device near heat
sources such as radiators or stoves.

5. Clean the device only with a clean,
dry cloth. Do not use liquid or

Ubee Interactive — www.ubeeinteractive.com

chemical cleaners.

6. Avoid static discharge when touching
the device by first touching the
coaxial connector of the coaxial
cable.

7. Installation of the device should
include grounding the coaxial cable
to the earth at the building entrance
per ANSI/NFPA 70 and the National
Electrical Code (NEC, in particular,
Section 820.93, Grounding of the
Outer Conductive Shield of a Coaxial
Cable). The device is designed for IT
power systems with phase-to-phase
voltage at 120-240V.

8. Disconnecting the Device: If the
device becomes damaged or
encounters some other abnormality,
disconnect the power plug from the
AC wall outlet immediately.

9. The device should be installed in a
location not to exceed the maximum
temperature of 40 degrees Celsius

3 Ubee DVW325 – Safety and Installation Product Insert v1.0

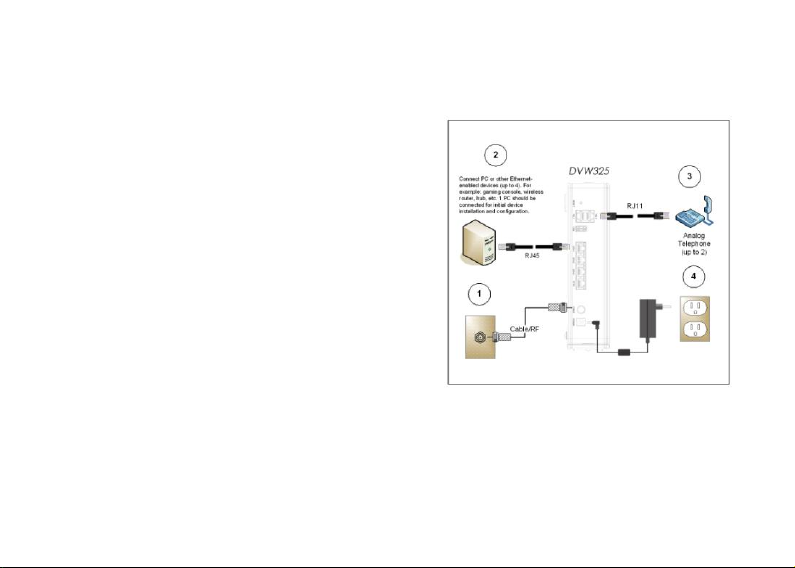

Installation

To install this device, follow the procedures
below and refer to the following page for a
connection diagram.

1. Connect one end of a coaxial cable (not

(104 degrees Fahrenheit).

10. When this device is placed upright
with the aid of the stand, the stand
must be fixed at a 90 degree angle to
the device. Otherwise, the device will
have the risk of tipping over.

included) to the CABLE port on the device.
Connect the other end to a cable splitter or
the cable wall outlet. Be sure not to bend or
over tighten the cables as this may strain
the connector and cause damage. If you
plan to connect the device and a television
to the same cable wall outlet, you must use
a cable line splitter (not included).
