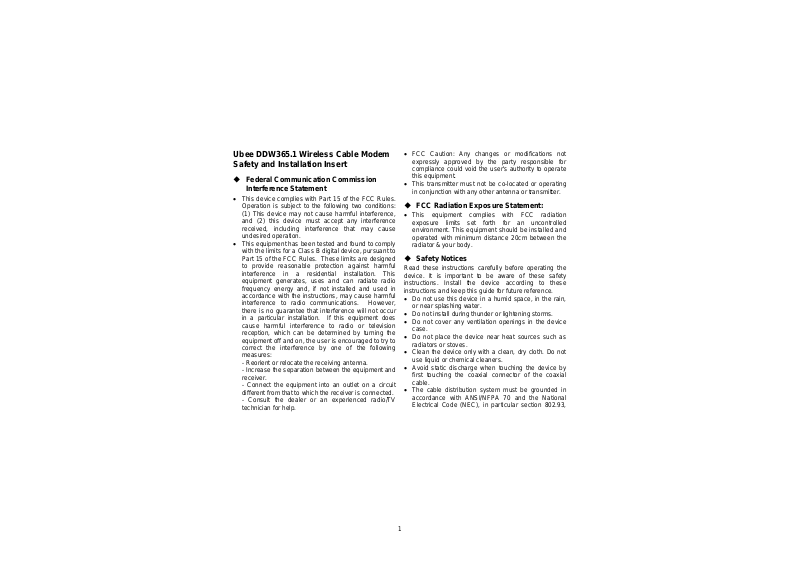

Ubee DDW365.1 Wireless Cable Modem
Safety and Installation Insert

◆ Federal Communication Commission
Interference Statement

• This device compl ies with Pa rt 15 of the FCC Ru les.

Operation is subject to the following two conditions:
(1) This devic e may not cause harmful i nterference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

• This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and
receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV
technician for help.

• FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to operate
this equipment.

• This transmitter must not b e co-located or operati ng
in conjunction with any other antenna or transmitter.

◆ FCC Radiation Exposure Statement:

• This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed and
operated with minimum distance 20cm between the
radiator & your body.

◆ Safety Notices

Read these instructions carefully before operating the
device. It is important to be aware of these safety
instructions. Install the device according to these
instructions and keep this guide for future reference.

• Do not use this device in a humid space, in the rain,
or near splashing water.

• Do not install during thunder or lightening storms.

• Do not cover any ventilation openings in the device

case.

• Do not place the device near heat sources such as
radiators or stoves.

• Cle an the device on ly with a clean, dry cloth. Do not
use liquid or chemical cleaners.

• Avoid static discharge when touching the device by
first touching the coaxial connector of the coaxial
cable.

• The cable distribution system must be grounded in
accordance with ANSI/NFPA 70 and the National
Electrical Code (NEC), in particular section 802.93,

1

Grounding of the Outer Conductive Shield of a
Coaxial Cable.

◆ Installation Instructions

Use the following guidelines to install the device. Place
the device near an outlet so the power supply can be
plugged in directly to the wall outlet without an extension.
Observe the maximum load of the electrical outlet. Use
the power supply provided with the device.

To install the device:

Connect the device according to the following
instructions and Figure 1.

1. Connect one end of the RF coaxial cable (not
included) to the RF port on the device. Connect the
other end to the cable wall outlet or a cable splitter.
(Use a cable splitter, not included, to connect the
device and a television to the same cable wall outlet.)
Be sure not to bend or over tighten the cables as this
may strain the connector and cause damage.

Figure 1 – Connection Diagram

2. Con nect one end of the Ethernet cable (included) to
one of the Ethernet ports (ETH1 – ETH4) on the
device. Connect the other end to the Ethernet port on
a PC. Note: Use Category 5e or 6 cables with RJ45
connectors when connecting Ethernet devices to the
LAN ports. This ensures Gigabit Ethernet speeds
when the computer supports it.

3. Con nect the power supply to the POWER port on the
device. Plug the other end of the power supply into
the AC wall outlet. Important: Use only the power
supply provided with this device.
