Lexis Light
USER’S MANUAL
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 2
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 3
Table of contents:
Page
1. Introduction 4
2. Safety 4
3. System components 5
4. Assembly and Folding Instructions 7
5. Operating your Lexis Light 10
6. Moving and Transporting your Lexis Light 14
7. Helpful Hints for Everyday Use 16
8. General Maintenance and Inspection 17
9. EMI – Electromagnetic interference 19
10. Fault Finding 22
11. Disposal and Recycling 23
12. Technical Data 23
NOTE: Design details may change without notice.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 4
1. INTRODUCTION
The Lexis Light is intended for use by individuals that are able to
walk, but suffer from mild mobility limitations. The user must have sufficient
arm and leg strength to get on and off the Lexis Light alone and to
safely steer under all driving conditions. The Lexis Light is intended
for indoor and restricted outdoor use on pavements or paved footpaths only
during daylight hours. The Lexis Light must not be used as a
transportation vehicle on roads or freeways used by cars. The Lexis Light
does not have lights and reflectors and therefore must not be used in
the dark or in limited visibility conditions.
2. SAFETY
During your initial use of the Lexis Light we recommend caution as
you practice operating the unit in various situations. Keep the speed at a
reduced level until you are comfortable controlling the scooter. Follow the
safety tips and instructions and you will be comfortable maneuvering through
doorways, on and off lifts, over moderate terrain and up and down ramps.
These safety considerations and tips will help you to operate the Lexis Light
safely. The Lexis Light is a powerful electric vehicle these
rules will help you prevent personal injury and damage to your scooter.
1. Read this manual and all labels before operating.
2. Do not carry passengers or exceed the maximum weight capacity.
3. Do not mount or dismount the Lexis Light unless it has come to a
full stop and is turned off.
4. Do not back up on to uneven inclines or surfaces.
5. Always switch the speed selector to low when driving in a confined space.
6. Always reduce speed when turning.
7. Do not operate your scooter when under the influence of alcohol,
medications or drugs that may impair your safety.
8. Always keep your feet on the foot platform when driving.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 5
9. Do not sit on the scooter while being transported in a moving vehicle.
Always fold down and secure your Lexis Light and transfer
yourself to a vehicle seat.
3. SYSTEM COMPONENTS AND DETAILS
3.1. Lexis Light parts – (Figure 1)
1. Battery pack (detachable) 11. Rear wheel
2. Front column (detachable) 12. Folded frame lock/release pin
3. Column lock/release triggers 13. Unfolded frame lock/release pin
4. Controller cover 14. Utility basket (holding capacity
5. Charging socket (Fig. 1A) 20lbs/9kg)
6. Front drive wheels 15. Charger and connecting cables
7. Foot platform (Fig. 1B)
8. Seat shell 16. Control Panel
9. Seat cushions 17. Freewheel switch
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 6
3.2. Control Panel – Figure 2
1. On-Off Switch
2. Hand control lever (right and left)
3. Speed adjusting knob
4. Indicator light (LED)
5. Battery Gauge
6. Hand-grips
3.3. Lexis Light Optional Accessories:
1. Extra battery pack
BELL: If the user requires an audible warning device, a standard bicycle
bell can be attached to the handlebar.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 7
4. ASSEMBLY AND FOLDING INSTRUCTIONS
4.1. Assembling your Lexis Light
Unfolding Rear Frame
Pull on the folded frame lock pin ring
(Fig. 4/1) to release the foot platform
and unfold the frame. Pull the seat
backrest (Fig. 4/2) and lift it to the
upright position. Ensure that the
unfolded frame lock pin secures the
platform in the horizontal position.
Unfolding Front Column
Pull the column lock trigger (Fig. 4/3)
upward towards the handle to release
the tilt lock. Move the drive unit away
from the column (all the way) to open
the quick-release housing. This is the
column “detach” position.
Connecting the Front Column to the
Rear Frame
Position the column in the “detach”
position. Lift the front of the foot
platform and insert connection pin into
the quick-release housing on the drive
unit. This may be done without bending
down by lifting the front of the seat “lip”
while holding the front column hand-
grip as shown in Fig. 5.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 8
Front Column Adjustment (Figure 6)
To adjust the angle of the front
column, pull the column lock trigger
upward. Move the column into the
desired position and release. Push
lightly back and forth on the column to
ensure that it is locked in the desired
position.
1. For driving the Lexis Light
adjust column to the rear-most
position.
2. For getting in and out of the Lexis
Light seat comfortably, the
column may be moved away from
the seat to the entry/exit position
3. For detaching the front column
from the rear frame, adjust the
column fully forward to the detach
position (Fig. 6/3); remove battery
before adjusting the column to the
detach position.
CAUTION: When getting in and out of the Lexis Light seat, step only
on CENTER of foot platform. DO NOT STEP ON SIDE OF
FOOTPLATFORM to avoid tipping the Lexis Light.
NOTE: The rear frame, when folded, can be lifted by the handles (Fig 4/4).
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 9

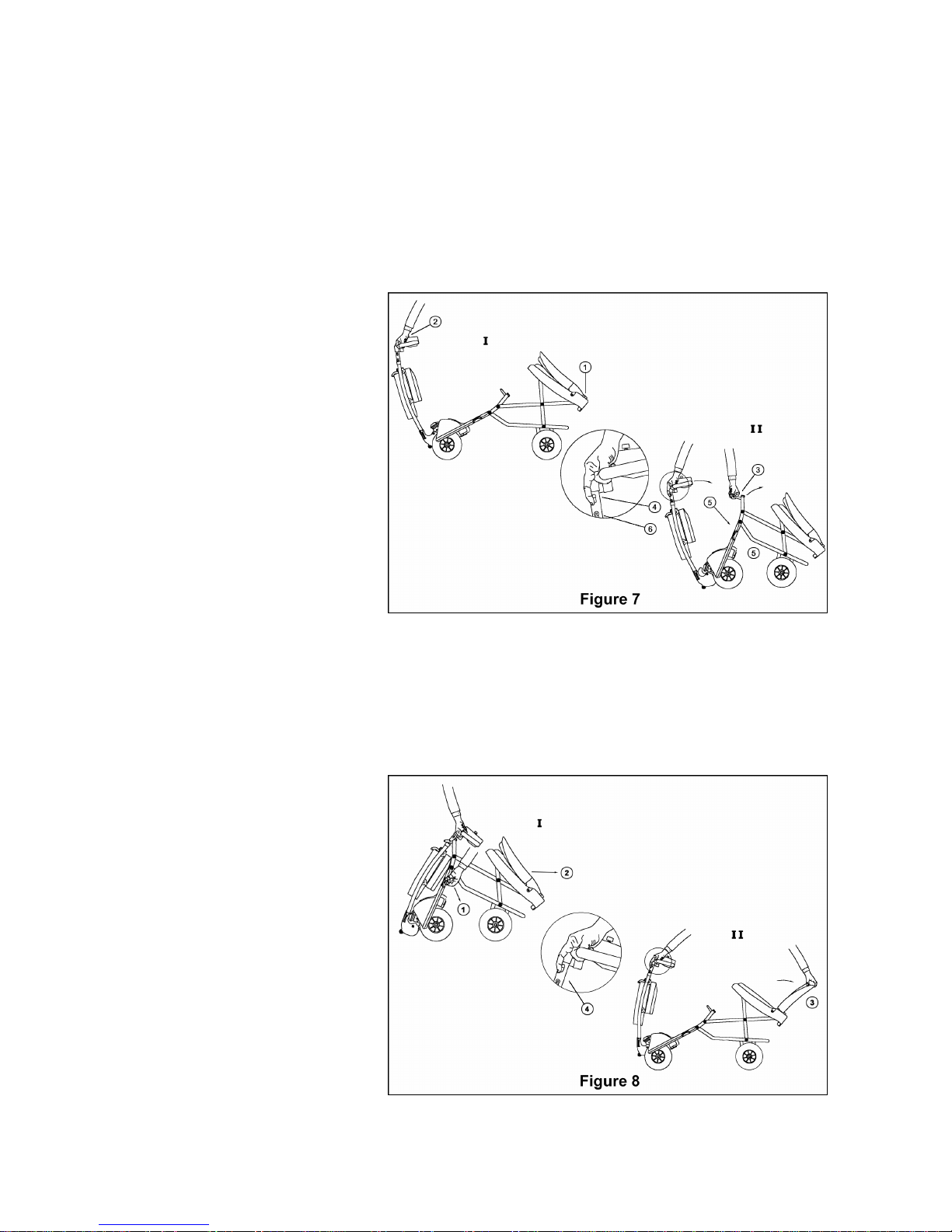

4.2. Folding and Unfolding Your Lexis Light
>Folding the Lexis Light<
Step 1: Fold backrest of seat down (Fig. 7/1)
Step 2: Hold handgrip of front column (Fig. 7/2) in the “Operating” or
“Entry/Exit” position and push forward away from seat to fold platform
upwards.
Step 3: Grasp platform handle (Fig. 7/3) and pull column lock triggers (Fig.
7/4) to fold column
towards the
platform. Fold
together until
folded frame lock
pin (Fig. 7/5) and
column latch (Fig.
7/6) click into place
and hold the Lexis
Light in
folded position.
>Unfolding the Lexis Light<
Step 1: Pull on the frame lock pin ring (Fig. 8/1) to release platform and rest
front wheels on floor.
Step 2: Pull the seat backrest and lift it upright. (Fig. 8/2)
Step 3: Grasp top of seat
backrest (Fig. 8/3)
and pull column
lock triggers (Fig.
8/4) to release
column from
platform. Pull
outwards to unfold
Easy Fold Deluxe
until platform and
column lock into
the operating
position.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 10
5. OPERATING YOUR Lexis Light

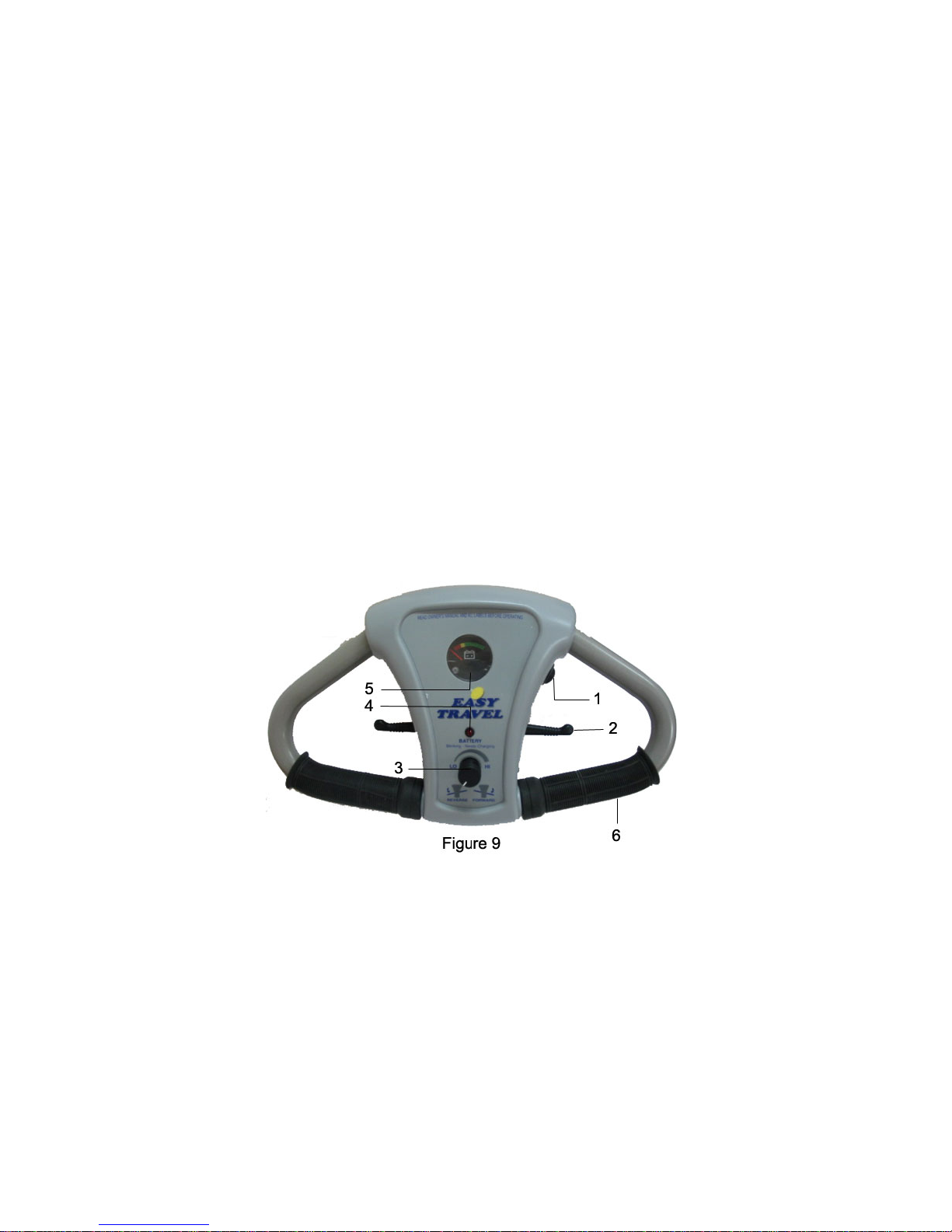

5.1. Control panel operation features
The switch located on the right side of the handle control cover (Fig. 9/1)
will turn the power of the Lexis Light ON or OFF.
NOTE: Turn your Lexis Light switch to the OFF position when not
in use in order to conserve battery power and prevent unintentional
operation.
The top speed may be adjusted by turning the speed-adjusting knob (fig
9/3). By turning the knob to the HI position, your Lexis Light top
speed will be up to 3.7mph/6kph. When the knob is set to the LO position,
the speed will be reduced to a slow pace, ideal for less experienced
drivers and for operating indoors.
5.2. Indicator Light (Fig. 9/4)
Indicator light steady - This indicates that all is well.
Indicator light flashes slowly - The controller is functioning
correctly but batteries should be charged as soon as possible. The
Battery Gauge (Fig. 9/5) shows the charge that is left
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 11
Blinking - Needs Charging
BATTERY
FORWARDREVERSE
SPEED
LO HI
BATTERY
REVERSE FORWARD
SPEED
Blinking - Needs Charging
LO HI
BATTERY
REVERSE FORWARD
SPEED
Blinking - Needs Charging
LO HI
Indicator light flashes – This indicates a possible fault. Please
follow the following procedure:
1. Switch off the Lexis Light
2. Make sure that the Lexis Light is not in the
FREEWHEEL position.
3. Make sure that the charger is not connected to the Lexis Light
4. Make sure that the control lever is in the middle position.
CAUTION: If control lever does not return by itself to the middle
position - do not operate. Contact your service agent.
5.
Switch the Lexis Light on again and check the indicator
light. If it flashes rapidly again, switch off and do not operate.
Contact your service agent!
5.3. Battery Gauge (Fig. 9/5)
The Battery Gauge (Fig. 9/5) shows the battery charge that is left.

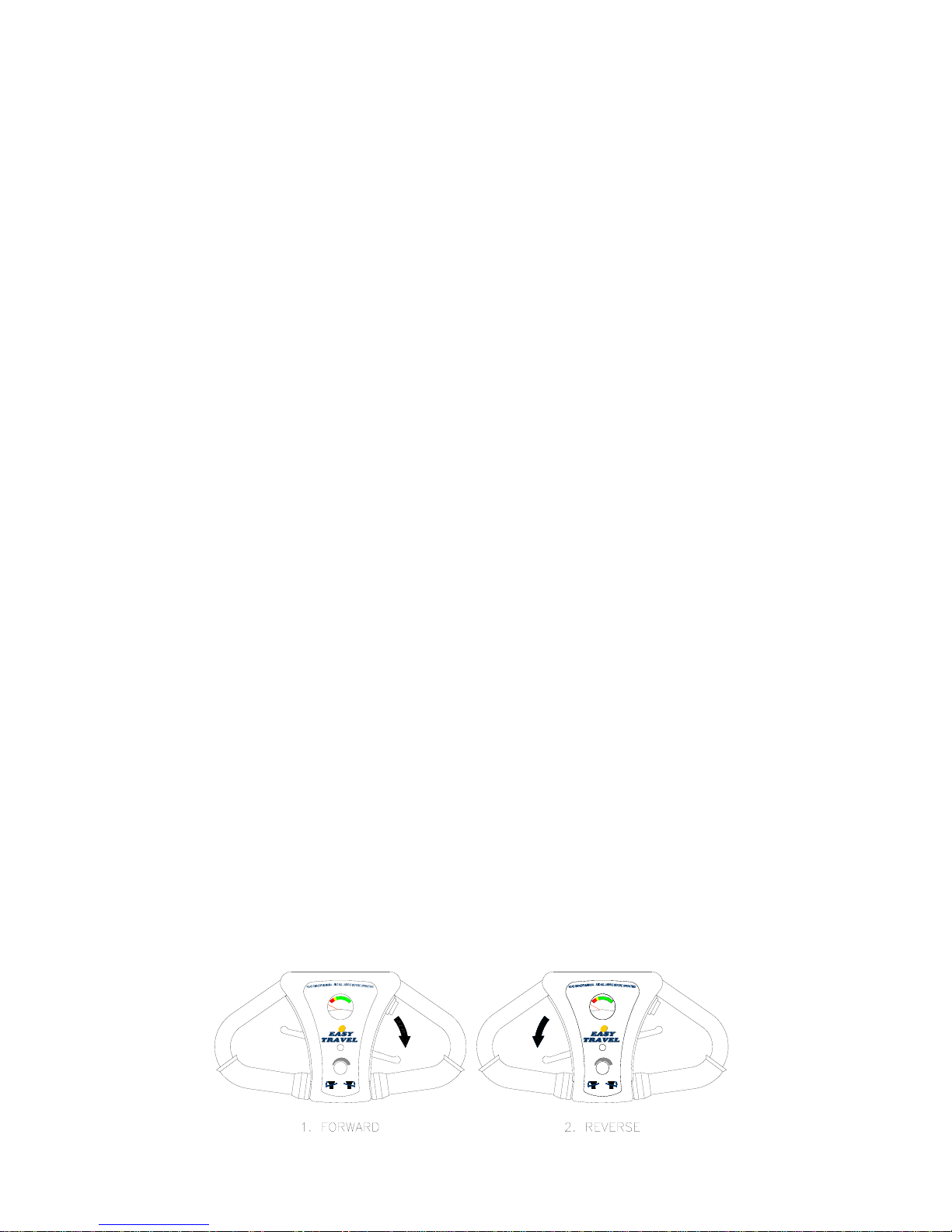

5.4. Driving your Lexis Light
To drive forward, pull the right side of the hand control lever towards you
(Fig. 10/1). You can also move forward by pushing the left side of the
control lever away from you. By releasing the control lever, you will
gradually come to a stop, and the Lexis Light brake will be
applied automatically. To operate in reverse, pull the left side of the hand
control lever towards you (Fig. 10/2).
Figure 10
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 12
5.5.
Safety considerations when driving your Lexis Light
Footpaths and sidewalks appear to be level but are usually slightly
sloped for drainage of rainwater. Counter-steering may be necessary
for overcoming excessive slopes. In such cases the speed should be
reduced as necessary.
When approaching ditches, bumps or similar obstacles – reduce
speed as necessary.
Do not operate Lexis Light in places or on surfaces where a
loss of wheel grip could be hazardous, for example on wet grassy
slopes.

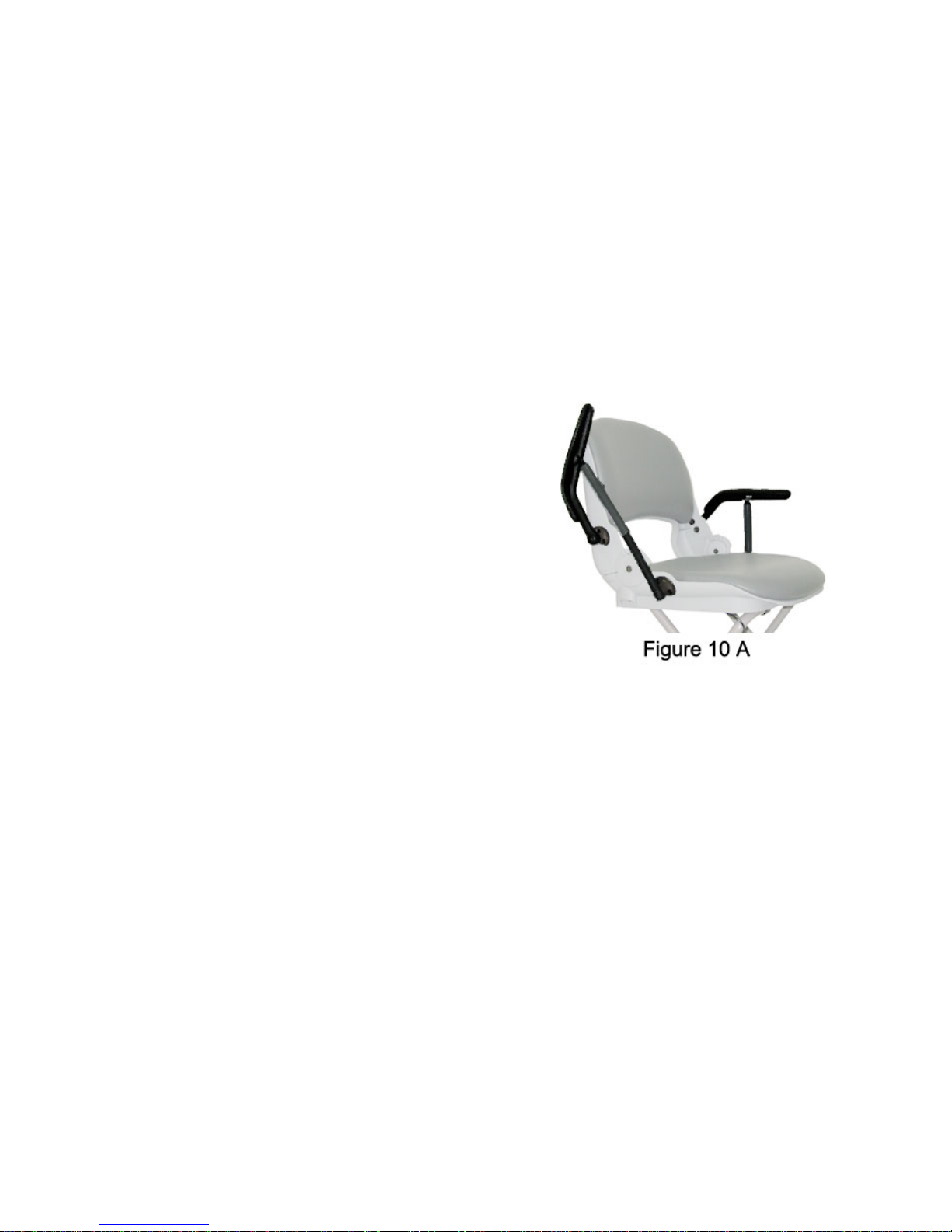

5.6. Armrests (optional)
To enable easier entry to and exit from
your Lexis Light the armrest can
be lifted, see Fig. 10A.
5.7. Batteries
Battery information
The Lexis Light is designed to use sealed lead acid,
maintenance-free, 12V batteries.
Always turn your Lexis Light OFF before removing and installing
batteries. To get the maximum out of your batteries, it is recommended to
fully charge the batteries overnight after every day of use. Reconnecting
the charger when the batteries are partially discharged or fully
charged will not harm them. Extended charging is good for the batteries
and you cannot overcharge them.
Battery range depends on operator weight, terrain and the condition of
batteries used. Charge your batteries daily and/or overnight when the
Easy Fold Deluxe is not in use.
Battery Recharging Instructions
To recharge, turn off Easy Fold Deluxe It is possible to either charge the
battery while connected on the Easy Fold Deluxe (see instruction 1
below) or directly (instruction 2).
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 13
1.
Plug the charging connector into the Lexis Light charging
socket and then connect the charger to an electrical outlet socket.
2. Plug the charging connector in the back of the battery pack and then
connect the charger to an electrical outlet socket.
During charging, the indicator light on the charger will be red. When the
battery is approaching full charge the indicator light will turn green. In
order to achieve the maximum battery capacity and efficiency, it is
advised to charge them overnight, and at least four hours after the
indicator light has turned to green.
Safety Instructions
CAUTION: Failure to follow these instructions may result in personal
injury or property damage.
1. Never smoke or allow an open flame in the vicinity of the batteries.
2. Use the charger for charging lead acid batteries only. It is not
intended to supply power to an extra-low-voltage electrical system or
to charge dry cell batteries.
3. Never charge a frozen battery.
4. Do not operate the charger in a closed-in area or restrict ventilation.
5. Prevent external damage to AC and DC cords. Do not use charger if
cords are damaged.
6. Connect DC charging cord to the Charging Socket before connecting
charger AC supply cord to the electrical outlet, and disconnect the AC
cord from the electrical outlet before disconnecting charge cord.
7. Be extra cautious not to drop a metal object onto the battery case.
8. Remove jewelry.
Battery Storage
Before storage, battery packs should be fully charged, and should
be recharged at least once every three months.
Store batteries indoors in a dry environment.
Storage temperature range: -20ºC (-4ºF) to 40ºC (104ºF)
Charging temperature range: 0ºC (32ºF) to 40ºC (104ºF)
Operating temperature range: -20ºC (-4ºF) to 50ºC (122ºF)
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 14

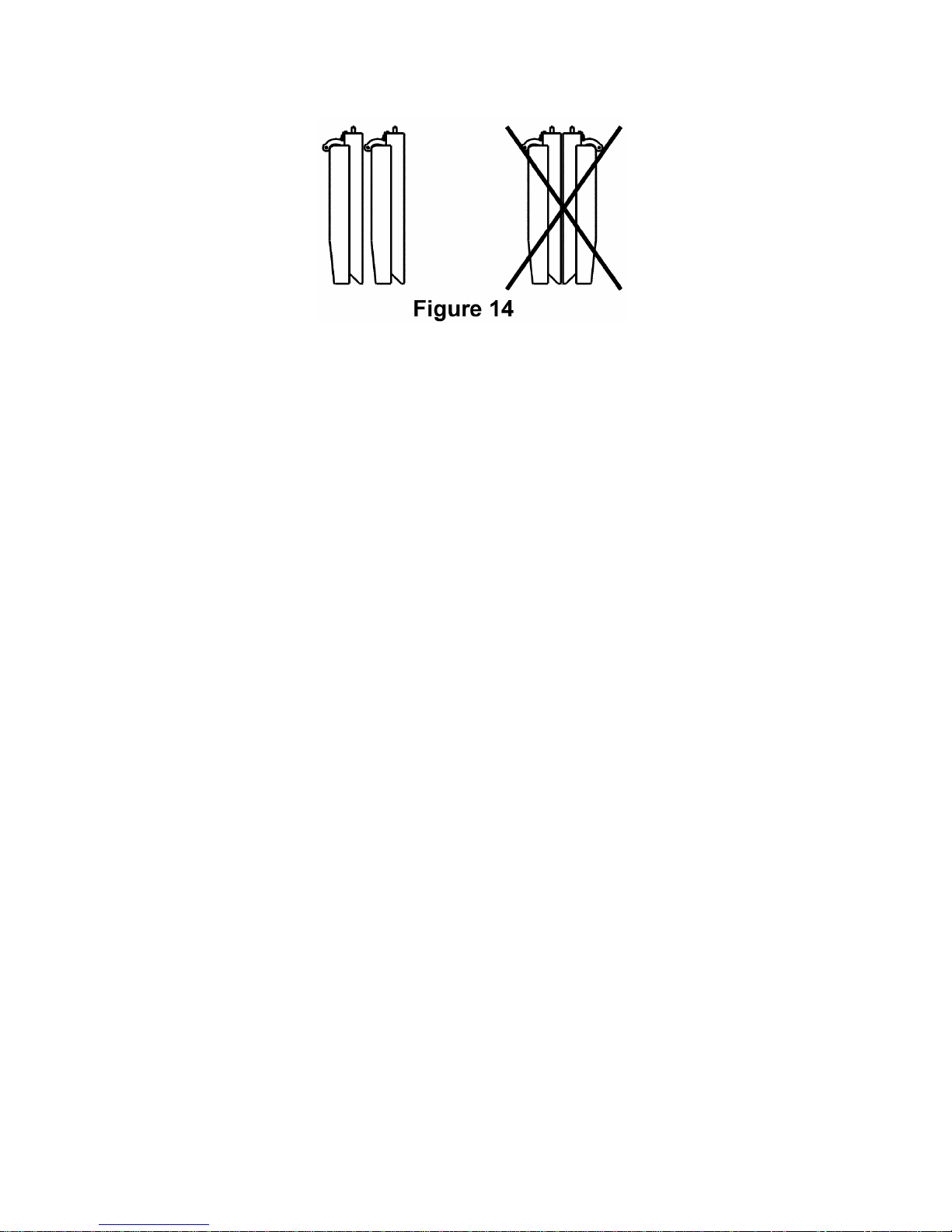

WARNING: Store batteries in the 'correct' position. (See Fig. 14).
Battery Replacement and Disposal
The Easy Fold Deluxe battery pack contains two 12V maintenance-free
batteries. Replacement of the batteries is only permitted to an authorized
dealer.
Battery cells may emit minor acid fumes.
Batteries must be recycled. Disposals of potentially damaged batteries
present hazards of injury from acid leakage and environmental pollution.
NOTE: When removing a battery, always set it on cardboard, newspaper,
or surfaces that cannot be damaged by acid fumes or liquid from the
battery.
6. MOVING AND TRANSPORTING YOUR Lexis Light
6.1. Moving your Lexis Light in freewheel mode when unfolded:
The freewheel switch (Fig. 1/17) is used for releasing the brake and
moving the Lexis Light without operating the motor. Before
activating, make sure your Lexis Light is switched on. Turn
Freewheel switch to the "freewheel" position and push or pull the Lexis
Light manually.
NOTE: The Freewheel mode can only be activated after the battery is in
place and the power switch (Fig.9/1) is turned on. Doing otherwise will
cause a fault situation indicated by rapid flashing of the Indicator light
(Fig. 9/4). See section 4.2.
WARNING: The Freewheel switch should never be engaged on a slope
when Lexis Light is occupied and without assistance to prevent
unintended rolling. If Freewheel is activated on a slope unintentionally
,
turn your Lexis Light power switch OFF
immediately to activate brake.
CAUTION: The seat back must remain in the upright position.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 15

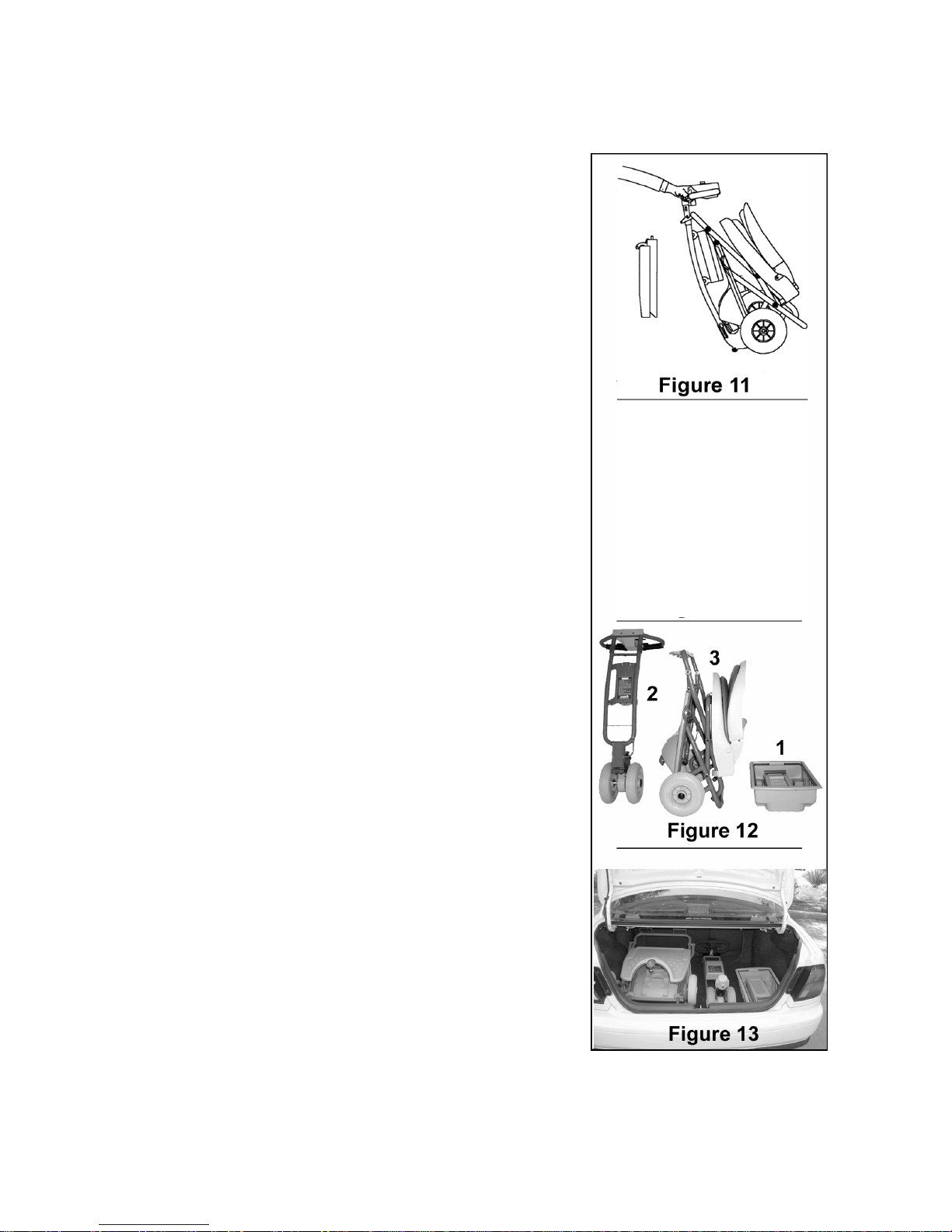

6.2. “Walking” your Lexis Light in the folded position
The folded Lexis Light may be
pulled along suitcase style. The battery
should be carried separately (Fig. 11) or
in the utility basket. See folding
instructions on page 8.
6.3. Transporting your Lexis Light
quickly and easily
Your Lexis Light cian be
disassembled and transported in most
car trunks.
When disassembling for transportation or
storage:
1. Disconnect battery pack and place
in Utility basket (Fig. 12/1)
2. Disconnect front column (Fig. 12/2)
and fold rear frame separately (Fig.
12/3)
3. For storage – set down front column
in a stable position.
4. For transportation, place Lexis Light
components in car trunk as
shown in figure 13
.
Easy Fold Deluxe – ET1B User’s Manual T. Rev. 0512 PM 16
7. HELPFUL HINTS FOR EVERYDAY USE
Before using your Easy Fold Deluxe take the following precautions:
• Ensure that the front column and rear frame are locked together.
• Ensure that the rear frame is locked open.
Speed Controls
Operate your Lexis Light at a reasonable speed for both your
personal safety and others. Do not make sharp turns at high speeds or on
inclines.
Stopping
When hand control lever is released, dynamic braking will gradually bring
your Lexis Light to a stop and the automatic brake will be applied.
Ramps and Inclines
Lean forward and carefully maneuver your Lexis Light up a ramp or
incline. Be aware that not all ramps are constructed according to government
standards. The government standard for wheelchair ramps is 1 inch (2.5 cm.)
rise per foot (30 cm).
Lower the speed setting to a slow speed when descending inclines.
Using an elevator
Backing into an elevator allows you to exit forward. Be sure that the elevator
is level with the floor.
Opening Doors
When a door opens towards you, approach at an angle and just off to one
side. Adjust the speed knob to a low setting. Grasp the doorknob, reverse
and pull the door open. For doors that open away from you, position the front
roller against the door, close to the doorjamb on the doorknob side of the
door. After you release the latch, use the roller to push the door open.
WARNING: Be careful with glass doors to avoid personal injury!
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 17
8. GENERAL MAINTENANCE AND INSPECTIONS
Minimum maintenance should prevent unnecessary repairs.
Keep Your Easy Fold Deluxe Shining
Wipe the seat clean with a damp cloth. Protect the painted parts with a coat
of auto wax.
WARNING: Water or excessive moisture around the controller unit or
electrical connections may cause contamination of electrical circuitry, damage
and malfunction as well as personal injury. Do not leave your Lexis Light
in the rain or in excessively humid locations.
Daily Checks
With the Lexis Light switched off, check that the hand control lever
mechanism returns to the rest position when you push and release. If there is
a problem do not use the Lexis Light and contact your authorized
dealer.
Weekly Checks
1. Throttle test: Pull the throttle to the full speed position and switch ON the
Power switch. The Lexis Light should not move and the LED on
the panel should flash. If the Lexis Light does move – do not use
your Lexis Light. Contact your authorized dealer.
2. Automatic brake and drive test: This test should be carried out on a
level surface with at least 3’ / 1 m. clear space around the Lexis Light
Switch the Lexis Light on.
Move the control lever only slightly in the forward direction until you hear
a “click” when the brake disengages. The Lexis Light should start
to move forward slowly.
Immediately release the throttle. You must be able to hear a “click” when
the brake engages back, within a few seconds.
Repeat the test in the reverse direction.
If you do not hear the brake operating, or the Lexis Light does not
move slowly in the expected direction – do not use your Lexis Light.
Contact your authorized dealer.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 18
Monthly Care
Clean upholstery, plastic and metal parts with a mild surface cleaner.
CAUTION: Keep cleaning solvents away from electrical wires and connectors.
Half-Year Care
1. Apply a lubricant/cleaner (such as WD40 or similar) these locations:
Column tilt lock pin and housing.
Unfolded lock pin and housing.
Battery pack lock pins.
2. Lightly apply Vaseline or similar lubricant to battery contact pins and
springs on front column.
3. Check for tire wear.

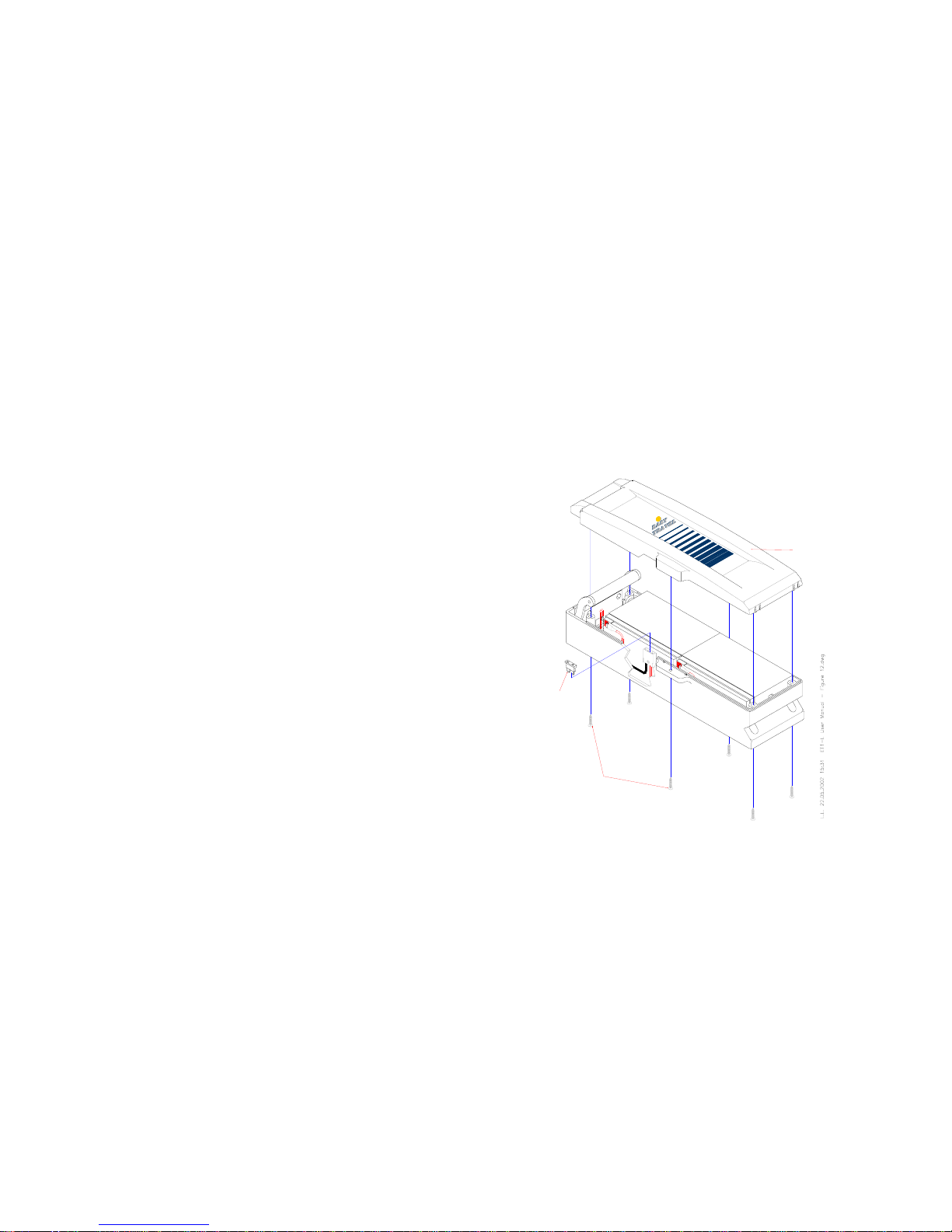

Fuse Replacement Instructions
A fuse protects the wiring and battery in the
event of a short circuit. If your Lexis Light
stops abruptly, check the fuse. If it
has 'blown', check for overloads or short
circuits.
The fuse is located inside the battery case.
To replace the fuse, open screws (Fig. 15/1)
and remove cover (Fig. 15/2). Remove the
fuse (Fig. 15/3) from its socket. If 'blown',
replace with the same style and size
(automotive “blade” type – 20 A). There is a
spare fuse attached to the battery-pack
cover.
WARNING: Do not attempt to repair or service the Lexis Light or any
of its components, as this will void your warranty.
SERVICE AND REPAIR: CONTACT YOUR AUTHORIZED DEALER.
Figure 15
1
3
2
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 19
9. EMI – ELECTROMAGNETIC INTERFERENCE
CAUTION: It is important that you read this information regarding the
possible effects of electromagnetic interference on your Easy Fold Deluxe.
Electromagnetic Interference (EMI) From Radio Wave Sources
Motorized scooters may be susceptible to electromagnetic interference (EMI),
which is interfering electromagnetic energy (EM) emitted from sources such
as radio stations, TV stations, amateur radio (HAM) transmitters, two-way
radios, and cellular phones. The interference (from radio wave sources) can
cause scooters to release their brakes, come to a sudden stop, or move in an
uncontrolled manner. It can also permanently damage a scooter’s control
system. The intensity of the interfering EM energy can be measured in volts
per motor (V/m). Each Motorized scooter can resist EMI up to a certain
intensity. This is called its “immunity level". The higher the immunity level, the
greater the protection. The FDA has stated that all newly manufactured
electric mobility vehicle models should have a resistance of at least 20 V/m,
which would provide a reasonable degree of protection from the more
common sources of radiated EMI.
Your Lexis Light as shipped, with no further modification, has an
immunity level of 20 V/m. This immunity was tested with the inclusion of these
accessories: a utility basket with a spare battery-pack and the charger unit
carried inside it.
There are a number of sources of relatively intense electromagnetic
fields in the everyday environment. Some of these sources are obvious
and easy to avoid. Others are not apparent and exposure is
unavoidable. However, we believe that by following the warnings listed
below, your risk to EMI will be minimized.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 20
The sources of radiated EMI can be broadly classified into three types:
1) Hand-held portable transceivers (transmitters-receivers) with the
antenna mounted directly on the transmitting unit. Examples include
citizens band (CB) radios, "walkie-talkies”, security, fire, and police
transceivers, cellular telephones, and other personal communication
devices.
**NOTE: Some cellular telephones and similar devices transmit signals
while they are ON, even when not being used;
2) Medium-range mobile transceivers, such as those used in police cars,
fire trucks, ambulances, and taxis. These usually have the antenna
mounted on the outside of the vehicle; and
3) Long-range transmitters and transceivers, such as commercial
broadcast transmitters (radio and TV broadcast antenna towers) and
amateur (HAM) radios.
NOTE: Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players, and
small appliances, such as electric shavers and hair dryers, so far as we know,
are not likely to cause EMI problems to motorized scooters.
Motorized scooter Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to
the transmitting antenna (source), the EM fields from hand-held radio wave
sources (transceivers) are of special concern. It is possible to unintentionally
bring high levels of EM energy very close to the motorized scooter’s control
system while using these devices. This can affect the scooter’s movement
and braking. Therefore, the warnings listed below are recommended to
prevent possible interference with the control system of your Lexis Light.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 21
WARNINGS
Electromagnetic interference (EMI) from sources such as radio and TV
stations, amateur radio (HAM) transmitters, two-way radios, and cellular
phones can affect motorized scooters. Following the warnings listed below
should reduce the chance of unintended brake release or powered
wheelchair movement, which could result in serious injury.
1) Do not operate hand-held transceivers (transmitters-receivers), such as
citizens band (CB) radios, or turn ON personal communication devices,
such an cellular phones, while your Lexis Light is turned ON;
2) Be aware of nearby transmitters, such as radio or TV stations, and try to
avoid coming close to them;
3) If unintended movement or brake release occurs, turn your Lexis Light
power switch OFF as soon as it is safe to do so;
4) Be aware that adding accessories or components, or modifying your
Lexis Light, may make it more susceptible to EMI (Note: There is
no easy way to evaluate their effect on the overall immunity of your Lexis
Light);
5) Report all incidents of unintended movement or brake release to your
Authorized Lexis Light dealer or service center, and note whether
there is a source of EMI nearby.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 22
10. FAULT FINDING
Hereunder are some types of disorders, which can usually be repaired rather
simply. If these following measures are unsuccessful, contact your authorized
dealer!
Problem Check Point
The driving of the wheelchair is
too slow or insufficient, the status
indicator lamp flashes slowly
Batteries are exhausted and need to be
recharged
1 flash
The battery needs charging or there is a
bad connection to the battery. Check the
connections to the battery or charge
batteries.
2 flashes
There is a bad connection to the motor.
Check all connections between the
motor and the controller.
3 flashes
The motor has a short circuit to a battery
connection.
4 flashes
Freewheel is engaged.
5 flashes
Not used.
6 flashes
The controller is being inhibited from
driving; this may be because the battery
charger is connected.
7 flashes
A throttle fault is indicated. Make sure
that the throttle is in the rest position
before switching on the scooter
8 flashes
A controller fault is indicated. Make sure
the controller connections are secure.
9 flashes
The parking brakes have a bad
connection. Check the parking brake
and motor connections. Make sure the
controller connections are secure.
The Lexis Light
does not
function,
the
Battery/Status
indicator
flashes
rapidly.
Count
the number
of flashes:
10 flashes
An excessive voltage has been applied
to the controller. This is usually caused
by a poor battery connection. Check the
battery packs and controller
connections.
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 23
11. DISPOSAL AND RECYCLING
The packing material must be separated to plastic and paper/cardboard
components and submitted to authorized recycling locations.
The Lexis Light device consists of electronic components,
cables, plastic parts, steel and aluminium frame and adapter parts. Do
not discard of any components to normal garbage facilities. When Lexis
Light is no longer operational, it is to be dismantled and
separated into above material groups and submitted to authorized
recycling facilities.
12. TECHNICAL DATA
Speed Continuously adjustable, up to
4.8 mph
Power Supply 24 V from Two rechargeable maintenance-
free sealed Lead/acid batteries
Standard size: 12V – 7.2 Ah
Jumbo size: 12V-12 Ah
Charging time 7 – 10 hours
Max. admissible slope 6 o (10 %)
Max. negotiable curb
height
2” / 5 cm
Range* Standard pack 4 - 5 Miles
Jumbo pack 6.5 – 10 Miles
Tires Flat-free PU 200 x 50
Dimensions: 22”X41”X34” / 57 X 104 X 86 cm
Weights:
Rear frame 28 Lb / 12.9 Kg
Front column (without
battery)
18 Lb / 8.6 Kg
Battery Pack Standard: 14 Lb. / 6.5 Kg
Jumbo: 20 Lb. / 9.2 Kg.
Total weight 67 Lb. / 28 Kg
*The actual range depends on the operation conditions and the load
Lexis Light – ET1B User’s Manual T. Rev. 0512 PM 24
WARRANTY
The warranty period for the Lexis Light is twelve months and covers
faulty materials and workmanship (consumables not covered: tyres,
upholstery, lamp bulbs, plastic coverings and batteries). Worn parts damaged
as a result of excessive loading, improper handling, intentional damage or
unauthorized maintenance or modification are not covered by the warranty.
For safety and for warranty assurance reasons, any modifications and repair
of the Lexis Light or its components must be performed exclusively by
authorized personnel and exclusively with original spare parts.
14986 Technology Drive
Shelby Twp MI. 48315
Toll free: (866) 465-4387
Tel.: (586) 247-8900
Fax: (586) 532 8279
Loading...
