Page 1

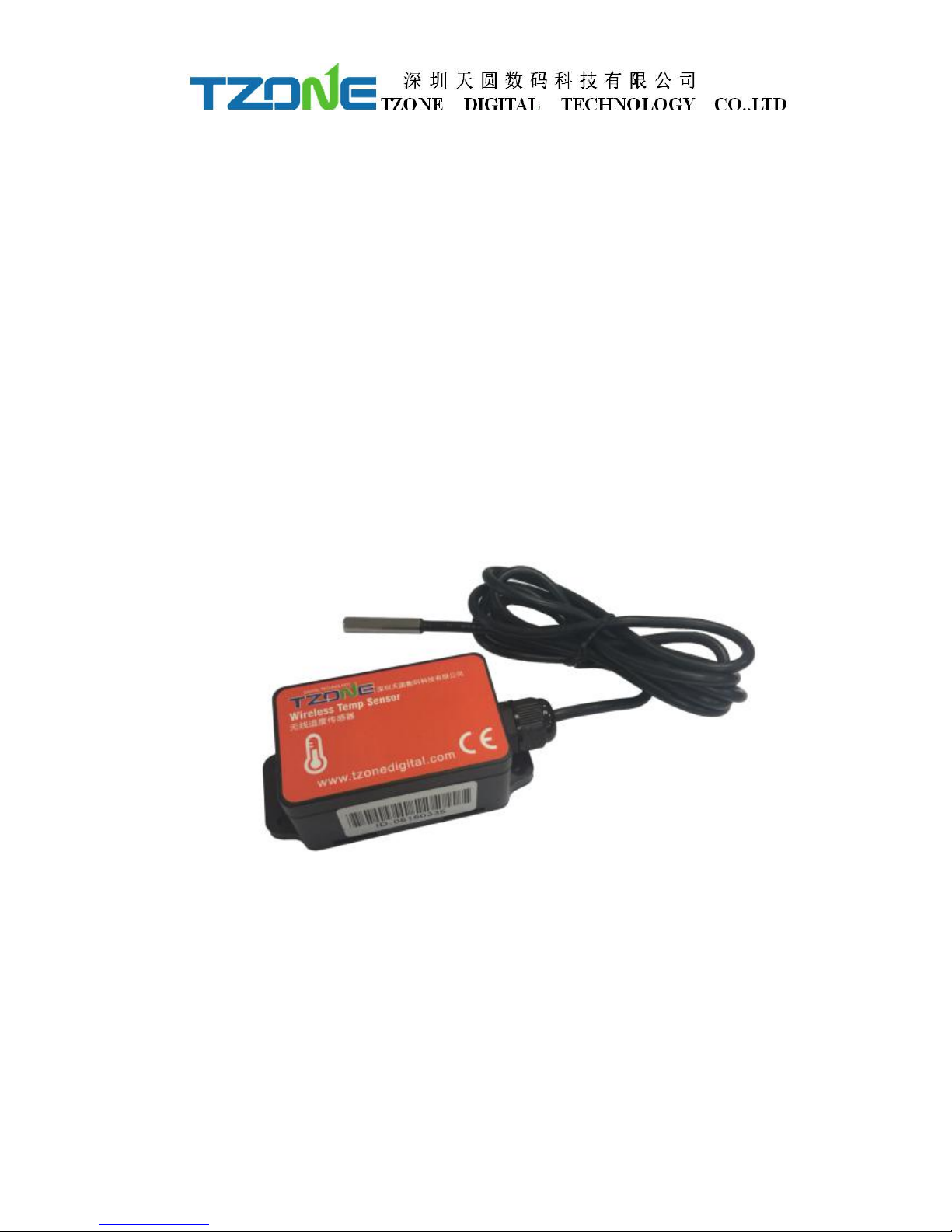

TZ-Tag06
---User manual
Page 2
1 Description
TZ-Tag06 temperature transmitter is a new designed high-quality wireless acquisition
terminal that we developed. Taking a full consideration of bad environment and
applying situation in the field, solved successfully some kind of shortage that existed
in similar products. With long data transmission distance (800m), small volume
(63mm*38mm*31mm) and long life battery (3 years’ battery life if every 60s data
collecting), it is already verified in many key projects.
Temperature value collected termly by the transmitter will be sent out through the em
bedded communication module 433Mhz. The receiver will parse out the ambient temp
erature, voltage of the transmitter battery and so on once received the single. Every Ta
g06 has a one and only ID on factory setting. Combine with our RD01/RD04/RD05/A
VL11/AV19, it is widely used in the occasion that needs temperature detecting
2 Applications
1. Cabinet freezer, refrigerator, ect. ；
2. Greenhouse；
3. Assembly line, warehouse, workshop ect ;
4. Cold chain logistics；
5. Biochemical laboratory, medicine warehouse , etc；
3 Features
1. Use the 18B20 temperature sensor, with strong anti-interference ability, high
precision and fast response
2. 433Mhz adapts the new generated wireless sensor from American Silicon Labs,
with strong sending power, long transmission distance, powerful penetrability and
low attenuation. Beside, it adopts the frequency hopping and time sharing
technology to make sure the reliability of the communication.
3. The data collecting time could be set by our customers from 1 second to 1 hour.
Suggest every 30s in most occasion.
Page 3
4. The transmitter supports 3 working module: Normal working module,low voltage
module and temperature overrun module. To better track the ambient temperature
change, the data collecting time is different in each module.
5. 1200mAh/3.6V battery built-in, long time standby and stable performance. The
electricity is less than 1uA when the sleep mode.
4 Specifications
Table 4.1 TZ-Tag data sheet
Item
Parameter
Built-in Battery
1200mAh /3.6V (unrechargeable)
Measure medium
Air
Sensor detecting range
Temperature -55 ~ +125℃
Accuracy
Temperature ±0.3℃
Operating Range
-20℃~+60
℃ ；
0%RH ~ 85%RH(no
condensation)
RF Frequency
433Mhz
Modulation
GFSK
Max. distance in open wild
800 meters
Transmit interval
1 second to 1 hours，adjustable
Low voltage alert
support
Temperature alert
support
Standby current
<1uA
IP level
IP66
Battery life
3 years ( every 60 transmit interval )
N.W
80g
Dimension
63mm*38mm*31mm
Page 4
5 Operating Model
Operating Model
Operating Condition
Normal Model
Transmitter acquires temperature according to the
settled acquisition interval and then start the module 433
and send out.
Low-voltage Model
Transmitter Voltage lower than 2.2V will acquire and
send data per hour.
At this point the power supply of transmitter will almost
run out and users should change the machine in time
Temperature alert module
Transmitter can acquire and send the data with a little
faster interval to facilitate users to record the change of
environmental temperature after environmental
temperature exceeds the range settled by users
Note: Priority: Temperature alert module＞ Low-voltage Model ＞ Normal Model
6 Installation Method
Tool：Cable tie or HOOk&LOOP
（1）Cable：Fix TAG with an object through the cable tie.
Page 5

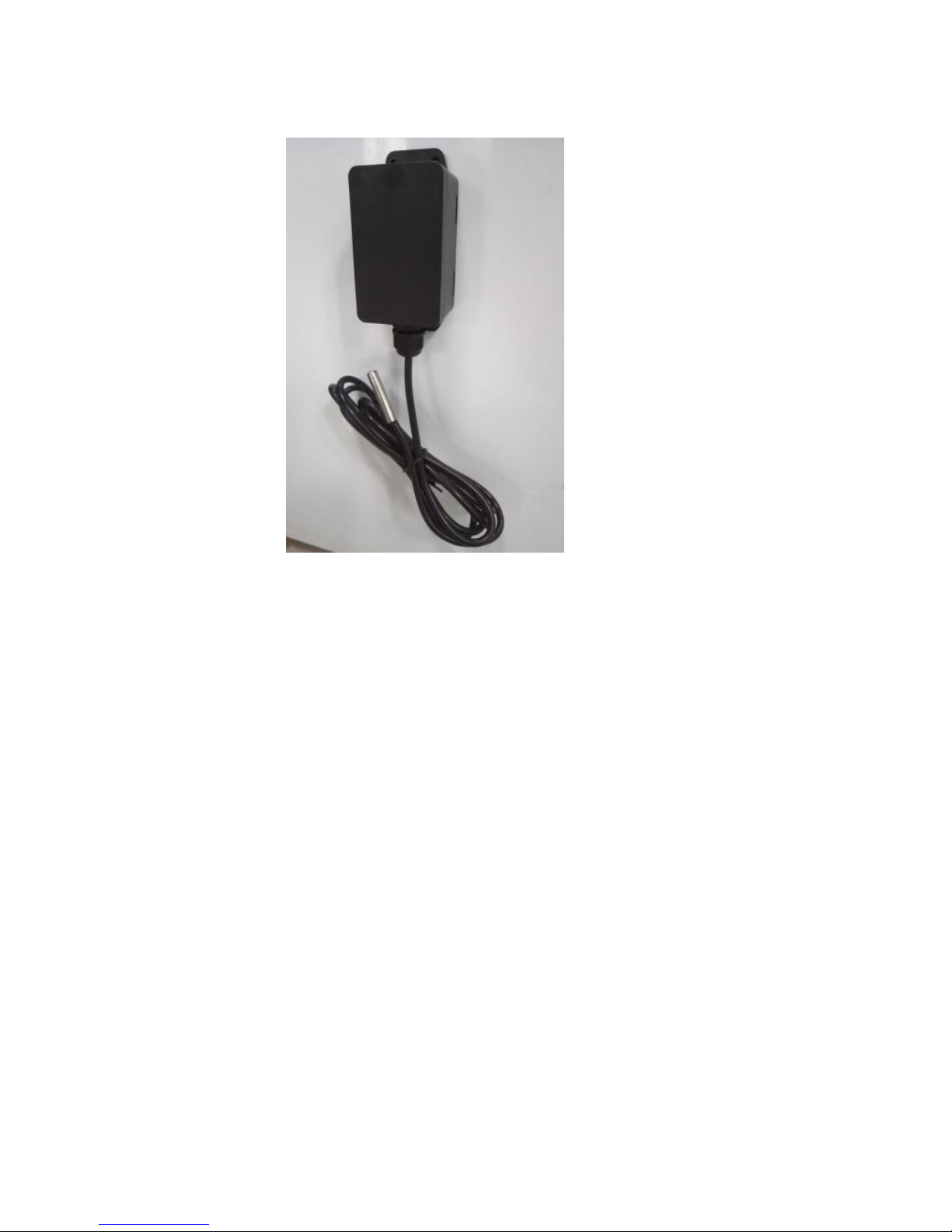

（2）
HOOk&LOOP：Fix the TAG with an object through the HOOk&LOOP
7 Compatible application
TZ-Tag06 as the send-port of data needs to be used with the machine of
RD01\RD04\RD05\AVL11\AVL19 and so on from our company. Customers can
check the user's manual of these machines or contact our staff.
8 Notes
1. Keep away from metal object and do not place it in sealed and narrow metal space；
2. Keep away from water and corrosive items；
3. Keep the transmitter and the receiver visible to ensure the accuracy of data
receiving when it is used；
4. Please inform us the operating environment and standby requirements and others
before the order. Then we will configure and instruct installation according to your
provided information.
