Tysso POSpark 5700 Series, POSpark POS-5717, POSpark POS-5715, POSpark POS-5712 User Manual

User’s Manual

POSpark 5700 Series

General Information

ABOUT THIS MANUAL

The purpose of this user’s manual is to provide general information on TYSSO POSpark Series
POS terminal and to show the users how to configure the hardware-related configurations. The
information in this manual is subject to change without notice due to rapid improvement on IT
technology. The users can get the most up to date information from our web sites:

http://www.fametech.com.tw

DISCLAIMER

This manual has been examined for accuracy. While precaution has been taken in the
preparation of this manual, neither the manufacturer takes no liability for errors or omissions
nor assume any responsibility for damage(s) incurred directly or indirectly from errors,
omissions, or discrepancies of this manual. IN NO EVENT WILL THE VENDOR BE
LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT OR
DOCUMENTATION, EVEN IF THE POSSIBILITY OF SUCH DAMAGES HAS BEEN
ADVISED. IN PARTICULAR, THE VENDOR SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT,
INCLUDING THE COSTS OF REPAIRING, REPLACING, OR RECOVERING SUCH
HARDWARE, SOFTWARE OR DATA.

WARNING

The terminal has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interface in a residential installation. This equipment can generate
and radiate radio frequency energy and, if not installed and used according to the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interface will not occur under particular installation. If this equipment does cause harmful
interference to radio or television reception, which is found by turning the equipment off and
on, the user is encouraged to try to correct the interface by one or more of the following
measures:

z Reorient or relocate the receiving antenna
z Increase the distance between the equipment or device
z Connect the equipment to an outlet other than the receiver’s

ii

z Consult a dealer or an experienced radio/TV technician for assistance

IMPORTANT NOTICE

CAUTION

The system is provided with a battery-powered Real-Time Clock circuit. There is a danger of
exposing and personal injury if the battery is incorrectly replaced or mistreated. Do not
attempt to disassemble the battery, immerse it in the water or expose it to fire.

WARRANTY LIMITS

If the POSpark series machine is disassembled by any person other than the authorized
technicians, the warranty will be terminated. The users should consult his/her dealer for any
technical problems. Warranty does not cover any damage caused by improper use.

TRADE MARKS AND SERVICE MARKS

TYSSO is a registered trademark of FAMETECH INC.
Other brand and product names are trademarks and registered trademarks and service marks of
their respective owners.

iii

iv

IMPORTANT SAFETY INFORMATION

z Read all these instructions carefully.
z Use only parts, especially power adapter, recommended by the manufacturer; unapproved

parts may be hazardous.

z Before plugging the power cord into the AC inlet of the power supply unit, make sure the

voltage (either 110V or 220V) is properly applied to the power switch. Improper voltage
will cause damage to the power supply unit.

z Power off the system and remove the power adapter while cleaning the system.
z Before powering on the system, check if all the peripherals are firmly installed.
z Do not use the system near water, such as a bathtub, a washbowl, a kitchen sink, a laundry

tub, and a swimming pool. Keep the system away from direct sunlight, a heating or a
radiator.

z Do not place the system on an unstable cart, stand or table. If the machine falls, it may

injure a person or cause serious damage to the appliance.

z The system is equipped with a three-wire grounded plug with a third (grounding) pin. This

is a safety feature. If your outlet does not accommodate the three-wire plug, have an
electrician install a correct outlet, or use an adapter to ground the appliance safely. Do not
leave out the safety purpose of the grounded plug.

z Do not allow anything to rest on the power cord. Do not locate the system where people

may walk on the cord.

z Do not make the power outlet and extension cords overload. Overload can result in fire or

electric shock.

z Do not push any object into the computer cabinet. Dangerous voltage points may be

touched and the parts may be shorted out resulting in fire or electric shock.

z Do not attempt to service the system on your own. Opening or removing cover can expose

you to dangerous voltage or other hazards.

z Power off the system before installing or removing non-PNP (plug and play) devices.
z If any of the following situations occurs, unplug the systems from the power outlet

immediately and consult with a qualified service person:

1. The power cord or plug is damaged or frayed.

2. Liquid is spilled into the system.

3. The system is dropped or the cabinet is damaged.

z When the system is not in use, cover the system and store it with care.

Version 1.0

© Copyright Fametech Inc. (TYSSO) 2008

Contents

General Information..................................................................................................................ii

ABOUT THIS MANUAL....................................................................................................ii

DISCLAIMER .....................................................................................................................ii

WARNING ...........................................................................................................................ii

IMPORTANT NOTICE ......................................................................................................iii

IMPORTANT SAFETY INFORMATION..........................................................................iv

1. Introduction............................................................................................................................2

1.1 Unpacking ...................................................................................................................... 2

1.2 System Overview...........................................................................................................2

1.3 I/O Ports ......................................................................................................................... 5

1.4 Specifications.................................................................................................................5

2. Components & Peripherals Installation...............................................................................7

2.1 Replace Hard Disk .........................................................................................................7

2.2 Install Second Display....................................................................................................9

2.3 Install Pole-type Customer Display..............................................................................10

3. Operating System................................................................................................................. 11

3.1 Install OS by USB CD-ROM....................................................................................... 11

3.2 Adjust CPU Fan Mode and Brightness........................................................................12

4. Drivers Installation ..............................................................................................................15

4.1 Install Chipset Driver...................................................................................................15

4.2 Install Audio Driver......................................................................................................16

4.3 Install LAN Driver.......................................................................................................17

4.4 Install Touch Screen Driver.......................................................................................... 18

5. Peripherals Testing...............................................................................................................22

5.1 Magnetic Stripe Card Reader....................................................................................... 22

5.2 Customer Display.........................................................................................................23

5.3 Cash Drawer.................................................................................................................24

6. Jumper Settings & Connectors........................................................................................... 27

6.1 Jumper Settings............................................................................................................ 27

6.2 Connectors....................................................................................................................28

1

1. Introduction

1.1 Unpacking

The contents may vary with different options. If there’s any physical damage or missing parts,
please contact your supplier immediately. Please keep all packing materials in case you need
to ship back the device for service.

z POSpark main system

- HDD (2.5”, pre-installed) / Compact Flash (CF, pre-installed) / Disk on Module

(DOM, pre-installed)

- SODIMM DDR266/333, 256MB/512MB/1GB (Pre-installed)

- CPU Celeron 1.0GHz (Mounted)

z Magnetic stripe card reader (Option)
z Customer display (Option)
z Power adapter
z AC power cord
z Driver and utility CD

1.2 System Overview

z Front View

2

z Rear View

z Bottom View

z Side View

3

Options:

4

1.3 I/O Ports

Port Description
USB

Connect devices with USB connectors. There are 2 internal USB ports
reserved and one external port is for connecting touch panel.

Mouse

PS/2 Mouse Connector

KB

PS/2 Keyboard Connector

PWR IN

A 4 din rounded-power-jack for connecting an AC to DC +12V power adapter.

POWERED COM

COM 1/2/4 can provide RI, +5V, or +12V on pin 9 by switching the power
COM jumpers. Refer to the PWR COM Jumper Setting figure below.

Extend KB

8-pin pitch 2.0 for keyboard.

AUDIO OUT

Earphone or speaker connector with 2 internal speakers.

DC12V OUT

12VDC jack for customer display (VFD).

Serial

4 x DB9 RS-232. COM 1/2/4: pin 9 RI/5V/12V selected by jumper.

CASH DRAWER

RJ-11 connector with DC +12V.

LAN

RJ-45 connector with link/ack integrates speed LED and supports
wake-from-LAN function.

CF

A slot for inserting CF card

VGA

A 15 pin D-type connector serves to transmit VGA data to the monitor.

1.4 Specifications

1 2 4

RI (Default) Pin 5-6 Pin 11-12 Pin 17-18

5 V Pin 3-4 Pin 9-10 Pin 15-16

12 V Pin 1-2 Pin 7-8 Pin 13-14

POWER COM Jumper Setting

COM

Vota

g

e

5

6

Model POS-5717 POS-5715 POS-5712

Main Board

CPU Intel Celeron M 1.0GHz BGA Type
Core Logic Intel 852GM + ICH4

System Memory 200-pin SODIMM, DDR266/333, 256MB/512MB/1GB
OS Support Win2000, NT, Win XP Pro, WinCE, WEPOS

Display

TFT LCD 17” 15” 12.1”
Brightness 300 nits 250 nits 180 or 400 nits

Resolution 1280 x 1024 Pixel 1024 x 768 Pixel
T ouch Screen 5 Wire Resist ive Type
Tilting Angle 15 ~ 80 Degrees

Storage Device

HDD 1 x 2.5” EIDE or SATA Types
Compact Flash 1 x Slot Type II, Non-removable
Disk On Module DOM 44P 180 degree vertical on IDE Slot

I/O Ports

Serial

4 x RS-232 DB-9. COM1/2/4: Pin 9 RI/5/12V Selected by Jumper

USB

3 x USB2.0 External, 1 x USB2.0 External for Touch Panel,

2 x USB2.0 Internal Reserved

PS/2 Mouse

1 x 6-pin Mini DIN

PS/2 Key Board

1 x 6-pin Mini DIN

Extend KB

1 x 8-pin Pitch 2.0

LAN

1 x RJ45, 10/100 Base-T

VGA

1 x DB-15, Female

DC Out

1 x 12VDC Jack for Customer Display

Cash Drawer

1 x RJ11 , 12VDC

Audio Out 1 x Audio Jac k wit h I nte rnal Speaker 2W x 2

Others

Power Input

Power Adapter 12VDC 90W, 4-pin Connector with Lock

Color

Black or Silver Optioned for Front Panel Cover

Compliance

FCC / CE / WEEE / RoHS

Weight

7 Kg 6.5 Kg 6 Kg

Dimension (W x D x H : mm)

415 x 320 x 410 367 x 320 x 360 345 x 320 x 340

Operating T emperature

5 ℃ ~ 40 ℃

Storage Temperature

-20°C ~ 60°C

Storage Humidity

20% - 80% RH, Non-condensing

Optional Accessories

Customer Display

VFD / LCD, RS232 I/F

MSR

3 Tracks, KB o r RS 23 2 I/ F

2nd Display

10.4” / 12.1” / 15” LCD VGA I/F

2. Components & Peripherals Installation

2.1 Replace Hard Disk

a. Lift the cover from the upper side edges as

marked by the circles and push it down to
remove it.

b. Lossen the screw x 4 on the VESA bracket.

c. Turn over the system to loosen the screw x

2 on the back of the panel.

7

d. Remove the panel from the VESA bracket.

e. Loosen the screw on the cover of the hard

disk bay to remove the cover.

f. Loosen the spacer.

g. Hold the hard disk and take it out in the

direction. Then unplug it from the
connector.

8

h. Loosen the 4 screws to remove the hard

disk from the bracket. Then install the new
hard disk following the above steps with
the order reversed.

2.2 Install Second Display

a. Hold the second display and turn the

system over carefully. Pass the cord
through the holes in the directions of the
arrows. Plug the cable into the VGA port
and connect the extension power cable.

b. Tighten the bundled screws specified for

the stand of the second display to fix it to
place.

9

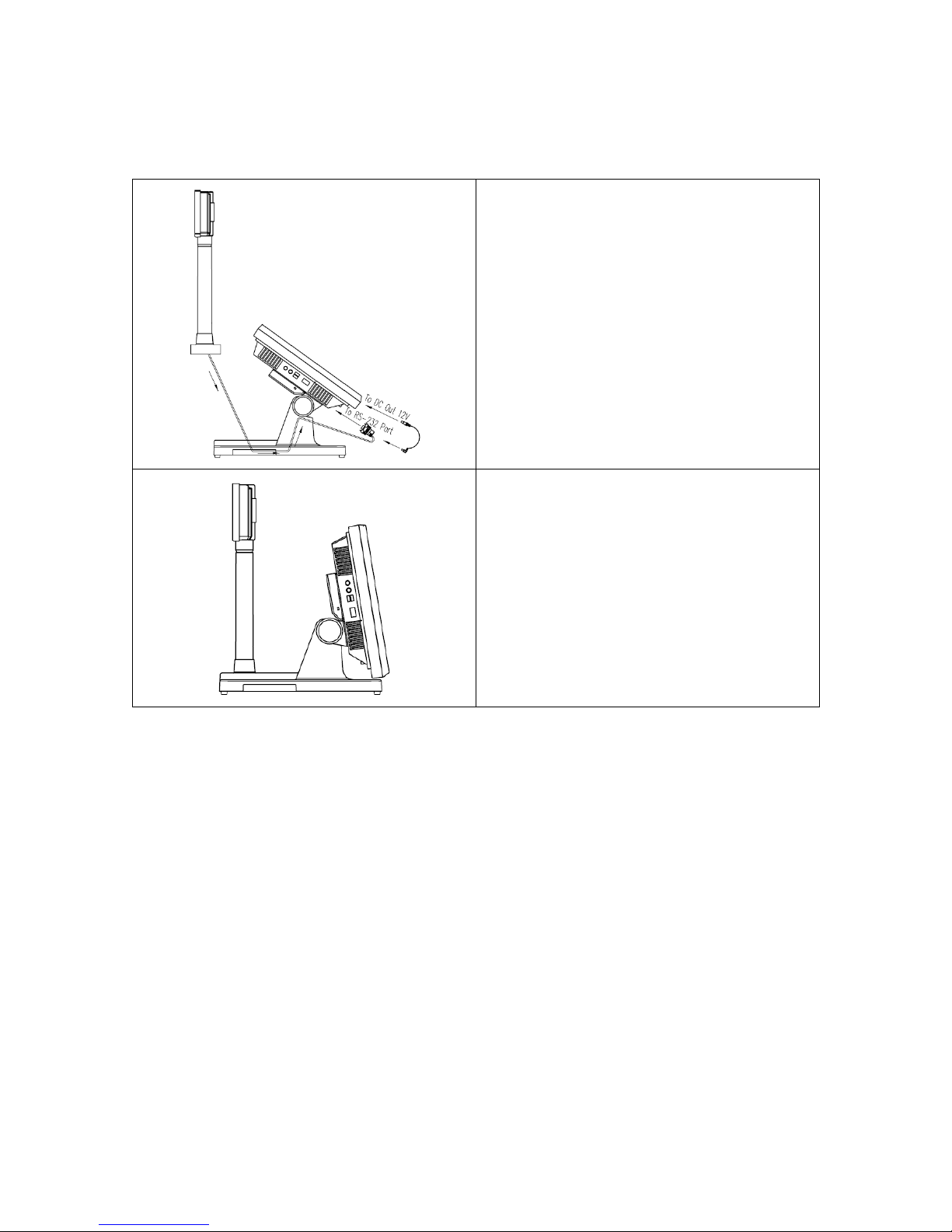

2.3 Install Pole-type Customer Display

a. Pass the cord of the customer display

through the holes in the directions of the
arrows. Plug the cable to a free COM port
and connect the extension power cable.

b. Press the stand of the customer display

into place.

Note

z The rear top mount customer display is pre-installed in factory.
z If the 9th pin of the RS-232 connector is power in, the device can be powered directly via

the COM port by jumper setting (see “POWER COM Jumper Setting” in Section 1.3 I/O
Ports and “JP10: COM1, COM2, COM4 port RI and voltage selection” in Section 6.1
Jumper Settings). Thus the extension power cable is not necessary.

10

3. Operating System

The POSpark main board is compatible with Windows 95/98/2000/XP and Red Hat Linux 9.0.
If the drivers are required, find the necessary files in the “POS & Auto/ID Peripherals” CD
through CD-ROM/Driver/POS. The storage media can be HDD, Compact Flash (CF), or Disk
on Module (DOM) depending on different options.

3.1 Install OS by USB CD-ROM

a. Plug the AC power cord of the power adapter to the PWR IN port. Connect an

external CD-ROM to the POS system as the figure shown below and insert the
installation CD for the Operating System.

b. Press the <Delete> key after powering on the system. The system will enter the BIOS

Setup Utility.

c. Select “Boot” with the key. Select “Boot Device Priority” with the key

and press the <Enter> key.

11

d. Select “1st Boot Device” and press the key. Press the key to select “USB:

External CD-ROM.” Press the <F10> key to save and exit the setting.

e. After the system reboots, it will start to install the operating system from the CD.

3.2 Adjust CPU Fan Mode and Brightness

a. Press the <Delete> key after powering on the system to enter the BIOS Setup Utility.

12

b. Select “Advanced.” Select “Harware Health Configuration” and press the <Enter>

key to go to the sub screen.

c. Select “CPU Fan Mode” and press the <Enter> key. There are 3 modes for options:

Full On mode makes the CPU fan run at its full speed.
Automatic mode is not available.
PWN Manully mode enables the users to adjust the CPU fan by entering a number

between 20~127. The higher the value, the higher the speed will be.

13

d. Select “PWM Duty control.” Adjust the brightness by entering a number ranges from

Min 20 to Max 127. The highter the value, the brighter the screen will be.

e. After configuring the setting, press the <F10> key to save and exit the setting. The

system will reboot automatically.

14

4. Drivers Installation

4.1 Install Chipset Driver

a. Double click the folder “852gm” and then the file “win2k_xp141950” to start the

installation.

b. Click “Next” as the window pop up.

c. Click “Next.”

d. Click “Yes” on the License Agreement window to accept the terms.

15

e. Click “Finish” and restart the system.

4.2 Install Audio Driver

a. Double click the folder “audio” and the file “WDM_A398” to start the installation.
b. Click “Next” on the Audio Setup window.

c. Click “Finish” and restart the system.

16

4.3 Install LAN Driver

a. Double click the folder “LanSetup” and then the file “Setup” to start the installation.
b. Click “Next” on the welcome window.

c. Click “Finish” to finish the installation.

17

4.4 Install Touch Screen Driver

a. Double click the folder “Dirver” and then double click the subfolder according to the

operating system.

b. Double click the file “setup” to start the installation.

c. Click “Next” on the welcome window.

18

d. Select the destination folder and click “Next.”

e. Click “Next” without selecting the 2 items.

f. Click “Install” to start the installation.

19

g. Click “Finish” to exit the setup.

h. Double click “Touch package” and then click “4 pts. calibration” to start the

4-point-calibration. Or select “Advance” to select “9 pts. linearization” or “25 pts.
linearization”. The more points are calibrated, the more accurate the calibration will be.

20

21

i. Touch the red dot on the screen with a finger till it disappears. The dot will appear 4/9/25

times in turn on the screen.

j. After the calibration is done, press the lower button to save.

5. Peripherals Testing

If the POSpark is equipped with magnetic stripe card reader or customer display, connected to
a cash drawer, follow the steps below to test the function.

5.1 Magnetic Stripe Card Reader

a. Open the folder “RS-232 Testing” or “PS/2 Testing” and double click the file

“BREAKOUT.”

22

b. After the testing window pops up, slide a magnetic stripe card and its inform ation will

show on the window.

5.2 Customer Display

a. Open the folder “RS-232 Testing” and double click the file “BREAKOUT .”

b. Enter any keys on the window and the typed words will appear on the customer display.

23

5.3 Cash Drawer

a. Open the folder “Cash Drawer” and double clik the file “setup.”

b. Click “OK” on the welcome window.

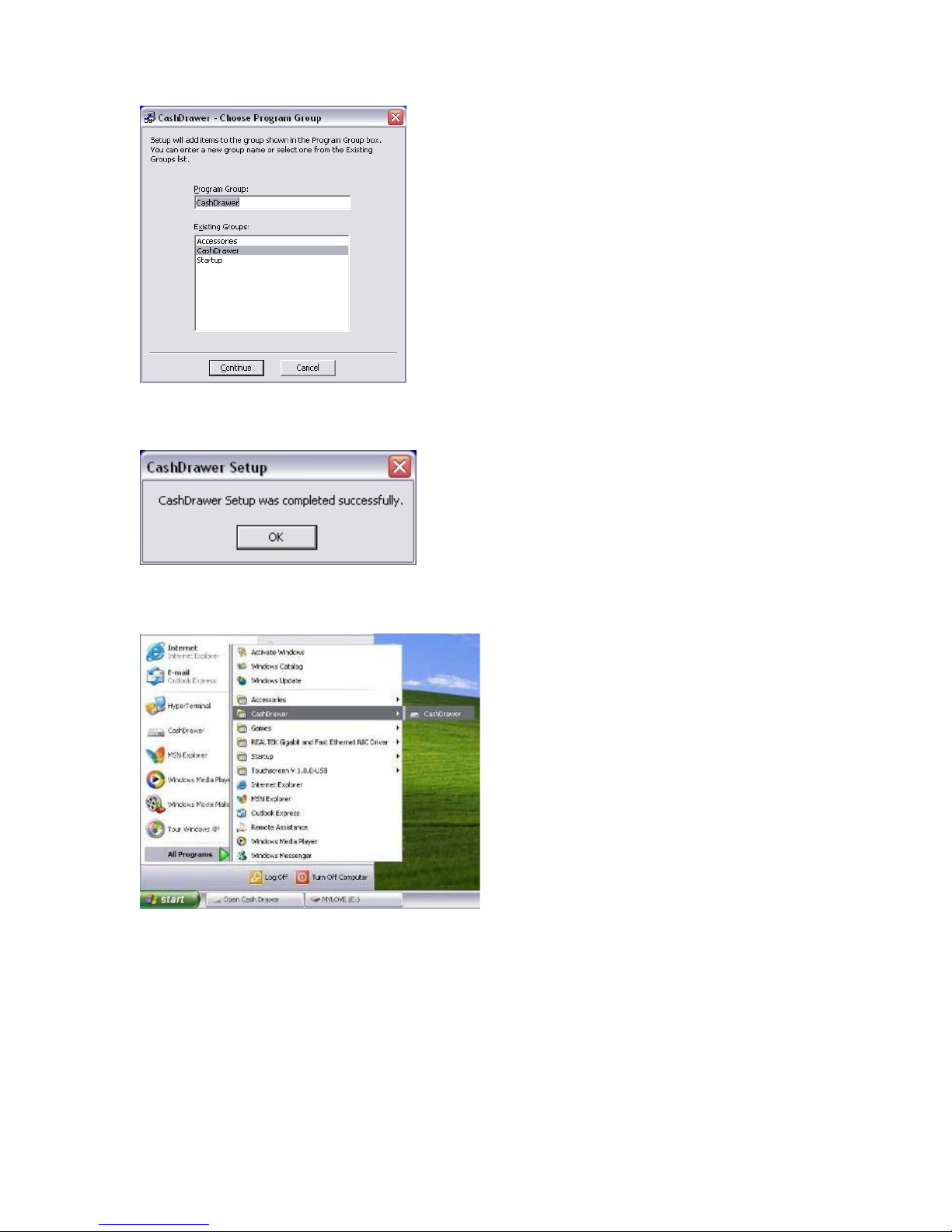

c. Select the destination folder and click the icon to start the installation.

d. Select an existed group name or enter a new one. Click “Continue.”

24

e. Click “OK” to finish the installation.

f. Execute Start >> All Programs >> Cash Drawer >> CashDrawer to open the program.

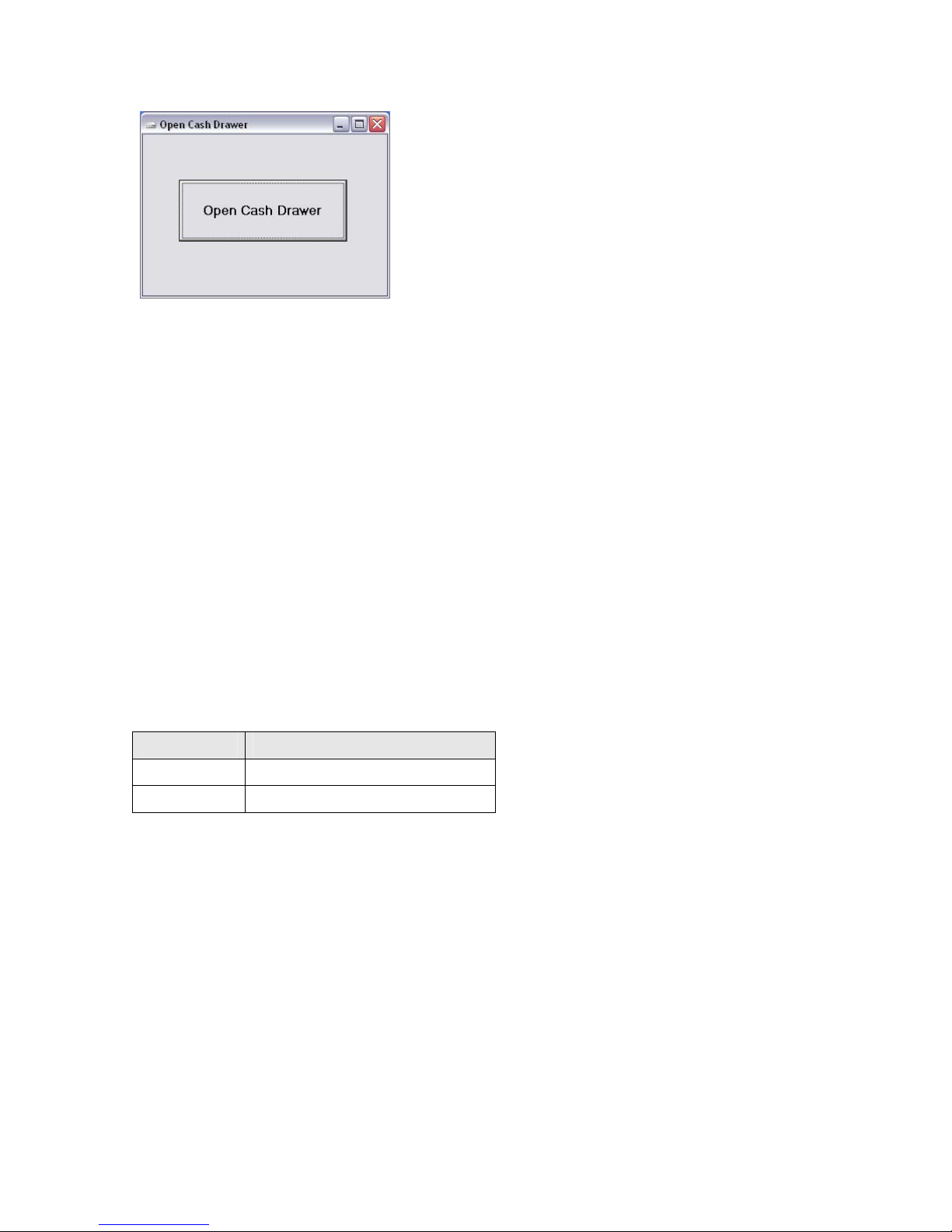

g. Click “Open Cash Drawer” on the window, and the connected cash drawer will open.

25

Note:
The above cash drawer driver is for testing only. If editing AP Open drawer is required,
please refer to the following command set.

Cash Drawer Controller Register

Register Location: I/O port 280h
Attribute: Read/Write
Size: 8 bit
Bit 0~3, 5~7: Reserved
Bit 4: Cash Drawer “DIO OUTPUT”, pin output control.
= 1: Open the Cash Drawer
= 0: Close the Cash Drawer

Control Command Example

Run “Debug.EXE” under DOS or Windows98

Command Description

O 280 10 Open the cash drawer
O 280 00 Close the cash drawer

z Set the I/O address 280 bit 4 = 1 to open the cash drawer by “DIO OUTPUT” pin control.
z Set the I/O address 280 bit 4 = 0 to close the cash drawer.

26

6. Jumper Settings & Connectors

6.1 Jumper Settings

•

JP3: Clear CMOS setup

Description

1-2 Normal Operation
2-3 Clear CMOS Setup

•

JP5: LCD voltage setup

Description

1-2 3.3V
3-4 5V

•

JP4: K/B use selection

Description

2-3

K_DAT and K_DAT_A
K_CLK and K_CLK_A

1-2 Use for K_DAT and K_CLK

•

JP10: COM1, COM2, COM4 port RI and voltage selection

Description

5-6, 11-12, 17-18 Use for RI
3-4, 9-10, 15-16 5V
1-2, 7-8, 13-14 12V

•

JP2: LCD TYPE BIOS select jumper selection

Description

Short

800 x 600 x 18bit 7-8
1024 x 768 x 18bit 5-6
1280 x 1024 x 18bit 5-6, 7-8

1024 x 768 x 24bit 1-2, 7-8
1280 x 1024 x 24bit 1-2, 5-6

Description

1-2 LID0
3-4 LID1

5-6

LID2

7-8

LID3

27

6.2 Connectors

•

AUX1 Audio Jack-in connectors

Pin No. Description

1 GND
2 Line-out-R
3 X
4 X
9 Line-out-L

• CN5: Audio Header Connector

Pin No. Description

1 Line-out-L
2 X
3 X
4 Line-out-R

• CN12 ATX 4PIN Power Connectors

Pin No. Description

1 GND
2 GND
3 12V
4 12V

• CN9: RJ-11 DIO Connectors

Pin No. Description

1 GND
2 DIO OUTPUT
3 DIO INPUT
4 12V
5 NC
6 GND

• IDE1: Primary IDE Interface Connector => 44 pin

Pin No. Description Pin No. Description

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8

28

5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND
31 INTERRUPT 32 N/C
33 PA1 34 66DET
35 PA0 36 PA2
37 HDC CS1# 38 HDC CS3#
39 HDD ACTIVE# 40 GROUND
41 VCC 42 VCC
43 GROUND 44 N/C

•

SATA1

Pin No. Description

1 GND
2 TX+
3 TX­4 GND
5 RX­6 RX+
7 GND

•

SATA2

Pin No. Description

1 GND
2 TX+
3 TX­4 GND
5 RX-

29

6 RX+
7 GND

•

CF1: Compact Flash Connector

Pin No. Description Pin No. Description

1 GROUND 26 VCC-IN CHECK1
2 DATA 3 27 DATA 11
3 DATA 4 28 DATA 12
4 DATA 5 29 DATA 13
5 DATA 6 30 DATA 14
6 DATA 7 31 DATA 15
7 HDC_CS1# 32 HDC_CS3#
8 N/C 33 N/C
9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 VCC_COM
12 N/C 37 IRQ15
13 VCC_COM 38 VCC_COM
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 HDD_RESET
17 N/C 42 IORDY
18 SA2 43 SDREQ
19 SA1 44 SDACK#
20 SA0 45 HDD_ACTIVE#
21 DATA 0 46 NC
22 DATA 1 47 DATA 8
23 DATA 2 48 DATA 9
24 N/C 49 DATA 10
25 VCC-IN CHECK2 50 GROUND

• COM1: Serial Port Connector

Pin No. Description

1 DCD1
2 RX1
3 TX1
4 DTR1

30

5 GND
6 DSR1

7 RTS1
8 CTS1
9 RI1

• COM2: Serial Port Connector

Pin No. Description

1 DCD2
2 RX2
3 TX2
4 DTR2
5 GND
6 DSR2

7 RTS2
8 CTS2
9 RI2

• COM4: Serial Port Connector

Pin No. Description Pin No. Description

1 DCD4 2 DSR4
3 RX4 4 RTS4
5 TX4 6 CTS4
7 DTR4 8 RI4
9 GND 10 NC

• COM5: Serial Port Connector

Pin No. Description Pin No. Description

1 DCD5 2 DSR5
3 RX5 4 RTS5
5 TX5 6 CTS5
7 DTR5 8 RI5
9 GND 10 NC

• KB1: KB Jack Connector

31

Pin No. Description

1 KDATA_A
2 NC
3 GND
4 VCC5
5 K_CLK_A
6 NC

• PS2: Mouse Jack Connector

Pin No. Description

1 MDATA
2 NC
3 GND
4 VCC5
5 MCLK
6 NC

• CN15: USB CN3 & KB1 & PS2 Connector Co-lay

Pin No. Description Pin No. Description

1 USB_POWER 2 GND
3

D0F-

4 D1F+

5

D0F+

6 D1F­7 GND 8 USB_POWER
9 K_POWER 10 MDATA
11 KDATA_A 12 MCLK
13 K_CLK_A 14 GND

• CN6: KB Pin Header Connector

Pin No. Description Pin No. Description

1 GND 2 K_DAT
3 KDATA_A 4 K_CLK
5 K_CLK_A 6 VCC5
7 KB_EN 8 GND

• CN13: KB Pin Header Connector

Pin No. Description Pin No. Description

32

1 VCC5 2 GND
3 KDATA_A 4 K_CLK_A
5 K_DAT 6 K_CLK
7 COM3_TX 8 COM3_RX
9 KB_EN 10 GND

• CN3A: USB Connector

Pin No. Description

1 USBVCC1
2 D0F­3 D0F+
4 USBGND1

• CN3B: USB Connector

Pin No. Description

1 USBVCC1
2 D1F­3 D1F+
4 USBGND1

• CN4A: USB Connector

Pin No. Description

1 USBVCC2
2 D2F­3 D2F+
4 USBGND2

• CN4B: USB Connector

Pin No. Description

1 USBVCC2
2 D3F­3 D3F+
4 USBGND2

• USB1: USB Connector

Pin No. Description Pin No. Description

1 NC 2 NC

33

3 GND 4 NC
5 D4F+ 6 NC
7 D4F- 8 GND
9 USBVCC3 10 NC

• USB2: USB Connector

Pin No. Description Pin No. Description

1 NC 2 NC
3 GND 4 NC
5 D5F+ 6 NC
7 D5F- 8 GND
9 USBVCC3 10 NC

• LAN1: 100M-LAN RJ45 Connector

Pin No. Description Pin No. Description

1 X0+ 2 X0­3 X1+ 4 X1­5 V_DAC 6 V_DAC
7 X2+ 8 X2­9 X3+ 10 X3­11 LINK100- 12 LINK100+
13 ACT- 14 ACT+

• VGA1: 16-pin CRT Connector

Pin No. Description Pin No. Description

1 RED 2 DDCDAT
3 GREEN 4 DDCCLK,
5 BLUE 6 GND
7 HSYNC 8 GND
9 VSYNC 10 GND
11 GND 12 GND
13 GND 14 GND

15 GND 16 GND

• VGA_POWER1: DC Power Jack

Pin No. Description

34

1 GND
2 GND
3 12V

• CN8: Inverter & Power Button Connector

Pin No. Description

1 VCC12
2 VCC12
3 GND
4 LCD_EABLE
5 LCD_BKLTEN
6 Power Button-

• CN1: Inverter Connector

Pin No. Description

1 VCC12
2 GND
3 LCD_EABLE
4 LCD_BKLTEN
5 GND

• LVDS1: LCD LVDS Interface Connector

Pin No. Description Pin No. Description

1 VCC_LCD 2 VCC_LCD
3 VCC_LCD 4 VCC_LCD
5 GND 6 GND
7 GND 8 GND
9 LVDSA0+ 10 LVDSB0+
11 LVDSA0- 12 LVDSB0­13 GND 14 GND
15 LVDSA1+ 16 LVDSB1+
17 LVDSA1- 18 LVDSB1­19 GND 20 GND
21 LVDSA2+ 22 LVDSB2+
23 LVDSA2- 24 LVDSB2­25 GND 26 GND
27 LVDSACLK+ 28 LVDSBCLK+

35

29 LVDSACLK- 30 LVDSBCLK­31 GND 32 GND
33 LVDSA3+ 34 LVDSB3+
35 LVDSA3- 36 LVDSB3­37 GND 38 GND
39 NC 41 NC

• FAN1: Fan Connector

Pin No.

Description

1 Fan Speed Detect
2 +12V
3 GND

• FAN2: Fan Connector

Pin No.

Description

1 Fan Speed Detect
2 +12V
3 GND

• FAN3: Fan Connector

Pin No.

Description

1 NC
2 +12V
3 GND

• CN10: LED Connector

Pin No. Description Pin No. Description

1 Power LED- 2 Power LED+
3 HDD LED- 4 HDD LED+

• CN14: Power Button

Pin No. Description

1 Power Button­2 GND

• CN11: Reset Button

36

37

Pin No. Description

1 RESET
2 GND

• DIMM1: DDR SODIMM SOCKET
