Page 1
109877482 en / 07.11.2008
Operating Instructions
Floor Saw FSD930
Index 001
Page 2
Congratulations!
You have decided to purchase a tried and tested TYROLIT-Hydrostress unit and have thus
acquired a highly sophisticated and reliable state-of-the-art unit. The exclusive use of only
TYROLIT Hydrostress spare parts ensures quality and interchangeability. If maintenance work is
neglected or carried out inexpertly we will be unable to honour our warranty obligations. Any
repair work must be carried out by trained personnel only.
Should you need more details concerning your TYROLIT Hydrostress unit in order to keep it in
perfect condition, please contact our after-sales service for further information.
We hope that you enjoy untroubled and fault-free working with your TYROLIT unit.
TYROLIT Hydrostress
Copyright© TYROLIT Hydrostress
TYROLIT Hydrostress AG
Witzbergstrasse 18
CH-8330 Pfäffikon
Switzerland
Tel. 0041 (0) 44 952 18 18
Fax 0041 (0) 44 952 18 00
Page 2 Floor Saw FSD930
Page 3
TYROLIT Hydrostress AG
1 Safety
These instructions are just one part of the documentation which is supplied together with the
floor saw. These instructions go together with the "Safety Manual / System Description for Floor
Saws" to form a complete set of documentation.
DANGER
Failure to comply with the safety instructions in the "Safety Manual / System Description" may
result in serious injury or death.
► Please ensure that the "Safety Manual / System Description for Floor saws" has been read
and understood in full.
Floor Saw FSD930 Page 3
Page 4
TYROLIT Hydrostress AG
2 Design
Components
1 Operating console
2 Name plate
3 Main motor
4 Front cut guide
5 Shaft cover
6 Blade guard
7 Saw blade
8 Rocker wheel
9 Drive wheel
10 Rear cut guide
11 Water feed
2.1 Saw blade drive
Saw blade drive (schematic)
1 Blade drive shaft
2 Drive belt
3 Main motor drive shaft
Page 4 Floor Saw FSD930
Page 5
TYROLIT Hydrostress AG
2.2 Lift drive
Lift drive (schematic)
1 Hydraulic cylinder
2.3 Travel drive
Travel drive (schematic)
1 Drive shaft (main motor)
2 Hydrostat drive belt
3 Hydrostatic motors
4 Drive chain
5 Wheel drive shaft
6 Drive wheel
Floor Saw FSD930 Page 5
Page 6
TYROLIT Hydrostress AG
3 Transpor t
DANGER
Inexpert transport may result in death or serious injury.
► Floor saws must only be transported with the main motor switched off.
► Only transport vehicles, lifting tools and load suspension devices with sufficient load-
bearing capacity must be used.
► Floor saws must only be hitched by the hitching points provided.
► Appoint an expert marshaller.
► When transporting by crane do not stand underneath suspended load.
► Always have the floor saw in your line of vision while it is being transported.
3.1 Hitching points
Hitching points
1 Crane hitching device
Page 6 Floor Saw FSD930
Page 7
TYROLIT Hydrostress AG
4 Initial start-up
4.1 Fitting battery
► Fit battery (for type see Technical Data).
Floor Saw FSD930 Page 7
Page 8
TYROLIT Hydrostress AG
5 Assembly / Set-up
5.1 Mounting grip
►
5.2 Mounting saw blade
1. Apply hand brake
Page 8 Floor Saw FSD930
Page 9
TYROLIT Hydrostress AG

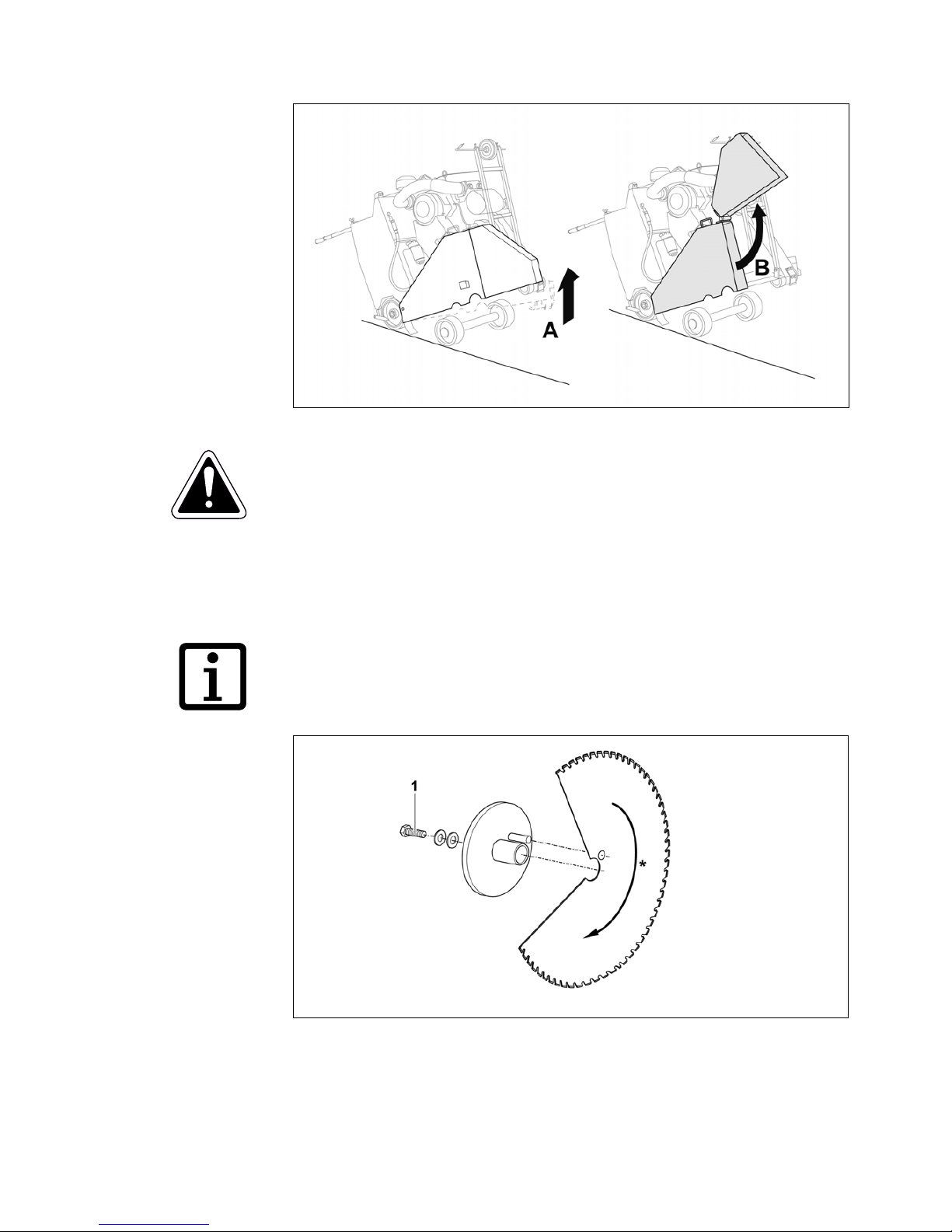

2.
DANGER
Parts that fly off (segments, concrete splinters, saw blade, etc.) may cause serious injury
or even death.
► Floor saws must only be operated with a blade guard.
► When assembling the saw blade on the right-hand side use the anchoring screw with the
left-hand thread.
When assembling the saw blade on the left-hand side, use the anchoring screw with the
right-hand thread.
► Note the direction or rotation arrows on the saw blade.
3.
1 Anchoring screw
*Note the direction of rotation
Floor Saw FSD930 Page 9
Page 10
TYROLIT Hydrostress AG
4.
C: To prevent the saw blade rotating while being tightened, carefully place the saw blade on the floor.
5.3 Mounting saw blade on the other side
5.3.1 Disassemble the blade guard
►
Page 10 Floor Saw FSD930
Page 11
TYROLIT Hydrostress AG
5.3.2 Disassemble the shaft cover
►
5.3.3 Assembling the blade guard and shaft cover on the other side
Assembly of the blade guard and the shaft cover is performed in the opposite order to
disassembly.
5.4 Connecting water line
►
Floor Saw FSD930 Page 11
Page 12
TYROLIT Hydrostress AG
6 Operation
6.1 Overview of operating elements
Operating elements
1 Battery display
2 Oil temperature display
3 Ignition key
4 Oil pressure display
5 Speed governor
6 Operating hours meter
7 Cutting depth indicator
8 Bit stop locking
9 On / Off control for internal
water pump
10 On / Off control for headlight
11 Raise / Lower buttons
12 Feed adjuster (forward /
backward travel)
13 EMERGENCY STOP switch
14 Feed gears coupling lever
15 Tank cover with tank display
16 Hand brake
Page 12 Floor Saw FSD930
Page 13
TYROLIT Hydrostress AG
6.2 Checking oil level
► Note the details from the motor manufacturer.
6.3 Checking the air filter
The display in the window (1) has the following significance:
Display colour Significance
Yellow Air filter in good order
Red Air filter blocked
► If the air filter is blocked, it must be changed.
Floor Saw FSD930 Page 13
Page 14
TYROLIT Hydrostress AG
6.4 Checking the fuel level
► Check the tank display (1) and top up with diesel as necessary.
6.5 Positioning the floor saw
1. Release the hand brake.
2. Slide floor saw into the working position.
3. Fit the cutting guides to the floor saw.
6.6 Connecting the water supply
►
Page 14 Floor Saw FSD930
Page 15
TYROLIT Hydrostress AG
6.7 Switch on motor
Symbol Significance
Coupling lever in coupled position
Coupling lever in uncoupled position
9 Coupling lever (6) is in the uncoupled position
9 EMERGENCY STOP switch (5) has been released
1. Turn ignition key (2) to the preheat position in order to preheat the motor.
2. Turn ignition key further to the right in order to start.
Battery and oil pressure displays (1, 3) light during starting and then go out.
3. Set motor speed with speed governor (4).
Floor Saw FSD930 Page 15
Page 16
TYROLIT Hydrostress AG
6.8 Lowering / raising saw blade
6.8.1 Lowering example
1. Press the Lower button (3) until the saw blade touches the material to be cut.
2. Set the cutting depth indicator (1) in the 0 position.
3. Using the Lower key, lower the saw blade to the desired cutting depth.
4. Tighten up the bit stop locking (2).
Page 16 Floor Saw FSD930
Page 17
TYROLIT Hydrostress AG
6.9 Adjusting the feed
Symbol Significance
Coupling lever in coupled position
Coupling lever in uncoupled position
Feed adjuster in the forwards direction of travel
Feed adjuster in the backwards direction of travel
9 Feed adjuster is in the neutral position
9 Hand brake has been released
1. Place coupling lever (1) in the coupled position.
2. Using the feed adjuster (2), set the direction of travel and speed.
Floor Saw FSD930 Page 17
Page 18
TYROLIT Hydrostress AG
6.10 Correcting the tracking
Correcting the tracking
1 Saw blade
► If the saw blade drifts, adjust the rear axle with the adjusting screw.
Page 18 Floor Saw FSD930
Page 19
TYROLIT Hydrostress AG
7 Maintenance
When? What?
Daily ► Check oil level.
► Perform a visual check for damage.
Weekly ► Check belt and chain tension and adjust as
necessary.
Every 50 hours of operation ► Lubricate grease nipples.
Annually or every 100 operating hours ► Arrange a major service by TYROLIT
Hydrostress AG or an authorised
representative.
According to the information from the motor
manufacturer
► Carry out all necessary measures in
accordance with the operating instructions of
the motor manufacturer.
7.1 Grease nipples
Position of grease nipples
1 Motor: 1 item
2 Feed adjuster control rods: 4 items
3 Wheel drive shaft bearing: 2 items
4 Cylinder eye: 1 item
5 Blade drive shaft: 2 items
7.2 Tensioning belt on travel drive
► Remove the appropriate number of belt links until the belt is tensioned.
Floor Saw FSD930 Page 19
Page 20
TYROLIT Hydrostress AG
7.3 Tensioning chain on travel drive
►
Tensioning chain
1 Chain
Page 20 Floor Saw FSD930
Page 21
TYROLIT Hydrostress AG
8 Malfunctions
Malfunction Possible cause Solution
Floor saw does not operate
EMERGENCY STOP switch has been pressed. ► Release EMERGENCY STOP switch.
Saw blade jammed Saw blade is jammed in the cutting material ► Reverse the floor saw.
► If necessary release the saw blade by
rocking.
► If necessary stop the motor, disassemble
the saw blade and release this
individually from the cutting material.
Belt tension too slack ► Tension or replace belt. Saw blade does not rotate even
though the motor is running
Pulling pin on the anchoring flange has
sheared off
► Mount new anchoring flange.
Operation of the control rods impaired ► Check control rods and repair as
necessary.
Defective hydrostat ► Check hydrostat and if necessary have
this repaired by a TYROLIT Hydrostress
engineer.
Defective chain ► Have the chain replaced by a TYROLIT
Hydrostress engineer.
Feed not working
Main motor belt slipping ► Check belt for wear and if necessary
have this replaced by a TYROLIT
Hydrostress engineer.
► Increase belt tension as necessary.
Wrong fuel ► Switch off motor immediately and
change fuel.
Motor running off centre
Diesel filter blocked ► Have diesel filter changed.
Defective contacts on the connection
between battery and generator
► Check contacts and re-establish these as
necessary.
Battery display lights
Inadequate battery charging ► Charge or change battery.
Oil temperature too high ► Allow floor saw to run under no load
until temperature display goes off.
Oil temperature display lights
Too little oil ► Top up oil.
Oil pressure display lights Defective oil pump ► Have oil pump changed.
Floor Saw FSD930 Page 21
Page 22
TYROLIT Hydrostress AG
9 Technical data
9.1 Dimensions
Parameter Value
Weight 612 kg
Cutting depth (max.) 350 mm
Blade uptake diameter 25.4 mm
Max. saw blade diameter 900 mm
Dimensions (transport dimensions with blade
guard folded up)
L: 1,280 mm
W: 810 mm
H: 1,180 mm
9.2 Motor
Parameter Value
Type DEUTZ
Power 30 PS
Rated speed According to operating instructions from motor
manufacturer
Oil content According to operating instructions from motor
manufacturer
Tank content 22.8 l
Fuel Diesel
Cooling Air cooling
9.3 Lift drive
Parameter Value
Drive type Electro-hydraulic
Oil grade ATF Dexron II D
9.4 Travel drive
Parameter Value
Drive type Hydraulic
Oil grade ATF Dexron II D
Cooling Air cooling by means of cooling ribs
Page 22 Floor Saw FSD930
Page 23
TYROLIT Hydrostress AG
9.5 Noise level and vibrations
Parameter Value
Noise level at the ear of the user (Leq) 95.4 dB(A)*
Noise level at workplace (LPA) 91.7 dB(A)*
Sound power level in accordance with ISO 3744
(LwA)
111.8 dB(A)*
Vibrations DIN EN ISO 5349-2 < 2.5 m/s
630 Value applies under the following condition: Travel drive is switched off and the saw blade is not
engaged. The measurement is performed with the motor under full load with the saw blade
dia. 900 mm. Higher noise levels may be generated in cutting operation.
9.6 Battery
Parameter Value
Description Battery 12-Volt, Group Size 34
DP battery part number 2700208
Length 260 mm
Width 173 mm
Height 200 mm
Capacity 630 Amps
Manufacturer's reference P7405
Floor Saw FSD930 Page 23
Page 24
TYROLIT Hydrostress AG
9.7 Cutting data
Blade
diameter
Blade rpm Belt pulley
diameter
Output shaft
Belt pulley
diameter
Motor
Motor rpm Flange diameter
Blade holder
Depth of cut
350 3000 3.65" 3.65" 3000 4½" 75
500 2475 4.12" 3.65" 2800 4½" 150
600 1900 4.12" 3.12" 2500 4½" 200
700 1650 4.75" 3.12" 2500 6" 250
900 1400 4.75" 3.12" 2150 6" 350
The belt pulley should only be changed by an engineer from TYROLIT Hydrostress or a trained
worker.
Page 24 Floor Saw FSD930
Page 25
TYROLIT Hydrostress AG
EC declaration of conformity
Description Floor Saw
Type designation FSD930
Year of construction 2007
Manufacturer TYROLIT Hydrostress AG
We declare under our own liability that this product complies with the following directives and standards:
Directive applied
Machine Directive 2006/42/EC
Noise Emission 2000/14/EC
Electricity Directives 93/68/EEC
Electromagnetic Compatibility 89/336/EEC
2002/95/EC Restriction of the use of certain hazardous substances in
electrical and electronic equipment
2002/95/EC
Waste Directive 2002/96/EC
Vibration Directive 2002/44/EC
Standards
EN 12100-1
Safety of machinery – Basic concepts, general design principles.
EN 12100-2 Safety of machinery – Basic concepts and general principles for design.
EN ISO 14121 Safety of machinery – Principles of risk assessment.
EN 294 Safety of machinery – Safety distances to prevent upper limbs reaching
danger areas.
IEC 60204-1 Safety of machinery – Electrical equipment of machines, General
Requirements.
IEC 6100-6-3 Electromagnetic Compatibility
EN 13862 Floor cutting-off machines. Safety.
EN 349 Safety of machinery – Safety distances to avoid crushing of body parts.
EN 982 Safety of machinery
Safety requirements for safety systems and their components –
hydraulics.
EN ISO 3744 Acoustics - Determination of sound power levels of noise sources using
sound pressure
Floor Saw FSD930 Page 25
Loading...
