Precautions
1. For alve stem used on Motorcycle, please use lock-fixed type, not in
rubber made.
2. Please make sure the LCD display can receive signals from two tire
pressure sensors.
3. Tyredog TPMS has unique anti-theft tool to prevent sensor being
stolen. You can decide whether install or not.
4. Please double confirm if sensors are fitted tightly. If necessary,
please spreading detergent water on the valve stem to check any air
leakage.
5. If tire pressure is getting down or dropping quickly, please stop car
immediately to find out if tire is deflated or another other problem.
6. The monitor will automatically make connections in whole system
when car starts to run. It is normal that some tire pressure figures
might not be updated immediately due to there is no change of tire
pressure in those tires at all.
7. Tyredog TPMS has mechanism to avoid interfering /being interfered
with other signals.
8. Many environmental factors cause tire temperature rise and down as
well. For example, hot weather or warm tire will lead rising tire
pressure.
9. It is natural that tire pressure will decrease by days but not caused
by the installation of tire pressure monitoring system. Tyredog TPMS
can response with its real figure of pressure.
10.If monitor gets wet accidentally by rain, etc., please don’t power on
monitor until it is dried.
3
11.If you have any questions or problems concerning your unit that are
not covered in this manual, please consult your nearest Tyredog
dealer.
The Main Purpose
The Tire Pressure Monitoring System (TPMS) is an efficient and
effective solution to many of current motorcycle safety problems.
TPMS will help prevent driving on deflated tires and reduce fuel
consumption. There are benefits here:
z Improves ride performance and handling
Tire pressure leads to driving condition a lot.
z Decreases chance of tire blowout
It is very critical to keep tire pressure in a good condition when riding,
especially, when motorcycle is running over two –wheel to make
balance.
z Reduces labour of tire pressure inspections
The system can give a very clear picture of tire pressure status
among two tires for rider.
z Not adds much maintenance cost
Advanced designs to give the best convenience to all drivers by
wireless/ cordless design, external sensors, etc.
z Less downtime
Real time monitoring gives you highly control of your tire pressure
and temperature and avoid unexpected accidents caused from
abnormal tire pressure and temperature.
z Reduces fuel expense
4
Fuel efficiency is reduced by one percent for every 3 PSI of under
inflation. It is for sure that tire pressure is also one of important
factors to save gas consumption.
z Extends tire life
Research finds that running tires 20% under –inflation can reduce
tire life by up to 50%. It is crucial to keep tire pressure at a right level
(right tire pressure figures for each tire normally suggested by your
car manufacturer)
z Increases return on investment
Concludes advantages mentioned above, by taking care of tire
pressure with simple Tire Pressure Monitor System, gains are much
more than what you expect.
The Feature of TD-4000A-X
TYREDOG TPMS (Tire Pressure Monitoring System)- Powerful tool for
maximizing uptime and improving safety- The New WTPMS Standard-
TYREDOG Tire Pressure/ Temperature Monitoring Solutions.
TYREDOG is a leading WTPMS solution for motorcycle industry. By
continuing to develop new and better TPMS designs and manufacturing
technologies, TYREDOG has helped motorcycle riders to improve safety
issues and reduce operational costs. The major milestone of TYREDOG
truck WTPMS is the introduction of lightweight valve stem cap sensor
design. The extremely lightweight, compact sensor has been specifically
designed to simplify and reduce the installation time. Now there is no
need to sacrifice tire maintenance efforts to gain safety. Through
5
wireless technology, tire pressure and temperature information is
displayed on the friendly Graphic User Interface (LCD monitor).
Installation
z Do it yourself (D.I.Y.): it can be fully installed in a short time
without any technical knowledge
z Wireless and cordless: wireless sensors and LCD monitor ensure
a quick and easy installation.
z Battery-powered: Battery powered LCD monitor and sensor and
battery low indicators on the monitor can remind rider of battery
power status in all tires.
z Light and compact sensor: extremely lightweight and compact
with specially designed electronic sensors
Management
z Graphic user interface: Powerful graphical user interface for rapid
understandings of tire status.
z Real-time: high accuracy, real-time monitoring tire pressure and
temperature and accuracy achieve 0.5 P.S.I. difference.
z Adjustable: fully adjustable pressure and temperature warning
range
z Warnings: you will be award of abnormal status of tire pressure
easily from the vibration of receiver or from beep sounds.
Reliability and Robust
z Anti-theft tool for sensor: all electronic sensors can be locked in
place to prevent theft.
6
z Sensors are changeable in the very unlikely event of defect or
damage, so down time is minimal
z Ensure signal accessibility by providing peripheral signal integrity
technology
z Strict environmental test has approved its reliability.
z Corrosion protection: metal section completely immersed in rust
preventative coating for increased service life and reduced
downtime. Rust preventative coating is applied for durability
Location of controls and outlook
Monitor description
Antenna
LCD monitor
SET
Power switch
Mute
Backlight
Temperature
Front of monitor Back of monitor
Battery cover
Cover lock
7
Sensor description
b
Graphic User Interface and Contents
Monitor status:
Initialization
Normal
Sensor battery cover
Valve stem connection
Mute:
Mute on
Mute off
Connection Status:
Connected
No connection
Sensor power status:
:battery low
(No icon): normal
Tire status:
Low Pressure
High Pressure
High Temperature
Pressure
Temperature
Monitor power
(No icon): normal
attery low
:
Pressure measuring unit:
Temperature measuring unit:
к / л
8
1. System map
2. The installation of LCD monitor
Insert batteryΚ
A. Prepare one AAA-type battery
B. Follow the direction A and B on the picture shown below to
take monitor battery cover away.
9
C. Insert battery with proper direction.
D. After battery inserted, the LCD monitor will automatically
power on and the display will show graphics as picture below.
10
E. Close the battery cover onto LCD monitor.
3. The installation of tire pressure sensors
As sensor has its own position, you have to make sure its defined
position. When inserting batteries in every sensors please don’t
mix up sensor caps. Sensor map could give guidance for user to
install.
Sensor map
F. means front tire
R. means rear tire
11
Insert batteries in sensors
Battery installation for tire pressure sensor

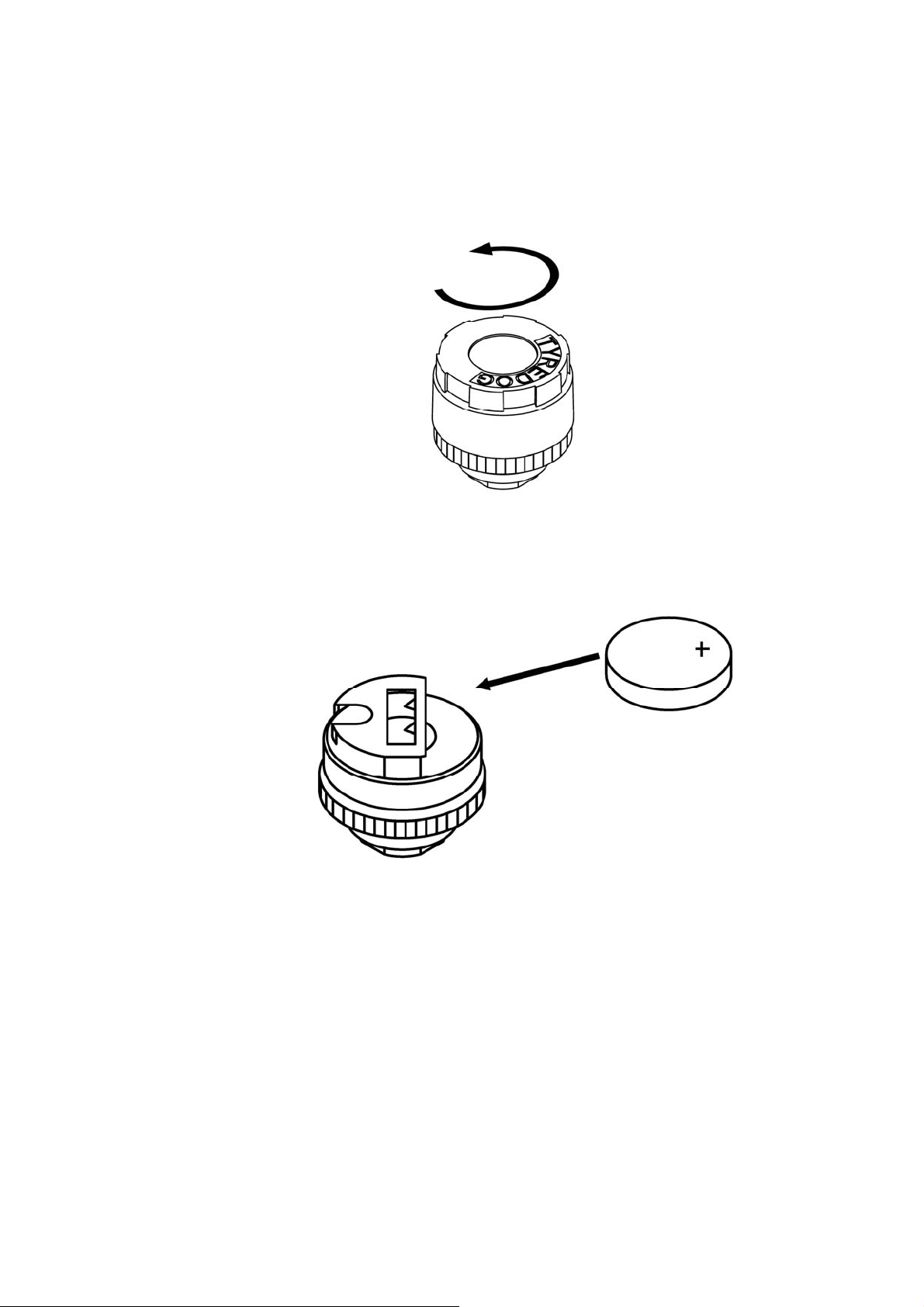

A. Take away sensor cap in anti-clockwise direction.
B. Insert lithium battery and make sure battery polarity correct
when insert it.

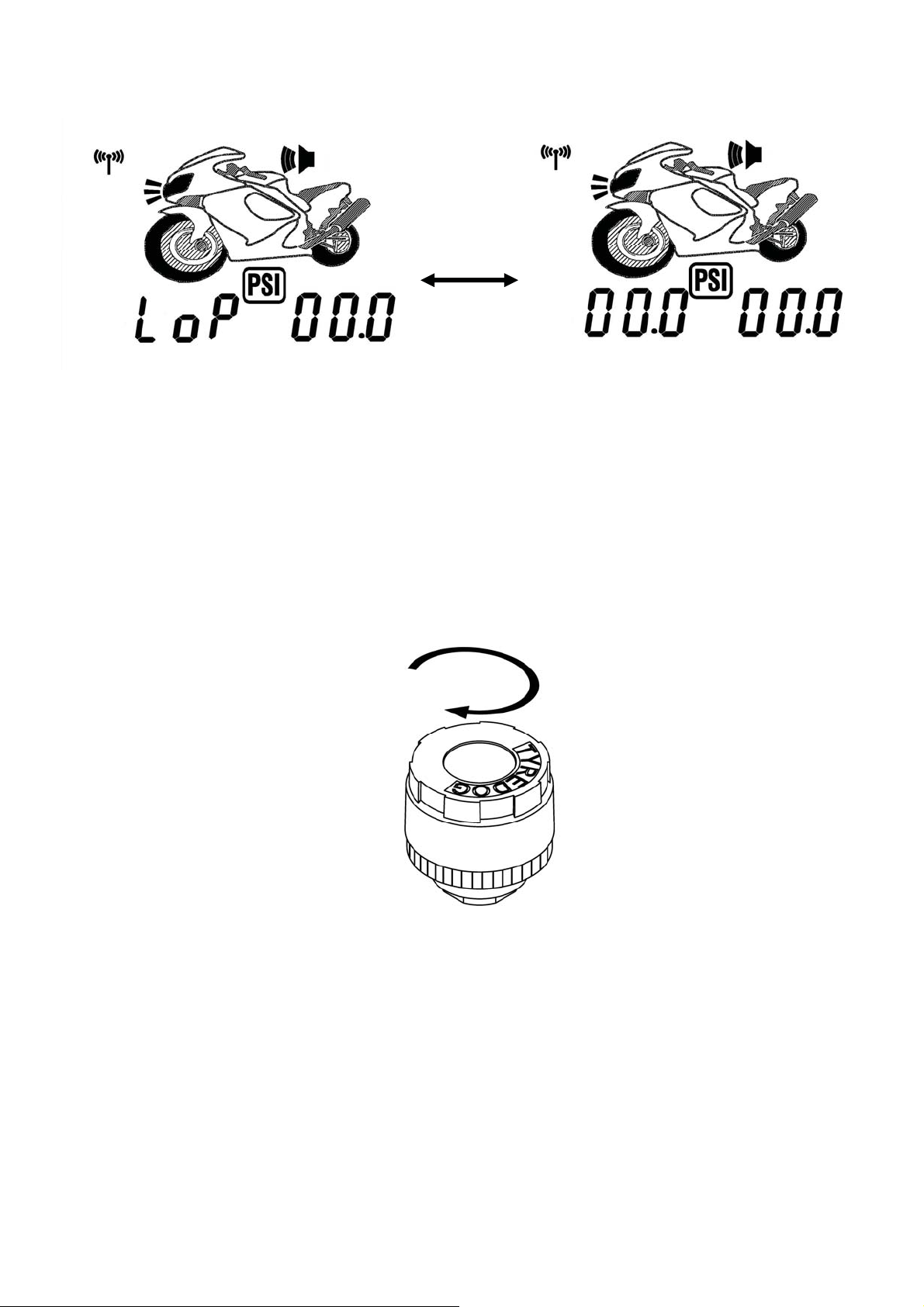

Right now, monitor will receive signals from corresponding sensors
and report pressure value on the screen. At first, you will find that
the value shows “00.0”. It is because sensors have not been
mounted yet. The screen could show as below.
12
Blinking
Take F (front tire) for example
NoteΚAfter take away battery, the status of being without battery
need to leave for 10 seconds and then insert battery again. It
is for resetting system.
C. Fit sensor cap in a clockwise direction.
Please refer to “sensor map” to make sure the right position of each
sensor and please don’t mix up sensor caps either. You will find either
sensor cap and sensor body have marks to remind user of its position.
13
Take F.L. (front left) for example
Anti –theft tool for sensor (optional)
Anti –theft tool is designed to prevent the possibility of sensors being
taken away. Users can decide if it is needed or not.
Valve
Sensor
Hex socket Screw
Anti-theft fixed ring
14
A. Put anti-theft fixed ring onto valve stem.
B. Install sensors onto valve stem. Don’t install sensors by brute
force.

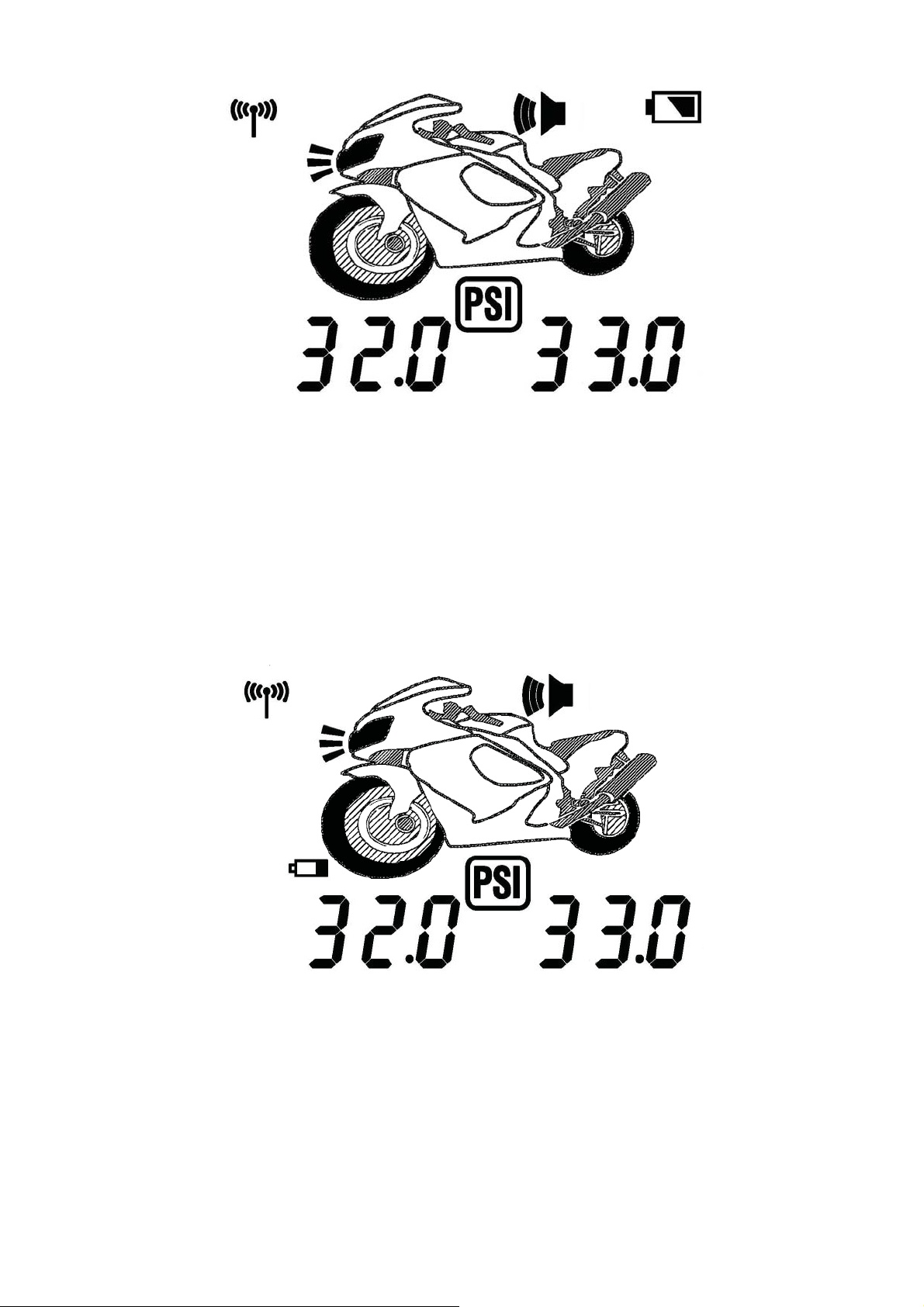

Now, the display will show you the latest valve of tire pressure.
Take F (front tire) for example
15
C. Adjust the anti-theft fixed ring position to install it with sensor in
place firmly.
D. Put the hex socket screw onto the anti-theft fixed ring.
(Please don’t exert excessively to damage the valve.)
E. When four tire pressure sensors are installed, please check with
detergent water if the tire pressure sensors and tire valve is
completely fitted without any air leakage. (spread detergent
water on the valve stem)
F. The anti-theft tool can be decided to install or not. If not, step A, C
and D could be just skipped.
16
Operation instructions
1. Monitor basic function
Locations and function buttons
Set: pressure unit setting
temperature unit setting
pressure warning value setting
temperature warning value
Power switch: on/ off
Mute: on/ off
Backlight
Temperature
2. Basic function
Power Switch
z Press once
Power on LCD monitor
z Press for over 3 seconds
Power off LCD monitor
17
MuteΚon/ off
Switch to mute mode. The audible warnings will be disable. When push
mute button again, it can go back to both audible and visible warning mode.
Mute off Mute on
Display tire temperature figures
Push this button, the LCD monitor will display tire temperature instead of
tire pressure for 3 seconds.
Display tire temperature
18
Backlight: on/ off
When in darkness, you also can check out tire pressure and
temperature by pressing backlight button. The backlight will be off
after three seconds.
3. Advanced setting mode
z Pressure unit setting
z Temperature unit setting
z Pressure warning value setting
z Temperature warning value
z Press for over 3 seconds to enter advanced setting mode
Make choice by pressing
values.
and both and can adjust warning
19
A. Set pressure measuring unitΚ
Four types of pressure measuring units: PSI,KPA,BAR and ʦ/ʡ
are provided here. Users can make their own choices by and
.
2
20
B. Set temperature measuring unit: к and л
Two types of temperature measuring units: к and л are provided
here. Users can make their own choices by
and .
C. Set tire pressure lower warning valueΚ
The default value is 26 P.S.I., and Users can make their own choices
by
and .
21
Blinkin
g
g
D. Set tire pressure upper warning value
The default value is 45 P.S.I. and users can make their own choices
by
and .
Blinkin
E. Set tire temperature upper warning value
22
The default value is 70 к and users can make their own choices by
g
and .
Blinkin
This mode will return to main screen as long as there is no operation
for more than 30 seconds.
+
In a very unlike case, sensor could be broken or missed. Sensor learning
mode can provide an alternative way to replace sensors with ‘learnable
sensors’. (‘Learnable sensor’ will need to purchase separately.) LCD monitor
can reload new identified number only from ‘learnable sensor.’ By obtaining
new identified number from new ‘learnable sensor’, the system will integrate
this sensor into its system and replace old one.
Sensor learning mode
Pressing power switch and SET at the same time for around 3 seconds, the
system will enter ‘learning mode’, and system will start to recognize new
23
sensors.
As long as enter this mode, insert battery into ‘learnable sensor’ immediately,
the LCD monitor will beep once and finish learning process.
Take F (front tire) for example
The ‘learning mode’ will continue for about 30 seconds and then back to
main screen.
24
Operating procedure
1. Initialization
Switch on LCD monitor to boot up, and LCD monitor will be
communicating with sensors and showing tire pressure values that is
kept from last time before system was off.
2. Main screen
After booting up for around one minutes, system will enter main
screen. Most of time, your system will stay in this mode and
response with the latest figures of both tire pressure and
temperature. In this mode, you will find the antenna icon will be
blinking.
Blinking
25
3. Automatically power off
g
A. After power on, if there is no signal from sensors in 20 minutes
B. Being no signal received for more than one hour after the last signal
received.
4. Abnormal status
A. Tire pressure below lower warning value
When tire pressure is below lower warning value (default value= 26
PSI), LCD monitor will beep and vibrate once in 10 seconds and
repeat for 5 times.
Blinkin
Take F (front tire) for example
B. Tire pressure higher than upper warning value
When tire pressure is higher than upper warning value, (default value=
45 PSI), LCD monitor will beep and vibrate once in 10 seconds and
26
repeat for 5 times.
g
g
Blinkin
Take F (front tire) for example
C. Tire temperature higher than upper warning value
When tire temperature is higher than upper warning value, (default
value= 70к), LCD monitor will beep and vibrate once in 10 seconds
and repeat for 5 times.
Blinkin
Take F (front tire) for example
D. LCD monitor runs out to power
Battery power in monitor will decrease by daily operation and
when power level is lower to some extent, the monitor battery
low indicator will appear to remind rider of time to replace battery.
The icon is shown as picture below.
27
E. Tire pressure sensor runs out of power
Battery power in sensor will decrease by daily operation and
when power level is lower to some extent, the sensor battery low
indicator will appear to remind driver of time to replace battery.
The icon is shown as picture below
Take F (front tire) for example
28
The definition of warnings
Item Status Purpose Pattern
1. Power on LCD
monitor
2. Tire pressure is below
lower warning range
3. When tire pressure is
below lower warning
range, each 1 P.S.I.
down, warnings will
be given as well.
4. Tire pressure is higher
To remind rider of
power on now
The warning of
low tire pressure
The warning of tire
pressure getting
lower
The warning of
Beeps once
Beeps for 3 times,
vibrating and backlights
on. Repeat for 5 times.
Beeps for 3 times,
vibrating and backlights
on. Repeat for 5 times.
‘Beeps for 3 times,
than upper warning
range
5. When tire pressure is
higher than upper
warning range, each 1
P.S.I. up, warnings
will be given as well.
6. Tire temperature is
higher than upper
warning value
7. When ire temperature
high tire pressure
The warning of tire
pressure getting
high
The warning of
high tire
temperature
The warning of tire
vibrating and backlights
on. Repeat for 5 times.
Beeps for 3 times,
vibrating and backlights
on. Repeat for 5 times.
Beeps for 3 times,
vibrating and backlights
on. Repeat for 5 times.
Beeps for 3 times,
is higher than upper
temperature
29
vibrating and backlights
warning range, each 1
P.S.I. up, warnings
will be given as well.
getting high on. Repeat for 5 times.
8. Learnable sensor is
integrated
Finish learning
mode
Beeps once
Troubleshooting
The following checklist will help you remedy problems you may
encounter with your unit. Before going through the checklist below,
check the connection and operating procedures.
1. Indications disappear from / do not appear in the display
A. Please make sure if power switch is on.
B. Please make sure if monitor has battery inserted.
C. Be sure the power of battery is enough.
D. Be sure to observe the correct polarity when installing the
batteries.
E. If these solutions do not help improve the situation, consult your
nearest Tyredog dealer.
2. No connection between sensors and monitor and you find all tire
pressure values are gone (in 3 dash ‘---‘.)
A. Please make sure if sensor has battery (CR1632) inserted.
B. Be sure to observe the correct polarity when installing sensor
batteries.
C. Battery could run out of power and we suggest to replace with
new battery.
30
D. If these solutions do not help improve the situation, consult your
nearest Tyredog dealer.
3. Monitor display color is getting dark.
When car temperature is over 80 , it is natural that LCD panel will к
be getting dark. When car temperature is back to normal, LCD panel
will be normal again.
4. When temperature is below -20к, the response time of CD monitor
could be slower.
5. ‘Learning mode’ can only accept ‘learnable sensor’ but not standard
sensor.
Additional Information
Under normal conditions, sensor batteries will last approximately 1~2
years. LCD monitor will last around 6 months. (The service life may be
shorter, depending on the conditions of use.) When the battery becomes
weak, the power low indicator will appear on the screen. Replace the
battery with a new CR1632 lithium battery for sensor or with AAA 1.5
battery for LCD monitor.
Notes on battery
z Keep the battery out of the reach of children. Should the battery be
swallowed, immediately consult a doctor.
z Wipe the battery with dry cloth to assure a good contact
z Be sure to observe the correct polarity when installing the battery.
31
z Do not hold the battery with metallic tweezers, otherwise a
short-circuit may occur.
z Battery may explode if mistreated.
z Do not recharge, disassemble, or dispose of in fire.
Package content
Here are items in whole package.
Item Photo number
TD-4000A-X LCD
monitor
TD-4000A-X tire
pressure sensor
CR1632 battery
1 pieces
2 pieces
2 pieces
Anti-theft tool
32
Spanner 1 piece
Anti-theft
fixed ring
Hex socket
screw
2 pieces
2 pieces
User guide 1 piece
AAA 1.5V battery 1 piece
Product Specifications
Tire pressure sensor specifications
Frequency 433.92MHz
Tire pressure range 0 ~ 60PSI
Accuracy Tire pressure 1 PSI Εtire temperature 2 к
Operating voltage 3V DC
Operating temperature -40к~125к
Battery life 1~2 years (depends on working hours per day)
Dimensions Diameter 20.5mm X height 20mm
Weight 101 g
LCD monitor specifications
Frequency 433.92MHz
Operating voltage 1.5V DC
Battery life 6 months (depends on working hours per day)
Operating temperature -20к~80к
Dimensions Length 58mm X width 36mm X height 19mm
Weight 43g
33
Loading...
