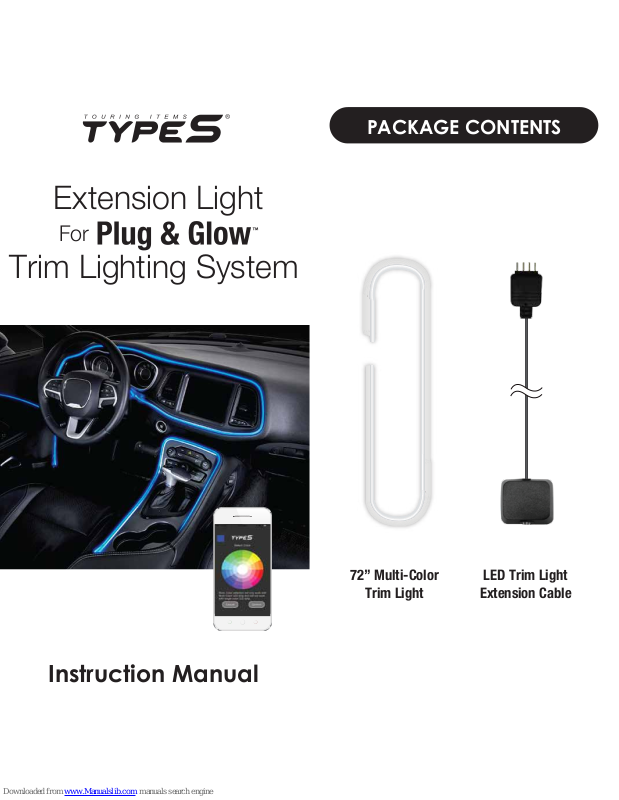

Instruction Manual
PACKAGE CONTENTS
72” Multi-Color
Trim Light
LED Trim Light
Extension Cable
Extension Light
Trim Lighting System
For
TECHNICAL SPECIFICATIONS
INSTALLATION
• Choose your desired location.
( – see suggestions above)
•
Use the lift panel tool to increase space
between panels if needed, then carefully slide
trim light into the gap between interior panels.
Note:
• For use with 12V power only
• Suitable temperature for
installation is 70°F (21°C) or above.
Lift Panel Tool
(sold separately)
Working voltage: DC 12V Only
Bluetooth distance:
30ft (no obstacle)
Frequency band: 2.4 ghz
Maximum LED Trim: 4 x per Hub
Maximum amperage draw: 3A
WARNING: Do not use lift panel tool to
push against the LED Trim Light.
POWER
Two power options available
12V plug-in power adapter
12V hardwire
3A fuse
1) Select your desired power connection
and connect to the Plug & Glow
TM
Smart
Lighting Hub Controller
2) Connect LED Trim Light with extension
cable to the Smart Lighting Hub
Controller.
b
b
ON/OFF
a
bb
b
a
+
-
• Connect the Trim Light to the Extension
Cable
•
Peel off the 3M
TM
double-sided tape on the
back of the LED emitter and place it on the
dash board.
• Requires
Plug & GlowTM
Automotive
72” Smart Trim Lighting Kit to operate
•
Connect LED Trim Light with extension
cable to the Smart Lighting Hub Controller.
Note:
• For use with 12V power only
• Suitable temperature for
installation is 70°F (21°C) or above.
LED Trim Light
Extension Cable
Smart Lighting
Hub Controller
(sold separately)
NOTE: Match arrows
indicated for correct
orientation. An incorrect
connection will cause
lights to malfunction.
Smart Lighting
Hub Controller
(sold separately)
WARNING
1. Do not install or use product if it, in any
way, impairs the safe operation of your
vehicle.
2. NEVER use the APP while operating your
vehicle. Use the APP when vehicle is
stationary only.
3. Follow manufacturer’s instructions to
ensure the product is properly & safely
installed.
4. Check your state or provincial laws before
installing. Vehicle owner must comply with all
applicable laws.
5. This product is intended solely for
decorative purposes. Manufacturer and Seller
assume no liability for installation or use,
which are solely the responsibility of the
purchaser.
6. This product is not DOT approved and is
designed and intended for interior uses only.
Not for use in extreme temperature such as
under hood applications.
7. The Manufacturer and Seller are not
responsible or liable for consequential,
incidental, or indirect damages, whether to
person or property, resulting from the
installation or improper use of this product.
PROP 65 WARNING: This product contains
chemicals known to the State of California to
cause cancer, birth defects or other
reproductive harm.
Wash hands after handling.
FCC & IC
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications or
change to this equipment. Such modifications or
change could void the user’s authority to operate the
equipment.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy, and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
receiver
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV
technician for help
The device has been evaluated to meet general RF
exposure requirement. To maintain compliance with
ML-55880_V1
OPTIONAL ACCESSORIES
ACCESSORIES AVAILABLE TO
TAKE YOUR EXPERIENCE TO
THE NEXT LEVEL
PLUG & GLOW
TM
SPLITTERS & EXTENSION CABLES
USE ONLY MULTI-COLOR MICRO,
PANEL & STRIP LIGHT EXTENSIONS
For more product and installation
ideas and videos visit us at:
www.winplususa.com
12v DC
72” SMART TRIM LIGHTING KIT
Antenna Type Max. Antenna Gain (dBi)
PCB printed antenna 0
Have a comment or question?
Email us at: info@winplususa.com
or visit us online at: www.winplususa.com
FCC RF exposure guidelines, this equipment
should be installed and operated with a minimum
distance of 20cm between the radiator and your
body.
CAN ICES-3(B) / NMB-3(B)
This radio transmitter (identify the device by
certification number or model number if Category
II) has been approved by Industry Canada to
operate with the antenna types listed below with
the maximum permissible gain indicated. Antenna
types not included in this list, having a gain greater
than the maximum gain indicated for that type, are
Winplus North America, Inc.
820 South Wanamaker Avenue, Ontario,
CA 91761 USA
Tel: 866-294-9244
© 2016 Winplus North America, Inc.
All rights reserved.
3M™ is a trademark of 3M Company.
