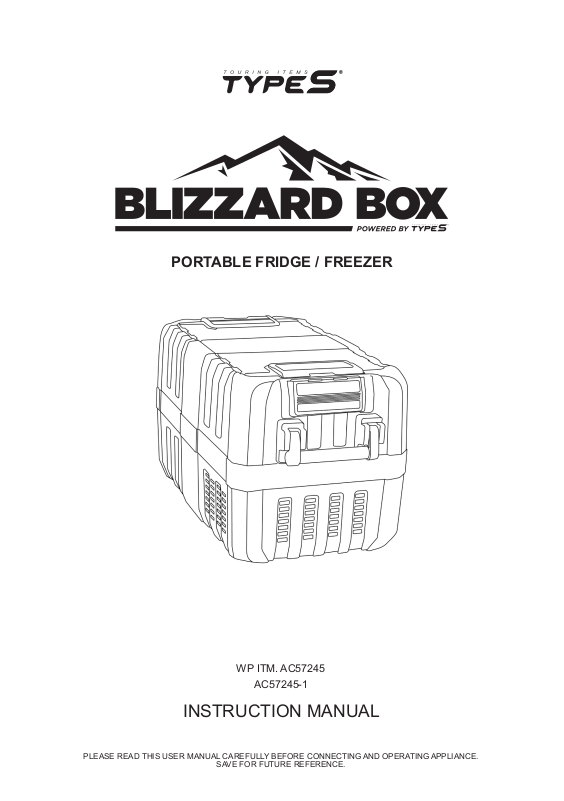

PORTABLE FRIDGE / FREEZER
WP ITM. AC57245
AC57245-1
INSTRUCTION MANUAL
PLEASE READ THIS USER MANUAL CAREFULLY BEFORE CONNECTING AND OPERATING APPLIANCE.
SAVE FOR FUTURE REFERENCE.
PACKAGE CONTENTS:
Blizzard Box Blizzard Box Lid
Small
Storage Basket
Large
Storage Basket
Instruction
Manual
12V DC Power Cord - 9 1/2’ 110V Power Adaptor - 6’
2
TECHNICAL SPECIFICATIONS:
Capacity: 41 Quart (38.80L)
Dimension: 29.6” × 16.1” × 16.1”
(Including Handles) (752mm × 410mm x 410mm)
USB charging port output: 5 V / 1.5A rating
Climate class: 50ºF ~ 109ºF (10ºC ~ 43ºC)
(SN/N/ST/T)
Compressor: SECOP/Danfoss PBC-2.0
Cooling Performance: 0ºF ~ 50ºF (-18ºC ~10ºC)
Refrigerant: R134a (60g)
Insulation: CFC-free PU foam
Power consumption: 55W (as needed)
Blizzard
Box Lid
Operating
Storage
Baskets
Panel
Handle
Ventilation
3
OPERATION:
BEFORE YOU START
CAUTION!
• To reduce the chances of overheating, keep your Blizzard Box
in an open area, not to obstruct the heat dissipation side
ventilation openings. Ensure these side vents are not blocked
while in use, or shortly after use.
• Use in dry conditions.
• Do not use near heat sources such as gas ovens, heaters, or
direct sunlight.
• Do not immerse in water.
• Do not ll with liquid.
• Do not use in direct sunlight or near ames / re.
• Ensure Blizzard Box, cables, and charging inputs / outputs are
not exposed to direct moisture or heat.
1. Connecting power
DC SOCKET
The red slide switch on the Operating Panel should be to the left
during “normal use.”
Nomal Use
Insert DC plug into vehicle’s power port. You may also use the
included 110V AC to 12V DC Power Converter for household
power.
4
OPERATION CONT.:
2. Operating panel
On / Off Button
3. Turning on Blizzard Box
After connecting power to your Blizzard Box, the Power Light
Indicator on the Operating Panel will be Orange. The Digital
Display will be blank.
Press and hold the On / Off Button for three seconds. The Digital
Display will then show the current interior temperature. Once the
Power Light turns Green, your Blizzard Box is operating.
Power / Status Light
Orange: Stand-by
Green: Running
Red (Flashing): Low voltage or damage,
Error Light
contact Customer Care.
Temp. / Setting Up
Temp. / Setting DownDigital DisplaySetting Button
4. Setting the temperature
- Press button once, start setting temperature status.
- Use / to set temperature from 0°F to 50°F or
-18°C to 10°C.
- The cooling temperature will be displayed for a few seconds.
The Digital Display will ash several times before the interior
temperature is displayed.
- Press button once again, start exchange status for
Fahrenheit degree (°F) and centigrade degree (°C).
5
OPERATION CONT.:
- Use / to switch between Fahrenheit and Centigrade.
The cooling temperature appears on the display for a few
seconds. The display ashes several times and then the interior
temperature is displayed again.
NOTE
If the ambient temperature is above +90°F (+32°C), the minimum
setting temperature cannot be attained.
When Blizzard Box interior temperature reaches the desired
temperature setting, the compressor will stop. The Power Light
will turn to Orange.
5. Vehicle Battery Protection Setting
The Blizzard Box is equipped with multi-level vehicle battery
protection that guards against excessive discharging when
connected to a 12V / 24V power source.
If the Blizzard Box is operating when the vehicle ignition is
switched off, it will switch off automatically once the supply voltage
falls below the cut-off level. The Blizzard Box will switch back on
once the vehicle battery has been recharged to the restart voltage
level (See table in Section 9).
NOTICE! Avoid Damaging Vehicle Battery
If the Vehicle Battery Protection Setting becomes activated and
switches off the Blizzard Box, the vehicle battery will NOT be fully
charged. Avoid restarting the vehicle repeatedly, or operating the
radio before the vehicle battery has fully recharged via running
engine.
Ensure that the battery is recharged.
-Press the button three times.
-Use the / buttons to select the Vehicle Battery
Protection Setting.
6
OPERATION CONT.:
Digital Display will be as follows:
(LOW), (MED), (HIGH)
The selected mode then appears on the display for a few seconds.
The display ashes several times before it returns to the current
temperature. (Reference Section 9 for more information)
6. Turning off the Blizzard Box
In working status, press and hold button for three seconds
to turn off the Blizzard Box. Pull out power plug.
7. Emergency Override Mode
Emergency Switch
Nomal Use Emergency Mode 1.5A USB Port
Emergency Override Mode is for temporary use only.
Emergency Override Mode will restart the Blizzard Box to run at
a voltage below the preset of the battery protection. During the
voltage override, the Blizzard Box will run with the Orange Stand-
by Light and Red (ashing) Error Light. Digital Display will not be
available.
Emergency Override Mode can be used to keep the Blizzard Box
running if the Operation Panel malfunctions.
To conrm if the Blizzard Box is running, feel for the air ow, or
listen for sound from ventilation openings on either side of the
appliance. (See image on pg.3 )
NOTE
When using Emergency Override Mode, the vehicle battery
can drain rapidly.
7
OPERATION CONT.:
8. USB port for power supply
1.5A USB Port allows you to charge most mobile devices.
9. Setting Vehicle Battery Protection / Low Voltage Battery Protection
When the vehicle battery’s voltage drops to the below setting, the
Blizzard Box compressor will turn off. This will protect the vehicle
battery from over discharge. The Error Light will ash Red to alert
you to charge the battery by running the engine. The Orange
Stand-by Light will remain on.
Voltage Range: Vehicle Battery Protection:
Power
Supply
DC 12V Cut-off Voltage 10.1±0.3V 11.4±0.3V 11.8±0.3V
DC 24V Cut-off Voltage 21.5±0.3V 24.1±0.3V 24.6±0.3V
Status Battery
Protector
Restart Voltage 11.1±0.3V 12.2±0.3V 12.6±0.3V
Restart Voltage 23.0±0.3V 25.3±0.3V 26.2±0.3V
Low Mode Medium
Mode
High
Mode
(Reference Section 5 Vehicle Battery Protection Setting)
When the Blizzard Box is powered by an auto starter battery,
High Mode Setting is recommended to warrant the vehicle’s
battery power is high enough to ensure starting.
If you use an additional battery (RV, campers) as a power
supply, Low Mode Setting is recommended.
If you use an AC 110V Power Converter (included), set the
Battery Protection Setting to Low Mode.
8
OPERATION CONT.:
10. 3-Position Lid
11. Tips
Suggested beverage & food storage
temperatures
Beer (Light), Sparkling Wines, Champagne 41°F / 5°C
Beer (Craft), White Wine 46°F / 8°C
Beer (Rich avor), Red Wine 53°F / 12°C
Soda / Pop 40°F / 4°C
Fruit & Veggies (Cool Season) 32-35°F / 0-1.6°C
Fruit & Veggies (Warm Season) 45-55°F / 7-12°C
Meat & Fish 41°F / 5°C
Dairy 35°F / 1.6°C
Eggs 45°F / 5°C
Temperature
• Blizzard Box is designed to maintain chilled temperatures
of food and beverages.
• Pre-cool Blizzard Box before storing food or beverages.
• Pre-cool food or beverages before storing in Blizzard Box.
9
OPERATION CONT.:
Cleaning and Maintenance
WARNING: Always disconnect Blizzard Box from power before
cleaning or servicing.
WARNING: Do not use abrasive cleaning agents or hard objects
during cleaning as these can damage the Blizzard Box.
• Occasionally clean the device interior and exterior with a damp cloth.
• Clean heat dissipation window frequently to ensure good heat
dissipation.
• Do not turn Blizzard Box on its side or upside down. Keep upright.
Defrosting: Humidity can form frost in the interior of the cooling
device or on the evaporator. This reduces the cooling capacity.
Defrosting steps are as below:
• Remove the contents from the Blizzard Box and store them in
another cooler if necessary.
• Disconnect the power of the Blizzard Box. Open the lid, and
keep it open until the ice and frost melt away.
• Use clean cloth to wipe up the defrosted water.
Never use hard or pointed tools to remove ice or to loosen objects
which have frozen in place.
Replacing a defective fuse:
• Unplug the DC power plug;
• Turn the cap counter-clockwise to open it, and
remove the defective fuse from the plug;
• Insert a new fuse that has the same rating
(15A 250V);
• Close and tighten the cap.
10
WARNING:
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS– This manual contains important safety
and operating instructions.
2. Before using this product, read all instructions and cautionary markings.
3. Do not expose the product to rain, moisture, or snow.
4. Use of an attachment not recommended or sold by the product
manufacturer may result in a risk of re, electric shock, or injury to persons.
5. To reduce risk of damage to cigarette lighter connector and cord, pull by
cigarette lighter connector rather than cord when disconnecting the product.
6. Make sure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
7. Do not operate with damaged cord or cigarette lighter connector –
replace it immediately.
8. Do not operate the product if it has received a sharp blow, been dropped,
or otherwise damaged in any way; take it to a qualied serviceperson.
9. Do not disassemble the product; take it to a qualied serviceperson when
service or repair is required. Incorrect reassembly may result in a risk of
electric shock or re.
10. To reduce risk of electric shock, unplug charger before attempting any
maintenance or cleaning. Turning off controls will not reduce this risk.
• Pay attention to the voltage description on the rating label, and ensure that
the power cord is connected to right power outlet.
• If this power cable is damaged, it must be replaced by Type S, customer
service or a similarly qualied person in order to prevent safety hazards.
• Disconnect the power supply when cleaning and maintenance or stop use.
NOTICE! Danger of damage!
Warnings and Precautions
The warnings, precautions, and instructions discussed in this manual cannot
cover all possible conditions and situations that may occur. The operator must
understand that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
Disconnect the Blizzard Box from the vehicle battery before you connect the
vehicle battery to jump starter or quick charging device.
11
WARNING CONT.:
Over-voltage can damage the electronics of the device.
• Blizzard Box can only be maintained by authorized person,
improper maintenance may lead to unexpected dangers or
damages.
• Corrosive materials should not be stored in Blizzard Box.
• The Blizzard Box should be used, kept and stored in a dry
place, avoiding water spashes, rain, or other moisture. Do not
immerse in water.
• Do not place the appliance near heat sources such as heaters
or direct sunlight.
• Make sure well-ventilated for heating yield.
• The Blizzard Box is not intended for use by children.
• Children should be supervised to ensure that they do not play
with the appliance.
• The appliance is only to be used with the power converter unit
provided with the appliance.
• Do not turn the Blizzard Box on its side or upside down. If it is
staged on its side or upside down, put the unit back to horizontal
for 2 hours before operation.
12
WARRANTY:
Limited Warranty: Type S warrants, to the original purchaser, that its products
are free from defects in material and workmanship for 1 year from the date of
original purchase.
Conditions of Warranty: If during the 1 year warranty period your new product
is found to be defective, Type S will repair such defect without charge for parts
or labor, or will replace the product, subject to the following condition:
1. All repairs must be performed by Type S.
Limitations of Warranty
This limited express warranty is the exclusive warranty. Neither Type S
nor its third party suppliers makes any other warranty, whether express
or implied. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE
LAW, ALL IMPLIED WARRANTIES (INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE
DISCLAIMED.
Limitations of Liability and Remedy
This limited express warranty is the exclusive remedy provided by Type S
for a product defect. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, TYPE S AND ITS THIRD PARTY SUPPLIERS SHALL
NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT,
TORT, UCC, OR ANY OTHER LEGAL THEORY, EVEN IF SUCH DAMAGES
ARE FORESEEABLE AND EVEN IF TYPE S HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
13
WARRANTY CONT.:
BLIZZARD BOX
MODEL#: AC57245
Responsible Party:
Type S
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA
Tel: 1-866-294-9244
FCC Compliance Statement:
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment. The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modications or change to this equipment.
Such modications or change could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.)
WARNING: This product can expose you to chemicals including DEHP and
DINP, which are known to the State of California to cause cancer
and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
14
15
TROUBLESHOOTING:
Issue Cause Remedy
Power indicator
light is not on
or Blizzard Box
does not work.
1 Flash
(Error light)
No power input. Check whether input power is functional or
not. The engine must be on in most vehicles
to provide the power.
Blizzard Box fuse burnt. Change fuse.
Vehicle-mounted fuse
burnt.
Car plug socket does
not connect well.
Low Voltage. Please check the source voltage to ensure it
Refer to vehicle operating manual to change
fuse.
Clean the socket and check whether plug
connects correctly.
is above the voltage cut out setting.
2-4 Flashes
(Error light)
5 Flashes
(Error light)
Compressor locked or
operation speed is too
low.
Ambient temperature is
too high.
Unplug for 10 minutes.
Ensure side ventilation vents have good air
ow, and are not blocked.
The Error codes are depicted by a number of ashes by the Error light in a
sequence every fours seconds. If Error indicator light blinks, the compressor
will restart every 60 seconds until it starts successfully.
Have a comment or question? Email us at: info@typesauto.com
or visit us online at www.typesauto.com
A Horizon Brands Company
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626
1.866.294.9244 | info@typesauto.com
©2019 Type S. All rights reserved.
www.typesauto.com
16
ML-57245_V1
Loading...
