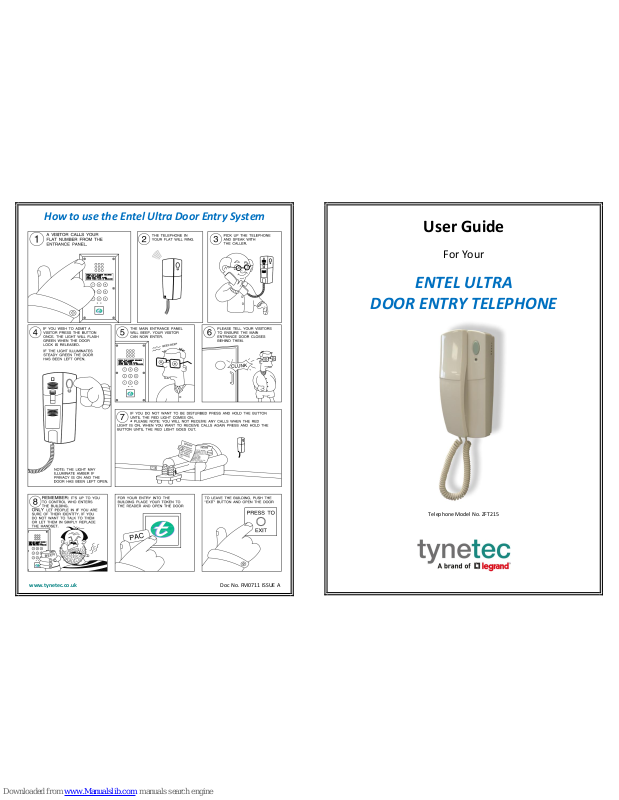

Tynetec ZFT215 User Manual

How to use the Entel Ultra Door Entry System

www.tynetec.co.uk Doc No. FM0711 ISSUE A

User Guide

For Your

ENTEL ULTRA

DOOR ENTRY TELEPHONE

Telephone Model No. ZFT215

INTRODUCTION

Your Entel Ultra telephone is used to answer calls from visitors using the
buildings door entry system. The pushbutton has two functions;

1. It can release the entrance door and allow your visitors access

2. It can select privacy mode and prevent nuisance calls

The LED indicator will illuminate different colours for different conditions.

It is important that you read these instructions before use, if you need further
assistance please contact your Housing Manager.

TO ANSWER A CALL

Your telephone will ring when a visitor is calling
The ring tone will repeat for about 60 seconds or until you pick-up the handset

Lift the handset and speak with the caller
To allow access, press the pushbutton once
The LED indicator will FLASH GREEN when the entrance door is released
Replace the handset on the hook to end the call.

Remember; if you don’t want to let the caller in or you are unsure of their identity
simply replace the handset to end the call.

TO SELECT PRIVACY MODE

You can select privacy mode if you do not want to receive any calls;

Press and hold the pushbutton for about 3 seconds
The LED indicator will illuminate RED to indicate privacy is on
You cannot receive any calls when privacy is on
To return to normal operation, press and hold the pushbutton again for about 3
seconds and the red LED will go out.

Note; if your telephone is set for “Timed Privacy” then privacy mode will turn off
automatically after a pre-set period (default 12 hours).

DOOR LEFT OPEN INDICATION

If the LED indicator illuminates STEADY GREEN the entrance door has been left
open and the building is not secure.

When the door is closed the green LED will go out.

AMBER LED INDICATOR

If you have privacy mode selected and the entrance door is left open the LED
indicator will illuminate AMBER until the door is closed.

ALTERNATIVE RING TONE

If your building has two entrance doors your telephone may ring with a different
tone from each door.

Note; this is an optional feature and must be set-up by an Engineer.

⚫ NOT LIT: Normal

 FLASHING GREEN:

Door Lock Released

⚫ RED: Privacy Mode

⚫ GREEN: Door Left Open

⚫ AMBER: Privacy Mode

and Door Left Open

PUSHBUTTON

LED INDICATOR
