Installation & Service
Manual
TLM, TLF, TLD
PRINTED IN Specifications subject to REPLACES ISSUE PART
IN U.S.A. change without notice. EDITION
11/05 DATE 4/07 NO. 9037179 REV. E
Tyler Refrigeration * Niles, Michigan 49120
This manual has been designed to be used in conjunction with the
General (UL/NSF) Installation & Service Manual.
Save the Instructions in Both Manuals for Future Reference!
This merchandiser conforms to the American National Standard Institute & NSF International Health and Sanitation standard ANSI/NSF - 7 2003.
LIFT FRONT STRAIGHT GLASS MEAT/SEAFOOD/DELI MERCHANDISERS
Medium Temperature Service Display Cases
CONTENTS
Page
Specifications
TLD/TLM/TLF Specification Sheets . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Line Sizing Requirements . . . . . . (See General-UL/NSF I&S Manual)
Pre-Installation Responsibilities . . . . . (See General-UL/NSF I&S Manual)
Pre-Installation Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Carpentry Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Case Line-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Lift Front Glass Leveling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rear Rail Cover and Close-off Installation . . . . . . . . . . . . . . . . . . . . 10
Bumper and Color Band Adjustment . . (See Gen.-UL/NSF I&S Man.)
Optional 2” Bumper Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Plumbing Procedures . . . . . . . . (See General-UL/NSF I&S Manual)
Refrigeration Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setting the Electronic Thermostat (TLM/TLD/TLF) . . . . . . . . . . . . . 12
Electrical Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Defrost Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Defrost Control Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation Procedure Check Lists (See Gen.-UL/NSF I&S Manual)
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TLM/TLF Case Circuits (4’, 6’, 8’ & 12’ Cases) . . . . . . . . . . . . . . . . 14
TLD Case Circuits (4’, 6’, 8’ & 12’ Cases) . . . . . . . . . . . . . . . . . . . . 18
Cleaning and Sanitation
Component Removal and Installation Instructions for Cleaning
Lower Trays and Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Air Ducts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Rear Air Ducts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Mullion Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
End Coil Cover (TLM/TLF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Refrigeration Line Cover (TLM Only) . . . . . . . . . . . . . . . . . . . . . . . . 22
Electrical Cover (TLM Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Lower Cladding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Upper Cladding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Stainless Steel Cleaning Method . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TLM, TLF, TLD
Page 2 April, 2007
Installation & Service Manual TLM, TLF, TLD
April, 2007 Page 3
Page
General Information
Rear Sliding Door Removal and Installation . . . . . . . . . . . . . . . 25
Mezzanine Shelving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Top Mounted Scale Shelf Installation . . . . . . . . . . . . . . . . . . . . 26
Service Instructions
Preventive Maintenance . . . . . . (See General-UL/NSF I&S Manual)
Fan Blade & Motor Replacement . (See Gen.-UL/NSF I&S Manual)
Connecting the Refrigeration Piping and Components . . . . . . . 27
Light Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ballast and Lighting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Light Shield Anti-Sweat Replacement . . . . . . . . . . . . . . . . . . . . . . . 28
Front Glass Anti-Fogging System Service . . . . . . . . . . . . . . . . 28
Front Glass Anti-Sweat Replacement . . . . . . . . . . . . . . . . . . . . . . . 28
Front Glass Anti-Fog Fan Replacement . . . . . . . . . . . . . . . . . . . . . 29
Lift-Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Lift-Glass Gas Piston Replacement . . . . . . . . . . . . . . . . . . . . . . . 30
Color Band, Bumper and Bumper Retainer Replacement . . . . 31
Anti-Sweat Heater Wire Deflector Kit Replacement (TLD) . . . . 32
Parts Information
Operational Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cladding and Trim Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
TYLER Warranty . . . . . . . . . . . . . . . . . (See General-UL/NSF I&S Manual)
The following Medium Temperature Lift Front Straight Glass Meat/Seafood/Deli Service
Merchandiser models are covered in this manual:
MODEL DESCRIPTION
TLM 4’, 6’, 8’ & 12’ LIFT GLASS GRAVITY COIL MEAT SERVICE
MERCHANDISERS
TLF 4’, 6’, 8’ & 12’ LIFT GLASS GRAVITY COIL SEAFOOD SERVICE
MERCHANDISERS
TLD 4’, 6’, 8’ & 12’ LIFT GLASS FORCED AIR COIL DELI SERVICE
MERCHANDISERS
TLM, TLF, TLD
Page 4
SPECIFICATIONS
TLD Lift Front Straight Glass Blower Service Merchandisers
TLM/TLF Lift Front Straight Glass Gravity Service Merchandisers
April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 5April, 2007
TLM, TLF, TLD
Page 6 April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 7
INSTALLATION PROCEDURES
WARNING
The raised front glass projects in front of
the case and could cause personal injury
to workers, operators and/or customers.
• Do not remove orange warning tags
from front edge of lift glass.
• Do not leave lift glass raised and
unattended.
• Know where the front edge of the
raised glass is when working near it.
This case is designed so the front glass can
be raised for cleaning and merchandising
only. It is recommended that any cleaning
or merchandising be done when the store is
closed. If this is not possible, it should be
done at a time when customer traffic is low.
The raised glass should not be left unattended
and should be lowered whenever leaving the
case.
The glass front is marked with orange warning
tags to make it noticeable when in the raised
position. Do not remove the orange tags.
Pre-Installation Check List
WARNING
These cases are very heavy and require
two or more people to unload, move,
position and/or install them. Improper
handling of these cases could result in
personal injury.
NOTE:
Cases with legs or pedestals are shipped
to stores on skids under the base frame.
Cases should be unloaded and moved by
one of the conventional methods
All cases containing glass MUST be stored
and installed on level surfaces to avoid
possible product damage and/or glass
breakage.
1. Check for hidden damage while
unloading and unpacking of the case.
2. Check the “shipped loose” parts for any
items; such as legs, pedestals, shelves,
nuts and bolts, caulking, access doors,
etc.
3. Check the equipment - remove the screws
used to hold down the deck pans during
shipping. Remove the pans and check
the following, if applicable:
4. Remove all packing material.
5. Check all flare nut connections for
tightness.
6. Check all fan bracket bolts for tightness.
7. Check all electrical plug-in connections
for positive seal.
8. Make sure the expansion valve feeler bulb
is securely attached to the suction line.
9. All field wiring and plumbing MUST
conform to national, state, and local
codes.
10. Do not remove plugs (from flare nuts) or
caps (from threaded connections) until
the unit is ready for final hook-up. All
coils are pressurized and have a Schrader
Valve access fitting. If pressure has been
lost, check for leaks.
September, 2004
TLM, TLF, TLD
Page 8
Carpentry Procedures
Case Line-Up
Before starting the case line-up, review the
store layout floorplans and survey the areas
where case line-ups are going to be installed.
WARNING
• These cases are very heavy and require
two or more people to move, position
and/or install them.
• Do not walk on the tops of these cases.
Tops of cases are not designed to
support the weight of a human being.
Improper handling of these cases could
result in personal injury.
1. Snap chalk lines where the front and rear of
the case legs or pedestals are to be located
for the entire line-up.
NOTE
Front and rear edges of legs or pedestals
should always be used to line-up cases.
Cases with legs have built-in leveling
adjustment capabilities. Cases with
pedestals use 6” shims to make leveling
adjustments.
2. Cases are shipped on skids. Using a
proper lifting devise, lift case off skid and
position case where it is to be installed.
While the case is properly supported,
install legs into threaded holes in base.
Make sure all legs are completely
threaded into the base to properly
secure them. Carefully lower case until
it is supported by the legs or pedestals.
Thread out bottom leg insert, up to 1 1/2”,
to level the case.
If case has pedestals, locate highest
point on chalk lines as a reference for
determining the number of shims to be
placed under case pedestals. Position
first case at the highest point on the
chalk lines and shim case pedestals as
required.
Check leveling across the top of the case
and on top of the front cladding.
CAUTION
If the base of this case is not sitting evenly
on the floor, the case could warp when
loaded and possibly break the lift glass.
NOTE
A foam gasket is factory installed on one
end of the case. This gasket fits into a
groove on the adjoining case when cases
are pulled together. Do not depend on the
foam gasket alone to make a good seal!
April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 9
Lift Front Glass Leveling Instructions
Accurate leveling is critical for the proper
operation of the lift glass on this case.
In some instances, setting the case on an
apparently level floor can cause the lift glass
to fit improperly. If there is any twist in the
body, it could cause the lift glass not to fit
or work properly.
The emphasis when leveling this case must
be on making sure the lift glass works and
seals properly.
The case should be leveled across the top (1),
close to the hinge, and on the top of the front
cladding (2). A 4 foot level is recommended,
and both places should be level! This will
enable the lift glass to fit and work properly.
If the lift glass still doesn’t close or line-up
properly, adjust the legs at the case corners
or shimm the pedestals. Leg adjustment or
shimming will ensure proper operation and
alignment of the lift glass.
The handle on the lift glass must rest evenly
on the front cladding. Proper lift glass sealing
is essential for good product refrigeration.
NOTE
Do not anchor the base to the floor or
enclose the case until the lift glass is
fitting properly and working correctly.
3. Apply two heavy beads of caulking
compound from the Filler Kit to the end
of case at dotted (. . .) and dashed (- - -)
lines. Proper caulking provides good
case refrigeration and sanitation.
4. Push cases tightly together making sure
the pull-ups are aligned.
5. Adjust legs or add shims under the end
pedestals, as required. Check leveling at
top of the case and on top of the front
cladding.
CAUTION
Do not drill or use other holes through the
case end for pull-ups. This may deform
the case end and could cause joint leaks
and/or poor refrigeration.
6. Position pull-up bolts and mounting hardware at pull-up locations (A and B). Do
not tighten any pull-up hardware until all
of it has been installed. Tighten all pull-up
hardware equally starting at point A and
finishing at point B. Do not overtighten.
September, 2004
TLM, TLF, TLD
Page 10
Rear Rail Cover & Close-off Installation
(Cases with Pipe Legs)
Position rear rail cover (1) over rear raceway
opening and secure with screws in every
hole.
Bottom and End Close-off Installation
Kickplate, optional rear bottom and end
close-offs have spring clips on their back
sides that secure to the pipe legs.
NOTE
Optional rear bottom close-offs do not
require joint trim.
1. Before installing kickplates on a multiple
case lineup, snap a joint trim (2) over
the top and bottom of one of each
kickplate (3).
2. Lineup each kickplate (3) and/or optional
rear bottom close-off (4) and push to
secure the spring clips to the legs (5).
3. Slide joint rrims (2) over the case-to-case
joints.
4. Position end close-offs (6) over the end
of the kickplate (3) and/or optional rear
bottom close-off (4) and push until the
spring clips secure to the legs.
Trim Installation
The joint trim and mounting hardware are
shipped loose. Trim includes top joint trim
(1), rear upper joint trim (2), rear lower joint
trim (3), front kickplate joint trim (4), front
lower cladding joint trim (5) and front upper
cladding joint trim (6), color band backer (7),
glass stop joint trim (8) and horizontal joint
trim (9).
Horizontal joint trim covers gaps between the
cases. The trim is glued onto the shipping
cardboard. If trim has a notched side, apply
trim with notched side towards front of case,
after running beads of caulking on the edges
of the cases. Sheet metal screws can be
used for additional securing.
Patch end trim is shipped factory installed. If
field installation is required, be sure the patch
end is pulled up enough to fit snuggly against
the sealing tubing on the inside of the case.
The patch end must seal tightly against the
lift glass wiper to ensure proper operating
temperatures.
April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 11
Optional 2” Bumper Installation
1. Install bumper retaining track on cladding
with screws, if required, using same
alignment as old bumper track.
2. Cut vinyl bumper slightly longer than
overall length of case line-up. Starting
at either end of the case, snap end of
bumper onto the bumper retainer track.
3. Curve the bumper back as illustrated.
This will open the bumper and allow it
to snap onto the retainer track. Working
in one direction, “roll” the bumper onto
the retainer track. Just before reaching
the opposite end, final cut the bumper
(approx. 1/8”) longer than the bumper
retainer. The additional 1/8” length will
allow for normal shrinkage from case
cooling.
NOTE
Bumper unevenness may be remedied by
striking with a mallet and straight board
along the length of the installation.
See “General (UL/NSF) I&S Manual” for
Plumbing Procedures.
Refrigeration Procedures
Refrigeration system and superheat
instructions can be found in the “General
(UL/NSF) I&S Manual”. Service case
temperature control information is listed
below.
Temperature Control
The temperature of each case is controlled
with a thermostat and suction line solenoid.
One thermostat and one solenoid are
required for up to three cases.
The TLM, TLF and TLD cases use an
electronic thermostat for improved
temperature control.
Typical Service Case with Gravity Coil
THERMOSTAT BULB MOUNTED
UNDERNEATH COIL
September, 2004
TLM, TLF, TLD
Page 12
2. Connect sensor wires to the common
(COM) and sensor (SEN) terminals of the
terminal strip located at the top left of the
printed circuit board. The sensor leads
are interchangeble.
3. Set the Heating/Cooling jumper blocks to
the “COOL” position.
4. Set the Cut-in at Setpoint/Cut-out at
Setpoint jumper blocks to the “Cut-out at
Setpoint” position.
5. Set the Keypad Locked/Unlocked jumper
blocks to the “Unlocked” position.
6. Replace the electronic thermostat cover
and secure with four screws.
7. To adjust the setpoint:
a. Push the Menu Button. “SP” will flash
on the LCD display.
b. Push the Menu Button one more time
and a setpoint temperature will be
displayed.
Typical Service Case with Blower Coil
In addition to the thermostat and suction
solenoid, a suction stop EPR valve is
required in the suction line. The EPR
valve acts as a low pressure limit to aid
in the overall temperature control. See
“Connecting the Refrigeration Piping and
Components” on page 27 of this manual.
Setting the Electronic Thermostat
1. Remove the four screws and cover from
the electronic thermostat.
THERMOSTAT BULB PLACEMENT
April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 13
c. Push the Up or Down Button until the
desired setpoint is displayed. (TLM =
22°F, TLF = 33°F or TLD = 22°F)
d. Push the Menu Button.
8. To adjust the differential:
a. Push the Menu Button. “SP” will flash
on the LCD display.
b. Push the Down Button until “DIF” is
shown on the LCD display.
c. Push the Menu Button one more time
and a differential number will be
displayed.
d. Push the Up or Down Button until
the desired differential setting is
displayed. (TLM = 4°F, TLF = 1°F
or TLD = 4°F)
d. Push the Menu Button.
With the cooling mode selected, the
differential is ABOVE the setpoint. The relay
will be energized and the LED indicator will
illuminate when the temperature reaches the
differential setting. When the temperature
drops to the setpoint, the relay and LED
indicator will de-energize and refrigeration
will stop.
The settings above are specific to TYLER
service cases. Other applications will require
different setpoints and differentials.
Electrical Procedures
Electrical Considerations
CAUTION
Make sure all electrical connections at
components and terminal blocks are tight.
This prevents burning of electrical terminals and/or premature component failure.
NOTE
The ballast box is located at the lower left
rear corner of the case. It houses ballasts
and terminal blocks.
Case Fan Circuit (TLD only)
This circuit is to be supplied by an
uninterrupted, protected 120V circuit. The
case fan circuit is not cycled on this case.
Ambient Fan Circuit
All TL cases have an ambient fan circuit. This
circuit is supplied by an uninterrupted, protected 120V circuit. The ambient fan circuit is not
cycled.
Fluorescent Lamp Circuit
TL case lighting is supplied by T-8 electronic
ballast lights. It is controlled by a light switch
in each case. The standard lighting is 1-row
of horizontal canopy lights.
Anti-Sweat Circuit
All anti-sweat heaters are wired directly to
the main power supply so they can operate
at all times.
Defrost Information
See “General (UL/NSF) I&S Manual” for
operational descriptions for each type of
defrosy control.
Defrost Control Chart
TLM/TLF Defrost Option Settings
Defrost
Defrost Defrosts Duration Term.
Type
Per Day (Min) Temp.
Off Time 2 54 -----
TLD Defrost Option Settings
Defrost
Defrost Defrosts Duration Term.
Type
Per Day (Min) Temp.
Off Time 4 34 -----
Thermostat and sensor locations are shown
on pages 11 and 12 of this manual.

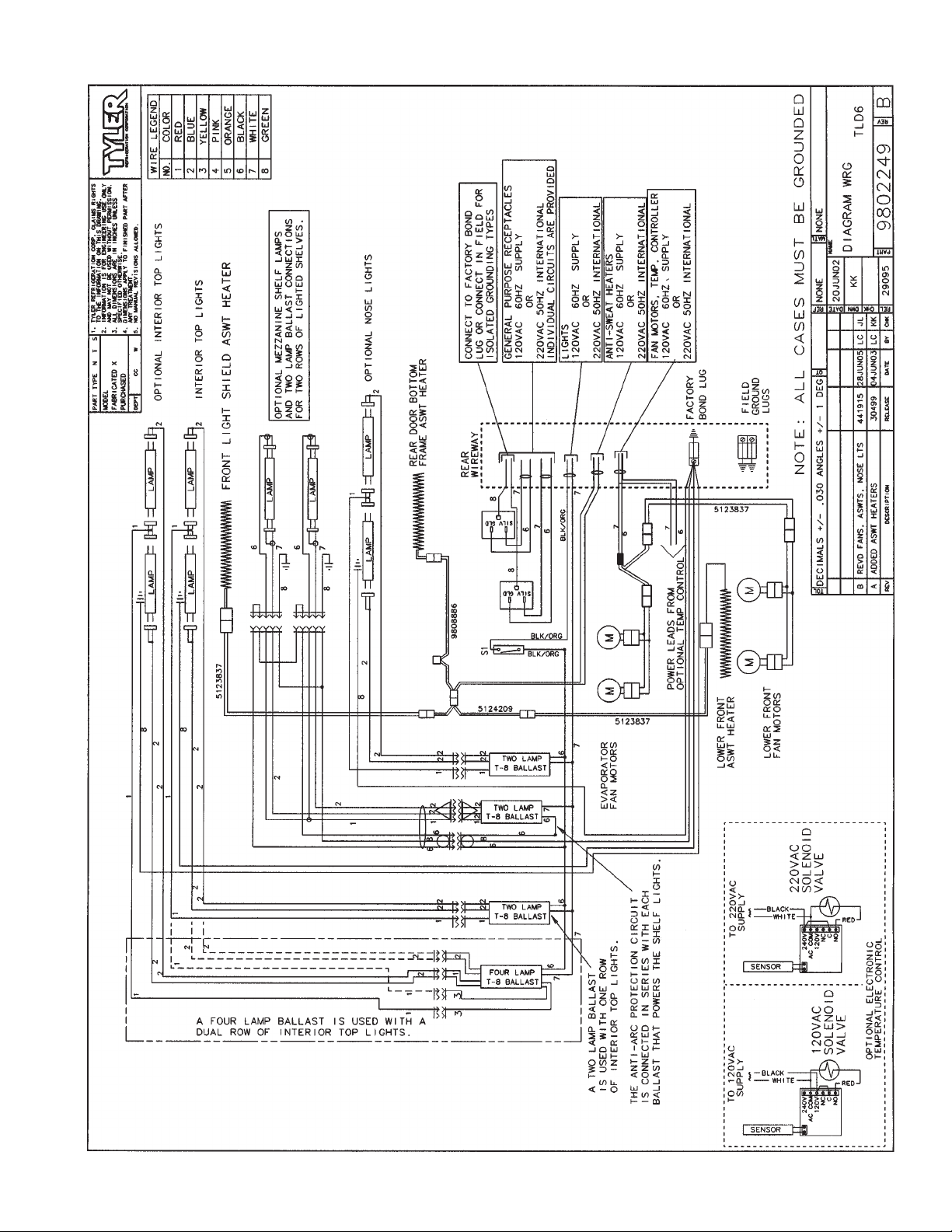

WIRING DIAGRAMS
ELECTRICIAN NOTE - OVERCURRENT
PROTECTION
120V circuits should be protected by 15 or 20 Amp
devices per the requirements noted on the cabinet
nameplate or the National Electrical Code, Canadian
Electrical Code - Part 1, Section 28. 208V defrost
circuits employ No. 12 AWG field wire leads for field
connections. On remote cases intended for end to
end line-ups, bonding for ground may rely upon the
pull-up bolts.
The wiring diagrams on pages 14 thru 21 will
cover all TLM, TLF and TLD case circuits.
July, 2005
Page 14
TLM/TLF Domestic & Export (50 Hz) Case Circuits (4’,6’, 8’ and 12’ Cases)
July, 2005
Page 15July, 2005
Page 16 July, 2005
Page 17July, 2005
Page 18
TLD Domestic & Export (50 Hz) Case Circuits (4’, 6’, 8’ and 12’ Cases)
July, 2005
Page 19July, 2005
Page 20 July, 2005
Page 21July, 2005
TLM, TLF, TLD
Page 22
CLEANING AND SANITATION
Component Removal and
Installation Instructions for
Cleaning
Lower Trays and Screens
1. Open the front straight glass by lifting
the handle at the bottom.
2. Remove product from the case interior.
3. Grasp and lift out each lower tray or
screen from the bottom of the case.
4. After cleaning, replace in reverse order.
Front Air Ducts
1. Remove lower trays or screens, see
this page.
2. Lift out front air duct sections.
3. After cleaning, replace in reverse order.
Rear Air Ducts
1. Remove lower trays or screens, see
this page.
2. Remove mounting screws from rear
air duct.
3. Lift out rear air duct sections.
4. After cleaning, replace in reverse order.
Mullion Covers
1. Open the front straight glass by lifting
the handle at the bottom.
2. Remove mounting screws from each
mullion cover.
WARNING
Mullion covers with electrical receptacles
can be cleaned without removing the
electrical receptacles. Do not get moisture
on electrical wires when cleaning under
this cover. Moisture on wires could cause
premature product failure and/or personal
injury or death from electrical shock.
3. Carefully remove each mullion cover from
the rear uprights.
4. After cleaning, replace and secure mullion
covers in reverse order.
End Coil Cover (TLM/TLF)
1. Open rear sliding doors at each end.
2. Remove screws and end coil covers from
ends of upper coil.
3. After cleaning, replace end coil covers in
reverse order.
Refrigeration Line Cover (TLM Only)
1. Open the front straight glass by lifting the
handle at the bottom.
2. Remove lower screens, see this page.
3. Remove mounting screws and
refrigeration line cover.
4. After cleaning, replace in reverse order.
Electrical Cover (TLM Only)
1. Open the front straight glass by lifting
the handle at the bottom.
2. Remove lower screens, see this page.
3. Remove mounting screws and
electrical cover.
WARNING
Do not get moisture on electrical wires
when cleaning under this cover. Moisture
on wires could cause premature product
failure and/or personal injury or death
from electrical shock.
4. After cleaning, replace in reverse order.
Front Lower Cladding
1. Remove front kickplate.
2. Lift and pull out front lower cladding until
rear tabs clear holes in front of frame
assembly. After rear tabs are clear, pull
down on cladding to clear upper tabs
from slots in bottom of upper front
cladding and remove cladding from case.
3. After cleaning, replace front lower
cladding by inserting top tabs, then rear
tabs. Make sure all tabs are securely fit in
each slot. Replace front kickplate.
Front Upper Cladding
1. Remove color band, bumper and bumper
retainer from the case. See page 31.
April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 23
2. Remove front kickplate.
3. Remove screws and front lower cladding. See page 22.
4. Remove screws from top and bottom of front upper cladding and remove front upper cladding.
5. After cleaning, replace front upper cladding and remaining front components in the
reverse order.
Cleaning Instructions
WARNING
TYLER Refrigeration does not recommend the use of high pressure cleaning equipment on
service style cases!! The sealing of front glass and end joints is critical in these cases and
high pressure cleaners can penetrate and/or damage these seals. Damaged seals allow
water leaks and/or air leaks that can cause poor case refrigeration.
CAUTION
• When cleaning this case, try not to introduce water into the case faster than it can be
carried away by the waste outlet.
• Liquid chlorine bleach is corrosive to metals. The use of bleach or products containing
bleach will damage metal surfaces and void the case warranty.
• Sanitize the case with Quaternary Ammonium Solutions (ex: KAYQUAT II, J-512 Sanitizer,
SANIQUAT 512, tec...) approved per 21CFR 178.1010, followed by adequate draining and
air drying. These solutions may be obtained from Kay Chemical Co., Johnson Wax
Professional, Coastwide Laboratories, etc....
• Always use a soft cloth or sponge with mild detergent and water to clean the front glass.
Never use abrasives or scouring pads to clean glass. They can scratch and/or damage
the glass.
See “General (UL/NSF) I&S Manual” for case cleaning instructions.
Stainless Steel Cleaning Methods
The cleaning data in the following stainless steel cleaning chart was supplied by AISI. The information was supplied by
Prime Metals Division, Alumax Aluminum Corporation.
TYPE OF CLEANING
CLEANING AGENT* APPLICATION METHOD** EFFECT ON FINISH
Routine cleaning Soap, ammonia or deter- Sponge with cloth, then Satisfactory for use on all
gent and water. rinse with clear water and finishes.
wipe dry.
Smears and finger- Arcal 20, Lac-O-Nu, Lumin Rub with cloth as directed Satisfactory for use on all
prints Wash O’Cedar Cream on the package. finishes. Provides barrier film
Polish, Stainless Shine
Stubborn spots and Allchem Concentrated Apply with damp sponge or Satisfactory for use on all
stains, baked-on Cleaner cloth. finishes.
splatter, and other light
discolorations Samae, Twinkle, or Cameo Rub with damp cloth. Satisfactory for use on all
Copper Cleaner finishes if rubbing is light.
Grade FFF Italian pumice, Rub with damp cloth. Use in direction of polish lines
whiting or talc on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Liquid NuSteel Rub with dry cloth. Use a Use in direction of polish lines
small amount of cleaner. on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
April, 2007
TLM, TLF, TLD
Page 24
TYPE OF CLEANING CLEANING AGENT* APPLICATION METHOD** EFFECT ON FINISH
Paste NuSteel or DuBois Rub with dry cloth. Use a Use in direction of polish lines
Temp small amount of cleaner. on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Cooper’s Stainless Steel Apply with damp sponge or. Use in direction of polish lines
Cleaner, Revere Stainless cloth. on No. 4 (polished) finish.
Steel Cleaner May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Grade F Italian pumice, Steel Rub with a damp cloth. Use in direction of polish lines
Bright, Lumin Cleaner, Zud or on No. 4 (polished) finish.
Restoro May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Penny-Brite or Copper-Brite Rub with a dry cloth. Use a Use in direction of polish lines
small amount of cleaner. on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Heat tint or heavy Penny-Brite or Copper-Brite Rub with a dry cloth. Use in direction of polish lines
discoloration on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Paste NuSteel or DuBois Rub with dry cloth. Use a Use in direction of polish lines
Temp small amount of cleaner. on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Revere Stainless Steel Apply with a damp sponge Use in direction of polish lines
Cleaner or cloth. on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Allen Polish, Steel Bright, Rub with a damp cloth. Use in direction of polish lines
Wyandotte, Bab-O or Zud on No. 4 (polished) finish.
May scratch No. 2 (mill) and
No. 7 and 8 (polished) finishes.
Burnt-on foods and Easy-Off, De-Grease-It, 4-6% Apply generous coating. Excellent removal, satisfactory
grease, fatty acids, hot solution of such agents Allow to stand for 10-15 min. for use on all finishes.
milkstone (where swab- as trisodium tripolyphospate, Repeated application may
bing or rubbing is not or 5-15% caustic soda be necessary.
practical) solution
Tenacious deposits, Oakite No. 33, Dilac, Texo 12, Swab and soak with clean Satisfactory for use on all
rusty discolorations, Texo N.Y., Flash-Klenz, cloth. Let stand 15 minutes finishes.
industrial atmospheric Caddy Cleaner, Turco Scale or more according to direc-
stains 4368 or Permag 57. tions on package. Rinse
and dry.
Hard water spots Vinegar Swab or wipe with a cloth. Satisfactory for use on all
and scale Rinse with water and dry. finishes.
5% oxalic acid, 5% sulamic Swab or soak with a cloth. Satisfactory for use on all
acid, 5-10% phospheric acid, Let stand 10-15 minutes. finshes. Effective on tenacious
or Dilac, Oakite No. 33, Always follow with neutralizer deposites or where scale has
Texo 12 or Texo N.Y. rinse, and dry. built up.
April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 25
GENERAL INFORMATION
Rear Sliding Door Removal
and Installation
The sliding doors come installed from the
factory in the door frames. These doors are
removable for cleaning and to aid in case
maintenance. NOTE: DO NOT FULLY
IMMERSE DOORS WHEN CLEANING. The
inner and outer doors are marked with labels
from the factory. If the doors are not labeled,
the inner door can be identified as having the
limiter stops on it.

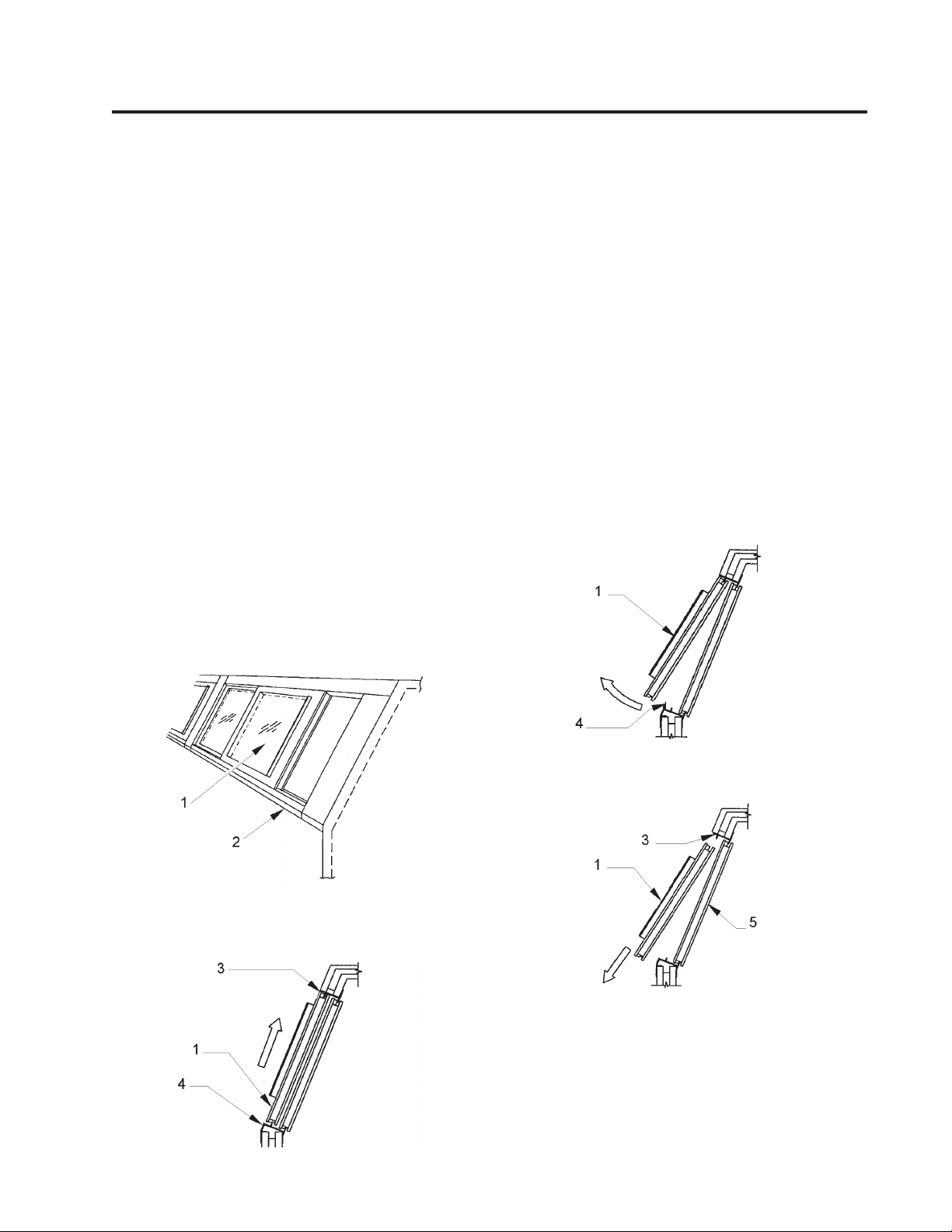

1. Remove the outer door (1) by sliding it to
the right end of the door frame (2) (within
an inch of being closed).
2. Firmly grasp both sides of the outer door
(1) and lift into the upper track (3) until it
clears the lower track (4).
3. Tilt out the bottom of the outer door (1)
so it can clear the lower track (4).
4. Lower the outer door (1) out of the upper
track (3) to remove it from the case.
5. Repeat steps 1 thru 4 to remove the
inner door (5).
6. Reverse the above steps to replace the
inner and outer doors (5 and 1).
Grease and oil Organic solvents such as Rub with a cloth. Organic Satisfactory for use on all
carbon tetrachloride, tri- solvents may be flammable finishes.
chlorethylene, acetone, kero- and/or toxic. Observe all
sene, gasoline, benzene, precautions against fire.
alcohol and chlorethane n.u. Do not smoke while vapors
are present. Be sure area
is well ventilated.
* Use of proprietary names is intended only to indicate a type of cleaner, and does not constitute an endorsement, nor is
omission of any proprietary cleanser to imply its inadequacy. It should be emphasized that all products should be used
in strict accordance with instructions on package.
** In all applications a sponge or fibrous brush or pad are recommended. DO NOT use ordinary steel wool, steel brushes,
chlorine bleach or products containing bleach for cleaning or sanitizing stainless steel.
April, 2007
TLM, TLF, TLD
Page 26
Mezzanine Shelving
Mezzanine shelves are available in 10” or 12”
widths. One level of shelving is optionally
available for TLM and TLF cases, while two
levels of shelving is available for TLD cases.
The shelves can be moved forward from the
mullions in two inch increments and can be
locked into three positions.
Price tag moldings will be attached to the
front of each mezzanine shelf with screws.
To clean the price tag molding, remove
screws and molding from shelves. After
cleaning, reattach molding to shelves with
screws.
To install mezzanine shelving, position and
insert the mezzanine shelf (1) and captive
shelf brackets (2) into slots in the uprights (3).
NOTE
The brackets can be moved vertically at
1” increments in the uprights.
Lighted Shelves
Lights are optional on the 10” and 12”
mezzanine shelves. Wiring harnesses for
all shelf locations are factory installed.
Ballasts are optionally supplied for all shelf
light sockets. The ballasts are located in
the rear raceway channel behind the rear
rail cover.
Top Mounted Scale Shelf
Installation
The optional scale shelf is mounted to the
mullion on the back of the case. The shelf
rests on the flat portion of the top of the case.
Use the follow instructions to mount the scale
shelf assembly.
1. Remove the screws (1) and rear cover (2)
from the scale shelf assembly (3).
2. Center the scale shelf assembly (3) on
the top rear of the case (4) at the selected
mullion (5) location.
3. Loosen wing nut (6) on the front right side
of the lower rear support (7) and the two
locking capscrews (8) at the rear.
4. Adjust scale shelf (3) to sit level from
front-to-rear and side-to-side. When the
shelf is level, retighten the wing nut (6)
and the two locking capscrews (8).
5. Drill pilot holes in the top two holes in
the lower rear support (7), and start two
screws (9). Check for proper shelf
alignment, then tighten two screws (9).
6. Drill pilot holes thru lower two holes in
lower rear support (7) and secure with
two screws (9).
7. Replace rear cover (2) and screws (1) on
scale shelf assembly (3).
April, 2007
Installation & Service Manual TLM, TLF, TLD
Page 27
SERVICE INSTRUCTIONS
Connecting the Refrigeration
Piping and Components
WARNING
Be sure to position a flame and heatresistent shield over the bottom of the
case liner. Heat from brazing could
damage the liner and/or cause personal
injury or death from fire.
1. Remove screws and refrigeration piping
cover from the left bottom of the case.
2. Position loose refrigeration piping and/or
optional valves between the open lines in
the bottom and upright of the case.
NOTE
• Make sure all sensor and thermostat
wires are clear of areas being heated.
• Mount all refrigeration lines off the floor
to allow for cleaning access.
3. Apply flux to all joint ends. Starting at one
end, thoroughly heat each new pipe joint
and braze it together. Repeat this process
until all new pipe joints have been brazed.
4. After piping has cooled, route and
connect thermostat and sensor wires
through openings in the bottom of
the case.
Light Servicing
See “General (UL/NSF) I&S Manual” for
preventive maintenance, T-8 lamp, fan
blade and fan motor (TLD) replacement
instructions replacement.
Ballast and Lighting Locations
All light ballasts are located in the rear
raceway channel behind the rear cover.
In order to retain safety approval with
Underwriter’s Laboratory and the Canadian
Standards Association, the mounting of
electrical components and interconnecting
wires must not deviate from the following
instructions. Only qualified personnel are
authorized to install the accessory items.
TYLER Refrigeration recommends you
order all components from its Service Parts
Department.
Ballast Replacement
1. Remove screws (1) and rear rail cover (2)
from rear of case.
NOTE
If tappit screws are not available, a
starwasher should be used between the
ballast and the heads of the screws.
2. Install required number of ballasts (3)
in rear electrical raceway (4) with two
screws (5) each.
3. Identify and connect required wiring
harnesses (upper, lower, etc...) to the
ballast connectors (6).
4. Replace rear rail cover (2) and secure
with screws (1).
September, 2004
TLM, TLF, TLD
Page 28
Front Glass Anti-Fogging System
Service
TLM, TLD and TLF cases have a front glass
anti-fogging fan and a front glass anti-sweat
heater. Use the following instructions to
replace the anti-sweat heater and/or the
anti-fogging fan.
WARNING
Shut off or disconnect power supply to
case before replacing any part of the
anti-fogging system. Electrical power
from wire ends could damage other
components and/or cause personal
injury or death.
Front Glass Anti-Sweat Replacement
1. Lift and open front lift glass.
2. Remove two screws and color band
from case.
3. Remove bumper from bumper retainer.
4. Remove mounting screws and bumper
retainer from front of case.
5. Remove mounting screws and front
upper cladding from front of case.
April, 2007
Light Shield Anti-Sweat
Replacement
WARNING
Shut off or disconnect power supply to
case before replacing the light shield
anti-sweat. Electrical power from wire
ends could damage other components
and/or cause personal injury or death.
1. Open front lift glass and remove product
from case.
2. Remove rear sliding doors from the case.
(See page 25 in this manual.)
3. Remove screws and right rear interior
corner mullion cover from interior of the
case.
4. Remove light bulbs from the top light fixtures. (See page G-27 in the “GENERALUL/NSF Installation & Service Manual”.)
5. Remove screws and carefully lower the
top light fixtures (1) from the top of the
case.
6. The light shield anti-sweat (2) should now
be exposed on the front interior surface
of the stainless steel light shield (3).
7. Unplug or cut wires (4) (in the right rear
corner mullion) to the defective light
shield anti-sweat and remove anti-sweat
from front interior surface of light shield.
8. Replace new light shield anti-sweat in
reverse order.
9. Reconnect power to case and replace
produce after the case has reached the
proper operating temperature.
Installation & Service Manual TLM, TLF, TLD
Page 29
Lift-Glass Replacement
WARNING
Wear safety glasses and gloves and use
at least two people when replacing glass.
Glass is heavy and weight distribution is
uneven. Mishandling of glass could cause
breakage and/or personal injury.
If replacing glass:
1. Raise the old glass to the full UP position.
NOTE
Glass is heavy and requires assistance
for properly support.
2. With assistants firmly holding both ends
of the glass, loosen the set screws on
the bottom of each hinge with an allen
wrench. After set screws are loosened,
slide old glass assembly to right or left
to remove from hinges.
6. Note position of old heater wire and foil
tape. Unpug heater wire from harness
connector and remove foil tape and
heater wire. Install new heater wire and
foil tape in same position as removed.
7. Plug-in the new heater wire at the
harness connector.
8. Reinstall front cladding, bumper
components and color band in
reverse order.
Front Glass Anti-Fog Fan Replacement
1. Lift and tlit out the lower front cladding
to remove from front of case.
NOTE
The bottom of the front upper cladding
may have to be pulled out slightly to
access the top fan mounting screws.
2. Disconnect defogger fan power cord.
3. Remove four screws and defective fan
from fan brackets.
4. Install new defogger fan on fan brackets
and secure with four screws. Reconnect
the defogger fan power cord.
5. Reinstall the lower front cladding.
September, 2004
TLM, TLF, TLD
Page 30
Lift-Glass Gas Piston Replacement
WARNING
The TL series cases rely upon gas pistons
to assist lifting the glass and holding it in
the raised position. The glass is heavy and
difficult for one person to lift alone while
replacing a gas piston. Use an assistant
to prevent possible glass breakage and/or
personal injury.
Since gas pistons are very powerful when
in compressed state, follow these cautions
during replacement:
• Do not attempt to perform any work on
case while piston is in compressed state.
• Raise glass to full UP position before
beginning any work involving gas
pistons.
• Do not attempt to alter a gas piston in
any way.
• Do not expose a gas piston to excessive
heat.
• Dispose of gas piston as soon as
possible after removal.
Each lift glass panel uses four gas pistons and
two hinges to support it. Example: 8’case has
2 lift glass panels with 4 hinges and 8 gas
pistons.
1. Have an assitant lift and hold the glass in
the full UP position. Note position and
relationship of all glass lift components.
April, 2007
NOTE
Note positioning and installation of top
edge channel before removing.
3. Loosen set screws in back of top edge
channel.
4. Using a flathead screwdriver, push
down aluminum wedge inside top edge
channel, until it rests in bottom of the
channel. After wedge has been released
from glass, remove the old glass from
the top edge channel.
5. Position the top edge channel on the new
glass panel in same position as removed.
NOTE
Glass must be fully inserted into top edge
channel before tightening.
6. After glass is positioned in the top edge
channel, tighten each set screw until
glass is held into place by the aluminum
wedge. Do not overtighten.
6. With aid of assistants, lift and tentatively
position new glass assembly in the hinge
slots. Tighten the hinge set screws. Do
not overtighten.
7. Slowly lower glass to check position. If
adjustment is necessary, raise glass and
have assistants hold both ends. Loosen
the hinge set screws, adjust the glass
assembly position and retighten set
screws to secure top edge channel in
hinge slot. Do not overtighten.
Installation & Service Manual TLM, TLF, TLD
Page 31
Color Band, Bumper and Bumper
Retainer Replacement
NOTE
Color band, bumper and bumper retainer
must be removed to access the upper
screws in the front upper cladding.
1. Open the lift glass and remove screws,
color band and color band backers from
bottom glass support.
2. Push in on center of bumper while pulling
out on bottom of bumper. This will start to
separate bumper from bumper retainer.
3. Make sure the bottom of the bumper is
released from the bumper retainer for the
full length of the case.
4. After bottom is released, firmly pull out top
of bumper to snap it free from bumper
retainer.
5. Remove bumper backers from both ends
of the bumper
5. Mark position of the bumper retainer on
front of case.
6. Remove mounting screws and bumper
retainer from front of case.
NOTE
Bumper backer and color band backer must
be installed in same position as removed to
assure proper fit and alignment during
installation.
7. Install bumper retainer on front of case
with mounting screws in same position
as removed.
8. Position bumper backers in ends of
bumper sections still installed, so half of
the bumper backers are still exposed.
9. Replace the bumper on the bumper
retainer.
10. Position color band backers under ends
of color bands still installed, so half if the
color band backer is still exposed.
11. Replace color band on bottom glass
support and secure with screws.
2. While lift glass is being held open,
position gas piston in piston tool and
squeeze tool to compress and remove
the old gas piston.
3. Install new gas piston on lift glass hinges
using the piston tool. Note weight
capacity printed on side of piston,
example: 0500N (500 Newton).
Replacement piston should be of same
weight capacity as the piston being
replaced.
4. Repeat steps 2 and 3 until all bad gas
pistons have been replaced.
September, 2004
TLM, TLF, TLD
Page 32 April, 2007
Anti-Sweat Heater Wire Deflector
Kit Replacement (TLD Only)
All TLD models have anti-sweat heaters
under each lower rear door frame. Use the
following instructions to replace an anti-sweat
heater wire deflector kit.
WARNING
Shut off or disconnect power supply to
case before replacing any part of the
anti-sweat heater wire deflector kit.
Electrical power from wire ends could
damage other components and/or cause
personal injury or death.
1. Remove product from case.
2. Remove rear doors from door frame that
has defective anti-sweat wire. (See page
25 in this manual.)
3. Remove screws and door frame from
rear of case.

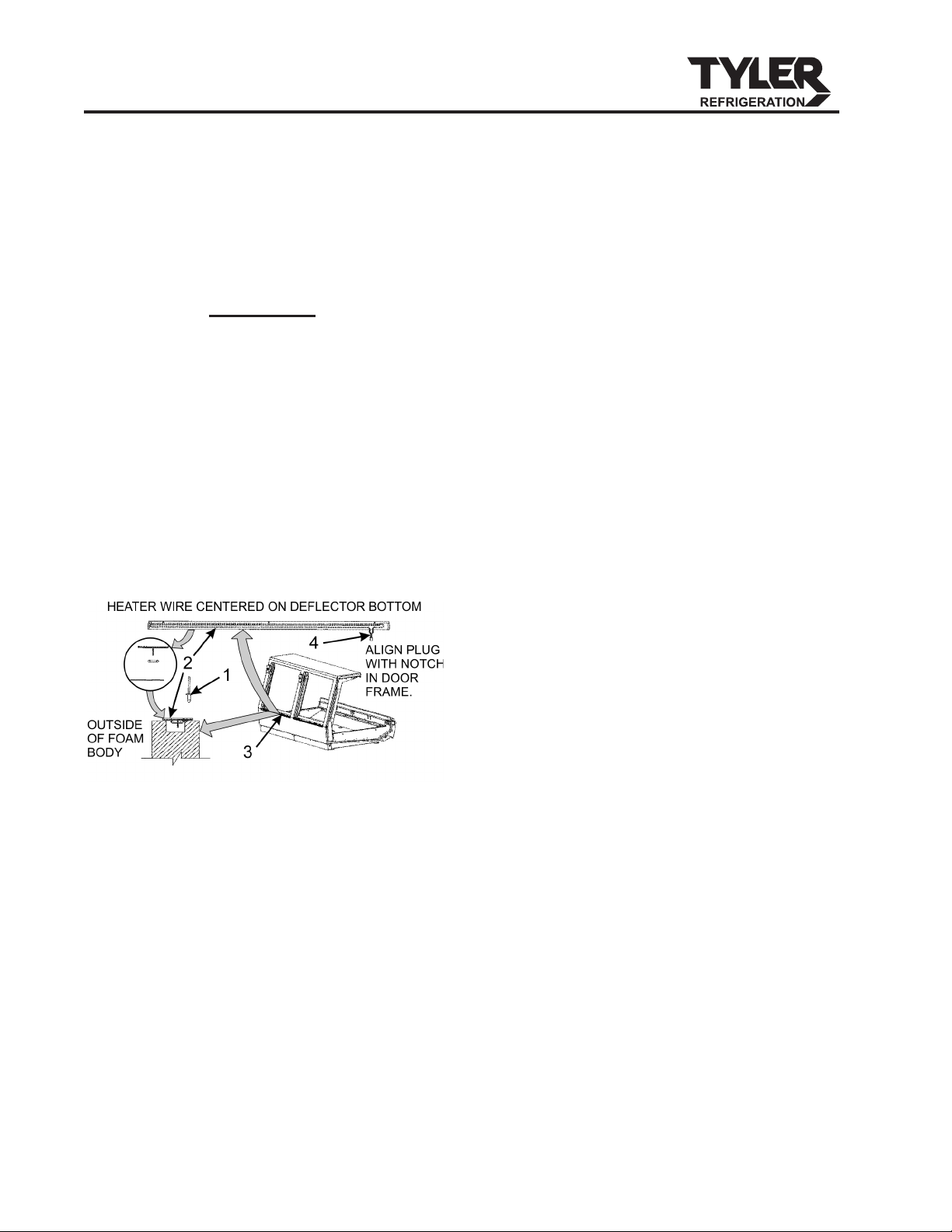

4. Drill out three rivets (1) securing the
anti-sweat heater wire deflector kit (2) to
the bottom of the door opening (3).
5. Unplug or cut wires to anti-sweat heater
wire (4) and remove defective deflector
kit (2) from case.
6. Install new anti-sweat heater wire defelctor
kit (2) in reverse order making sure not to
pinch the anti-sweat wires (4) under the
deflector plate.
7. After doors have been reinstalled, reconnect power to case. Replace product in
case after operating temperature has
been established in the case.
Installation & Service Manual TLM, TLF, TLD
Page 33
PARTS INFORMATION
Operational Parts List
Case Usage Domestic
Electrical Circuit 115 Volt 60 Hertz
Case Size 4’ 6’ 8’ 12’
Fan Motor (TLD) 5125532 5125532 5125532 5125532
5 Watt 5 Watt 5 Watt 5 Watt
Fan Motor Brackets (TLD) 5962269 5962269 5962269 5962269
Fan Bracket Plate (TLD) 9041077 9041077 9041077 9041077
Fan Blades (7” 25° 5B) (TLD) 5236974 5236974 5236974 5236974
Rocker Switch 5961377 5961377 5961377 5961377
Rectangular Outlet 5236335 5236335 5236335 5236335
T-8 Lamp Ballast
(canopy)(1-row) 5991029 5991029 5991029 5991030
(opt. can.)(2-row)(TLD) 5991029 5966635 5966635 5991030
(opt. shelf)(per row) 5991029 5991029 5991029 5991030
(opt. nose light)(1-row) 5991029 5991029 5991029 5991030
T-8 Lampholder (canopy) 9041897 9041897 9041897 9041897
T-8 Shelf Harness 9027906 9027906 9027906 9027906
Anti-Sweat Heater Wire
Front Glass 9053334 9053333 9053332 9053331
Light Shield (TLD) 9053348 9054671 9054670 9053342
Anti-Fog Fan Motor 9801270 9801270 9801270 9801270
Anti-Sweat Heater Wire Deflector Kit
Lower Rear Door Frame (TLD) 9811112 9811113 9811112 (2) 9811112 (3)
Hydro-Lift Gas Piston
(300 N)(4 per glass panel) 5152395 ----- 5152395 5152395
(200 N)(2 per glass panel) ----- 9801274 ----- -----
(100 N)(2 per glass panel) ----- 9808900 ----- -----
Hydro-Lift Piston Tool 5152656 5152656 5152656 5152656
(Required to remove pistons)
Suction Solenoid Valve 5191445 5191445 5191445 5191445
Electronic Thermostat 9043552 9043552 9043552 9043552
Check Valve (TLM) 5199417 5199417 5199417 5199417
For information on operational parts not listed above contact the TYLER Service
Parts Department.
November, 2005
TLM, TLF, TLD
Page 34 April, 2007
Cladding and Trim Parts List
Item Description 4’ 6’ 8’ 12’
1 Rear Top Cladding, BRT/SS 9808686 9802641 9802642 9802643
2 Color Band, Ptd. 9808701 9802209 9800737 9801600
3 Color Band Joint Trim, Ptd. 9801776 9801776 9801776 9801776
4 Bumper Retainer, Std. 9808709 9802219 9801302 9801610
Bumper Retainer, Opt. Adv. ----- 9025052 9025058 9025061
5 Screw 5183536(8) 5183536(12) 5183536(16) 5183536(24)
6 Bumper, Std. 2” 9808710 9801609 9801303 9801609
Bumper, Opt. Adv. ---------------------- color per order ----------------------
7 Bumper Backer, Opt. Adv. ---------------------- color per order ----------------------
8 Upr. Frt. Cladding, Ptd. Std. 9808705 9802215 9800726 9801604
Upr. Frt. Cladding, Opt. Adv. ----- 9802961 9802965 9802969
Screw 5183536(6) 5183536(8) 5183536(9) 5183536(11)
9 Upr. Frt. Clad. Joint Trim Std. 9801780 9801780 9801780 9801780
Upr. Frt. Clad. Joint Trim, Opt. 9802990 9802990 9802990 9802990
Screw 9024814(4) 9024814(4) 9024814(4) 9024814(4)
10 Frt. Kickplate Assembly, Std. 9808763 9802257 9801630 9801631
Frt. Kickplate Assembly, Opt. ----- 9803565 9803566 9803567
11 Kickplate Joint Trim, Std 9801770 9801770 9801770 9801770
Screw 5619204(4) 5619204(4) 5619204(4) 5619204(4)
12 Lwr. Frt. Cladding, Std. Ptd. 9808746 9802220 9800733 9801596
Lwr. Frt. Cladding, Opt. Ptd. ----- 9803253 9803257 9803561
13 Lwr. Frt. Cladding Joint Trim 9801784 9801784 9801784 9801784
Opt. Frt. Cladding Joint Trim 9803249 9803249 9803249 9803249
Screw 9024814(4) 9024814(4) 9024814(4) 9024814(4)
14 Pipe Leg, Std. (2” X 9.75”) 9024894(4) 9024894(6) 9024894(6) 9024894(8)
Pipe Leg, Opt. (2” X 6.00”) 9024893(4) 9024893(6) 9024893(6) 9024893(8)
15 Horizontal End Trim 9037279 9037279 9037279 9037279
16 Glass Stop Joint Trim, Ptd. 9801774 9801774 9801774 9801774
17 Base End Close-off, Ptd. 9801852 9801852 9801852 9801852
(per patch end)(not shown)
Opt. Base End Close-off, Ptd. 9803177 9803177 9803177 9803177
(per patch end)(not shown)
Installation & Service Manual TLM, TLF, TLD
May, 2006 Page 35
Item Description 4’ 6’ 8’ 12’
18 Raceway Cover, Ptd. 9801263 9802224 9801263(2) 9801263(3)
Screw 9043080(5) 9043080(5) 9043080(10) 9043080(15)
19 Lwr. Rear Joint Trim, Ptd. 9801802 9801802 9801802 9801802
Screw 9024814(4) 9024814(4) 9024814(4) 9024814(4)
Opt.Lwr. Rr. Joint Trim, BRT SST 9802645 9802645 9802645 9802645
Screw 5199134 (4) 5199134(4) 5199134(4) 5199134(4)
20 Upr. Rear Joint Trim, Ptd. 9801806 9801806 9801806 9801806
Screw 9024814(4) 9024814(4) 9024814(4) 9024814(4)
21 Refrig. Line Cover (NLM) 9024864 9024864 9024864 9024864
(Not Shown)
Loading...
