Installation & Service
Manual
N5D, N5DH, N5DL, N5DSC
This manual has been designed to be used in conjunction with the General
(UL/NSF) Installation & Service Manual.
Save the Instructions in Both Manuals for Future Reference!!
This merchandiser conforms to the American National Standard Institute & NSF International Health and Sanitation standard ANSI/NSF 7 - 1999.
PRINTED IN Specifications subject to REPLACES ISSUE PART
IN U.S.A. change without notice. EDITION DATE
1/01 NO. 9037155 REV.
Tyler Refrigeration Corporation * Niles, Michigan 49120
NARROW MULTI-DECK DAIRY/DELI MERCHANDISERS
Medium Temperature Refrigerated Display Cases
CONTENTS
N5D, N5DH, N5DL, N5DSC Tyler Refrigeration
Page 2 January, 2001
Page
Specifications
N5D/N5DH/N5DL/N5DSC Specification Sheets . . . . . . . . . . . . . . . 4
Pre-Installation Responsibilities . . . . . (See General-UL/NSF I&S Manual)
Installation Procedures
Carpentry Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Case Pull-Up Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Plumbing Procedures . . . . . . . . (See General-UL/NSF I&S Manual)
Refrigeration Procedures . . . . . (See General-UL/NSF I&S Manual)
Defrost Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Defrost Control Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Procedure Check Lists (See Gen.-UL/NSF I&S Manual)
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
N5D/N5DH/N5DL Domestic & Export (50Hz) 4’ Case Circuits . . . . 7
N5D/N5DH/N5DL Domestic & Export (50Hz) 6’ Case Circuits . . . . 8
N5D/N5DH/N5DL Domestic & Export (50Hz) 8’ Case Circuits . . . . 9
N5DSC Domestic & Export (50Hz) 4’ and 6’ Case Circuits . . . . . . 10
Canopy Lighting Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional Shelf Light Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and Sanitation . . . . . . . . . . . (See General-UL/NSF I&S Manual)
Component Removal and Installation Instructions for Cleaning 13
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Shelves and Shelf Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Bottom Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Front Air Ducts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rear Duct Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Discharge Air Honeycomb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Top Duct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lower Cladding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Upper Cladding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation & Service Manual N5D, N5DH, N5DL, N5DSC
January, 2001 Page 3
P
age
General Information
NSF Product Thermometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Service Instructions
Preventive Maintenance . . . . . . (See General-UL/NSF I&S Manual)
Troubleshooting Self-Contained Units . . . . . . . . . . . . . . . . . . . . 15
Light Servicing
Ballast and Lighting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fan Blade and Motor Replacement (See Gen.-UL/NSF I&S Manual)
Color Band and Bumper Replacement (See Gen.-UL/NSF I&S Man.)
Parts Information
Operational Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cladding and Optional Trim Parts List . . . . . . . . . . . . . . . . . . . . 18
TYLER Warranty . . . . . . . . . . . . . . . . . (See General-UL/NSF I&S Manual)
The following Narrow Medium Temperature Dairy and Deli Merchandiser models are covered
in this manual:
MODELS DESCRIPTION
N5D 4’, 6’ & 8’ REMOTE MULTI-DECK DAIRY/DELI MERCHANDISER
N5DH 4’, 6’ & 8’ REMOTE DEEP WELL MULTI-DECK
DAIRY/DELI MERCHANDISER
N5DL 4’, 6’ & 8’ REMOTE LOW FRONT MULTI-DECK
DAIRY/DELI MERCHANDISER
N5DSC 4’ & 6’ SELF-CONTAINED MULTI-DECK DAIRY/DELI MERCHANDISER
N5D, N5DH, N5DL, N5DSC Tyler Refrigeration
Page 4 January, 2001
SPECIFICATIONS
N5D/N5DH/N5DL/N5DSC Multi-Deck Dairy/Deli Merchandiser
Installation & Service Manual N5D, N5DH, N5DL, N5DSC
Page 5January, 2001
N5D/N5DH/N5DL/N5DSC Multi-Deck Dairy/Deli Merchandiser
N5D, N5DH, N5DL, N5DSC Tyler Refrigeration
Page 6 January, 2001
INSTALLATION PROCEDURES
Carpentry Procedures

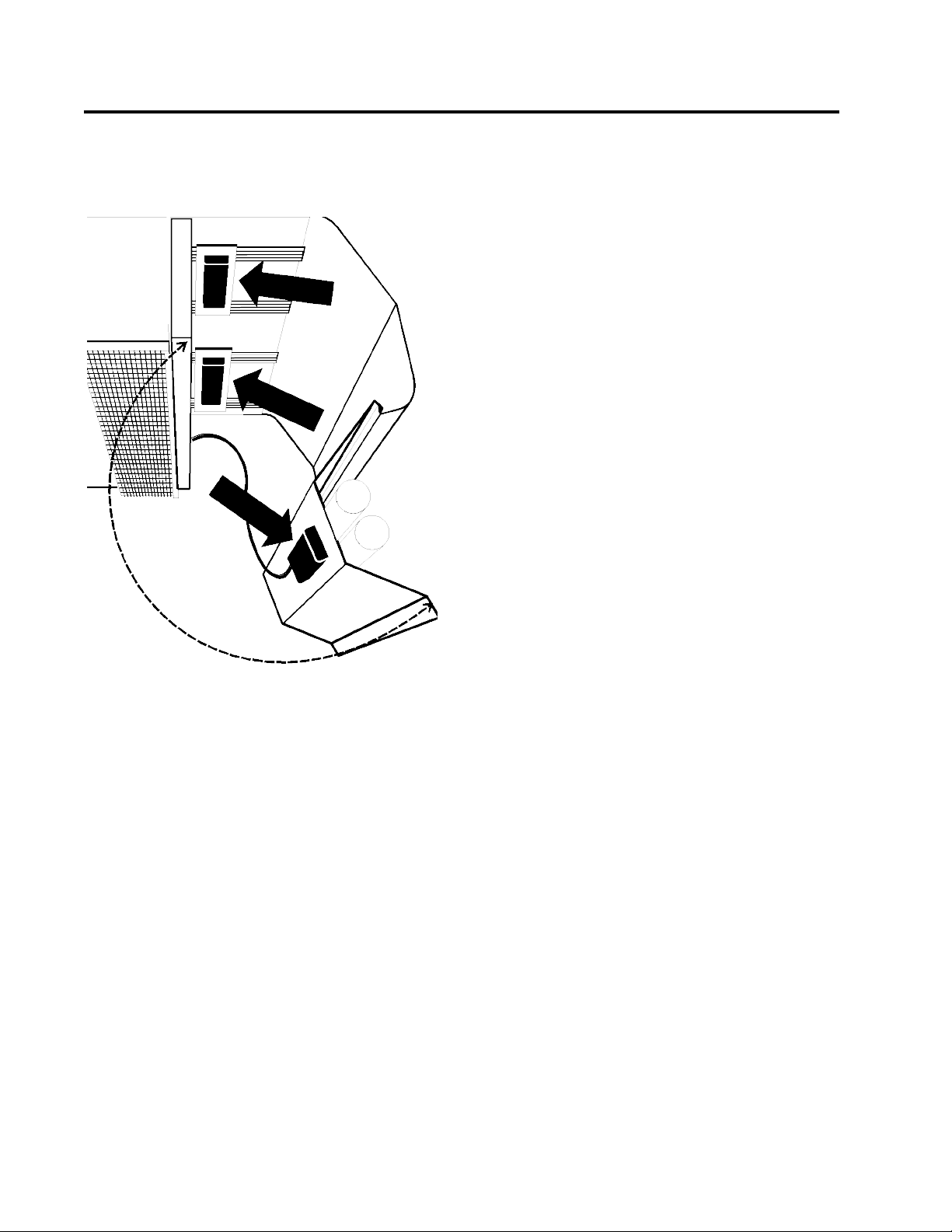

Case Pull-Up Locations
The N5D, N5DH, N5DL and N5DSC models
have four pull-ups at each end of the case.
Pull-ups A, B, C and D are located as shown
and should be install-ed and tightened starting
with A and finishing with D.
See “General-UL/NSF I&S Manual” for lineup assembly instructions.
Electrical Procedures
Electrical Considerations
CA
UTION
Make sure all electrical connections at components and terminal blocks are tight.
NOTE
Since the lower front cladding is shipped
loose, the wiring has immediate access.
Case Fan Circuit
This circuit is to be supplied by an uninterrupted, protected 120V circuit. The case fan
circuit is not cycled during defrost on any of
these models.
Fluorescent Lamp Circuit
N5D/N5DH/N5DL/N5DSC case lighting is
supplied by 800MA HO horizontal lights. It is
controlled by a light switch in each case. The
standard lighting is 1-row of high output
800MA canopy lights.
N5D/N5DH/N5DL/N5DSC also offers up to 4
rows of T-8 shelf lights with remote electronic
ballasts.
Self-Contained Circuit
LNDSC cases are self-contained units.
Information pertaining to self-contained units
should be obtained directly from TYLER
Refrigeration.
Defrost Information
See “General-UL/NSF I&S Manual” for
operational descriptions for Off Time
defrost control.
Defrost Control Chart
Defrost
Defrost Defrosts Duration Term.
T
ype Per Day (Min) Temp.
Off Time 4 24 -----
WIRING DIAGRAMS
ELECTRICIAN NOTE - OVERCURRENT
PROTECTION
120V circuits should be protected by 15 or 20 Amp
devices per the requirements noted on the cabinet
nameplate or the National Electrical Code, Canadian
Electrical Code - Part 1, Section 28. 208V defrost
circuits employ No. 12 AWG field wire leads for field
connections. On remote cases intended for end to
end line-ups, bonding for ground may rely upon the
pull-up bolts.

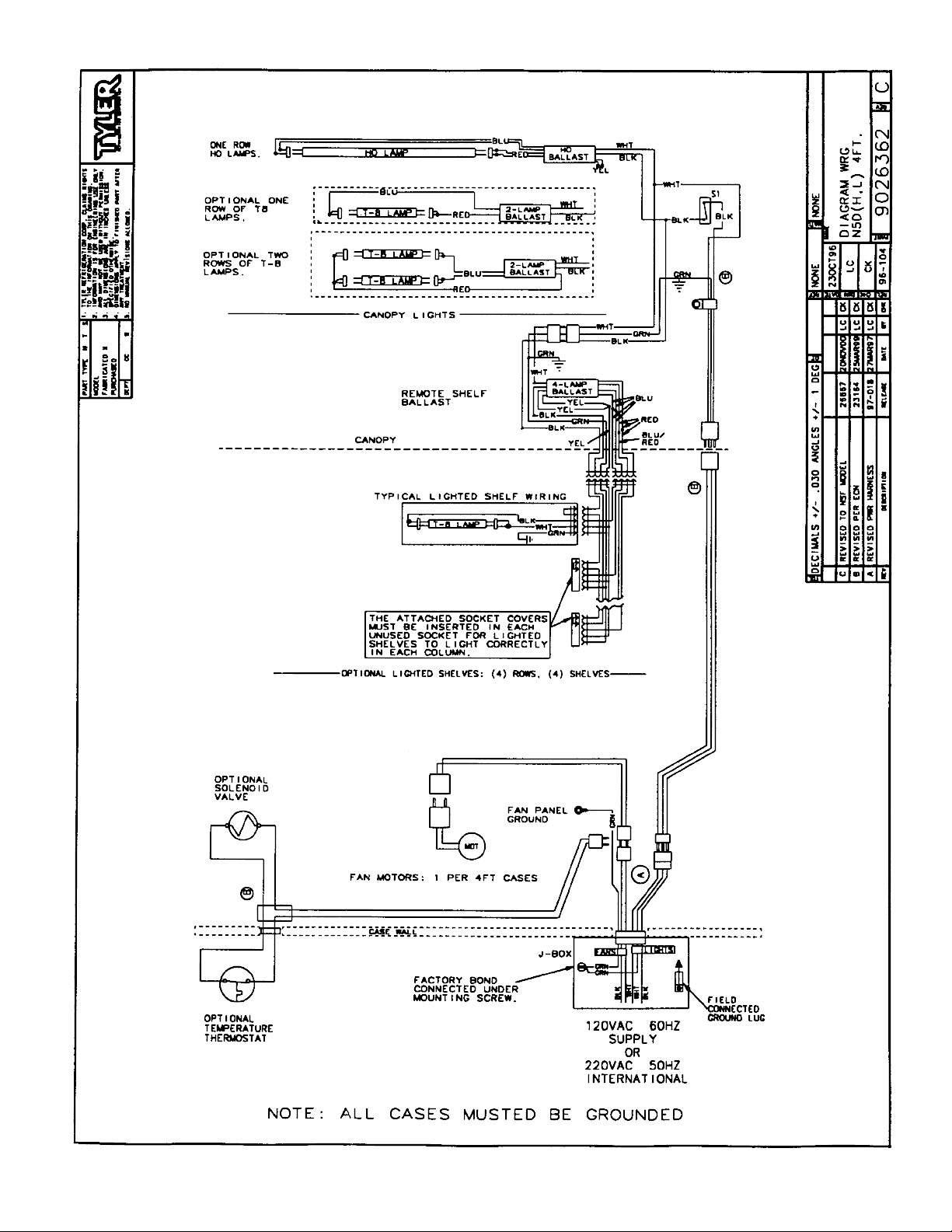

The following wiring diagrams on pages 7
thru 12 will cover the N5D, N5DH, N5DL and
N5DSC case circuits and the lighting
circuits.
January, 2001 Page 7
Page 8 January, 2001
January, 2001 Page 9
Page 10 January, 2001
Installation & Service Manual N5D, N5DH, N5DL, N5DSC
January, 2001 Page 11

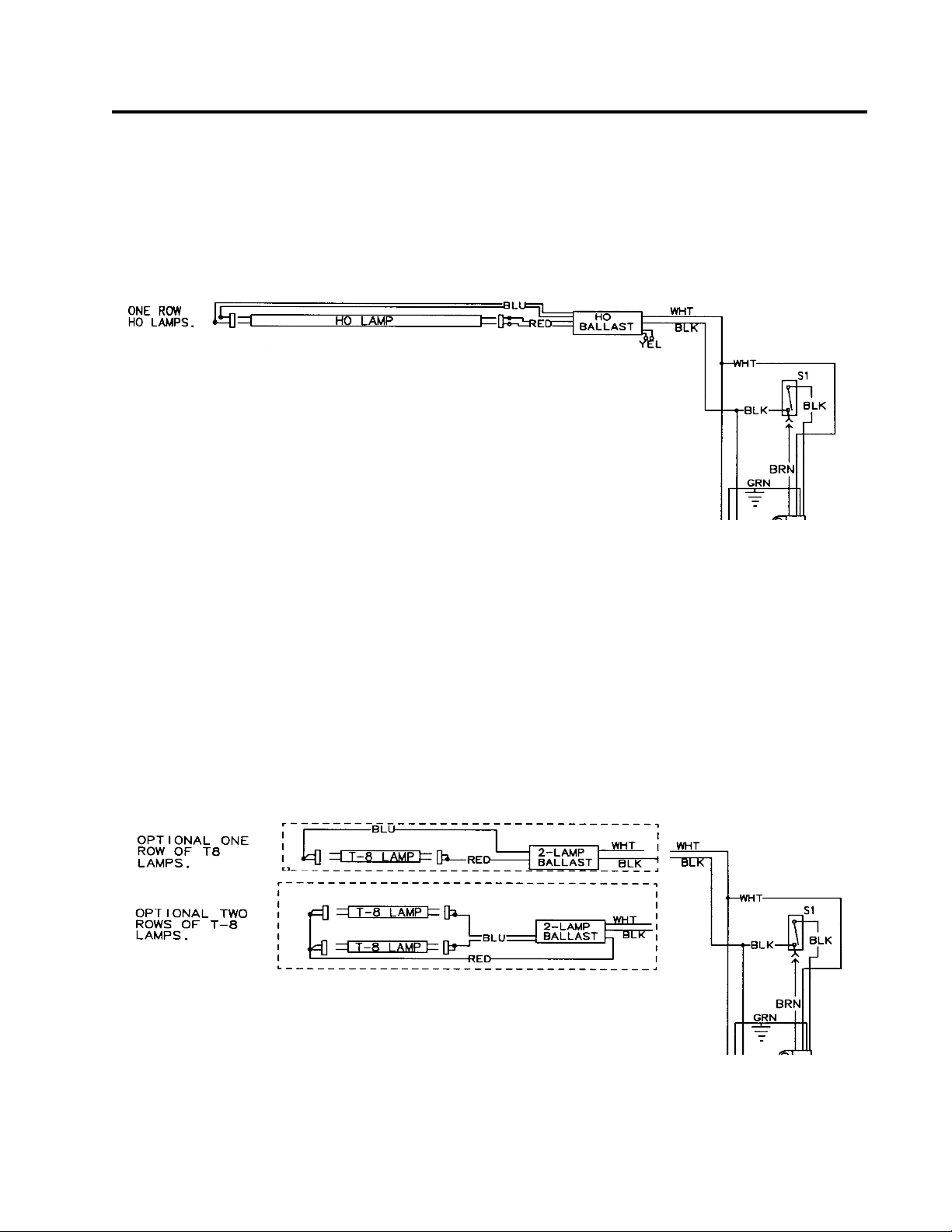

800MA Canopy Lighting Circuit
Optional Canopy Lighting Circuit
N5D, N5DH, N5DL, N5DSC Tyler Refrigeration
Page 12 January, 2001
Optional Shelf Lighting Circuits 4’ Cases
6’ & 8’ Cases
Installation & Service Manual N5D, N5DH, N5DL, N5DSC
January, 2001 Page 13
CLEANING AND SANITATION
Component Removal and Installation Instructions for Cleaning
Mirrors
1. Remove mounting screws and end molding of mirror line-up.
2. Carefully grasp and lift mirror section until
bottom edge clears the lower mirror track.
3. Carefully lower mirror out of upper mirror
track and remove from case.
4. After cleaning, replace in reverse order.
Shelves and Shelf Brackets
1. Remove product from shelves.
2. If shelf has a light, unplug the light cord
from the socket in the rear duct panel.
Completely insert socket cover in the light
socket to protect the receptacle.
3. Push shelves back and then lift up and out
to remove them from the shelf brackets.
4. Remove shelf brackets from slots in rear
uprights.
5. After cleaning, replace in reverse order.
Bottom Trays
1. Remove product from bottom of case.
2. Grasp and lift out each of the bottom trays
from the case interior.
3. After cleaning, replace in reverse order.
Front Air Ducts
1. Remove lower trays, see this page.
2. Lift out front air duct sections.
3. After cleaning, replace in reverse order.
Rear Duct Panels
(w/o Shelf Light Sockets)
1. Remove shelves and bottom trays, see
above.
2. Remove mounting screws and rear duct
panels from case.
3. After cleaning, replace and secure rear
duct panels in reverse order.
(with Shelf Light Sockets)
1. Remove mirrors, shelves and bottom
trays, see this page.
2. Remove mounting screws from rear duct
panel.
3. Slowly lift out rear duct panel until the
shelf harness connector near the top of
the panel can be accessed.
4. Disconnect shelf harness connector and
complete removing the rear duct panel.
WWAARRNNIINNGG
Rear duct panels with electrical receptacles can be cleaned without removing the
electrical receptacles. Do not get moisture
on electrical wires when cleaning under
this cover. Moisture on wires could cause
premature product failure and/or personal
injury or death from electrical shock.
5. After cleaning, reconnect the shelf harness connector: install the top socket
assembly: replace and secure rear duct
panels in reverse order.
Discharge Air Honeycomb
1. Loosen screws securing rear retainer
plate.
NOTE
Note position of the honeycomb grid during removal so it can be reinstalled the
same way.
2. Slide rear retainer plate back until the
honeycomb grid sections can be removed
from the top duct.
CAUTION
Improper installation of the honeycomb
grid section could result in improper air
flow and/or poor refrigeration.
3. After cleaning, replace honeycomb grid
sections as they were removed and
secure with the rear retainer plate and
screws.
N5D, N5DH, N5DL, N5DSC Tyler Refrigeration
Page 14 January, 2001
Top Duct
1. Remove shelves and shelf brackets, see
page 13.
2. Remove screws, rear retainer plate and
honeycomb grid sections from top of
case.
3. Remove screws and top duct from case.
4. After cleaning, replace top duct and
remaining components in reverse order.
Lower Cladding
1. Remove front kickplate form kickplate
supports. (See General-UL/NSF I&S
Manual.)
2. Remove mounting screws from top and
bottom of lower cladding and remove
lower cladding.
3. After cleaning, replace in reverse order.
Upper Cladding
1. Remove lower cladding, see this page.
2. Remove color band, bumper and bumper
retainer from the case. (See GeneralUL/NSF I&S Manual.)
3. Remove screws for top and bottom of
upper cladding and remove upper
cladding.
4. After cleaning, replace upper cladding
and remaining front components in
reverse order.
GENERAL INFORMATION
NSF Product Thermometer
Installation
1. Unwrap the thermometer and bracket
assembly shipped loose with the case.
2. Position bracket in front right corner of the
right-most bottom tray. Making sure the
bracket is 5/8” in from the right edge, use
the bracket holes as a template for where
to drill the holes.
3. Drill two .196” holes in the bottom tray.
NOTE
For ease of installation, position the washers and capnuts on the top side of the
bracket and bottom tray.
4. Mount the bracket to the bottom tray with
two screws, washers and capnuts.
Installation & Service Manual N5D, N5DH, N5DL, N5DSC
January, 2001 Page 15
SERVICE INSTRUCTIONS
Troubleshooting Self-Contained Units
WWAARRNNIINNGG
Never work on electrically powered equipment while it is energized! Electrical shock could
cause personal injury and/or death.
TROUBLE
COMMON CAUSE REMEDY
1. Unit will not run Blown fuse Replace fuse.
Low voltage Check outlet with voltmeter. Voltage
should be 115V or 220V (±10%).
Inoperative motor or Check connections.
temperature control
2. Refrigerated section Shelves overloaded; Make sure items do not block the
is too warm blocked air flow air flow.
Thermostat set incorrectly Check setting.
Pressure control set Check setting.
incorrectly
Case fans not operating Check terminal block connections.
3. Refrigerated section Thermostat set incorrectly Check setting.
too cold
Pressure control set Check setting.
incorrectly
4. Unit runs all the time Inadequate air circulation Relocate cabinet or remove obstruc-
tion. Check installation requirements.
Room temperature Ventilate room appropriately.
too warm
Thermostat set incorrectly Reset thermostat.
Refrigerant charge low Have unit serviced by a qualified
service technician.
5. Noisy operation Loose baffles Tighten or brace baffles.
Tubing contacting cabinet Move tubing.
or other tubing
Cabinet not level Level cabinet.
6. Frost or ice on Defrost clock doesn’t work Check electrical conections. Have
evaporator coil unit serviced by a qualified service
technician.
7. Water dripping from Condensate drain clogged Clear drain.
case drain
Dissipator not functioning Check electrical supply. Check
float assembly.
N5D, N5DH, N5DL, N5DSC Tyler Refrigeration
Page 16 January, 2001
Light Servicing
Ballast and Lighting Locations
All light ballasts are located under the canopy
and mounted on the top of the canopy light
channel. This includes remote ballasts for
optional shelf lights. The canopy light(s) are
under the canopy light channel in the top of
the case. The optional shelf lights are mounted in separate light channels under the front
of each shelf section.
NOTE
See “General-UL/NSF I&S Manual” for
800MA and T-8 ballast and lamp, fan blade
& motor and color band & bumper replacement instructions.
Installation & Service Manual N5D, N5DH, N5DL, N5DSC
January, 2001 Page 17
PARTS INFORMATION
Operational Parts List
Case Usage Domestic Export
Electrical Circuit 115 Volt 60 Hertz 220 Volt 50 Hertz
Case Size 4’ 6’ 8’ 4’ 6’ 8’
Fan Motors 5125532 5125532 5125532 5126572 5126572 5126572
(N5D/N5DH/N5DL) 5 Watt 5 Watt 5 Watt 5 Watt 5 Watt 5 Watt
Fan Motors (N5DSC) 5125532 5125532 ---- ---- ---- ----
5 Watt 5 Watt
Fan Motor Brackets 5962269 5962269 5962269 5962269 5962269 5962269
Fan Bracket Plate 9041077 9041077 9041077 9041077 9041077 9041077
Fan Blades (7” 40° 5B) 5221604 5221604 5221604 5221604 5221604 5221604
Opt. ECM Fan Motors 9025002 9025002 9025002 9025002 9025002 9025002
(N5D/N5DH/N5DL) 8 Watt 8 Watt 8 Watt 8 Watt 8 Watt 8 Watt
Opt. ECM Fan Motors 9025002 9025002 ---- 9025002 9025002 ----
(N5DSC) 8 Watt 8 Watt 8 Watt 8 Watt
Opt. ECM Motor Brackets 9025005 9025005 9025005 9025005 9025005 9025005
Opt. ECM Fan Blades 5223370 5223370 5223370 5223370 5223370 5223370
(7” 30° 5B)
800MA Ballast (canopy) 5049140 5049140 5049140 5232195 5232195 5232195
Opt. T-8 Ballast
(can. 1-row) 5991029 5991029 5991029 9322286 9322286 9322286
(can. 2-row) 5966635 5966635 5966635 9322286 9322286 9322286
(shelf) 5966635 5966635 5966635 9322288 9322288 9322288
800MA Lampholder
(telescoping) 5614628 5614628 5614628 5614628 5614628 5614628
(stationary) 5614629 5614629 5614629 5614629 5614629 5614629
T-8 Lampholder (canopy) 9041897 9041897 9041897 9041897 9041897 9041897
(shelf) 9041897 9041897 9041897 9041897 9041897 9041897
Self-Cont. Compressor
(N5DSC) 5965977 5965978 ---- ---- ---- ---Compressor Model No.
(N5DSC)
REK3-0125-PFV REY3-0175-PFV ---- ---- ---- ----
Condensate Pan (N5DSC) 9601926 5966037 ---- ---- ---- ---NSF Product Thermometer 5967100 5967100 5967100 5967100 5967100 5967100
For information on operational parts not listed above contact the TYLER Service Parts
Department.
N5D, N5DH, N5DL, N5DSC Tyler Refrigeration
Page 18 January, 2001
Cladding and Optional Trim Parts List
Item Description N5D/N5DH/N5DL N5DSC
4’ 6’ 8’ 4’ 6’
1 Screw 5183536(3) 5183536(4) 5183536(6) 5183536(3) 5183536(4)
2 Close-off, Hood 9026366 9026367 9026368 9026366 9026367
3 Canopy Backer, Ptd. 9026364 9026364 9026364 9026364 9026364
4 Canopy Hood, Ptd. 9025968 9025969 9025970 9025968 9025969
5 Screw 9025833 9025833 9025833 9025833 9025833
6 Bumper Retainer/Hand Rail ------------------------- color by order ------------------------7 Hand Rail Backer, Ptd. 9025316 9025316 9025316 9025316 9025316
8 Color Band, Ptd. 9023791 9023796 9023799 9023791 9023796
9 Color Band Backer, Ptd. 9040223 9040223 9040223 9040223 9040223
10 Bumper ------------------------- color by order ------------------------11 Bumper Backer ------------------------- color by order ------------------------12 Bumper End Trim ------------------------- color by order ------------------------13 Lwr. Frt. Cladding, Ptd.
(N5D / N5DSC) 9025459 9025460 9025461 ----- ----(N5DH) 9026305 9026306 9026307 ----- ----(N5DSC) ----- ----- ----- 9603773 9603774
14 Upr. Frt. Cladding, Ptd.
(N5D / N5DL) 9025462 9025463 9025464 ----- ----(N5DH) 9026308 9026309 9026310 ----- -----
(N5DSC) ----- ----- ----- 9025462 9025463
15 Screw 5183536(10)5183536(12)5183536(15) 5183536(10)5183536(12)
16 Kickplate ------------------------- color by order -------------------------
Kickplate Backer 9023569 9023569 9023569 9023569 9023569
17 Screw 9029131(6) 9029131(6) 9029131(8) 9029131(6) 9029131(6)
18 Kickplate Support 9023565(3) 9023565(3) 9023565(4) 9023565(3) 9023565(3)
19 LH End Close-off, Ptd. 9022469 9022469 9022469 9022469 9022469
RH End Close-off, Ptd. 9022471 9022471 9022471 9022471 9022471
20 Screw 5048626(2) 5048626(2) 5048626(2) 5048626(2) 5048626(2)
Installation & Service Manual N5D, N5DH, N5DL, N5DSC
January, 2001 Page 19
Loading...
