Page 1

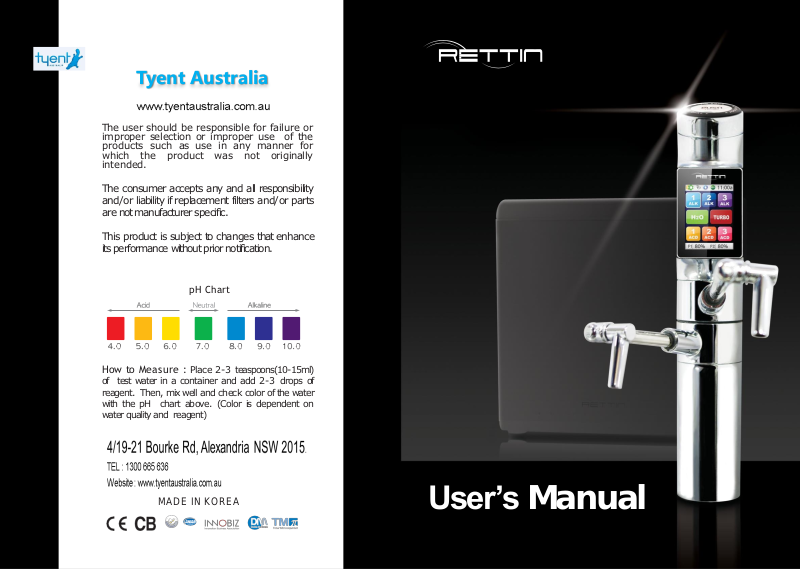

Tyent Australia

User’s Manual

MADE INKOREA

The consumer accepts any and all responsibility and/or liability if replacement filters and/or parts are not manufacturer specific.

This product is subject to changes that enhance its performance without priornotification.

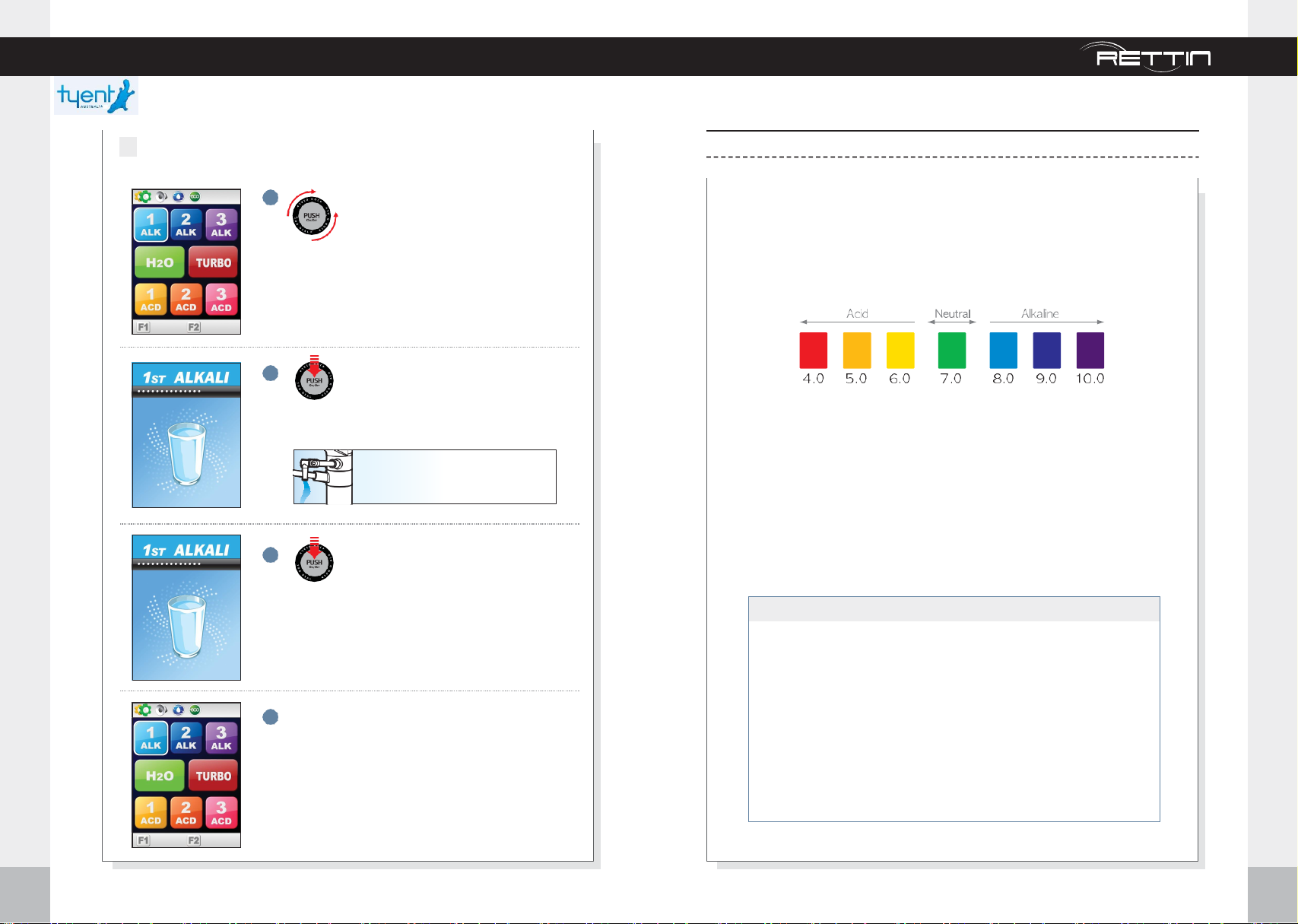

pH Chart

How to Measure : Place 2-3 teaspoons(10-15ml)

of test water in a container and add 2-3 drops of reagent. Then, mix well and check color of the water with the pH chart above. (Color is dependent on water quality and reagent)

The user should be responsible for failure or improper selection or improper use of the products such as use in any manner for which the product was not originally intended.

Page 2

To Our Valued Customers Table of c o n t e n t s

under c o u n te r extre m e

Table

c o n t e n t s

Our

Valued

Customers

• We are not responsible for any accidents and/or malfunctions due to the improper use of thismachine.

• Please keep the manual and warranty card in a safe place, so that it’s easily accessible when you need it.

• Please refer to this manual often when you have questions during

usage or when troubleshooting this unit.

Thank you for purchasing the UCE series Water Ionizer.

Please read all safety warnings and this User’s Manual carefully before using this product to ensure proper product usage. (Keep the manual handy for easy reference.)

Intended Use

This device creates functional alkaline, ionized water. It changes the properties of regular tap water through the use of electrolysis. Following are the changes normal tap water undergoes via this process:

• An increase or decrease in pH level

• Creation of negatively charged hydrogen ions(anti-oxidants)

• Smaller water molecule clusters for better absorption

• An increase in oxygen

• Purification through filtration

To OurValued Customers

Table of Contents

Before Usage

SafetyPrecautions and Warnings

Dispenser Overview

Unit Overview

Product Features

Package Contents

Parts Drawing for Installation

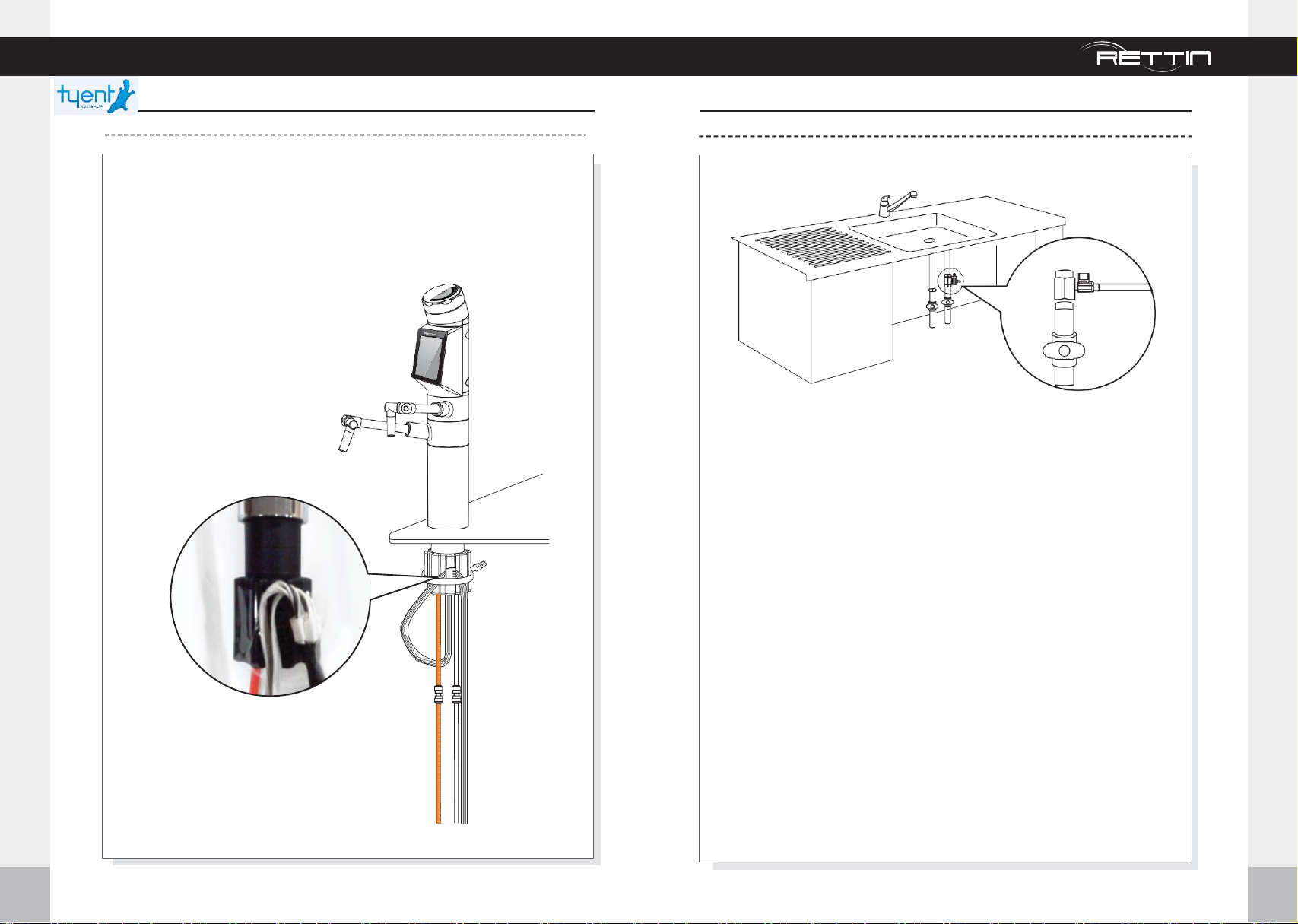

Placement of the faucet tower harness connections

Under-Sink Installation

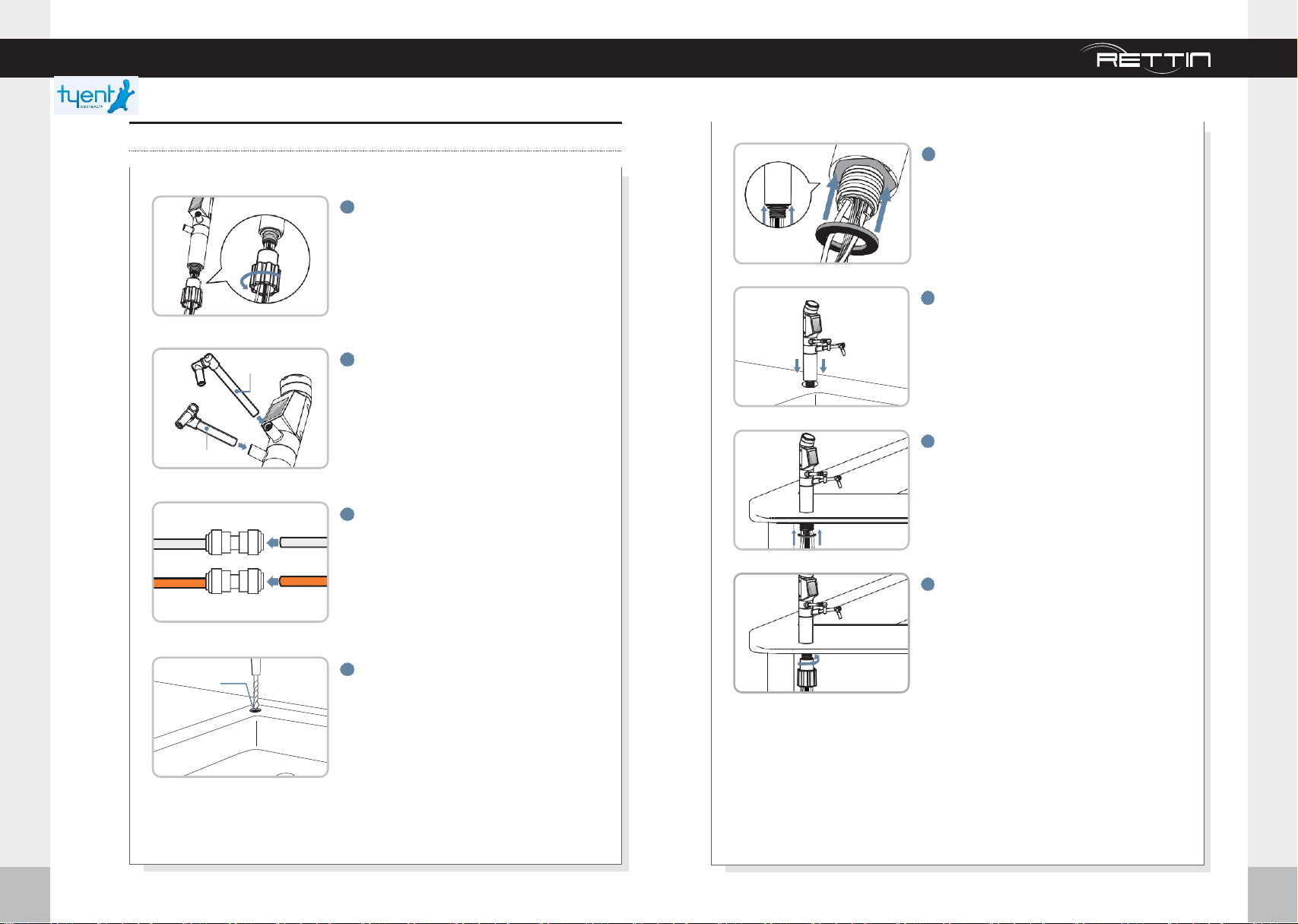

Dispenser Installation

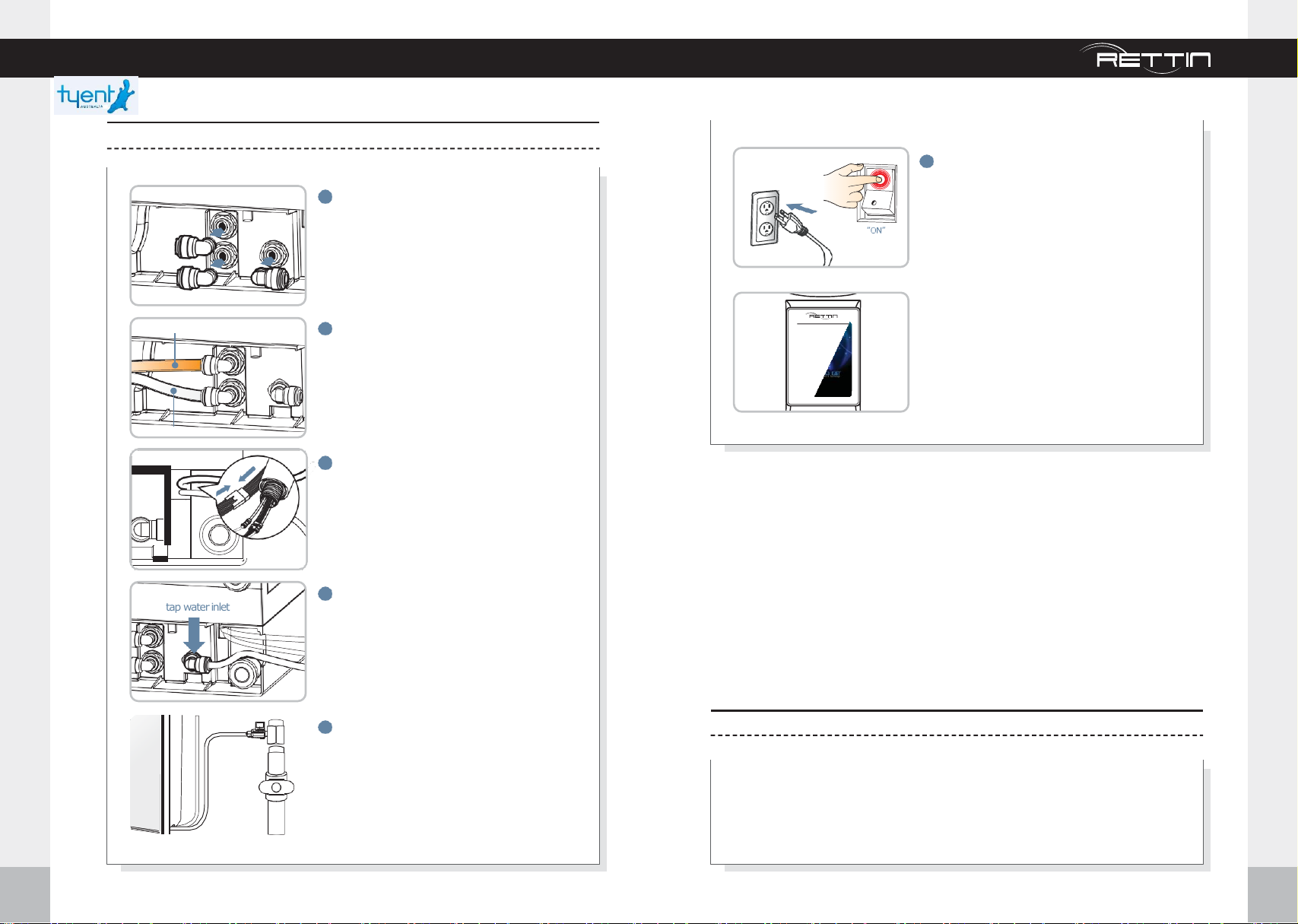

Ionizer Installation

Customer Serviceable Parts

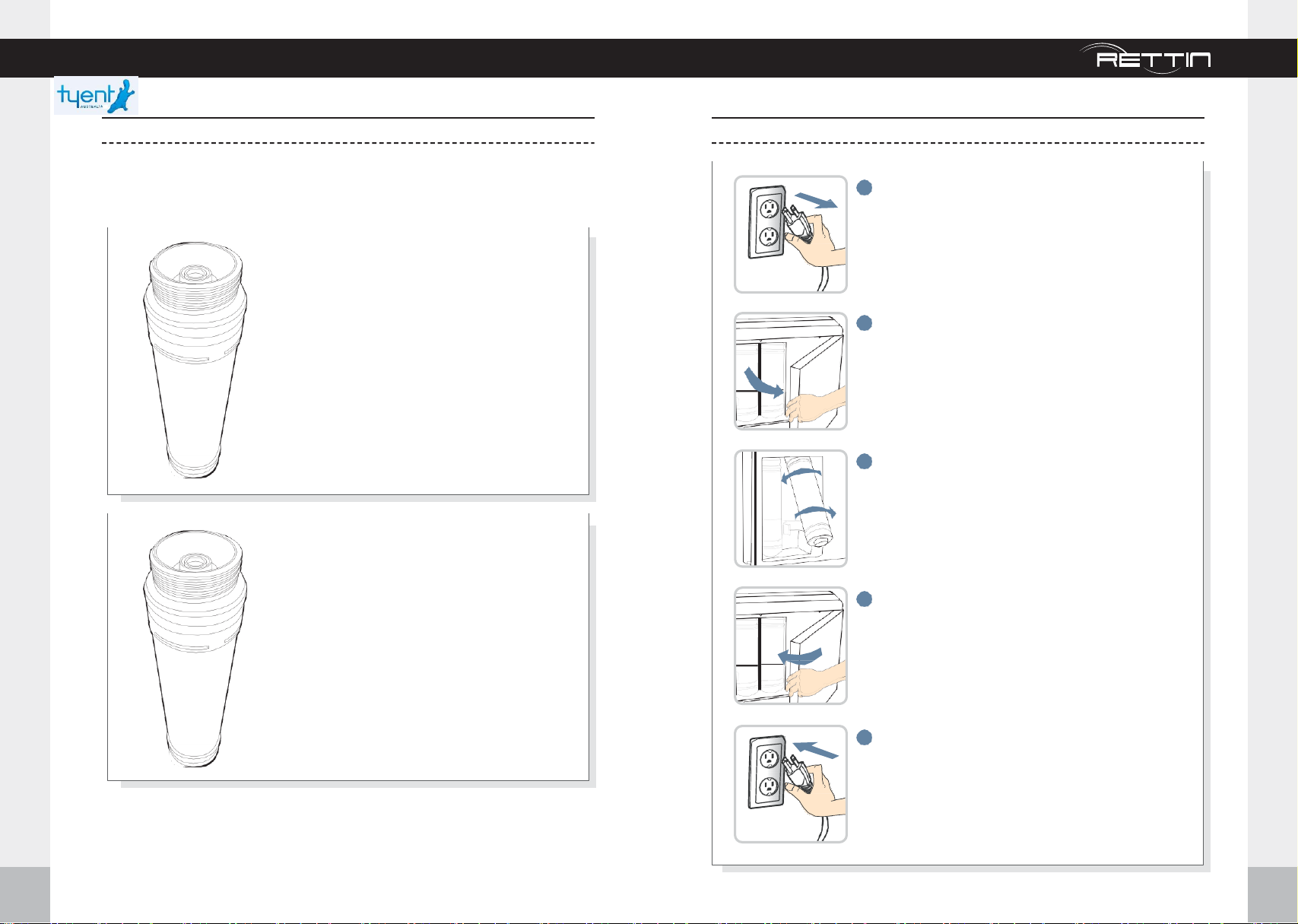

How to Change the Filters

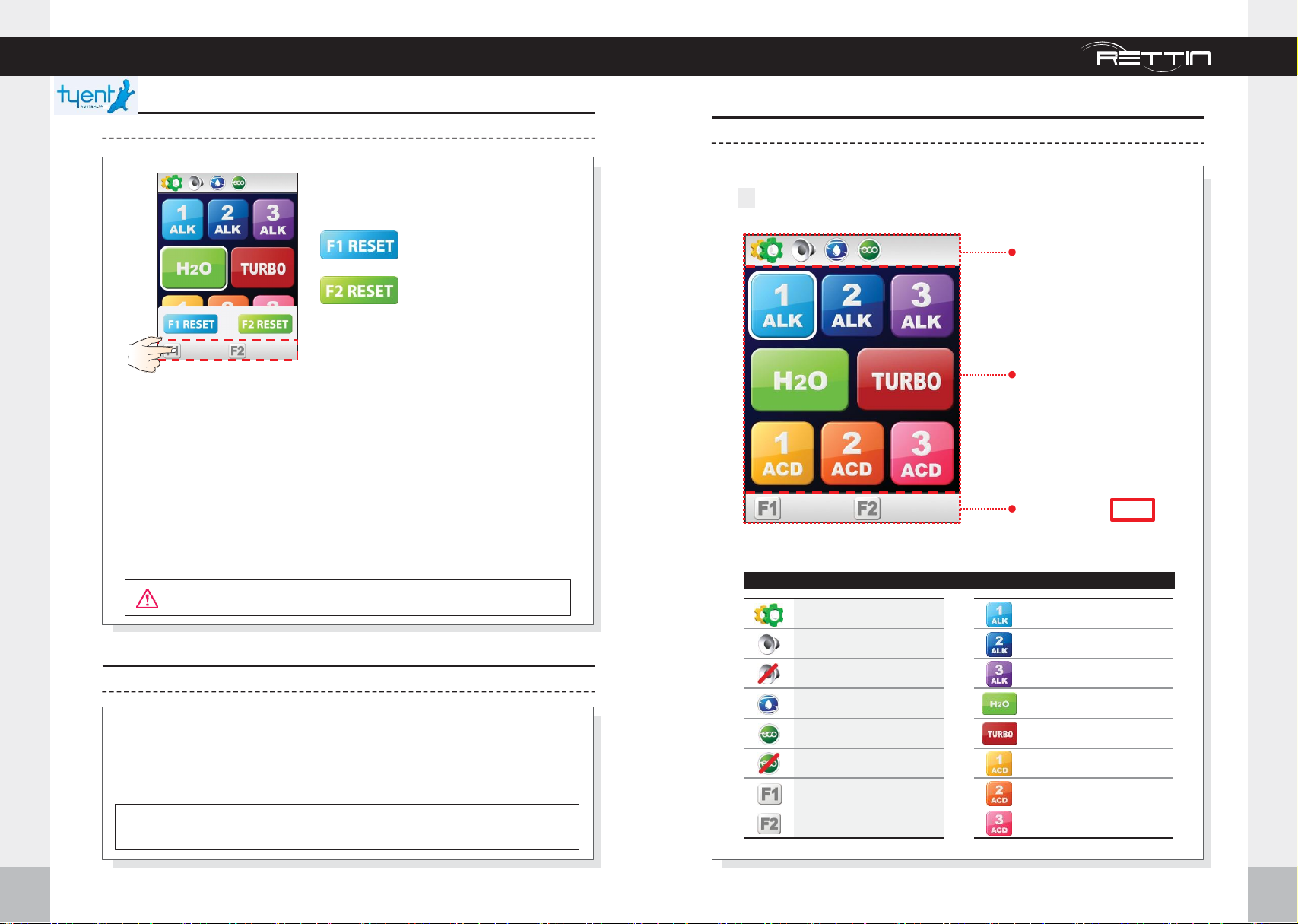

How to Reset the Filters

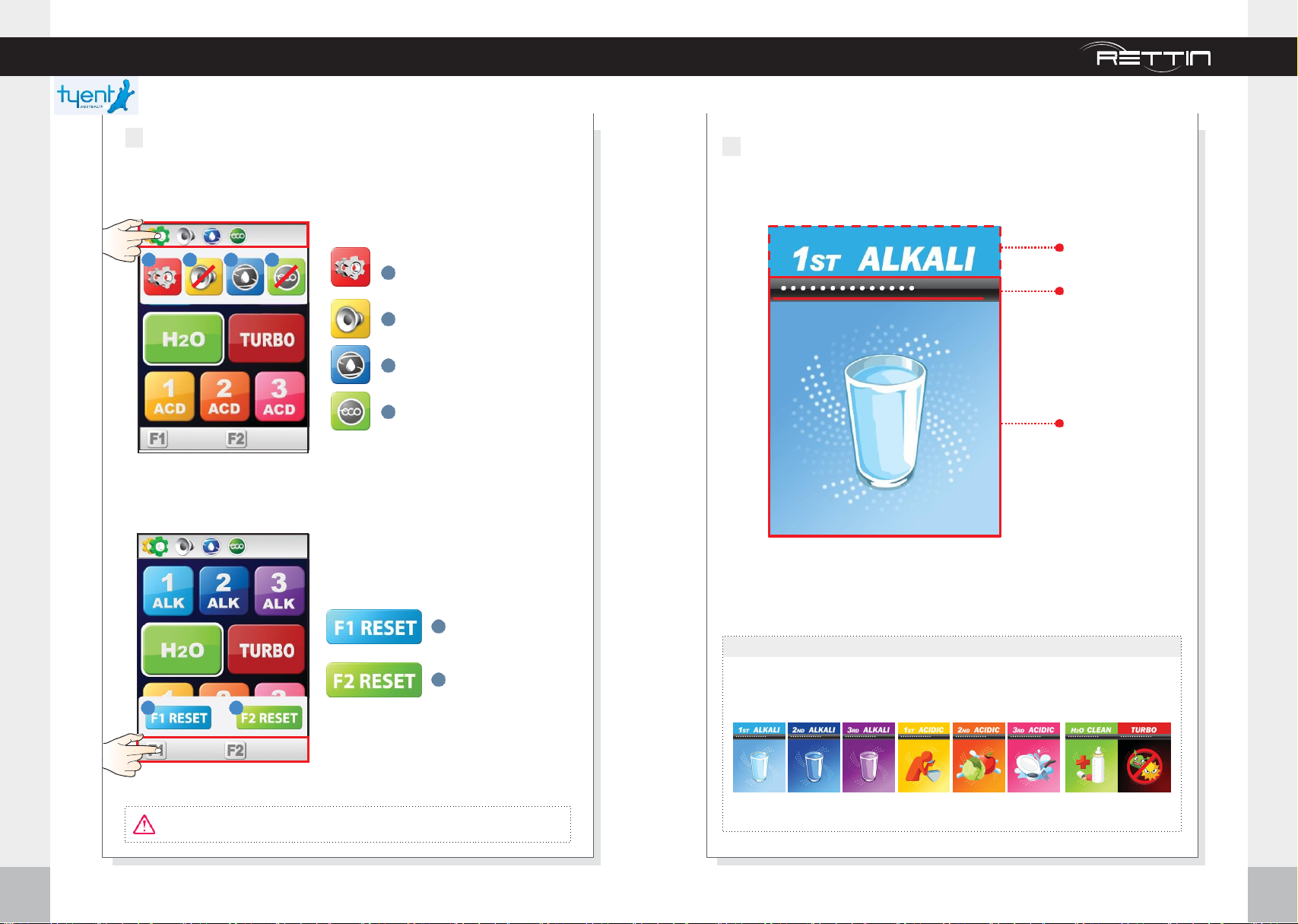

Operation Touch Screen

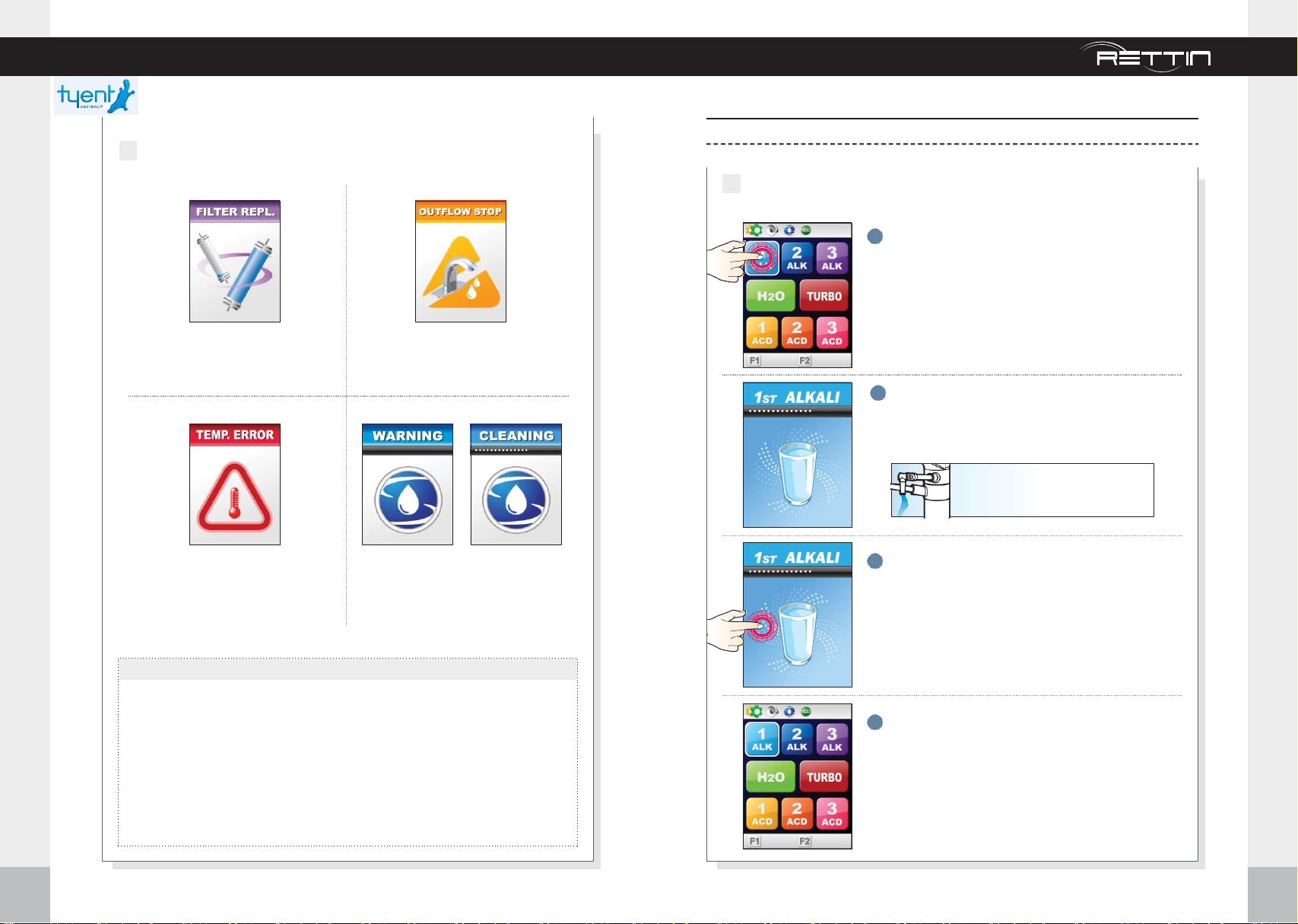

Unit Usage

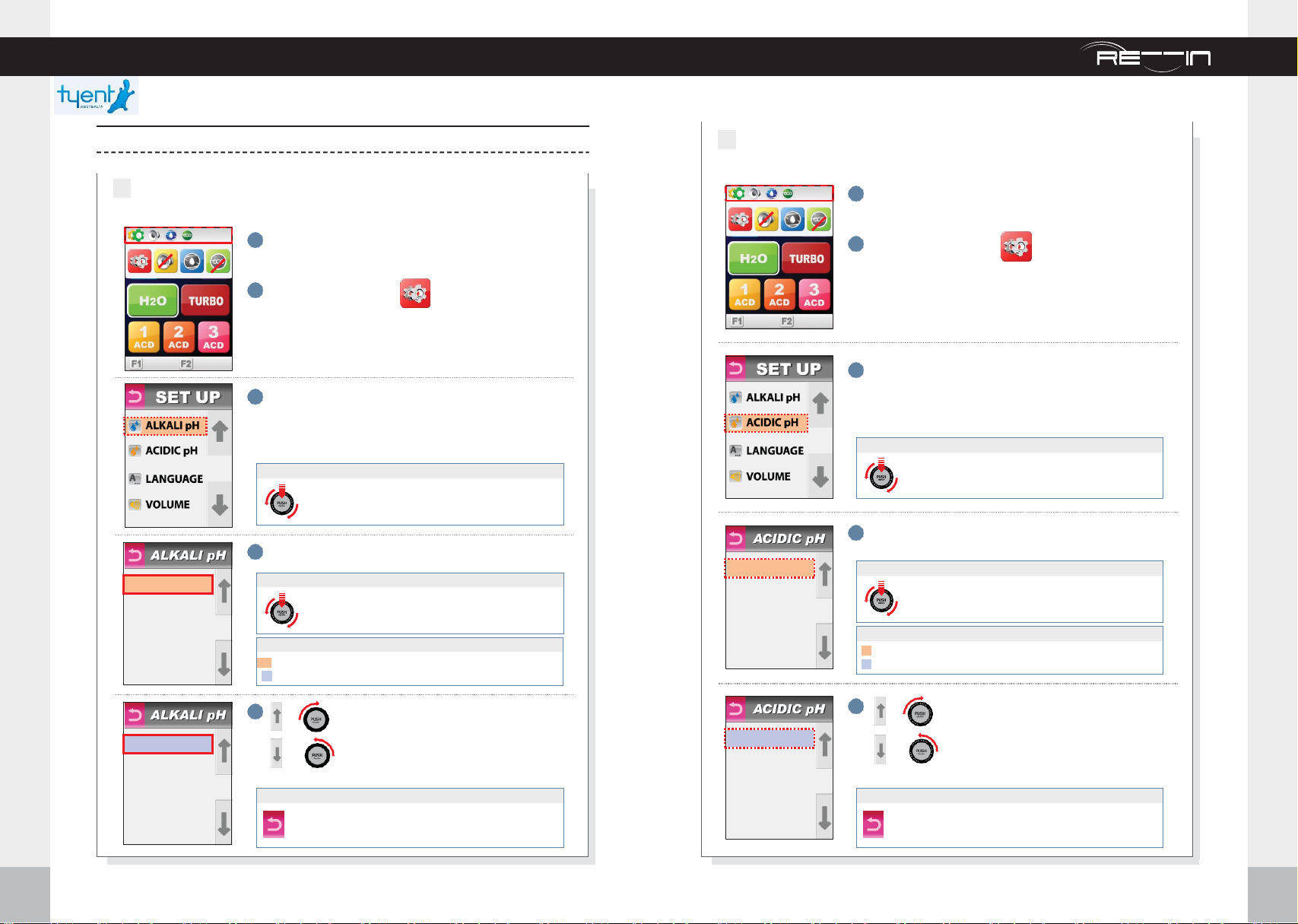

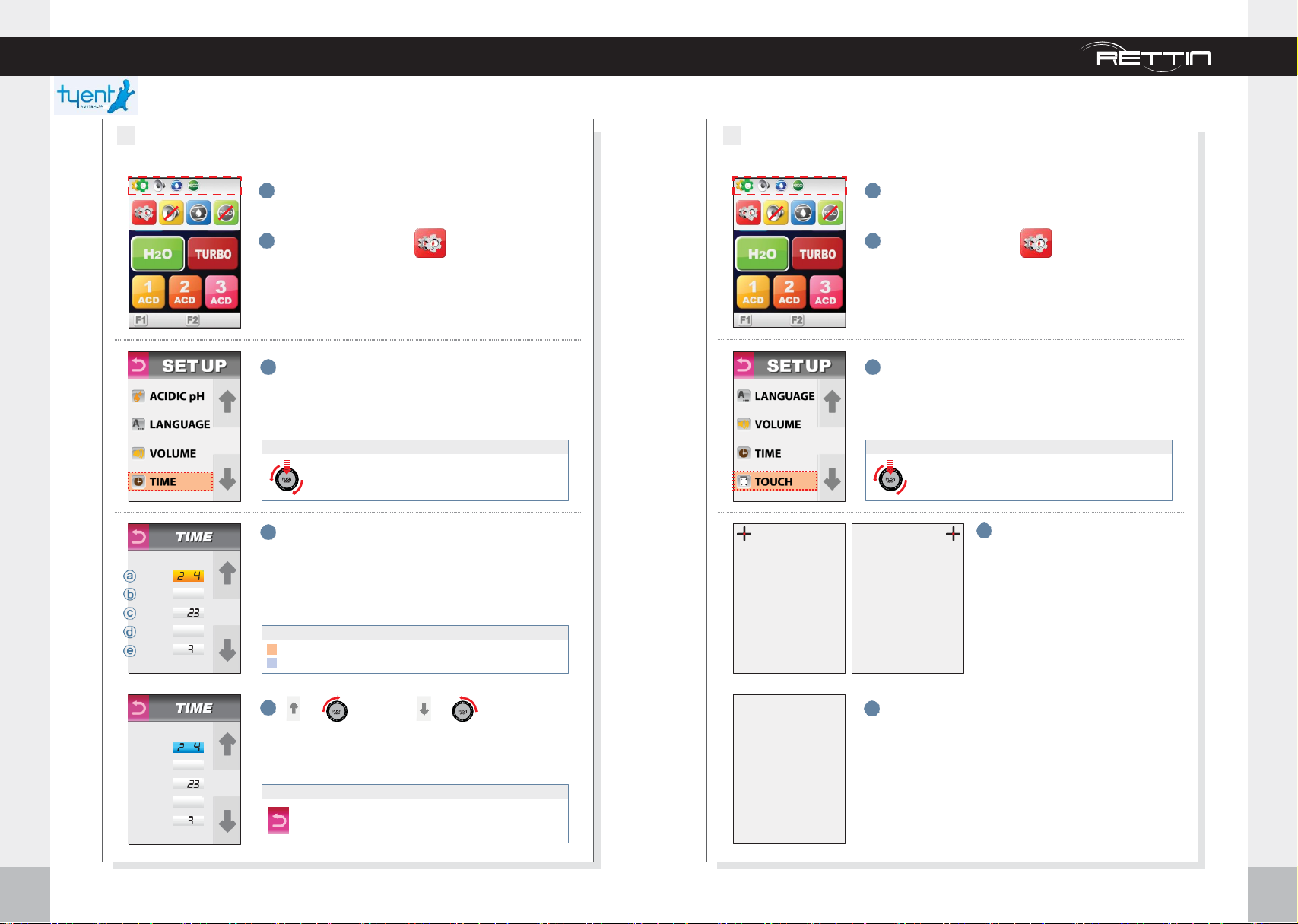

System Setup Method

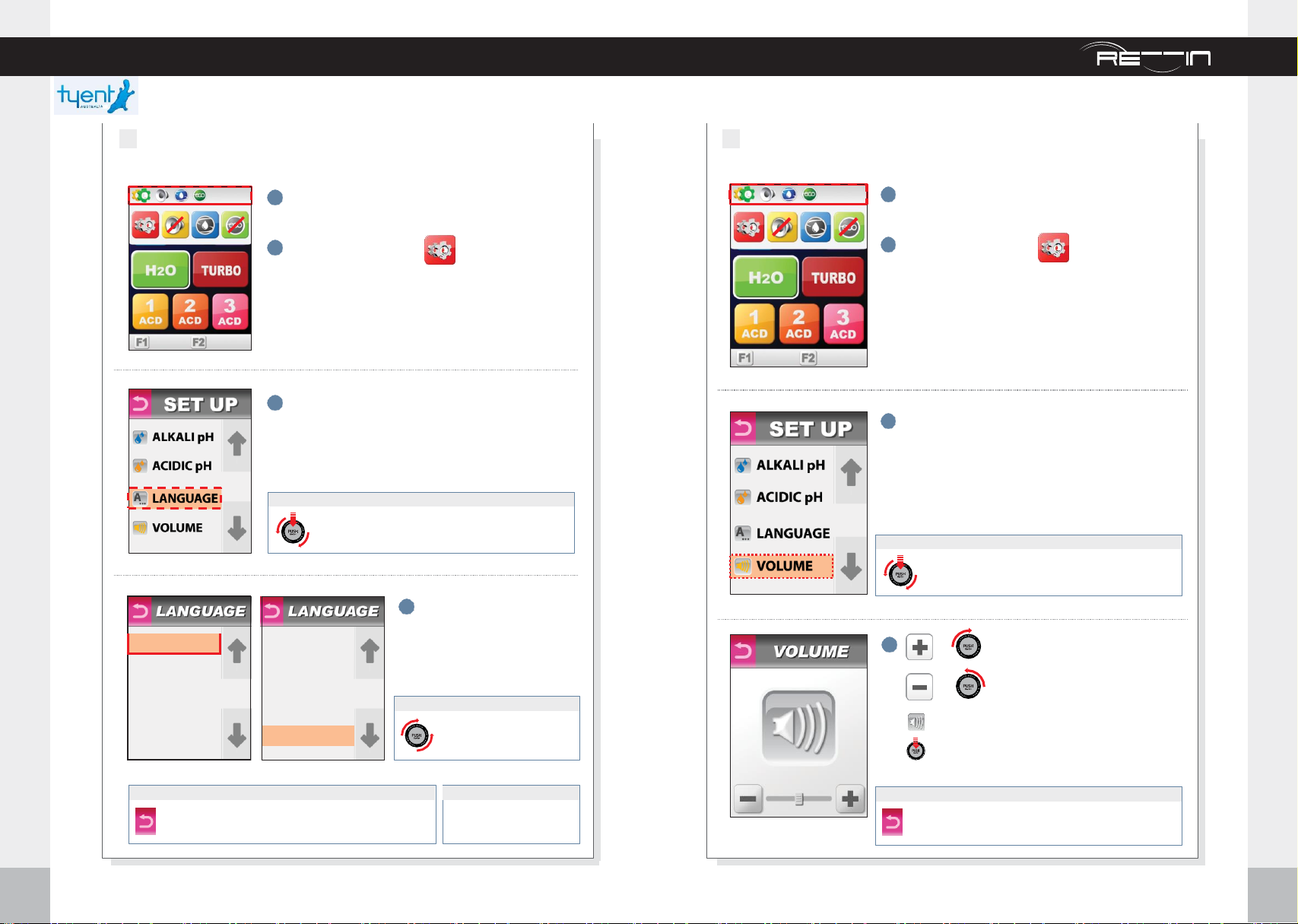

Selecting Voice on/off

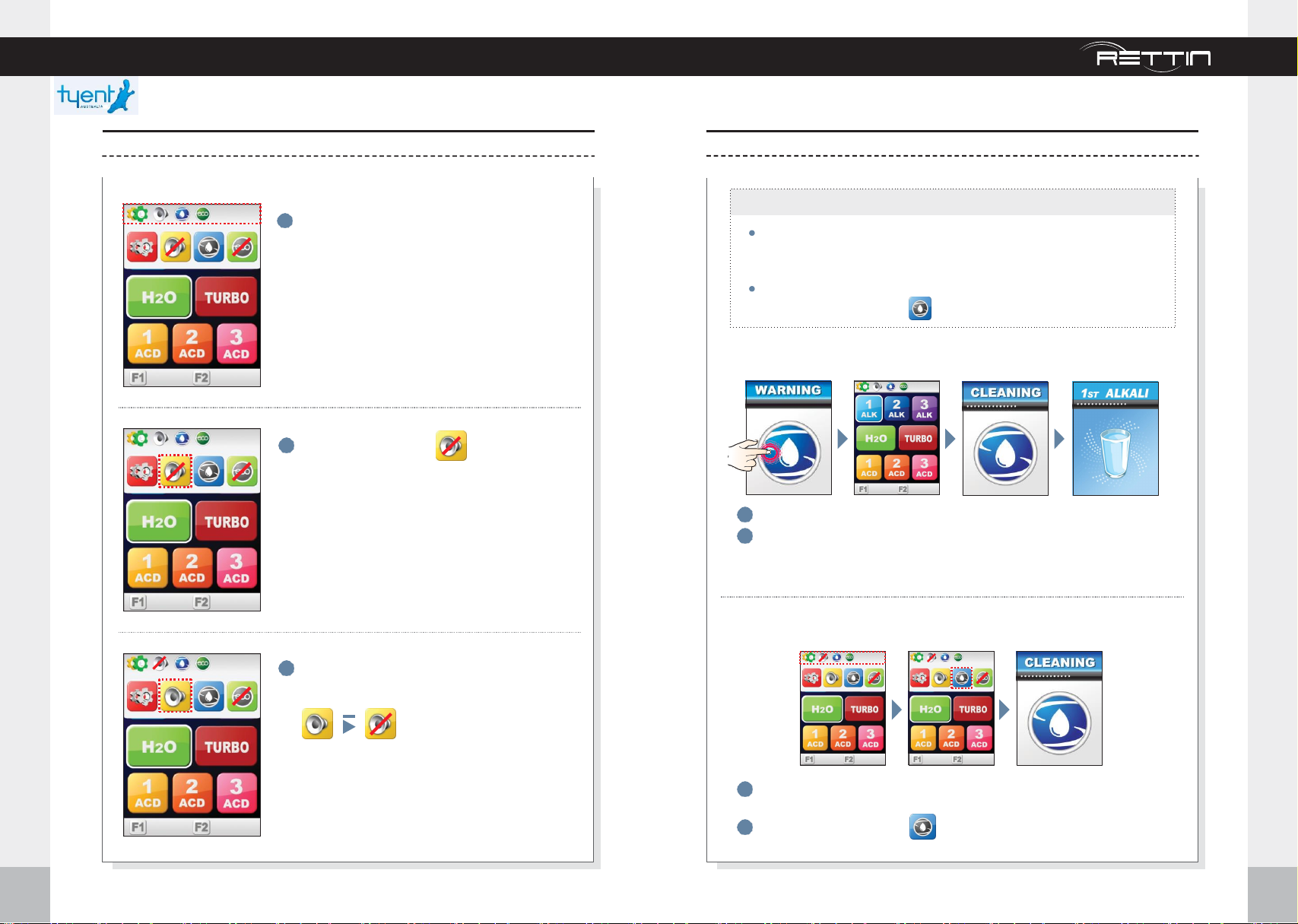

Cleaning Function

Eco Mode

Turbo Function

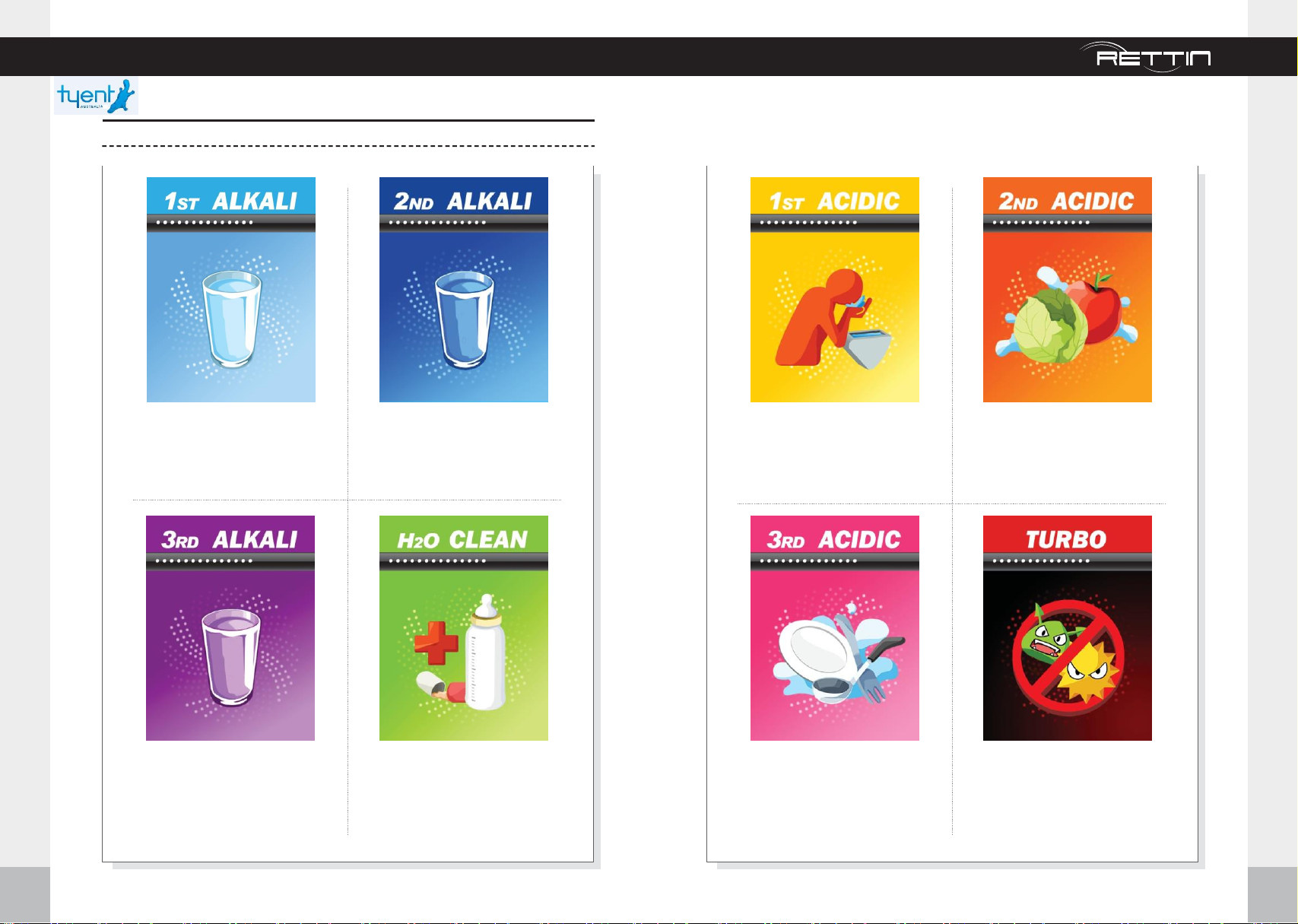

Usage Recommendations

Temperature Sensor

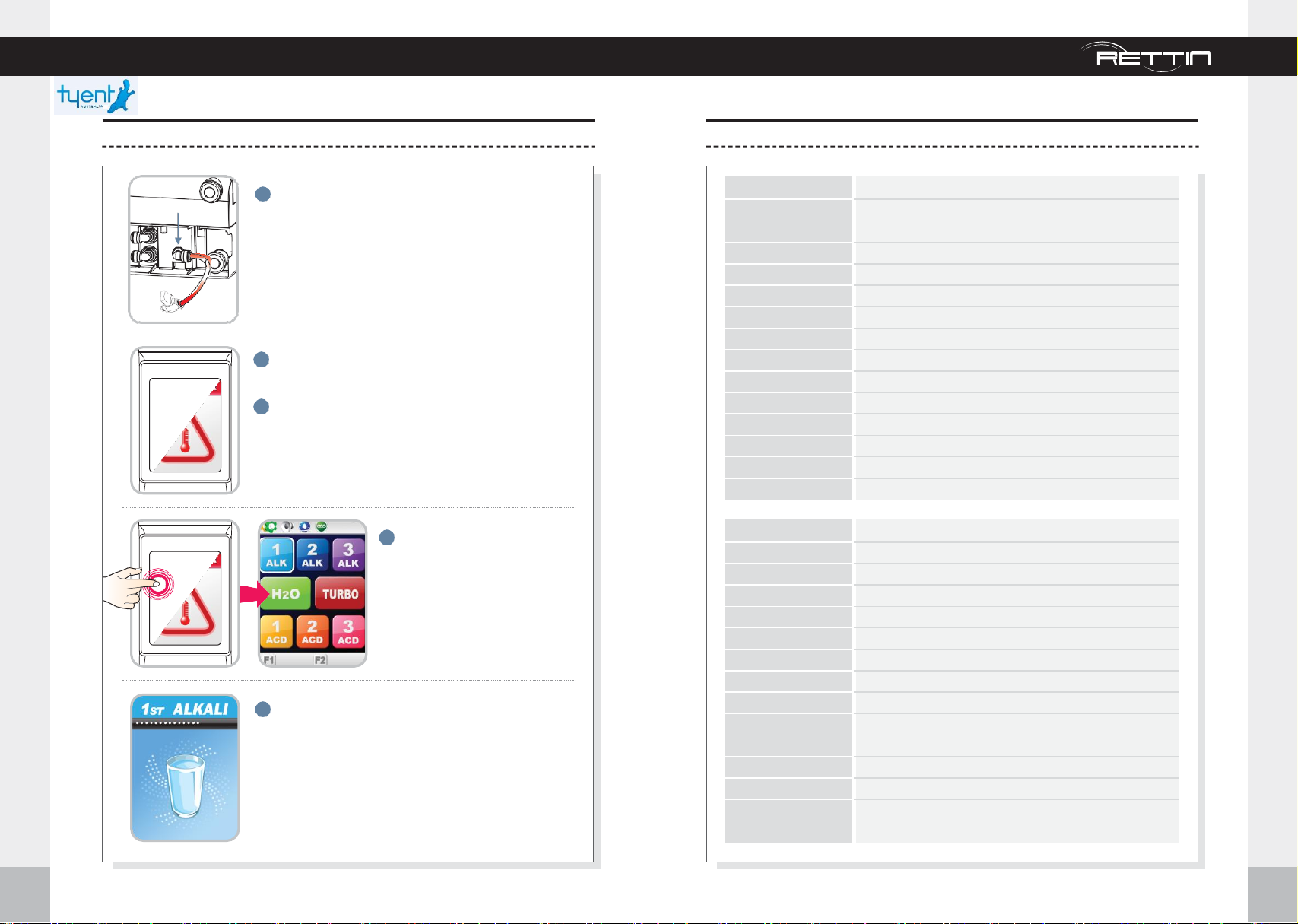

Unit Specifications

Troubleshooting

Product Warranty

Page 3

Bef or e Usage

Safety Precautions and Warnings

under c o u n t e r ex t r e me

Before

Usage

DANGER (Red Warning S ign)

–indicates an imminent hazard that could result in serious injury

or death. If you see this, stop the

use of this unit immediately.

WARNING (Orange Warning Sign )

– indicates a potential hazard that

could result in significant bodily harm or damage to the unit. If you see this, stop the useof this unit.

ATTE NTIO N (Yellow Warning Sig n)

– indicates a potential hazard that could result in minor bodily harm or damage to the unit.

Safety precautions are provided for the safe and proper use of this unit and can

prevent danger, bodily harm and/or possible damage due to misuse. Please make

sure you are familiar with all the safety precautions and warnings associated with this unit.

Only use the unit with the correctvoltage.

Regarding Power Supply

PLEASE FOLLOW ALL INSTRUCTIONS WHEN YOU DRINK WATER CREATED BY

ELECTROLYSIS FROM THIS UNIT.

(Hereinafter referred to as“functionalwater”)

Safety

Precautions

and

Warnings

1. Do not drink functional water with medication. Use filtered Water instead.

2. Always consult your primary care physician before drinking functional water. Only drink a small amount for the first week near a neutral pH level. This will give the body time to adjust to functional water during the detoxification period.

3. If you notice any negative effects from drinking functional water, stop drinking immediately and consult with your primary care physician about changes in your body’s pH level.

4. If you are currently under the care of a primary care physician for an existing condition, consult with your primary care physician about how changes in pH and other characteristics of functional water could affect yourcondition.

5. If you suffer from gastric anacidity, kidney failure or potassium excretion, you should notdrinkfunctionalwater.

6. Verify the pH levels of the functional water

dispensed from this unit on a monthly basis to ensure proper function. This can be done with the supplied reagent drops and a pH colorchart.

When switching from onepH to another, it

is good practice to let the waterrun for several seconds before using.

It is common to drink half your body weight

in ounces. For example, if you weigh 180

pounds, it may be wise to drink 90 ounces

of water per day. This especially applies after you have given your body some time to adjust to the new pH level.

9.5 to 9.8 pH is the recommended drinking level for functional water. It is not recommen dedto drinkfunctional water above 10 pH.

10.

If you wish to store functional water, use a glass, stainless steel or other non-leaching materialand store in the refrigerator.

11.

Never run hot water through this unit.

12.

Never drink acidicwater.

Do not use power surge protectors with this unit. Use unit with its own dedicated power source.

Do not pull the power cord. Never touch power cord or power outlet with wethands.

Do not use if the power cord is damaged or in a

loose power outlet.

Please always use a grounded power outlet.

Unplug the power cord during general maintenance, repair, inspection and while replacing parts.

Page 4

under c o u n te r extr e m e

Safety

Precautions

and

Warnings

Safety

Precautions

and

Warnings

Usage

benzene

Do not place ANY objects on top of this unit regardless of howsmall.

To reduce the risk of electric shock, do not remove cover; no user-serviceable parts inside. Refer servicing to qualified service personnel. Removing thecover willvoid thewarranty.

Do not spray water on the main unit. Do not clean with a damp cloth, benzene or other chemicals, which mayleak into the unit.

Do not store unit near chemicals, food, metals or medication.

Do not poke or scratch the touch pad or LCD

display with sharp objects.

It is beneficial for the maintenance of the machine to run a strong acidic level for a period of 5minute cycles twice weekly. This will help to maintaina clean chamber.

In case of strange noises, burning odor or smoke, unplug the power cord immediately and refer servicingto qualified service personnel.

In case unit leaks (other than hoses) or is standing in a puddle of water, shut off water supply, unplug the power cord and refer servicingto qualified servicepersonnel.

Replace filters every 6 months to optimize the purification performance of this unit even if the replacement indicator lightisn’t turned on.

Do not forcibly bend, squeeze, damage or crush the power cord under heavy objects.

Do not use alkaline or acidic water in fish bowls or aquariums. The sudden change in pH could be harmfulor fatal to some marine life.

In areas of hard water(Calcium scaling present

on faucets) notify service provider and install cell safe anti scale Pre-filter, protects against scaling of ionizer.

Page 5

under c o u n t e r ex t r e me

Safety

Precautions

and

Warnings

Safety

Precautions

and

Warnings

Do not place this unit near heat sources.

Do not connect water line to a hot water supply.

Do not place this unit on an uneven surface. Do not drop or use excessive force on this unit.

Installation Storage

Do not use unfit raw water in accordance to the standards of the water serviceact.

In the case where the unit isn’t used over a long period of time, shut off the valve and unplug the power cord.

Remove the filters and shake out as much as

possible. Store in plastic bag in refrigerator to

avoid bacteriagrowth in filters.

In case the original packaging is not available, cover the unit in plastic to avoid scratching the surface.

Carefully remove this unit from packaging. Keep original packaging for future storage and unit transportation.

Store unit in its original packaging in a cool, dry place when not in use.

Do not use in areas of high humidity and/or high temperature.

Page 6

under c o u n te r extr e m e

Unit

Overview

Dispenser

Overview

Dispenser Overview Unit Overview

Front View

Rear View

●

Front Case

●

Front Cover

●

Front Door Case

●

Jog Dial

●

Water Outlet

Pipe

●

Drain Pipe

●

Fixing Nut

●

Speaker

●

Hanging Groove

●

Rear Case

●

Product Sticker

●

Power Swich

●

Fuse

●

Power Cord

Bottom View

●

Alkaline

Outlet

●

MCU Cable

●

Acid Outlet

●

Power

Code

●

Tap Water

Inlet

29.5cm

11.6inch

17.2cm

6.8inch

3.3cm

1.3inch

13.2cm

5.2inch

11cm

4.3inch

16cm

6.3inch

35cm

13.8inch

13.2cm

5.2inch

36cm

14.1inch

38.2cm 15inch

SIN K

5cm

2inch

Page 7

3. GERMAN

4. FRENCH

5. ITALIAN

6. SPANISH

1. KOREAN

2. ENGLISH

3. GERMAN

4. FRENCH

under c o u n te r extr e m e

Product

Features

Product

Features

Product Features

GUI [Graphical User Interface]

Jog Dial & Touch with 2 way Operation Compatibility

Offering both Kitchen Space and UltimateBeauty

A DESIGNMASTERPIECE

FULL TOUCH LCD – TRANSFORMATION AT YOUR FINGERTIP

JOG DIAL & TOUCH

Light and Screen Indicators for Water Discharge Detection

Excellent MP3 Sound Quality with Guided Support

CAREFUL CONSIDERATION FOR THE USER

Upgraded Power Turbo System

Power SMPS Power Supply System

Electrodes with Round-Mesh Plate Technology

MORE POWERFUL SYSTEM ENGINE !

The RETTIN Under Counter Extreme Water Ionizer not only attracts

person’s gaze with its well-differentiated appearance, but also helps to upgrade your kitchen’s interiordecoration with a neat and luxurious expression.

Turbo upgrades to the SMPS Power Supply system produce both the acid turbo water and strong alkali water youneed!

Power SMPS Power Supply System provides the maximum instantaneous output needed to produce the highly stable electric powerrequiredforeachphase of electrolysis.

These Platinum-Coated Titanium Plates are made with highly stable, durable mesh technology that enhances the instantaneous electrolysis efficiency.

Changes to the LCD screen and Jog Dial light can be easily identified to check each selected phase.

Functions under operation can be further identified by the top

quality voice guidedsystem.

Multiple Languages Supported

Diversified language guide support is available by selecting 1 of 6 languages featured from across the world.

The Industry’s First Full Touch Screen Panel

The Full Touch Screen Panel System automatically activates the unit’s operations through a simple touch to the desired icon displayed on the screen.

Touch LCD Screen with a Clear Picture Tone

A 262,000 Color Touch LCD Display provides diverse information in true vivid colors for userconvenience.

A Graphical User Interface is designed specifically for ease of use and operation. Communication between the user and ionizer has

never been this simple!

Choose from either the Jog Dial or the Touch Screen Panel system–both are available with 2 way operation compatibility and areeasy to use at yourconvenience.

11:00a

80% 80%

Page 8

under c o u n te r extr e m e

Product

Features

Product

Features

Earth-Friendly Technology when in ECO Mode

True energy saving is accomplished with ultra low power consumption during periods of non-use.

CARE FOR THE ENVIRONMENT

Temperature Sensor Function for Safe Operation

Water Discharge Nozzle with DirectionalControl

The water discharge direction may be adjusted to many diverse angles based on user preference.

Automatic Water Discharge Interruption Function

In order to prevent the overflow of water due to user negligence, the water discharge is automatically stopped after 15 minutes of use.

Automatic Electrolysis Tank Cleaning Function

The interior of the Electrolysis Tank is automatically cleaned on a regular basis, ensuring stable electrolysis operating conditions.

Automatic Memory Function

The last function used by the user is automatically memorized and displayed on the Standby Screen for fast and convenient operation.

Water Purification through a Clean Process

FRESH, PURIFIED WATER IS A MUST ALONG WITH HEALTHYMINERALS!

Convenience of Operating Condition Setting System

Super Simple Filter Replacement System

pH Control Function

Respective alkali, acid & turbo phases can be easily controlled by the user.

Self Diagnosis Function

When the condition of the source water is not suitable, the water discharge is automatically suspended, displaying a Warning Sign on screen.

Filter Usage Indication and Replacement TimeGuide

SELF MAINTENANCE MADE EASY –FROM INSTALLATION TO AFTER-SERVICE

If the temperature of the source water exceeds 95℉ (35℃) then water will stop flowing and a warning message will appear on the screen.

Perfect, seamless elimination of foreign substances including residual chlorine, organic & inorganic compounds through the filtering process using functional UF and ∏ Ceramic materials, enhancing the alkali waterproducing condition.

Level of filter usage can be identified through the LCD Screen on a

real time basis. The recommended replacement time is

automatically displayed on the screenwitha voice guide.

A simple filter replacement system along with one-touch Filter Usage Initialization Setting System makes filter management easy for any one.

Easy Setting System familiar to common users is employed, allowing the convenience of setting or canceling the desired through the LCD Screen.

Page 9

under c o u n te r extr e m e

Parts Drawing

f o r

Installation

Package

Co n t e n t s

Parts Drawing f or InstallationPackage C o n t e n t s

Ionizer

rubber packing

(2EA)

Wrench

pH Testing

Solution Bottle

User’s Manual

Tap Water

hose

Acid hose

(Orange)

Alkaline hose

(White)

Water Outlet Pipe

Stem Elbows

(3EA)

dispenser

fixing nut

Cable Tie

T-Adapter

Dispenser

Rubber packing

Fixing

nut

Unionconnector

Stem elbow

Acid outlet

Tap water inlet

Alkaline hose

Acid hose

MCU cable

Alkaline outlet

Tap waterhose

Acid hose

Alkaline hose

MCU

cable

Adapter

Ionizer

Tap water

hose

MCU cable connector

Cable tie

Bottom

Picture of components can be different fromthereal ones, and some itemsmaybe changed according to the situation.

Page 10

under c o u n te r extr e m e

Under

-Sink

Installation

Under-Sink Installation

1. Shut off both hot and cold water main supply at pipe under the sink.

2. Locate the cold water supply line valve.

3. Disconnect faucet cold water supply line from main cold water pipe–use towel to catch small amount of water that may come from faucet supply line.

4. When connecting T-Adapter to cold water pipe, be sure to use plumbing pipe thread seal tape (not included) to prevent leaks.

5. Reconnect faucet cold water supply line to T-Adapter. (now secured to main cold waterpipe)

6. Be sure all connections are secure but do not over tighten.

※Do not turn on main water supply until all hoses are properly installed

to the unit.

Placement of the faucet tower harnessconnections

When Installing the UCE faucet tower, it is a good idea to secure the harness connections to the side of the tower nut that secures the tower to the counter, this way if any waterleakage occurs fromthe counter top it will not drain or leak into harness connectors and cause corrosion on the connectors.

Placement

the

faucet

tower

harness

co n ne c t i o n s

Page 11

under c o u n te r extr e m e

Dispenser

Installation

Dispenser

Installation

6 Place the assembled dispenser into the

drilled hole.

8 Tighten the fixing nut underneath the sink.

(do not overtighten)

7 Insert the second rubber O-ring in the

assembled dispenser located underneath the sink.

Insert one of the provided rubber O-Rings

in the assembled dispenser.

32mm

DrainPipe

Water OutletPipe

Dispenser Installation

1 First, unscrew the large nut from the bottom of

the dispenser.

Press the outflow pipes into the holes of the

dispenser.

※upper hole: water outlet pipe - 152 mm (6 inches) ※lower hole : drain pipe - 102 mm (4 inches)

Connect each hose from the dispenser to a

union connector. Connect each hose from the ionizer to the union connector. When you connect the hoses, please match the hoses by color: i.e., orange‒orange, white‒white

from Ionizer

from Dispenser

4 Use a 32mm(1

/4inch) drill bit to drill a hole.

Page 12

under c o u n te r extr e m e

Ionizer

Installation

Ionizer

Installation

Caution

In the event of a power failure

Remove the power cord from electrical socket and shut off source water valve.

6 Plug in the power cord and turn on the unit.

※ INTRO Screen appears only when

Initial Power is supplied.

alkalinehose

acid hose

tap water inlet

Ionizer Installation

Connect the hoses of the dispenser to the

stem elbows. (when you connect the hoses, use orange for the acid hose and white for the alkaline hose)

3 Connect the MCU cable of the dispenser to

the MCU cable on the bottom of the ionizer.

4 Connect the hose from the inflow hole to

the cold water supply at the under-sink T-Adapter.

5 Make sure all hose connections are firmly

seated in the correct holes, both on the unit and at the watersupply.

Press the stem elbows into the water inflow,

alkali outlet and acidic outlet located on the bottom of the ionizer.

Page 13

Primary Filter: 1st Filter

Recommended filter replacement cycle:

951.0 gallons (3,600 L) / Every 6 months

Removes harmful chemicals like chlorine, compounds such as agrichemicals and detergents, large suspended matters like rust and sediments as well as other volatile organic compounds through an efficient, activated absorption method. It also eliminates bad smells and any remaining dissolved chlorine.

1stFilter

Secondary Filter: 2nd Filter

Recommended filter replacement cycle:

951.0 gallons (3,600 L) / Every 6 months

0.01 micrometer artificial film filters contaminated materials including ordinary bacteria while maintainingessential minerals in the water.

2ndFilter

The life of the filter may vary greatly due to use, water pressure, water quality and

seasonal changes. Filters may need to be replaced sooner than the scheduled time due to these varying conditions, as you may notice reduced water quality or water taste changingforthe worse.

Customer Serviceable Parts

ATTENTION: The consumer accepts any and all responsibility and/or liability if

replacement filters and/or parts are not manufacturer specific. This unit contains high-performance purifying filters and an advanced controlsystem.

under c o u n te r extr e m e

H o w

t o

ch a n g e

t h e

Filters

Customer

Serviceable

Parts

H o w t o C ha nge t h e Filters

1 Turn the power off and unplug the power cord. Shut

off thewatersupply to the unit.Make surethe faucet is shut off.

Open the front door of the unit. Beware of the sharp

corners of the cover of the unit when opening.

Pull the filter towards you so that it will be easier to

turn. Thefilterwill turn more freely when tilted at a slight angle. Remove the filter by rotating the filter counter-clockwise. Install the new filter by turning

it clockwise. Hand tighten only. Tilt the filter back

intoitsoriginalupright position.

4 Close the cover of the unit.

5 Plug the power cord back in, re-engage the water

supply and switch the unit back on.

open

separate

connect

Page 14

under c o u n te r extre m e

How

reset

the

Filters

Operation

Touc h

Scre e n

11:00a

80% 80%

Operation To uc h Screen

Display line of the set status

Functional wateroperation

Display line of filter usage ( default : 00%)

Icon : description

Set up

Voice on

Voice off

Cleaning

Eco modeon

Eco modeoff

Filter 1usage

Filter 2usage

Alkaline level1

Alkaline level2

Alkaline level3

Purified water

Turbo water

Acidic level 1

Acidic level2

Acidic level 3

standby mode

11:00a

H o w t o Reset t h e Filters

H o w t o C han ge t h e Fuse

80% 80%

1. First Filter Reset

① Press the bottom part of LCD Screen.

MENU Window appears upper the bottom part of LCD Screen.

② To initialize, press the“F1 RESET”icon 2 times.

※LCD : percentage (%) of initialization offilter

2. Second Filter Reset

① Press the bottom part of LCD Screen.

MENU Window appears upper the bottom part of LCD Screen.

② To initialize, press the“F2 RESET”icon 2 times.

※LCD : percentage (%) of initialization offilter

CAUTION!

Use the Filter Initialization Icon only after Filter is changed.

1. Unplug the powercord.

2. Locate the fuse cap on the lower back of the unit and turn it counterclockwise to remove it.

3. Pull out the blown fuse and insert a new fuse.

4. Replace the fusecap.

Important Information

Please be sure to contact manufacturer to obtain the correct fuse. Customer accepts all reponsibility for damage to unit and other property due to the installation of incorrect fuse.

: Filter 1 reset

: Filter 2reset

Page 15

under c o u n te r extr e m e

Operation

Touch

Screen

Operation

Touch

Screen

15:00

Selectedmode

Auto flowstop timeindicator

Workingindicator

LCD Display

11:00a

80% 80%

11:00

1 2

80%

Set up mode (page 34)

Voice on/off (page40)

Cleaning (page41)

Eco mode on/off (page42)

Filter 1 reset

Filter 2reset

Use the Filter Initialization Icon only after the filters have been changed.

Push the upper part of LCD Screen. MENU Window appears below the upper part of LCDScreen.

Push the bottom part of LCD Screen. MENU Window appears above the bottom part of the LCD Screen.

CAUTION !

2 Menu window

DISPLAYS COLORS

Backlight of LCD display will match the pH level color according to water pH

level being used after icon is pressed.

15:00

Turbo

Red Color

05:00

Dark BlueColor

15:00

Alkaline Water 1 Alkaline Water 2 Alkaline Water 3

PurpleColor

15:00

(Approx 8.0 pH) (Approx 9.0 pH) (Approx 10.0 pH)

light Blue Color

15:00 15:00 15:00

Acidic Water 1 Acidic Water 2 Acidic Water 3

(Approx 5.5 pH) (Approx 4.5 pH) (Approx 3.5 pH)

Light YellowColor Light Orange Color LightPink Color

15:00

28 29

Clean Water

(Approx 7.0 pH)

GreenColor

Page 16

under c o u n t e r ex t r e me

Unit

usage

Operation

Touch

Screen

:15

CAUTIONS in using the TOUCH Screen

Message Display

When this is displayed, it is time to

replace the filters (p.25~26)

When this is displayed, water inside the unit is higher than 95℉(35℃). The water supply will then be shut off and the unit willstop operating. (p. 46)

When the automatic

cleaning time comes,

WARNING is displayed.

When this is displayed,

the unit is being cleaned

which can be done automatically and/or manually.

1. Due to the uniqueness of the TOUCH Screen, TOUCH is not recognized if pushed by more than one finger. Please push with only one finger and be careful of contaminationto the screen thatmaycause damage to the TOUCH.

2. Be careful of electrostatic materials near the TOUCH Screen. Stimulation from such materials may cause damageto the TOUCH.

3. Screen may not be seen well under directsunlight.

4. Do not push the Screen hard with sharp or pointy objects.

When this is been a suspension of

water supplied to the unit, issuing this

messageprior to stoppingwateroutflow.

15:00

11:00a

80% 80%

14:39

Unit usage

Press the desired icon on the LCD screen

2 Water outflow starts. screen displays current

level and stop time.

Press the screen to stop the flow of water.

4 When done, screen moves to last used icon

and, into stand by mode.

When using t h e TOUCH S creen

11:00a

80% 80%

The water level you choose willflow through water outletpipe(upper).

Page 17

under c o u n te r extr e m e

SYSTEM

SETUP

METHO

Uni

usage

SYSTEM SETUP METHOD

◀

▶

◀

▶

◀

▶

14:39

15:00

11:00a

80% 80%

Turn Dial either direction to select function, white means it’sselected.

Screen changes to selected color.

Push center of Dial to start water

outflow.

Push center of Dial to stop water outflow.

When done, screen moves to last used icon

and, into stand by mode.

When using t h e JOG DIAL

11:00a

80% 80%

The water level you choose willflow through water outletpipe(upper).

H Level Adjustment

pH Chart

Just remember when testing the pH be sure to allow unit to run for 2 minutes before taking a sample of the water. If you have to adjust percentage, after adjusting, run an additional 2 minutes before taking sample. Whentesting pH values we like to use 2 Tablespoons of the water being produced and 4 Drops of the Re-Agent in a clear glass. The minimum and maximum Turbo waters produce will be dependent on the water source quality. Set Turbo at 100% for maximum pH levels, these levels can range normally as follows:

Color of PH Testing of Each Level :

Alkaline Turbo (Dark Purple) Acid Turbo (Red)

Alkaline Level 1 = Approx 8.0 pH (light blue) Alkaline Level 2 = Approx 9.0 pH (dark blue) Alkaline Level 3 = Approx 10.0 pH (Purple) H2O =

Approx 7.0 pH (green) Purified Water Acid Level 1

= Approx 5.5 pH (light yellow) Acid Level 2 = Approx 4.5 pH (light orange) Acid Level 3 = Approx 3.5 pH (light pink)

※pH valueindicatedforeachlevelis basedon standardized testresultwhichhaveusedaveragetapwater.

Page 18

under c o u n te r extr e m e

SYSTE

SETU

METHO

SYSTE

SETU

METHO

: ACD pH level up (08%, 09%, 10%...)

◀

▶

: ACD pH level down(06%, 05%, 04%...)

◀

▶

Acidic pH Level Adjustment

11:00a

80% 80%

Press the setup icon.

Press the top left corner of screen. MENU

options will fall below upper part of screen.

ACD 1ST : 07% ACD 2ND : 25% ACD 3RD : 30%

Press“ACIDICpH”

Press desired level.

11:00a

80% 80%

SYSTEM SETUP METHOD

Press“ALKALI pH”

Press desired level.

Press the setup icon.

Press the top left corner of screen. MENU

options will fall below upper part of screen.

ALK

1ST

08%

ALK

2ND

10%

ALK

3RD

16%

TURBO

95%

: ALK pH level up (09%, 10%, 11%...)

◀

▶

: ALK pH level down(07%, 06%, 05%...)

◀

▶

ALKALI pH Level Adjustment

Push RETURN icon for previous menu screen. Voice says “:Ap pl ied ”

Push RETURN icon again to complete setup. Voice says :“Se t up was complete d”

ALK

1ST

08%

ALK

2ND

10%

ALK

3RD

16%

TURBO

95%

Turn the Jog Dial clockwise (or counter clockwise) to select desired level. Press the PUSH On/Off button of the jog dial to make selection.

When using the Jog Dial

◀

▶

If UP/DOWN Icon is pushed, digital number moves by one step.

Turn the Jog Dial clockwise (or counter clockwise) to select“ALKALI pH”. Press the PUSH On/Off button of the jog dialto make selection.

When using the Jog Dial

◀

▶

Backcolor

Orange highlight shows current position on menu. A blue highlight means that changes to that setting are possible.

Push RETURN icon for previous menu screen. Voice says “:A pp lie d”

Push RETURN icon again to complete setup. Voice says :“Se t up was completed”

Backcolor

Orange highlight shows current position on menu. A blue highlight means that changes to that setting are possible.

Turn the Jog Dial clockwise (or counter clockwise) to select desired level. Press the PUSH On/Off button of

the jog dialto makeselection.

When using the Jog Dial

◀

▶

If UP/DOWN Icon is pushed, digital number moves by one step.

Turn the Jog Dial clockwise (or counter clockwise) to select“ACIDIC pH”. Press the PUSH On/Off button of the jog dialto make selection.

When using the Jog Dial

◀

▶

Page 19

under c o u n te r extr e m e

SYSTE

SETU

METHO

SYSTE

SETU

METHO

11:00a

80% 80%

11:00a

80% 80%

3 Press“VOLUME”

Volume Level Adjustment

3. GERMAN

4. FRENCH

5. ITALIAN

6. SPANISH

KOREAN

ENGLISH

GERMAN

FRENCH

4 Press desired language.

KOREAN, ENGLISH, GERMAN, FRENCH, ITALIAN,SPANISH

Press the setup icon.

Press the top left corner of screen. MENU options will fall below upper part of screen.

Press the setup icon.

Press the top left corner of screen. MENU options will fall below upper part of screen.

LANGUAGE MODE

Press“LANGUAGE”

◀

▶

Turn the Jog Dial clockwise (or counter clockwise) to select desired language.

: Volume up (0 -10 step)

◀

▶

: Volume down (0 -10

step)

◀

▶

Pressing this icon will let you hear currentvolume.

Pressing the Push On/Off button on jog dial will let you hear current volume.

Push RETURN icon for previous menu screen. Voice says “:Ap pl ied ” Push RETURN icon again to complete setup. Voice says :“Se t up was completed”

If UP/DOWN Icon is pushed, digital number moves by one step.

Turn the Jog Dial clockwise (or counter clockwise) to select“LANGUAGE”. Press the PUSH On/Off button of the jog dialto make selection.

When using the Jog Dial

◀

▶

Turn the Jog Dial clockwise (or counter clockwise) to select“VOLUME”. Press the PUSH On/Off button of the jog dialto make selection.

When using the Jog Dial

◀

▶

Supported language

Push RETURN icon for previous menu screen. Voice says “:Ap pl ied ” Push RETURN icon again to complete setup.

Voice says :“Se t up wa s co mpl eted ”

If UP/DOWN Icon is pushed, digital number moves by one step.

Page 20

Year 01 Month 10 Day Hour 18

Min 0

under c o u n te r extr e m e

SYSTE

SETU

METHO

SYSTE

SETU

METHO

11:00a

80% 80%

11:00a

80% 80%

※Do not press with sharp or pointy

objects.

3 Press“TIME”

4 Adjustment time and date with the arrows :

Time set up is complete.

Press the setup icon.

Press the top left corner of screen. MENU options will fall below upper part of screen.

Press the setup icon.

Press the top left corner of screen. MENU options will fall below upper part of screen.

Setting th e TIME

TOUCH

3 Press“TOUCH”

4 Each time a crosshair appears

on the screen, touch the center of it with your finger to complete calibration.

5 Once calibration is complete, display will move to

setting mode automatically.

◀

or : for up or : for down

When using the Jog Dial

Turn the Jog Dial clockwise (or counter clockwise) to select“TIME”. Press the PUSH On/Off button of the jog dial to make selection.

◀

▶

When using the Jog Dial

Turn the Jog Dial clockwise (or counter clockwise) to select“TOUCH”. Press the PUSH On/Off button of the jog dialto make selection.

◀

▶

If UP/DOWN Icon is pushed, digital number moves by one step.

Push RETURN icon for previous menu screen. Voice says “: Ap pli ed ” Push RETURN icon again to complete setup. Voice says :“Se t up was completed”

Backcolor

Orange highlight shows current position on menu.

A blue highlight means that changes to that setting are possible.

※If you fail 2 times, display will move to setting mode

automatically.

Year 01 Month 10 Day

Hour

Min

Page 21

under c o u n te r extr e m e

Cleaning

Function

selecting

Voice

On/Off

11:00a

80% 80%

11:00a

80% 80%

11:00a

80% 80%

Cleaning Function

sel ec tin g Voice On/Off

User may manually clean unit whenever desired.

If the screen is touched, it changes to stand by mode.

When functional water is selected on standby mode, it goes into automatic cleaning for 15 seconds, and the selectedfunctional water will be dispensed.

Press the top left corner of screen. MENU options will fall below upper part of screen.

Press the Cleaning icon.

Select the Voice icon.

Press the top left corner of screen. MENU options will fall below upper part of screen.

The voice will be turned on/off by selecting

the voice icon in thissequence.

Cleaning can take place automatically and/or manually.

Auto Cleaning (15 seconds) is performed during water outflow after more than 12 hours of non-operating or after 30 liters of water outflow.

Manual Cleaning (15 seconds) is performed whenever desired simply by touching the icon.

※

Even if volume is turned off, warning notifications will still play through speaker if necessary. (filter replacement, water not supplied, TEMP, Cleaning, Setupmode)

11:00a

80% 80%

※Auto Cleaning

15:00

:15

※Manual Cleaning

11:00a

80% 80% 80% 80%

11:00a

:15

Page 22

under c o u n te r extr e m e

TURBO

Function

ECO

MOD

11:00a

80% 80%

11:00a

80% 80%

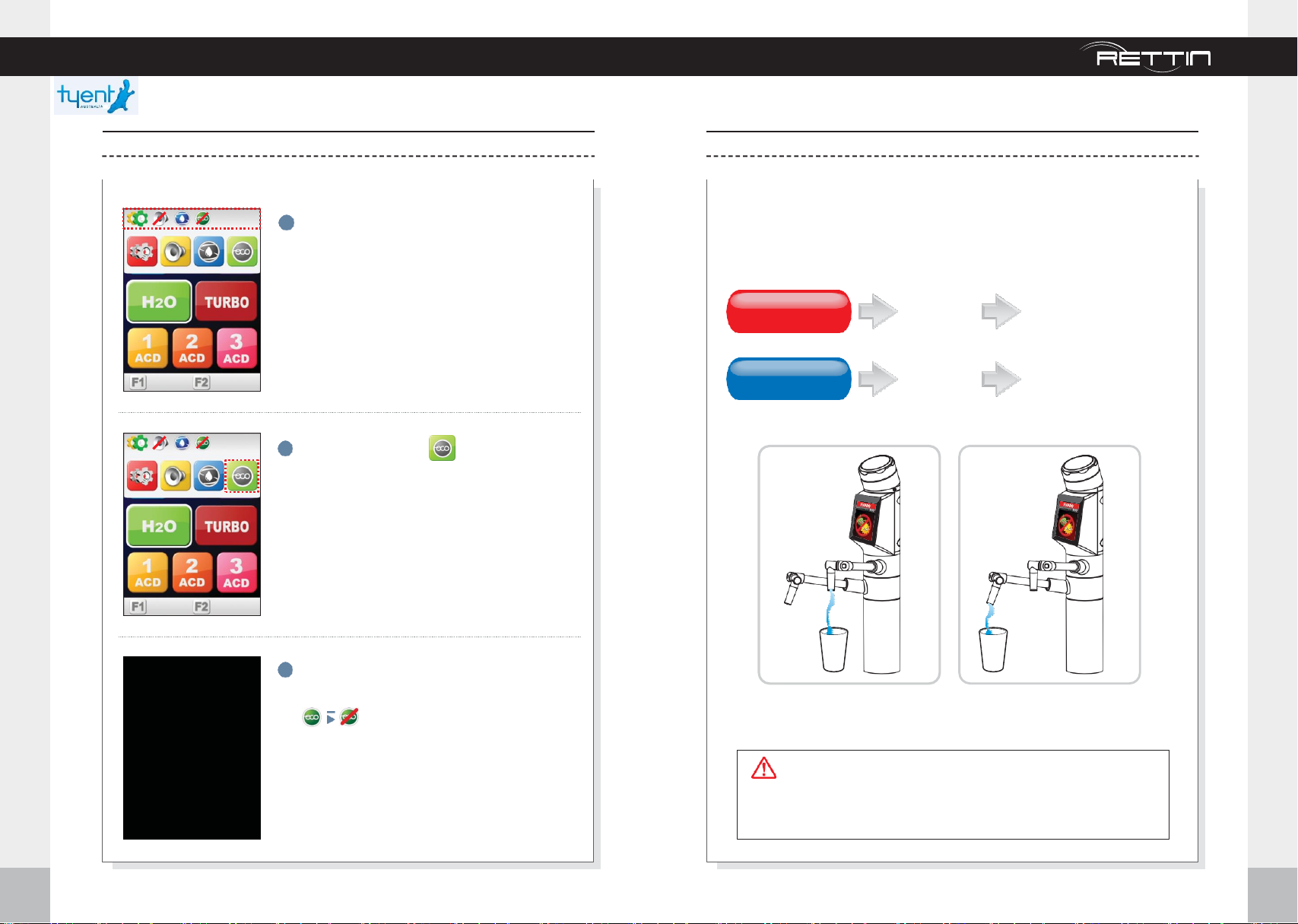

ECO MODE TURBO Function

ECO Mode is a feature for saving power consumption during periods ofnon-use.

Select the ECO icon.

The TURBO Function allows you to create strong alkaline and acidic water.

These types of water are ONLY to be used for cleaning, sanitizing and

disinfecting purposes.

TURBO

Strong Acidic Water

pH 2.5

~ pH 3.8

Used to Disinfect

and Sterilize

TURBO

Strong AlkalineWater

pH 10.0

~ pH 11.8

To remove stainsfrom

fabrics/carpet/upholstery

CAUTION!

The waters produced in TURBO mode are not intended for drinking. DO NOT D RI NK these types of waters. DO NOT Use the TURBO function in a manner other than directed.

Alkaline Turbo Water Outflow Acidic Turbo Water Outflow

Press the top left corner of screen. MENU

options will fall below upper part of screen.

3 ECO Mode will be turned on/off by selecting

the ECO icon in this sequence.

When ECO MODE is set, unit consumers less power during periods of non-use. The Screen will become blank if ECO Mode is set after1minuteafter using the unit.If the screen

is touched, if changes to standby Mode by

displaying lastscreen used.

Page 23

Usage Recommendations

15:00

Light Alkaline Water

(Drinking Level 1)

Approx 8.0 pH

Suitable for initial stage of drinking.

Medium Alkaline Water

(Drinking Level 2)

Approx 9.0 pH

For making coffee, tea and for watering plants.

Strong Alkaline Water

(Drinking Level 3)

Approx 10.0 pH

For washing vegetables, dishes

and making rice.

TURBO Function

DO NOT DRINK. Strong acid/

alkaline water that must be used when cleaning, disinfecting, washing and sterilizing.

15:00

Clean Water

Approx 7.0 pH

Creates purified water. For

taking medications and making

baby formula.

15:00

Light Acidic Water

(DO NOT DRINK)

Approx 5.5 pH

For washing hands, face.

15:00

Medium Acidic Water

(DO NOT DRINK)

Approx 4.5 pH

For washing vegetables and fruits.

15:00

Strong Acidic Water

(DO NOT DRINK)

Approx 3.5 pH

For washing dishes.

15:00 05:00

Usage

Recommendations

under c o u n te r extr e m e

Usage

Recommendations

Page 24

under c o u n te r extr e m e

Unit

Specifications

Temperature

Sensor

14:39

80% 80%

Temperature S enso r

In flow

Unit Specifications

ProductName

WaterIonizer

ModelNumber

UCE-E11T

Purifying Mode

TM FiltrationMode

RatedPower

AC100V~AC130V,AC200~AC240V/50Hz~60Hz

Power Consumption

Max.220W

Availabletemperature

39º-95º F (4º-35ºC)

Operating PressureRange

0.1 ~ 0.5MPa

pH Levels

3 Alkaline, 1 Neutral, 3 Acidic,Turbo

AdjustablepH

User adjustable pH levelscontrol

FiltersConfiguration

2 FiltersSystem

Filter LifeDisplay

LCD filter replacement and announcement

Electrolytic Cell Quantity ofPoles

Water Cell PlateMaterials

Platinum and Titanium

ProductSize

Dispenser: 2″(D) x 12.7″(H) / Ionizer: 14.1″(W) x 5.2″(D)x13.9″(H)

ProductWeight

Dispenser : 1.1 Lbs / Ionizer : 15.2 Lbs

ProductName

WaterIonizer

ModelNumber

UCE-9000T

Purifying Mode

TM FiltrationMode

RatedPower

AC100V~AC130V,AC200~AC240V/50Hz~60Hz

PowerConsumption

Max.220W

Availabletemperature

39º-95º F (4º-35ºC)

Operating PressureRange

0.1 ~ 0.5MPa

pH Levels

3 Alkaline, 1 Neutral, 3 Acidic,Turbo

AdjustablepH

User adjustable pH levelscontrol

FiltersConfiguration

2 FiltersSystem

Filter LifeDisplay

LCD filter replacement and announcement

Electrolytic Cell Quantity of Poles

Water Cell PlateMaterials

Platinum and Titanium

ProductSize

Dispenser: 2″(D) x 12.7″(H) / Ionizer: 14.1″(W) x 5.2″(D)x13.9″(H)

ProductWeight

Dispenser : 1.1 Lbs / Ionizer : 15.2 Lbs

※To make the best functionality, there may be some

change withoutnotices.

Should water with a temperature higher than

95℉ (35℃) get into the unit, the water supply will automaticallybe shut off and theunit will stop operating.

LCD:“T EM P E R R O R ”

Bring source water temperature within proper range.

When source water is within proper range, the

ionizer will resume proper function and water will flow.

11:00a

If you press the error icon,

the display will switch to standby mode.

Page 25

under c o u n t e r ex t r e me

Troubleshooting

Trouble s hoot ing

Before requesting service, please make sure to check the following :

1. Water tastes abnormal

A. Check how long the unit has not been in use.

i. Operate the unit normally for a few minutes to drain stagnantwater.

B. Check to see if the filters needreplacing.

i. Call to have the filter replaced.

2.NO water outflow or the amount of water generated is different from specified

A. Be sure the water supply is on.

i. Open the valve.

B. Check if the hose is bent or folded.

i. Stretch out the hose.

C. Check power settings.

i. Enter setup mode and check power settings.

D. Check the purifying filter for clogs.

i. Replace filter.

3. Incorrect pH levels (additional pH reagent drops can be ordered for a fee)

A. Check water supply for hardness.

i. pH levels may vary depending on region and water quality.

B. Check flow rate for higher levels.

i. Slow down watersupply.

4. The filter replacement icon remains turned on even after

filter has been replaced

A. Follow the filter resetinstructions.

i. Contact the service center to initialize the filter flow rate in the System

Setting Mode.

5. The unit automatically stops while it’s producing functional water

A. Check if the continuous operating time exceeds 15 minutes.

i. Water production stops automatically after 15 minutes to prevent

accidental over flooding.

6. Leaks from the Filter or Unit

A. Check the filter is installed correctly.

B. Check the inside of the product (excluding the filters) for any signs of

leaks. i. Immediately unplug the power cord and contact the service center.

ii. Be sure all hoses are firmly seated in correct connections.

7. Hazy substance settles down on the bottom of the container

filled with functional water

A.Check if calcium ions and carbonic acids bond together in water

forming deposits. i. Depending on the quality of raw water, calcium is extracted from the

water. There is no problem in drinking water with calcium. However, it is recommended that you contact the service center in case it is a recurring problem.

8. The unit doesn’t operate in cleaning mode

A. Check if the amount of working water exceeds 6.5 gallons.(30ℓ)

B. Check if the operating time exceeds 12 hours.

9. Trouble Reaching Acidic pH Values.

In areas of the country where hard water (high mineral content) is common,reaching lower acidic pH values can be hampered. Be aware of your water quality and if you are having issues reaching lower acidic

values, check the hardness of your source water. The best way to

achieve a lower acidic value is to maxout the power in the acidic mode of choice and slow the flow rate of the water flow through the unit, this will help create a lower acidic value.

Page 26

Tyent Water is the First People choice all around the World

5150

Page 27

Incomparable certifications

Throughout the world.

Incomparable Certifications Throughout the World With Multiple Languages Supported

5352

Page 28

Thank you

4/19-21 Bourke Rd, Alexandria NSW 2015.

TEL : 1300 665 636 Website : www.tyentaustralia.com.au

Tyent Australasia PTY LTD

Thank You Thank You
