Tycon Power Systems TP-MS308, TP-MS316, TP-MS324 User Manual

USER’S MANUAL

TP-MS308/TP-MS316/TP-MS324

Power Source Equipment

(AC+DC Input, Gigabit PoE Midspan)

TYCON POWER SYSTEMS

User’s Manual TP-MS308/TP-MS316/TP-MS324

2

Contents

1. Introduction...........................................................................

Features................................................................................................

Package Contents.................................................................................

2. Hardware Description...........................................................

Physical Dimension...............................................................................

Front Panel............................................................................................

LED Indicators.......................................................................................

Rear Panel............................................................................................

Power On..............................................................................................

Network Application...............................................................................

RJ-45 Remote Control Port...................................................................

3. Software Utility Installation..................................................

4. GUI Management...................................................................

Display and Illustration..........................................................................

System Login........................................................................................

Modify Password…...............................................................................

Edit Station TCP/IP...............................................................................

Edit Remote PoE IP.............................................................................

GUI Connect.........................................................................................

Station and Status Window Select .......................................................

Configuration.........................................................................................

Factory Setting…………........................................................................

Board Status…………………………………………………………………
Port Status…………………………………………………………………...
GUI Version………………………………………………………………….

GUI Disconnect…………………………………………………………......

File Open and Save…………………………………………………………

5. Technical Specification........................................................

3

3

4 4 4

4

5

5 6 6

7

14

15

15

16

17

18

19

20

22

23

24

26

27

28

29

30

31

User’s Manual TP-MS308/TP-MS316/TP-MS324

3

1. Introduction

Mstronic’s family of Power over Ethernet TP-MS308/TP-MS316/TP-MS324 ( Power
Sourcing Equipment ), is an AC+DC input, gigabit PoE Midspan which injects power
over data-carrying Ethernet cabling. The TP-MS308/TP-MS316/TP-MS324, support 8,
16 and 24 ports respectively in a 10/100/1000BaseT Ethernet network, over
TIA/EIA-568 Category 5/5e/6 cabling. DC operating power, for data terminal units, is
fed over data pairs C (4/5) and D (7/8) of the cabling. Remote management of up to 8
units via TCP/IP protocol is featured, which allows greater flexibility in the locating of
network devices and significantly decreasing installation costs in many cases.

The TP-MS308/TP-MS316/TP-MS324 follows the IEEE 802.3af standard and is
completely compatible with existing Ethernet switches and networked devices. This
device normally powers PDs (Powered Devices) that are Power over Ethernet enabled
or are equipped to receive power over Ethernet. The PSE tests whether a networked
device is PoE-capable and power is never transmitted unless a Powered Device is at
other end of the cable. It also continues to monitor the channel. If the Powered Device
does not draw a minimum current, because it has been unplugged or physically turned
off, the PSE shuts down the power to that port. Devices which are not equipped to
receive power over Ethernet may require an external splitter in order to be powered.
Contact Mstronic for such a splitter.

Features

8/16/24 port Power Sourcing Equipment (PoE midspan)
Support 8/16/24 ports full load, max. 134W/268W/403W
IEEE802.3af compliance
Remote power feeding of Ethernet terminals up to 100 meters
Auto detect PD, and support manual detect PD
Centralized power distribution for PoE powered Device (PD)
Independent overload and short-circuit protection per channel
Supports IEEE 802.3af non-standard device
Auto refresh port status and support Plug and Play feature for PD
Standard 19” or 23” rack mountable
DIY upgrade from 8 port to 24 port available
Remote manage up to 8 units via TCP/IP protocol
DC input available, can work with battery, non-interrupt performance.

User’s Manual TP-MS308/TP-MS316/TP-MS324

4

Package Contents

Unpack the contents of the TP-MS308/TP-MS316/TP-MS324 and verify them
against the checklist below.

TP-MS308/TP-MS316/TP-MS324 x 1

Power Cord x 1
Bracket x 2 ( for 19” rack mounted)
CD-ROM x 1 (Software Utility + User Manual)

Compare the contents of your TP-MS308/TP-MS316/TP-MS324 package with the
standard checklist above. IF any item is missing or damaged, please contact your local
dealer for service.

2. Hardware Description

This Section mainly describes the hardware of the TP-MS308/TP-MS316/TP-MS324
and gives a physical and functional overview.

Physical Dimension

TP-MS308/TP-MS316/TP-MS324 physical dimension is: 430mm x 290mm x 44mm (Lx W x
H) (1U,19” or 23” Rack mountable)

Front Panel

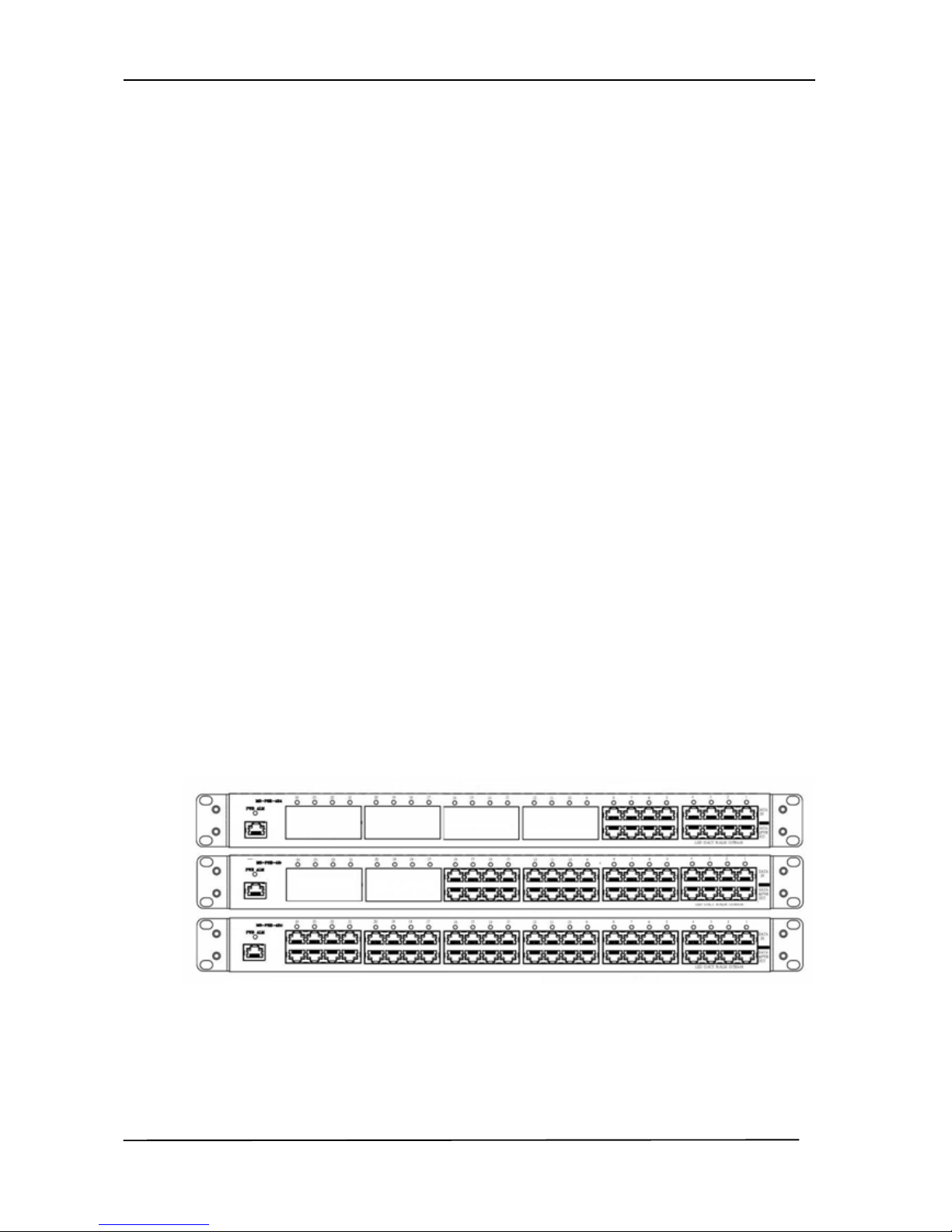

Figure 2-1. The Front panel of TP-MS308/TP-MS316/TP-MS324

The Front Panel of the TP-MS308/TP-MS316/TP-MS324 consists of 8/16/24 x RJ-45
Ethernet ports (data), 8/16/24 x RJ-45 PoE ports (data + power), 8/16/24 x LED port
indicators, one LED power indicator and one RJ-45 remote control port (include one
LED).

User’s Manual TP-MS308/TP-MS316/TP-MS324

5

LED Indicators

The LED Indicators gives real-time information of systematic operation status. The
following table provides descriptions of LED status and their meaning.

LED

Status

Color

Description

RJ45

On

Green

A network device is

detected(10/100/1000 Mbps)

but no communication activity is

detected

Blinking

Green

The Ethernet port is transmitting

to, or receiving package from

another device

Off

--

No device is detected

Power

On

Green

Power feeding normally

On

Red

Power or fan alarm

Off

--

Power off

Ports

On

Green

Power feeding

Blinking

Orange

Detecting

On

Orange

The port has been shutdown
No power feeding

On

Red

Alarm
No power feeding

Off

--

Unknown device attached
No power feeding

Table 2-1. The Description of LED Indicators

User’s Manual TP-MS308/TP-MS316/TP-MS324

6

Rear Panel

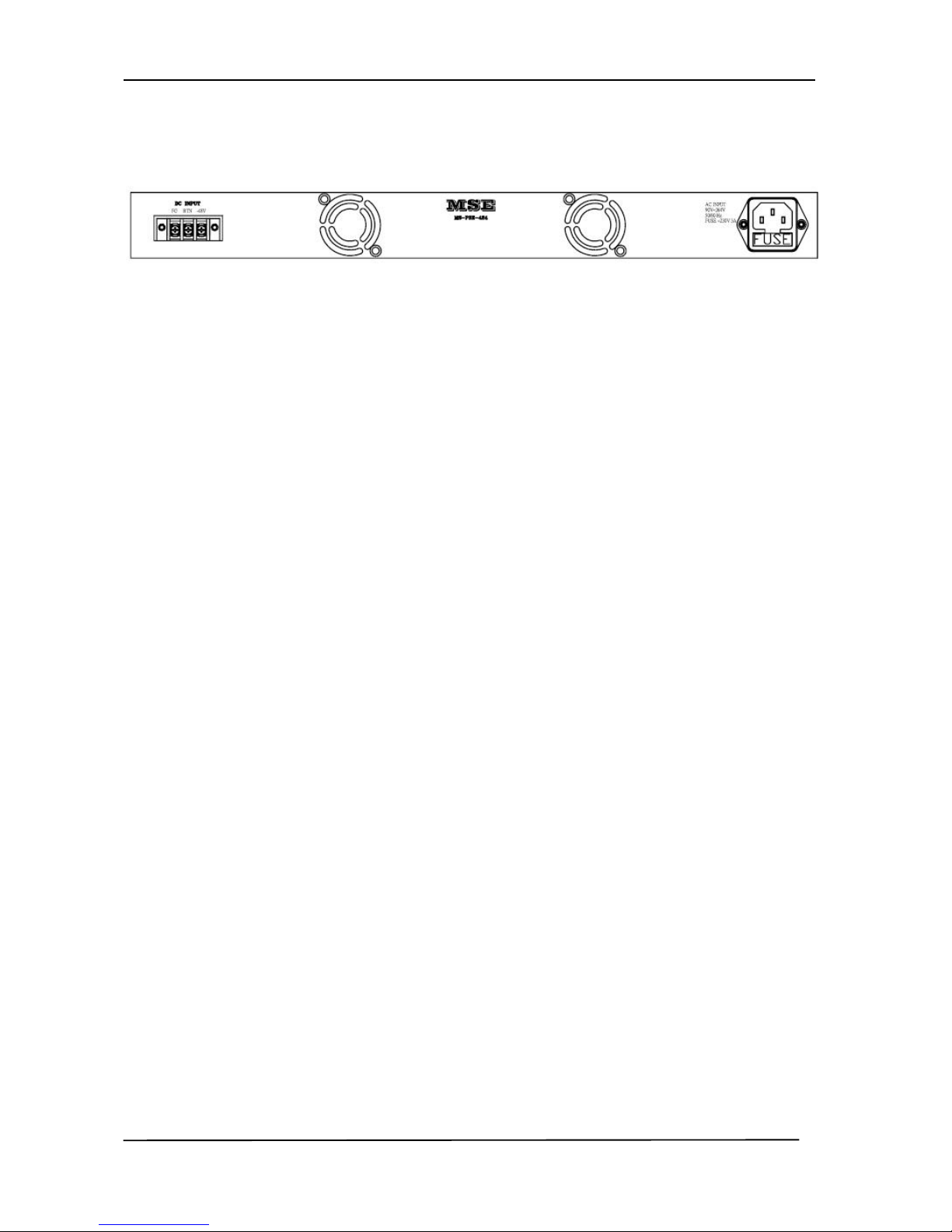

Figure 2-2. The Rear Panel of TP-MS308/TP-MS316/TP-MS324

The AC inlet, DC input terminal and 2 Ventilation fan are located at the rear panel of
the TP-MS308/TP-MS316/TP-MS324. The device will work with AC in the range
100-240V AC, 50-60Hz. Or work with DC -48V(-42V~-57V).

Power On

Connect the power cord to the power socket on the rear panel of the PSE. The other
side of power cord connects to the power outlet. The internal power supply of the PSE
works with the voltage range of 100V-240VAC, frequency 50~60Hz, or with voltage
range of DC -42V~-57V. Check the port, the power indicator will self-test on the front
panel to see if power is properly supplied.

Network Application

The PSE can provide power to the PD which follow the IEEE 802.3af standard in the
network. It can solve the problem of position limitation. The network device can be
installed in a more appropriate position for better performance. The following figure is

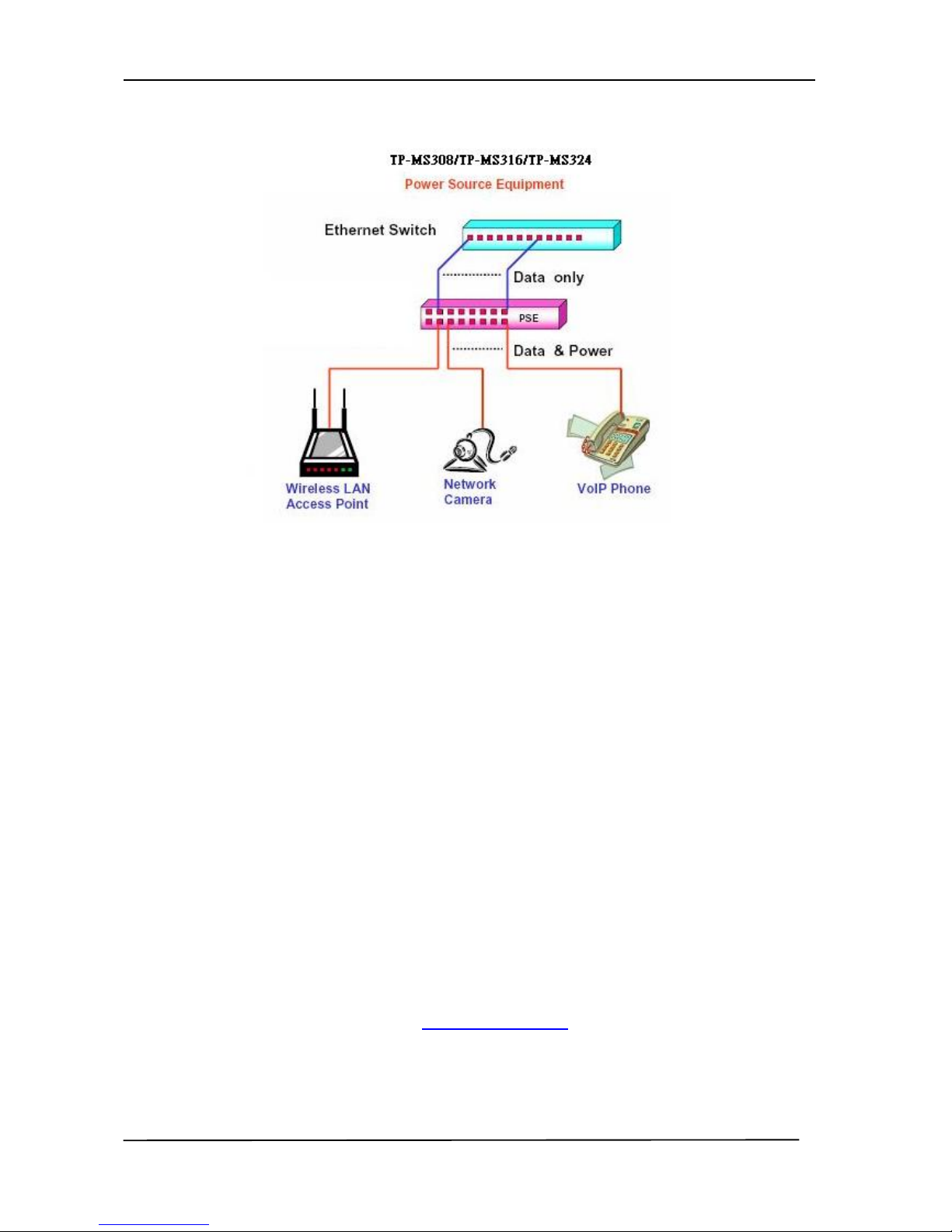

an example of a network application for PSE

User’s Manual TP-MS308/TP-MS316/TP-MS324

7

RJ-45 Remote Control Port

TP-MS308/TP-MS316/TP-MS324 can remotely manage the PoE via the network. To
manage TP-MS308/TP-MS316/TP-MS324, you must to set the
TP-MS308/TP-MS316/TP-MS324 TCP/IP parameter.
TP-MS308/TP-MS316/TP-MS324 allowed you to use a standard Web-browser such as
Microsoft Internet Explorer or Mozila, to set the TCP/IP parameter.

Before you use the web interface to set the PoE TCP/IP, verify that
TP-MS308/TP-MS316/TP-MS324 is properly installed on your network and PC on the
network can access PoE via the web-browser.

1. Verify that PC network interface card (NIC) is operational on the TCP/IP protocol.

2. Supply power to TP-MS308/TP-MS316/TP-MS324.

3. Use RJ45 cable, connect TP-MS308/TP-MS316/TP-MS324 direct to your PC.

4. Make sure the TP-MS308/TP-MS316/TP-MS324 default IP is 192.168.1.10.

5. Set your PC IP to 192.168.1.2 or other IP address which is located in the

192.168.1.x subnet.

6. Make sure the connector is OK (Ping 192.168.1.10 on the DOS mode).
7 Start the web-browser and type http://192.168.1.10 (or used PoE IP setting icon in
the PoE management software).

8. The login in screen will appear next.

User’s Manual TP-MS308/TP-MS316/TP-MS324

8

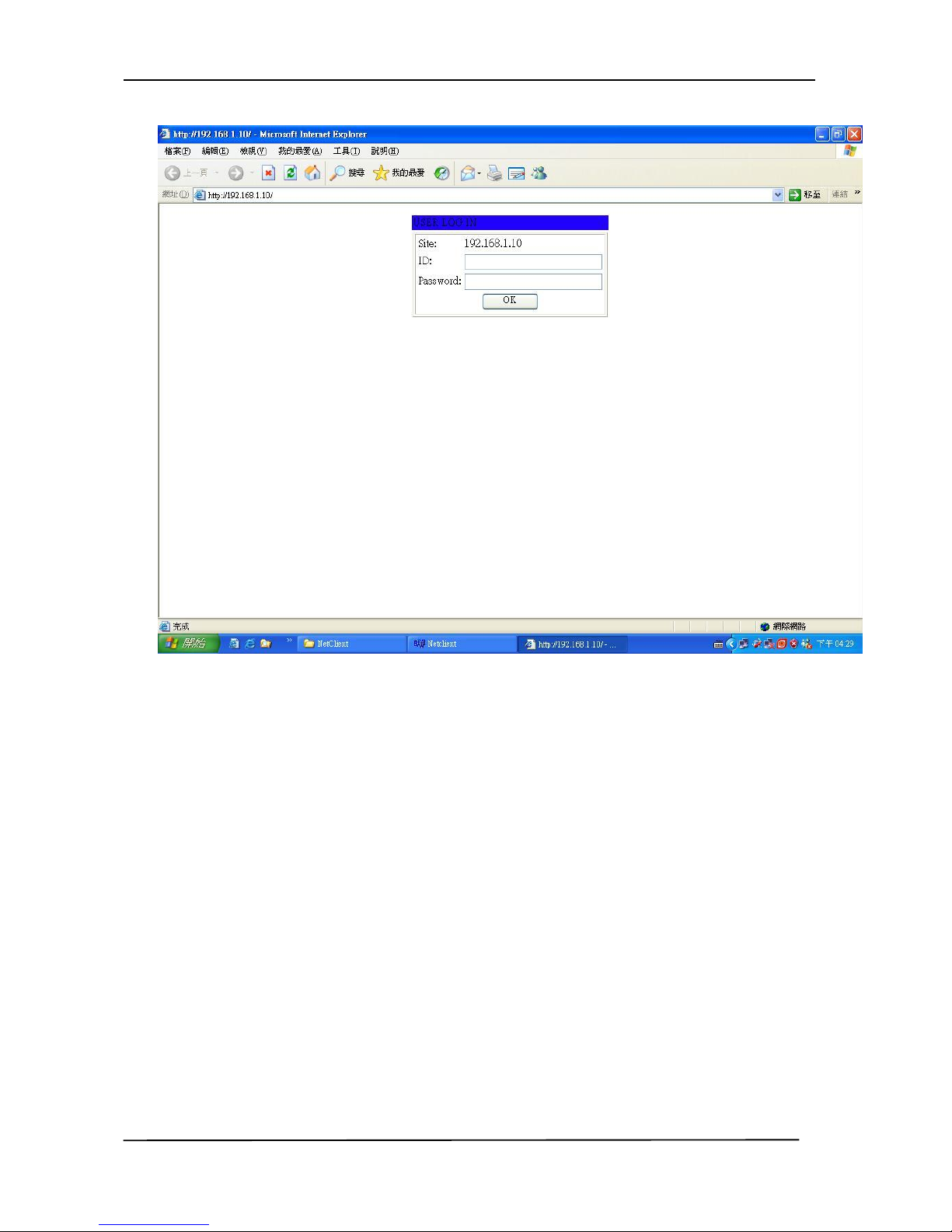

9. Key in ID (user name) and password to enter PoE TCP/IP parameter setting. Default
ID and password is admin and system.

10. TP-MS308/TP-MS316/TP-MS324 TCP/IP parameter has 4 pages interface
(administrator setting, TCP Mode, UDP Mode and UART). You must change the
administrator & TCP mode to fit your network.

User’s Manual TP-MS308/TP-MS316/TP-MS324

9

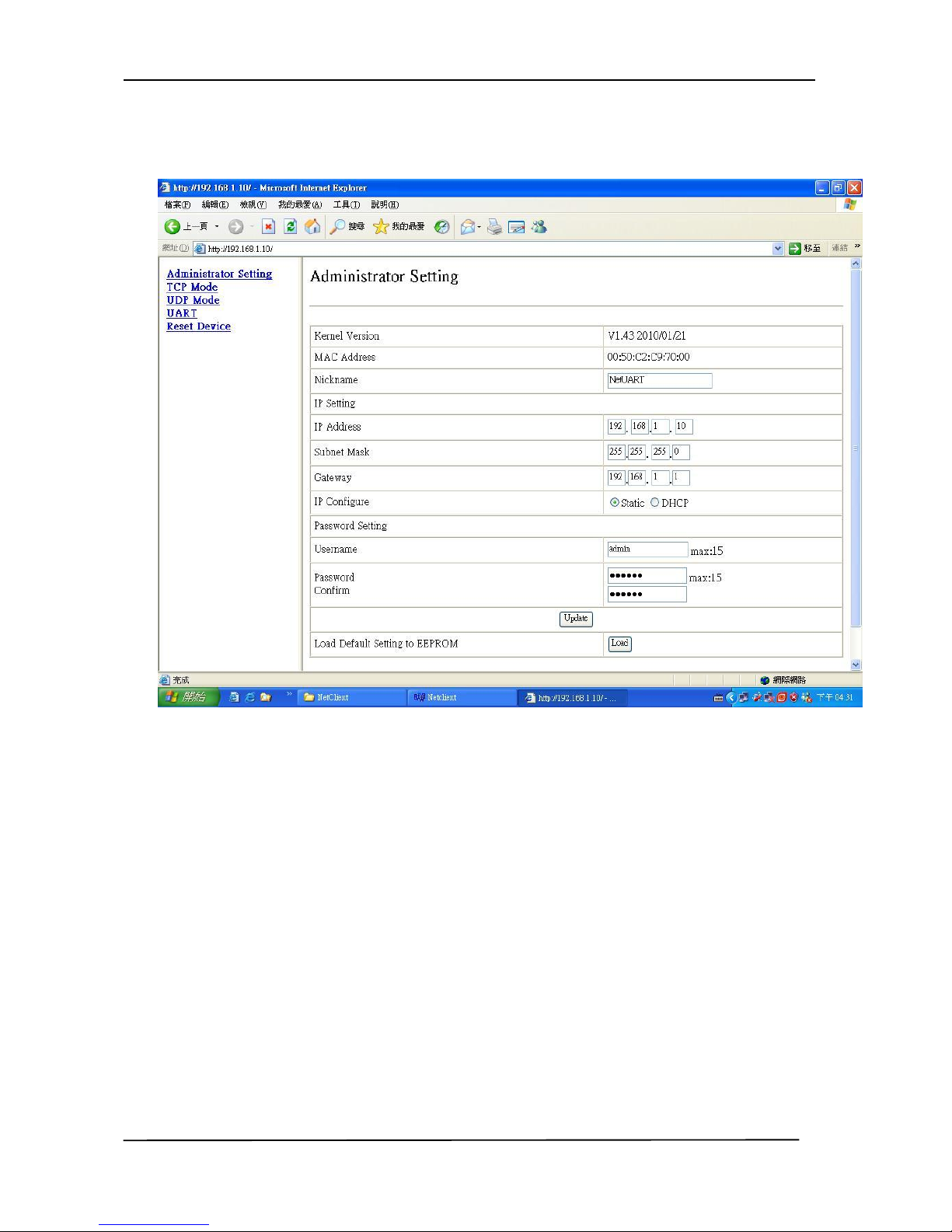

11. Administrator setting: you can assign nickname, IP setting, user name, password and
view system information.

Nickname: You can assign a name to the device.
IP Address: You must assign the IP address reserved by your network. The default IP
is 192.168.1.10.
Subnet Mask: You can assign the subnet mask for the IP address. The default subnet
mask is 255.255.255.0.
Gateway: You can assign the gateway here. The default gateway is 192.168.1.1.
IP Configure: You must assign to Static for PoE serve operation. The default IP
configure is Static.
Username: You can assign new user name. The default setting is admin.
Password/Confirm: You can type in new password here. The default setting is system.

When you have finished the set up, click on Update to update your setting.

User’s Manual TP-MS308/TP-MS316/TP-MS324

10

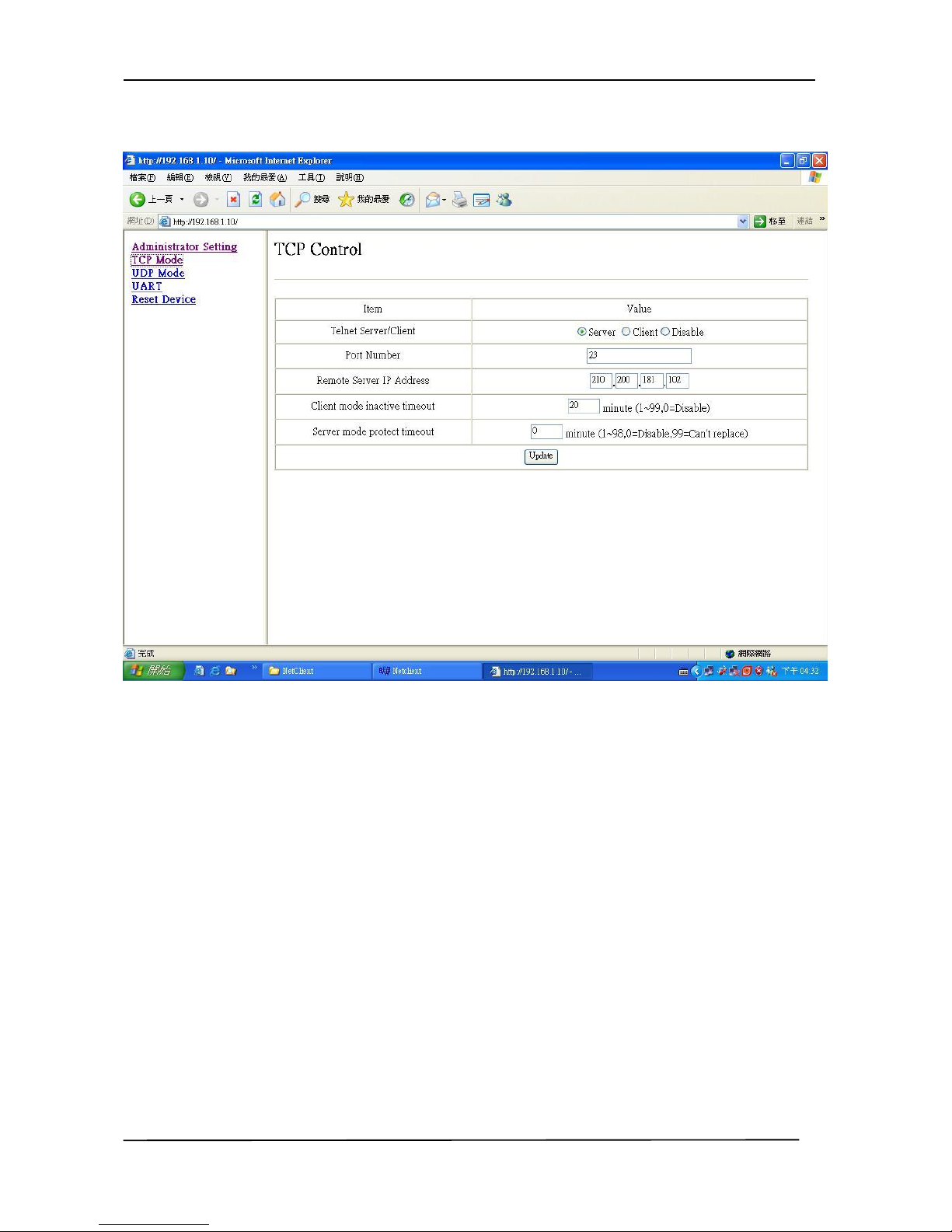

12. TCP Mode: You can update the TCP control parameter here.

Telnet Server/Client: Set to Server for PoE management operation.
Port Number: You can assign port number for TCP/IP operation. The default Port
Number is 23.
Remote Server IP Address: Unused.
Clint mode inactive timeout: Unused.
Server mode protect timeout: Set to 0(Disable) for normal operation.

When you have finished the set up, click on Update to update your setting.

User’s Manual TP-MS308/TP-MS316/TP-MS324

11

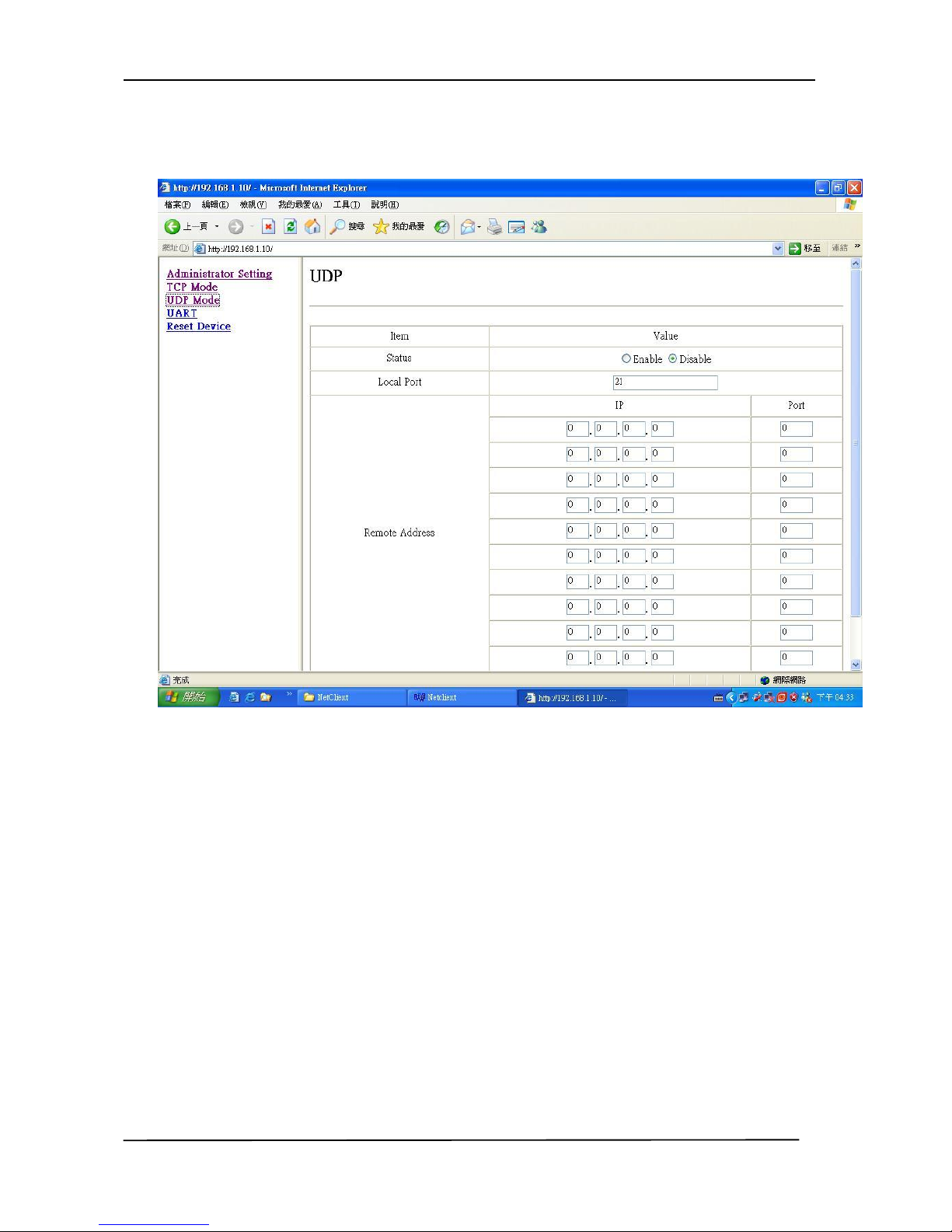

13. UDP Mode: This mode is not used in the PoE application.

User’s Manual TP-MS308/TP-MS316/TP-MS324

12

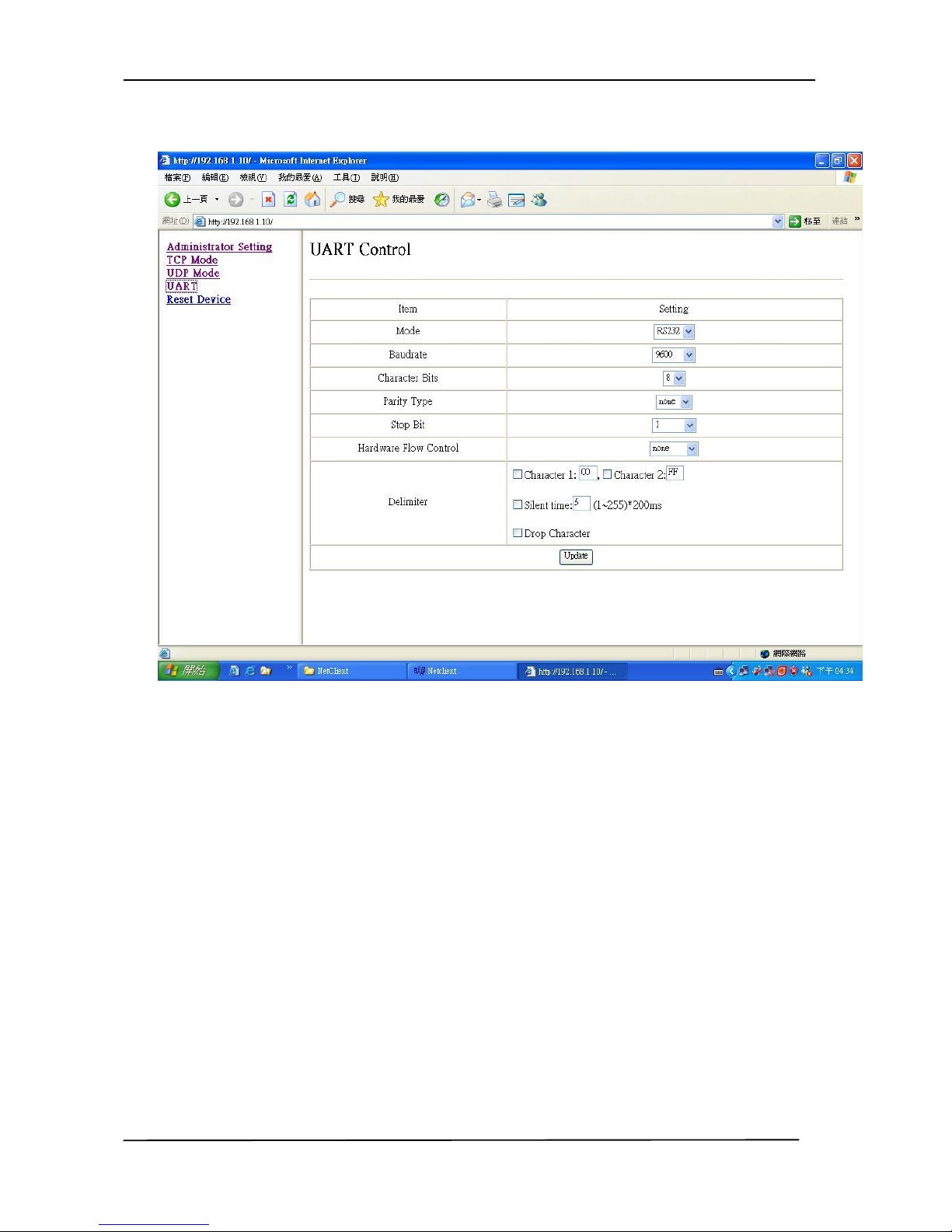

14. UART: You must set UART Control to RS232,9600,8,N,1 for PoE operation.

Mode: Set to RS232 for PoE operation.
Baud rate: Set to 9600 bps for PoE operation.
Character Bits: Set to 8 bits for PoE operation.
Parity Type: Set to none parity for PoE operation.
Stop Bit: Set to 1 stop bit for PoE operation.
Hardware Flow Control: Set to none flow control for PoE operation.

When you have finished the set up, click on Update to update your setting.

User’s Manual TP-MS308/TP-MS316/TP-MS324

13

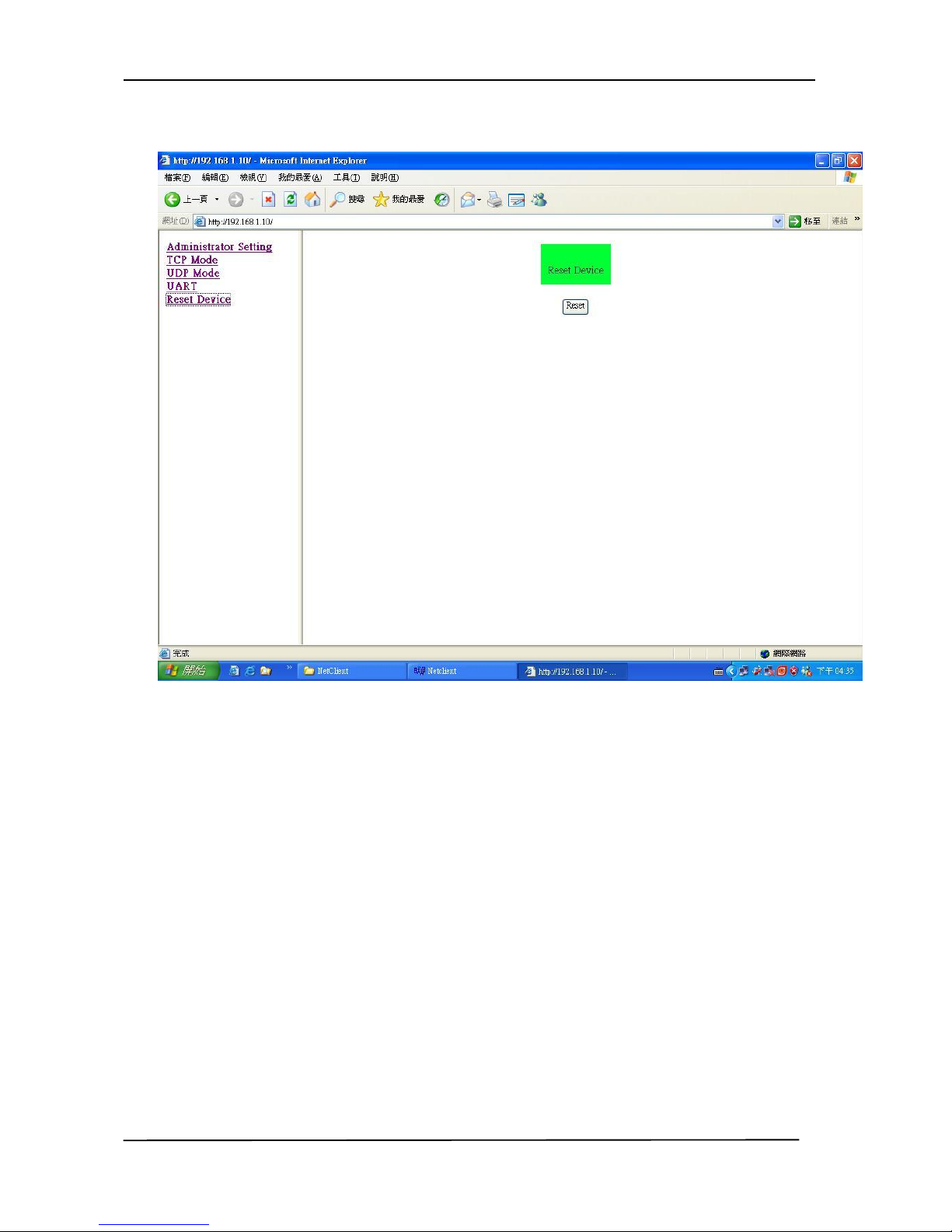

15. When you have configured your set up, you must reset the device to take effect.

User’s Manual TP-MS308/TP-MS316/TP-MS324

14

3. Software Utility Installation

Before you start to remote configure the PD, please install the software utility. Through
the software utility, you can easily to control the PD which connects with PoE and view
the PD parameter information. The software utility provides GUI interface and it is easy
to install. The software utility supports Windows environment – Window 98, 2000, XP,
Vista and Window 7. Please follow the below steps to install the software utility.

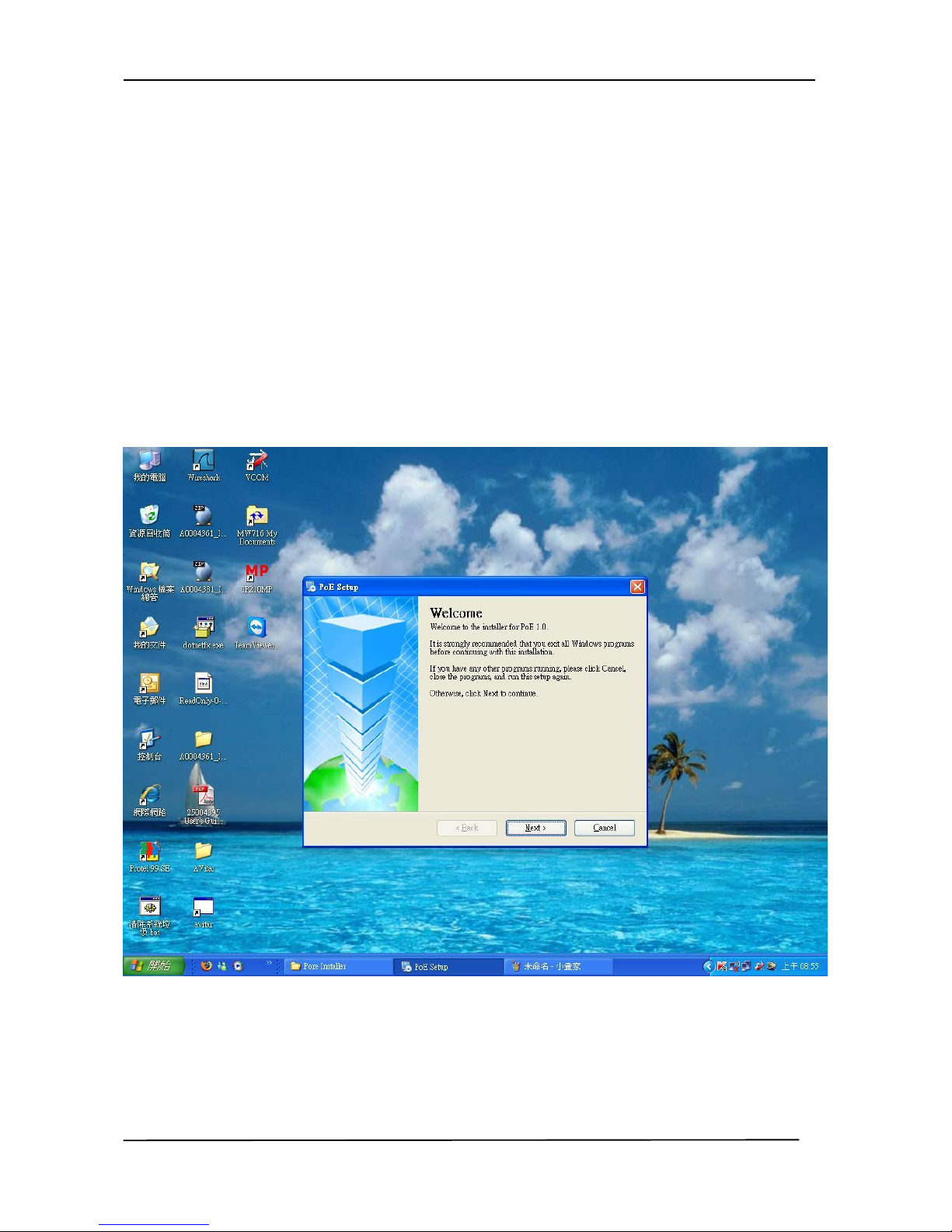

1. Insert the software utility CD-ROM into your CD-ROM drive.

2. Run the “setup.exe”.

3. You will see the installation screen display.

4. Then, click the “Next” button to go next step.

User’s Manual TP-MS308/TP-MS316/TP-MS324

15

4. GUI Management

Display and Illustration

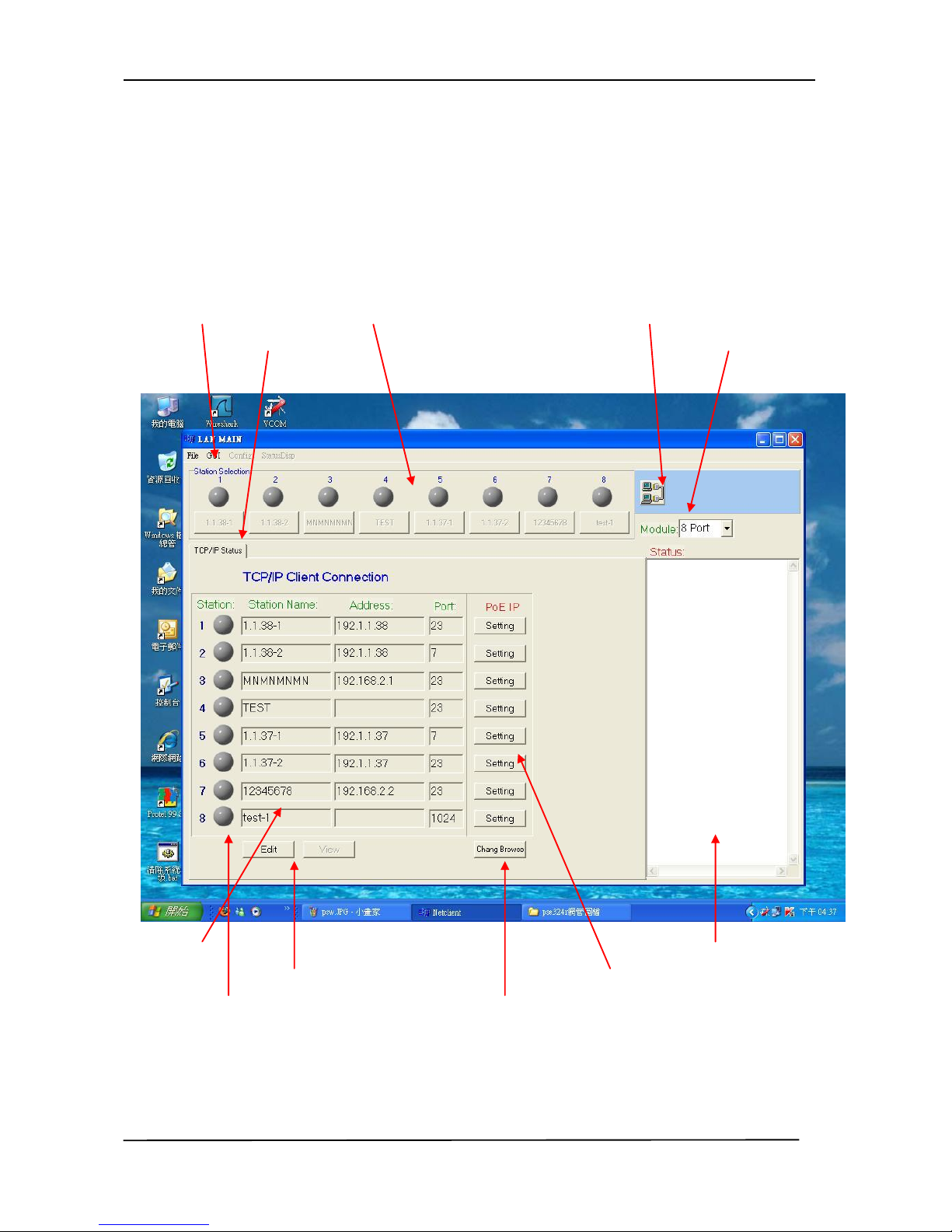

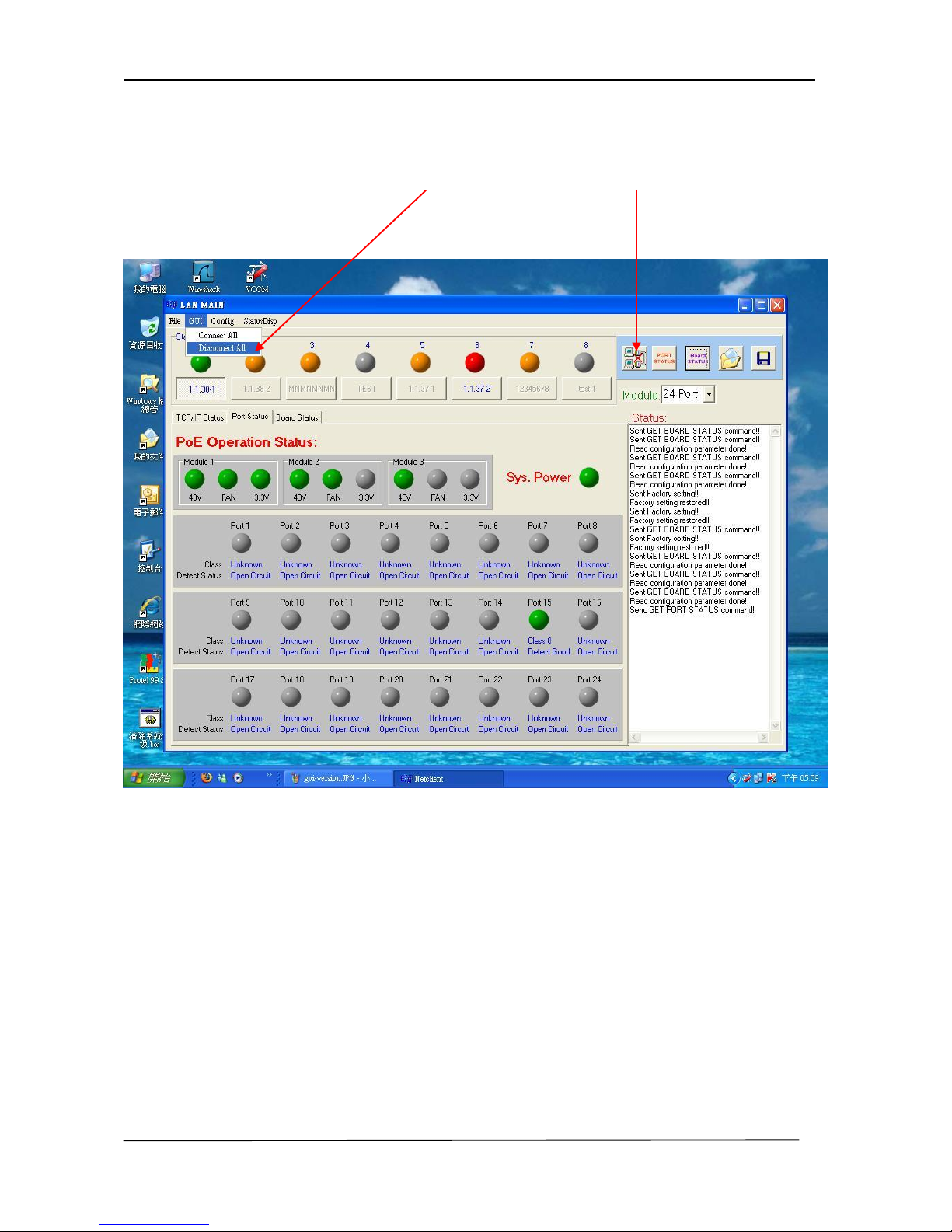

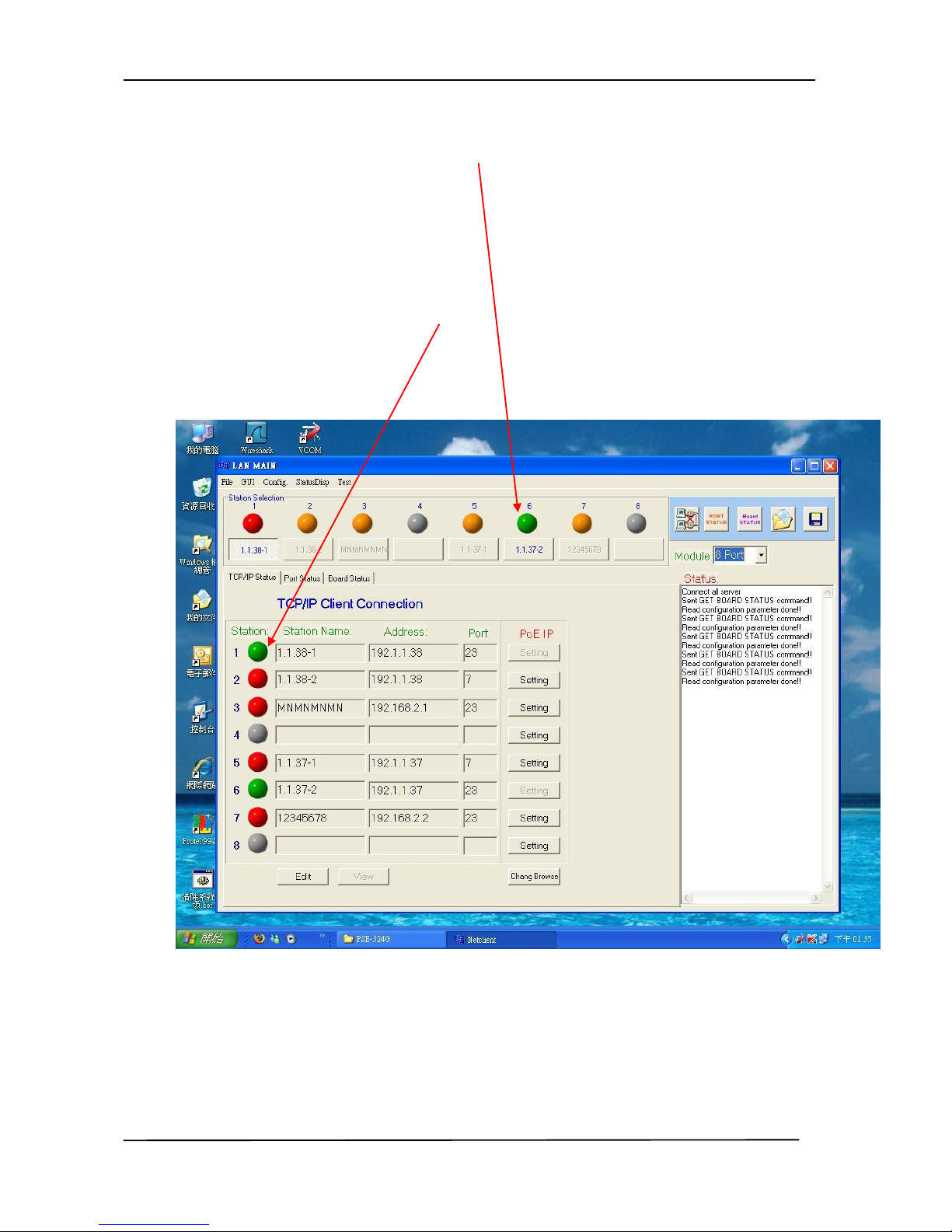

Connect the PSE with a PC through the remote control port. Then, run the software

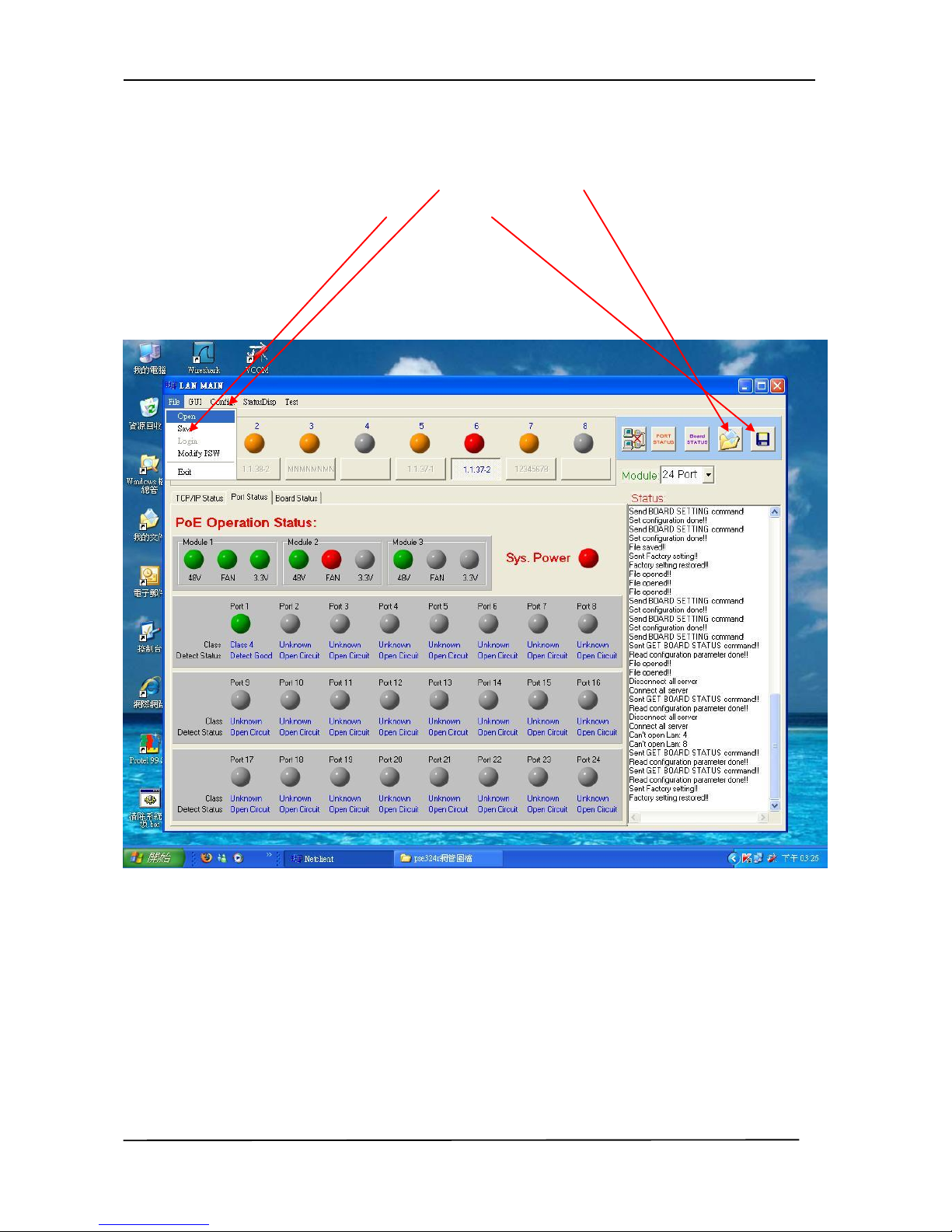

utility (Netclient). You will see the main utility interface below.

Tools bar PSE station selection & alarm indicator legend tool

Display page select PSE port select

PSE station TCP/IP setting message window
TCP/IP edit/view icon PSE TCP/IP setting
TCP/IP connection indicator Change web-browser icon

User’s Manual TP-MS308/TP-MS316/TP-MS324

16

System Login

Run the management software or click “File”, and select “Login”, the system will
show the diagram below.

Now enter the password, first enter the default setting which is “0000”

User’s Manual TP-MS308/TP-MS316/TP-MS324

17

Modify Password

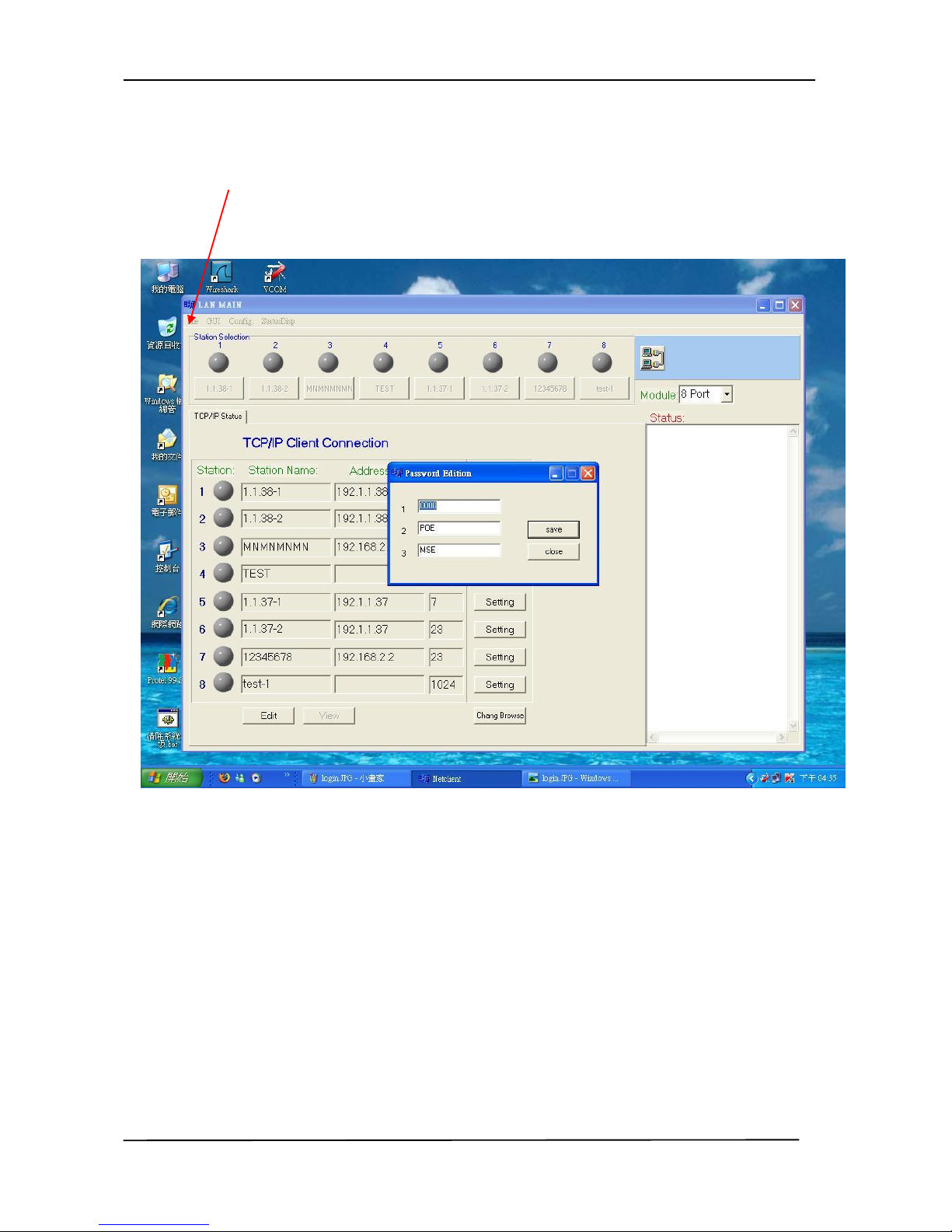

Click “File” and select “Modify PSW”, you can modify the password, the system
permits 3 sets of password.

User’s Manual TP-MS308/TP-MS316/TP-MS324

18

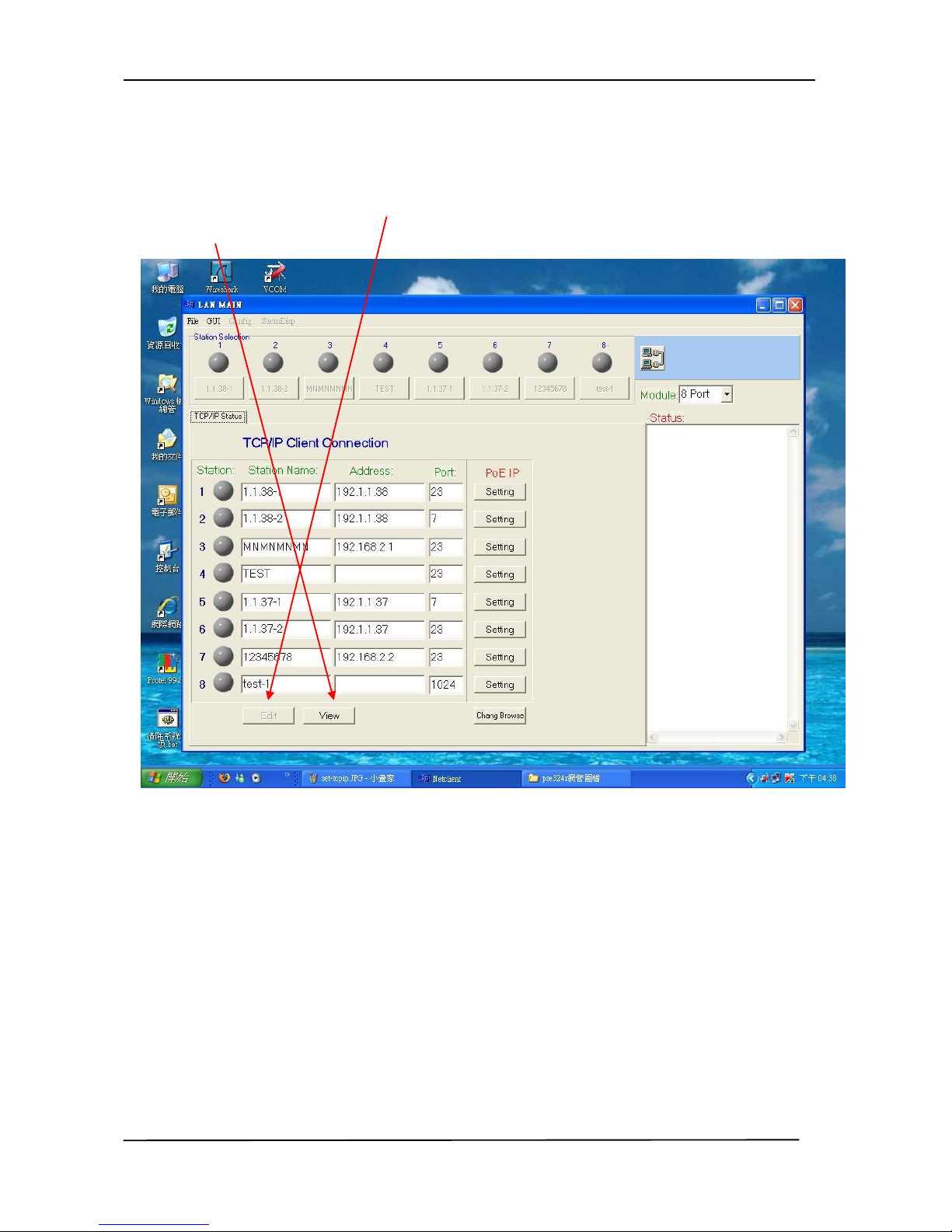

Edit Station TCP/IP

In the TCP/IP Status display window, you can edit the station name, TCP/IP address
and port number. Click the Edit icon to modify this parameter. In the Edit window, click
the View icon to display TCP/IP parameter.

Station Name: You can assign a name to the PSE device.
Address: You can assign the IP address for this PSE station.
Port:: You can assign the port number for this PSE station.

User’s Manual TP-MS308/TP-MS316/TP-MS324

19

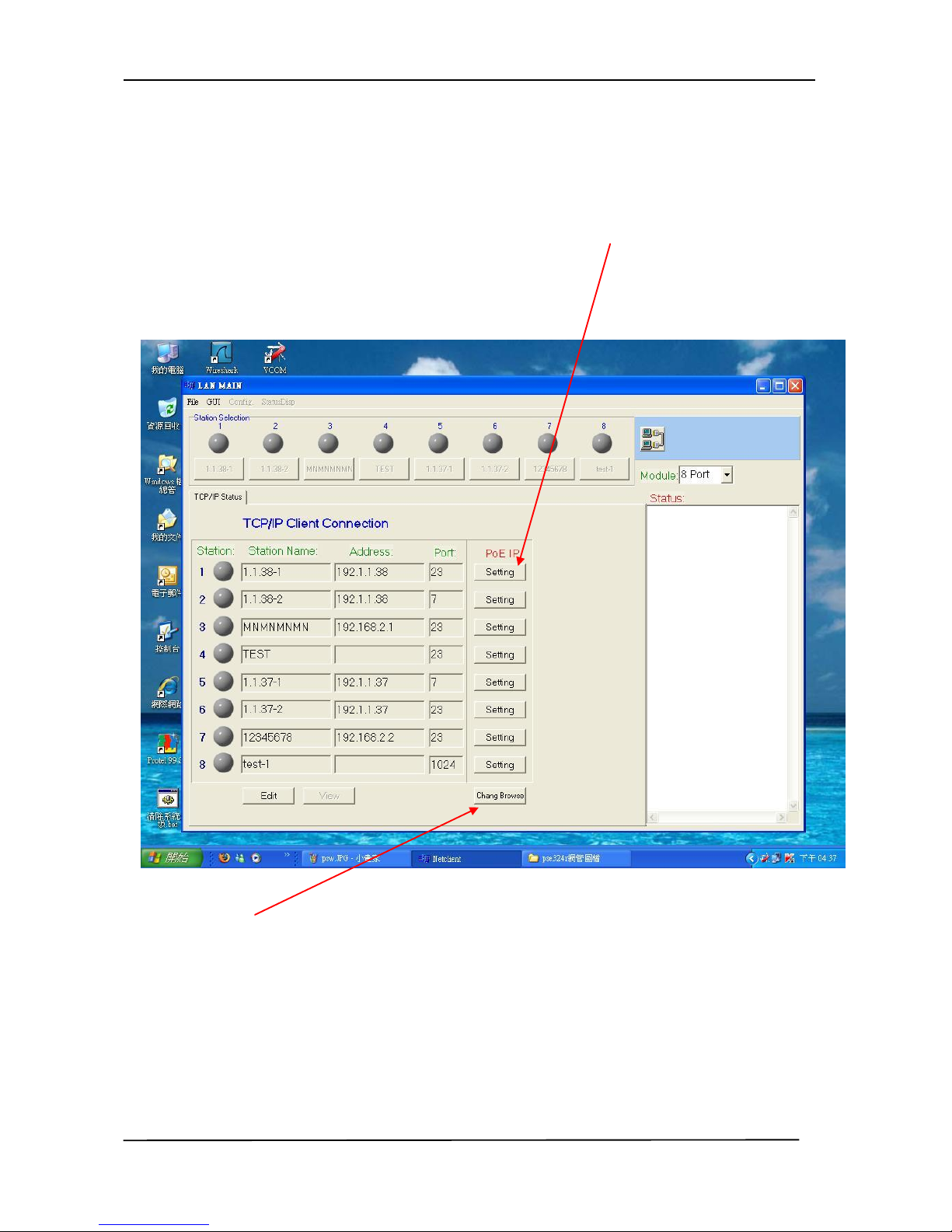

Edit Remote PoE IP

In the TCP/IP Status display window, you can use “PoE IP Setting” icon to start the
web-browser. To modify the remote PoE TCP/IP parameter, please reference RJ-45
Remote Control Port of section 2 Hardware Description (page 7).

Change Browse icon: You can use this icon to change the web-browser for remote PoE
IP edit. The default web-browser is Microsoft Internet Explorer.

User’s Manual TP-MS308/TP-MS316/TP-MS324

20

GUI Connect

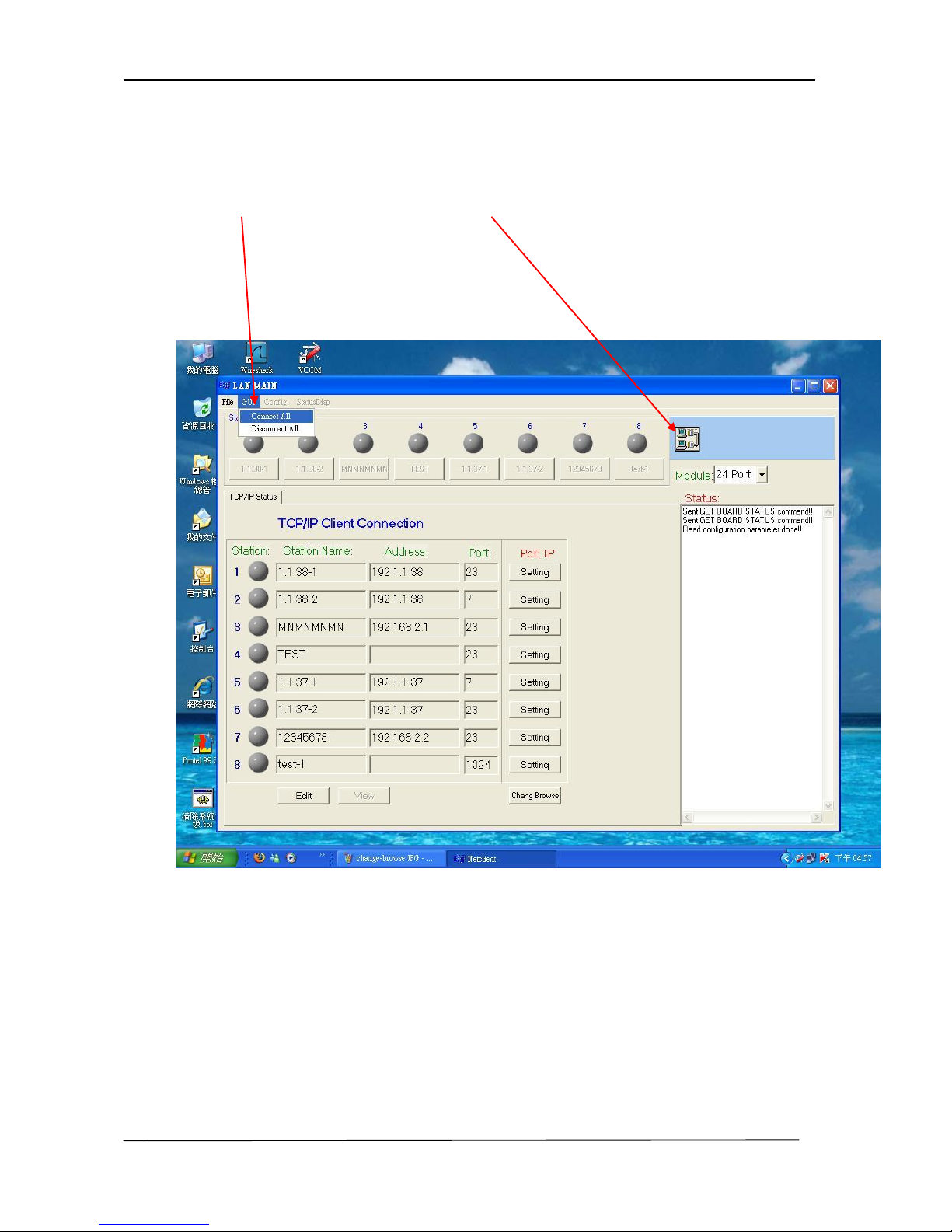

In the TCP/IP Status display window, edit TCP/IP parameter, then click “GUI” and
select “Connect All” command or click “connect” icon, if the Station Select window
shows the name icon and displays power status(green or red) light, it means that the
PSE connection is correct. You can then select station to configure you PSE.

User’s Manual TP-MS308/TP-MS316/TP-MS324

21

GUI connect example:

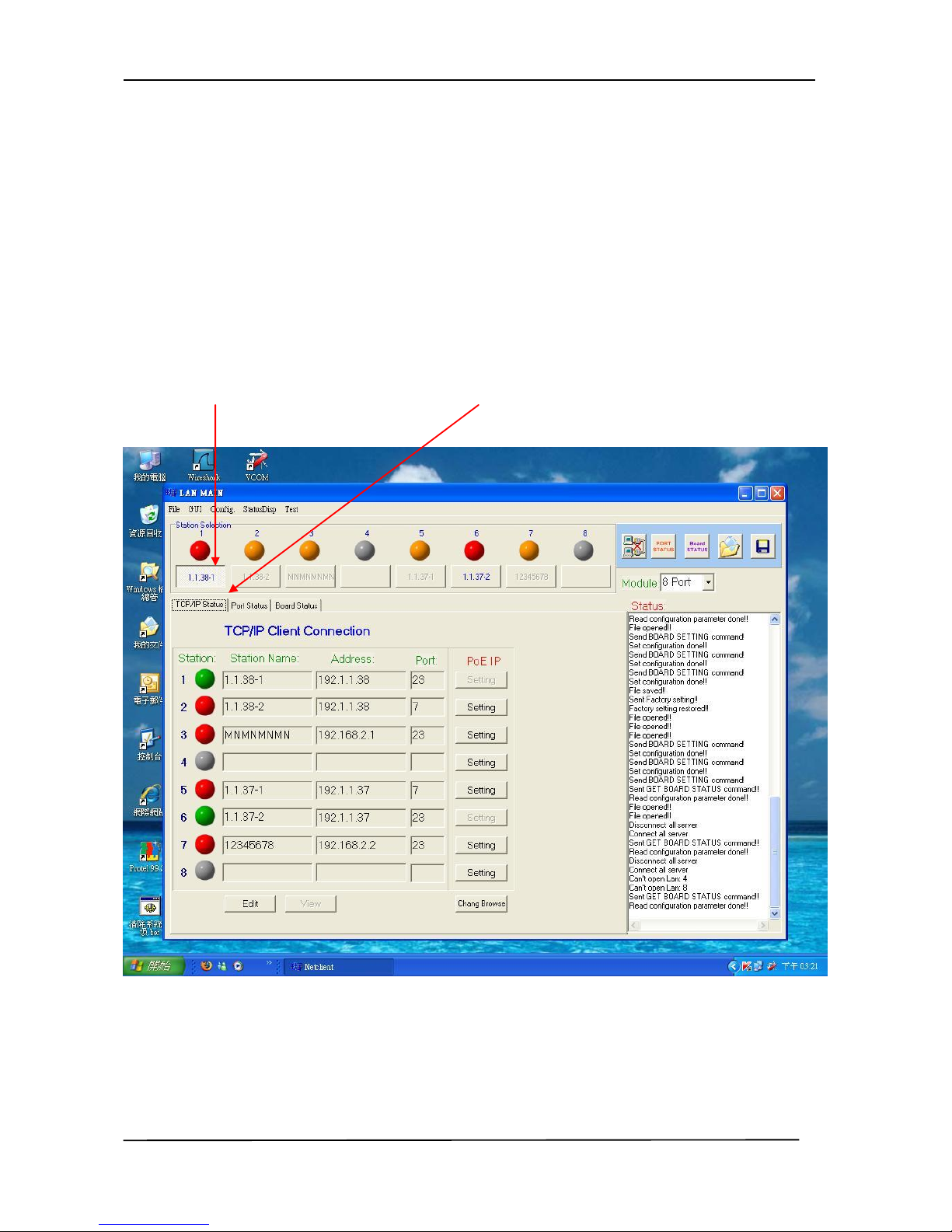

In the Station Selection window, the LED indicates real time connection of PSE.
Green-----this connection and PSE power are normal.
Red--------this connection is OK but PSE power is not correct.
Orange---this connection is not working..
Gray-------this station is not setting.

In the TCP/IP Status window, the LED indicates real time status of TCP/IP.
Green-----TCP/IP connection is OK.
Red--------TCP/IP connection is not working.
Gray-------TCP/IP parameter is not setting.

User’s Manual TP-MS308/TP-MS316/TP-MS324

22

Station and Status Window Select

The PSE management software can monitor 8 PSE simultaneously. In the GUI
Disconnect mode, only the TCP/IP Status display window can be used to set the TCP/IP
parameter. In the GUI Connector mode, there three display windows can choose ­TCP/IP Status/Port Status/Board Status.
Port status and Board Status show relative PSE Station status. If you want to change the
status display window, only use the mouse to choose the relative word icon. If you want
to change the station, also use the mouse to choose the station name icon.

Station Select display icon Status display icon

User’s Manual TP-MS308/TP-MS316/TP-MS324

23

Configuration

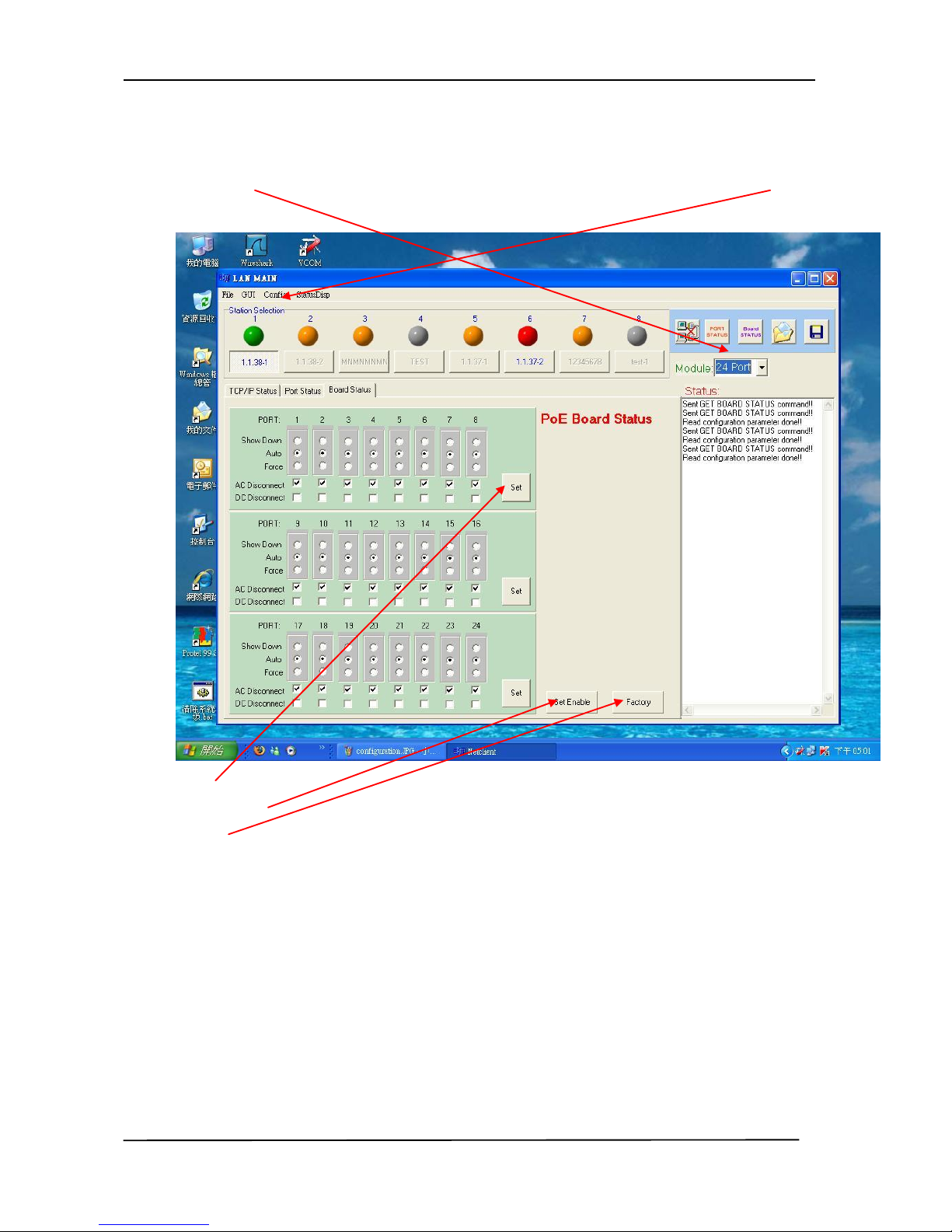

In the “Module” window, select the suitable port that you require, then, click “Config”,
and select “Setup”, the screen will show the system control panel as below.

Set icon: Apply the operation mode to PSE system.
Set Enable/Set Disable icon: Change the Board Status window to set enable/disable.
Factory icon: Apply the factory setting to PSE system.

You can setup Operation Mode/ AC Disconnect/ DC Disconnect of each port
individually, then, click “Set”.

PSE port operates in one of three modes: auto mode, force mode and shutdown
mode. In auto mode, the port will detect and classify a PD to connect to, then
immediately turn on the power if the detection was successful. In force mode, the
port will not detect and classify a PD to connect to, but immediately turn on the
power to the port. In shutdown mode, the port is disabled and does not detect or
power on a PD.

User’s Manual TP-MS308/TP-MS316/TP-MS324

24

Factory Setting

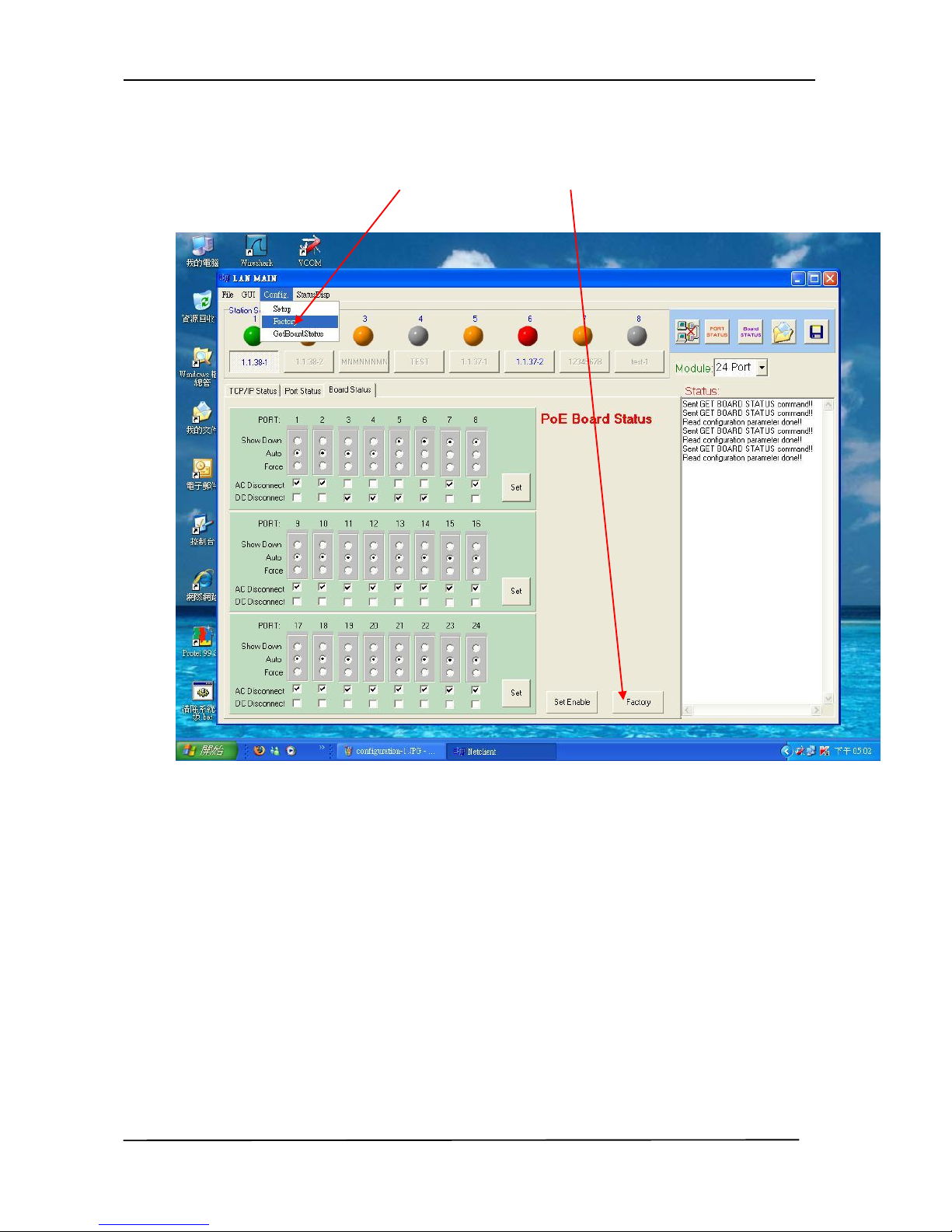

Click “Config”, and select “Factory” or click the “Factory” icon. The screen will show
the factory setting control panel as below:

then click “Y” for the Factory Setting.

User’s Manual TP-MS308/TP-MS316/TP-MS324

25

Factory setting as below:
Operation Mode → Auto (Auto, Force & Shutdown)
AC Disconnect → On (On & Off)
DC Disconnect → Off (On & Off)

User’s Manual TP-MS308/TP-MS316/TP-MS324

26

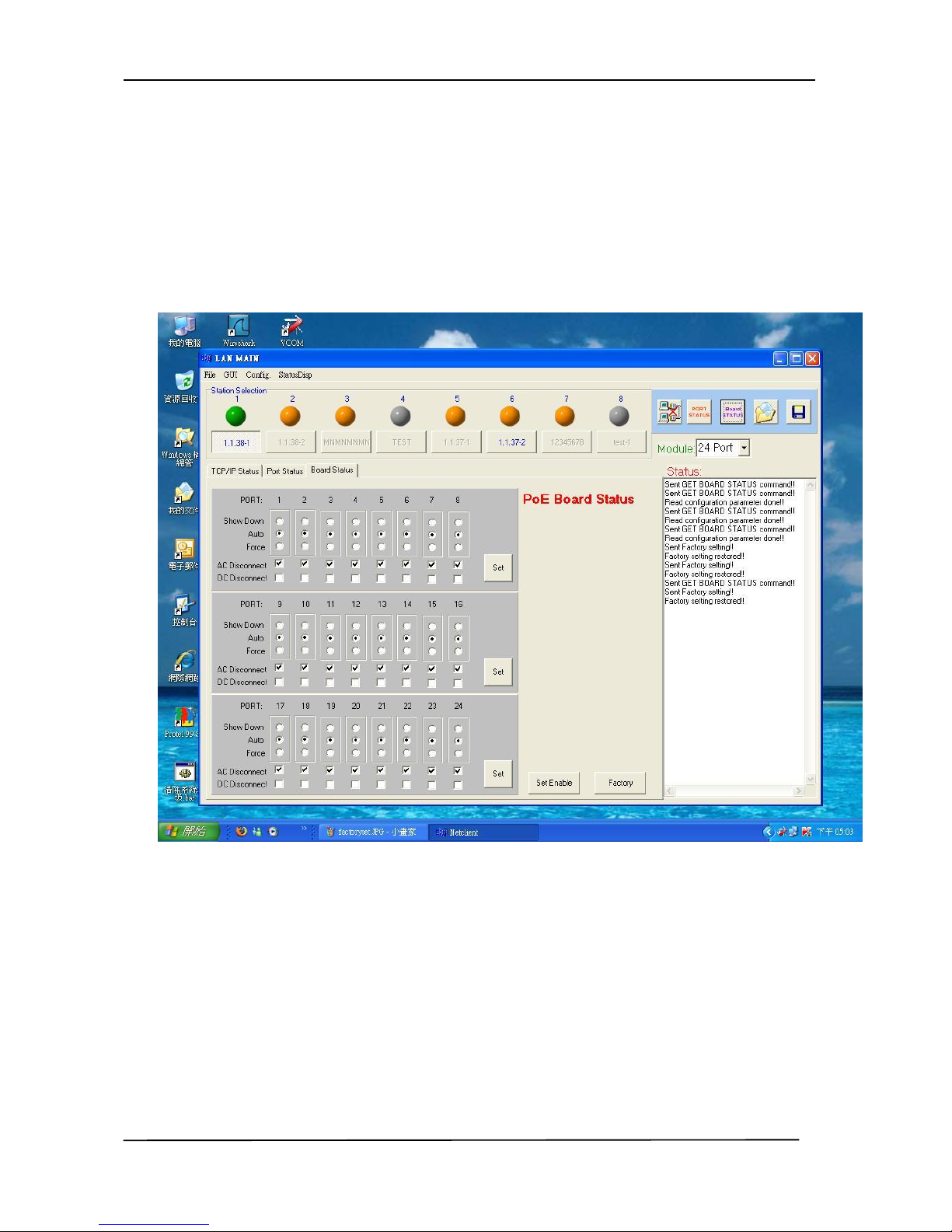

Board Status

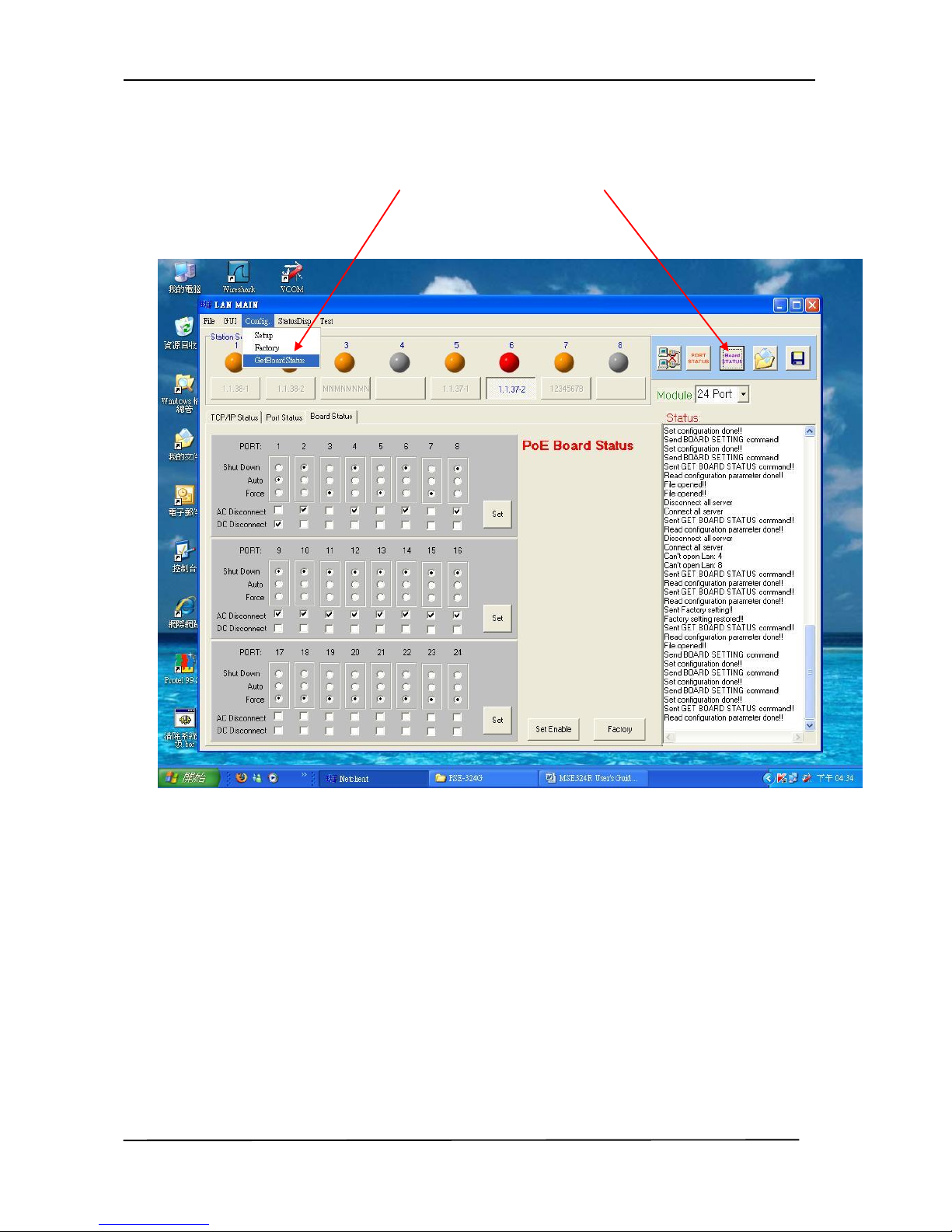

Click “Config”, and select “GetBoardStatus”, or click “Board STATUS” icon, the
screen will show current status of each port.

User’s Manual TP-MS308/TP-MS316/TP-MS324

27

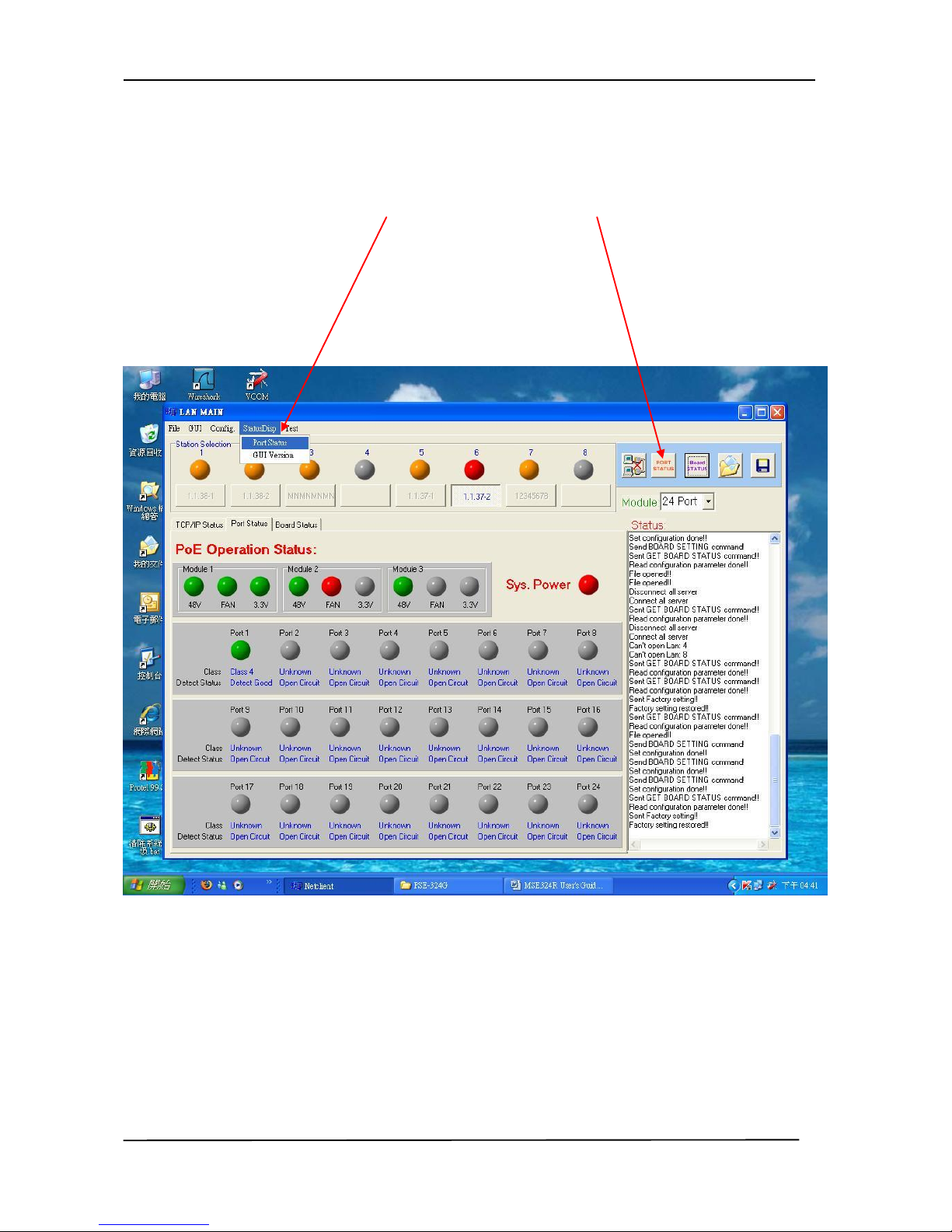

Port Status

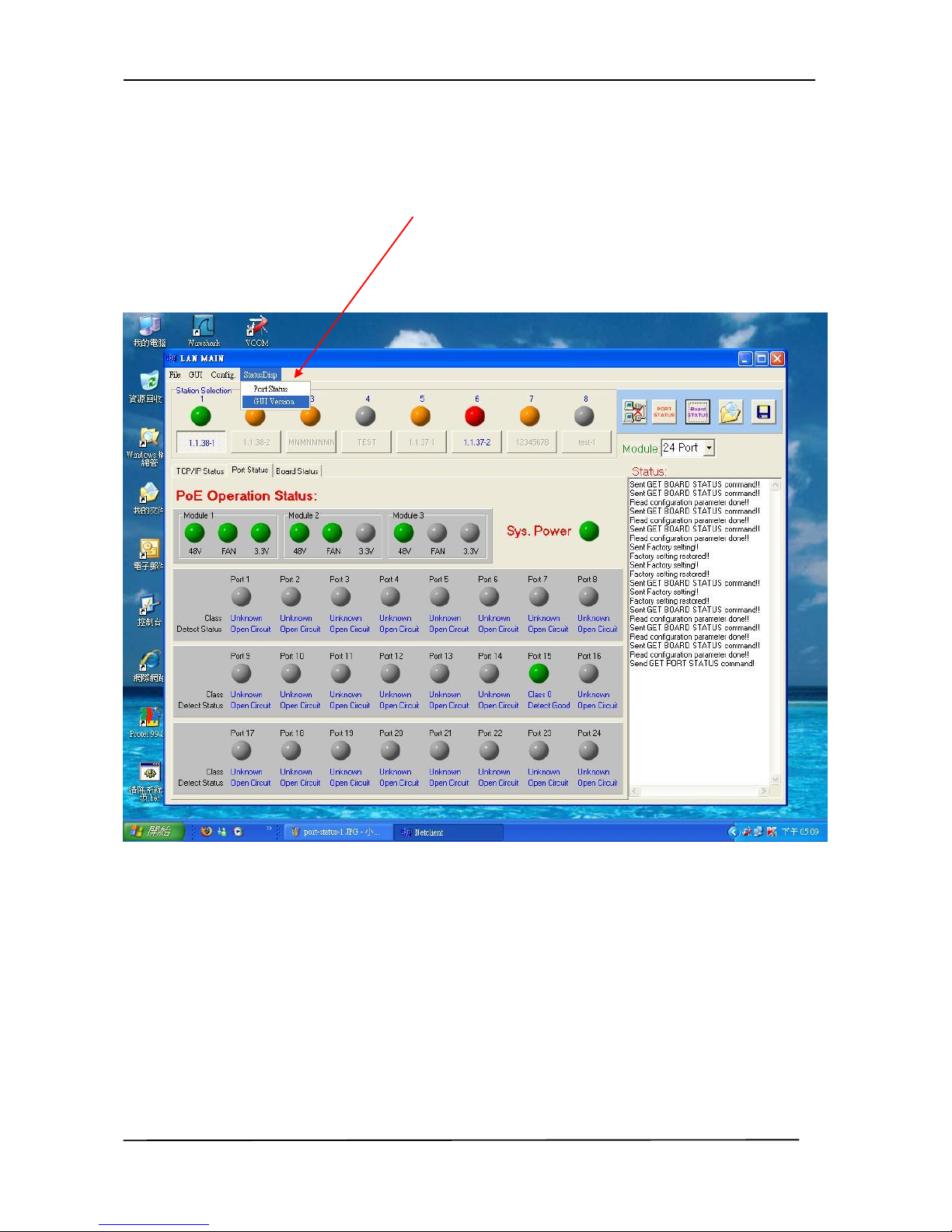

In the “Module” window, select the suitable port that you require, then, click
“StatusDisp”, and select “PortStatus”, or click the “PORT STATUS” icon, the screen

will show current status of each port and current power supply status of each
module.

If all power modules are working normally, the “Sys. Power” will show a green light, if
any module has failed, the light will turn to red.

User’s Manual TP-MS308/TP-MS316/TP-MS324

28

GUI Version

Click “StatusDisp”, and select “GUI Version”, the screen will show the version of the EMS
utility

User’s Manual TP-MS308/TP-MS316/TP-MS324

29

GUI Disconnect

Click the “GUI”, and select “Disconnect All”, or click the “GUI disconnect” icon to
disconnect the communication between GUI and PSE.

User’s Manual TP-MS308/TP-MS316/TP-MS324

30

File Open and Save

You may click “File” and select “Open”, or click the ”Open file” icon, to open the
previous setting file. Click “Save”, or “Save file” icon, to save the current setting.

User’s Manual TP-MS308/TP-MS316/TP-MS324

31

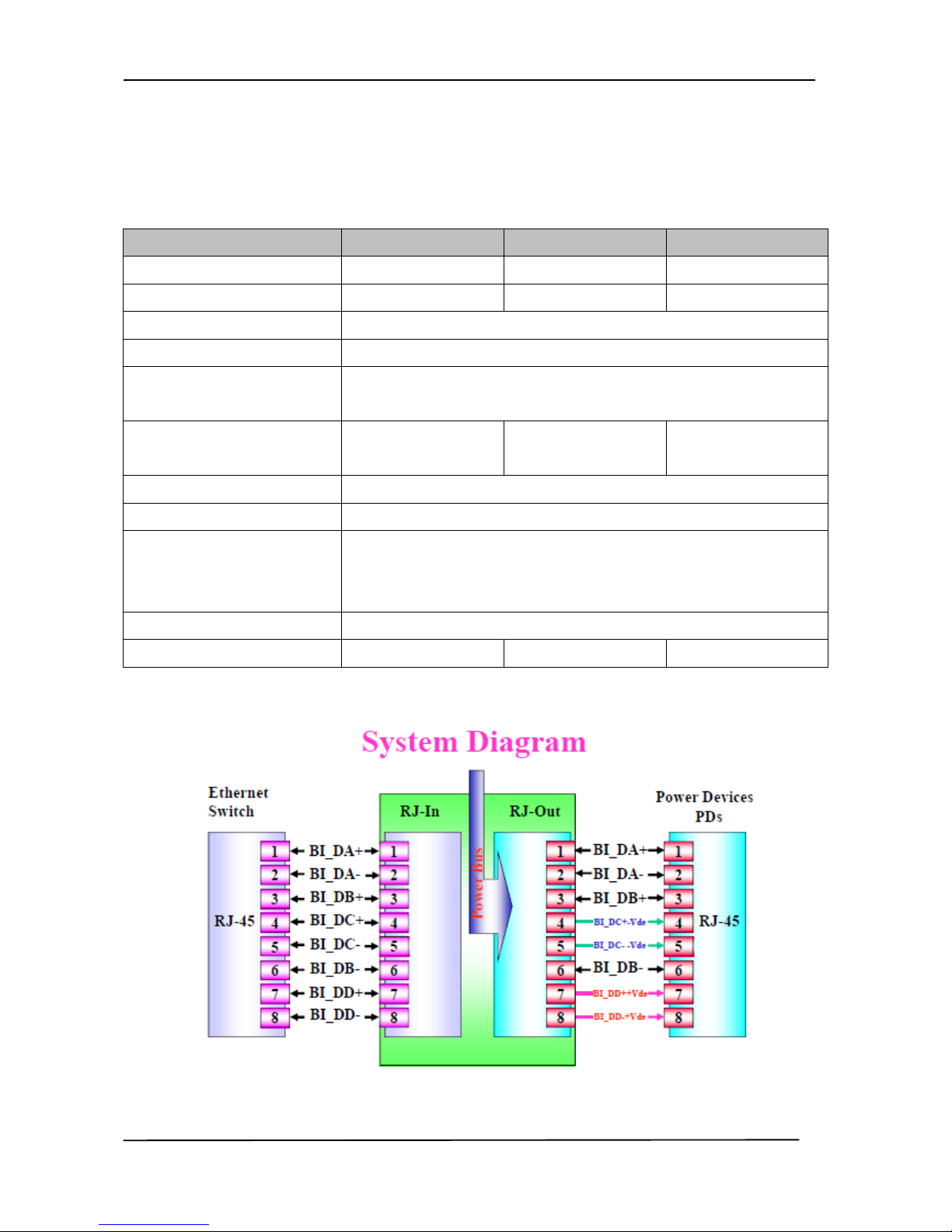

5. Technical Specification

PARAMETER

TP-MS308

TP-MS316

TP-MS324

Data Ports

8

16

24

PoE Ports

8

16

24

Pass through Data Rates

10/100/1000Mbps

Console Port

1× RJ45 console interface for management

Output power

Per port DC 48V@350mA 16.8W(Maximum)

Pair4/5(+),Pair7/8(-)

Power consumption

(maximum)

134W

268W

403W

AC Input

100~240VAC,50/60Hz

DC Input

DC -48V(-42V~-57V)

Environment

Operating Temperature: 0℃~65℃
Storage Temperature: -20℃~80℃

Humidity: 10%~95%RH (non condense)

Dimensions

430mm(L) x 290mm(W) x 44mm(H), 19” Rack-Mount / 1U

Weight

3.2kg

3.9kg

4.6kg
