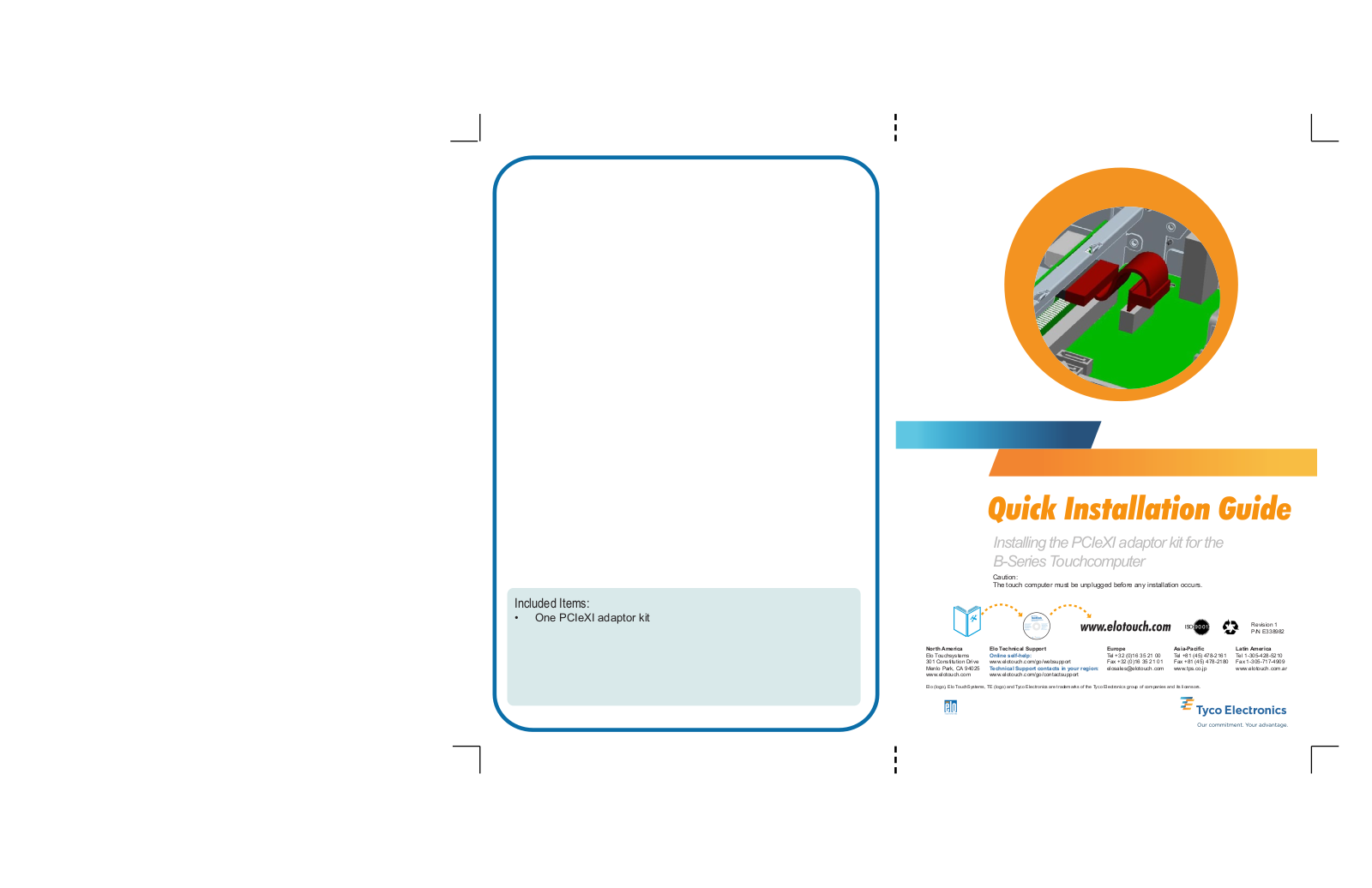

Tyco Electronics PCIeXI User Manual

Included Items:

• One PCIeXI adaptor kit

Installing the PCIeXI adaptor kit for the
B-Series Touchcomputer

Caution:
The touch computer must be unplugged before any installation occurs.

North America

Elo Touchsystems
301 Constitution Drive
Menlo Park, CA 94025
www.elotouch.com

Elo (logo), Elo TouchSystems, TE (logo) and Tyco Electronics are trademarks of the Tyco Electronics group of companies and its licensors.

Elo Technical Support

Online self-help:

www.elotouch.com/go/websupport

Technical Support contacts in your region:

www.elotouch.com/go/contactsupport

Europe

Tel [phone]
Fax [phone]
[e-mail]

Asia-Pacic

Tel [phone]
Fax [phone]
www.tps.co.jp

Revision 1
P/N E338982

Latin America

Tel [phone]
Fax [phone]
www.elotouch.com.ar

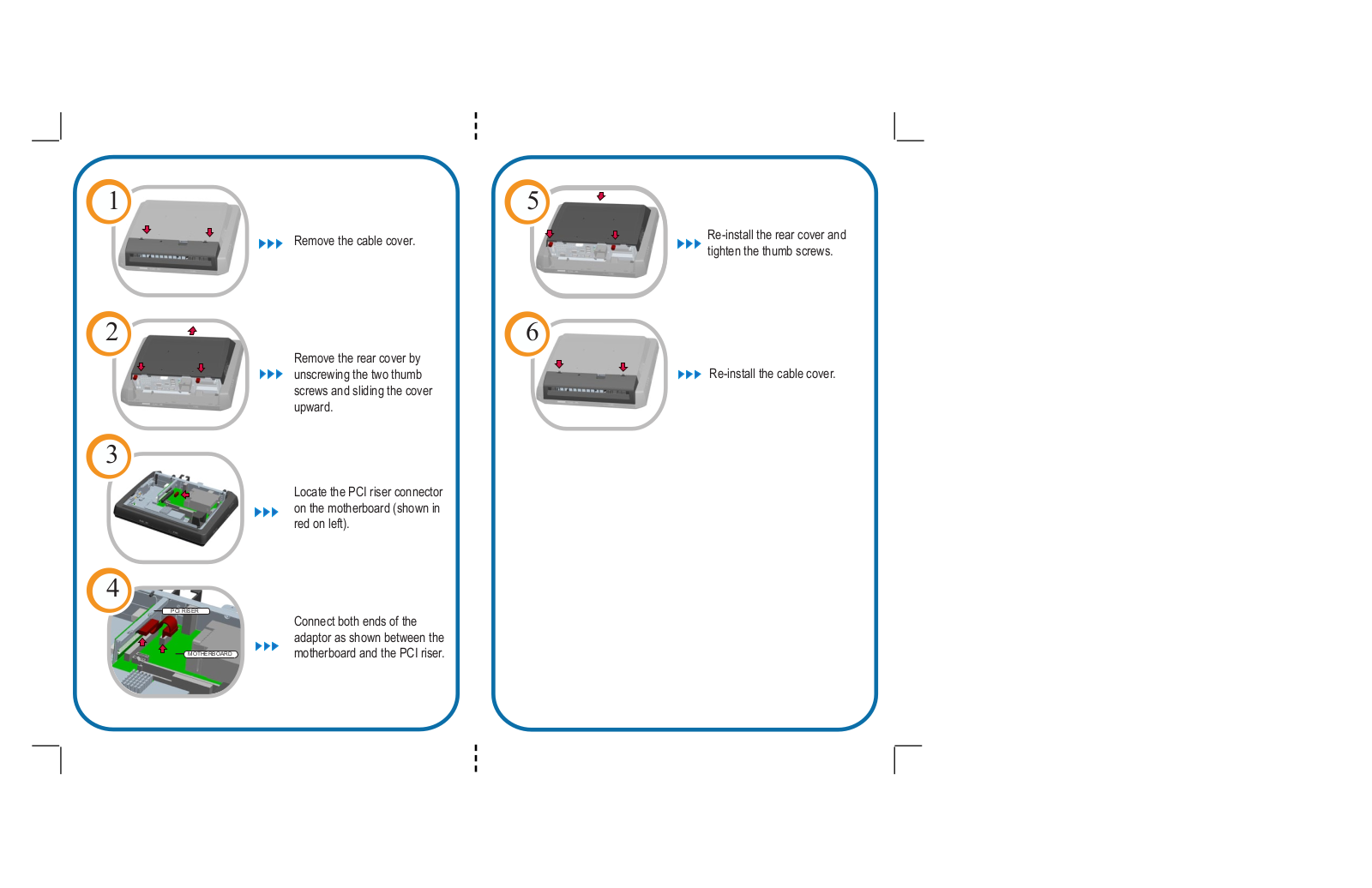

1 5

Remove the cable cover.

2 6

Remove the rear cover by
unscrewing the two thumb
screws and sliding the cover
upward.

3

Locate the PCI riser connector
on the motherboard (shown in
red on left).

Re-install the rear cover and
tighten the thumb screws.

Re-install the cable cover.

4

PCI RISER

MOTHERBOARD

Connect both ends of the
adaptor as shown between the
motherboard and the PCI riser.
