INTEGRA 0640 & 0440

Digital Metering of Volts,

Amps and Frequency

at 50 / 60 Hz & 400 Hz

Installation and Operating Manual
SWITCHBOARD INTEGRA 0640 & 0440

http://energy.tycoelectronics.com

Energy Division

Specification

Inputs

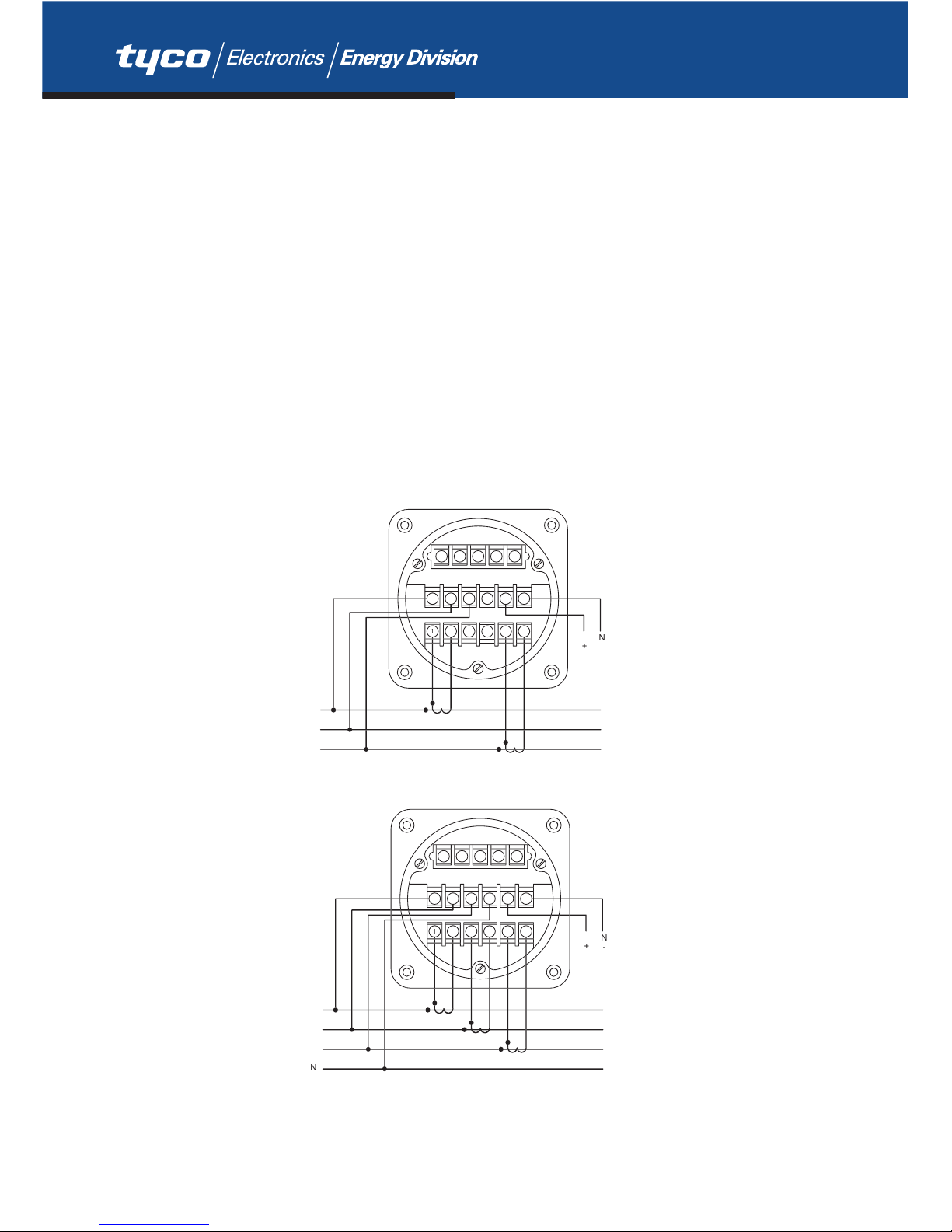

Three phase three wire

Voltage range ELV 100 - 120V L-L
Voltage range LOV 121 - 240V L-L
Voltage range MIV 241 - 480V L-L
Voltage range HIV 481 - 600V L-L

Three phase four wire

Voltage range ELV 100 - 120V L-L (57.7 - 70V L-N)
Voltage range LOV 121 - 240V L-L (70.1 - 139V L-N)
Voltage range MIV 241 - 480V L-L (140 - 277V L-N)
Voltage range HIV 481 - 600V L-L (277 - 346V L-N)

Voltage range is defined by factory build option.
Nominal input voltage (a.c. rms) 57.7 to 346V L-N

100 to 600V L-L
System PT/VT primary values 1 Volt to 400 kVolt
Max continuous input voltage 120% of nominal (up to 720 V max.)
Max short duration input voltage

2* nominal (1s application repeated 10 times at 10s intervals)
Nominal input voltage burden 0.2 VA approx. per phase
Nominal input current 1 or 5 A a.c. rms
System CT primary values

Standard values up to 9999 Amps (5 A secondaries)

(1 A on application)
Max continuous input current 120% of nominal
Max short duration current input 20* nominal (1s application repeated 5 times at

5 min intervals)
Nominal input current burden 0.6VA approx. per phase

Auxiliary

Standard supply voltage 100 to 250V AC nominal ±15% (85V AC

absolute minimum to 287V AC absolute maximum) or

100V to 250V DC nominal +25%, -15% (85V DC absolute

minimum to 312V DC absolute maximum)

a.c. supply frequency range 45 to 66 Hz or 360 to 440 Hz

a.c. supply burden 3W

Optional auxiliary d.c.supply 12 to 48V DC. nominal +25%, -15% (10.2V DC absolute

minimum to 60V DC absolute maximum)

d.c. supply burden 3W

Measuring Ranges

Values of measured quantities for which errors are defined.

Voltage 70 .. 120% of nominal

Current 5 .. 120% of nominal

Frequency 45 .. 66 Hz (Integra 0640)
