AMP General Purpose
Rectangular (GPR) Connectors
General Purpose Rectangular (GPR) Connectors
Table of Contents
Introduction ………………………………………………………………………………………3-4
Performance Characteristics………………………………………………………………………5
GPRA1 Shell Descriptive Part Numbers and Dimensions …………………………………6-7
GPRB1 Shell Descriptive Part Numbers and Dimensions …………………………………8-9
GPRB2 Horizontal Shells ……………………………………………………………………10-12
GPRB2 Vertical (Square) Shells…………………………………………………………………13
Insert Descriptive Part Numbers ……………………………………………………………14-18
Insert Arrangements………………………………………………………………………………19
Insert Assemblies for High Speed Applications …………………………………………20-21
Contacts & Application Tools ………………………………………………………………22-23
Spare Parts & Tools ………………………………………………………………………………23
EMI Backshells & Strain Reliefs …………………………………………………………………24
Gallery Insert (GAIN) Connectors ………………………………………………………………25
Custom Solutions & In Development Products ………………………………………………26
Pictured on the front:
4
10
Product manufactured
under license from Radiall, S.A.
1 Custom 4-cavity receptacle
shell
2 GPRB2 vertical shell &
strain relief assembly
1
2
3 GPRB2 GAIN shell - with
spring-loaded, float-mounting design
4 GPRB1 plug shell w/F12
5 F12 LuxCis
LuxCis
installed
®
insert and termini
®
sleeve holder
6 Size 22 posted PC tail pin,
Size 20 crimp pin, Size 5
Coax contacts
3
7 GPRB2 receptacle shell,
with 30 & 40 position
inserts installed
8 30 position insert with
terminated Size 20 Pin
contacts installed
6
7
5
9 Custom 40 position pin
insert with PC tail contacts
installed
10 GPRA plug shell assembly
and 14M socket insert
assembly
11
8
9
11
GPRA 14M pin insert
assembly
© 2004, 2005 and 2006 by
Tyco Electronics Corporation.
All Rights Reserved
AMP, PROBEAM and TYCO are
trademarks.
Skydrol is a trademark of Monsanto
Company.
Other products, logos, and company
names mentioned herein may be
trademarks of their respective owners.
LuxCis is a trademark of Radiall S.A.
Product is manufactured under license
from Radiall S.A.
2
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
General Purpose Rectangular (GPR) Connectors
Introduction
Product Facts
■ A high density solution
compared to circular
connectors
■ Slim shell design with
high contact density
■ Stackable shells that do
not require additional
space for locking and
unlocking the connectors
■ Uses two to three times
less space
■ A versatile solution suitable
for disconnect panels or
equipment with three
mounting styles:
■ Rack
■ Cable to cable
■ Panel mounting
■ A modular concept with a
large variety of options
■ Shell can accommodate a
wide variety of inserts for
signal, power, coax, data
bus and fiber optic
contacts
■ Optional grounding blocks
(to meet FAA HIRF
requirements)
■ Pin and socket inserts can
be mounted on either
plug or receptacle shells
■ A cost savings and user
friendly solution
■ Inserts can be wired in
the shop and later
installed in the shells
■ A common panel cut out
eases the connector
installation and reduces
cost
■ Inserts can be easily
installed and removed
from the shell
■ Inserts and shells are
keyed to prevent
mismating
■ Standard MIL tools for
contact crimping and
contact insertion/
extraction
■ Field replaceable sub
assemblies
■ Vibration resistant
self-locking threads
A Smart Connector
Tyco Electronics is recognized in the Aerospace and
Defense industry for its global
offering in interconnect solutions. The General Purpose
Rectangular A & B Series
connectors complement our
ARINC connector line and
provide additional flexibility
with improved performance
in a smaller mating area
compared to standard
circular MIL-Spec
connectors.
The GPRA and GPRB series
offer a wide range of solutions based on two insert
sizes, a large variety of
shells and contacts. The
GPRA and GPRB series
provides an excellent tradeoff between the number of
available contacts and the
space actually used. GPRA
inserts are a good option for
low density applications
whereas GPRB inserts offer
twice the density of GPRA
inserts. In addition, the
concept is completely
modular and expandable.
They can also be easily
tailored for custom requirements, such as shell
modifications for additional
inserts.
GPRB2 fitted with
80x size 22 contacts
New Features
Connector Interface
Connectors for Gallery Insert
(GAIN) Equipment:
• Page 25 lists the GPRB2 shells,
insert arrangements, contacts,
seal plugs, strain reliefs and
cable that will be used, per
ARINC 810. This is the standard
connector interface for new
gallery equipment such as ovens
and beverage makers for new
commercial aircraft. This
includes the twin-axial cable and
contacts needed for the CANBUS
data bus system used for GAIN.
Shells
GPRB1
• Shells have been improved to a
greater level of performance
under vibration. Also EMI
performance has been maintained
while eliminating the need for
separate EMI springs.
GPRB2
• A new GPRB2 shell with mounting
holes of 4.3 mm as been added
(PN 1877335-1)
• A new 90˚ exit, low-profile metal
backshell has been added
(PN 1877338-1)
• Two vertical (square) shell
configurations added, along
with a strain relief (see page 12)
MIL-C-38999 21-35 fitted with
79x size 22 contacts
Insert Arrangements
• New insert configurations for
high speed data transmission both fiber and quadrax
• GPRB - Fiber Optics
F12 - holds up to 12 LuxCis®
fiber optic termini (see page 20)
M2 - holds two 4-channel Mini-
Expanded Beam inserts (see page
21)
GPRB - Quadrax
•
Size 8 quadrax contacts can be
used in three insert arrangements - 10Q2, 25Q1 and 3Q3
Quadrax contacts available
for use are listed in our
Quadrax catalog #1654012.
These feature the exclusive
Tyco Electronics one-piece
dielectric that makes our
quadrax contacts the
easiest to install. If sealing is
required with quadrax or twinax
contacts, there is a size 8
seal boot assembly (PN
1877626-1) that is available.
Use of this seal boot provides
50,000 foot altitude immersion
protection as tested per Boeing
Spec BPS-C-179.
LuxCis is a trademark of Radiall S.A.
Product is manufactured under license
from Radiall S.A.
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
3
GPRA1
2 quarter-turn fasteners
16 keying positions
Max. density:
20 x #22 contacts
GPRB1
2 quarter-turn fasteners
16 keying positions
Max. density:
40 x #22 contacts
General Purpose Rectangular (GPR) Connectors
Introduction (Continued)
GPRB2
1 central jackscrew/jacknut
12 keying positions
Max. density:
80 x #22 contacts
4
&
6
&
4
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
1
shell
2
insert
3
contact
5
locking device
7
polarization device
8
backshell
9
insert insertion/extraction tool
10
locking & polarization device
11
grounding block
12
grounding springs
General Purpose Rectangular (GPR) Connectors
Performance Characteristics
Contacts
Electrical characteristics
conform to MIL-C-39029
Type A
Electrical Characteristics
Grounding Block Contact
Contact with Wire Size Current Amps
Contact to Contact Contact + 20 AWG 7.5
Contact to Mounting Surface Contact + 20 AWG 7.5
Contacts
Contact Size Wire Size Current Amps
26 AWG 2
22 24 AWG 3
22 AWG 5
20 20 AWG 7.5
16 16 AWG 13
12 12 AWG 23
5 8 AWG 80
1
Size 5 contacts are not part of MIL-C-39029 type A.
EMI Shielding Effectiveness
Frequency (MHz) Leakage Attenuation (dB)
100 65
200 63
300 63
400 62
500 60
600 60
Dielectric Withstanding Voltage (MIL-STD-1344/Method 3001.1.1
with Leakage Current < 1 mΩ)
Level Voltage (VRMS)
Sea level 1500
15,240 m [50,000 feet] 800
Insulation Resistance (MIL-STD-1344/Method 3003.1)
Ambient Temperature > 5,000 MΩ
175°C [347°F] > 200 MΩ
1
Other Characteristics
Shell to Shell Conductivity — < 2.5 mΩ
Operating Voltage — 400 Vrms or 500 Vdc at sea level
Voltage Stability (Ground Block) — Maximum variation 4mV (MIL-T-81714)
Magnetic Permeability — < 2
Comparative Tracking Index — 250 V
Mechanical Characteristics
Mating/Unmating Durability — 100 cycles
Mating Torque for GPRB2 Jackscrew — 1.2 Nm [11 in. lbs.]
Random Vibration —
GPRA1/GPRB1 — 20g (MIL-STD-1344/Method 2005.1, test condition 4)
GPRB2 — 41.7g (MIL-STD-1344/Method 2005.1, test condition 6)
Shock — 50g (MIL-STD-1344/Method 2004.1, test condition A)
Environmental Characteristics
Temperature Range — -65°C to +155°C [-85°F to +311°F]
Temperature Life — 1000 h @ 155°C [311°F]
Salt Spray — 96 hours (Nickel plating) (MIL-STD-1344/Method 1001.1,
test condition A)
Humidity — 10 days
Altitude Immersion — 3 cycles at 15,240 m [50,000 ft.] (MIL-STD-1344/Method
1004.1)
Fluid Immersion — (MIL-STD-1344/Method 1016)
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Contact Retention — (MIL-STD-1344/Method 2007.1 on terminated connectors)
Contact Size Retention Force Max. Displacement
Ground Block 88 N [20 lbs.] 0.3 mm [.012 in.]
22 53.4 N [12 lbs.] 0.38 mm [.015 in.]
20 89 N [20 lbs.] 0.38 mm [.015 in.]
16 111.2 N [25 lbs.] 0.38 mm [.015 in.]
12 133.45 N [30 lbs.] 0.38 mm [.015 in.]
Insert Retention — 500 N [112 lbs.] (MIL-STD-1344/Method 2010.1)
5
GPRA 1 P B 04N
I – GPRA Series
II – Shell Size
1 — Shell size 1 (1 cavity shell)
III – Shell Style
P — Plug
R — Receptacle
W — Plug with grounding block
Z — Receptacle with grounding block and grounding springs
IV – Modification Code
B — No mounting holes (for plug only)
M — Panel rear mounted connector with 2 x 6.32 UNC
mounting holes for receptacle shell only (see note 1)
V – Locking Device
0 — Quarter-turn fastener
VI – Polarization Code
4 — Shell delivered with polarizing hardware unassembled
5 — Shell delivered with no polarizing hardware
VII – Shell Plating
N — Nickel plating (96H Salt spray)
Note 1: Self-locking mounting holes are designed for rear panel mounting.
Descriptive Part
Numbering System
Use this guide to construct
descriptive part numbers
for GPRA1 shells. Refer to
table below for the corresponding Tyco Electronics
Part Number.
General Purpose Rectangular (GPR) Connectors
GPRA1 Shell Descriptive Part Number Format
Size Style Modification
1
Receptacle, with Grounding
Block & Grounding Springs
6
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Plug
Plug, with
Grounding Block
Receptacle
No mounting
holes
1/4-Turn
Rear Panel
Mount, with
two 6-32
UNC holes
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
Fastener
Locking
Device Part Number Part Number
GPRA1WB05N GPRA1ZM05N
Polarization Hardware Plating
Kit: Shell & Hardware Unassembled GPRA1PB04N 1738228-1
No Hardware GPRA1PB05N 1738229-1
Kit: Shell & Hardware Unassembled GPRA1WB04N 1738230-1
No Hardware
Kit: Shell & Hardware Unassembled GPRA1RM04N 1738232-1
No Hardware GPRA1RM05N 1738233-1
Kit: Shell & Hardware Unassembled GPRA1ZM04N 1738234-1
No Hardware GPRA1ZM05N 1738235-1
Nickel
Descriptive Tyco Electronics
GPRA1WB05N 1738231-1
Panel Rear Mounted Connector
General Purpose Rectangular (GPR) Connectors
GPRA1 Shell Dimensions
Receptacle Without Grounding Block
GPRA1RM05N
Plug Without Grounding Block
GPRA1PB05N
Single Panel Cut Out (See Note 2)
Note 1: Maximum dimension for inserts with grommets (Part Number GPRAE and GPRAH)
Note 2: Rear mounting side view with key post oriented to the upper side (receptacle only)
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Receptacle
With Grounding Block
GPRA1ZM05N
Plug With Grounding Block
GPRA1WB05N
Multiple Panel Cut Out (See Note 2)
7
GPRB 1 W B 05N
I – GPRB Series
II – Shell Size
1 — Shell size 1 (1 cavity shell)
III – Shell Style
P — Plug
R — Receptacle
W — Plug with grounding block
Z — Receptacle with grounding block and grounding springs
IV – Modification Code
B — No mounting holes (for plug only)
M — Panel rear mounted connector with 2 x 6.32 UNC
mounting holes for receptacle shell only (see note 1)
V – Locking Device
0 — Quarter-turn fastener
VI – Polarization Code
4 — Shell delivered with polarizing hardware unassembled
5 — Shell delivered with no polarizing hardware
VII – Shell Plating
N — Nickel plating (96H Salt spray)
Note 1: Self-locking mounting holes are designed for rear panel mounting.
Descriptive Part
Numbering System
Use this guide to construct
descriptive part numbers
for GPRB1 shells. Refer to
table below for the corresponding Tyco Electronics
Part Number.
General Purpose Rectangular (GPR) Connectors
GPRB1 Shell Descriptive Part Number Format
Size Style Modification
1
Receptacle, with Grounding
Block & Grounding Springs
Plug
Plug, with
Grounding Block
Receptacle
No mounting
holes
Rear Panel
Mount, with
two 6-32
UNC holes
1/4-Turn
Fastener
8
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Locking
Device Part Number Part Number
Polarization Hardware Plating
Kit: Shell & Hardware Unassembled GPRB1PB04N 1738236-1
No Hardware GPRB1PB05N 1738237-1
Kit: Shell & Hardware Unassembled GPRB1WB04N 1738238-1
No Hardware
Kit: Shell & Hardware Unassembled GPRB1RM04N 1738240-1
No Hardware GPRB1RM05N 1738241-1
Kit: Shell & Hardware Unassembled GPRB1ZM04N 1738242-1
No Hardware GPRB1ZM05N 1738243-1
GPRB1WB05N
Nickel
Descriptive Tyco Electronics
GPRB1WB05N 1738239-1
General Purpose Rectangular (GPR) Connectors
GPRB1 Shell Dimensions
Receptacle Without Grounding Block
GPRB1RM05N
Plug Without Grounding Block
GPRB1PB05N
Receptacle With Grounding Block
GPRB1ZM05N
Single Panel Cut Out
(See Note 2)
Plug With Grounding Block
GPRB1WB05N
Note 1: Maximum dimension for inserts with grommets (Part Number GPRBE and GPRBH)
Note 2: Rear mounting side view with key post oriented to the upper side (receptacle only)
Note 3: Only insert with keying A can be used with GPRB1 shells
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Multiple Panel Cut Out
(See Note 2)
9
General Purpose Rectangular (GPR) Connectors
GPRB 2 P B 1 2 N
I – GPRB Series
II – Shell Size
2 — Shell size 2 (2 cavities shell)
III – Shell Style
P — Plug (see note 1)
H — Receptacle with grounding springs (see note 1)
W — Plug with grounding block (see note 2)
Z — Receptacle with grounding block and grounding springs
(see note 2)
L — Receptacle with flange and grounding springs
(see note 1)
IV – Modification Code
A — Panel rear mounted connector with 4 x 6.32 UNC
mounting holes (see note 3)
B — No mounting holes
D — Connector with 2 x Ø 3.10 mm thru holes
L — Panel rear mounted connector with 2 x 4.40 UNC
mounting holes (see note 3)
V – Locking & Polarizing Device
1 — Jackscrew (see note 4)
2 — Jacknut (see note 4)
3 — Without locking device (see note 5)
4 — Pin polarization guide for Rack and Panel application (see note 6)
5 — Socket polarization guide for Rack and Panel application (see note 6)
VI – Polarization Code
2 — Polarizing device A to F delivered unassembled (see note 7)
3 — Polarizing device N to Z delivered unassembled (see note 7)
VII – Shell Plating
N — Nickel plating (96H Salt spray)
Notes: 1. The standard modification codes for these shells are B, D or L.
2. With modification codes A or B only.
3. Self-locking mounting holes are designed for rear panel mounting.
4. Jackscrew/Jacknut can be mounted on either plug or receptacle shell. However, the standard
options are:
—Jackscrew for plug shells
—Jacknut for receptacle shells
5. Option 3 in paragraph V cancels the polarization code paragraph IV, i.e. the shell is delivered
with no polarizing device.
6. Pin/Socket polarization guides can be mounted on either plug or receptacle shells. However, the
standard options are:
—Pin polarization guide for plug shells
—Socket polarization guide for receptacle shells
7. Polarizing device is delivered unassembled, it must be locked with resin by the user
(LOCTITE
TM
272 must be used).
—if no polarizing device is required, omit this step and go to VII.
GPRB2 (Horizontal) Shell Descriptive Part Number Format
Descriptive Part
Numbering System
Use this guide to construct
descriptive part numbers
for GPRB2 shells. Refer to
page 11 for the corresponding Tyco Electronics
Part Number.
10
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
General Purpose Rectangular (GPR) Connectors
GPRB2 (Horizontal) Shell Descriptive Part Number Format (Continued)
Size Style Modification Polarization Polarization Hardware Plating
No mounting
holes
Connector
Plug thru-holes Kit: Shell & N-Z Hardware Unassembled GPRB2PD13N 1738251-1
Plug, with
Grounding Block
Receptacle, with
2
Grounding Springs
Receptacle, with with two
Flange & thru-holes Kit: Shell & N-Z Hardware Unassembled GPRB2LD23N 1738291-1
Grounding Springs [3.10mm
Receptacle, with
Grounding Block &
Grounding Springs
with two
[3.10mm
Dia.]
Rear Panel
Mount, with
two 4-40
UNC holes
No mounting
holes
Rear Panel
Mount, with
four 6-32
UNC holes
No mounting
holes
Connector
with two
thru-holes Kit: Shell & N-Z Hardware Unassembled
[3.10mm Dia.]
[4.3mm Dia.] Kit: Shell & N-Z Hardware Unassembled — 1877335-1
Rear Panel
Mount, with
two 4-40
UNC holes
No mounting
holes
Connector
Dia.]
Rear Panel
Mount, with
two 4-40
UNC holes
No mounting
holes
Rear Panel
Mount, with
four 6-32
UNC holes
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Locking &
Device
N/A N/A GPRB2PB3N 1738244-1
Jackscrew
Pin Polarization
Guide
N/A N/A GPRB2PD3N 1738249-1
Jackscrew
Pin Polarization
Guide
N/A N/A GPRB2PL3N 1738254-1
Jackscrew
Pin Polarization
Guide
N/A N/A GPRB2WB3N 1738259-1
Jackscrew
Pin Polarization
Guide
N/A N/A GPRB2WA3N 1738264-1
Jackscrew
Pin Polarization
Guide
N/A N/A GPRB2HB3N 1738269-1
Jacknut
Socket
Polarization Guide
N/A N/A GPRB2HD3N 1738274-1
Jacknut
Socket
Polarization Guide
N/A N/A GPRB2HL3N 1738279-1
Jacknut
Socket
Polarization Guide
N/A N/A GPRB2LB3N 1738284-1
Jacknut
Socket
Polarization Guide
N/A N/A GPRB2LD3N 1738289-1
Jacknut
Socket
Polarization Guide
N/A N/A GPRB2LL3N 1738294-1
Jacknut
Socket
Polarization Guide
N/A N/A GPRB2ZB3N 1738299-1
Jacknut
Socket
Polarization Guide
N/A N/A GPRB2ZA3N 1738304-1
Jacknut
Socket
Polarization Guide
Kit: Shell & A-F Hardware Unassembled GPRB2PB12N 1738245-1
Kit: Shell & N-Z Hardware Unassembled GPRB2PB13N 1738246-1
Kit: Shell & A-F Hardware Unassembled GPRB2PB42N 1738247-1
Kit: Shell & N-Z Hardware Unassembled GPRB2PB43N 1738248-1
Kit: Shell & A-F Hardware Unassembled GPRB2PD12N 1738250-1
Kit: Shell & A-F Hardware Unassembled GPRB2PD42N 1738252-1
Kit: Shell & N-Z Hardware Unassembled GPRB2PD43N 1738253-1
Kit: Shell & A-F Hardware Unassembled GPRB2PL12N 1738255-1
Kit: Shell & N-Z Hardware Unassembled GPRB2PL13N 1738256-1
Kit: Shell & A-F Hardware Unassembled GPRB2PL42N 1738257-1
Kit: Shell & N-Z Hardware Unassembled GPRB2PL43N 1738258-1
Kit: Shell & A-F Hardware Unassembled GPRB2WB12N 1738260-1
Kit: Shell & N-Z Hardware Unassembled GPRB2WB13N 1738261-1
Kit: Shell & A-F Hardware Unassembled GPRB2WB42N 1738262-1
Kit: Shell & N-Z Hardware Unassembled GPRB2WB43N 1738263-1
Kit: Shell & A-F Hardware Unassembled GPRB2WA12N 1738265-1
Kit: Shell & N-Z Hardware Unassembled GPRB2WA13N 1738266-1
Kit: Shell & A-F Hardware Unassembled GPRB2WA42N 1738267-1
Kit: Shell & N-Z Hardware Unassembled GPRB2WA43N 1738268-1
Kit: Shell & A-F Hardware Unassembled GPRB2HB22N 1738270-1
Kit: Shell & N-Z Hardware Unassembled GPRB2HB23N 1738271-1
Kit: Shell & A-F Hardware Unassembled GPRB2HB52N 1738272-1
Kit: Shell & N-Z Hardware Unassembled GPRB2HB53N 1738273-1
Kit: Shell & A-F Hardware Unassembled GPRB2HD22N 1738275-1
Kit: Shell & A-F Hardware Unassembled GPRB2HD52N 1738277-1
Kit: Shell & N-Z Hardware Unassembled GPRB2HD53N 1738278-1
Kit: Shell & A-F Hardware Unassembled GPRB2HL22N 1738280-1
Kit: Shell & N-Z Hardware Unassembled GPRB2HL23N 1738281-1
Kit: Shell & A-F Hardware Unassembled GPRB2HL52N 1738282-1
Kit: Shell & N-Z Hardware Unassembled GPRB2HL53N 1738283-1
Kit: Shell & A-F Hardware Unassembled GPRB2LB22N 1738285-1
Kit: Shell & N-Z Hardware Unassembled GPRB2LB23N 1738286-1
Kit: Shell & A-F Hardware Unassembled GPRB2LB52N 1738287-1
Kit: Shell & N-Z Hardware Unassembled GPRB2LB53N 1738288-1
Kit: Shell & A-F Hardware Unassembled GPRB2LD22N 1738290-1
Kit: Shell & A-F Hardware Unassembled GPRB2LD52N 1738292-1
Kit: Shell & N-Z Hardware Unassembled GPRB2LD53N 1738293-1
Kit: Shell & A-F Hardware Unassembled GPRB2LL22N 1738295-1
Kit: Shell & N-Z Hardware Unassembled GPRB2LL23N 1738296-1
Kit: Shell & A-F Hardware Unassembled GPRB2LL52N 1738297-1
Kit: Shell & N-Z Hardware Unassembled GPRB2LL53N 1738298-1
Kit: Shell & A-F Hardware Unassembled GPRB2ZB22N 1738300-1
Kit: Shell & N-Z Hardware Unassembled GPRB2ZB23N 1738301-1
Kit: Shell & A-F Hardware Unassembled GPRB2ZB52N 1738302-1
Kit: Shell & N-Z Hardware Unassembled GPRB2ZB53N 1738303-1
Kit: Shell & A-F Hardware Unassembled GPRB2ZA22N 1738305-1
Kit: Shell & N-Z Hardware Unassembled GPRB2ZA23N 1738306-1
Kit: Shell & A-F Hardware Unassembled GPRB2ZA52N 1738307-1
Kit: Shell & N-Z Hardware Unassembled GPRB2ZA53N 1738308-1
Nickel
Descriptive Tyco Electronics
Part Number Part Number
GPRB2HD23N 1738276-1
11
General Purpose Rectangular (GPR) Connectors
GPRB2 (Horizontal) Shell Dimensions
Grounding Block
A solution for High Intensity
Radiated Electromagnetic
Frequencies. The patented
design provides a direct
grounding to the shell.
Receptacle Without Grounding Block
GPRB2HD3N
Receptacle
With Grounding Block
GPRB2ZA3N
Plug Without Grounding Block
GPRB2PB3N
Plug
With Grounding Block
GPRB2WB3N
Panel Cut Out
Modification Code D and L
M39029/1-101 contacts
Note 1: Maximum dimension for inserts with grommets (Part Number GPRBE and GPRBH)
12
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Panel Cut Out
Modification Code A
10.65 min.
(0.419 min.)
11.15 ref.
(0.439 ref.)
SHELL
3.10
(0.122)
INSERT RETENTION CLIP
50.20 max.
(1.976 max.)
25.50 max.
(1.004 max.)
34.30 max.
(1.350 max.)
49.00 max.
(1.929 max.)
1.50 ref.
(0.059 ref.)
11.05 ref.
(0.435 ref.)
11.65 ref.
(0.459 ref.)
10.65 min.
(0.419 min.)
18.70 max.
(0.736 max.)
2 x
INSERT RETENTION CLIP
55.30 max.
(2.177 max.)
(1.627±.004)
49.00 max.
(1.929 max.)
34.20 max.
(1.346 max.)
GROUNDING SPRING
SHELL
INSERT RETENTION CLIP
5.20
(0.205)
11.15 ref.
(0.439 ref.)
13.20 ref.
(0.520 ref.)
21.00
(0.827)
4 x
15.00
(0.591)
49.45±0.25
(1.947±.009)
34.68±0.25
(1.365±.009)
4 x
33.60 max.
(1.323 max.)
2 x
19.00 max.
(0.748 max.)
2 x
5.20 max.
(0.205 max.)
11.15 ref.
(0.439 ref.)
14.20 ref.
(0.559 ref.)
13.20 ref.
(0.520 ref.)
INSERT RETENTION CLIP
16.00
(0.630)
33.40
(1.315)
48.45
(1.907)
20.00
(0.787)
36.00
(1.417)
5.00
(0.197)
49.45±0.25
(1.947±.009)
20.66
(0.813)
4 x
15.00
(0.591)
34.68±0.25
(1.365±.009)
4 x
Shell Kits with Two
Cavities for Key-A Inserts
1
Kit: Shell & A-F hardware unassembled
2
Assembly: Hardware assembled in
polarization position E
General Purpose Rectangular (GPR) Connectors
GPRB2 Vertical (Square) Shell and Strain Relief Dimensions
Shell Kits with Two
Cavities for Key-A and
Key-B Inserts
1
Kit: Shell & A-F hardware unassembled
Strain Relief Kit, Vertical
GPRB2
Plug Shell, Vertical
GPRB2
1
1877719-1
2
1811646-1
Plug Shell Kit, Vertical with A-F Jackscrew
GPRB2
1
1811892-1
Receptacle Shell, Vertical
GPRB2
1877720-1
1811648-1
1
2
Receptacle Shell Kit, Vertical,
Rear Panel Mount, with A-F Jackscrew
GPRB2
1811894-1
1
Recommended Panel Cutout
Recommended Panel Cutout
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
1811650-1
13
General Purpose Rectangular (GPR) Connectors
Insert Descriptive Part Number Format
Descriptive Part
Numbering System
Use this guide to construct
descriptive part numbers
for GPRA & B inserts.
Refer to pages 15–18 for
the corresponding
Tyco Electronics Part
Number.
GPRA E 20 P A
GPRA Series
Inserts for GPRA1 shells (see note 1 and 3)
Class
E — Environmental with rear grommet and interfacial seal
for pin inserts
Environmental with rear grommet for socket inserts
N — Non environmental (no rear grommet, no interfacial seal)
H — Inserts for pin contacts with a rear grommet and without
interfacial seal
Contact arrangement
00 - 1C1 - 04 - 09 - 14 - 14M - 17 - 20 - F5
Contact Type
P — Pin
S — Socket
Insert Keying
A keying only
GPRB E 40 P B
GPRB Series
Inserts for GPRB1 and GPRB2 shells (see note 1 and 3)
Class
E — Environmental with rear grommet and interfacial seal
for pin inserts
Environmental with rear grommet for socket inserts
N — Non environmental (no rear grommet, no interfacial seal)
H — Inserts for pin contacts with a rear grommet and without
interfacial seal
Contact arrangement
00 - C3 - 06 - 13C1 - 14 - 17 - 20C1 - 22 - 28 - 30 - 34 - 40
25Q1 - 10Q2 - 3Q3 - F12 - MEB2
Contact Type
P — Pin
S — Socket
Insert Keying
A — Insert with keying A (see note 2)
B — Insert with keying B (see note 2)
Notes: 1. Inserts are designed for rear release contacts.
2. For GPRB2 shells, use one insert keyed A and one insert keyed B.
For GPRB1 shells, use one insert keyed A only.
3. Pin and socket inserts can be installed in either plug or receptacle shell.
14
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
GPRA Insert Part Numbers
Series
A
Contact
Arrangement Part Number Part Number
00 N/A Dummy Insert N/A GPRAN00 1738049-1
1C1 Non-environmental (no Grommet or Seal) GPRAN1C1PA 1738052-1
04 Non-environmental (no Grommet or Seal) GPRAN04PA 1738057-1
09 Non-environmental (no Grommet or Seal) GPRAN09PA 1738062-1
14 Non-environmental (no Grommet or Seal) A GPRAN14PA 1738067-1
14M Non-environmental (no Grommet or Seal) GPRAN14MPA 1738072-1
17 Non-environmental (no Grommet or Seal) GPRAN17PA 1738077-1
20 Non-environmental (no Grommet or Seal) GPRAN20PA 1738082-1
F5 LuxCis® Termini
General Purpose Rectangular (GPR) Connectors
Insert Descriptive Part Number Format (Continued)
Contact Type Classification Keying
Environmental, with Rear Grommet & Interfacial Seal GPRAE1C1PA 1738050-1
Pin Insert with Rear Grommet, without Interfacial Seal GPRAH1C1PA 1738051-1
Socket
Pin Insert with Rear Grommet, without Interfacial Seal GPRAH04PA 1738056-1
Socket
Pin Insert with Rear Grommet, without Interfacial Seal GPRAH09PA 1738061-1
Socket
Pin Insert with Rear Grommet, without Interfacial Seal GPRAH14PA 1738066-1
Socket
Pin Insert with Rear Grommet, without Interfacial Seal GPRAH14MPA 1738071-1
Socket
Pin Insert with Rear Grommet, without Interfacial Seal GPRAH17PA 1738076-1
Socket
Pin Insert with Rear Grommet, without Interfacial Seal GPRAH20PA 1738081-1
Socket
Environmental, with Rear Grommet GPRAE1C1SA 1738053-1
Non-environmental (no Grommet or Seal) GPRAN1C1SA 1738054-1
Environmental, with Rear Grommet & Interfacial Seal GPRAE04PA 1738055-1
Environmental, with Rear Grommet GPRAE04SA 1738058-1
Non-environmental (no Grommet or Seal) GPRAN04SA 1738059-1
Environmental, with Rear Grommet & Interfacial Seal GPRAE09PA 1738060-1
Environmental, with Rear Grommet GPRAE09SA 1738063-1
Non-environmental (no Grommet or Seal) GPRAN09SA 1738064-1
Environmental, with Rear Grommet & Interfacial Seal GPRAE14PA 1738065-1
Environmental, with Rear Grommet GPRAE14SA 1738068-1
Non-environmental (no Grommet or Seal) GPRAN14SA 1738069-1
Environmental, with Rear Grommet & Interfacial Seal GPRAE14MPA 1738070-1
Environmental, with Rear Grommet GPRAE14MSA 1738073-1
Non-environmental (no Grommet or Seal) GPRAN14MSA 1738074-1
Environmental, with Rear Grommet & Interfacial Seal GPRAE17PA 1738075-1
Environmental, with Rear Grommet GPRAE17SA 1738078-1
Non-environmental (no Grommet or Seal) GPRAN17SA 1738079-1
Environmental, with Rear Grommet & Interfacial Seal GPRAE20PA 1738080-1
Environmental, with Rear Grommet GPRAE20SA 1738083-1
Non-environmental (no Grommet or Seal) GPRAN20SA 1738084-1
Environmental, without Sleeve Holder GPRAEF5PA 1954043-1
Environmental, with Sleeve Holder GPRAEF5SA 1954044-1
Descriptive Tyco Electronics
LuxCis is a trademark of Radiall S.A.
Product is manufactured under license
from Radiall S.A.
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
15
GPRB Insert Part Numbers
Series
B
Contact
Arrangement Part Number Part Number
00 N/A Dummy Insert N/A GPRBN00 1738085-1
C3 Non-environmental (no Grommet or Seal)
06 Non-environmental (no Grommet or Seal)
13C1 Non-environmental (no Grommet or Seal)
14 Non-environmental (no Grommet or Seal)
17 Non-environmental (no Grommet or Seal)
General Purpose Rectangular (GPR) Connectors
Insert Descriptive Part Number Format (Continued)
Contact Type Classification Keying
Environmental, with Rear Grommet & Interfacial Seal
Pin Insert with Rear Grommet, without Interfacial Seal
Environmental, with Rear Grommet
Socket
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Pin Insert with Rear Grommet, without Interfacial Seal
Environmental, with Rear Grommet
Socket
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Pin Insert with Rear Grommet, without Interfacial Seal
Environmental, with Rear Grommet
Socket
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Pin Insert with Rear Grommet, without Interfacial Seal
Environmental, with Rear Grommet
Socket
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Pin Insert with Rear Grommet, without Interfacial Seal
Environmental, with Rear Grommet
Socket
Non-environmental (no Grommet or Seal)
A GPRBEC3PA 1738086-1
B GPRBEC3PB 1738091-1
A GPRBHC3PA 1738087-1
B GPRBHC3PB 1738092-1
A GPRBNC3PA 1738088-1
B GPRBNC3PB 1738093-1
A GPRBEC3SA 1738089-1
B GPRBEC3SB 1738094-1
A GPRBNC3SA 1738090-1
B GPRBNC3SB 1738095-1
A GPRBE06PA 1738096-1
B GPRBE06PB 1738101-1
A GPRBH06PA 1738097-1
B GPRBH06PB 1738102-1
A GPRBN06PA 1738098-1
B GPRBN06PB 1738103-1
A GPRBE06SA 1738099-1
B GPRBE06SB 1738104-1
A GPRBN06SA 1738100-1
B GPRBN06SB 1738105-1
A GPRBE13C1PA 1738106-1
B GPRBE13C1PB 1738111-1
A GPRBH13C1PA 1738107-1
B GPRBH13C1PB 1738112-1
A GPRBN13C1PA 1738108-1
B GPRBN13C1PB 1738113-1
A GPRBE13C1SA 1738109-1
B GPRBE13C1SB 1738114-1
A GPRBN13C1SA 1738110-1
B GPRBN13C1SB 1738115-1
A GPRBE14PA 1738116-1
B GPRBE14PB 1738121-1
A GPRBH14PA 1738117-1
B GPRBH14PB 1738122-1
A GPRBN14PA 1738118-1
B GPRBN14PB 1738123-1
A GPRBE14SA 1738119-1
B GPRBE14SB 1738124-1
A GPRBN14SA 1738120-1
B GPRBN14SB 1738125-1
A GPRBE17PA 1738126-1
B GPRBE17PB 1738131-1
A GPRBH17PA 1738127-1
B GPRBH17PB 1738132-1
A GPRBN17PA 1738128-1
B GPRBN17PB 1738133-1
A GPRBE17SA 1738129-1
B GPRBE17SB 1738134-1
A GPRBN17SA 1738130-1
B GPRBN17SB 1738135-1
Descriptive Tyco Electronics
16
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
General Purpose Rectangular (GPR) Connectors
Insert Descriptive Part Number Format (Continued)
GPRB Insert Part Numbers (Continued)
Series
B
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Contact
Arrangement Part Number Part Number
20C1 Non-environmental (no Grommet or Seal)
22 Non-environmental (no Grommet or Seal)
28 Non-environmental (no Grommet or Seal)
30 Non-environmental (no Grommet or Seal)
34 Non-environmental (no Grommet or Seal)
40 Non-environmental (no Grommet or Seal)
Contact Type Classification Keying
Pin Insert with Rear Grommet, without Interfacial Seal
Socket
Pin Insert with Rear Grommet, without Interfacial Seal
Socket
Pin Insert with Rear Grommet, without Interfacial Seal
Socket
Pin Insert with Rear Grommet, without Interfacial Seal
Socket
Pin Insert with Rear Grommet, without Interfacial Seal
Socket
Pin Insert with Rear Grommet, without Interfacial Seal
Socket
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet
Non-environmental (no Grommet or Seal)
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet
Non-environmental (no Grommet or Seal)
Descriptive Tyco Electronics
A GPRBE20C1PA 1738136-1
B GPRBE20C1PB 1738141-1
A GPRBH20C1PA 1738137-1
B GPRBH20C1PB 1738142-1
A GPRBN20C1PA 1738138-1
B GPRBN20C1PB 1738143-1
A GPRBE20C1SA 1738139-1
B GPRBE20C1SB 1738144-1
A GPRBN20C1SA 1738140-1
B GPRBN20C1SB 1738145-1
A GPRBE22PA 1738146-1
B GPRBE22PB 1738151-1
A GPRBH22PA 1738147-1
B GPRBH22PB 1738152-1
A GPRBN22PA 1738148-1
B GPRBN22PB 1738153-1
A GPRBE22SA 1738149-1
B GPRBE22SB 1738154-1
A GPRBN22SA 1738150-1
B GPRBN22SB 1738155-1
A GPRBE28PA 1738156-1
B GPRBE28PB 1738161-1
A GPRBH28PA 1738157-1
B GPRBH28PB 1738162-1
A GPRBN28PA 1738158-1
B GPRBN28PB 1738163-1
A GPRBE28SA 1738159-1
B GPRBE28SB 1738164-1
A GPRBN28SA 1738160-1
B GPRBN28SB 1738165-1
A GPRBE30PA 1738166-1
B GPRBE30PB 1738171-1
A GPRBH30PA 1738167-1
B GPRBH30PB 1738172-1
A GPRBN30PA 1738168-1
B GPRBN30PB 1738173-1
A GPRBE30SA 1738169-1
B GPRBE30SB 1738174-1
A GPRBN30SA 1738170-1
B GPRBN30SB 1738175-1
A GPRBE34PA 1738176-1
B GPRBE34PB 1738181-1
A GPRBH34PA 1738177-1
B GPRBH34PB 1738182-1
A GPRBN34PA 1738178-1
B GPRBN34PB 1738183-1
A GPRBE34SA 1738179-1
B GPRBE34SB 1738184-1
A GPRBN34SA 1738180-1
B GPRBN34SB 1738185-1
A GPRBE40PA 1738186-1
B GPRBE40PB 1738191-1
A GPRBH40PA 1738187-1
B GPRBH40PB 1738192-1
A GPRBN40PA 1738188-1
B GPRBN40PB 1738193-1
A GPRBE40SA 1738189-1
B GPRBE40SB 1738194-1
A GPRBN40SA 1738190-1
B GPRBN40SB 1738195-1
17
General Purpose Rectangular (GPR) Connectors
Insert Descriptive Part Number Format (Continued)
GPRB Insert Part Numbers (Continued)
Series
B Pin Environmental, with Rear Grommet & Interfacial Seal A GPRBE3Q3PA 1877694-1
Contact
Arrangement Part Number Part Number
25Q1
10Q2
3Q3
F12
M2
Contact Type Classification Keying
Pin
Socket Environmental, with Rear Grommet
Pin
Socket
Socket Environmental, with Rear Grommet A GPRBE3Q3SA 1877696-1
LuxCis Termini
Mini-Expanded Spring-loaded Half A GPRBEM2PA 1445162-1
Beam Fixed Half A GPRBEM2SA 1445163-1
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet & Interfacial Seal
Environmental, with Rear Grommet
Non-environmental (no Grommet or Seal) A GPRBN10Q2SA 1954067-1
Environmental, without Sleeve Holder
Environmental, with Sleeve Holder
A GPRBE25Q1PA 1811121-1
B GPRBE25Q1PB 1877567-1
A GPRBE25Q1SA 1811122-1
B GPRBE25Q1SB 1877568-1
A GPRBE10Q2PA 1877702-1
B GPRBE10Q2PB 1877706-1
A GPRBE10Q2SA 1877704-1
B GPRBE10Q2SB 1877708-1
A GPRBEF12PA 1738805-1
B GPRBEF12PB 1738806-1
A GPRBEF12SA 1738807-1
B GPRBE2F12SB 1738808-1
Descriptive Tyco Electronics
18
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
General Purpose Rectangular (GPR) Connectors

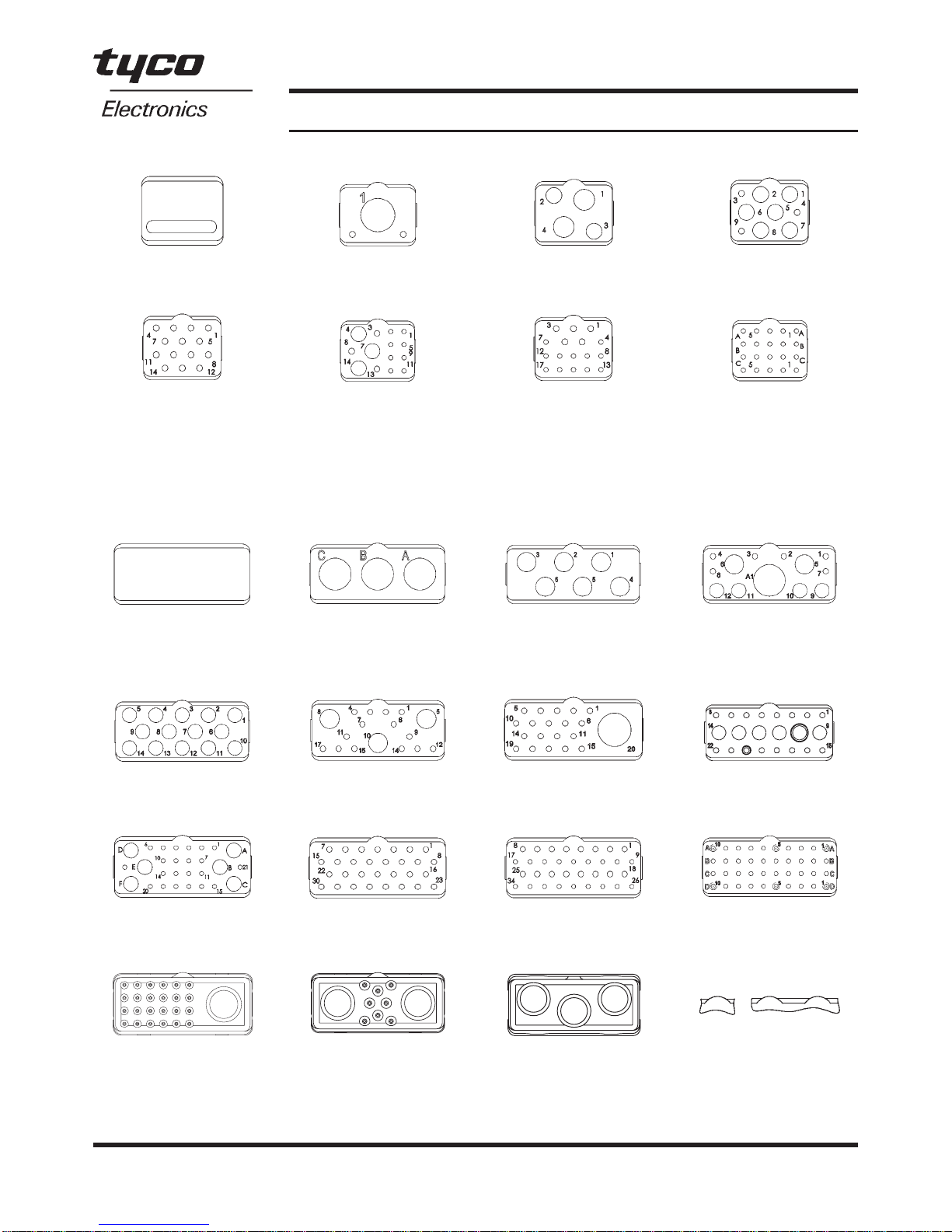

Insert Arrangements
GPRA Inserts
Dummy Insert
14 x Size 20 Contacts
GPRB Inserts
GPRBN00
1
00
14
1, 2
1C1
1 x Size 5 Contacts
14M
8 x Size 22 Contacts
3 x Size 20 Contacts
3 x Size 15 or 16 Contacts
2 x Size 15 or 16 Contacts
04
2 x Size 12 Contacts
17
12 x Size 22 Contacts
5 x Size 20 Contacts
09
3 x Size 20 Contacts
6 x Size 15 or 16 Contacts
20
20 x Size 22 Contacts
00
Dummy Insert
14 x Size 15 or 16 Contacts
6 x Size 15 or 16 Contacts
14
28
22 x Size 22 Contacts
3
25QI
C3
3 x Size 5 Contacts
17
14 x Size 20 Contacts
3 x Size 12 Contacts
30
30 x Size 20 Contacts
3
10Q2
06
6 x Size 12 Contacts
20C1
19 x Size 20 Contacts
1 x Size 5 Contacts
34
18 x Size 22 Contacts
16 x Size 20 Contacts
3
3Q3
13C1
2 x Size 12 Contacts
4 x Size 15 or 16 Contacts
6 x Size 20 Contacts
1 x Size 5 Contacts
22
16 x Size 20 Contacts
6 x Size 15 or 16 Contacts
40
40 x Size 22 Contacts
Keying:
AB
Note
1
Pin inserts: Mating faces shown above.
2
In a GPRB2 shell, one insert must be “A” keyed and the other one must be “B” keyed (See at right).
3
Size 8 cavity applicable for use with ARINC 600 Quadrax or Twinax contacts.
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
19
F12 LuxCis®Insert
Assemblies
General Purpose Rectangular (GPR) Connectors

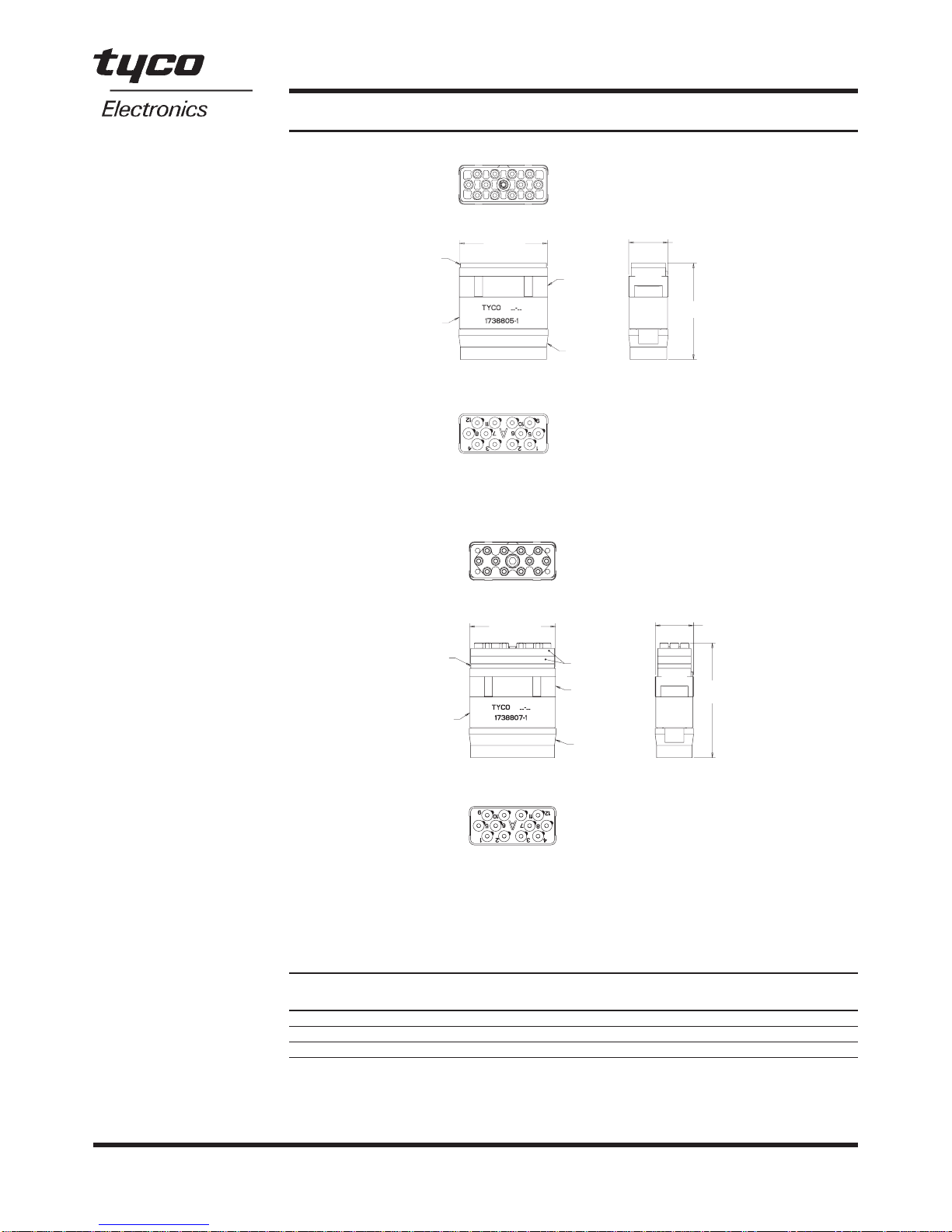

Insert Assemblies for High Speed Applications
MATING FACE
27.00 (1.063)
INTERFACIAL
REAR HOUSING
SEAL
26.96 (1.061)
FRONT HOUSING
12.05 (0.474)
12.01 (0.473)
29.95 (1.179)
29.15 (1.148)
Product Facts
■ ARINC 801 approved
■ Optical termini for use with
GPR, ARINC 600, circular
MIL-DTL-38999 connectors.
■ Industry Standard 1.25mm
ceramic ferrule
■ Compatible with 1.5-2.2mm
tight jacket and loose tube
cable construction:
■ MT - Tight jacket cable
■ ML – Loose tube cable
■ SingleMode (SM) and
MultiMode (MM) versions
■ LuxCis® termini part
numbers:
1828199-1 MM/ML Version
1828200-1 MM/MT Version
1918614-1 SM/ML Version
1918616-1 SM/ML VersionAPC
1918615-1 SM/MT Version
1918617-1 SM/MT Version APC
Materials:
Housings – Nickel Plated Copper
Ferrule – Zirconia
Spring – Stainless Steel
Crimp Sleeve – Nickel Plated Copper
Protective Cover – Silicone
INTERFACIAL
SEAL
HOUSING
REAR FACE
Insert Assembly, without Sleeve Holder,
Environmental, F12
Key A 1738805-1
Key B 1738806-1
MATING FACE
27.00 (1.063)
26.96 (1.061)
REAR
REAR FACE
REAR GROMMET
SLEEVE
HOLDER
FRONT
HOUSING
REAR
GROMMET
12.05 (0.474)
12.01 (0.473)
36.53 (1.438)
35.63 (1.403)
Optical Performance
Single mode, 1310nm/1550nm (UPC)
Attenuation, Mean – 0.15dB
Return Loss - >50dB
Multimode, 850nm.1310nm
LuxCis® Optical Termini Part Numbers
Attenuation, Mean – 0.10dB
Return Loss - >20dB
Assembly Capabilities
Tyco Electronics has extensive
Rugged Optic Harness capabilities. Please consult your
Cable Dia. ML (loose & tight) 125,3 µm 125,3 µm 128 µm
0.9mm Buffer — * * *
1.5 - 2.2mm ML 1918614-1 1918616-1 1828199-1
1.5 - 2.2mm MT 1918615-1 1918617-1 1828200-1
Consult your local Tyco Electronics Sales Representative for additional options.
* Contact Tyco Electronics for availability.
local Tyco Electronics Sales
Representative for assistance.
20
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
Insert Assembly, with Sleeve Holder,
Environmental, F12, Key A
GPRB
Key A 1738807-1
Key B 1738808-1
Cable Structure S/M Fiber S/M Fiber M/M Fiber
MT (ultra tight) PC/UPC APC PC
LuxCis is a trademark of Radiall,
S.A. Product is manufactured under
license from Radiall S.A.
General Purpose Rectangular (GPR) Connectors

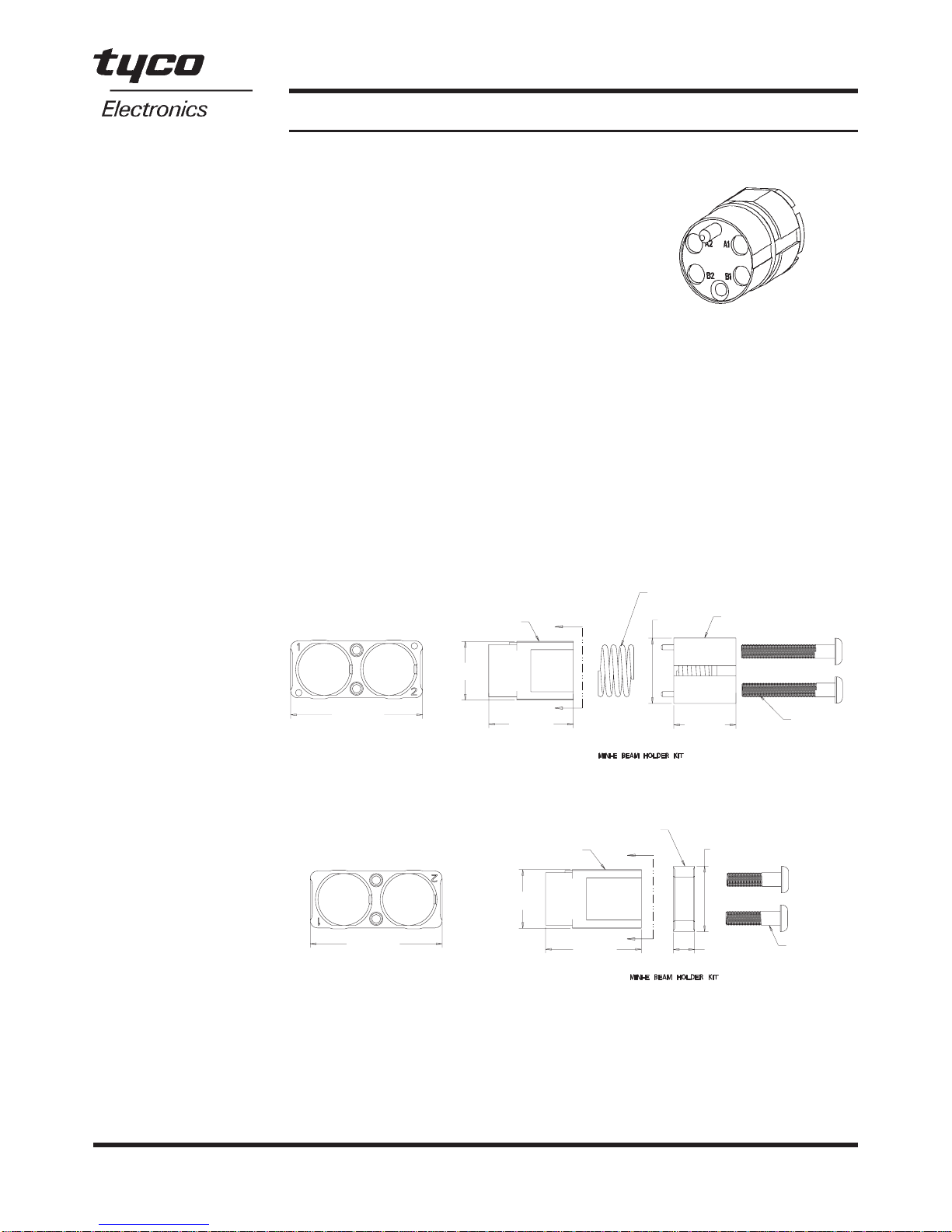

4-40 MACHINE SCREW
K
K
COMPRESSION SPRINGS
RETAINER BLOCK
FRONT HOLDER BLOCK
12.05 (0.474)
12.01 (0.473)
17.44 max.
(0.687 max.)
12.87 max.
(0.507 max.)
13.51 max.
(0.532 max.)
4-40 MACHINE SCREWS
K
K
HOLD DOWN PLATE
FRONT HOLDER BLOCK
12.05 (0.474)
12.01 (0.473)
19.48 max.
(0.767 max.)
4.49 max.
(0.177 max.)
13.51 max.
(0.532 max.)
Insert Assemblies for High Speed Applications (Continued)
M2 Mini-Expanded
Beam Insert Holders
Product Facts
■ No wear on fiber optic inter-
face; Very vibration resistant
■ Easy to handle, easy to clean.
Durable connection that is
highly resistant to dirt/debris.
■ Singlemode or multimode
■ Common 850/1300 Dual
Wavelength, 1310, or 1550 nm
wavelengths
■ Easy alignment for low-loss
repeatable performance
■ Consistent overall optical “link
budget” assured
■ Low sensitivity to thermal fluc-
tuations and interface contamination
■ Repeatable low-loss perfor-
mance in harsh environments.
Expanded Beam Products
■ Ball lens expands cross-sec-
tional area of light over 200
times for multimode and over
2000 times for singlemode
■ Rugged hermaphroditic con-
struction (i.e., same insert
mates to each other)
■ Physically non-contacting mat-
ing conditions; no wear,
installed fiber ferrule protected by ball lens
■ PRO BEAM Mini Connector
field deployable interconnects
■ Insert/holder blocks designed
for Mini-Expanded Beam
■ Common insert for 1- through
4-channels
■ Unique Modular Design, for
use with multimode and singlemode fiber.
■ Cable assembly and termina-
tion services
Expanded Beam Insert
■ Mini-Expanded Beam insert for
multi-channel small form factor – the smallest expanded
beam multi-channel insert in
the industry a Tyco Electronics
exclusive.
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
Fiber Optic interconnect/
cable system using
Expanded Beam technology, which physically
expands and collimates the
transmission signal into an
optical beam over 14 times
its original diameter (the
cross sectional area of the
light beam increases over
200 times for multimode
optical signals). For singlemode signals, the collimated
beam is over 45 times its
original diameter (the cross-
Assembly Capabilities
Tyco Electronics has extensive Rugged Optic Harness
capabilities. Please consult
your local Tyco Electronics
Sales Representative for
assistance.
27.00 (1.063)
26.96 (1.061)
SECTION K - K
27.00 (1.063)
26.96 (1.061)
SECTION K - K
Expanded Beam Principle
sectional area of the light
beam increases over 2,000
times). It is then refocused
back down onto the core of
the receiving fiber. This
approach provides ease of
alignment and low sensitivity
to thermal changes and contamination. High strength,
precision connector housings enhance a durable connection, optimizing low loss
and repeatable performance.
Expanded Beam Inserts
Suitable for aerospace,
avionics, field-deployable
communications, marine
ship-to-shore applications,
security systems, mobile
diagnostic units, oil and gas
exploration and other harsh
environment applications
demanding strength, durability and reliable performance in conditions of multiple couplings/decouplings,
blindmate situations, and
high vibration.
Holder Kit, Pin (Spring-Loaded),
Mini-Expanded Beam, Key A
GPRB
1445162-1
Holder Kit, Socket (Fixed),
Mini-Expanded Beam, Key A
GPRB
1445163-1
21
General Purpose Rectangular (GPR) Connectors
Contact and Application Tool Part Numbers
Form Contact Size Wire Size Type
22 22 - 24 - 26
22 - Reduced
Crimp Barrel
20 20 - 22 - 24
Crimp
Contacts
Form Contact Size Wire Size Type
Coaxial 15 RG179
Crimp RG316 - KX22
Contacts
Concentric
Twinax
Crimp M17/176-0002
Contacts
16 16 - 18 - 20
16 - Reduced
Crimp Barrel
12 12 - 14
5 8 - 10
16 -Mating End
20-Crimp Barrel
5 RG223
5 RG316
15
15 KX21 DT
15 UT .047
5
28 - 30
20 - 22 - 24
20 - 22 - 24 Block
RG142
KX23
RG174
KX22
RG174
RG178
KX21 ST
PAN61421
Contacts
Tyco PN
Pin 1738007-1
Socket 1738008-1
Pin 1738009-1
Socket 1738010-1
Pin 1738011-1
Socket 1738012-1
Pin 1738013-1
Socket 1738014-1
Pin 1738015-1
Socket 1738016-1
Pin 1738017-1
Socket 1738018-1
Pin 1738019-1
Socket 1738020-1
Ground
2-592404-1 M22520/2-02 M81969/14-11
M39029/1-101
Contact
Contacts
Tyco PN
Pin 1738021-1
Socket 1738022-1
Pin 1738023-1
Socket 1738024-1
Pin 1738025-1
Socket 1738026-1
Pin 1738027-1
Socket 1738028-1
Pin 1738029-1
Socket 1738030-1
Pin 1738031-1
Socket 1738032-1
Pin 1738033-1
Socket 1738034-1
Crimp Tool Crimp Tool Positioner Positioner Tyco MIL
Tyco P/N MIL P/N Tyco P/N MIL P/N Part Number Part Number
601966-1 M22520/2-01
601967-1 M22520/1-01 601967-2 M22520/1-02
601966-1 M22520/2-01 N/A
Crimp Tool Crimp Tool Positioner Positioner Crimp Tool Crimp Tool Die Set Die Set
Tyco P/N MIL P/N Tyco P/N MIL P/N Tyco P/N MIL P/N Tyco P/N MIL P/N
601966-1 M22520/2-01
608650-1 M22520/5-01 1738338-1 N/A 608650-1 M22520/5-01 1738336-1 M22520/5-05
Contact Crimp Tools & Positioners Insertion/Extraction Tools
601966-8 M22520/2-23
601966-5 M22520/2-08
M22520/23-01 &
N/A
M22520/23-02 1738331-1
Center Conductor / Outer Conductor
Contact Crimp Tools & Positioners Crimp Tools & Die Sets
Locator
1738332-1 N/A 608650-1 M22520/5-01 1738336-1 M22520/5-05
1738333-1 N/A 601963-1 M22520/4-01 1738337-1 N/A
N/A 1811509-1 M81969/28-01
or /2-11
0-
91066-1 M81969/1-01
0-
91067-2 M81969/1-02
0-
91066-3 M81969/1-03
1738327-1 M81969/28-02
592105-1
Contact
or /14-02
Form Contact Size
ARINC 600
QUADRAX 8 Socket 1445693-6
Contacts
Non-Concentric
TWINAX Contacts
8 — Raychem 100 Twinax 0024T1426
PC Tail Contacts
Inserts pre-assembled with
PC tail contacts with
straight or right-angle
termination are available —
Hex Crimp Reference
Number Cables Tyco PN
0.218
0.231
— — Seal Assembly 1877626-1
Contact Size Type Configuration Tyco Part Number
22 Pin Straight 1738709-1 0-91066-1 M81969/1-01
20 Pin Straight 1738710-1 0-91067-2 M81969/1-02
12 Pin Straight 1738711-1 1738327-1 M81969/28-02
Consult Tyco Electronics.
22
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
Tensolite NF24Q100, NF26Q100, 24443/03130X-4 (LD),
2443/P025X-4 (LD), Raychem CEC-RWC-18687, CEC-RWC-18664
DRAKA F4703-3, F4704-4
Tensolite 26473/02006X-4 (LD),
Raychem CEC-RWC-18684, CEC-RWC-18680
Type
Pin 1445692-1
Socket 1445693-1
Pin 1445692-6
Pin 1877039-1
Socket 1877040-1
Pin 1811865-1
Socket 1811866-1
Seal Assembly 1954046-1
Tyco Part Number MIL Part Number
Insertion/Extraction Tools
Contacts
Contact
General Purpose Rectangular (GPR) Connectors
Contact and Application Tool Part Numbers (Continued)
LuxCis® Optical Termini
Part Numbers
Spare Parts
Grounding Spring
Part Number 1738199-1
Tools
Cable Dia. ML (loose & tight) 125,3 µm 125,3 µm 128 µm
0.9mm Buffer — * * *
1.5 - 2.2mm ML 1918614-1 1918616-1 1828199-1
1.5 - 2.2mm MT 1918615-1 1918617-1 1828200-1
Consult your local Tyco Electronics Sales Representative for additional options.
* Contact Tyco Electronics for availability.
Cable Structure S/M Fiber S/M Fiber M/M Fiber
MT (ultra tight) PC/UPC APC PC

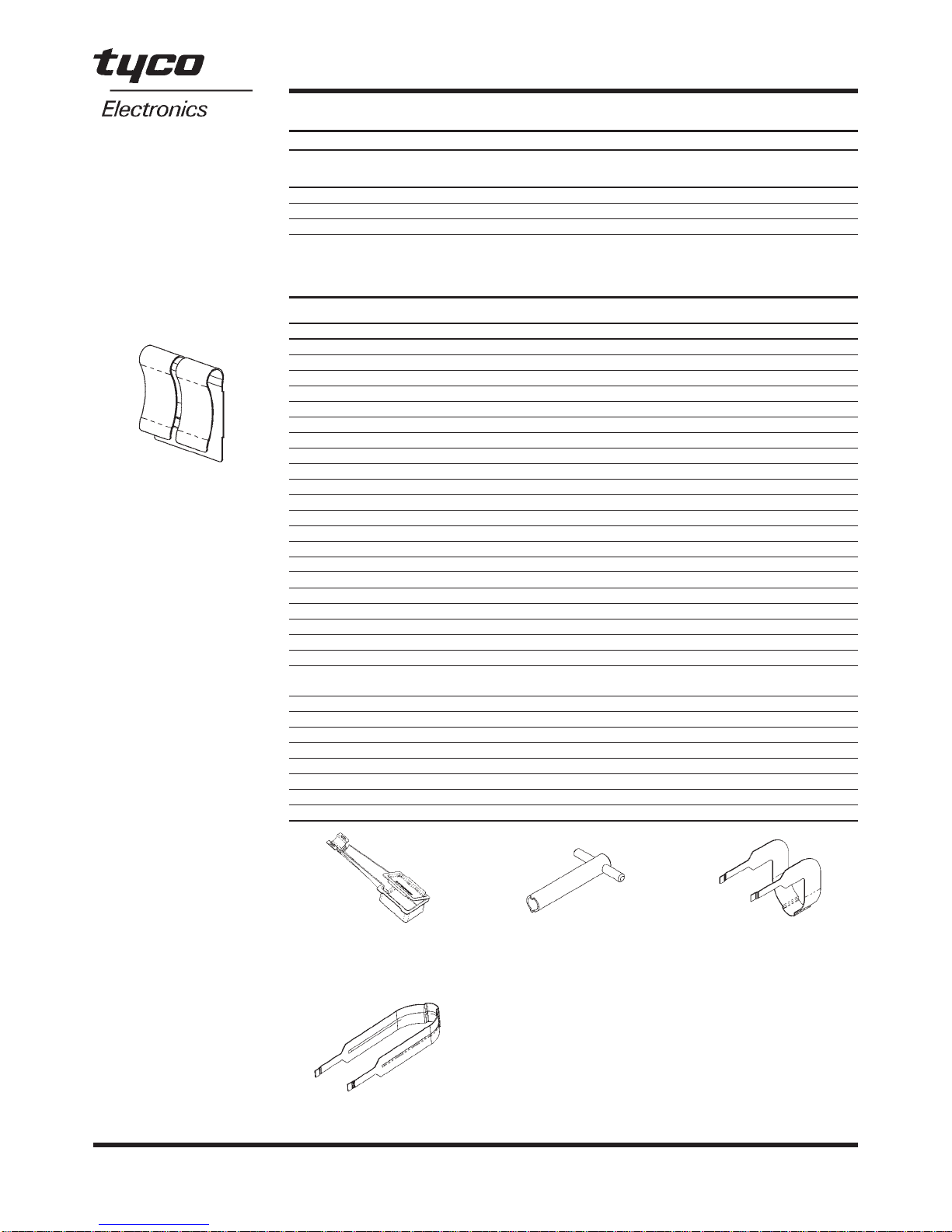

Spare Parts and Tools
GPRA and GPRB Series
Part Number Description To Be Used With
1738199-1 Grounding Spring GPRA
1738200-1 Dust Cap – Plug Shell GPRA
1738201-1 Dust Cap – Receptacle Shell GPRA
1738203-1 Jacknut – A/B/C/D/E/F GPRB2
1738204-1 Jacknut – N/R/W/X/Y/Z GPRB2
1738205-1 Jackscrew – A/B/C/D/E/F GPRB2
1738206-1 Jackscrew – N/R/W/X/Y/Z GPRB2
1738207-1 Socket Polarization Guide – A/B/C/D/E/F GPRB2 Rack & Panel application
1738208-1 Socket Polarization Guide – N/R/W/X/Y/Z GPRB2 Rack & Panel application
1738209-1 Pin Polarization Guide – A/B/C/D/E/F GPRB2 Rack & Panel application
1738210-1 Pin Polarization Guide – N/R/W/X/Y/Z GPRB2 Rack & Panel application
1738213-1 Dust Cap – Plug Shell GPRB1
1738214-1 Dust Cap – Receptacle Shell GPRB1
1738211-1 Dust Cap – Plug Shell GPRB2
1738212-1 Dust Cap – Receptacle Shell GPRB2
1877328-1 Anti-Static Dust Cap – Plug Shell GPRB2
1877329-1 Anti-Static Dust Cap – Receptacle Shell GPRB2
1738400-1 Grounding Spring GPRB1 & B2
1738428-1 Polarization Key, Male GPRA & GPRB1
1738429-1 Polarization Key, Female GPRA & GPRB1
1738440-1 Key Retention Plate Assembly GPRA & GPRB1
GPRA and GPRB Series
Part Number Description To Be Used With
1738215-1 Insert extraction tool GPRA
1738216-1 Allen wrench locking system GPRA, GPRB1
1738217-1 Insert handling case GPRA, GPRB1 & B2
1738218-1 Insert extraction tool GPRB1 & B2
1738219-1 Right-angle insert extraction tool GPRB1 & B2
1738220-1 Spigot wrench for locking device w/1/4 inch adapter GPRB2
1738221-1 Spigot wrench for locking device w/handle GPRB2
LuxCis is a trademark of Radiall,
S.A. Product is manufactured under
license from Radiall S.A.
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Insert Handling Case
Part Number 1738217-1
Insert Extraction Tool
Part Number 1738218-1
Spigot Wrench for Locking Device with
Handle
Part Number 1738221-1
Stainless steel testing tools are available to check the wiring of the inserts without
the shell — Consult Tyco Electronics.
Right-Angle Insert Extraction Tool
Part Number 1738219-1
23
General Purpose Rectangular (GPR) Connectors
Locking Nut (1)
Shroud (1)
Locking Nut (1)
Shroud (1)

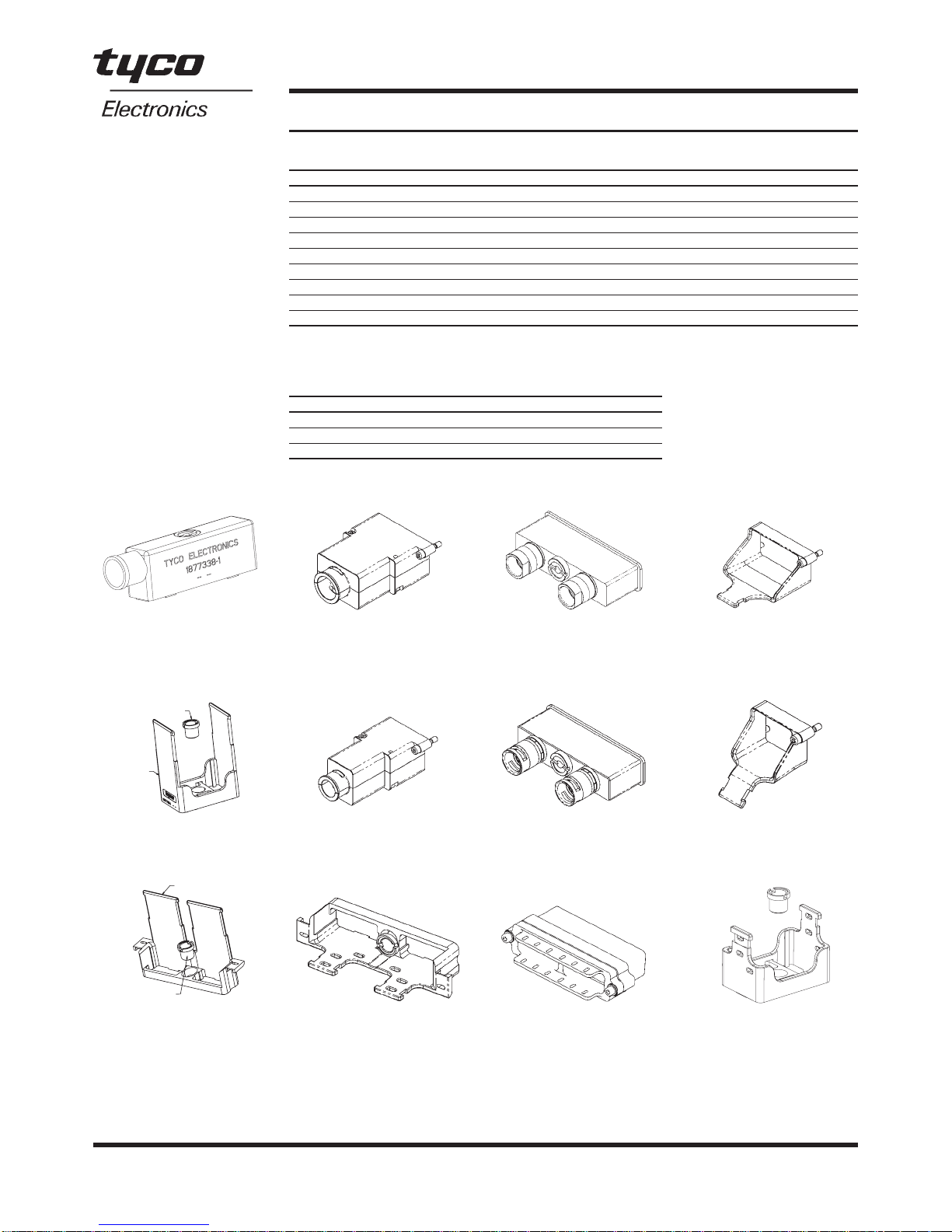

EMI Backshells and Strain Reliefs
GPRB Series
Part Number Description Used With
1738310-1 Straight strain relief GPRB1
1738311-1 45° strain relief GPRB1
1738312-1 Straight backshell GPRB1
1738313-1 Straight strain relief GPRB2
1738314-1 Backshell for shielded termination GPRB2
1738315-1 Backshell for screened twisted-pair cables GPRB2
1738316-1 Backshell for large sized wire harnesses GPRB2
1811650-1 Straight Strain Relief GPRB2-Vertical
1877338-1 90° Exit Backshell GPRB2
GPRA Series
Part Number Description
1738317-1 Straight strain relief
1738318-1 45° strain relief
1738319-1 Straight backshell
Backshell Kit, 90° Exit
Part Number 1877338-1
Vertical Strain Relief Kit, Fiber Optic
Part Number 1877736-1
Horizontal Strain Relief Kit, Fiber Optic
Part Number 1877888-1
Straight Backshell
Part Number 1738312-1
Straight Backshell
Part Number 1738319-1
Straight Strain Relief
Part Number 1738313-1
Backshell for
Shielded Termination
Part Number 1738314-1
Backshell for Screened
Twisted Pair Cables
Part Number 1738315-1
Backshell for Large Sized
Wire Harnesses
Part Number 1738316-1
Straight Strain Relief
Part Number 1738310-1
45° Strain Relief
Part Number 1738318-1
GPRB2 Vertical Strain Relief
Part Number 1811650-1
24
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341

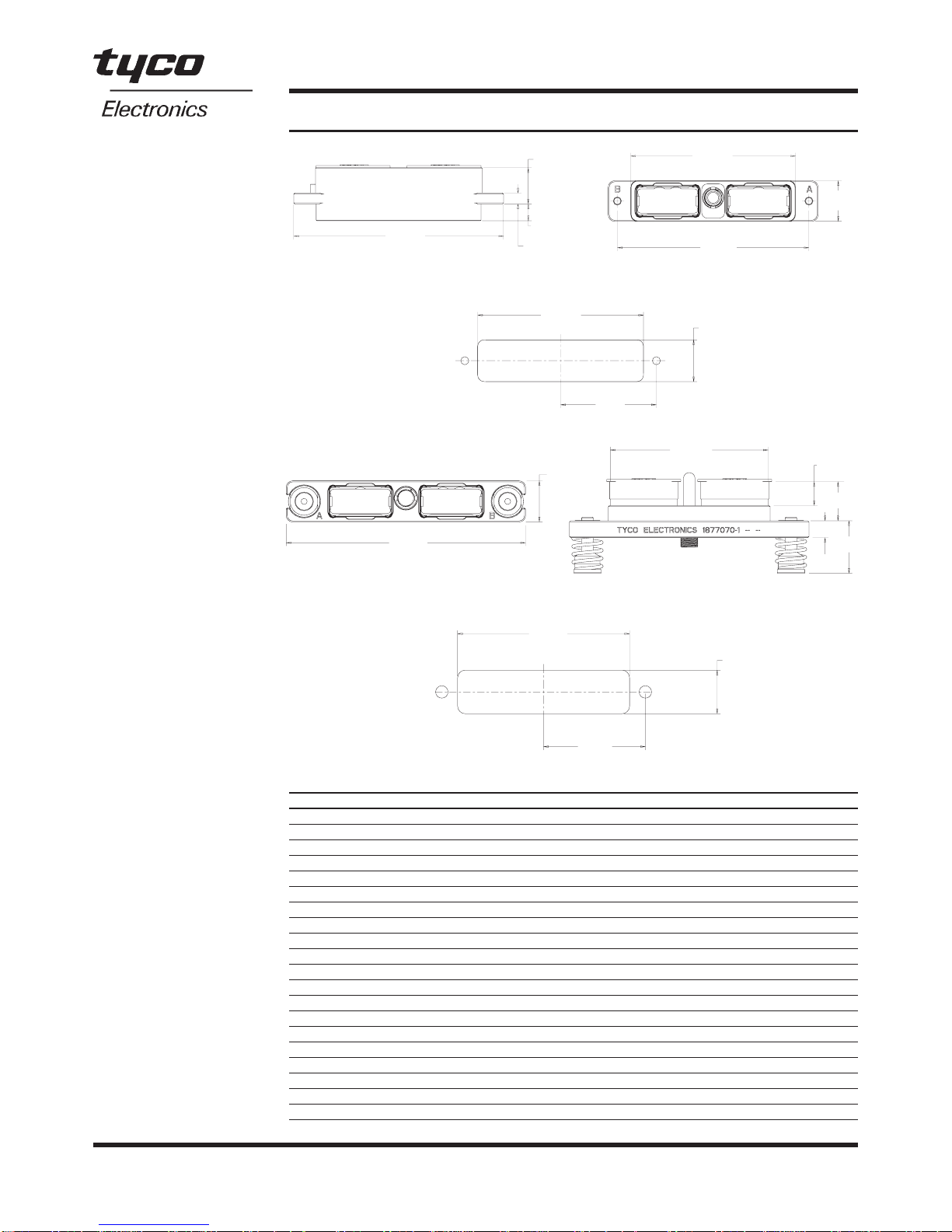

General Purpose Rectangular (GPR) Connectors
96.60 Max.
(3.803 Max.)
7.70
(0.303)
16.70±0.15
(0.657±.006)
5.05±0.10
(0.199±.004)
75.90 Max.
(2.988 Max.)
88.00 Max.
(3.464 Max.)
18.90 Max.
(0.744 Max.)
76.2 min.
(3.00 min.)
44
(1.73)
2 x
19.2 min.
(0.75 min.)
79.00 min.
(3.110 min.)
46.75
(1.840)
2 x
20.00 min.
(0.787 min.)
74.50 max.
(2.933 max.)
25.00 max.
(0.984 max.)
8.00 max.
(0.315 max.)
10.80 min.
(0.425 min.)
18.00±0.05
(0.709±.002)
19.10 max.
(0.752 max.)
110.20 max.
(4.339 max.)
Galley Insert (GAIN) Connectors
Product Facts
■ Designed for ARINC 810 –
standard interfaces for
Galley Insert (GAIN)
Equipment
■ Spring-Loaded, float-
mounting plug shell design
allows ±1mm variation in
the mating direction
■ Blind mating guide pin &
socket accept ±2mm/ 2°
lateral misalignment
■ Product incorporates:
■ size 22 signal contacts
■ size 12 power contacts
■ size 8 twinax contacts
■ 500 mating cycles durability
Receptacle Shell, Front Panel Mount, with Guide Socket
GPRB2
1811119-1
Recommended Panel Cutout
Plug Shell, Spring-Loaded, Float-Mounting
GPRB2
1877070-1
Description Part Number Ref. Catalog Page
Fully Assembled Receptacle 1877652-1 —
Fully Assembled Plug 1877646-1 —
Receptacle Shell Assembly 1811119-1 25
Plug Shell Assembly 1877070-1 25
25Q1 Pin Insert Assembly 1811121-1 18
25Q1 Socket Insert Assembly 1811122-1 18
06 Pin Insert Assembly 1738101-1 16
06 Socket Insert Assembly 1738104-1 16
Size 22 Pin Contact 1738007-1 22
Size 22 Socket Contact 1738008-1 22
Size 12 Pin Contact 1738017-1 22
Size 12 Socket Contact 1738018-1 22
Size 8 Twinax Pin Contact 1811865-1,-2 22
Size 8 Twinax Socket Contact 1811866-1,-2 22
Size 22 Sealing Plug 592104-4 —
Strain Relief (Straight) 1738313-1 24
Dust Cap, Plug 1738211-1 23
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Dust Cap, Receptacle 1738212-1 23
Seal Assembly, Size 8, GPR 1954046-1 22
100 Twinax Raychem Cable 0024T1426 22
Recommended Panel Cutout
25
General Purpose Rectangular (GPR) Connectors
Custom Solutions and In Development Products
The GPRA & B Connector Series offers a comprehensive
range of standard components that allows the user to build
a connector to meet his requirements. However, standard
shells might not be compatible with the user’s application;
alternate solutions are available to meet the customer’s
Multicavity Racked Shells
GPRB shells can be built in any format from 4 to 20 cavities
for either panel or rack applications and with or without
grounding blocks. These shells accommodate standard
inserts.
Composite Shells (in development)
Low weight, Skydrol® resistant composite shells have been
developed.
specific requirements with limited investment by using
standard inserts and contacts. Some of these are shown
below.
Solution for IMA (Integrated Modular Avionics)
A right-angle contact printed circuit board connector which
allows direct mating with an airframe connector has been
developed. It is fitted with special rack features: spring
loaded shell, EMI shield frame and 4 polarization posts with
256 combinations.
Cabinet Housing
LRM
(Line Replaceable
Module)
Spring Loaded
Airframe Connector
EMI Shielded
PCB Right-Angle
Connector
Solutions for Data Bus
Tyco Electronics is at the leading edge of providing
solutions for high-speed data transmission such as size 8
quadrax contacts for Ethernet.
Connectors for Size 3 Coaxial Contacts
A high-reliability design for high specification
RF requirements.
Custom Shells
This custom 4-cavity receptacle shell was developed and
serves as the rear panel of the customer's enclosure.
26
Catalog 1654763 Dimensions are in millimeters Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 6-06 and inches unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013
www.tycoelectronics.com are inch equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
Solutions for Wiring
Inserts may be fitted with internal bussed bars. This solution replaces junction blocks and simplifies the connector
cabling.
Custom Inserts
Inserts are available with PC Tail contacts pre-assembled,
such as this 40-position pin assembly.
Americas
Argentina – Buenos Aires
Phone: +54-11-4733-2200
Fax: +54-11-4733-2211
Brasil – São Paulo
Phone: +55-11-3611-1311
Fax: +55-11-3611-0397
Asia/Pacific
Australia – Sydney
Phone: +61-2-9554-2600
Fax: +61-2-9502-2556
Product Information Center:
(Technical Support)
Phone: +61-2-9840-8200
Fax: +61-2-9634-6188
India – Bangalore
Phone: +91-80-285-40800
Fax: +91-80-285-40820
Indonesia – Jakarta
Phone: +65-6482-0311
Fax: +65-6482-1012
Europe/Middle East/Africa
Austria – Vienna
Phone: +43-1 90 5 60-0
Fax: +43-1 90 5 60-1333
Belgium – Kessel-Lo
Phone: +32-16-35-23-00
Fax: +32-16-35-23-52
Bulgaria – Sofia
Phone: +359-2-971-2152
Fax: +359-2-971-2153
Czech Republic – Kurim
Phone: +420-5-41-162-111
Fax: +420-5-41-162-223
Denmark – Glostrup
Phone: +45-43-480-452
Fax: +45-43-441-414
Egypt – Cairo
Phone: +20-2-29 04 281
Fax: +20-2-41 92 334
Finland – Helsinki
Phone: +358-95-12-34-20
Fax: +358-95-12-34-250
France – Cergy-Pontoise
Phone: +33-1-3420-8888
Fax: +33-1-3420-8600
Product Information Center:
(Technical Support)
Phone: +33-1-3420-8943
Fax: +33-1-3420-8623
Germany – Bensheim
Phone: +49-6251-133-0
Fax: +49-6251-133-1600
Product Information Center:
(Technical Support)
Phone: +49-6251-133-1999
Fax: +49-6251-133-1988
Germany – Langen
Phone: +49-6103-709-0
Fax: +49-6103-709-1223
Canada – Toronto
Phone: +905-475-6222
Fax: +905-474-5520
Product Information Center:
(Technical Support)
Phone: +905-470-4425
Fax: +905-474-5525
Colombia – Bogota
Phone: +57-1-231-9398
Fax: +57-1-660-0206
Japan – Toyko
Phone: +81-44-844-8111
Fax: +81-44-812-3207
Raychem & Identification Products
Phone: +81-44-844-8183
Fax: +81-44-844-8184
Product Information Center:
(Technical Support)
Phone: +81-44-844-8013
Fax: +81-44-812-3200
Korea – Seoul
Phone: +82-2-3415-4500
Fax: +82-2-3486-3810
Malaysia – Kuala Lumpur
Phone: +60-3-78053055
Fax: +60-3-78053066
Germany – Speyer
Phone: +49-6232-30-0
Fax: +49-6232-30-2243
Germany - HTS Division – Neunkirchen
Phone: +49-2247-305-0
Fax: +49-2247-305-122
Great Britain –
Stanmore Middlesex
Phone: +44-8706-080-208
Fax: +44-1793-572-109
Product Information Center:
(Technical Support)
Freephone GB: 0800-267-666
Phone: +44-208-420-8341 or 8343
+44-208-420-8081
Great Britain – Raychem &
Identification Products
Phone: +44-1793-528171
Fax: +44-1793-572-516
Greece – Athens
Phone: +30-1-9370-396/397
Fax: +30-1-9370-655
Hungary – Budapest
Phone: +36-1-289-1000
Fax: +36-1-289-1010
Ireland – Dublin
Phone: +353-1-820-3000
Fax: +353-1-820-9790
Israel – Yokneam
Phone: +972-4-959-0508
Fax: +972-4-959-0506
Italy – Collegno (Torino)
Phone: +39-011-4012-111
Fax: +39-011-4031116
Lithuania – Vilnius
Phone: +370-5-2131-402
Fax: +370-5-2131-403
Mexico – Mexico City
Phone: +52-55-1106-0800
Fax: +52-5-361-8545
United States – Harrisburg, PA
Phone: +717-564-0100
Fax: +717-986-7575
Product Information Center:
(Technical Support)
Phone: +800-522-6752
Fax: +717-986-7575
New Zealand – Auckland
Phone: +64-9-634-4580
Fax: +64-9-634-4586
Philippines – Makati City
Phone: +632-848-0171
Fax: +632-867-8661
People’s Republic of China
Hong Kong
Phone: +852-2735-1628
Fax: +852-2735-0243
Shanghai
Phone: +86-21-64857333/64850602
Fax: +86-21-64856222/54261090
Netherlands – ’s-Hertogenbosch
Phone: +31-73-624-62-46
Fax: +31-73-621-23-65
Product Information Center:
(Technical Support)
Phone: +31-73-6246-999
Fax: +31-73-6246-998
Norway – Nesbru
Phone: +47-66-77-8886
Fax: +47-66-77-8855
Poland – Warsaw
Phone: +48-22-45-76-700
Fax: +48-22-45-76-720
Romania – Bucharest
Phone: +40-21-311-3479/3596
Fax: +40-21-312-0574
Russia – Moscow
Phone: +7-095-926-5506/07/08/09
Fax: +7-095-926-5505
Russia – St. Petersburg
Phone: +7-812-718-8192
Fax: +7-812-718-8193
Slovenia – Ljubljana
Phone: +386-1561-3270
Fax: +386-1561-3240
South Africa – Port Elizabeth
Phone: +2741-503-4500
Fax: +2741-581-0440
Spain – Barcelona
Phone: +34-93-291-0330
Fax: +34-93-201-7879
Product Information Center:
(Technical Support):
Phone: +34-93-291-0330
Fax: +34-93-200-3779
Sweden – Upplands Väsby
Phone: +46-8-50-72-50-00
Fax: +46-8-50-72-50-01
Global Contacts
For Latin/South American
Countries not shown
Phone: +54-11-4733-2015
Fax: +54-11-4733-2083
Singapore – Singapore
Phone: +65-6482-0311
Fax: +65-6482-1012
Raychem Products
Phone: +65-4866-151
Fax: +65-6545-514
Identification Products
Phone: +65 (0) 6482-0311
Fax: +65 (0) 6481-5514
Taiwan – Taipei
Phone: +886-2-8768-2788
Fax: +886-2-8768-2268
Thailand – Bangkok
Phone: +66-2-955-0500
Fax: +66-2-955-0505
Vietnam and Indochina –
Ho Chi Minh City
Phone: +84-8 930-5546
Fax: +84-8 930-3443
Switzerland – Steinach
Phone: +41-71-447-0447
Fax: +41-71-447-0444
Turkey – Istanbul
Phone: +90-212-281-8181/2/3
Fax: +90-212-281-8184
Ukraine – Kiev
Phone: +380-044-206-2265
Fax: +380-044-206-2264
For Middle East/African Countries Not
Shown
Phone: +33-1-3420-8866
Fax: +33-1-3420-8300
1654763–1.5M–SK/GIC–FP–6-06 Tyco Electronics Corporation
Printed in the U.S.A. www.tycoelectronics.com
Tyco Electronics Corporation
Harrisburg, Pennsylvania
www.tycoelectronics.com
1654763 Revised 06-2006 2.5M FP
Loading...
