Tyco Electronics ET2639L User Manual

ET2639L 26” LCD Touchmonitor User Guide

Elo TouchSystems

ET2639L 26” LCD Touchmonitor

User Guide

Revision E

SW600286

Elo TouchSystems

1-800-ELOTOUCH

www.elotouch.com

Copyright © 2008 Tyco Electronics. All Rights Reserved.

No part of this publication may be reproduced, transmitted, tran-

scribed, stored in a retrieval system, or translated into any language

or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or other-

wise without prior written permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without no-

tice. Elo TouchSystems makes no representations or warranties with

respect to the contents hereof, and specifi cally disclaims any implied

warranties of merchantability or fi tness for a particular purpose. Elo

TouchSystems reserves the right to revise this publication and to

make changes from time to time in the content hereof without obliga-

tion of Elo TouchSystems to notify any person of such revisions or

changes.

Trademark Acknowledgments

IntelliTouch, SC (Surface Capacitive), APR (Acoustic Pulse Recogni-

tion), Elo TouchSystems, TE Logo, and Tyco Electronics are trade-

marks. Other product names mentioned herein may be trademarks or

registered trademarks of their respective companies. Elo TouchSys-

tems claims no interest in trademarks other than its own.

Elo TouchSystems ET2639L User Guide 3

Table of Contents

Chapter 1: Introduction ...................................................................................... 5

About the Product ............................................................................................................. 5

Chapter 2: Installation And Setup ..................................................................... 6

Unpacking Your Touchmonitor ......................................................................................... 7

Interface Connection .......................................................................................................... 8

Installing the Touch Driver ................................................................................................ 9

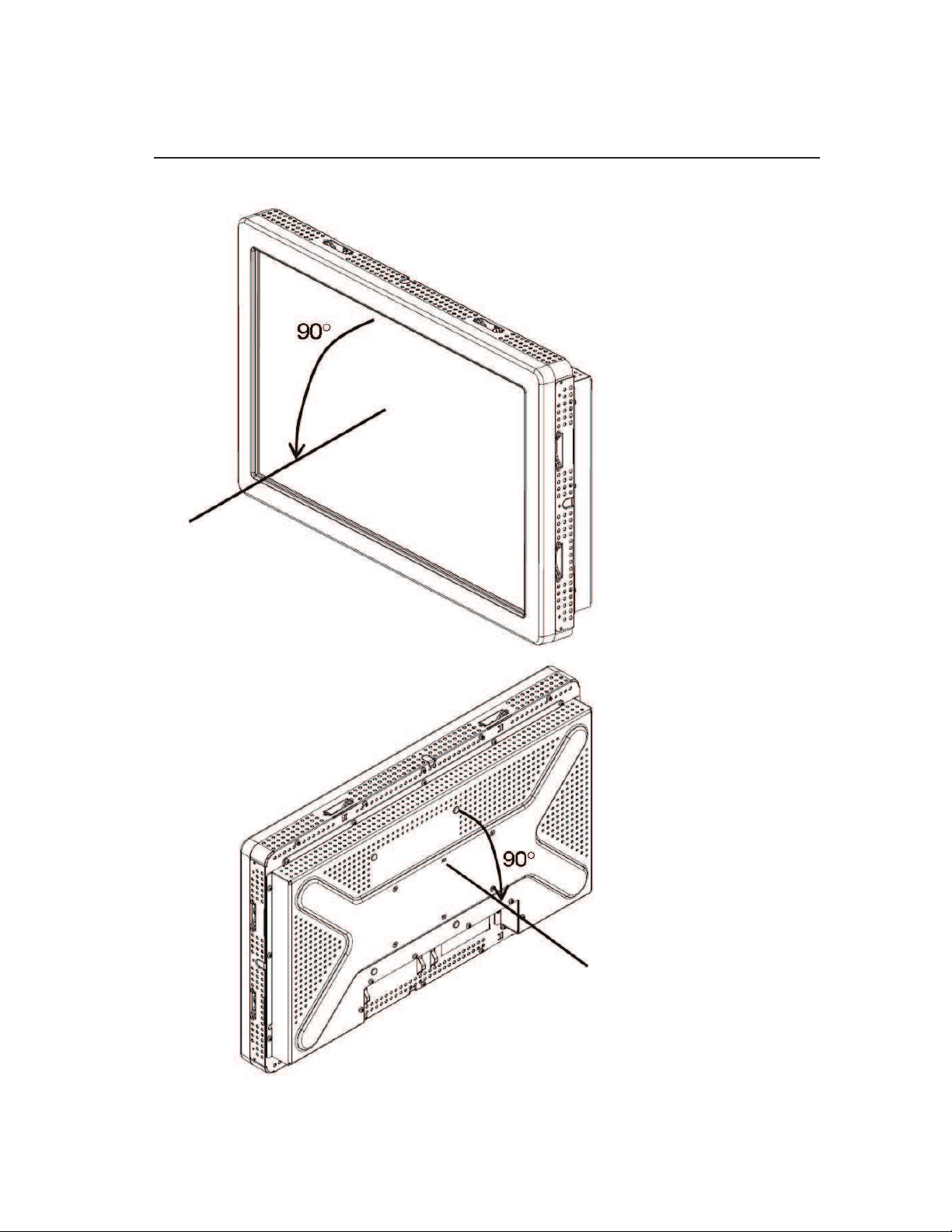

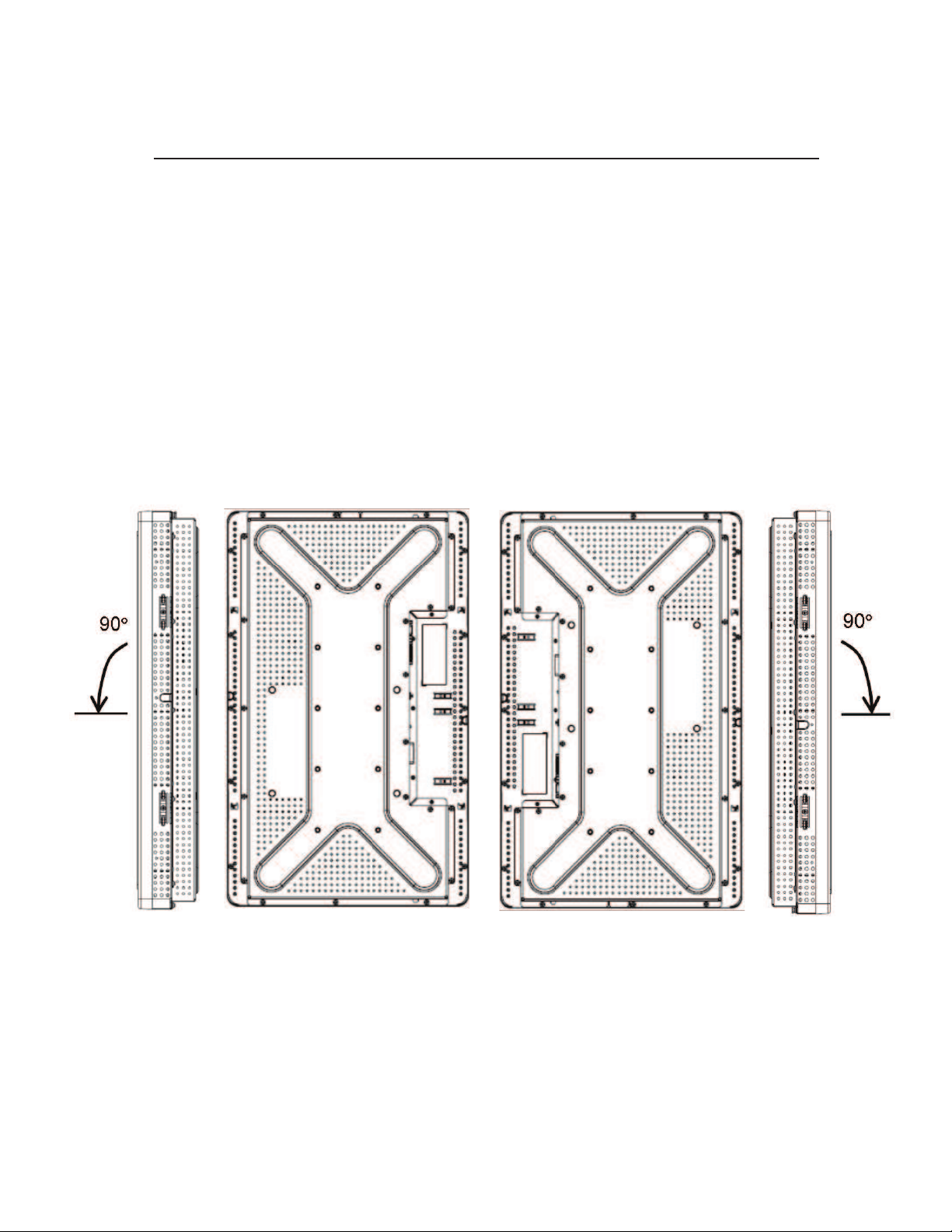

Monitor Mounting Orientation ........................................................................................ 11

Chapter 3: Operation ........................................................................................ 14

About Touchmonitor Adjustments .................................................................................. 14

On-Screen Display (OSD) Control Box ......................................................................... 15

Preset Display Modes ...................................................................................................... 19

Chapter 4: Troubleshooting .............................................................................20

Solutions to Common Problems ...................................................................................... 20

Appendix A: Touchmonitor Safety .................................................................. 21

Care and Handling of Your Touchmonitor ....................................................................... 22

Appendix B: Technical Specifi cations ............................................................ 23

ET2639L Specifi cations ................................................................................................... 24

ET2639L 26” LCD Touchmonitor Dimensions ............................................................... 26

Regulatory Information .................................................................................................... 27

Warranty ........................................................................................................................... 31

Elo TouchSystems ET2639L User Guide 4

About the Product

Your new ET2639L Elo TouchSystems Touchmonitor combines the

reliable performance of touch technology with the latest advances in

Liquid Crystal Display (LCD) design. The monitor comes with the fol-

lowing features:

C H A P T E R

1

INTRODUCTION

• 26” color active matrix thin-fi lm-transistor (TFT) with a

native resolution of 1366 X 768.

• Available in Acoustic Pulse Recognition (APR),

IntelliTouch, SecureTouch, and Surface Capacitive touch

technologies.

• All monitors have VGA video data inputs and, depending

upon the Part Description (indicating geographical

area where monitors are sold), some monitors have

DVI-D video data inputs.

• All touch technologies come with USB and serial inter-

faces, except for APR, which only comes with a USB

interface.

For more detailed information, please visit our website:

www.elotouch.com.

Elo TouchSystems ET2639L User Guide 5

C H A P T E R

2

INSTALLATION AND SETUP

This chapter discusses how to install and set up your LCD

touchmonitor and how to install Elo TouchSystems driver software.

Elo TouchSystems ET2639L User Guide 6

Unpacking Your Touchmonitor

Check that the following items are present and in good condition:

Touchmonitor

USB Cable

Serial Cable

(not included with

ET2639L-Axxx

models)

Analog Video

OSD Control Box

Power cable

DVI-D cable

(not included with

ET2639L-xxxx-x-A-x

models)

CD and Quick Install Guide

Elo TouchSystems ET2639L User Guide 7

Interface Connection

Connector Panel on Rear side of Monitor

Power Cable

Serial Cable (not

included with

ET2639L-Axxx

models)

Power

Button

OSD box

connector

USB cable

DVI-D cable

(not included with

ET2639L-xxxx-x-

A-x models)

Analog Video

Cable

To connect your touchmonitor to your computer:

1 Connect the power cable to the rear panel of the monitor and the

other end to the power outlet.

2 Connect either the USB cable OR the serial cable to the rear

panel of the monitor. Note: Do not use both. Connect the other

end to your computer.

3 Connect the video cable and/or the DVI-D cable to the rear panel

of the monitor. Tighten by turning the two thumb screws clockwise

to ensure proper grounding. Connect the other end to your

computer.

4 Connect the OSD control box to the monitor.

5 Press the power button on the rear panel to turn the monitor on.

Elo TouchSystems ET2639L User Guide 8

Installing the Touch Driver

Your Elo touchmonitor is Plug-and-Play compliant. Information on

the video capabilities of the touchmonitor is sent to the video display

adapter when Windows starts. If Windows detects the touchmonitor,

follow the instructions on the screen to install a generic Plug-and-Play

monitor.

Elo TouchSystems provides touch driver software that allows your

touchmonitor to work with your computer. Drivers are located on the

enclosed CD for the following operating systems:

• Windows XP

• Windows 2000

• Windows Me

• Windows 98

• Windows 95

• Windows NT 4.0

The latest versions of drivers and driver information for other operat-

ing systems are available on the Elo TouchSystems web site at

www.elotouch.com/support/downloads/.

To install the Touch Driver for Windows XP, Windows 2000, Me, and 98, follow

the steps below:

NOTE: For Windows XP and Windows 2000 you

must have administrator access rights to install the

driver.

1 Insert the Elo CD-ROM in your computer’s CD-ROM drive.

If Windows XP, Windows 2000, Windows 98, or Windows Me start

the Add New Hardware Wizard, follow these steps (if it does not

open, follow steps 1a through 2a):

Elo TouchSystems ET2639L User Guide 9

2 Choose Next. Select “Search for the best driver for your

device (Recommended)” and choose Next.

3 When a list of search locations is displayed, place a

checkmark on “Specify a location” and use Browse to

select the \EloUSB directory on the Elo CD-ROM.

4 Choose Next. Once the Elo TouchSystems touchscreen

driver has been detected, choose Next again.

5 You will see several fi les being copied. Insert your

Windows 98 CD if prompted. Choose Finish.

If Windows XP, Windows 2000, Windows 98, or Windows Me does

not start the Add New Hardware Wizard:

1a Insert the Elo CD-ROM in your computer’s CD-ROM drive.

If the AutoStart feature for your CD-ROM drive is active, the

system automatically detects the CD and starts the setup

program.

2a Follow the directions on the screen to complete the driver

setup for your version of Windows.

If the AutoStart feature is not active:

1 Click Start > Run.

2 Click the Browse button to locate the EloCd.exe program

on the CD-ROM.

3 Click Open, then OK to run EloCd.exe.

4 Follow the directions on the screen to complete the driver setup

for your version of Windows.

Elo TouchSystems ET2639L User Guide 10
