Tyco Electronics ET2200L User Manual

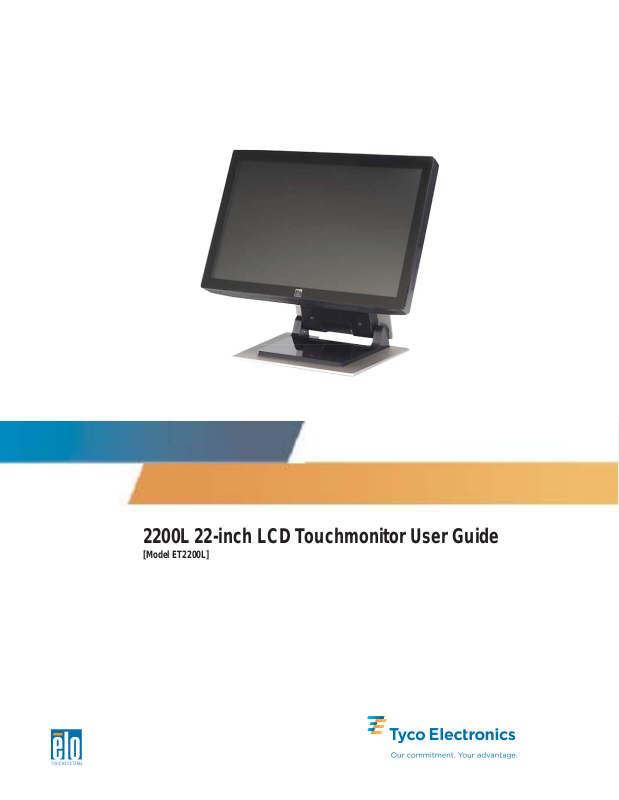

2200L 22-inch LCD Touchmonitor User Guide
[Model ET2200L]
Elo TouchSystems
2200L 22-inch LCD Touchmonitor
User Guide
Revision B
P/N E945960
Elo TouchSystems
1-800-ELOTOUCH
www.elotouch.com
Copyright © 2008 Tyco Electronics. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language
or computer language, in any form or by any means, including, but not
limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo TouchSystems.
Disclaimer
The information in this document is subject to change without
notice. Elo TouchSystems makes no representations or warranties
with respect to the contents hereof, and specifi cally disclaims any
implied warranties of merchantability or fi tness for a particular pur-
pose. Elo TouchSystems reserves the right to revise this publication
and to make changes from time to time in the content hereof without
obligation of Elo TouchSystems to notify any person of such revisions
or changes.
Trademark Acknowledgments
IntelliTouch, APR (Acoustic Pulse Recognition), Elo TouchSystems,
TE Logo, and Tyco Electronics are trademarks. Other product names
mentioned herein may be trademarks or registered trademarks of their
respective companies. Elo TouchSystems claims no interest in trademarks other than its own.
Elo TouchSystems 2200L User Guide 3
Table of Contents
Chapter 1: Introduction ....................................................................5
About the Product .............................................................................................................5
Precautions .........................................................................................................................6
Chapter 2: Installation and Setup ...................................................7
Unpacking Your Touchmonitor .........................................................................................8
Connecting the Cables to the Touchmonitor and Computer .............................................. 9
Installing the Touch Driver ..............................................................................................10
Monitor Overview and Dimensions ................................................................................. 11
Monitor Mounting and Orientation ..................................................................................12
Chapter 3: Operation ......................................................................15
About T ouchmonitor Adjustments ..................................................................................15
On-Screen Display (OSD) Control Panel ........................................................................ 16
Preset Display Modes ......................................................................................................20
Speakers and Audio Features ........................................................................................... 21
Chapter 4: Troubleshooting ...........................................................22
Solutions to Common Problems ......................................................................................22
Technical Support ............................................................................................................ 23
Appendix A: Touchmonitor Safety ................................................24
Care and Handling of Your Touchmonitor .......................................................................25
Warning ............................................................................................................................ 25
Waste Electrical and Electronic Equipment (WEEE) Directive ......................................25
Appendix B: Technical Specifi cations ..........................................26
2200L Specifi cations ........................................................................................................ 26
Regulatory Information ..................................................................29
Warranty ..........................................................................................32
Elo TouchSystems 2200L User Guide 4
About the Product
The Elo TouchSystems 2200L touchmonitor senses touch on the
display in a completely new way, by recognizing the unique pattern of
sounds. Consisting only of a glass overlay mounted in front of the LCD
panel, Elo’s 2200L zero-bezel Acoustic Pulse Recognition (APR) delivers benefi ts that combine the ultimate in optical qualities with a stylish,
easy to clean, seamless front face.
C H A P T E R
1
INTRODUCTION
Wide-aspect displays like the Elo 2200L are easier to use and incorporate into the workplace than traditional desktop touchmonitors.
Wide-screen format displays allow extra content on screen and are
ideal in corporate environments for spreadsheets, publishing, and
dual-window applications.
The 2200L is available in both zero-bezel APR and IntelliTouch Surface Acoustic Wave touch technologies.
Typical applications for the 2200L include: point-of-sale (POS), pointof-service, digital signage, loyalty systems, kiosk information systems,
light industrial shop-fl oor automation and home control.
• Wide-screen format provides more application space
• Sleek, integrated design offers a stylish look for public venues
• AC and DC power for maximum input fl exibility
• User-lockable on-screen display – designed for public access
• Adjustable height stand provides the fl exibility to be raised or
lowered to meet the application’s height requirements
Elo TouchSystems 2200L User Guide 5
Precautions
• VGA and DVI-D video input (DVI-D not available in Europe)
• Space-saving built-in speakers
• Sealed screen is resistant to water, dust, grease
• One-time factory calibration for easy deployment and integration
• Pure glass construction provides superior optical performance
and the true-fl at surface is easy to clean
• VESA compliance makes wall or arm-mounting possible
For more detailed information, please visit our website:
www.elotouch.com.
Follow all warnings, precautions, and maintenance as recommended
in this user’s manual to maximize the life of the unit. See Appendix A
for more information on touchmonitor safety.
Elo TouchSystems 2200L User Guide 6
C H A P T E R
2
INST ALLATION AND SETUP
This chapter discusses how to install and set up your LCD
touchmonitor and how to install Elo TouchSystems driver software.
Elo TouchSystems 2200L User Guide 7
Unpacking Your Touchmonitor
Check that the following items are present:
Touchmonitor
VGA Video Cable
AND/
OR
USB Cable
DVI-D Cable
(not included with
European models)
Power Cable
AND/
OR
(not included with
Input Audio
Cable
Serial Cable
APR models)
TouchTools or APR CD and
Quick Install Guide
Elo TouchSystems 2200L User Guide 8
Connecting the Cables to the Touchmonitor and Computer
Connector Panel Underneath the Monitor
Power
DC
in
LED
USB
Serial
VGADVI-D
Audio
Output
Audio
Input
To connect the touchmonitor to the computer:
1 Tilt the monitor to reveal the connector panel in the recessed area
underneath the bottom edge of the monitor.
2 Connect the AC power cable to the connector panel and connect
the other end to the power outlet.
3 Connect either the USB cable OR the serial cable to the connector
panel. Note: Do not use both. This cable connects the
touchmonitor to your computer. Attach the other end to your
computer.
4 Connect the video cable (VGA) or the DVI-D cable to the connector
panel. Tighten by turning the two thumb screws clockwise to
ensure proper grounding. Connect the other end to your computer.
5 Connect the audio cable to the Audio Input on the connector panel
and connect the other end to your computer.
6 Press the power button on the side panel of the monitor to turn on
the monitor.
Elo TouchSystems 2200L User Guide 9
Installing the Touch Driver
Your Elo touchmonitor is Plug-and-Play compliant. Information on
the video capabilities of the touchmonitor is sent to the video display
adapter when the computer’s operating system starts. If the computer’s operating system detects the touchmonitor, follow the instructions
on the screen to install a generic Plug-and-Play monitor.
Elo TouchSystems provides touchscreen driver software that allows
your touchmonitor to work with your computer. Drivers are located on
the enclosed CD.
The latest versions of drivers and driver information for all operating
systems, including those that are not included with the CD, are available on the Elo TouchSystems website at www.elotouch.com/
support/downloads/.
To install the Touch Driver, follow the steps below:
1 Insert the TouchTools or APR CD in your computer’s CD-ROM
drive.
2 Click on Install Driver for This Computer.
3 Follow the on-screen instructions to complete the installation.
If there are no on-screen instructions when you install the
TouchTools or APR CD :
1 Click Start > Run.
2 Click the Browse button to locate the EloCd.exe program
on the CD-ROM.
3 Click Open, then OK to run EloCd.exe.
4 Follow the directions on the screen to complete the driver
installation.
Elo TouchSystems 2200L User Guide 10
Monitor Overview and Dimensions
Note:
Dimensions are in millimeters.
Detailed mechanical illustrations can be found at: www.elotouch.com
Elo TouchSystems 2200L User Guide 11
