4 2 1
3
D
THIS DRAWING IS UNPUBLISHED.
C
COPYRIGHT
2011
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
2011
LOC DIST
B -
REVISIONS
P LTR DATE APVDDWNDESCRIPTION
AY
ECR-12-010700
11/06/12
MJG JB
31.5
SPRING
PIN BODY
B
9
D
SEE TABLE
A
1.6
ZONE 1
PLATING ZONES
ZONE 3
ZONE 2
1
ALTERNATE SERRATION
DETAIL
4.0
SCALE 4:1
A
B
20.5 MAX
C C
9.9 MIN.
1.6 MIN.
0.32
SECTION
A-A
3±0.25
2.8REF
3.7±0.25
3REF
SECTION B-B
B
1471-9 (3/11)
1.27 MICRON MIN NICKEL PLATE OVER ZONE 3.
1
0.76 MICRON MIN PRECIOUS METAL PLATE OVER ZONE 1.
1 MICRON MIN TIN PLATE OVER ZONE 2.
CONFORMS TO THE REQUIREMENTS OF TE CONNECTIVITY PRODUCT SPEC 108-10042
BASED ON EIA/ECA-364-1000.01A (CONTROLLED ENVIRONMENT APPLICATIONS)
2
1.27 MICRON MIN NICKEL PLATE OVER ZONE 3.
0.76 MICRON MIN PRECIOUS METAL PLATE OVER ZONE 1.
0.076 MICRON MIN GOLD FLASH PLATE OVER THE REMAINDER OF ZONE 3.
CONFORMS TO THE REQUIREMENTS OF TE CONNECTIVITY PRODUCT SPEC 108-10042
BASED ON EIA/ECA-364-1000.01A (CONTROLLED ENVIRONMENT APPLICATIONS)
1.54 - 2.54 MICRON SILVER PLATE OVER ZONE 3.
3
1.27 MICRON MIN NICKEL PLATE OVER ZONE 3.
4
0.76 MICRON MIN GOLD PLATE OVER ZONE 1.
0.076 MICRON MIN GOLDFLASH PLATE OVER THE REMAINDER OF ZONE 3.
1.27 MICRON MIN NICKEL PLATE OVER ZONE 3.
5
0.76 MICRON MIN GOLD PLATE OVER ZONE 1.
1 MICRON MIN TIN PLATE OVER ZONE 2.
6
HOT-DIPPED PRETIN
7
1 - 3 MICRON ELECTRO-TIN PLATE OVER ZONE 3
8
0.76 MICRON MIN NICKEL PLATE OVER ZONE 3 PER QQ-N-290
1.5 - 2.54 MICRON SILVER PLATE OVER ZONE 3,
9
SERATIONS CAN BE MULTILOCK OR TWO SLOTS
10. WIRE RANGE: 0.75 - 1.50 mm² (18-16 AWG)
11. INSULATION RANGE: 2.0 - 2.5 mm (.080-.100) DIA
SPECIAL REEL WITH 200 PCS FOR REEL-FED HANDTOOL
12
REELING
DIRECTION
C
AS DIRECTION
'A' BUT
BARRELS DOWN
A
WIRE BARRELS
FACE UP.
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
B
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
mm
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
MATERIAL FINISH
ANGLES
SEE ABOVE.
0.5
0.15
0.15
0.15
-
12
DWN
J.BRIGHT
CHK
M.GREENER
APVD
D PENNINGTON
PRODUCT SPEC
7
3
7
6
6
6
1
7
2
2
7
24/10/11
24/10/11
11/06/12
NAME
PIN BODYSPRING MATERIALFINISHREELING
LOOSE PIECE
TE Connectivity

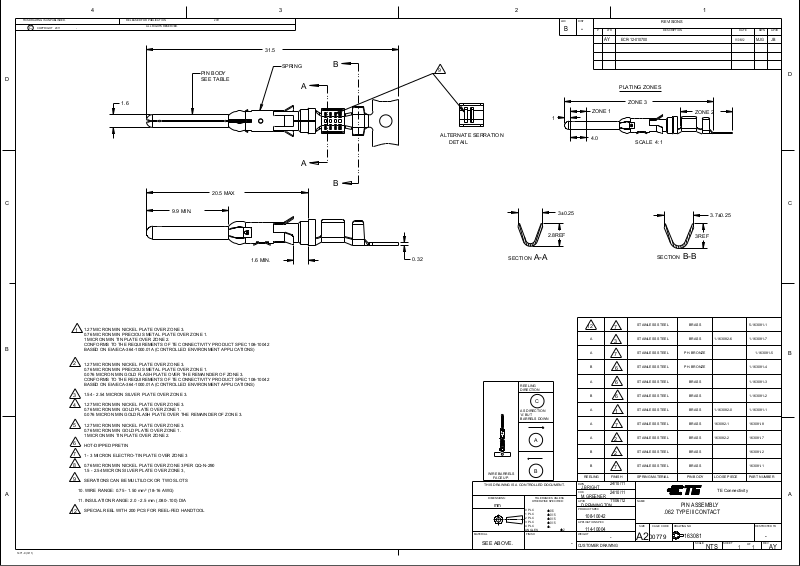

PIN ASSEMBLY
5-163081-1BRASSSTAINLESS STEEL
1-163081-71-163082-6BRASSSTAINLESS STEELA
1-163081-5PH. BRONZESTAINLESS STEELA
1-163081-4PH. BRONZESTAINLESS STEELB
1-163081-3BRASSSTAINLESS STEELA
1-163081-2BRASSSTAINLESS STEELB
1-163081-11-163082-0BRASSSTAINLESS STEELA
163081-8163082-1BRASSSTAINLESS STEELA
163081-7163082-2BRASSSTAINLESS STEELA
163081-2BRASSSTAINLESS STEELB
163081-1BRASSSTAINLESS STEELB
PART NUMBER
B
AA
.062 TYPE lll CONTACT
108-10042
APPLICATION SPEC
2
114-10004
WEIGHT
-
CUSTOMER DRAWING
-
SIZE CAGE CODE DRAWING NO
00779
A2
RESTRICTED TO
163081 -
SCALE SHEET REV
NTS
OF
1 1
AY
