Tyco Electronics 2242L User Manual
2242L 22” LCD IntelliTouch Plus
Touchmonitor User Guide
Elo TouchSystems
2242L 22” LCD IntelliTouch Plus
Touchmonitor
User Guide
Revision A
SW601216
Elo TouchSystems
1-800-ELOTOUCH
www.elotouch.com
Copyright © 2010 Tyco Electronics. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language or computer language, in any form or by any means, including, but
not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written
permission of Tyco Electronics.
Disclaimer
The information in this document is subject to change without notice. Tyco Electronics makes no
representations or warranties with respect to the contents herein, and speci cally disclaims any
implied warranties of merchantability or tness for a particular purpose. Tyco Electronics reserves the
right to revise this publication and to make changes from time to time in the content hereof without
obligation of Tyco Electronics to notify any person of such revisions or changes.
Trademark Acknowledgments
AccuTouch, CarrollTouch, Elo TouchSystems, IntelliTouch, Tyco Electronics and TE (logo) are trademarks
of the Tyco Electronics group of companies and its licensors. Windows is a trademark of the Microsoft
group of companies. Other product names mentioned herein may be trademarks or registered
trademarks of their respective companies. Tyco Electronics claims no interest in trademarks other than
its own.
Elo TouchSystems 2242L User Guide 3
Table of Contents
Chapter 1: Introduction ......................................................................................5
About the Product .............................................................................................................5
Chapter 2: Installation And Setup .....................................................................6
Unpacking Your Touchmonitor ......................................................................................... 7
Interface Connection .......................................................................................................... 8
Installing the Touch Driver ................................................................................................9
Installing the IntelliTouch Plus Driver ............................................................................... 9
Monitor Mounting Orientation ........................................................................................11
Chapter 3: Operation ........................................................................................14
About T ouchmonitor Adjustments .................................................................................. 14
On-Screen Display (OSD) Control Box .........................................................................15
Preset Display Modes ......................................................................................................19
Chapter 4: Troubleshooting .............................................................................20
Solutions to Common Problems ......................................................................................20
Appendix A: Touchmonitor Safety ..................................................................21
Care and Handling of Your Touchmonitor ....................................................................... 22
Appendix B: Technical Specifi cations ............................................................24
2242L Specifi cations ........................................................................................................ 25

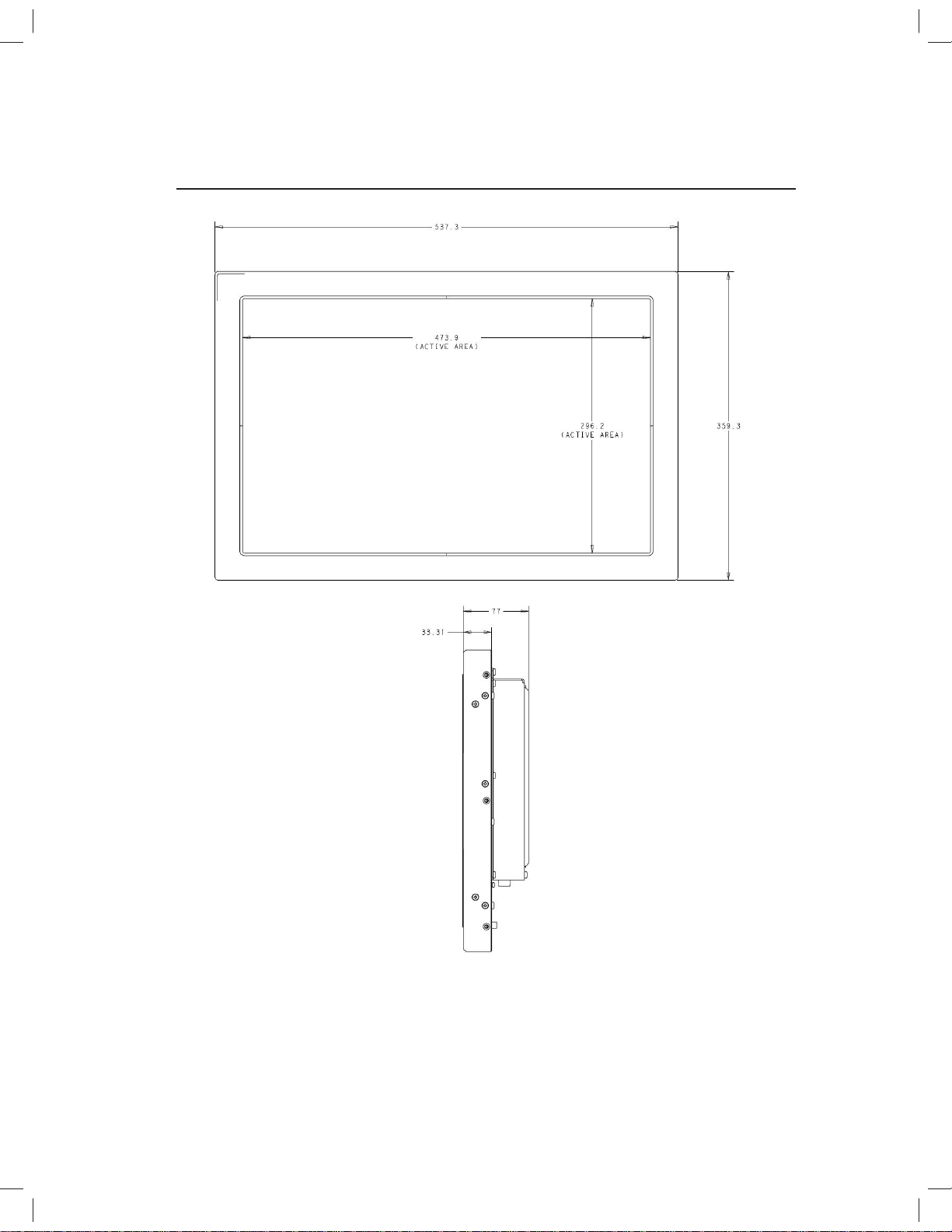

2242L 22” LCD Touchmonitor Dimensions ....................................................................27
Regulatory Information ....................................................................................................28
Warranty ...........................................................................................................................32
Elo TouchSystems 2242L User Guide 4
About the Product
Your new 2242L Elo TouchSystems touchmonitor combines the latest
advances in multitouch technology with the reliable performance of
Liquid Crystal Display (LCD) design. The monitor comes with the following features:
• 22” color active matrix thin-fi lm-transistor (TFT) with a
native resolution of 1680 X 1050.
C H A P T E R
1
INTRODUCTION
• Available in IntelliTouch Plus (Multi-Touch) technology.
• All monitors have VGA video data and DVI data inputs.
For more detailed information, please visit our website:
www.elotouch.com.
Elo TouchSystems 2242L User Guide 5
C H A P T E R
2
INSTALLA TION AND SETUP
This chapter discusses how to install and set up your LCD
touchmonitor and how to install Elo TouchSystems driver software.
Elo TouchSystems 2242L User Guide 6
Unpacking Your Touchmonitor
Check that the following items are present and in good condition:
Touchmonitor
USB cable
Power cable
Analog video cable DVI-D video cable
CD and Quick Install GuideOSD control box
Elo TouchSystems 2242L User Guide 7
Interface Connection
Connector Panel on Rear Side of Monitor
1 2 3 4 5 6
1. Power cable
2. Power button
3. OSD control box connector
4. USB cable
To connect the touchmonitor to the computer:
1 Connect the power cable to the rear panel of the monitor and the
other end to the power outlet.
2 Connect the USB cable to the rear panel of the monitor.
Connect the other end to your computer.
3 Connect the VGA video cable and/or the DVI-D cable to the rear
panel of the monitor. Tighten by turning the two thumb screws
clockwise to ensure proper grounding. Connect the other end to
your computer.
4 Connect the OSD control box to the monitor.
5 Press the power button on the rear panel to turn the monitor on.
6 Cancel any attemps by your Operating System to install a touch
driver for the touchmonitor.
5. DVI-D video cable
6. Analog VGA video cable
Elo TouchSystems 2242L User Guide 8
About Touch Drivers
On the enclosed CD, Elo TouchSystems provides touch drivers that
allow your touchmonitor to work with your computer.
The latest version of drivers and driver information is available on the
Elo TouchSystems website at
www.elotouch.com/support/downloads/
Installing the Touch Driver-IntelliTouch Plus Technology
*Multi-Touch Support *USB
*Single monitor *Windows 7 ONLY
Follow the directions on the screen to complete the driver setup for
your Windows 7 system.
1 Insert the Elo CD-ROM in your computer’s CD-ROM drive.
2 EloSetup launches.
3 Click “Install Driver For This Computer.”
4 Click “Install drivers for all other Elo USB interfaces.”
5 Click “Calibrate at end of Installation.”
6 Click the “Install” button.
7 Review and accept the license agreement.
Elo TouchSystems 2242L User Guide 9
8 The Align program automatically runs when the setup is complete.
Touch the three targets to calibrate the touchscreen. The align pro gram can also be invoked any time from the Elo Tool tray.
Elo TouchSystems 2242L User Guide 10
Monitor Mounting Orientation
When the monitor is mounted in the landscape orientation, the cable
connection panel must be at the bottom, as shown in the illustration
below.
Rear View of Monitor—Landscape Orientation
Cable connection panel must be at
the bottom for proper mounting of
the monitor.
Cable
connection
panel
Alternatively, the monitor may be mounted in the portrait orientation.
For this orientation, the cable connection panel may be on either side,
as shown in the illustrations below.

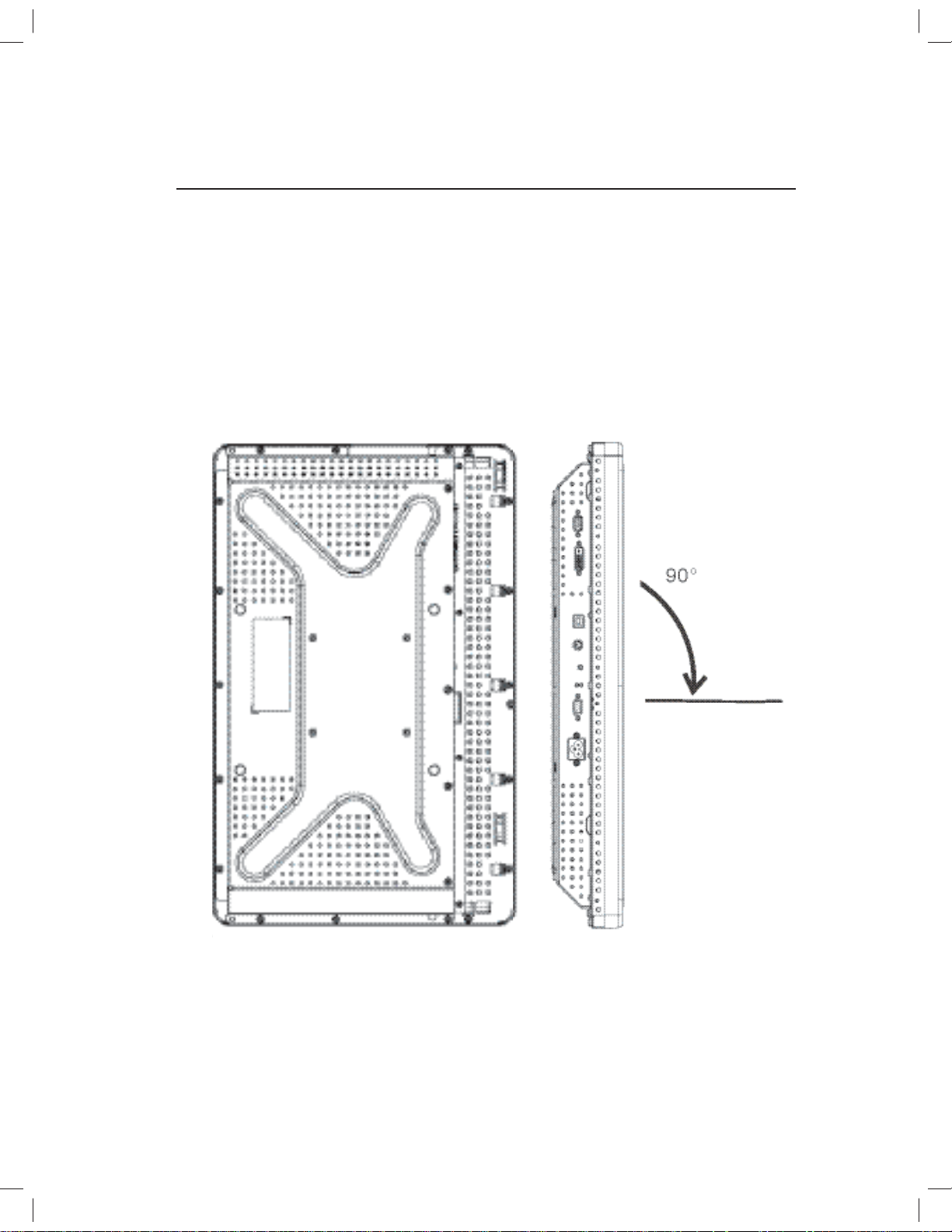

Rear View of Monitor—Portrait Orientation
Cable
connection
panel
Elo TouchSystems 2242L User Guide 11
