Elo Entuitive Touchmonitor User Guide

15" LCD Desktop Touchmonitor with Magnetic Swipe Reader (serial)

1525L Series

Revision A

P/N 008568

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

No part of this p ublic ation ma y be repr oduce d, transm itte d, transc ribed , store d in a ret rieval system, or translated into any language or computer language, in any form or by any mean s , including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo TouchSy s tems.

Disclaimer

The informat ion in this docum ent is subje ct to change with out notice . Elo TouchSystems makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warran ties of merchan tabili ty or fitnes s for a partic ular pu rpose. El o TouchSystems re serves the right to revise this publication and to make changes from time to time in the content hereof withou t ob l igatio n of El o Touch S ys tems to notif y an y pe r s o n of such revi s io ns or ch an g es .

Trademark Acknowledgments

IntelliTouch, SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo TouchSystems, Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their respective companies. Elo TouchSystems claims no interest in trademarks other than its own.

Chapter 1

Introduction 1

Precautions . . . . . . . . . . . . . . . . . . . .1

Chapter 2

Installation a nd S etup 3

Unpacking Your Touchmonitor. . . . . . . . . . .3

Product Overview . . . . . . . . . . . . . . . . .4

Main Unit. . . . . . . . . . . . . . . . . . . .4

Rear View . . . . . . . . . . . . . . . . . . . 4

Side View. . . . . . . . . . . . . . . . . . . .5

Base Bottom View . . . . . . . . . . . . . . .5

Touch Interface Connection . . . . . . . . . . . . 6

Serial Connection . . . . . . . . . . . . . . .6

STEP 1-Removing the Back Cover . . . . .7

STEP 2-Connecting the Video Cable . . . . 8

STEP 3-Connecting the Serial Touchscreen

Cable . . . . . . . . . . . . . . . . . . . . 9

STEP 4-Connecting the Speaker Cable . 10 STEP 5-Connecting the Power Cable. . . 11

STEP 6-Replacing the Back Cover . . . . 11

USB Connection . . . . . . . . . . . . . . . 12

STEP 1-Removing the Back Cover . . . . 13

STEP 2-Connecting the Video Cable . . . 14 STEP 3-Connecting the USB Touchscreen

Cable . . . . . . . . . . . . . . . . . . . 15

STEP 4-Connecting the Speaker Cable . 16 STEP 5-Connecting the Power Cable. . . 17

STEP 6-Replacing the Back Cover . . . . 17

Optimizing the LCD Display . . . . . . . . . . . 18

VESA Mount on Your Touchmonitor. . . . . . . 18

Accessing the VESA Mounting Interface. . . 19

Mounting the Base . . . . . . . . . . . . . . . 19

Installing the Driver Software . . . . . . . . . . 20

Installing the Serial Touch Driver. . . . . . . 21

Installing the Se rial Touch Driver f or Windo ws

2000, Me, 95/98 and NT 4.0 . . . . . . . 21

Installing the Serial Touch Driver f or MS-D OS

and Windows 3.1 . . . . . . . . . . . . . 22

Installing the USB Touch Driver . . . . . . . 23

Installing the USB Touch Driver for Windows

2000, Me and 98 . . . . . . . . . . . . . 23

Chapter 3

Operation 25

About Touchmonitor Adjustments. . . . . . . . 25

Using the On-Screen Display (OSD) Menus . . 25

Side Bezel Buttons . . . . . . . . . . . . . . . 26

OSD Menu Function . . . . . . . . . . . . . . 27

Chapter 4

T roub leshooting 29

Solutions to Common Problems . . . . . . . . 29

Appendix A

Native Resolution 31

Appendix B

T ouchmonitor Safety 33

Care and Handling of Your Touchmonitor. . . . 34

Appendix C

T ec hn ical S pec ificatio ns 35

Compatible Video Modes . . . . . . . . . . . . 35

Touchmonitor Specifications . . . . . . . . . . 36

15" LCD Touchmonitor (ET15-XXWA-1)

Dimensions . . . . . . . . . . . . . . . . . . 40

Regulatory Information 43 Warranty 47

Index 49 MSR Reference Manual 51

Programming Reference Manual 69

Congratulati ons on your purchase of an Elo TouchSystems Entuitive touchmonitor. Your new touchmonitor combines the reliable perfor mance of Elo’s touch technolo gy with the latest advances in LCD display design. This combination of featur es creates a natural flow of information between a user and your touchmonitor.

Precautions

C HAPTER

HAPTER

NTRODUCTION

Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. See Appendix B for more information on touchmon itor safety.

Abou t the Pr oduct

Your LCD Desktop Touchmonitor is a 15.1” XGA TFT color display with the following feature s:

• Direct analog RGB input

• 15.0” diagonal screen size

• 16.7 million displayable colors

• 1024 x 768 resolution

• XGA/ SVGA/ VGA/ VESA/ Mac compatible

• 30kHz~62 horizontal scan

• 56~75Hz refresh rate

1-1

• Auto adjustment capability

• High quality full scree n re- scaling

• Multilingual OSD menus in four languages: English, French, German, Spanish, and Japanese

• Serial or USB touch interfa ce (USB requires Windows 98, 2000, Me and XP.)

• Bui lt in sp eaker s

• Patented touch technology of Elo TouchSystems

• VESA DDC 1/2B data communication

• VESA DPMS power saving

• Stand with minimum 45° angle of tilt.

• Cable management device

• VESA flat panel monitor physical mou nting interface (75mm)

• OSD and Power button lockouts

For full Product Specif ications refer to Appendix C.

1-2 Elo Entuitive Touchmonitor User Guide

HAPTER

NSTALLATION AND

This chapter discusse s how to install your LCD touchmonitor and how to insta ll Elo TouchSystems driver software.

Unpac king Your Touc hm onitor

Check that the following 8 items are present and in good condition:

C HAPTER

ETUP

cable

LCD Display

European monitor power cable

Quick Install Guide

Software

Speaker Cable User Guide-on CD, Quick Install Guide and software CD

Serial touchscreenUSB touchscreen cable

Video cable

Speaker cable

Monitor power cable (US/Canada)

2-3

Prod uct O verview

Main Unit

Rear View

LCD Display

Stand

2-4 Elo Entuitive Touchmonitor User Guide

Side View

User Controls

Base Bottom View

2-5

Touch Interface Connec tion

OTE

Your interface cables may hav e been pre-connected to y our monitor at the factory.

Your touchmonitor comes with one of the following touc hscreen connector cables: Serial (RS-232) cable or USB cable. (For Windows 98, 2000, Me and XP systems only.)

To set up this display, please refer to the following figures and procedures:

Serial Connection

The following illustrat ions guide you step by step in connecting your touchmonitor using a serial cable connec tion.

CAU TION

Before connecting the cables to your touchmonitor and PC, be sure that the computer and the touchmonitor are turned off.

Serial touchscreen cable

Removable back cover

Speaker port

Power

Connections on underside

Video cable

Female 9-pin serial Touchscreen connector

Female 15-pin video connector

Speaker

cable

Monitor power cable (US/Canada)

European monitor power cable

2-6 Elo Entuitive Touchmonitor User Guide

STEP 1-Removi ng the Back Co ver

Bottom cut-out

• The cables are routed thro ugh the back of the stand.

• To remove the back cover, place one hand at the top of the stand an d your other hand on the bottom cut-out.

• Pull forward from the bottom cut- out an d twist the cover until it snaps off. The cable ports are located on the underside of your touchmonitor.

2-7

STEP 2-Connecting the Video Cable

Connections on underside

Female video connector

Cable management clip

Video cable

Video port

Ferrite bead

• Tilt the screen up and back to access the connection ports.

• Connect the 15-pin video cable (the ferrite bead end) to the video port on your PC.

• Connect the other end of the video cable to the video connector on your touchmonitor by routing the cable through the hole in the stand.

• Secure the cable to your touchmon itor and PC by turning the screws on the connector clockwi se.

• Place the cable in the cable management clip.

2-8 Elo Entuitive Touchmonitor User Guide

STEP 3-Connecting the S erial Touchscreen Cable

Connections on underside

Female 9-pin Serial Touchscreen connector

Serial Touchscreen cable

• Connect the female end of the serial (RS-232) cable to the serial port on the back of your PC.

• Connect the male e nd of th e cable to t he s erial t ouchsc reen conne ctor on your touchmonitor.

• Secure the cable to your touchmon itor and PC by turning the screws on the connector.

• Route the cable through the cable management clip.

2-9

STEP 4-Connecting the S peaker Cab le

OTE

If you do not wish to connect the speaker cab le, go to step 5.

Speaker cable

Connections on underside

Speaker port

• To use the built in speakers, you need to connect the speaker cable. Connect the speaker cable to the speaker port inside the back of your touchmonitor.

• Connect the other end of the cable to the spe aker connector on your PC.

2-10 Elo Entuitive Touchmonitor User Guide

STEP 5-Connecting the Power Cable

Connections on underside

AC power cable port

Cable management clip

Power cable

Depending on where you live, you will use eit her the European or US/Canadian power cable.

• Connect the female end of the power cable to the power port on the touchmonitor.

• Route the cable through the cable management clip.

OTE

To protect your equipment against risk of damage from electrical surges in the power line, plug the touchmonitor’s power cord int o a surge protector, and then connect the surge protector to a grounded AC electrical outlet.

STEP 6-Replacing the Back Cover

When all the cables hav e been co nne ct ed:

• Replace the b ack sta nd co v er.

• Power on your PC then your touchmonitor. After a brief pause the picture should appear.

2-11

OTE

CAUT ION

USB Connection

A USB connection can only be used if your PC is running Windows 98, 2000, Me or XP.

The following illust rations guide you step by step in connecting your touchmonitor using a USB cable connection.

Before connecting the cables to your touchmonitor and PC, be sure that the computer and the touchmonitor are turned off.

USB touchscreen cable

Removable back cover

Speaker port

Connections on underside

USB port

Video cable

Female 15-pin video connector

Speaker cable

Monitor power cable

(US/Canada)

European monitor

power cable

2-12 Elo Entuitive Touchmonitor User Guide

STEP 1-Removi ng the Back Co ver

Bottom cut-out

• The cables are routed thro ugh the back of the stand.

• To remove the back cover, place one hand at the top of the stand an d your other hand on the bottom cut-out.

• Pull forward from the bottom cut- out an d twist the cover until it snaps off. The cable ports are located on the underside of your touchmonitor.

2-13

STEP 2-Connecting the Video Cable

Connections on underside

Female 15-pin

Cable management clip

Video cable

video

connector

Video port

Ferrite bead

• Tilt the screen up and back to access the connection ports.

• Connect the 15-pin video cable (the ferrite bead end) to the video port on your PC.

• Connect the other end of the video cable to the video connector on your touchmonitor by routing the cable through the hole in the stand.

• Secure the cable to your touchmon itor and PC by turning the screws on the connector clockwi se.

• Place the cable in the cable management clip.

2-14 Elo Entuitive Touchmonitor User Guide

STEP 3-Connecting the U SB Touchscreen Cable

Connections on underside

USB

touchscreen connector

Cable management clip

USB touchscreen cable

• Connect the USB t ouchscree n cabl e to the US B touch screen co nnector on the touchmonitor.

• Connect the other end of the USB touchscreen cable to your PC.

• The touchscreen cabl e connector s should fit snugly into the connectors on your touchmonitor and PC.

• Route the cable through the cable management clip.

2-15

STEP 4-Connecting the S peaker Cab le

Speaker cable

Connections on underside

Speaker port

OTE

If you do not wish to connect the speaker cab le, go to step 5.

• To use the b uilt in s peake rs, you need to connect t he speaker c able. B oth ends of the speaker cable are identical, so you can connect either end of the speaker cable to the speaker port inside the stand of your touchmonitor.

• Connect the other end of the cable to the spe aker connector on your PC.

2-16 Elo Entuitive Touchmonitor User Guide

STEP 5-Connecting the Power Cable

Connections on underside

Power cable

Depending on where you live, you will use eit her the European or US/Canadian power cable.

• Connect the female end of the power cable into the power port on the touchmonitor.

• Route the cable through the cable management clip.

OTE

STEP 6-Replacing the Back Cover

When all the cables hav e been co nne ct ed:

• Put the back stand cover on.

• Power on your PC then your touchmonitor. After a brief pause the picture should appear.

2-17

Optimizing the LCD Display

To ensure the LCD display works well with your compute r, configure the display mode of your graphic card to make it less than or equal to 1024 x 768 resolution, and make sure the timi ng of the display mode is compatible with the LCD display. Refer to Appendix A for more information about resolution. Compatible video modes for your touchmonitor are listed in Appendix C.

VESA M ou nt on Yo ur Touchm onitor

Your touchmonitor confo rms to the VESA Flat Panel Monitor Physical Mounting Interface (FPMPMI™) Standard which defines a physical mounting interface for flat panel monitors, and corresponding standards for flat panel monitor mounting device s, suc h as wall and table arms. The VESA mounting interface is loca ted on the back of your touchmonitor and is shipped pre-connected to the base.

M4x0.7 threaded holes

VESA mounting

interface

OTE

The abov e drawing displays the VESA mounting interface after the removal of the mounting cover and base.

2-18 Elo Entuitive Touchmonitor User Guide

Accessing the VESA Mounting Interface

If you want to convert your desktop monitor to a wall mount or kiosk monitor, follow the steps below to acces s the VESA mounting interface.

OTE

You will need a screwdriver f or the following steps.

1 Remove the back cover of the stand by pulling forward on the bottom

cut-out.

2 Carefully lay the monitor face down. At the top of the mounting screw cover

there are two slots. With a screwdriver, pry open the mounting screw cover. The cover fit is tight so remove it carefully.

3 When you remove the mounting screw cover, you will see four screws.

Remove the screws to mount your monitor. Refer to the drawing on page 18.

The following companies provide VESA mounting devices compatible with your touchmonitor:

Ergotron 800-888-8458 651-681-7600 www.ergotron.com

GCX 800-228-2555 707-773-1100 www.gcx.com

Mounting the B ase

You can also mount your touc hmonitor by using the keyholes in the base of the stand. These keyholes provide easy slide on mounting. You can also bolt your touchmonitor to a table top or other flat surface. Please refer to Appendix C for location and dimension of the mounting holes.

Innovative Office Products 800-524-2744 610-253-9554 www.innov-office-prod.com

MRI 800-688-2414 www.mediarecovery.com

2-19

Installing the D river Soft ware

Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers a re located on the enc losed CD-ROM for the following operat ing systems:

• Windows XP

• Windows 2000

• Windows Me

• Windows 98

• Windows 95

• Windows NT 4.0 Additional driver s and driver information fo r other operating systems (i ncluding

MS DOS, Windows 3.x, OS/2, Macintosh and Linux) are available on the Elo TouchSystems web site at www.elotouch.com.

Your Elo touchmonitor is plug-a nd-play compliant. Information on the video capabilitie s of your touchmonitor is sent to your video display adapte r when Windows starts. If Windows detects your touchmonitor, follow the instr uctions on the screen to install a generic plug-and-play monitor.

Refer to the appropriat e following section for driver installation instructions.

2-20 Elo Entuitive Touchmonitor User Guide

Installing the Serial T o uch Driver for Windows XP, Windows 20001, Me, 95/98 and NT 4.0

OTE

For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver.

1 Insert the Elo CD-ROM in your computer’s CD-ROM drive.

If the AutoStart feature for your CD-ROM drive is active, the system automatically de tects the CD and starts the setup program.

2 Follow the directions on the screen to complete the driver setup for your

version of Windows.

If the AutoStart featu re is no t acti ve:

1 Click Start > Run. 2 Click the Browse button to locate the EloCd.exe program on the CD-ROM. 3 Click Open, then OK to run EloCd.exe. 4 Follow the directions on the screen to complete the driver setup for your

version of Windows.

1.To install Windows 2000 and Windows XP, you must use the "update driver" method; you will not find a setup.exe fil e within the download.

2-21

Inst a lling the Serial Touch Driver for M S-DOS and Windows 3. 1

You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS.

To install Windows 3.x and MS-DOS from Windows 95/98, follow the dire c t io ns be lo w:

1 Insert the Elo CD-ROM in your computer’s CD-ROM drive. 2 From DOS, type d:\EloDos_W31 to change to the correct directory on the

CD-ROM (your CD-ROM drive may be mapped to a different drive letter).

3 Type install and press Enter to start the installation. 4 Align the touchscree n.

You must have already completed Steps 1 and 2 before proceeding. Refer to Chapter 2 of the Elo DOS and Windows Driver Guide as necessary for additional ins tallation information.

To run the INSTALL program:

1 Type INSTALL at the DOS prompt in the directory containing the driver

inst a l l f i l e s .

2 INSTALL asks you to select the softwar e to install. Then choose

d:\EloDos_W31 from the displ ayed list.

3 INSTALL also asks you for the paths to use during ins tallation, or you may

use its defaults. INSTALL creates directories as necessary, and warns you if they exist.

If you are updating your softwar e, you may wish to specify the paths conta ining the earlier versi ons, and overwrite the obsolete files. All executable programs are upward comp a tib le. Fo r a list of differences from each prev iou s ve rsion of the drivers, be sure to select "Differences from Previous Versions" during the installation process.

INSTALL updates your AUTOEXEC.BAT file with the drivers you select. INSTALL makes a copy of your original AUTOEXEC.BAT file, cal led AUTOEXEC.OLD. If you already have Elo driver commands in your AUTOEXEC.BAT file, they will be commented out.

When INSTALL is finished, it leaves a file called GO.BAT in the subdirectory you specified. GO loads the touchscreen driver, runs the calibration program ELOCALIB, and gives you some final instructions.

If you are using Windows 3.1, you will also calibrate the touchscreen within Windows 3.1 with the Touchscreen Control Panel.

2-22 Elo Entuitive Touchmonitor User Guide

To install Windows 2000 and Windows XP, you must use the "update  driver" method; you will not find a setup.exe file within the download

Installing the USB Touch Driver

Installing the USB Touch Driver for Windows XP, Windows 2000,

Me and 98

1 Insert the Elo CD-ROM in your computer’s CD-ROM drive.

If Windows 98 or Windows 2000 starts the Add New Hardware Wizard:

2 Choose Next. Select “Search for the best driver for your device

(Recommended)” and choose Next.

3 When a list of search locations is displayed, place a checkmark on “Specify a

location” and use Browse to select the \EloUSB directory on the Elo CD-ROM.

4 Choose Next. Once the Elo TouchSystems USB touchscreen driver has been

detected, choose Next again.

5 You will see several files being copied. Insert your Windows 98 CD if

prompted. Choose Finish.

If Windows 98 or Windows 2000 does not start the Add New Hardware Wizard:

OTE

For Windows 2000 you must have administrator access rights to install the driver.

1 Insert the Elo CD-ROM in your computer’s CD-ROM drive.

If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program.

2 Follow the directions on the screen to complete the driver setup for your

version of Windows.

If the AutoStart feature is not active:

version of Windows.

2-23

2-24 Elo Entuitive Touchmonitor User Guide

About T ouchmonitor Adjustments

Your touchmonitor will unlikely require adjustment. Variations in video output and application may requi re adjustments to your touchmonitor to optimize the quality of the displa y.

For best performance, your touchmonitor should be operating in native resolution, that is 1024 x 768 at 60-75 Hz. Use the Display control panel in Windows to choose 1024 x 768 resolution.

C HAPTER

HAPTER

PERATION

Operating in other resolutions will degrade video performance. For further information, please refer to Appendix A.

All adjustments you make to the controls are automatically memorized. This feature saves you from having to rese t your choices every time you unplug or power your touchmonitor off and on. If there is a power failure your touchmonitor settings will not default to the factory specifications.

Using the On- Screen Displa y (OSD) M enus

All adjustments are made by using the on-screen display (OSD) menus. All menu items can be selected by using the buttons on the side bezel.

OTE

OSD menu default is enabled.

3-25

Side Be zel Butt ons

SELECT

Contro l Function

Menu Display on ex it the OSD menus.

Contrast/ Up/Toggle

Volume/Down Toggle

Enter Select item

1. Shortcut to Contrast adjustment

2. Increase value of adjustment items

3. With menu on toggles OSD options

1. Shortcut to Volume adjustment

2. Decrease value of the adjustment items

3. With menu on toggles OSD options

1. Shortcut to Auto Adjust

2. Select- To select the adjustment items from the OSD menus.

3. Auto- To act ivate the “Auto Adjustment” function to obta in an optimum image.

3-26 Elo Entuitive Touchmonitor User Guide

Power Switch Switches the power on/off to your touchmonitor. Enable/ D isable 1. Press th e U p and Down buttons at the same

time to ena ble /d is abl e the MU TE f unc ti ons . OS D menu default is enabled

2. Press the Me nu and Up buttons at the same time and hold for two seconds to enable/disable the OSD functions. OSD menu default is enabled.

3. Press the Me nu and Down buttons at the same time and hold for two seconds to enable/disable the power loc k function. OSD menu default is enabled.

OSD M enu F unction

CONTRAST

Contrast

Controls the picture contrast

Brightness

Controls the picture brightness

V-Position

Controls the vertical position

H-Position

Controls the horizontal position

Recall De faults

Recalls f actory settings of the image parameters

C1/C2/USER (Color)

Using these icons, you can select one of the preset color temperatures (9300°K or 6500°K). Confirm your choice by pres si ng the SELECT button. If you want to change the color temperatu res individually, select USER and confirm by pressing the OSD button SELECT. Now you can use the OSD dial to toggle between the settings R, G and B (red, green and bl ue foregroun d). T o change a setting, first press the SELECT button, then ch oo s e the desired value w ith the OSD dial. To confirm the setting, press the SELECT button again.

If you don’t need to adjust an y further settings, choose the icon to return to the OSD main menu.

Phase

Controls the vertical fine adjustment

Clock

Controls the horizontal fine adjustment

OSD H-Position

Adjusts the horizontal position of the OSD menu

OSD V-Position

Adjust th e vertical position of the OSD men u

OSD Time

Determines how long (in seconds) the OSD menu waits befor e cl osing au to m a tic a lly after no action has been performed.

Auto Adjus t

Autom at ic a lly selects th e o ptional set tings for image parameters (brightness, contrast, image position, phase, etc.)

OSD Language

Selection of the OSD menu langu age: English, French, Ge rm an, Spanish, Japanese.

Image Inform ation

Display s the current graphics mode.

3-27

3-28 Elo Entuitive Touchmonitor User Guide

If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center.

Solutions to Common Problems

Problem Suggestion(s)

C HAPTER

HAPTER

ROUBLESHOOTING

No image ap pears on screen . Check that al l the I/O and power connectors are properly

connected as described in Chapter 2. Make sure the pins of the connectors are not cr ooked or

broken. Test power su pply by trying different cable s, a different

wall outlet or plug another appliance into the outlet. Make certa in the vi deo cab le is prope rl y conne ct ed a nd tha t

it is not damaged. Check for bent pins on the cable connectors.

Ensure that your computer and video card are properly configured. (Consult video card documentation.)

“Out of Range ” display Check to see if the resolution of your compute r is higher

than that of the LC D display. Reconfigure the resolution of your computer to make it less

than or equal to 1024 x 768. See Appendix A for more info rmation on res olution .

4-29

Image has vertical flickering line bars. Use “PHASE” to make an adjustment .

Check and reco nfigure the display mode of the vertical refresh ra te of y our gr aph ic car d t o mak e it co mpat ib le with

the LCD display. Image is uns table and flicke ring Use “CLOC K” to m ake an adjustme nt. Image is scrolling Make sure the VGA signal cable (or adapter) is well

connected.

Check and reco nfigure the display mode of the vertical

refresh ra te of y our gr aph ic car d t o mak e it co mpat ib le with

the LCD display. Touch doesn’t work Make sure cable is securely attached at both ends.

4-30 Elo Entuitive Touchmonitor User Guide

A PPENDIX

HAPTER

ATIVE

The native resolution of a monitor is the resolution level at which the LCD panel is designed to perfor m best. For the Elo LCD touchmonitor, the native resolution is 1024 x 768 for the XGA-15 inch siz e. In almost all cases, screen images look best when viewed at their native resolution. You can lower the resolution setting of a monitor but not increase it.

Input Video 15" LCD

640x480 (VGA) Transforms input format to 1024x768 800x600 (SVGA) Transforms input format to 1024x768 1024x768 (XGA) Displays in Native Resolution

ESOLUTION

The native resolution of an LCD is the actual number of pixels horizontally in the LCD by the number of pixels vertical ly in the LCD. LCD resol ution is usually represented by the following symbols:

VGA SVGA XGA SXGA UXGA

640x480 800x600 1024x768 1280x1024 1600x1200

A-31

As an example, a SVGA resolution LCD panel has 800 pixels horizontally by 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels hor iz ontally by 768 pixels vertically. When the input pixels containe d in the video input format match the native resolution of the pa nel, there i s a one to one corre spondence of mapping of input video pixels to LCD pixels. As an example, the pixel in column 45 and row 26 of the input video is in column 45 and row 26 of the LCD. For the case when the input vide o is a t a lowe r res oluti on than t he nat ive res oluti on of th e LCD, the direct corresponde nce between the video pixels and the LCD pixels is lost. The LCD controller c an compu te the correspon dence be tween video pi xels a nd LCD pixels using algorithms contained on its controller. The accur acy of the algorithms determines the fidelity of conversion of video pixels to LCD pixels. Poor fideli ty conversion can result in artifacts in the LCD displayed image such as varying width charact ers.

A-32 Elo Entuitive Touchmonitor User Guide

A PPENDIX

HAPTER

OUCHMONITOR

This manual contains inf ormation that is important for the proper setup and maintenance of your touc hmonitor. Befor e setti ng u p and poweri ng on your new touchmonitor, read thr ough this manual, especia lly Chapter 2 (Insta llati on), and Chapter 3 (Ope rati o n).

1 To reduce the risk of electric shock, follow all safety notices and never open

the touchmonitor case.

2 Turn off the product before cleaning

AFE TY

3 Your new touchmonitor is equipped with a 3-wire, grounding power cord.

The power cord plug will onl y fit into a grounde d outlet. Do not a ttempt to fit the plug into an outlet that has not been confi gured for this purpose. Do not use a damaged power cord. Use only the power cord that comes with your Elo TouchSystems Touchmonitor. Use of an unauthorized power cord may invalidate your warranty.

4 The slots located on the sides and top of the touchmo nitor case are for

ventilatio n. Do not bloc k or insert anything inside the ventilati on slots.

5 It is important that your touchmonitor remains dry. Do not pour liquid int o or

onto your touchmonitor . If your touchmo nitor becomes wet do not attempt to repair it yourself.

B-33

Care an d Handling of Your T o uchm onitor

The following tips will help keep your Elo Entuitive touchmonitor functioning at the optimal level.

• To avoid risk of electric shock, do not disassemble the brick supply or display unit cabine t. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning.

• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not use thinner or benzene, abra sive cleaners or compressed air.

• To clean the display unit cabinet , use a cloth lightly dampened with a mild detergent.

• Avoid getting liquids inside your touchmonitor. If liquid does get inside, have a qualified servi ce te chnician check it before you power it on again.

• Do not wipe the screen with a cloth or sponge that could scratch the surface.

• To clean the touchscreen, use window or glass cleaner. Put the cleaner on the rag and wipe the touchscreen . Never apply the cleaner directly on the touchscreen

B-34 Elo Entuitive Touchmonitor User Guide

A PPENDIX

HAPTER

ECHNICAL

Compatib le Video Modes

Your Elo Entuitive touchmon itor is compatible with the following standard video modes:

Mode Resolution H. Frequency (kHz) V. Frequency (Hz)

IBM & VESA VGA 640 x 350 31.47 70.09 IBM & VESA VGA 640 x 400 31.47 70.09 IBM & VESA VGA 720 x 400 31.47 70.09 IBM & VESA VGA 640 x 480 31.47 59.94 IBM & VESA VGA 640 x 480 37.86 72.81 IBM & VESA VGA 640 x 480 37.50 75.00 VESA SVGA 800 x 600 35.16 56.25 VESA SVGA 800 x 600 37.88 60.32 VESA SVGA 800 x 600 48.08 72.19 VESA SVGA 800 x 600 46.88 75.00 VESA XGA 1024 x 768 48.36 60.00 VESA XGA 1024 x 768 56.48 70.07 VESA XGA 1024 x 768 60.02 75.03 Apple Macintosh LC 13” 640 x 480 34.97 66.61 Apple Macintosh II 13” 640 x 480 35.00 66.67 Apple Macintosh 16” 832 x 624 49.73 74.55 Apple Macintosh 19” 1024 x 768 60.24 75.02 NEC FC-98 series 640 x 400 24.83 56.42 NEC FC-98 series 640 x 400 31.47 70.01 NEC FC-98 series 640 x 480 31.47 59.94

PECIFICATIONS

C-35

Touchm onitor Sp ecifications

Table C.1

15" LCD Touchmonitor (ET1 5-XXWA-1) Specifications

Display Type

Size

Pixel Format Touchscreen

Colors Display

Active matrix, thin film transistor (TFT) , liquid cr ystal display

15-inch diagonal

304.1 x 228.1 m m useful screen area

1024 x 768

0.125-inch IntelliTouch and AccuTouch, anti-glare

Intelli Touch or AccuTouch 16 million with dithering

IntelliTouch: 270 cd/m² typical AccuTouch: 250 cd/m² typical

Brightness Back-light Lamp

Life Viewing Ang le

Contrast Ratio Display R esponse

25,000 hou rs at 50% brightness typical

Horizontal Vertical 450:1 typical

13 ms (tr) /2 7 ms (tf)

Time Environmental

Mechanical

Electrical

Speak ers Agencies

Operating Temp Storage Temp Humidity

Weight

Size Input Video Input Power Power Dissipation 8 ohms, 1 watt per speaker

Safety & EMC UL, cUL and TUV-GS, FCC-B,

±65 or 12 0 de gree s total ±60- 45 or 105 deg re es tota l

0°C to 40°C

-25°C to +60°C 80% non-condensing AT

95% IT 17 lbs. maximum approx. weight

for IntelliTouc h an d A cc u T ouch See drawings on next page.

VGA/SVGA/XGA analog video 100-240 VAC, 50/60 Hz. Universal

CE, C-Tick and VCCI

C-36 Elo Entuitive Touchmonitor User Guide

Table C.2

Mechanical

Positional Accuracy

Touchpoint Densit y Touch Activation

Force Surface Durability Expected Life

Performance

Sealin g

Optical

Light Transmission (per ASTM D1003)

Visual Resolution

Gloss (per ASTM D2457 using a 60degree gloss meter)

IntelliTouch Touchmonitor Specifications

Standard deviation of error is less than 0.080 in. (2.03 mm). Equate s to les s th an ± 1%.

More than 100,000 touchpoints/in2 (15,500 touchpoints/cm2). Typically less than 3 ounces (85 grams).

Surfac e durability is that of glass, Mohs’ hardness rating of 7. No know n we ar -o ut mech an ism, as th ere are no layers, coating s,

or moving pa rts. Intelli T ouch technology has been opera tionally tested to more th an 5 0 millio n to uches in o n e location w ithout failure, using a stylus similar to a finger.

Unit is sealed to protect against splashed liquids, dirt, and dust.

90%

All measurem ents made using U SA F 1951 Resolution Chart, under 30X magnification, with test unit located approximately

1.5 in (38 mm) from surface of resolution chart. Clear surface: Excellent, with no noticeable degradation. Antiglare surface: 6:1 minimum.

Antiglare surface: Curved: 60 ± 20 gloss units or 75 ± 15 gloss units.

C-37

Environmental

Chemical Resistance

Electrostatic Protection (per EN 61 000-4-2, 1995)

The acti ve area of the touchscreen is resistan t to all chemicals that do no t affect glass, such as:

Acetone Toluene Methyl et hyl ketone Isopropyl alcohol Methyl alcohol Ethyl ac etate Ammo ni a-bas ed gl ass clea n er s Gasoline Kerosene Vinegar

Meets Level 4 (15 kV air/8 kV contact discharges).

C-38 Elo Entuitive Touchmonitor User Guide

Table C.3

AccuTouch Touchmonitor Specifications

Mechanical

Construction

Positional Accuracy

Touchpoin t Dens it y Touch Activatio n Force Surface Durability

Expected Life Performance

Optical

Light Transmis s ion (per ASTM D1003)

Visual Resolution

Haze (per ASTM D1003) Gloss (per ASTM D2457)

Top: Pol ye s te r w ith ou ts id e har d -surfac e co a tin g wi th cle ar or antiglare finish.

Inside: Transparent conductive coating. Bottom: G lass substrate with uniform resistive coating. Top and

bottom la yers separated by Elo-patented separator dots. Standard deviation of error is less than 0.080 in. (2.03 mm). This

equates to less than ±1%. More than 100,000 touchpoints/in² (15,500 touchpoints/cm²). Typically less than 4 ounces (113 grams). Meets Taber Abrasion Test (ASTM D1044), CS-10F wheel, 500 g.

Meets pencil hardness 3H. AccuTouch technology has been operationally tested to greater than

35 million touches in one location without failure, using a stylus similar to a finger.

Typically 75% at 550-nm wavelength (visible light spectrum).

All measurements made using USAF 1951 Resolution Chart, under 30 X magnification, with test unit located approximately 1.5 in. (38 mm) from surface of resolution chart.

Antiglare surface: 6:1 minimum. Antiglare surface: Less than 15%. Antiglare surface: 90 ± 20 gloss units tested on a hard-coated front

surface.

C-39

15" LCD Touc hmon itor (ET 15-XXWA-1) Dim ensions

C-40 Elo Entuitive Touchmonitor User Guide

See Detail A

Detail A

C-41

C-42 Elo Entuitive Touchmonitor User Guide

HAPTER

EGULATORY INFORMATION

I. Electrical Safety Inform ation:

A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

B) There are no operator serv iceable parts inside this equipment. The re are haza rdous vol tages genera ted by this equipment which constitute a safety hazard. Service should be provided only by a qualifi ed service technician.

C) This equipment is provided with a detachable po w er cord which has an integral safety ground wire intended for connection to a grounded safety outlet.

1) Do not substi tute the cord with othe r than the provide d approved typ e. Under no circumstances use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.

2) The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.

3) Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equ ipment to mains power.

II. Emissions and Immunity Information

A) Notice to Users in the United States: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, ma y cause harmful interference to radio communications.

B) Noti ce to Users in Canada: This equipment complie s with the C lass B lim its for radio noise emissions from digital apparatus as established by the Radio Interference Regulations of Industrie Canada.

C) Notic e to U se rs in th e E ur o pe an Unio n: Us e only the prov id ed power cords and interconnecting cabling provided with the equipment. Substitution of provided cords and cabling may compromise electrical safety or CE Mark Certification for emission s or immunity as required by the following standards:

This Inform ation T echnology Equipment (ITE) is required to have a CE Mark on the manufacturer’s label which means that the equipment has been tested to the following Direc tives an d Standards:

This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 89/336/EEC indicated in European Standard EN 55 022 Class B and the Low Voltage Directive 73/23/EEC as indicated in European Standard EN 60 950.

D) General Information to all Users: This equipment generates, uses and can radiate radio frequency energy. If not installed and used according to this manual the equipment may cause interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular instal lation due to site-specific factors.

1) In order to meet emission and immunity requirements, the user must observe the following:

a) Use only the provided I/O cables to connect this digital device with any computer.

b) To ensure compliance , use only th e provided manufacturer’ s approve d line cord.

c) The user is cautioned that changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2) If this e quipment appear s to cause interference with radio or television reception, or any other device:

a) Verify as an emission source by turning the equipme nt off and on. b) If you de te r m in e th a t th is equ i pm e n t is cau s in g the int er fe rence, tr y to

correct the interference by using one or m ore of the following measures:

i) Move the digital device away from th e affecte d receiver. ii) Reposition (turn) the digital device with respect to the affected

receiver. iii) Reorient the affected re ceiver’s antenna. iv) Plug the digital device into a different AC outlet so the digital

device and the receiver are on different branch circuits. v) Disconnect and remove any I/O cables that the digital device

does not use. (Unterminated I/O cables are a potential source of high RF emission levels. )

vi) Plug the digital device into only a grounded outlet receptacle. Do not u se AC adap ter plugs. (Re moving or cuttin g the line cord ground may increase RF emission levels and may also present a lethal shock hazard to the user.)

If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician.

44 Elo Entuitive Touchmonitor User Guide

N10051

46 Elo Entuitive Touchmonitor User Guide

HAPTER

ARRANTY

Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 1

Seller makes no warranty regarding the model life of components. Seller’s suppliers may at any time and from time to time make change s in the components deliver ed as Products or components.

Buyer shall notify Seller in writing promptly (and in no case later than thirty (30) days after discov ery) of the failure of any Product to conform to the warranty set forth above; shall describe in commercially reasonable detail in such notice the symptoms assoc iated with such failure; and shall provide to Seller the opportun ity to inspect such Products as installed, if possible. The notice must be received by Selle r during the Warranty Period for such product, unless otherwise directed in writing by the Seller. Within thirty (30) days after submitting such noti ce, Bu yer shall package the allegedly defective Product in its original ship ping carton(s) or a functional equivalent a nd shall ship to Seller at Buyer’s expense and risk.

Within a reasonable time after receipt of the allegedly defective Product and verification by Seller that the Product fails to meet the warranty set forth above , Seller shall corr ect such failure by, at Seller’s options, either (i) modifying or repairing t he Product or (ii) replacing the Product. Such modification, repair, or replacement and the return shipment of the Pro duct with minimum insurance to Buyer shall be at Se ller’s expense. Buye r shall be ar the r isk of loss or damage in transit, and may insure the Product. Buyer shall reimburse Seller for transportat ion cost incurred for Product returned but not found by Seller to be defective. Modifi cation or repair , of Products may, at Seller’ s option , take place either at Seller ’s facilities or at Buyer’s premises. If Seller is unable to modify, repair, or replace a Product to conform to the warranty set forth above, then Seller shall, at Seller’s option, either refund to Buyer or credit to Buyer’s account the purchase price of the Product less depreciation calculated on a straight-line basis over Seller’s stated Warranty Period.

year.

THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BRE ACH OF WARRA NTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE. NO EMPLOYEE OF SELLER OR ANY OTHER PARTY IS AUTHORIZED TO MAKE ANY WARRANTY FOR THE GOODS OTHER THAN THE WARRANTY SET FORTH HEREIN. SELLER’S LIABILITY UNDER THE WARRANTY SHALL BE LIMITED TO A REFUND OF THE PURCHASE PRICE OF THE PR ODUCT. IN NO EVENT SHALL SELLER BE LIABLE FOR THE COST OF PROCUREMENT OR INSTALLATION OF SUBSTITUTE GOODS BY BUYER OR FOR ANY SPECIAL, CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES.

Buyer assumes the risk and agrees to indemnify Seller against and hold Seller harmless from all liability relating to (i) assessing the suitability for Buyer’s intended use of the Product s and of any system design or drawing and (ii) determining the complia nce of Buyer’s use of the Products with applicable laws, regulations, codes, and standards. Buyer retains and accepts full responsibil ity for all warranty and other claims relatin g to or aris ing from Buyer’s products, which include or incorporate Products or componen ts manufactured or supplied by Seller. Buyer is solely responsible for any and all representations and warranties regarding the Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller harmle ss from any liability, claims, los s, cos t, or expe nses (inc lu ding rea sonable a tto rney’s fees) a ttribu table to Buyer’s products or representations or warranties concerning same.

48 Elo Entuitive Touchmonitor User Guide

INDEX

Numerics

15" LCD Tou c hm on it or (E T1 5-XXWA-1 ) Di m en si ons, 40 15” LCD To uchmo nit or (ET15 -XXW A-1) Specif icat ion s, 36

About the Product, 1 About Touchmonitor Adjustments, 25 Accessing the VESA Mounting Interface, 19 AccuTouch Touc hmonitor Specifications, 39 Agencies, 36 Auto Adjust, 27

Back-light Lamp Life, 36 Base Bottom View, 5 Brightness, 27

C1/C 2/USER (Color), 27 Care and Handling of Your Touchmoni tor, 34 Chemical Resistance, IntelliTouch, 38 Cleaning Your Touchmonitor, 34 Clock, 27 Colors, 36 Compatible Vid eo Modes, 35 Connecting the Power Cable, 11, 17 Connecting the Serial Touchscreen Cable,9 Connecting the Speaker Cable, 10, 16 Connecting the USB Touchscreen Cable, 15 Connecting the Video Cable, 8, 14 Construction, AccuTouch, 39 Contrast, 26, 27 Contrast Ratio, 36

Expected Life Performance, AccuTouch,39 Expected Life Performance, Intelli Touch, 37

Glos s, Ac cuTouc h, 39 Gloss, In tel liT ou c h, 37

Haze, Ac cuTouch, 39 H-Position, 27

Image I nformation, 27 Image problem, 29 Image, scrolling, 30 Image, unstable ,30 Image, vertical flickering, 30 Instal lation an d Setup, 3 Installing the Driver Software, 20 Installing the Serial Touch Driver, 21 Installing the Serial Touch Driver for MS-DOS and

Windo ws 3.1, 22

Instal ling th e Seria l Touch D river f or Window s 2000 , Me,

95/98 and NT 4.0, 21 Insta lling the USB Touch Driver, 23 Install ing t he US B Touc h Driv er for Windo ws 2 000, Me and

98, 23 Intelli Touch Touc hm onitor Spe c if i ca tio ns , 37 Introduction,1

Light Transmission, AccuTouch, 39 Light Trans mi ssi on , Inte lli To uc h, 3 7

Display Brightness,36 Display Response Time, 36 Display Type, 36

Electrical, 36 Electrical Safety Information, 43 Electrostatic Protection, IntelliTouch, 38 Emissions and Immunity Information, 43 Enable/Disable, 26 Environm e ntal, 36, 38

Main Unit, 4 Mechanical, 36 Mechanic al, AccuTouch, 39 Mechanical, IntelliTouch, 37 Menu, 26 Minus Cou nter-clockw ise, 26 Mounting the Base,19

Native Resolution, 31

Index-49

Operation, 25 Optica l, A c cu Touch, 39 Optical, Int el liTouch, 37 Optimizing the LCD Dis pl ay, 18 OSD H-Position, 27 OSD Language, 27 OSD Menu Function, 27 OSD Time, 27 OSD V-Position, 27 Out of Range display, 29

Touchmonitor Safety, 33 Touchmonitor Specifications ,36 Touchpoint Density, AccuTouch, 39 Touchp oint Density, Inte lliTouch ,37 Troubleshooting, 29

Unpacking Your Touchmonitor,3 USB Connection,12 Using the On-Screen Display (OSD) Menus, 25 UXGA, 31

Phase, 27 Pixel Format, 36 Plus/Clockwise, 26 Positi onal Accur acy, AccuTou c h, 39 Positi onal Accur acy, IntelliTouch, 37 Power Switch, 26 Precautions, 1 Product Overview, 4

Rear View, 4 Recall Defaults, 27 Regulatory Information, 43 Removing the Back Cover, 7, 13 Replacing the Back Cover,11, 17

Sealing, IntelliTouch, 37 Serial Connection, 6 Side Bezel Buttons, 26 Side View, 5 Solutions to Common Problems, 29 Speakers, 36 Surfac e Dur a bi lity, Accu T o uc h , 3 9 Surface D ur a bi lit y, Intelli Touch, 37 SVGA, 31 SXGA, 31

VESA Mount on Your T ouchmonitor, 18 VGA, 31 Viewing Angle, 36 Visual Resolution, AccuTouch, 39 Visual Resolution, IntelliTouch, 37 Volume, 26 V-Position, 27

Warranty, 47

XGA, 31

Technical Specifications, 35 Touch Activation Force, AccuTouch, 39 Touch Activation Force, IntelliTouch, 37 Touch Interface Connection, 6 Touch not working, 30

Index-50

PORT POWERED

SWIPE READER

TECHNICAL REFERENCE MANUAL

Manual Part Number 99875094 Rev 10

JULY 2001

20725 South Annalee Avenue

Carson, CA 90746

Phone: (310) 631-8602

FAX: (310) 631-3956

Technical Support: (888) 624-8350

www.magtek.com

MAG-TEK, Inc.

Printed in the United States of America

Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Mag-Tek, Inc.

Mag-Tek is a registered trademark of Mag-Tek, Inc. Procomm is a registered trademark of Datastorm Technologies, Inc.

REVISIONS

Rev Number Date Notes

1 11 Dec 97 Initial Release 2 18 Dec 97 Sec 1 Changed spec Dimensions; Sec 1, 3 Changed illustrations

for clarity.

3 11 May 98 Sections 1, 2, and 3 revised to reflect latest firmware revisions.

Sec 4 deleted. 4 15 Jun 98 Two part numbers added. 5 1 Mar 99 Sec 1, Added 3 part numbers, changed specs, Changed

Dimensions Figure 1-3, removed Figure 1-4, Mounting

Dimensions, added Mag-Tek Windows Drivers; Added note to

Table 1-1.

Section 2, added mounting instructions and Figure 2-1, Mounting

Dimensions. Section 3, added 3 track symbols to Table 3-1 and

3 sign-on configurations to 3-2. 6 14 Jun 99 Title change, Removed MT-211 and RS-232; Sec 1, Table 1-1,

added Pin List for Cable 21040077, added RS-232

Communication; Sec 2, added Demo Program from Net; Sec 3,

Clarified Fig 3-1, Described firmware P/Ns and revisions. 7 1 Dec 99 Section 1: Added P/N 21040084, Updated table for 9- and 25-pin

connectors; Section 3: Added P/N 21040084 to Sign-on table.

8 21 Sep 00 Editorial changes throughout. Sec 1: Configuration list expanded

and moved to Sec 3; Specification weight changed from 5.9 oz to

5.8oz, Converted symbols to Metric System [SI]. Sec 3: Added 5

new part numbers with firmware, tracks, and configurations. 9 09 Mar 01 Front Matter: Corrected Agency Approvals to include

Class B for FCC and Class B for CE. Changed RMA Warranty

address to 20801 S. Annalee. Section 3: Removed “Track 3 – 7

bit” line from Table 3-1. Added 094 and 096 configurations in

Table 3-2.

10 25 Jul 01 Front Matter: Agency Approvals: Corrected Class B for CE and

Limited Warranty

Mag-Tek, Inc. (hereinafter “Mag-Tek”) warrants this Mag-Tek product IN ITS ENTIRETY, to be in good working order for a period of one year from the date of purchase from Mag-Tek. Should this product fail to be in good working order at any time during this warranty period, Mag-Tek will, at its option, repair or replace this product at no additional charge except as set forth below. Repair parts and replacement products will be furnished on an exchange basis and will be either reconditioned or new. All replaced parts and products become the property of Mag-Tek. This limited warranty does not include service to repair damage to the product resulting from accident, disaster, misuse, abuse, or non-Mag-Tek modification of the product.

Limited Warranty service may be obtained by delivering the product during the warranty period to Mag-Tek (20801 S. Annalee Ave., Carson, CA 90746). If this product is delivered by mail, you agree to insure the product or assume the risk of loss or damage in transit, to prepay shipping charges to the warranty service location and to use the original shipping container or equivalent.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD, EXCEPT AS PROVIDED IN THE PRECEDING SENTENCE. EACH PURCHASER UNDERSTANDS THAT THE MAG-TEK PRODUCT IS OFFERED AS IS.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED ABOVE. IN NO EVENT WILL MAG-TEK BE LIABLE TO YOU FOR ANY DAMAGES, INCLUDING ANY LOST PROFITS, LOST SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF MAG-TEK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

FCC WARNING STATEMENT

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation.

CANADIAN DOC STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise for digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de las classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par les ministère des Communications du Canada.

CE STANDARDS

Testing for compliance to CE and FCC requirements was performed by an independent laboratory. The unit under test was found compliant to Class B.

UL/CSA

This product is recognized per Underwriter Laboratories and Canadian Underwriter Laboratories 1950.

TABLE OF CONTENTS

SECTION 1. FEATURES AND SPECIFICATIONS --------------------------------------------------------------------- 57

MAG-TEK DEVICE DRIVERS FOR WINDOWS ---------------------------------------------------------------------- 57 FEATURES--------------------------------------------------------------------------------------------------------------------- 57 CONFIGURATION------------------------------------------------------------------------------------------------------------ 58 SPECIFICATIONS------------------------------------------------------------------------------------------------------------59

SECTION 2. INSTALLATION ------------------------------------------------------------------------------------------------ 61

REQUIREMENTS------------------------------------------------------------------------------------------------------------- 61 MOUNTING--------------------------------------------------------------------------------------------------------------------- 61 INSTALLATION AND TEST ------------------------------------------------------------------------------------------------ 62

SECTION 3. OPERATION ----------------------------------------------------------------------------------------------------- 65

LED INDICATOR-------------------------------------------------------------------------------------------------------------- 65 CARD READ ------------------------------------------------------------------------------------------------------------------- 65 READER TO HOST MESSAGE FORMAT ----------------------------------------------------------------------------- 65 TIMING FOR ID SIGN ON --------------------------------------------------------------------------------------------------66

FIGURES

Figure 1-1. Port-Powered Swipe Reader-----------------------------------------------------------------------------------58 Figure 1-2. Reader Cable and Optional Adapter ------------------------------------------------------------------------- 58 Figure 1-3. Dimensions---------------------------------------------------------------------------------------------------------60 Figure 2-1. Mounting Hole Dimensions For Surface -------------------------------------------------------------------- 62 Figure 3-1. Timing For ID Sign-on and Transmission Bursts.---------------------------------------------------------66

TABLES

Table 1-1. OEM and 9-Pin Connectors and 25-Pin Adapter ---------------------------------------------------------- 58 Table 1-2. Specifications------------------------------------------------------------------------------------------------------- 59 Table 3-1. SS and ES Track Symbols --------------------------------------------------------------------------------------65 Table 3-2. Sign-on ID for Configurations-----------------------------------------------------------------------------------67

Figure 1-1. Port-Powered Swipe Reader

SECTION 1. FEATURES AND SPECIFICATIONS

The Port Powered Swipe Reader is a compact magnetic stripe card reader which conforms to ISO/ANSI standards. The Reader is compatible with the PC series of personal computers or any device with a serial RS-232 interface. A card is read by sliding it, stripe down and facing the LED side, through the slot either forward or backward.

A green LED (Light Emitting Diode) indicator on the Reader panel provides the operator with continuous status of the Reader operations.

When power is applied, the Reader transmits a sign-on ID message. About 150 milliseconds after DTR is applied, the Reader sends the part number of the firmware in the following form: 21088819A01 <CR>. The first 8 characters indicate the firmware number; the letter is the revision, which is followed by a revision sublevel of 01 to 99. The <CR> indicates carriage return (0x0D). The sign-on messages for part numbers are listed in Section 3. Timing is also shown in Section 3.

Since the input voltage is supplied by a relatively low source of power, the Reader depends on its input capacitor to maintain proper charge during all operations. In order to reduce the drain on this internal power source during data transmission, the output data is transmitted in 5 to 6 millisecond bursts with a 10-millisecond gap between bursts to allow the capacitor to recharge. The PC software should be able to tolerate this 10-millisecond space between characters. The Timing is shown is Section 3, Figure 3-1. Configurations, including part numbers, firmware, tracks, and unit configuration, are listed in Section 3, Table 3-2.

MAG-TEK DEVICE DRIVERS FOR WINDOWS

The Mag-Tek Device Drivers for Windows, Part Number 30037385, may be used with the Port Powered Swipe Reader. When this program is used, refer to Mag-Tek Device Driver for Windows, Programming Reference Manual, Part Number 99875125.

FEATURES

Major features of the Swipe Reader are as follows:

• Powered through the RS-232 serial port – no external power supply required

• Hardware Compatible with PC or any computer or terminal with an RS-232 interface

• Software Compatible with Procomm, or any RS-232 communications program

• Bidirectional card reading

• Reads encoded data that meets ANSI/ISO/CDL/AAMVA standards

• Green LED for status

Port Powered Swipe Reader

CONFIGURATION

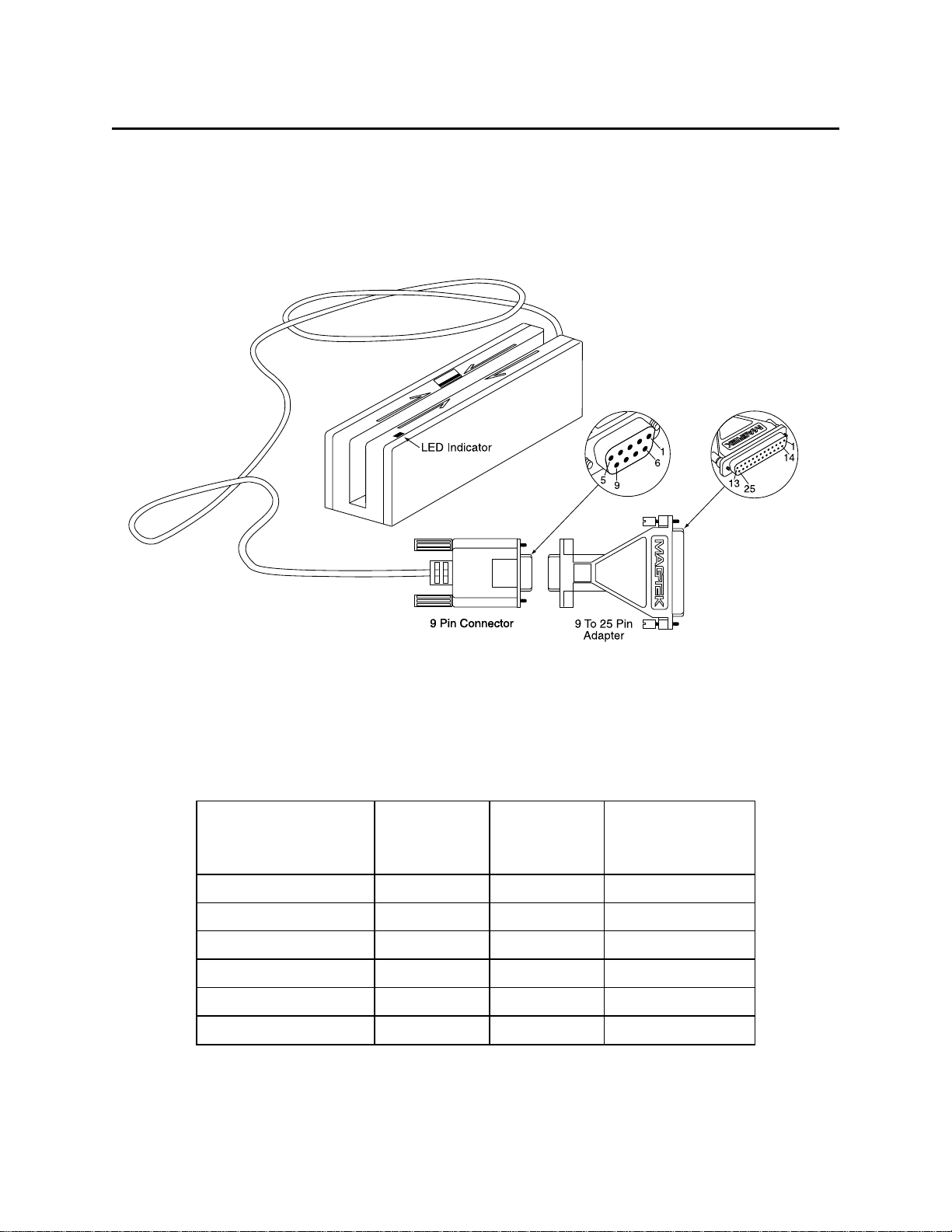

The Reader, LED Indicator, pin numbers for the 9-pin connector, and the Adapter are shown in Figure 1-2.

Figure 1-2. Reader Cable and Optional Adapter

Pin numbers and signal descriptions for the 9-pin (DE9) cable and 25-pin (DB25) adapter shown in the illustration are listed in Table 1-1. Also listed is the pin list OEM version, P/N 21040077.

Table 1-1. OEM and 9-Pin Connectors and 25-Pin Adapter

Connector for OEM

Version 21040077

J2 on the PCB

- 1 NC*

1 3 2 RXD (to PC)

2 2 3 TXD** (from PC)

3 20 4 DTR (from PC)

4 7 5 GND

- 6-9 NC*

25-pin

Adapter

DE9-pin

Connector

Signal

* No Connection

** Pin must be connected to TXD (or DTR if TXD not available).

Section 1. Features and Specifications

SPECIFICATIONS

Table 1-2 lists the specifications for the Port Powered Swipe Reader. Figure 1-3 shows the dimensions for the standard product. Other sizes are available by special order.

Table 1-2. Specifications

OPERATING

Reference Standards ISO/ANSI/ CDL/ AAMVA* Power Input From RS-232 interface Recording Method Two-frequency coherent phase (F2F) Message Format ASCII Card Speed 3 to 50 IPS MTBF Electronics: 125,000 hours. Head: 1,000,000 passes

ELECTRICAL

DTR Voltage 5 to 15 VDC Current Quiescent Transmitting Peak at Power On RS-232 Communication 9600 bps, no parity, 8 data bits, 1 stop bit

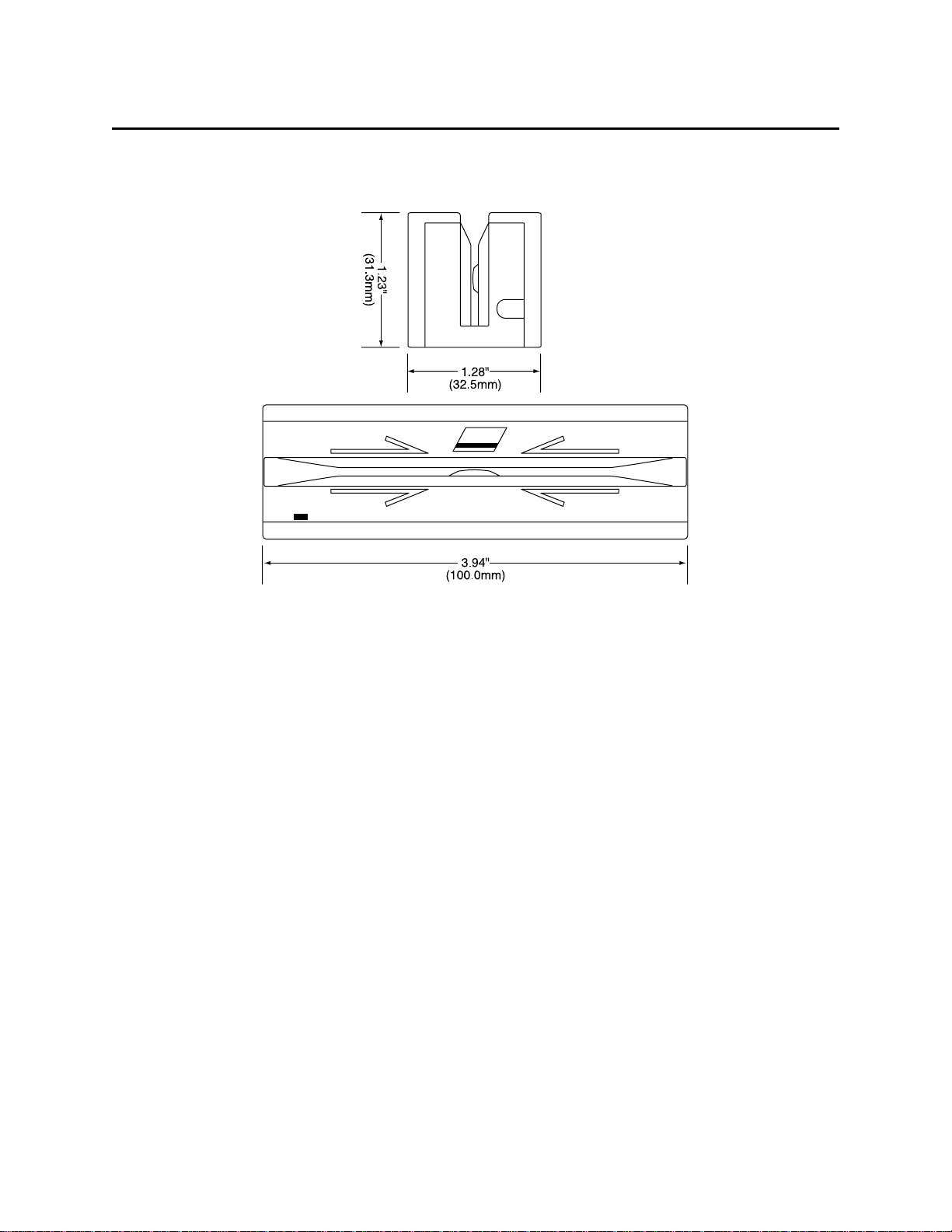

Dimensions Length: 3.94” (100.0 mm),

Weight Reader 5.8 oz. (165 gr.) Cable length 5 Ft. (1.5 m) Connector 9 pin D female (May require a 25-pin adapter)

Temperature

Operating 32oF to 131oF (0oC to 55oC)

Storage -22oF to 158oF (-30oC to 70oC)

Humidity

Operating 10% to 90% noncondensing

Storage Up to 100% noncondensing

Altitude

Operating 0-10,000 ft. (0-3048 m.)

Storage 0-50,000 ft. (0-15240 m.)

* ISO (International Standards Organization), ANSI (American National Standards Institute), CDL (California Drivers License), and AAMVA (American Association of Motor Vehicle Administrators).

1 to 2 mA typical (continuous) 8 to 9 mA typical (5 ms duration) 12 mA

MECHANICAL (STANDARD PRODUCT)

Width: 1.28” (32.5 mm) Height: 1.23” (31.3 mm)

ENVIRONMENTAL

Port Powered Swipe Reader

Figure 1-3. Dimensions

SECTION 2. INSTALLATION

The hardware installation consists of plugging the cable into the PC and optional adapter, if required, Com Port setup, and testing the Reader.

REQUIREMENTS

• Port Powered Swipe Reader

• Optional 9- to 25-pin Adapter, P/N 78200018

• PC with Com Port

• Procomm, Hyper Terminal, Mag-Tek Windows Drivers, or other RS-232 communications

program

MOUNTING

1. The Reader can be mounted on a surface in three ways:

• By two screws through the surface attached to the bottom of the unit and running the

cable on the top of the surface;

• By two screws through the surface attached to the bottom of the unit and by drilling a

hole in the surface for the cable and running the cable through the hole;

• By attaching the unit to the surface with fastening tape and running the cable on the top

of the surface.

Note

The two mounting inserts are 3 mm diameter; 0.5 mm pitch; 6.4 mm deep. The length of the screws used depends on the mounting surface thickness and the thickness of washers (if used).

The mounting dimensions are shown in Figure 2-1. Determine the method of mounting required.

2. Ensure the Reader is positioned on a flat, accessible surface with at least 4 inches clearance on either end for room to swipe a card. Orient the Reader so the side with the LED is facing the direction of intended use.

If fastening tape is to be used, clean the area that the Reader will be mounted on with isopropyl alcohol. Remove the adhesive protective cover on the fastening tape, and position the Reader and push down firmly.

Port Powered Swipe Reader

Figure 2-1. Mounting Hole Dimensions For Surface

3. Mount the Reader.

INSTALLATION AND TEST

To install the Swipe Reader, perform the following steps:

1. Connect the Swipe Reader cable connector into a 9-pin serial Com Port on the PC. If a 25-pin Adapter is required, plug the 9-pin connector on the Reader into the Adapter, and the adapter into the PC.

2. Open a communications program such as the Mag-Tek Encoder/Reader Demonstration Program, which may be obtained from the Internet at www.magtek.com. Navigate to the Demo Programs and select Reader & Encoder Demos (Win 95/98/NT).

3. On the program, select the Com Port the Reader is connected to.

4. If the Com Port selected is correct, the green LED on the Reader will light; if the wrong Com Port is selected, the LED will not light.

5. Select the baud rate of 9600.

Section 2. Installation

6. Select 8 data bits, no parity, 1 stop bit.

7. With the LED on, swipe a card. The data on the screen will show Track 1 beginning with “%” and ending with “?”. Track 2 begins with “;” and ends with “?”. Track 3 begins with “+” (normal) or "!" (CDL) and ends with “?”. The following is an example:

%B123^Smith/Joann^9812101000?;112222333333444444444?<0x0D>

If a track cannot be read, an E will appear in place of the track data; for example, if Track 2 is bad and Tracks 1 and 3 are good, the display will be similar to the following:

%11111111111111111111?;E?+3333333333333333333?<0x0D>

If Tracks 1 and 3 are bad and Track 2 is good, the display will be similar to the following:

%E?;22222222222222222222?+E?<0x0D>

8. If the data on the screen is not numeric or alphanumeric similar to the above, check the communications rate. If the alphanumeric characters are similar to the above, the unit is ready for operation.

Port Powered Swipe Reader

SECTION 3. OPERATION

Included in this section are Indicator, Card Read, Reader to Host Message Format, and a timing diagram of sign-on ID.

LED INDICATOR

A green LED indicator on the panel gives the operator the status of the Reader. If the cabling is correct and the correct Com Port is selected, the indicator will be on. If the indictor does not come on, check the cabling and the Com Port. The LED is turned off during a card swipe and while the unit is transmitting.

CARD READ

A card may be swiped through the Reader slot when the green LED is lit. The magnetic stripe must face toward the front (the side with the LED) and may be swiped in either direction.

READER TO HOST MESSAGE FORMAT

Track data is sent in the following order: SS, Card Data, ES.

The format in which data is transmitted (in track order) after a card is read successfully is as follows:

SS CARD DATA ES CR

Start Sentinel Character

Card Data or "E" (for Error)

End Sentinel

Table 3-1 lists Start Sentinel and End Sentinel symbols.

Table 3-1. SS and ES Track Symbols

Start Sentinel End Sentinel Description

% ? Track 1

; ? Track 2 + ? Track 3 - ISO # ? Track 3 - AAMVA

! ? Track 3 - CDL

Carriage Return

Port Powered Swipe Reader

TIMING FOR ID SIGN ON

Timing for the ID Sign-on and transmission bursts (5 ms with 10 ms between bursts) are shown in Figure 3-1.

DTR

150 ms

Sign-on ID

Transmission Burst 5 ms 10 ms

Figure 3-1. Timing For ID Sign-on and Transmission Bursts.

The firmware controls the operation of Sign-on ID and Transmission bursts in the following format:

210888xxLnn <CR> Where: the first 8 digits are the firmware part number (xx represents the Swipe Reader series),

L is the alpha revision,

nn is the number sub-revision.

<CR> is 0x0D.

Section 3. Operation

Table 3-2 lists the available part number, firmware, and configuration.

Table 3-2. Sign-on ID for Configurations

Part Number Firmware Track Configuration Configuration*

21040071 21088811 1,2 Pearl White 21040073 21088812 2,3 Pearl White 21040074 21088817 1,2,3 Pearl White 21040075 21088814 2 Pearl White 21040077 21088817 1,2,3 Black, No Cover, No Cable 21040079 21088811 1,2 Black 21040080 21088814 2 Black 21040081 21088811 1,2 Black (150 mm) 21040082 21088817 1,2,3 Black 21040084 21088811 1,2

21040086 21088817 1,2,3 Pearl White, No Cover, 12" Cable, 6-pin 21040088 21088824 1,2,3 Pearl White, 4800/7O, 10' cable 21040089 21088811 1,2 Pearl White, 10' cable 21040091 21088811 1,2 Black, No Cover, 5.9" Cable, 4-pin 21040092 21088817 1,2,3 Pearl White, 5 m cable 21040094 21068811 1,2 Pearl White, No Cover 21040096 21088811 1,2 Black, 4” Cable, 4-pin

*All cables are 6' DE9 unless otherwise specified.

Pearl White

(with STX and ETX)

Port Powered Swipe Reader

MAGTEK DEVICE DRIVERS

FOR WINDOWS

PROGRAMMING REFERENCE MANUAL

Manual Part Number: 99875125 Rev 6

NOVEMBER 2001

20725 South Annalee Avenue

Carson, CA 90746

Phone: (310) 631-8602

FAX: (310) 631-3956

Technical Support: (888) 624-8350

www.MagTek.com

MAG-TEK, Inc.

Printed in the United States of America

MagTek is a registered trademark of Mag-Tek, Inc. Microsoft, MS, MSDOS, MSCOMM and Microsoft Visual Basic are registered trademarks of Microsoft Corporation; Windows and Windows 95 are trademarks of Microsoft Corporation.

REVISIONS

Rev

Number

1 20 Nov 98 Initial Release 2 16 Feb 99 Sec 1: Editorial comments for clarification; Sec 2: Added c_wr_secure

3 27 Apr 99 Global: Changed names of Mt-211 and MT-215 to port powered

4 21 Oct 99 Sec 1: added: part numbers of media, special commands, MICR

5 14 Dec 99 Appendix A: Added statement about "Long File Names" under "Adding

6 30 Nov 01 Editorial changes throughout and added Software Version MTD 1.10,

Date Notes

and trks 1, 2, and 3; Sec 3: Editorial comments for clarification;

Appendix A: Added MT-85 and clarified tables; Appendix D: Added

c_wr_secure and tks 1, 2, and 3 and MT-85 Encoder sheet.

readers; Sec 3: Added card insertion note to event; Sec 4: Added this

section, Data Parsing. Appendix A: Changed file names. Appendix D.

Changed names.

material; Sec 2: changed properties table; Sec 3: added errors 45 and

60 to write command; Sec 4: added descriptions to language format;

updated default formats; Sec 5: replaced Visual Basic example;

Appendix A; Completely revised; Appendix D: added applied_fmt to all

forms.

MagTek Device Drivers" General Notes number 4; added statement to

"Completing the Installation" about sharing a single port; Edited

"Removing the Drivers"; added "Configuration Examples of NT Drivers."

Appendix D: Under IntelliPIN PINPad and MSR, added statement under

Remarks about IntelliPIN driver; under MiniWedge MSR added

statement about ASCII and Character Conversion.

which includes Windows ME/2000/XP.

Limited Warranty

Mag-Tek, Inc. (hereinafter “Mag-Tek”) warrants this Mag-Tek product IN ITS ENTIRETY, to be in good working order for a period of 90 days from the date of purchase from Mag-Tek. Should this product fail to be in good working order at any time during this warranty period, Mag-Tek will, at its option, repair or replace this product at no additional charge except as set forth below. Repair parts and replacement products will be furnished on an exchange basis and will be either reconditioned or new. All replaced parts and products become the property of Mag-Tek. This limited warranty does not include service to repair damage to the product resulting from accident, disaster, misuse, abuse, or non-Mag-Tek modification of the product.

Limited Warranty service may be obtained by delivering the product during the warranty period to MagTek (20725 S. Annalee Ave., Carson, CA 90746). If this product is delivered by mail, you agree to insure the product or assume the risk of loss or damage in transit, to prepay shipping charges to the warranty service location and to use the original shipping container or equivalent.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A PERIOD OF 90 DAYS FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD, EXCEPT AS PROVIDED IN THE PRECEDING SENTENCE. EACH PURCHASER UNDERSTANDS THAT THE MAG-TEK PRODUCT IS OFFERED AS IS.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

TABLE OF CONTENTS

SECTION 1. OVERVIEW ..............................................................................................................77

PROBLEMS WITH CONTROLLING DEVICES.........................................................................77

BENEFITS OF A CONTROL LANGUAGE AND DRIVER.........................................................78

LANGUAGE OVERVIEW...........................................................................................................79

Properties...............................................................................................................................79

COMMANDS..............................................................................................................................80

TYPICAL OPERATION..............................................................................................................81

Open a device........................................................................................................................81

Query the device’s capabilities ..............................................................................................81

Prepare the device for work...................................................................................................81

Use the device .......................................................................................................................81

Close the device ....................................................................................................................82

METHODS OF ACCESSING THE DEVICE ..............................................................................82

Obtaining access to the device..............................................................................................82

Interacting with the device .....................................................................................................83

Releasing access to the device .............................................................................................84

ERRORS AND ERROR PROCESSING....................................................................................84

HANDLING SPECIAL COMMANDS..........................................................................................85

FILE PROPERTIES ...................................................................................................................85

INSTALLATION..........................................................................................................................86

MICR Format Numbers..........................................................................................................86

SECTION 2. PROPERTIES ..........................................................................................................87

account_no ............................................................................................................................87

amount...................................................................................................................................87

applied_fmt ............................................................................................................................87

c_card_stat ............................................................................................................................87

c_keypress.............................................................................................................................87

c_keystring.............................................................................................................................87

c_magnetic.............................................................................................................................87

c_mechanics..........................................................................................................................87

c_pin.......................................................................................................................................87

c_smart ..................................................................................................................................87

c_tracks..................................................................................................................................87

c_write....................................................................................................................................88

c_wr_secure...........................................................................................................................88

capitalize ................................................................................................................................88

card_stat ................................................................................................................................88

chk_account...........................................................................................................................88

chk_amount ...........................................................................................................................88

chk_bankid.............................................................................................................................88

chk_data ................................................................................................................................88

chk_format .............................................................................................................................88

chk_mod10 ............................................................................................................................88

chk_number ...........................................................................................................................88

chk_routing ............................................................................................................................88

chk_status..............................................................................................................................88

chk_transit..............................................................................................................................88

cmd_pending .........................................................................................................................88

dblpinentry .............................................................................................................................88

dev_status..............................................................................................................................88

dev_version............................................................................................................................88

enable_cmc7..........................................................................................................................88

enc_key..................................................................................................................................89

enc_key_sn............................................................................................................................89

enc_mode ..............................................................................................................................89

entry_echo .............................................................................................................................89

entry_len ................................................................................................................................89

entry_tout...............................................................................................................................89

events_on ..............................................................................................................................89

invalcmdrsp............................................................................................................................89

key_parity...............................................................................................................................89

lasterr .....................................................................................................................................89

max_pin_len...........................................................................................................................89

msg1 - msg4 ..........................................................................................................................89

oper_tout................................................................................................................................90

pin_blk_fmt.............................................................................................................................90

pinfilldig ..................................................................................................................................90

port_name..............................................................................................................................90

pwroffdelay.............................................................................................................................90

s_down_tout...........................................................................................................................90

track1ss..................................................................................................................................90

trivpinchk................................................................................................................................90

trk_enable ..............................................................................................................................90

trk1data..................................................................................................................................90

trk2data..................................................................................................................................90

trk3data..................................................................................................................................90

visa_mac1..............................................................................................................................90

visa_mac2..............................................................................................................................90

visa_mac3..............................................................................................................................90

wr_coer ..................................................................................................................................90

wr_secure ..............................................................................................................................90

xact_type................................................................................................................................90

SECTION 3. COMMANDS............................................................................................................91

DATA FORMAT .........................................................................................................................91

RESPONSES.............................................................................................................................91

Notation Conventions.............................................................................................................92

COMMAND DESCRIPTIONS ....................................................................................................92

cancel.....................................................................................................................................92

display....................................................................................................................................93

echo .......................................................................................................................................93

event ......................................................................................................................................94

get ..........................................................................................................................................94

load_key.................................................................................................................................95

rawrecv ..................................................................................................................................96

rawsend .................................................................................................................................97

rawxact...................................................................................................................................97

read........................................................................................................................................98

Read Arguments .......................................................................................................................99

reset .......................................................................................................................................102

set ..........................................................................................................................................102

ver ..........................................................................................................................................102

write........................................................................................................................................103

SECTION 4. MAGNETIC CARD DATA PARSING ......................................................................105

GOALS.......................................................................................................................................105

ASSUMPTIONS.........................................................................................................................105

DESCRIPTION...........................................................................................................................106

LANGUAGE FORMAT...............................................................................................................107

Format Name.........................................................................................................................107

Format Template....................................................................................................................107

Format Rules .........................................................................................................................107

DEFAULT FORMATS ................................................................................................................111

EXAMPLE ..................................................................................................................................112

Retrieving properties from a magnetic card...........................................................................112

SECTION 5. EXAMPLE APPLICATIONS ....................................................................................115

PROGRAMMING HINTS ...........................................................................................................115

VISUAL BASIC EXAMPLE.........................................................................................................115

C++ EXAMPLE ..........................................................................................................................121

POWER BUILDER EXAMPLE...................................................................................................126

APPENDIX A. INSTALLATION AND SETUP..............................................................................129

INSTALLING DEVICE DRIVERS (W95/98/ME) ........................................................................130

Adding the First Device Driver (W95/98/ME).........................................................................131

Adding Another Device Driver (W95/98/ME) .........................................................................131

Updating an Installed Device Driver (W95/98/ME)................................................................132

Completing the Installation (W95/98/ME) ..............................................................................132

Modifying A Device Driver's Settings (W95/98/ME)...............................................................133

Removing The Drivers (W95/98/ME).....................................................................................135

INSTALLING DEVICE DRIVERS (WNT)...................................................................................137

Installing the Driver Binaries (WNT) ......................................................................................138

Uninstalling the Drivers (WNT) ..............................................................................................138

INSTALLING DEVICE DRIVERS (W2000/XP)..........................................................................139

Installing the Driver Binaries (W2000/XP) .............................................................................140

Uninstalling the Drivers (W2000/XP) .....................................................................................141

Uninstalling the Keyboard Hook Driver – (W2000/XP)..........................................................141

WINDOWS NT/W2000/XP CONFIGURATION UTILITY...........................................................142

Adding a Keyboard Device (WNT/2000/XP)..........................................................................142

Adding a Serial Device (WNT/W2000/XP).............................................................................143

Adding an ‘IntelliPIN MICR Aux’ Device (WNT/W2000/XP) ..................................................143

Viewing the List of Configured Devices (WNT/W2000/XP) ...................................................144

Using the MTCFG Utility (WNT/W2000/XP) ..........................................................................144

Command syntax summary...................................................................................................145

Displaying Configuration Information (WNT/W2000/XP).......................................................145

Adding New Devices (WNT/W2000/XP)................................................................................145

Configuration Examples of NT/W2000/XP ............................................................................147

Modifying a Device Driver's Settings (WNT/W2000/XP) .......................................................148

Removing a Device (WNT/W2000/XP)).................................................................................149

APPENDIX B. COMMAND LIST SUMMARY...............................................................................151

APPENDIX C. STATUS CODES ..................................................................................................153

APPENDIX D. DEVICE DRIVER SUMMARIES ...........................................................................155

INTELLIPIN PINPAD & MSR .....................................................................................................156

MAGWEDGE SWIPE READER.................................................................................................157

MINIWEDGE MSR.....................................................................................................................158

MICR+ CHECK READER & MSR..............................................................................................159

MINI MICR CHECK READER & MSR .......................................................................................160

PORT-POWERED RS-232 SWIPE READER ...........................................................................161

PORT-POWERED RS-232 INSERTION READER ...................................................................162

MT-85 LOCO ENCODER...........................................................................................................163

MT-95 HICO ENCODER............................................................................................................164

INDEX.............................................................................................................................................165

FIGURES

Figure 1-1. MagTek Devices and Device Drivers for Windows......................................................76

Figure A-1. Properties Settings, Windows 95 ................................................................................134

Figure A-2. Advanced Settings, Windows 95.................................................................................134

MTD

MagTek

Device Drivers

for Windows

Figure 1-1. MagTek Devices and Device Drivers for Windows

SECTION 1. OVERVIEW

The MagTek Device (MTD) Drivers for Windows is a collection of individual drivers that support a number of MagTek products. These drivers provide a uniform application interface for controlling a wide range of MagTek devices. The drivers, combined with a device control language, solve many of the difficulties application developers face when attempting to control hardware devices. The difficulties mount when faced with the task of developing an application that supports an entire product line of devices.

Part Numbers for the MTD are as follows:

Part Number Windows Version Medium

30037385 All CD 99510030 9X/ME Internet* (MTD110-9x-ME) 99510031 NT (MTD110-NT) 99510032 2000/XP (MTD110-2K-XP) *www.magtek.com

PROBLEMS WITH CONTROLLING DEVICES

The major problems with developing an application that supports an entire product line of devices are as follows:

• Each MagTek device has a unique set of commands. The commands usually perform

similar functions on a particular class of devices but either differ in syntax or have small variations in their functionality. An application would have to implement a custom mechanism to control each device it supported–much like DOS applications had to do to support various printers.

• Most MagTek devices communicate via data streams, not packets. This means that an

application receives data from the device one character at a time; it only receives partial command responses. It would be the application’s responsibility to collect the incoming data and parse it into individual responses.

• Responses from MagTek devices are inherently asynchronous. When an application

sends a command that requires a response, the response from the device arrives (or worse, begins to arrive) long after the command is sent. The application would have to either poll the device until all of the response is collected or implement a callback mechanism to collect and receive it.

• Most MagTek devices maintain a communication protocol of some kind. In addition to

this, the protocols differ between devices. For example, some devices frame responses with STX and ETX control characters and others simply use a CR or require a checksum in the frame. To deal with this, an application would have to recognize and implement all of the various protocols for the devices it supports.

MagTek Device Drivers for Windows

• MagTek devices are attached to the host in different ways. MagTek devices may be

attached to a serial port, parallel port, to another device or even to the keyboard port. All these ports differ greatly in nature and would all have to be accessed by the application. Additionally, meaningful communication with a device attached to the keyboard port would be tricky at best. This is because the operating system does not provide a means to send data to the keyboard port nor any mechanism to discriminate between the device data and manual keystrokes.

BENEFITS OF A CONTROL LANGUAGE AND DRIVER

A device control language is defined to support most of the functionality of all MagTek devices. As noted previously, most devices of a particular class have similar functionality. The control language defines a common set of commands that perform these functions in the same way for all MagTek devices, thus eliminating device-specific coding for most applications. If the need arises to perform an operation on a device not covered by the common command set, a “raw” send and receive command can be used to communicate directly with the device, effectively eliminating any limitations on the amount of control you have over the device.

The control language is based on a simple property/command model. This model is familiar to most developers who deal with properties and methods in development environments such as Visual Basic or Delphi. You set up the device by getting and setting properties and operate it by invoking commands.

The command set presents a synchronous interface to the application even though the device operates asynchronously, greatly simplifying the effort in retrieving responses from a device. The pattern is simple: send a command to the device and invoke a read command, which will not complete until after the entire response is received from the device.

The control language is implemented by a driver, which completes the solution for the application developer. The driver adds the following benefits:

• Gives easy access to the device. All MagTek devices are presented uniformly as a virtual

serial port, regardless of how they are actually attached to the host.

• Hides the communication protocol. Adding and stripping frames, performing

checksums, detecting and correcting communication errors, etc, are handled completely by the driver. The application sees only the data that it is interested in and can be assured that it is free from transport errors.

• Converts the incoming data stream into complete responses. The application receives

data from the device in easy to use packets. The entire response to a command is received in a single operation.

• Makes it easier to upgrade to a new device. The driver shields you from differences in

the new device’s commands or interface. When upgrading the device, an application can

Section 1. Overview

usually remain unchanged, even though the new device may be very different from the old one.

The features of a driver that implement a device control language completely shield an application developer from the complexities of device-specific functionality.

LANGUAGE OVERVIEW

The device control language is text based and designed to utilize the read and write file I/O facilities of the underlying operating system. All commands, their responses and properties consist of text strings that are written to or read from the driver using basic file I/O. The control language is based on a property/command model that is similar to the notions of properties and methods as accepted in environments such as Visual Basic or Delphi.

Properties

All properties are accessed in a uniform way: by using a

get (/get prop) or set(/set prop)

command. Properties are either read/write or read only. A set command with a read only property will fail. All properties are identified by a string name and use strings for their arguments. Properties defined by the control language fall into the following three groups:

• Capability properties – These properties contain information about the capabilities of a

particular device and are generally read only. They allow an application to query a device’s capabilities to determine if the device is suitable for a particular task. Included in this category are

c_check

c_cardwpin, c_check, c_pin, and c_magnetic (e. g., /get

• Configuration properties – These properties configure a device for different modes of

operation or may alter the way some commands behave. Because of this, they are usually readable and writable. They give an application the ability to set up a device for a particular task that requires a specific, non-default mode of operation. Included in this category are

capitalize, dev_version, and port_name (e.g., /set capitalize 1).

• Device-specific properties −These properties cover configuration requirements that are

not common among MagTek devices, even if the devices belong to the same class. An application can determine if a particular set of device-specific properties is available by first querying the device’s capabilities or version. Refer to Appendix D, Device Driver Summaries, for a particular driver to see how these properties are affected with an individual device.

Properties can be “action” properties. That is, the driver may execute an action on the device when a property is set. For example, an application can enable or disable magnetic stripe tracks by setting the the device to enable or disable the desired tracks.

trk_enable property. The driver responds by sending one or more commands to

MagTek Device Drivers for Windows

COMMANDS

Like properties, commands are identified by a string name and have string arguments. All commands are terminated by line feed <LF> or a carriage return. To invoke a command, an application simply writes it to the driver in the same manner as writing to a file or serial port. If the command has a response defined for it, the application reads it from the driver using the same I/O handle as in the write.

Four types of commands are defined by the device control language:

• Non-interactive – These commands manipulate the device without requiring any

interaction with the user. The property commands examples of this type.

get and set, reset and ver are

• Interactive – These commands interact with the user. They do not necessarily require the

user to do anything but may only prompt the user to do something. example of such a command. Others, such as read or write, however, require user interaction to complete. For example, the user must either swipe a card or cancel the operation in order to complete a read command.

display is an

• Device-specific – These commands give access to device-specific features. For example,

load_key command is available for MagTek devices that use keys to encrypt data

the before sending it to the host.

• Raw – These are effectively escape commands. They allow the application to bypass the

driver to perform device-specific operations that are not included in the driver syntax and not supported elsewhere. With these commands, an application has no limitations on the amount of control it has over a device. The raw commands can be formatted exactly as specified in the device documentation. The command bracketing will be inserted by the driver if required (e.g., <stx> and <etx> will be inserted for certain devices). Three commands are defined for this type: data directly to the device, and the first two.

A small set of interactive and non-interactive commands is all that is required for an application to perform the most common tasks with these devices. Device-specific or raw commands should rarely ever be needed.

rawsend and rawrecv, used to send and receive

rawxact, a transactional version that is a combination of

Section 1. Overview

TYPICAL OPERATION

This section describes a typical pattern that an application developer may use to operate a device. Although it is the most typical pattern, it is by no means the only viable one. Refer to Section 5, Example Applications, to see how to use the drivers in various applications.

Open a device

Access to the device is obtained by opening the comxx: port that the device was installed as. This is not the hardware port that the device may be attached to, but a virtual comxx : port presented by the driver (e.g., COM5 or higher). A handle is returned by the open function and is required for all subsequent interactions with the driver. When opened, the driver initializes itself and, where required, the device.

Some drivers support automatic settings. In this mode, the driver first attempts to communicate with the device at the previous setting or at the default setting if it is the first time. (The setting for the initial attempt is grayed out in the manual settings fields.) If the driver does not receive a response, it will adjust the settings and try again. This sequence continues until the device responds or until all possible settings have been attempted.

If the driver is set for the automatic mode, it may take considerably longer for the device driver to detect an error. In particular, if the device is not connected to the specified port or if its power is off, the device driver may take several seconds attempting all possible settings before it returns an error. The application program should be tolerant of this delay.

Query the device’s capabilities

The application now queries the device to determine if it can perform the required task. The capability properties (

c_xxx) are provided for this purpose. For example, if an application

requires the ability to read checks, it can get the c_check property to determine if the device can read checks.

Prepare the device for work

The device is prepared for operation by setting one or more of the configuration properties. Its mode of operation and other features are set up by these properties. Setting the

capitalize

property to 1 to cause all data written to or read from a card’s magnetic strip to be capitalized is an example of this type of initialization. In some cases, modifying a property may cause the driver to execute functions on the device.

Use the device

The device is now fully initialized ready for operation. Because most tasks with the device require interaction with the user, the application operates the device using primarily the interactive commands. A typical scenario is when, in response to some event, the user is prompted to swipe a card by using the display command, followed by a read command to

MagTek Device Drivers for Windows

instruct the device to return the card data when swiped. All the facilities of the driver are utilized during this stage of operation.

Close the device

When the application is finished with the device, it simply closes the port using the handle obtained when it opened it. The driver shuts down the device if required.

Note

In some cases with Windows 95, the Driver may not be closed properly. This will leave the port open and will prevent further communications with that device until the computer is rebooted.

METHODS OF ACCESSING THE DEVICE

This section describes how to use control language commands in a Visual Basic development environment using the MSComm (Microsoft Communication) component.

Obtaining access to the device

If the MSComm (Microsoft Communication) ActiveX component is used to access the device, set the

CommPort property to the com port number of the device. Then, set the PortOpen

property to True to open it. The following example shows how:

‘set error handling

On Error Resume Next

‘open the port

Comm.CommPort = 5 Comm.PortOpen = True If Err.Number <> 0 Then

<<process error>>

End If

on error goto 0

Note

After issuing an Open command, the computer may spend several seconds attempting to communicate with the device. During this time the computer will appear to be hung up.

If file I/O access is desired, you have the option of using either the device’s friendly name, such as

\\.\micr+ (where \\.\ specifies to Windows that this is a device and not a file) or its port

name, COM<5..15>. The friendly name is more intuitive and easier to remember than a port number; however, the serial method gives the programmer better control of the device. The port number can be found in the operating system’s device UI. For example, open Control Panel/System/Device Manager/MagTek and select a specific driver. Under Properties, select the

Section 1. Overview

Settings tab. This gives both the Friendly Name and the port name (

COM<5-15>). It also

identifies the physical port that will be used to communicate with the device.

Open the device using either of the previous names. Use whatever facility is provided by your development environment for opening files. For Visual Basic, do the following:

'set error handling

On Error Resume Next

‘open the port for binary access

Open “\\.\micr+” For Binary Access Read Write As #1 If Err.Number <> 0 Then <<process error>> End If on error goto 0

Note

The friendly name of the device, as found in the operating system’s device UI (Device Manager in Windows 95, for example), must be prefixed with “\\.\” in order to open the device. If the previous example did not have the prefix, it would create a file named

micr+ in the current directory–clearly not the desired result.

Interacting with the device

An application interacts with the device by sending commands to the device and reading its responses. Commands are sent by writing to the opened port and responses from the device or property requests are retrieved by reading from the port.

To interact with the device using the MSComm component, invoke a command by assigning it to MSComm’s Output property. The response is received by MSComm’s OnComm event handler as a comEvReceive event or by directly polling the port. The entire response to a command or property request is received as a single event.

'submit echo command

Comm.Output = "/echo Hello" + Chr$(10)

Private Sub Comm_OnComm()

‘return if not a receive event

If Comm.CommEvent = comEvReceive Then

‘process received data

a$ = Comm.Input ‘get echo data

Else

<<process non-read event>>

End If

End Sub

If using file I/O access, interaction with the device is indistinguishable from writing to or reading from a file.

MagTek Device Drivers for Windows

‘set up error handling

On Error Resume Next

‘submit echo command

Put #1, , "/echo Hello" + Chr$(10)

‘declare an input buffer

a$ = String(2000, Chr$(0))

‘read echo response from device

Get #1, , a$ If Err.Number <> 0 Then

<<process error>>

End If

Note

File I/O interaction with the device is synchronous; the read operation will block until a response is received from the device or is returned by the driver (as in a property request). This means that a read command cannot be canceled because the computer will not accept any new commands while one is pending. The only exception to this is when the development environment provides access to the Win32 API, giving the application the ability to use overlapped file I/O.

Releasing access to the device

Releasing access to the device is very simple. If using MSComm, close the device by setting its

PortOpen property to False:

‘close the port

mscomm1.PortOpen = FALSE

If opened as a file, close it as in the following:

‘close the port

Close #1

ERRORS AND ERROR PROCESSING

A command’s execution status is returned to an application in the command’s response, if it has one. The status value is a two digit numeric field located at positions 23 and 24 of the response (refer to Appendix C. Status Codes for a description of all error conditions) .

Errors are processed differently for property manipulation. If an error occurs while getting a property, the response will be returned with an empty property value. No status is returned when setting a property because the

set command has no response defined for it.

If a command returns a non-zero status, indicating an error, an application can typically respond in the following manner:

Section 1. Overview

1. It can prompt the user to repeat the action and re-submit the command. This is typical if the status does not indicate a failure, per se, but that the device may not be ready yet or first needs some other interaction by the user.

2. It can reset the device and prompt the user to repeat the action. Typically, this action is necessary if the device’s state or configuration has been corrupted, but is otherwise functioning correctly.

3. Finally, the application can refuse to continue operation of the device. An application should do this only if the returned status indicates that the device is malfunctioning.

HANDLING SPECIAL COMMANDS

Some devices such as the IntelliPIN PLUS support a set of commands that are not standard and/or do not follow the usual protocol. The Generic Driver can be used to support these commands. It does not know how to communicate with any device and does not support any protocol. The Generic Driver allows the application to send any string to a device. When the Generic Driver is used, the application must form the command, insert packet characters, and compute a check character where required.

In particular, the IntelliPIN PLUS supports a set of commands that require <SI> and <SO> as command brackets instead of the usual <stx> and <etx> characters. These special commands cannot be used with the IntelliPIN PLUS drivers. If the <SI>/<SO> commands are required in an application, the Generic Driver can be used to formulate the commands and recognize the responses.

For example, in order to select one of the Multi-Master keys in the IntelliPIN PLUS, the format of the command is:

<SI>08[address]<SO>{LRC}

The IntelliPIN PLUS driver cannot generate this command since all commands supported by the driver begin with <stx> and end with <etx>. To solve the problem, open the Generic Driver and send the following command to select master key number 3:

/rawsend \x0F083\x0E\x35

where <SI> is 0x0F and <SO> is 0x0E.

The Generic Driver can be used whenever a deviation from the standard protocol is required or when no protocol exists at all. However, the Generic Driver does not support any properties like all of the other drivers. It is only available to support those cases that cannot be handled with the standard drivers.

FILE PROPERTIES

When updating the MagTek Device Drivers, discussing performance characteristics, or reporting errors, it will be important to identify the part number and version of the associated file(s). In order to determine which version is installed, use Windows Explorer and go to the \Windows\System directory. Right click on the associated “VXD” driver file (see Appendix A.

MagTek Device Drivers for Windows

Installation And Setup) and select Properties. Click on the Version tab. Note the File Version, Part Number, and Description.

INSTALLATION

The drivers are installed by means of the Windows “Add New Hardware” facility in Windows 95/98/ME and the "INF" installation feature in Windows NT/2000/XP. Refer to "Appendix A. Installation And Setup" for a full description of the installation procedure.

MICR Format Numbers

In order to retrieve the built-in check properties (chk_***), the driver automatically configures the MICR units to format number 6500. However, there are some cases, especially outside the United States, where the check information is not consistent with format number 6500. In these cases, the installer has the option of modifying the format number string in the OEMSETUP.INF file.

The format number can be changed to another value (e.g., 7700 to allow use of a flex format) by editing the field following the format number entry (%CheckFormatCodeName%) in the OEMSETUP.INF file. This must be changed in three places depending on which drivers are to be used (MICR+, MiniMICR RS232, and MiniMICR Wedge). By defining a flex format that would duplicate the 6500 output format, the driver will still be able to parse the check data and present the individual properties (e.g., chk_account, chk_amount, chk_number, and chk_transit). If a suitable format cannot be developed to present the individual properties, the driver will still be able to present the check data (chk_data) as received from the MICR reader. If the existing format number in the MICR device is suitable, set the %CheckFormatCodeName% entry to null (i.e., “”), so it will not be modified by the Driver.

Refer to the appropriate MICR Technical Reference Manual for more information about the use of format numbers and available MICR fields.

SECTION 2. PROPERTIES

This section lists the properties that are used in the MagTek Drivers. Properties can be interrogated by issuing a Commands for complete description and examples of all commands.

c_xxx properties are set by the driver and reflect the device’s capabilities. However, the

The

c_xxx properties do not indicate the configuration of the device. For example, a device may be

capable of reading all three magnetic tracks but be configured to only read two tracks or a MICR reader, while often configured with a magnetic stripe reader, may not have an MSR installed. Unless otherwise noted, 1 means the capability is available, 0 or null (i.e., the value is not present) means that the capability is not available.

In this table, the Access information indicates whether the property can be modified (Read/Write –R/W) or merely accessed (Read Only–R).

Property Access Description

account_no

amount applied_fmt

c_card_stat

c_cardwpin

c_check c_events

c_keypress c_keystring

c_magnetic c_mechanics

c_pin c_smart c_tracks

get command and modified with a set command. Refer to Section 3.

R/W Cardholder account number, including check digit. It is set by the

application to be used in PIN encryption commands (IntelliPIN).

R/W Transaction amount in cents, without punctuation (IntelliPIN).

R Indicates which format template was used to parse the magnetics

data. If no template or rule is applied, this property returns a null.

1 indicates that the driver supports retrieval of card sensor status

(e.g., PPINSERT)

1 if the device supports reading of a card and a PIN in response to

a single command (e.g., IntelliPIN). R R

1 if the device can read checks (e.g., MICR devices).

1 indicates that the driver supports unsolicited event notification

(e.g., PPINSERT). R R

1 if the device supports retrieval of a key press (e.g., IntelliPIN).

1 if the device supports retrieval of a sequence of key presses (e.g.,

IntelliPIN). R

1 if the device can read magnetic cards.

R This value indicates how the card reader’s mechanism operates:

0 – manually operated device or no card reader 1 – device is mechanized and supports “eject” 2 – device is mechanized and supports “eject” and “confiscate”

R R

1 if the device supports reading of PINs (e.g., IntelliPIN).

1 if the device supports smart cards.

R A three-character string, representing the tracks supported by the

device. The left-most position indicates track 1. Thus

110

indicates that the device can access tracks 1 and 2 but not track 3.

trk_enable to determine which tracks are enabled.

See

MagTek Device Drivers for Windows

Property Access Description

c_write

c_wr_secure

1 if the device can encode a magnetic card in either LoCo or HiCo;

2 if the device can encode a magnetic card in only the setting

indicated in

0 if the device does not support secure mode;

1 if the device can switch between secure and non-secure mode

wr_coer

(see wr_secure);

2 if the device only operates in the secure mode.

capitalize

card_stat

chk_account chk_amount chk_bankid chk_data chk_format

R/W

Set this to

read and write commands. The default value for this property is

1 (enable capitalization).

0 to prevent the driver from capitalizing the data for the

R Current card sensor status:

0 = not blocked, 1 = blocked (PPINSERT).

R Check account number from check (MICR). R Check amount from check (MICR). R Bank ID number from the transit field (MICR). R Output data string as received from MICR reader (MICR).

R/W

Indicates the format of the check data. Set to

6500 by default. If

this property is modified by the application, the

chk_xx properties

(except chk_data and chk_status) will be set to null. (MICR)

chk_mod10 chk_number chk_routing chk_status chk_transit cmd_pending

R Mod10 check digit from the transit field (MICR). R Check number (MICR). R Routing number from the transit field (MICR). R 2-digit status code from the check just read (MICR). R Transit number from check (MICR). R Command pending–indicates which command, if any, is pending.

If none is pending, the second argument will be null:

/get cmd_pending<LF>

dblpinentry

R/W

Set to

1 to enable double PIN entry such as when requesting a new

PIN; set to 0 when verifying a customer’s PIN (IntelliPIN).

dev_status

Device status.

0 means device is connected and operational. Any

other value indicates a device-specific error. If the device fails to

respond, a null value is reported:

/get dev_status<LF>

dev_version

R Device version string. This value is read directly from the device,

if the device supports a version string. <CR> characters in the

string read from the device will be replaced with

/. This property

will be useful in reporting operational problems to MagTek.

enable_cmc7

R/W

Set this property to

1 to enable CMC-7 characters decoding, 0 to

disable it. This is used for international checks; see MICR manual

for more information. (MICR)

Section 2. Properties

Property Access Description

enc_key

enc_key_sn

R/W Encryption key to use for the next encryption process (IntelliPIN):

M for Master key S for Session key 0-3 for lower working keys A-J for upper working keys

R/W Serial number of encryption key. Used to specify key serial

number for activating/deactivating PIN encryption in MSK mode

and to return the key serial number in DUKPT mode. The key

serial number is specified in clear text (IntelliPIN).

enc_mode entry_echo

R/W

Current encryption mode –

msk or dukpt (IntelliPIN).

R/W Specifies how to display the characters when entered from the

keypad on the LCD screen (IntelliPIN):

• empty value to display as entered

• (minus) to suppress display

• $ to display as amount

The value of this property affects the operation of the read

entry_len

key_string

R/W Maximum number of characters (1-32) to be collected with the

read key_string command. An empty value (default) for this

command. By default this property is empty.

property converts to a length of 1. (IntelliPIN)

entry_tout

R/W Entry timeout: number of seconds (15-255) to wait for keypad

input. (IntelliPIN)

events_on

R/W

Set to

1 to enable unsolicited event notifications. The default is 0.

(PPINSERT)

invalcmdrsp

R/W

Invalid command response: set to

1 to enable responses to invalid

commands (useful during program development). This is set to 0

(disabled) by default.

key_parity lasterr

R/W

Set to

1 to enable parity check on encryption keys. (IntelliPIN)

R Status from the last command sent to the driver. A successfully

executed command will reset this value to

0. This property is

useful for checking the operation of the set commands. After

set, the response to get lasterr should be 0.

each

max_pin_len

R/W Maximum PIN length (IntelliPIN):

• 1 – 16 for ibm format (IBM 3624)

• 4 – 12 for ansi format (ANSI 9.8)

msg1 - msg4

R/W Messages to show on LCD screen with various commands.

msg1 – used by the read and display commands msg2 – used by the display and read pin commands msg3 – used by the read pin command msg4 – used by the key_press and key_string operations

To specify leading spaces, use \x20. See the display command for more information. (IntelliPIN)

MagTek Device Drivers for Windows

Property Access Description

offline_enc

R/W

Set to

1 to enable encode capability in standalone mode with

keyboard; 0 prevents standalone encoding (MT-95).

oper_tout pin_blk_fmt

pinfilldig port_name

R/W Operational timeout in seconds (15-255). (IntelliPIN) R/W PIN block format (IntelliPIN):

ansi (ANSI 9.8) or ibm (IBM 3624)

R/W

PIN fill digit (0..9, A..F) when

pin_blk_fmt is ibm (IntelliPIN)

R Indicates the virtual port number (e.g., COM6) derived from the

friendly port name.

pwroffdelay s_down_tout track1ss

track2ss track2ss

trivpinchk trk_enable

R/W Power off time delay in minutes (5-255). (IntelliPIN) R/W

R R R

R/W

Shutdown timeout in hours (1-31). Set to

0 to disable. (IntelliPIN)

Indicates Start Sentinel on Track 1 as received from the device.

Indicates Start Sentinel on Track 2 as received from the device.

Indicates Start Sentinel on Track 3 as received from the device.

Set to

1 for trivial PIN checki.e., don’t allow 1234. (IntelliPIN)

R/W Enable reading and writing of individual tracks. The value of this

property is a string of three characters, with

0 representing

disabled tracks and 1 representing enabled tracks, e.g., 110 enables

tracks 1 and 2 and disables track 3.

trk1data trk2data trk3data visa_mac1

visa_mac2 visa_mac3 wr_coer

R Data from track 1 excluding start sentinel and end sentinel. R Data from track 2 excluding start sentinel and end sentinel. R Data from track 3 excluding start sentinel and end sentinel. R Message authentication codes returned by device after PIN is

collected (DUKPT mode only). (IntelliPIN)

R/W Encode Coercivity Mode (MT-95). Specifies the energy level used

to encode the magnetic stripe:

0 = automatic selection 1 = LoCo only mode 2 = HiCo only mode

wr_secure

R/W

0 indicates the card can be removed between a read and write

operation. Set this to 1 to turn on secure online encode mode (MT-

95).

xact_type

R/W

Transaction type –

d = debit, c = credit (IntelliPIN).

SECTION 3. COMMANDS

This section describes all of the commands that can be used with the MagTek Windows Device Drivers. Some commands require parameters to indicate to the driver exactly what function is to be performed. While there are a few device-specific commands, most commands can be used with any device.

DATA FORMAT

All commands sent to the driver and all responses received are strings of printable ASCII characters delimited by <LF>. The driver will also accept <CR> as a delimiter. All command and response strings begin with the character separated with one or more white spaces. The driver accepts space space characters.

A command delimiter sent immediately after the previous command delimiter is interpreted as an empty command and is ignored by the driver.

RESPONSES

All responses to the transaction commands are formatted with fixed fields, to allow them to be parsed either by scanning for white spaces or by using constant offsets into the response string. In the descriptions of the commands found later in this section, the arguments sent with the responses are shown in their respective locations but may not indicate the exact number of spaces. The actual responses are sent in a fixed-field format, as shown in the following table:

Field Offset Size Comment

command name 0

12 This field identifies the command that produced this

(0-11)

arg1 12

12 Fixed-size argument – value depends on the

(12-23)

arg2 24

var Variable size argument – used for responses with

(24-??)

/. If a command has arguments, they should be

<SP> and <TAB> as white

Note

response, e.g.,

/get is followed by 8 spaces to fill

the 12 locations.

command sent. A property name is left justified in the field and begins in location 12. Status information is right justified in the field (with a trailing space) so the SS value will always be located at positions 21 and 22.

variable-size data, like

/get prop or read status

data.

MagTek Device Drivers for Windows

Examples:

000000000011111111112222222222 012345678901234567890123456789 /read -00082 /get trk_enable 110

NOTATION CONVENTIONS

The following conventions are used in the tables that follow.

Fixed Size (Bold)

Used to represent literals (symbols, exactly as sent or received

from driver)

Italic Used to represent placeholders (variable fields)

[] Expression parts in brackets are optional. The brackets are never

a part of the syntax

<LF>

ASCII control character. The only ASCII control characters used

are <LF> (0x0A) and <CR> (0x0D).

(a|b) Means that the expression can be either a or b, e.g., X(1|2) means

either X1 or X2. The parentheses and the | are never part of the

syntax.

COMMAND DESCRIPTIONS

The following list of commands includes function, syntax, errors, remarks, and examples as applicable.

cancel

Function

Syntax

Cancel a command.

/cancel [cmd]

The optional cmd can be any of the transaction commands such as:

/cancel rawrecv /cancel rawxact /cancel read /cancel write

If cmd is omitted, any pending commands will be canceled.

Errors

If the specified command is not active, the command is ignored and there is no response.

Remarks

Example

The command being canceled will send a response immediately. If a read command has been issued but the operation is to be aborted:

Command

Response

/cancel read<LF> /read -00082<LF>

Section 3. Commands

display

Function

Syntax

Show a single message or two alternating messages on the device’s display.

/display [x]

The optional argument x indicates the message to be displayed.

Errors

Remarks

none If the optional argument x is provided, this command displays it as a single message.

@, the driver sends a command to the device to display the idle message 00

If x is (“Welcome”). If x is omitted, the command uses the values of the properties for the message texts. If

msg1; otherwise, it displays the texts in msg1 and msg2 as alternating messages. The

msg2 is empty, this command displays the text in

msg1 and msg2

message texts are displayed unmodified, except for any ‘\’ characters, which are used as escape characters:

\r is converted to 0x0D (shown as <CR> in this document)

\n is converted to 0x0A (shown as <LF> in this document), e.g., to be used as

line separator for LCD screens that can display multiple lines

\\ is converted to \

echo

Function

Syntax

Errors

Remarks

Example

\xhh is converted to a character with ASCII value hh (always two hex digits).

Not all ASCII values can be displayed.

Leading and trailing spaces are removed from the message texts in the x argument and the msg1 and msg2 properties. \x20 may be used for adding leading spaces.

To center the message “Thank You” on the IntelliPIN LCD:

Command

Response

/display \x20\x20\x20Thank You

none

Echo data−driver test command.

/echo string

string is limited to 11 characters (the width of the ‘arg1’ field in the response

format) without any embedded spaces. none The driver responds by echoing the command back. If the command specifies a string that is longer than 11 characters or if a space appears, the response will be truncated. There is no translation for escape (\x00) commands. This command cannot be cancelled with

/cancel.

If you wish to ensure that the driver is properly installed, request it to echo a string:

Command

Response

/echo Testing<LF> /echo Testing<LF>

MagTek Device Drivers for Windows

event

Function

Syntax

Errors

Remarks

Response to an unsolicited event notification.

none none

This response can occur when an unsolicited event, such as card inserted, occurs. The format of the response is:

/event n data

n is a numeric event code:

1 – medium has been inserted into the reader 2 – medium has been removed from the reader

data specifies the type of medium that was inserted/removed:

M – magnetic

Events are sent to the application only if the c_events property is 1 (driver supports events) and the events_on property is set to 1 by the application. If a card has already been inserted when the driver is opened, there will not be any notification when

/get card_stat be issued immediately after opening the driver to see if a card

events_on is enabled. Consequently, it is recommended that

is blocking the sensor.

Example

If you wish to be notified when a card has been inserted into the PPINSERT:

Command

Response

/set events_on 1<LF> /event 1 M<LF>

When a card is inserted into the slot.

get

Function

Syntax

Get a property.

/get prop

prop is one of the valid properties shown in Section 2 or any of those from data

parsing.

Errors

Remarks

/get abc<LF>

Since abc does not exist.

The driver sends a response in the format: /get prop val. If the requested property does not exist, the val field will be empty, i.e.,

<LF> follows

the prop field. If the command was cancelled, both the prop and val fields will be empty. In some cases, this command will interrogate the device to determine the property setting. Some properties cannot be interrogated if a command (such as read) is pending. The value will be null in this case.

Example

If you wish to find out which tracks are enabled, request the trk_enable property:

Command

Response

/get trk_enable<LF> /get trk_enable 110<LF>

Indicating track 1 & 2 are enabled, track 3 is disabled.

Section 3. Commands

load_key

Function

Syntax

Load an encryption key into the device.

/load_key n key

n can be one of the following values:

M – master key (key is in clear text)

S – session key (key is encrypted under Master Key) 0 ... 3 – lower working keys (key is encrypted under Session Key) A ... J – upper working keys (key is encrypted under Session Key)

key is the 16- or 32-character value of the key to be loaded.

Errors

/load_key 30<LF>

If the n field is invalid, key is the wrong length, or the device sends an error (e.g., there is a key parity error).

/load_key 45<LF>

If the required key is not loaded.

Remarks

This command is used to load a key into the device. With all but the master key, the selected key is encrypted under another key so the application must know the encrypted value of the key. The response to this command is:

/load_key SS

SS is a two digit status code; 00 – success, 30 – invalid, 45 – rejected, etc.

Example

To load the session key encrypted under the master key:

Command

Response

/load_key S 99E1E835662DEA94<LF>

/load_key 00<LF>

MagTek Device Drivers for Windows

rawrecv

Function

Syntax

Errors

Receive data from the device.

/rawrecv /rawrecv 45<LF>

If a command is already pending.

/rawrecv 82<LF>

If the command was canceled by the user (e.g., with CLEAR key)

Remarks

This command overrides the default processing of the next message that comes from the device and returns it to the application as a

rawrecv response. Only one

message from the device will be processed in this manner, after that the driver switches to normal operation. The response to this command is in the following format: /rawrecv status x

status is a 2-digit decimal value (refer to Appendix C. Status Codes for a

complete description of the status values)

x is the data received from the device with the following characters replaced:

• <CR> is replaced by \r

• <LF> is replaced by \n

• \ is replaced by \\

Example

• any other non-printable characters are replaced by \xhh, where hh is the

two digit hex code of the character.

If a

/rawsend command is sent that will cause the device to send back a response,

the application should either submit a /rawrecv command before sending the data with /rawsend, or (better) use the /rawxact command.

Note

In some cases, the framing characters in the response are extracted by the driver and are not presented to the application.

To receive card data when the IntelliPIN is operating in the VeriFone mode:

Command

Response

/rawrecv<LF>

/rawrecv 00 ;12345?<LF>

Section 3. Commands

rawsend

Function

Syntax

Send arbitrary data to the device. /rawsend x

x is an arbitrary string which is transmitted directly to the device. The string x is passed as-is to the device, except for ‘\’ which is used as an ‘escape’ character:

• \r is converted to <CR>

• \n is converted to <LF>

• \\ is converted to \

• \xhh is converted to a character with ASCII value hh (always two hex digits),

e.g., \x20 is converted to a space.

Errors

Remarks

none

This command as with the other raw commands supports any features that have not been implemented in the standard set of commands. Note: the driver inserts appropriate framing characters, e.g., <stx> and <etx>.

Example

rawxact

Function

Syntax

Errors

Remarks

To change the default message 00 to show “Welcome to Our Bank” on two lines of the IntelliPIN:

Command

Response

Execute a send/receive transaction with the device in raw mode.

/rawxact x

x is an arbitrary string which is transmitted directly to the device. The string x is passed as-is to the device, except for ‘\’ which is used as an ‘escape’ character:

/rawsend 5100Welcome to\x1COur Bank<LF> none

• \r is converted to <CR>

• \n is converted to <LF>

• \\ is converted to \

• \xhh is converted to a character with ASCII value hh (always two hex digits),

e.g., \x20 is converted to a space.

/rawxact 45<LF>

If a command is already pending.

/rawxact 82<LF>

If the command was canceled by the user (e.g., with CLEAR key)

This command is a combination of /rawsend and /rawrecv. It sends the supplied data to the device, overrides the default processing of the next message that comes from the device and returns it to the application as a /rawxact response. After the response is returned (or canceled), the driver switches to normal operation. The syntax for this command is identical to the syntax of the /rawsend command; the syntax of the response is identical to the /rawrecv response.

Example

To load a master key of 23AB4589EF6701CD into the IntelliPIN:

Command

Response

/rawxact 9423AB4589EF6701CD<LF> /rawxact 00 940<LF>

Tyco Electronics 1525l User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Elo Entuitive Touchmonitor User Guide

Table of Contents

Precautions

Abou t the Pr oduct

Unpac king Your Touc hm onitor

Prod uct O verview

Rear View

Side View

Base Bottom View

Touch Interface Connec tion

Serial Connection

USB Connection

Optimizing the LCD Display

VESA M ou nt on Yo ur Touchm onitor

Accessing the VESA Mounting Interface

Mounting the B ase

Installing the D river Soft ware

Inst a lling the Serial Touch Driver for M S-DOS and Windows 3. 1

Installing the USB Touch Driver

About T ouchmonitor Adjustments

Side Be zel Butt ons

OSD M enu F unction

Solutions to Common Problems

Care an d Handling of Your T o uchm onitor

Compatib le Video Modes

Touchm onitor Sp ecifications

IntelliTouch Touchmonitor Specifications

AccuTouch Touchmonitor Specifications

15" LCD Touc hmon itor (ET 15-XXWA-1) Dim ensions

INDEX

SECTION 1. FEATURES AND SPECIFICATIONS

MAG-TEK DEVICE DRIVERS FOR WINDOWS

FEATURES

CONFIGURATION

SPECIFICATIONS

REQUIREMENTS

MOUNTING

INSTALLATION AND TEST

SECTION 3. OPERATION

LED INDICATOR

CARD READ

READER TO HOST MESSAGE FORMAT

PROGRAMMING REFERENCE MANUAL

SECTION 1. OVERVIEW

PROBLEMS WITH CONTROLLING DEVICES

BENEFITS OF A CONTROL LANGUAGE AND DRIVER

LANGUAGE OVERVIEW

Properties

COMMANDS

TYPICAL OPERATION

Open a device

Query the device’s capabilities

Prepare the device for work

Use the device

Close the device

METHODS OF ACCESSING THE DEVICE

Obtaining access to the device

Interacting with the device

Releasing access to the device

ERRORS AND ERROR PROCESSING

HANDLING SPECIAL COMMANDS

FILE PROPERTIES

INSTALLATION

MICR Format Numbers

SECTION 2. PROPERTIES

SECTION 3. COMMANDS

DATA FORMAT

RESPONSES

NOTATION CONVENTIONS

COMMAND DESCRIPTIONS

cancel

display

echo

event

load_key

rawrecv
