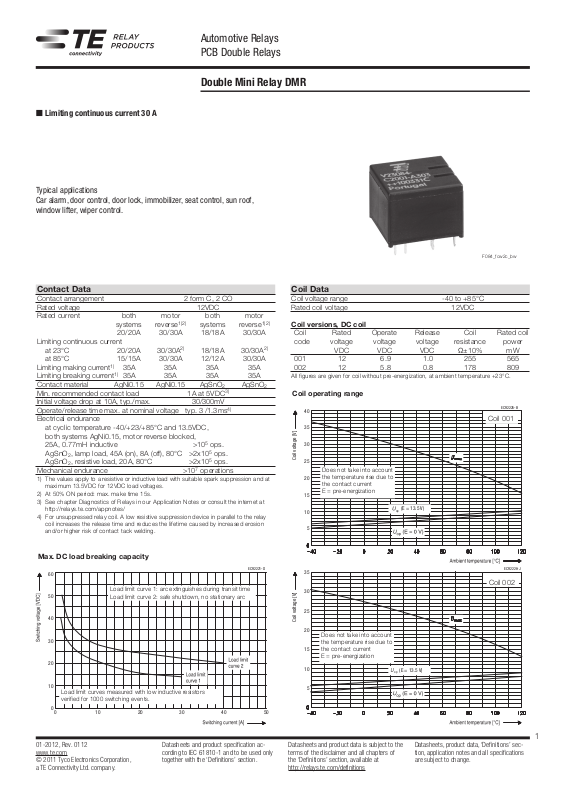

TYCO V23084-C2002-A403 Specification

Automotive Relays

Does not take into account
the temperature rise due to
the contact current
E = pre-energization

Does not take into account
the temperature rise due to
the contact current
E = pre-energization

PCB Double Relays

Double Mini Relay DMR

n

Limiting continuous current 30 A

Typical applications
Car alarm, door control, door lock, immobilizer, seat control, sun roof,
window lifter, wiper control.

F084_fcw2c_bw

Contact Data

Contact arrangement 2 form C, 2 CO
Rated voltage 12VDC
Rated current both motor both motor
systems reverse
20/20A 30/30A 18/18A 30/30A
Limiting continuous current
at 23°C 20/20A 30/30A
at 85°C 15/15A 30/30A 12/12A 30/30A
Limiting making current
Limiting breaking current

1)

35A 35A 35A 35A

1)

35A 35A 35A 35A
Contact material AgNi0.15 AgNi0.15 AgSnO
Min. recommended contact load 1A at 5VDC
Initial voltage drop at 10A, typ./max. 30/300mV
Operate/release time max. at nominal voltage typ. 3 /1.3ms
Electrical endurance
at cyclic temperature -40/+23/+85°C and 13.5VDC,
both systems AgNi0.15, motor reverse blocked,
25A, 0.77mH inductive >10
AgSnO
AgSnO
Mechanical endurance >10

1) The values apply to a resistive or inductive load with suitable spark suppression and at

2) At 50% ON period: max. make time 15s.

3) See chapter Diagnostics of Relays in our Application Notes or consult the internet at

4) For unsuppressed relay coil. A low resistive suppression device in parallel to the relay

, lamp load, 45A (on), 8A (off), 80°C >2x105 ops.

2

, resistive load, 20A, 80°C >2x105 ops.

2

maximum 13.5VDC for 12VDC load voltages.

http://relays.te.com/appnotes/

coil increases the release time and reduces the lifetime caused by increased erosion
and/or higher risk of contact tack welding.

Max. DC load breaking capacity

60

50

40

30

20

10

Load limit curves measured with low inductive resistors
verified for 1000 switching events.

0

0

Load limit curve 1: arc extinguishes during transit time
Load limit curve 2: safe shutdown, no stationary arc

10 20 30 40

01-2012, Rev. 0112
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.

1)2)

systems reverse

2)

18/18A 30/30A

AgSnO

2

3)

4)

5

ops.

7

operations

1)2)

ECR2221-D

Datasheets and product specification ac­cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.

Coil Data

Coil voltage range -40 to +85°C
Rated coil voltage 12VDC

Coil versions, DC coil

Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power

2)

VDC VDC VDC Ω±10% mW
001 12 6.9 1.0 255 565
002 12 5.8 0.8 178 809

All figures are given for coil without pre-energization, at ambient temperature +23°C.

2

Coil operating range

40

35

30

Coil voltage [V]

25

Does not take into account
the temperature rise due to

20

the contact current
E = pre-energization

15

(E = 13.5 V)

10

5

35

30

25

Coil voltage [V]

20

Does not take into account
the temperature rise due to
the contact current

15

E = pre-energization

10

5

50

Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions

op

(E = 13.5 V)

op

Datasheets, product data, ‘Definitions’ sec­tion, application notes and all specifications
are subject to change.

ECR2225-B

coil/001

Coil 001

ECR2226-J

coil/002

Coil 002

1

Automotive Relays
PCB Double Relays

Double Mini Relay DMR

(Continued)

Insulation Data

Initial dielectric strength
between open contacts 500VAC
between contact and coil 500VAC

rms

rms

Other Data

EU RoHS/ELV compliance compliant
Ambient temperature -40 to 85°C
Cold storage, IEC 60068-2-1 1000h; -40°C
Dry heat. IEC 60068-2-2 1000h; +125°C
Temperature cycling (shock)
IEC 60068-2-14, Na 1000 cycles; -40/+125°C
Temperature cycling
IEC 60068-2-14, Nb 35 cycles; -40/+125°C
Damp heat cyclic
IEC 60068-2-30, Db, Variant 1 6 cycles 25°C/55°C/93%RH
Damp heat constant
IEC 60068-2-3, Ca 56 days 40°C/95%RH
Category of environmental protection,
IEC 61810 RT III - immersion cleanable
Sealing test
IEC 60068-2-17 Qc, method 2, 1min, 70°C
Vibration resistance (functional)
IEC 60068-2-6 (sine sweep) 10 to 200Hz; 6to 30g
Shock resistance (functional)
IEC 60068-2-27 (half sine) 6ms; 30g
Shock resistance (destructive)
IEC 60068-2-29 (half sine) 30g: 6ms, 105 shocks
100g: 2ms, 10 shocks
Terminal type PCB
Weight approx. 10g (0.35oz)
Solderability (aging 3: 4h/155°C)
IEC 60068-2-20 Ta, method 1, hot dip 5s, 215°C
Resistance to soldering heat THT
IEC 60068-2-20 Tb, method 1A, hot dip 10s, 260°C
with thermal screen
Packaging unit 600 pcs.

5) Relays have to be dried at 85°C for 24 hours after test.

6) depending on mounting position: no change in the switching state >10μs.

5)

6)

6)

Terminal Assignment

Bottom view on solder pins

2 form C contacts, 2 CO

PCB Layout

Bottom view on solder pins

5 ±0.1

2.5 ±0.1

2.8 ±0.2

25

24

23

22

21

3.75 ±0.1

24

25

23

22

21

11.25 ±0.2

14

15

13

12
11

TE1651-J2

1.25

14

15

13

12

11

13.75 ±0.2

2.2 ±0.2

TE1652-S3

Dimensions

1.15

5.6

17.5 ±0.1

Ø 0.54 ±0.04

0.92 ±0.07

2

01-2012, Rev. 0112
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.

5.15

0.43 ±0.04

*) Additional tin tops max. 1mm

additional tin tops

*)

max. 1 mm

0.92 ±0.07

Datasheets and product specification ac­cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.

1.6

16.8 ±0.2

0.43 ±0.04

Terminals tinned

13.2 ±0.2

3.2 ±0.2

*)

0.5 ±0.1

TE1650-B3

Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec­tion, application notes and all specifications
are subject to change.

Automotive Relays
PCB Double Relays

Double Mini Relay DMR

(Continued)

Product code structure Typical product code V23084 -C 2 001 -A 4 03

Type
V23084 Double Mini Relay DMR
Terminal and enclosure
C PCB version, sealed
Design
2 Double relay
Coil
001 Standard (THT) 002 Sensitive (THT)
Contact type
A Single contact
Contact material
3 AgNi015 4 AgSnO
Contact arrangement

03 1 form C, 1 CO

2

Product code Terminal/Encl. Design Coil Contact type Cont. material Arrangement Part number

V23084-C2001-A303 PCB, Double relay Standard (THT) Single AgNi0.15 2 form C, 2 CO 0-1393267-2
V23084-C2002-A303 immersion Sensitive (THT) 1-1393267-0
V23084-C2001-A403 cleanable Standard (THT) AgSnO
V23084-C2002-A403 Sensitive (THT) 1-1393267-2

0-1393267-6

2
