Tyan Computer InterServe 90 User Manual

InterServe 90

System Board Manual

D5AA00040 April 1999

Errata

The System Board Manual from the manufacturer of the system board reflects a wrong jumper setting for dual-floppy operation. In this manual, jumper JP4 is listed as being open for dual-floppy support. The correct setting is as follows:

JP4

Dual-floppy support Closed Single-floppy support Open

Pins 1-2

T yan S1832DL

Tiger 100

Motherboard User’s Manual

Revision 2.10

All registered and unregistered trademarks and company names contained in this manual are property of their respective companies including, but not limited to the following. AMI BIOS is a trademark of American Megatrend Incorporated. Windows is a trademark of Microsoft Corporation. IBM, PC, AT, PS/2 are trademarks of IBM Corporation. INTEL, Pentium II, Celeron, Xeon are trademarks of Intel Corporation. S1832 Tiger 100 is a trademark of TYAN Computer Corporation.

Information contained in this publication has been carefully checked for accuracy and reliability. In no event will Tyan Computer be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data, or other malady resulting from errors or inaccuracies of information contained in this manual. The information contained in this document is subject to change without notice.

PRINTED IN USA.

T able of Contents

1. Introduction........................................................................... 4

Overview........................................................................ 4

Icons.............................................................................. 5

Hardware Specifications/Features................................... 6

Software Specifications...................................................8

Technical Support........................................................... 8

Returning Merchandise for Service................................ 9

2. Board Installation.............................................................. 1 0

Unpacking....................................................................10

Installation....................................................................10

Setting Jumpers.............................................................24

3. Onboard Resource Settings.............................................. 2 6

Quick Reference for Jumpers........................................26

Map of Motherboard Jumpers....................................... 27

Soft Power Connector.................................................. 31

Speaker Connector Installation...................................... 31

Hardware Reset Switch Connector Installation............... 31

External SMI............................................................... 32

Chassis Intrusion Alarm Connector................................ 32

CMOS RTC................................................................. 32

Flash EEPROM........................................................... 32

Hardware CMOS & Password Reset............................ 33

RAM Installation.......................................................... 33

Cache Memory.............................................................34

Frequently Asked Questions.......................................... 35

4. BIOS Configuration........................................................... 38

Main Setup...................................................................39

Advanced CMOS Setup................................................44

Chipset Setup............................................................... 49

Power Management Setup............................................ 55

PnP/PCI Setup............................................................. 59

Peripheral Setup........................................................... 64

Supervisor and User Security.........................................68

Language Utility........................................................... 69

Flash Writer Utility........................................................ 69

5. System Resources............................................................. 7 0

Beep Codes................................................................. 70

Troubleshooting System Problems.................................. 71

Displayed Error Messages............................................ 72

Appendix 1 - CPU Retention Module Options.....................7 4

Appendix 2 - Glossary........................................................... 7 6

Chapter 1

Introduction

chapter 1

Introduction

Overview

The S1832DL Tiger 100 is a quality , high performance mainboard designed for dual Intel Pentium II microprocessors. This mainboard utilizes the Intel 440BX AGPset and can support CPU speeds of 233MHz through 450MHz, and host bus speeds of 66MHz to 100MHz.

The S1832DL mainboard, with built-in AGP slot, provides high performance capabilities that are ideal for a wide range of demanding applications such as CAD, CAM, CAE, desktop publishing, 3D animation, and video production.

This integrated system board achieves high reliability with numerous features and yet is small enough to be supported in an ATX form factor. Some of the features included are onboard dual channel PCI PIO, Bus Master IDE and UltraDMA/33, onboard floppy controller, and onboard high speed I/O.

Flexibility and expandability have been designed into the Tiger 100. W ith I/O and drive controller support built onboard, the one AGP slot, five PCI and two ISA slots (one shared, seven usable slots) are free for numerous add-on expansion cards.

Remember to take a look at TY AN Computer’ s web site located at

http://www.tyan.com

http://www.tyan.com. There you can find information on all of TYAN’s products along with F AQs, distributors list, drivers, and BIOS setting explanations.

Icons

In order to help you navigate this manual and set up your system, we have added several icons to our format.

This icon alerts you to particularly important details regarding the setup or maintenance of your system. This icon often appears

important!

graphs in a chapter, you should always read every word in the text. Failing to do so can lead to exasperation and expense.

next to information that may keep you from damaging your board or system. While we will often point out the most vital para-

INTRO

procedure

Wherever possible, we have included step-by-step instructions for setting up your system, which are indicated by this icon. However, it is in your best interest to read an entire section (and

perhaps the entire manual) before you begin to fiddle with your motherboard.

warning

While we have alerted you to potential dangers in several places in the manual with this icon, these warnings should not be

regarded as the whole of your safety regimen. Never forget that computers are electrical devices, and are capable of delivering a shock. Prevent damage to yourself and to your board: always ensure that your system is turned off and unplugged whenever you are working with it, and that you are equipped with a static safety device.

http://www.tyan.com

Chapter 1

Introduction

Hardware Specifications/Features

Processor Information •T wo SEC slots (Slot One type).

•66 to 100MHz BIOS selectable bus support.

•Pentium II 233-450MHz.

•Supports Celeron CPU (single only).

Chipset Information •Intel 440BX AGPset.

•Intel PIIX4e controller.

•National 309 Super I/O chipset.

Voltage and Power •ATX power supply connector. Information •+12V power source for DC fan

onboard.

•3.3V DRAM support.

•Utilizes GTL+ bus to reduce power consumption and EMI.

Main Memory •Up to 1024MB onboard.

•Four 168-pin DIMM sockets.

•Supports 100MHz SDRAM with SPD.

System Management •National LM79 and LM75

ASICs with onboard alarm for monitoring temperature, supply voltages, and fan speed.

•System Manager software

•Chassis intrusion detection capable.

Expansion Slots •One 32-bit AGP slot.

•Five 32-bit PCI Bus Master slots.

•T wo 16-bit ISA slots.

•One shared, seven usable slots.

http://www.tyan.com

Physical Dimensions •ATX design.

•12 inches x 9.8 inches.

•Requires Intel V enus compatible I/O shield.

BIOS Information •AMI Plug and Play flash BIOS.

•Deep Green, Energy Star, ACPI, Y ear 2000, and PC98 compliant.

•Soft power-down, multiple boot options.

•Win98/NT5 ready , DMI 2.0 compliant.

•PCI 2.1, APM 1.1 compliant.

Disk Drive & System I/O •T wo PCI bus mastering EIDE

channels.

•Supports EIDE CD-ROMs.

•PIO Mode 3 & 4 (up to 17MB/sec DTR).

•UltraDMA/33 bus mastering mode (up to 33MB/sec DTR).

•Support for two floppy drives (up to

2.88MB).

•T wo serial ports (16550 UARTs).

•One ECP/EPP parallel port.

•One IR (InfraRed) I/O interface port.

•T wo USB rev 1.2 (universal serial bus) connectors.

•One PS/2 mouse connector.

•One PS/2 keyboard connector.

INTRO

http://www.tyan.com

Chapter 1

Introduction

Software Specifications

OS •Operates with MS-DOS, Windows

3.x, Windows for W orkGroup 3.x, Windows 95, W indows 98, W indows NT , OS/2, Novell Netware, and SCO Unix.

Information presented in this publication has been carefully checked for reliability. However , no responsibility is assumed for inaccuracies. The information contained in this document is subject to change without notice.

Technical Support

If a problem arises with your system, you should turn to your dealer for help first. Your system has most likely been configured by them, and they should have the best idea of what hardware and software your system contains. Hence, they should be of the most assistance. Further, if you purchased your system from a dealer near to you, you can actually bring your system in to them to have it serviced, instead of attempting to do so yourself (which can have expensive consequences).

If your dealer is unable to assist you,

1) try our web page: http:// www.tyan.com

2) user newsgroup: alt.comp.periphs.mainboard.tyan

3) technical support phone line: (510) 440-8808

4) or e-mail address: techsupport@tyan.com

http://www.tyan.com

Returning Merchandise for Service

During the warranty period, contact your distributor or system vendor FIRST for any product problems. This warranty only covers normal customer use and does not cover damages incurred during shipping or failure due to the alteration, misuse, abuse, or improper maintenance of products.

For Resellers Only:

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service can be rendered. You can obtain service by calling the manufacturer for a Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid, or hand-carried to the manufacturer. TYAN will pay to have the board shipped back to you.

INTRO

http://www.tyan.com

Chapter 2

Board Installation

chapter 2

Board Installation

Unpacking

The mainboard package should contain the following:

· S1832DL mainboard

· One IDE 40-pin cable

· One 34-pin floppy cable

· User’s manual

· T wo retention modules

· One T yan System Management & Driver CD

Installation

You are now ready to install your mainboard. The mounting hole pattern of the S1832DL matches the ATX system board specifications. Your chassis should be that of a standard ATX mainboard form factor .

http://www.tyan.com

How to install our products right...the first time.

procedure

What’s the first thing I should do?

The first thing you should do is read this user’s manual. It contains important information which will make configuration and setup much easier.

Here are some precautions you should follow when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag. Unplug the power from your computer and then touch any metal part on the computer case. (Or wear a grounded wrist strap.) (2) Hold the motherboard by its edges and do not touch the bottom of

the board. (3) A void touching motherboard components, IC chips, connectors, and leads.

(4) A void touching pins of memory modules and chips. (5) Place motherboard on a grounded antistatic surface or on the

antistatic bag.

DO NOT APPL Y POWER TO THE BOARD IF IT HAS BEEN DAMAGED!

Press down on any of the socket ICs if it appears that they are not properly

important!

seated (the board should still be on an anti-static mat). Do not touch the bottom of the board. Remember, don’t take any electronic device out of its protective bag until you are ready to actually install it into the computer case. If you do not ground yourself, you risk zapping the motherboard or adapter card. Subsequent problems may not arise immediately because electrostatic discharge damage, unlike physical damage, causes the device to fail over time.

INSTALL

Install the motherboard into your case.

Follow the instructions provided by the case manufacturer for proper installation guidelines. TYAN recommends that you use only one screw to hold down the motherboard. The rest of the mounting holes should be used for the plastic standoffs. If your case does not have a hole for a standoff, simply cut off the bottom of the plastic standoff so that the flat portion rests on the metal. The adapter cards and the screws holding them down will keep your board flat. The fastening screw should not short any of the traces on the motherboard. Make certain that you do not overtighten the screw , as it will damage the motherboard and possibly break internal traces in the surrounding area. The hole you

http://www.tyan.com

Chapter 2

Board Installation

should use is located at the top-center of the board where the adapter cards are fastened to the case.

Plug in the power connector as shown.

The photos below show the ATX power connector before (Figure 1) and after (Figure 2) it has been plugged in.

Figure 1

Figure 2

The plastic clip on the power connector should lock over the plastic tab on the onboard connector. You shouldn’t be able to plug the power connector in any other way but just to be safe, make sure it looks like Figure 2 above. Make

warning

certain that you do not miss any pins because, if you do, you will void your warranty and cause damage to yourself or your motherboard when you turn the system on. After connecting the power, make sure the connector is seated firmly into its socket so it will not become loose or fall off when the computer is jostled or moved. Note: Tyan r ecommends using an A TX power supply that

conforms to industry standard revision 2.01.

http://www.tyan.com

Next, connect your IDE cables (if you’re using IDE hard drives).

Figure 3

The colored stripe on the cable should face toward the top of your chassis, or toward the big white B printed on the motherboard.

In Figure 3 you can see how the IDE cables should look when they are connected to your hard drive. Notice how Pin 1 (denoted by a red stripe) is connected so that it is next to the power connector of the drive. In most cases, this is the proper way of connecting your IDE cable to the hard drive. Figure 4 shows the IDE cable properly connected to the motherboard. Contact your hard disk drive manufacturer or documentation for more information.

Pin 1

Figure 4

INST ALL

http://www.tyan.com

Chapter 2

Board Installation

Some symptoms of incorrectly installed HDDs are:

• Hard disk drives are not auto-detected: may be a Master/Slave

problem or a bad IDE cable. Contact your vendor.

• Hard Disk Drive Fail message at bootup: may be a bad cable or

lack of power going to the drive.

• No video or beeps on bootup: usually means the cable is on

backwards.

• Hard drive lights are constantly on: bad IDE cable or defective

drives/motherboard. Try another HDD.

• Hard drives do not power up: check power cables and cabling.

May also be a bad power supply or IDE drive.

Now that you have installed your IDE drives, your floppies are next.

Figure 5

Pin 1 on the floppy cable is usually denoted by a red or colored stripe down one side of the cable (see Figure 5). Most of the current floppy drives on the market require that the colored stripe be positioned so that it is right next to the power connector. In most cases, there will be a key pin on the cable which will force you to connect the cable properly .

Drive A: is usually attached to the end of the cable with the twist in it. Drive B: is usually connected to the middle of the cable. Refer to your installation instructions or call your dealer if you are unsure about attaching floppy drives.

http://www.tyan.com

Refer to Figure 5 on the previous page for a detailed anatomy of the floppy cable. Remember, you can only have 2 floppy drives connected at any given time.

The color stripe on the cable should face toward the top of your chassis, or toward the big white B printed on the motherboard. Please refer to your documentation for proper installation, or see Figure 4 on page 13.

Some symptoms of incorrectly installed floppies are:

• Floppy drives are not detected: usually caused by faulty cables,

backward cables, or a bad floppy or motherboard. Try another single floppy drive to verify the problem or try another cable. Also, check to see if the onboard floppy is enabled in the BIOS.

• Floppy Drive Fail message at bootup: the cable, floppy, or

motherboard may be faulty. Try another cable or floppy drive to verify .

• Light on the floppy is on constantly: a dead give-away that the

cable is on backwards. Reverse the cable at the motherboard end and try again.

Next are the Com and Printer ports.

Warning: When plugging in your keyboard and mouse, or when plugging

anything into a serial or Com port, make sure that the power is off. Connecting

these devices and ports while the power is on is called “hot plugging,” and

important!

may damage your system.

INSTALL

Figure 6 at the top of the next page shows the ATX double row connectors on this board. The Com and Printer ports, as well as the other ports, are labeled.

http://www.tyan.com

Chapter 2

Board Installation

Figure 6

Note: Only TY AN cables will work on this motherboard. If you are using an existing case with old cables, your system will not function properly . Use only TYAN-approved cables.

Connecting the USB and PS/2 ports.

This board includes ports for USB, PS/2 mouse, and PS/2 keyboard devices. The location of these ports is shown in Figure 6 above. Note that, for this board, the PS/2 mouse port is the upper PS/2 port, and the PS/2 keyboard port is the lower PS/2 port.

The PS/2 connectors are probably quite familiar to you. The USB connectors, however, may be foreign. The USB (Universal Serial Bus) is a versatile port. This one port type can function as a serial, parallel, mouse, keyboard, or joystick port. It is fast enough to support video transfer, and is capable of supporting up to 127 daisy-chained peripheral devices. Close-ups of the USB connector, as well as of the USB and PS/2 ports, are on the following page.

http://www.tyan.com

Figure 7 shows the USB ports and Figure 8 the PS/2 ports.

Figure 7 Figure 8

Installing your add-in cards is relatively simple but...

there are a few rules you need to follow when plugging in a card. In order to assure proper operation and a quick installation, adhere to these guidelines:

• If you are going to install a PCI-Bus interface card on your system,

be aware that any one of the two PCI slots can support a Master or Slave device.

• NEVER force a card into a slot. If it doesn’t fit, look at the socket

important!

on the computer to make sure there are no wires or other obstructions to the slot.

• NEVER plug an ISA card into a PCI slot or a PCI card in an ISA

slot. You will void your warranty and damage your system board if you do this.

• When plugging the card in, especially when installing long cards,

try to push the entire card in at one time. Don’t force one end of the card into the socket first and then the other. This will create a rocking motion between the card and the slot and it will damage the pins within the socket.

• Make sure that the cards are seated securely into the slots.

INSTALL

http://www.tyan.com

Chapter 2

Board Installation

• Before turning on the system, make sure no cards are touching

each other or are shorting.

If you follow these basic guidelines, there shouldn’t be any problems with installation. However, if you do encounter any problems, have a qualified professional install your cards for you or contact your card manufacturer.

Remember, always read the manuals and installation notes that come with the adapter cards. They contain important information which will help you install the components right, the first time.

Next, you need to install your memory.

Since TYAN boards are manufactured with performance in mind, you should use add-in components that match. Some DIMM modules may seem to be high quality because of name or feel but that does not guarantee real-world usability. Some cheaper or OEM memory may have brand-name components, but they may be on inferior or substandard parts which do not meet the critical tolerances our products require. Because of this, your memory may not work correctly in a TY AN board though it may work well in a competitor’ s board. This is because many of our competitors do not adhere to the strict tolerances required for high performance. If you buy a TYAN board, you are getting the best system available. T o make installation easy and trouble free, get high quality parts. Some brands we recommend are Advantage Memory, Corsair Microsystems, Millenium, Kingston Memory, QesTec Incorporated, Unigen, Micron Technology, and Crucial Technology. These DIMMs have proven to be very stable on our boards and perform extremely well.

http://www.tyan.com

Figure 9

To install your DIMMs, line your module up so that the pins fit into the slot.

There is only one way that your DIMM can fit properly . Make sure that the short row of pins is lined up with the short gap in the DIMM slot. Figure 9 shows how to sit the DIMM into its slot. To insert the DIMM, push down vertically on the module with even force, as shown in the photo. Do not shove one end in first; doing so will bend the DIMM pins.

important!

T o lock the DIMM into place, push the plastic clips on either end of the slot onto the notches in the ends of the DIMM (see Figure 10 on the following page). T o remove your DIMM, simply pull the clips back, and pull up on the module.

INSTALL

http://www.tyan.com

Chapter 2

Board Installation

Figure 10

Place the DIMMs in an anti-static bag as soon as you remove them to avoid static damage.

Finally , install your CPU.

Pentium II processors (233 through 450MHz) can be used on the Tiger 100. Please refer to pages 29-30 for the correct CPU jumper settings for your board.

Remember:

important!

• The CPU is a sensitive electronic component and it can easily be damaged

by static electricity. Do not touch the CPU pins with your fingers.

• Before the CPU is installed, the motherboard must be placed on a flat surface. Y ou should be able to insert the CPU with minimal, but firm, pressure. Do not press down hard on the CPU.

Currently , Intel produces two types of Pentium II processors: the active (or boxed) processor and the passive processor (see Figures 11 and 12 on the next page). These two types of processors are essentially the same in design; the only difference lies in their cooling methods. The active processor is equipped with a cooling fan and heat sink, while the passive processor is equipped with a heat sink alone. Both types of CPUs provide the user with the same performance, and both types can be installed in the Pentium II slot on the Tiger 100 board.

http://www.tyan.com

Active Passive

Figure 11 Figure 12

Installing CPU Retention Modules

Installation of a Pentium II processor requires a CPU retention module, which is first secured onto the motherboard.

T o attach the retention module, place the motherboard on a flat surface. Locate the key pin on one end of the Pentium II slot on the board. Then carefully line up the key notch on the retention module with the key pin on the Pentium II slot (the

Figure 13

key pin on the Pentium II slot

indicates the correct orientation of the CPU).

INSTALL

Drop the retention module (Figure 14 on the following page) down over the Pentium II slot so that the retention module sits flat against the motherboard. Tighten the screws in a clockwise manner to secure the module to the board. Warning: Do not overtighten the screws as you

Pentium II Slot Connector and Key Pin

may damage the module and/or the motherboard.

Installing the Active Processor

When the retention module is securely installed, you are ready to plug in the CPU. Press down firmly on the CPU until you hear a “click” (see Figure 15 ). This

http://www.tyan.com

Chapter 2

Board Installation

clicking sound indicates that the CPU is fully locked into the retention module. If you have an active processor, you will also need to connect the CPU’s cooling fan cable to the cooling fan power connector on the board.

Figure 14

Figure 15

Locate the cooling fan connector (e.g. FAN1) on the motherboard. Plug the CPU’s cooling fan cable into the cooling fan connector on the board. There will be a plastic clip assembly similar to that of the ATX power connector that will force you to connect the fan cable correctly (see Figure 16 below).

Figure 16

http://www.tyan.com

Installing the Passive Processor

The installation of the passive processor differs only slightly from that of the active processor. Your passive CPU package should contain one CPU retention module, one heat sink retention bracket with mounting locks, two mounting attachments, and one heat sink lock.Install the retention module as explained in the active processor section.

The heat sink mount (Figure 17) has two pins on the bottom and four pins on the top. Notice that the bottom two pins are of different sizes. The size of the

Figure 17

correct orientation. When the bracket is correctly installed, the four pins on top will be right next to the Pentium II CPU slot.

Insert the heat sink mount into the holes on the motherboard. When the bracket is properly inserted into the holes on the motherboard, you will hear a clicking noise.

Align the CPU with the CPU retention module. Make sure the heat sink is lined up with the heat sink mount bracket. If you put the CPU in the wrong way , you may damage the CPU, the motherboard, and/or the CPU socket. Slowly press down on the CPU module until the CPU locks into place. Y ou will hear a clicking noise when the CPU is locked securely into the module.

pins and the holes in the motherboard will determine the

INSTALL

The heat sink lock (Figure 18) has four notches which will correspond to the four pins on the heat sink mounting bracket. Gently slide the lock between the heat sink and the heat sink mounting bracket until both sides of the lock are firmly secured. A clicking sound will be heard when the lock is securely fastened to the heat sink mounting

Figure 18

bracket. T o remove the lock from the heat sink mounting bracket, gently press the ends of the locks inward and pull.

Lock the heat sink mount to the board by inserting the two mounting locks

http://www.tyan.com

Chapter 2

Board Installation

(Figure 19) into the pins of the heat sink mounting bracket which are now below the mainboard. There will be a click when the locks are securely fastened.

Removing the CPU.

T o remove the CPU, move the locks to the center of the CPU. A click will be heard when the CPU has been unlocked. Gently pull up on the CPU, taking

Figure 19

care not to bend the motherboard or the CPU retention module.

T o remove the lock from the retention module, gently press the ends of the locks inward and pull.

You are done.

Other than checking the jumper settings and cable connections and putting the case back on, you are done. Installing a new motherboard may sound difficult, but by following these directions, you should have a fairly uneventful time installing our products. If you do encounter problems, your dealer will be able to help you, or you can consult one of our many technical support resources (see page 8).

Setting Jumpers

In this manual, the terms “closed” and “on” are used when referring to jumpers (or jumper pins) that are active; “open” and “off” are used when referring to jumpers (or jumper pins) that are inactive. Jumpers and pins are connected by slipping the blue plastic jumper connector overtop of two adjacent jumper pins. The metal rod inside the plastic shell bridges the gap between the two pins, completing the circuit. See the drawings below for examples of “on” and “off” pins and jumpers.

2 pin jumpers

off on

3 (or more) pin jumpers

1-2 2-3 open

1 2 3

http://www.tyan.com

INSTALL

http://www.tyan.com

This page has been intentionally left blank.

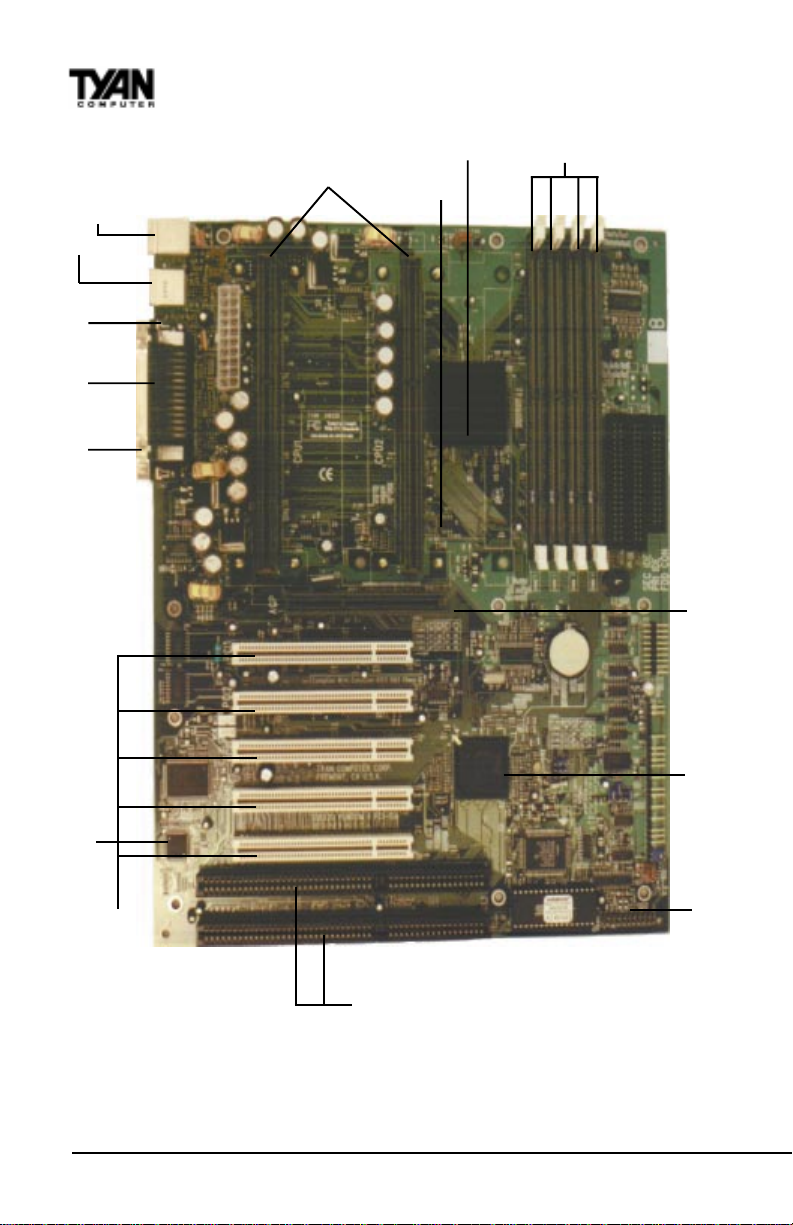

Chapter 3

Onboard Resource Settings

chapter 3

Onboard Resource Settings

Quick References for Jumpers

The tables on the pages which follow will help you set the jumpers for CPU speed, InfraRed, and external connector pin assignments, among others. The miniature motherboard maps will help you locate the jumpers on your board. A full-page map of the motherboard can be found on the facing page.

These jumper settings (manual revision 2.x) correspond to S1832DL revision B. Y our motherboard should have a large B printed in the corner of the board next to the DIMM sockets. If not, please get the correct manual from the T yan web site or contact your dealer.

http://www.tyan.com

Map of Motherboard Jumpers

FAN2 (CPU1)

FAN1

Mouse

Keyboard

USB2

USB1

(Chassis)

ATX power connector

CPU # 1 (Slot One type)

FAN3

(CPU2)

CPU # 2 (Slot One type)

DIMM bank 3

DIMM bank 4

DIMM bank 2

DIMM bank 1

Secondary IDE connector

Primary IDE connector

Floppy drive connector

COM1

COM2

National

Printer Port

JP15 (WOL)

LM79

National

LM75

PCI slot 1

PCI slot 2

PCI slot 3

PCI slot 4

PCI slot 5

AGP port

ISA slot 2

ISA slot 1

National

LM75

Intel

82371EB

Intel

JP3

Flash BIOS

ONBOARD

JP20

3 volt lithium battery

JP8

JP9

JP4

JP11

JP12

JP24

JP21

JP13

JP14

J10

Fan4

The tiny “1”s next to jumpers of 3 pins or more indicate the position of pin 1 for that jumper.

http://www.tyan.com

Chapter 3

Onboard Resource Settings

PS/2 ports

USB ports

COM2 LPT1 COM1

Two SEC slots

(Slot One type)

Intel 443BX

LM75

4 DIMM slots

AGP port

Intel PIIX4e

LM79

AMIBIOS

5 PCI slots

2 ISA slots

http://www.tyan.com

CPU Settings for 66MHz Bus

deepSkcolC zHM332 zHM662 zHM003 zHM333

tluM

5.3xNOFFOFFONO

4xFFONONONO

5.4xFFONOFFONO

5xFFOFFONONO

11PJ21PJ31PJ41PJ

CPU Settings for 100MHz Bus

deepSkcolC zHM053

zHM004

zHM054

tluM

5.3xNOFFOFFONO

4xFFONONONO

5.4xFFONOFFONO

The above clock speed settings control only the clock multiplier. 233MHz corresponds to 3.5x; 266MHz corresponds to 4x, etc. The bus speed is BIOS selectable. T yan does not recommend operating CPUs, memory or the PCI bus at higher than rated speed. Tyan takes no responsibility for any problems related to overclocking any bus or component on the system board.

11PJ21PJ31PJ41PJ

ONBOARD

CMOS Reset

3PJ

tluafeD

SOMCteseR

T o reset CMOS settings place JP3 on pins 2-3 for 5 seconds, then replace it to the default pins

1-2 setting again for normal operation.

http://www.tyan.com

2-1

3-2

JP3

JP11, JP12, JP13, JP14

Chapter 3

Onboard Resource Settings

InfraRed/Floppy Drive Settings

DDF/RI4PJ8PJ9PJ

DDF2

NO2-12-1

)tluafeD(DDF1/RI1

FFO3-23-2

J10 External Pin Assignments

sniP2-101-661-3102-8132-2272-42

noitcnuF

tnemngissA

rewoP

ffO/nO

rewoP=1

ffO/nO

DNG=2

deRarfnIDELDDHDELrewoP

V5=6

XRRI=8

DNG=9

XTRI=01

-DEL=51

+DEL=61

DNG=81

CN=91

DELrewoP=02

teseR hctiwS

DNG=22

teseR=32

rekaepS

V5=42

rekaepS

JP20 Pinout JP21 Pinout

2x9 External Connector Proprietary Server Mgmt Connector

CCV12 DELrewoP

DELDDH34 DELpeelS

dnuorG56 ffO/nOrewoP

teseR78 dnuorG

CCV901hctiwSIMS

evieceRRI1121CCV

dnuorG3141tcennoCoN

timsnarTRI5161CCV

tcennoCoN7181tcennoCoN

#IMSREVRES12KLCBMSMN

DNG34 DNG

niFFO/NO56 ATADBMSNM

KOPL78 KLNUYEK

TUOIMN901V3BSMN

#TESR_PF1121DNG

DNG3141tcennoCoN

ERUCES5161DNG

TNISIHC7181tcennoCoN

tcennoCoN9102DNG

Other Pin Assignments

lanretnI=62

-rekaepS=72

12 3

)NALno-ekaW(51PJ V5ybdnatSDNG)hgiHevitcA,nOrewoP(ekaW

4-1NAF DNGCCVrotinoMnaF

http://www.tyan.com

FAN2

(CPU1)

FAN1

(Chassis)

JP15

(WOL)

Soft Power Connector

FAN3 (CPU2)

JP4, JP8, JP9

J10

FAN4 (Chassis)

The Soft Power Connector is located on pins 1 and 2 of jumper block J10. The Tiger 100 uses the PIIX4e chip for power management, including turning on and off the system. If the Power Button Function option in the Power Mangement Menu is set to On/Off (which is the default), pressing the power button once, after the BIOS has booted up, will turn the system on and off. If the Power Button Function option is set to Suspend, pressing the power button once will wake the system or send it in to Suspend mode. In this case, you cannot turn the system off unless you shut down through the Windows operating system or you hold the power button down for four seconds.

Speaker Connector Installation

ONBOARD

The Tiger 100 provides a 4-pin header to connect the speaker. The speaker is connected to pins 24-27 of jumper block J10.

Hardware Reset Switch Connector Installation

The Reset switch on your case’s display panel provides you with the Hardware Reset function, which is the same as power on/off. The system will do a cold start after the Reset button is pushed. The Reset switch is a 2-pin connector and should be installed on pins 22 and 23 of jumper block J10.

http://www.tyan.com

Chapter 3

Onboard Resource Settings

Chassis Intrusion Alarm Connector

The J8 connector is an intrusion alarm, that can be connected to the system chassis. When active (J8 is closed), this alarm will alert the system administrator anytime someone opens the system’s case.

Windows 95 Users:

You may encounter problems with some of the devices in the Intel 82371EB chipset. Neither the PCI Bridge nor the PCI Universal Serial Bus device IDs for this chipset (also called PIIX4e) are recognized by Windows 95. This is a software problem, not a hardware problem, and can be easily remedied by either upgrading to Windows 98 or by installing the Win-95 Patch found on the Tyan Driver CD and on the Tyan internet and ftp sites: http://www.tyan.com/html/ drivers.html or at ftp://download.intel.com/design/pcisets/busmastr/setupex.exe. Note that USB requires Windows 95 OSR 2.1 or above; please contact Microsoft

for the USB update.

important!

CMOS RTC

The 440BX AGPset includes a Real Time Clock (R TC) circuit, which provides the date and time for the system. If the external battery for the R TC is low , it will prevent your system from POSTing, and you will not get a display . Normally the life span of an external battery is 2 years. If yours is running low , you will need to replace it with a new 3V lithium battery (Sony CR2032).

Flash EEPROM

The Tiger 100 uses flash memory to store BIOS programs. It can be updated as new versions of the BIOS become available. Y ou can upgrade your BIOS easily using the Flash Writer Utility (see page 69).

battery

JP3

http://www.tyan.com

Hardware CMOS & Password Reset

If you have been locked out of your system because you forgot your pass-

word or set the CMOS incorrectly , follow the instructions below .

procedure

1. Power off the system

2. Set jumper JP3 to pins 2 and 3 (see previous page for location of JP3).

3. W ait for 2 seconds, then return jumper JP3 to pins 1 and 2.

4. Power on the system again. By following this procedure, you will erase your password and reset the CMOS to the BIOS defaults.

RAM Installation

The Tiger 100 uses a 64-bit data path from memory to CPU and can accommodate up to 1024MB of SDRAM. The 168-pin DIMMs must be of the 3.3V , unbuffered variety . The position of the notch in the DRAM key position will tell you whether or not a DIMM is unbuffered (see the figure below). All installed memory will be automatically detected, so there is no need to set any jumpers.

ONBOARD

Buffered

Unbuffered

168-pin DIMM

RFU

Some details of memory installation:

• One unbuffered DIMM must be installed for the system to POST.

• The mainboard supports 8MB, 16MB, 32MB, 64MB, 128MB SDRAM; and

256MB registered SDRAM DIMM modules.

http://www.tyan.com

Chapter 3

Onboard Resource Settings

NOTE: T able below shows only some of the possible memory configurations.

MMID

1knaB

1xBM800 1xBM81xBM80 1xBM81xBM81xBM8

1xBM611xBM81xBM8 1xBM611xBM611xBM8 1xBM611xBM611xBM61 1xBM231xBM611xBM61 1xBM231xBM231xBM61 1xBM231xBM231xBM23 1xBM461xBM231xBM23 1xBM461xBM461xBM23 1xBM461xBM461xBM46

1xBM8211xBM461xBM46 1xBM8211xBM8211xBM46 1xBM8211xBM8211xBM821 1xBM65200 1xBM6521xBM6520 1xBM6521xBM6521xBM652 1xBM6521xBM6521xBM6521xBM652

MMID

2knaB

MMID

3knaB

MMID

4knaB

0 0 0 0

1xBM8 0 0

BM61

BM23 0 0 0 0 0 0 0 0 0

latoT

BM8

BM61 BM42 BM23 BM84 BM84 BM46 BM69

BM821 BM821 BM061 BM291 BM652 BM023 BM483 BM215 BM046

BM867

BM4201

Warning! The 256MB DIMMs r epresented above are REGISTERED memory chips. DO NOT use registered and non-registered memory chips simultaneously! (Check with your memory dealer for more information).

Cache Memory

Penitum II processors have the L2 (Level 2) cache built into their architecture, so there is no need for an L2 cache on the motherboard. The Pentium II processor has a physical L2 cache size of 512KB and a cacheable memory area of 512MB. The Celeron CPU may have no onboard L2 cache or 128KB.

http://www.tyan.com

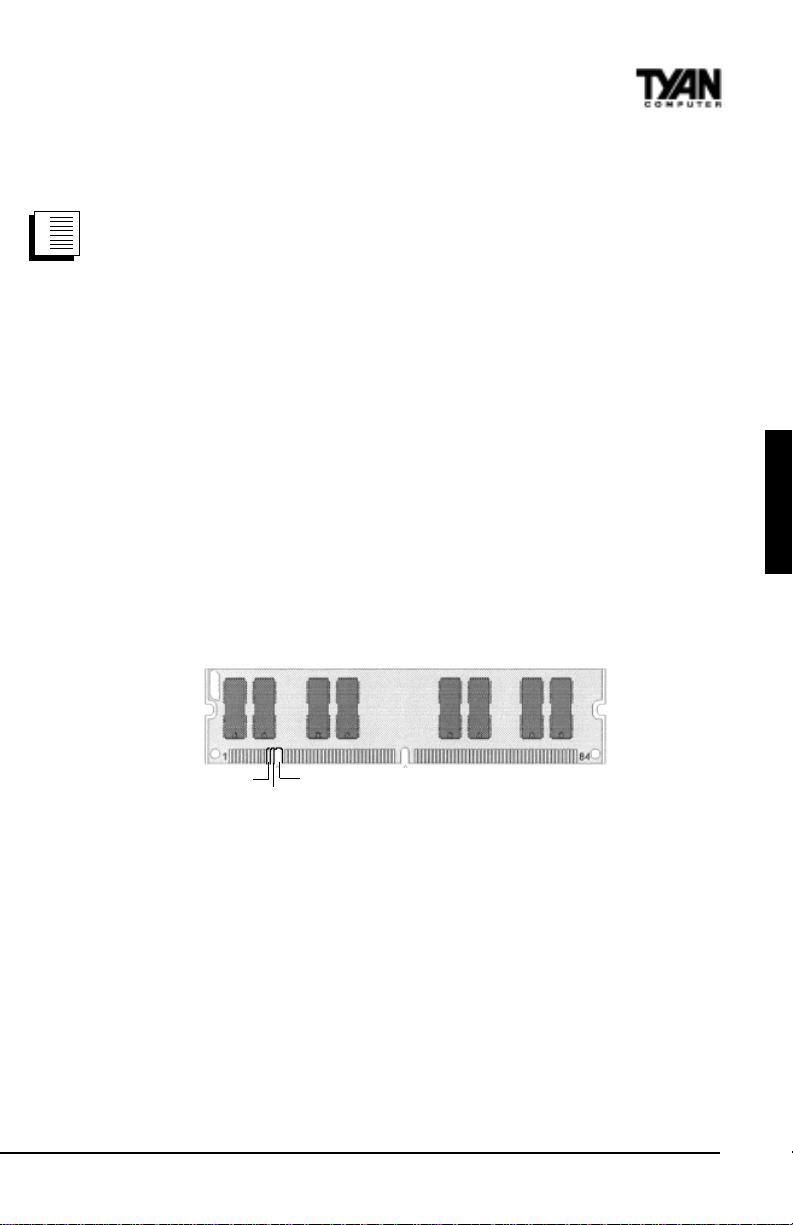

Frequently Asked Questions

Q: Why don’t I get a display after I put in my old DIMM module? A: The 440BX chipset requires the memory manufacturer to program an

EEPROM chip with SPD (Serial Presence Detection) on the module in order for the BIOS to program the 440BX’s timing registers properly . Your DIMM may not have the EEPROM chip on the module, or the EEPROM may not contain the correct program. Check with your memory vendor for details. The figure below shows a DIMM module with an EEPROM chip.

EEPROM

ONBOARD

RFU

Unbuffered

Buffered

168-pin DIMM

Q: My system sometimes becomes unstable. How should I check the system? A: The first thing to do is to check and see if you have any device conflict in

address, IRQ, or DMA. If you are using Windows 95, the Device Manager is a good place to start. Please consult your operating system manual for details. Second of all, slowing down the memory timing in the BIOS’s chipset setup section will help the situation, as well. Many memory modules are not suitable for high performance systems and are probably the main source of your problem.

Q: Can I use EDO DIMMs on this motherboard? A: No. The Intel 440BX AGPset does not support EDO memory . The 440BX

AGPset supports bus speeds of 100MHz, and EDO memory does not. You must use SDRAM (which does support 100MHz bus speeds) on this board.

Q: What is AGP? A: AGP (Accelerated Graphics Port) is a new bus architecture for 3D graphics.

The AGP slot eliminates the PCI bandwidth bottleneck by bypassing the PCI interface and accessing the system memory directly. Currently, the AGP supports 1X and 2X modes, which yield bandwidths of 264MB/s (at 33MHz bus speed) and 533MB/s (at 66MHz bus speed), respectively. Compare this with the mere 132MB/s (at 33MHz bus speed) that you get with the PCI bus.

http://www.tyan.com

Chapter 3

Onboard Resource Settings

Q: Does my operating system support AGP? A: Currently , only Windows 98 and W indows NT 5.0 will have built-in support

for AGP . Some AGP cards require W indows 95 OSR2.1 or a special driver from Intel. Please check with your graphics vendor for more details.

Q: Will my motherboard run a PII/Celeron/Mendicino CPU? A:Y es, the BIOS version 1.07 supports Celeron 266-300MHz and the BIOS

version 1.12 supports the Celeron-A (Mendocino) 300-333MHz.

Q: Can I run dual Celeron/Mendocino CPU´s on this motherboard? A: No, both Celeron and Mendocino CPU's are not designed to function in

dual CPU mode even on a dual slot motherboard.

Q: My system will not turn off - why? A: The power button is designed to turn off the system ONLY when you

press/hold the power button for more than 5 seconds. BIOS version 1.12 will provide an option for instant power-off .

Q: When I clear the BIOS with the jumper , it does not clear - why? A: In most cases, BIOS can be cleared by inserting jumper JP3 to the 2-3

position. In some cases, certain brands of power supply need to be UNPLUGGED from a power source in order to clear the BIOS using jumper JP3.

Q: I´m getting a "motherboard resource conflict" - seen in Win95/98 Device Manager as a yellow Exclamation Mark image. How do I clear it up? A: More than likely , you have BIOS version 1.03. Y ou need to install BIOS version 1.07 to resolve this problem.

Q: My Wake-On LAN network burned out my power supply. What should I do? A: You need to use a power supply with 800ma at +5VSB power line. This is because most W ake-On LAN network cards require +5V 750 mA in sleep mode. W e recommend our customer to purchase the ATX power supply with minimum 800 mA at +5V SB output to avoid over-current damage to the power supply.

Q: How can I disable the keyboard detection in the BIOS v.1.12? A: Y ou need to enable the Quick Boot option in CMOS - then the BIOS will not

check for a keyboard.

http://www.tyan.com

This page has been intentionally left blank.

Chapter 4

BIOS Configuration

chapter 4

BIOS Configuration

The AMIBIOS Setup screen is shown below .

System Date Thu Oct 15 1998 Setup Help System Time 12:55:37

Floppy Drive A 1.44 MB 3½ Day: 01 - 31 Floppy Drive B Not Installed Year: 1901 - 2099

Primary IDE Master Auto Primary IDE Slave Auto Secondary IDE Master Auto Secondary IDE Slave Auto

Auto-Detect Hard Disks [ Enter ]

Boot Sector Virus Protection Disabled

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

Month: Jan - Dec

- Previous Item ¯ Next Item

Select Menu

®¬

http://www.tyan.com

You can select a Setup option by using the following keyboard keys:

Key Function

Tab Moves from one box to the next

Arrow keys Changes selec t ions within a box

Ente r O pe n s highlighted sel e ction

The pages which follow contain explanations of the settings for the AMIBIOS Setup menus. Drawings have been included for ease of reference. Overall, the AMIBIOS Setup program is easy to use, and fairly intuitive. Note that the graphics in the manual are simpler than those that appear on your screen.

3.1 Main Setup

Select the AMIBIOS Setup options below by choosing Main Setup from the AMIBIOS Setup main menu. The Standard Setup menu screen is shown below.

System Date Fri Jan 1 1999 Setup Help System Time 12:55:37

Floppy Drive A 1.44 MB 3½ Day: 01 - 31 Floppy Drive B Not Installed Year: 1901 - 2099

Primary IDE Master Auto Primary IDE Slave Auto Secondary IDE Master Auto Secondary IDE Slave Auto

Auto-Detect Hard Disks [ Enter ]

Boot Sector Virus Protection Disabled

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

http://www.tyan.com

Month: Jan - Dec

- Previous Item ¯ Next Item

Select Menu

®¬

BIOS

Chapter 4

BIOS Configuration

System Date/Time

You can type the date and time in directly, or select the portion of the date or time that you want to modify and adjust it using the - ¯ cursor keys. The clock runs on a 24-hour cycle (i.e. 1:00 PM is 13:00).

[ System Date Setting ]

MM/DD/YY: Jan 1 1998

[ System Time Setting ]

Current Time 12:00:00

Floppy Drive A: and B:

Move the cursor to these fields via the arrow keys and select the floppy type. The settings are 360KB 5¼ inch,

1.2 MB 5¼ inch, 720KB 3½ inch, 1.44MB 3½ inch, or

2.88MB 3½ inch. If you are not sure what type of floppy drive you have, consult the documentation that came with your drive.

OPTIONS

Not Installed 360 KB 5¼

1.2 MB 5¼ 720 KB 3½

1.44MB 3½

2.88MB 3½

Primary Master , Primary Slave, Secondary Master , Secondary Slave

Select these options to configure the various drives. A screen with a list of drive parameters appears.

PRIMARY IDE MASTER SETUP Setup Help

IDE Device Configuration AUTO 1-46: Predefined types

Cylinders by User Heads AUTO: Set Parameters Write Precompensation automatically Sectors CD-ROM: Use for ATAPI Maximum Capacity CD-ROM drives

LBA Mode Double click [AUTO] to Block Mode set all HDD parameters Fast Programmed I/O Modes automatically 32 Bit Transfer Mode ON

USER: Set Parameters

ESC:Back Enter:Select

-¯:Select Items F5:Setup Defaults F6:Original Values

http://www.tyan.com

IDE Device Configuration: T o have the BIOS autodetect the IDE drive, select Auto. Otherwise, you may choose one of the 46 drive types offered, or enter the parameters yourself (see Entering Drive Parameters on page 42). Consult the table below to see how to configure various drive types yourself.

epyTerugifnoCotwoH

ISCS

EDI

MOR-DC

MFMdradnatS

MFMdradnatS-noN

tceleS epyT tceleS. dellatsnItoN ehT.neercsretemarapevirdehtno

otuoywolladluohsrerutcafunamISCSehtybdedivorpsrevirdISCS

.evirdISCSehterugifnoc

tceleS epyT tceleS. otuA .sretemarapehtenimretedSOIBIMAtelot

nokcilC KO tceleS.sretemarapevirdehtsyalpsidSOIBIMAnehw

edoMABL tceleS. nO nahtretaergyticapacasahevirdehtfi

.BM045 tceleS edoMkcolB tceleS. nO .srefsnartatadedomkcolbwollaot tceleS edoMtiB-23 tceleS. nO tceleS.srefsnartatadtib-23wollaot

eht edoMOIP tcelesottsebsitI. otuA otSOIBIMAwollaot

tonsitahtedomOIPatcelesuoyfI.edomOIPehtenimreted

uoyfI.ylreporpkrowtonlliwevirdeht,evirdEDIehtybdetroppus

OIPtceles,edomOIPs'evirdehtwonkuoytahtniatrecyletulosbaera

.etairporppasa,4-0edom

tceleS epyT tceleS. MORDC nokcilC. KO syalpsidSOIBIMAnehw

.sretemarapevirdeht

tahtemehcsgnidocnenaesuhcihwsEDIredloerasevirdMFM(

tceleS).mooregarotssseldnasseccaatadrewolssecudorp epyT .

tahtepytevirdehttceleS.sretemarapevirdehtwonktsumuoY

.sretemaraps'evirdruoysehctamyltcaxe

tceleS epyT evirdehthctamtonodsretemarapevirdehtfI.

tceles,64-1sepytevirdrofdetsilsretemarap resU ehtretnedna

.sretemarapevirdksiddrahtcerroc

LBA/Large Mode: These modes make it possible for the BIOS to take advantage of the additional space on drives which are larger than 504MB. This can be autodetected (when you select Auto for Type), or you can turn the modes On or Off yourself.

Block Mode: If On, Block Mode automatically detects the optimal number of block read/writes per sector that the drive can support.

http://www.tyan.com

Chapter 4

BIOS Configuration

Fast Programmed I/O Modes: Programmed Input/Output is a method of transmitting data between devices that uses the system’s CPU as part of the data path. There are 6 modes - 5 with their own transmission speed and 1 auto mode. T o use modes 3 and 4, you must be using an Enhanced IDE drive.

edoMOIP

otuA

03.3

12.5

23.8

31.11

46.61

refsnarTataD )spBM(etaR

32bit T ransfer Mode: If On, allows for the transmission of 32 bits in parallel

(i.e. at the same time). If Off, only 16 bits will be transmitted in parallel.

Entering Drive Parameters

If you select User for the drive T ype, you can enter the hard disk drive parameters yourself. The drive parameters are as follows:

retemaraPnoitpircseD

epyT

)lyC(srednilyC.evirdksidehtnisrednilycforebmunehT

)dH(sdaeH.sdaehforebmunehT

noitasnepmocerPetirW

)PW(

)ceS(srotceS

eziS

.)rotcesrep

.)sepytevirdfoelbatarofegap

etirW.setyb215dlohllitstsumrotceshcae,teY.sehsinimidretemaid

.snigebnoitasnepmocerp

.kcartrepsrotceseromneveevahsevirdEDIdnaISCS.kcart

ehtsemitsdaehforebmunehtsievirdehtfoyticapacdettamrofehT

txenehtees(sretemarapnoitacifitnediniatrechtiwevirdarofrebmunehT

kcartehtsarellamsylevissergorpstegrotcesafoezislacisyhplautcaehT

lacisyhpehtrofsetasnepmocksiddrahehtnoyrtiucricnoitasnepmocerp

renninosrotcesroftnerrucetirwehtgnitsoobybezisrotcesniecnereffid

etirwerehwecafrusksidehtnorebmunkcartehtsiretemarapsihT.skcart

.kcartrepsrotces71evahsevirdMFM.kcartrepsrotcesforebmunehT

repsrotces43evahsevirdIDSE.kcartrepsrotces62evahsevirdLLR

setyb(215semitkcartrepsrotcesforebmunehtsemitsrednilycforebmun

http://www.tyan.com

Auto-Detect Hard Disks

This option lets the system detect your hard disk(s) automatically for your convenience.

Boot Sector Virus Protection

The available settings for this option are ‘Enable’ and ‘Disable’.

Default Settings

Every option in AMIBIOS Setup contains two default values: a Fail-Safe default and the Optimal default value. You can also choose to restore the original BIOS settings (i.e. those that your board came with) at any time. These options can be found in the ‘Exit’ menu.

Optimal Defaults

The Optimal default values provide optimum performance settings for all devices and system features.

Fail-Safe Defaults

The Fail-Safe default settings consist of the safest set of parameters. Use them if the system is behaving erratically . They should always work but do not

provide optimal system performance characteristics.

Exit

Exit Saving Changes [ Enter ] Setup Help Exit Discarding Changes [ Enter ] Load Optimal Settings [ Enter ] Load configuration Load Fail Safe Settings [ Enter ] settings giving Load Original Values [ Enter ] highest performance.

BIOS

- Previous Item ¯ Next Item

Select Menu

®¬

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

http://www.tyan.com

Chapter 4

BIOS Configuration

3.2 Advanced CMOS Setup

The Advanced Setup options included in the AMIBIOS Setup for the Thunder X are described in this chapter. Select Advanced Setup from the AMIBIOS Setup main menu to display the Advanced Setup options.

Advanced CMOS Setup [ Enter ] Setup Help Advanced Chipset Setup [ Enter ] Power Management Setup [ Enter ] Advanced CMOS setup Plug and Play Setup [ Enter ] for configuring system Peripheral Setup [ Enter ] options Change Language Setting English

- Previous Item ¯ Next Item

Select Menu

®¬

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

Advanced CMOS Setup Default Settings Chart

Setting Option Optimal Default Fa il-Safe Default

Q uick Boo t Disab led Disa ble d P rimary M as ter A R M D E mulated as Aut o A uto P rimary S lave AR MD E mulated as Aut o A uto S econdar y Mas ter AR M D Emulated as A uto A uto S econdar y S l ave A R M D E mulated as Aut o A uto 1st B oot D evi ce F loppy F loppy 2nd B oot De vic e 1st IDE-HDD 1st IDE-HDD 3rd Boot Device AT API CDRO M AT API CDRO M T ry O t her Boot Devices Ye s Yes F loppy Acces s Contr ol R ea d-Write R ea d-Write Hard Dis k Acces s Control R ead-Write R ead-Write

http://www.tyan.com

Settings Chart (Continued)

Setting Option Optimal Default Fa il-Safe Default

S. M. A.R .T. f or Hard Disks Disa ble d Disable d Boot Up Nu m -Loc k O n O n P S /2 M ous e S upport E nabled Enabl ed Primary Display VGA/EGA VGA /EGA P ass w ord Check S etup S etup Boot To OS /2 No No Inte rn al Cache Write Ba ck WriteBa c k S ystem B IOS Cacheable E nabled Dis a bled Cache B us E CC E nab led Enabled Defa u lt Prima ry Video AG P AGP MPS Revisio n 1.1 1.1 C000,16K S ha dow Ca ched Ca ched C400,16K S ha dow Ca ched Ca ched C800,16K S ha dow Dis able d Dis able d CC 0 0 ,16K Shad o w Disab led Disa ble d D000,16K Shadow Dis able d Dis ab le d D400,16K Shadow Dis able d Dis ab le d D800,16K Shadow Dis able d Dis ab le d DC0 0 ,16K Shad ow Disable d Disabled

Advanced Setup

BIOS

Quick Boot

Set this option to Enabled to instruct AMIBIOS to boot quickly when the computer is powered on. This option replaces the old Above 1 MB Memory Test Advanced Setup option. The settings are:

gnitteSnoitpircseD

.yromemmetsysllastsetSOIBIMA

delbasiD

.desserpneebsahyekehtfiputeSSOIBIMAsnurdnasserpyek>leD<arofskcehcSOIBIMA

.BM1evobayromemmetsystsettonseodSOIBIMA

delbanE

.egassem

http://www.tyan.com

ehtrofyaledonsierehtesuaceb,toobmetsystaputeSSOIBIMAnurtonnacuoY puteSnurot>leD<tiH

5.rofstiawSOIBIMA.evirdksiddrahEDIehtmorflangisYDAERarofsdnoces04otpustiawSOIBIMA

.niagaydaertegotemitevirdEDIehtwollaotevirdEDIehtotlangisTESERagnidnesretfasdnoces

langisYDAERafI.evirdksiddrahEDIehtmorflangisYDAERarofsdnoces04otputiawtonseodSOIBIMA

tonseodSOIBIMA.evirdtahterugifnoctonseodSOIBIMA,evirdEDIehtmorfyletaidemmideviecertonsi

.niagaydaertegotemitevirdEDIehtwollaotevirdEDIehtotlangisTESERagnidnesretfasdnoces5.roftiaw

Chapter 4

BIOS Configuration

Pri/Sec Master/Slave ARMD Emulated as

ATAPI Removable Media Disks (e.g. ZIP drives) are hybrid drives. They are removable, and can be used as floppy drives, but also have great capacity and so are sometimes used as hard drives. These four options ensure that, if you have an ARMD attached as a master or slave device, it can be properly detected by the system. The settings are Auto, Floppy, and Hard Disk.

1st Boot Device

This option sets the type of device for the first boot drive that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD-FDD, ARMD-HDD, A T API CDROM, SCSI, NETWORK, and I2O.

2nd Boot Device

This option sets the type of device for the second boot drive that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD-FDD, ARMD-HDD, AT API CDROM, and SCSI.

3rd Boot Device

This option sets the type of device for the third boot drive that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD-FDD, ARMD-HDD, A T API CDROM.

T ry Other Boot Devices

Set this option to Yes to instruct AMIBIOS to attempt to boot from any other drive in the system if it cannot find a boot drive among the drives specified in the 1st Boot Device, 2nd Boot Device, and 3rd Boot Device options. The settings are Yes or No.

Floppy Access Control

This option specifies the read-write access that is set when booting from a floppy drive. The settings are Read-Write or Read-Only .

Hard Disk Access Control

This option specifies the read-write access that is set when booting from a hard disk drive. The settings are Read-Write or Read-Only.

S.M.A.R.T . for Hard Disks

Set this option to Enabled to permit AMIBIOS to use the SMART (System

http://www.tyan.com

Management and Reporting Technologies) protocol for reporting server system information over a network. Enabling this feature allows you to back up your data when your hard disk is about to fail. The settings are Enabled or Disabled.

Boot Up Num-Lock

Set this option to Off to turn the Num Lock key off when the computer is booted so you can use the arrow keys on both the numeric keypad and the keyboard. The settings are On or Off.

PS/2 Mouse Support

Set this option to Enabled to enable AMIBIOS support for a PS/2-type mouse. The BIOS will allocate IRQ12 for the PS/2 mouse. The settings are Enabled or Disabled.

Primary Display

This option configures the type of monitor attached to the computer. The settings are Absent, VGA/EGA, CGA40x25, CGA80x25, or Mono.

Password Check

This option enables password checking every time the system boots or when you run AMIBIOS Setup. If Always is chosen, a user password prompt appears every time the computer is turned on. If Setup is chosen, the password prompt appears if AMIBIOS is executed.

Boot T o OS/2

Set this option to Yes if you are running an OS/2 operating system and using more than 64 MB of system memory on the motherboard. The settings are Y es or No.

Internal Cache

This option sets the type of caching algorithm used by the L1 internal cache memory on the CPU. The settings are Disabled, WriteThru, or W riteBack.

System BIOS Cacheable

When set to Enabled, the contents of the F0000h system memory segment can be read from or written to cache memory. The contents of this memory segment are copied from the BIOS ROM to system RAM for faster execution. The settings are Enabled or Disabled. The Optimal default setting is Enabled.

http://www.tyan.com

BIOS

Chapter 4

BIOS Configuration

Cache Bus ECC

When Enabled, this option permits ECC error checking on the L2 cache bus. This ensures that cached data is not improperly altered. The settings are Enabled or Disabled.

Default Primary Video

This option sets the primary video card as either AGP (Accelerated Graphics Port) card or a regular PCI video card. The settings are AGP or PCI.

MPS Revision

This option sets the Multi-Processor Symmetry . Then settings are 1.1 or 1.4.

C000,16K Shadow and C400,16K Shadow

These options specify how the 32 KB of video ROM at C0000h is treated. The settings are:

gnitteSnoitpircseD

delbasiD.MARotdeipoctoneraMORoedivehtfostnetnocehT

delbanE

dehcaC

.noitucexeretsafrofMAR

.yromemehcacmorfdaerrootnettirweb

otMORmorf)dewodahs(deipocerahFFF7C-h000CmorfaeraMORoedivehtfostnetnocehT

nacdnaMARotMORmorfdeipocerahFFF7C-h000CmorfaeraMORoedivehtfostnetnocehT

C800,16K Shadow; CC00,16K Shadow; D000,16K Shadow; D400,16K Shadow; D800, 16K Shadow; and DC00,16K Shadow

These options enable shadowing of the contents of the ROM area named in the option. The ROM area not used by ISA adapter cards is allocated to PCI adapter cards. The settings are:

gnitteSnoitpircseD

delbasiD.MARotdeipoctoneraMORoedivehtfostnetnocehT

delbanE

dehcaC

.noitucexe

.yromemehcacmorfdaer

http://www.tyan.com

retsafrofMARotMORmorf)dewodahs(deipoceraaeraMORdetangisedehtfostnetnocehT

rootnettirwebnacdnaMARotMORmorfdeipoceraaeraMORdetangisedehtfostnetnocehT

3.3 Chipset Setup

Choose Chipset Setup on the AMIBIOS Setup main menu. All Chipset Setup options are then displayed. AMIBIOS Setup can be customized. AMIBIOS Setup can be customized via AMIBCP . See the AMIBIOS Utilities Guide for additional information.

Advanced CMOS Setup [ Enter ] Setup Help Advanced Chipset Setup [ Enter ] Power Management Setup [ Enter ] Advanced Chipset setup Plug and Play Setup [ Enter ] for configuring Peripheral Setup [ Enter ] chipset features Change Language Setting Engish

- Previous Item ¯ Next Item

Select Menu

®¬

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

BIOS

Advanced Chipset Setup Default Settings Chart

Setting Option Optimal Default Fail-Safe Default

USB Function Disabled Dis abled

* US B KB /Mous e L egacy S uppo rt Dis abled Di s abled * P ort 64/60 E mul ation Dis abled Dis abled

S ERR# Disabled Disabled PE RR# Disabled Disabled WSC# H andsha ke Enab led Ena bled USW C Write Pos t En abled En abled Maste r La tency Time r (C lks) 64 64 M ult i-Trans Timer (Cl ks) 32 32 PCI1 to PCI0 Access D isabled D isabled Method of Me m ory Detection Auto & SPD Auto & S P D DRAM Integ ri ty Mod e ECC Hardware ECC Hardware

http://www.tyan.com

Chapter 4

BIOS Configuration

Settings Chart (continued)

Setting Option Optimal Default Fail-Safe Default

D R AM R efr e s h R at e 15 .6 u s 15.6 us Memory Hole Disabled Disabled SD RAM RAS# to CA S# Delay 3SCLKs 3 SCLKs SD RAM RA S# Prech arge 3SCLK s 3 SCLKs P ower Down S DR AM D i s abled D is abl ed A CPI Con trol Register Disabl ed D isabl ed G ated Cloc k Disa bled Disa bled Graph ic s Aperture Size 64 MB 64 MB S earch for M DA R esources Yes Yes AGP Mult i-Trans Ti mer (AGP Clk s ) 32 Di s abled A GP Low- Pri or ity Timer (Clks) 16 Disabl ed AG P SERR Disable d Disa ble d A GP Parit y Erro r Respo nse Disabled D isabled 8b it I/O Re cove ry Time Disable d Dis abled 16bit I/O R ecovery T ime Dis abled Di s abled PIIX4 SERR# Disa bled Disa bled USB Pa ss ive R ele ase Enable d Enable d PIIX4 P as s ive Release Enable d Enable d PIIX4 Delayed Transac t ion Disabled Disabled T ype F DM A B uff er Control1 Di s abled Dis abled T ype F DM A B uff er Control2 Dis abled Di s abled DMA-0 Type Norma l ISA Norma l ISA DMA-1 T ype Norma l ISA Normal ISA DMA-2 Type Norma l ISA Norma l ISA DMA-3 Type Norm al ISA Norma l ISA DMA-4 Type Norma l ISA Norma l ISA DMA-5 Type Norma l ISA Norma l ISA DMA-6 Type Norma l ISA Norma l ISA

* Setting option not selectable.

USB Function

Set this option to Enabled to enable USB (Universal Serial Bus) support. The settings are Enabled or Disabled.

http://www.tyan.com

USB KB/Mouse Legacy Support

Set this option to Enabled to enable support for older keyboards and mouse devices if the USB Function option is set to Enabled. The settings are Enabled or Disabled.

Port 64/60 Emulation

Setting this option to Enabled allows a USB keyboard to act like a legacy keyboard. If this option is not Enabled, USB keyboard lights will not work under Windows NT . W ith other operating systems, a USB keyboard will work normally with this option Disabled. The settings are Enabled or Disabled.

SERR#

Set this option to Enabled to enable the SERR# signal on the bus. The settings are Enabled or Disabled.

PERR#

Set this option to Enabled to enable the PERR# signal on the bus. The settings are Enabled or Disabled. The Optimal and Fail-safe default settings are Disabled.

WSC# Handshake

Set this option to Enabled to enable handshaking for the WSC# signal. Handshaking is a form of encryption; see the Glossary for more information. The settings are Enabled or Disabled.

BIOS

USWC Write Post

This option sets the status of USWC posted writes to I/O. USWC is a type of memory that is used by VGA devices. The settings are:

gnitteSnoitpircseD

delbanE.delbaneeraO/IotsetirwdetsopCWSU

delbasiD.delbasideraO/IotsetirwdetsopCWSU

BX Master Latency Timer (Clks)

This option specifies the master latency timer (in PCI clocks) for devices in the computer. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224.

Multi-T rans Timer (Clks)

This option specifies the multi-trans latency timings (in PCI clocks) for devices in the computer. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224.

http://www.tyan.com

Chapter 4

BIOS Configuration

PCI1 to PCI0 Access

Set this option to Enabled to enable access between two different PCI buses (PCI1 and PCI0). The settings are Enabled or Disabled.

Method of Memory Detection

This option determines how your system will detect the type of system memory you have installed. Options are Auto+SPD or Auto only .

DRAM Integrity Mode

This option sets the type of system memory checking. The settings are:

gnitteSnoitpircseD

CCEnoN .enodsignitroperrorrerognikcehcrorreoN

CE .edameblliwsnoitcerrocontub,detcetederasrorrE

erawdraHCCE .detcerrocerasrorretibelgnisdna,detcetederasrorrE

DRAM Refresh Rate

This option specifies the interval between refresh signals to DRAM system memory . The settings are 15.6 us (microseconds), 31.2 us, 62.4 us, 124.8 us, or

249.6 us.

Memory Hole

This option specifies the location of an area of memory that cannot be addressed on the ISA bus. The settings are Disabled, 512KB-640KB, or 15MB16MB.

SDRAM RAS# to CAS# Delay

This option specifies the length of the a inserted between the RAS and CAS signals of the DRAM system memory access cycle if SDRAM is installed. The settings are Auto, 2 SCLKs or 3 SCLKs. The Optimal default setting is Auto.

SDRAM RAS# Precharge

(CHANGE) This option specifies the length of the RAS precharge part of the DRAM system memory access cycle when SDRAM system memory is installed in this computer. The settings are Auto, 2 SCLKs, or 3 SCLKs.

Power Down SDRAM

If this option is set to Enabled, the SDRAM Power Down feature is enabled. The settings are Enabled or Disabled.

http://www.tyan.com

ACPI Control Register

Set this option to Enabled to enable the ACPI (Advanced Configuration and Power Interface) control register. The settings are Enabled or Disabled. The Optimal and Fail-safe default settings are Enabled.

Gated Clock

Set this option to Enabled to enable the gated clock. The settings are Enabled or Disabled.

Graphics Aperture Size

This option specifies the amount of system memory that can be used by the Accelerated Graphics Port (AGP). The settings are 4 MB, 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, or 256 MB.

Search for MDA Resources

Set this option to Yes to let AMIBIOS search for MDA resources. The settings are Y es or No.

AGP Multi-T rans Timer (AGP Clks)

This option sets the AGP multi-trans timer. The settings are in units of AGP Clocks. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224.

AGP Low-Priority Timer (Clks)

This option sets the AGP low priority timer. The settings are in units of AGP Clocks. The settings are Disabled, 16, 32, 48, 64, 80, 96, 112, 128, 144, 176, 192, 208, 224, or 240.

BIOS

AGP SERR

Set this option to Enabled to enable the AGP SERR signal. The settings are Enabled or Disabled.

AGP Parity Error Response

Set this option to Enabled to enable AGP parity error response. The settings are Enabled or Disabled.

8bit I/O Recovery Time

This option specifies the length of a delay inserted between consecutive 8-bit I/O operations. The settings are Disabled and from 1 to 8 Sysclk (system clocks) in increments of one.

http://www.tyan.com

Chapter 4

BIOS Configuration

16bit I/O Recovery Time

This option specifies the length of a delay inserted between consecutive 16-bit I/O operations. The settings are Disabled and from 1 to 4 Sysclk (system clocks) in increments of one.

PIIX4 SERR#

Set this option to Enabled to enable the SERR# signal for the Intel PIIX4 chip. The settings are Enabled or Disabled.

USB Passive Release

Set this option to Enabled to enable passive release for USB. The settings are Enabled or Disabled.

PIIX4 Passive Release

Set this option to Enabled to enable passive release for the Intel PIIX4e chip. This option must be Enabled to provide PCI 2.1 compliance. The settings are Enabled or Disabled.

PIIX4 DELA YED TRANSACTION

Set this option to Enabled to enable delayed transactions for the Intel PIIX4 chip. This option must be Enabled to provide PCI 2.1 compliance. The settings are Enabled or Disabled.

T ypeF DMA Buffer Control1 and 2 These options specify the DMA channel where TypeF buffer control is implemented. The settings are Disabled, Channel-0, Channel-1, Channel-2, Channel-3, Channel-5, Channel-6, or Channel-7.

DMA-n T ype

These options specify the bus that the specified DMA channel can be used on. The settings are Normal ISA, PC/PCI, or Distributed.

CPU Bus Frequency

This option provides selective CPU Bus Frequency; however, it is strongly recommended that the default setting (Auto) be selected. Unpredictable situations may arise if the Intel default CPU bus speed is not used. The settings are Auto, 66.8MHz, 68.5MHz, 75MHz, 83.3MHz, 100MHz, 103MHz, or 112MHz.

http://www.tyan.com

3.4 Power Management Setup

The AMIBIOS Setup options described in this section are selected by choosing Power Management Setup from the AMIBIOS Setup main menu.

Advanced CMOS Setup [ Enter ] Setup Help Advanced Chipset Setup [ Enter ] Power Management Setup [ Enter ] Power management setup Plug and Play Setup [ Enter ] for configuring power Peripheral Setup [ Enter ] management features Change Language Setting English

- Previous Item ¯ Next Item

Select Menu

®¬

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

Power Management Setup Default Settings Chart

Setting Option Optimal Default Fa il-Sa fe Defau lt

ACPI Aware O/S No No P ow er Mana g e ment / AP M E na bled Enab led Pow er Button Func tion On/Off On / Off Green PC Moni tor Po wer State Suspend Stand By Video P o wer D o wn Mode S us pend Dis abled Ha rd Disk Powe r Down Mode Susp end Disab led Ha rd DiskT ime Out ( Min ute) Disab led Disa bled Power Sav ing Type Sl eep Sl eep S ta ndb y / Suspend Timer Unit 4 min 4 min Stand by Time Ou t Disabled Disabled Suspend Time Ou t Disab le d Disa bled Slow Cloc k Ra tio 50% - 62.5% 50% - 62.5% Dis pla y Ac tivity Ig n ore Ig n ore

http://www.tyan.com

BIOS

Chapter 4

BIOS Configuration

Setting Option Optimal Default Fa il-Safe Default

Devic e 6 (S erial port 1) Monitor Monitor Devic e 7 (S erial port 2) Mon itor Monitor Devic e 8 (P ara lle l port) Mon itor Monitor Devic e 5 (F loppy dis k) Monitor Monitor Device 0 (P rimary master IDE) Monitor Monitor De vice 1 (Prima ry s lav e IDE) Monitor Mon itor De vice 2 ( Secon da ry ma ster I DE) Mon itor Monitor De vice 3 ( Secon da ry s lav e IDE) Monitor Mon it or LAN W ake -u p Dis abled Dis abled PC 9 8 Power LED Disabl ed Dis abled F an OF F a t Sus pend Enab led Enab led RT C Wake-up Dis abled Dis abled

*Hour N/ A N/A *Minute N/A N/A

* Setting option not selectable.

ACPI A ware O/S

Set this option to Yes to enable Advanced Configuration and Power Interface (ACPI) BIOS for an ACPI-aware operating system.

Power Management/APM

Set this option to Enabled to enable the chipset power management and APM (Advanced Power Management) features. The settings are Enabled or Disabled.

Power Button Function

This option specifies how the power button mounted externally on the computer chassis is used. See Soft Power Connector on page 31 for more information. The settings are shown in the table below.

gnitteSnoitpircseD

ffO/nO.fforonoretupmocehtsnrutnottubrewopehtgnihsuP

dnepsuS .edomrewopnOlluFroedomdnepsuSniretupmocehtsecalpnottubrewopehtgnihsuP

Green PC Monitor Power State

This option specifies the power state that the green PC-compliant video monitor enters when AMIBIOS places it in a power saving state after the

http://www.tyan.com

specified period of display inactivity has expired. The settings are Off, Stand By, or Suspend.

Video Power Down Mode

This option specifies the power state that the video subsystem enters when AMIBIOS places it in a power saving state after the specified period of display inactivity has expired. The settings are Stand By , Suspend, or Disabled.

Hard Disk Power Down Mode

This option specifies the power conserving state that the hard disk drive enters after the specified period of hard drive inactivity has expired. The settings are Disabled, Stand By, or Suspend.

Hard Disk Time Out (Minute)

This option specifies the length of a period of hard disk drive inactivity. When this length of time expires, the computer enters power-conserving state specified in the Hard Disk Power Down Mode option (see above). The settings are Disabled, and from 1 to 15 minutes, in one minute intervals.

Power Saving T ype

There are several types of sleeping states within the general sleep state. This option allows you to choose how “asleep” you want your system to be. In deeper sleep modes, more energy is saved. However, upon waking up, the system must “reorient” itself, and reestablish control over the system’s sleeping components. The settings are POS, Sleep, Stop Clock, and Deep Sleep. POS is the lightest sleep mode; Deep Sleep is the heaviest.

Standby/Suspend Timer Unit

This option specifies the unit of time used for the Standby and Suspend time out periods. The settings are 4 msec, 4 sec, 32 sec, or 4 min.

Standby Time Out

This option defines the length of time that the system, while in Full On state, must be inactive before it enters Standby mode. The settings are Disabled and from 4 minutes to 508 minutes, in increments of 4 minutes.

Suspend Time Out

This option defines the length of time that the system, while in Standby mode, must be inactive before it enters Suspend mode. The settings are Disabled and from 4 minutes to 508 minutes, in increments of 4 minutes.

http://www.tyan.com

BIOS

Chapter 4

BIOS Configuration

Slow Clock Ratio

This option specifies the speed at which the system clock runs in the Standby Mode power saving state. The settings are expressed as a percentage of the normal CPU clock speed. The settings are 0-12.5%, 12.5%-25%, 25%-37.5%,

37.5%-50%, 50%-62.5%, 62.5%-75%, or 75-87.5%.

Display Activity

When set to Monitor, this option enables event monitoring on the video display. If set to Monitor and the computer is in a power saving state, display activity will cause the system to enter the Full On state. AMIBIOS reloads the Standby and Suspend time-out timers if display activity occurs. The settings are Monitor or Ignore.

Device n (Device identity)

When set to Monitor, these options enable event monitoring on the specified hardware interrupt request line. If set to Monitor and the computer is in a power saving state, any activity on the IRQ line will cause the system to enter the Full On state. AMIBIOS reloads the Standby and Suspend time-out timers if activity occurs on the specified IRQ line. The settings for each of these options are Monitor or Ignore.

LAN Wake-up

When this option is Enabled, the system will wake up when a signal is received on the W ake-on LAN header. In order for this wake up function to work, the system must have been brought up at least past the POST before it was last shut down (i.e. if you turn the system off before the POST, the registry will not be set, and the system will not be able to wake up using this function). This function requires an A TX 2.01 compliant power supply with 5V standby (STB5V) current of at least 800mA. The settings are Enabled or Disabled.

PC98 Power LED

When this option is Enabled, your power LED will turn to yellow when your system is in Suspend mode. Note that if you do not have a two-color LED, your LED will turn off when the system is in Suspend mode if this option is set to Enabled. The settings are Enabled or Disabled.

F AN OFF at Suspend

If this option is Enabled, the CPU fan will turn off when the system is in Suspend mode. If Disabled, the CPU fan will remain on while the system is in Suspend mode. The settings are Enabled or Disabled.

http://www.tyan.com

RTC W ake-up

If Enabled, this option allows you to set an hour and minute for the system to wake up. The next two fields allow you to choose the wake up time. Note that the time fields will not be available if this option is set to Disabled. In order for this wake up function to work, the system must have been brought up at least past the POST before it was last shut down (i.e. if you turn the system off before the POST , the registry will not be set, and the system will not be able to wake up using this function). The settings are Enabled or Disabled.

3.5 Plug and Play Setup

Choose PCI/Plug and Play Setup from the AMIBIOS Setup screen to display the PCI and Plug and Play Setup options, described below.

Advanced CMOS Setup [ Enter ] Setup Help Advanced Chipset Setup [ Enter ] Power Management Setup [ Enter ] Configure PCI / Plug Plug and Play Setup [ Enter ] and Play features Peripheral Setup [ Enter ] Change Language Setting English

BIOS

- Previous Item ¯ Next Item

Select Menu

®¬

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

http://www.tyan.com

Chapter 4

BIOS Configuration

Plug and Play Setup Default Settings Chart

Setting Option Optimal Default Fa il-Safe Default

P lug and P lay Aware O/S Y es Yes P CI Late n c y Timer (P CI Clocks ) 64 64 PCI VGA Pal et te Snoo p Disabl ed D isabl ed Alloca te IRQ to PCI VGA Yes Yes PCI IDE B u sMaste r Dis abled Disa ble d OffBoard PCI IDE Card Auto Auto

*OffB oard PCI IDE Primary IRQ Dis abled Disa ble d *OffB oard PCI IDE Secondary IRQ Dis abled Disa ble d

PCI Slot1 IR Q Priority Auto Auto PCI Slot2 IRQ Priority Au to Auto PCI Slot3 IRQ Priority Au to Auto PCI Slot4 IRQ Priority Au to Auto DM A Channel 0 P nP P nP DM A Channel 1 P nP P nP DM A Channel 3 P nP P nP DM A Channel 5 P nP P nP DM A Channel 6 P nP P nP DM A Channel 7 P nP P nP IRQ3 PCI/PnP PCI/PnP IRQ4 PCI/PnP PCI/PnP IRQ5 PCI/PnP PCI/PnP IRQ7 PCI/PnP PCI/PnP IRQ9 PCI/PnP PCI/PnP IRQ10 PCI/PnP PCI/PnP IRQ11 PCI/PnP PCI/PnP IRQ12 PCI/PnP PCI/PnP IRQ14 PCI/PnP PCI/PnP IRQ15 PCI/PnP PCI/PnP

* Setting option is not selectable

http://www.tyan.com

Plug and Play A ware O/S

Set this option to Yes to inform AMIBIOS that the operating system can handle plug and Play (PnP) devices. The settings are No or Yes.

PCI Latency Timer (PCI Clocks)

This option specifies the latency timings (in PCI clocks) for PCI devices installed in the PCI expansion slots. The settings are 32, 64, 96, 128, 160, 192, 224, or 248.

PCI VGA Palette Snoop

When this option is set to Enabled, multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device. Bit 5 of the command register in the PCI device configuration space is the VGA Palette Snoop bit (0 is disabled). For example, if there are two VGA devices in the computer (one PCI and one ISA) and this field is set for:

gnitteSnoitpircseD

delbasiD .sretsigerettelaps'ecivedAGVICPehtotdetceridylnosiUPCehtybnettirwdnadaerataD

delbanE

.lacitnediebotsecivedhtobfosretsigerettelapehtgnittimrep,sretsigerettelapecivedAGVASIeht

This option must be set to Enabled if any ISA adapter card installed in the system requires VGA palette snooping.

dnasretsigerettelaps'ecivedAGVICPehthtobehtotdetceridsiUPCehtybnettirwdnadaerataD

BIOS

Allocate IRQ to PCI VGA

Set this option to Y es to allocate an IRQ to the VGA device on the PCI bus. The settings are Yes or No.

PCI IDE BusMaster

Set this option to Enabled to specify that the IDE controller on the PCI bus has bus mastering capability . The settings are Disabled or Enabled.

OffBoard PCI IDE Card

This option specifies whether or not an offboard PCI IDE controller adapter card is used in the computer, and where it is installed. If an offboard PCI IDE controller is used, the motherboard onboard IDE controller is automatically disabled. The settings are Auto and Slot1 through Slot6. If Auto is selected, AMIBIOS automatically determines the correct setting (including using the onboard controller if no offboard controller card is detected). This option forces IRQ 14 and 15 to a PCI slot on the PCI local bus. This is necessary to

http://www.tyan.com

Chapter 4

BIOS Configuration

support non-compliant PCI IDE adapter cards.

OffBoard PCI IDE Primary IRQ

This option specifies the PCI interrupt used by the primary IDE channel on the offboard PCI IDE controller . The settings are Disabled, Hardwired, INT A, INTB, INTC, or INTD.

Offboard PCI IDE Secondary IRQ

This option specifies the PCI interrupt used by the secondary IDE channel on the offboard PCI IDE controller . The settings are Disabled, Hardwired, INT A, INTB, INTC, or INTD.

PCI Slot n IRQ Priority

These options specify the IRQ priority for PCI devices installed in the PCI devices installed in the PCI expansion slots. The settings are Auto, IRQ 3, 4, 5, 7, 9, 10, and 11, in priority order .

DMA Channel n

These options allow you to specify the bus type used by each DMA channel. The settings are PnP or ISA/EISA .

IRQn

These options specify the bus that the specified IRQ line is used on. These options allow you to reserve IRQs for legacy ISA adapter cards. These options determine if AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices that are configurable by the system BIOS. The available IRQ pool is determined by reading the ESCD NVRAM. If more IRQs must be removed from the pool, you can use these options to reserve the IRQ by assigning an ISA/EISA setting to it. Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are configured as PCI/PnP. IRQ12 only appears if the Mouse Support option in Advanced Setup is set to Disabled. IRQ14 and 15 will not be available if the onboard PCI IDE is enabled. If all IRQs are set to ISA/EISA and IRQ14 and 15 are allocated to the onboard PCI IDE, IRQ9 will still be available for PCI and PnP devices, because at least one IRQ must be available for PCI and PnP devices. The settings are ISA/EISA or PCI/PnP .

Reserved Memory Size

This option specifies the size of the memory area reserved for legacy ISA adapter cards. The settings are Disabled, 16K, 32K, or 64K.

http://www.tyan.com

Reserved Memory Address

This option specifies the beginning address (in hex) of the reserved memory area. The specified ROM memory area is reserved for use by legacy ISA adapter cards. This option does not appear if the Reserved Memory Size option is set to Disabled. The settings are C0000, C4000, C8000, CC000, D0000, D4000, D8000, or DC000.

PCI Device Search Order

This option changes the BIOS scan order of the PCI slot - from first to last or last to first. The settings are First-Last or Last-First.

BIOS Devnode for Shadow RAM

This option is used for some add-on card ROMs which do not claim the correct memory range that they occupy. The settings are Disabled or Enabled.

BIOS

http://www.tyan.com

Chapter 4

BIOS Configuration

3.6 Peripheral Setup

Peripheral Setup options are displayed by choosing Peripheral Setup from the AMIBIOS Setup main menu. All Peripheral Setup options are described here.

- Previous Item ¯ Next Item

Select Menu

®¬

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

Peripheral Setup Default Settings Chart

Setting Option Optimal Default Fail-Safe Default

Pow er Inte rruption Disa bled Dis ab le d Overclock Warning M es s age E nab led E nabled LM79 IN0 2.06 2.06 LM79 IN1 2.04 2.04 LM79 IN2 3.32 3.32 LM79 IN3 5.1 6 5.16 LM79 IN4 11.91 11 . 91 L M 79 I N 5 - 11.8 1 - 11.81 LM79 IN6 -5.13 -5.13 Onb oard FDC Auto Auto Onboar d Serial Po rt 1 3 F8h 3F8h Onboar d Serial Po rt 2 2 F8h 2F8h Serial Port 2 Mode Norm al Normal

*IR Duplex Mode

N/A N/A

http://www.tyan.com

Default Settings Chart (Continued)

Setting Option Optimal Default Fail-Safe Default

*IR R ec eiver P in IRR X1 IR R X1

Onboard Parallel P ort 378 378 Para ll el Port Mode Normal Normal

*E P P Vers ion N/A N/A

Parallel P ort IR Q 7 7

*P arallel P or t DM A Channel N /A N /A

Onboard IDE B oth B oth

* Setting Option is not Selectable

Overclock W arning Message

When enabled, this option sends a warning message if the CPU is overclocked. The settings are Enabled or Disabled.

LM79 IN(X)

This option specifies various CPU core voltage settings.

Power Interruption

The settings are Enabled or Disabled.

Onboard FDC

Set this option to Enabled to enable the floppy drive controller on the motherboard. The settings are Auto, Enabled, or Disabled.

BIOS

Onboard Serial Port1

This option specifies the base I/O port address of serial port 1. The settings are Auto, Disabled, 3F8h, 2F8h, 3E8h, or 2E8h.

Onboard Serial Port2

This option specifies the base I/O port address of serial port 2. The settings are Auto, Disabled, 3F8h, 2F8h, 3E8h, or 2E8h.

Serial Port2 Mode

This option specifies the operating mode for serial port 2. This option will not appear if the Onboard Serial Port2 option is set to Disabled, or is set to Auto and your system does not have an onboard serial port 2. The settings are Normal, Sharp-IR, IrDA, and Consumer.

http://www.tyan.com

Chapter 4

BIOS Configuration

IR T ransmission Mode

This option specifies the infrared transmission method. This option will not appear if the Serial Port2 Mode option is set to Normal. The settings are Full or Half.

edoMnoitpircseD

xelpuDlluF

xelpuDflaH

.edomxelpud

ecivedrehtoehtybdeviecerneebsahtilitnuneercsruoynoraeppa

.sedomowtehtforetsafehtsixelpudlluF.uoyotkcabtnesdna

IR Receiver Pin

This option specifies which pin will act as the receiver for IR data transmission. This option will not appear if the Serial Port2 Mode option is set to Normal. The only setting is IRRX1.

OnBoard Parallel Port

This option specifies the base I/O port address of the parallel port on the motherboard. The settings are Auto, Disabled, 378, or 278.

Parallel Port Mode

This option specifies the parallel port mode. The settings are:

gnitteSnoitpircseD

lamroN.desusiedomtroplellaraplamronehT

riD-iB.troplellarapehtnosrefsnartlanoitceridibtroppusotgnittessihtesU

PPE

.ecivedtsohehtybnevirdrefsnartatadlanoitceridib

tonlliwdnesuoyatadynA.ecnotasnoitceridowtnidettimsnartsiataD

dnesuoyatadynA.emitatanoitceridenoylnonidettimsnartsiataD reisaesiedomxelpudflaH.neercsruoynodeyalpsidyltnatsnieblliw

llufeldnahnacsecivedelbapac-RIllatoN.etucexeotsecivedehtrof

troPlellaraPdecnahnEehtoterehdatahtsecivedhtiwdesuebnactroplellarapehT

cirtemmysaedivorpotslangistroplellarapgnitsixeehtsesuPPE.snoitacificeps)PPE(

PCE

pufosetarrefsnartatadeveihcaotlocotorpAMDehtsesuPCE.snoitacificeps)PCE(

.noitacinummoclanoitceridibcirtemmyssedivorpPCE.dnocesrepstibageM5.2ot

EPP V ersion

This option specifies the Enhanced Parallel Port specification version number that is used in the system. This option only appears if the Parallel Port Mode option is set to EPP. The settings are 1.7 or 1.9. Version 1.9 is common on

http://www.tyan.com

troPseitilibapaCdednetxEehtoterehdatahtsecivedhtiwdesuebnactroplellarapehT

newer devices; consult your device’s user information for the appropriate port type. There are no default settings.

Parallel Port IRQ

This option specifies the IRQ used by the parallel port, and only appears if OnBoard Parallel Port is set to 278 or 378. The settings are 5 or 7.

Parallel Port DMA Channel

This option is only available if the setting for the Parallel Port Mode option is set to ECP and the OnBoard Parallel Port option is set to 378, 278, or 3BC. This option sets the DMA channel used by the parallel port. The settings are 0 through 7 in increments of one.

Onboard IDE

This option specifies the IDE channel used by the onboard IDE controller. The settings are Disabled, Primary, Secondary , or Both.

BIOS

http://www.tyan.com

Chapter 4

BIOS Configuration

3.7 Supervisor and User Security

You can limit access to the Setup Program or to the system using the Supervisor and User password options (the Supervisor password gives you access to the Setup Program and the system; the User password, only to the system). Note that you must create a supervisor password before you create a user password.

Set Supervisor Password [ Enter ] Setup Help Set User Password [ Enter ]

Change the supervisor password

- Previous Item ¯ Next Item

Select Menu

®¬

ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit

When you select the Supervisor Security option, a dialog box will appear, allowing you to enter a password. You may either type the password in, or click on the onscreen buttons. Your password must be between one and six characters long.

http://www.tyan.com

Once you have entered your new password, you will be asked to confirm it. If the two passwords do not match, you will be prompted to enter a new password, and then to confirm it. This will continue until you enter the same series of characters both times. Once this is accomplished, a dialog box will appear and notify you that the Supervisor Password has been installed. You may then select the User Security option and enter a password for the user. You can enter a new User password at any time simply by selecting the User Security option, and typing in a new password. T o enter a new Supervisor password, select the Supervisor Security option. You will be asked to enter the current password. After you do so, you will be prompted to enter the new password.

In either the Supervisor or User Security options, pressing <Enter> once when asked for a new password, and a second time when asked to confirm the new password, will uninstall the existing password. Note that uninstalling the Supervisor password uninstalls the User password as well.

3.8 Language Utility

Currently, the BIOS Setup program is available only in English.

3.9 Flash Writer Utility

The AMI Flash Writer Utility is now included in the AMIBIOS, and so it is simpler to upgrade the BIOS of your mainboard. The system BIOS is stored on a flash EEPROM ROM chip on the mainboard which can be erased and reprogrammed by following the directions on the following page.

1. From the DOS prompt, rename the BIOS file that you have downloaded to “amiboot.rom” and copy it on to a floppy disk.

2. Insert the floppy disk with the BIOS upgrade into the A: drive.

3. Turn the power off.

4. While holding the <Ctrl> and <Home> keys, turn the power on. The system will begin to read from the A: drive, and write the BIOS information contained on the floppy disk in that drive to the EEPROM ROM chip. When the BIOS has been totally reprogrammed, the system will reboot with the new BIOS in operation.

5. If the system does not reboot in three minutes, power down the system wait a few seconds, and then turn the power back on again. You will be prompted to press <F1> to run Setup. You may check your settings at this time, or simply save and exit the program.

http://www.tyan.com

BIOS

Chapter 5

System Resources

chapter 5

System Resources

Beep Codes

Fatal errors, which halt the boot process, are communicated through a series of audible beeps. If AMIBIOS POST can initialize the system video display , it displays the error message. Displayed error messages, in most cases, allow the system to continue to boot. Displayed error messages are described on pages 72-73. See the top of the next page for the beep code chart.

http://www.tyan.com

speeBegasseMrorrEnoitpircseD

1eruliaFhserfeR .ytluafsiyrtiucrichserferyromemehT 2rorrEytiraP .yromemfo)kcolbBK46tsrifeht(yromemesabehtnirorreytiraP 3eruliaFyromeMBK46esaB.BK46tsrifnieruliafyromeM

4lanoitarepOtoNremiT

5rorrErossecorP.rorrenadetarenegUPCehT 6eruliaF02AetaG-2408 .edomdetcetorpothctiwstonnaC 7rorrEtpurretnInoitpecxErossecorP .tpurretninoitpecxenadetarenegdraCUPCehtnoUPCehT

8rorrEetirW/daeRyromeMyalpsiD

9rorrEmuskcehCMOR

01rorrEetirW/daeRretsigeRnwodtuhSSOMC .deliafsahMARSOMCrofretsigernwodtuhsehT

11ehcaCelbanEtoNoD—daByromeMehcaC

.gninoitcnuf

.rorrelatafaton

.SOIBIMA

tonsi1remiTro,yromemfoBK46tsrifehtnieruliafyromemA

nidedocneeulavehthctamtonseodeulavmuskcehcMORehT

.yromemehcacelbaneot>+<>tfihS<>tlA<>lrtC<

T roubleshooting System Problems

If the computer beeps... then...

1, 2, or 3 times... reseat the memory SIMMs or DIPs.

If the system still beeps, replace the memory.

6 times... reseat the keyboard controller chip. If

it still beeps, replace the keyboard controller. If it still beeps, try a different keyboard, or replace the keyboard fuse, if there is one.

8 times... there is a memory error on the video

adapter. Replace the video adapter, or the RAM on the video adapter.

9 times... the BIOS ROM chip is bad. The

system probably needs a new BIOS ROM chip.

11 times... reseat the cache memory on the

motherboard. If it still beeps, replace the cache memory.

4, 5, 7, or 10 times... for 5 or 7 beeps, first test with a new CPU - if that

does not solve the problem, then motherboard must be replaced.

sisihT.ytluafsiyromemstirognissimrehtiesiretpadaoedivmetsysehT

sserptonoD.delbasidsiyromemehcaC.deliaftsetyromemehcacehT

SYSTEM

http://www.tyan.com

Chapter 5

System Resources

Displayed Error Messages

If an error occurs after the system display has been initialized, the error message will be displayed as follows:

ERROR Message Line 1 ERROR Message Line 2 Press <F1> to continue

and the system will halt. The system will not halt if the W ait for <F1> If Any Error option in Advanced Setup is Disabled.

RUN SETUP UTILITY

may also appear. Press <F1> to run WINBIOS Setup if this message appears.

egasseMrorrEnoitanalpxE

rorrE02A-etaG2408 .2408ehtecalpeR.gnikrowtonsi)2408(rellortnocdraobyekehtno02AetaG

!trohSeniLsserddA.yrtiucricgnidocedsserddaehtnirorrE

rorrEevirD:C

eruliaFevirD:C.evirdehtecalpeR.:CevirdksiddrahmorfesnopseroN

,daByromeMehcaC

!ehcaCelbanEtoNoD

rorrEremiT2-HC.2remitnirorrenasierehT.sremitowtsahmetsysTAnA

woL

eruliaF

teStoN

etatSyrettaBSOMC

muskcehCSOMC

metsySSOMC

teStoNsnoitpO

epyTyalpsiDSOMC

hctamsiM

eziSyromeMSOMC

hctamsiM

rorrEevirD:D

.yrettab

.puteS

etaDdnaemiTSOMC

.puteSdradnatSniepytksid

.gaiDIMAnuR.evitcefedsiyromemehcaC

.puteSSOIBNIWnuR.MAR

.emitdnaetadehttesotputeSdradnatSnuR

.puteSdradnatSniepytksid

drah:CehtkcehC.ytilitUksiDdraHgaiDIMAehtnuR.:CevirdmorfesnopseroN

ehtecalpeR.wolsirewopyrettabehT.yrettabaybderewopsiMARSOMC

.puteSSOIBNIWnuR.eulavsuoiverpehtnahttnereffidsimuskcehcMARSOMC

.puteSSOIBNIWnuR.deyortsedneebevahMARSOMCniderotsseulavehT

SOIBNIWnuR.detcetedepytehthctamtonseodMARSOMCniepytoedivehT

SOMCnitnuomaehtnahttnereffidsiSOIBIMAybdnuofyromemfotnuomaehT

drahehtkcehC.ytilitUksiDdraHgaiDIMAehtnuR.:DevirdmorfesnopseroN

http://www.tyan.com

egasseMrorrEnoitanalpxE

eruliafevird:D.evirdehtecalpeR.:DevirdksiddrahmorfesnopseroN

reporP

rorrEAMD.rellortnocAMDehtnirorrE

rorrE1AMD.lennahcAMDtsrifehtnirorrE rorrE2AMD.lennahcAMDdnocesehtnirorrE

rorrE1RTNI.TSOPdeliaf1lennahctpurretnI rorrE2RTNI.TSOPdeliaf2lennahctpurretnI

sIdraobyeK

tIkcolnU...dekcoL

rorrEdraobyeK

rorrEecafretnI/BK.rotcennocdraobyekehtnirorrenasierehT

eruliaFtooBetteksiD

toNhctiwSyalpsiD

eruliaFrellortnoCDDF

eruliaFrellortnoCDDH

etteksiDtooBdilavnI

.tooboteunitnocotdekcolnu

.senituorTSOPdraobyekehtpiksot

.snoitcurtsnineercsehtwollofdnaetteksidtoobrehtona

esU.metsysehttoobotdesuebtonnac:AevirdnietteksidtoobehT

rorolocrehtieottesebhctiwsoedivaeriuqersmetsysemoS

.nwodderewopsimetsysehtretfasnoitcennocetairporppalla

.norewopneht,ylreporphctiwsehttes,ffometsysehtnruT.emorhconom

.rellortnocevirdksidyppolfehthtiwetacinummoctonnacSOIBIMA

.nwodderewopsimetsysehtretfasnoitcennocetairporppallakcehC

kcehC.rellortnocevirdksiddrahehthtiwetacinummoctonnacSOIBIMA

ehttoobtonnactitub,:AevirdyppolfnietteksidehtdaernacSOIBIMA

.snoitcurtsnineercsehtwollofdnaetteksidtoobrehtonaesU.tihtiwmetsys

ebtsummetsysehT.degagnesimetsysehtnokcoldraobyekehT

rellortnoCdraobyeKaerusekaM.melborpgnimitasahdraobyekehT

dellatsnItoNotputeSdecnavdAnidraobyeKteS.dellatsnisiSOIBIMA

SYSTEM

http://www.tyan.com

CISABMORoN

rorrEytiraPdraoBffO

rorrEytiraPdraoBnO

????rorrEytiraP

:sitamrofehT

.cisaBMORdniftonnac

)XXXX(=RDDARORREYTIRAPDRAOBFFO

.smelborpyromemtcerroc

:sitamrofehT.yromemdraobrehtomnirorreytiraP

)XXXX(=RDDARORREYTIRAPDRAOBNO

.smelborpyromemtcerrocdna

.smelborpyromemtcerrocdnadnif

SOIBIMA.:Cro:AevirdrehtienorotceselbatoobreporpadniftonnaC

.tolsnoisnapxenanidracretpadananodellatsniyromemnirorreytiraP

dnadnifotgaiDIMAnuR.derruccororreehterehwsserddaxehehtsiXXXX

dnifotgaiDIMAnuR.derruccororreehterehwsserddaxehehtsiXXXX

otgaiDIMAnuR.sserddanwonknunatayromemmetsysnirorreytiraP

Appendix 1

CPU Retention Module Options

Appendix 1

CPU Retention Module Options

T yan offers two dif ferent options for securing Intel’s Pentium II CPUs onto the motherboard. Each option provides retention for both older Pentium II’s as well as newer Pentium II’s (including Celeron).

OPTION 1:

T wo different types of retention modules are included in the motherboard package. For older versions of Pentium II, use the retention module shown in Figure 1. For newer versions of Pentium II CPUs (including Celeron), use the retention module shown in Figure 2. (Screws for the retention modules are provided.)

Figure 1 Figure 2

http://www.tyan.com

OPTION 2:

One universal retention module is included in the motheboard package. This type of retention module adapts to both old and new Pentium II CPUs - see Figure 3. (Screws for the retention modules are provided)

Figure 3

http://www.tyan.com

Appendix 2

Glossary

Appendix 2

Glossary

ACPI (Advanced Configuration and Power Interface) is a power management specification that allows the operating system to control the amount of power distributed to the computer’s devices. Devices not in use can be turned off, reducing unnecessary power expenditure.

AGP (Accelerated Graphics Port) is a PCI-based interface which was designed specifically for demands of 3D graphics applications. The 32-bit AGP channel directly links the graphics controller to the main memory. While the channel runs at only 66MHz, it supports data transmission during both the rising and falling ends of the clock cycle, yielding an effective speed of 133MHz.

The AT was the original form factor of IBM’ s PC.

A T API (AT Attachment Packet Interface), also known as IDE or ATA, is a drive implementation that includes the disk controller on the device itself. It allows CD-ROMs and tape drives to be configured as master or slave devices, just like hard drives.

The ATX form factor was designed to replace the A T form factor . It improves on the AT design by rotating the board ninety degrees, so that the IDE connectors are closer to the drive bays, and the CPU is closer to the power

http://www.tyan.com

supply and cooling fan. The keyboard, mouse, serial, USB, and parallel ports are built in.

Bandwidth refers to carrying capacity. The greater the bandwidth, the more data the bus, phone line, or other electrical path, can carry. Greater bandwidth, then, also results in greater speed.

A BBS (Bulletin Board System) is a computer system with a number of modems hooked up to it which acts as a center for users to post messages and access information.

The BIOS (Basic Input/Output System) program resides in the ROM chip, and provides the basic instructions for controlling your computer’s hardware. Both the operating system and application software use BIOS routines to ensure compatibility .

A buffer is a portion of RAM which is used to temporarily store data, usually from an application, though it is also used when printing, and in most keyboard drivers. The CPU can manipulate data in a buffer before copying it, all at once, to a disk drive. While this improves system performance--reading to or writing from a disk drive a single time is much faster than doing so repeatedly-there is the possibility of losing your data should the system crash. Information stored in a buffer is temporarily stored, not permanently saved.

A bus is a data pathway. The term is used especially to refer to the connection between the processor and system memory, and between the processor and PCI or ISA local buses.

Bus mastering allows peripheral devices and IDEs to access the system memory without going through the CPU (similar to DMA channels).

A cache is a temporary storage area for data that will be needed often by an application. Using a cache lowers data access times, since the needed information is stored in the SRAM instead of in the slower DRAM. Note that the cache is also much smaller than your regular memory: a typical cache size is 512KB, while you may have as much as 1GB of regular memory.

Cache size refers to the physical size of the cache onboard. This should not be confused with the cacheable area, which is the total amount of memory which can be scanned by the system in search of data to put into the cache. A typical setup would be a cache size of 512KB, and a cacheable area of 512MB.

http://www.tyan.com

Appendix 2

Glossary

In this case, up to 512MB of the main memory onboard is capable of being cached. However, only 512KB of this memory will be in the cache at any given moment. Any main memory above 512MB could never be cached.

Closed and open jumpers Jumpers and jumper pins are active when they are On or Closed, and inactive when they are Off or Open.

CMOS Complementary Metal-Oxide Semiconductors are chips that hold the basic start-up information for the BIOS.

The COM port is another name for the serial port, which is so-called because it transmits the eight bits of a byte of data along one wire, and receives data on another single wire (that is, the data is transmitted in serial form, one bit after another). Parallel ports transmit the bits of a byte on eight different wires at the same time (that is, in parallel form, eight bits at the same time).

DIMM Dual In-line Memory Modules are a faster and more capacious form of RAM than SIMMs, and do not need to be installed in pairs.

DIMM bank DIMM banks are sometimes called DIMM sockets, because the physical slot and the logical unit are the same. That is, one DIMM module fits into one DIMM socket, which is capable of acting as a memory bank.

DMA Direct Memory Access channels are similar to IRQs. DMA channels allow hardware devices (like sound cards or keyboards) to access the main memory without involving the CPU. This frees up CPU resources for other tasks. As with IRQs, it is vital that you do not double up devices on a single line. Plug and Play devices will take care of this for you.

In Doze mode, only the CPU’s speed is slowed. DRAM Dynamic RAM is a widely available, very affordable form of RAM which has the unfortunate tendency to lose data if it is not recharged regularly (every few milliseconds). This refresh requirement makes DRAM slower three to ten times slower than non-recharged RAM such as SRAM.

EDO RAM (Extended Data-Out RAM) speeds access to memory locations by assuming that memory addresses are static: the next time it looks for a bit of data, it will be at the same spot, or one nearby .

EEPROM Electrically Erasable Programmable ROM, also called Flash BIOS, is a

http://www.tyan.com

ROM chip which can, unlike normal ROM, be updated. This allows you to keep up with changes in the BIOS programs without having to buy a new chip. TY AN’ s BIOS updates can be found at http://www .tyan.com/html/drivers.html

ESCD (Extended System Configuration Data) is a format for storing informa- tion about Plug and Play devices in the system BIOS. This information helps properly configure the system each time it boots.

Firmware is low level software that controls the system hardware.

Form factor is an industry term for the size, shape, power supply type, and

external connector type of the PCB (personal computer board) or motherboard. The standard form factors are the AT and ATX, although TYAN also makes some Baby-AT boards.

A Global timer is an onboard hardware timer, such as the Real T ime Clock.

Handshaking is a form of encryption. One system, typically the server, sends an encryption scheme to another agent, typically a client. Thus, the client’s data is protected during transmittal to the server.

HDD stands for Hard Disk Drive.

H-SYNC controls the horizontal properties of the monitor.

IC (Integrated Circuit) is the formal name for the computer chip.

IDE Integrated Device (or Drive) Electronics is a simple, self-contained hard

drive interface. It can handle drives up to 8.4GB in size. Almost all IDEs sold now are in fact Enhanced IDEs (EIDEs).

IDE INT (IDE Interrupt) is a hardware interrupt signal that goes to the IDE.

I/O Input/Output is the connection between your computer and another piece

of hardware (mouse, keyboard, etc.).

IRQ An Interrupt Request is an electronic request that runs from a hardware device to the CPU. The interrupt controller assigns priorities to incoming requests and delivers them to the CPU. It is important that there is only one device hooked up to each IRQ line; doubling up devices on IRQ lines can lock up your system. Happily, Plug and Play operating systems take care of these

http://www.tyan.com

Appendix 2

Glossary

details for you.

ISA stands for Industry Standard Architecture. ISA is a slower 8- or 16-bit BUS (data pathway).

Latency is the amount of time that one part of a system spends waiting for another part to catch up. This is most common when the system sends data out to a peripheral device, and is waiting for the peripheral to send some data back (peripherals tend to be slower than onboard system components).

NVRAM ROM and EEPROM are both examples of Non-Volatile RAM, memory that holds its data without power. DRAM, in contrast, is volatile.

OEMs (Original Equipment Manufacturers) like Compaq or IBM package other companies’ motherboards and hardware inside their case and sell them.

The parallel port transmits the bits of a byte on eight different wires at the same time (that is, in parallel form, eight bits at the same time).

PCI stands for Peripheral Component Interconnect. PCI is a 32-bit local bus (data pathway) which is faster than the ISA bus. Local buses are those which operate within a single system (as opposed to a network bus, which connects multiple systems).

The PCI PIO (PCI Programmable Input/Output) modes are the data transfer modes used by IDE drives. These modes use the CPU for data transfer (DMA channels do not). PCI refers to the type of bus used by these modes to communicate with the CPU.

PCI-to-PCI bridge allows you to connect multiple PCI devices onto one PCI slot.

Pipeline burst SRAM is a fast secondary cache. It is used as a secondary cache because SRAM is slower than SDRAM, but usually larger . Data is cached first to the faster primary cache, and then, when the primary cache is full, to the slower secondary cache.

Pipelining improves system performance by allowing the CPU to begin executing a second instruction before the first is completed. A pipeline can be likened to an assembly line, with a given part of the pipeline repeatedly executing a set part of an operation on a series of instructions.

http://www.tyan.com

PM timers (Power Management timers) are software timers that count down the number of seconds or minutes until the system times out and enters sleep, suspend, or doze mode.

PnP is an acronym for Plug and Play , a design standard that has become ascendant in the industry. Plug and Play devices require little set-up to use. Novice end users can simply plug them into a computer that is running on a Plug and Play-aware operating system (such as Windows 95), and go to work. Devices and operating systems that are not Plug and Play require you to reconfigure your system each time you add or change any part of your hardware.

The term RAM (Random Access Memory), while technically referring to a type of memory where any byte can be accessed without touching the adjacent data, is often used to refer to the system’s main memory. This memory is available to any program running on the computer.

ROM (Read-Only Memory) is a storage chip which contains the BIOS (Basic Input/Output System), the basic instructions required to boot the computer and start up the operating system.

SDRAM (Synchronous Dynamic RAM) is so-called because it can keep two sets of memory addresses open simultaneously. By transferring data alternately from one set of addresses, and then the other, SDRAM cuts down on the delays associated with non-synchronous RAM, which must close one address bank before opening the next.

The serial port is so called because it transmits the eight bits of a byte of data along one wire, and receives data on another single wire (that is, the data is transmitted in serial form, one bit after another).

SIMM Single In-line Memory Modules are the most common form of RAM. They must be installed in pairs, and do not have the carrying capacity or the speed of DIMMs.

SIMM bank/socket SIMM sockets are the physical slots into which you stick SIMM modules. A pair of SIMM sockets form a SIMM bank, and act as a unit. If only one socket is filled, the bank will not operate.

In Sleep/Suspend mode, all devices except the CPU shut down.

http://www.tyan.com

Appendix 2

Glossary

SRAM Static RAM, unlike DRAM, does not need to be refreshed in order to prevent data loss. Thus, it is faster, and more expensive.

In Standby mode, the video and fixed disk drive shut down; all other devices operate normally.

UltraDMA/33 is a fast version of the old DMA channel. UltraDMA is also called UltraATA. W ithout UltraDMA your system cannot take advantage of the higher data transmission rates of the new UltraATA hard drives.

Universal Serial Bus or USB, is a versatile port. This one port type can function as a serial, parallel, mouse, keyboard, or joystick port. It is fast enough to support video transfer, and is capable of supporting up to 127 daisy-chained peripheral devices.

VGA (Video Graphics Array) is the PC video display standard.

V-SYNC controls the vertical properties of the monitor.

ZIF socket Zero Insertion Force sockets make it possible to insert CPUs

without damaging the sensitive pins. The CPU is lightly placed in an open ZIF socket, and the metal lever pulled down. This shifts the processor over and down, guiding it into place on the board.

http://www.tyan.com

Notice for the USA

Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This Device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one or more of the following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Plug the equipment into an outlet on a circuit different from

that of the receiver.

· Consult the dealer or an experienced radio/television technician for help.

CAUTION: LITHIUM BATTERIES included with This PC board.

Danger of explosion if battery is incorrectly replaced. Replace ONL Y with the same or equivalent type recommended by manufacturer. Dispose of used batteries according to manufacturer instructions.

Notice for Canada

This apparatus complies with the Class B limits for radio interference as specified in the Canadian Department of Communications Radio Interference Regulations.

Cet appareil est conforme aux normes de Classe B d’ interference radio tel que spécifié par le Ministére Canadien des Communications dans les réglements d’interférence radio.

Notice for Europe (CE Mark)

This product is in conformity with the Council Directive 89/336/EEC, 92/31/EEC (EMC).

Document # D1308-210

http://www.tyan.com

Tyan Computer InterServe 90 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Errata

T able of Contents

Introduction

Board Installation

Onboard Resource Settings

BIOS Configuration

System Resources
