Tank GT25
B5381
Service Engineer’s Manual
Table of Contents
Chapter 1:Overview
1.1 About the Transport GT25 B5381 . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3.1 Opening the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3.2 Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3.3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.4 About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.4.1 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.4.2 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.4.3 LED Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
1.4.4 Internal View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
1.4.5 Motherboard Block Diagram. . . . . . . . . . . . . . . . . . . . . . .11
1.4.6 Motherboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chapter 2:Setting Up
2.0.1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2.0.2 Work Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.0.3 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.0.4 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
2.1 Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.1.1 Installing the Server in a Rack. . . . . . . . . . . . . . . . . . . . . .17
2.2 Installing Motherboard Components. . . . . . . . . . . . . . . . . . . . . . .23
2.2.1 Removing the Chassis Cover. . . . . . . . . . . . . . . . . . . . . . .23
2.2.2 Installing the Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
2.2.3 Installing the CPU and Heatsink . . . . . . . . . . . . . . . . . . . . 25
2.2.4 Installing the PCI-X Card . . . . . . . . . . . . . . . . . . . . . . . . .29
2.3 Installing the External Hard Drive . . . . . . . . . . . . . . . . . . . . . . . .31
2.4 Installing the Slim FDD (Option) . . . . . . . . . . . . . . . . . . . . . . . . .33
Chapter 3:Replacing Pre-Installed Components
3.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.1.1 Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.1.2 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
3.1.3 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
3.2 Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.3 Removing the Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
3.4 Replacing Motherboard Components . . . . . . . . . . . . . . . . . . . . . . 39
3.4.1 Disconnecting All Motherboard Cables . . . . . . . . . . . . . .39
3.4.2 Removing the Motherboard. . . . . . . . . . . . . . . . . . . . . . . .41
iii
3.5 Replacing the Slim CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.6 Replacing the LED Control Board . . . . . . . . . . . . . . . . . . . . . . . .44
3.7 Replacing the M1012 Adapter Board . . . . . . . . . . . . . . . . . . . . . .46
3.7.1 M1012 Adapter Board Features for B5381 . . . . . . . . . . . .48
3.7.2 System Fan Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.7.3 M1012 Adapter Board Connector Pin Definition . . . . . . .50
3.8 Replacing the SATA Backplane . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.8.1 SATA Backplane Features. . . . . . . . . . . . . . . . . . . . . . . . .57
3.9 Replacing the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Appendix I: BIOS Differences
Appendix II: Cable Connection Tables
Appendix III: Memory Population Rules
iv
Copyright
This publication, including all photographs, illustrations, and software, is protected under international copyright laws, with all rights
reserved. Neither this manual, nor any material contained herein,
may be reproduced without written consent of the manufacturer-.
Copyright 2006
Version 1.0
Disclaimer
Information contained in this document is furnished by TYAN Computer Corporation and has been reviewed for accuracy and reliability
prior to printing. TYAN assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of
TYAN products including liability or warranties relating to fitness for
a particular purpose or merchantability. TYAN retains the right to
make changes to product descriptions and/or specifications at any
time, without notice. In no event will TYAN be held liable for any
direct or indirect, incidental or consequential damage, loss of use,
loss of data or other malady resulting from errors or inaccuracies of
information contained in this document.
Trademark Recognition
PREFACE
All registered and unregistered trademarks and company names
contained in this manual are property of their respective owners
including, but not limited to the following.
TYAN and Tank GT25 B5381 are trademarks of TYAN Computer
Corporation.
Intel, Xeon, and combinations thereof are trademarks of Intel Corporation.
AMD, Opteron, Athlon, and combinations thereof are trademarks of
AMD Corporation.
Phoenix, PhoenixBIOS, and combinations thereof are trademarks of
Phoenix Technologies.
Microsoft Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
Winbond is a trademark of Winbond Electronics Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.
Federal Communications Commission (FCC)
Notice for the USA Compliance Information State-
ment (Declaration of Conformity Procedure) DoC FCC
Part 15: This device complies with part 15 of the FCC
Rules
Operation is subject to the following conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that may cause undesired operation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and the
receiver.
– Plug the equipment into an outlet on a circuit different from
that of the receiver.
Consult the dealer or an experienced radio/television technician for
help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference
as specified in the Canadian Department of Communications Radio
Interference Regulations. (Cet appareil est conforme aux norms de
Classe B d’interference radio tel que specifie par le Ministere Canadien des Communications dans les reglements d’ineteference
radio.)
Notice for Europe (CE Mark) This product is in conformity
with the Council Directive 89/336/EEC, 92/31/EEC
(EMC).
CAUTION: Lithium battery included with this board. Do not puncture,
mutilate, or dispose of battery in fire. Danger of explosion if battery
is incorrectly replaced. Replace only with the same or equivalent
type recommended by manufacturer. Dispose of used battery
according to manufacturer instructions and in accordance with your
local regulations.
ii
About this Manual
This manual provides you with instructions on installing your
Tank GT25. This manual is intended for experienced users and integrators with hardware knowledge of personal computers.
This manual consists of the following parts:
Chapter 1: Provides an introduction to the GT25 B5381 bare-
Chapter 2: Covers procedures on installing the CPU, mem-
Chapter 3: Covers removal and replacement procedures for
Appendix: Provides information on installing SMDC cards
For information on the mainboard, please refer to the attached mainboard user’s manual. You can find the detailed description about
jumper and BIOS settings from the motherboard manual.
bones, packing list, describes the external components, gives a table of key components, and provides block diagrams of the system.
ory modules, an optional PCI-X card, and hard
drives.
pre-installed components.
and describes the differences between mainboard
BIOS and system BIOS. The cable connection
tables are also provided for reference of system
setup.
iii
SAFETY INFORMATION
Before installing and using the Tank GT25, take note of the following
precautions:
– Read all instructions carefully.
– Do not place the unit on an unstable surface, cart, or stand.
– Do not block the slots and opening on the unit, which are pro-
vided for ventilation.
– Only use the power source indicated on the marking label. If
you are not sure, contact the power company.
– The unit uses a three-wire ground cable, which is equipped
with a third pin to ground the unit and prevent electric shock.
Do not defeat the purpose of this pin. If your outlet does not
support this kind of plug, contact your electrician to replace
your obsolete outlet.
– Do not place anything on the power cord. Place the power
cord where it will not be in the way of foot traffic.
– Follow all warnings and cautions in this manual and on the
unit case.
– Do not push objects in the ventilation slots as they may touch
high voltage components and result in shock and damage to
the components.
– When replacing parts, ensure that you use parts specified by
the manufacturer.
– When service or repairs have been done, perform routine
safety checks to verify that the system is operating correctly.
– Avoid using the system near water, in direct sunlight, or near
a heating device.
– Cover the unit when not in use.
iv
Chapter 1: Overview
1.1 About the Tank GT25 B5381
Congratulations on your purchase of the TYAN TankTM GT25
B5381, a highly-optimized rack-mountable barebone system.
The Tank GT25 B5381 is designed to support dual Intel
Dempsey and Woodcrest processors, providing a rich feature
set and incredible performance. Leveraging advanced tech-
nology from Intel
capable of offering scalable 32 and 64-bit computing, highbandwidth memory design, and a lightning-fast PCI-E bus
implementation. The Tank
your company in today’s demanding IT environment but also
offers a smooth path for future application usage.
TYAN is also proud to deliver the Tank
SATA flavor while supporting up to four (4) hot-swap hard
drives, one (1) slim DVD-ROM, and one (1) optional slim
floppy disk drive (not included). The Tank
uses TYAN’s latest tooling-made chassis featuring a robust
structure, tool-less and modularized design, and a solid
mechanical enclosure. All of this provides the Tank
B5381 the power and flexibility to meet the needs of nearly
any server application.
®
, the Tank GT25 B5381 server system is
TM
GT25 B5381 not only empowers
TM
GT25 B5381 in
TM
GT25 B5381
TM
®
GT25
Chapter 1: Overview 1
1.2 Features
Enclosure
• Industry 19” rack-mountable 1U
chassis storage bay
– (4) 3.5” HDD bays
– (1) slim line DVD-ROM bay
– (1) slim line FDD bay
• Dimensions: D 27.87 x W 17.17 x H
1.71 inch (708x436x43.5mm)
Processor
• Two 771 sockets
®
• Supports up to two Intel
(1066MHz FSB) and Woodcrest
(1333MHz FSB) processors
Chipset
• Intel 5000P Memory Controller Hub
• Intel ESB2-E I/O Controller Hub
• Winbone W83627DHG Super I/O
chip
• ADT7463 Hardware Monitoring IC
(on fan board)
Memory
• 12 dual ranked DDRII 533/667 FBD
sockets
• Supporting up to 48GB memory
size
• Four channels of Fully Buffered
DIMM (FBD)
• Supports 256MB, 512MB, 1GB,
2GB, and 4GB FB-DDRII DIMM
Expansion Slots
• Aligned (1) 64-bit/133MHz PCI-X
slot and (1) x8 PCI-E slot, supporting (1) ful height/full length add-on
PCI-X(M2055) or PCI-E(M2082
card
• Aligned (1) 64-bit/133MHz PCI-X
slot and (1) x16 PCI-E slot (x8 lane),
supporting (1) low-profile PCIX(M2057) or PCI-E(M2086) add on
card
• 2 usable expansion slots
Back I/O Ports
• (1) PS/2 mouse & keyboard port
• (1) 9-pin UART serial port
• (1) 15-pin VGA port
Dempsey
• (2) RJ-45 10/100/1000 ports
• (2) USB 2.0 ports
• (1) 4-port SAS connector (SSF-
8470)
Front Panel Features
•I/O
– (2) USB 2.0 ports
• LED indicators
– Power LED
– (2) LAN LEDs
– HDD active LEDs
– System warning LED
–ID LED
•Switches
– Power
– Reset
–NMI
–ID
Integrated Storage Controller
• Embedded 4-port SATA-II from
ESB2-E for models B5381G25V4H
– Supports four SATA-II ports run
ning at 3.0Gb/s
• On board LSI1068E SAS controller
for model B5381G25W4H/R
– Supports 8-port SAS ; 4 ports for
internal connection and 4 ports
for external storage connection
Storage
• Pre-installed slimtype DVD-ROM
• HDD support
– B5381G25V4H: Supports (4) hot-
swappable SATA-II HDD with
RAID 0, 1, 5, 10
– B5381G25W4H/R: Supports (4)
hot-swappable SAS/SATA-II
HDD with RAID 0, 1, 5, 10
Networking
• Intel 82563 GbE PHY supports dual
GbE ports
Video
• ATI ES1000 with 16MB frame
buffer
2 Chapter 1: Overview
Motherboard
• TYAN S5381 system board
• Customized 15”x16” (381x406mm
BIOS
• PHOENIX BIOS on 8Mbit LPC
Flash ROM
• Serial console redirect
• Supports APM 1.2 and ACPI 2.0
• PnP, DMI 2.0, WfM 2.0 power management
Server Management
• System fan speed control and monitoring
• Chassis intrusion alert
• Supports Tyan Server Management
(TSM)
• TYAN SMDC, IPMI 2.0 compliant
remote server management kit
(optional)
System Cooling
• (7) 40*40*56mm 15000rpm heavyduty fans
• (2) passive CPU heatsinks
Power Supply
• EPS 12V, 1U, 650W (1+1) redundant hot-swap or 650W single
• 100V~240V AC input
Regulatory
• FCC Class B (Declaration of Conformity)
• CE (Declaration of Congormity)
• VCCI
•C-Tick
Environment Temperature
• Operating temperature (5oC~35oC)
• Non-operating temperature (-40
o
~ 70
C)
o
C
Chapter 1: Overview 3
1.3 Unpacking
This section describes the Tank GT25 B5381 package contents and accessories.
1.3.1 Opening the Box
Open the box carefully and ensure that all components are
present and undamaged. The product should arrive packaged as illustrated below.
Packaged accessories
4 Chapter 1: Overview
1.3.2 Box Contents
Component Description
Industry standard 1U chassis, (4) hot-swap
HDD bays
Tyan S5381 system board (pre-installed)
8x slim DVD-ROM drive (pre-installed)
LED and USB control board (pre-installed)
(A) EPS 1U 650W PSU model for single
power (pre-installed)
(B) EPS 1U 650W 1+1 PSU model for
redundant power
A B
C
(C) Redundant PSU power board
(7) System fans (40 mm x 56 mm)
Chapter 1: Overview 5
Component Description
M1210 Adapter board
M5002
Note: In the future, an FPC cable, as shown
below, will be supplied instead of the M5002.
6 Chapter 1: Overview
1.3.3 Accessories
If any items are missing or appear damaged, contact your
retailer or browse to TYAN’s website for service:
http://www.tyan.com.
The Web site also provides information on other TYAN products, plus FAQs, compatibility lists, BIOS settings, and more.
1 x Tyan Barebone Driver CD
HDD Screws
Mounting Ears & Screws
Riser Card
2 x Heatsink
Power Cables
Left to right: Europe, US
Barebone Manual
Chapter 1: Overview 7
Rail Kit
Mounting Bracket x 4
Sliding Rail x 2
FDD Kit
FDD Backplane Cable
Screw Kit
Sliding Brackets
Front L-Bracket x 2
Rear L-Bracket x 2
FDD Cable
FDD Rails & Screws
8 Chapter 1: Overview
1.4 About the Product
The following views show you the product.
1.4.1 Front View
DVD-ROM Drive
1.4.2 Rear View
Case A (Single Power)
COM1
VGA
Port
Port
Reset switch
NMI switch
ID Switch
USB ports
Hard Drive Bay x 4
USB Ports
ID LED
2 x LAN LEDs
PCI-X Slot
Warning LED
HDD activity LED
Power LED
Power switch
Power Supply Socket
PS/2
Keyboard
Port
PCI-E
Slot
SAS B5381G25W4H (Optional)
LAN Port (NIC2)
LAN Port (NIC1)
Chapter 1: Overview 9
Case B (Redundant Power)
PS/2
Keyboard
Port
COM1
Port
VGA
Port
PCI-E
Slot
USB
Ports
SAS B5381G25W4H (Optional)
LAN Port (NIC2)
PCI-X
Slot
ID Switch
ID LED
Power Supply Sockets
Power Supply Fans
LAN Port (NIC1)
1.4.3 LED Definitions
Front Panel
LED Color State Description
Power Green
HDD Activity Amber
LAN1/LAN2 Linkage Green
Warni ng Red
Hot Swappable HDD
Tray Power LED
OFF
OFF
Green
OFF
OFF
Green
OFF
ON
OFF
Random Blink
OFF
ON
Blinking
OFF
ON
OFF
ON
OFF
Power ON
Power OFF
HDD access activity
No disk activity
Linked to LAN
Accessing LAN
No LAN link
Fan failiure
Normal
Power connected
Power disconnected
Hot Swappable SATA
HDD Access LED
Hot Swappable SAS
HDD Access LED
ID LED Blue ON System identified
Amber
OFF
Amber
Amber
OFF
Random Blinking
OFF
On
Random Blinking
OFF
HDD access activity
No disk activity
HDD ready
HDD access activity
HDD not ready
10 Chapter 1: Overview
Rear I/O LED *
LED Color State Description
RJ45 NIC1 Linkage
(Left Side)
RJ45 NIC1 Mode
(Right Side)
RJ45 NIC2 Linkage
(Left Side)
Green
Green
OFF
Yellow
Green
OFF
Green
Green
OFF
ON
Blinking
OFF
ON
ON
OFF
ON
Blinking
OFF
Right or Left is viewed from the rear.
Linked to LAN
Accessing LAN
No LAN link
Gigabit mode
100M mode
10M mode
Linked to LAN
Accessing LAN
No LAN link
RJ45 NIC2 Mode
(Right Side)
ID LED Blue
Yellow
Green
OFF
OFF
ON
ON
OFF
ON
OFF
Gigabit mode
100M mode
10M mode
System identified
System not identified
Chapter 1: Overview 11
1.4.4 Internal View
Case A - Single Power
12
1
234
5
6
7
8
9
11
1. Power Supply
2. SAS Connector
3. Link Bar
4. Fully Buffered DIMM Memory
Slots
5. Fully Buffered DIMM Memory
10
7. Fans
8. M1210 Adapter Board
9. Four SATA / SAS HDD Bays
10. LED Control Board Cable
11. DVD-ROM Power Cable
12. DVD-ROM Cable
Slots
6. CPU Sockets
12 Chapter 1: Overview
Case B - Redundant Power
12
1
234
5
6
7
8
9
11
1. Power Supply
2. SAS External Connector
3. Link Bar
4. CPU2 Fully Buffered DIMM
Memory Slots
5. CPU1 Fully Buffered DIMM
10
7. Fans
8. M1210 Adapter Board
9. Four SATA / SAS HDD Bays
10. LED Control Board Cable
11. DVD-ROM Power Cable
12. DVD-ROM Cable
Memory Slots
6. CPU Sockets
Chapter 1: Overview 13
1.4.5 Motherboard Block Diagram
14 Chapter 1: Overview
1.4.6 Motherboard Layout
19
18
17
16
15
14
13
1
2
3
4
5
6
7
12
1. DIMM Slots
2. TEMP Sensor
3. CPU1
4. CPU2
5. SATA Connector
6. SAS 2 Connector
7. FPIO Connector
8. Power Connector
9. Buzzer
10. Debug LED
891011
11. PCI- X Slot
12. ID LED
13. ID SW
14. USB
15. LAN 2
16. LAN 1
17. VGA Port
18. COM1 Port
19. PS/2 Port
Chapter 1: Overview 15
Jumpers & Connectors
Jumper
/Connector
JP1 Clear CMOS Jumper
(Close 1-2) Default
(Close 2-3) Clear CMOS
CN4 SMDC Connector
SAS 2 SAS Connector
J8 SATA Connector
J11 Front Panel Connector
Function
16 Chapter 1: Overview
NOTE
Chapter 1: Overview 17
2.0.1 Before You Begin
This chapter explains how to install the CPU, CPU heatsink,
memory modules, and hard drives. Instructions on inserting a
PCI card are also given.
Take note of the precautions mentioned in this section when
installing your system.
2.0.2 Work Area
Make sure you have a stable, clean working environment.
Dust and dirt can get into components and cause malfunctions. Use containers to keep small components separated.
Putting all small components in separate containers prevents
them from becoming lost. Adequate lighting and proper tools
can prevent you from accidentally damaging the internal
components.
2.0.3 Tools
The following procedures require only a few tools, including
the following:
Chapter 2: Setting Up
• A cross head (Phillips) screwdriver
• A grounding strap or an anti-static pad
Most of the electrical and mechanical connections can be disconnected using your fingers. It is recommended that you do
not use needle-nosed pliers to remove connectors as these
can damage the soft metal or plastic parts of the connectors.
Chapter 2: Setting Up 19
2.0.4 Precautions
Components and electronic circuit boards can be damaged
by discharges of static electricity. Working on a system that is
connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to the
Tank GT25 or injury to yourself.
• Ground yourself properly before removing the top
cover of the system. Unplug the power from the
power supply and then touch a safely grounded
object to release static charge (i.e. power supply
case). If available, wear a grounded wrist strap. Alternatively, discharge any static electricity by touching
the bare metal chassis of the unit case, or the bare
metal body of any other grounded appliance.
• Avoid touching motherboard components, IC chips,
connectors, memory modules, and leads.
• The motherboard is pre-installed in the system.
When removing the motherboard, always place it on
a grounded anti-static surface until you are ready to
reinstall it.
• Hold electronic circuit boards by the edges only. Do
not touch the components on the board unless it is
necessary to do so. Do not flex or stress circuit
boards.
• Leave all components inside the static-proof packag-
ing that they ship with until they are ready for installation.
• After replacing optional devices, make sure all
screws, springs, or other small parts are in place and
are not left loose inside the case. Metallic parts or
metal flakes can cause electrical shorts.
Notes:
• All connectors are keyed to only attach one way.
• Always use the correct screw size as indicated in the
procedures.
20 Chapter 2: Setting Up
2.1 Rack Mounting
After installing the necessary components, the Tank GT25
can be mounted in a rack using the supplied rack mounting
kit.
Rack mounting kit
Sliding Rails x 2:
Sliding Brackets x 4 (Front x 2, Rear x 2)
Mounting Ears x 2
Screws Kit x 1
Mounting Brackets x 4
2.1.1 Installing the Server in a Rack
Follow these instructions to mount the GT25 into an industry
standard 19" rack.
NOTE: Before mounting the Tank GT25 in a rack, ensure that
all internal components have been installed and that the unit
has been fully tested. Maintenance can be performed on the
unit while in a rack but it is preferable to install the device in a
fully operational condition.
Screws List (including screws for SMDC)
A: Flat 6#-32 x4~x16
B: B-type 6#-32 x4
C: M4-4L x8
D: M4-5L x4
E: M4-8L x8
F: M4-15L x2
G: 13.5mm stand-off x1
G
F
E
D
C
B
A
Chapter 2: Setting Up 21
Installing the Inner Rails to Chassis
1. Screw the mounting ear to each side of GT25 as shown
using 2 screws from the supplied screws kit.
Mounting Ears
2. Draw out the inner rails from rail assembly. Install inner
rails to left and right sides of chassis using 2 M4-5L(D)
screws for each side.
Installing Outer Rails to the Rack
1. Measure the distance between inner side of the front and
rear mounting brackets in the rack.
22 Chapter 2: Setting Up
2. Locate the front and rear brackets.
Rear Bracket x2
Front Bracket x2
3. Reserve 90mm for GT25 on the front bracket. Secure the
front bracket to outer rail with 2 M4-4L(C) screws.
4. Reserve the distance same as in Step 2 on rear bracket.
Secure the rear bracket to outer rail with 2 M4-4L(C)
screws.
Chapter 2: Setting Up 23
5. Secure the outer rail to the rack using 2 brackets and 4
M4-8L(E) screws for each side (A). Secure the mounting
brackets from inside, not outside, of the rack (B).
A
Mounting Bracket
B
24 Chapter 2: Setting Up
Rackmounting the Server
6. Draw out the middle rail to the latch position.
7. Lift the chassis and then insert the inner slide rails into
the middle rails.
8. Push the chassis in and press the latch key (A). Then
push the whole system into the rack (B).
A
B
Chapter 2: Setting Up 25
9. Secure the mounting ears of chassis to the rack with 2
M4-15L(F) screws.
Note: To avoid injury, it is strongly recommended that two
people lift the GT25 into the place while a third person screws
it to the rack.
26 Chapter 2: Setting Up
2.2 Installing Motherboard Components
This section describes how to install components on to the
motherboard, including CPU, memory modules, and PCI
card.
2.2.1 Removing the Chassis Cover
Follow these instructions to remove the Tank GT25 chassis
cover.
1. Remove the screw on the back side. Then slide the chassis cover in the direction of arrow.
2. Remove the cover.
Chapter 2: Setting Up 27
2.2.2 Installing the Memory
Follow these instructions to install the memory modules on
the motherboard.
Note: There are 12 DIMM memory slots available. When
installing RAM in both slots, begin installation from DIMM1
and install in sequence according to the slot number.
1. Remove the air duct covering the memory slots as
shown.
2. Locate the memory slots on the motherboard.
3. Press the memory slot locking levers in the direction of
the arrows as shown in the following illustration.
28 Chapter 2: Setting Up
4. Align the memory module with the slot. When inserted
properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. For
optimal system operation, please install memory in pairs.
Chapter 2: Setting Up 29
2.2.3 Installing the CPU and Heatsink
1. Follow these instructions to install CPU1, CPU2 and the
CPU heatsink.
2. Locate the CPU sockets.
CPU1 CPU2
3. Unlatch the CPU lever to release the CPU cover.
30 Chapter 2: Setting Up
4. Pull the lever arm up to unlock the CPU cover.
5. Gently lift up the cover.
6. Place the CPU in the CPU socket, ensuring that Pin 1 is
correctly aligned.
Chapter 2: Setting Up 31
7. Close the cover and attach the latch to secure.
8. Align the heatsink screw holes with the holes on the
motherboard and insert heatsink screws as shown.
9. Secure the heatsink to the motherboard using four
screws.
10. Replace the steps above to install a second CPU and reattach the link bar.
32 Chapter 2: Setting Up
2.2.4 Installing the PCI-X Card
Follow these instructions to install a PCI-X card.
1. Push the tab of PCI-X slot on the rear panel in the direction as shown to release the I/O shield.
2. Move the I/O shield to right as shown and take off the I/O
shield.
3. Insert the PCI-X card in the slot as indicated.
4. Replace the I/O shield and reattach the slot latch.
Chapter 2: Setting Up 33
2.3 Installing the External Hard Drive
The GT25 chassis kit supports external SATA/SAS hard
drives.
Follow these instructions to install an external SATA or SCSI
hard drive.
1. Press the locking lever latch in the direction of arrow (A)
and then pull the locking lever open (B).
A
2. Slide the drive tray out.
3. Place a hard drive into the drive tray and turn the tray
over.
B
34 Chapter 2: Setting Up
4. Using 4 HDD screws to secure the HDD.
5. Reinsert the drive tray into the chassis (A), ensuring that
the drive tray is completely inserted into the chassis (B).
A
B
6. Pressing the locking lever to secure the hard drive tray.
Chapter 2: Setting Up 35
2.4 Installing the Slim FDD (Optional)
1. Locate the two FDD rails and screws from the FDD kit.
Secure the two rails to the FDD using four screws.
FDD Rails & Screws
2. Connect the FFC cable to the FDD.
3. Using a screw driver to pull open the door of the FDD
tray.
36 Chapter 2: Setting Up
4. Insert FDD module into the tray.
5. Connect the FFC cable to the connector on the M1210
adapter board.
6. Locate the FDD cable from FDD kit. Connect the wrinkle
side to the connector on M1210 adapter board.
Chapter 2: Setting Up 37
NOTE
38 Chapter 2: Setting Up
Chapter 3: Replacing Pre-Installed
3.1 Introduction
This chapter explains how to replace pre-installed components including the motherboard, LED control board, HDD,
and DVD-ROM drive.
Take note of the precautions in this section when installing
your system.
3.1.1 Work Area
Make sure you have a stable, clean working environment.
Dust and dirt can get into components and cause malfunctions. Use containers to keep small components separated.
Putting all small components in separate containers keeps
them from becoming lost. Adequate lighting and proper tools
can prevent you from accidentally damaging the internal
components.
3.1.2 Tools
The procedures that follow require only a few tools, including
the following:
Components
• A cross head (Phillips) screwdriver
• A grounding strap or an anti-static pad
Most of the electrical and mechanical connections can be disconnected using your fingers. It is recommended that you do
not use needle-nosed pliers to remove connectors as these
can damage the soft metal or plastic parts of the connectors.
Chapter 3: Replacing Pre-Installed Components 39
3.1.3 Precautions
Components and electronic circuit boards can be damaged
by static electricity. Working on a system that is connected to
a power supply can be extremely dangerous. Follow the
guidelines below to avoid damage to the GT25 or injury to
yourself.
• Ground yourself properly before removing the top
cover of the system. Unplug the power from your
computer power supply and then touch a safely
grounded object to release static charge (i.e. power
supply case). If available, wear a grounded wrist
strap. Alternatively, discharge any static electricity by
touching the bare metal chassis of the unit case, or
the bare metal body of any other grounded appliance.
• Avoid touching motherboard components, IC chips,
connectors, memory modules, and leads.
• The motherboard is pre-installed in the system.
When removing the motherboard, always place it on
a grounded anti-static surface until you are ready to
reinstall it.
• Hold electronic circuit boards by the edges only. Do
not touch the components on the board unless it is
necessary to do so. Do not flex or stress circuit
boards.
• Leave all components inside the static-proof packag-
ing that they ship with until they are ready for installation.
• After replacing optional devices, make sure all
screws, springs, or other small parts are in place and
are not left loose inside the case. Metallic parts or
metal flakes can cause electrical shorts.
Notes:
• All connectors are keyed to only attach one way.
• Always use the correct screw size as indicated in the
procedures.
40 Chapter 3: Replacing Pre-Installed Components
3.2 Disassembly Flowchart
The following flowchart outlines the disassembly procedure.
Rear Components
Chassis rear cover
CPU/heatsink assembly
Mainboard
Power supply
Front Components
Chassis rear cover
DIMMs
PCI card
Mainboard
DVD-ROM
Control
Board
PCBs
FAN
M1210
Adapter Board
Chapter 3: Replacing Pre-Installed Components 41
3.3 Removing the Cover
Before replacing any parts you must remove the chassis
cover.
Follow these instructions to remove the cover of the
Tank GT25 chassis cover.
1. Remove the screw on the back side. Then slide the chassis cover in the direction of arrow.
2. Remove the cover.
42 Chapter 3: Replacing Pre-Installed Components
3.4 Replacing Motherboard Components
Follow these instructions to replace motherboard components, including the motherboard.
3.4.1 Disconnecting All Motherboard Cables
Before replacing the motherboard or certain components,
remove cables connected to the motherboard. Follow these
instructions to remove all motherboard cabling.
1. Disconnect all power
cables.
2. Disconnect the SAS
cable.
3. Disconnect all cables from the front panel, USB, fans,
DVD-ROM and SATA connectors.
Chapter 3: Replacing Pre-Installed Components 43
3.4.2 Removing the Motherboard
After removing all of the aforementioned cables, follow these
instructions to remove the motherboard from the chassis.
1. Remove the link bar.
2. Remove the fifteen screws securing the motherboard to
the chassis.
3. Remove the motherboard.
44 Chapter 3: Replacing Pre-Installed Components
3.5 Replacing the Slim DVD-ROM
Follow these instructions to replace the DVD-ROM.
1. Remove power and data cables from the slim DVD-ROM
adapter.
2. Press the tab in the directions as shown to release the
DVD-ROM drive.
3. The DVD-ROM drive will be freed from the drive bay after
pressing the tab.
Chapter 3: Replacing Pre-Installed Components 45
4. Remove the two screws that secure DVD-ROM drive to
the bracket.
5. Replace the DVD-ROM drive and secure to the bracket
using two screws. Then replace the unit into the drive bay
and connect the DVD-ROM power and data cables as in
steps 1 and 2.
46 Chapter 3: Replacing Pre-Installed Components
3.6 Replacing the LED Control Board
Follow these instructions to replace the LED control board.
1. Remove the two screws securing the LED control board
unit to the chassis.
2. Lift the LED control board unit free of the chassis.
3. Remove three screws securing LED control board to the
bracket.
Chapter 3: Replacing Pre-Installed Components 47
4. Lift the LED control board free from the chassis. After
replacement, insert the unit into the chassis.
48 Chapter 3: Replacing Pre-Installed Components
3.7 Replacing the M1210 Adapter Board
1. Remove all of those cables connected to the adapter
board, including fan cables, DVD-ROM power cable,
front LED panel cable, power cables, and SATA cables.
Refer to the photos below for locations.
Chapter 3: Replacing Pre-Installed Components 49
2. Remove six screws to release the adapter board.
50 Chapter 3: Replacing Pre-Installed Components
3.7.1 M1210 Adapter Board Features for B5381
Fan 13, 14 Connector
SAS/SATA HDD Connector
Case Open
Connector
CD-ROM
Power
Power
Connectors
HDD Power LED (Green)
HDD Activity LED (Yellow)
SAS/SATA HDD Connector
HDD Power LED (Green)
HDD Activity LED (Yellow)
SAS/SATA HDD Connector
HDD Power LED (Green)
HDD Activity LED (Yellow)
Fan 11, Fan 12
Connector
Fan 9, Fan 10
Connector
Fan 7, Fan 8
Connector
Fan 5, Fan 6
Connector
FDD Connector
FPIO Connector
IDE Connector
Front Panel
Connector
Front USB
Connector
Front COM
Connector
Fan 3, Fan 4
Connector
SAS/SATA HDD Connector
Fan 1, Fan 2
HDD Power LED (Green)
HDD Activity LED (Yellow)
Connector
Chapter 3: Replacing Pre-Installed Components 51
3.7.2 System Fan Layout
The following table provides the information for system fan
layout.
M1210 Adapter Board Connect to Motherboard
J16 (PWM Signal) Æ J11 (PWM Signal)
System Fan Speed Control Signal
3.7.3 M1210 Adapter Board Connector Pin Definitions
J14 Front Panel Connector
1 HDLED+ 2 HDLED-
3 RESET+ 4 RESET-
5 PW_LED+ 6 PW_LED-
7 WLED+ 8 WLED -
9 ICH_SMBDAT 10 ICH_SMSCLK
11 EXT_INT 12 VOLTAGE5
13 NC 14 INTRU#
15 PWR_SW+ 16 PWR_SW-
17 LAN1_LED+ 18 LAN1_LED -
19 LAN2_LED+ 20 LAN2_LED-
21 NC 22 NC
23 ID_LED+ 24 ID_LED-
25 ID_SW+ 26 ID_SW-
27 KEY PIN 28 NC
52 Chapter 3: Replacing Pre-Installed Components
J3 Chassis Instruction Pin Header
1 INTRU#
2GND
FAN Signal Related Connector Pin Definitions
NOTE: The FAN signal naming is based on HW circuit design only. It might
be different from the system fan naming.
J4 Fan Connector
1PWM1
2 VCC12
3 FAN1_TACH
4GND
5GND
6 FAN2_TACH
7 VCC12
8PWM2
J5 Fan Connector
1PWM1
2 VCC12
3 FAN3_TACH
4GND
5GND
6 FAN4_TACH
7 VCC12
8PWM2
Chapter 3: Replacing Pre-Installed Components 53
J6 Fan Connector
1PWM1
2 VCC12
3 FAN5_TACH
4GND
5GND
6 FAN6_TACH
7 VCC12
8PWM2
J7 Fan Connector
1PWM1
2 VCC12
3 FAN7_TACH
4GND
5GND
6 FAN8_TACH
7 VCC12
8PWM2
54 Chapter 3: Replacing Pre-Installed Components
J8 Fan Connector
1PWM1
2 VCC12
3 FAN9_TACH
4GND
5GND
6 FAN10_TACH
7 VCC12
8PWM2
J9 Fan Connector
1PWM1
2 VCC12
3 FAN11_TACH
4GND
5GND
6 FAN12_TACH
7 VCC12
8PWM2
Chapter 3: Replacing Pre-Installed Components 55
J10 Fan Connector
1PWM1
2 VCC12
3 FAN13_TACH
4GND
5GND
6 FAN14_TACH
7 VCC12
8PWM2
J1 LCM Connectors
1 LCM_+5V 2 LCM_SIN
3 KEY PIN 4 GND
5 LCM_+5VSB 6 LCM_SOUT
56 Chapter 3: Replacing Pre-Installed Components
3.8 Replacing the Redundant to Single Power Supply
To replace the power supply follow these instructions.
1. Remove the first row of screws from the top of the power
supply casing. Slide the bracket to the right.
2. Remove the second row of screws from the top of the
power supply casing.
3. Slide in the power supply unit.
Chapter 3: Replacing Pre-Installed Components 57

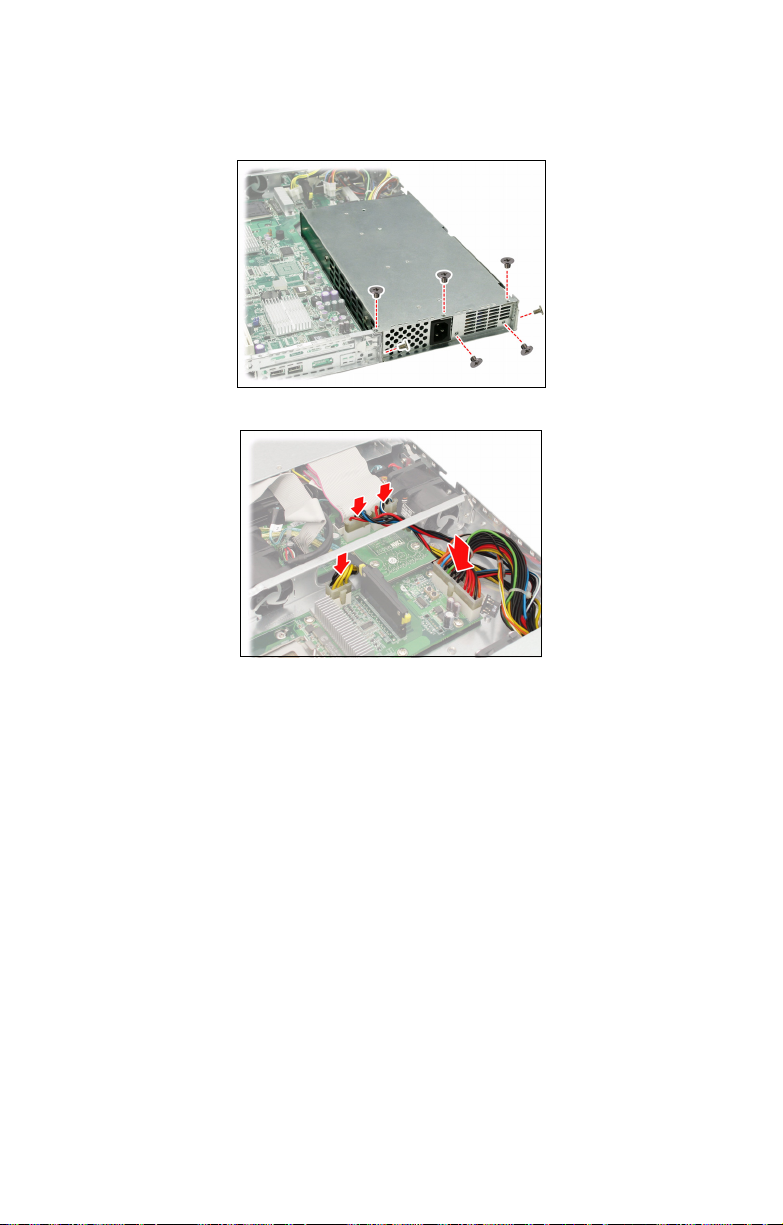

4. Replace the power supply cover and attach to the chassis using five screws as shown. Re-insert the screws in
the top of the supply casing as in steps 1 and 2.
5. Re-attach all power cables.
58 Chapter 3: Replacing Pre-Installed Components
3.8.1 Replacing A Redundant Power Supply
1. Push the power supply unit latch inwards.
2. Pull out the power supply unit as shown.
3. Replace the unit with the new power supply following the
steps above in reverse.
Chapter 3: Replacing Pre-Installed Components 59
Appendix I: BIOS Details
The following screenshots display the BIOS details for the
B5381 Barebone. Refer to the screenshots for further information on each BIOS screen.
BIOS Main Menu
61
IDE Primary Menu
Boot Features Menu
62
Advanced Main Menu
Advanced Chipset Control Menu
63
FBD Memory Configuration Menu
PCI & PCIE Control Menu
64

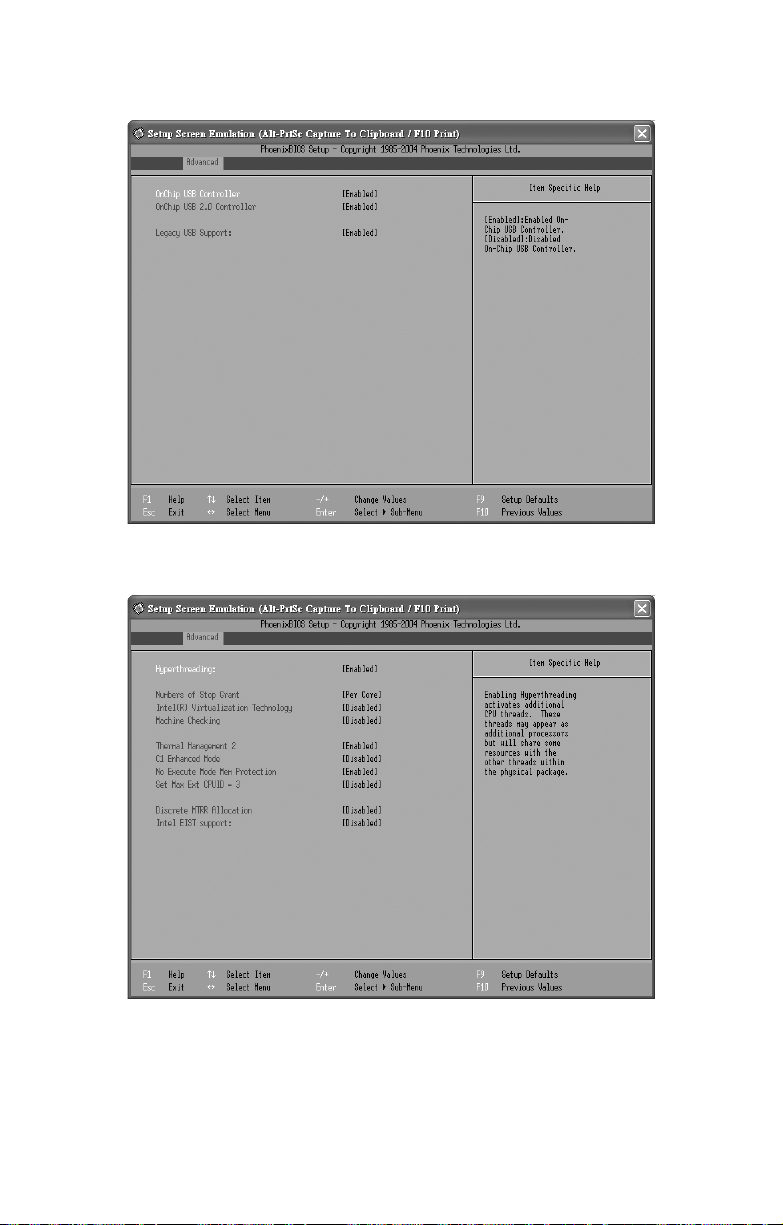

USB Control Menu
Advanced Processor Control Menu
65
Device Configuration Menu
DMI Event Logging Menu
66
Hardware Monitor Menu
Voltage Monitoring Menu
67
Fan Speed Monitoring Menu
Temperature Monitoring Menu
68
Console Redirection Menu
Security Menu
69
Power Menu
Boot Menu
70

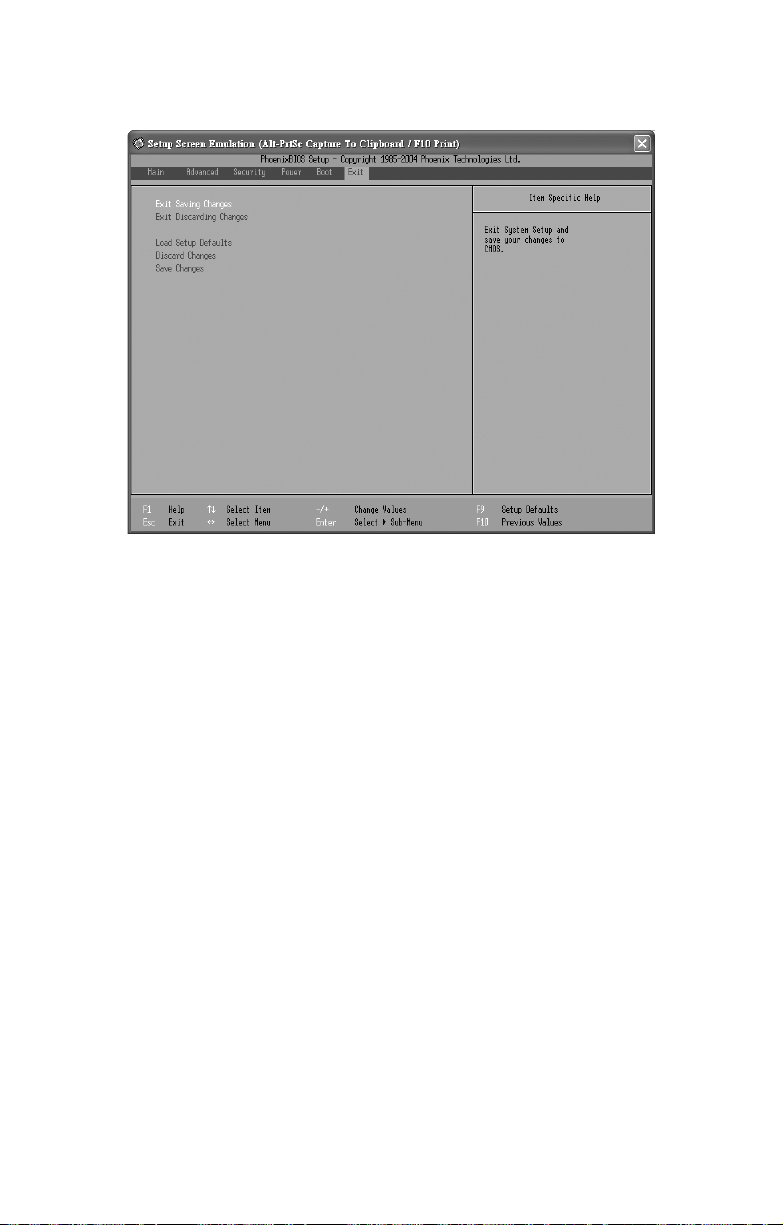

Exit Menu
71
Appendix II: Cable Connection
Tables
SAS / SATA Cables
Table 1: B5381(with LSI SAS controller)
M1210 Adapter Board Connect to Motherboard
SAS 1 (J21) Æ SAS Connector
SAS 2 (J22)
SAS 3 (J23)
SAS 4 (J24)
Table 2: B5381 (without LSI SAS controller)
(SAS2)
M1210 Adapter Board Connect to Motherboard
SAS 1 (J21) Æ SATA Connector (J8)
SAS 2 (J22)
SAS 3 (J23)
SAS 4 (J24)
Power Supply Cables
Table 3: Power Supply to Motherboard
Power Supply Connect to Motherboard
P1 24-pin power cable Æ CN5 24-pin connector
P2 8-pin power cable Æ CN6 8-pin connector
72
Table 4: Power Supply to M1210 Adapter Board
Power Supply Connect to M1210
P4 4-pin power cable Æ PW1 4-pin connector
P5 4-pin power cable Æ PW2 4-pin connector
Other Cables
Table 5: M1210 Adapter Board to Motherboard
M1210 Connect to Motherboard
J16 (FPIO_140) connector Æ J1
Table 6: M1003 Front Panel Control Board Related Cable
M1003 J1 USB connector Æ M1210 J15 connector
Table 7: DVD-ROM Related Cable
M1210 IDE1 (DVD-ROM) connector Æ DVD-ROM Backplane
M1210 J11 power connector Æ DVD-ROM Backplane
Table 8: FDD Related Cable (Optional)
M1210 J2 (FDD) connector Æ Slim FDD drive
73
Appendix III: Memory Population Rules
Channel
DIMM
DIMM1 (A0) X X X X X
DIMM2 (A1) X X
DIMM3 (A2) X
DIMM4 (B0) X X X X
DIMM5 (B1) X X
DIMM6 (B2) X
DIMM7 (C0) X X X
DIMM8 (C1) X X
DIMM9 (C2) X
DIMM10 (D0) X X X
DIMM11 (D1) X X
DIMM12 (D2) X
Single
Dual Four
Four
Four
NOTE: Please always install memory beginning with DIMM1.
You can choose to install single, dual or four channel population.
74
Technical Support
If a problem arises with your system, you should first turn to
your dealer for direct support. Your system has most likely
been configured or designed by them and they should have
the best idea of what hardware and software your system
contains. Hence, they should be of the most assistance for
you. Furthermore, if you purchased your system from a
dealer near you, take the system to them directly to have it
serviced instead of attempting to do so yourself (which can
have expensive consequences).
If these options are not available for you then Tyan Computer
Corporation can help.Besides designing innovative and quality products for over a decade, Tyan has continuously offered
customers service beyond their expectations. Tyan's website
(www.tyan.com) provides easy-to-access resources such as
in-depth Linux Online Support sections with downloadable
Linux drivers and comprehensive compatibility reports for
chassis, memory and much more. With all these convenient
resources just a few keystrokes away, users can easily find
the latest software and operating system components to keep
their systems running as powerful and productive as possible. Tyan also ranks high for its commitment to fast and
friendly customer support through email. By offering plenty of
options for users, Tyan serves multiple market segments with
the industry's most competitive services to support them.
"Tyan's tech support is some of the most impressive we've
seen, with great response time and exceptional organization
in general" - Anandtech.com
Please feel free to contact us directly for this service at tech-
support@tyan.com
Help Resources:
1. See the beep codes section of this manual.
2. See the TYAN website for FAQ’s, bulletins, driver updates,
and other information: http://www.tyan.com
75
3. Contact your dealer for help BEFORE calling TYAN.
4. Check the TYAN user group: alt.comp.periphs.mainboard.TYAN
Returning Merchandise for Service
During the warranty period, contact your distributor or system
vendor FIRST for any product problems. This warranty only
covers normal customer use and does not cover damages
incurred during shipping or failure due to the alteration, misuse, abuse, or improper maintenance of products.
NOTE: A receipt or copy of your invoice marked with the date
of purchase is required before any warranty service can be
rendered. You may obtain service by calling the manufacturer
for a Return Merchandise Authorization (RMA) number. The
RMA number should be prominently displayed on the outside
of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you.
Tank GT25, B5381 Service Engineer’s Manual v1.0
Document part No. D1818-100
76
Loading...
