Tyan Computer GT20 B3970-U User Manual

Transport GT20
B3970-U
Service Engineer’s Manual
Copyright
This publication, including all photographs, illustrations, and soft­ware, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any material contained herein, may be reproduced without written consent of the manufacturer-.
Copyright 2006
Version 1.0
Disclaimer
Information contained in this document is furnished by TYAN Com­puter Corporation and has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and dis­claims any express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains the right to make changes to product descriptions and/or specifications at any time, without notice. In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
Trademark Recognition
PREFACE
All registered and unregistered trademarks and company names contained in this manual are property of their respective owners including, but not limited to the following.
TYAN and Transport GT20 B3970-U are trademarks of TYAN Com­puter Corporation.
Intel, Xeon, and combinations thereof are trademarks of Intel Corpo­ration.
AMD, Opteron, Athlon, and combinations thereof are trademarks of AMD Corporation.
Phoenix, PhoenixBIOS, and combinations thereof are trademarks of Phoenix Technologies.
Microsoft Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
Winbond is a trademark of Winbond Electronics Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corpora­tion.
Federal Communications Commission (FCC)
Notice for the USA Compliance Information State-
ment (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules
Operation is subject to the following conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including inter­ference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one or more of the following measures:
– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and the
receiver.
– Plug the equipment into an outlet on a circuit different from
that of the receiver.
Consult the dealer on an experienced radio/television technician for help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference as specified in the Canadian Department of Communications Radio Interference Regulations. (Cet appareil est conforme aux norms de Classe B d’interference radio tel que specifie par le Ministere Cana­dien des Communications dans les reglements d’ineteference radio.)
Notice for Europe (CE Mark) This product is in conformity with the Council Directive 89/336/EEC, 92/31/EEC (EMC).
CAUTION: Lithium battery included with this board. Do not puncture, mutilate, or dispose of battery in fire. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations.
ii
About this Manual
This manual provides you with instructions on installing your Transport GT20. This manual is intended for experienced users and integrators with hardware knowledge of personal computers.
This manual consists of the following parts
Chapter 1: Provides an Introduction to the Transport GT20
Chapter 2: Covers procedures on installing the CPU, mem-
Chapter 3: Covers removal and replacement procedures for
Appendix: Provides information on installing SMDC cards
For information on the mainboard, please refer to the attached main­board user’s manual. You can find the detailed description about jumper and BIOS settings from the motherboard manual.
B3970-U bare-bones, packing list, describes the external components, gives a table of key compo­nents, and provides block diagrams of the system.
ory modules, an optional PCI-X card, and hard drives.
pre-installed components
and describes the differences between mainboard BIOS and system BIOS. The cable connection tables are also provided for reference of system setup.
iii
SAFETY INFORMATION
Before installing and using the Transport GT20, take note of the fol­lowing precautions:
Read all instructions carefully.Do not place the unit on an unstable surface, cart, or stand.Do not block the slots and opening on the unit, which are pro-
vided for ventilation.
Only use the power source indicated on the marking label. If
you are not sure, contact the Power Company.
The unit uses a three-wire ground cable, which is equipped
with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
Do not place anything on the power cord. Place the power
cord where it will not be in the way of foot traffic.
Follow all warnings and cautions in this manual and on the
unit case.
Do not push objects in the ventilation slots as they may touch
high voltage components and result in shock and damage to the components.
When replacing parts, ensure that you use parts specified by
the manufacturer.
When service or repairs have been done, perform routine
safety checks to verify that the system is operating correctly.
Avoid using the system near water, in direct sunlight, or near
a heating device.
Cover the unit when not in use.
iv
Table of Contents
Chapter 1:Overview
1.1 About the Transport GT20 B3970-U . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Product Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.4 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5.1 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5.2 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.5.3 LED Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.5.4 Internal View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5.5 Motherboard (S3970) Block Diagram . . . . . . . . . . . . . . . . . 8
1.5.6 Motherboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Chapter 2:Setting Up
2.0.1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.0.2 Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.0.3 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.0.4 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.1 Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.1.1 Installing the Server in a Rack. . . . . . . . . . . . . . . . . . . . . . 13
2.2 Installing Motherboard Components. . . . . . . . . . . . . . . . . . . . . . . 19

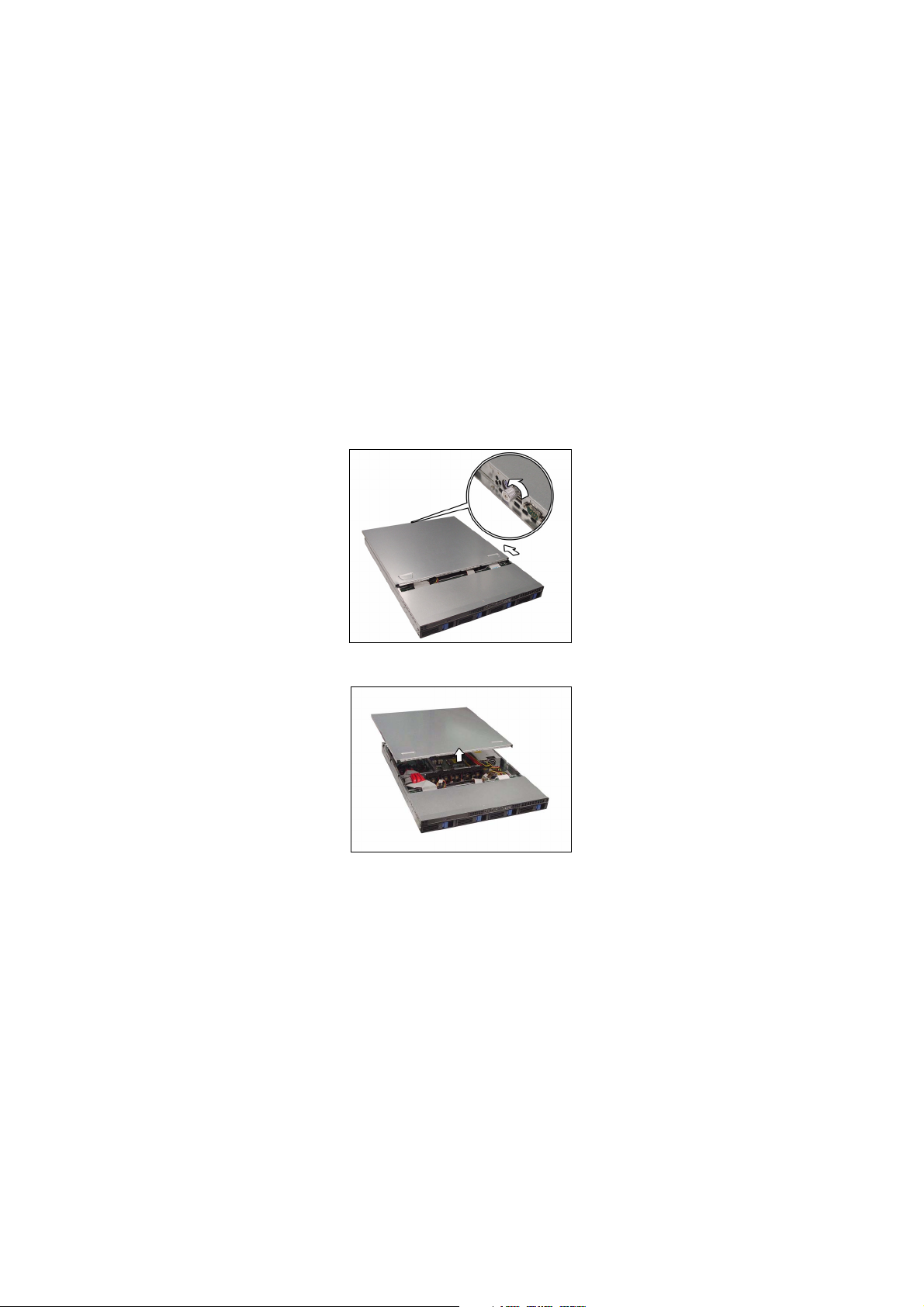

2.2.1 Removing the Chassis Cover. . . . . . . . . . . . . . . . . . . . . . . 19
2.2.2 Installing the Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

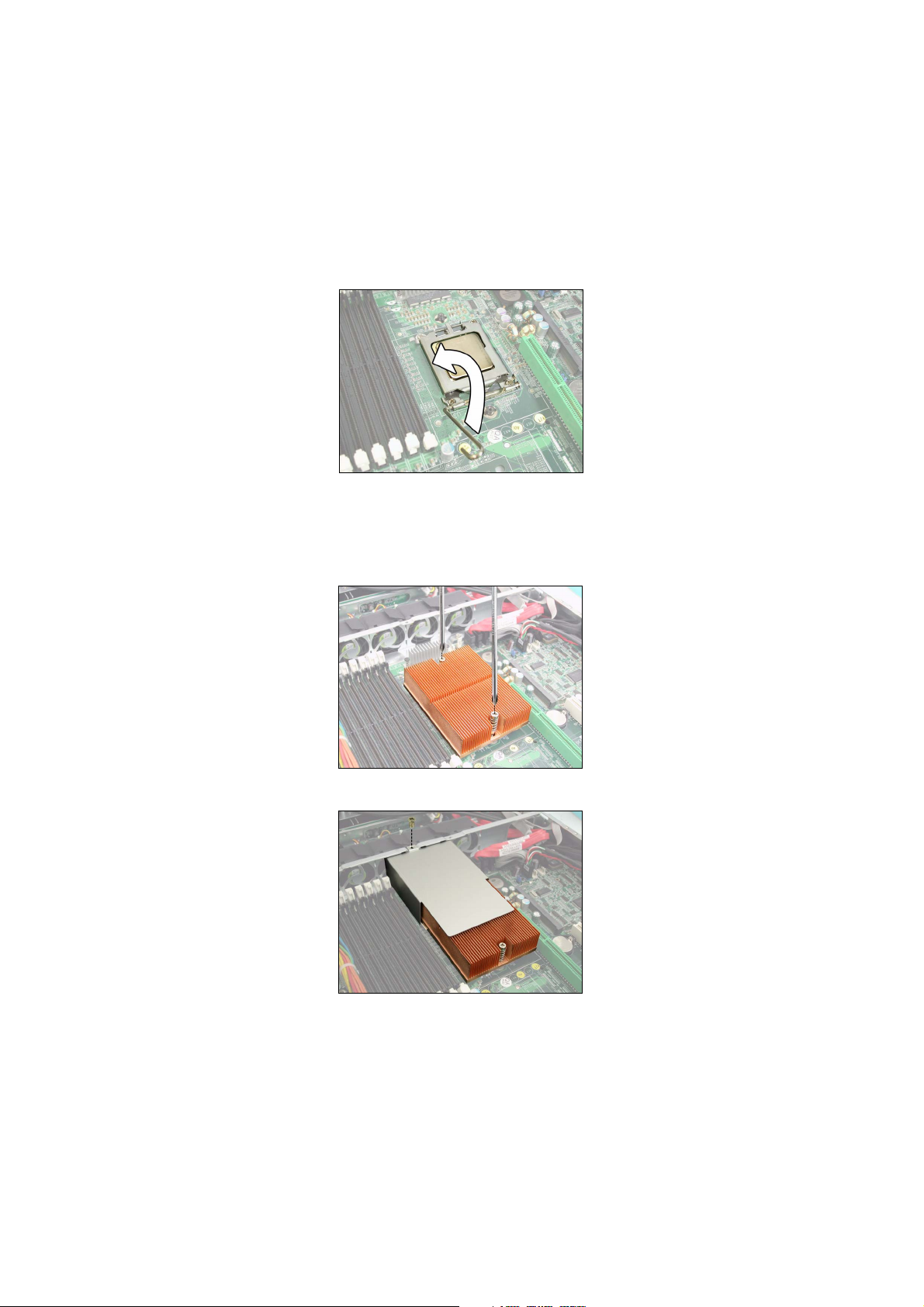

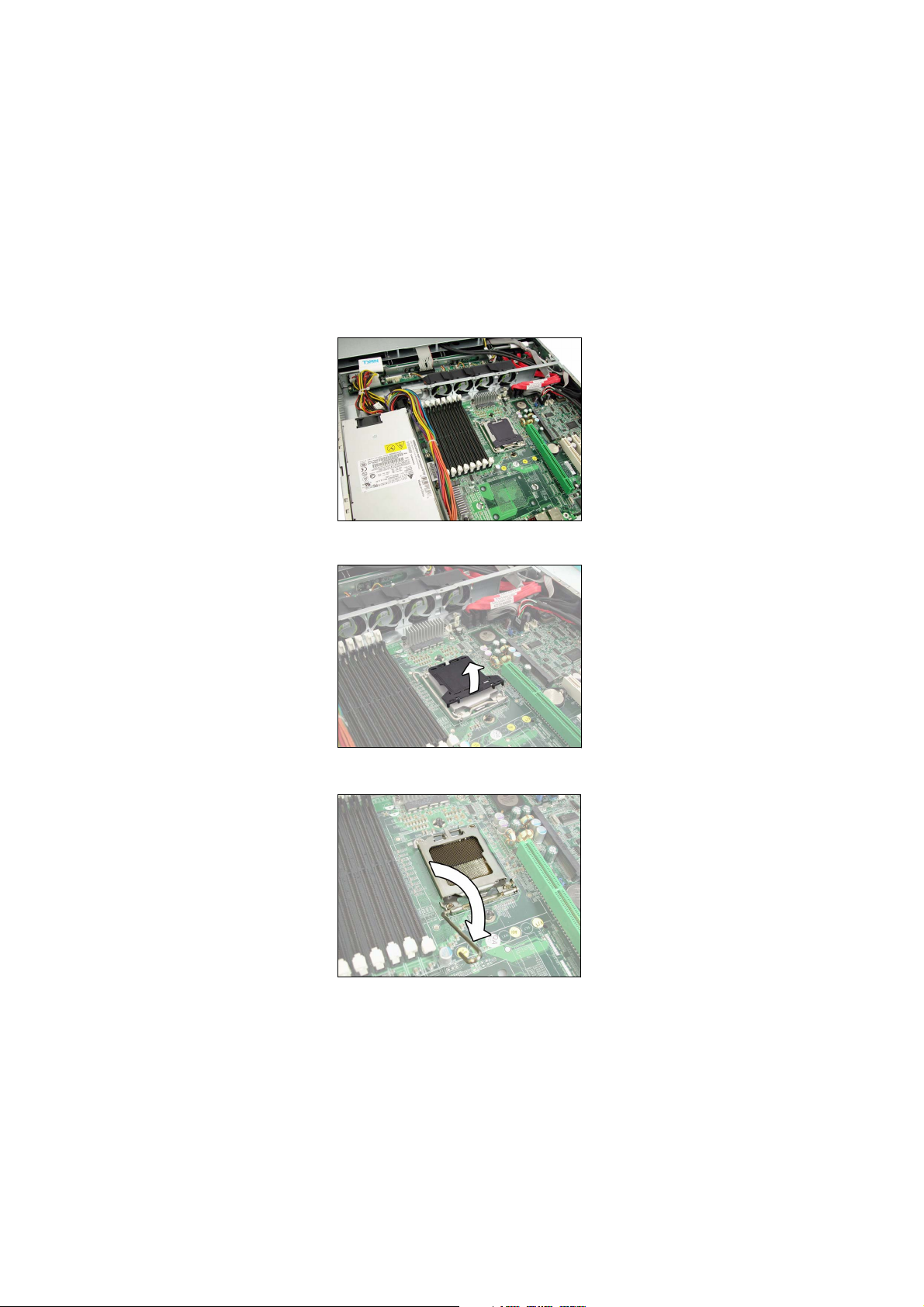

2.2.3 Installing the CPU and Heatsink . . . . . . . . . . . . . . . . . . . .21
2.2.4 Installing the PCI-X Card . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.3 Installing the External Hard Drive . . . . . . . . . . . . . . . . . . . . . . . .26
2.4 Installing the Slim FDD (Option) . . . . . . . . . . . . . . . . . . . . . . . . .28
Chapter 3:Replacing Pre-Installed Components
3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.1.1 Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.1.2 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.1.3 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.2 Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

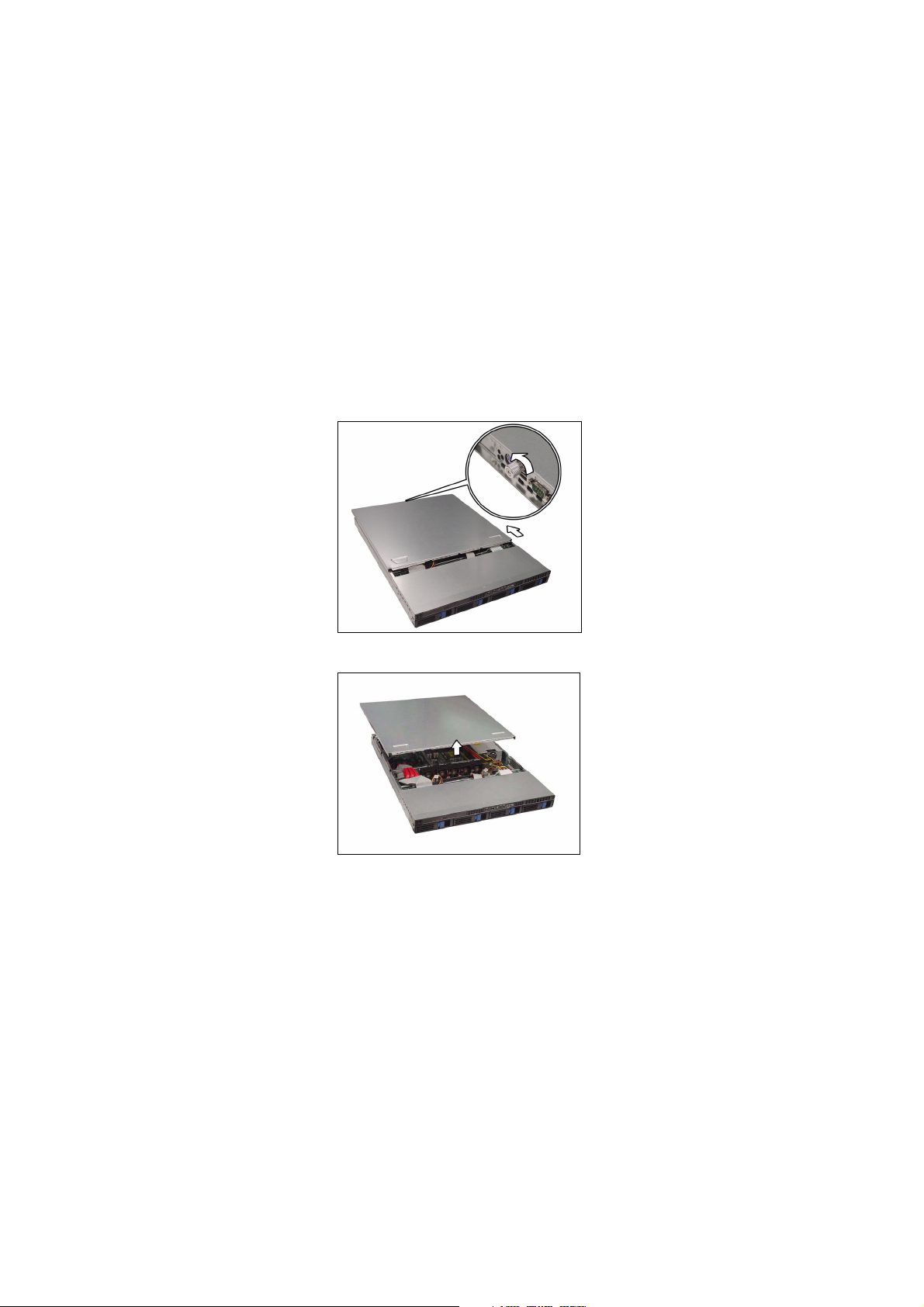

3.3 Removing the Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.4 Replacing Motherboard Components . . . . . . . . . . . . . . . . . . . . . . 35

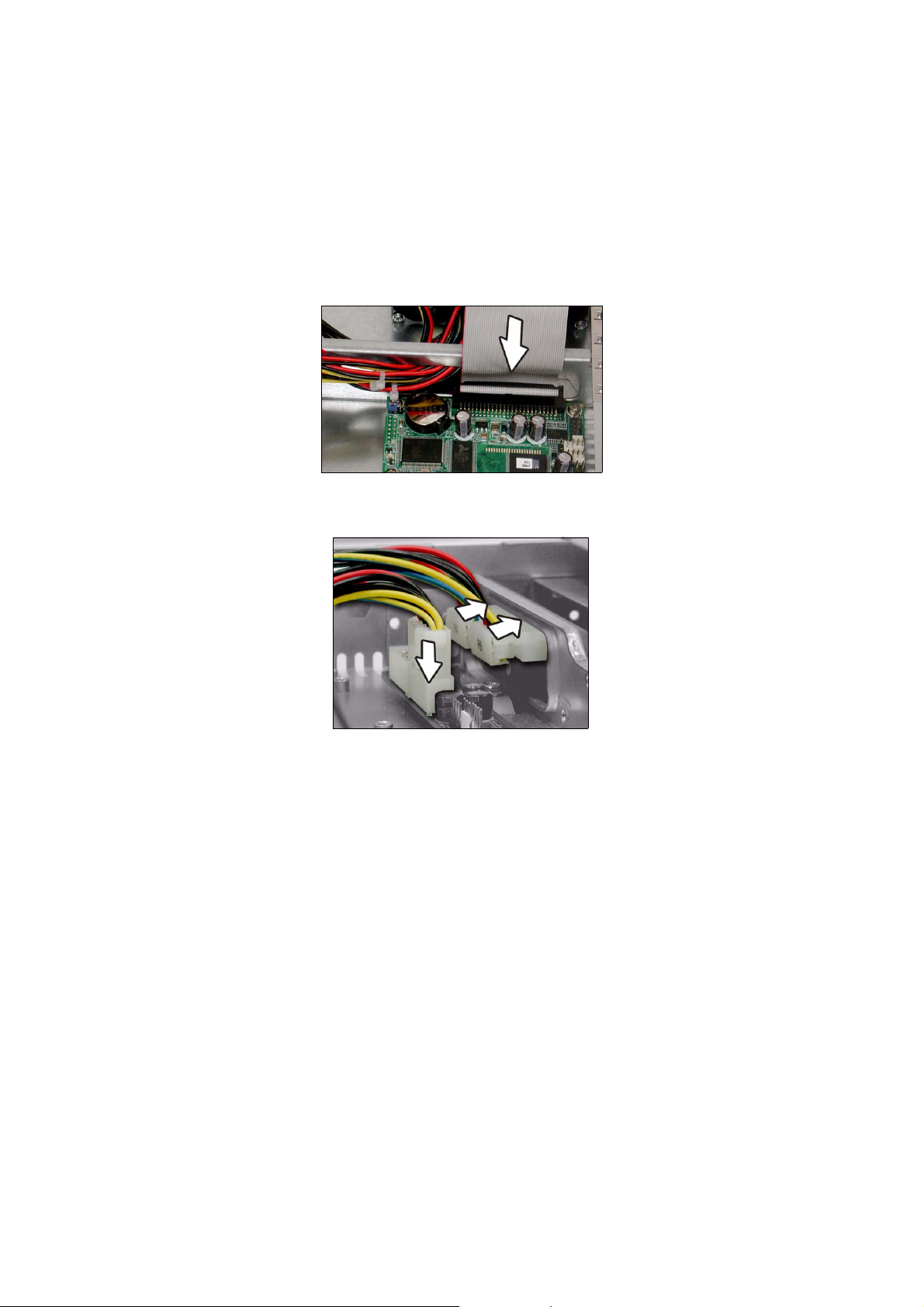

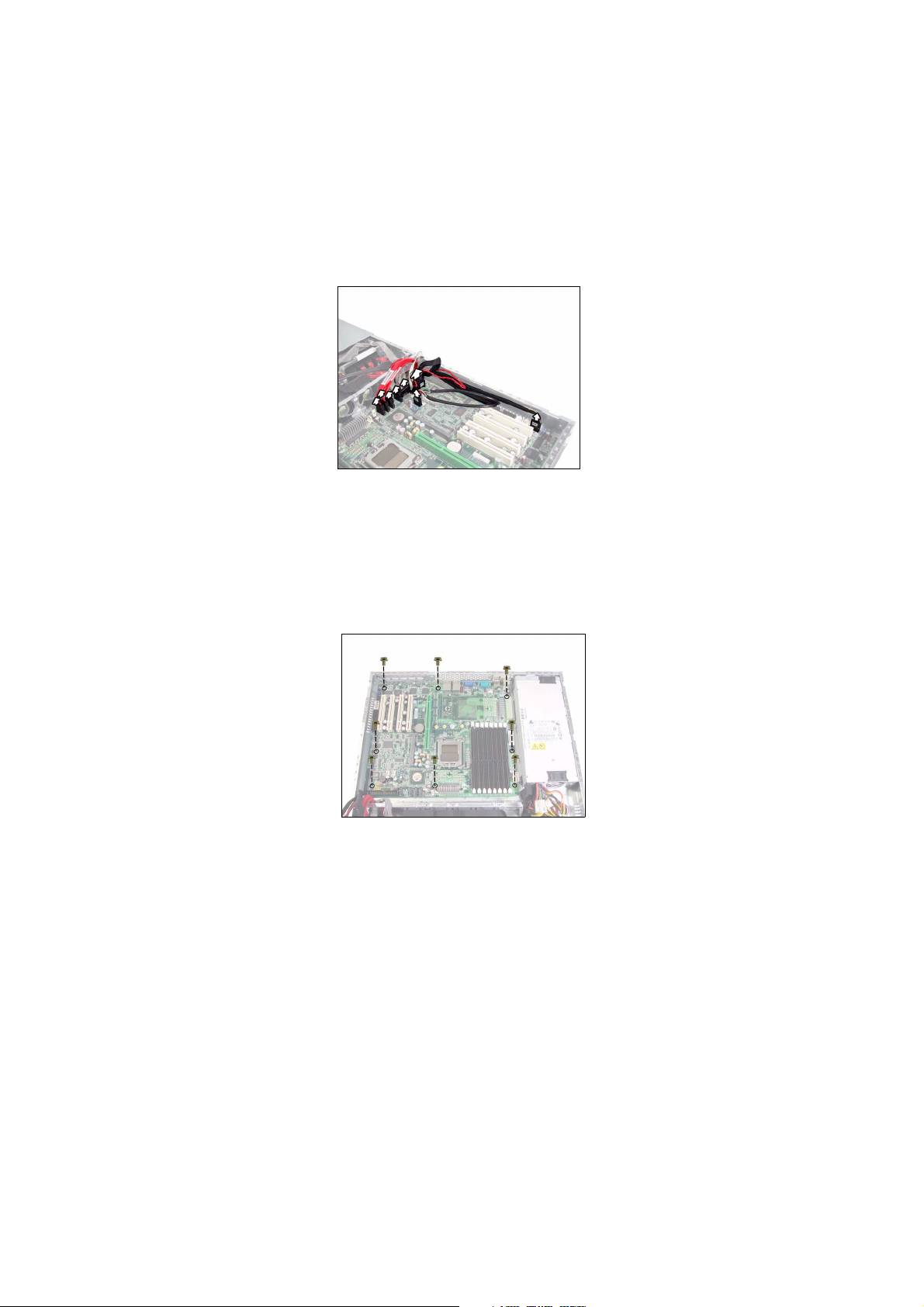

3.4.1 Disconnecting All Motherboard Cables . . . . . . . . . . . . . .35
3.4.2 Removing the Motherboard. . . . . . . . . . . . . . . . . . . . . . . .36

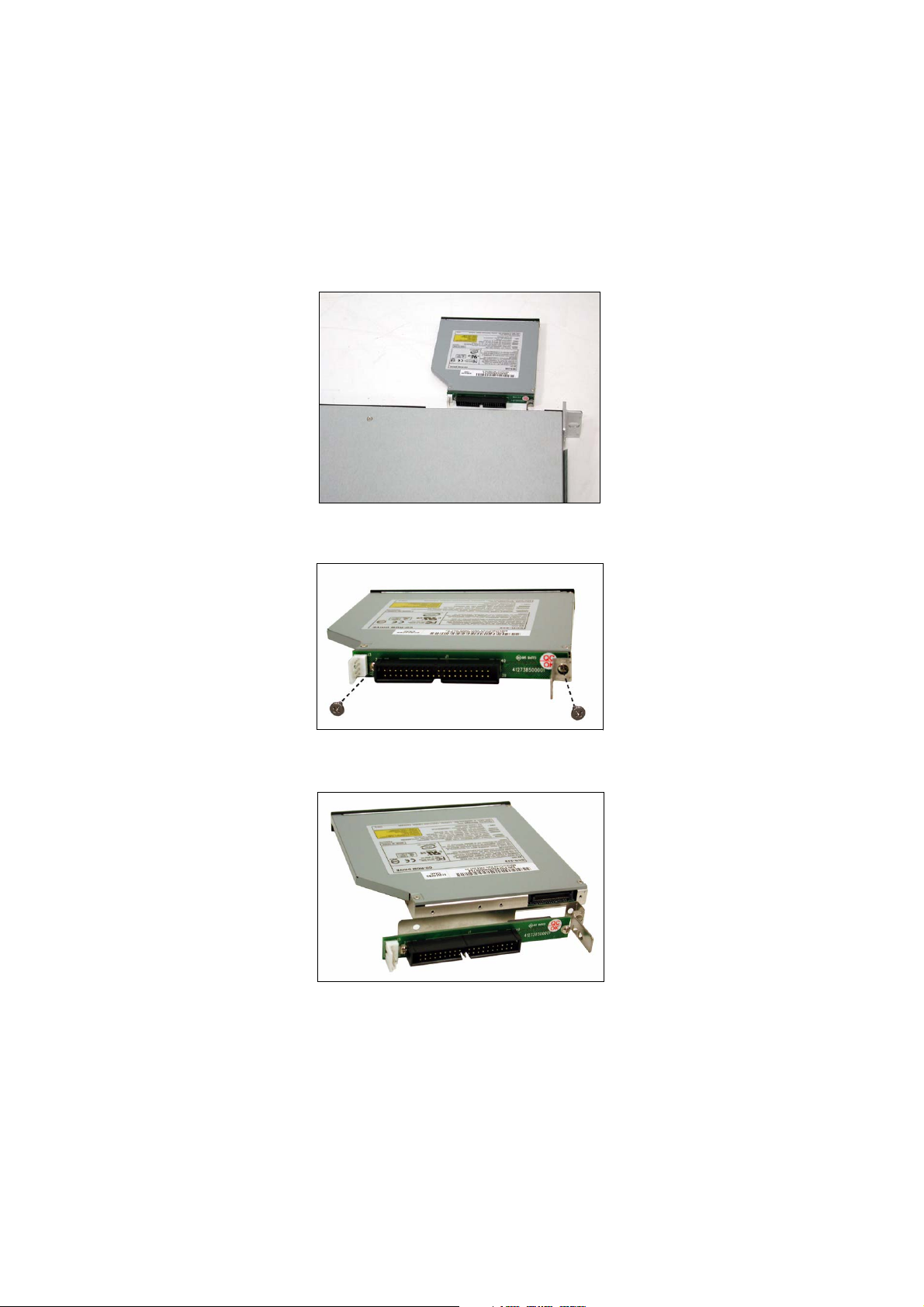

3.5 Replacing the Slim CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
3.6 Replacing the LED Control Board . . . . . . . . . . . . . . . . . . . . . . . . 39
v
3.7 Replacing the M1012 Adapter Board . . . . . . . . . . . . . . . . . . . . . . 41
3.7.1 M1012 Adapter Board Features for B3970-U . . . . . . . . . .43
3.7.2 M1012 Adapter Board Connector Pin Definition . . . . . . . 44

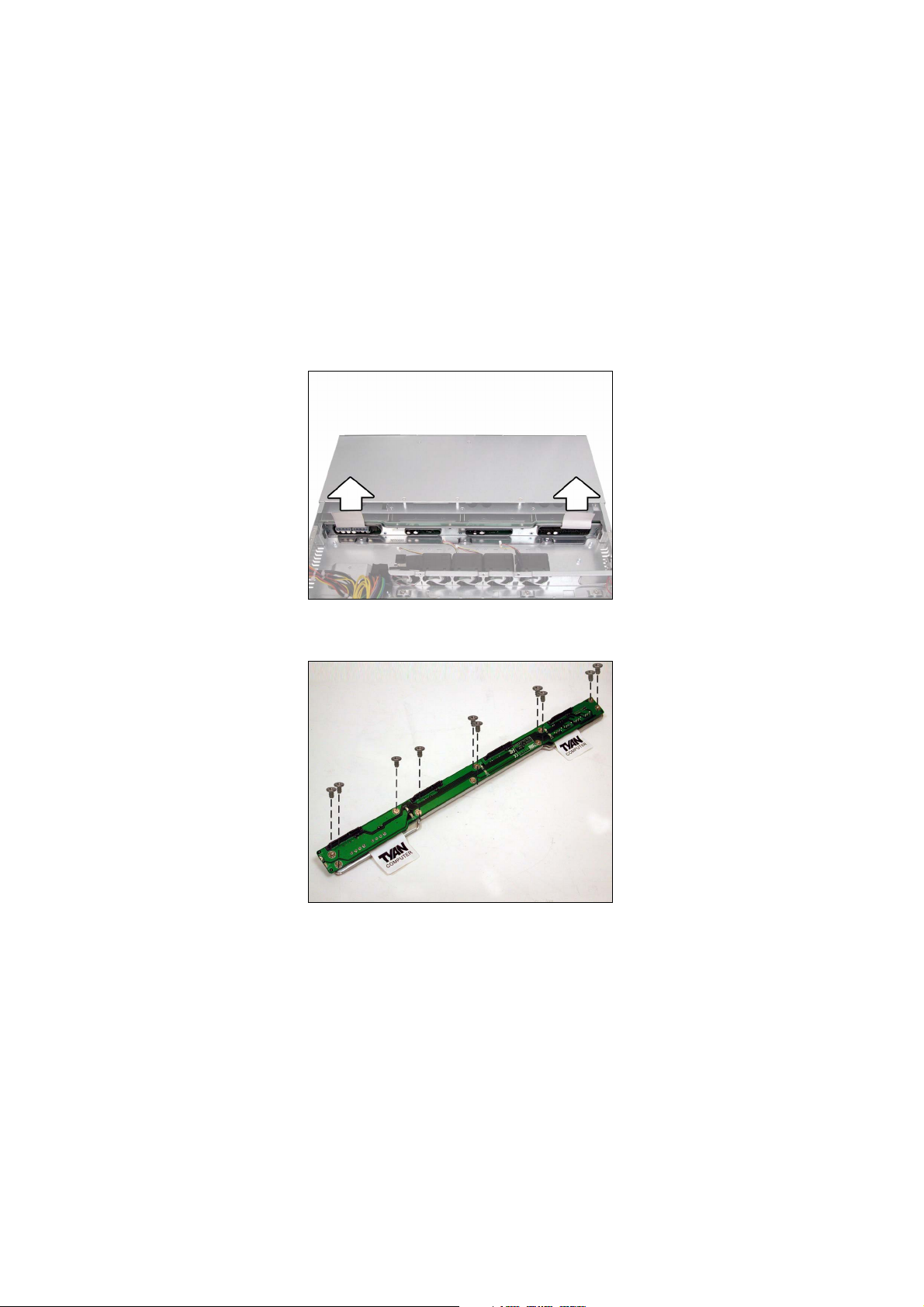

3.8 Replacing the SATA Backplane . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.8.1 SAS/SATA Backplane (M1208) Features. . . . . . . . . . . . .51
3.9 Replacing the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Appendix I: BIOS Differences
Appendix II: Cable Connection Tables
Appendix III: Installing SMDC Cards
vi
Chapter 1: Overview
1.1 About the Transport GT20 B3970-U
Congratulations on your purchase of the TYAN Transport
TM
GT20 (B3970-U), a highly-optimized rack-mountable bareb­one system. The Transport GT20 (B3970-U) is designed to
support AMD
®
Opteron™ 2000 940-pin processor, providing
a rich feature set and incredible performance. Leveraging
advanced technology from AMD
®
, the Transport GT20 (B3970-U) server system is capable of offering scalable 32 and 64-bit computing, high-bandwidth memory design, and a
lightning-fast PCI-X bus implementation. The Transport
TM
GT20 (B3970-U) not only empowers your company in today’s demanding IT environment but also offers a smooth path for future application usage.
TYAN is also proud to deliver the Transport
TM
GT20 (B3970­U) in SATA flavor while supporting up to four (4) hot-swap hard drives, one (1) slim CD-ROM and one (1) optional slim
floppy disk drive (not included). The Transport
TM
GT20 (B3970-U) uses TYAN’s latest tooling-made chassis featuring a robust structure, tool-less and modularized design, and a solid mechanical enclosure. All of this provides the Trans-
TM
port
GT20 (B3970-U) the power and flexibility to meet the
needs of nearly any server application.
1.2 Product Model
Model HDD Bays
B3970-UG20V4H
Removable,
4 HDDs
Hot-Swap
Support
Yes 4-port SATA
Chapter 1: Overview 1
HDD
Backplane
1.3 Features
Enclosure
• Industry 19” rack-mountable 1U chassis – (4) 3.5” HDD bays – (1) slim CD-ROM bay
• Dimension: D 22.4 x W 17.2 x H
1.72 inch (568x436x43.6mm)
Processor
• (1) 1207-pin ZIF socket for AMD Opteron 2000 Series processors
• Integrated 144-bit DDR2 memory controller
Chipset
• Broadcom BCM5785 (HT-1000) core-logic
• SMSC SCH4307 Super I/O
Memory
• Dual channel memory bus
• (8) 240pin DIMM sockets
• Registered, ECC DDR2 module supported, up to 16GB DDR2­667/533
Expansion Slots
• (1) 64-bit / 133MHz PCI-X slot on riser card (Riser card model: M2055)
• (1) Tyan ”TARO” SO-DIMM socket
Back I/O Ports
• Stacked PS/2 mouse & keyboard ports
• Stacked 2 USB 2.0 ports
• (1) 9-pin COM port
• (1) 15-pin VGA port
• (2) RJ45 connectors
Front Panel Features
• I/O – (2) USB 2.0 ports
• LED indicators – Power LED – (2) LAN LEDs –ID LED – HDD active LEDs
• Switches – Power
–Reset –ID
Storage
• Pre-installed slim type 24x CD-ROM
• (4) hot-swappable, SATA HDD
Networking
• (2) Intel i8254PI GbE LAN control­lers
®
Video
•ATI® XGI Volari Z7 (XG20)
• 16MB frame buffer memory
Motherboard
• TYAN Tomcat S3970-U 1U system board
• ATX footprint 12” x 10.2” (304.8mm x 259.1mm)
BIOS
• AMI BIOS on 8Mbit LCP Flash ROM
• Serial Console Redirect
• USB boot supported
• ACPI supported
• PnP, DMI2.0, WfM2.0 Power Man­agement
Server Management
• (2) SMSC EMC6D103 Hardware Monitoring IC.
• Temperature and voltage monitoring
• Watch dog timer support
• Chassis intrusion detection
System Cooling
• (4) Sunon 40*40*28mm 14500rpm heavy-duty fans
• (1) passive CPU heatsink
Power Supply
• PS 12V, 1U, 350W
Regulatory
• FCC Class B (Declaration of Con­formity)
• CE (Declaration of Conformity)
Environment Temperature
• Operating temperature 5oC~35oC
• Non-operating temperature -40
o
70
C
o
C ~
2 Chapter 1: Overview
1.4 Unpacking
If any items are missing or appear damaged, contact your retailer or browse to TYAN’s Web site for service: http://www.tyan.com.
The Web site also provides information on other TYAN prod­ucts, plus FAQs, compatibility lists, BIOS settings, and more.
1 x Tyan driver CD
HDD Screws
Mounting Ears & Screws
FDD Kit
FDD Cable
Heatsink
Air Duct
Power Cables Left to right: Europe, US
FDD Installing Rails & Screws
FDD Backplane Cable
Chapter 1: Overview 3
Rail Kit
Mounting Bracket x 4
Mainboard ManualBarebone Manual
Screws Kit
Sliding Rails x 2
Sliding Brackets Front L-Bracket x 2 Rear L-Bracket x 2
4 Chapter 1: Overview
1.5 About the Product
The following views show you the product.
1.5.1 Front View
CD-ROM Drive
1.5.2 Rear View
Power Supply Fan Aperture
Reset switch
NMI switch
ID switch
USB ports
Hard Drive Bay x 4
Power Supply Socket
PS/2 Mouse/Keyboard Ports
Warning LED
HDD activity LED
Power LED
ID LED
Power switch
2 x LAN LEDs
PCI-X Slot Opening
2 USB Ports
Serial Port
VGA Port
ID LED
LAN Port (NIC1)
LAN Port (NIC2)
Chapter 1: Overview 5
1.5.3 LED Definition
Front Panel
LED Color State Description
Power Green
HDD Activity Amber
OFF
OFF
ON OFF
Random Blink OFF
Power ON Power OFF
HDD access activity No disk activity
LAN1/LAN2 Activity Green
Warni ng Red
ID LED Blue
Hot Swappable HDD Tray Pow er LED
Hot Swappable SATA HDD Access LED
Hot Swappable SAS HDD Access LED
Green OFF
OFF
OFF
Green OFF
Amber OFF
Amber Amber OFF
ON Blinking OFF
ON OFF
ON OFF
ON OFF
Random Blinking OFF
ON Random Blinking OFF
Rear I/O LED
LED Color State Description
RJ45 NIC1 Linkage (Left Side)
RJ45 NIC1 Mode (Right Side)
RJ45 NIC2 Linkage (Left Side)
RJ45 NIC2 Mode (Right Side)
ID LED Blue
Green Green OFF
Amber Green OFF
Green Green OFF
Amber Green OFF
OFF
ON Blinking OFF
ON ON OFF
ON Blinking OFF
ON ON OFF
ON OFF
LAN linked LAN accessing No LAN linked
Gigabit mode 100M mode 10M mode
LAN linked LAN accessing No LAN linked
Gigabit mode 100M mode 10M mode
System is identified System is not identified
LAN linked LAN accessing No LAN linked
Fan fails Normal
System is identified System is not identified
Power connected Power disconnected
HDD access activity No disk activity
HDD ready HDD access activity HDD not ready
6 Chapter 1: Overview
1.5.4 Internal View
10
11
13
1 2
9
4
3
5
6
7
8
12
1. PCI-X Slot
2. Memory Slots
3. Power Connector
4. EPS Power Supply
5. System Fans
6. M1012 Adapter Board
7. SATA Backplane
Chapter 1: Overview 7
8. LED Control Board Cable
9. SATA Cables (4)
10. USB Cable
11. CD-ROM Cable
12. Four SATA HDD Bays
13. Slim CD-ROM
1.5.5 Motherboard (S3970) Block Diagram
8 Chapter 1: Overview
1.5.6 Motherboard Layout
Chapter 1: Overview 9
Jumpers & Connectors
Jumper
/Connector
J2/J3 3-pin Back Panel Fan Connector
J4/J22/J23/ J35
J6 COM2 Header
J24 USB Front Panel Connector
J25 Front Panel SATA LED Pin Header
J26 Front Panel Header
J27 LCM Pin Header
J29 IPMB Pin Header
JP1 VGA Enable/Disable Jumper
JP2/JP3 SMDC/ASF2.0 Select Jumper
JP6 PCI-X Frequency Select Jumper
4-pin Fan Connector with Speed Control
(Close 1-2) Default, Enabled (Close 2-3) Disabled
(Close 1-2) Default, support ASF2.0 (Close 2-3) support SMDC card
Open: 100MHz Installed: Default, 133MHz
Function
JP8 Clear CMOS Jumper
(Close 1-2) Default (Close 2-3) Clear CMOS
J21 TARO SO-DIMM Socket
J36 SMDC Connector
J5/J28 Reserved for OEM only
10 Chapter 1: Overview
2.0.1 Before You Begin
This chapter explains how to install the CPU, CPU heatsink, memory modules, and hard drives. Instructions on inserting a PCI-X card are also given.
Take note of the precautions mentioned in this section when installing your system.
2.0.2 Work Area
Make sure you have a stable, clean working environment. Dust and dirt can get into components and cause malfunc­tions. Use containers to keep small components separated. Putting all small components in separate containers prevents them from becoming lost. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components.
2.0.3 Tools
The following procedures require only a few tools, including the following:
Chapter 2: Setting Up
A cross head (Phillips) screwdriver
A grounding strap or an anti-static pad
Most of the electrical and mechanical connections can be dis­connected using your fingers. It is recommended that you do not use needle-nosed pliers to remove connectors as these can damage the soft metal or plastic parts of the connectors.
Chapter 2: Setting Up 11
2.0.4 Precautions
Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Transport GT20 or injury to yourself.
Ground yourself properly before removing the top
cover of the system. Unplug the power from the power supply and then touch a safely grounded object to release static charge (i.e. power supply case). If available, wear a grounded wrist strap. Alter­natively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
Avoid touching motherboard components, IC chips,
connectors, memory modules, and leads.
The motherboard is pre-installed in the system.
When removing the motherboard, always place it on a grounded anti-static surface until you are ready to reinstall it.
Hold electronic circuit boards by the edges only. Do
not touch the components on the board unless it is necessary to do so. Do not flex or stress circuit boards.
Leave all components inside the static-proof packag-
ing that they ship with until they are ready for installa­tion.
After replacing optional devices, make sure all
screws, springs, or other small parts are in place and are not left loose inside the case. Metallic parts or metal flakes can cause electrical shorts.
Notes:
All connectors are keyed to only attach one way.
Always use the correct screw size as indicated in the procedures.
12 Chapter 2: Setting Up
2.1 Rack Mounting
After installing the necessary components, the Transport GT20 can be mounted in a rack using the supplied rack mounting kit.
Rack mounting kit
Sliding Rails x 2:
Sliding Brackets x 4 (Front x 2, Rear x 2)
Mounting Ears x 2
Screws Kit x 1
Mounting Brackets x 4
2.1.1 Installing the Server in a Rack
Follow these instructions to mount the GT20 into an industry standard 19" rack.
NOTE: Before mounting the Transport GT20 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. Maintenance can be per­formed on the unit while in a rack but it is preferable to install the device in a fully operational condition.
Screws List (including screws for SMDC)
A: Flat 6#-32 x4~x16
B: B-type 6#-32 x4
C: M4-4L x8
D: M4-5L x4
E: M4-8L x8
F: M4-15L x2
G: 13.5mm stand-off x1
G
F
E
D
C
B
A
Chapter 2: Setting Up 13
Installing the Inner Rails to Chassis
1. Screw the mounting ear to each side of GT20 as shown using 2 screws from the supplied screws kit.
Mounting Ears
2. Draw out the inner rails from rail assembly. Install inner rails to left and right sides of chassis using 2 M4-5L(D) screws for each side.
Installing Outer Rails to the Rack
3. Measure the distance between inner side of the front and rear mounting brackets in the rack.
14 Chapter 2: Setting Up
4. Locate the front and rear brackets.
Rear Bracket x2
Front Bracket x2
5. Reserve 40mm on the front bracket. Secure the front bracket to outer rail with 2 M4-4L(C) screws.
Chapter 2: Setting Up 15
6. Reserve the distance same as in Step 2 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L(C) screws.
7. Secure the outer rail to the rack using 2 brackets and 4 M4-8L(E) screws for each side (A). Secure the mounting brackets from inside, not outside, of the rack (B).
A
Mounting Bracket
B
16 Chapter 2: Setting Up
Rackmounting the Server
8. Draw out the middle rail to the latch position.
9. Lift the chassis and then insert the inner slide rails into the middle rails.
10. Push the chassis in and press the latch key (A). Then push the whole system into the rack (B).
A
B
Chapter 2: Setting Up 17
11. Secure the mounting ears of chassis to the rack with 2 M4-15L(F) screws.
NOTE: To avoid injury, it is strongly recommended that two people lift the GT20 into the place while a third per­son screws it to the rack.
18 Chapter 2: Setting Up
2.2 Installing Motherboard Components
This section describes how to install components on to the motherboard, including CPU, memory modules and PCI card.
2.2.1 Removing the Chassis Cover
Follow these instructions to remove the Transport GT20 chassis cover.
1. Remove the screw on the back side. Then slide the chas­sis cover in the direction of arrow.
2. Lift the cover off.
Chapter 2: Setting Up 19
2.2.2 Installing the Memory
Follow these instructions to install the memory modules on the motherboard.
1. Locate the memory slots on the motherboard.
2. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration.
3. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automati­cally onto the indentations at the ends of the module. For optimal system operation, please install memory in pairs.
20 Chapter 2: Setting Up
2.2.3 Installing the CPU and Heatsink
Follow these instructions to install the CPU and CPU heat­sink.
1. Locate the CPU socket.
2. Take off the CPU protection cap.
3. Pull the CPU lever up to unlock the CPU socket.
Chapter 2: Setting Up 21
4. Open the socket in the direction as illustrated.
5. Place the CPU on the CPU socket, ensuring that pin 1 is located in the right direction.
6. Close the cover in the direction shown.
22 Chapter 2: Setting Up
7. Press the CPU socket lever down in the direction shown to secure the CPU.
8. Secure the heatsink to the motherboard using two screws.
NOTE: Remember to install the washer and nut while installing the screws.
9. Place the air duct with one screw.
Chapter 2: Setting Up 23

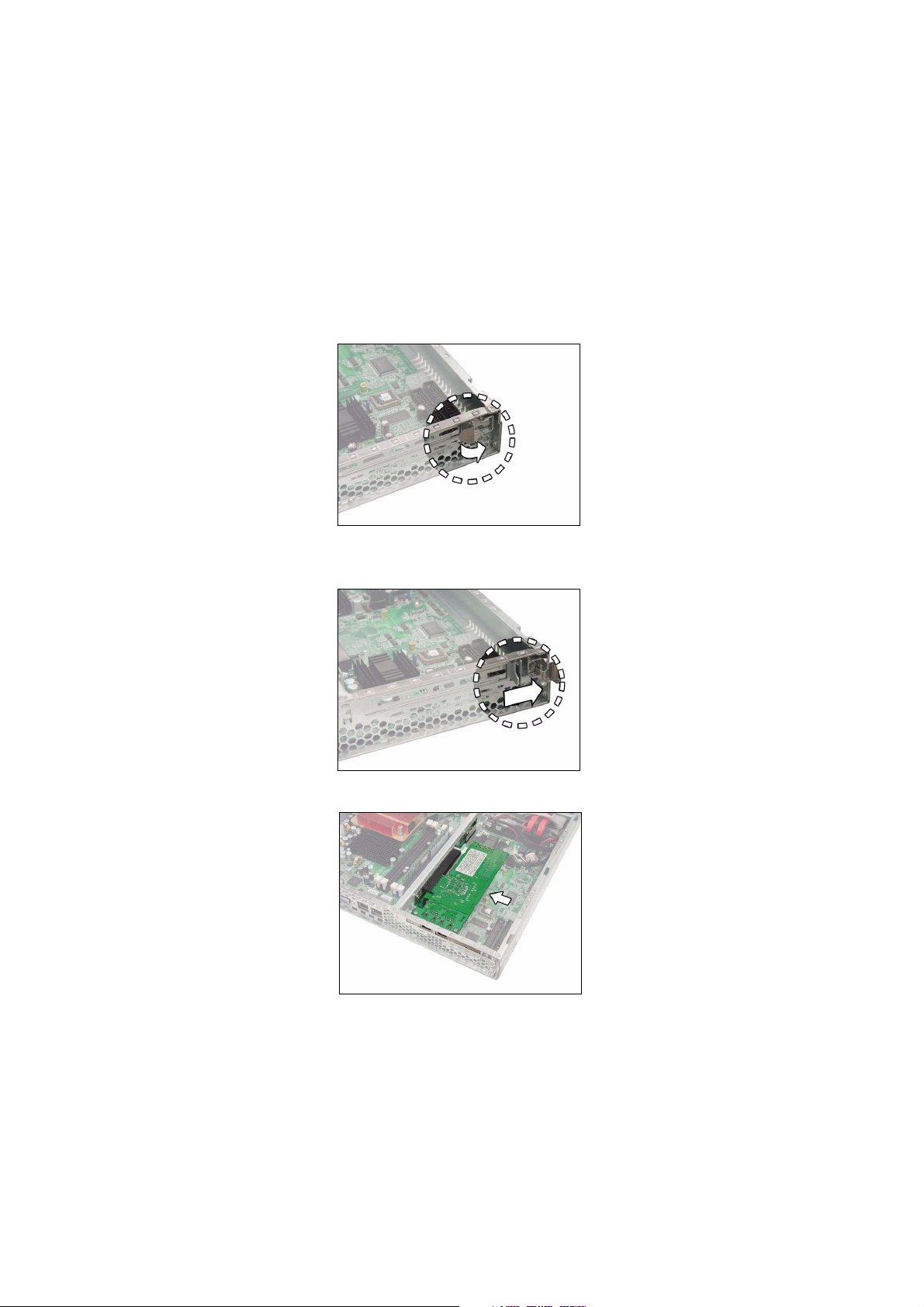

2.2.4 Installing the PCI-X Card
Follow these instructions to install a PCI-X card.
1. Push the tab of PCI-X slot on the rear panel in the direc­tion as shown to release the I/O shield.
2. Move the I/O shield to right as shown and then take off the I/O shield.
3. Insert the PCI-X card in the directions of arrow as shown.
24 Chapter 2: Setting Up
4. Push the tab of PCI-X slot on the rear panel in the direc­tion as shown to secure PCI-X card.
Chapter 2: Setting Up 25
2.3 Installing the External Hard Drive
The GT20 chassis kit supports external SATA or SAS hard drives.
Follow these instructions to install an external SATA or SAS hard drive.
1. Press the locking lever latch in the direction of arrow (A) and then pull the locking lever open (B).
A B
2. Slide the drive tray out.
3. Place a hard drive into the drive tray.
26 Chapter 2: Setting Up
4. Using 4 HDD screws to secure the HDD.
5. Reinsert the drive tray into the chassis (A), ensuring that the drive tray is completely inserted into the chassis (B).
A
B
6. Pressing the locking lever to secure the hard drive tray.
Chapter 2: Setting Up 27
2.4 Installing the Slim FDD (Option)
1. Locate the two FDD rails and screws from the FDD kit. Secure the two rails to FDD using four screws.
FDD Rails & Screws
2. Connect the FFC cable to FDD.
3. Using a screw driver to pull open the door of FDD tray.
4. Insert FDD module into the tray.
28 Chapter 2: Setting Up
5. Connect the FFC cable to the connector on M1012 adapter board.
6. Locate the FDD cable from FDD kit. Connect the wrinkle side to the connector on M1012 adapter board. Refer to the picture below for the correct direction.
For Mainboard
For M1012
7. Connect the other side to the connector on motherboard.
Chapter 2: Setting Up 29
NOTE
30 Chapter 2: Setting Up
Chapter 3: Replacing Pre-Installed
3.1 Introduction
This chapter explains how to replace pre installed compo­nents including the motherboard, LED control board, HDD, and CD-ROM drive.
Take note of the precautions in this section when installing your system.
3.1.1 Work Area
Make sure you have a stable, clean working environment. Dust and dirt can get into components and cause malfunc­tions. Use containers to keep small components separated. Putting all small components in separate containers keeps them from becoming lost. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components.
3.1.2 Tools
The procedures that follow require only a few tools, including the following:
Components
A cross head (Phillips) screwdriver
A grounding strap or an anti-static pad
Most of the electrical and mechanical connections can be dis­connected using your fingers. It is recommended that you do not use needle-nosed pliers to remove connectors as these can damage the soft metal or plastic parts of the connectors.
Chapter 3: Replacing Pre-Installed Components 31
3.1.3 Precautions
Components and electronic circuit boards can be damaged by static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Transport GT20 or injury to yourself.
Ground yourself properly before removing the top
cover of the system. Unplug the power from your computer power supply and then touch a safely grounded object to release static charge (i.e. power supply case). If available, wear a grounded wrist strap. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appli­ance.
Avoid touching motherboard components, IC chips,
connectors, memory modules, and leads.
The motherboard is pre-installed in the system.
When removing the motherboard, always place it on a grounded anti-static surface until you are ready to reinstall it.
Hold electronic circuit boards by the edges only. Do
not touch the components on the board unless it is necessary to do so. Do not flex or stress circuit boards.
Leave all components inside the static-proof packag-
ing that they ship with until they are ready for installa­tion.
After replacing optional devices, make sure all
screws, springs, or other small parts are in place and are not left loose inside the case. Metallic parts or metal flakes can cause electrical shorts.
Notes:
All connectors are keyed to only attach one way.
Always use the correct screw size as indicated in the procedures.
32 Chapter 3: Replacing Pre-Installed Components
3.2 Disassembly Flowchart
The following flowchart outlines the disassembly procedure.
Rear Components
Chassis rear cover
CPU/heatsink assembly
Air duct
Mainboard
Power supply
Front Components
Chassis rear cover
DIMMs
PCI card
Mainboard
CD-ROM
Control Board
PCBs
FAN
M1012
Adapter Board
HDD Backplane
Chapter 3: Replacing Pre-Installed Components 33
3.3 Removing the Cover
Before replacing any parts you must remove the chassis cover.
Follow these instructions to remove the cover of the Transport GT20 chassis cover.
1. Remove the screw on the back side. Then slide the chas­sis cover in the direction of arrow.
2. Lift the cover off.
34 Chapter 3: Replacing Pre-Installed Components
3.4 Replacing Motherboard Components
Follow these instructions to replace motherboard compo­nents, including the motherboard.
3.4.1 Disconnecting All Motherboard Cables
Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cabling.
1. Disconnect ATX power cables.
Main Power
EPS 12V Power
2. Disconnect CD-ROM drive cable.
Chapter 3: Replacing Pre-Installed Components 35
3. Disconnect all cables from front panel, USB, fans and SATA connectors.
3.4.2 Removing the Motherboard
After removing all of those cables, follow these instructions to remove the motherboard from the chassis.
1. Remove eight screws securing the motherboard to the chassis.
2. Remove the motherboard.
36 Chapter 3: Replacing Pre-Installed Components
3.5 Replacing the Slim CD-ROM
Follow these instructions to replace the CD-ROM.
1. Remove power and data cables from the slim CD-ROM adapter.
Power Cable
Data Cable
2. Press the tab in the directions as show to release the CD­ROM drive.
Chapter 3: Replacing Pre-Installed Components 37
3. The CD-ROM drive will be freed from the drive bay after pressing the tab.
4. Remove two screws that secure CD-ROM drive to the bracket.
5. Replace the CD-ROM drive.
6. Secure CD-ROM to the bracket using two screws. Then replace the unit into the drive bay and connect the CD­ROM power and data cables.
38 Chapter 3: Replacing Pre-Installed Components
3.6 Replacing the LED Control Board
Follow these instructions to replace the LED control board.
1. Remove two screws securing LED control board unit to the chassis.
2. Lift the LED control board unit free of the chassis.
3. Remove three screws securing LED control board to the bracket.
Chapter 3: Replacing Pre-Installed Components 39
4. Lift the LED control board free from the chassis. After replacement, insert the unit into the chassis.
40 Chapter 3: Replacing Pre-Installed Components
3.7 Replacing the M1012 Adapter Board
1. Remove all of those cables connected to the adapter board, including fan cables, CD-ROM power cable, front LED panel cable, power cables, and SATA cables.
CD-ROM Power Cable
Front Panel
LAN/ID
SATA Cables
Front panel control board cable
Fan Tach
2x power cables on
SATA backplane
1x power cable on M1012
Chapter 3: Replacing Pre-Installed Components 41
Fan Cables
2. Remove six screws to release the adapter board. Refer to p.46 for the location.
42 Chapter 3: Replacing Pre-Installed Components
3.7.1 M1012 Adapter Board Features for B3970-U
J16: LCM Connector
J14: Fan Tach Connector
J7:Fan Tach & PWM Connector
JP1: Fan Input Select
J19: CD-ROM Power
J11: Fan Connector
J10: Fan Connector
J2: Front Panel Connector
Connector
Connector
J5: Fan Connector
J9: Fan Connector
J1: Front Panel Connector
FDD1: Standard Floppy Connector
J3: LAN/ID LED Connector
J6: Fan Connector
FDD2: Slim FDD Connector
JP2: Fan Minimum
Voltage Input Select
Connector
J8: PWM Connector
J13: Fan Tach Connector
PW2: Power Connector
J4: Fan Tach & PWM Connector
J15: LCM Connector
Chapter 3: Replacing Pre-Installed Components 43
3.7.2 M1012 Adapter Board Connector Pin Definition
J1 TYFP Front Panel Connector
1 HDLED+ 2 PW_LED+
3 HDLED- 4 PW_LED -
5 RESET- 6 PWR_SW+
7 RESET+ 8 PWR_SW -
9 VOLTAGE5 10 WLED+
11 EXT_INT 12 WLED-
13 V5SB 14 KEY PIN
15 ICH_SMBDAT 16 GND
17 ICH_SMBCLK 18 INTRU#
J2 Front Panel Connector
1 HDLED+ 2 HDLED-
3 RESET+ 4 RESET-
5PW_LED+ 6PW_LED-
7WLED+ 8WLED-
9 ICH_SMBDAT 10 ICH_SMBCLK
11 EXT_INT 12 VOLTAGE5
13 V5SB 14 INTRU#
15 PWR_SW+ 16 PWR_SW -
17 LAN1_LED+ 18 LAN1_LED-
19 LAN2_LED+ 20 LAN2_LED-
21 LAN3_LED+ 22 LAN3_LED-
23 ID_LED+ 24 ID_LED-
25 ID_SW+ 26 ID_SW-
27 KEY PIN 28 NC
44 Chapter 3: Replacing Pre-Installed Components
J3 LAN/ID LED Connector
1 LAN1_LED+ 2 LAN1_LED-
3 LAN2_LED+ 4 LAN2_LED-
5 LAN3_LED+ 6 LAN3_LED-
7 ID_LED+ 8 ID_LED-
9 ID_SW+ 10 ID_SW-
11 KEY PIN 12 NC
FAN Signal Related Connector Pin Definition
NOTE: The FAN signal naming is based on HW circuit design only. It might
be different from the system fan naming.
J4 Fan TACH & PWM Connector
1GND
2NC
3 FAN1_TACH
4 PWM1 (Default)
J7 Fan TACH & PWM Connector
1GND
2NC
3 FAN7_TACH
4 PWM1 (Default)
J8 PWM Connector
1GND
2PWM2
3 FAN1_TACH
Chapter 3: Replacing Pre-Installed Components 45
J13 Fan TACH Connector
1 GND 2 FAN1_TACH
3 GND 4 FAN2_TACH
5 GND 6 FAN3_TACH
7 KEY PIN 8 NC
J14 Fan TACH Connector
1 GND 2 FAN1_TACH
3 GND 4 FAN2_TACH
5 GND 6 FAN3_TACH
7 GND 8 FAN4_TACH
9 GND 10 FAN5_TACH
11 GND 12 FAN6_TACH
13 GND 14 FAN7_TACH
15 GND 16 FAN8_TACH
17 GND 18 FAN9_TACH
19 GND 20 FAN10_TACH
21 KEY PIN 22 PWM
J6 Fan Connector
1 FAN1_12VPWM
2 FAN1_TACH
3GND
4GND
5 FAN2_TACH
6 FAN2_12VPWM
46 Chapter 3: Replacing Pre-Installed Components
J10 Fan Connector
1 FAN3_12VPWM
2 FAN3_TACH
3GND
4GND
5 FAN4_TACH
6 FAN4_12VPWM
J11 Fan Connector
1 FAN5_12VPWM
2 FAN5_TACH
3GND
4GND
5 FAN6_TACH
6 FAN6_12VPWM
J9 Fan Connector
1 FAN7_12VPWM
2 FAN7_TACH
3GND
4GND
5 FAN8_TACH
6 FAN8_12VPWM
Chapter 3: Replacing Pre-Installed Components 47
J5 Fan Connector
1 FAN9_12VPWM
2 FAN9_TACH
3GND
4GND
5 FAN10_TACH
6 FAN10_12VPWM
J15 & J16 LCM Connectors
1 LCM_+5V 2 LCM_SIN
3KEY PIN 4GND
5 LCM_+5VSB 6 LCM_SOUT
JP1 Fan Input Select Connector
Pin1 & Pin2 Close Fan PWM signal from J8
Pin2 & Pin3 Close Fan PWM signal from J4, J7
& J14 (Default)
JP2 Fan Input Select Connector
Pin1 & Pin2 Close 0V
Pin2 & Pin3 Close +5V (Default)
48 Chapter 3: Replacing Pre-Installed Components
3.8 Replacing the SATA Backplane
1. After removing the M1012 adapter board, disconnect those cables connected to the SATA backplane, including SATA and power cables.
2. Grab the two tabs to lift the SATA backplane off.
3. Remove ten screws that secure the bracket to the adapter board.
Chapter 3: Replacing Pre-Installed Components 49

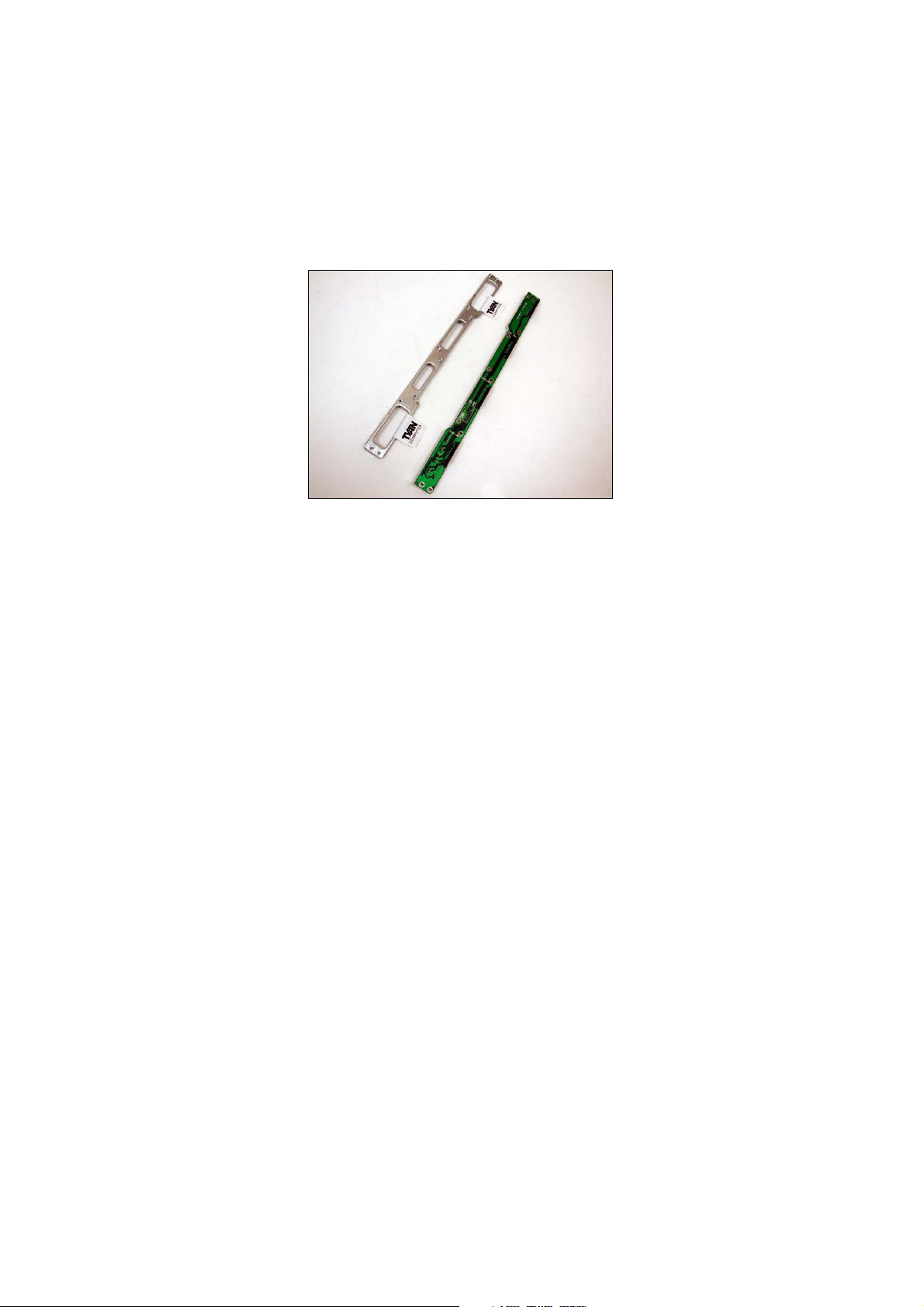

4. Release the adapter board free from the bracket.
5. After replacement, place and secure the unit into the chassis following the reverse procedures from step 1 to 4 after done.
50 Chapter 3: Replacing Pre-Installed Components
3.8.1 SAS/SATA Backplane (M1208) Features
U4, SAS/SATA4 Connector
U3, SAS/SATA3 Connector
U2, SAS/SATA2 Connector
HDD Power LED
HDD Access LED
U1, SAS/SATA 1 Connector
Chapter 3: Replacing Pre-Installed Components 51
PW1 Power Connector
PW2 Power Connector
J4, SAS/SATA 4
J3, SAS/SATA 3
Connector
Connector
J2, SAS/SATA 2 Connector J1, SAS/SATA 1
Connector
52 Chapter 3: Replacing Pre-Installed Components
3.9 Replacing the Power Supply
1. Remove two screws securing the power supply to the chassis.
2. Remove the screw securing fan assembly to the chassis.
3. Lift the power supply free from the chassis. After replace­ment, place and secure the unit into the chassis following the reverse procedures from steps 1 to 2.
Chapter 3: Replacing Pre-Installed Components 53
NOTE
54 Chapter 3: Replacing Pre-Installed Components
Appendix I: BIOS Differences
The BIOS of B3970-U is similar to the BIOS of S3970G2N-U. There is only one menu different. You may refer to the attached motherboard manual for the complete BIOS infor­mation. The differences between B3970-U and S3970G2N-U is on the “Advanced/Hardware Health Configuration” menu. See the following for the differences.
B3970-U Advanced/Hardware Health Configuration
Advanced
Hardware Health Configuration Enables Hardware
H/W Health Function FAN Select AutoFAN1 Power Control PWM Minimal Duty Cycle FAN Fail LED Indicator
Hardware Health Event Monitoring
XMainboard Voltages Report CPU1 Temperature Mainboard Ambient Temp.
System FAN1 Speed System FAN2 Speed System FAN3 Speed System FAN4 Speed
BIOS Setup Utility
[Enabled] [3Pin FAN] [Enabled] [10% Duty Cycle] [Enabled]
:xx ºC/ xxx ºF :xx ºC/ xxx ºF
:xxxx RPM :xxxx RPM :xxxx RPM :xxxx RPM
Health Monitoring Device
ÅÆ Select Screen ÇÈ Select Item
+ - Change Option F1 General Help F10 Save and Exit ESC Exit
55
S3970 Advanced/Hardware Health Configuration
BIOS Setup Utility
Advanced
Hardware Health Configuration Enables Hardware
H/W Health Function FAN Select Auto FAN1, 2 Power Control Auto FAN 3, 4 Power Control FAN Fail LED Indicator
Hardware Health Event Monitoring
XMainboard Voltages Report
CPU1 Temperature Mainboard Ambient Temp.
FAN1 Speed FAN2 Speed FAN3 Speed FAN4 Speed
[Enabled] [4Pin FAN] [Disabled] [Disabled] [Disabled]
:xx ºC/ xxx ºF :xx ºC/ xxx ºF
:xxxx RPM :xxxx RPM :xxxx RPM :xxxx RPM
Table of Differences
S3970 B3970-U
FAN Select 4Pin FAN 3Pin FAN
Fan Power Control Disabled Enabled
Health Monitoring Device
ÅÆ Select Screen ÇÈ Select Item
+ - Change Option Tab Select Field F1 General Help F10 Save and Exit ESC Exit
PWM Minimal Duty
[10% Duty Cycle] --
Cycle
FAN Fail LED
Disabled Enabled
Indicator
Hardware Monitor Fan
FAN1 Speed FAN2 Speed FAN3 Speed FAN4 Speed
System FAN1 Speed System FAN2 Speed System FAN3 Speed System FAN4 Speed
56
Appendix II: Cable Connection Tables
SATA Cable
Table 1: B3970-UG20S4H Model
M1204 SATA Backplane Connect to Motherboard
SATA 1 Æ SATA 1
SATA 2 Æ SATA 2
SATA 3 Æ SATA 3
SATA 4 Æ SATA 4
FAN Cable
Table 2: System Fan to M1012 Adapter Board
System Fan Connect to M1012
Fan 1 Æ J6 Fan Connector
Fan 2 Æ J10 Fan Connector
Fan 3 Æ J11 Fan Connector
Fan 4 Æ J9 Fan Connector
Fan 5 Æ J5 Fan Connector
Table 3: M1012 Adapter Board to Motherboard
M1012 Connect to Motherboard Fan
J14 Æ J25, J27
J7 Æ J20
57
Power Supply Cable
Table 4: Power Supply to Motherboard
Power Supply Connect to Motherboard
P1 24-pin power cable Æ PW1 24-pin connector
P2 8-pin power cable Æ PW2 8-pin connector
Table 5: Power Supply to M1012 Adapter Board
Power Supply Connect to M1012
P3 4-pin power cable Æ PW2 4-pin connector
Table 6: Power Supply to M1208 SATA Backplane
Power Supply Connect to M1204
P4 4-pin power cable v PW1 4-pin connector
P6 4-pin power cable Æ PW2 4-pin connector
58
Other Cables
Table 7: M1012 Adapter Board to Motherboard
M1012 Connect to Motherboard
J1 Front Panel connector Æ J24 (TYFP1)
J3 (LAN / ID LED) Æ J5 (TYFP2)
Table 8: M1003 Front Panel Control Board Related Cable
M1003 J1 USB connector Æ Motherboard J22 USB2
M1003 J2 connector Æ M1012 J2 connector
Table 9: CD-ROM Related Cable
Motherboard PRE-IDE con-
nector
M1012 J19 power connector Æ CD-ROM Backplane
Æ CD-ROM Backplane
Table 10: FDD Related Cable (Option)
M1012 FDD1 connector Æ Motherboard JB1 FDD
M1012 FDD2 connector Æ Slim FDD drive
59
Appendix III: Installing SMDC Cards
The following provides you with the information on installing SMDC cards. You may refer to the following for installing M3289 or M3290 into HDD tray or chassis.
Screws List (including screws for Rail)
A: Flat 6#-32 x4~x16
B: B-type 6#-32 x4
C: M4-4L x8
D: M4-5L x4
E: M4-8L x8
F: M4-15L x2
G: 13.5mm stand-off x1
G
F
E
D
C
B
A
60
Installing M3289 into HDD Tray
1. Fold up the cable.
2. a: Choose a HDD tray. b: Insert the cable into the rear of HDD tray. c: Pull the cable out.
3. Connect the cable to M3289.
61
4. Align M3289 in reverse with 4 “M1” stand-offs. Secure the SMDC with 4 screws as illustrated.
5. Secure M3289 onto HDD tray as illustrated.
6. Insert and secure the HDD tray. NOTE: For internal or dummy HDD tray, secure the HDD tray with 1 or 2 screws.
7. Arrange and connect the cable to SMDC connector on mainboard. Be careful not to block the air flow.
62
Installing M3290/M3291 into HDD tray
1. Secure a removable stand-off of 13.5mm to the location of “M2” stand-off as illustrated on SMDC bracket.
2. Secure M3290 in reverse to 4 “M2” stand-offs on bracket.
3. a: Choose a HDD tray. NOTE: Refer to the location of SMDC connector on mainboard for choosing a HDD tray. b: Secure SMDC to the HDD tray.
63
4. a: Inset the cable into the rear of HDD tray. b: Connect the cable to M3290. c: Insert and secure HDD tray.
5. Arrange and connect the cable to SMDC connector on mainboard. Be careful not to block the air flow.
64
Installing M3290/M3291 into GT24 Chassis
NOTE: The products produced now may not support the pro­cedures below. We’ll provide you with the upgraded models as soon as possible.
1. Disconnect the power connectors on HDD backplane and M1012.
2. Push the power cables aside.
3. Align M3290 with 4 “M2” PC stand-offs. Secure M3290 to mainboard with 4 screws.
65
4. Connect the cable to M3290. Arrange and connect the cable to SMDC connector on mainboard. Be careful not to block the air flow.
5. Reconnect the power connectors on HDD backplane and M1012.
66
NOTE
67
Technical Support
If a problem arises with your system, you should first turn to your dealer for direct support. Your system has most likely been configured or designed by them and they should have the best idea of what hardware and software your system contains. Hence, they should be of the most assistance for you. Furthermore, if you purchased your system from a dealer near you, take the system to them directly to have it serviced instead of attempting to do so yourself (which can have expensive consequences).
If these options are not available for you then Tyan Computer Corporation can help.Besides designing innovative and qual­ity products for over a decade, Tyan has continuously offered customers service beyond their expectations. Tyan's website (www.tyan.com) provides easy-to-access resources such as in-depth Linux Online Support sections with downloadable Linux drivers and comprehensive compatibility reports for chassis, memory and much more. With all these convenient resources just a few keystrokes away, users can easily find the latest software and operating system components to keep their systems running as powerful and productive as possi­ble. Tyan also ranks high for its commitment to fast and friendly customer support through email. By offering plenty of options for users, Tyan serves multiple market segments with the industry's most competitive services to support them.
"Tyan's tech support is some of the most impressive we've seen, with great response time and exceptional organization in general" - Anandtech.com
Please feel free to contact us directly for this service at tech-
support@tyan.com
Help Resources:
1. See the beep codes section of this manual.
2. See the TYAN website for FAQ’s, bulletins, driver updates, and other information: http://www.tyan.com
68
3. Contact your dealer for help BEFORE calling TYAN.
4. Check the TYAN user group: alt.comp.periphs.main­board.TYAN
Returning Merchandise for Service
During the warranty period, contact your distributor or system vendor FIRST for any product problems. This warranty only covers normal customer use and does not cover damages incurred during shipping or failure due to the alteration, mis­use, abuse, or improper maintenance of products.
NOTE: A receipt or copy of your invoice marked with the date of purchase is required before any warranty service can be rendered. You may obtain service by calling the manufacturer for a Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed pre­paid. TYAN will pay to have the board shipped back to you.
Transport GT20, B3970-U Service Engineer’s Manual v1.0
Document part No. D1754-100
69
Loading...
