Tyan Computer B5102, GX21 User Manual
Transport GX21
B5102
1
2
3
1
2
RST
User’s Manual
Document Part Number: D1576-100
ii
Copyright
This publication, including all photographs, illustrations, and software, is protected under international copyright laws, with all rights
reserved. Neither this manual, nor any material contained herein,
may be reproduced without written consent of the manufacturer-.
Copyright 2003-4
Version 1.0
Disclaimer
Information contained in this document is furnished by TYAN Computer Corporation and has bee n reviewed for accu racy and reliability
prior to printing. TYAN assumes no liability whatsoever, and disclaims any express or impli ed warranty , relating to sale and/ or use of
TYAN products including liability or warranties relating to fitness for
a particular purpose or merchantability. TYAN retains the right to
make changes to product descriptions and/or specifications at any
time, without notice. In no event will TYAN be held liable for any
direct or indirect, incidental or consequential damage, loss of use,
loss of data or other malady resulting from errors or inaccuracies of
information contained in this document.
PREFACE
Tra dema rk Recognition
All registered and unregistered trademarks and company names
contained in this manual are property of their respective owners
including, but not limited to the following.
TYAN, TYAN Tomcat i875P S5102G3NR, and Transport GX21 are
trademarks of TYAN Computer Corporation.
Intel, Pentium 4, and combinations thereof are trademarks of Intel
Corporation.
Award, AwardBIOS, and combinations thereof are trademarks of
Phoenix Technologies.
Microsoft Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
Winbond is a trademark of Winbond Electronics Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corpora-
tion.
Federal Communications Commission (FCC)
Notice for the USA Compliance Information State-
ment (Declaration of Conformity Pro cedure) DoC FCC
Part 15: This device complies with part 15 of the FCC
Rules
Operation is subject to the following conditions:
1) This device may not cause harmful interference, and
2) This device m ust ac ce pt any interference rece iv ed inc lu din g i nte rference that may caus e und es ired ope rati on. If th is equi pm ent does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipme nt and the
receiver.
– Plug the equipment into an outlet on a circuit different from
that of the receiver.
Consult the dealer on an experienc ed radio/ tele vi si on tec hni ci an for
help.
Notice for Can ad a
This apparatus compli es with the Class B limits for radio i nterference
as specified in the Canadian Department of Communications Radio
Interference Regulations. (Cet appareil est conforme aux norms de
Classe B d’interference radio tel que specifie par le Ministere Canadien des Communications dans les reglements d’ineteference
radio.)
Notice for Europe (CE Mark) Th is produc t is in conf ormity
with the Council Directive 89/336/EEC, 92/31/EEC
(EMC).
CAUTION: Lithium bat tery included w ith this board. D o not puncture,
mutilate, or dispose of battery in fire. Danger of explosion if battery
is incorrectly replaced. Replace only with the same or equivalent
type recommended by manufacturer. Dispose of used battery
according to manufacturer instructions and in accordance with your
local regulations.
ii
About this Manual
This manual provides you with instructions on installing your
TransportGX21, and consists of the following sections:
Chapter 1: Provides an Introduction to the
Chapter 2: Covers procedures on installing the CPU, mem-
Chapter 3: Covers removal and replacement procedures for
Appendix Provides detailed specifications, and mainte-
Conventions
The following conventions are used in the manual:
Note: Calls attention to important information.
TransportGX21B5102 bare-bones, packing list,
describes the external components, gives a table
of key components, and provides block diagrams
of the system.
ory modules, an optional PCI card, and hard
drives.
pre-installed components.
nance and troubleshooting procedures. An
exploded diagram of the system is also provided.
Warning: Provides information to prevent harm
to user or damage to equipment.
iii
SAFETY INFORMATION
Before installing and using the Transport GX21, take note of the following precautions:
– Read all instructions carefully.
– Do not place the unit on an unstable surface, cart, or stand.
– Do not block the sl ots and op ening on the unit, w hich are pro -
vided for ventilation.
– Only use the power source indica ted on the ma rki ng lab el. If
you are not sure, contact the Power Company.
– The unit uses a three-wire ground cable, which is equipped
with a third pin to ground the unit and prevent electric sho ck.
Do not defeat the purpose of this pin. If your outlet does not
support this kind of plug, contact your electrician to replace
your obsolete outlet.
– Do not place anything on the power cord. Place the power
cord where it will not be in the way of foot traffic.
– Follow all warnings and cautions in this manual and on the
unit case.
– Do not push object s in the ventil ation slot s as the y may tou ch
high voltage compo nen ts and result in shock and dam age t o
the components.
– When replacing pa rts , ensure that you u se p arts specifie d by
the manufacturer.
– When service or repairs have been done, perform routine
safety checks to verify that the system is operating correctly.
– Avoid using th e s ystem ne ar w a ter, in direct su nlight, or near
a heating device.
– Cover the unit when not in use.
iv
Table of Contents
Chapter 1:Overview
1.1 About the Transport GX21 B5102 . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.4 Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.4.1 Box Contents (B5102G21S2H and B5102G21S2) . . . . . . .3
1.4.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4.3 Opening the box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.5 About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.5.1 Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.5.2 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.5.3 Internal View (B5102G21S2H). . . . . . . . . . . . . . . . . . . . . .8
1.5.4 Internal View (B5102G21S2) . . . . . . . . . . . . . . . . . . . . . . .9
1.5.5 Motherboard Block Diagram. . . . . . . . . . . . . . . . . . . . . . .10
Chapter 2:Setting Up
2.1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.1.1 Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.1.2 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.1.3 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.2 Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.2.1 Installing the Server in a Rack. . . . . . . . . . . . . . . . . . . . . .13
2.3 Installing Motherboard Components. . . . . . . . . . . . . . . . . . . . . . .17
2.3.1 Removing the Chassis Cover. . . . . . . . . . . . . . . . . . . . . . .17
2.3.2 Installing a CPU, Heatsink and Air Duct. . . . . . . . . . . . . .1 8
2.3.3 Installing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2.3.4 Installing a PCI Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
2.4 Installing a Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
2.4.1 Installing an External Access S-ATA Hard Disk Drive . .26
2.4.2 Installing an Internal IDE or S-ATA Hard Disk Drive . . .28
Chapter 3:Replacing Pre-Installed Components
3.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.1.1 Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.1.2 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.1.3 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
3.2 Disassembly Flowchart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
3.3 Removing the Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
3.4 Replacing Motherboard Components. . . . . . . . . . . . . . . . . . . . . .35
3.4.1 R emoving Add-On Components from the Motherboard. .35
v
3.4.2 Disconnecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
3.4.3 Removing the Motherboard. . . . . . . . . . . . . . . . . . . . . . . .38
3.5 Replacing the CD-ROM/FDD. . . . . . . . . . . . . . . . . . . . . . . . . . . .39
3.6 Replacing the FDD with a HDD. . . . . . . . . . . . . . . . . . . . . . . . . .41
3.7 Replacing the LED Control Board . . . . . . . . . . . . . . . . . . . . . . . . 4 3
3.8 Replacing the S-ATA Backplane . . . . . . . . . . . . . . . . . . . . . . . . .44
3.8.1 2 Port S-ATA Backplane Features. . . . . . . . . . . . . . . . . . .46
3.9 Replacing the Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.10 Replacing the Cooling Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 9
Appendix
BIOS Setup
Specification
Hardware diagram
Technical Support
vi
1.1 About the Transport GX21 B5102
Chapter 1: Overview
1.1 About the Transport GX21 B5102
Congratulations on your purchase of th e Transport GX21
B5102 rack mounted, barebone system for Intel®
Pentium® 4 processor. The Transport GX21 B5102 uses an
advanced Intel chipset for optimum performance and reliability. Integrated storage contoller and Gigabit Ethernet ports
combine to provide powerful computing capacity and optimal
I/O bandwidth for the most demanding enterprises.
The rugged, industry standard 19-inch, rack mountable
design contains 2 HDD bays, 1 slim CD-ROM bay and 1 3.5inch FDD or additional HDD bay making it both flexible and
practical.
1.2 System Requirements
There are 2 different SKUs of Transport GX21 .
Model
B5102G21S2
(OEM Only)
B5102G21S2H
(Standard)
HDD Tray
Type
Internal
(fixed)
Removable Yes
Hot-swap
Support
No No
HDD
Backplane
2-port
S-ATA
A choice of S-ATA and IDE HDD is possible with the
B5102G21S2 and the modular design makes installation of
new HDDs simple. S-ATA is a new HDD standard that uses
serial data transfer methods, unlike the traditional IDE
devices which rely on parallel data transfer.
Chapter 1: Overview 1
1.3 Features
1.3 Features
Enclosure
• 1U, industry standard , 19 -inc h rackmountable chassis
• (2) HDD bays
• (1) slim CD-ROM bay
• (1) 3.5-inch bay for FDD or
additiona l HDD bay
• Dimension: D 21.5 x W 19 x H 1.7
inch (547x432x43 mm)
Processors
• Single ZIF PGA478 socket
• Supports one Intel® Pentium® 4
Northwood and Pre scott processor,
up to 3.2GHz
• Support 800/533/400MHz FSB
Chipset
• Intel 875P (Canterwood) MCH
• Intel 82801EB (ICH5) Sout h Br idge
• Winbond W83627HF Super I/O chip
Memory
• 128-bit dual channe l mem ory bus
• (4) DDR DIMM sockets
• Supports up to 4GB unbuffered
PC3200/2700/2100 DDR SDRAM
• Supports ECC/non-ECC ty pe memory modules
• Registered memory, not supported
Expansion Slots
(1) 32-bit/33MHz PCI slo t
Back I/O Ports
• Stacked PS/2 mouse/keyboard ports
• (2) USB 2.0 ports
• (1) 9-pin UART Serial port
• (3) RJ-45 LAN ports
• (1) VGA port
Front Panel Features
• I/O
(2) USB 2.0 ports
• LED indicators
– (1) IDE channel status LED
–(1) Power LED
– (1) FAN Fail LED
– (2) HDD acti vi ty LED
• Switch
– Power switch
– Reset switch
– Mute switch
Integrated Storage Controller
• Dual channel IDE
• Promise PDC20378 RAID
Accelerator, supports 2- port S-ATA
& 1 Ultra ATA-133 channel with
RAID 0, 1, 0+1
Storage
• B5102G21S2H: 2 x external access
drive bays
• B5102G21S2: 2 x in t er nal dr iv e
bays
• (1) slim type 24x CD-ROM drive
• (1)x Optional 3.5 " FD D
Networking
• (2) Gigabit Ethernet ports (Intel
82547EI GbE and 82541EI GbE
LAN controller)
• (1) 10/100 Mbps LAN port (Intel
82562EM controller)
Video
• ATI® Rage™ XL PCI graphics controller
• 8 MB Frame Buffer of video memory
BIOS
• Award® BIOS 8.0 on 4 Mbit LP C
Flash ROM
• Supports APM 1.2 & ACPI 1. 0
Motherboard
• TYAN Tomcat i875P S5102G3NR
motherboard
• ATX footprint (9.6 x 12-inch)
Power Supply
ATX12V, 1U, 300W with PFC
Cooling
• (5) 40x40x28mm, 11000rpm
• Power supply fan
• CPU heatsink
Regulatory
• FCC Class B (Declaration of Conformity)
• CE (Declaration of Conformity)
2 Chapter 1: Overview
1.4 Unpacking
1.4 Unpacking
1.4.1 Box Contents (B5102G21S2H and B5102G21S2)
The following illustration displays all the components that
come with your Transport GX21 B5102 barebone system.
Ensue all items are present before begining installation
1
2
3
1
2
R
S
T
1
2
1U chassis. (2 external drive bays for
B5102G21S2H; 2 internal drive bays
for B5102G21S2) P/N 342730800001
1 x Air duct (pre installed)
P/N 412223700108
1 x 32 bit, 5V PCI riser card (pre installed).
P/N 412223700100
Slim CD-ROM Drive (pre installed).
P/N 52340061006
1 x Tomcat I875P-P4 S5012G3NR motherboard (pre installed). P/N 541172670026
ON KE
1
23456
1 x S-ATA backplane with 2 HDD trays
pre installed. (Not included with
B5102G21S2) P/N 412223700099
1 x sliding rail package with two sliding rails, plus mounting screws and
bracket.
P/N 341730200001
1 x ATX, 12V 300W 1U power supply,
(pre installed).
P/N 471172400035
1 x CPU Heatsink.
P/N 342730200001
1x LED control board (pre ins talled).
P/N 412223700102
Chapter 1: Overview 3
1.4 Unpacking
h
ttp
://w
w
w
.tyan.c
om
1.4.2 Accessories
If any items are missing or appear damaged, contact your
retailer or browse to TYAN’s Web site for service:
http://www.tyan.com.
The Web s ite also provides information on other TYAN products, plus FAQs, compatibility lists, BIOS settings, and more.
1 x Tyan driver CD
P/N 565172760103
1 x front panel cable (pre installed).
P/N 422730200002 (B5102G21S2H)
P/N 422730200001 (B5102G21S2)
2 x S-ATA cables, motherboard to
S-ATA board (pre installed).
P/N 422730200007
Jumpers
and
Tomcati875PS5102 BoardParts
CMOS Clear
JP3
1
High Performance Motherboard
User's Manual
Tomcat i875P
KB-MO1
Mouse(Top)
KB(Bottom)
USB1
LAN(Top)
USB(Bottom)
CN1
(COM1)
J2
(VGA)
LAN1
LAN2
(Optional)
S5102
#D 1528 - 100
Revision 1.0
J8 Front
Pin
Pin
P/N : 12-0012-3431
J6
CPU FAN
PWR1
lntel
10/100 LAN
lntel
lntel
GbE LAN
875P
S5102
DIMM1
DIMM2
DIMM3
DIMM4
32-bit 33MHz (5V)PCI PCI1
lntel
GbE LAN
(Optional)
32-bit 33MHz (5V)PCI PCI2
32-bit 33MHz (5V)PCI PCI3
USB2
USB3
ATI
8MB
RAGE XL
USB4
SDRAM
W83627HF
1
Chassls
J1
FAN
32-bit 33MHz (5V)PCI PCI4
COM2
J4
LPT1
J10
FDD
1
Panel Connector
2
1
PWR SPKR
PWR_LED
POWER
POWER
LED+
GND
GND
2
46810
1 3 5 7 9 11 13 15 17
HDD_LED+
HDD_LED-
GND
BUTTONBUTTON
RESET
RST
HD_LED
Normal
Pin 1-2 Close:
PWR2
(Default)
PGA478B
Pin 2-3 Close:
Claer
CMOS
CPU
Chassis FAN
J1
(via a cable)
COM2 port
J4
SMDC
(System
J5
Management Daughter
LED1
Connector
Card)
CPU FAN
J6
Connector
SMBus_0
J7
POWER
J9
FAN
J15
J13
CMOS
Serial ATA Connector
SATA1
JP3
lntel
1
(SATA3 / SATA4 by
SATA2
ICH5
PRI-IDE
SEC-IDE
PDC20378 Optional)
SATA3
LED2
SATA4
BIOS
1
Front USB Header
(via
USB2 /
1
an optional cable)
USB3 /
BT1
1
SATA1SATA2
USB4
EFI1
RAID-IDEJ12
PDC20378
POWER FAN
SATA3 SATA4
J8
J7
J9
SMDCJ5
18
17
SPEAKER
Power Supply
GND
GND
VCC
NC
S5102
is
The Tomcat
i875P
ATX
compatible.
ATXand 12V
12 14
16 18
ATX
2 power connectors:
(4-pin)
+
ATX12V
(20-pin)
VCC
CIRRX
IRRX
GND
IRTX
power connectors:
Manual for details
Check User's
IR
Rev.
1.00
http://www.TYAN.com
1 x 40 pin ATA33 IDE cable for CD-ROM (pre installed). P/N 422730200009
1 x 34 pin FDD cable.
P/N 422730200005
1 x spare screw pack.
1U 2-Way Server Platform
B2880T1S
Transport GX28
ID : 1540 - 100
Revision 1.0
Hardware
Installation Guide
Tomcat i875P S5102 motherboard quick reference guide
and user manual.
P/N 561572670002
1 x Transport GX21
hardware
Installation guide.
P/N 561872670002
4 Chapter 1: Overview
1.4.3 Opening the box
htt
p
:
/
/
ww
w
.
t
y
a
n.
co
m
h
t
t
p:
/
/
w
w
w
.
t
ya
n
.
c
o
m
Carefully open the box and ensure that all components are
present and undamaged. This product should arrive packaged as illustrated belo w.
Box contents as packaged (with heatsink)
1.4 Unpacking
Accessory Pack
(unpacked)
Chapter 1: Overview 5
Accessory pack (as packaged)
1.5 About the Product
1.5 About the Product
The following views show you the product.
1.5.1 Front View
Model B5102G21S2H
USB ports
FDD (optional)
CD-ROM drive
Model B5102G21S2
Power LED
Mute LED
Temp fail LED
Fan fail LED
IDE channel
Reset
switch
Power LED
Power switch
LAN LEDs
1
3
status
2
HDD
1 2
RST
activity
1
3
2
1 2
RST
Hard drive bay 2 Hard drive bay 1
Reset
switch
Power switch
LAN LEDs
1
3
2
USB ports
1
IDE channel
RST
status
1
2
1
3
2
132
RST
1 2
RST
FDD (optional)
CD-ROM drive
Hard drive bay 2 Hard drive bay 1
6 Chapter 1: Overview
1.5.2 Rear View
Ventilation fan
ATX 12V 300W PSU
Power switch
1.5 About the Product
Stacked PS/2 mouse/keyboard ports
RJ-45 LAN ports
USB Ports
VGA port
Serial port
(COM1)
RJ-45 LAN ports
Expansion slot
Chapter 1: Overview 7
1.5 About the Product
1.5.3 Internal View (B5102G21S2H) 1 23
9
10
4
5
6
7
8
1. LED control board
2. FDD (optional)
3. CD-ROM
4. ATX 12V power connector
(4 pin)
5. CPU/heatsink assembly
6. Memory slots x 4
7. Power connector
8. ATX 12V 300W power supply
(20 pin)
9. Front panel cable
10. 40x40x28 mm fans x 5
11
12
13
14
11. S-ATA hard drive connectors
x 2
12. IDE connectors x 3
13. FDD connector
14. 32-bit 5V riser card
8 Chapter 1: Overview
1.5.4 Internal View (B5102G21S2) 1 23
1.5 About the Product
9
10
4
5
6
7
8
1. LED control board
2. FDD (optional)
3. CD-ROM
4. ATX 12V power connector
(4 pin)
5. CPU/heatsink assembly
6. Memory slots x 4
7. Power connector
8. ATX 12V 300W power supply
(20 pin)
9. Front panel cable
11
12
13
14
10. 40x40x28 mm fans x 5
11. S-ATA hard drive connectors
x 2
12. IDE connectors x 3
13. FDD connector
14. 32-bit 5V riser card
Chapter 1: Overview 9
1.5 About the Product
1.5.5 Motherboard Block Diagram
VRD10.0
CSA Interface
Intel 82547EI
Gigabit
Ethernet
USB 2.0
8 ports, 480Mb/s
2 X ATA 100/66/
33 Ports
2 X Serial ATA
Ports 150MB/s
Intel 82541EI
Gigabit Ethernet
(Optional)
800/533/400 MHz
266 MB/s
mPGA478
Processor Socket
System Bus
Intel 82875P MCH
Intel 82801EB
Intel 875P Chipset
266 MB/s
Hub Link 1.5
ICH5
Channel A
Channel B
PCI BUS
ICS-952607
Syatem Memory
DDR 400/333/266
Promise
PDC20378
RAID 0, 1, 0+1
ATI Rage XL
DDR
DDR
DDR
DDR
Four PCI Masters
2 X Serial ATA
RAID Ports
150MB/s
One ATA 133
IDE RAID Ports
1 x VGA
connector
Intel 82562EM
10/100 MB LAN
Keyboard
Mouse
Floppy
Parallel
Serial 1/2
Port 80 Post
Display
FirmWare Hub
LPC Interface
Winbond
W83627F/HF
LPC SIO
ADM1027
Hardware
Monitor
(optional)
10 Chapter 1: Overview
2.1 Before You Begin
This chapter explains how to install the CPU, CPU heatsink,
memory modules, and hard drives. Instructions on inserting a
PCI card are a lso given.
Take note of the precautions mentioned in this section when
installing your system.
2.1.1 Work Area
Make sure you have a stable, clean working environment.
Dust and dirt can get into components and cause malfunctions. Use containers to keep small components separated.
Putting all small components in separate containers prevents
them from becoming lost. Adequate lighting and proper tools
can prevent you from accidentally damagi ng the inte rnal
components.
2.1.2 Tools
The following procedures require only a few tools, including
the following:
2.1 Before You Begin
Chapter 2: Setting Up
• A cross head (Phillips) screwdriver
• A grounding strap or an anti-static pad
Most of the electrical and mechanical connections can be disconnected using your fingers. It is recommended that you do
not use needle-nosed pliers to remove connectors as these
can damage the soft metal or plastic parts of the connectors.
Chapter 2: Setting Up 11
2.1 Before You Begin
2.1.3 Precautions
Components and electronic circuit boards can be damaged
by discharges of static electricity. Working on a system that is
connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to the
Transport GX21 or injury to yourself.
• Ground yourself properly before removing the top
cover of the system. Unplug the power from the
power supply and then touch a safely grounded
object to release static charge (i.e. power supply
case). If available, wear a grounded wrist strap. Alternatively, discharge any static electricity by touching
the bare metal chassis of the unit case, or the bare
metal body of any other grounded appliance.
• Avoid touching motherboard components, IC chips,
connectors, memory modules, and leads.
• The motherboard is pre-installed in the system.
When removing the motherboard, always place it on
a grounded anti-static surface until you are ready to
reinstall it.
• Hold electronic circuit board s by the edge s onl y. Do
not touch the components on the board unless it is
necessary to do so. Do not flex or stress circuit
boards.
• Leave all components inside the static-proof packag-
ing that they ship with until they are ready for installation.
• After replacing optional devices, make sure all
screws, springs, or other small parts are in place and
are not left loose inside the case. Metallic parts or
metal flakes can cause electrical shorts.
Notes:
• All connectors are keyed to only attach one w ay.
• Always use the correct screw size as indicated in the
procedures.
12 Chapter 2: Setting Up
2.2 Rack Mounting
The Transport GX21can be mounted in a rack using the supplied rack mounting kit.
Rack mounting kit
Sliding Rails x 2:
Standard Mounting Brackets x 4
Mounting Ears x 2
Nuts, Screws and Washers Kit x 1
2.2.1 Installing the Server in a Rack
Follow these instructions to mount the Transport GX21
B5102 into an industry standard 19" rack
Before mounting the Transport GX21 in a rack, ensure that all
internal components have been installed and that the unit has
been fully tested. Maintenance can be performed on the unit
while in a rack but it is preferable to install the device in a fully
operational condition.
1. Screw the mounting ears to the Transport GX21 as shown using 4 screws from the supplied nuts, screws and washers kit.
2.2 Rack Mounting
Chapter 2: Setting Up 13
2.2 Rack Mounting
2. Screw the sliding rail mounting brackets to the sliding
rails as shown, using the short black screws from the
supplied nuts, screws and washers kit. Ensure that the
brackets with the cut away section (to accommodate the
handles on the front of the unit) are fixed to the front end
of the rail.
Note: Do not tighten the brackets to the
rails as you will need to adjust their position
later.
3. Fully extend the sliding rails until they lock.
4. Screw each sliding rail to the side of the Transport GX21 as shown. You will need 3 short, silver colored screws from the supplied nuts, screws and washers kit, for each rail.
5. Return the sliding rails to their shortest position.
14 Chapter 2: Setting Up
2.2 Rack Mounting
Note: When fully extended, the sliding rails
will lock. The release mechanism is located
on the sliding rail as shown. Press the
release mechanism while pushing the sliding
rails to shorten them.
6. With the rails in their shortest condition, adjust both front mounting brackets so that they are flush with the front of the unit.
7. Accurately measure the depth of your rack and adjust the rear brackets accordingly.
8. When all brackets are positioned correctly, tighten them.
Chapter 2: Setting Up 15
2.2 Rack Mounting
9. Lift the unit into place in the rack and screw it into place as shown.
Note: To avoid injury , it is strongly recom-
mended that two people lift the
Transport GX21into place while a third person screw it to the rack.
1
2
132
RST
16 Chapter 2: Setting Up
2.3 Installing Motherboard Components
2.3 Installing Motherboard Components
This section describes how to install components on to the
motherboard, including CPU, memory modules and PCI card.
2.3.1 Removing the Chassis Cover
Follow these instructions to remove the Transport GX21
chassis cover.
1. Remove the six screws securing the chassis cover.
2. Slide the cover in the direction of the arrow (A) and then lift the cover off (B).
A
Chapter 2: Setting Up 17
B
2.3 Installing Motherboard Components
2.3.2 Installing a CPU, Heatsink and Air Duct
Follow these instructions to install a CPU, CPU heatsink and
air duct.

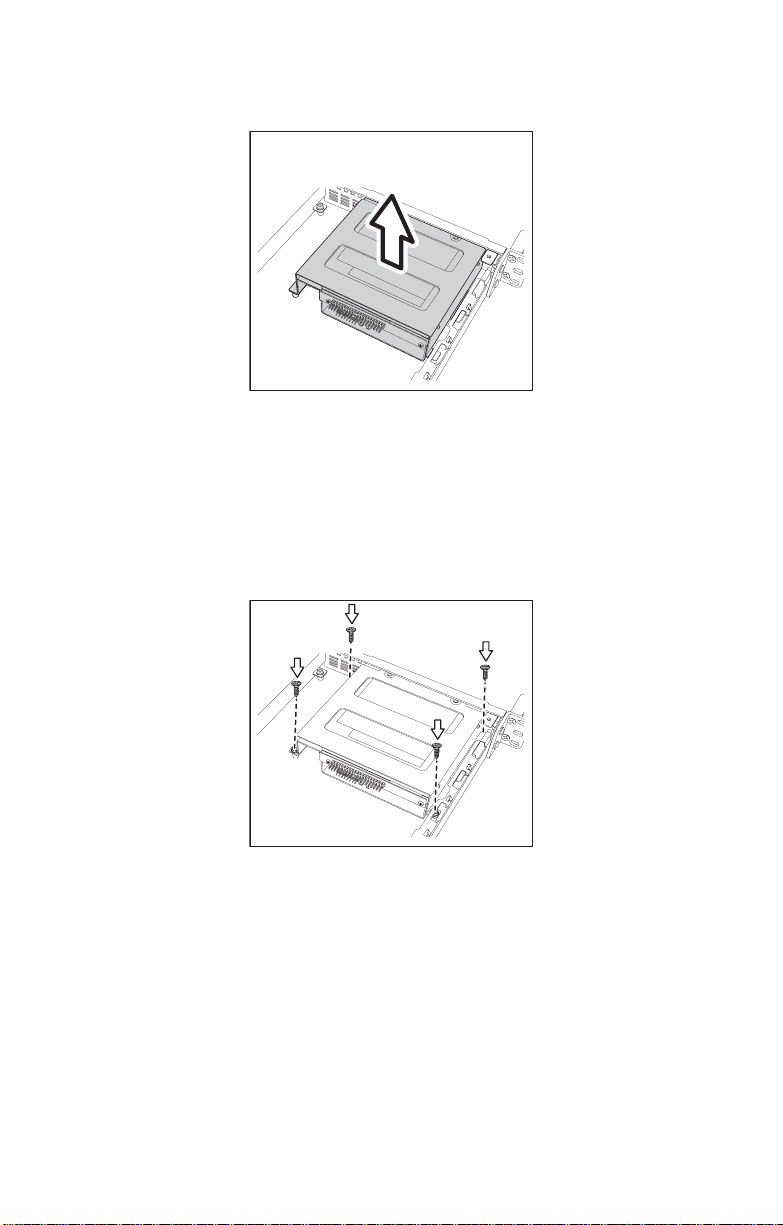

1. Remove the pre-installed air duct. Refer to the illustration on top of the air duct to locate the 2 screws.
CPU socket under air duct
2. Pull the CPU lever up to unlock the CPU socket.
18 Chapter 2: Setting Up
2.3 Installing Motherboard Components
3. Place the CPU in the CPU socket, ensuring that pin 1 is located as shown in the following il lustr ati on .
Pin 1
4. Press the CPU socket lever down in the direction shown to secure the CPU.
5. Apply thermal grease to the top of the CPU and place the CPU heatsink on the CPU.
Chapter 2: Setting Up 19
2.3 Installing Motherboard Components
6. Align the heatsink screw holes with the holes on the motherboard and insert the four heatsink screws as shown.
7. Place the air duct over the heatsink and replace the heat shield screws to secure it to the motherboard.
20 Chapter 2: Setting Up
2.3.3 Installing Memory
Follow these instructions to install memory modules on the
motherboard.
1. Locate the memory slots on the motherboard.
2. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration.
2.3 Installing Motherboard Components
Memory slo ts
3. Align the memory module with the slot; the module has indentations that align with notches in the slots.
Chapter 2: Setting Up 21
2.3 Installing Motherboard Components
4. Insert the memory module into the slot as shown.
When inserted properly, the memory slot locking levers lock
onto the indentations at the ends of the module.
2.3.4 Installing a PCI Card
Follow these instructions to install a PCI card.
1. Remove the pre-installed PCI retention bar
PCI riser card
22 Chapter 2: Setting Up
Loading...
