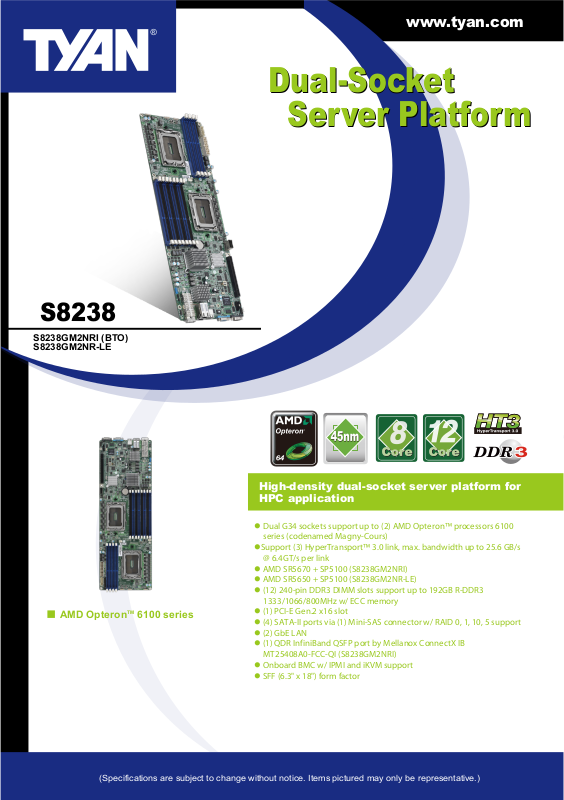

www.tyan.com
Dual-Socket
Dual-Socket
Server Platform
Server Platform
S8238
S8238GM2NRI (BTO)
S8238GM2NR-LE
AMD OpteronTM 6100 series
High-density dual-socket server platform for
HPC application
Dual G34 sockets support up to (2) AMD Opteron™ processors 6100
series (codenamed Magny-Cours)
Support (3) HyperTransport™ 3.0 link, max. bandwidth up to 25.6 GB/s
@ 6.4GT/s per link
AMD SR5670 + SP5100 (S8238GM2NRI)
AMD SR5650 + SP5100 (S8238GM2NR-LE)
(12) 240-pin DDR3 DIMM slots support up to 192GB R-DDR3
1333/1066/800MHz w/ ECC memory
(1) PCI-E Gen.2 x16 slot
(4) SATA-II ports via (1) Mini-SAS connector w/ RAID 0, 1, 10, 5 support
(2) GbE LAN
(1) QDR InfiniBand QSFP port by Mellanox ConnectX IB
MT25408A0-FCC-QI (S8238GM2NRI)
Onboard BMC w/ IPMI and iKVM support
SFF (6.3" x 18") form factor
(Specifications are subject to change without notice. Items pictured may only be representative.)
S8238
Operating
S8238GM2NRI (BTO)/ S8238GM2NR-LE
Specifications
Processor
Chipset
Memory
Expansion
Slots
LAN
Graphic
InfiniBand
(Opt.)
Input /Output
System
Monitoring
Server
Management
Supported CPU Series
Socket Type / Q'ty
Average CPU Power
(ACP) wattage
System Bus
Chipset
Supported DIMM Qty
DIMM Type / Speed
Capacity
Memory channel
Memory voltage
PCI-E
Recommended TYAN
Riser Card
Port Q'ty
Controller
Connector (1) Mini-SAS connector (support 4 ports)
Controller AMD SP5100
SATA
Speed 3.0 Gb/s
AID RAID 0/1/10/5 (AMD/ Promise RAID stack)
R
Connector type
Resolution
Chipset
Port Q'ty / Speed
Chipset
Feature
USB
COM
VGA
RJ-45
InfiniBand (Opt.)
Power
Front Panel
SATA
Chipset
Voltage
Fan
Temperature
Others
Onboard Chipset
AST2050 IPMI Feature
AST2050 iKVM Feature
AMD Opteron™ processors 6100 series
G34 / (2)
Max. up to 105W
Support (3) HyperTransport™ 3.0 link, max.
bandwidth up to 25.6 GB/s @ 6.4GT/s per
link
AMD SR5670 + SP5100 (S8238GM2NRI)
AMD SR5650 + SP5100 (S8238GM2NR-LE)
(8+4) DIMM sockets
DDR3 1333/1066/800 RDIMM
Up to 192GB RDIMM
8 Channels (4 Channels per CPU)
1.5V
(1) PCI-E Gen.2 x16 slot
®
M7018-R16-1L, PCI-E x16 1U riser card
(right)
(2)
®
Intel
82574L
D-Sub 15-pin
1600x1200@60Hz
Aspeed AST2050
(1) QSFP port / 10, 20, 40Gb/s per port
MT25408A0-FCCR-QIS
QDR (Quad. Data Rate)
(4) ports (2 at front, 2 at rear)
(1) DB-9 COM port
(1) D-Sub 15-pin port
(2) ports
(1) QSFP connector (S8238GM2NRI)
Proprietary 20-pin (12V single input) power
connector
(1) 2x12 pin SSI front panel header
(1) Mini-SAS connector (total 4x SATA-II
ports)
Winbond W83795G
Monitors voltage for CPU, memory, chipset &
power supply
8-pin headers
Total (3)
Monitors temperature for CPU & system
environment
Chassis intrusion detection
Watchdog timer support
Onboard Aspeed AST2050
IPMI 2.0 compliant baseboard management
controller (BMC)
BIOS update
USB 2.0 virtual hub
24-bit high quality video compression
Dual 10/100 Mb/s MAC interfaces
Block Diagram
SP5100
BMC
AST2050
RDDR3 memory
J17
COM1
VGA
RDDR3 memory
BIOS
Form Factor
System
Regulation
Operating
Environment
RoHS
(Specifications are subject to change without notice. Items pictured may only be
representative.)
AMD G34 Processor AMD G34 Processor
HT-3
PCI-E 2.0 x 16 (Slot 1)
-
Infini band MT2540 8
-
Brand / ROM size
Feature
Form Factor
Board Dimension
OS supported list
FCC (DoC)
CE (DoC)
Operating Temp.
Non-operating Temp.
In/Non-operating
Humidity
RoHS 6/6 Complaint
SR5670
Intel
Intel
82574
82574
RJ45
RJ45
AMI / 4MB
Plug and Play (PnP)/ PCI 2.3
WfM2.0 / SMBIOS2.3 / PXE boot
ACPI 2.0 power management
Power on mode after power recovery
User-configurable H/W monitoring
Auto-configurable of hard disk types
Multiple boot options
TYAN SFF
6.3"x18" (160.02x457.2mm)
Please refer to our OS supported list.
Class A
Yes
10° C ~ 35° C (50° F~ 95° F)
- 40° C ~ 70° C (-40° F ~ 158° F)
90%, non-condensing at 35° C
Yes
USB x 4
SATA x 4
