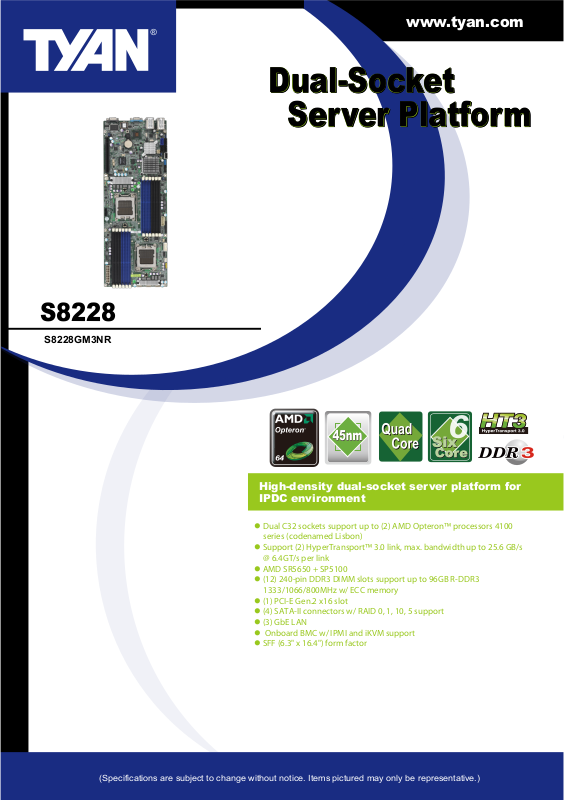

www.tyan.com
Dual-Socket
Dual-Socket
Server Platform
Server Platform
S8228
S8228GM3NR
High-density dual-socket server platform for
IPDC environment
Dual C32 sockets support up to (2) AMD Opteron™ processors 4100
series (codenamed Lisbon)
Support (2) HyperTransport™ 3.0 link, max. bandwidth up to 25.6 GB/s
@ 6.4GT/s per link
AMD SR5650 + SP5100
(12) 240-pin DDR3 DIMM slots support up to 96GB R-DDR3
1333/1066/800MHz w/ ECC memory
(1) PCI-E Gen.2 x16 slot
(4) SATA-II connectors w/ RAID 0, 1, 10, 5 support
(3) GbE LAN
Onboard BMC w/ IPMI and iKVM support
SFF (6.3" x 16.4") form factor
(Specifications are subject to change without notice. Items pictured may only be representative.)
S8228
System
Intel® 82576EB
Intel
82574L
S8228GM3NR
Specifications
Processor
Chipset
Memory
Expansion
Slots
LAN
Graphic
Input /Output
System
Monitoring
Server
Managemen
Supported CPU Series
Socket Type / Q'ty
Average CPU Power
(ACP) wattage
System Bus
Chipset
Super I/O
Supported DIMM Qty
DIMM Type / Speed
Capacity
Memory channel
Memory voltage
PCI-E
Recommended TYAN
Riser Card
Port Q'ty
Controller
Connector (4)
Controller AMD SP5100
SATA
Speed 3.0 Gb/s
RAID RAID 0/1/10/5 (AMD/ Promise RAID stack)
Connector type
Resolution
Chipset
USB
COM
VGA
RJ-45
Power
Front Panel
SATA
Chipset
Voltage
Fan
Temperature
Others
Onboard Chipset
AST2050 IPMI Feature
t
AST2050 iKVM Feature
AMD Opteron™ processors 4100 series
C32 / (2)
Max. up to 75W
Support (2) HyperTransport™ 3.0 link, max.
bandwidth up to 25.6 GB/s @ 6.4GT/s per
link
AMD SR5650 + SP5100
Winbond W83627DHG-P
(6+6) DIMM sockets
DDR3 1333/1066/800 RDIMM
Up to 96GB RDIMM
4 Channels (2 Channels per CPU)
1.5V
(1) PCI-E Gen.2 x16 slot
®
M7018-R16-1L, PCI-E x16 1U riser card
(right)
(3)
®
D-Sub 15-pin
1600x1200@60Hz
Aspeed AST2050
(5) USB2.0 ports (2 at rear, 2 via cable, 1
type A onboard)
(2) ports (1 at rear, 1 via cable)
(1) D-Sub 15-pin VGA port
(3) GbE ports
Proprietary 20-pin (12V single input) power
connector
(1) 2x12 pin SSI front panel header
(4) SATA-II connectors
Winbond W83795G
Monitors voltage f
power supply
Total (3) 8-pin headers
Monitors temperature for CPU & system
environment
Chassis intrusion detection
Watchdog timer support
Onboard Aspeed AST2050
IPMI 2.0 compliant baseboard management
controller (BMC)
BIOS update
USB 2.0 virtual hub
24-bit high quality video compression
Dual 10/100 Mb/s MAC interfaces
or CPU, memory, chipset &
Block Diagram
DDR3 channel B
DDR3 channel A
GB LAN1
GB LAN2
GE LAN3
USB2.0 Portx2
STACK form SP5100
VGA
BIOS
Form Factor
Operating
Regulation
Operating
Environment
RoHS
(Specifications are subject to change without notice. Items pictured may only be
representative.)
CPU1 CPU0
AST2050
Hardware
Monitoring W83795
Brand / ROM size
Feature
Form Factor
Board Dimension
OS supported list
FCC (DoC)
CE (DoC)
Operating Temp.
Non-operating Temp.
In/Non-operating
Humidity
RoHS 6/6 Complaint
INTEL
82576
INTEL
82574
HT-Link
HT-Link
PCI-Ex4
PCI-Ex1
SMBUS
SR5650
PCI-BUS
SP5100
LPC BUS
Super I/O
W83627 DHG
AMI / 4MB
Plug and Play (PnP)/ PCI 2.3
WfM2.0 / SMBIOS2.3 / PXE boot
ACPI 2.0 power management
Power on mode after power recovery
User-configurable H/W monitoring
Auto-configurable of hard disk types
TYAN SFF
6.3"x16.4" (160.02x416.56mm)
Please refer to our OS supported list.
Class B
Yes
10° C ~ 35° C (50° F~ 95° F)
- 40° C ~ 70° C (-40° F ~ 158° F)
90%, non-condensing at 35° C
Yes
COM 1
DDR3 channel B
PCI-E x16 slot
USB2.0x2 rear I/O
USB2.0x2 headerx1
(For Front Panel)
SPI ROM
SATA II Port x4
DDR3 channel A
-
