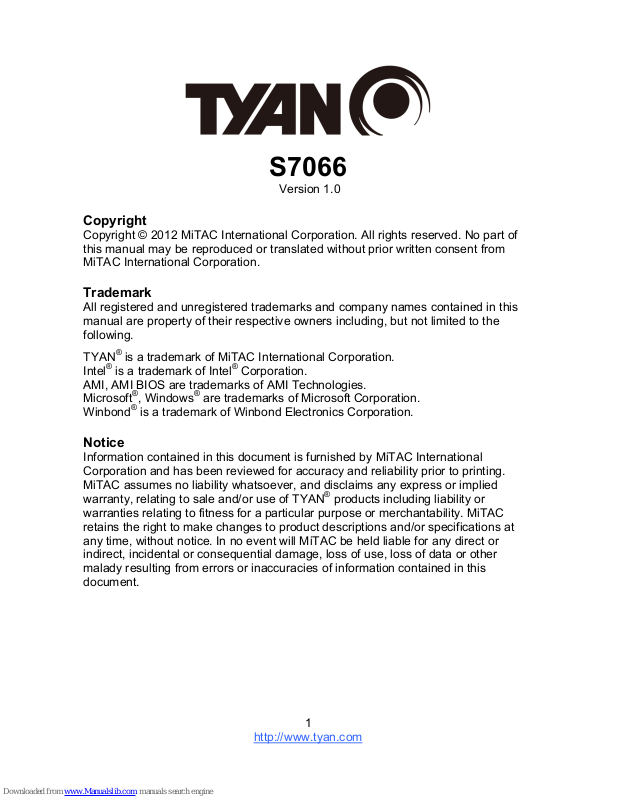

1
S7066
Version 1.0
Copyright
Copyright © 2012 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN® is a trademark of MiTAC International Corporation.
Intel
®
is a trademark of Intel® Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows® are trademarks of Microsoft Corporation.
Winbond
®
is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN
®
products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.
Page 2
http://www.tyan.com
2
Page 3
http://www.tyan.com
3
Contents
S7066............................................................................................................ 1
Before you begin….................................................................................... 4
Chapter 1: Instruction ................................................................................5
1.1 Congratulations .................................................................................5
1.2 Hardware Specifications.................................................................... 5
1.3 Software Specifications ..................................................................... 9
Chapter 2: Board Installation................................................................... 11
2.1 Board Image ....................................................................................12
2.2 Block Diagram .................................................................................13
2.3 Mainboard Mechnical Drawing ........................................................ 14
2.4 Board Parts, Jumpers and Connectors ........................................... 15
2.5 Installing the Processor and Heatsink............................................. 28
2.6 Thermal Interface Material ..............................................................31

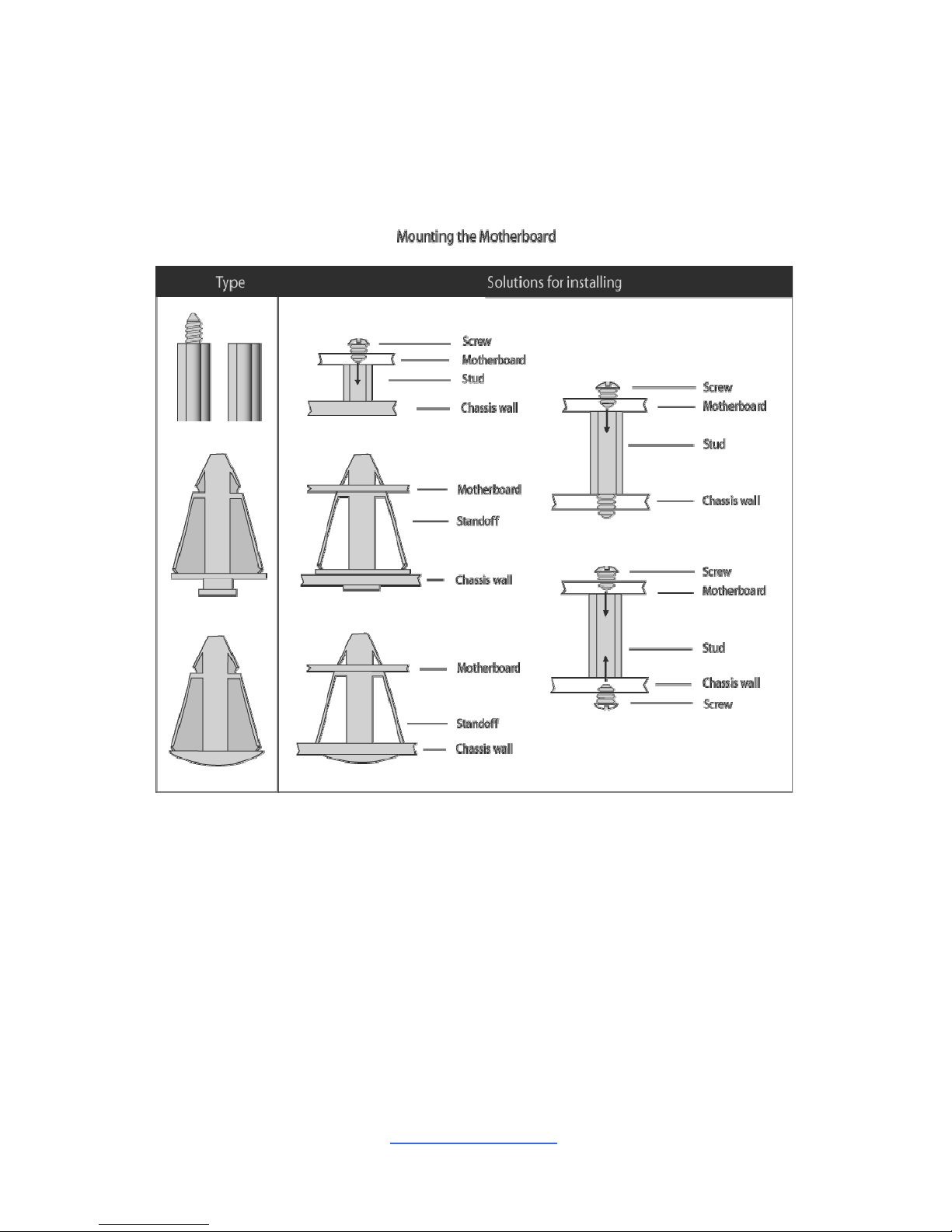

2.7 Tips on Installing Motherboard in Chassis ...................................... 32

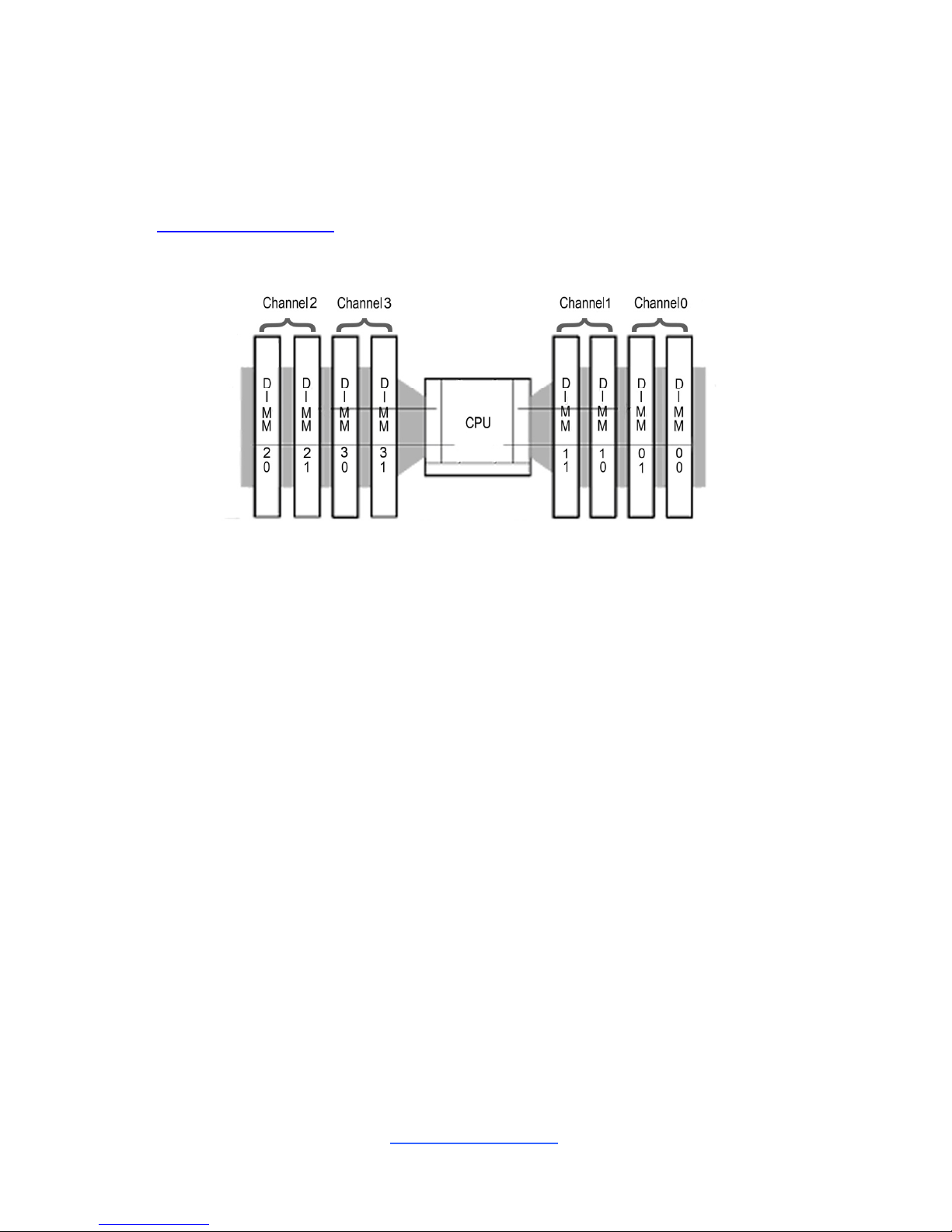

2.8 Installing the Memory ...................................................................... 34

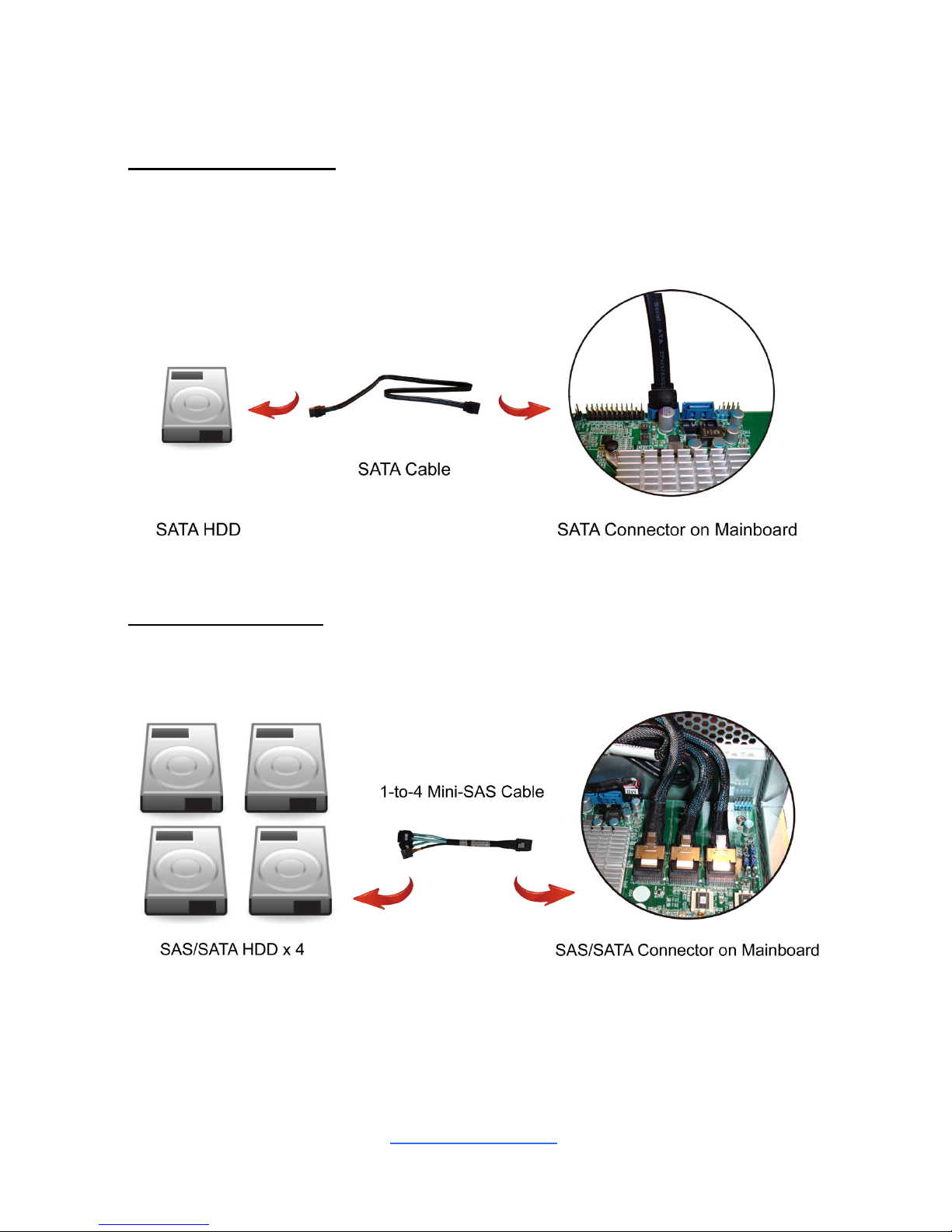

2.9 Attaching Drive Cables ....................................................................40
2.10 Installing Add-In Cards .................................................................. 41
2.11 Connecting External Devices ........................................................42
2.12 Installing the Power Supply ........................................................... 43
2.13 Finishing Up................................................................................... 44
Chapter 3: BIOS Setup ............................................................................. 45
3.1 About the BIOS................................................................................ 45
3.2 Main Menu....................................................................................... 47

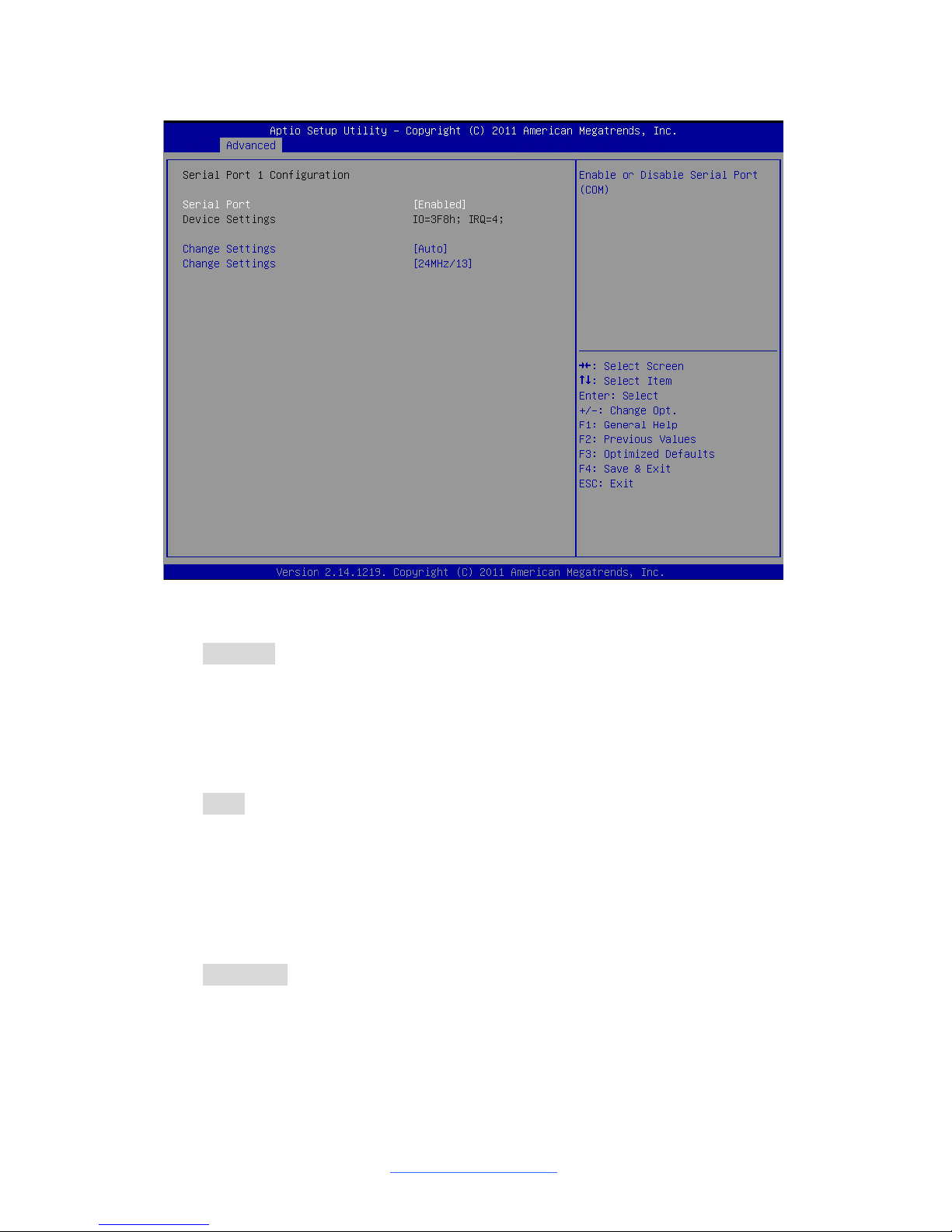

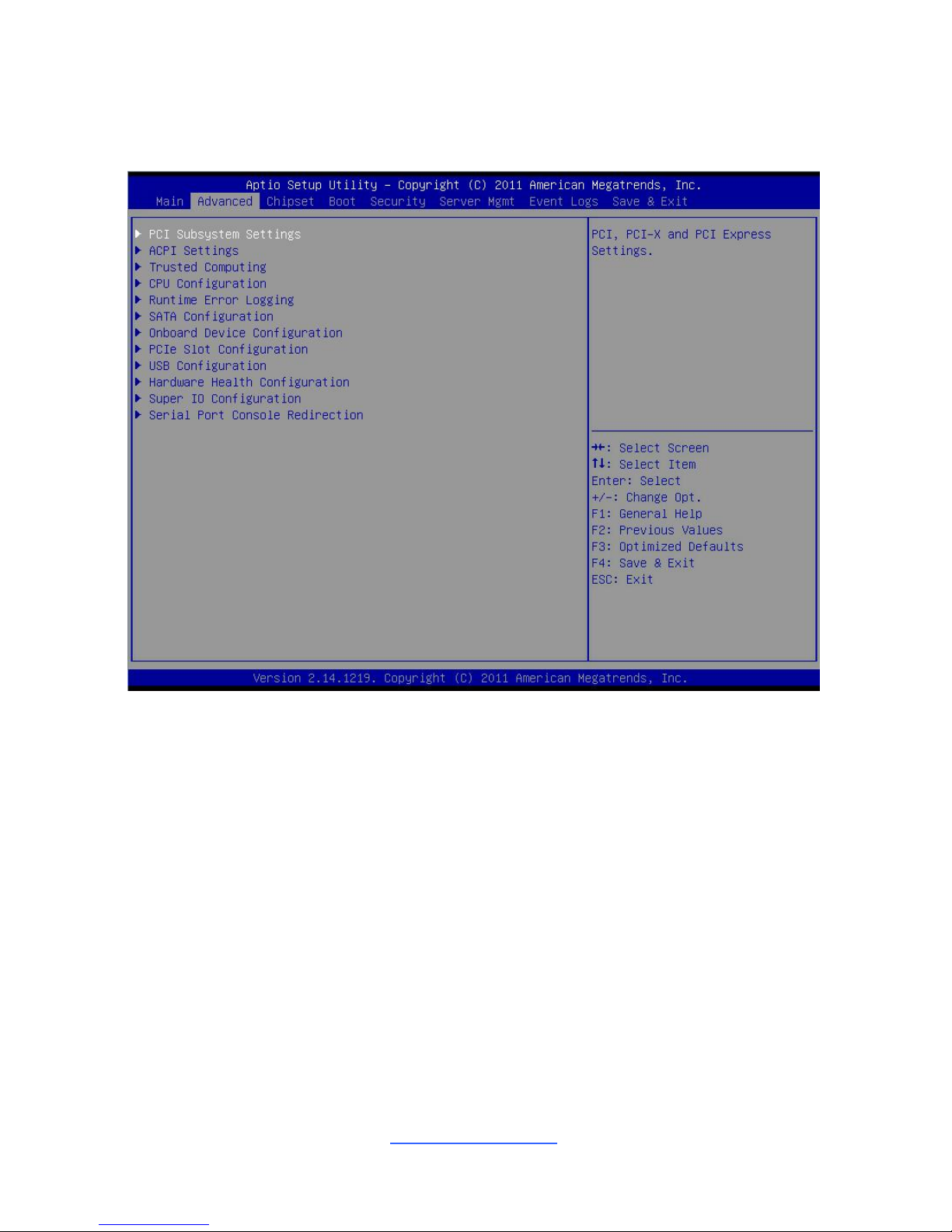

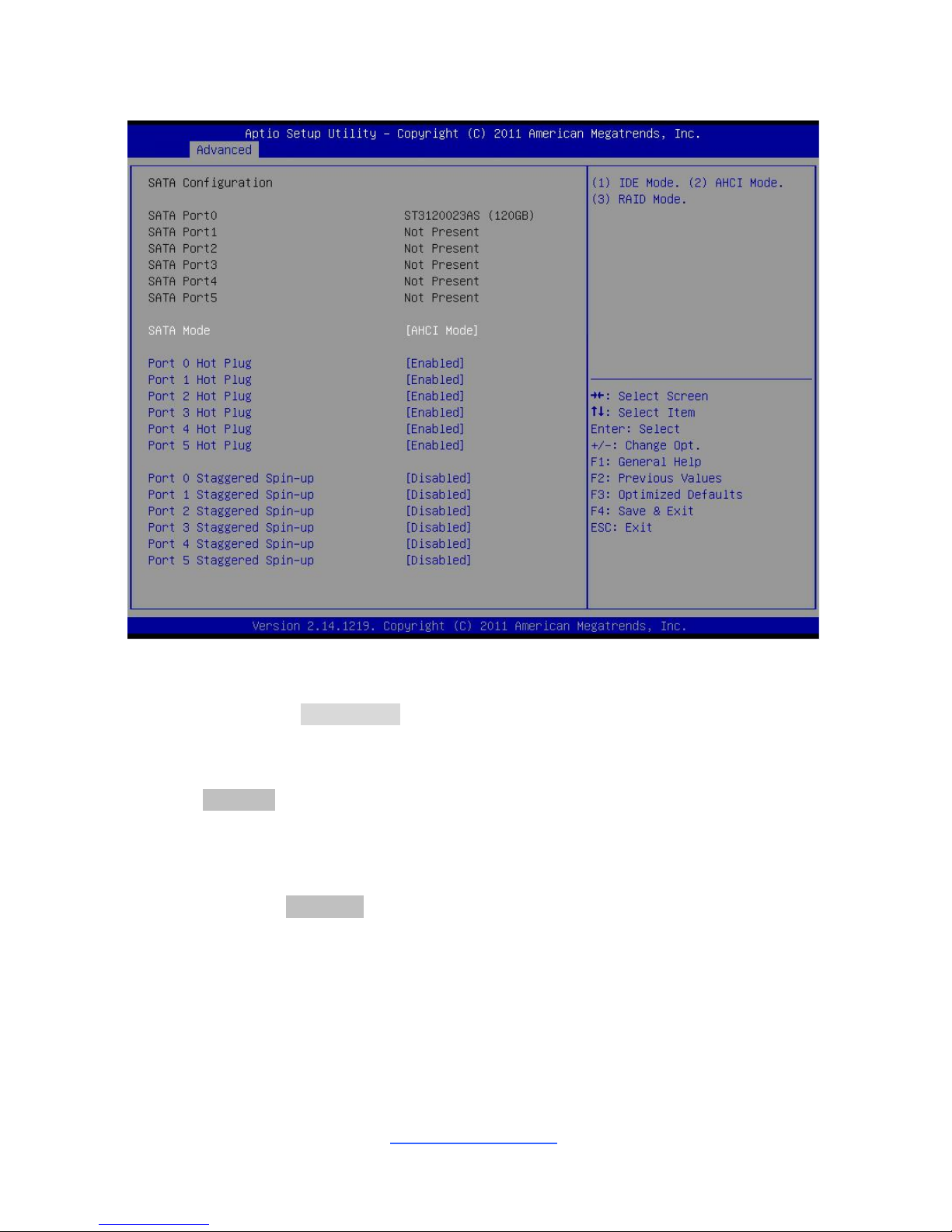

3.3 Advanced Menu............................................................................... 48

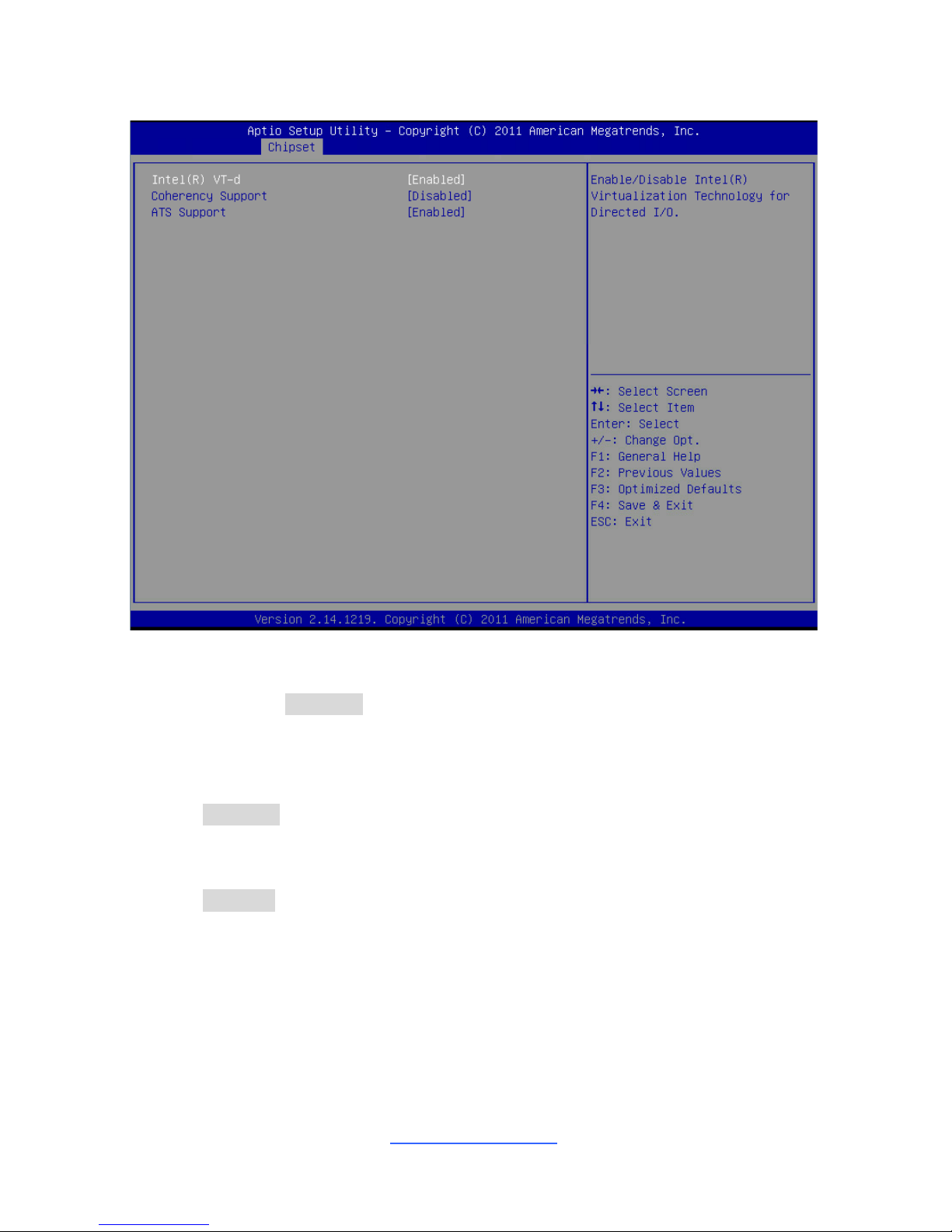

3.4 Chipset Menu ..................................................................................73

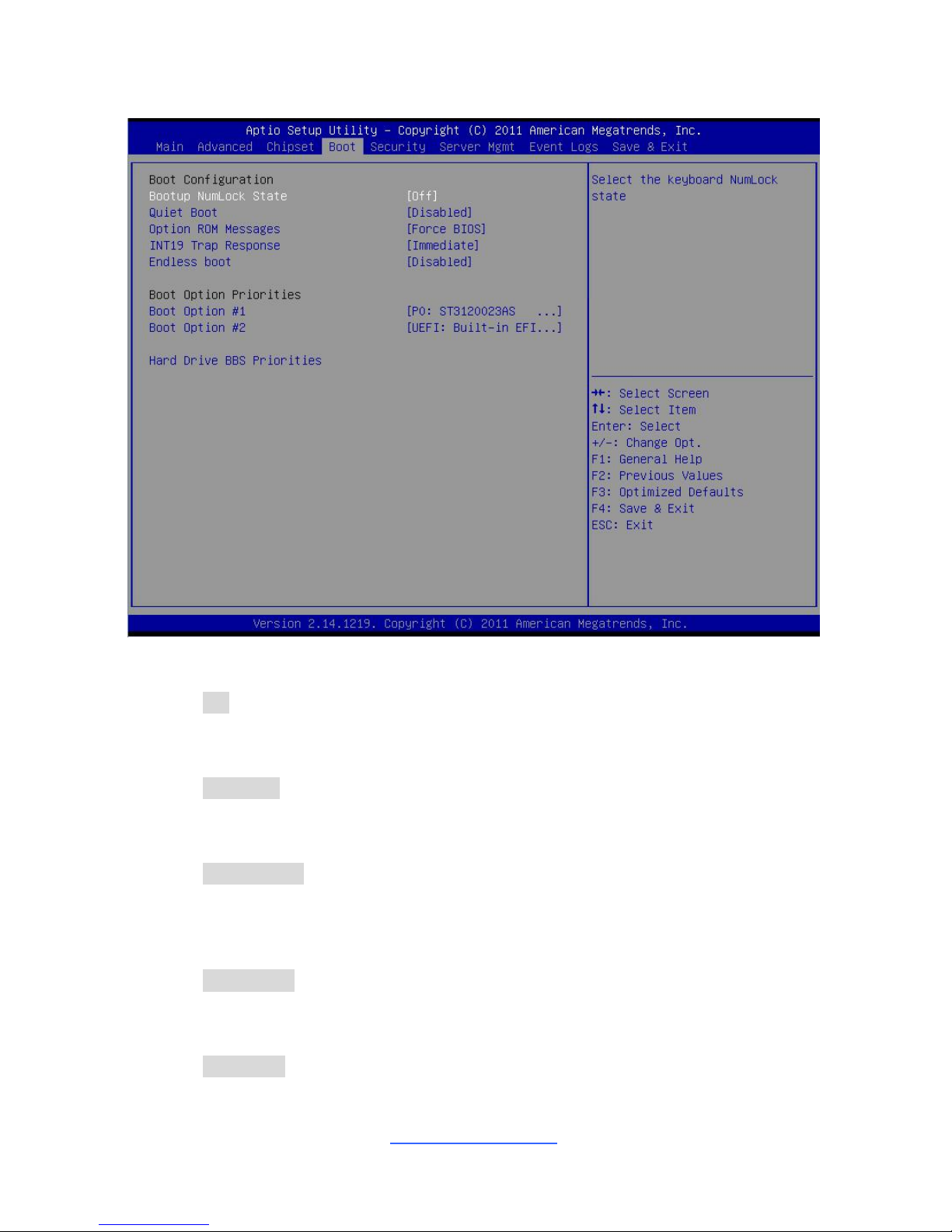

3.5 Boot .................................................................................................83

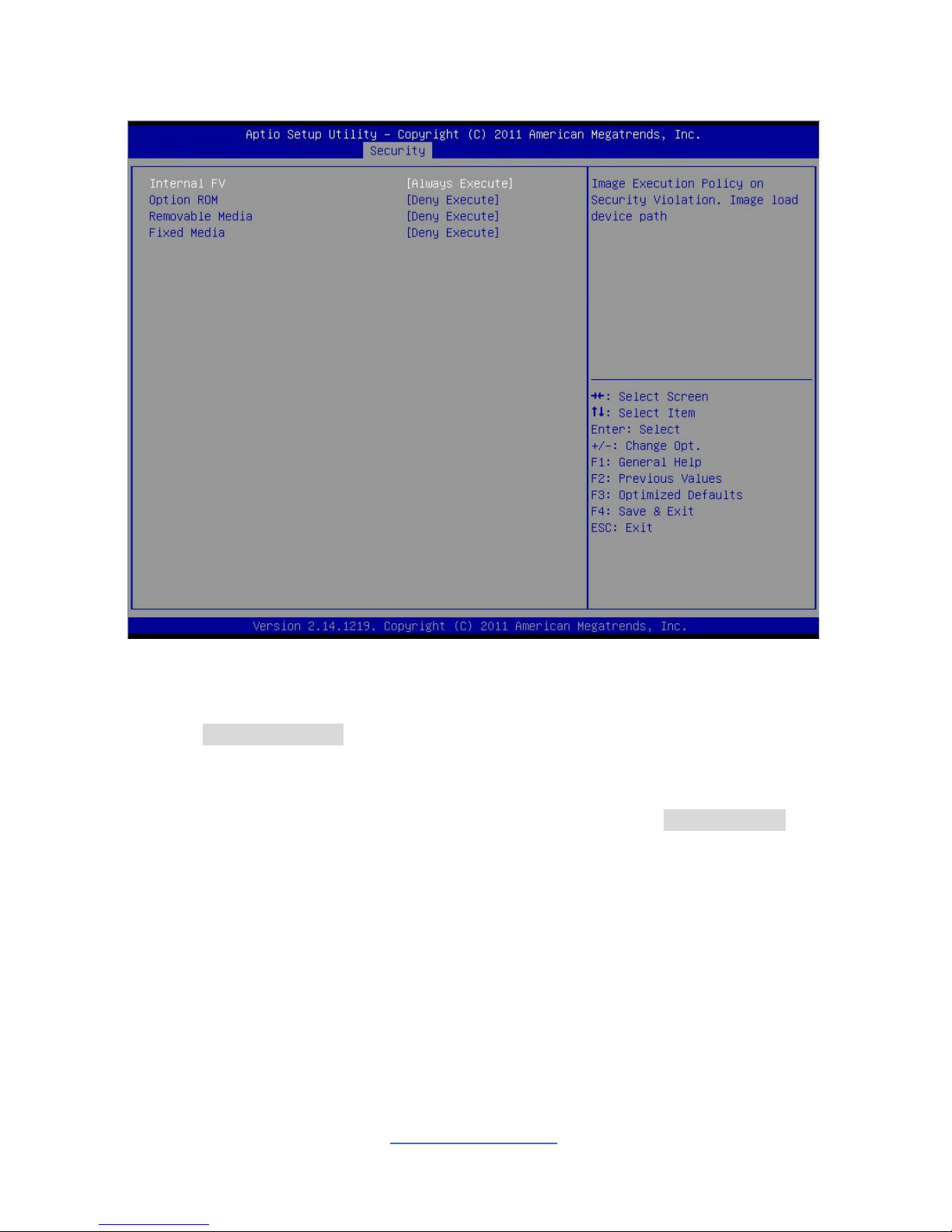

3.6 Security............................................................................................ 85

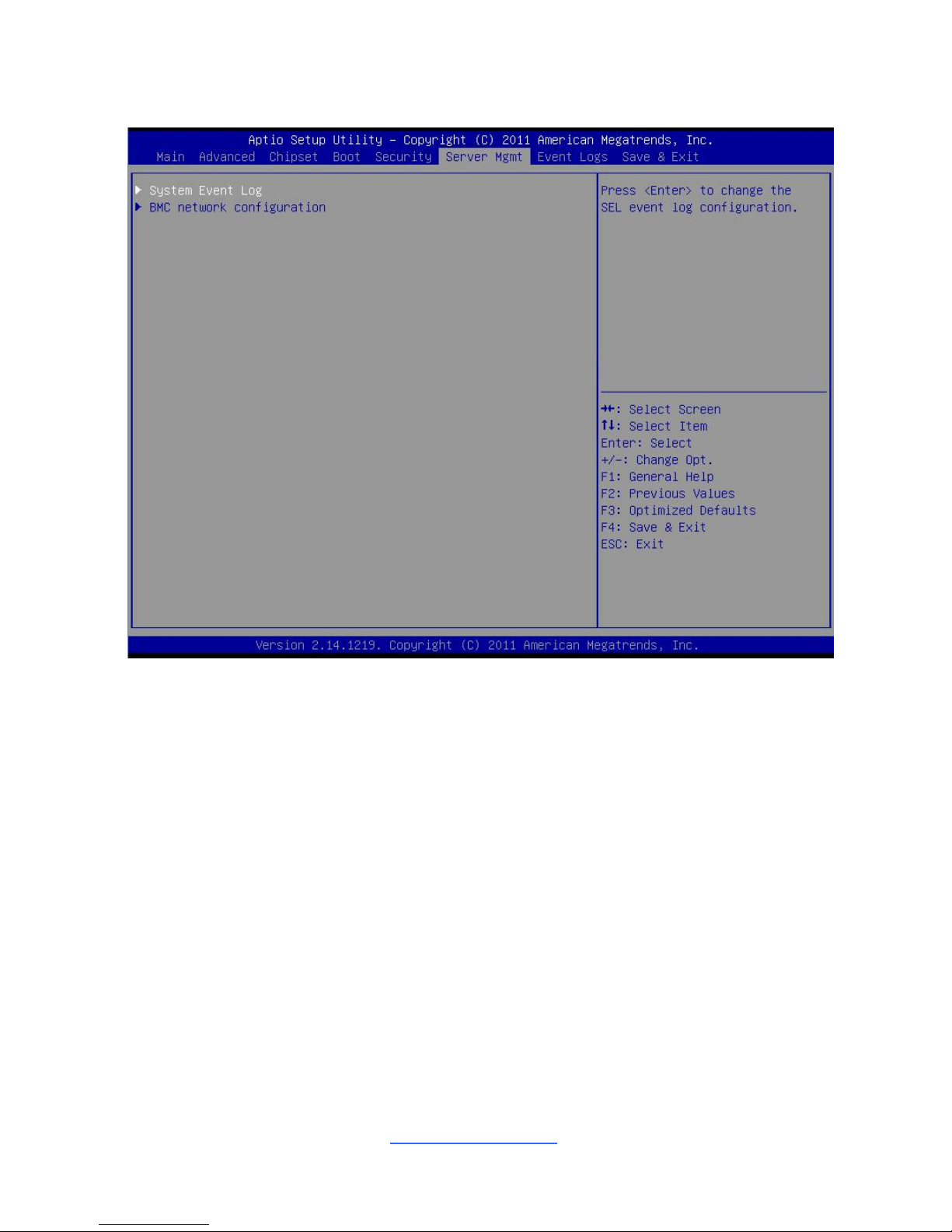

3.7 Server Management ........................................................................89

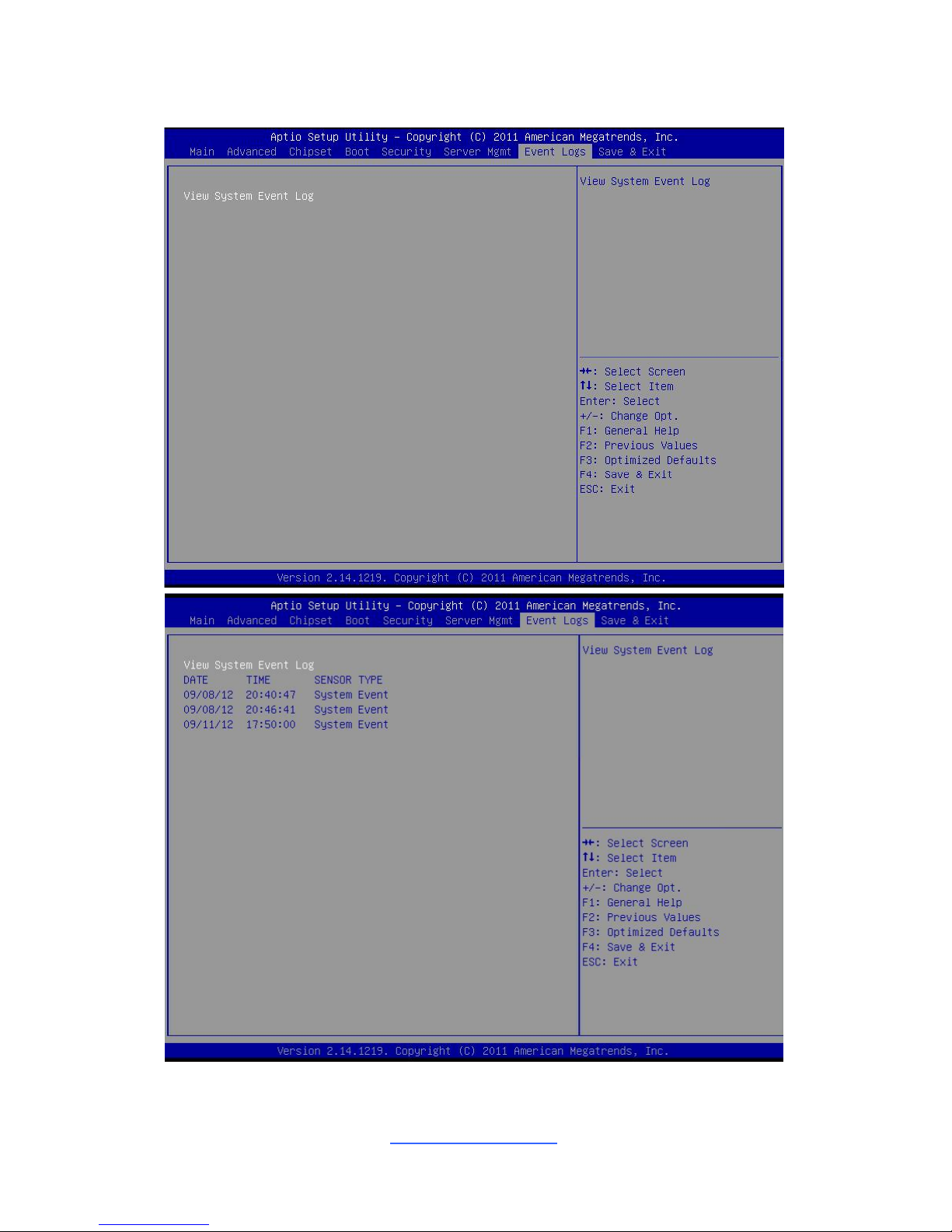

3.8 Event Logs....................................................................................... 92
3.9 Save & Exit ...................................................................................... 93
Chapter 4: Diagnostics............................................................................. 95
4.1 Flash Utility ......................................................................................95
4.2 AMIBIOS Post Code (Aptio) ............................................................ 96
Appendix I: Fan and Temp Sensors .....................................................103
Appendix II: RAID OPROM Configuration ............................................107
Glossary................................................................................................... 109
Technical Support ..................................................................................115
Page 4
http://www.tyan.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1 x S7066 Motherboard
2 x SATA Single Cable
1 x Mini-SAS Cable
1 x IO shielding
1 x S7066 Quick Installation Guide
1 x TYAN® Driver CD
IMPORTANT NOTE:
Sales samples may not come with any of the accessories listed above.
If you have ordered a sales sample and you are missing any of the above items,
please contact your sales representative to help order accessories.
NOTE: The SATA Single Cables, Mini-SAS Cable and IO Shielding are not included
in bulk packing.
Page 5
http://www.tyan.com
5
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S7066 motherboard, based on the
Intel
®
Patsburg chipset. The S7066 is designed to support dual Intel® Xeon E5-
2600 Series processors, and up to 512GB RDIMM, 128GB UDIMM and 512GB
LRDIMM DDR3 memory. Leveraging advanced technology from Intel®, the
S7066 is capable of offering scalable 32 and 64-bit computing, high-bandwidth
memory design, and lightning-fast PCI-E bus implementation.
The S7066 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provide the S7066 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can
find all the information on all TYAN® products as well as all the supporting
documentation, FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
TYAN S7066 (S7066WGM3NR)
Supported CPU
Series
Intel Xeon Processor E5-2600 Series
Socket Type / Q'ty (2) LGA2011
Thermal Design
Power (TDP)
wattage
Max up to 135W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type /
Speed
DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM, 1066 /
1333 UDIMM / LRDIMM
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel 4 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
Page 6
http://www.tyan.com
6
PCI-E (2) PCI-E x16 slots (x16 link, slot #6, #6.5)
Expansion
Slots
Recommended
TYAN Riser Card
M2091 (slot #6)
M2091-R (slot #6.5)
Port Q'ty (2) ports + (1) shared with IPMI port
LAN
Controller Intel 82574L / Intel I350-BT2
Connector (2) mini-SAS
Controller LSI SAS2308
Speed 6.0 Gb/s
SAS
RAID RAID 0/1/10
Connector (2) SATA + (1) mini-SAS
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color connector), (4) 3.0 Gb/s (miniSAS connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power SSI 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-II connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
System
Monitoring
Temperature Monitors temperature for CPU & system environment
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote platformflash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12"x13" (305x330mm)
Page 7
http://www.tyan.com
7
Operating
System
OS supported list Please refer to our OS supported list.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Motherboard (1) S7066 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x SATA
cables
TYAN S7066 (S7066GM3NR)
Supported CPU
Series
Intel Xeon Processor E5-2600 Series
Socket Type / Q'ty (2) LGA2011
Thermal Design
Power (TDP)
wattage
Max up to 135W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM, 1066 /
1333 UDIMM / LRDIMM
Capacity up to 128GB UDIMM / 512GB RDIMM / 512GB LRDIMM
Memory channel 4 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
PCI-E (2) PCI-E x16 slots (x16 link, slot #6, #6.5)
Expansion
Slots
Recommended
TYAN Riser Card
M2091 (slot #6)
M2091-R (slot #6.5)
Port Q'ty (2) ports + (1) shared with IPMI port
LAN
Controller Intel 82574L / Intel I350-BT2
Storage SATA
Connector (2)SATA+(1)Mini-SAS
Page 8
http://www.tyan.com
8
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color connector), (4) 3.0 Gb/s (miniSAS connector)
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power SSI 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-II connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
System
Monitoring
Temperature Monitors temperature for CPU & system environment
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote platformflash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE
boot / ACPI 2.0 power management /Power on mode
after power recovery / User-configurable H/W monitoring
/ Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12"x13" (305x330mm)
Operating
System
OS supported list Please refer to our OS supported list.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Package
Motherboard (1) S7066 Motherboard
Page 9
http://www.tyan.com
9
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Contains
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x SATA
cables
1.3 Software Specifications
For the latest OS (operation system) support, please visit the Tyan’s Web site for
information.
Page 10
http://www.tyan.com
10
Page 11
http://www.tyan.com
11
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is read this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Caution!
1. To avoid damaging the motherboard and associated
components, do not use torque force greater than
7kgf/cm (6.09 lb/in) on each mounting screw for
motherboard installation.
2. Do not apply power to the board if it has been
damaged.
Page 12
http://www.tyan.com
12
2.1 Board Image
S7066
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.
Page 13
http://www.tyan.com
13
2.2 Block Diagram
S7066 Block Diagram
Page 14
http://www.tyan.com
14
2.3 Mainboard Mechnical Drawing
Page 15
http://www.tyan.com
15
2.4 Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram. The
DIMM slot numbers shown above can be used as a reference when reviewing the
DIMM population guidelines shown later in the manual. For the latest board
revision, please visit our web site at http://www.tyan.com
.
Page 16
http://www.tyan.com
16
Jumpers & Connectors
Jumper/Connector Function
J1/J26 USB Front Panel Header (blue)
J2 BIOS Recovery Pin Header
J3 Clear CMOS Header
J4 Chassis Intrusion Header
J14 Front Fan Connector
J24 Type-A USB Connector
J25 (COM2) COM2 Header
J27 (PWR1) ATX 24-pin Power Connector
J28 Port 80 Header
J29 IPMB Connector
J30 (SATA_SGPIO) SATA SGPIO Pin Header
J33 SAS SMB Pin Connector
J34 PSMI Connector
J38 SPI Write Protect Pin Header
J39 (SSI_FP) Front Panel Connector
J43 (PWR2) SSI 8-pin CPU Power Connector
J44 (LAN_LED) LAN3 LED Header
J62 (PWR3) SSI 8-pin DIMM Power Connector
J68 Flash Security Override Pin Header
J69 ME Recovery Pin Header
J70 HOST SMB Connector
J75 LSI 2308 Enable/Disable jumper
2PHD_1 LSI IMR KEY (Optional)
IDLED_BTN ID LED Button
ID_LED ID LED
SATA0/SATA1 Serial ATA Connector
J19/J20/J64/J65/J66 4-pin Fan Power Connector
J45/J63 4-pin CPU1/CPU0 Fan Power Connector
Jumper Legend
OPEN - Jumper OFF Without jumper cover
CLOSED - Jumper ON With jumper cover
Page 17
http://www.tyan.com
17
J64
J20
J66
J45
J25
J63
J65
J19
J26 J39J1
Page 18
http://www.tyan.com
18
J19/J20//J45/J63/J64/J65/J66: 4-Pin FAN Connector
Pin 1 2 3 4
Signal GND +12V Sensor Control
Use this header to connect the cooling fan to your motherboard to
keep the system stable and reliable.
Note: A 4-pin fan is required for fan speed control.
J25: COM2 Header
Signal Pin Pin Signal
DCD 1 2 DSR
SIN 3 4 RTS
SOUT 5 6 CTS
DTR 7 8 RI
GND 9 10 KEY
J39: Front Panel Connector
Signal Pin Pin Signal
PWRLED+ 1 2 V3P3_AUX
KEY 3 4 IDLED+
PWRLED- 5 6 IDLEDHDDLED+ 7 8 SYS_FAULT1HDDLED- 9 10 SYS_FAULT2PWR_SW# 11 12 LAN1LED+
GND 13 14 LAN1LEDRST_SW# 15 16 SMBDATA
GND 17 18 SMBCLK
IDLED_SW# 19 20 INTRUSION#
NC 21 22 LAN2LED+
NMI_SW# 23 24 LAN2LED-
J1/J26: USB Front Panel Header (blue)
Signal Pin Pin Signal
VCC 1 2 VCC
USBD- 3 4 USBDUSBD+ 5 6 USBD+
GND 7 8 GND
KEY 9 10 NC
Page 19
http://www.tyan.com
19
J14
J44
J4
J34
J29
Page 20
http://www.tyan.com
20
J4: Chassis Intrusion Header
Pin 1 2
Open
Signal INTRUSION# GND
Short (Default)
Open: Use this header to trigger the system
chassis intrusion alarm.
Short: Use this header to disable the system
chassis intrusion alarm.
J14: Front Fan Connector (Reserved for Barebone Fan Board)
Signal Pin Pin Signal
FAN1_TACH 1 2 FAN2_TACH
FAN3_TACH 3 4 FAN4_TACH
FAN5_TACH 5 6 FAN6_TACH
FAN7_TACH 7 8 FAN8_TACH
FAN9_TACH 9 10 FAN10_TACH
GND 11 12 KEY
PWM2 13 14 PWM1
FAN11_TACH 15 16 SMB_DATA
FAN12_TACH 17 18 SMB_CLK
V3P3_AUX 19 20 PWM3
J29: IPMB Connector
Signal Pin Pin Signal
BMC_SMB_DATA 1 2 GND
BMC_SMB_CLK 3 4 NC
J34: PSMI Connector
Pin 1 2 3 4 5
Signal SMB_CLK SMB_DAT SMB_ALERT# GND V3P3
J44: LAN3 LED Header
Pin 1 2
Signal IDLED_SW# GND
Page 21
http://www.tyan.com
21
J30
SATA1/SATA0
ID LED
J28
J24
IDLED BTN
Page 22
http://www.tyan.com
22
J28: Port 80 Header
Signal Pin Pin Signal
V3P3 1 2 FRAME
LAD0 3 4 KEY
LAD1 5 6 RESET#
LAD2 7 8 GND
LAD3 9 10 CLK
ID_LED / IDLED_BTN: ID LED and Button
Pin Signal
+ P3V3_AUX
- ID_SW_L
State Color Description
On Blue System identified
Off Off System not identified
NOTE: The ID LED can be activated remotely using IPMI.
Please visit the TYAN Web Site at http://www.tyan.com
to download the
latest IPMI Configuration Guide for more details.
J24: Vertical (Type A) USB Connectors
Pin 1 2 3 4
Signal VCC USBD- USBD+ GND
SATA0/SATA1: SATA2 Connector
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7
1
7 GND
Connects to the Serial ATA ready
drives via the Serial ATA cable.
J30: SATA SGPIO Pin Header
Signal Pin Pin Signal
SMBCLK 1 2 SDATAOUT0
SMBDATA 3 4 SDATAOUT1
GND 5 6 SLOAD
KEY 7 8 SCLOCK
NC 8 10 CLK
Page 23
http://www.tyan.com
23
J3
J69
J38 J2
J70
Page 24
http://www.tyan.com
24
J2: BIOS Recovery Pin Header
Pin Signal Pin Signal
1
NC
2
BIOS_RCVR #
3
GND
Pin 1-2 Closed: Normal Mode (Default)
Pin 2-3 Closed: Recovery Mode
J3: Clear CMOS Jumper
Normal (Default)
Clear CMOS
You can reset the CMOS settings by using this jumper. This
can be useful if you have forgotten your system/setup
password, or need to clear the system BIOS setting.
Pin Signal Pin Signal
1
VBAT
2
RTCRST#
3
GND
1. Power off system and disconnect power connectors from
the motherboard.
2. Remove the jumper from Pin_1 and Pin_2 (Default setting).
3. Move the jumper cap to close Pin_2 and Pin_3 for several
seconds to Clear CMOS.
4. Put jumper cap back to Pin_1 and Pin_2 (Default setting).
5. Reconnect power connectors to the motherboard and
power on system.
J38: SPI Write Protect Pin Header
Pin Signal Pin Signal
1
GPIO_WP# 2 SPI_WP #
3
GND
Pin 1-2 Closed: Normal Mode (Default)
Pin 2-3 Closed: SPI Write Protect Mode
Page 25
http://www.tyan.com
25
J69: ME Recovery Pin Header
Pin 1-2 Closed: Normal Mode (Default)
Pin 2-3 Closed: Recovery Mode
J70: HOST SMB Connector
Signal Pin Pin Signal
PCH_SMB_DATA 1 2 GND
PCH_SMB_CLK 3 4 V3P3
Page 26
http://www.tyan.com
26
J33
J68
J75 2PHD 1
Page 27
http://www.tyan.com
27
J33: SAS SMB Pin Header
Signal Pin Pin Signal
V3P3_AUX 1 2 BMC_SMB_CLK
GND 3 4 BMC_SMB_DATA
KEY 5 6 HDD_FAULT
J68: Flash Security Override Pin Header
Pin 1 2
Signal V3P3_AUX AUD_AZA_SDO
2PHD_1: LSI IMR KEY (optional)
Pin 1 2
Signal GPIO GND
J75: LSI 2308 Enable/Disable jumper
Pin 1-2 Closed: Enable (Default)
Pin 2-3 Closed: Disable
Page 28
http://www.tyan.com
28
2.5 Installing the Processor and Heatsink
The types of processors supported by the S7066 are listed in the Hardware
Specifications section on page 5. Check our website at http://www.tyan.com
for
the latest list of validated Intel
®
processors for this specific motherboard.
NOTE: MiTAC is not liable for damage as a result of operating an
unsupported configuration.
Processor Installation (Socket R for Intel Sandy Bridge CPU)
Follow the steps described later to install the processors and heat sinks.
The following pictures illustrate how to install the Intel
®
Sandy Bridge processor on
the Socket R. Please note that the motherboard may not look exactly like the one
you purchased. Therefore, the illustrations should be held for your reference only.
NOTE: Please save and replace the CPU protection cap when returning for service.
1. Locate the CPU socket.
2. Pull the CPU lever slightly away from the socket and then push it to a fully open
position.
3. Lift the socket cover to a fully open position.
Page 29
http://www.tyan.com
29
4. Take off the CPU protection cap.
5. Place the CPU in the CPU socket and make sure that the gold arrow is located
in the right direction with two notches properly aligned.
6. Close the socket cover and press the CPU socket lever down to lock the CPU
in place.
7. The CPU installation is now complete.
Page 30
http://www.tyan.com
30
Heat sink Installation
After installing the processor, you will need to proceed to install the heat sink. The
CPU heat sink will ensure that the processor do not overheat and continue to
operate at maximum performance for as long as you own them. An overheated
processor is dangerous to the motherboard. The processors will overheat within
seconds, enter thermal protection, and shut down if heatsinks are not installed.
For the safest method of installation and information on choosing the appropriate
heat sink, using heat sinks validated by Intel®. Please refer to the Intel® website:
http://www.intel.com
The following diagram illustrates how to install the heatsink on the Intel
®
Sandy
Bridge Socket R:
1. Place the heat sink on top of the CPU and secure it to the motherboard with 4
screws.
2. Connect the fan power cord.
Page 31
http://www.tyan.com
31
2.6 Thermal Interface Material
There are two types of
thermal interface materials
designed for use with the
processors.
The most common material
comes as a small pad
attached to the heat sink at
the time of purchase. There
should be a protective cover
over the material. Take care
not to touch this material.
Simply remove the protective
cover and place the heat
sink on the processor.
The second type of interface
material is usually packaged
separately. It is commonly
referred to as ‘thermal
compound’. Simply apply a
thin layer on to the CPU lid
(applying too much will
actually reduce the cooling).
NOTE: Always check with the manufacturer of the heat sink & processor to
ensure that the thermal interface material is compatible with the processor
and meets the manufacturer’s warranty requirements.
Page 32
http://www.tyan.com
32
2.7 Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chassis has the necessary
motherboard support studs installed. These studs are usually metal and are gold in
color. Usually, the chassis manufacturer will pre-install the support studs. If you are
unsure of stud placement, simply lay the motherboard inside the chassis and align
the screw holes of the motherboard to the studs inside the case. If there are any
studs missing, you will know right away since the motherboard will not be able to be
securely installed.
Note: Be especially careful to look for extra stand-offs. If there are any stand-offs
present that are not aligned with a mounting hole on the motherboard, it will likely
short components on the back of the motherboard when installed. This will cause
malfunction and/or damage to your motherboard.
Page 33
http://www.tyan.com
33
Some chassis include plastic studs instead of metal. Although the plastic studs are
usable, MiTAC recommends using metal studs with screws that will fasten the
motherboard more securely in place.
Below is a chart detailing what the most common motherboard studs look like and
how they should be installed.
Page 34
http://www.tyan.com
34
2.8 Installing the Memory
Before installing memory, ensure that the memory you have is compatible
with the motherboard and processor. Check the TYAN Web site at
http://www.tyan.com for details of the type of memory recommended for
your motherboard.
z The Sandy Bridge-EP/EX processor is a quad-channel design with a
total of 4 DDR3 channels
z This platform supports Unbuffered DDR3, Registered DDR3, and LR
DIMM (Load Reduced DIMM) DDR3 for buffered memory solutions
demanding higher capacity memory subsystems.
z DDR3 data transfer rates of 800, 1066, 1333, and 1600 MT/s are
supported
z Each memory channel is 72 or 64 bits wide for ECC or Non-ECC
z Both 1.5V and 1.35V DDR3 DIMMs are supported
z Gb, 2-Gb, and 4-Gb DDR3 DRAM technologies are supported for
these devices:
— UDIMMs x8, x16
— RDIMMs x4, x8
— LRDIMM x4, x8
z Up to 8 ranks are supported per memory channel. DIMMS may be 1,
2 or 4 ranks per module.
z All installed memory will automatically be detected. No jumpers or
settings need to be changed for memory detection.
z All memory must be of the same type and density. Registered,
Unbuffered, and LRDIMM memory types can NOT be mixed and
matched on the same motherboard.
Page 35
http://www.tyan.com
35
Recommended Memory Population Table
Single CPU Installed
(CPU0 only)
Quantity of
memory installed
1 2 3 4 5 6 7 8
CPU0_DIMM_A0 √ √ √ √ √ √ √ √
CPU0_DIMM_A1 √ √ √ √
CPU0_DIMM_B0 √ √ √ √ √ √ √
CPU0_DIMM_B1 √ √ √
CPU0_DIMM_C0 √ √ √ √ √ √
CPU0_DIMM_C1 √ √
CPU0_DIMM_D0 √ √ √ √ √
CPU0_DIMM_D1 √
NOTE:
1. √ indicates a populated DIMM slot.
2. Install memory in sets of fours for maximum performance. This ensures that all four
memory channels are properly utilized, providing maximum memory bandwidth.
3. Populate the same DIMM type in each channel, specifically
- Use the same DIMM size
- Use the same # of ranks per DIMM
4. Dual-rank DIMMs are recommended over single-rank DIMMs.
5. Unbuffered DIMMs can offer slightly better performance than Registered DIMMs if
populating only a single DIMM per channel.
6. Always install with DIMM_A0 Slot first, following the alphabetical order (starting with
DIMM_A0, DIMM_B0, DIMM_C0, DIMM_D0), and then the numerical order (starting
with DIMM_A1, DIMM_B1, DIMM_C1, DIMM_D1, DIMM_A2, DIMM_B2, DIMM_C2,
DIMM_D2).
Page 36
http://www.tyan.com
36
Dual CPU installed (CPU0 and CPU1)
Quantity of
memory
installed
2 3 4 5 6 7 8 10 12 14 16
CPU0_DIMM_A0 √ √ √ √ √ √ √ √ √ √ √
CPU0_DIMM_A1 √ √ √ √
CPU0_DIMM_B0 √ √ √ √ √ √ √ √ √ √
CPU0_DIMM_B1 √ √ √
CPU0_DIMM_C0 √ √ √ √ √ √ √ √
CPU0_DIMM_C1 √ √ √
CPU0_DIMM_D0 √ √ √ √ √ √
CPU0_DIMM_D1 √
CPU1_DIMM_A0 √ √ √ √ √ √ √ √ √ √ √
CPU1_DIMM_A1 √ √ √ √
CPU1_DIMM_B0 √ √ √ √ √ √ √ √ √
CPU1_DIMM_B1 √ √
CPU1_DIMM_C0 √ √ √ √ √ √ √
CPU1_DIMM_C1 √ √
CPU1_DIMM_D0 √ √ √ √ √
CPU1_DIMM_D1 √
NOTE:
1. √ indicates a populated DIMM slot.
2. Install memory in sets of fours for maximum performance. This ensures that all four
memory channels are properly utilized, providing maximum memory bandwidth.
3. Populate the same DIMM type in each channel, specifically
- Use the same DIMM size
- Use the same # of ranks per DIMM
4. Dual-rank DIMMs are recommended over single-rank DIMMs.
5. Unbuffered DIMMs can offer slightly better performance than Registered DIMMs if
populating only a single DIMM per channel.
6. Always install with DIMM_A0 Slot first, following the alphabetical order (starting with
DIMM_A0, DIMM_B0, DIMM_C0, DIMM_D0), and then the numerical order (starting
with DIMM_A1, DIMM_B1, DIMM_C1, DIMM_D1, DIMM_A2, DIMM_B2, DIMM_C2,
DIMM_D2).
Page 37
http://www.tyan.com
37
Intel® Xeon® processor E5-2600/4600 product families UDIMM Support
1.35V 1.50V Ranks Per DIMM &
Data Width
Memory Capacity per DIMM
1DPC 2DPC 1DPC 2DPC
SRx8 Non-ECC 1 GB 2GB 4GB N/A N/A
1066,
1333
1066,
1333
DRx8 Non-ECC 2GB 4GB 8GB N/A N/A
1066,
1333
1066,
1333
SRx16 Non-ECC 512 MB 1GB 2GB N/A N/A
1066,
1333
1066,
1333
SRx8 ECC 1GB 2GB 4GB
1066,
1333
1066
1066,
1333
1066,
1333
DRx8 ECC 2GB 4GB 8GB
1066,
1333
1066
1066,
1333
1066,
1333
NOTE 1: The blue blocks indicate that the DRAM Densities are supported but not validated.
NOTE 2: The grey blocks indicate that the DRAM Densities are supported and validated.
NOTE 3: 1DPC => One dimm per channel
NOTE 4: 2DPC => Two dimm per channel
z Supported DRAM Densities are 1Gb, 2Gb and 4Gb. Only 2Gb and 4Gb are validated
by Intel.
z Command Address Timing is 1N for 1DPC and 2N for 2DPC.
Intel® Xeon® processor E5-2600/4600 product families LRDIMM Support
1.35V 1.50V Ranks Per DIMM &
Data Width
Memory Capacity per
DIMM
1DPC 2DPC 1DPC 2DPC
QRx4 (DDP) 16GB 32GB 1066 1066
1066,
1333
1066,
1333
QRx8 (P) 8GB 16GB 1066 1066
1066,
1333
1066,
1333
NOTE: The grey blocks indicate that the DRAM Densities are supported and validated.
z Physical Ranks are used to calculate DIMM Capacity.
z Supported and validated DRAM Densities are 2Gb and 4Gb.
z Command Address Timing is 1N.
z The speeds are estimated targets and will be verified through simulation.
z DDP -Dual Die Package DRAM stacking. P –Planer monolithic DRAM Die.
Page 38
http://www.tyan.com
38
Intel® Xeon® processor E5-2600/4600 product families RDIMM Support
1.35V 1.50V
Ranks
Per
DIMM &
Data
Width
Memory Capacity
per DIMM
1DPC 2DPC 1DPC 2DPC
SRx8 1GB 2GB 4GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
DRx8 2GB 4GB 8GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
SRx4 2GB 4GB 8GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
DRx4 4GB 8GB 16GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
QRx4 8GB 16GB 32GB 800 800 1066 800
QRx8 4GB 8GB 16GB 800 800 1066 800
NOTE 1: The blue blocks indicate that the DRAM Densities are supported but not
validated.
NOTE 2: The grey blocks indicate that the DRAM Densities are supported and validated.
NOTE 3: The yellow blocks indicate that the DRAM Densities are supported with limited
validated.
z Supported DRAM Densities are 1Gb, 2Gb and 4Gb. Only 2Gb and 4Gb are validated
by Intel.
z Command Address Timing is 1N.
z QR RDIMM are supported but have not been validated by Intel/PMO in a homogenous
environment. The coverage will have limited system level testing, no signal integrity
testing, and no interoperability testing. All quad rank DIMMs that pass internal validation
testing will be posted on http://www.tyan.com
.
Page 39
http://www.tyan.com
39
Memory Installation Procedure
Follow these instructions to install memory modules into the S7066.
1. Unlock a DIMM socket by Press the retaining clip outwardly in the following
illustration.
2. Align the memory module with the socket，such that the DIMM NOTCH match
the KEY SLOT on the socket.
3. Hold the DIMM by both of its ends. Insert the module vertically into the socket .
Apply force to both ends of the DIMM simultaneously until the retaining clip pop
up into place. And the DIMM cannot be pushed in any further to ensure proper
sitting of the DIMM.
KEY SLOT
Unlocked
retainin
g
cli
p
Unlocked
retaining
clip
DIMM NOTCH
Page 40
http://www.tyan.com
40
2.9 Attaching Drive Cables
Attaching SATA Cables
The following illustrates how to make a SATA Cable connection. If you are in need
of SATA/SAS cables or power adapters please contact your local sales
representative.
Attaching SAS Cables
The following illustrates how to make a SAS Cable connection. If you are in need of
SATA/SAS cables or power adapters please contact your local sales representative.
Page 41
http://www.tyan.com
41
2.10 Installing Add-In Cards
Before installing add-in cards, it’s helpful to know if they are fully compatible with
your motherboard. For this reason, we’ve provided the diagrams below, showing
the slots that may appear on your motherboard.
PCI-E Gen3 x16 slot
Simply find the appropriate slot for your add-in card and insert the card firmly. Do
not force any add-in cards into any slots if they do not seat in place. It is better to try
another slot or return the faulty card rather than damaging both the motherboard
and the add-in card.
TIP: It’s a good practice to install add-in cards in a staggered manner rather than
making them directly adjacent to each other. Doing so allows air to circulate within
the chassis more easily, thus improving cooling for all installed devices.
NOTE: You must always unplug the power connector from the motherboard before
performing system hardware changes to avoid damaging the board or expansion
device.
Page 42
http://www.tyan.com
42
2.11 Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.
NOTE:
1. When i350 LAN chip is on, LAN1 and LAN2 can support 10Mbps~1Gbps.
2. Peripheral devices can be plugged straight into any of these ports but software
may be required to complete the installation.
Onboard LAN LED Color Definition
The three onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
Right LED
(Speed)
No Link OFF OFF
Link Green OFF
10 Mbps
Active Blinking Green OFF
Link Green Solid Green
100 Mbps
Active Blinking Green Solid Green
Link Green Solid Yellow
1000 Mbps
Active Blinking Green Solid Yellow
LAN3 (Intel 82574, shared with IPMI AST2300)
+ 2 USB2.0 Ports
LAN1
VGA
COM
ID LED Button
LAN2
Page 43
http://www.tyan.com
43
2.12 Installing the Power Supply
There are three (3) power connectors on your S7066 motherboard. The S7066
supports EPS 12V power supply.
PWR1 (J27): ATX 24-Pin Power Connector
Signal Pin Pin Signal
V3P3
1 13
V3P3
V3P3
2 14
-12V
GND
3 15
GND
+5V
4 16
PS_ON#
GND
5 17
GND
+5V
6 18
GND
GND
7 19
GND
PWROK
8 20
Reserved
5VSB
9 21
+5V
+12V
10 22
+5V
+12V
11 23
+5V
V3P3
12 24
GND
PWR2 (J43) / PWR3 (J62): SSI 8-Pin CPU/DIMM Power Connector
Signal Pin Pin Signal
GND 1 2 +12V
GND 3 4 +12V
GND 5 6 +12V
GND 7 8 +12V
NOTE: You must unplug the power supply before plugging the power
cables to motherboard connectors.
Page 44
http://www.tyan.com
44
2.13 Finishing Up
Congratulations on making it this far! You have finished setting up the hardware
aspect of your computer. Before closing up your chassis, make sure that all cables
and wires are connected properly, especially SATA cables and most importantly,
jumpers. You may have difficulty powering on your system if the motherboard
jumpers are not set correctly.
In the rare circumstance that you have experienced difficulty, you can find help by
asking your vendor for assistance. If they are not available for assistance, please
find setup information and documentation online at our website or by calling your
vendor’s support line.
Page 45
http://www.tyan.com
45
Chapter 3: BIOS Setup
3.1 About the BIOS
The BIOS is the basic input/output system, the firmware on the motherboard that
enables your hardware to interface with your software. The BIOS determines what a
computer can do without accessing programs from a disk. The BIOS contains all
the code required to control the keyboard, display screen, disk drives, serial
communications, and a number of miscellaneous functions. This chapter describes
the various BIOS settings that can be used to configure your system.
The BIOS section of this manual is subject to change without notice and is provided
for reference purposes only. The settings and configurations of the BIOS are
current at the time of print and are subject to change, and therefore may not match
exactly what is displayed on screen.
This section describes the BIOS setup program. The setup program lets you modify
basic configuration settings. The settings are then stored in a dedicated, batterybacked memory (called NVRAM) that retains the information even when the power
is turned off.
To start the BIOS setup utility:
1. Turn on or reboot your system.
2. Press <F2> or <Del> during POST (<Tab> on remote console) to start the
BIOS setup utility.
3.1.1 Setup Basics
The table below shows how to navigate in the setup program using the keyboard.
Key Function
<F1> General help window
<ESC> Exit current menu
Åarrow Æ keys Select a different menu
↑or↓ arrow keys
Move cursor up/down
<Tab> / <Shift-Tab> Cycle cursor up/down
<Home> / <End> Move cursor to top/bottom of the window
<PgUp> / <PgDn> Move cursor to next/previous page
<-> Select the previous value/setting of the field
<+> Select the next value/setting of the field
<F8> Load Fail Safe default configuration values of the menu
<F3> Load the Optimal default configuration values of the
menu
<F4> Save and exit
<Enter> Execute command or select submenu
Page 46
http://www.tyan.com
46
3.1.2 Getting Help
Pressing [F1] will display a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit the Help
Window, press [ESC] or the [Enter] key again.
3.1.3 In Case of Problems
If you have trouble booting your computer after making and saving the changes with
the BIOS setup program, you can restart the computer by holding the power button
down until the computer shuts off (usually within 4 seconds); resetting by pressing
CTRL-ALT-DEL; or clearing the CMOS.
The best advice is to only alter settings that you thoroughly understand. In particular,
do not change settings in the Chipset section unless you are absolutely sure of
what you are doing. The Chipset defaults have been carefully chosen either by
MiTAC or your system manufacturer for best performance and reliability. Even a
seemingly small change to the Chipset setup options may cause the system to
become unstable or unusable.
3.1.4 Setup Variations
Not all systems have the same BIOS setup layout or options. While the basic look
and function of the BIOS setup remains more or less the same for most systems,
the appearance of your Setup screen may differ from the charts shown in this
section. Each system design and chipset combination requires a custom
configuration. In addition, the final appearance of the Setup program depends on
the system designer. Your system designer may decide that certain items should
not be available for user configuration, and remove them from the BIOS setup
program.
NOTE: The following pages provide the details of BIOS menu. Please be aware that
the BIOS menus are continually changing due to continual BIOS updates over the
product lifespan of the motherboard. The BIOS menus provided are current as of
the date when this manual was written. Please visit TYAN’s website at
http://www.tyan.com
for information on BIOS updates available for this specific
motherboard.
Page 47
http://www.tyan.com
47
3.2 Main Menu
In this section, you can alter general features such as the date and time.
Note that the options listed below are for options that can directly be changed within
the Main Setup screen.
BIOS Information
It displays BIOS related information.
Memory Information
This displays the total memory size.
System Date
Adjust the system date.
MM (Months): DD (Days): YYYY (Years)
System Time
Adjust the system clock.
HH (24 hours format): MM (Minutes): SS (Seconds)
Access Level
Read only.
Page 48
http://www.tyan.com
48
3.3 Advanced Menu
This section facilitates configuring advanced BIOS options for your system.
PCI Settings
PCI,PCI-X and PCI Express Settings.
ACPI Settings
System ACPI Parameters.
Trusted Computing (optional function)
Trusted Computing (TPM) settings.
NOTE: If no TPM chipset is on, the Trusted Computing submenu will not appear.
CPU Configuration
CPU Configuration Parameters.
Runtime Error Logging
Runtime Error Logging Support Setup Options
Page 49
http://www.tyan.com
49
SATA Configuration
SATA Devices Configuration.
Onboard Device Configuration
Onboard Device Configuration.

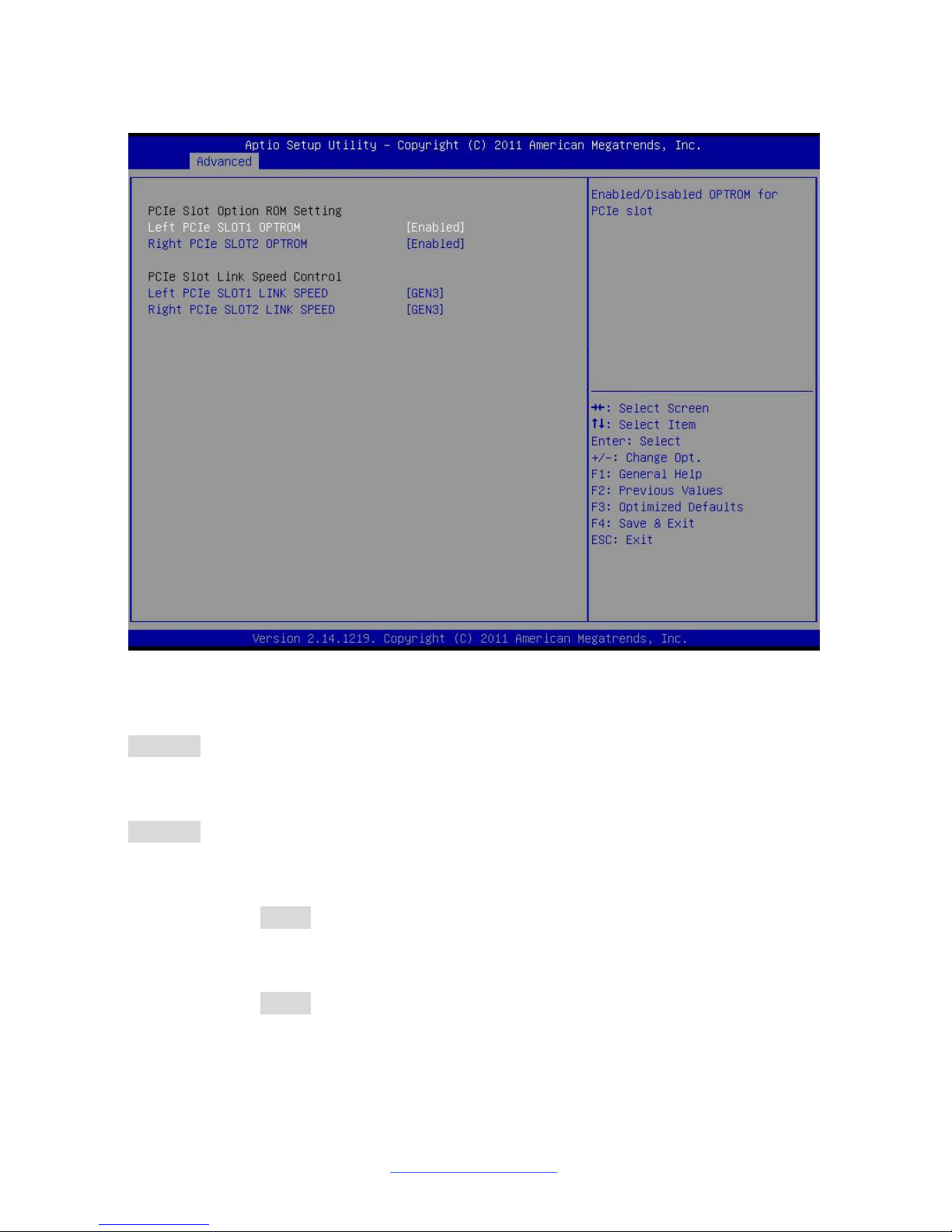

PCIe Slot Configuration
PCIe Slot Configuration.
USB Configuration
USB Configuration Parameters.

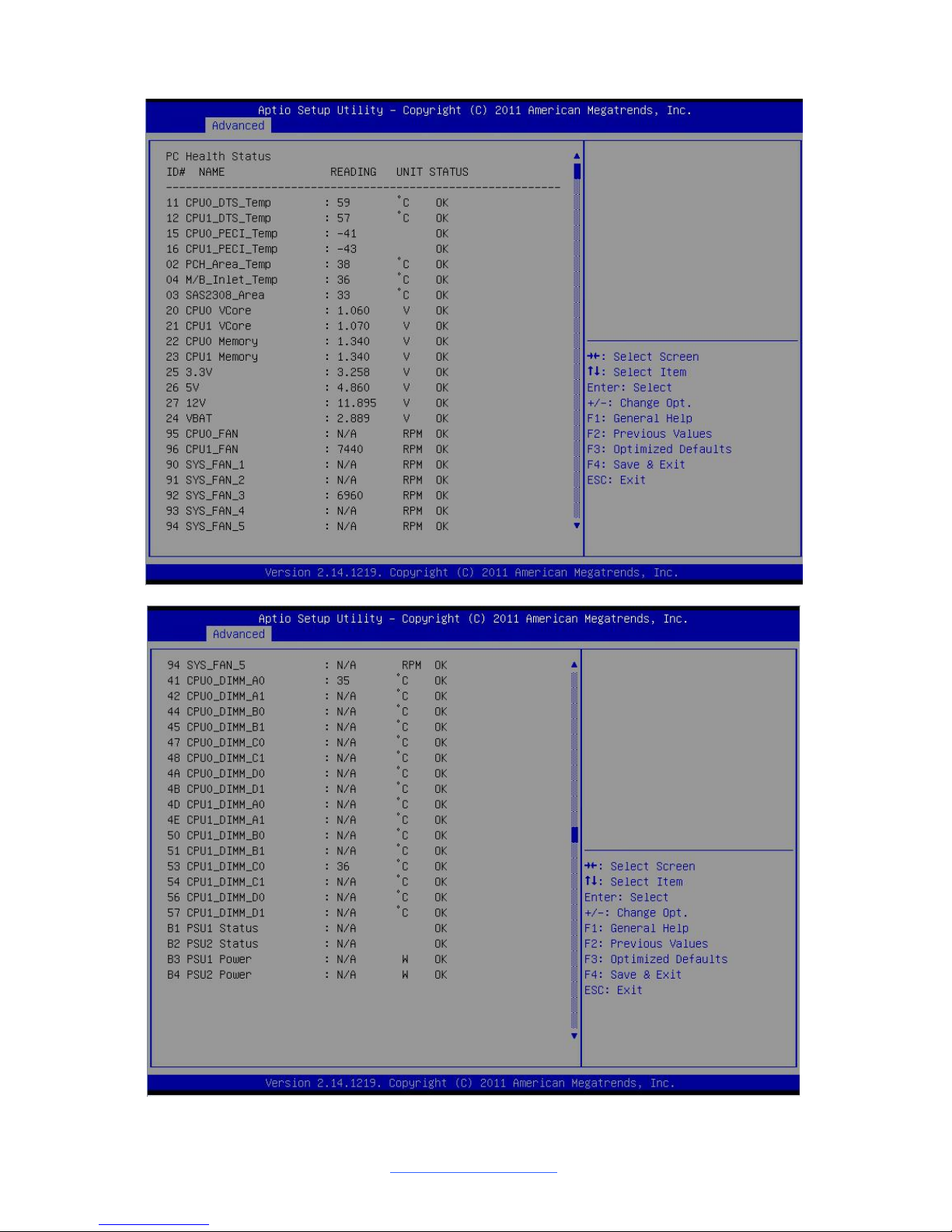

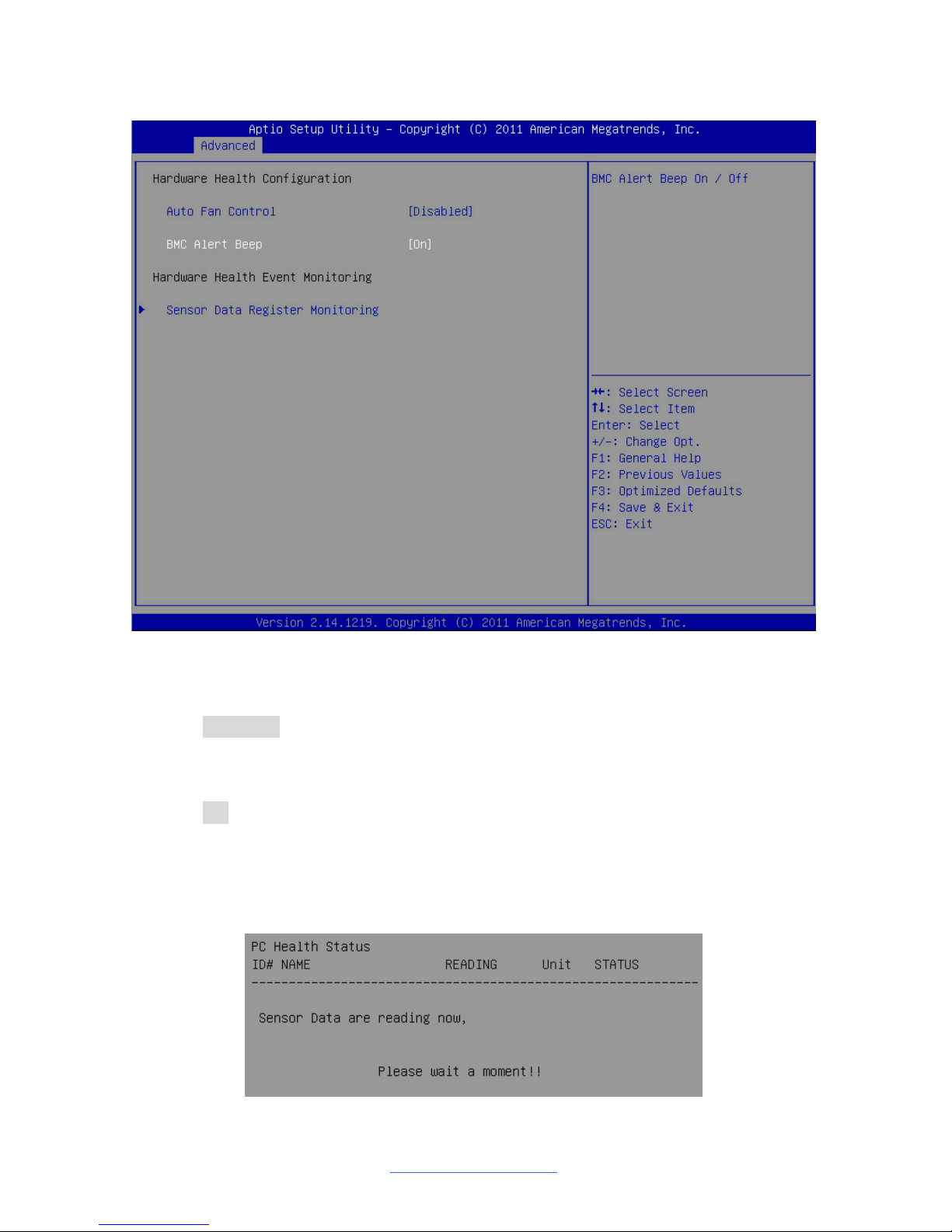

Hardware Health Configuration
Hardware health Configuration Parameters.
Super IO Configuration
System Super IO Chip Parameters.

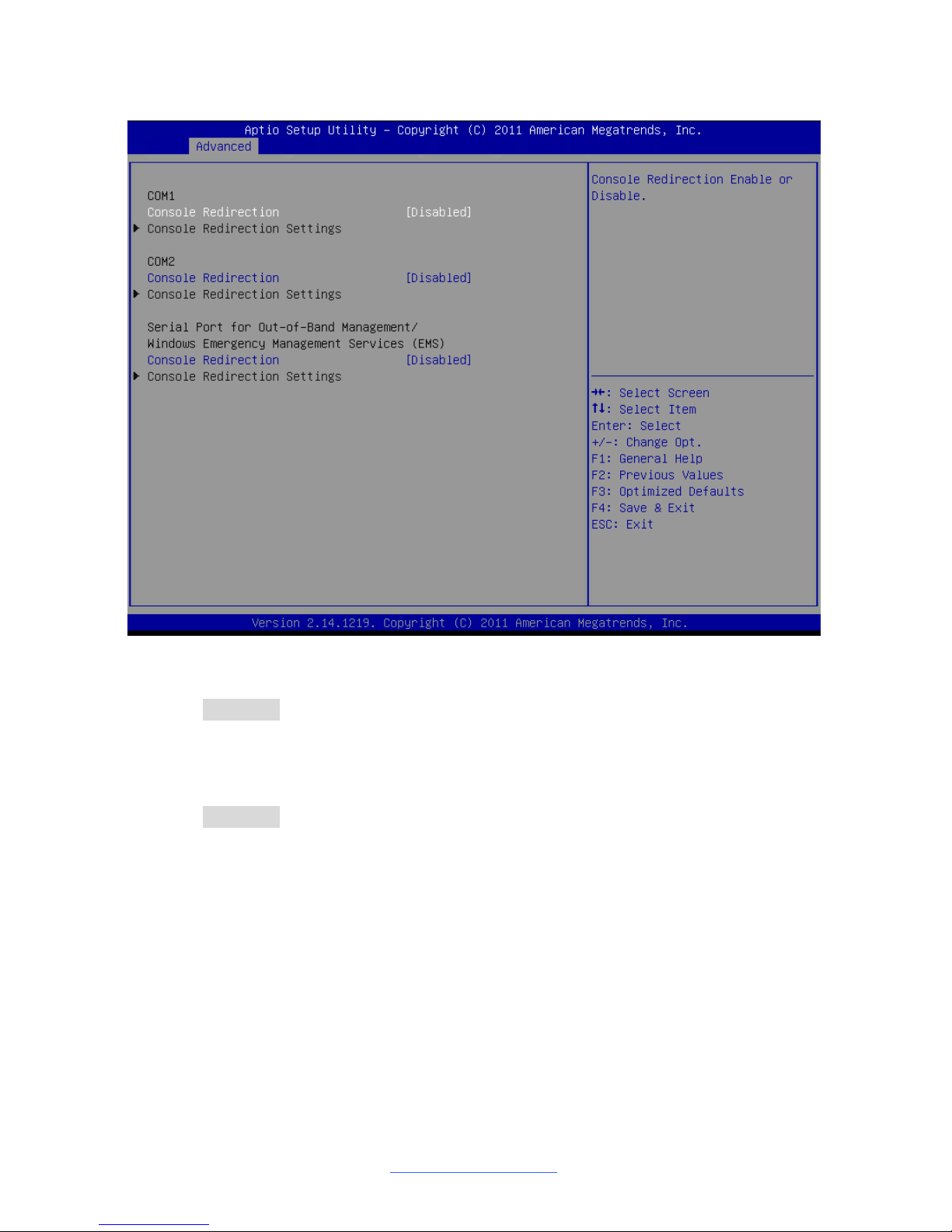

Serial Port Console Redirection
Serial Port Console Redirection.
Page 50
http://www.tyan.com
50
3.3.1 ACPI Settings
Enable ACPI Auto Configuration
Enable or disable BIOS ACPI Auto Configuration.
Disabled / Enabled
Enable Hibernation
Enables or disables System ability to Hibernate (OS/S4 Sleep State). This option
may not be effective with some OS.
Disabled / Enabled
ACPI Sleep State
Select the ACPI sleep state the system will enter when the SUSPEND button is
pressed.
Suspend Disabled / S1 only(CPU Stop Clock)
Page 51
http://www.tyan.com
51

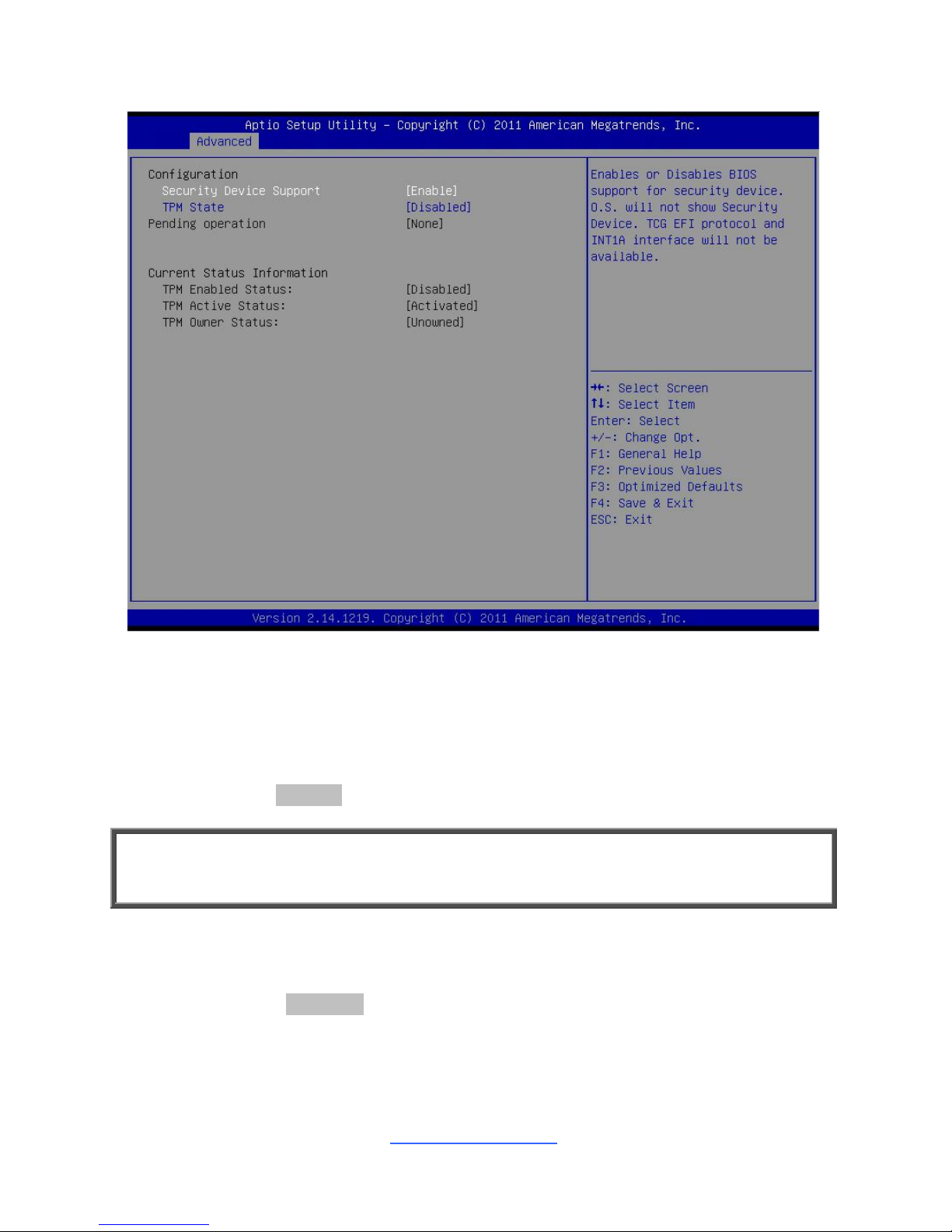

3.3.2 Trusted Computing (optional function)
NOTE: If no TPM chipset is on, the Trusted Computing submenu will not appear.
Security Device Support
Enable or disable BIOS support for security device. O.S. will not show Security
device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface
will not be available.
Enable / Disable
NOTE:
The following BIOS items are available only when Security Device Support is set
to [Enable].
TPM State
Enable/Disable security Device. NOTE: Your computer will reboot during restart in
order to change State of the device.
Enabled / Disabled
Pending Operation
Read only.
Page 52
http://www.tyan.com
52
Current Status Information
Read only.
Page 53
http://www.tyan.com
53
3.3.3 CPU Configuration
CPU Speed / 64-bit
Read only.
Hyper Threading
Enabled for Windows XP and Linux (OS optimized for Hyper Threading Technology)
and disabled for other OS (OS not optimized for Hyper Threading Technology).
When disabled only one thread per enabled core is enabled.
Enabled / Disabled
Active Processor Cores
Number of cores to enable in each processor package.
All / 1 / 2 / 4 / 6
Limit CPUID Maximum
Disabled for Windows XP.
Disabled / Enabled
Page 54
http://www.tyan.com
54
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux
9.2, RedHat Enterprise 3 Update 3).
Enabled / Disabled
Intel Virtualization Technology
When enabled, a VMM can utilize the additional hardware capabilities provided by
Vanderpool Technology.
NOTE: Once the lock bit is set, the contents of this register can not be modified until
S5 reset occurs.
Enabled / Disabled
Page 55
http://www.tyan.com
55

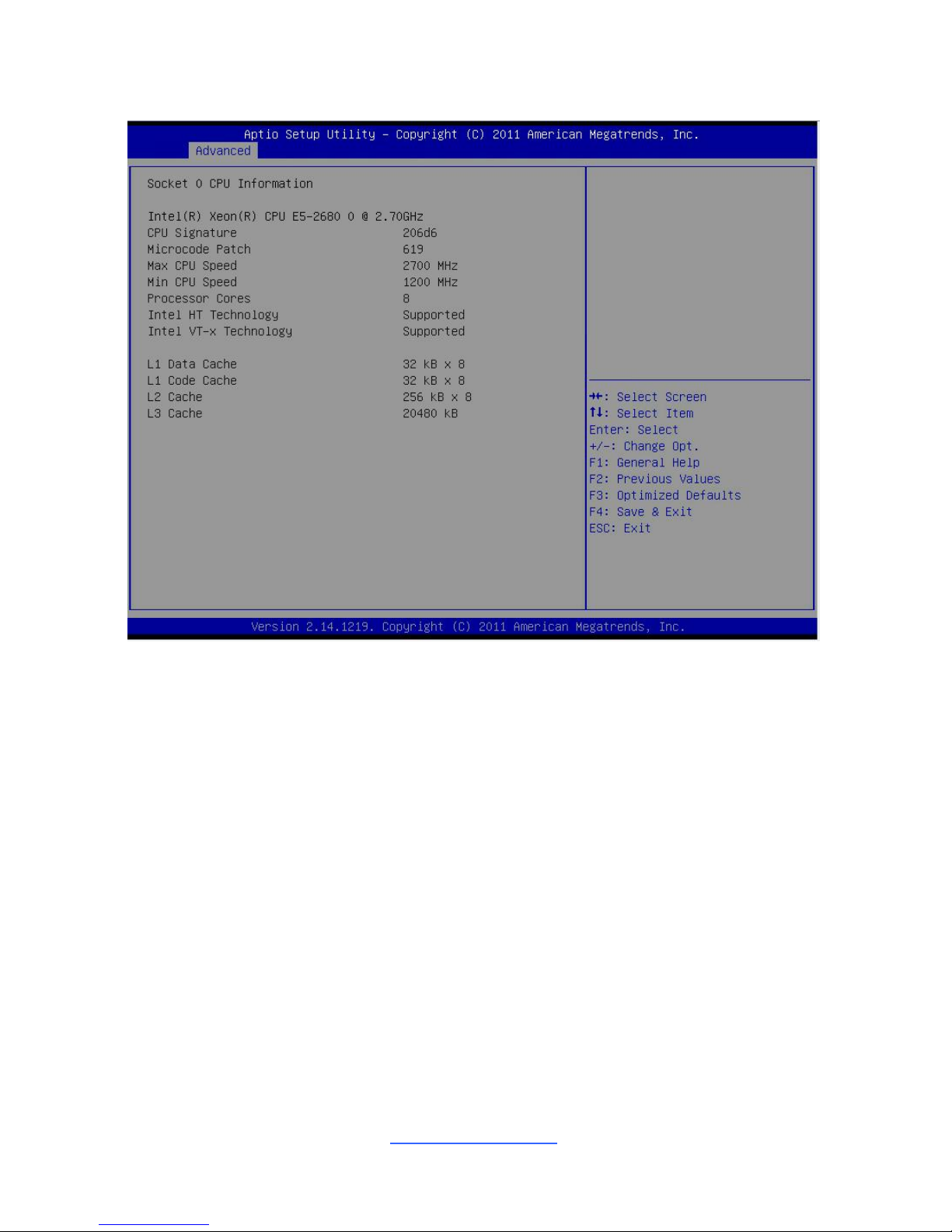

3.3.3.1 Socket 0/1 CPU Information
Read only.
Page 56
http://www.tyan.com
56

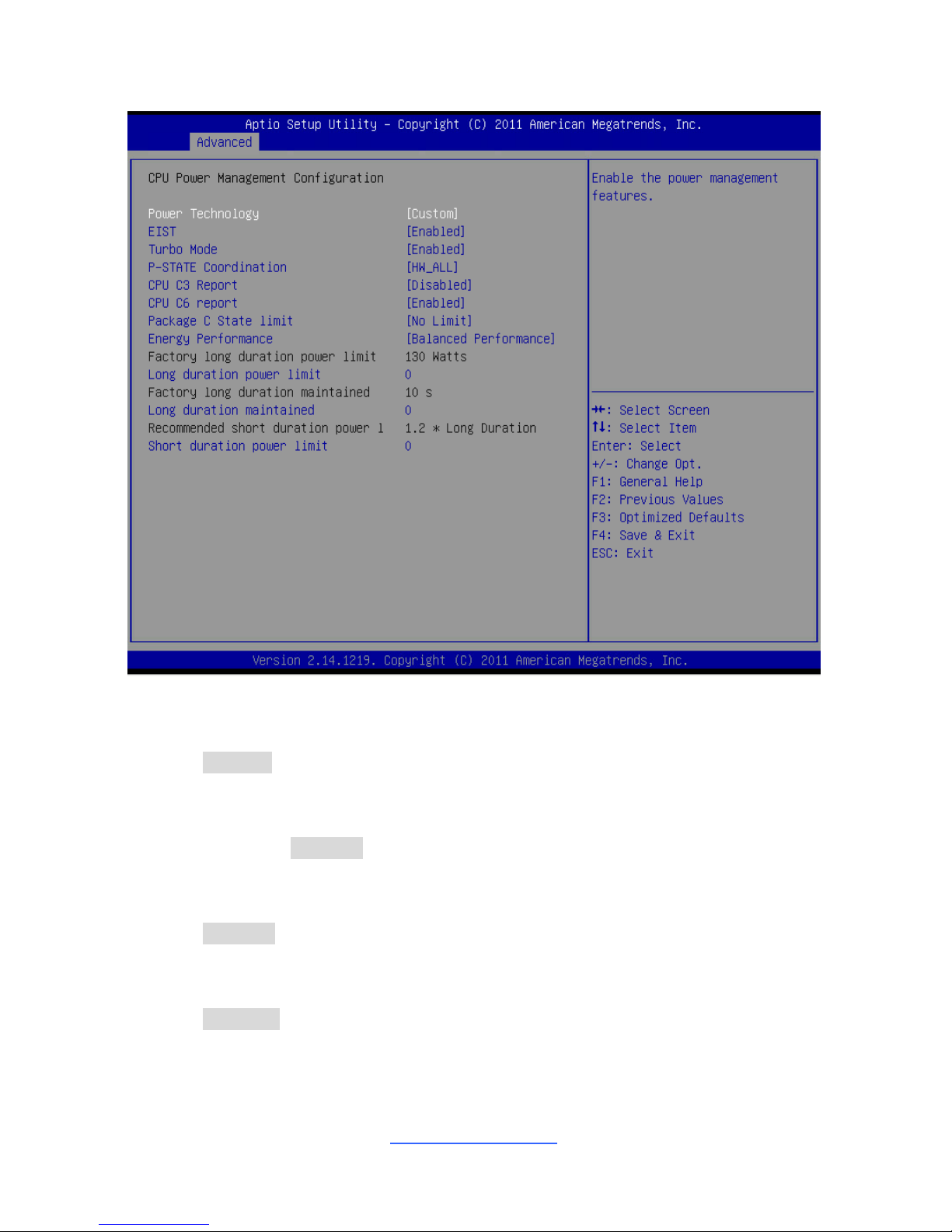

3.3.3.2 CPU Power Management Configuration
Power Technology
Enable the power management features.
Custom / Disabled / Energy Efficient
EIST
Enable/Disable Intel SpeedStep.
Disabled / Enabled
Turbo Mode
Enable/Disable Turbo Mode.
Enabled / Disabled
P-STATE Coordination
Change P-State coordination type.
HW_ALL / SW_ALL / SW_ANY
Page 57
http://www.tyan.com
57
CPU C3 Report
Enable/Disable CPU Core C3 report to OS.
Disabled / Enabled
CPU C6 Report
Enable/Disable CPU Core C6 report to OS.
Enabled / Disabled
Package C State Limit
Package C State Limit.
No Limit / C0 / C2 / C6 / C7
Energy Performance
Optimize between performance and power savings. Windows 2008 and later OSes
override this value according to its power plan.
Performance / Balanced performance / Balanced Energy / Energy
Efficient
Factory Long Duration Power Limit
Read only.
Long Duration Power Limit
Long duration power limit in Watts.
Factory Long Duration Maintained
Read only.
Long Duration Maintained
Time window which the long duration power is maintained.
Recommended short duration power limit
Read only.
Short duration power limit
Short duration power limit in Watts.
Page 58
http://www.tyan.com
58

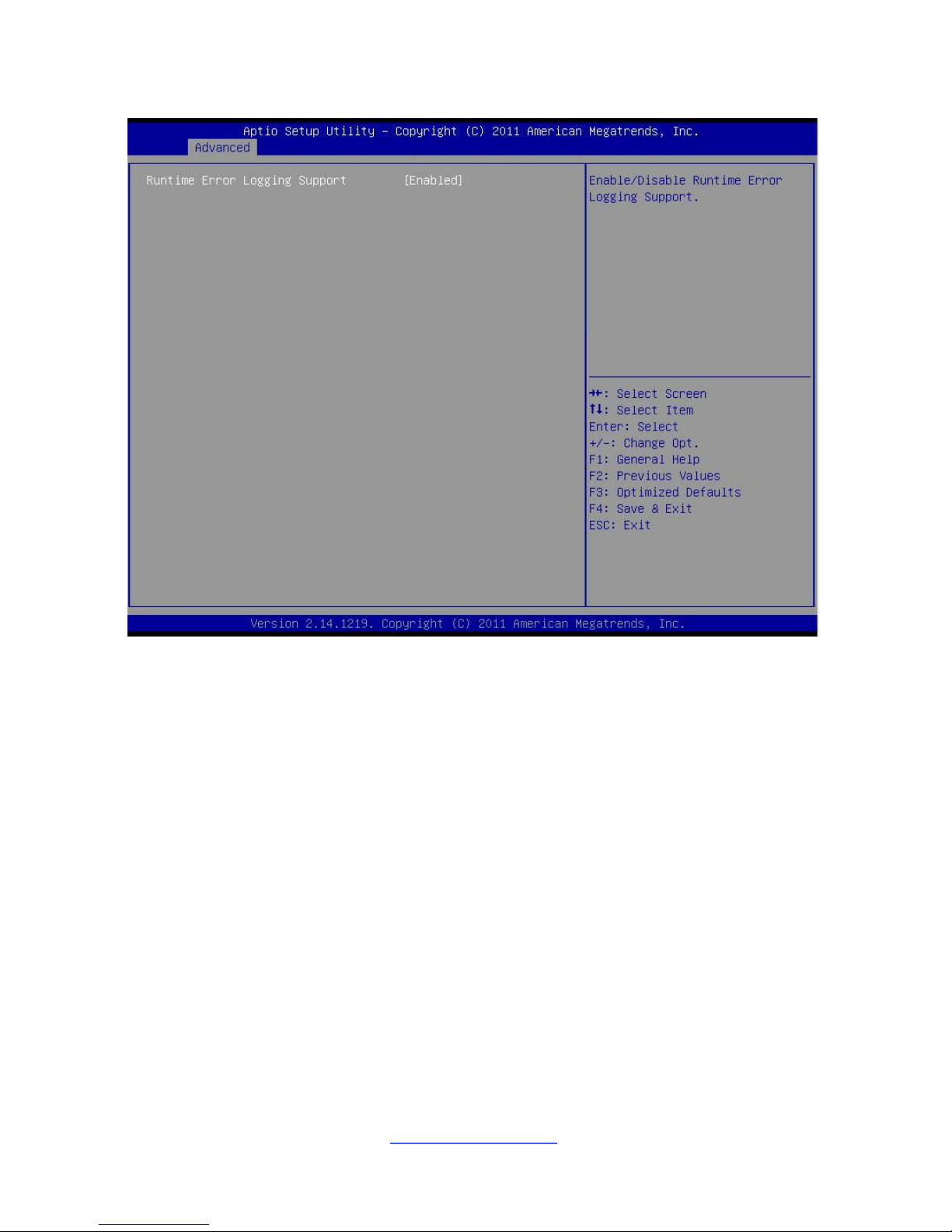

3.3.4 Runtime Error Logging
Runtime Error Logging Support
Enable/Disable Runtime Error logging Support.
Page 59
http://www.tyan.com
59
3.3.5 SATA Configuration
SATA Mode
Select SATA Mode.
IDE Mode / AHCI Mode / RAID Mode / Disabled
Port 0/1/2/3/4/5 Hot Plug
Enable/Disable SATA Ports Hot Plug Support.
Enabled / Disabled
Port 0/1/2/3/4/5 Staggered Spin-up
AHCI Supports Staggered Spin-up.
Enabled / Disabled
Page 60
http://www.tyan.com
60
3.3.6 Onboard Device Configuration
VGA
Enabled/Disabled the VGA in the Chipset.
Enabled / Disabled
LAN i350
Enable or disable the LAN controller.
Enabled / Disabled
LAN1 OPROM
Enabled/Disabled the LAN Option ROM in the Chipset.
Disabled / PXE / ISCSI
NOTE: The ISCSI function is only supported in LAN1.
LAN2 OPROM
Enabled/Disabled the LAN Option ROM in the Chipset.
Disabled / PXE
LAN 82574
Enable or disable the LAN controller.
Enabled / Disabled
Page 61
http://www.tyan.com
61
LAN3 OPROM
Enabled/Disabled the LAN Option ROM in the Chipset.
Disabled / PXE
LSI2308 OPROM
Enabled/Disabled LSI2308 OPROM in the Chipset.
Disabled / PXE
Page 62
http://www.tyan.com
62
3.3.7 PCIe Slot Configuration
Left PCIe SLOT1 OPTROM
Enabled/Disabled OPTROM for PCIe slot.
Enabled / Disabled
Right PCIe SLOT2 OPTROM
Enabled/Disabled OPTROM for PCIe slot.
Enabled / Disabled
Left PCIe SLOT1 LINK SPEED
Select target Link Speed Gen1, Gen2 or Gen3
GEN1 / GEN2 / GEN3
Right PCIe SLOT2 LINK SPEED
Enabled/Disabled OPTROM for PCIe slot.
GEN1 / GEN2 / GEN3
Page 63
http://www.tyan.com
63
3.3.8 USB Configuration
Legacy USB Support
Enable USB legacy support. AUTO option disables legacy support if no USB
devices are connected. DISABLE option will keep USB devices available only for
EFI applications.
Enabled / Disabled / Auto
USB transfer time-out
The time-out value for Control, Bulk and Interrupt transfers.
20 sec / 10 sec / 5 sec / 1 sec
Device reset time-out
USB mass storage device Start Unit command time-out.
20 sec / 10 sec / 30 sec / 40 sec
Device power-up delay
Maximum time the device will take before it properly reports itself to the Host
Controller. AUTO uses default value: for a Root port it is 100 ms, for a Hub port the
delay is taken from Hub descriptor.
Auto / Manual
Page 64
http://www.tyan.com
64
3.3.9 Hardware Health Configuration
Auto Fan Control
Select [Disabled] to allow the fan speed running FULL ON.
Disabled / Enabled
BMC Alert Beep
BMC Alert Beep On/Off.
On / Off
3.3.9.1 Sensor Data Register Monitoring
When you enter the Sensor Data Register Monitoring submenu, you will see the
following dialog window pop out. Please wait 8~10 seconds.
NOTE 1: SDR can not be modified. Read only.
Page 65
http://www.tyan.com
65
Page 66
http://www.tyan.com
66
3.3.10 Super IO Configuration
Super IO Chip
Read only.
Page 67
http://www.tyan.com
67
3.3.10.1 Serial Port 1/2 Configuration
Serial Port
Enable or disable Serial Port (COM).
Enabled / Disabled
Device Settings
Read only.
Change Settings
Select an optimal setting for Super IO Device.
Auto / IO=3F8h; IRQ=4;
/ IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Change Settings
SUART clock source.
24MHz/13 / 24MHz
Page 68
http://www.tyan.com
68
3.3.11 Serial Port Console Redirection
Console Redirection
Console redirection enable or disable.
Disabled / Enabled
Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS)
Console Redirection
Console redirection enable or disable.
Disabled / Enabled
Console Redirection Settings
The settings specify how the host computer (which the user is using) will exchange
data. Both computers should have the same or compatible settings.
NOTE: Console Redirection Settings menu only appear when Console
Redirection was set to [Enabled].
Page 69
http://www.tyan.com
69
3.3.11.1 Console Redirection Settings
Terminal Type
Emulation: ANSI: Extended ASCII charset.
VT100: ASCII charset.
VT100+: Extends VT100 to support color function keys, etc.
VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.
[VT100] / [VT100+] / [VT-UTF8] / [ANSI]
Default is [VT100+]
VT-UTF8 / VT100 / VT100+ / ANSI
Bits per Second
Select serial port transmission speed. The speed must be matched on the other
side. Long or noisy lines may require lower speeds.
38400 / 9600 / 19200 / 115200 / 57600
Data Bits
8 / 7
Parity
A parity bit can be sent with the data bits to detect some transmission errors. Even:
parity bit is 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num
Page 70
http://www.tyan.com
70
of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always
0. Mark and Space parity do not allow for error detection.
None / Even / Odd / Mark / Space
Stop Bits
Stop bits indicate the end of a serial data packet. (A start bit indicates the
beginning). The standard setting is 1 stop bit. Communication with slow devices
may require more than 1 stop bit.
1 / 2
Flow Control
Flow Control can prevent data loss from buffer overflow. When sending data, if the
receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the
buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow
control uses two wires to send start/stop signal.
None / Hardware RTS/CTS
VT-UTF8 Combo Key Support
Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals.
Enabled / Disabled
Recorder Mode
With this mode enabled only text will be sent. This is to capture Terminal data.
Disabled / Enabled
Resolution 100x31
Enable or disable extended terminal resolution.
Disabled / Enabled
Legacy OS Redirection Resolution
On Legacy OS, the number of rows and columns supported redirection.
80x24 / 80x25
Putty KeyPad
Select FunctionKey and KeyPad on Putty.
VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400
Redirection After BIOS POST
The settings specify if bootloader is selected than Legacy console redirection is
disabled before booting to Legacy OS. Default value is always enable means
Legacy.
Always enable / Bootloader
Page 71
http://www.tyan.com
71
3.3.11.2 Serial Port for Out-Of-Band Management/Windows Emergency
Services (EMS) Console Redirection Settings
Out-of Band Mgmt Port
Microsoft Windows Emergency Management Services (EMS) allows for remote
management of a Windows Server OS through a serial port.
COM1 / COM2
Terminal Type
VT-UTF8 is the preferred terminal type for out-of-band management. The next best
choice is VT100+ and then VT100. See above, in Console Redirection Settings
page, for more Help with Terminal Type/Emulation.
VT-UTF8 / VT100 / VT100+ / ANSI
Bits per Second
Select serial port transmission speed. The speed must be matched on the other
side. Long or noisy lines may require lower speeds.
115200 / 9600 / 19200 / 38400 / 57600
Flow Control
Flow Control can prevent data loss from buffer overflow. When sending data, if the
receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the
Page 72
http://www.tyan.com
72
buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow
control uses two wires to send start/stop signal.
None / Hardware RTS/CTS
Data Bits / Parity / Stop Bits
Read only.
Page 73
http://www.tyan.com
73
3.4 Chipset Menu
North Bridge
North Bridge Parameters.
South Bridge
South Bridge Parameters.
WatchDog Timer Configuration
WatchDog Timer Configuration.
Page 74
http://www.tyan.com
74
3.4.1 North Bridge
Total Memory / Current Memory Mode / Current Memory Speed / Mirroring /
Sparing
Read only.
Memory Mode
Select the mode for memory initialization.
Independent / Mirroring / Lock Step / Sparing
NUMA
Enable or Disable Non uniform Memory Access (NUMA).
Enabled / Disabled
MPST Support
Enable or Disable MPST Support. Along with enabling MPST Support, it also
requires NUMA to be enabled and Channel Interleaving to be set to 1-way for
MPST tables to be published.
Disabled / Enabled
Page 75
http://www.tyan.com
75
DDR Speed
Force DDR Speed.
Auto / Force DDR3 800 / Force DDR3 1066 / Force DDR3 1333 / Force
DDR3 1600
Page 76
http://www.tyan.com
76
3.4.1.1 IOH Configuration Submenu
Intel
®
I/OAT
Enable/Disable Intel® I/O Acceleration Technology (I/OAT).
Disabled / Enabled
VGA Priority
Decide the priority between onboard and its offboard video device found.
Offboard / Onboard
IOH Resource Selection Type
Allow to select Auto/Manual. When Auto option is selected PCI resource allocation
across multiple IOHs is optimized automatically based on the PCI devices present.
With Manual option user can force the PCI resource allocation across multiple IOHs
based on the ratios selected.
Auto / Manual
MMIOH Size
Select number of 1GB contiguous regions to be assigned MMIOH space per CPU.
64G / 1G / 2G / 4G / 8G / 16G / 32G / 64G / 128G
Page 77
http://www.tyan.com
77
MMCFG Base
Select the MMCFG BASE Values.
0x80000000 / 0xA0000000 / 0xC0000000
Page 78
http://www.tyan.com
78
3.4.1.1.1 Intel® VT for Directed I/O Configuration Submenu
Intel
®
VT-d
Enable/Disable Intel
®
Virtualization Technology Directed I/O.
Disabled / Enabled
NOTE: The following items will appear when Intel
®
VT-d is set to [Enabled].
Coherency Support
Enable/Disable VT-d Engine Coherency Support.
Disabled / Enabled
ATS Support
Enable/Disable VT-d Engine Address Translation Services support.
Enabled / Disabled
Page 79
http://www.tyan.com
79
3.4.1.2 QPI Configuration Submenu
QPI Link Speed Mode
Select the QPI link speed as either the Fast Mode or the Slow Mode.
Fast / Slow
QPI Link Frequency Select
Select the QPI Link Frequency.
Auto / 6.4GT/s / 7.2GT/s / 8.0GT/s
Page 80
http://www.tyan.com
80
3.4.1.3 DIMM Information Submenu
Read only.
Page 81
http://www.tyan.com
81
3.4.2 South Bridge
PCH Information
Read only.
Restore AC Power Loss
Specify what state to go to when power is re-applied after a power failure (G3 state).
Power Off / Power On / Last State
SLP_S4 Assertion Stretch Enable
Enabled/Disabled SLP_S4# Assertion Stretch.
Enabled / Disabled
SLP_S4 Assertion Width
Select a minimum assertion width of the SLP_S4# signal.
4-5 Seconds / 1-2 Seconds / 2-3 Seconds / 3-4 Seconds
Chassis Intrusion Detection
Enabled: When a chassis open event is detected, the BIOS will display the event.
Disabled / Enabled
Page 82
http://www.tyan.com
82
3.4.3 WatchDog Timer Configuration
Watch Dog Mode
Watch Dog Mode Help.
Disabled / POST / OS / PowerON
NOTE: Watch Dog Timer will appear when Watch Dog Mode is set to
[POWERON].
Watch Dog Timer
Watch Dog Timer Help.
2 MINS / 4 MINS / 6 MINS / 8 MINS / 10 MINS
Page 83
http://www.tyan.com
83
3.5 Boot
Bootup NumLock State
Select the keyboard NumLock state.
Off / On
Quiet Boot
Enable or disable Quiet Boot option.
Disabled / Enabled
Option ROM Messages
Select display mode for Option ROM.
Force BIOS / Keep Current
INT19 Trap Response
BIOS reaction on INT19 trapping by option ROM: IMMEDIATE-execute the trap
right away; POSTPONED-execute the trap during legacy boot.
Immediate / Postponed
Endless Boot
Enable or disable Endless Boot.
Disabled / Enabled
Page 84
http://www.tyan.com
84
Boot Option #1/Boot Option #2
Select the first boot device.
Device Name / Disabled
3.5.1 Hard Drive BBS Priorities Configuration
Boot Option #1
Sets the system boot order.
Device Name / Disabled
Page 85
http://www.tyan.com
85

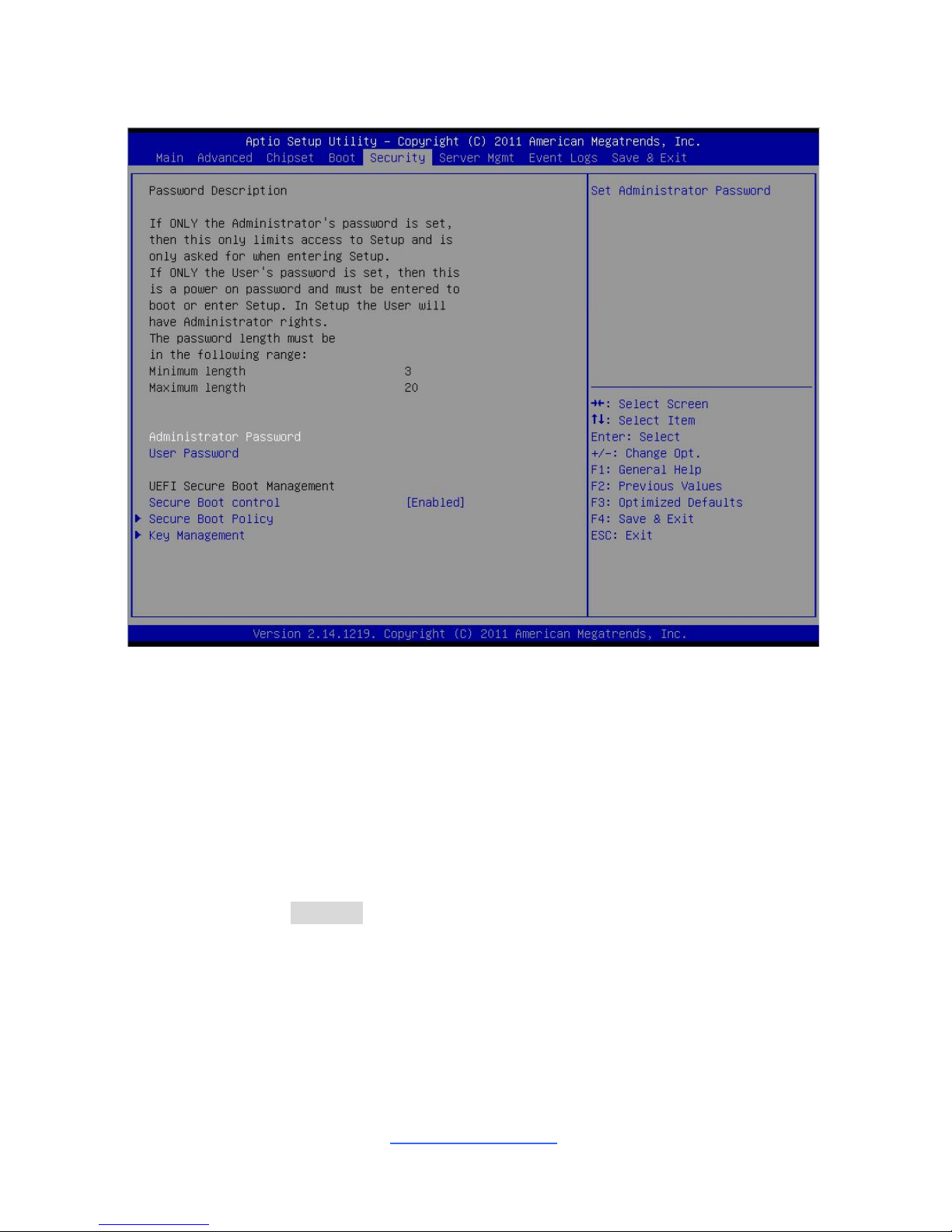

3.6 Security
Administrator Password
Set administrator password in the Create New Password window. After you key in
the password, the Confirm New Password window will pop out to ask for
confirmation.
User Password
Set user password in the Create New Password window. After you key in the
password, the Confirm New Password window will pop out to ask for confirmation.
Secure Boot control
Secure boot flow control. Secure boot is possible only if system runs in user mode.
Disabled / Enabled
Page 86
http://www.tyan.com
86
3.6.1 Secure Boot Policy Configuration
Internal FV
Image Execution policy on security violation. Image load device path.
Always Execute
Option ROM/Removable Media/Fixed Media
Image Execution policy on security violation. Image load device path.
Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute /
Query User
Page 87
http://www.tyan.com
87
3.6.2 Key Management
Set PK from File / Get PK to File
Launches the Filebroswer to set the Platform Key from file.
Delete the PK
Deletes the platform Key
Set KEK from File
Launches the Filebroswer to set the Key Exchange Key signature database from
file.
Get KEK to File
Stores the existing Key exchange Key signature database to file name KEK in
selected filesystem’s root
Delete the KEK
Deletes Key exchange Key signature database
Page 88
http://www.tyan.com
88
Append an entry to KEK
Launches the Filebroswer to append the Key Exchange Key signature database
entry from file.
Set DB from File
Launches the Filebroswer to set the Authorized Signature Database from file.
Get DB to File
Stores the existing Authorized Signature Database to file name DB in selected
filesystem’s root
Delete the DB
Deletes the Authorized Signature Database
Append an entry to DB
Launches the Filebroswer to append the Authorized Signature Database entry from
file.
Set DBX from File
Launches the Filebroswer to set the Forbidden signature Database from file.
Get DBX to File
Stores the existing Forbidden Signature Database to file name DB in selected
filesystem’s root
Delete the DBX
Deletes the Forbidden Signature Database
Append an entry to DBX
Launches the Filebroswer to append the Forbidden Signature Database entry from
file.
Page 89
http://www.tyan.com
89
3.7 Server Management
Press <Enter> to change the SEL event log configuration.
Enable/Disable interfaces to communicate with BMC.
Page 90
http://www.tyan.com
90
3.7.1 System Event Log
SEL Components
Change this to enable or disable all features of System Event Logging during boot.
Disabled / Enabled
Erase SEL
Choose options for erasing SEL.
No / Yes, on next reset / No, on every reset
When SEL is Full
Choose options for reactions to a full SEL.
Do Nothing / Erase Immediately
Log EFI Status Codes
Disable the logging of EFI Status Codes or log only error code or only progress
code or both.
Both / Disabled / Error Code / Progress Code
Page 91
http://www.tyan.com
91
3.7.2 BMC Network Configuration
Configuration Address Source
Select the configure LAN channel parameters statically or dynamically (by BIOS or
BMC). Unspecified option will not modify any BMC network parameters during BIOS
phase.
Do Nothing / Static / Dynamic-Obtained by BMC
Page 92
http://www.tyan.com
92
3.8 Event Logs
Page 93
http://www.tyan.com
93
3.9 Save & Exit
Save Changes and Exit
Exit system setup after saving the changes.
Discard Changes and Exit
Exit system setup without saving any changes.
Save Changes and Reset
Reset the system after saving the changes.
Discard Changes and Reset
Reset system setup without saving any changes.
Save Options
Read only.
Save Changes
Save changes done so far to any of the setup options.
Discard Changes
Discard changes done so far to any of the setup options.
Page 94
http://www.tyan.com
94
Restore Defaults
Restore/Load Default values for all the setup options.
Save as User Defaults
Save the changes done so far as User Defaults.
Restore User Defaults
Restore the User Defaults to all the setup options.
Page 95
http://www.tyan.com
95
Chapter 4: Diagnostics
NOTE: if you experience problems with setting up your system, always check the
following things in the following order:
Memory, Video, CPU
By checking these items, you will most likely find out what the problem might have
been when setting up your system. For more information on troubleshooting, check
the TYAN website at http://www.tyan.com
.
4.1 Flash Utility
Every BIOS file is unique for the motherboard it was designed for. For Flash
Utilities, BIOS downloads, and information on how to properly use the Flash Utility
with your motherboard, please check the TYAN web site at http://www.tyan.com
NOTE: Please be aware that by flashing your BIOS, you agree that in the
event of a BIOS flash failure, you must contact your dealer for a replacement
BIOS. There are no exceptions. TYAN does not have a policy for replacing
BIOS chips directly with end users. In no event will TYAN be held responsible
for damages done by the end user.
Page 96
http://www.tyan.com
96
4.2 AMIBIOS Post Code (Aptio)
The POST code checkpoints are the largest set of checkpoints during the BIOS preboot process. The following table describes the type of checkpoints that may occur
during the POST portion of the BIOS:
Checkpoint Ranges
Status Code Range Description
0x01 – 0x0B SEC execution
0x0C – 0x0F Sec errors
0x10 – 0x2F PEI execution up to and including memory detection
0x30 – 0x4F PEI execution after memory detection
0x50 – 0x5F PEI errors
0x60 – 0x8F DXE execution up to BDS
0x90 – 0xCF BDS execution
0xD0 – 0xDF DXE errors
0xE0 – 0xE8 S3 Resume (PEI)
0xE9 – 0xEF S3 Resume errors (PEI)
0xF0 – 0xF8 Recovery (PEI)
0xF9 – 0xFF Recovery errors (PEI)
Standard Checkpoints
SEC Phase
Status Code Description
0x00 Note used
Progress Codes
0x01 Power on. Reset type detection (soft/hard).
0x02 AP initialization before microcode loading
0x03 North Bridge initialization before microcode loading
0x04 South Bridge initialization before microcode loading
0x05 OEM initialization before microcode loading
0x06 Microcode loading
0x07 AP initialization after microcode loading
0x08 North Bridge initialization after microcode loading
0x09 South Bridge initialization after microcode loading
0x0A OEM initialization after microcode loading
0x0B Cache initialization
Page 97
http://www.tyan.com
97
SEC Error Codes
0x0C – 0x0D Reserved for future AMI SEC error codes
0x0E Microcode not found
0x0F Microcode not found
SEC Phase
None
PEI Phase
Status Code Description
Progress Codes
0x10 PCI Core is started
0x11 Pre-memory CPU initialization is started
0x12 Pre-memory CPU initialization (CPU module specific)
0x13 Pre-memory CPU initialization (CPU module specific)
0x14 Pre-memory CPU initialization (CPU module specific)
0x15 Pre-memory North Bridge initialization is started
0x16
Pre-Memory North Bridge initialization (North Bridge module
specific)
0x17
Pre-memory North Bridge initialization (North Bridge module
specific)
0x18
Pre-Memory North Bridge initialization (North Bridge module
specific)
0x19 Pre-memory South Bridge initialization is started
0x1A
Pre-Memory South Bridge initialization (South Bridge module
specific)
0x1B
Pre-memory South Bridge initialization (South Bridge module
specific)
0x1C
Pre-Memory South Bridge initialization (South Bridge module
specific)
0x1D – 0x2A OEM pre-memory initialization codes
0x2B Memory initialization. Serial Presence Detect (SPD) data reading
0x2C Memory initialization. Memory presence detection
0x2D Memory initialization. Programming memory timing information
0x2E Memory initialization. Configuring memory
0x2F Memory initialization (other)
0x30 Reserved for ASL (see ASL Status Codes section below)
0x31 Memory Installed
0x32 CPU post-memory initialization is started.
0x33 CPU post-memory initialization. Cache initialization
0x34
CPU post-memory initialization. Application Processor(s) (AP)
initialization
Page 98
http://www.tyan.com
98
Status Code Description
0x35
CPU post-memory initialization. Boot Strap Processor (BSP)
selection
0x36
CPU post-memory initialization. System Management Mode (SMM)
initialization
0x37 Post-Memory North Bridge initialization is started.
0x38
Post-Memory North Bridge initialization (North Bridge module
specific)
0x39
Post-Memory North Bridge initialization (North Bridge module
specific)
0x3A
Post-Memory North Bridge initialization (North Bridge module
specific)
0x3B Post-Memory South Bridge initialization is started
0x3C
Post-Memory South Bridge initialization (South Bridge module
specific)
0x3D
Post-Memory South Bridge initialization (South Bridge module
specific)
0x3E
Post-Memory South Bridge initialization (South Bridge module
specific)
0x3F – 0x4E OEM post memory initialization codes
0x4F DXE PIL is started
PCI Error Codes
0x50
Memory initialization error. Invalid memory type or incompatible
memory speed
0x51 Memory initialization error. SPD reading has failed.
0x52
Memory initialization error. Invalid memory size or memory modules
do not match.
0x53 Memory initialization error. No usable memory detected
0x54 Unspecified memory initialization error
0x55 Memory not installed
0x56 Invalid CPU type or speed
0x57 CPU mismatch
0x58 CPU self test failed or possible CPU cache error
0x59 CPU microcode is not found or microcode update is failed.
0x5A Internal CPU error
0x5B Reset PPI is not available.
0x5C – 0x5F Reserved for future AMI error codes
S3 Resume Progress Codes
0xE0 S3 Resume is started (S3 Resume PPI is called by the DXE IPL).
0xE1 S3 Boot Script execution
0xE2 Video repost
0xE3 OS S3 wake vector call
0xE4 – 0xE7 Reserved for future AMI progress codes
Page 99
http://www.tyan.com
99
Status Code Description
S3 Resume Error Codes
0xE8 S3 Resume failed
0xE9 S3 Resume PPI not found
0xEA S3 Resume Boot Script error
0xEB S3 OS wake error
0xEC – 0xEF Reserved for future AMI error codes
Recovery Progress Codes
0xF0 Recovery condition triggered by firmware (Auto recovery)
0xF1 Recovery condition triggered by user (forced recovery)
0xF2 Recovery process started
0xF3 Recovery firmware image is found.
0xF4 Recovery firmware image is loaded.
0xF5 – 0xF7 Reserved for future AMI progress codes
Recovery Error Codes
0xF8 Recovery PPI is not available.
0xF9 Recovery capsule is not found.
0xFA Invalid recovery capsule
0xFB – 0xFF Reserved for future AMI error codes
PEI Beep Codes
# of Beeps Description
Progress Codes
1 Memory not installed
1
Memory was installed twice (installPEIMemory routine in PEI Core
called twice).
2 Recovery started
3 DXEIPL was not found.
3 DXE Core Firmware Volume was not found.
4 Recovery failed
4 S3 Resume failed
7 Reset PPI is not available.
DXE Phase
Status Code Description
0x60 DXE Core is started.
0x61 NVRAM initialization
0x62 Installation of the South Bridge Runtime Services
Page 100
http://www.tyan.com
100
Status Code Description
0x63 CPU DXE initialization is started.
0x64 CPU DXE initialization (CPU module specific)
0x65 CPU DXE initialization (CPU module specific)
0x66 CPU DXE initialization (CPU module specific)
0x67 CPU DXE initialization (CPU module specific)
0x68 PCI host bridge initialization
0x69 North Bridge DXE initialization is started.
0x6A North Bridge DXE SMM initialization is started.
0x6B North Bridge DXE initialization (North Bridge module specific)
0x6C North Bridge DXE initialization (North Bridge module specific)
0x6D North Bridge DXE initialization (North Bridge module specific)
0x6E North Bridge DXE initialization (North Bridge module specific)
0x6F North Bridge DXE initialization (North Bridge module specific)
0x70 South Bridge DXE initialization is started.
0x71 South Bridge DXE SMM initialization is started.
0x72 South Bridge devices initialization
0x73 South Bridge DXE initialization (South Bridge module specific)
0x74 South Bridge DXE initialization (South Bridge module specific)
0x75 South Bridge DXE initialization (South Bridge module specific)
0x76 South Bridge DXE initialization (South Bridge module specific)
0x77 South Bridge DXE initialization (South Bridge module specific)
0x78 ACPI module initialization
0x79 CSM initialization
0x7A – 0x7F Reserved for future AMI DXE codes
0x80 – 0x8F OEM DXE initialization codes
0x90 Boot Device Selection (BDS) phase is started
0x91 Driver connecting is started
0x92 PCI Bus initialization is started
0x93 PCI Bus Hot Plug Controller initialization
0x94 PCI Bus Enumeration
0x95 PCI BUS Request Resources
0x96 PCI Bus Assign Resources
0x97 Console output devices connect
0x98 Console Input devices connect
0x99 Super IO initialization
0x9A USB initialization is started.
Loading...
